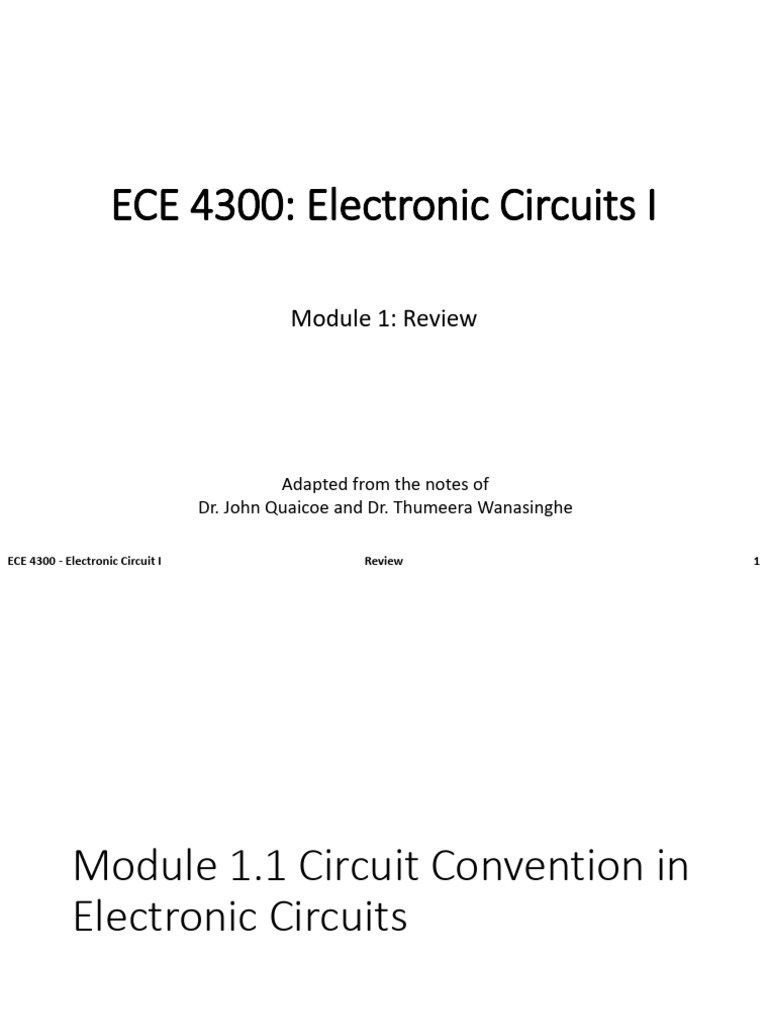

Module 1.1 Circuit Convention in Electronic Circuits
Adapted from the notes of
Dr. John Quaicoe and Dr. Thumeera Wanasinghe
ECE 4300- Electronic Circuit I Review 2
Kirchhoff's Circuit Laws Kirchhoff's circuit laws are two equalities that deal with the current and potential difference (commonly known as voltage) in the lumped element model of electrical circuits. Kirchhoffs Voltage Law or KVL, states that “in any closed loop network, the total voltage around the loop is equal to the sum of all the voltage drops within the same loop” which is also equal to zero. In other words, the algebraic sum of all voltages within the loop must be equal to zero. Kirchhoffs Current Law or KCL, states that “for any node (junction) in an electrical circuit, the sum of currents flowing into that node is equal to the sum of currents flowing out of that node; or equivalently”. In other words, the algebraic sum of currents in a network of conductors meeting at a point is zero.
ECE 4300 - Electronic Circuit I Review 3
Circuit Representations
ECE 4300 - Electronic Circuit I Review 4
Example 1.1 Consider the circuit shown below. Find all the labeled currents and voltages.
ECE 4300 - Electronic Circuit I Review 5
Example 1.1 (Cont’d)
ECE 4300 - Electronic Circuit I Review 6
Example 1.2 Consider the circuit shown below. a) Find the ratio 𝑣𝑜 /𝑣𝑠𝑖𝑔 in terms of the circuit parameters. b) Find the input resistance, 𝑅𝑖𝑛 in terms of the circuit parameters. c) If 𝑅1 = 27 𝑘Ω, 𝑅2 = 15 𝑘Ω, 𝑅𝐸 = 200 Ω, 𝑅𝐶 = 4.7 𝑘Ω, 𝑅𝐿 = 4.7 𝑘Ω, 𝑟𝜋 = 2.5 𝑘Ω, and 𝛽 = 100, find the numerical values of 𝑣𝑜 /𝑣𝑠𝑖𝑔 , 𝑅𝑖𝑛 , and 𝑅𝑜 . d) Sketch to scale the output voltage signal (𝑣𝑜 ), if the input signal (𝑣𝑠𝑖𝑔 ) is a 1 𝑘𝐻𝑧, 1 𝑚𝑉 (peak) triangular signal.
ECE 4300 - Electronic Circuit I Review 7
Example 1.2 (Cont’d) a) Find the ratio 𝑣𝑜 /𝑣𝑠𝑖𝑔 in terms of the circuit parameters.
ECE 4300 - Electronic Circuit I Review 8
Example 1.2 (Cont’d) b) Find the input resistance, 𝑅𝑖𝑛 in terms of the circuit parameters.
ECE 4300 - Electronic Circuit I Review 9
Example 1.2 (Cont’d) c) If 𝑅1 = 27 𝑘Ω, 𝑅2 = 15 𝑘Ω, 𝑅𝐸 = 200 Ω, 𝑅𝐶 = 4.7 𝑘Ω, 𝑅𝐿 = 4.7 𝑘Ω, 𝑟𝜋 = 2.5 𝑘Ω, and 𝛽 = 100, find the numerical values of 𝑣𝑜 /𝑣𝑠𝑖𝑔 , 𝑅𝑖𝑛 , and 𝑅𝑜 .
ECE 4300 - Electronic Circuit I Review 10
Example 1.2 (Cont’d) d) Sketch to scale the output voltage signal (𝑣𝑜 ), if the input signal (𝑣𝑠𝑖𝑔 ) is a 1 𝑘𝐻𝑧, 1 𝑚𝑉 (peak) triangular signal.
ECE 4300 - Electronic Circuit I Review 11
Example 1.3 a) For the circuit shown below, find the equivalent resistance at terminals a-b. b) Repeat (a) if 𝑅1 is 1.2 𝑘Ω
ECE 4300 - Electronic Circuit I Review 12
Example 1.3 (Cont’d) b) Repeat (a) if 𝑅1 is 1.2 𝑘Ω
ECE 4300 - Electronic Circuit I Review 13
Example 1.3 (Cont’d)
ECE 4300 - Electronic Circuit I Review 14
Module 1.2 The Principle of Superposition in Electronic Circuits
Adapted from the notes of
Dr. John Quaicoe and Dr. Thumeera Wanasinghe
ECE 4300 - Electronic Circuit I Review 15
Superposition of DC and AC Power Sources (Signals)
•T
• The capacitor is considered to be open circuit to DC
source • The capacitor is considered to be short circuit to AC source (signals)
ECE 4300 - Electronic Circuit I Review 16
DC Analysis • Set all AC source to zero • Capacitors block DC currents
ECE 4300 - Electronic Circuit I Review 17
AC Analysis • Set all DC source to zero • AC currents go through capacitors
ECE 4300 - Electronic Circuit I Review 18
Superposition
ECE 4300 - Electronic Circuit I Review 19
Example 1.4 The circuit below contains a nonlinear device (electronic device), D. The device can be modeled as a 0.7 𝑉 drop when it is conducting DC current. With an AC signal applied to the device, it can be modeled as a linear resistor, 𝑟𝑑 = 85 Ω. Determine and sketch the output signal vo,, if 𝑣𝑠 is a 1 𝑘𝐻𝑧, 20 𝑚𝑉 (peak-peak) sinusoidal signal. Assume that 𝐶 is very large.
