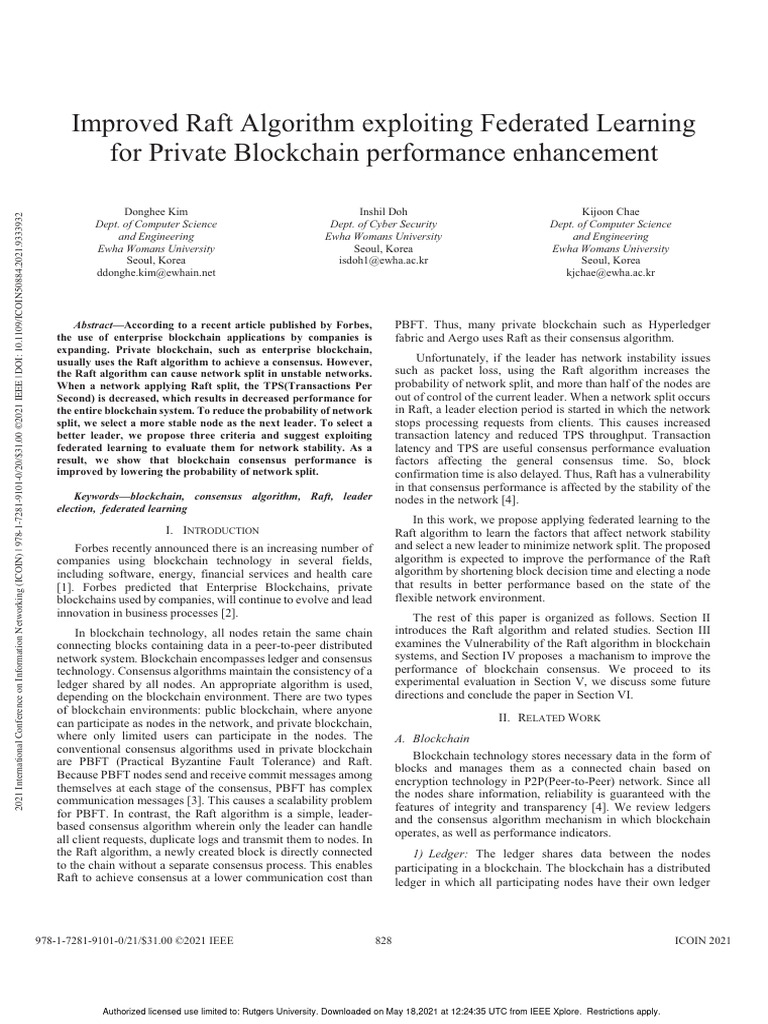

Improved Raft Algorithm exploiting Federated Learning
for Private Blockchain performance enhancement
Donghee Kim
2021 International Conference on Information Networking (ICOIN) | 978-1-7281-9101-0/20/$31.00 ©2021 IEEE | DOI: 10.1109/ICOIN50884.2021.9333932
Dept. of Computer Science Dept. of Cyber Security
and Engineering Ewha Womans University
Ewha Womans University
Seoul, Korea isdoh1@ewha.ac.kr
ddonghe.kim@ewhain.net
Abstract—According to a recent article published by Forbes,
the use of enterprise blockchain applications by companies is
expanding. Private blockchain, such as enterprise blockchain,
usually uses the Raft algorithm to achieve a consensus. However,
the Raft algorithm can cause network split in unstable networks.
When a network applying Raft split, the TPS(Transactions Per
Second) is decreased, which results in decreased performance for
the entire blockchain system. To reduce the probability of network
split, we select a more stable node as the next leader. To select a
better leader, we propose three criteria and suggest exploiting
federated learning to evaluate them for network stability. As a
result, we show that blockchain consensus performance is
improved by lowering the probability of network split.
Keywords—blockchain, consensus algorithm, Raft, leader
election, federated learning
I. INTRODUCTION
Forbes recently announced there is an increasing number of
companies using blockchain technology in several fields,
including software, energy, financial services and health care
[1]. Forbes predicted that Enterprise Blockchains, private
blockchains used by companies, will continue to evolve and lead
innovation in business processes [2].
In blockchain technology, all nodes retain the same chain
connecting blocks containing data in a peer-to-peer distributed
network system. Blockchain encompasses ledger and consensus
technology. Consensus algorithms maintain the consistency of a
ledger shared by all nodes. An appropriate algorithm is used,
depending on the blockchain environment. There are two types
of blockchain environments: public blockchain, where anyone
can participate as nodes in the network, and private blockchain,
where only limited users can participate in the nodes. The
conventional consensus algorithms used in private blockchain
are PBFT (Practical Byzantine Fault Tolerance) and Raft.
Because PBFT nodes send and receive commit messages among
themselves at each stage of the consensus, PBFT has complex
communication messages [3]. This causes a scalability problem
for PBFT. In contrast, the Raft algorithm is a simple, leader-
based consensus algorithm wherein only the leader can handle
all client requests, duplicate logs and transmit them to nodes. In
the Raft algorithm, a newly created block is directly connected
to the chain without a separate consensus process. This enables
Raft to achieve consensus at a lower communication cost than
978-1-7281-9101-0/21/$31.00 ©2021 IEEE
Authorized licensed use limited to: Rutgers University. Downloaded on May 18,2021 at 12:24:35 UTC from IEEE Xplore. Restrictions apply.
Inshil Doh Kijoon Chae
Dept. of Computer Science
and Engineering
Seoul, Korea Ewha Womans University
Seoul, Korea
kjchae@ewha.ac.kr
PBFT. Thus, many private blockchain such as Hyperledger
fabric and Aergo uses Raft as their consensus algorithm.
Unfortunately, if the leader has network instability issues
such as packet loss, using the Raft algorithm increases the
probability of network split, and more than half of the nodes are
out of control of the current leader. When a network split occurs
in Raft, a leader election period is started in which the network
stops processing requests from clients. This causes increased
transaction latency and reduced TPS throughput. Transaction
latency and TPS are useful consensus performance evaluation
factors affecting the general consensus time. So, block
confirmation time is also delayed. Thus, Raft has a vulnerability
in that consensus performance is affected by the stability of the
nodes in the network [4].
In this work, we propose applying federated learning to the
Raft algorithm to learn the factors that affect network stability
and select a new leader to minimize network split. The proposed
algorithm is expected to improve the performance of the Raft
algorithm by shortening block decision time and electing a node
that results in better performance based on the state of the
flexible network environment.
The rest of this paper is organized as follows. Section II
introduces the Raft algorithm and related studies. Section III
examines the Vulnerability of the Raft algorithm in blockchain
systems, and Section IV proposes a machanism to improve the
performance of blockchain consensus. We proceed to its
experimental evaluation in Section V, we discuss some future
directions and conclude the paper in Section VI.
II. RELATED WORK
A. Blockchain
Blockchain technology stores necessary data in the form of
blocks and manages them as a connected chain based on
encryption technology in P2P(Peer-to-Peer) network. Since all
the nodes share information, reliability is guaranteed with the
features of integrity and transparency [4]. We review ledgers
and the consensus algorithm mechanism in which blockchain
operates, as well as performance indicators.
1) Ledger: The ledger shares data between the nodes
participating in a blockchain. The blockchain has a distributed
ledger in which all participating nodes have their own ledger
828 ICOIN 2021
data and are always synchronized [5]. Since a distributed ledger request is accepted, and the current term of follower is sent to
makes a central system unnecessary, the blockchain operates on the leader. The follower then updates the state machine with the
a distributed network system. commands contained in the log. As a result, the follower keeps
2) Consensus algorithm: Consensus refers to maintaining the sequence log and status the same as the leader. The data
the system even if there is a single failure node in a distributed structure of log is a list and log stores both the client request
network environment. In a blockchain, the consensus algorithm and term in one index. Sequential logs are maintained through
maintains the consistency of the ledger shared by all nodes. the index and term.
PoW (Proof of Work), PoS (Proof of Stake), and DPoS
(Delegated Proof of Stake) were used as initial blockchain TABLE I.  APPENDENTIRIES RPC MESSAGE
consensus algorithms. These algorithms are limited in that they Variable Contents
require a prohibitively large amount of computation. The PBFT term Leader's term
and Raft algorithm were proposed as a way to address this leaderId Leader's id
problem [6]. In the next subsection, We will explain the Raft
Index of the previous entry for the new
algorithm. prevLogIndex
entry
3) The factors assessing the performance of the blockchain Arguments
Term of the previous entry for the new
consensus algorithm: The indicators of throughput and latency prevLogTerm
entry
are generally considered when assessing the performance of a Entries[] Set of command requested by client
blockchain consensus algorithm [7][8]. leaderCommit Leader's index of last commited log
a)Transaction latency: Transaction latency refers to the term Receiver's term
time between the time a transaction is requested and finally Results Whether the receiver replicate the log
committed. Transaction latency must be short for a blockchain success
entry completely
to achieve high performance.
b)Transaction throughput: Transaction throughput TABLE II.  REQUESTVOTE RPC MESSAGE
represents the rate at which a valid transaction is processed
within a set period time and is referred to as TPS. The more Variable Contents
transactions that can be processed per second, the better, so the term Candidate's term
higher the TPS, the higher the performance. candidateId Candidate's id
Arguments
lastLogIndex Index of candidate’s last log entry
B. Raft algorithm
lastLogTerm Term of candidate’s last log entry
The types of fault in the network include a Byzantine Fault
caused by malicious nodes and a Crash Fault caused by term Receiver's term
Results
problems in hardware. The Raft algorithm tolerates for a Crash voteGranted Whether the receiver approved candidate
Fault and maintain data of the system wherein up to half of the
nodes participating in the network are acceptable even if a 2) Leader election: As shown in Fig. 1, the node is
hardware crash occurs. The Raft algorithm is a leader-based conditioned by RPC messages and time-outs. There are two
consensus algorithm that accepts requests from clients and
types of time-outs: the heartbeat time-out that the leader has,
processes requests from all nodes run by the leader. However,
because the byzantine fault is not considered, it is applied as the and the leader election time-out that the followers have. The
consensus algorithm in a private blockchain that assumes all heartbeat time-out refers to how often the leader sends an
nodes are reliable [9]. AppendEntries message. Each time the leader times out, the
leader sends the AppendEntries messages to notify its existence
Raft incorporates three mechanisms: log replication, leader and sends logs. If a follower does not receive the leader's
election, and safety to ensure that all the nodes maintain logs
AppendEntries message as per the leader election time-out
consistently. We review log replication, leader election, and
client interaction related to blockchain performance: timer, the follower decides there is a problem with the network
of the leader and transforms into a candidate. Then the network
1) Log replication: Raft divides nodes into three roles: of the Raft initiates the leader election period. The process of
leader, candidate, and follower. Raft is based on a replicated electing a leader is as follows.
state machine and ensures that each node is in one of three a)When the follower becomes a candidate, the candidate
states. The leader receives a client request, carries it out of the increases its term one and broadcasts a RequestVote RPC
log, and forwards it to other nodes. Only the leader can direct message to all nodes in the network asking for a vote.
the log and execute the commands contained in the log. The b)The RequestVote RPC includes the candidate's current
leader periodically sends RPC (Remote Protocol Call) term, candidate id, index and the term of the candidate's last log
messages with logs to the follower nodes. The RPC messages entry as Table ɛ shows. Upon receiving a RequestVote
are called AppendEntries and contain content related to the message, the followers verify if the candidate meets the criteria
leader's term, leaderÿs id, and index of leaderÿs log as Table for becoming a leader:
ɚ shows. The term refers to the time order in the Raft. When a • Candidate has a term higher than the receiver.
follower receives the AppendEntries message, the leader's

829

Authorized licensed use limited to: Rutgers University. Downloaded on May 18,2021 at 12:24:35 UTC from IEEE Xplore. Restrictions apply.
 • VotedFor call storing the voted nodes is null or has the
candidate’s id.
• Candidate's log is at least as up-to-date as receiver's log.
c)If the criteria for becoming a leader are satisfied, the
receiver sends an approval message with the current term.
d)If more than half of the followers send an approval
message, the candidate is elected as the leader. Otherwise, the
candidate returns to being a follower.
At this time, the leader election timer is set at random to reduce
the probability that multiple candidate nodes will convert to
followers at the same time.
3) Client interaction: Only a leader can handle client
requests in the Raft. Therefore, the client must request that the
leader process the command. The leader logs the client request
operation and replicates the log to the rest of the server. The
leader also sends the client a response that the request was
successful when the command in the log is executed to commit
it completely. As Raft algorithm starts, the client has no
information about the leader of the current term, so it asks the
randomly selected node within the network to handle it. If the
selected node is not a leader, it responds together with
information about the leader of the current term, rejecting the
client request. However, if there is no leader, such as during a
leader election period, the request is made to a random node, as
done at the initial consensus algorithm. This process is repeated
until the request is successful.
Fig. 1. State transition in the Raft algorithm.
Fig. 2. Architecture for a federated learning system.
830
Authorized licensed use limited to: Rutgers University. Downloaded on May 18,2021 at 12:24:35 UTC from IEEE Xplore. Restrictions apply.
C. Federated learning
Federated learning is a type of distributed machine learning
that trains DNN (Deep Neural Networks) using distributed
training data [10]. Federated learning distributes the same
learning model and gathers it on one server to create a more
sophisticated model to increase prediction accuracy. The
learning process is shown in Fig. 2 [11].
First, all servers share the same initial learning model. Then,
each server uses different data to learn the model. The cloud
updates the model with the average value of the parameters of
the model that each server has learned, and again repeats the
process, i.e., the servers that receive the parameters of the model
learn them separately.
III. PROBLEM ANALYSIS
In the Raft algorithm, packet loss or communication delay
causes network node instability. A network split means that the
leader and more than half of the nodes in the network are
disconnected. In other words, a network split is essentially the
leader election period in Raft. Thus, an unstable network of
nodes generates leader election periods frequently in the Raft
algorithm.
If an agreement is reached in the blockchain by Raft, the
client cannot request a node to issue a command related to the
creation of a block containing transactions as explained in
Section II, when a leader election period is triggered by a
network split. This delays the block confirmation time, resulting
in longer delays and fewer TPS. According to the blockchain
consensus performance evaluation method described in Section
II, frequent network split degrade blockchain consensus
performance.
To address this problem, we propose a mechanism to reduce
the probability of network split to prevent blockchain consensus
performance from being reduced. Network split occur more
frequently as the network connections among the leader and
other nodes become unstable, thus the probability of a network
split can be reduced by electing a node with a stable network as
the next node. In the next section, we describe how to select a
node with a stable network as the next leader.
IV. PROPOSED LEADER ELECTION MECHANISM FOR RAFT
The node connections in the Raft algorithm have different
network stabilities. Therefore, each node has different data to
monitor for networks with different nodes. All nodes conduct
federated learning that processes distributed learning to local
models according to their local data, and the leader synthesizes
them into a global model. Nodes can delegate agreement to other
nodes because the local model is reflected in the global model.
Moreover, federated learning can prevent centralized network
limitations such as SPOF (Single Point of Failure) from
occurring and has the advantage of reducing the storage space
burden of the server. Therefore, federated learning is more
suitable for the blockchain network environment than a learning
model on a central server.
We propose a mechanism exploiting federated learning to
elect stable leaders. Except for this leader election mechanism,
all the other mechanisms of operation are identical to those in
the traditional Raft algorithm.
A. Network Stability Evaluation Method
We use three parameters for evaluating the network stability
of nodes in Raft as follows.
1) Number of nodes converted to candidates: If the
network connection among nodes is unstable, the connection to
the leader is lost, and a follower is more likely to become a
candidate. Thus, the number of candidates can be used to
determine network stability.
2) Latest Diagram of the Index of Logs: A node with
unstable communication with the leader can’t keep its logs up to
date. Thus, network stability can be determined by comparing
the last index numbers of logs.
3) Leader election Time-out Value: When Raft starts, the
leader election time-out value of each node is initialized
randomly. The time-out value affects the probability of a
network split. The smaller the time-out value is, the higher the
probability of a network split is [4], so a time-out timer should
also be added as a network performance evaluation parameter.
When a follower is changed to a candidate, the RequestVote
message is broadcasted to all nodes in the network. At this time,
RequestVote RPC messages are sent including the term and last
index number of the node. The leader election time-out value of
the node are added, enabling these parameters to be measured
through the RequestVote message sent by the candidate node.
The network does not know which of the two nodes is unstable.
However, we assume that the node measuring the data is not
problematic because the data will be aggregated through
federated learning.
The parameter data, the same as the storage method of the
logs, is stored in the list with the term. Thus, the parameter
measurements for each node are stored in two dimensions. The
final data of each node is three-dimensional because each node
monitors all the nodes participating in the network. Fig. 3 shows
the data structure of monitored data. All the nodes use the data
to learn a federated learning model for the next leader election.
In federated learning, the local model learned by each node uses
the number of candidates for the term and the parameter
relationship to calculate the influence of the parameters on
network stability. Based on this value, the learning model
predicts whether the network of node is stable about all node in
the network by binary classification, which are reflected in the
election of the next leader. In the proposed mechanism,
federated learning ensures that the leader synthesizes the local
model and updates the global model at regular intervals.
Fig. 3. Data Structure of monitored data
831
Authorized licensed use limited to: Rutgers University. Downloaded on May 18,2021 at 12:24:35 UTC from IEEE Xplore. Restrictions apply.
B. Proposed Leader Election Mechanism
All nodes participating in the network have network stability
with respect to the other nodes through federated learning. When
a candidate emerges, followers only vote for it if the learning
model predicts the candidate's network is stable, ensuring that
the candidate is elected as the leader only if the network is stable.
As a result, the probability of network split is decreased. The
overall workflow of electing a leader by network stability is
shown in Fig. 4 and explained below.
1) A client request is processed through replicating and
committing logs around the leader prior to the leader election
period. Simultaneously, all the nodes conduct combined
learning by accumulating data on network status.
2) If the leader is disconnected from the follower, the
follower’s status is converted to ‘candidate’.
3) After voting for itself, the candidate raises one term and
sends the RequestVote RPC to all nodes by including the term,
last index number, and set leader election time-out value.
4) After receiving the RequestVote RPC, the follower
records the monitored data and determines if it meets the criteria
of the new leader as follows:
• Candidate has a term higher than receiver.
• VotedFor is candidate id or null.
• Candidate's log is at least as up-to-date as receiver's
log.
• The federated learning results for the candidate has
stable network status.
5) If all conditions are met, the group sends a response to
vote for the candidate to be the leader.
6) If a candidate receives a majority vote, it is converted
to ‘leader’. Otherwise, the candidate becomes a follower again.
Fig. 4. Workflow of proposed leader election mechanism
 V. PERFORMANCE EVALUATION
In this section, we evaluate the performance of the proposed
Raft and compare with the original Raft. Table III and IV shows
the environment for the experiment. The implementation was
simulated in Linux system with the Raft in python published on
GitHub. Federated learning is implemented using PyTorch and
Tensorflow Federated. In Raft, the leader election time-out
value is stable within the range of 150-300ms [4]. Therefore, the
range of leader election time-out value is set 100-1200ms to
create an environment where more network split occurs. The
number of nodes used in the experiment is 9 and it is assumed
that no membership change occurs in which a new node
participates in the consensus algorithm during the simulation.
TABLE III.  HARDWARE SPECIFICATIONS
Hardware Specification
CPU Intel i7-7700
RAM 8GB
GPU Nvidia GTX 1050 2GB
OS Linux Ubuntu 20.04.1 LTS
TABLE IV.  EXPERIMENTAL ENVIRONMENT
Variables Value
Number of node 9
Range of time-out 100ms – 1200ms
Fig. 5 shows a comparison of the proposed mechanism and the
original Raft algorithm for cumulative operation period time
every 5 terms. The term consists of a leader election period for
electing a leader and an operation period for processing client
requests. The longer the operation period time, the higher the
TPS in the blockchain because it can process more transactions
for client requests. As can be shown in Fig. 5, the cumulative
operation period time of the proposed algorithm increases as the
term increases and performance improvement is particularly
noticeable from term 20 onwards. This is because federated
learning completes learning and Raft elects a stable node as the
leader. Therefore, the proposed mechanism improves the
blockchain performance.
Fig. 5. Cumulative operation period time in Raft
832
Authorized licensed use limited to: Rutgers University. Downloaded on May 18,2021 at 12:24:35 UTC from IEEE Xplore. Restrictions apply.
VI. CONCLUSION
We propose a mechanism for electing leaders via the Raft
algorithm considering network stability. Our method reduces the
probability of network split using Raft, and thus prevents further
performance degradation when a blockchain node network is
unstable. As future work, we will analyze the performance of the
proposed mechanism applied to environments such as IoT and
IoV, which is expected to be more unstable due to high mobility,
and propose improved algorithms suitable for mobile
environments. In addition, we will evaluate whether node
instability affects the learning model synchronization of
federated learning and study model synchronization for our
proposed mechanism.
ACKNOWLEDGMENT
This work was supported by the National Research
Foundation of Korea(NRF) grant funded by the Korea
government(MSIP) (No. 2019R1F1A1063194).
This work was also supported by the National Research
Foundation of Korea(NRF) grant funded by the Korea
government(MSIP) (No. 2020R1A2C1006497).
REFERENCES
[1] "Blockchain For Business In 2020: Where Do We Stand?", Forbes, last
modified Feb 4,2020,accessed Dec 12, 2020,
https://www.forbes.com/sites/forbesagencycouncil/2020/02/04/blockcha
in-for-business-in-2020-where-do-we-stand/#24a44afd6533
[2] "A 2020 And Post-Pandemic Outlook For Cryptocurrency And
Blockchain Industries", Forbes, last modified May 21, 2020, accessed
Dec 12, 2020,
https://www.forbes.com/sites/forbesbusinessdevelopmentcouncil/2020/0
5/21/a-2020-and-post-pandemic-outlook-for-cryptocurrency-and-
blockchain-industries/#3c14973e63ab
[3] D. Mingxiao, M. Xiaofeng, Z. Zhe, W. Xiangwei and C. Qijun, "A review
on consensus algorithm of blockchain," 2017 IEEE International
Conference on Systems, Man, and Cybernetics (SMC), Banff, AB, 2017,
pp. 2567-2572, doi: 10.1109/SMC.2017.8123011.
[4] D. Huang, X. Ma and S. Zhang, "Performance Analysis of Raft Consensus
Algorithm for Private Blockchains," in IEEE Transactions on Systems,
Man, and Cybernetics: Systems, vol. 50, no. 1, pp. 172-181, Jan. 2020,
doi: 10.1109/TSMC.2019.2895471.
[5] Deshpande, Advait, et al. "Distributed Ledger Technologies/Blockchain:
Challenges, opportunities and the prospects for standards." Overview
report The British Standards Institution (BSI) 40 (2017): 40.
[6] S. Pahlajani, A. Kshirsagar and V. Pachghare, "Survey on Private
Blockchain Consensus Algorithms," 2019 1st International Conference
on Innovations in Information and Communication Technology (ICIICT),
CHENNAI, India, 2019, pp. 1-6, doi: 10.1109/ICIICT1.2019.8741353.
[7] C. Fan, S. Ghaemi, H. Khazaei and P. Musilek, "Performance Evaluation
of Blockchain Systems: A Systematic Survey," in IEEE Access, vol. 8,
pp. 126927-126950, 2020, doi: 10.1109/ACCESS.2020.3006078.
[8] H. Sukhwani, N. Wang, K. S. Trivedi and A. Rindos, "Performance
Modeling of Hyperledger Fabric (Permissioned Blockchain Network),"
2018 IEEE 17th International Symposium on Network Computing and
Applications (NCA), Cambridge, MA, 2018, pp. 1-8, doi:
10.1109/NCA.2018.8548070.
[9] Ongaro, Diego, and John Ousterhout. "In search of an understandable
consensus algorithm." 2014 {USENIX} Annual Technical Conference
({USENIX}{ATC} 14). 2014.
[10] Konený, Jakub, et al. "Federated learning: Strategies for improving
communication efficiency." arXiv preprint arXiv:1610.05492 (2016).
[11] Yang, Qiang, et al. "Federated machine learning: Concept and
applications." ACM Transactions on Intelligent Systems and Technology
(TIST) 10.2 (2019): 1-19
