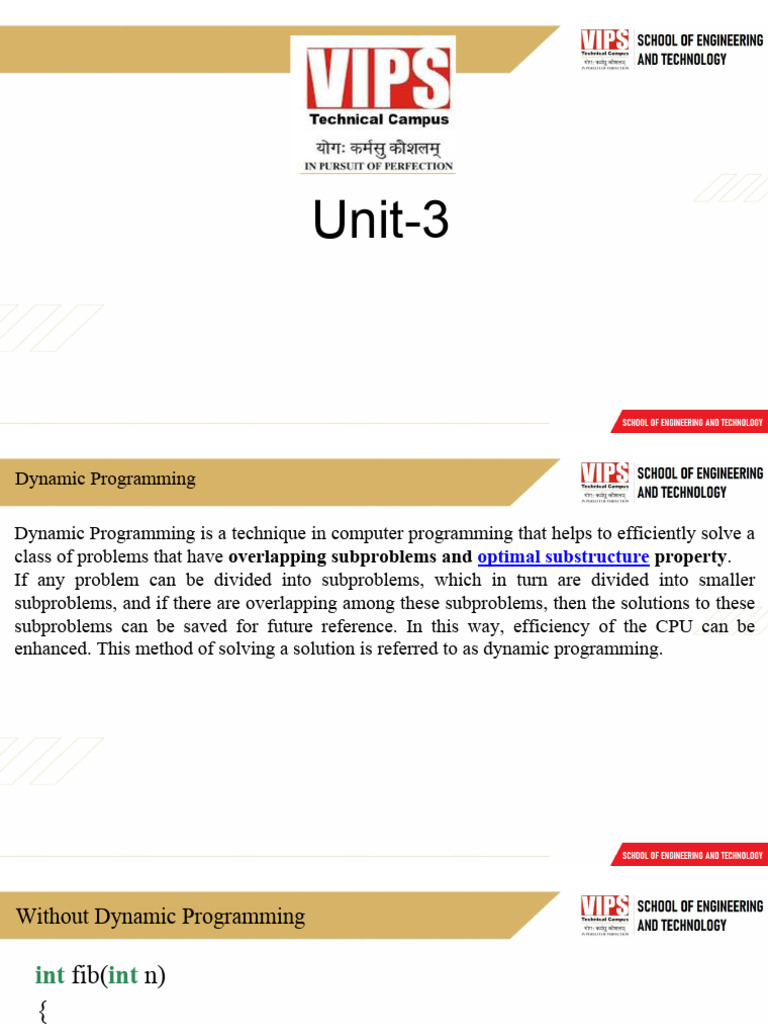

Unit-3
Dynamic Programming
Dynamic Programming is a technique in computer programming that helps to efficiently solve a

class of problems that have overlapping subproblems and optimal substructure property.
If any problem can be divided into subproblems, which in turn are divided into smaller
subproblems, and if there are overlapping among these subproblems, then the solutions to these
subproblems can be saved for future reference. In this way, efficiency of the CPU can be
enhanced. This method of solving a solution is referred to as dynamic programming.
Without Dynamic Programming
int fib(int n)
{
if(n==0)
return 0;
if(n==1)
return 1;
sum = fib(n-1) + fib(n-2);
}
Without Dynamic Programming
Recurrence Relation
T(n)=2T(n-1)+4
Time Complexity=O(2^n)
Dynamic Programming
Dynamic programming can be achieved using two approaches:

1) Top-down approach (Memorization)
2) Bottom-up approach
1) Top-down approach The top-down approach follows the strategy of memorization.

The memorization process is equivalent to adding the recursion and caching steps. The
difference between recursion and caching is that recursion requires calling the function
directly, whereas caching requires preserving the intermediate results.
Top-down approach
static int count = 0; Time Complexity=O(n)

int fib(int
Time n)
Complexity=O(n)
{ if(memo[n]!= -1) Disadvantages
return memo[n];
Disadvantages
count++; The top-down approach uses the
Theif(n==0)
top-down approach uses the recursion technique, which occupies
returntechnique,
recursion 0; which occupies more memory in the call stack
if(n==1)
more memory in the call stack
return 1;
sum = fib(n-1) + fib(n-2);
memo[n] = sum;
}
Syllabus
Contents
• UNIT- III
❑ Fundamentals of IEEE 802.15.4, Zigbee and 6LOWPAN: Importance of IEEE 802.15.4
MAC and IEEE 802.15.4 PHY layer in constrained networks and their header format,
Importance of Zigbee technology and its applications, use of IPv6 in IoT Environments,
Understanding importance of IPv6 and how constrained nodes deal with bigger
headers (IPv6). Understand IPv6 over Low Power WPAN (6LoWPAN) and role of 6LoWPAN
in wireless sensor network. Various routing techniques in constrained network.
Understanding IoT Application Layer Protocols: HTTP, CoAP Message Queuing Telemetry
Transport (MeTT).
Bottom-up approach
It uses the tabulation technique to implement the dynamic programming approach. It

solves the same kind of problems but it removes the recursion. If we remove the
recursion, there is no stack overflow issue and no overhead of the recursive functions.
Time Complexity=O(n)
Bottom-up approach
1.int fib(int n)
2.{
3. int A[];
4. A[0] = 0, A[1] = 1;
5. for( i=2; i<=n; i++)
6. {
7. A[i] = A[i-1] + A[i-2]
8. }
9. return A[n];
10.}
0/1 Knapsack Problem
The 0/1 knapsack problem means that the items are either completely
or no items are filled in a knapsack.
Weights: {3, 4, 6, 5} Profits: {2, 3, 1, 4}
The weight of the knapsack is 8 kg
The number of items is 4
xi = {1, 0, 0, 1}
= {0, 0, 0, 1}
= {0, 1, 0, 1}
Possible combinations= 2^4=16
. 9
w[i] P[i] w 0 1 2 3 4 5 6 7 8
i
0 0
3 2
4 3
5 4
6 1
c[i,w]=max{c[i−1,w−w[i]]+P[i],c[i-1, w]} w[i]<=w c[i, w] = c[i-1, w] w[i]>w

c[i,w]=0 i=0,w=0
11
w[i] P[i] w 0 1 2 3 4 5 6 7 8
i
0 0 0 0 0 0 0 0 0 0 0 0
3 2 1 0 0 0 2 2 2 2 2 2
4 3 2 0 0 0 2 3 3 3 5 5
5 4 3 0 0 0 2 3 4 4 5 6
6 1 4 0 0 0 2 3 4 4 5 6
c[i,w]=max{c[i−1,w−w[i]]+P[i],c[i-1, w]} w[i]<=w c[i, w] = c[i-1, w] w[i]>w

c[i,w]=0 i=0,w=0 12
}
int knapsack(int W, int wt[], int val[], else {
int n){ K[i][w] = K[i-1][w];
int K[n+1][W+1]; }
for(int i = 0; i<=n; i++) { }
for(int w = 0; w<=W; w++) { }
if(i == 0 || w == 0) { return K[n][W];
K[i][w] = 0; }
} else if(wt[i-1] <= w) { Time Complexity=O(n^2)
K[i][w] = find_Max(val[i-1] + Space Complexity=O(n^2)
K[i-1][w-wt[i-1]], K[i-1][w]);
12
Let us consider that the capacity of the knapsack is W = 8 and the

items are as shown in the following table.
Item A B C D
Profit 2 4 7 10
Weight 1 3 5 7
13
Floyd Warshall Algorithm
Floyd-Warshall Algorithm is an algorithm for finding the shortest path

between all the pairs of vertices in a weighted graph. This algorithm works
for both the directed and undirected weighted graphs. But, it does not
work for the graphs with negative cycles (where the sum of the edges in
a cycle is negative).
This algorithm follows the dynamic programming approach to find the
shortest paths.
14
14
1 2 3 4
A0 1 0 3 INF 5
2 2 0 INF 4
3 INF 1 0 INF
4 INF INF 2 0
1 2 3 4
A1 1 0 3 INF 5
2 2 0 INF 4
Ak[i, j] = min (Ak-1[i, j], Ak-1[i, k] + Ak-1[k, j])
3 INF 1 0 INF
A1 [2,3]=min(A0 [2,3],A0 [2,1]+A0 [1,3])
4 INF INF 2 0
14
A1 1 2 3 4
1 0 3 INF 5
2 2 0 INF 4
3 INF 1 0 INF
4 INF INF 2 0
1 2 3
A2 1 0 3 INF
2 2 0 INF
Ak[i, j] = min (Ak-1[i, j], Ak-1[i, k] + Ak-1[k, j])
A2 [1,4]=min(A1 [1,4],A1 [1,2]+A1 [2,4]) 3 3 1 0
4 INF INF 2
14
1 2 3 4
2
A
1 0 3 INF 5
2 2 0 INF 4
3 3 1 0 5
4 INF INF 2 0
1 2 3 4
A3 1 0 3 INF 5
Ak[i, j] = min (Ak-1[i, j], Ak-1[i, k] + Ak-1[k, j]) 2 2 0 INF 4

3 3 1 0 5
4 5 3 2 0
14
1 2 3 4
A3 1 0 3 INF 5
2 2 0 INF 4
3 3 1 0 5
4 5 3 2 0
1 2 3 4
A4 1 0 3 7 5
Ak[i, j] = min (Ak-1[i, j], Ak-1[i, k] + Ak-1[k, j]) 2 2 0 6 4

3 3 1 0 5
4 5 3 2 0
14
n = no of vertices
A = matrix of dimension n*n Time Complexity= O(n3)
for k = 1 to n
Space Complexity= O(n2)
for i = 1 to n
for j = 1 to n
Ak[i, j] = min (Ak-1[i, j], Ak-1[i, k] + Ak-1[k,
j])
return A
15
.
Longest Common Subsequence
Longest means that the subsequence should be the biggest one. The common
means that some of the characters are common between the two strings. The
subsequence means that some of the characters are taken from the string that is
written in increasing order to form a subsequence.
Example 1
W1 = abcd
W2= bcd
Longest common subsequence=bcd
16
Example 2
S1 = {BCDAACD}
S2 = {ACDBAC}
Then, common subsequences are {BC}, {CDAC}, {DAC}, {AAC},
{AC}, {CD}. CDAC is the longest common subsequence.
17
.
C B D A
j→ 0 1 2 3 4
i↓
0
A 1
C 2
A 3
D 4
B 5
18
j→ 0 1 2 3 4
i↓
0
1
2
3
4
5
18
j→ 0 1 2 3 4
i↓
0
1
2
3
18
In order to find the longest common subsequence, start from the last element and follow the
direction of the arrow. 18
Thus, the longest common subsequence is CA.

18
Longest Common Subsequence Using
Dynamic Programming
int lcs(char* X, char* Y, int m, int n){ Time Complexity=O(N2)
int L[m + 1][n + 1]; Space Complexity=O(N2)
int i, j, index;
for (i = 0; i <= m; i++) {
for (j = 0; j <= n; j++) {
if (i == 0 || j == 0)
L[i][j] = 0;
else if (X[i - 1] == Y[j - 1]) {
L[i][j] = L[i - 1][j - 1] + 1;
} else
L[i][j] = max(L[i - 1][j], L[i][j - 1]);
}
}
19
Backtracking
Backtracking is an algorithmic technique where the goal is to get all

solutions to a problem using the brute force approach. It consists of
building a set of all the solutions incrementally. Since a problem
would have constraints, the solutions that fail to satisfy them will be
removed.
It uses recursive calling to find a solution set by building a solution
step by step, increasing levels with time. In order to find these
solutions, a search tree named state-space tree is used. In a
state-space tree, each branch is a variable, and each level
represents a solution.
20
Backtracking
A backtracking algorithm uses the depth-first search method. When

it starts exploring the solutions, a bounding function is applied so
that the algorithm can check if the so-far built solution satisfies the
constraints. If it does, it continues searching. If it doesn’t, the
branch would be eliminated, and the algorithm goes back to the
level before.
20
Backtracking
Backtracking Algorithm
Based on depth-first recursive search
Approach
1. Tests whether solution has been found
2. If found solution, return it
3. Else for each choice that can be made
a) Make that choice
b) Recursive
c) If recursion returns a solution, return it
4. If no choices remain, return failure
Some times called “search tree”
20
Backtracking
20
Brute force method
We want to arrange the three letters a, b, c in such a way that c cannot be beside a.
we’ll build a
state-space tree.
(a,b,c) and
(c,b,a) in the
final solution set
20
Backtracking
We want to arrange the three letters x, y, z in such a way that z cannot be beside x.
we’ll build a
state-space tree.
(x,y,z) and
(z,y,x) in the
final solution set
20
Difference between the Backtracking and Dynamic Programming
Difference bwtween Backtracking and Branch and Bound
Advantage, Disadvantage and Application of Backtracking and Branch and Bound
Applications of Backtracking
N-queen problem
Sum of subset problem
Graph coloring
Hamiliton cycle
21
N-Queens Problem
Given a 4 x 4 chessboard and number the rows and column of the chessboard 1 through 4.
. 22
N-Queens Problem
. 22
N-Queens Problem
. 22
N-Queens Problem
. 22
N-Queens Problem
. 22
N-Queens Problem
Do it own 8-queen problem.
. 22
Branch and bound
Branch and bound is one of the techniques used for problem solving. It is similar to the backtracking since
it also uses the state space tree. It is used for solving the optimization problems and minimization
problems. If we have given a maximization problem then we can convert it using the Branch and bound
technique by simply converting the problem into a maximization problem.We want to arrange the three
letters x, y, z in such a way that z cannot be beside x.
we’ll build a state-space tree.
23
.
Travelling Salesman Problem
You are given-
A set of some cities
Distance between every pair of cities
Travelling Salesman Problem states-

A salesman has to visit every city exactly once.
He has to come back to the city from where he starts his journey.
What is the shortest possible route that the salesman must follow to complete his tour
23
.
23
.
Rules
To reduce a matrix, perform the row
reduction and column reduction of the
matrix separately.
A row or a column is said to be
reduced if it contains at least one entry
‘0’ in it.
23
.
Step I
Row Reduction-
Reduce the elements of row-1 by 4.
23
.
Column Reduction-
There is no need to reduce column-1.
Reduce the elements of column-3 by 1.
23
.
Finally, the initial distance matrix is

completely reduced.
Now, we calculate the cost of node-1
by adding all the reduction elements.
Cost(1)= Sum of all reduction elements
=4+5+6+2+1
= 18
23
.
Step 2
Choosing To Go To Vertex-B: Node-2
(Path A → B)
From the reduced matrix of step-01,
M[A,B] = 0
Set row-A and column-B to ∞
Set M[B,A] = ∞
Now, resulting cost matrix is-
23
.
Now,
Row Reduction
We reduce this matrix.
Then, we find out the cost of node-02.
Row Reduction-
We can not reduce row-1 as all its
elements are ∞.
Reduce all the elements of row-2 by
13.
There is no need to reduce row-3.
23
.
Column Reduction-
Column Reduction

We can not reduce column-2 as all its
elements are ∞.
23
.
Cost(2)
= Cost(1) + Sum of reduction elements

+ M[A,B]
= 18 + (13 + 5) + 0
= 36
23
.
Go To Vertex-C: Node-3 (Path A → C)

M[A,C] = 7
Set row-A and column-C to ∞
Set M[C,A] = ∞
23
.
Row Reduction-

elements are ∞.
Reduce all the elements of row-2 by
13.
23
.
Column Reduction-

We can not reduce column-2 as all its
elements are ∞.
23
.
Cost(2)

+ M[A,B]
= 18 + (13 + 5) + 0
= 36
23
.
Go To Vertex-C: Node-3 (Path A → C)

M[A,C] = 7
Set row-A and column-C to ∞
Set M[C,A] = ∞
23
.
Column Reduction-
Row Reduction-
We can not reduce row-1 as all its There is no need to reduce column-2.
elements are ∞. We can not reduce column-3 as all its
There is no need to reduce row-2. elements are ∞.
There is no need to reduce row-3. There is no need to reduce column-4.
Thus, the matrix is already column
reduced.
Thus, the matrix is already
row-reduced.
23
.
we calculate the cost of node-3.
Cost(3)

+ M[A,C]
= 18 + 0 + 7
= 25
.
23
.
Go To Vertex-D: Node-4 (Path A → D)

M[A,D] = 3
Set row-A and column-D to ∞
Set M[D,A] = ∞
23
.
Performing this, we obtain the following

Row Reduction- row-reduced matrix-

elements are ∞.
Reduce all the elements of row-3 by 5.
23
.
calculate the cost of node-4.

Column Reduction-
Cost(4)
There is no need to reduce column-1. = Cost(1) + Sum of reduction elements +

There is no need to reduce column-2. M[A,D]
We can not reduce column-4 as all its = 18 + 5 + 3
elements are ∞.
= 26
Thus, we have-
Cost(2) = 36 (for Path A → B)

Cost(3) = 25 (for Path A → C)
Cost(4) = 26 (for Path A → D) 23
.
we choose node-3 i.e. path A → C.
23
.
Step 3
Go To Vertex-B: Node-5 (Path A → C →
B)

M[C,B] = ∞
Set row-C and column-B to ∞
Set M[B,A] = ∞
23
.
Row Reduction-

elements are ∞.
elements are ∞.
23
.
Column Reduction-
we calculate the cost of node-5.
There is no need to reduce column-1. Cost(5)
We can not reduce column-2 as all its = cost(3) + Sum of reduction

elements are ∞. elements + M[C,B]
We can not reduce column-3 as all its = 25 + (13 + 8) + ∞
elements are ∞.
There is no need to reduce column-4. =∞
23
.
Go To Vertex-D: Node-6 (Path A → C →

D)

M[C,D] = 0
Set row-C and column-D to ∞
Set M[D,A] = ∞
23
.
Row Reduction-
Column Reduction-
elements are ∞.
There is no need to reduce
There is no need to reduce row-2. column-1.
We can not reduce row-3 as all its We can not reduce column-2 as all
its elements are ∞.
elements are ∞. We can not reduce column-3 as all
We can not reduce row-4 as all its its elements are ∞.
elements are ∞. We can not reduce column-4 as all
its elements are ∞.
Thus, the matrix is already row

reduced. 23
.
Cost(6)
= cost(3) + Sum of reduction Thus, we have-

elements + M[C,D]
Cost(5) = ∞ (for Path A → C →
= 25 + 0 + 0 B)
Cost(6) = 25 (for Path A → C →
= 25 D)
We choose the node with the

lowest cost.
Since cost for node-6 is lowest,

so we prefer to visit node-6.
Thus, we choose node-6 i.e.

path C → D. 23
.
Step-04: Choosing To Go To Vertex-B: Node-7

(Path A → C → D → B)
M[D,B] = 0
Set row-D and column-B to ∞
Set M[B,A] = ∞
23
.
Row Reduction-
Column Reduction-
We can not reduce row-1 as
all its elements are ∞. We can not reduce column-1 as
We can not reduce row-2 as all its elements are ∞.
We can not reduce column-2 as
all its elements are ∞. all its elements are ∞.
We can not reduce row-3 as We can not reduce column-3 as
all its elements are ∞. all its elements are ∞.
We can not reduce column-4 as
We can not reduce row-4 as all its elements are ∞
all its elements are ∞.
23
.
Cost(7)
= cost(6) + Sum of reduction elements + M[D,B]
= 25 + 0 + 0
= 25
Thus,
Optimal path is: A → C → D → B → A

Cost of Optimal path = 25 units
23
.

Unit 3 Vips

Uploaded by

Document Information

Original Description:

Original Title

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

Unit 3 Vips

Uploaded by

Copyright:

Available Formats

Unit-3

Dynamic Programming is a technique in computer programming that helps to efficiently solve a

Dynamic programming can be achieved using two approaches:

1) Top-down approach The top-down approach follows the strategy of memorization.

static int count = 0; Time Complexity=O(n)

It uses the tabulation technique to implement the dynamic programming approach. It

c[i,w]=max{c[i−1,w−w[i]]+P[i],c[i-1, w]} w[i]<=w c[i, w] = c[i-1, w] w[i]>w

c[i,w]=max{c[i−1,w−w[i]]+P[i],c[i-1, w]} w[i]<=w c[i, w] = c[i-1, w] w[i]>w

Let us consider that the capacity of the knapsack is W = 8 and the

Floyd-Warshall Algorithm is an algorithm for finding the shortest path

Ak[i, j] = min (Ak-1[i, j], Ak-1[i, k] + Ak-1[k, j]) 2 2 0 INF 4

Ak[i, j] = min (Ak-1[i, j], Ak-1[i, k] + Ak-1[k, j]) 2 2 0 6 4

Thus, the longest common subsequence is CA.

Backtracking is an algorithmic technique where the goal is to get all

A backtracking algorithm uses the depth-first search method. When

Do it own 8-queen problem.

Travelling Salesman Problem states-

Finally, the initial distance matrix is

Cost(1)= Sum of all reduction elements

Now, resulting cost matrix is-

Reduce the elements of column-1 by 5.

= Cost(1) + Sum of reduction elements

Go To Vertex-C: Node-3 (Path A → C)

We can not reduce row-1 as all its

Reduce the elements of column-1 by 5.

= Cost(1) + Sum of reduction elements

Go To Vertex-C: Node-3 (Path A → C)

From the reduced matrix of step-01,

we calculate the cost of node-3.

= Cost(1) + Sum of reduction elements

Go To Vertex-D: Node-4 (Path A → D)

From the reduced matrix of step-01,

Performing this, we obtain the following

We can not reduce row-1 as all its

calculate the cost of node-4.

There is no need to reduce column-1. = Cost(1) + Sum of reduction elements +

Cost(2) = 36 (for Path A → B)

we choose node-3 i.e. path A → C.

From the reduced matrix of step-02,

We can not reduce row-1 as all its

There is no need to reduce column-1. Cost(5)

We can not reduce column-2 as all its = cost(3) + Sum of reduction

Go To Vertex-D: Node-6 (Path A → C →

From the reduced matrix of step-02,

Thus, the matrix is already row

= cost(3) + Sum of reduction Thus, we have-

We choose the node with the

Since cost for node-6 is lowest,

Thus, we choose node-6 i.e.

Step-04: Choosing To Go To Vertex-B: Node-7

= cost(6) + Sum of reduction elements + M[D,B]

Optimal path is: A → C → D → B → A

You might also like
