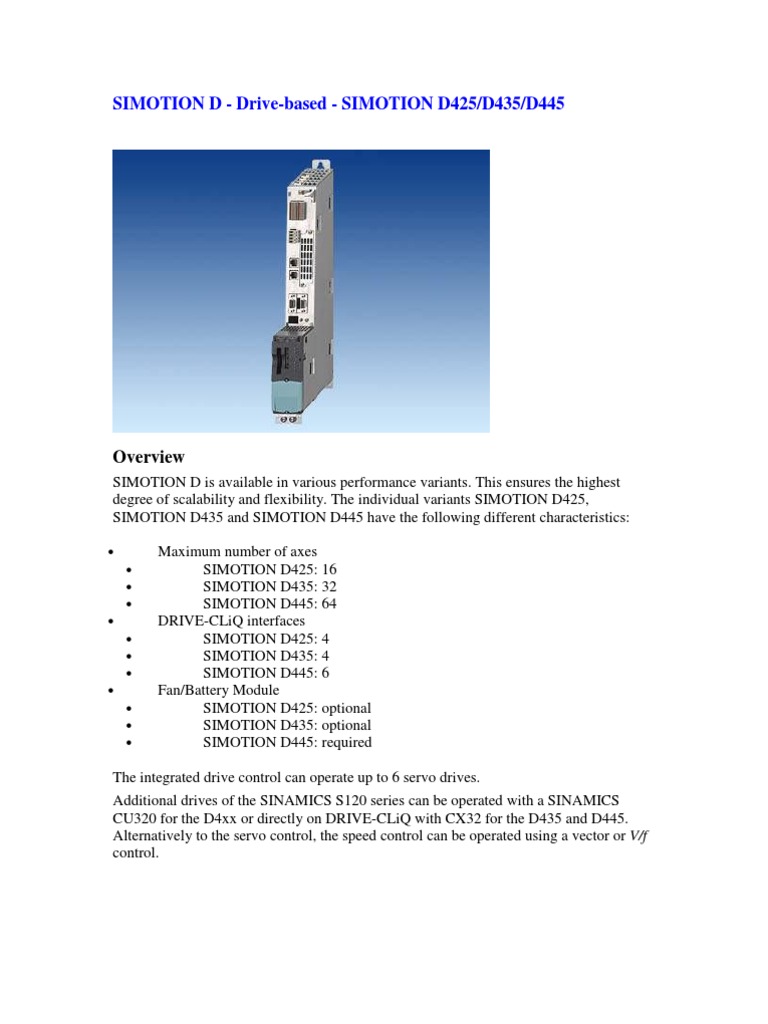

    SIMOTION D - Drive-based - SIMOTION D425/D435/D445

    Overview
    SIMOTION D is available in various performance variants. This ensures the highest degree of scalability and flexibility. The individual variants SIMOTION D425, SIMOTION D435 and SIMOTION D445 have the following different characteristics:

    Maximum number of axes SIMOTION D425: 16 SIMOTION D435: 32 SIMOTION D445: 64 DRIVE-CLiQ interfaces SIMOTION D425: 4 SIMOTION D435: 4 SIMOTION D445: 6 Fan/Battery Module SIMOTION D425: optional SIMOTION D435: optional SIMOTION D445: required

    The integrated drive control can operate up to 6 servo drives. Additional drives of the SINAMICS S120 series can be operated with a SINAMICS CU320 for the D4xx or directly on DRIVE-CLiQ with CX32 for the D435 and D445. Alternatively to the servo control, the speed control can be operated using a vector or V/f control.

    Design
    Interfaces

    Displays, diagnostics LEDs to display operating states and errors 7-segment status/error display during system ramp up 3 test sockets Interfaces 4 x DRIVE-CLiQ (6 x DRIVE-CLiQ for D445) 2 x Industrial Ethernet 2 x PROFIBUS DP Integrated I/Os 8 digital inputs 8 digital inputs/outputs Other Terminals for 24 V electronic power supply Option slot for a terminal expansion or additional communication port

    Data storage/data backup SIMOTION D425, D435 and D445 Control Units have 320 KB of non-volatile and battery-backed SRAM for remanent tag storage. This backup is stored for at least 5 days. There are two options for storing remanent data for a longer period:

    System commands for storing remanent data on the SIMOTION CF (CompactFlash card) Use of a Battery Module

    Runtime software, user data and user programs are saved remanently using a CF (CompactFlash card). Compatible I/Os PROFIBUS DP:

    Certified PROFIBUS standard slaves (DP-V0, DP-V1, DP-V2) SIMATIC ET 200S/M/X/eco/pro distributed I/O systems

    DRIVE-CLiQ:

    Modules from the SINAMICS range DRIVE-CLiQ cables, which are required to connect Line/Motor Modules to SIMOTION D, are supplied with the Line/Motor Modules (standard length).

    Integration

    Overview of SIMOTION D425/D435/D445 connections
