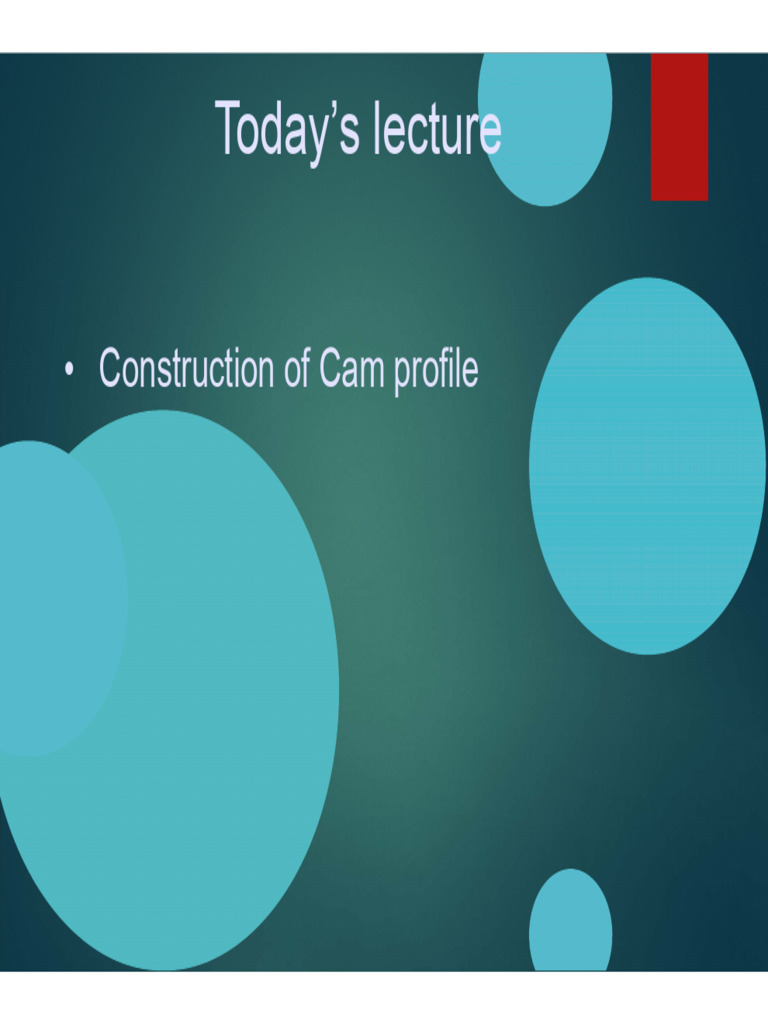

Today’s lecture

• Construction of Cam profile

Types of follower motion

1. Uniform motion ( constant velocity)

2. Simple harmonic motion
3. Uniform acceleration and retardation motion
4. Cycloidal motion
a) Uniform motion (constant velocity)

Displacement diagram: Displacement is the distance that

a follower moves during one complete revolution (or
cycle) of the cam while the follower is in contact with the
cam.
It is the plot of linear displacement (s) of follower V/S
angular displacement ( ) of the cam for one full rotation
of the cam.
A period is a part of the cam cycle and it includes the
following:

Rise (Outstroke) – the upward motion of the follower caused

by cam motion.
Fall (Return stroke) – the downward motion of the follower
caused by cam motion.
Dwell – the stationary position of the follower caused by
cam motion.
a) Uniform motion (constant
velocity)
a) Uniform motion (constant velocity)

Displacement diagram
Since the follower moves with uniform velocity during
its rise and fall, the slope of the displacement curve
must be constant as shown in fig
a) Uniform motion (constant velocity)
b) Simple Harmonic motion

RISE FALL

60 120 180 240 300

360 = ONE REVOLUTION OF CAM = 1 CYCLE

b) Simple harmonic motion
Since the follower
moves with a
simple harmonic
motion, therefore
velocity diagram
consists of a sine
curve and the
acceleration
diagram consists of
a cosine curve.
 b) Simple harmonic motion
Maximum velocity of the follower on the outstroke

Maximum acceleration of the follower on the

outstroke

Return stroke:
c) Uniform acceleration and retardation

Since the
acceleration
and
retardation
are uniform,
therefore the
velocity varies
directly with
time.
 c) Uniform acceleration and retardation
Maximum velocity of follower during outstroke

Maximum velocity of the follower during

return stroke

Maximum acceleration of the follower during

outstroke

Maximum acceleration of the follower during

return stroke
 d) Cycloidal motion
Maximum velocity of follower during outstroke

Maximum velocity of the follower during

return stroke

Maximum acceleration of the follower during

outstroke

Maximum acceleration of the follower during

return stroke
CAM Profile
d
c
e
b
a
f
2 1
3
4
5
6 60°

45°
50

8 90°
g
9
10
11 12
h
l
i k
j
CAM Profile
Set square, compass, protractor, pencil etc.
Example 20.1. A cam is to give the following motion to a knife-edged
follower :
1. Outstroke during 60° of cam rotation ;
2. Dwell for the next 30° of cam rotation ;
3. Return stroke during next 60° of cam rotation, and
4. Dwell for the remaining 210° of cam rotation.

The stroke of the follower is 40 mm and the minimum radius of the cam
is 50 mm. The follower moves with uniform velocity during both the
outstroke and return strokes. Draw the profile of the cam when (a) the
axis of the follower passes through the axis of the cam shaft, and
(b) the axis of the follower is offset by 20 mm from the axis of the cam
shaft.
