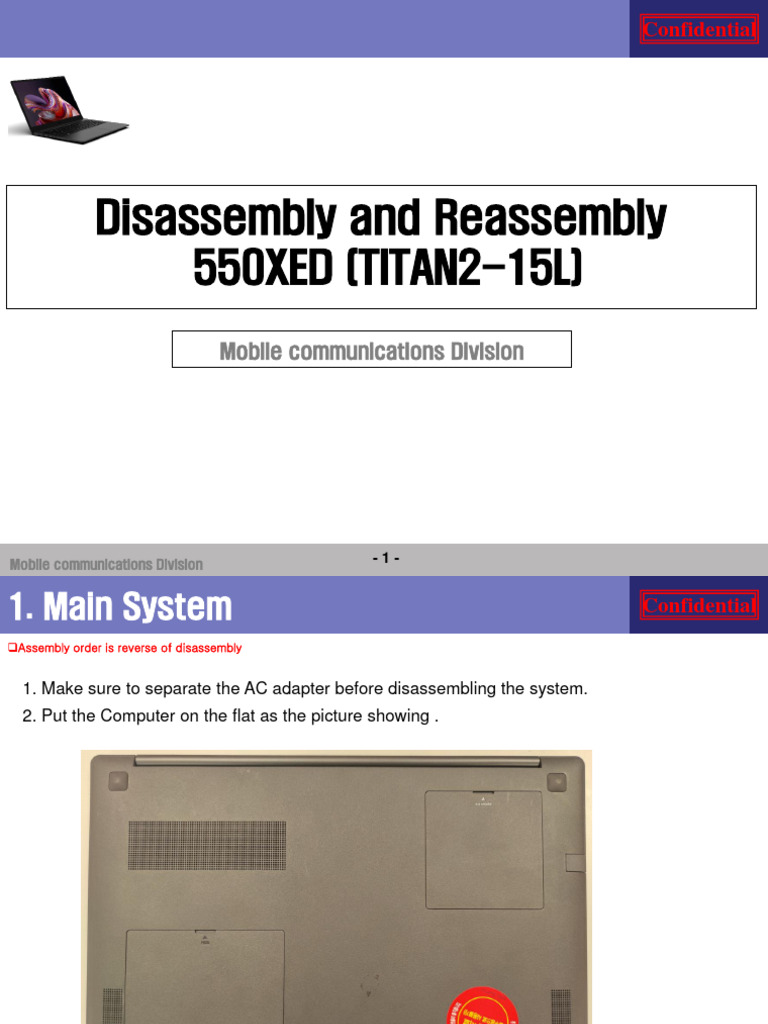

Disassembly and Reassembly

550XED (TITAN2-15L)
Mobile communications Division

Mobile communications Division -1-

1. Main System Confidential
Assembly order is reverse of disassembly

1. Make sure to separate the AC adapter before disassembling the system.

2. Put the Computer on the flat as the picture showing .

Mobile communications Division -2-

1. Main System Confidential
Assembly order is reverse of disassembly

3. Remove the rubber foot on case rear. SCREW-MACHINE

(6001-003313) 4 PCS

4. Disassembly the screw on case rear. Torque : 2.3 ~ 2.7Kgfcm

Mobile communications Division -3-

1. Main System Confidential
Assembly order is reverse of disassembly

5. Remove the case rear as arrow direction.

- Disassemble the Case front and Case rear at the edge first.
- And then disassemble case rear .

1. Disassemble Hook by JIG

2. Disassemble other according arrow
3. From left side ，Disassemble Two Hook of inner

Hook

Hook

Mobile communications Division -4-

1. Main System Confidential
Assembly order is reverse of disassembly

6. (1) Disassemble screws of battery.

(2) Remove battery cable.

SCREW-MACHINE
(6001-003313) 2 PCS
Torque : 2.3 ~ 2.7Kgfcm

※ First disassemble screw, then

disassemble battery cable.

Mobile communications Division -5-

1. Main System Confidential
Assembly order is reverse of disassembly

7. (1) Disassemble HDD screw.

(2) Remove HDD cable .

SCREW-MACHINE
(6001-001650) 4 PCS
Torque : 2.3 ~ 2.7Kgfcm 1

※ First disassemble screw, then

disassemble HDD cable.

Mobile communications Division -6-

1. Main System Confidential
Assembly order is reverse of disassembly

8. (1) Disassemble screws of fan.

(2) Remove fan cable , Antenna-Main/Aux and FPC sub to main.
(3) Remove fan.
SCREW-MACHINE ※ First disassemble screw, then disassemble fan
(6001-001650) 3 PCS cable, Antenna-Main/Aux and FPC sub to main .
Torque : 2.3 ~ 2.7Kgfcm

FAN Cable

Antenna Main/Aux

Sub To Main FFC

Mobile communications Division -7-

1. Main System Confidential
Assembly order is reverse of disassembly

9. (1) Remove screw of SSD.

(2) Remove SSD. SCREW-MACHINE

(3) Remove Speaker-R cable , KBD Membrane , (6001-001650) 1 PCS

FFC-Touchpad , LCD Cable , Speaker-L Cable . Torque : 2.3 ~ 2.7Kgfcm

LCD Cable

KBD Membrane

OK

Speaker-R Cable FFC-Touchpad

Speaker-L Cable

NG

Mobile communications Division -8-

1. Main System Confidential
Assembly order is reverse of disassembly

10. (1) Remove the screws on Bracket main port. SCREW-MACHIN

(2) Remove the screws on Main board. (6001-001650) 8 PCS
(3) Remove Bracket main port and Main board. Torque : 2.3 ~ 2.7Kgfcm

Mobile communications Division -9-

1. Main System Confidential
Assembly order is reverse of disassembly

11 . (1) Remove the screws on Bracket sub port.

(2) Remove the screw on Sub board.
(3) Remove Bracket sub port and Sub board.

SCREW-MACHINE
(6001-001650) 4 PCS
1
Torque : 2.3 ~ 2.7Kgfcm
2

Mobile communications Division - 10 -

1. Main System Confidential
Assembly order is reverse of disassembly

12. (1). Remove screws between hinge and case-front. SCREW-MACHINE

(2). Remove Key Power directly (6001-003313) 4 PCS

Torque : 2.3 ~ 2.7Kgfcm

Mobile communications Division - 11 -

1. Main System Confidential
Assembly order is reverse of disassembly

10. (1) Remove the screws on Bracket main port. SCREW-MACHIN

(2) Remove the screws on Main board. (6001-001650) 8 PCS
(3) Remove Bracket main port and Main board. Torque : 2.3 ~ 2.7Kgfcm

Mobile communications Division - 12 -

1. Main System Confidential
Assembly order is reverse of disassembly

11 . (1) Remove the screws on Bracket sub port.

(2) Remove the screw on Sub board.
(3) Remove Bracket sub port and Sub board.

SCREW-MACHINE
(6001-001650) 4 PCS
1
Torque : 2.3 ~ 2.7Kgfcm
2

Mobile communications Division - 13 -

1. Main System Confidential
Assembly order is reverse of disassembly

12. (1). Remove screws between hinge and case-front. SCREW-MACHINE

(2). Remove Key Power directly (6001-003313) 4 PCS

Torque : 2.3 ~ 2.7Kgfcm

Mobile communications Division - 14 -

2. LCD Disassembly Confidential
Assembly order is reverse of disassembly
1. LCD Lower case Disassembly SOP (Gap least after rework)
■ Model : LCD Lower case can Disassembly for NPC
. Titan2-15L (NT550XED)
. LCD Lower case can Disassembly Include before ~2022 NPC

■ Reason: LCD Lower case Gap least after rework SOP

■ LCD Lower case Gap least rework method

Pull
(UP) OK NG

Mobile communications Division - 15 -

2. LCD Disassembly Confidential
Assembly order is reverse of disassembly

2. Remove screw of bracket LCD SCREW-MACHINE

(6001-001560) 4 PCS
Torque : 2.3 ~ 2.7Kgfcm

Mobile communications Division - 16 -

2. LCD Disassembly Confidential
Assembly order is reverse of disassembly

3. Disassemble LCD-PANEL

Mobile communications Division - 17 -

2. LCD Disassembly Confidential
Assembly order is reverse of disassembly

4. (1) Disassemble the screws on Assy Hinge-L/R, then remove Assy Hinge-L/R .
(2) remove camera. SCREW-MACHINE
(6001-001560) 8 PCS
Torque : 2.3 ~ 2.7Kgfcm

Mobile communications Division - 18 -

3. Cable routing Confidential

LCD Cable

FAN Cable

Antenna-Main/Aux KBD Membrane

Battery Cable

FPC Sub to Main

SSD Slot

HDD FFC
SPK CABLE-R T/P FFC

SPK CABLE-L
