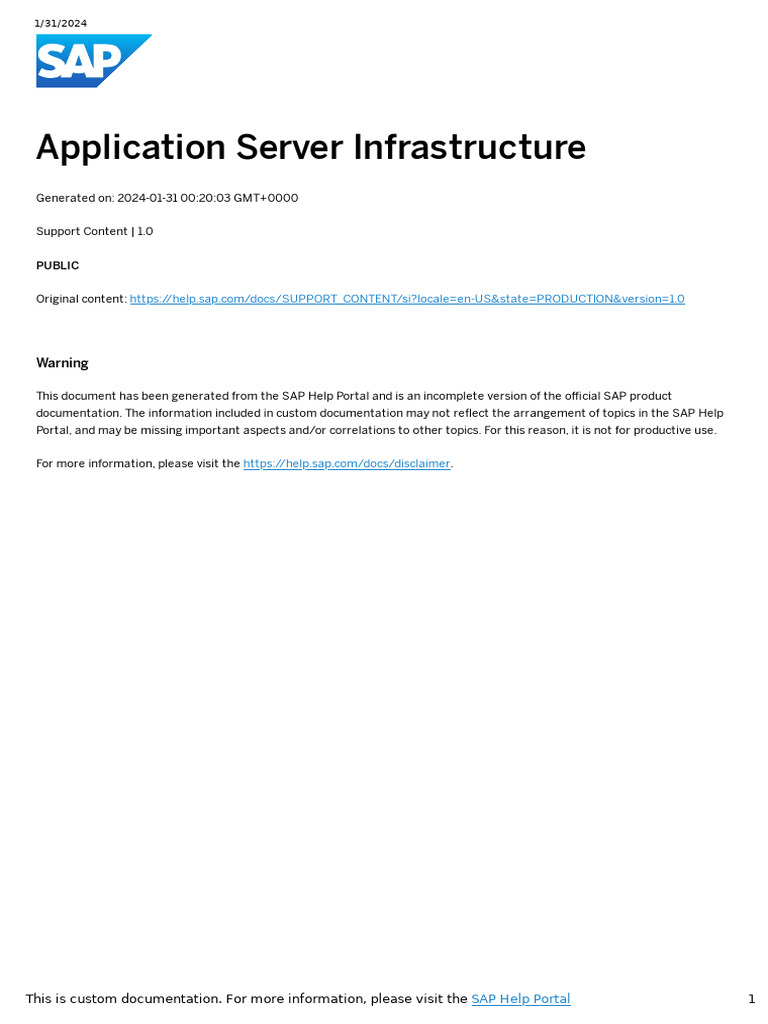

Application Server Infrastructure

1/31/2024
Application Server Infrastructure

Generated on: 2024-01-31 00:20:03 GMT+0000
Support Content | 1.0
PUBLIC
Original content: https://help.sap.com/docs/SUPPORT_CONTENT/si?locale=en-US&state=PRODUCTION&version=1.0
Warning
This document has been generated from the SAP Help Portal and is an incomplete version of the official SAP product
documentation. The information included in custom documentation may not re ect the arrangement of topics in the SAP Help
Portal, and may be missing important aspects and/or correlations to other topics. For this reason, it is not for productive use.
For more information, please visit the https://help.sap.com/docs/disclaimer.
This is custom documentation. For more information, please visit the SAP Help Portal 1
1/31/2024
Application Server Infrastructure tags

Software Product Functions:
NW ABAP Business Address Service
NW ABAP Business Rule Framework (BRFplus)
NW ABAP Data Archiving
NW ABAP Integration Technology (ALE)
NW ABAP Print and Output Management
NW ABAP Runtime Environment
NW ABAP Communication Services (former NW ABAP SAP Connect )
NW ABAP User Administration and Authorization
NW ABAP User Authentication
NW Client/Server Technology (CST)
UI SAP Interactive Forms by Adobe
UI SAP Netweaver Business Client (NWBC)
UI Web Dynpro ABAP
UI WebGUI and Internet Transaction Server (ITS)
Software Products:
ABAP Development
Internationalization and Unicode
maintenance planner
Netweaver ABAP Remote Call Function (RFC)
SAP 3D Visual Enterprise Viewer
SAP Archiving and SAP Document Access by OpenText
SAP Business Work ow
SAP Fiori for SAP Test Data Migration Server
SAP Folders Management
SAP Gateway
SAP Identity Management
SAP Landscape Management, standard edition
SAP Landscape Management, enterprise edition

1/31/2024
SAP NetWeaver Application Server for ABAP
SAP NetWeaver Mobile
SAP Screen Personas
SAP Test Data Migration Server
SAP Workforce Performance Builder, enterprise edition
Software Logistics
Software Logistics - Change Control and Transport
Software Logistics - Front-End Installtion
Software Logistics - Lifecycle Management Automation
Software Logistics - System Maintenance
Software Logistics - System Provisioning
software logistics toolset
Common Products (relevant for multiple GFM areas):
SAP NetWeaver
SAP NetWeaver Application Server
Security
SAP Client-Server Technology
MUNITY
NetWeaver Technology
can post your questions on NW

nt/Server Technology (CST) DISPATCHER SLICENSE
RFC GATEWAY
munity page. ENQUEUE ICM
y also tunned to latest information!
NEL INFO
t's New in SAP NetWeaver 7.4
Kernel: Important News LOGON GROUP NETWORK

MESSAGE
MEMORY
kernel deployment strategies SERVER
MANAGEMENT
nloading SAP Kernel Patches
nel Regressions
1/31/2024
LS STARTUP UPDATE SYSTEM SAP WEB
SERVICES DISPATCHER
ng guide
stack
e tools
AVAILABILITY
h Availability information
KERNEL RELEASE DETAILS
1969546 - Release Roadmap for Kernel 74x

and 75x
2556153 - Using kernel 7.53 instead of

kernel 7.40, 7.41, 7.42, 7.45, or 7.49
2608318 - SAP Support Package Stack

Kernel 7.53 Patch Level 100



SAP Kernel 753
1969546 - Release Roadmap for Kernel 74x

and 75x

kernel 7.40, 7.41, 7.42, 7.45, or 7.49




SAP Kernel 749

kernel 7.40, 7.41, 7.42 or 7.45
1/31/2024


2494149 SAP Support Package Stack






SAP Kernel 722
1744209 - SAP Kernel 720, 721 and 722:

Versions and Kernel Patch Levels
2133909 - SAP Kernel 722 (EXT): General

Information and Usage
2115344 - Installation of Kernel 722 (EXT)

Kernel 7.22 (EXT) Patch Level 100





1/31/2024



Identify the owner of the process holding the mutex lock
Purpose
To identify the process holding the mutex lock which will help in troubleshooting mutex related problems.
Overview
There are different processes holding the mutex lock.In order to identify which is that process and how to release that held
mutex we must rst understand how to identify the process.
Breaking down the MtxLock
Firstly what is meaning of the MtxLock function ? By de nition this means wait for a lock to become available. Mutexes can't be
recovered automatically if a process dies while still holding a lock.
The function MtxLock() is called by a process then the caller id aka client id aka CID is set as the new owner of the mutex. So the
number which you see above is actually the CID or the new owner of the mutex. To unlock a mutex we use a function
MtxUnlock().The fun part is only process which is allowed to unlock a locked mutex is the current owner himself aka the CID.
The Mutex related trace entries
In the developer traces of the work processes (dev_w*) we can nd the entries as:
example #1
*** WARNING => MtxLock <hex address> RQ_Q_WOD owner=30004 deadlock ? [mtxxx.c 641]
example #2
*** WARNING => MtxLock <hex address> MTXGLOB owner=30001 deadlock ? [mtxxx.c 2574]
Now lets break down each example one by one.
From example #1
*** WARNING => MtxLock a00010020000270 RQ_Q_WOD owner=30004 deadlock ? [mtxxx.c 641]
Now here we can see the owner is : owner=30004
1/31/2024
Similarly in example #2 we can see the owner is owner=30001
Identifying the caller id aka client id aka CID
First I would like to list out the prede ned client id's in the kernel.
The Client id range starts from 30000 and is end to 32767.
By de nition it states as ( part of internal SAP coding I cant provide more detail due to security reasons ) :
30000+0 = 30000 --> Owner is dispatcher
30000+1 = 30001 --> Owner is ICM
30000+2 = 30002 --> Owner is the java control process
30000+3 = 30003 --> Owner is dpmon process
30000+4 = 30004 --> Owner is gateway
30000+5 = 30005 --> Owner is VMC process
30000+6 = 30006 --> Owner is ES (extended segment) memory area
30000+7 = 30007 --> Owner is EM (extended memmory) memory area
30000+8 = 30008 --> Owner is EM (extended global) memory area
Troubleshooting the entries
Going one step further we now know who is the owner of the mutex.Our next step is checking the related developer trace le to
rectify the issue.
From example #1
*** WARNING => MtxLock <hex address> RQ_Q_WOD owner=30004 deadlock ? [mtxxx.c 641]
Here we will check in the gateway trace (dev_rd) to see what is the issue.
From example #2
*** WARNING => MtxLock <hex address> MTXGLOB owner=30001 deadlock ? [mtxxx.c 2574]
Here we will check in the ICM (dev_icm) to see what is the issue.
1/31/2024
TIP: Please also check the dev_*.old traces respectively.
Related Documents
Wiki page for Client server technology
Architecture of SAP NetWeaver Application Server ABAP
Architecture of SAP NetWeaver Application Server Java
Components of SAP NetWeaver Application Server
RFC Gateway
Each instance of an SAP System has an RFC Gateway. The RFC Gateway enables communication between work processes and
external programs, as well as communication between work processes from different instances or SAP Systems.
Wiki Documentation
Additional Access Control Lists (RFC Gateway)
Allocation of RFC Gateway Registered Programs
RFC Gateway Access Control Lists
RFC Gateway security settings - extra information regarding SAP note 1444282
Monitoring RFC Gateway Resources Using CCMS Infrastructure
Standalone RFC Gateway Monitor for ASCS instance
How to use gwmon tool?
Relevant SAP notes FAQ
47682 - Activating the CPIC trace Disabling RFC Gateway security
How to check the CPIC environment variable

63347 - List: CPIC error codes
How to disable the RFC Gateway logging
2180934 - Analysis of Workprocess in "On
Hold" RFC, or "Stopped" CPIC status How to display & reread RFC Gateway ACL
les / secinfo and reginfo les
2276924 - CPIC: trace le handling How to limit the size of a developer trace le
1989587 - GW: Interface for maintenance of How to troubleshoot RFC Gateway security
RFC Gateway security les settings (reg_info and sec_info)
1/31/2024
2325191 - GW: Maintenance of RFC Gateway Identifying RFC destination with trace
enabled
ACL les
License for a standalone RFC Gateway
64016 - Using the SAP RFC Gateway monitor installation
GWMON
Reloading the reginfo - secinfo at a
Standalone RFC Gateway
Miscelaneous Info
[WEBINAR] RFC Gateway Security Features
Purpose
Help understanding the additional ACLs (Access Control Lists) available at the RFC Gateway that were not covered at the RFC
Gateway Access Control Lists.
Overview
The RFC Gateway Access Control Lists covers the most commonly used ACLs available at the RFC Gateway
(the reginfo and secinfo), as well as the Simulation Mode.
For clarity purposes, this page will cover the additional ACLs available at the RFC Gateway.
Reading the other ACL Expert Content page rst is recommended, as some of the examples from
there are used at this page as well.
gw/acl_ le
This parameter points to an ACL le that can be used to control which IP addresses are allowed to
open a TCP/IP connection to this RFC Gateway.
Each line of the le represents one rule. It can start either with "permit" or "deny", which will be the
action performed on the incoming connection.
The rules are applied from top to bottom and the rst rule that matches the incoming connection is
applied.
Lines started with a "#" sign are considered comments.
There is always an implicit "deny all" rule as the last rule, even if not present at the le.
If this ACL is active, it will be applied before the reginfo rules.

1/31/2024
In other words, if the registration of the program "TAXSYS" is allowed from the host "taxserver" (IP
address 10.10.10.10, for example), there must be a "permit" rule at the gw/acl_ le allowing the IP
address from the host "taxserver" (10.10.10.10) to open a TCP/IP connection with the RFC Gateway.
Otherwise, the registration of the program will fail.
In a similar manner, if a user is allowed to start a program on demand, at a remote host (secinfo), the
remote host must be allowed to open TCP/IP connections to the RFC Gateway, as when the program
starts it will connect back to the RFC Gateway.
Example of gw/acl_ le
# This is a comment at the beginning of the file

# The next line allows the IP address 10.10.10.10 (taxserver) to connect to thi
permit 10.10.10.10
# The host 10.20.20.20 is not allowed to connect here

deny 10.20.20.20
# However, other 10.20.20.X hosts can connect

permit 10.20.20.0/24
# The whole 192.168.X.X network can connect

permit 192.168.0.0/16
gw/prxy_info
Consider the scenario where the SAP system SRC has to connect to the SAP system TRG.
However, there is no network path that would allow direct connection from SRC to TRG.
Possible common solutions would be to connect a router, a rewall, or a server running an saprouter
to both networks.
But there is another possibility. If the SAP system MID is already connected to both networks, it is
possible to use it as a "router" between the other two systems.
The "proxy info" ACL (gw/prxy_info) allows administrators to control whether this will be allowed.
As in other ACL les, each line represents a rule. It can start with either P for "permit" or D for "deny".
The rules are applied from top to bottom and the rst rule that matches the incoming connection is
applied.
Lines started with a "#" sign are considered comments.
There is always an implicit "deny all" rule as the last rule, even if not present at the le.
1/31/2024
Example of gw/prxy_info
# This is a comment at the beginning of the file
# This file should be present at the servers of the MID system

# The servers from system SRC are allowed to connect to the system TRG through
P SOURCE=src-host1,src-host2 DEST=trg-host1,trg-host2
# All servers from the domain "example.com" are NOT allowed to connect to TRG
D SOURCE=*.example.com DEST=trg-host1,trg-host2
# IP addresses can be used. 10.10.10.10 can connect to any remote server throug
P SOURCE=10.10.10.10 DEST=*
# Any server can connect to any host of the domain "example.com"

P SOURCE=* DEST=*.example.com
Related Content
Related Documents
Related SAP Notes/KBAs
SAP note 910918: GW: Parameter gw/prxy_info
Allocation of Gateway Registered Programs
Purpose
Help you to understand the allocation of the external programs registered to the Gateway of an SAP instance.
Overview
This page contains information about the allocation of external programs in the Gateway of an SAP instance, aiming to
demonstrate the analysis behind their usage and common errors.
RFC Error "Timeout during allocate"
The most common error related to the allocation of Gateway registered programs is the error "timeout during allocate". This
error is described in the SAP Note 1333483 in details. One of the possible causes mentioned is the fact that the affected
program is not registered multiple times in the Gateway and the only registration performed is already in use, causing the
below timeout if the program is attempted to start more than once. The analysis behind this aspect of the "timeout during
allocate" error will be explained in details in the next chapters of this Expert Content page.
1/31/2024
Analyzing the RFC Destination Con guration
In order to check how exactly the RFC destination for this program is con gured, you will need to access transaction SM59 and
open the RFC destination responsible for starting the TP you want to analyze (as per the above image). After selecting the RFC
destination, in the Technical Settings tab as per the image below, one speci c Gateway to communicate with the External
Server can be de ned in box "Gateway Options".
1/31/2024
Gateway Options is Speci ed in the RFC Destination
If the Gateway Host and Gateway Service are speci ed in the Gateway Options box as per the below image, it means the
communication with this External Server where this External Program is started will only be performed by the de ned Gateway
(sapgw00 running in the host hostexample1).
1/31/2024
Gateway Options is Not Speci ed in the RFC Destination
If the Gateway Host and Gateway Service are not speci ed in the Gateway Options box as per the image below, the local
Gateway will communicate with the External Program (E.g. Application Server where the user is currently logged on or where
the job is running). In this scenario, the External Program has to be registered in all the instances of this SAP system, otherwise
the error "program not registered" will be triggered as per the SAP Note 1893014.
Gateway Registrations of the External Program

The next step of this analysis which follows the analysis of the RFC destination is the analysis of the Gateway registrations of
this External Program. For this, you must access the transaction SMGW and use the meny GoTo, selecting the option "Logged
on Clients". This is shown in the below image. The SMGW transaction should be accessed in the instance de ned in the Gateway
Options box, in case it was de ned, or all the instances of the SAP system should be analyzed, in case the elds were not
de ned.
In the Logged-On Clients screen of the SMGW transaction, you can order the "TP Name" column in Descending or Ascending
order in order to make it easier to visualize all the registrations for the External Program you are analyzing. After this you can
search for the External Program name and you will nd them as shown in the below image.
1/31/2024
You can count now the number of lines reporting the TP Name which corresponds to the External Program you are analyzing
and this is indicating the maximum number of simultaneous communications that can be started with this External Program
from this Gateway.
Gateway External Program Current Connections

In the initial screen of the SMGW transaction, you can order the column called "Sym. Destination" in ascending or descending
order and after this search for the name of the External Program you are analyzing. After you nd the connections started with
this program as per the below image, you can check the number of active connections which are performed with this External
Server. The maximum number of connections possible is equal to the number of registrations this program has with this
Gateway, as per the previous step of this analysis. In the below image, you can see the last line of this External Program
reporting the Status "connecting". This connection can time out with the error "timeout during allocate" since all the
registrations of this External Program are already in use (status Connected).
In summary, you have to make sure the External Program is registered enough times to the Gateway (in case it is possible to
register this program more than once, since this is de ned by the program designers itself). In case the program is started for
more times than it was registered in the Gateway, the error "timeout during allocate" can happen, depending on the value of
the time out parameter gw/reg_timeout (as mentioned in SAP Note 1333483), since a connection can be freed before the time
out period is reached, allowing the connection under "connecting" status to be established and changed to "Connected" status,
consequently avoinding the error.
It is important to note that you can see this dump when the external program is hanging or does not respond fast enough as
well. You can identify this behavior if you can see the "Timeout during allocate of a registered program" occurring without any
active connection to the external program or if just a few active connections are reported when you have a greater number of
registrations performed for this external program in the Logged On Clients screen.
Related Content
Related Documents
SAP Note 1333483 - Timeout during allocate of a registered program
SAP KBA 2104408 - Checklist for "program <program ID> not registered" errors
FAQ RFC Gateway

1/31/2024
Client-Server Technology - RFC Gateway FAQ
Disabling RFC Gateway security
How to display & reread RFC Gateway ACL les / secinfo and reginfo les
How to limit the size of a developer trace le
How to troubleshoot RFC Gateway security settings (reg_info and sec_info)
Identifying RFC destination with trace enabled
License for a standalone RFC Gateway installation
Reloading the reginfo - secinfo at a Standalone RFC Gateway
1/31/2024
Removing the les de ned at the gw/reg_info and gw/sec_info parameters will remove the security rules from the RFC
Gateway.
If these les do not exist, the RFC Gateway reads the de nition of the gw/acl_mode parameter. If it is set to, 1 only internal rules
are enabled. Until your own RFC Gateway security rules are not correctly setup, it is possible to remove
the reginfo and secinfo les and also set the parameter gw/acl_mode to 0 (zero) in order to avoid the security control (in such
way, the parameter gw/reg_no_conn_info should not include the bitmask 16, see the SAP note 1444282) .
The combination of the above settings means that everything is allowed when starting external servers and registered servers.
See the SAP note 1480644.
In summary, follow these steps in the same order as below:
1. Move/Rename the reginfo and secinfo les;
2. Ensure that the parameter gw/reg_no_conn_info does not include the bitmask value 16 (setting this parameter to zero
achieves this);
3. Set the parameter gw/acl_mode to zero.
Read this WIKI for assistance with reloading the security les at a Standalone RFC Gateway (like a RFC Gateway running at an
SCS instance from a Java stack) without having to restart the RFC Gateway/instance.
OBSERVATION: If the parameter gw/acl_mode was changed before the les were moved, or if it was already set to zero, you
need to trigger a manual reload of the security rules (transaction SMGW, menu Goto -> Expert functions -> External security ->
read again) after moving/renaming the les.
OBSERVATION 2: If the program was already registered before the security features were disabled, it is necessary to restart
the registered program (de-register and re-register it).
This is required because the RFC Gateway copies the related rule to the memory area of the program registration.
Thus, changes to the security settings only take effect after the registered program is restarted / re-registered.
IMPORTANT : It is not recommended to keep the RFC Gateway security disabled in production systems. Use this as an
emergency workaround.
In order to implement the appropriate RFC Gateway security, read this WIKI.
How to check the CPIC environment variable?
To check the current value of an environment variable loaded by a speci c process you can use some Operating System tools
and list all environment variables to a speci c process ID (PID).
For ABAP stack you should check the PID of the dispatcher process (disp+work). It is possible to check the PID in the dev_disp
trace le or checking from OS level. For JAVA stack you should check the jlauch or jstart process.
Following some commands for each speci c Operating System:
Windows
1/31/2024
It is possible to check the enviroments of a process any time using the Process Explorer Tool. This is a freeware tool
at http://www.sysinternals.com.
Select the process, goto properties in the popup menu and then choose the Environment tab:
Linux
The command "ps eww <PID>" show the environment variable of the process. It is also possible to use "cat
/proc/<PID>/environ":
Solaris
Ther are the following ways for Solaris: "/usr/ucb/ps eww <PID>" or "pargs -e <PID>":
AIX
With the same way of Linux you can use the "ps eww <PID>".
The RFC Gateway logging feature is explained in the SAP note 2527689 - GW: Setting up gateway logging (new). It is
automatically enables in the Netweaver systems. To disable this feature it is possible to set the parameter gw/logging without
1/31/2024
value in pro le and restart the system:
"gw/logging = "
Another possible way is using the SMGW transaction, removing all settings and remove le name.
How to display & reread RFC Gateway ACL les / secinfo and reginfo les
Navigate SMGW and perform the steps as follow:
Click on menu tab Goto->Expert Functions->External Security->Maintenance of ACL Files
Steps to reread RFC Gateway ACL les:
SMGW->goto->Expert Functions->External Security->Maintenance of ACL les. (here you will be able to see RFC Gateway ACL
les) ->goto ->reread/reread(global)
If you have done the changes in ACL les you will see the following prompt
You can click ok/cancel to close the popup. Perform the above mentioned steps in popup to reread the ACL les.
1/31/2024
You can also check the following help link:
https://help.sap.com/doc/62b4de4187cb43668d15dac48fc00732/7.5.8/en-US/5872aed2b8cc4b0387374cbf5f4adcf6.html
How to troubleshoot RFC Gateway security settings (reg_info and sec_info)
How to troubleshoot RFC Gateway security settings (reg_info and sec_info)?

Firstly review what is the security level enabled in the instance as per the con guration of parameter gw/reg_no_conn_info. This
parameter will enable special settings that should be controlled in the con guration of reginfo le. Further information about
this parameter is also available in the following link:
The SAP documentation in the following link explain how to create the le rules:
RFC Gateway Security Files secinfo and reginfo
The notes 1408081 explain and provide with examples of reginfo and secinfo les. In order to gure out the reason that the RFC
Gateway is not allowing the registered program, following some basics steps that should be managed during the creation of the
rules:
1) The rules in the les are read by the RFC Gateway from the TOP to the BOTTOM hence it is important to check the previous
rules in order to check if the speci c problem does not t some previously rule. See the examples in the note 1592493;
2) It is possible to change the rules in the les and reload its con guration without restart the RFC Gateway: open the
transaction SMGW -> Goto -> expert functions -> external security -> reload However, in such situation, it is mandatory to de-
register the registered program involved and reregister it again because programs already registered will continue following
the old rules;
3) The rules in the secinfo and reginfo le do not always use the same syntax, it depends of the VERSION de ned in the le.
Check the above mentioned SAP documentation about the particular of each version;
4) It is possible to enable the RFC Gateway logging in order to reproduce the issue. The parameter is gw/logging, see note
910919. This parameter will allow you to reproduce the RFC Gateway access and see the TP and HOST that the access is using
1/31/2024
hence create the rules in the reginfo or secinfo le;
5) The rules de ned in the reginfo or secinfo le can be reviewed in colored syntactic correctness. open transaction SMGW ->
Goto -> expert functions -> Display secinfo/reginfo Green means OK, yellow warning, red incorrect. See note 1503858;
It is possible to enable a RFC trace in the SM59 destination using the following con guration.
In order to check if there are any RFC destination with the trace option enable, it is possible to search in the table RFCDES in a
simple way.
Go to SE16 -> list content of table RFCDES -> search in column RFCOPTIONS by "T=Y".
If the "T=Y" option is enable, this means that this RFC destination has the trace option enabled.
1/31/2024

No license is required for a standalone RFC Gateway installation.
Just perform the installation per the SAP Installation Guides.
Reloading the reginfo - secinfo at a Standalone RFC Gateway
Reloading the reginfo/secinfo at a Standalone RFC Gateway

If you have a Standalone RFC Gateway installation, or an RFC Gateway running at the ASCS or SCS (Java) instance, you can
reload the security les (reginfo and secinfo) without having to restart the RFC Gateway or the (A)SCS instance.
Logon to the server where the Standalone RFC Gateway is executing as "<sid>adm", and then execute the command:
gwmon pf=<path to instance pro le>
Once at the gwmon tool, access the menu "m" -> "9" -> "4".
Purpose
When using a Java system, or a Standalone Gateway running on Central Services application server (ASCS/SCS), you may need
to use 'gwmon' tool in order to monitor and perform actions over Gateway functionality (similar which what can be done with
SMGW transaction).
This process has different names:

UNIX: gwmon
Windows: gwmon.exe
How to check if there's a Standalone Gateway running on an application server?

Executing command:
sapcontrol -nr $$ -function GetProcessList
where $$ corresponds to instance number.
hostname:sidadm > sapcontrol -nr $$ -function GetProcessList
name, description, dispstatus, textstatus, starttime, elapsedtime, pid

disp+work, Dispatcher, GREEN, Running, <date> <time>, …, DISP_pid
igswd_mt, IGS Watchdog, GREEN, Running, <date> <time>, …, IGS_pid
gwrd, Gateway, GREEN, Running, <date> <time>, …, GW_pid
1/31/2024
If the Standalone GW is running on ASCS/SCS, output will show something similar to:
hostname:sidadm > sapcontrol -nr $$ -function GetProcessList

msg_server, MessageServer, GREEN, Running, <date> <time>, …, MS_pid
enserver, EnqueueServer, GREEN, Running, <date> <time>, …, ENQ_pid
gwrd, Gateway, GREEN, Running, <date> <time>, …, GW_pid
How to use ʻgwmon’ tool to monitor Standalone Gateway?

Command to start this tool is:
>> gwmon pf=<path_to_GW_pro le>
for instance, it should be:

gwmon pf=/usr/sap/<SID>/SYS/pro le/<SID>_ASCS$$_<hostname>
You will get main output, showing Gateway monitor, connected to hostname /sapgw$$
You generally exit the gateway monitor with q, and use m to go to the (next higher) menu.
If you enter option m (menu) and press Enter, it will display “Main menu”, where different options can be selected:
1. display connection table

You can display Active CPI-C Connections, similar to output from SMGW transaction.
The header speci es the size of the connections table and the current number of entries.
Attributes displayed for each active connection are explained on Expert Content page "Displaying Active CPI-C
Connections".
2. display work process table
3. display client table

Here, we can display Logged On Clients (same information that we could extract with SMGW, Goto > Logged On Clients).
Values displayed for each client logged on to the gateway, detailed on "Displaying Logged On Clients" online help.
1/31/2024
When we want to identify
if a program has been successfully registered on this Gateway,
option 3 will show us program registered (TYPE = REGISTER_TP) with TP name that was used for the registration.
4. display remote gw table

Remote Gateways table is shown, with similar values displayed for each remote Gateway (like on clients table). In this
case TYPE will be REMOTE_GATEWAY.Inputs 5 and 6 lead to submenus that provide functions for the relevant areas.
5. connection attributes
It provides deeper options regarding connection attributes. In this submenu you can display details of the CPI-C
connections from the basic list:
Each submenu option is detailed on "Connection Attributes" Expert Content page.
6. statistics menu
Allows you to check the performance of the Gateway. You can activate and deactivate these statistics dynamically. The
statistics display covers the areas, general statistics, gateway reader statistics, and TCP statistics.
7. gateway parameters and attributes

This option can be used to display parameters and attributes of the Gateway, as well as their values. Typically, those
parameters start with ʻgw/…’. Use option e to scroll to end of the list.
8. gateway release info
9. security information
This option should be used in order to handle Gateway security les, reginfo and secinfo, that are used to allow/deny
programs to register or be executed on this Gateway.
Reginfo le is used for external programs that register in the GW, while secinfo le is used to start external programs
which do not register.
Whenever those les are changed, they need to be reloaded (option 4 : refresh security), so that new rules are used. This
allows the security information to be modi ed during the runtime.
1/31/2024
10. expert functions
Option 10 gives us much more functionality, all of them explained here.
- Gateway trace le can be reset with option 7. This may be useful when we need to remove previous information and
start tracing any error we may need to analyze.
Note that Gateway trace (called dev_rd, and normally located under work folder) can be increased and reduced using
options from Main menu:
+ : increase gateway trace
- : decrease gateway trace
- You can dump current information about connection table, client table, WPs table or remote Gateways. This allows to
get deeper information on each option.
- Option 23, should be used to de-register (cancel) a registered program.
This way, whenever program is registered again, new rules from reginfo will be used.
1/31/2024
Related Content
Documents related to gwmon
Using the Gateway Monitor Outside the SAP System
Standalone Gateway Monitor for ASCS instance
SAP Note 2061464 - GW: Several minor xes in Gateway
KBA 1988220 - Gateway was shown as “Monitor deactivated” in report RSMONREL_ALV
SAP Note 1529849 - Gateway security setting in an SCS instance, AS Java
Related documentation for Gateway security
KBA 2075799 - ERROR: Error (Msg EGW 748 not found) [VIDEO]
KBA 2104408 - Checklist for "program <program ID> not registered" errors
KBA 2132535 - RFC Destination fails “No storage allocation available” [VIDEO]
KBA 2145145 - User is not authorized to start an external program [VIDEO]
Error CSS Stylesheet macro - URL 'https://fonts.googleapis.com/css?family=Ubuntu+Mono' is not on the allowlist. If you want
to include this content, contact your Con uence administrator to request adding this URL to the Allowlist.
Monitoring Gateway Resources Using CCMS Infrastructure
Purpose
The purpose of this page is to explain how the gateway of an SAP instance can be monitored through the CCMS infrastructure.
Overview
1/31/2024
This page provides details about the CCMS monitoring infrastructure, speci cally focused in the gateway resources monitoring,
providing details about how to nd the monitoring functions and how to con gure them accordingly.
CCMS Transaction RZ20

The CCMS monitoring infrastructure, a solution within SAP NetWeaver, centrally monitors any IT environments - from individual
systems through networked SAP NetWeaver solutions, to complex IT landscapes incorporating several hundred systems. In this
section, you learn about the Alert Monitor (transaction RZ20) and its monitoring functionalities.
Most of the gateway monitoring functionalities can be found in transaction RZ20, by following the below path.
RZ20 transaction → SAP CCMS Monitor Templates → Communication → Gateway Service → <Instance Name> →
Gateway_Reader
Monitoring Gateway Resources

The CCMS Infrastructure allows you to monitor the gateway resources available in the SAP instance by using the transaction
RZ20. The below MTEs are available in order to monitor different gateway resources, they are:
Gateway_Clients - Used percentage of the maximum gateway clients con gured in the instance.
Gateway_Connections - Usage percentage of the maximum gateway connections con gured in the instance.
Gateway_RemGateways - Usage percentage of the maximum number of connected gateways.
For the above mentioned MTEs, you can see their correspondent usage and consumption also in transaction SMGW, in the
header of the transaction.
1/31/2024
Gateway_CommAdmEnty - Usage percentage of the maximum number of gateway comm_adm entries.

Gateway_Workprocess - Usage of gateway work processes. This is an old concept used in SNA gateways.
Gateway_MallocFailed - Errors with the gateway malloc.
Gateway_Over owUsage - Percentage of the gateway over ow usage. This is de ned by the parameter gw/max_over ow_size
Gateway_Over owExceeded - Gateway errors when accessing the over ow area.
For more information regarding the gateway parameters and their respective objective, please refer to the Gateway
Parameters SAP online help where they are all listed and described in details, with their correspondent default values.
Monitoring Scenarios Examples

1. Using the Gateway_Clients MTE, you can set up a monitoring scenario to raise an alert when you have a small
percentage left of the total number of allowed clients connected to the gateway of this instance. With this, you can
prevent the error "Maximum number of gateway clients exceeded" described in the SAP Note 894100, therefore
preventing the failure of RFCs that might impact the business operations.
2. Using the Gateway_Connections MTE, you can set up a monitoring scenario to raise an alert when you have a small
percentage left of the total number of allowed connections to the gateway of this instance. With this, you can prevent
the error "Maximum number of gateway connections exceeded" described in the SAP Note 887909, therefore
preventing the failure of RFCs that might impact the business operations.
3. Using the Gateway_RemGateways MTE you can set up a monitoring scenario to raise an alert when you have a small
percentage left of the total number of allowed remote gateways of the gateway of this instance. With this, you can
prevent the error "Maximum number of gateways reached" described in the SAP Note 978078, therefore preventing the
failure of RFCs that might impact the business operations.
CCMS Auto-Reaction Methods

In the CCMS monitoring infrastructure, you can set up any MTE available in transaction RZ20 to automatically trigger email
alerts in case the values reported by them meet the threshold values de ned. The next chapters will explain more details about
the con guration process to achieve this.
De ning Threshold Values for the Monitored MTEs
The rst step is to de ne which MTEs you want to monitor in transaction RZ20, with this, you can start to set up their
thresholds accordingly, so you are alerted in the correct scenario. Follow the Adjusting the Threshold Values chapter from
the Con guring Alert Triggering and Alert Reactions SAP online help documentation for a detailed step by step on how to
achieve this.
1/31/2024
De ning and Assigning Auto-Reaction Methods for the Monitored MTEs
The second step to achieve this con guration is to de ne and assign the auto-reaction methods to the desired MTEs in the
CCMS monitoring infrastructure. In order to perform this con guration, follow the steps mentioned in the De ning an
Automatic Alert Noti cation SAP online help documentation.
Alternatively, you can choose to de ne Central auto-reaction methods, which will trigger the email alert from the central system
instead of the local system. For this con guration, refer to the SAP online help Setting Up Central Auto-Reaction Methods for
more details.
1/31/2024
Displaying MTE Performance Information Graphically
Withing the CCMS transaction RZ20, you can display the performance values shown by an speci c MTE as a graphic, allowing
you to make faster and more accurate analysis based on the reported data. In order to display the MTE values as a graphic,
follow the below steps.
1. Select the Performance MTE in RZ20.
2. Click in the Display Details button.
3. Select whether you want to display the last 30 minutes or 24 hour value.
4. Click in the "Display performance values graphically" button.
5. The graphic is nally shown in the below format.
1/31/2024
Related Content
Related Documents
Gateway Parameters
De ning an Automatic Alert Noti cation
Con guring Alert Triggering and Alert Reactions
Setting Up Central Auto-Reaction Methods
SAP Note 894100 - Maximum number of gateway clients exceeded
SAP Note 887909 - Maximum number of gateway connections exceeded
SAP Note 978078 - Maximum number of gateways reached
SAP Note 939616 - CCMS auto-reactions: Help with troubleshooting
SAP Note 176492 - Automatic email when an alert occurs (RZ20)

1/31/2024
Purpose
Help with the understanding of the RFC Gateway ACLs (Access Control Lists) and the Simulation
Mode, in order to help prepare production systems to have these security features enabled without
disruptions.
Overview
This page contains information about the RFC Gateway ACLs (reginfo and secinfo les), the
Simulation Mode, as well as the work ow showing how the RFC Gateway works with regards to the
ACLs versus the Simulation Mode.
Additional ACLs are discussed at Additional Access Control Lists (RFC Gateway). This is for clarity purposes.
Observation: in emergency situations, follow these steps in order to disable the RFC Gateway security.
RFC Gateway ACLs (reginfo and secinfo)
This section contains information about the RFC Gateway ACLs, and examples of landscapes and
rules.
The reginfo le have ACLs (rules) related to the registration of external programs (systems) to the
local SAP instance. For example: an SAP SLD system registering the SLD_UC and SLD_NUC
programs at an ABAP system.
The secinfo le has rules related to the start of programs by the local SAP instance. In other words,
the SAP instance would run an operating system level command. For example: the RFC destination
(transaction SM59) “CALL_TP_<operating system>” starts the “tp” program, which is used by the
SAP Transport System (transaction STMS).
Before jumping to the ACLs themselves, here are a few general tips:
The very rst line of the reginfo/secinfo le must be "#VERSION=2";
Each line must be a complete rule (you cannot break the rule into two or more lines);
The RFC Gateway will apply the rules in the same order as they appear in the le, and only the
rst matching rule will be used (similar to the behavior of a network rewall). All subsequent
rules are not even checked. This means that the order of the rules is very important, especially
when general de nitions are being used (“TP=*”);
Each instance should have its own security les, with their own rules, as the rules are applied by
the RFC Gateway process of the local instance. However, if in your scenario the same rules apply
to all instances of the system, you can use a central le (see the SAP note 1425765);
The rst letter of the rule can be either P (for Permit) or D (for Deny). You don’t need to de ne a
“deny all” rule at the end, as this is already implicit (if there is no matching Permit rule, and the
RFC Gateway already checked all the rules, the result will be Deny – except when the Simulation
Mode is active, see below).
1/31/2024
The syntax of the rules is documented at the SAP note 1408081. There are other SAP notes that
help to understand the syntax (refer to the “Related notes” section below).
A general reginfo rule de nition would be (note that the rule was split into multiple lines for
explanation purposes, so it is more easily understood):
P TP=<program name>
HOST=<comma separated list of hosts that can register the program>
ACCESS=<comma separated list of hosts that can communicate with the program>
CANCEL=<comma separated list of hosts that can cancel this registration>
Usually, ACCESS is a list with at least all SAP servers from this SAP system. This can be replaced by
the keyword "internal" (see examples below, at the "reginfo" section). It might be needed to add
additional servers from other systems (for an SLD program – SLD_UC, SLD_NUC, for example).
CANCEL is usually a list with all SAP servers from this system (or the keyword "internal"), and also
the same servers as in HOSTS (as you must allow the program to de-register itself).
A general secinfo rule de nition would be (note that the rule was split into multiple lines for
explanation purposes, so it is more easily understood):
P USER=<username that is allowed to start the program>

/* read the explanation for USER at the SAP note 614971 for more details */
USER-HOST=<comma separated list of hosts from where the users can start the p
HOST=<comma separated list of hosts where the program can be started>
TP=<program name>
Go to Secinfo section
Go to Simulation Mode section
Reginfo – Landscape and Example
You have a Solution Manager system (dual-stack) that you will use as the SLD system. The Solution
Manager (“SolMan”) system has only one instance, running at the host “sapsmci”.
You have con gured the SLD at the Java-stack of the SolMan system, using the RFC Gateway of the
SolMan’s ABAP-stack.
1/31/2024
There is an SAP PI system that needs to communicate with the SLD. The PI system has one Central
Instance (CI) running at the server “sappici”, and one application instance (running at the server
“sappiapp1”). The RFC destination “SLD_UC” looks like the following, at the PI system:
1/31/2024
1/31/2024
No reginfo le from the PI system is relevant. Since the SLD programs are being registered at the
SolMan’s CI, only the reginfo le from the SolMan’s CI is relevant, and it would look like the following:
#VERSION=2
P TP=SLD_UC HOST=local ACCESS=internal,sappici,sappiapp1 CANCEL=local
(…OTHER REGINFO RULES…)
# This must always be the last rule on the file – see SAP note 1408081
P TP=* HOST=internal,local CANCEL=internal,local ACCESS=internal,local
The keyword “local” means “the local server”. The keyword “internal” means “all servers that are part
of this SAP system” (in this case, the SolMan system). Notice that the keyword "internal" is available
at a Standalone RFC Gateway (like the RFC Gateway process that runs at an SCS or ASCS instance)
only after a certain SAP kernel version. Refer to the SAP Notes 2379350 and 2575406 for the details.
Another example: you have a non-SAP tax system that will register a program at the CI of an SAP ECC
system. The name of the registered program will be “TAXSYS”. The tax system is running on the server
“taxserver”. The reginfo rule from the ECC’s CI would be:
P TP=TAXSYS HOST=taxserver ACCESS=internal CANCEL=local,taxserver
The rule above allows any instance from the ECC system to communicate with the tax system. If
other SAP systems also need to communicate with it, using the ECC system, the rule need to be
adjusted, adding the hostnames from the other systems to the ACCESS option. For example:
P TP=TAXSYS HOST=taxserver ACCESS=internal,host1,host2 CANCEL=local,taxserver
The SAP KBAs 1850230 and 2075799 might be helpful. They also have a video (the same video on both
KBAs) illustrating how the reginfo rules work.
Changes to the reginfo rules
Changes to the reginfo rules are not immediately effective, even after having reloaded the le
(transaction SMGW, menu Goto -> Expert functions -> External security -> Reread / Read again).
1/31/2024
After reloading the le, it is necessary to de-register all registrations of the affected program, and re-
register it again. This is required because the RFC Gateway copies the related rule to the memory area
of the speci c registration. If you have a program registered twice, and you restart only one of the
registrations, one of the registrations will continue to run with the old rule (the one that was not
restarted after the changes), and another will be running with the current rule (the recently restarted
registration). This would cause "odd behaviors" with regards to the particular RFC destination.
For example: you have changed to the rule related to the SLD_UC program, allowing a new server to
communicate with it (you added the new server to the ACCESS option). You have already reloaded the
reginfo le. However, you still receive the "Access to registered program denied" / "return code 748"
error. The solution is to stop the SLD program, and start it again (in other words, de-register the
program, and re-register it).
Go to the top of the page
Secinfo – Landscape and Example
You have a non-SAP tax system that needs to be integrated with SAP. Such third party system is to be
started on demand by the SAP system.
Only the (SAP level) user IDs “BOB” and “JOHN” can start this program, and they will be logged on to
one of the instances from this SAP system.
You have an RFC destination named “TAX_SYSTEM”. It is con gured to start the tax calculation
program at the CI of the SAP system, as the tax system is installed only there. The RFC destination
would look like:
1/31/2024
1/31/2024
The secinfo les from the application instances are not relevant. Only the secinfo from the CI is
applicable, as it is the RFC Gateway from the CI that will be used to start the program (check the
“Gateway Options” at the screenshot above).
Note: depending on the system’s settings, it will not be the RFC Gateway itself that will start the
program. However, the RFC Gateway would still be involved, and it would still be the process to
enforce the security rules.
The secinfo le from the CI would look like the below:
#VERSION=2
P USER=BOB USER-HOST=internal HOST=local TP=/usr/taxsys/taxcalc
P USER=JOHN USER-HOST=internal HOST=local TP=/usr/taxsys/taxcalc
(…OTHER SECINFO RULES…)
P USER=* USER-HOST=internal,local HOST=internal,local TP=*
In case you don’t want to use the keywords “local” and “internal”, you’ll have to manually specify the
hostnames. For example: the system has the CI (hostname “sapci”) and two application instances
(hostnames “appsrv1” and “appsrv2”). The rules would be:
P USER=BOB USER-HOST=sapci,appsrv1,appsrv2 HOST=sapci TP=/usr/taxsys/taxcalc

P USER=JOHN USER-HOST=sapci,appsrv1,appsrv2 HOST=sapci TP=/usr/taxsys/taxcalc
Another example: let’s say that the tax system is installed / available on all servers from this SAP
system, the RFC destination is set to “Start on application server”, and the “Gateway options” are
blank. This way, each instance will use the locally available tax system.
In this case, the secinfo from all instances is relevant as the system will use the local RFC Gateway of
the instance the user is logged on to start the tax program. The secinfo le would look like:
#VERSION=2
P USER=BOB USER-HOST=local HOST=local TP=/usr/taxsys/taxcalc
P USER=JOHN USER-HOST=local HOST=local TP=/usr/taxsys/taxcalc
(…OTHER SECINFO RULES…)
P USER=* USER-HOST=internal,local HOST=internal,local TP=*
1/31/2024
The usage of the keyword “local” helps to copy the rule to all secinfo les, as it means “the local
server”. In case you don’t want to use the keyword, each instance would need a speci c rule. Here are
some examples:
At the application server #1, with hostname “appsrv1”:
P USER=BOB USER-HOST=appsrv1 HOST= appsrv1 TP=/usr/taxsys/taxcalc

P USER=JOHN USER-HOST=appsrv1 HOST= appsrv1 TP=/usr/taxsys/taxcalc
At the application server #2, with hostname “appsrv2”:
P USER=BOB USER-HOST=appsrv2 HOST= appsrv2 TP=/usr/taxsys/taxcalc

P USER=JOHN USER-HOST=appsrv2 HOST= appsrv2 TP=/usr/taxsys/taxcalc
The SAP KBA 2145145 has a video illustrating how the secinfo rules work.
Go to the top of the page
Simulation Mode
To avoid disruptions when applying the ACLs on production systems, the RFC Gateway has a
Simulation Mode. The SAP note 1689663 has the information about this topic.
In summary, if the Simulation Mode is deactivated (parameter “gw/sim_mode = 0”; default value), the
last implicit rule from the RFC Gateway will be “Deny all” as mentioned above, at the “RFC Gateway
ACLs (reginfo and secinfo)” section.
If the Simulation Mode is active (parameter “gw/sim_mode = 1”), the last implicit rule will be changed
to “Allow all”. In addition, the RFC Gateway logging (see the SAP note 910919) can be used to log that
an external program was registered, but no “Permit” rule existed.
It is important to mention that the Simulation Mode applies to the registration action only. After the
external program was registered, the ACCESS and CANCEL options will be followed as de ned in the
rule, if a rule existed.
In addition, the existing rules on the reginfo/secinfo le will be applied, even on Simulation Mode.
Thus, if an explicit Deny rule exists and it matches the request being analyzed by the RFC Gateway,
the RFC Gateway will deny the request.
1/31/2024
RFC Gateway behavior versus RFC Gateway parameters
There are two parameters that control the behavior of the RFC Gateway with regards to the security
rules. They are:
gw/acl_mode: this parameter controls the value of the default internal rules that the RFC
Gateway will use, in case the reginfo/secinfo le is not maintained. In case the les are
maintained, the value of this parameter is irrelevant;
gw/sim_mode: activates/deactivates the simulation mode (see the previous section of this
Expert Content page).
The diagram below shows the work ow of how the RFC Gateway works with the security rules and the
involved parameters, like the Simulation Mode.
Related Content
Related Documents
SAP Gateway Security Files secinfo and reginfo
Con guring Connections between Gateway and External Programs Securely
1/31/2024
Gateway security settings - extra information regarding SAP note 1444282
Additional Access Control Lists (Gateway)
Disabling gateway security
Reloading the reginfo - secinfo at a Standalone Gateway
Related Notes
SAP note 1689663: GW: Simulation mode for reg_info and sec_info
SAP note 1444282: gw/reg_no_conn_info settings
SAP note 1408081: Basic settings for reg_info and sec_info
SAP note 1425765: Generating sec_info reg_info
SAP note 1069911: GW: Changes to the ACL list of the gateway (reginfo)
SAP note 614971: GW: Changes to the ACL list of the gateway (secinfo)
SAP note 910919: Setting up Gateway logging
SAP KBA 1850230: GW: "Registration of tp <program ID> not allowed"
SAP KBA 2075799: ERROR: Error (Msg EGW 748 not found)
SAP KBA 2145145: User is not authorized to start an external program
SAP KBA 2605523: [WEBINAR] Gateway Security Features
SAP Note 2379350: Support keyword internal for standalone gateway
SAP Note 2575406: GW: keyword internal on gwrd 749
SAP Note 2375682: GW: keyword internal lacks localhost as of 740
Purpose
The purpose of this page is to clarify the RFC Gateway security features described at SAP Note 1444282, and its related notes.
1/31/2024
Overview
This page explains how the parameter gw/reg_no_conn_info works, and how to set it to the desired value. Each security feature
is also brie y discussed.
Clari cation on how the parameter gw/reg_no_conn_info works

The parameter gw/reg_no_conn_info is interpreted as a bitmask value by the RFC Gateway. A similar technique is also used at
linux/UNIX lesystems, to set the le/folder permissions using numbers that represent the desired permission.
The RFC Gateway reads the number de ned at the parameter at the binary format, and identi es which bits are set to 1, which
will de ne that the associated security feature is to be activated.
Decimal | Security feature to be activated

Value | (Note Number - Short Text)
--------------------------------------------------------------------------
0 | No additional security active
1 | SAP Note 1298433 - Bypassing security in reginfo & secinfo
2 | SAP Note 1434117 - Bypassing sec_info without reg_info
4 | SAP Note 1465129 - CANCEL registered programs
8 | SAP Note 1473017 - Uppercase/lowercase in the les reg_info and sec_info
16 | SAP Note 1480644 - gw/acl_mode versus gw/reg_no_conn_info
32 | SAP Note 1633982 - ACCESS option in the le reginfo
64 | SAP Note 1697971 - GW: Enhancement when starting external programs
128 | SAP Note 1848930 - GW: Strong gw/prxy_info check
Example 1:
If the parameter is set to 5, we will have only the security features "1" and "4" activated. That's because looking at the number 5
in the binary format, we will have "1010".
To convert a binary number to the equivalent in decimal numbers, we can perform a sum of numbers based on powers of 2:
4|2|1|0 <--- series of numbers based on powers of 2

1|0|1|0 <--- binary representation of the decimal number "5", the 1’s de ne which of the numbers are part of the sum
Example 2:
You have read the notes that describe the security features, and you have decided to activate the following features:
4 SAP Note 1465129 - CANCEL registered programs
8 SAP Note 1473017 - Uppercase/lowercase in the les reg_info and sec_info
You just have to sum "4" and "8", and set the parameter gw/reg_no_conn_info to the obtained result (4 + 8 = 12, then
"gw/reg_no_conn_info = 12").
Clari cation on the security features

Setting the parameter gw/reg_no_conn_info to 0 (zero) deactivates all security features controlled by this parameter.
We strongly recommend that you carefully review each note to completely understand the behavior changes. The below
information is just a super cial summary.
1 (SAP Note 1298433 - Bypassing security in reginfo & secinfo)
1/31/2024
This security feature changes the behavior of the RFC Gateway preventing that malicious users bypass the settings of the
reginfo and secinfo les.
For security reasons, no further details can be informed.
2 (SAP Note 1434117 - Bypassing sec_info without reg_info)
In the past, the RFC Gateway used the secinfo le for two distinct set of rules, if the reginfo le was not de ned:
- rules for registration of external programs at the RFC Gateway;
- rules for allowing users to start external programs on demand.
Activating the security feature "2" will change the behavior of the RFC Gateway making the rules of secinfo to be considered
only for allowing users to start external programs.
The rules for registration of external programs at the RFC Gateway must, therefore, be maintained at the reginfo le.
4 (SAP Note 1465129 - CANCEL registered programs)
secinfo le, allowing such users to cancel the registration of programs for which they were not authorized.
8 (SAP Note 1473017 - Uppercase/lowercase in the les reg_info and sec_info)
The options for the reginfo and secinfo rules are considered "case sensitive", so they must be written in upper case letters only.
Writing an option with lower case letters (or with "mixed cases", like "Host"), would cause the option to be considered invalid.
Since invalid options are ignored, this may cause the rule to behave differently from the expected.
Activating this security feature makes the reginfo and secinfo options to be considered "case insensitive", and invalid options
are not ignored anymore (they will generate an error and the entire rule will be ignored).
16 (SAP Note 1480644 - gw/acl_mode versus gw/reg_no_conn_info)
As of Kernel Release 720, you can use the parameter "gw/acl_mode = 1" to set an initial security environment with regard to
starting and registering external programs.
Activating the security feature "16" will cause the same behavior of the RFC Gateway as the parameter "gw/acl_mode = 1", thus
you can continue to use only the gw/reg_no_conn_info parameter to control which RFC Gateway security features are active.
Note that the same behavior is controlled by the two parameters. Thus, if you want to deactivate this feature you have to set
"gw/acl_mode = 0" and remove the security feature "16" from the gw/reg_no_conn_info bit mask value, although it is
recommended that you keep this feature active.
32 (SAP Note 1633982 - ACCESS option in the le reginfo)
reginfo le, allowing such users to access programs for which they were not authorized.
64 (SAP Note 1697971 - GW: Enhancement when starting external programs)

1/31/2024
This feature checks whether tabulators are being used at the command line to start external programs, either in transaction
SM59 or at the "saprfc.ini" le.
Tabulators are not allowed at the command line to start external programs. Review the SAP Note 1697971 for more details.
128 (SAP Note 1848930 - GW: Strong gw/prxy_info check)
Enhanced the "proxy security" feature of the RFC Gateway, enabling it to cover more scenarios.
For more details, read the SAP note 1848930 and the description of the parameter "gw/prxy_info" at this Expert Content page.
Parameter gw/reg_no_conn_info as of SAP kernel 740

As of the SAP kernel 740, only the options below are available (SAP note 2269642).
Decimal | Security feature to be activated

Value | (Note Number - Short Text)
--------------------------------------------------------------------------
0 | No additional security active
1 | SAP Note 1298433 - Bypassing security in reginfo & secinfo
64 | SAP Note 1697971 - GW: Enhancement when starting external programs
128 | SAP Note 1848930 - GW: Strong gw/prxy_info check
Related Content
Related Documents
Related Notes
SAP Note 1444282 - gw/reg_no_conn_info settings
SAP Note 1298433 - Bypassing security in reginfo & secinfo
SAP Note 1434117 - Bypassing sec_info without reg_info
SAP Note 1465129 - CANCEL registered programs
SAP Note 1473017 - Uppercase/lowercase in the les reg_info and sec_info
SAP Note 1480644 - gw/acl_mode versus gw/reg_no_conn_info
SAP Note 1697971 - GW: Enhancement when starting external programs
SAP note 2269642 - GW: Validity of parameter gw/reg_no_conn_info
SAP Note 1848930 - GW: Strong gw/prxy_info check
RFC resources control to process Asynchronous RFC
Purpose
To process Asynchronous RFC using destination on group, the SAP kernel runs a resource analysis before trigger the RFC
request to an Application Servers target. This wiki aims to clarify the steps and resources analysis on each target Application
Server made by SAP Kernel.
Overview
1/31/2024
A range of resources are required when starting or running RFC calls. These resources belongs to many and distinct areas of
gateway, dispatcher and taskhandler hence the analysis is required before trigger and RFC to a destination Application Server.
Besides of the limited resources on each component, the RFC also have limits to consume the resource areas. The following
table describes all checks done, the areas involved and the respective limits to RFC connections.
Resources check ow
Check The analysis made Parameters Involved on the rource Return if resource is denied
order
1 Is the quota activated? The feature is enable with parameter rdisp/rfc_use_quotas. If Function deactivated
this parameter is disabled, no resources are controled on the
remote Application Server
2 Is the queue overloaded? Evaluate if still DIA WPs available on the server (not all busy). Server resources are
exhausted
3 Is the system under high Evaluate if the server is in high load. This control is made by the Server resources are
load situation? Load Control of dispatcher. <REFERENCE ABOUT LOAD exhausted
CONTROL>
4 Is there enough WP to This quota is based on the parameters Too few free dialog work
process request? rdisp/scheduler/prio_normal/max_quota and processes
rdisp/scheduler/prio_low/max_quota
5 Is the Application Server in Server is being stopped

a shutdown status?
6 Still slots availalbe on The comunicatino table is sized by rdisp/max_comm_entries. Local quota for
communication table? The quota allowed to the RFC call is determined by the % of rdisp/rfc_max_comm_entries
rdisp/rfc_max_comm_entries. used up
7 Does the local Work Process A single WP can create the number of tasks setup by Local quota for
that triggers the call I still rdisp/task_limit RFC and the quota for RFC requests is rdisp/rfc_max_open_tasks is
have quota for tasks? determined by rdisp/rfc_max_open_tasks. This resource is reached
controlled on the source Application Server at this time
8 Is there avaialble slots on The size of the queue is determined by Quota for
the queue? rdisp/elem_per_queue RFC and the quota is determined by rdisp/rfc_max_queue is too
rdisp/rfc_max_queue. small
9 Is there enough terminals to The number of terminals is setup by rdisp/tm_max_no. The Quota for
a new login? RFC quota is determined by rdisp/rfc_max_login rdisp/rfc_max_login used up
10 Is there terminals to my own The number of terminals is setup by rdisp/tm_max_no and the Quota for
user? quota to the user that trigger the RFC is rdisp/rfc_max_own_login
rdisp/rfc_max_own_login used up
If no resource is denied, the caller will receive resources to trigger the RFC request.
Related Content
Related Documents
1/31/2024
RFC Resources on the Application Server
Monitoring RFC Resources on the Application Server
Standalone Gateway Monitor for ASCS instance
Purpose
This Expert Content explains about an ABAP program to manage a standalone gateway running in an
ASCS instance.
Overview
It is possible to use a standalone gateway in an ASCS instance
1708600 - Inst. Gateway SAP Systems NetWeaver 7.1 and Higher
However, there was no standard ABAP program to manage the standalone gateway.
In order to manage the service like read traces, stop and start the gateway it was required to perform
action over the Operating System level. There is a new program as from 740 system called
RSGWMON_ASCS to manage the instance in ABAP level.
Running the program
1) calling the program RSGWMON_ASCS in SE38;

2) In transaction SMGW call ASCS in the opcode eld;
If no gateway is running in the ASCS instance or if the web method call fail, a message that no
gateway active is triggered.
Requirement
This program use the sapstartsrv Web Methods to manage the standalone gateway.
All of these actions goes over SSL cryptography, therefore, it is required to have and HTTPS service
enable in ICM.
Available Options
1/31/2024
Related Content
Related Documents
1708600 - Inst. Gateway SAP Systems NetWeaver 7.1 and Higher
2287916 - Message "No gateway is running in the ASCS instance" from RSGWMON_ASCS
2323862 - Message "No gateway is running in the ASCS instance" from RSGWMON_ASCS
SAP Dispatcher and Taskhandler
SAP Dispatcher and Taskhandler

Management Troubleshooting
SAP Kernel Update on Unix and Linux SAPLTHFB Report Appearing in SM66
Transaction
SAP Kernel Update on Windows
What do the semaphores mean
Parameters based in hardware resources
What do the semaphores mean - higher
Dynamic parameters change in SAP system
releases
Application Server load information control

Kernel incompatible to already connected
Changing the number of work processes: instances
topics to consider 7.4X parameter check feature
Dynamic work processes con guration Analysis of Workprocess in "On Hold" RFC on
a hanging system
Server Snapshots in the SAP System
1/31/2024
Monitoring Work Processes in the CCMS

Infrastructure
Work process termination cases
Dispatcher Security
Top relevant SAP notes Miscelaneous Info
39412 - How many work processes should Architecture of SAP NetWeaver Application
be con gured? Server ABAP
2129291 - Session Priority and Work Process

Quota in SAP Kernel 7.4x - SAP ONE Support
Launchpad
2190597 - Work Process Con guration - Best

Practices
9942 - Maximum number of work processes
2181592 - CST: Mini-trace layer for request

ow
1370207 - Creating work process trace les
Useful Tools F.A.Q.
DPMON Dispatcher Monitor How to check the work process status from
Operating System Level
How can remove activity on a single

application server
How do I nd out, which kernel patch level

xes a problem described in a note
How do I install a kernel patch
What does "passive state" actually means?"
7.4X parameter check feature
1/31/2024
Purpose
Clari cation about the check parameters feature made by SAP kernel.
Overview
As of 7.40 SP2 a feature to check parameters was improved. This feature create syslog messages
(SM21) and messages in the developer traces. The goal of this wiki is to explain how to identify wrong
parameters with the information available in this feature.
How to nd a wrong parameter setting?
During the startup of SAP system the SAP kernel perform a routine to validate pro le parameters.
This routing will print an invalid pro le parameter value in syslog and developer trace.
Dispatcher trace
The dev_disp trace is available in the instance work folder and the parameter check feature print a
WARNING about the invalid parameter value:
*** WARNING => DpCheckParams: invalid value for <parameter name> = <value set> [dpInit.c XXXX
It is possible to search by all wrong parameters using shell scripts like
grep “invalid value for” dev_disp
Or also searching over SM51 -> select instance -> Goto -> Information -> Trace Search -> search by
“invalid value for”
Syslog
The syslog is accessible over transaction SM21. The SAP kernel record syslog with messages
ID Q30, Q31 and Q32.
Go to transaction SM21, chose from date before the last start up, in Message ID chose Q30 to Q32.
The messages displayed should be like following in case wrong parameters:
SAPPFPAR
1/31/2024
It is possible to use the standalone tool to check the formula based parameters or even possible
errors in parameters de nitions. See the following Wiki page:
sappfpar to analyse formula de ned parameters and additional features
SAPSTARTSRV
In the most recent kernel releases, as from 749, new web methods were created to Check Parameters.
SAPMMC
As from 749, inside of SAPMMC, selecting the system, All tasks, it is possible to use the option Check
Parameters to evaluate all de ned pro le parameters. The tools will show you a list of issues found
and the reason that there is a problem inside of pro le with the current parameter settings:
RZ10
Selecting the pro le, it is possible to use the menu Pro le → Detailed Check that list all the problem
with the current parameters settings.
Conclusion
With this improvement in the parameter check made by the SAP Kernel it is better possible to
manage SAP systems to easily identifying wrong parameters settings.
1/31/2024
Related Content
Analysis of Workprocess in "On Hold" RFC on a hanging system
Purpose
This document is intended to provide an alternative for the analysis of KBA "2180934 - Analysis of Workprocess in "On Hold"
RFC, or Stopped CPIC status" in case the system is not accessible through SAP GUI.
In this situation it could be possible to check the remote RFC side of the communication through OS tools and developer traces.
Getting the conversation ID
If a snapshot was written over the dispatcher trace le (dev_disp) at that time, we can check the information of the Work
process
and RFC-Connection Table.
If this snapshot is not available, this information can be triggered at run-time:
1st option - write a snapshot on the dispatcher trace le with dpmon tool:
dpmon pf=<path to pro le/pro le name of the instance>
-->m ( m - menue )
-->p ( p - work-process-admin-table )
-->e ( e - create snapshot )
2nd option - Display the information from those tables
-->m ( m - menue )
-->l ( l - work-process-admin-table (long) )
-->c ( c - RFC connections / Comm adm blocks)
The information from the session table could also be useful in some cases:
-->m ( m - menue )
-->v ( v - session table )
The important point for the analysis of this problem, is to link the request holding the WP being analyzed with its conversation
ID:
1/31/2024
Getting the information from the partner of the communication

Once we have the conversation ID, the remote RFC side of the communication can be checked:
Start gwmon tool on the application server affected by the problem and take the information of following options.
Connection table
gwmon pf=<path to pro le/pro le name of the instance>
-->m ( m - menue )
-->1 ( 1 : display connection table )
In this example, we can see the conversation ID 10819513 is linked to connection number 0
Connection attributes
With the conversation ID, we can check the details of the RFC server partner
-->5 ( 5 : connection attribute )

->6 (6: display partner attr ) -> enter the conversation ID
1/31/2024
With the connection number , we could display more information of the connection if needed:
-->5 ( 5 : connection attribute )

--> 1 (1: display connection ) -> enter number of connection
Each RFC connection is identi ed with the unique number (8 digits), called convID. This conversation ID is the same on the RFC
client and the RFC server.
Now that we have the details of the RFC server partner, we can continue with the analysis as explained as of point 5 of KBA
2180934 - Analysis of Workprocess in "On Hold" RFC, or Stopped CPIC status
Related Content
Related Documents
2180934 - Analysis of Workprocess in "On Hold" RFC, or Stopped CPIC status
DPMON Dispatcher Monitor
1/31/2024
Application Server load information control

Purpose
This Expert Content explain about SAP load info messages feature.
Overview
As from kernel 740 the SAP system has a feature to avoid overload situations in the request
processing. This feature uses load info messages to keep the entire SAP system (all remote
Application Servers) aware of its application server load situation.
How it works
The load calculation is designed to avoid overload of dispatcher queues. An example of an overload
situation is about the update requests. If, for example, an application server is handling long update
requests and further requests began to increase the update queue, this application server should no
longer receive update requests before return to normal load situation.
The load calculation is able to identify such situation and inform the update mechanism to stop to
send update requests to this application server deactivating its update processing.
Note that the deactivation of update mechanism in this Application Server is temporary. This occurs
until it is overload and this deactivation does not occurs if no other update server available to process
updates.
The parameter rdisp/high_load_quota controls the trigger to send the load info message and its
default de nition is "load=90, queue=5"
The "load" and "queue" are thresholds used to determine when to trigger the load info message. Every
second the dispatcher calculate the % length of dispatcher queue and compare with "queue" and the
% of Work Process utilization of this Work Process type and compare with "load".
See further information about this parameter in the RZ11 documentation.
In SM50 it is possible to see the average load values in the last 1,5 and 15 minutes:
1/31/2024
In case of reach these both thresholds, the service of this worker type is overload and dispatcher
inform all others servers by sending a load info message.
In case of an overload in UPD and UP2 worker type, the dispatcher will log the following information in
the dev_disp trace.
DpSendLoadInfo: quota for load / queue ll level = 11.700000 / 5.000000

DpSendLoadInfo: queue UPD now with high load, load / queue ll level = 11.704559 / 0.000000
This will deactivate the update mechanism in this speci c server, in case of others servers available to
process update requests, and in SM14 (servers tab) it is possible to notice such situation. At the
moment load fall below the threshold values a load info message is send again and the update is
activated.
DpSendLoadInfo: queue UPD no longer with high load
Conclusion
Currently, the update mechanism use the load information to control the dispatching of request,
however, it is expected that others dispatches mechanisms also implement this feature.
This feature is powerful to improve the stability of SAP Application Servers.
Related Content
Related Documents
2187985 Update server randomly gets deactivated
1/31/2024
Changing the number of work processes: topics to consider

Purpose
Cover topics that are relevant when changing the number of work processes (increase or decrease) of
an instance, also considering Operation Modes (transaction RZ04).
Overview
This Expert Content page will list topics that should be considered when the number of work
processes of an instance would be changed.
Example scenario
The system has an application server with the following work processes con gured:
Type Number of processes
Dialog (DIA) 20
Update (UPD) 5
Update V2 (UP2) 2
Spool (SPO) 2
Background (BTC) 2
TOTAL 31
The "day" operation mode has the same work process distribution as the table above.
The "night" operation mode switches 5 dialog work processes to background processes.
The number of spool work processes has to be increased to 4 and both operation modes will have 4
spool work processes.
Procedure
Following the example above, you would edit the instance pro le of the related application server and
would change the parameter "rdisp/wp_no_spo" from 2 to 4.
You would then restart the SAP instance and adjust the operation modes accordingly.
1/31/2024
Issues can occur if the operation modes are not adjusted right after the instance was restarted (e.g.,
before the rst operation mode switch should occur).
Other considerations
1. DYNAMIC WORK PROCESSES
As of the SAP NetWeaver 7.0 EHP2 and the SAP kernel release 720, the system can have Dynamic Work
processes.
The SAP kernel 72x is downward compatible to previous NetWeaver releases and customers are
encouraged to upgrade the kernel to 72x, since previous kernel releases are not supported anymore
(see the SAP notes listed at the "Related Content" section, below).
Therefore, the parameter "rdisp/wp_max_no" has to be manually adjusted whenever the number of
work process will change, if the kernel 72x is being used as downward compatible kernel (e.g.,
NetWeaver releases prior to 7.0 EHP2).
2. APPC AND WP BLOCKS
There are memory blocks required by the work process and other processes (like the Dispatcher and
the Gateway) in order to operate.
Whenever the number of work processes is changed, the parameters mentioned at the SAP note 3223
have to be adjusted as well.
As of the SAP kernel 740, the parameter "rdisp/appc_ca_blk_no" does not exist anymore.
In addition, the kernel 74x has a new functionality of using formulas to de ne the parameters' values.
Thus, if the parameter "rdisp/wp_ca_blk_no" is not set, it is not required to set it manually as the
default value (formula) will calculate the appropriate value when the system starts.
3. STANDALONE ENQUEUE
If the system has a Standalone Enqueue ("ENSA") running (at an ASCS instance), consider revising
the parameter "enque/server/max_clients" (SAP note 1002075, SAP KBA 2196513) and the parameters
mentioned at the SAP note 920979.
Related Content
Related Documents
Operation Modes
1/31/2024
Pro le Parameters for Con guring Work Processes
Standby and Dynamic Work Processes
Dynamic work processes con guration
SAP note 1716826: Usage of the downward compatible kernel 721 (EXT)
SAP note 1713986: Installation of kernel 721 (EXT)
SAP note 2133909: Usage of kernel 722 (EXT)
SAP note 2115344: Installation of Kernel 722 (EXT)
SAP note 3223: Number of WP and APPC blocks
SAP note 920979: Out of memory in the standalone enqueue server
SAP note 1002075: Too many enqueue clients in standalone enqueue server
SAP KBA 2196513: WARNING => NiICreateHandle: no more free handles (XXXX)
Purpose
Help you to understand the DPMON tool functionalities, in order to help efficiently monitoring the system without access to
transactions like SM50 or SM66.
Overview
This page contains information about the DPMON and the functinalities available in this tool, aiming to explain the purpose of
each one of them.
The DPMON Tool

All the crucial SAP kernel processes like dispatcher, gateway, message server, ICM, enqueue have their correspondent monitor
tool. The DPMON stands for dispatcher monitor, meaning that it can access the main dispatcher monitoring
functionalities through OS level.
In order to use DPMON, you must be logged with the <sid>adm user in the OS level and run the below command.
1/31/2024
dpmon pf=<path to profile/profile name of the instance>
You will be taken to the DPMON initial screen and access the main menu by entering the option m. In the image below you can
see the dispatcher monitor main menu for a 740 system.
Functionalities
This chapter is going to abord each functionality listed in the DPMON main menu, divided into one subchapter for each of them.
Dispatcher Queue Statistics
By using the options d or e in the DPMON main menu you'll have access to the dispatcher queue statistics. For more
information details about the dispatcher queue and the work processes refer to Dispatcher Queue Info.
Depending on the kernel version you are using, the DPMON output for this function will be different. As you can see in the below
image the queue information for DISP, GW, ICM and LWP are displayed meaning this is a 740 or newer kernel release.
1/31/2024
In case you are using the option e in the DPMON main menu, the dispatcher sessions details will also be displayed. This concept
was introduced as from kernel 740 and is not present in older releases.
The dispatcher queue statistics are very useful to detect dispatcher queue over ow situations and also bottlnecks in the work
processes of an speci c instance. The SAP Note 15606 provides more details about the dispatcher queue over ow situation.
Work Process Admin Table
The work process admin table can be accessed by using the options p or l in the DPMON main menu. The option p will display
the standard view of the work process table and the option l will display the long version of the work process table which
includes the columns Action and Action-Info.
This is one of the most useful functionalities provided by DPMON for analysis since you can easily detect system hanging
situations where no work processes are free to process new requests. The columns Sem will clearly display semaphores
requested or hold by the work processes. The column State will display the work process status where you can see whether it is
free, processing or waiting for some action. The column Action will inform the current action of the work process and Action Info
will provide more details about this current action (e.g. Sequential Read in table SWNCMONI).
From this sub menu, option "e - create snapshot" can be used for writing a SERVER SNAPSHOT on the dispatcher trace le.
1/31/2024
Trace Level/Components for WP
This functionality can be accessed by using option t in the DPMON main menu. It displays work processes details like number,
type, PID, current trace level and components. For more details about the SAP processes traces and trace level, including the
different components, refer to the SAP Note 112.
By using the option t in the menu that will be available inside this functionality you can change the trace level for an speci c
work process and also specify the components you want to trace as you can see in the below image. You can perform the same
trace level change for the work processes by using transaction SM50 from inside the SAP system.
Communication Blocks
This functionality can be accessed by using option w in the DPMON main menu. It displays all the communication blocks used by
work processes of an speci c instance, matching the ID of the block occupied with the PID of the correspondent work process.
1/31/2024
The work process communication blocks are used for internal server communication. Communication blocks are required for all
the requests with associated data. The number of blocks is de ned by the parameter rdisp/wp_ca_blk_no as per the SAP Note
3223.
In systems running kernels released before the kernel 740 you will nd this option shown as wp_ca blocks in the DPMON main
menu.
Dump Binary Content of Shared Memory Blocks
This functionality aims to provide dump information for memory areas for developer, used in special cases of analysis. You can
see in the image below the areas for which this information can be obtained.
Comm Adm Blocks
This functionality can be accessed by using the option c in the DPMON main menu. It displays the communication table of an
speci c instance. The communication table shows the active RFC connections to the application server. Both connections where
the local dispatcher is the client and connections where the local dispatcher is the server are displayed (the connections that
were made externally to the server). For more details refer to Communication Table.
This table can be reached from inside the SAP system by accessing transaction SM51, highlighting an speci c instance and
going to GoTo -> Information -> Communication and selecting RFC Connection.
The communication table helps you keep track of the RFC connections when monitoring the system or analyzing problems.
1/31/2024
APPC_CA Blocks
This functionality can be accessed by using the option a in the DPMON main menu only in systems with kernel older than kernel
740. The appc_ca blocks are used when requests are transported from an work process to or from the Gateway. app_ca and
appc_ca_adm stands for advanced program-to-program communication. These blocks contains additional request data.
The output of this functionality is similar to the WP_CA (Comm Adm Blocks) in the previous subchapter.
The number of blocks is de ned by the parameter rdisp/appc_ca_blk_no as per the SAP Note 3223.
J2EE Adm Area
This functionality can be accessed by using the option j in the DPMON main menu. It is mainly used in dual-stack systems
(J2EE+ABAP) where you can see if the J2EE Engine is started and also a summary of the J2EE engine status with the number of
errors, path of the jcontrol executable, state and others.
MBUF Status
This functionality can be accessed by using option m in the DPMON main menu. It displays the Message Server status
correspondent to the system. The same status displayed in this functionality is also shown in the dispatcher trace dev_disp. The
hardware ID is shown which can be used for software licensing purposes.
The total number of instances and their respective names are listed by the message server additionally to its status and
operation mode.
This functionality can be used for the analysis of the connection between the instances and the message server and to check
whether message server reports correctly all the instances which are currently up and running in the system.
Service Buffer Status
The dispatcher contains mechanisms to buffer the message server list, message server hardware ID and the ICM service list.
This functionality displays the active services in the dispatcher buffer related to the ICM and allows this buffering to be
1/31/2024
deactivated.
Session Table
This option displays the dispatcher session table. The information displayed is similar to the one obtained in transaction SM04
where you can see user name, client, session name, terminal, with its correspondent priority, between other important details.
The output can be used for the analysis of sessions currently active in the instance, however accessed from the operating
system layer. In case the limit of session in the instance is reached for some reason, this situation can easily be identi ed using
this functionality.
Sys_ad Dump
This functionality can be accessed by using the option z in the DPMON main menu. Its objective is to display the content of the
sys_adm structure of the dispatcher, where you can see the current kernel details, instance name, state of some of the critical
processes, number of contexts used in ICM, between others.
Create Assertion Ticked
This functionality can be accessed by using the option a in the main DPMON menu. It allows an Assertion Ticket to be created
for authentication purposes.
1/31/2024
Show Suspend Info
This functionality can be accessed by using the option f in the DPMON main menu. It allows you to check the dispatcher current
state, suspend a server, resume the server status, suspend the entire system and also resume the entire system. The function
also displays information regarding the number sessions, messages and calls in the total or the current waiting ones.
The suspend option is used in order to stop the instance from operating. The work processes of this instance will be occupied
until the suspend request is removed with the options "resume server" or "resume system".
Maintain Pro le Parameters
This functionality is available only in systems running kernel older than kernel 740 and can be reached by using the option e in
the DPMON main menu.
By using this option you can change the value of any pro le parameter in the mentioned pro le passed as parameter in the
dpmon command you have initially run. As you can see below, the DPMON will display the current value of the parameter and
request a new value to be inserted.
Tm_adm Dump
This functionality available only in systems running kernel older than kernel 740 and can be reached by using the option v in the
DPMON main menu.
1/31/2024
Similar for the wp_adm area to the Work Process, the tm_adm area is a structured memory cell to store information regarding
SAPgui (tm stands for "terminal"). A cell of tm_adm contains information about which user is connected via a SAPgui, and
information about all main modes of this user.
DPMON Useful Scripts

There are many useful scripts that can use the DPMON output in order to continuously monitor the usage of a speci c resource
(e.g. Work Process actions) for analysis.
The below script will take the output of the work process table long version and direct it to a text le called dpmon.log every 30
seconds. With this kind of log le you can have a clear view of the consumption of the work process during an speci c task you
are performing in the system, for example.
echo start > dpmon.log

i=1
while (i=1)
do
echo q | dpmon pf=<Path to Profile>/<Instance-Profile> l >> dpmon.log
date >> dpmon.log
sleep 30
done
The below script has the same mechanism than the one to collect the work process information above mentioned, however,
instead of collecting the work process information, it will collect the dispatcher queue information where you can analyze
possible bottleneck situations in a determined period when the script is running.
echo start > dpmon.log

i=1
while (i=1)
do
echo q | dpmon pf=<Path to Profile>/<Instance-Profile> d >> dpmon.log
date >> dpmon.log
sleep 30
done
Execute dpmon without user interaction
When you run dpmon commands it waits for the user input. It is possible to run wihtout an interactive way:
Resolution 1, using pipe in command line
Some examples are listed as below. In these examples, the echo command is used as an input for dpmon command.
echo q | dpmon pf=<pro le> l command to show "l - work-process-admin-table (long)" directly.
echo q | dpmon pf=<pro le> d command to show "d - dispatcher queue statistics" directly.
1/31/2024
echo q | dpmon pf=<pro le> l >result.txt Show "l - work-process-admin-table (long)" directly, and ouput the result to result.txt
Resolution 2, using an OS le as an input to dpmon
Ceated a OS le named input_for_dpmon.txt. Let the le contains only one character q which is used as quit for dpmon. Then
you can run the examples below. In this examples, the full path of input_for_dpmon.txt is D:\input_for_dpmon.txt. In your
environment, this may be different.
dpmon pf=<pro le> l <D:\input_for_dpmon.txt command to show "l - work-process-admin-table (long)" directly.
dpmon pf=<pro le> d <D:\input_for_dpmon.txt command to show "d - dispatcher queue statistics" directly.
dpmon pf=<pro le> l <D:\input_for_dpmon.txt Show "l - work-process-admin-table (long)" directly, and ouput the result to
>result.txt result.txt
Related Documents
Dispatcher Queue Info
Communication Table
Assertion Ticket

SAP Note 15606 - Over ow of dispatcher request queue
SAP Note 112 - Trace and error information in the "dev_" les
SAP Note 3223 - Number of WP and APPC blocks
SAP Note 675778- Analysis after system downtime
Dispatcher security
Purpose
Cover security related topics of the Dispatcher process of the NetWeaver ABAP instance.
Overview
This Expert Content page will list security related topics of the Dispatcher, providing assistance to
secure the Dispatcher.
Restricting network connections
The parameter "rdisp/acl_ le" can be used to specify a le containing an Access Control List (ACL).
1/31/2024
With such list, it is possible to restrict the access (network connection) to the Dispatcher port.
This help.sap.com page has detailed documentation about this topic.
Network encryption
The communication between the SAP Logon / SAP GUI to the Dispatcher can be encrypted by
activating the SNC.
This is possible even if no SSO (Single Sign-On) solution is used, as the SAP GUI has the option "SNC
logon with user/password (no Single Sign-On)" under the "Network" tab, which can be seen when
editing a system or at the "Chose network settings" screen when adding a system through the SAP
GUI wizard.
This will ensure that the data exchanged between the end users' computers and the SAP servers is
secure.
Read the following SAP Help pages for more information.
Secure Network Communications (SNC)
Using the SAP Cryptographic Library for SNC
Using SNC Client Encryption for Password Logon
Traffic Control
The parameter "rdisp/traffic_control" can be used as a DoS protection mechanism.
The Dispatcher will close "wild" TCP connections that did not complete the connection setup as a SAP
GUI client after this timeout has been reached.
The parameter must be set as "rdisp/traffic_control = LOGIN_TIME=X", where "X" is the number of
seconds (valid range: 1 - 1000).
The transaction RZ11 can be used to read the parameter's documentation.
Related Content
Related Documents
Setting Up Access Control Lists (ACL)
Secure Network Communications (SNC)
Using the SAP Cryptographic Library for SNC
1/31/2024
Using SNC Client Encryption for Password Logon

Dynamic parameters change in SAP system
Purpose
Clari cation about dynamic parameters change in SAP ABAP system.
Overview
There are dynamic parameter that can be changed without restart of application server. This Expert
Content intend to explain the possible ways to change the parameters and also follow up these
changes.
Change options
There are some ways to change a parameter, the standard way is using the RZ11 transaction and, if
the parameter is dynamic, change directly saving the new value.
There is the standard function module TH_CHANGE_PARAMETER to change parameters.
There are also the following reports that belongs to each service:
RSMON000_CHANGE_PARAMETER taskhandler/dispatcher parameters

RSM51000_CHANGE_PARAMETER Message Server parameters
RSMONGWY_CHANGE_PARAMETER Gateway parameters
RSMONICM_CHANGE_PARAMETER ICM parameters
RSMON000_CHANGE_ALL_PARAMETER aIl parameters
(These reports will use the FM TH_CHANGE_PARAMETER to perform the change)
Tracking the responsible by the change
If you want to know who changed or when it was changed the RZ11 record the last change details:
Directly in RZ11
Parameter Name
rdisp/TRACE
Short Description (Engl.) Set developer trace level
Application Area Dispatcher and Task Handler
Parameter Type Integer value
Changes allowed Change permitted
1/31/2024
Valid for Operating Sys. All operating systems
Minimum 0
Maximum 3
Default Value 1
Profile Value 1
Current Value 1
Switched From <NAME> 13.08.2015 21:21:19
<NAME> show you the responsible by the change, however, this will store only the last change.
Syslog
Another way to verify who dynamically change the parameter is over syslog in SM21 transaction.
Every time a change occurs, the following is the log created:
13.08.2015 18:58:42 <INSTANCE> DIA 004 001 <USER> Q19 The profile parameter rdi
13.08.2015 18:58:42 <INSTANCE> DIA 004 001 <USER> Q1A >>> Old/New value : 1/2
The only problem with the syslog is that it usually store few entries of information because it is round
le.
"Dynamic Change" feature in RZ11 (as from 740 system)
As from SP13 in 740 (or with note 2201397) the RZ11 will store the last 10 changes of dynamic
parameter.
At the end of RZ11 there is the following option:
Origin of Current Value: Kernel Default
If the parameter was dynamic changed, this will show:
Origin of Current Value: Dynamic Switching (änderungshistorie)
This link will change to the change history window:
1/31/2024
Related Content
2201397 - Transaction RZ11: Neither name of changer nor change time displayed after a dynamic change

Purpose
This Expert Content describes the general operation process of the dynamic work processes.
Overview
Dynamic work processes can be used to modify (increase) the amount of de ned work processes, based on application server
load requirements. This includes restarting new work processes and closing them when no longer needed.
Dynamic work processes can be created from types DIA and UPD (also UP2 in kernel versions 7.4x) during runtime, depending
on the resources needs of the application server. This enables a kind of adaptive computing. These work processes will be
started if the dispatcher notices that queue is under high load; or to solve deadlocks situations or bottlenecks.
In general, the Taskhandler tries to start a dynamic WP if the following conditions are ful lled:
- all WPs of a certain type are in HOLD state (inactive standby DIA WPs do not count) or
- all priority queues for DIA WPs with prio normal/low are in use by DIA WPs in HOLD state.
Afterwards, once queue is no longer under high load or the bottleneck has been resolved, these dynamic work processes are not
needed anymore. Therefore, they are ended by the dispatcher. Work processes can also be stopped after the maximum alive
time for idle dynamic workproesses (rdisp/max_dynamic_wp_alive_time) has passed.
On the dispatcher trace le(dev_disp), we can track this scenario (different entries can be found depending on NW release):
DpWpDynCreate: created new work process W<nr>-12345 or

create new work process W<nr> (PID:12345 HANDLE:6789)
1/31/2024
DpSendLoadInfo: queue XXX now with high load, load/queue ll level = 84.184870 / 1.300000
DpUpdateStatusFile: state=YELLOW, reason=Length of high priority queue exceeds limit
DpSendLoadInfo: queue UPD no longer with high load

DpWpCheck: dyn W<nr>, pid 12345 no longer needed, terminate now
DpHdlDeadWp: W<nr> (pid=12345) terminated automatically
This WP stoppage causes the SystemLog (transaction SM21) entries “Stop Workp” to be written:
<Date> <Time> <server> Q02 Stop Workp. <nr>, PID 12345
This's not an error, but an 'Information’ entry. So, this is a normal behavior with the dynamic work process start feature.
All the work processes that are currently running on a system can be checked in the Process Overview (transaction SM50). In
the Header Area, you can nd how many work processes per each type are de ned/being used at that moment.
How to analyze
A level 2 trace from the dispatcher will also show WPs status at the moment of the creation of the dynamic work processes,
giving further reason for the root cause of its creation:
DpHandleProcess: start dynamic W<nr>

DpIWpSetNewStat: switched W<nr> from WP_SLOT_FREE to WP_NEW
DpIWpSetNewStat: info for DIA: new/wait/run/hold/standby/killed = 1/5/0/20/0/0 wps
dwpath: C:\usr\sap\<SID>\<instance>\exe\disp+work.EXE
create new work process W<nr> (PID:12345 HANDLE:6789)
DpWpStartWp: created W<nr>
For troubleshooting purpose, you can use SAP performance monitoring -transaction /SDF/MON-, which allows to collect
different types of system performance snapshots, providing information from CPU, memory, processes, users… It can be
speci ed frequency and time-window when the snapshot should be collected.
It can be helpful to maintain /SDF/MON scheduled, to match with the information coming from the Dispatcher trace le. See:
Display Snapshot Monitoring
Related Content
Related Documents
Dynamic work processes
Con gure Dynamic Work Processes

The 720 and 721 kernel versions support the dynamic increase of the number of work processes at runtime. However, this
function is not fully compatible with NW 7.00 and NW 7.01.
See section ʻ5.6 Dynamic work processes’ from Notes:
1636252 - Installing a 7.20 kernel in SAP Web AS 7.00/7.01/7.10/7.11
1713986 - Installation of kernel 721 (EXT)
See also:
2001276 - Changed con guration as of 7.40 SP2
1/31/2024
1962145 - Dynamic work process starts and stop frequently
2190597 - Work Process Con guration - Best Practices
FAQ Dispatcher
Client-Server Technology - Dispatcher FAQ
Checking the work process status from Operating System Level
How can remove activity on a single application server
How do I nd out, which kernel patch level xes a problem described in a note
What does means passive state
Will the parameter rdisp/gui_auto_logout work in case the work process is in PRIV mode ?
1/31/2024

There are some ways to review the work process status from OS level without require a direct R/3 connection with the
application server. It is required to perform the following options using the <sid>adm user.
1) Using the dpmon tool:
SYNTAX: dpmon pf=<instance pro le> l
2) Using the sapcontrol tool:
SYNTAX: sapcontrol -nr <instance number> -function ABAPGetWPTable
1/31/2024
How can remove activity on a single application server
How can remove activity on a single application server?

To start an application server in "passive" state, set pro le parameter rdisp/start_in_maintenance_mode = 1
Another way to set an application server to "passive" is over SM51:
Goto -> Administration -> State -> Deactivate.
To change the server state back to "active", chose Activate.

You can check the server state using transaction SM51 (right column).
How do I nd out, which kernel patch level xes a problem described in a note
How do I nd out, which kernel patch level xes a problem described in a note?
You nd this information in section "SP Patchlevel" of the note, column "SP Patch Level". If there are several patch numbers
mentioned in this section for the same release, the highest one xes the problem. Kernel patches are always cumulative. So you
can always install a kernel with a higher patch number than the one mentioned in the note.
How do I install a kernel patch?

Unless otherwise mentioned, the content of a kernel patch is contained in an SAPCAR archive named dw_<nnn>-<xxx>.sar,
where <nnn> is the patchlevel and <xxx> is some number. Installing a kernel patch simply means replacing les in the
executable directory by their corresponding versions from the archive. It is important that all les contained in the archive are
copied to the executable directory. Having different versions from different kernel patches in the executable directory might
lead to serious runtime errors. It is important that subdirectories are replaced as well along with their corresponding content. It
is recommended to make a backup of all les that are going to be replaced, as you may simply revert the kernel patch by
installing the old les again later on.

It is possible to limit the size of trace les using the parameter rdisp/TRACE_LOGGING.
Details about how to setup this parameter in SAP note 112.
112 Trace and error information in the "dev_" les
With SAP kernel 72X the traces are rotated by speci c triggers that occurs in speci c time intervals, however, these time
intervals may vary depends of the component or even the action a work process is doing. In some speci c situations the trace
can increase further than the size set in the parameter.
With 74X kernel the rotation are much more precise avoiding the traces to grow much more than the speci ed.
See also:
1/31/2024
2020096 - How to increase sapstartsrv trace level and limit the trace le size
What does means passive state
What does means "passive" state?
An application server in "passive" will not receive requests.
The application server is removed from logon groups and not visible over SAPGUI.
No new logins occur on a passive application server, but existing login sessions are not affected.
Batch jobs are not started on a "passive" application server by unless explicitly requested.
Already running jobs are not affected.
It still possible to login directly to the application server explicitly setting the the application
server name in the logon process, however, the automatic distribution of activities will not be
dispatched to this application server.
Will the parameter rdisp/gui_auto_logout work in case the work process is in PRIV
mode ?
Yes, it will work and details are provided in the below section.
De nition of Private mode is provided in the link :
https://help.sap.com/viewer/f146e75588924fa4987b6c8f1a7a8c7e/7.5.9/en-US/4932f2b4e92e3504e10000000a421937.html
When the work process enters into PRIV mode, the work process is reserved for processing the current user context until the
context releases the work process again when the request has ended. Up to this time point no other user context can be
mapped to the work process . The parameter de nition of rdisp/gui_auto_logout can be found from RZ11 transaction and it
means that a user context gets logged off if it is inactive, per de nition an user context is active if it occupies a work process i.e,
the parameter rdisp/gui_auto_logout does not count if a work process is allocated by a user. Indeed, it does not matter if this is
a PRIV mode or any other status.
Scenario 1:
If the user context has released the work process i.e user has ended the running transaction and user context is idle,
rdisp/gui_auto_logout begins.
Scenario 2:
If a user has executed a report or program and it has nished execution and fetched output ( however user didn't end the
running transaction ) i.e user context still holds the work process, then the dispatcher checks if a user context is active and in
1/31/2024
this case the user context is connected to a work process and so it is considered as active which means the user cannot be
logged off.
If you need to control this behaviour of logging off user in case execution is nished but user holds the work process in PRIV , you
can set the parameter rdisp/max_priv_time to reset the PRIV mode. After this reset , the time for rdisp/gui_auto_logout
begins.
More information about PRIV management is given in the note 2098461 - PRIV process management
Note :
Changing parameter rdisp/max_priv_time is your organisation decision as we never know the time a program needs to nish its
execution. If there is not enough Extended memory, the work process goes into PRIV mode (this is not an error) , it may take a
long time to process and if the parameter is set too low, this will cancel the processing of the Work process. Such setting may
cause more problems than the long process on PRIV mode.
Kernel incompatible to already connected instances
Purpose
To help with troubleshooting.
Overview
An SAP instance does not start. Here are some steps which could be helpful in such cases.
Symptom
An error appears in dev_disp:
ERROR => Kernel incompatible to already connected instances (see dev_ms for details)
Reason and prerequisites
'source id' of msg_server on central (DVEBMGS) or central services (ASCS) instance and disp+work of the affected instance
must be the same otherwise instance won't start.
How to check
To check the 'source id'
1. Logon to central | ASCS instance and execute
sappfpar pf=<path_to_instance_pro le> DIR_EXECUTABLE
<DIR_EXECUTABLE>/msg_server | grep source
2. Logon to application server and execute
sappfpar pf=<DI's pro le> DIR_EXECUTABLE
<DIR_EXECUTABLE>/disp+work | grep source
Solution
1/31/2024
If 'source id' is different, change the kernel in <DIR_EXECUTABLE> of affected instance.
Related Content
Related Documents
SAP KBA 3066548: SAP kernel update with RKS procedure fails
Monitoring Work Processes in the CCMS Infrastructure
Purpose
The purpose of this page is to explain how the work processes of an SAP instance can be monitored through the CCMS
infrastructure.
Overview
This page provides details about the CCMS monitoring infrastructure, speci cally focused in the work process monitoring,

Most of the work process monitoring functionalities can be found in transaction RZ20, by following the below path.
RZ20 transaction → SAP CCMS Monitor Templates → Entire System → <SID> → Application Server → R3Services.
Monitoring Dialog Work Process Resources
By expanding the Dialog box under the R/3 Services monitoring tree, as per the iniital image, you will have accessed to the
dialog work process monitoring structure, as you can see below.
1/31/2024
The MTEs for dialog work process monitoring shown above, can monitor the following resources.
Utilisation - Average usage of dialog work processes of an application server

PrivMode Utilisation - Percentage of dialog work processes in PRIV mode
NumberOfWpDIA - Number of dialog work processes
ErrorsInWPDIA - Number of errors in dialog work processes
ErrorFreqInWpDIA - Number of errors in dialog work processes per minute
EndedWpDIA - Number of completed dialog work processes
QueueLength - Average usage of dispatcher wait queue for dialog work processes
LongRunners - Average time for long-running dialog work processes
Monitoring Background Work Process Resources
By expanding the Background box under the R/3 Services monitoring tree, as per the initial image, you will have accessed to the
background work process monitoring structure, as you can see below.
The MTEs for background work process monitoring shown above, can monitor the following resources.
Utilisation - Average usage of background work processes of an application server

NumberOfWpBTC - Number of background work processes
ErrorsInWPBTC - Number of errors in background work processes
ErrorFreqInWpBTC - Number of errors in background work processes per minute
EndedWpBTC - Number of completed background work processes
ProgramErrors - Program error when executing background jobs
ServerSpeci cQueueLength - Number of released jobs that are waiting to be executed
AbortedJobs - Terminated jobs on an application server
Monitoring Spool Work Process Resources
By expanding the Spool box under the R/3 Services monitoring tree, as per the initial image, you will have accessed to the spool
work process monitoring structure, as you can see below.
1/31/2024
The MTEs for spool work process monitoring shown above, can monitor the following resources.
Utilisation - Spool work process load percentage

NumberOfWpSPO - Number of spool work processes
ErrorsInWpSPO - Number of errors in spool work processes
ErrorFreqInWpSPO - Number of errors in spool work processes
EndedWpSPO - Number of completed spool work processes
QueueLength - Utilized area of dispatcher queue (percentage)
ServiceQueue - Utilized area of spool service queue (percentage)
ServiceQueuePriv - Utilized area of spool request queue for processing in order (in %)
ServiceQueuePages - Number of pages to be output in spool request queue
DeviceCacheUsed - Utilized area of entire device cache (percentage)
DeviceCacheFixed - Utilized area of xed device cache (percentage)
HostspoolListUsed - Utilized area of host spool request list (percentage)
Monitoring Update and Update 2 Work Process Resources
By expanding the Update box under the R/3 Services monitoring tree, as per the iniital image, you will have accessed to the
update V1 and V2 work process monitoring structure, as you can see below.
The MTEs for update V1 and V2 work process monitoring shown above, can monitor the following resources.
Update V1
QueueTime - SAP update task V1: Average wait time in dispatcher queue
Utilisation - SAP Update Task V1: Percentage load for update task work process
NumberOfWpUD1 - Number of update1 work processes
ErrorsInWpUD1 - Number of errors in update 1 work processes
1/31/2024
ErrorFreqInWpUD1 - Number of errors in update 1 work processes per minute
EndedWpUD1 - Number of completed update 1 work processes
Update V2
Utilisation - SAP Update Task V2: Percentage load for update task work process
NumberOfWpUD2 - Number of update 2 work processes
ErrorsInWpUD2 - Number of errors in update 2 work processes
ErrorFreqInWpUD2 - Number of errors in update 2 work processes per minute
EndedWpUD2 - Number of completed update 2 work processes
Monitoring Enqueue Work Process Resources
By expanding the Enqueue box under the R/3 Services monitoring tree, as per the initial image, you will have accessed to the
enqueue work process monitoring structure, as you can see below.
The MTEs for enqueue work process monitoring shown above, can monitor the following resources.
QueueLength - Monitoring object enqueue server: Percentage length of the queue

ErrorsInWpENQ - Number of errors in enqueue work processes
ErrorFreqInWpENQ - Number of errors in enqueue work processes per minute
EndedWpENQ - Number of completed enqueue work processes

1. Using the MTEs called QueueLength, monitor the percentage of the dispatcher queue utilisation for that speci c work
process type. With this, you can proactively detect system bottleneck situations soon enough to prevent a system
outage. SAP Note 15606 provides more details about the dispatcher queue over ow situations.
1/31/2024
2. Using the MTEs called Utilisation, you can proactively monitor whether all the work processes of an speci c type are
simultaneously occupied in the system, therefore, detecting speci c scenarios where a bottleneck situation might occur,
leading to requests waiting in the dispatcher queue.
3. Using the MTEs called ErrorsInWp<type> you can proactively monitor whether errors occur in the work processes. These
errors might point to other undesired known system misbehaviors, bringing them to your knowledge and allowing you to
correct them.

alerts in case the values reported by them meet the threshould values de ned. The next chapters will explain more details
about the con guration process to achieve this.
achieve this.
1/31/2024
more details.

1/31/2024
Related Content
Related Documents

1/31/2024
Parameters based in hardware resources
Purpose
List of arithmetical parameters based in hardware resource.
Overview
SAP systems are con gured by using pro le parameters that consist in a simple parameter name
with a value.
Some parameters are related to hardware resources, therefore, these are arithmetical formulas based.
This Expert content intent to maintain a relation of parameters that are hardware based size.
Machine resources
Machine resources that are available for the SAP Application Server are determined by the
parameters PHYS_MEMSIZE and CPU_CORES.
Further information about how to setup these parameters see following documentation.
Formula based parameters
Arithmetic formulas can be used in parameter values. further information about formulas usage see
this documentation.
Current parameter sized by hardware resources
Parameter name Default
abap/heap_area_total (max($(PHYS_MEMSIZE)*1024*1024 * 0.1, $(abap/heap_area_dia) * 2 ))
em/initial_size_MB min(512000, $(PHYS_MEMSIZE) * 0.7))
EM/TOTAL_SIZE_MB ($(PHYS_MEMSIZE) * 0.7)
j2ee/phys_memsize $(PHYS_MEMSIZE)
rdisp/PG_SHM (max(min(1000+40*max(5, oor(($(PHYS_MEMSIZE)-128)*25/128)),16384),1024))
rsdb/obj/buffersize (max(4096,$(PHYS_MEMSIZE)*1024 * 0.01))
j2ee/cpu_count $(CPU_CORES)
If the parameter is set in the instance pro le or even default pro le, the default value is ignored and
the pro le speci c is used.
Conclusion
1/31/2024
Using the default de ned formulas in SAP parameters facilitate the con guration of an Application
Server because less parameters control is required.
With the de nition of PHYS_MEMSIZE and CPU_CORES, parameter value can be derived from
hardware resources making the Application Server more reliable as per the available resources.
Related Content
1926986 - Best practice formulas in pro le maintenance
Unable to render {include} The included page could not be found.
SAP Kernel Update on Unix and Linux

Purpose
To offer some help with kernel update.
Overview
CHECK BEFORE
DOWNLOAD
EXTRACTION, UPDATE
CHECK AFTER
CHECK BEFORE
Check the current kernel version:
1. System > Status:
1/31/2024
2. Operating system level:
DOWNLOAD
Download kernel from Support packages and patches ---> By Alphabetical Index (A-Z) ---> K ---> SAP kernel
<bit> <uc> ---> SAP kernel <release> (...) ---> There choose <operating system> ---> both #Database
independent and <database speci c> archives
Example:
EXTRACTION, UPDATE
1. Change to pro le folder:
2. Find the instance pro le
1/31/2024
3. Find DIR_CT_RUN by "sappfpar pf=<instance pf with full path>"
4. Copy SAR les one level above, in this case to "/usr/sap/<SID>/SYS/exe/uc":
5. Copy kernel folder, in this case copy linuxx86_64 as linuxx86_64.bak:
6. Copy SAPCAR to the current folder:
7. Stop SAP at this point. Also stop sapstartsrv processes of this SAP system. Refer to Starting and
Stopping SAP Systems Based on SAP NetWeaver
8. Extract kernel archives by "sapcar -x <SAR archive> -R <destination folder>". First

extract SAPEXE and SAPEXEDB SAR les and then the rest (dw sar, lib_dbsl sar, etc):
1/31/2024
9. Change permission and owner of kernel les as root by "chmod -R 755 <kernel folder>/*" and
"chown -R <sid>adm:sapsys <kernel folder>/*":
10. Run saproot.sh "<kernel folder>/saproot.sh <SID>" as root:
11. Start SAP by "startsap r3" as <sid>adm (deprecated) or by sapcontrol; refer to Starting and
CHECK AFTER
Check the new kernel version:
1. System > Status:
Related Content
Starting and Stopping SAP Systems Based on SAP NetWeaver
Related Documents
1/31/2024
Relate SAP Notes/KBAs
SAP Note 19466 : Downloading SAP kernel patches

SAP Note 2576697 : SAP Web DIspatcher in SCS instance: system start after kernel switch fails
SAP Kernel Update on Windows
Purpose
To offer some help with kernel update.
Overview
CHECK BEFORE
DOWNLOAD
EXTRACTION, UPDATE
CHECK AFTER
CHECK BEFORE
Check the current kernel version:
1. System > Status:
1/31/2024
DOWNLOAD
Download kernel from Support packages and patches ---> By Alphabetical Index (A-Z) ---> K ---> SAP kernel
<bit> <uc> ---> SAP kernel <release> (...) ---> There choose <operating system> ---> both #Database
independent and <database speci c> archives
Example:
EXTRACTION, UPDATE
1. Change to pro le folder:
2. Find the instance pro le
3. Find DIR_CT_RUN by "sappfpar check pf=<instance pf with full path> DIR_CT_RUN"
4. Copy kernel folder, in this case NTAMD64 as NTAMD64.bak
1/31/2024
5. Copy SAR les one level above, in this case to "<drive>:\usr\sap\<SID>\SYS\exe\uc":
6. Stop SAP at this point. Also stop sapstartsrv processes of this SAP system. Refer to Starting and
7. Extract kernel archives by "sapcar -x <SAR archive> -R <destination folder>". First

extract SAPEXE and SAPEXEDB SAR les and then the rest (dw sar, lib_dbsl sar, etc):
8. Start SAP start service SAP<SID>_<instance nr> from Windows service manager or by
sapcontrol -nr <instance nr> -function StartService <SID> command
9. Restart SAP:
1/31/2024
10. Restart SAP Start Service:
CHECK AFTER
Check the new kernel version:
1. System > Status:
Related Content
Starting and Stopping SAP Systems Based on SAP NetWeaver
Related Documents
1/31/2024
SAP Note 19466 : Downloading SAP kernel patches

SAP Note 2576697 : SAP Web Dispatcher in SCS instance: system start after kernel switch fails
SAP Semaphore Locks and Waits Analysis
Purpose
This wiki aims to help the analysis of semaphore lock or waits situations due to deadlocks or even slow operations inside of
operations protected by semaphores.
It cannot be and does not aim to be a complete documentation describing all possible semaphores issue scenarios.The main
idea is to show you the traditional troubleshooting process in a semaphore lock and wait situation.
Overview
The most frequent problems involving SAP semaphores could be classi ed as:
1) semaphore deadlock or stuck lock situation;

2) slow operations blocked by semaphore;
The rst situation will stuck the system and users cannot even login to the system. Usually, such situation may affect a single
Application Server but it is also possible that the entire system is affected.
The second issue is a similar situation, however, the system is not really stuck. The operations can take long time, but the work
process status change time to time and the semaphore locker change as well.
The content here is separated in the following sections:
1. Identifying the semaphore locker
2. Solving a semaphore lock and wait situation
3. Root cause analysis
4. How to analyse the c-stack
5. How to prevent the situation
Identifying the semaphore locker
The work process locker (semaphore locker) is the responsible to stuck the system, it may lock the semaphore forever or during
a speci c time span.
If the locker does not release the semaphore the system stuck and we have the rst situation (usually caused by a deadlock).
However, if the locker hold the semaphore and release after a while, changing the work process locker, we have the second
1/31/2024
situation.
The rst step is to identify the locker. There are few ways to identify the semaphore locker:
SM50 transaction (not always possible to use during the standstill situation);
Using the standalone tool DPMON (see further):
1/31/2024
Using the SAPMMC tool:
1/31/2024
Using the SAPCONTROL client connecting to sapstartsrv service:
sapcontrol -nr <NR> -function ABAPGetWPTable
Using the snapshot feature created by dispatcher (see further):
If the column time that belongs to the semaphore locker keep increasing or already running reached a long time, it has a big
possibility to be a semaphore
deadlock situation. However, if the column time is close to zero or just few seconds, may be just a slow situation.
There are situation where the semaphore locker cannot be identi ed, for these cases you can use the semd tool as explained in
the note 2027885.
2027885 - External semaphore monitoring
Solving a semaphore lock and wait situation
The rst thing to do is de ne if it is situation is the case 1 or case 2 based in the behavior's analysis..
In case of a semaphore deadlock or stuck lock, it is possible to restart the work process locker and, that may solve the issue. If
the issue is a stuck lock situation,
the WP restart may solved the hanging situation. It is possible that a new WP stuck the same semaphore again, therefore, just
the restart will solve.
However, if for some reason, the semaphore cannot be properly released, the only solution is the restart of applicator server.
1/31/2024
In case of the second situation, it is need to identify the reason that the work process are holding for too long the semaphore.
This issue may belongs to distinct situation
like problems in the le system, a long runner operation from OS level, shortage of resources at OS level, etc.
Root cause analysis

There are multiple reasons that may lead to a semaphore deadlock, stuck semaphore or even slow down lock situation.
The deadlock or stuck semaphore usually is related to an error, basically, if a WP is accidentally interrupt and it is at a point
when the process hold a semaphore, the release may not occurs as expected:
1. In certain error situations, some resources are not always released as expected and an unlock is missing for a
semaphore. For example, a crash of WP trigger a clean up process where all allocated resources should be released,
however, if the clean up also fails, some resource may never be released and stuck the system.
2. Crashes during the critical section, where the processing is running over a semaphore protection, are also the most
critical situations if the clean up does not occurs as expected.
3. A classical deadlock situation, when the system is performing some operation protected by a semaphore and, at the
exact time, the operation is interrupted and the same operation is trigger again requesting the same lock (before it be
released).
4. The clean up of resources occurs during the start up of the process, if this action also crash for whatever reason, some
resources will not be identi ed in the next clean up process and keep blocking the system.
In the other side, situation of slow operation protected by a semaphore, the error does not exactly occurs with the semaphore
manipulation. But the operations between the lock and unlock the semaphore are taking a long time.
In both cases, the analysis should be done collecting the C-stack of the work process during the occurrence of the problem.
To do that SAP deliver a tool called sapstack explained in the SAP note 1964673
1964673 - C-Call stack analysis
Calling "sapstack <PID>" during the occurrence of the issue will print the c-stack of the process. Another possible way to do
that is using a signal USR2 to the process ID: "kill -USR2 <PID>" will print in the work process trace (dev_w*) the c-stack. There
is no "kill" command on windows, therefore, it is possible to use "sapntkill -USR2 <PID>". After send the signal USR2, it is
required to send a signal USR1: "kill -USR1 <PID>".
How to analyse the c-stack
The call stack should be analysed from bottom to top. To nd out the root cause the most relevant calls are the last ones before
the signal. See the following example:
1. This stack we should search by errors in calls like BackupFile -> IndDeleteOldest calls.
M ------------------ C-STACK ----------------------

[0] SunDoStack2, at 0x127ec69
1/31/2024
[1] CTrcStack2, at 0x127e8b3
[2] CTrcStack, at 0x127e85c
[3] __1cOThStackHandler6F_v_, at 0x10a504d
[4] __1cKDpTrcOnOff6Fi_v_, at 0xfbd04f
[5] __sighndlr, at 0xfffffd7ff6d775b6
[6] call_user_handler, at 0xfffffd7ff6d6be52
[7] sigacthandler, at 0xfffffd7ff6d6c07e
[8] ????????, at 0xffffffffffffffff
[9] __1cSPfHIndDeleteOldest6FpnJPF_HYPIND_CpH_i_, at 0x33f9624
[10] __1cMPfBackupFile6F_v_, at 0x33eeb70
[11] PfStatWrite, at 0x33cbd49
[12] __1cLPfWriteStat6F_i_, at 0x33eddeb
[13] __1cLThCallHooks6FnOSOS_HOOK_EVENT_pnTSOS_HOOK_EVENT_INFO_Cpi_i_, at 0x1077304
[14] __1cTThPerformTaskSwitch6FnKDP_WP_STAT_pnLTH_STRATEGY_CC_i_, at 0x106608a
[15] __1cUThITriggerTaskSwitch6Fpv_i_, at 0x1063588
[16] __1cITskhLoop6F_v_, at 0x10a8590
[17] __1cHThStart6F_v_, at 0x10a58df
[18] DpMain, at 0xf6d7b1
M -------------------------------------------------
2. This second example, the is about RqQAddRequest -> std::deque -> std::_Deque_base
------------------ C-STACK ----------------------

dw.sapPNR_D00[S](LinStackBacktrace+0x8c)[0x662179]
dw.sapPNR_D00[S](LinStack+0x35)[0x6661c0]
dw.sapPNR_D00[S](CTrcStack2+0x4e)[0x661f2e]
dw.sapPNR_D00[S](SigIGenAction+0x288)[0x2300e28]
<signal handler called> [0x7ffff198f850]
libc.so.6[S](__GI_raise+0x35)[0x7ffff1636875]
libc.so.6[S](__GI_abort+0x181)[0x7ffff1637e51]
libc.so.6[S](__libc_message+0x38f)[0x7ffff16778bf]
libc.so.6[S](malloc_printerr+0xb8)[0x7ffff167d0c8]
libc.so.6[S](_int_malloc+0x7af)[0x7ffff168007f]
libc.so.6[S](__GI___libc_malloc+0x77)[0x7ffff16821f7]
libstdc++.so.6[S](operator new(unsigned long)+0x1d)[0x7ffff209008d]
dw.sapPNR_D00[S](std::_Deque_base<RQ_Q_NOTIFY_ELEM, std::allocator<RQ_Q_NOTIFY_ELEM>
>::_M_initialize_map(unsigned long)+0x7c)[0x1de879c]
dw.sapPNR_D00[S](std::deque<RQ_Q_NOTIFY_ELEM, std::allocator<RQ_Q_NOTIFY_ELEM> >::deque()+0x5a)[0x1de88ea]
dw.sapPNR_D00[S](RqQAddRequest(unsigned int, REQUEST_BUF*, unsigned char (*)(REQUEST_BUF*, void*), void*, unsigned
char)+0x359)[0x1de3cf9]
dw.sapPNR_D00[S](DpRqPutIntoQueue(REQUEST_BUF*, unsigned char (*)(REQUEST_BUF*, void*), void*, unsigned char,
unsigned char)+0x16e)[0x1df93de]
dw.sapPNR_D00[S](DpRqSendRequest(REQUEST_BUF*, unsigned char, unsigned char)+0x3d)[0x1df9c4d]
dw.sapPNR_D00[S](DpWpHandShake(DP_SESSION_INFO, unsigned int)+0x9f)[0x48b827]
dw.sapPNR_D00[S](DpTmSend(int, int, int, unsigned char, unsigned int)+0x3c3)[0x44f8d5]
dw.sapPNR_D00[S](DpHandleGuiResponse(REQUEST_BUF*)+0x45)[0x468641]
dw.sapPNR_D00[S](DpRqServiceQueue()+0x1450)[0x1df53f0]
dw.sapPNR_D00[S](DpLoopExec()+0x195)[0x1df5655]
dw.sapPNR_D00[S](DpMain+0x3bd)[0x1ddc5cd]
libc.so.6[S](__libc_start_main+0xe6)[0x7ffff1622c36]
-------------------------------------------------
1/31/2024
3. This example, the current call is SemTimedOp. However, this functions means that the respective work process is doing
a semaphore operation, see details about this OS call here. This means that probably this is not the work process locker,
but probably a work process waiting by a semaphore.
M ------------------ C-STACK ----------------------

dw.sapPE3_D03[S](LinStackBacktrace+0x8c)[0x65a0f9]
dw.sapPE3_D03[S](LinStack+0x35)[0x65e140]
dw.sapPE3_D03[S](CTrcStack2+0x4e)[0x659eb1]
dw.sapPE3_D03[S](ThStackHandler()+0x102)[0x4e9a63]
dw.sapPE3_D03[S](DpTrcOnOff(int)+0x212)[0x45f7a9]
<signal handler called> [0x7f6a1a3327e0]
libc.so.6[S](__GI_semtimedop+0xa)[0x7f6a1a07a16a]
dw.sapPE3_D03[S](SemTimedOp+0xc1)[0x1b58831]
dw.sapPE3_D03[S](EvtWtRst+0x72)[0x1d4c882]
dw.sapPE3_D03[S](RqQWorkerWaitForRequests(unsigned int, unsigned char, RQ_Q_PRIO, unsigned int*, int)+0x2fb)[0x1b4b0cb]
dw.sapPE3_D03[S](ThRqCheckQueues(int, REQUEST_BUF**)+0x795)[0x1b5dcb5]
dw.sapPE3_D03[S](ThRqGetNextRequest(int, REQUEST_BUF**)+0x37)[0x1b5fd37]
dw.sapPE3_D03[S](ThRqWaitFor(int, REQUEST_BUF**)+0x42)[0x1b5fee2]
dw.sapPE3_D03[S](ThRqAcceptImpl(unsigned char, int, REQUEST_BUF**)+0xe4)[0x1b5e8e4]
dw.sapPE3_D03[S](ThRqAcceptInlineReply(int, REQUEST_BUF**)+0x32)[0x1d5af52]
dw.sapPE3_D03[S](ThCPIC(REQUEST_BUF*, unsigned char, unsigned char*, TH_CPIC_EXEC_TYPE, unsigned char, char16_t*,
char16_t*, int, unsigned char, int, TH_SECURITY_INFO*, char16_t*, int*, REQUEST_BUF**)+0x11a3)[0x1d68a03]
dw.sapPE3_D03[S](ThSAPICMRCV(unsigned char*, int, int, TH_CPIC_EXEC_TYPE, unsigned char, unsigned char, unsigned char,
unsigned char, unsigned char, unsigned char, int*, REQUEST_BUF**)+0x4ad)[0x1d6d87d]
dw.sapPE3_D03[S](ThSAPCMRCV+0x88)[0x1d6ddd8]
dw.sapPE3_D03[S](comread(void*, unsigned char*, unsigned int, unsigned int*, int)+0xfe)[0x203365e]
dw.sapPE3_D03[S](ab_rfcread+0x2fc)[0x1c48cec]
dw.sapPE3_D03[S](rfcget_gethead+0x3b)[0x1c4532b]
dw.sapPE3_D03[S](ab_rfcget_error_exception+0x121)[0x2029c41]
dw.sapPE3_D03[S](ab_rfcimport+0x34c)[0x202629c]
dw.sapPE3_D03[S](ab_jcaly()+0x119)[0x1be5f79]
dw.sapPE3_D03[S](ab_extri()+0x197)[0x1b78427]
dw.sapPE3_D03[S](ab_xevent(char16_t const*)+0x32)[0x1bb87e2]
dw.sapPE3_D03[S](ab_dstep+0x36)[0x1b75936]
dw.sapPE3_D03[S](dynpmcal(DINFDUMY*, STPDUMMY*)+0x2d1)[0x1de0831]
dw.sapPE3_D03[S](dynppbo0(DINFDUMY*)+0xb6)[0x1de26c6]
dw.sapPE3_D03[S](dynprctl(DINFDUMY*)+0x189)[0x1de2dc9]
dw.sapPE3_D03[S](dynpen00+0x407)[0x1dd3d77]
dw.sapPE3_D03[S](ThrtCallAbapVm+0xc0)[0x1daf1d0]
dw.sapPE3_D03[S](RfcHandler::handleRequest(REQUEST_BUF*, bool)+0x173)[0x1dbce13]
dw.sapPE3_D03[S](ThHandleRequest(REQUEST_BUF*, unsigned char, unsigned char)+0x1a3)[0x1d72b23]
dw.sapPE3_D03[S](TskhLoop()+0xa2)[0x1b62072]
dw.sapPE3_D03[S](ThStart()+0x26e)[0x4e95c0]
dw.sapPE3_D03[S](DpMain+0x36c)[0x1d09d2c]
libc.so.6[S](__libc_start_main+0xfd)[0x7f6a19fadd1d]
4. Here we have another example where the stack goes to OS calls like name resolution and wins resolution calls:
gethostbyname2 -> _nss_wins_gethostbyname2_r.
Note that in this example the issue probably exists in the OS side and not really in the SAP layer as the wins resolutions
is a OS responsibility.
__lll_lock_wait () from /lib64/libpthread.so.0

pthread_mutex_lock () from /lib64/libpthread.so.0
_nss_wins_gethostbyname_r () from /lib64/libnss_wins.so.2
_nss_wins_gethostbyname2_r () from /lib64/libnss_wins.so.2
gaih_inet () from /lib64/libc.so.6
1/31/2024
getaddrinfo () from /lib64/libc.so.6
interpret_string_addr_internal () from /lib64/libnss_wins.so.2
interpret_addr () from /lib64/libnss_wins.so.2
interpret_addr2 () from /lib64/libnss_wins.so.2
?? () from /lib64/libnss_wins.so.2
wins_srv_tags () from /lib64/libnss_wins.so.2
resolve_wins () from /lib64/libnss_wins.so.2
_nss_wins_gethostbyname_r () from /lib64/libnss_wins.so.2
_nss_wins_gethostbyname2_r () from /lib64/libnss_wins.so.2
gethostbyname2_r@@GLIBC_2.2 () from /lib64/libc.so.6
gaih_inet () from /lib64/libc.so.6
getaddrinfo () from /lib64/libc.so.6
NiPGetHostByName(char16_t const*, unsigned char, unsigned char, NI_NODEADDR*, unsigned int*, char16_t*, unsigned int,
_IO_FILE**) ()
NIHIMPL_LINEAR::getNodeAddr(char16_t const*, NI_NODEADDR*, unsigned int, int, _IO_FILE**) ()
NiIGetNodeAddr(char16_t const*, int, NI_NODEADDR*, unsigned int, _IO_FILE**) ()
NiHostToAddr ()
DpNetCheck ()
DpSapEnvInit ()
DpMain ()
__libc_start_main () from /lib64/libc.so.6
_start ()
You probably are wondering what to do with these call stacks. The most important thing is to use these stacks to nd out in the
SAP knowledge repository about a known issue involved the same or most similar call stack. You can search the most relevant
calls inside of SAP knowledge repository by some known issue involved the respective calls in order to check if your system is
affected by the issue or not.
INCLUDE WHERE TO SEARCH
It not possible to provide you with an speci c solutions about problems regarding semaphores because the root cause may have
distinct reasons, therefore the analysis process is the most relevant item in such kind of cases.
How to prevent the situation
There are some speci c situations, with kernel 72X, where the semaphore can be automatically recovered with the feature of
note 1890657.
1890657 - Semaphore recovery
.... UNDER CONSTRUCTION...
1/31/2024
Related Content
Related Documents

2007484 - Semaphore 42
1754001 - DP: Work processes cause block on semaphore 5
1795711 - DP: Work processes block on semaphore 42
981088 - System crash due to semaphore 5 deadlock
1875389 - DeaGo to linkdlock on semaphore 5
1704898 - Instance hangs on Semaphore 7
2101988 - MM:AIX detect loop in ES layer
1548895 - Work processes cause block with semaphore 7
2171151 - ST: All work processes wait for semaphore 42
SAPLTHFB Report Appearing in SM66 Transaction
Purpose
Help you to understand the transaction SM66 and how does it obtain the information it displays as an standard behavior.
Overview
This page contains information about the SM66 transaction and the SAPLTHFB report it displays.
SM66 Transaction
The SM66 transaction shows the global work process overview as its main screen, where you can see the work processes for all
the instances of the system with details like current action, status and all information also provided in the SM50 transaction.
SAPLTHFB Report
1/31/2024
The report SAPLTHFB is used to obtain the work process information from all the instances of a system when transaction SM66
is accessed. It is expected to see one entry in a dialog work process in transaction SM66 with your user in each instance of the
system, since the work process information has to be rst collected via RFC before SM66 can display it.
In older releases you can use the button Settings in order to hide the work processes allocated with your own user with the
report SAPLTHFB in order to avoid misunderstandings. With this option active as you can see below, the only work processes
shown will be the ones relevant for analysis.
1/31/2024
Depending on the kernel version the report used to collect the work process information in the instances can have a different
name. In newer releases the name will appear as CL_SERVER_INFO==============CP instead of SAPLTHFB, however, in
these releases the option to hide these work processes does not exist. Please check the SAP Note 2143496 for more details
about the different versions of SM66.
Related Content
Related Documents
SM66 - Global Work Process Overview

SAP Note 2143496 : SM66/SM50 new layout in EHP7
Server Snapshots in the SAP System
Purpose
1/31/2024
Help you to understand the snapshot functionality the SAP system.
Overview
This page contains information regarding the snapshot functionality delivered as from the kernel 740,
aiming to explain its purpose, content and related parameters.
Snapshots in the ABAP Server
The snapshots in the ABAP server aim to display important information about the current situation of
the server, automatically by some error situations like a work processes unexpectedly nished or
manually created by using DPMON or SM51 itself.
The snapshot will rst dump all the essential information into the developer trace, mainly the
dispatcher trace (dev_disp) and second creates a snapshot by using sapcontrol.
You can manually trigger the snapshot creation by using transaction SM51 -> GoTo -> Administration
-> Snapshot -> Create.
Automatic Creation of Snapshots
There are several situations where the snapshot is automatically triggered by the server in order to
display important information for analysis in the developer traces. These situations are:
In case a hard shutdown occurs
In case of exhausted resources.
In case of a deadlock handling.
In case a crash occurs in a work process, ICM or gateway.
In case the eyecatcher of an internal table has been destroyed.
In case the request processing stops for more than 30 seconds.
1/31/2024
Snapshot Section in the Developer Traces
When the ABAP server triggers the snapshot creation, there will be an snapshot section inside the
dispatcher trace le. Additionally, the work process developer trace itself will write a special section in
its trace le.
In the dispatcher trace le, the snapshot will be displayed in the below format.
1. Starts with the trace entry ****** SERVER SNAPSHOT <id> (Reason: <reason>) - begin
********.
2. The content of the request queue.
3. The content of the session table.
4. The conent of the process table
5. Ends with the trace entry ****** SERVER SNAPSHOT <id> (Reason: <reason>) - end ********.
In the work process trace le, the snapshot wil be displayed in the below format.
1. Starts with the trace entry ****** SERVER SNAPSHOT <id> - begin ********.
2. The current C-STACK.
3. The current ABAP stack.
4. Details about critical sections.
5. Ends with the trace entry ****** SERVER SNAPSHOT <id> - end ********.
In the below image you can see an example of the snapshot functionality displayed in the dispatcher
trace.
1/31/2024
Every snapshot has a server unique id which is a increasing number. If the extended info area of SM50
has been activated, SM50 shows the number of snapshots created by this server. You can nd this
information by using transaction SM51 -> GoTo -> Administration -> Snapshot -> Administration.
1/31/2024
The snapshot list will be displayed in the following format.
Viewing Snapshots
Snapshots can be displayed using SAP MC. To enable this, the snapshots must rst be downloaded to
the local PC by using the following:
Transaction SM50 (Administration -> Snapshot -> Administration), comes with 7.40 SP8.
Transaction SM51 (Goto -> Administration -> Snapshot -> Administer), comes with 7.40 SP8
Transaction SNAPSHOTS, comes with 7.40 SP7.
Report RS_DOWNLOAD_SNAPSHOTS, comes with 7.40 SP7.
After downloading the le, a snapshot can be opened with SAP MC (right click -> open with ->
Microsoft Management Console).
Analyzing Snapshots
Server Snapshot can be easily analyzed by using kernel snapshot analyzer tool.
This is an standalone tool to systematically analyze issues from snapshot les or developer trace les
and create analysis reports.
It highly simpli es the root cause analysis for SAP NetWeaver ABAP relevant issues and makes the
troubleshooting experience easier and more user-friendly.
KBA 3110588 - Kernel Snapshot Analyzer: Central KBA, provides the information to download the tool
and how to generate the analysis report.
Con guring the Snapshots
The following parameters can be used to con gure Snapshots.
1/31/2024
1. service/max_snapshots - de nes the maximum number of snapshots per server
2. rdisp/snapshot - con gure the creation of snapshots by the ABAP server with the following
sections
creation: should the server create snapshots due to high load of / exhausted resource?
period: limitate the number of snapshots for a given time interval
lines: maximal number of trace le lines included in a snapshot
For more details on the possible values and syntax of the above parameters, refer to the parameter
documentation in transaction RZ11.
Related Content
Related Documents
SAP MC
DPMON
Creating a Snapshot of an SAP System or Instance with SAP MMC
KBA 3122914 - The step-by-step guide to collect a server snapshot and analyze it with kernel snapshot
analyzer
What do the semaphores mean
Purpose
Clari cation about SAP semaphores representation.
Overview
In trace les or in transaction SM50 (process overview), semaphores are mentioned. How do you
determine which semaphores control what?
see the following list dependent of the Kernel release
List
1/31/2024
KERNEL RELEASE: 640
1 SEM_PXA_KEY PXA-Semaphore
2 SEM_REQ_QUEUE_DIA_KEY disp. dia queue key
3 SEM_REQ_QUEUE_READ_KEY disp. queue read key
4 SEM_TM_ADM_KEY workprozess tm_adm-table
5 SEM_COMM_ADM_KEY workprozess comm_adm-table
6 SEM_ROLL_ADM_KEY roll administration
7 SEM_PAGING_KEY paging administration
8 SEM_NO_BUFFER Nummernkreispuffer
9 SEM_STAT_KEY for statistic buffer
10 SEM_GW_REQ_IND Gateway-Request-Semaphor
11 SEM_CALI_BUFFER Fabrikkalender
12 SEM_CCC_KEY TemSe Char-Code convert Buf.
13 SEM_VB_KEY for VB-startup
14 SEM_PRES_BUF Presentation Buffer
15 SEM_SHM_ADM_AREA_KEY shared memory admin area
16 SEM_DB_TBUFF table-buffer-semaphor
17 SEM_DB_SYNC Buffer synchronisation
18 SEM_DB_TTAB DB-table-description-Buffer
19 SEM_DB_SNTAB DB-short-nametab-Buffer
20 SEM_DB_IREC DB-initial-record-Buffer
21 SEM_DB_FTAB DB- eld-catalog-Buffer
22 SEM_LOGFILE_KEY for log les (e.g. batch)
23 SEM_REQ_QUEUE_KEY Dispatcher Request Queue
24 SEM_DB_TBUFF_P Table Buffer, part.buffering
25 SEM_ENQ_REQ_KEY Enqueue Request/local Server
26 SEM_ENQ_TABLE_KEY Enqueue Table
27 SEM_SAPCOM_1 Sap-Communication BK/EDI
29 SEM_VMS_FIXADR_KEY sem for VMS x addresses
30 SEM_DB_CUA_BUFFER DB-CUA-Buffer
31 SEM_RSPO_ADMIN Spool Admin
32 SEM_EM_ADM Extended Memory Admin
33 SEM_ES_KEY Extended Segments Adm. (es)
34 SEM_MSBUF Puffer fuer MsgServer-Liste
35 SEM_DB_OBJ_BUFFER Export/Import buffer
36 SEM_ES_USER_KEY Estended Segments User List
37 SEM_SEM2MTX_KEY global mutex for sem2 / mtx
38 SEM_CCMS_AS_MONI_KEY CCMS monitoring for appl.srv
39 SEM_EG_ADM Extended Global Memory (EG)
40 SEM_TEST_1 reserved for test programs
42 SEM_STAT_BUF shared statistic buffer
1/31/2024
43 SEM_RSPO_CACHE rspo cache

44 SEM_AUDIT_SHM basis audit shm protection
45 SEM_ASTAT_KEY application statistics buf
46 SEM_PROFILE pro le parameter buf
47 SEM_RSPO_RFC spool async rfc calls
48 SEM_ENQID_KEY EnqId
49 SEM_AB_VMIT virtual machine instr.trace
50 SEM_THRUN_ADM taskhandler runtime
51 SEM_ATRA_KEY protect atra memory
52 SEM_MPI_ADM memory pipes adm. (MPI)
53 SEM_COV_KEY shbuf of coverage analyzer
54 SEM_ZDATE_TIMEINFO WP-independ. time sync info
55 SEM_DB_OTR_BUFFER Online Text Repository Buf.
56 SEM_DB_ESM_BUFFER Export/Import Memory
57 SEM_RTM_KEY shbuf of runtime monitor
58 SEM_JAVA_1 sem 1 for java
59 SEM_ABAP_SHO ABAP shared objects
60 SEM_JCONTROL_ADMIN JControl Administration
61 SEM_JCONTROL_SESSION unused
62 SEM_STATISTICS_ITS ITS Statistic records
63 SEM_SERVICES_ITS ITS Service parameters
64 SEM_UNUSED_64 unused
66 SEM_UNUSED_66 used by vmc admin in > 640
67 SEM_UNUSED_67 used by ext mem adm in >640
68 SEM_CCMS_JMON_KEY CCMS monitoring for J2EE srv
72 SEM_RSEC_EG_ACCESS Secure Storage access to EG
KERNEL RELEASE: 700 - 720 - 721 - 722
2 SEM_REQ_QUEUE_DIA_KEY disp. dia queue key
3 SEM_REQ_QUEUE_NOWP_KEY disp. queue read key
6 SEM_ROLL_ADM_KEY roll administration
1/31/2024
10 SEM_WP_ADM_KEY disp. wp_adm table
23 SEM_REQ_QUEUE_KEY Dispatcher Request Queue
1/31/2024

58 SEM_JAVA_1 sem 1 for java
61 SEM_JSTART_INSTANCE JStart instance active
64 SEM_VB_REDISPATCH update redispatch
65 SEM_ES2_ADM ext. segment administration
66 SEM_VMC_ADM vmc administration
67 SEM_EM2_ADM ext. memory administration
69 SEM_DBG_SESSION_BPS ABAP-Debugger: SessionBrkPts
70 SEM_EG2_ADM ext. global memory admin
71 SEM_FILE_ADM_KEY le table (VMC)
73 SEM_HST_KEY ABAP Hot Spot Trace
KERNEL RELEASE: 740 - 741 - 742 - 745
2 SEM_DB_ADM DB TBI admin semaphore
3 SEM_DB_SHM DB TBI shared memory
6 SEM_DB_TBI DB TBI new table buffer
1/31/2024

23 SEM_DB_XTYPMAP DB TBI xtyp map
1/31/2024
58 SEM_DB_STRING DB TBI string manager

64 SEM_SPOOL_TOKEN_KEY Spool Token
74 SEM_PROCMEM_ADM Process Local (PROC) Memory
75 SEM_RQ_Q_ADM request queue adm
76 SEM_RQ_Q_HIGH_DISP_QUEUE for high prio disp queue
77 SEM_RQ_Q_NORM_DISP_QUEUE for normal prio disp queue
78 SEM_RQ_Q_LOW_DISP_QUEUE for low prio disp queue
Related Content
What do the semaphores mean - higher releases
Purpose
Clari cation about SAP semaphores representation.
Overview
In trace les or in transaction SM50 (process overview), semaphores are mentioned. How do you determine which semaphores
control what?
see the following list dependent of the Kernel release:
For all kernel versions, semaphores information can be extracted from SM50 transaction: select semaphores column and press
F1 (for help).
Semaphores overview will be displayed.
List
1/31/2024
KERNEL RELEASE: 740 - 741 - 742 - 745
2 SEM_DB_ADM DB TBI admin semaphore
3 SEM_DB_SHM DB TBI shared memory
6 SEM_DB_TBI DB TBI new table buffer
23 SEM_DB_XTYPMAP DB TBI xtyp map
1/31/2024
KERNEL RELEASE: 740 - 741 - 742 - 745
58 SEM_DB_STRING DB TBI string manager

64 SEM_SPOOL_TOKEN_KEY Spool Token
74 SEM_PROCMEM_ADM Process Local (PROC) Memory
75 SEM_RQ_Q_ADM request queue adm
76 SEM_RQ_Q_HIGH_DISP_QUEUE for high prio disp queue
77 SEM_RQ_Q_NORM_DISP_QUEUE for normal prio disp queue
78 SEM_RQ_Q_LOW_DISP_QUEUE for low prio disp queue
KERNEL RELEASE: 750 - 753
1 PXA semaphore (ABAP program buffer)

2 Table buffer administration
3 Table buffer shared memory
4 TM_ADM semaphore (internal session
5 administration)
6 COMM_ADM semaphore (RFC connection
7 administration)
8 Table buffer data
9 Paging administration
10 NO_BUFFER semaphore (number range buffer)
11 STAT semaphore (statistics administration)
12 WP_ADM semaphore (internal work process
13 administration)
14 Factory calendar
15 CCC semaphore (TemSe, char code conversion)
16 Update synchronization
17 PRES_BUF semaphore (DYNP buffer)
18 SHM_ADM_AREA semaphore (shared memory
19 management)
20DB_TBUFF semaphore (DB table buffer)
21 DB_SYNC semaphore (DB table buffer
22 synchronization)
23 DB_TTAB semaphore (DB table description buffer)
24DB_SNTAB semaphore (DB short name table
25 buffer)
26DB_IREC semaphore (DB initial record buffer)
27 DB_FTAB semaphore (DB eld catalog buffer)
28Logging les
29Table buffer types
30DB_TBUFF_P semaphore (DB table buffer with
31 partial buffering)
32 Enqueue server communication
33 ENQ-TABLE semaphore (lock/enqueue
34management)
35 BK/EDI communication 1
36BK/EDI communication 2
1/31/2024
37
38
39VMX xed addresses
40DB_CUA_BUFFER semaphore (CUA interface
41 buffer)
42 Spool ADM semaphore (print administration)
43 Extended memory ADM semaphore (EM memory
44management)
45 Extended segments semaphore (ES memory
46management)
47 Server buffer semaphore (internal server list buffer)
48Object buffer semaphore (export/import buffer)
49Extended segments user list semaphore (ES user
50 list)
51 Global Mutex semaphore (internal lock
52 management)
53 CCMS monitoring semaphore (CCMS monitoring)
54 Extended global memory semaphore (EG
55 management)
56 Semaphore reserved for testing (test)
57 Semaphore reserved for testing (test)
58 Shared statistics semaphore (statistics buffer)
59 Spool cache semaphore (RSPO buffer)
60Basis audit semaphore
61 Application statistics buffer semaphore
62 Pro le parameter semaphore
63 Spool asynchronous RFC semaphore
64ENQID semaphore
65 ABAP Virtual Machine instruction trace semaphore
66Task handler runtime semaphore
67 ATRA semaphore
68Memory pipes semaphore
69Coverage analyzer semaphore
70 ABAP time synchronization semaphore
71 Online Text Repository semaphore
72 ESM (Export to Shared Memory) semaphore
73 Runtime monitor
75 Table buffer strings
76 ABAP shared objects
77 JControl administration
78 JStart instance active
79 ITS statistical records
80ITS service parameters
Spool token
Extended segments administration semaphore
VM administration
Extended memory administration semaphore
CCMS monitoring semaphore (J2EE)
Session breakpoint administration of ABAP
debugger
Extended global memory administration
semaphore
File table (VMC)
Secure storage access semaphore
ABAP hotspot trace semaphore
Request queue administration
Request queue administration (high priority
requests)
Request queue administration (normal priority
requests)
Request queue administration (low priority
1/31/2024
requests)
RFC through WebSocket (server)
RFC through WebSocket (client)
Work process termination cases
Purpose
This Expert Content helps to understand different reason for a normal work process termination.
Different normal behaviors on the system may lead to work process terminations that can be seen on transaction SM21:
To identify which is the reason for this terminations, we should check the information displayed on the work process trace le
involved from the affected application server at that timestamp.
On the above example, it would be work process 0 so we should check on work folder le called dev_w0
rdisp/wp_auto_restart was exceeded

1- Dispatcher (dev_disp) :
DpHdlDeadWp: W0 (pid= <WPpid>) terminated automatically

DpWpDynCreate: created new work process W0-<WPpid>
2- Work process (dev_w0) :
ThWpNeedsRestart: reached auto restart time (<parameter value> sec)

ThWpRestart: restart wp (pid=<WPpid>) automatically
Disconnecting from ALL connections:
..
***LOG Q02=> wp_halt, WPStop (Workp. 0 <WPpid>)
This restart is implemented in following way:
The work process checks after each change of the user context whether it has already exceeded the time interval set by
paramete rdisp/wp_auto_restart
. If this is the case, work process is terminated and the Dispatcher starts a new work process. Therefore, the work process will
not be shutdown forcibly after rdisp/wp_auto_restart seconds. It will only shutdown at times where all work has been nished by
the work process.
abap/heaplimit was exceeded
1/31/2024

DpWpDynCreate: created new work process W0-<WPpid>
WP has reached abap/heaplimit = <parameter value> bytes

..
ThWpNeedsRestart: abap strategy == kill, restart
ThWpRestart: restart wp (pid==<WPpid>) automatically
..
This restart will be triggered if the work process has allocated, at least, the amount of memory de ned in this parameter. When
value de ned by abap/heaplimit
is reached, and work process has nished allocating the memory it needs until the execution of the task is completed, work
process will be restarted. This work process automatic restart, is done to release the local memory that was occupied from the
operative system's point of view. This is not an error and no action has to be performed.
See also Note:
2360519 - abap/heaplimit increased for kernel releases 7.42 and higher
Dynamic Work process is terminated after high load situations
There are two cases for this scenario
Case A - High load situation has been stabilized. When dynamic work processes are not needed anymore, the dispatcher
terminates them.
Work process (dev_w0) :
ProcessHandler::handleRequest: received opcode DP_PROC_OPCODE_TERMINATE for W0, pid <WPpid>

..
Case B - rdisp/max_dynamic_wp_alive_time is exceeded for any of the dynamic work process
Work process (dev_w0):
ThWpHandleStateChange: max alive time for dyn W0, pid <WPpid> exceeded, terminate now
...
For both cases we can see the Dispatcher (dev_disp) :
1/31/2024
DpWpCheck: dyn W0, pid <WPpid> no longer needed, terminate now
DpHdlDeadWp: W0 (pid=<WPpid>) terminated automatically
For more information, please see:
Operation mode change which requires reduction of Work process

DpWpConf: wp recon guration, stop W0, pid <WPpid>

..

...
***LOG Q02=> wp_halt, WPStop (Workp. 0 <WPpid>)>)
Work process will be terminated in an operation mode switch, in the case where the new operation mode is set with a lower
number of total active work process.
For more information, please see:
Operation Modes
rdisp/os_heap_for_restart was exceeded

DpHdlDeadWp: W<nr> (pid= <WPpid>) terminated automatically

DpWpDynCreate: created new work process W<nr>-<WPpid>
2- Work process (dev_<nr) :
M ThWpNeedsRestart: os heap usage <value> max os heap limit <value of rdisp/os_heap_for_restart>

M Top 50 PROC memory consumers by user tag ID (in bytes) M
M Tag Allocations Smallest Biggest Sum
..
M ***LOG Q02=> wp_halt, WPStop (Workp. 7517956872) [dpuxtool.c 316]
Each work process checks its heap consumption at operating system level before it accepts a new request. If the consumption
exceeds the value that is set using the pro le parameter rdisp/os_heap_for_restart
it restarts automatically.
For more information see:
1/31/2024
2249313 - Memory leak analysis
Related Content
Related Documents
Operation Modes
2360519 - abap/heaplimit increased for kernel releases 7.42 and higher
SAP Enqueue Server

Management
Changing the trace level of the standalone enqueue dynamically - ENSA1
Enqueue Client Handles Resource and Consumption
Enqueue Performance : Analysis
Enqueue performance analysis with enqt
Enqueue Session Quota
ENSA 1 heap memory consumption
Monitoring Enqueue Resources in the CCMS Infrastructure
When are the enqueue locks released?
Troubleshooting
Enqueue overload - Collecting and Analyzing the Enqueue Log Information
Troubleshooting for Enqueue Failover in ASCS with ERS
Top relevant SAP notes
1/31/2024
2019532 - Performance of integrated enqueue server
2119669 - How to split the ASCS from Primary Application Server
2126913 - ENQU: The enqueue log
2146940 - Desupport of Enqueue Work Process
Miscelaneous Info
[WEBINAR] Understanding and Troubleshooting Standalone Enqueue Server
Useful Tools
ENSMON (Enqueue Server monitor)
F.A.Q.
Classical Central Instance or Standalone Enqueue
Finding the Replication Server (ERS) connected to the Enqueue service
How to check enqueue over ow
How to check if the lock entry should be deleted or not
How to check the locks in the enqueue table
How to check the owner of an Enqueue Object
How to check what is responsible for a lock table over ow
How to create an enqueue operations trace
Identify the program using an Enqueue Object
Monitoring Enqueue handles entries
Purpose
Show how to control the trace level of the standalone enqueue dynamically, without downtime
requirements.
Overview
1/31/2024
This page shows the steps to change the trace level of the standalone enqueue dynamically.
The standalone enqueue is one of the processes running at the ASCS (ABAP Central Services
Instance) or SCS (Java Central Services Instance).
Using the "ensmon" tool to change the trace level
1. Logon to the ASCS server at operating system level as "sidadm";
2. Execute the "ensmon" tool. You are presented with the initial menu:
3. Access the option "3" to enter the trace level menu option (type "3" and press enter);
4. You can use the option "1" to raise the trace level or the option "2" to lower it.
After choosing either option, the tool presents the option to limit the action to speci c enqueue
thread(s).
The options are the same for both raise and lower actions:
5. Using "EN" will change the trace level of all threads of the standalone enqueue.
In order to change the trace only from a speci c type of thread, use the other options.
1/31/2024
For example, you are investigating an issue with the enqueue replication thread, and want to
capture a level 2 trace from it. There is no need to increase the trace level of all enqueue threads.
Using "THREP" will change the trace level of the replication thread only.
Using "THIO" only changes the trace level of all enqueue I/O threads. Using "THIO2" changes the
trace level of the I/O thread 2 only.
6. To exit the tool, use "q".
Example: increasing the trace level of the I/O thread 1 only
Your standalone enqueue is con gured with two I/O threads (parameter "enque/server/threadcount =
2"). They will be the I/O thread 0 (zero) and 1.
When following the steps from the previous section, you reach step 5 and instead of typing "EN", as
shown above, you type "THIO1" because you want to increase the trace level of the I/O thread 1 only.
You can verify that the trace level was not increased at the trace le of the I/O thread 0
(/usr/sap/<SID>/ASCS??/work/dev_enqio_0):
1/31/2024
While you can see that the trace level was increased at the dev_enqio_1:
Related Content
Related Documents
Monitoring the Standalone Enqueue Server
ENSA 1 heap memory consumption
1/31/2024
Purpose
The goal of this Expert Content is clarify the size of OS heap memory consumed by ENSA
(en.sap<SID>_<INSTANCE> process at OS level) service.
Overview
Heap memory is the allocated memory inside each process that is managed by the process itself.
Such memory area is possible to analyse and check statistics information using OS speci c tools.
From ENSA process, there are heap segments allocated to store run-time information and its size is
based by some parameters explained bellow.
Parameters related
The heap area is determined by few parameters that should be analysed together.
1) Number of requests * by requests size.
enque/server/max_requests * enque/server/max_request_size
The size of each request if con gured in bytes inside of parameter enque/server/max_request_size
Example:
enque/server/max_requests 12000
enque/server/max_request_size 32768 bytes
12000 * 32768 = 393216000 bytes = ~375 Mb
2) Number of simultaneously requests * size of each block
enque/server/max_query_requests * enque/server/max_query_size
Example:
enque/server/max_query_requests 12000
enque/server/max_query_size 131072 bytes
12000 * 131072 = 1572864000 = ~1500 Mb
3) Size of enqueue table set by parameter enque/table_size
Example:
enque/table_size = 262144 Kb = 256 Mb

1/31/2024
These are the 3 main areas that will consume memory. It is possible that
few bytes are used to additional structure, but the biggest area is
consumed by these structures and should represent the heap memory consumed
at OS level by ENSA process.
Following the above example, the en.sap<SID>_<INSTANCE> process should

consume around: 375Mb + 1500Mb + 256Mb = ~2.1Gb
Related Content
Related Documents
1995208 - ENQU: Enqueue processing 2.0
Purpose
Help you to understand the enqueue clients and handles usage, in order to better interpret the consumption of this important
resource to this critical SAP process.
Overview
This page contains information about the enqueue process and the behaviors correspondent to the handles utilization and
clients connected to it.
The Enqueue
The enqueue server (also known as the lock server) is the SAP system component that manages the lock table.
The enqueue server can be installed as part of a separate instance. This is when the standalone
enqueue server is used. Together with the message server, this server becomes the SCS
instance (SAP, Central Services - AS Java) or the ASCS instance (ABAP Central Services - AS
1/31/2024
ABAP). This means that this instance is a single point of failure, which can be designed for high
availability, together with the enqueue replication server.
Enqueue server should be installed as part of a separated instance" (since this is the
recommendation as for Netweaver 7.4). See SAP Note 2013043.
In this scenario, TCP/IP connections need to be stablished to the enqueue server, therefore, there are parameters and
behaviors in this particupar interaction that you will nd in the next chapters.
Parameter enque/server/max_clients
This parameter determines the number of processes that can be connected to the enqueue server. The enqueue server will be
the server of the connection, while the work processes or any other process connecting to the enqueue server will be the client.
The standard recommendation for this parameter according to the SAP Online Help is to "Set the parameter to the same value
as the total number of work processes in the system". This is because it is expected to have in the worst case scenario, all the
work process connected to the enqueue server, however, there are a few behaviors that can lead to the exhaustion of the client
connections even if not all the work processes are connected to the enqueue server simultaneously. This is explained in the
following chapter.
Exhausting the Enqueue Clients Resource

Connection Unexpectedly Broken
One cause of clients exhaustion when the number of work processes is smaller than the number of maximum clients con gured
in the enqueue is the connection broken with the enqueue server. In the below entry you can see a SI_ECONN_BROKEN in the
enqueue trace le which corresponds to this behavior.
When a connection is not properly closed with the respective TCP/IP handshake, it is set to the status TIME_WAIT. These are
connections that will wait for the Operating System to nish them and consequently free the handle, however, these
connections will still allocate this service handle (which in this case corresponds to the ENSA handle) until they are nished by
the OS, since this resource is tied to the connection.
In the moment the connection is broken, the work process (client of this connection), is available to receive new requests and
perform a new connection to the enqueue, while its previous connection is no longer tied to it, however, in status TIME_WAIT
waiting for the termination and still consuming the handle resource from ENSA. In a hypothetical scenario where a few work
processes are repeatedly disconnected with a connection broken from the enqueue, the default limit of 1000 client connections
can quickly be exhausted.
Each operating system has its own con guration for the TCP stack in such a way that the TIME_WAIT period varies in different
Operating Systems. For Linux operating systems for example, the period is by default set to 60 seconds as you can see below.
"Wild" Connections to Enqueue
Other processes that are not work processes can also access the port of the standalone enqueue server, therefore, these
processes will also consume the client limit to the enqueue server. An example of process that can access this port is the
ENSMON in order to monitor the enqueue functions from the OS level. Non-SAP processes can also access the enqueue server
port, with this, it is recommended to make sure only SAP work processes are accessing this TCP port.
Work Process Crash
1/31/2024
When a work process crashes completely, the connections previously stablished by this process that were not closed yet will still
be tied to it, and therefore will be set to the TIME_WAIT status for the operating system to nish them. As described before in
this page, the connection will allocate the enqueue handle while in TIME_WAIT status.
Firewalls or Others
Firewalls or other networks components can close the connection between the client and the server (the ENSA in this case),
therefore still using the enqueue clients resource until this connection is nished by the operating system after the TIME_WAIT
status period.
Related Content
Related Documents
Pro le Parameters for the Standalone Enqueue Server
Monitoring the Standalone Enqueue Server
SAP KBA 2196513 - WARNING => NiICreateHandle: no more free handles (XXXX)
SAP Note 1002075 - Too many enqueue clients in standalone enqueue server
SAP Note 2013043 - Performance Problems with Enqueue Work Process
Enqueue Performance : Analysis
Purpose
The purpose of this document is to provide some guidelines to analyze the Enqueue performance. It depends of multiple factors and usually is not
easy to analyze.
Overview
Enqueue calls consist of a communication part and of a processing part, so the first action would be to identify if the problem is a communication
problem or a processing problem .
1/31/2024
Do you have performance problems on both sides or only on the DI side?
Both sides:
There is an enqueue processing problem.
only on DI:
There is a communication problem.
General Recommendation
As from Netweaver 7.40 using the Standalone Enqueue Server for deployments with more than ONE instance is a must/prerequisite. In this
scenario there are some recommendations:
It makes no sense to set number of threads in ENSA (enq/io/max_threads) higher than 4-6:
The working thread (the one which executes requests) exists only one time. So increasing IO thread won't bring much performance, but rather can
slow down the server causing:
High CPU contention Lack of CPU resources
ENSA (Standalone Enqueue Server) and Database shouldn't be placed in the same host sharing CPU resources.
By activating Enqueue logging Mode 8 the current throughput is display together with other key figures and shows a summary per second.
To activate it : enqt pf=<ASCS/SCS instance profile> 81 1 8
To deactivate it after some minutes: enqt pf=<ASCS/SCS instance profile> 81 2
The output is written in ENQLOG99 in the ASCS/SCS work directory
How to identify enqueue performance issues
STAD transaction : Checking enqueue time and count (number of enqueues)
1/31/2024
In this example we see 10 enqueue calls with a total time of 20ms è 2ms per call (this is a good value on a Dialog Instance, but would be bad on
the Central Instance.
SM12
>> Extras >> Statistics:
Big number of enqueue collisions (rejections)?
Activate enqueue logging feauture to identify the application responsible

See Enqueue overload - collecting and analyzing the enqueue log information
High number of costly operations (Read / Backup) ?
1/31/2024
READ operations reduce ENSA's performance.
Backup file is not needed when running Standalone enqueue with Replication Server: ERS is designed for a smooth replication and it does its job
perfectly.
Enqueue Replication Server naturely increases total duration of enqueue requests.
Access to Enqueue Statistics file (ENQSTAT)
This file is located at "/usr/sap/<sid>/<instance>/Data/ENQSTAT"

It is accessed with every enqueue operation, then it should resides in the host were the enqueue service is located to avoid accesses over the network
You could identify there is an issue with this in the ENSA "dev_enqwork" trace file, see the following example:
[Thr 139878603158592] Tue Jun 27 14:35:00 2017

[Thr 139878603158592] EnqMemMakeNewStamp: new stamp: 1 498563300 120000
[Thr 139878603158592]
[Thr 139878603158592] *************** EnqStatistics ***************
[Thr 139878603158592] Tue Jun 27 14:35:03 2017
In this case we see it took around 3 seconds to write in the file.
enque/repl/shadow_file_name is set in the ASCS profile
This parameter sets where the replication table is stored, in this case is in the file system instead of shared memory
This slow down the replication process (even more if it's NFS mounted) and can influence also the performance of the Enqueue processing
When enqueue server is placed in the Central Instance check the I/O performance of the disk:
Maybe that disk is used for heavy frequent I/O operations of a database or other applications and processes?
Any system activities like swap file, archive, backup?

What if you separate the backup file from the landscape by assigning it a private disk to be able to use it exclusively?
Wait time should be smaller that processing time, otherwise you would see semaphore 26 often in SM50 and in ST02 semaphore statistics by using
"enqt" tool.
See Enqueue performance analysis with enqt
Related Content
SAP Lock Concept
Related Documents
1/31/2024
2013043 - Performance Problems with Enqueue Work Process

920979 - Out of memory in the standalone enqueue server
Error CSS Stylesheet macro - URL 'https://fonts.googleapis.com/css?family=Luckiest+Guy' is not on the allowlist. If you want to
include this content, contact your Con uence administrator to request adding this URL to the Allowlist.
Enqueue Session Quota
Purpose
Enqueue over ow situation is an issue may lead to a production down.

As Enqueue is one of the most important services, a security mechanism has been implemented to
avoid such situations in some scenarios. This Expert Content explain about this mechanism.
Overview
The Enqueue service (ENSA) is a critical point of failure in a SAP system.

The parameter enque/table_size de nes the size of enqueue. If the enqueue table is full, no additional
locks are not created and the program fail with enqueue table over ow errors.
If the ENSA fail, the whole SAP system fails too.
See FAQ Enqueue Server for topics about:
How to check the locks in the enqueue table?

How to check enqueue over ow?
How to check what is responsible for a lock table over ow?
Usually the recommendation to avoid over ow is increase the enque/table_size.

This new feature works limiting the amount of size a single user can consume of enqueue table. The
feature is called session quota
Enabling the session quota
The sessions quotas was implemented per user session.

These quotas are con gurable via a pro le parameter enque/server/session_quota which is a
percentage value (1-100%).
If the parameter enque/quota_exceeded_dump is enable, the users that exceed its quota will receive a
short dump ENQUEUE_QUOTA_EXCEEDED.
Limitation
1/31/2024
The session quota feature can only protect the entry table to be lled.
If many programs running at the same time and creating a huge number of locks, it is still possible to
create an over ow in the enqueue table.
The session quota is implemented on the Enqueue owner level. Therefore, an ABAP user can have
more than one session and the quota will not be exceeded if this ABAP user sets many locks in more
than one session.
There are many combinations, which will still result in an over ow of the enqueue table but will not be
caught by the session quota.
Related Content
Related Documents
1722708 - ENQU: Session quota
Enqueue overload - collecting and analyzing the enqueue log information
Purpose
You need help to analyze an enqueue overload situation. This page will give details on how you can collect and analyze the
enqueue log information.
This page is valid only for a "Classical Central Instance" (the DVEBMGSxx instance with a work process of type "enqueue") and
for systems running with the Standalone Enqueue Server 1.0 (ENSAv1).
Overview
This page will give the steps that need to be followed in order to collect the enqueue log information, and other steps that will
make it easier to analyze such enqueue log, in order to help with the analysis of an enqueue overload situation.
What is an enqueue overload?
An enqueue overload is a situation when an application is performing a huge number of enqueue operations.
This usually happens when the application is trying to lock an already locked object, but it is not handling this situation in the
best possible way. For example, the code that creates the lock is an in nite loop without any delay or "sleep" time between the
attempts to obtain the lock.
Another possible cause is that a huge number of locks is being set in a short timeframe. This situation is identi ed when several
work processes executing the report SAPLSENA are observed at the transaction SM50 / SM66 (at an ABAP system). The
1/31/2024
report SAPLSENA is not the root cause. This report provides the API to perform enqueue operations and it is, therefore, used by
all applications to perform such enqueue operations.
Collecting the enqueue log
If your system has a Central Services Instance (SCS/ASCS), or if the enqueue overload situation is related to the Java-stack,
you can use the following commands (that must be ran at operating system level, at the server at which the (A)SCS instance is
running at, while logged on as “<sid>adm”):
To activate the enqueue log
enqt pf=/path/to/(a)scs_instance_pro le 81 1 1 (for UNIX/Linux)
enqt pf=x:\path\to(a)scs_instance_pro le 81 1 1 (for Windows)
To deactivate the enqueue log
enqt pf=/path/to/(a)scs_instance_pro le 81 0 (for UNIX/Linux)
enqt pf=x:\path\to(a)scs_instance_pro le 81 0 (for Windows)
If your system doesn’t have an ASCS instance, and the enqueue overload is related to the ABAP-stack, you must use the
instructions of the SAP note 1384191. Note that the enqueue log information must be collected while the issue is happening.
Update on June/01/2015: the SAP note 2126913 introduces new enqueue logging features.
Analyzing the enqueue log
After you’ve generated the enqueue log, you need to copy all the “ENQLOG*” les from the “work” folder of the instance at
which the enqueue process is running at, to the computer/server at which the analysis will be performed (or to a different,
temporary and empty folder in case the analysis will be performed at the same server). The note suggests to collect the log at
the transaction SM12 itself, however this transaction shows only the rst 200 characters of each line, which may lead to an
incomplete enqueue log display.
After the copy has been done, access the folder that has the “ENQLOG*” les, and run the following command to clear, sort and
merge all the “ENQLOG*” les into one single le:
UNIX/Linux
cat ENQLOG* | egrep -v "^* * .*" | sort > all_logs.txt
Windows
type ENQLOG* | ndstr /B /V "****" | sort > all_logs.txt
Then, open the le “all_logs.txt” and identify objects that are related to the potential enqueue overload (e.g., objects that are
seen very frequently). You can then run the following command to see how many requests were made to that particular object:
UNIX/Linux
cat all_logs.txt | grep <OBJECT> | cat -n | tail -n 1
There is no equivalent command that can be performed on Windows. You’ll need to use an application that can perform a kind of
“count” operation in order to count how many times the object was requested. For example, open the “all_logs.txt” le with
Microsoft Excel, press “CTRL + F” to open the “Find and replace” popup. Then, at the “Find” tab, type the object at the “Find
what” text box, and press the “Find All” button. The total number of hits will be shown at the bottom of the “Find and replace”
popup.
1/31/2024
If the user on those entries of work processes executing SAPLSENA report is always the same, it should help identifying the
enqueue log entries and the object involved.Once you have identi ed the object related to the enqueue overload, you must
identify the related application component, and then look for solutions related to such application.
Update: the SAP KBA 2763999 shows how to use the Enqueue Log Analyzer, which makes the analysis much easier and faster!
Example of analysis
1. The enqueue log was activated and deactivated as per the SAP note 1384191, while the enqueue overload situation was
happening;
2. All the “ENQLOG*” les from the “work” folder of the CI/ASCS instance were copied to the “/enqlogs” folder, at the
same Linux server at which the instance was running at;
3. Run the command “cd /enqlogs”;
4. Run the command “cat ENQLOG* | egrep -v "^**.*" | sort > all_logs.txt”;
5. Open the le “all_logs.txt” (e.g., “vi all_logs.txt”) and identify that manly the objects “OBJECT1” and “OBJECT2” are
listed:
6. Run the command “cat all_logs.txt | grep OBJECT1 | cat -n | tail -n 1” to see how many times was the OBJECT1 requested;
7. Run the command “cat all_logs.txt | grep OBJECT2 | cat -n | tail -n 1” to see how many times was the object OBJECT2
requested;
8. Once the requests related to these objects were identi ed as the cause of the enqueue overload, you can then use the
transaction SE12 in order to nd out the application area related to the objects;
9. Search for a solution under the component related to the application area found at step 8.
(...note that the below is only one line of the enqueue log...)
03/09 12:23:29 03/09 12:23:29 4832 Enque 1 2 0 E <OBJECT1> 0/01 <USER1>

20180309122301206410000100spwdfvml0123.. 20180309122301206413000100spwdfvml0123.. USR04 001I335443
(...note that the below is only one line of the enqueue log...)
03/09 12:23:35 4835 Enque 1 2 0 E <OBJECT2> 0/01 <USER2> 20180309121340508227000700spwdfvml0123..

20180309121340508230000700spwdfvml0123.. RFCDES FECSYSTEM00
More details on the enqueue log format can be found at the SAP note 5424.
Alternative procedure for SAP NetWeaver ABAP 7.4 and higher
As of SAP NetWeaver 7.4, it is possible to verify the ABAP call stack through the transaction SM50, by double clicking at the work
processes.
If you analyze many of the work processes running the report SAPLSENA and they share the same ABAP call stack, then the
ABAP call stack can be used to determine the application area without the need to collect and analyze the enqueue log.
Just verify the component owner of the reports, functions or classes below the report SAPLSENA in the ABAP call stack.
Related Content
1384191 - SM50: Many processes in status "holds ENQ"
5424 - Questions and answers regarding enqueue/locking
1/31/2024
2763999 - How to analyze enqueue log with enqueue log analyzer

Purpose
Explain the enqt usage to analyze the number of Enqueue operation in time interval.
Note: not supported NW 7.5X systems with ENSA2 enabled
Overview
The ENSA is a critical service to SAP Netweaver System. The service must perform fast operations in
order to attend the program requests in a timely manner.
However, there are overload situations where the service is severely affected by tons of requests in a
short time interval. In such situation, the performance became slow and it is possible to notice work
process with long runtime in SAPLSENA, SAPLSENT programs or even on hold due to ENQ.
See further details about over ow situations in Note 1384191 or even in this Expert Content.
The usage of enqt to monitor ENSA performance
The enqt tool has an opcode to perform statistics about operations during the time it is running.
The syntax is:
It is also possible to use an additional parameter after the number 8 that represents the time interval
that the statistics are analysed. If no option, this will occurs every second.
The output of this command is like following:
1/31/2024
Count = Absolute counters (from enqueue statistics)

Actual = Operations per minute since the last update interval
10sec = Ops/min within last 10 seconds
1min 5min 15min = Ops/min in last 1/5/15 minutes
Following an example of an operations where it was created 100000 locks in a single request:
After locking these 10000, the following statistics show us the execution of 224250 operation in 10
seconds.
This number represent around 22 operations per ms. An ENSA is not able to perform such huge
number of operations during a long time because such action will overload the service due to the
design of the service.
Checking the last minute we can see a distinct behavior, 100019 operations. This means around 1.6
operation per ms, what is a different scenario.
The analysis above show us that there was a peak of request in a speci c time interval, however, this
ood of requests was not constant, otherwise the statistics of 1min, 5min or even 15min will also
demonstrate a huge number of requests per ms.
If your system is performing a huge number of requests during a long time, this means that the
enqueue is getting overload.
Related Content
Related Documents
Enqueue overload - collecting and analyzing the enqueue log information
1/31/2024
1384191 - SM50: Many processes in status "holds ENQ"
2013043 - Performance Problems with Enqueue Work Process
Enqueue security
Purpose
Cover security related topics of the Standalone Enqueue Server of the SAP NetWeaver kernel.
Overview
This WIKI page will list security related topics of the Standalone Enqueue, helping secure it.
For simplicity purposes, the Standalone Enqueue Server will be referred to as "ENSA", and "ENSA2" will be
used to refer to the Standalone Enqueue Server 2.
Restricting network connections (valid for: ENSA)
The parameter "enque/server/acl_ le" can be used to specify a le containing an Access Control List
(ACL).
With such list, it is possible to restrict the access (network connection) to the ENSA port.
The transaction RZ11 can be used to read the parameter's documentation, as well as verifying the
le's syntax.
Related Content
Related Documents
SAP Help page - Standalone Enqueue Server
SAP Help page - Standalone Enqueue Server 2
1/31/2024
Related Notes
FAQ Enqueue Server
Client-Server Technology - Enqueue FAQ
1/31/2024
There are three kinds of enqueue services in SAP system.

1) Classical Central Instance with the Message Server and Enqueue service running in a dialog instance. Usually a ENQ work
process is also available;
2) Standalone Enqueue Server (ENSA) where the Message Server and enqueue runs in a separated application server called
ASCSXX or SCSXX where XX is the instance number
3) Standalone Enqueue Server 2 (ENSA 2) that is the successor to the Standalone Enqueue Server (ENSA)
In order to check if your system runs a Classical CI or a Standalone Enqueue you can check in SM12 -> Extras -> Diagnosis
Classical CI:
Standalone Enqueue Server (ENSA):
1/31/2024
Standalone Enqueue Server 2 (ENSA 2):

In the DEFAULT.p pro le:
enq/enable = TRUE
Finding the Replication Server (ERS) connected to the Enqueue service?
The rst step is to nd out the replication port de ned by the parameter enque/encni/repl_port:
>sapcontrol -nr <instance number> -function ParameterValue enque/encni/repl_port

12.01.2016 16:42:07
ParameterValue
OK
50116
<instance number> represent the Enqueue instance number
The active ERS will keep connected to this TCP port constantly hence it is possible to identify the IP address connected to the
replication port:
> netstat -an | grep 50116

tcp 0 0 0.0.0.0:50116 0.0.0.0:* LISTEN
tcp 0 0 10.0.0.161:50116 10.0.0.21:63541 ESTABLISHED
unix 2 [ ACC ] STREAM LISTENING 2229917 /tmp/.sapstream50116
In this example the ERS is running in IP 10.0.0.21
1/31/2024
How to check enqueue over ow?

The enqueue lock table over ow occurs if the number of lock requests is bigger than the limit of the enqueue table. It is limited
by the parameter “enque/table_size”.
The reasons for an over ow are explained in the SAP Note 1565578 - Lock Table Over ow
If you are getting these messages in the syslog (SM21) or in the traces les you are facing an over ow in the enqueue table:
“Error locking table TBTCO”

“Lock table overflow”
“Internal lock administration error”
“internal error occurred in lock management”
“Enqueue: Transfer error while reading lock entries”
*** ERROR => EqSet1(): GetFreeEntry() failed, EntryTable overflow
*** ERROR => EqSet1(): GetFreeUser() failed, user table overflow
Copy this code!
The way to check if there is an over ow is via statistics of transaction SM12.

Go to “SM12 -> Extras -> Statistics” and you nd statistics as per:
If the "Maximum Fill Level" exceeds “Maximum Number of Lock…”, then you are facing an enqueue over ow.
The enqueue table is stored in the runtime memory, so its statistics are from the last start up.
You can also analyse the enqueue statistics is from Operating System level with the sapcontrol tool.
Sapcontrol is a client tool that connects to the sapstartsrv service and works with web methods. With the available function
“ EnqGetStatistic ” you can check the same statistics list as available in transaction SM12. The command syntax is:
sapcontrol -nr <NR> -function EnqGetStatistics

1/31/2024
The <instance number> option must be the instance number of ENSA (standalone enqueue server) ABAP or JAVA. This function
does not work with classical CI where the enqueue service is running in a dialog instance.
Below is an example of the statistics collected with the sapcontrol:
To check the list of available functions, call the command sapcontrol and check the list of WEBMETHODS.

There are enqueue lock entries which are older than several hours or days in sm12:
Select the lock entry and click the "Details" button, you can see detailed info of the lock entry:
1/31/2024
From the detail screen, you can see "Lock Owner" (the lock owner ID), "Host name" (the host name where the lock was
requested) and "Date" (the timestamp of the lock request). Also, "Work Process" (the request was made by a program running
on work process #50). Normally, the work process who was process the "Enqueue" operation will also process "Dequeue"
operation, therefore, You can move to the instance on the "Host name", and open the developer trace le.
However, there is also special situation, to see any actions which involve this "Lock" widely, you can search:
SM51 -> Select the "Host name" -> Goto -> Server Name -> Information -> Trace Search, using Lock Owner ID as key word.
In this example, the Lock Owner ID is 20151104041433010000015001SISR1102A
From T_cd:st11, open the work process trace le, using the lock detail info ("Date", or "Lock Owner")to search again.
In this example, work process is 50 dev_w50, the "Lock Owner" is 20151104041433010000015001SISR1102A, and the timestamp
is around 2015 11 04 04:14:33
dev_w50:
=========================================
M Wed Nov 04 04:14:46 2015
M *** ERROR => no enqueue name set [thxxmsg.c 459]
M {root-id=0050560202551EE5A0CBE3973538B0FC}_{conn-id=00000000000000000000000000000000}_0
M ***LOG GI0=> [enctrl.c 1250]
1/31/2024
E *** ERROR => ThToEnq(). rtc = -1 [enctrl.c 1252]
E {root-id=0050560202551EE5A0CBE3973538B0FC}_{conn-id=00000000000000000000000000000000}_0
E *** ERROR => Enqueue: EnqTskhClient() errror 8 [enxxhead.c 3189]
E *** ERROR => DequeAll() failed. Returncode = 8 [enctrl.c 2397]
E *** ERROR => Owner = 20151104041433010000005001SISR1102A......................., ReturnCode = 8
E client: 000
E user: SAPSYS
E tcode:
E calling program: RSPOWP00
E dynpro no.: 2000
E dynpro group:
M *** ERROR => no enqueue name set [thxxmsg.c 459]
M {root-id=0050560202551EE5A0CBE3973538B0FC}_{conn-id=00000000000000000000000000000000}_0
E *** ERROR => ThToEnq(). rtc = -1 [enctrl.c 1252]
E *** ERROR => Enqueue: EnqTskhClient() errror 8 [enxxhead.c 3189]
E *** ERROR => DequeAll() failed. Returncode = 8 [enctrl.c 2397]
E *** ERROR => Owner = 20151104041433010000015001SISR1102A......................., ReturnCode = 8
E client: 000
E user: SAPSYS
E tcode:
E calling program: RSPOWP00
E dynpro no.: 2000
E dynpro group:
Copy this code!
The Lock Owner ID was appeared at Wed Nov 04 04:14:46 2015. You can nd that the Deque operation got failed. The program
actually tried to dequeu but failed. That's why the lock entry remained in SM12. This means that the lock can be manually
deleted now. The reason of the DequeAll failure is not the main point of this Wiki.
How to check the locks in the enqueue table?

The enqueue lock table can be analyzed in the transaction SM12. The lock table is available as per the following image;
1/31/2024
It is also possible to check the locks in the table is from Operating System side with the enqt.
enqt pf=<instance profile> 20
The output is quite similar to SM12:
Enqueue Objects should be stored in the ABAP dictionary, therefore, you can go to:
Go to SE11 -> lock object -> <write the object> -> Display
Then we have the tab Attributes and Package. With this, it is possible to identify the owner of an object.
How to check what is responsible for a lock table over ow?

The enqueue table over ow is logged in the le ENQHISOVR. As per note 746138 the le ENQHISOVR gives information about
the username and the program responsible for the over ow. The le resides in the work folder of enqueue server
(/usr/sap/<SID>/<INSTANCE>/work).
1/31/2024
746138 Analyzing lock table over ows
Independent on the type of enqueue server (classical or standalone), it creates a le named ENQHISOVR in the instance work
folder and logs table over ows there.
It is possible to verify the over ow history from “SM12 -> Top Capacity Used -> History”. You will get a list as per:
Further information is found in the Details menu as you can see below.
1/31/2024
How to create an enqueue operations trace?

This section explains a way to create an enqueue trace to analyze all lock operations in an ENSA (standalone enqueue server)
instance for ABAP and JAVA enqueue service.
To check enqueue operations for an ABAP stack, follow the note 125041 and create the trace running transaction SM12.
125041 Analysis of enqueue errors with enqueue logging

2126913 -ENQU: The enqueue log
If you are running a Java Application Server, the enqueue service is handled by an ENSA (standalone enqueue server) named
SCS<NR>. To create the enqueue trace for a Java enqueue service you have to run it from Operating System level.
To create the enqueue trace there is a tool called ENQT that is located in the instance exe folder
(/usr/sap/<SID>/<instance>/exe).
This is the syntax to enable the trace with ENQT:
enqt pf=< ENSA instance profile path> 81 1
To disable the trace this is the command:
enqt pf=< ENSA instance profile path> 81 2
The same process works for ABAP standalone enqueue server (ENSA 1) named ASCS<NR>.
1/31/2024
This command enables a trace for the enqueue’s operations, for this reason it is recommended to avoid a trace generation
which is longer than 30 seconds which may cause performance problems.
To analyze these enqueue operations check le ENQLOG99 in the instance work folder (/usr/sap/<SID>/<instance>/work).
In the case of a classic enqueue server, each work process on the Central Instance writes its own enqueue log to the le
ENQLOGxx.
For further information on this trace see note 125041.

Enqueue Objects should be stored in the ABAP dictionary and, therefore, it is possible to identify all programs/classes using a
speci c object.
Go to SE11 -> lock object -> <write the object >-> Utilities -> where-used
The return is the list of all callers of this object.
A client (work process for example) request to the ENSA a connection and this is received by the Enqueue Listener
Thread (dev_enqlisten trace) and the listener forward this connection to the Enqueue IO Thread (dev_enqio_X traces).
Is is possible to con gure multiple IO threads to attend clients with the parameter enque/server/threadcount. Usually is
between 1 and 4.
If the enque/server/max_clients is set to 2000, for example, and there are 4 IO threads available, each thread will attend 500 +
1 clients.
If 2 IO thread, 1000 + 1 each one and so on.
It is possible to monitor the maximum number of clients already attended simultaneously using the ensmon tool from OS level.
The syntax is:
ensmon -H <hostname> -I <instance number> 7
The option 7 show "information about all Enqueue Server threads" hence we can see useful information. The output of
separated in 4 sessions:
- Information about ADM thread
- Information about listen thread
- Information about replication thread
- Information about worker thread
The last one is the focus of this post. For each IO thread we see:
IO thread 1:
[...]
Max clients:501
[...]
Client count:12
1/31/2024
IO thread 2:
[...]
Max clients:501
[...]
Client count:12
In such example the parameters are:

enque/server/max_clients 1000
enque/server/max_clients 2
Therefore, the "Client count" show us the maximum number of simultaneous clients already attended to each IO Thread since
the start up.
In case of a shortage of handles, the number of "Client count" reach the number of "Max clients". This is a way to monitor
Enqueue handles in order to avoid a fail.
Monitoring Enqueue Resources in the CCMS Infrastructure
Purpose
The purpose of this page is to explain how the enqueue of an SAP instance can be monitored through the CCMS infrastructure.
Overview
This page provides details about the CCMS monitoring infrastructure, speci cally focused in the enqueue resources monitoring,

All the enqueue monitoring functionalities can be found in transaction RZ20, by following the below path.
RZ20 transaction → SAP CCMS Monitor Templates → Enqueue
1/31/2024
Monitoring Enqueue Resources

The CCMS Infrastructure allows you to monitor the enqueue resources available in the SAP instance by using the transaction
RZ20. The below MTEs are available in order to monitor different enqueue resources, they are:
Enqueue Requests - Number of lock requests. This number is measured per second.
Enqueue Request Rejects - Number of rejected lock requests. This number is measured per second.
Enqueue Request Errors - Number of errors that occurred during lock requests. This number is measured per second.
Dequeue Requests - Number of release requests (dequeue). This number is measured per second.
Dequeue Request Errors - Number of errors that occurred when releasing locks. This number is measured per second.
1/31/2024
Dequeue All Requests - Release of all locks for a LUW (Logical Unit of Work), for example at the end of a LUW. This number is
measured per second.
Clean Up Requests - Number of releases of all locks for an application server, for example at shutdown or startup. This number
is measured per second.
Backup Requests - This number is measured per second.
Reporting Requests - This number is measured per second.
Owner Names - Maximum number of lock owner IDs that the lock table can include. Lock owner IDs are assigned to a user
context or an update request.
Owner Names Peak Utilization - Maximum number of lock owners that have been in the lock table concurrently up to now
Owner Names Actual Utilization - Current number of lock owners in the lock table
Granule Arguments - Maximum number of different lock arguments that the lock table can include. Locks with different lock
owners or different lock modes, but the same lock argument occupy one entry.
Granule Arguments Peak Utilization - Highest number of different lock arguments that have been in the lock table concurrently
so far
Granule Arguments Actual Utilization - Current number of different lock arguments in the lock table
Granule Entries - Maximum number of elementary locks that the lock table can include. Each elementary lock occupies one
entry.
Granule Entries Peak Utilization - Highest number of elementary locks that have been in the lock table concurrently so far
Granule Entries Actual Utilization - Current number of elementary locks in the lock table
Update Queue Peak - Maximum number of open update requests with locks so far
Update Queue Actual - Current number of open update requests with locks
Total Lock Time - Total time used for lock operations in the critical path of the lock table
Recent Lock Time (per minute) - Time used for lock operations in the critical path of the lock table in seconds / 1 minute.
Total Lock Wait Time - Total time spent on the lock server-side
Recent Lock Wait Time (per minute) - Wait time of parallel processes before entry into the critical path of the lock table in
seconds / 1 minute
Total Server Time - Total time spent on the lock server-side
Recent Server Time (per minute) - Total time spent on the lock server-side in seconds / 1 minute
Runtime of Data Collector - Node to which the data collection method is assigned. The runtime of each data collection is
monitored using this node.
For the Enqueue statistics that are monitored by the above MTEs in transaction SM12, you can see them in the SAP system by
using the transaction SM12 -> Extras -> Statistics, as you can see below.
1/31/2024

1. Using the Enqueue Requests MTE, you can monitor the number of enqueue operations per second in your system. This is
particulary useful when you have found out how many enqueue operations per second your system can handle (since this
measurement depends on CPU and network, for instance). The enqueue overload situation described in the SAP
Note 1384191 can be avoided or controlled in time with this monitoring scenario.
2. Using the Granule Entries Actual Utilization MTE you can monitor the number of lock entries in the lock table of your
system. This monitoring scenario can assist you to prevent or detect prematurely a lock table over ow situation, as per
described in the SAP Note 1565578. The enqueue lock table over ow situation can severely impact the operation of an
SAP system. It occurs when the maximum size of the lock table is reached.
1/31/2024
achieve this.
1/31/2024
more details.
1/31/2024
Related Content
Related Documents
SAP Note 1384191 - SM50: Many processes in status "holds ENQ"
SAP Note 1565578 - Lock Table Over ow
Troubleshooting for Enqueue Failover in ASCS with ERS
Purpose
How to check whether the failover is successful or not
How to check the preconditions
Precondition 01: Check whether there is an active ERS in the system's landscape
Precondition 02: Check the active ERS Host
1/31/2024
Precondition 03: Check whether enqueue replication table is shared memory exists or not
Some additional things
01: Where to start the ERS?
02: At the time the new ENSA starts and gets the locks from ERS, the ERS will be shut down or restarted.
03: How the ERS instance know the ASCS instance number?
04: About OS Environment SAP_NI_CACHE_DISABLED
Related Documents
Purpose
The purpose of this document is to assist with enqueue server(ENSA) failover issues with ERS. To get
enqueue replication table from ERS, there are some preconditions.
1- There is an active ERS in the system's landscape.

2- The new ASCS is started at the active ERS hosts.
3- The enqueue replication table is stored in the shared memory. This shared memory still exists
when the new ASCS is started.
This page will show how to check whether the failover is successful or not, and how to check the
preconditions above if the failover failed.
Please review the links in "Related Documents" part for the background knowledge if need.
How to check whether the failover is successful or not
There are detailed steps about how to test the enqueue failover in the following URL.If you passes the
tests in this URL, it means that the enqueue failover nishs successfully.
http://help.sap.com/saphelp_nw74/helpdata/en/47/e8ee429bd54231e10000000a421937/content.htm
Meanwhile, from the trace's point of view, if the failover nishes successfully, the following trace will
be shown in dev_enqsrv of the new started ASCS instance.
It also shows that after the restarted enqueue server get the locks, the shared memory segment used
to save the replication table is deleted.
# /usr/sap/<SID>/ASCS<inst-no>/work/dev_enqsrv
---------------------------------------------------
trc le: "dev_enqsrv", trc level: 1, release: "742"
---------------------------------------------------
......
1/31/2024
[Thr 139696690013984] Mon Mar 9 16:41:19 2015

[Thr 139696690013984] CGROUPS: changing prio of pid 20376 to high
[Thr 139696690013984] CGROUPS: disabled
[Thr 139696690013984] EnqInitCleanupServer: Shm of enqueue table (rc = 3) does not exist,
nothing to clean up
[Thr 139696690013984] InitReplHooks: Tracing enqueue and replication statistics is switched
off.
[Thr 139696690013984] initialize_global: Enqueue server started with replication functionality
[Thr 139696690013984] Enqueue: EnqMemStartupAction Utc=1425890479, attach_only=0
[Thr 139696690013984] EnqLockTableSizeCalculate: session quota = 100%
[Thr 139696690013984] EnqLockTableCreate: create lock table (size = 65536000)
[Thr 139696690013984] EnqLockTableMapToLocalContext: enque/use_pfclock2 = FALSE
[Thr 139696690013984] ShadowTable:attach: ShmCreate(,SHM_ATTACH,) -> 7f0d704cf000
[Thr 139696690013984] EnRepClass::getReplicaData: found old replication table with the
following data:
[Thr 139696690013984] Line size:744, Line count: 56415, Failover Count: 0
[Thr 139696690013984] EnqId: 1425890266/16826, last stamp: 1/425890432/8000
[Thr 139696690013984] Byte order tags: int:1159934994 char:Z
[Thr 139696690013984] Enqueue checkpointing: start restoring entries. Utc=1425890479
[Thr 139696690013984] Delete replication table which was attached by the enqueue server
[Thr 139696690013984] ShadowTable:destroy: ShmCleanup( SHM_ENQ_REP_SHADOW_TBL)
[Thr 139696690013984] enque/backup_ le disabled in enserver environment
[Thr 139696690013984] Mon Mar 9 16:41:20 2015

[Thr 139696690013984] ***LOG GEZ=> Server start [encllog.cpp 550]
[Thr 139696690013984] Enqueue server start with instance number 01
Otherwise if the new enqueue server does not get the locks from ERS, errors like following will be
shown in dev_enqsrv of the new started ASCS instance.
[Thr 140694977873696] Listen successful on port/service sapdp01
[Thr 140694977873696] Mon Mar 9 16:37:45 2015

nothing to clean up
[Thr 140694977873696] InitReplHooks: Tracing enqueue and replication statistics is switched
1/31/2024
off.
[Thr 140694977873696] initialize_global: Enqueue server started with replication functionality
[Thr 140694977873696] Mon Mar 9 16:37:46 2015

[Thr 140694977873696] ShadowTable:attach: ShmCreate - pool doesn't exist
[Thr 140694977873696] EnqRepRestoreFromReplica: failed to attach to old replication table:
rc=-1
[Thr 140694977873696] enque/backup_ le disabled in enserver environment
[Thr 140694977873696] Mon Mar 9 16:37:47 2015

One more remark, the trace "ShadowTable:attach: ShmCreate ..." in dev_enqsrv is only shown when
ERS is installed. If there is no ERS, the dev_enqsrv looks like following.
---------------------------------------------------
trc le: "dev_enqsrv", trc level: 1, release: "742"
---------------------------------------------------
sysno 01
sid QSB
systemid 390 (AMD/Intel x86_64 with Linux)
relno 7420
patchlevel 0
patchno 116
intno 20020600
make multithreaded, Unicode, 64 bit, debug
pid 17632
[Thr 140227397859104] Fri Aug 7 09:40:14 2015

[Thr 140227397859104] pro le /usr/sap/QSB/SYS/pro le/<SID>_ASCS<inst-no>_<your-
hostname>
[Thr 140227397859104] hostname <your-hostname>
[Thr 140227397859104] Listen successful on port/service sapdp01
1/31/2024
[Thr 140227397859104] Fri Aug 7 09:40:15 2015

nothing to clean up
[Thr 140227397859104] initialize_global: Enqueue server started WITHOUT replication
functionality
[Thr 140227397859104] Fri Aug 7 09:40:16 2015

How to check the preconditions

Precondition 01: Check whether there is an active ERS in the system's landscape
Before the failover, you could see the following traces in dev_enqrepl in the old ASCS work
folder. These traces means that there is an active ERS who is doing the backup work.
Otherwise, the enqueue locks could not be retrieved during the failover.
# /usr/sap/<SID>/ASCS<inst-no>/work/dev_enqrepl
---------------------------------------------------
trc le: "dev_enqrepl", trc level: 1, release: "742"
---------------------------------------------------
......
[Thr 139695737961888] Mon Mar 9 16:41:20 2015
[Thr 139695737961888] pro le /usr/sap/SM2/SYS/pro le/<SID>_ASCS<inst-no>_<your-
hostname>
[Thr 139695737961888] hostname <your-hostname>
[Thr 139695737961888] IOListener::Listen: listen on port 50116 (addr 0.0.0.0)
[Thr 139695737961888] will sleep maximal 333 ms while waiting for response
[Thr 139695737961888] will sleep max 5000 ms when idle
[Thr 139695737961888] will wait maximal 1000 ms for input
[Thr 139695737961888] Mon Mar 9 16:41:40 2015

[Thr 139695737961888] A newly started replication server has connected
[Thr 139695737961888] ***LOG GEZ=> repl. activ [encllog.cpp 550]
1/31/2024
Precondition 02: Check the active ERS Host
From the ERS's point of view, If ERS connects ASCS successfully, the following traces will be shown in
dev_enrepsrv in ERS work folder.
# /usr/sap/<SID>/ERS<inst-no>/work/dev_enrepsrv
---------------------------------------------------
trc le: "dev_enrepsrv", trc level: 1, release: "742"
---------------------------------------------------
......
[Thr 140349019186976] Mon Mar 9 16:41:40 2015
[Thr 140349019186976] Replication server start with instance number 01
[Thr 140349019186976] Enqueue server on host <your-hostname>, IP-addr <your-ip-address>,
port 50116
[Thr 140349019186976] ShadowTable:create: ShmCreate(,SHM_CREATE,len=43101208) ->
7fa57da05000
[Thr 140349019186976] Connected to Enqueue Server and created repl. table with 56415 lines
[Thr 140349019186976] EnStateTransferEnqToRep::process: transaction stamp (end_trans): 1
425890500 1000!
[Thr 140349019186976] EnStateTransferEnqToRep::process: Transaction has nished:4, process
request and loop over fragments
You could have one or more ERS in you landscape. But there will be only one active ERS instance at
one time. If the ASCS is failed over to non-active ERS host, the locks could not be retrieved.
The failover behavior is controled by your HA software.
In the non-active ERS host, you will see the following traces in dev_enrepsrv in ERS instance.
......
[Thr 140231835920160] Fri Jul 31 17:09:07 2015
[Thr 140231835920160] Enqueue server on host CNPVGLLSSCSM2, IP-addr 10.58.133.115, port
50116
[Thr 140231835920160] ***LOG Q0I=> NiPConnect2: <ASCS-IP-Address>:50116: connect (111:
Connection refused) [/source/bas/742_COR/src/base/ni/nixxi.cpp 3324]
[Thr 140231835920160] *** ERROR => NiPConnect2: SiPeekPendConn failed for hdl 1/sock 9
(SI_ECONN_REFUSE/111; I4; ST; <ASCS-IP-Address>:50116) [nixxi.cpp 3324]
[Thr 140231835920160] *** ERROR => EncNiConnect: unable to connect (NIECONN_REFUSED).
See SAP note 1943531 [encomi.c 442]
[Thr 140231835920160] *** ERROR => RepServer: main: no connection to Enqueue Server
(rc=-7; ENC_ERR_REFUSED) => try again in 400 ms (see SAP note 1943531) [enrepserv.cp 776]
1/31/2024
If the non-active ERS change to active status, the following trace will be shown after
NIECONN_REFUSED.
......
[Thr 140231835920160] Fri Jul 31 17:09:33 2015
[Thr 140231835920160] ***LOG Q0I=> NiPConnect2: <ASCS-IP-Address>:50116: connect (111:
Connection refused) [/source/bas/742_COR/src/base/ni/nixxi.cpp 3324]
[Thr 140231835920160] *** ERROR => NiPConnect2: SiPeekPendConn failed for hdl 7/sock 9
(SI_ECONN_REFUSE/111; I4; ST; <ASCS-IP-Address>:50116) [nixxi.cpp 3324]
[Thr 140231835920160] *** ERROR => EncNiConnect: unable to connect (NIECONN_REFUSED).
See SAP note 1943531 [encomi.c 442]
[Thr 140231835920160] *** ERROR => RepServer: main: no connection to Enqueue Server
(rc=-7; ENC_ERR_REFUSED) => try again in 20000 ms (see SAP note 1943531) [enrepserv.cp
776]
[Thr 140231835920160] Fri Jul 31 17:09:53 2015

7f8a34f3f000
438333793 0!
Precondition 03: Check whether enqueue replication table is shared memory exists
or not
The replication table is saved in the shared memory. The shared memory key number is 66 of ASCS
instance number.
Assume your ASCS instance number is 01, then running showipc <ASCS-inst-no> in the active ERS
host, shared memory key 66 for enqueuer replication table will be shown as following.
> showipc 01 | grep 66

OsKey: 10166 0x000027b6 Shared Memory Key: 66 Size: 43101208 41.1 MB Att: 1 Owner:
sm2adm Perms: 740
The suitable instance number could also be checked by dev_enrepsrv in ERS work folder as following.
1/31/2024
---------------------------------------------------
trc le: "dev_enrepsrv", trc level: 1, release: "742"
---------------------------------------------------
......
[Thr 140349019186976] Mon Mar 9 16:41:40 2015
[Thr 140349019186976] Enqueue server on host <your-hostname>, IP-addr <your-ip-address>,
port 50116
7fa57da05000
425890500 1000!
If the replication table is deleted, the locks could not be retrieved.
Below are some common issues that can damage the share memory before the ENSA connect to it.
Please avoid them during the failover.
1 - Executing cleanipc against ASCS instance number on active ERS host

For example, during failover from host A to host B(The active ERS host), cleanipc <ASCS-inst-
no> on host B will delete the replication table in memory.
2 - ERS was shut down too early on windows
Check Replication and Failover@NW74 online help for more information.
3 - ipcrm command at linux.
Some additional things

01: Where to start the ERS?
It is common situation customers keep the ERS UP and running in the same host where ENSA is UP
and running. It does not make sense to have the ERS UP and running in the same ENSA host. This
does not cause problems, however the ERS will consume resource, therefore, the ERS in the host
where ENSA is UP and running should keep down.
On the other hand, the host where ENSA is UP and running would not be able to work anymore for
some errors. In such case the new ENSA could only be started on another host. This is also a good
reason to start ERS to backup the enqueue locks in another host.
1/31/2024
02: At the time the new ENSA starts and gets the locks from ERS, the ERS will be
shut down or restarted.
Whether the ERS will be shut down or restarted, it depends on the setting in your ERS pro le. Below
are two examples.
# /usr/sap/<SID>/ERS<ERS-inst-no>/pro le/<SID>_ERS<ERS-inst-no>_<ERS-hostname>
# The ERS will be restarted by the following setting.

Restart_Program_00 = local $(_ER) pf=$(_PFL) NR=$(SCSID)
# The ERS will be shut down by the following setting.

Start_Program_00 = local $(_ER) pf=$(_PFL) NR=$(SCSID)
03: How the ERS instance know the ASCS instance number?
The ASCS instance number is con gured at the ERS pro le. Below is an example of ERS pro le which
assumes that the ASCS instance number is 01.
# /usr/sap/<SID>/ERS<ERS-inst-no>/pro le/<SID>_ERS<ERS-inst-no>_<ERS-hostname>
SCSID = 01
enque/serverinst = $(SCSID)
Restart_Program_00 = local $(_ER) pf=$(_PFL) NR=$(SCSID)
04: About OS Environment SAP_NI_CACHE_DISABLED
During a failover, a network change is also taken. If you nd out that any SAP process caches the
wrong network information, you could use OS environment SAP_NI_CACHE_DISABLED=1 to disable
the cache. See the following note for more information.
SAP Note 1425520 - Disable NI cache for host and service names
Related Documents
Please also review the following SAP Online Help for more information.
High Availability with the Standalone Enqueue Server
Replication and Failover
Monitoring the Lock Table at Failover

1/31/2024
When are the enqueue locks released
Purpose
Deeper explanation of how the locks are set and released, and how to recognize if the situation where the locks remain is
caused by the enqueue service or the application being executed.
Setting locks
At the start of an SAP transaction, two owners are always created who can request locks: the dialog owner and the update
task. The application uses the _SCOPE parameter to specify which of the two owners should actually own the lock, and therefore
de nes the lock duration with respect to an SAP LUW. When the update task is called, it inherits the lock.
Releasing locks
Application side
The COMMIT WORK statement is executed at the end of the transaction. The lock is removed in the majority of the cases after
it, but this depends on the application, as it is responsible for setting the _SCOPE parameter.
Locks remains set until you either call the corresponding DEQUEUE function module, or close the transaction that executes an
implicit DEQUEUE_ALL. The application is responsible for calling the dequeue function, so that's why it’s always recommended
to check these remaining locks-problems further with the application team. Generating an enqueue logging could be useful to
check which locks are generated, when and for which objects. More information on SAP Note 2126913.
2126913 - "ENQU: The enqueue log".
Taskhandler side
The session frees all its resources even if the application did not release them explicitly. This means that if some locks are left by
the application, they will be released automatically by the task handler after rdisp/gui_auto_logout
seconds. The taskhandler always send DequeAll during deletion of sessions.
Possible causes
We have to take into account that the timestamp of the lock correspond with the transaction execution not to the time when
the log was set. Does the lock remain beyond rdisp/gui_auto_logout
SAP Note 43614 describes the different scenarios an possible solutions.
43614 - Lock entries remain after end of session
If the problem is that the lock is hold for a long time we should take into account that this is normal as the application is being
executed. It will be needed to check if the transaction is still running. This could be checked in SM50 or in case of update records
in SM13 transactions. Quite big selection criteria or dialog transaction going over different screens before the application
performs the COMMIT WORK are the most common ones.
Related Content
1/31/2024
Related Documents
SCOPE Parameter (1)
SCOPE Parameter (2)
Relation DB-SAP lock
43614 - Lock entries remain after end of session
5424 - Questions and answers regarding enqueue/locking
2322108 - Update requests stay in initial status, enqueue lock entries remain after end of
session
SAP High Availability

This space intends to concentrate documents about High Availability information in SAP
High Availability Articles
High Availability with Standalone Enqueue Server 2
High Availability Certi cation
SAP NetWeaver High Availability Cluster Certi cation
Certi ed HA-Interface Partners
High Availability Partner Information
Important Resources about the HA-Interface Certi cation for Partners
Tools
1/31/2024
High Availability Test Tool
Certi ed HA-Interface Partners
SAP Application Server High Availability Interface Certi cation
The table below contains all SAP partners in alphabetical order with their High Availability solution that have been certi ed
within the
SAP Application Server High Availability Interface Certi cation. For details of the certi cation please see the general
High Availability Partner Information page or the HA-Interface Certi cation page of the International Certi cation Center.
It contains:
Partner Name: Partner Name as written in the certi cation
HA Solution Name: The name of the High Availability partner solution as written in
the certi cation
Certi ed Operating Systems: A list of certi ed Operating Systems with the used
processor type
Supported Databases: A list of supported databases as named by the partner, but

not ver ed by SAP. The underlying link has been provided by the partner for details
Support Note: An SAP note number and link to explain the existing support agreements
with SAP for the certi ed High Availability Solution
Certi ed until: A date that speci es the end date of the validity of the certi cation
1/31/2024
Partner Name HA Solution Certified Supported Databases Support Certification Certified

Name Operating * (Link) Note Version until
Systems
Hewlett HPE Serviceguard Linux HANA DB 2.0, HANA 1779681 S/4-HA- 04. Aug.
Packard 12.40 on DB 1.0 CLU 1.0 2022
Enterprise Co. Advanced/Enterprise x86_64
Hewlett HPE Serviceguard Linux SAP ASE, Oracle, IBM 1779681 NW-HA- 13. Aug.
Packard 12.40 on DB2, MaxDB, HANA CLU_750 2022
Enterprise Co. Advanced/Enterprise x86_64 DB
Hewlett HPE Serviceguard HP-UX MaxDB, Oracle, IBM 1779681 NW-HA- 26. Nov.
Packard A.11.20 on DB2, Sybase ASE CLU_750 2022
Enterprise Co. IA64
Hewlett Serviceguard 12 Linux SAP ASE, Oracle, IBM 1779681 NW-HA- 27. Oct.
Packard Adv/Ent/Pre & on DB2, MaxDB, HANA CLU_750 2024
Enterprise Co. Flex Storage x86_64 DB
Hewlett Serviceguard 12 Linux HANA DB 2.0 1779681 S/4-HA- 28. Oct.

Packard Adv/Ent/Pre & on CLU-1.0 2024
Enterprise Co. Flex Storage x86_64
Hewlett HPE Serviceguard Linux SAP ASE, Oracle, IBM 1779681 NW-HA- 31. Jan.
Packard HA E5 and HADR on DB2, MaxDB, HANA CLU 7.50 2026
Enterprise Co. E7 for Linux with x86_64 DB
SAP Add-on
Hewlett HPE Serviceguard Linux HANA DB 2.0 1779681 S/4-HA- 30. Jan.
Packard HA E5 and HADR on CLU 1.0 2026
Enterprise Co. E7 for Linux with x86_64
SAP Add-on
NEC EXPRESSCLUSTER Linux HANA DB 2.0 1768213 S/4-HA- 04. Aug.

Corporation X 5.x on CLU 1.0 2025
x86_64
NEC EXPRESSCLUSTER Windows HANA DB 2.0 1841837 S/4-HA- 24. Apr.

Corporation X 5.x Server CLU 1.0 2026
NEC EXPRESSCLUSTER Windows HANA DB 2.0 1841837 S/4-HA- 28. Feb.

Corporation X 4.1 Server CLU 1.0 2023
Oracle Oracle Solaris Solaris Oracle, MaxDB, 1779423 NW-HA- 15. Apr.
DeutschlandB.V. Cluster 4.x on Sybase ASE CLU_750 2022
& Co. KG SPARC
(additional link)
Red Hat, Inc. Red Hat Linux HANA DB 2.0 1908655 S/4-HA- 22. Apr.
Enterprise Linux 8 on CLU 1.0 2023
for SAP solutions x86_64
Red Hat, Inc. Red Hat Linux HANA DB 2.0 1908655 S/4-HA- 22. Apr.
for SAP solutions Power
LE
Red Hat, Inc. Red Hat Linux Oracle, IBM DB2, SAP 1908655 NW-HA- 30. Apr.
Enterprise Linux 8 on ASE, SAP DB/MaxDB, CLU_750 2023
for SAP solutions x86_64 SAP HANA DB
Red Hat, Inc. Red Hat Linux Oracle, IBM DB2, SAP 1908655 NW-HA- 30. Apr.
1/31/2024
for SAP solutions Power SAP HANA DB
LE
Red Hat, Inc. Red Hat Linux HANA DB 2.0 1908655 S/4-HA- 14. Aug.
for SAP solutions x86_64
Red Hat, Inc. Red Hat Linux HANA DB 2.0 1908655 S/4-HA- 14. Aug.
for SAP solutions Power
LE
Red Hat, Inc. Red Hat Linux Oracle, IBM DB2, SAP 1908655 NW-HA- 14. Aug.
for SAP solutions x86_64 SAP HANA DB
Red Hat, Inc. Red Hat Linux Oracle, IBM DB2, SAP 1908655 NW-HA- 14. Aug.
for SAP solutions Power SAP HANA DB
LE
SIOS SIOS Protection Linux Oracle, IBM DB2, 1662610 NW-HA- 19. May
Technology Suite for Linux on Sybase ASE, CLU_750 2025
Corp. v9.3.2 and above x86_64 SAPDB/MaxDB, SAP
HANA DB
SIOS SIOS Protection Linux HANA DB 2.0 1662610 S/4-HA- 20. Sep.
Technology Suite for Linux on CLU 1.0 2025
Corp. v9.6 and above x86_64
SUSE SUSE Linux Linux HANA DB 2.0 1763512 S/4-HA- 26. Nov.
Software Enterprise Server on CLU 1.0 2024
Solutions 15 for SAP x86_64
Germany Applications
GmbH
SUSE SUSE Linux Linux SAP ASE, Oracle, IBM 1763512 NW-HA- 26. Oct.
Software Enterprise Server on DB2, MaxDB, HANA CLU_750 2023
Solutions for SAP x86_64 DB
Germany Applications 15
GmbH
SUSE SUSE Linux Linux HANA DB 2.0 1763512 S/4-HA- 16. Feb.
Software Enterprise Server on CLU 1.0 2026
Solutions for SAP Power
Germany Applications 15 LE
GmbH
Veritas InfoScale AIX Sybase ASE, Oracle 1906423 NW-HA- 30. Sep.
Technologies Availability / RDBMS/RAC, IBM CLU_750 2022
LLC InfoScale DB2, MaxDB, HANA
Enterprise 7.4 DB
Veritas InfoScale Linux Sybase ASE, Oracle, 1906423 NW-HA- 11. Sep.
Technologies Availability / on IBM DB2, MaxDB, CLU_750 2022
LLC InfoScale x86_64 HANA DB
Enterprise 7.4
Veritas InfoScale Linux HANA DB 2.0 1906423 S/4-HA- 10. Jan.

Technologies Availability / on CLU 1.0 2026
LLC InfoScale x86_64
Enterprise 8.0
1/31/2024
Veritas InfoScale AIX HANA DB 2.0 1906423 S/4-HA- 26. Mar.
Technologies Availability / CLU 1.0 2023
LLC InfoScale
Enterprise 7.4
* as provided by partners and known at certi cation date. Can be subject to change and may be changed by SAP at any time
without notice.
It is not intended to be binding upon SAP to any particular course of business, product strategy and/or development.
For details please follow link provided.
High Availability Partner Information
New - Certi cation Program for HA-Partners is in place

A new partner certi cation program for the SAP Application Server Interface for high availability solutions - the HA-Interface
Certi cation - is in place as of June 2015.
SAP has introduced a partner certi cation program to certify the HA-interface (cluster API) of the SAP Start Service
(sapstartsrv).
The important advantages of this certi cation will be:
Certify start/stop infrastructure within HA Setups
Establish a single SAP HA setup scenario
Unify HA setups for SAP NetWeaver 7.x
Clarify OS dependencies and 3rd party failover software
Clarify available DB-speci c HA solutions of third party vendors
Clarify responsibilities of SAP and its partners, especially for support
These minimum criteria aim to ensure compliant implementation of customer HA setups of SAP systems. Partners certainly
can extend and further optimize their solutions.
The certi cation process started in October 2011 with the rst pilot. All other potential partner certi cations followed
commencing April 2012. After a fair-play period of additional 6 months, all so far certi ed HA-Solutions were published on SDN
in October 2012. The list of partners that successfully passed the HA-Interface Certi cation can be found here. Currently two
HA-Interface Certi cations are released:
S/4-HA-CLU 1.0 (since 12/2018; based on SAP S/4HANA 1809 and ABAP platform 1809)
NW-HA-CLU 750 (since 10/2018; based on SAP NetWeaver 7.50)
No new certi cations of the older HA-Interface Certi cation versions (NW-HA-CLU_740, NW-HA-CLU_730) can be done. Of
course, existing certi cations for these versions remain valid.
You can nd more details about the HA-Interface Certi cation itself here.
Further Information About Partner Solutions

The following list of HA-Partners is a selection of available solutions and is not intended to be complete. This list will be revised
on a regular basis.
More details of certi ed Partner solutions can be found here.
PartnerInformation Available
HA-Interface
Certifications
1/31/2024
Fujitsu Dynamic None.

Infrastructure
Solutions for SAP
Hewlett HP SAP Alliance Certified HA
Packard solution(s)
Enterprise available.
Co,
IBM System z: None.
Business Continuity
for SAP on IBM Z
Power System on AIX:
IBM AIX High

Availability, Disaster
Recovery PowerHA
SystemMirror (
Formerly HACMP)
PowerHA
SystemMirror High
Availability Solutions
for SAP on AIX
Power System on Linux:
PowerHA
SystemMirror High
Availability Solutions
for SAP on Linux
IBM i:
High Availability
Options for SAP
Using IBM PowerHA
SystemMirror for i
SAP High Availability

on IBM i
Con guration Guide
Implementing an
Independent ASP
(iASP) System on
IBM i
Multiplatform:
Tivoli System
Automation for
Multiplatforms SAP
High Availability
Policy
IBM Tivoli SAP High

Availability Solution
1/31/2024
for distributed
platforms including
AIX clusters and
Linux clusters (IBM
System z, IBM Power
Systems and Intel-
based servers)
Microsoft Failover Clustering None.
in Windows Server
Windows Server
Failover Clustering
for SAP
NEC High Availability for Certified HA
SAP by solution(s)
Expresscluster available.
Oracle Oracle Solaris Certified HA

Cluster solution(s)
available.
Oracle IT
Infrastructure
Solutions for SAP
SAPCTL with Oracle

Clusterware and
Oracle Real
Application Clusters
Red Red Hat Enterprise Certified HA
Hat Linux for SAP HANA solution(s)
available.
Red Hat Enterprise
Linux for SAP
Solutions
SAP NetWeaver
ASCS/ERS ENSA1 in
Pacemaker Cluster
Sios SIOS Protection Certified HA
Suite for Linux solution(s)
available.
SUSE SUSE Alliance Certified HA

Partners solution(s)
available.
Mission-critical SAP
Solutions on SUSE
Linux Enterprise
Server for SAP
Applications
SUSE best practices

for SAP applications
Infos concerning
zero downtime
Veritas InfoScale Availability Certified HA
Technologies / InfoScale solution(s)
LLC Enterprise 7.0 / 8.0 available.
1/31/2024
SAPNW agent on
Veritas SORT

This site provides an overview of interesting documents that are relevant for HA partners intending to pass the HA-Interface
Certi cation.
The plans for this certi cation have been initially rolled out to our partners in June 2011.
The most recent version of the HA-Interface certi cation is in place as of June 2015.
If you consider to pass the certi cation, we recommend to familiarize with the following documents.
SAP Start Service (sapstartsrv):
How to use the SAPControl Web Service Interface
SAP Header le for shared library (Version 3)
How to Test Cluster Integration using SAP HA Interface
SAPStartSRV in HA Environments
Details Start/Stop Diagramm
Polling Interface for HA cluster to ensure that the replication server is started on every host in
its group
Note 1678768 - Initialising the enhanced SAP HA library (Link to SAP Service Marketplace)
Note 1864705 - Compatibility tests for certi ed HA setups
Monitoring:
How to monitor the Standalone Enqueue Server (Link to SAP Help)
How to monitor the Replication Server (Link to SAP Help)
How to monitor the Lock Table at Failover (Link to SAP Help)
SAP note 877795, section 52: Improved Enqueue and Message Server Monitoring (Link to SAP
Service Marketplace)
SAP HA Script Connector:
How to connect SAPSTARTSRV and Cluster Frameworks using the components

saphascriptco.so and sap_vendor_cluster_connector
SAP Note 1693245 - SAP HA Script Connector Library
1/31/2024
For further technical questions please contact Martin Anstett .
For any question regarding the official certi cation process (e.g. registering for the certi cation), check out the Information on
ICC-Certi cations on the SAP Website, or contact holger.kunitz@sap.com.
SAP Internet Communication Manager (ICM)
SAP Internet Communication Manager (ICM)

The ICMan process is responsible for Internet communication within a SAP Web Application Server. It describes how a TCP/IP
request with an standard protocol on top (e.g HTTP/S) is routed into an ABAP context or to a J2EE engine (in case of double
stack system).
Wiki Documentation
ICMON and WDISPMON Monitors
ICM and SAP Web Dispatcher Maximum and Minimum number of threads
ICM and SAP Web Dispatcher: MPI parameters settings
Tips and best practices for security on SAP Web Dispatcher and ICM
Tracing HTTP headers in trace le
Managing user IDs for the Web Administration Page
Monitoring ICM Resources Using CCMS Infrastructure
Web Admin UI authentication methods
SAP Web Dispatcher and ICM timeout settings
Cross-Origin Resource Sharing (CORS)
Error rendering macro 'excerpt-include' How to analyze ICM Trace level 3 for SAP
Connect
No link could be created for 'Notes SAP Web How to automatically monitor the ICM MPIs
Dispatcher'. utilization
SAP Web Dispatcher FAQ
Can a SAP Web Disp run on the same host as

an ABAP, J2EE, HANA system
1/31/2024
Can I operate multiple backend systems

behind a single web origin
Can I use a different load balancer instead of

SAP Web Dispatcher
Can I use multiple SAP Web Dispatchers for

the same backend system
Can the SAP Web Dispatcher forward

requests across an HTTP proxy
Does the SAP Web Dispatcher change the

host header
How can the SAP Web Dispatcher be

monitored
How do I con gure SAP Web Dispatcher for

WebSocket usage
How do I health check my SAP Web

Dispatcher?
How do I set up my own error pages for web

services
How do I setup a SAP Web Dispatcher with

the bootstrap option
How do I setup SAP Web Dispatcher
How do I setup the SAP Web Dispatcher for

high load scenarios
How do I update SAP Web Dispatcher
How many SAP Web Dispatchers do I need
How to analyze the distribution of stateless

http requests by the SAP Web Dispatcher
How to con gure SAP Web Dispatcher for

SSL
How to con gure SAP Web Dispatcher for

URL Rewriting
How to con gure system selection based on

request URI semicolon parameters
How to con gure traces on SAP Web

Dispatcher or ICM
How to download SAP Web Dispatcher trace

le - dev_webdisp
How to enable HTTP access log with detailed

response times
1/31/2024
How to set connection - processing timeout

period for ICF services
Is SAP Web Dispatcher a reverse proxy
Is SAP Web Dispatcher vulnerable to

Shellshock attacks
Should I run the SAP Web Dispatcher as a

standalone installation or as part of an ABAP
or J2EE system
What do I have to check when using a

Reverse Proxy in my system landscape
What is the difference between Internet

Communication Manager (ICM) and SAP
Web Dispatcher
What is the SAP Web Dispatcher
Where can I download the SAP Web

Dispatcher
Where do I nd the Online Documentation
Which release of SAP Web Dispatcher should

I use
Cross-Origin Resource Sharing (CORS)

Cross-Origin Resource Sharing (CORS) is a W3C spec that allows cross-domain communication from the browser. A resource
makes a cross-origin HTTP request when it requests a resource from a different domain to its own. For example, an HTML page
served from http://domain-a.com makes an <img> src request for http://domain-b.com/image.jpg.
The Cross-Origin Resource Sharing (CORS) mechanism gives web servers cross-domain access controls, which enable secure
cross-domain data transfers. The Cross-Origin Resource Sharing standard works by adding new HTTP headers that allow
servers to describe the set of origins that are permitted to read that information using a web browser. Additionally, for HTTP
request methods that can cause side-effects on server's data (in particular, for HTTP methods other than GET), the
speci cation mandates that browsers "pre ight" the request, soliciting supported methods from the server with an HTTP
OPTIONS request method, and then, upon "approval" from the server, sending the actual request with the actual HTTP request
method.
Simple Request
A request that doesn’t trigger a CORS pre ight—a so-called “simple request”—is one that meets all the following conditions:
The only allowed methods are:
GET
HEAD
POST
Apart from the headers set automatically by the user agent, the only headers which are allowed to be manually set are:
1/31/2024
Accept
Accept-Language
Content-Language
Content-Type (but note the additional requirements below)
Last-Event-ID
DPR
Downlink
Save-Data
Viewport-Width
Width
The only allowed values for the Content-Type header are:
application/x-www-form-urlencoded
multipart/form-data
text/plain
Communication Example
HTTP Request
GET /resources/public-data/ HTTP/1.1

Host: bar.other
User-Agent: Mozilla/5.0 (Macintosh; U; Intel Mac OS X 10.5; en-US; rv:1.9.1b3pre) Gecko/20081130 Mine eld/3.1b3pre
Accept: text/html,application/xhtml+xml,application/xml;q=0.9,*/*;q=0.8
Accept-Language: en-us,en;q=0.5
Accept-Encoding: gzip,de ate
Accept-Charset: ISO-8859-1,utf-8;q=0.7,*;q=0.7
Connection: keep-alive
Referer: http://foo.example/examples/access-control/simpleXSInvocation.html
Origin: http://foo.example
HTTP Response
HTTP/1.1 200 OK
Date: Mon, 01 Dec 2008 00:23:53 GMT
Server: Apache/2.0.61
Access-Control-Allow-Origin: *
1/31/2024
Keep-Alive: timeout=2, max=100
Connection: Keep-Alive
Transfer-Encoding: chunked
Content-Type: application/xml
Pre ighted Request

Unlike “simple requests”, "pre ighted" requests rst send an HTTP request by the OPTIONS method to the resource on the
other domain, in order to determine whether the actual request is safe to send. Cross-site requests are pre ighted like this
since they may have implications to user data.
In particular, a request is pre ighted if any of the following conditions is true:
If the request uses any of the following methods:
PUT
DELETE
CONNECT
OPTIONS
TRACE
PATCH
Or if, apart from the headers set automatically by the user agent, the request includes any headers other than those which
allows the Simple Requests.
Communication Example
HTTP Request
1/31/2024
OPTIONS /resources/post-here/ HTTP/1.1
Host: bar.other
Access-Control-Request-Method: POST
Access-Control-Request-Headers: X-PINGOTHER, Content-Type
HTTP Response
HTTP/1.1 200 OK
Date: Mon, 01 Dec 2008 01:15:39 GMT
Server: Apache/2.0.61 (Unix)
Access-Control-Allow-Origin: http://foo.example/
Access-Control-Allow-Methods: POST, GET, OPTIONS
Access-Control-Allow-Headers: X-PINGOTHER, Content-Type
Access-Control-Max-Age: 86400
Vary: Accept-Encoding, Origin
Content-Encoding: gzip
Content-Length: 0
Content-Type: text/plain
Once the pre ight request is complete, the real request is sent:
HTTP Request
POST /resources/post-here/ HTTP/1.1

Host: bar.other
X-PINGOTHER: pingpong
Content-Type: text/xml; charset=UTF-8
Referer: http://foo.example/examples/pre ightInvocation.html
Content-Length: 55
Pragma: no-cache
Cache-Control: no-cache
HTTP Response
HTTP/1.1 200 OK
Date: Mon, 01 Dec 2008 01:15:40 GMT
Server: Apache/2.0.61 (Unix)
Access-Control-Allow-Origin: http://foo.example/
Vary: Accept-Encoding, Origin
Content-Encoding: gzip
1/31/2024
Content-Length: 235
Content-Type: text/plain
How to enable CORS in SAP Netweaver Platform
It is technically possible to con gure SAP NetWeaver Application Server to support CORS, so that your web application
landscape can be greatly simpli ed as below:
The trick is simple. Add a rewrite rule for NetWeaver’s ICM component, so that it returns the necessary CORS headers.
First, con gure the NetWeaver Application Server’s pro le, enable HTTP rewriting and point to the action/rewrite le. In the
below example on a Windows installation, the action le is the rewrite.txt le.
icm/HTTP/mod_0 = PREFIX=/,FILE=D:\usr\sap\<SID>\SYS\pro le\rewrite.txt
In the action le, maintain the following settings to inject the necessary CORS headers. Make sure you specify your web server’s
URL as the value of the Access-Control-Allow-Origin header.
SetResponseHeader Access-Control-Allow-Origin https://<YourWebServerHost>
SetResponseHeader Access-Control-Allow-Credentials true
SetResponseHeader Access-Control-Allow-Methods "GET, POST, PUT, OPTIONS"
SetResponseHeader Access-Control-Allow-Headers "X-Csrf-Token, x-csrf-token, x-sap-cid, Content-Type, Authorization"
SetResponseHeader Access-Control-Expose-Headers x-csrf-token
In a large deployment of SAP NetWeaver landscape, it is often the case that there are multiple server nodes and a load balancer
such as SAP Web Dispatcher sits in front of the multiple server nodes. In this case, you can turn on CORS support on the SAP
Web Dispatcher instead of on each and every server node. With the SAP Web Dispatcher version 7.49 PL112 or above, it offers
1/31/2024
more granular support (comparing to NetWeaver’s ICM component) on where the CORS requests come from so that it can act
accordingly. Here is an example:
if %{HEADER:ORIGIN} = https://<WebServer1> [OR]
if %{HEADER:ORIGIN} = https://<WebServer2>
begin
SetResponseHeader Access-Control-Allow-Origin %{HEADER:ORIGIN}
SetResponseHeader Access-Control-Allow-Credentials true
SetResponseHeader Access-Control-Allow-Methods "GET, POST, PUT, OPTIONS"
SetResponseHeader Access-Control-Allow-Headers "X-Csrf-Token, x-csrf-token, x-sap-cid, Content-Type, Authorization"
SetResponseHeader Access-Control-Expose-Headers x-csrf-token
end
FAQ ICM
Client-Server Technology - ICM FAQ
How to analyze ICM Trace level 3 for SAP Connect
How to automatically monitor the ICM MPIs utilization
1/31/2024
How to automatically monitor the ICM MPIs utilization

The automatically monitoring could be made by the icmon tool every 5 second. The monitor interval cannot be changed.
Trigger the following command at OS level as <SID>ADM user:
>icmon pf=<instance profile> >> mpidump.out
You do not see the icmon output, however, it is possible to provide icmon input via keyboard. Type ʻm’, then type ʻy’.
The output will be like following:
> icmon pf=<instance profile> >> mpidump.out

m
y
Checking the content of mpidump.out it is possible to see a new entry like following every 5 seconds:
-->
MPI Dump Wed May 4 19:45:26 2016
========
==================================================================
MPI Summary
==================================================================
max. Pipes = 4000 / used = 1
max. Buffers = 31976 (buffer size = 65584)
used = 0 / peak = 5 / free = 22384 (non reserevd)
reserved = 9592
dynamic quota = 10% (of current non-reserved free space)
==================================================================
MPI Pipes
==================================================================
<GUID> EYE NAM ID TAG FLAGS STATUS NBUF ALLOC(MAX) OPEN(R) OPEN(W)
==================================================================
MPI<2>: 4d50494d 'ANON' 0 1 0 0 0 0(7994) 1(30001) 1(30001)
q - quit
m - menue
-->
To nish the monitoring action just type q in the screen.
> icmon pf=<instance profile> >> mpidump.out

m
y
1/31/2024
q
>
ICM and SAP Web Dispatcher Maximum and Minimum number of threads
Purpose
Overview about how to de ned the minimum an maximum number of threads in ICM and SAP Web
Dispatcher
Overview
A shortage of Working Threads could lead to connections errors, in the same way, a huge number of
thread may became expensive due to consumption of Operating System resources. The idea of this
Expert Content is to give an overview in how to de ne the best size about maximum and minimum
number of active threads.
De nitions
The parameters icm/min_threads and icm/max_threads threads are tunning requirements and its
sizes depends the load of your system.
Each connection will be handled by a speci c thread, so, if you have 700 connections, you should
have at least 700 threads to handle the required number of simultaneous connections.
During the start up, the ICM will automatically created the number threads de ned by
icm/min_threads and keep those threads constantly UP and running at OS level. If in some moment
more threads are required due to a high load, for example, it can increase the number of threads until
the maximum de ned by icm/max_threads.
Technically you should not set these both parameters to the same size, icm/max_threads should be
bigger than icm/min_threads.
If, for example, your maximum number of simultaneous connection never reach more than 500
connections, does not make sense to set icm/min_threads to 700 because the 200 threads will not
be used, just consuming OS resources.
A good strategy to de ne the correct number of icm/min_threads and icm/max_threads require to

take in mind at least 2 points:
1) Average simultaneous connections;
2) Maximum simultaneous connections;
The icm/min_threads may be set to the average of simultaneous connections or a bit higher, but not
too much.
1/31/2024
The icm/max_threads should be able to cover the worst case scenario because, if not enough threads,
connections are rejected.
It is important to keep monitoring the ICM statistics about the number of threads in SMICM. If the
noticed that the system is constantly creating more thread than the de ned by icm/min_threads, it
would be a good idea to increase it because the process of create threads is a little expensive
compared with an already created thread. In the other side, unused threads
will consume resources.
Related Content
Related Documents
737625 - Parameter recommendations for Internet Communication Manager (ICM)
ICM and Web dispatcher: MPI parameters settings
Purpose
You notice the following errors in the trace le of the ICM (dev_icm) and want to avoid them:
Temporarily out of MPI buffers
ERROR => no more free event- ags
MPI_ENOMEM
Overview
The situations where there is a lack of MPI resources are normally caused by an incorrect parameter setting or an
application/users triggering too many requests.
Introduction
In terms of TCP/IP communication, a memory pipe represents the logical network connection (the MPI handle is the socket),
while the MPI buffers represent the actual network data packets:
1/31/2024
The MPI buffers are created only when there is ongoing HTTP data in over the connections and are freed once the data is sent
(a thread is created when needed and destroyed when it is no longer necessary). Normally one MPI buffer is used for each HTTP
connection. If larger data streams are transferred using one connection, several buffers may accumulate on the MPI. However,
the number of buffers for each MPI is assigned so that no one connection can use up the entire MPI memory.
Hints on MPI usage
The MPI buffer usage depends on the number of open HTTP connections and the number/size of HTTP messages being
processed by the server. It is therefore possible that the number of MPI buffers is small with many HTTP connections depending
on the status of the connections.
The number of MPI buffers are determined by the two parameters, mpi/total_size_MB divided by mpi/buffer_size.
Out of the total number of MPI buffers, 30% are reserved for internal use (wakeup mechanism...), and only 70% (unreserved)
are used by applications.
Possible causes for MPI error entries

The situations where there is a lack of MPI resources are normally caused by an incorrect parameter setting or an
application/users triggering too many requests:
1.Parameter settings
The rule is that the maximum number of MPIs available is the mimimum of mpi/max_pipes and (mpi/total_size_MB divided by
mpi/buffer_size).
The most straightforward approach is to set the MPI related parameters to the maximum as long as this is within your system
resources limits. Even if the corresponding notes mention maximum values, you can increase the parameters as long as you
have enough memory resources.
1/31/2024
Tip: If you face some memory problem after trying to increase mpi/total_size_MB, note that decreasing the value of
mpi/buffer_size can help to cut the value of mpi/total_size_MB, keeping the same number of MPI buffers.
When there is some kind of MPI error, the steps to check would be:
For both ICM and web dispatcher:
check that parameter mpi/max_pipes is set in the pro le le. The default value is 4000 which
limits the number of concurrent connections to 2000, so it's important to set a higher value.
Nettimeout (icm/traffic_control) < keepalive timeout (icm/keep_alive_timeout) to avoid many

idle connections consuming the resources.
For the ICM case:
MPI usage and status: SMCICM -> Goto -> Memory pipes -> Display data. We can only check the
peak of MPI buffer, not the peak of the MPI pipes. You can also use icmon to perform this check
if you have a java system.
value of parameter rdisp/plugin_auto_logout. This parameter controls the timeout of idle

sessions. If it's too high could lead to many idle connections consuming the resources.
For the Web Dispatcher case:
MPI status using the web administration interface -> Core System -> MPI Status
2.Overload situation
If after increasing the relevant MPI parameters you still see errors in the log le, it is time to check if some application or user
could be overloading the ICM/Web Dispatcher. The most important question is to take into account the kind of
applications/business scenarios that are involved when checking:
Is there a huge number of active or idle user connections? You can check this for both the ICM
and Web Dispatcher from the OS command line using commands such as:
netstat -ao | grep <icm/web dispatcher HTTP(S) port>
For the web dispatcher you can also use the web administration interface -> Core System -> Active Connections.
Thread status using:
ICM: sapcontrol -nr <instance number> -function ICMGetThreadList or icmon
Web Dispatcher: In the web administration -> Core System -> Core Thread Status
What are the work processes executing? Search for errors in dev_w* or in the default trace in
case of java servers. Perhaps the exception contains the name of the application overloading the
ICM/Web Dispatcher.
The problem may also be related to the size of the HTTP data. With HTTP logging you can check
the response size. More information on the setting in the following link of the online help:
http://help.sap.com/saphelp_nwpi711/helpdata/en/48/442541e0804bb8e10000000a42189b/content.htm?
fullscreen=true
1/31/2024
Trace level 2 of the ICM/Web Dispatcher (dev_icm / dev_webdisp) may also give more details. It
is enough to increase the trace level for 1-2 minutes when the problem is exactly happening.
To increase the trace level:
ICM: SMICM -> Goto -> Trace level -> Increase
Web Dispatcher: Menu -> Core System -> trace -> trace level
These monitoring steps should not imply any problem in terms of performance impact.
3.MPI not being released (mostly ICM case, not common)
When re-starting the ICM, the pipes should be automatically deleted, so the corresponding memory should be released. If there
is some MPI over ow, it may not be well done, so ICM triggers the error “ ShmCreate ATTACH 62 failed”. The workaround is to
perform a hard exit, a soft cancel or restart the instance if this doesn’t help. The reason for this situation is unclear, so the best
approach is to increase the MPI parameters and avoid it.
For each kernel patch there is a regression note, which lists all the known newly introduced errors by this patch level. Find it
using the keyword KRNLxxxPLyyy in the SAP note search. Check also the regressions for the kernel, perhaps there was some
bug xed in a newer kernel patch level.
4. MPI not being released for ICM with Java instances
In case of Java, the ICM and Java are jointly responsible for the MPI buffer management. When a request is sent to Java, some
MPI buffer resource is allocated, and the MPI buffer is only released after the Java sends response to ICM.
As an HTTP server, the Java should always respond to a request, taking care of the MPI resource cleanup once the
request/response cycle is completed.
If the Java spends a relative long time processing the request, the MPI resource will be outstanding for the same period of time.
This is independent of the number of HTTP connections from the client.
In the extreme case, if the Java never responds to the requests, the MPI associated with the requests will never be freed. It
would be an indication of Java application issue that needs to be xed.
To avoid the MPI resource "leak", the following should be taken in account:
1. Properly size the system so that the Java server are not overloaded, thus avoiding requests getting stuck in Java.
2. Properly con gure the Java timeout if applicable so that the requests don't stay in Java for too long.
3. Avoid operations (such as "blocking updates") that could potentially cause the Java to hang on requests processing.
KBA 2276273 - AS Java - How to identify the largest MPI buffer consumer by MPI dump, will help in this case.
POSSIBLE ERRORS (in dev_icm and dev_webdisp)
IcmBufFree: MpiFreeBuf failed -> ignore it (SAP note 1128445 - Error message MpiFreeBuff in
dev_icm)
IcmLowOnBlocks: low on MPI buffers (cur/limit/unreserved) if in SMCICM -> Goto -> Memory
pipes -> Display data
Total #Mpi Buffer (not reserved) = Total #Mpi Buffer - Total #Mpi Buffer (reserved)
1/31/2024
*** WARNING => IcmReadFromConn(id=xx/xxxx): temporarily out of MPI buffers -> roll out
ERROR => no more free event- ags
MPI_ENOMEM
WARNING: MPI Pipe 1543 still in use 0 0 1 1 -> A good approach in this case would be to wait till
all the HTTP connections are closed (or only a few left) to see how many MPI pipes are still open.
RELATED CONTENT
Related documents
Memory Pipes and MPI Buffers
icm/HTTP/logging_<xx>
ICMON and WDISPMON monitors
Related notes
SAP Note 737625: Parameter recommendations for Internet Communication Manager (ICM)
SAP Note 538405: SAP Web Dispatcher: composite note
SAP Note 2007212: Tuning SAP Web Dispatcher and ICM for high load
SAP Note 1128445: Error message MpiFreeBuff in dev_icm
Purpose
Help you to understand the ICMON tool functionalities, in order to help efficiently monitoring the system without access to
transactions like SMICM.
Overview
This page contains information about the ICMON and the functionalities available in this tool, aiming to explain the purpose of
each one of them.
The ICMON and WDISPMON Tools

Both ICM and Web Dispatcher can be monitored using the ICM and WDISPMON tool respectively. In order to achieve this, you
must be logged with the <sid>adm user in the OS level and run the below commands.
In order to use ICMON, you must be logged with the <sid>adm user in the OS level and run the below command.
icmon pf=<path to profile/profile name of the instance>

1/31/2024
In order to use WDISPMON, you must be logged with the <sid>adm user in the OS level and run the below command.
wdispmon pf=<path to profile/profile name of the instance>
You will be taken to the ICMON or WDISPMON initial screen and access the main menu by entering the option m. In the image
below you can see the initial menu shown for both tools where some functionalities are already accessible.
Changing ICM and Web Dispatcher Trace Level
In the initial menu of the ICMON and WDISPMON tools you have access to the options to increase and decrease the trace level
of the ICM and Web Dispatcher processes by using the options "+" and "-" respectively. This is particulary usefull for JAVA
systems or when the access to transactions SMICM or Web Administration page is not possible, therefore allowing the trace
level to be changed directly from the operating system level.
Changing ICM and Web Dispatcher Statistics Level
1/31/2024
In the initial menu of the ICMON and WDISPMON tools you can also increase the statistic level of these processes. The statistics
can be displayed through the ICMON and WDISPMON tools via its main menu, Web Administration page of ICM or Web
Dispatcher, or in case of ICM, can also be accessed in transaction SMICM, in the menu GoTo and selecting Statistics.
The command to increase the statistics level by one is "S" and the command to decrease it is "s".
View Core Thread Status
Main Menu and Functionalities

The ICMON and WDISPMON main menu can be accessed from the Initial Menu by using the option "m". Below you can see an
image where all the options available in this menu are visible. This chapter aims to explain each of the functionalities available
here and how to use them effectively for the most relevant ones.
Generate Client Load
This functionality can be accessed by using option "g" in the ICMON and WDISPMON main menu. With this option you can
generate requests to the ICM or Web Dispatcher for test purposes, having options such as target host, target port, protocol,
request information, think time and number of requests you'd like to trigger. The output of this option will show the response
times for each request and their correspondent thread number.
1/31/2024
Generate Monitor Request
This functionality can be accessed by using option "m" in the ICMON and WDISPMON main menu. This option leads to a whole
set of monitoring features from ICM and Web Dispatcher as you can see in the below image. The functionalities in this menu
include trace changes, services manipulation, resources control and monitoring such as MPI, cache manipulation, between
others.
1/31/2024
View Performance/Throuput
This functionality can be accessed by using option "p" in the ICMON and WDISPMON main menu. With this option you can
monitor the performance of ICM and Web Dispatcher, controlling the KBytes read and written in a speci c period of time.
Display Statistics
This functionality can be accessed by using option "s" in the ICMON and WDISPMON main menu. In the Statistics Overview
screen you have access to the main monitoring attributes of the ICM and Web Dispatcher processes. The current workload is
available, also including the maximum peak of utilization of each resource. You can also see statistical details about the errors,
timeouts and other relevant aspects. The number of threads available and their respective status is also shown in a table as you
can see below.
1/31/2024
View Core Thread Status
This functionality can be accessed by using option "t" in the ICMON and WDISPMON main menu. The Core Thread option will
display the current thread Id of the existing ICM or Web Dispatcher threads, their current thread status and the request type
currently processed in this thread.
Dump MPI Usage
This functionality can be accessed by using option "y" in the ICMON and WDISPMON main menu. This options offers the
complete overview of the MPI resource utilization in the ICM or Web Dispatcher. Here you can also see the peak of utilization
1/31/2024
and also details about the current used MPIs. For more details about this important resource, check out this Expert Content
page for MPI.
Display/Change Pro le Parameters (option "r")

Display Dynamic Queue Statistics (option "d")
This functionalities can be accessed by the options "r" and "d" respectively. This menu option allows you to display and/or
change HTTP handlers. It also allows you to display or change the value of any parameter speci ed in the pro le of this Web
Dispatcher or ICM.
The list of HTTP subhandlers that can be changed and displayed by using this function is shown in the below image. This screen
is shown once the option "h" is accessed in the above menu.
1/31/2024
The changes performed by using this function is performed in the pro le itself, therefore becoming permanent until the value is
changed.
Maintain Authentication File
This functionality can be accessed by using option "a" in the ICMON and WDISPMON main menu. The authentication le is used
for example in order to con gure the ICM or Web Dispatcher administration page as per this SAP online help.
It has the following structure:
● Comment lines start with a # and are ignored.

● Other lines have the form:
<user>:<password hash>:<user group>:<DN client certi cate>
Related Content
Related Documents
ICM and Web dispatcher: MPI parameters settings
icm/HTTP/auth_<xx>
Monitoring ICM Resources Using CCMS Infrastructure
Purpose
The purpose of this page is to explain how the ICM of an SAP instance can be monitored through the CCMS infrastructure.
Overview
This page provides details about the CCMS monitoring infrastructure, speci cally focused in the ICM resources monitoring,

Most of the ICM monitoring functionalities can be found in transaction RZ20, by following the below path.
RZ20 transaction → SAP CCMS Monitor Templates → Entire System → Application Server → <Instance Name> →
R/3Services -> ICM
1/31/2024
Monitoring ICM Resources

The CCMS Infrastructure allows you to monitor the ICM resources available in the SAP instance by using the transaction RZ20.
The below MTEs are available in order to monitor different gateway resorces, they are:
Version - Shows the current version of the ICM process running in the instance.
MaxNoOfThreads - Maximum number of threads allowed in the ICM as per the con guration.
NoOfThreads - Current number of threads running.
PeakNoOfThreads - Peak number of ICM threads since the system start up.
MaxNoOfConnections - Maximum number of connections allowed as per the con guration.
NoOfConnections - Current number of connections to ICM.
PeakNoOfConnections - Peak number of ICM connections since the system start up.
MaxQueueLen - Maximum queue lenght in the ICM.
QueueLen - Current queue lenght of ICM.
PeakQueueLen - Peak usage of the queue of ICM.

MPISizeTotal - Total size of the MPI de ned by the parameter mpi/total_size.
MPIBufferCount - Total number of MPI buffers according to the con guration.
MPIBufUsed - Total number of used MPI buffers.
PeakMPIBufUsed - Peak usage of the MPI buffers since the system start up.
1/31/2024
Monitoring ICM Cache Resources
Under the Server Cache MTE tree found in the ICM monitoring structure of the transaction RZ20, you can nd the below MTEs
allowing you to monitor the ICM Server Cache.
CacheSizeMB - Con gured HTTP Server Cache (File System)

CacheSizeUsed - Memory Used of the HTTP Server Cache (in Percent)
MaxCacheEntries - Maximum Number of HTTP Server Cache Entries
CacheEntriesUsed - Current number of HTTP server cache entries in use (in percent)
CacheAccesses - Number of cache accesses
CacheableAccesses - Number of cache accesses for cacheable objects
CacheHits - Number of hits in the HTTP cache (in percent)
CacheHitsMem - Number of hits in the HTTP memory cache (in percent)
EvictedEntries - Number of suppressed entries
MaxUfoEntries - Maximum Number of HTTP UFO Cache Entries
UfoEntries - Number of entries in HTTP UFO cache
UfoAccessCount - Number of accesses to the HTTP UFO cache
UfoHitCount - Number of hits in the HTTP UFO cache
The ICM monitoring structure allows you to monitor important resources such as the current number of connections to the ICM
with the MTE NoOfConnections. This will avoid having requests failed due to no more connection resources available in the ICM
process. The same monitoring scenario is also valid for the MTE QueueLen to monitor the ICM queue length.
For both scenarios, you have to make sure you set the thresholds of the MTEs properly based on the values you have con gured
to the parameters de ning the maximum allowed connections and also to the queue maximum size. This will make sure the
alert is triggered in the correct moment to avoid having the resource exhaustion
achieve this.
1/31/2024
more details.
1/31/2024

1/31/2024
Related Content
Related Documents
Tracing HTTP headers in trace le
Purpose
An administrator wants to analyze an HTTP(s) package received by ICM/SAP Web Dispatcher,

however, some header content is missed from the payload written in the trace (dev_icm and
dev_webdisp).
Overview
Due to security reasons critical information are hiding in the SAP developer traces. ICM and SAP Web
Dispatcher remove header like authorizations, passwords and cookie from the payload written in the
1/31/2024
trace.
Data anonymization
Enabling the trace level 2 or 3 of ICM/SAP Web Dispatcher the service write the payload details in the
trace. As from 74X kernel, due to security concerns, some headers from the trace le are removed
and the data anonymized like following:
[Thr 3808] 000000000C5C61C8 003248 6162656c 2220663d 22736170 2d706173 |abel"

[Thr 3808] 000000000C5C61D8 003264 73776f72 64xxxxxx xxxxxxxx xxxxxxxx |sword
[Thr 3808] 000000000C5C61E8 003280 xxxxxxxx xxxxxxxx xxxxxxxx xxxxxxxx |.....
[Thr 3808] 000000000C5C61F8 003296 xxxxxxxx xxxxxxxx xxxxxxxx xxxxxxxx |.....
[Thr 3808] 000000000C5C6208 003312 xxxxxxxx xxxxxxxx xxxxxxxx xxxxxxxx |.....
[...]
[Thr 3808] 000000000C5C6278 003424 xxxxxxxx xxxxxxxx xxxxxxxx xxxxxx6e |.....
[Thr 3808] 000000000C5C6288 003440 6273703b 2a3c2f73 70616e3e 3c2f7370 |bsp;*
[Thr 3808] 000000000C5C6298 003456 616e3e3c 2f6c6162 656c3e3c 2f74643e |an></
[Thr 3808] 000000000C5C62A8 003472 3c74643e 3c737061 6e206964 3d227361 |<td><
[Thr 3808] 000000000C5C62B8 003488 702d7061 7373776f 7264xxxx xxxxxxxx |p-pas
[Thr 3808] 000000000C5C62C8 003504 xxxxxxxx xxxxxxxx xxxxxxxx xxxxxxxx |.....
[Thr 3808] 000000000C5C62D8 003520 xxxxxxxx xxxxxxxx xxxxxxxx xxxxxxxx |.....
If for some reason an administrator wants to analyze the full payload information it is possible to
trace these special headers disabling this hiding details with the parameter
'rdisp/TRACE_HIDE_SEC_DATA = FALSE'.
With this setting, critical details are disclosed in the trace le. SAP only recommend deactivating this
setting only in speci c cases for troubleshooting purpose.
Related Content
Related Documents
2012562 - Tracing HTTP information for problem analysis
1/31/2024
SAP Kernel: Important News

In this document you will nd the latest information about the SAP kernel such as:
- Announcements of SP Stack Kernel deliveries
- Other news related to the development, maintenance and usage of the SAP kernel versions. Currently in maintenance are kernel: 72x (722_EXT,
722_EX2), 75X (753, 754) , 77X (777), 78x (785, 789) and 79x (793).
For SAP recommendations see: Update Strategy for the Kernel of the Application Server ABAP in On Premise Landscapes (Version: August 2022)
Check out our central notes:
SAP Note 2083594 - SAP Kernel Versions and SAP Kernel Patch Levels
SAP Note 3116151 - SP Stack Kernel Schedule Forecast
SAP Note 19466 - Downloading SAP kernel patches
SAP Note 1802333 - Finding information about regressions in the SAP kernel
SAP Note 2966761 - Overview of SAP Kernel Correction Archives
SAP Note 2966621 - Overview of Kernel-Related Software Components
News
18.01.2024: SP Stack Kernel 754 PL 201 released

SP Stack Kernel 754 PL #201 is now available on SAP Support Portal. It replaces SP Stack Kernel 754 PL 200 to enable AIX and
IBM i customers to implement the correction of SAP Note 3348320 with an SP Stack Kernel. For details on the SP Stack Kernel
754 PL 201 see release note 3420412.
For existing installations on other platforms you can keep using SP Stack Kernel 754 PL 200.
Information on known issues in the SP Stack Kernel 754 PL #201 can be found in regression note 3423190. This note will be
updated when necessary.
11.01.2024: R3trans issue in Kernel 754 on IBM i and AIX

PL 201 only adds one correction to solve R3trans data corruption on IBM i and AIX platforms, for details see SAP Note 3348320.
For installations on other platforms you can keep using SP Stack Kernel 754 PL 200.
11.01.2024: R3trans issue in Kernel 754 on IBM i and AIX
R3trans had a defect leading to data corruption or failed transports. Only installations on IBM i and AIX with PL less than 211 are
affected. For details and workaround see SAP Note 3348320 (Transports fail and lead to data inconsistencies). SAP is working
on a solution for new installations with kernel 754.
17.11.2023: SP Stack Kernel Schedule 2024 available

Please nd the SP Stack Kernel schedule for year 2024 in the SAP note 3116151 - SP Stack Kernel Schedule Forecast.
Be aware that the information contained in this schedule is subject to change.
13.11.2023: Issue with JCo and NCo in XI/PO/PI environment

After implementing SAP note 3356447, JCo, NCo based registered server programs are no longer working in IDoc Inbound
Scenario in XI/PO/PI environment.
The following SAP kernel releases are affected starting with the patch levels:
753#1221
754#217
777#612
785#310
1/31/2024
789#210
793#51
For details and correction see SAP Note 3393929 - CPIC : t/q RFC is stuck and not processed in transaction SM58 in IDoc
Inbound Scenario.
11.10.2023: SAP Kernel 793 PL 51 released

SAP kernel 793 PL #51 is now available on SAP Support Portal, for details see Release Note 3372947. Kernel 793 PL 51 is the
initial delivery of SAP kernel 793.
SAP kernel 793 is the required kernel version for SAP S/4HANA 2023. Similarly to an SP Stack Kernel, kernel 793 PL 51 is
provided as a complete kernel installation within the two archives: SAPEXE.SAR, SAPEXEDB.SAR.
Kernel 793 is planned as a downward compatible kernel for the kernel releases 781 to 789, for details see SAP Note 2907361 -
Release Roadmap for Kernel 77x and 78x and 79x.
Information on known issues in the SP Stack Kernel 793 PL #51 can be found in the Regression Note 3382501. This note will be
SP Stack Kernel 789 PL #200 is now available on SAP Support Portal.
It contains various improvements and enhancements that are outlined in detail in SAP Note 3364170.
Information on known issues in the SP Stack Kernel 789 PL #200 can be found in SAP Note 3369868. This note will be updated
when necessary.
when necessary.

when necessary.
25.07.2023 Subscriptions are currently not possible

Dear customers, currently subscription to the new SAP Kernel:Important News webpage is not possible. We are working on a
solution.
Sorry for the inconvenience.
24.07.2023: SAP Kernel: Important News moves to SAP Help Portal

1/31/2024
SAP Kernel: Important News webpage has moved from SCN Wiki to Support Content section on SAP Help Portal .
During the migration no webpage updates were possible. However, the information about new SP Stack Kernel deliveries was
still published in SAP Note 2083594 - SAP Kernel Versions and SAP Kernel Patch Levels .
Now that the move is complete, please re-subscribe to our webpage on SAP Help Portal. You will nd the subscription option
under "More..."

when necessary.
when necessary.
when necessary.
when necessary.
Note:
PL 400 is the last kernel patch delivered in kernel 781. Kernel 781 is Out of Maintenance starting April 1st 2023, for details and
DCK recommendations see SAP Note 2083594.
SP Stack Kernel 789 PL #100 is now available on SAP Support Portal, for details see Release Note 3298925.
Kernel 789 can be used as a downward compatible kernel for the kernel releases 781 (SAP S/4HANA 2020) and 785 (SAP
S/4HANA 2021), for details see DCK Note 3296726.
1/31/2024
Information on known issues in the SP Stack Kernel 789 PL #100 can be found in the Regression Note 3304569. This note will
be updated when necessary.
SP Stack Kernel 754 PL #100 is now available on SAP Support Portal, for details see Release Note 3287208.
Kernel 754 is introduced as successor to kernel 753 to ensure the support of newer OS and DB versions and newer
compiler/runtime environments. It does not include functional enhancements.
Kernel 754 can be used as a downward compatible kernel for the kernel releases 740 to 753, for details see DCK Note 3156866.
Information on known issues in the SP Stack Kernel 754 PL #100 can be found in the Regression Note 3297495. This note will be
Following software components have been released alongside kernel 754:
SAP IGS 7.54
SAP Web Dispatcher 7.54
SAP Content Server 7.54

when necessary.
Note:
PL 1200 is the last kernel patch delivered in kernel 749. Kernel 749 is Out of Maintenance starting January 1st 2023, see SAP
Note 2083594.

SP Stack Kernel 75 3 PL # 11 00 is now available on SAP Support Portal.
Information on known issues in the SP Stack Kernel 75 3 PL # 11 00 can be found in SAP Note 3278780 . This note will be
27.10.2022: SP Stack Kernel Schedule Forecast for year 2023

SP Stack Kernel Schedule Forecast is available for year 2023, see SAP Note 3116151.
Be aware that the information contained in this schedule is subject to change. SAP does not guarantee the availability of an SP
Stack Kernel delivery on the speci ed date.
24.08.2022: SAP Kernel 753: RFC_NO_AUTHORITY dumps in bgRFC
1/31/2024
RFC_NO_AUTHORITY dumps may occur after implementing the correction of Note 3127135. Most of the time, they are related
to the user BGRFC_SUPER and to bgRFC scheduler programs.
753 #1028 .
For a workaround and solution see SAP Note 3238586.

SP Stack Kernel 7 85 PL #2 00 is now available on SAP Support Portal.
It contains various improvements and enhancements that are outlined in detail in SAP Note 3231386 .
Information on known issues in the SP Stack Kernel 7 85 PL #2 00 can be found in SAP Note 3237540. This note will be updated
when necessary.

SP Stack Kernel 7 81 PL # 3 00 is now available on SAP Support Portal.
Information on known issues in the SP Stack Kernel 7 81 PL # 3 00 can be found in SAP Note 3232336. This note will be updated
when necessary.

when necessary.

when necessary.
when necessary.
08.04.2022: systemd integration for sapstartsrv on Linux

1/31/2024
Starting with SUSE Linux Enterprise Server (SLES) 15, Red Hat Enterprise Linux (RHEL) 8, Oracle Linux 8 and the respective
SAP kernel patch levels, native support for systemd is introduced for SAP systems.
The support is available starting with the following patch levels:

722#1119, 753#1011, 777#441, 781#241, 785#115
For details and correction see SAP Notes

3139184 - Linux: systemd integration for sapstartsrv and SAP Host Agent
3115048 - sapstartsrv with native Linux systemd support

when necessary.
11.03.2022 : SP Stack Kernel 7 22 PL 1101 released

The SP Stack Kernel 722 PL #1101 replaces the SP Stack Kernel 722 PL #1100 in order to enable the customers to apply the
prio very high SAP Security Note 3123396 (announced on Patch Day Feb 8th) with an SP Stack Kernel. For details see release
note 3153950.
Customers that do not require the security update mentioned above can keep using SP Stack Kernel 722 PL 1100.
Customers updating the kernel from the lower patch level or release should apply the SP Stack Kernel 722 PL 1101.
Information on known issues in the SP Stack Kernel 7 22 PL # 11 01 can be found in SAP Note 3154223. This note will be updated
when necessary.
28.02.2022 : SP Stack Kernel 78 5 PL 100 released

SP Stack Kernel 78 5 PL #100 is now available on SAP Support Portal.
It contains various improvements and enhancements that are outlined in release note 3148278.
After an extended validation phase SP Stack Kernel 785 PL#100 has been released as a downward compatible kernel (DCK) to
kernel 781 and SAP S/4HANA 2020. Refer to DCK note 3144672 for details on usage of kernel 785 as DCK.
Information on known issues in SP Stack Kernel 78 5 PL #100 can be found in regression note 3154232. This note will be
11.02.2022: SAP Web Dispatcher: issue with AS Java backend systems
After implementing the SAP Web Dispatcher patch of Note 3138881 - wdisp/additional_conn_close workaround for security SAP
note 3123396, a severe issue may occur with AS Java backend systems.
The following SAP Web Dispatcher releases are affected starting with the patch levels:
753#920, 777#433, 781#231, 785#073.
For details and correction see SAP Note 3147927 - wdisp/additional_conn_close causes errors for Netweaver AS Java servers.
04.02.2022: RFC may not work in Systems with SNC active in Kernel 785
1/31/2024
In systems with SNC active, application might fail with SNC error: ThSncIn: ThSncSend failed (18 or 10001)
Affected scenarios: It is not predictable when this issue happens.
The following SAP kernel releases are affected: 785 PL #50 - PL #74 .
For details and correction see SAP Note 3145321 - DP: ERROR-SNC-OTHER in ThSncIn as of kernel 785.

when necessary.

when necessary.
when necessary.
when necessary.
01 .07.2021: SP Stack Kernel 753 PL 801 released

SP Stack Kernel 753 PL #801 is now available on SAP Support Portal. It replaces the SP Stack Kernel 753 PL 800 in order to
enable the customers to apply the prio very high SAP Security Note 3007182 (announced on Patch Day June 8th) with an SP
Stack Kernel. For details on the SP Stack Kernel 753 PL 801 see release note 3066437.
Customers on kernel 753 PL 800 that do not require the above security update can keep using SP Stack Kernel 753 PL 800.
Customers updating the kernel from the lower patch level or release should apply the SP Stack Kernel 753 PL 801.
1/31/2024
Information on known issues in the stack kernel 753 PL #801 can be found in SAP Note 3070652. This note will be updated when
necessary.
14.06.2021: SP Stack Kernel 753 PL 801 in preparation

We are working on the new SP Stack Kernel 753 PL#801 to be delivered in a few weeks.
It will contain the prio very high SAP Security Note 3007182 (announced on Patch Day June 8th) as well as a few further
quali ed corrections. You can use the SP Stack Kernel PL#801 to implement the SAP Security Note 3007182 with an SP Stack
Kernel.
08.06.2021: Simple Transformation regression in SAP Kernel 753, 777, 781 - Solved
SAP Note 3050863 can cause a regression in Simple Transformation applications.
Symptom: A work process is blocked.
Affected scenarios: The regression only occurs if a simple transformation is deleted and automatically generated in the scope of
the same database transaction.
The regression has been solved starting with the following patch levels:
753#822, 777#341, 781#124.
The following SAP kernel releases are affected:

753#820-821, 777#339-340, 781#122-123.
For details and correction see SAP Note 3064721 - Simple Transformation: Wait situation during transformation generation.
when necessary.
11.05.2021: SAP Kernel 722: Incorrect Message behaviour in Dynpro-based dialogs

SAP Note 3033149 introduced a regression which causes an incorrect behavior of MESSAGE of type ʻW’ in ABAP programs that
use Dynpro-based dialogs. Once a W-MESSAGE is con rmed by the user, the program continues with the next step of the ow
logic instead of the remaining ABAP instructions that directly follow the MESSAGE statement in the same step of the ow logic.
72 2 #1 022, # 102 3
For details and correction see SAP Note 3045700 - Messages of type 'W' are not handled correctly .
06.04.2021: SAP Kernel 773 End of Maintenance

Kernel version 773 is Out of Maintenance starting April 7th 2021. No more kernel patches will be provided for Kernel 773.
Kernel 773 patches are still available for download in the archive area of SAP ONE Support Portal.
1/31/2024
Kernel 777 can be used instead as downward compatible kernel (DCK) for SAP S/4HANA 1809. For details see SAP Notes
2083594 - SAP Kernel Versions and SAP Kernel Patch Levels and 2870484 - Using kernel 7.77 instead of kernel 7.73 .

SP Stack Kernel 773 PL #400 is now available on SAP ONE Support portal.
when necessary.
19.03.2021: New RFC logon ticket can cause incompatibilities
SAP Note 3026990 introduces a new type of RFC logon ticket. It is not possible to use servers with kernels with old and new
ticket in one system. Rolling kernel switch (RKS) is not supported during the kernel update. Possible issues are:
kernel does not start
RKS fails
logon screen for calls with the same system appears
721 #1410; 722 #1022; 749 #948; 753 #810; 773 #335; 777 #330; 781 #113.
For details see SAP Note 3026990 .

when necessary.
when necessary.
04.01.2020: SAP Kernel 721 (EXT) End of Maintenance
Kernel versions 721 and 721_EXT is Out of Maintenance starting January 1st 2021. No more kernel patches will be provided for
Kernel 721 (EXT).
Kernel 721 patches are still available for download in the archive area of SAP ONE Support Portal.
1/31/2024
Kernel 722 (EXT, EX2) can be used instead as downward compatible kernel (DCK) for a SAP NetWeaver 7.0, 7.01, 7.02, 7.03, 7.3
and 7.31 64-bit installation. For details see SAP Notes 2083594 - SAP Kernel Versions and SAP Kernel Patch
Levels and 1744209 - SAP Kernel 720, 721 and 722: Versions and Kernel Patch Levels.
04.01.2020: SP Stack Kernel 721 (EXT) PL 1400 released
Kernel 721 (EXT) goes out of maintenance with SP Stack Kernel PL 1400. No further kernel patches will be produced. Kernel
721 patches are still available for download in the archive area of SAP ONE Support Portal.
Kernel 722 (EXT, EX2) can be used instead as downward compatible kernel (DCK) for a SAP NetWeaver 7.0, 7.01, 7.02, 7.03, 7.3
and 7.31 64-bit installation. For details see SAP Notes 2083594 - SAP Kernel Versions and SAP Kernel Patch
Levels and 1744209 - SAP Kernel 720, 721 and 722: Versions and Kernel Patch Levels.
when necessary.
when necessary.
09.10.2020: Read the "Update Strategy for the Kernel" paper.
The paper Update Strategy for the Kernel of the Application Server ABAP in On Premise Landscapes provides latest SAP
recommendations on how to patch the SAP kernel.
Please make yourself familiar with the SAP recommendations.

SP stack kernel 753 PL #700 is now available on SAP Support Portal.
necessary.
28.08.2020: Issue with cpic library
The executable igsmux.exe doesn't start or crashes. For details see SAP note 2963158 .
Only customers using IGS are affected.
We are working on the solution for this problem to be delivered soon.
1/31/2024
Information on known issues in the stack kernel 773 PL #300 can be found in SAP Note 2958055. This note will be updated
when necessary.
31.07.2020: Issue with ENQU

After a disp+work update, ABAP sessions might be terminated right after application server start with the error message:
"Session was reset after loss of the lock table".
This is due to incompatible change introduced with SAP note 2938148. Only customers using ENSA 1.0 are affected. For details
see SAP note 2953980.
The affected Kernel versions:
749 PL #913 to #918; 753 #624 to #628; 777 #210 to #215
As solution, ENSA (package ENSERVER) must be also updated with the patch level:
749 PL #913 and higher; 753 #624 and higher; 777 #210 and higher
16.07.2020: SP Stack Kernel 722 EX2 PL 1000 released
New version of Kernel 722, the 722 EX2 Kernel has been released. For further information, including the list of supported
operating systems and database systems, see SAP Note 2880246 - SAP Kernel 722 EX2: General Information and Usage.
SP stack kernel 722 EX2 PL #1000 is now available on SAP Support Portal. It contains various improvements and
enhancements that are outlined in detail in SAP Note 2933443.
Information on known issues in the stack kernel 722 EX2 PL #1000 can be found in SAP Note 2888646. This note will be updated
when necessary.

when necessary.
New version of Kernel 722, the 722 EX2 Kernel has been released with PL 920 SAPEXE and SAPEXEDB. 722 EX2 Kernel is
introduced to ensure the support of newer OS and DB versions and newer compiler/runtime environments.
Kernel 722 EX2 can be used as an alternative to the 722 kernel or 722 EXT kernel as well as a downward compatible kernel for
the 720 (EXT) or 721 (EXT) Kernel. For details see SAP Note 2880246 - SAP Kernel 722 EX2: General Information and Usage
However, the SP Stack Kernel 722 EX2 PL 1000 delivery has been postponed because several supported platforms are still in
validation. We will inform you as soon as SP Stack Kernel 722 EX2 PL 1000 is delivered.

1/31/2024
After an extended validation phase SP stack kernel 777 PL#200 has been released as a downward compatible kernel (DCK) to
kernel 773, refer to SAP Note 2870484 for details on installation and usage of kernel 777 as DCK.
when necessary.

SP Stack Kernel 753 PL#602 contains updated version of Microsoft JDBC driver compared to the previous SP Stack Kernels
753 PL 601 and PL 600. Upgrade from SP Stack Kernel PL 601 and PL 600 is only required for customers using MS SQL Server
SAPEXEDB, for details see SAP notes 2906652 and 2937917.
necessary.
10.06.2020:
SP Stack Kernel 753 PL 601 and PL 600 SAPEXEDB_MSS.SAR revoked

The database speci c Stack Kernel 753 #600 and #601 for MS SQL Server contains a faulty Microsoft JDBC driver. The error in
the driver is described in note 2906652.
The SAP Portal uses a locking mechanism implemented in a DB table. The bug in the Microsoft driver causes a serious issue
preventing the portal code from releasing locks taken. The locking mechanism is widely used in many different areas of
implementation within the Portal. There can be many unpredictable consequences from this.
One such issue is that there is a sporadic failure in the Portal Content Deployment that takes place in the rst start of the
server. This results in a corrupted system where the default objects for Portal iViews and Pages are not created and cause all
the Portal Content to be corrupted.
The affected SAPEXEDB versions have been revoked from SAP Support Portal. We are working on new SP Stack Kernel 753 PL
602 to be delivered soon.

necessary.
02.04.2020: issue with Open SQL

Due to regression, incorrect results may occur in the FETCH CURSOR selection for certain IN ITAB conditions, for details see
SAP Note 2910296.
As a precaution the affected disp+work packages have been revoked from SAP Support Portal and replaced with the previously
available version.
1/31/2024
The affected Kernel versions:
749 PL #828, 773 PL #246, 777 PL #114 and #115
were replaced with the following kernel versions:
749 PL #827, 773 PL #245, 777 PL #113
30 .03.2020: SP Stack Kernel 753 PL 601 released

It contains various improvements and enhancements that are outlined in detail in SAP Note 2904006. SP Stack Kernel 753
PL#601 contains updated versions of VMC and SAP JAVA connector compared to the previous SP Stack Kernel 753 PL
600. Upgrade from SP Stack Kernel PL 600 is only required for customers using IPC / VMC – and only if SAP
notes 2857796 and 2738207 are relevant.
necessary.

It contains various improvements and enhancements that are outlined in detail in SAP Note 2892176 .
Information on known issues in the stack kernel 753 PL #600 can be found in SAP Note 2892238 . This note will be updated
when necessary.
Attention: SP Stack Kernel 753 PL 600 contains the same VMC and SAP JAVA Connector versions as the previous SP Stack
Kernel 753 PL 501. The changes from SAP notes 2857796 and 2738207 are not included. An updated SP STACK Kernel 753 PL
601 with current VMC and SAP JAVA Connector versions will be delivered soon.
04.03.2020: Latest SAPFTP patch revoked

There are issues with the latest SAPFTP patch as delivered with SAP Note 2879706. SAPFTP can sometimes get into an in nite
loop, resulting in high CPU and memory consumption and causing the AS ABAP to hang, see SAP Note 2899318.
As a precaution the affected SAPFTP kernel patches have been revoked from SAP Support Portal and replaced with the
previously available version. Should you have the above-mentioned versions installed, you can downgrade SAPFTP as a
workaround to prevent the issue. We are working on new versions of SAPFTP to be delivered soon.

kernel 773, refer to SAP Note 2870484 for details on installation and usage of kernel 777 as DCK.
necessary.
1/31/2024

It contains various improvements and enhancements that are outlined in detail in SAP Note 2876647. Most prominently a x for
a security vulnerability described in SAP Note 2870067 and xes possible data corruption in SAPHTTP and SAPFTP as
described in SAP Note 2862097.
necessary.
necessary.
when necessary.
necessary.

necessary.
26.06.2019: issue with saplikey when provisioning SAP systems

When provisioning SAP systems on Windows platforms, saplikey might fail to provide temporary licenses if the HANA db is
accessed via SSL.
The affected Kernel versions
773 PL #100, 753 PL #400, 749 PL #700
1/31/2024
were replaced with the following kernel versions:
773 PL #101, 753 PL #401, 749 PL #701
See SAP Notes 2784500 regarding SWPM issue and 2781974 regarding saplikey issue.
22.05.2019: issue in OK code handling

Due to a regression in OK code handling, a GUI window could not be closed via the window close button or a window close
keyboard shortcut, e.g. Alt-F4.
Instead it can only be closed via the GUI menu: System > Close GUI Window.
This issue affects following Kernel versions:
773 PL #123 - #123

753 PL #418 - #420
749 PL #711 - #713
722 PL #813 - #813
721 PL #1217 - #1218
See SAP Note 2796018 for further details.
03.05.2019: issue in transaction code handling

Under certain circumstances calling a transaction with OK code "/Nxxx" might fail with message "Function code cannot be
selected".
721 PL #1210 - #1216

722 PL #719 - #812
745 PL since #830 (End of Maint.)
749 PL #620 - #710
753 PL #316 - #417
773 PL #32 - #122

when necessary.

The last SP stack kernel for the 745 kernel has been released. Kernel 745 PL #900 can be downloaded from the archive area of
SAP Software Download Center. Refer to SAP Note 2765380 for information on xes included in this stack kernel.
when necessary.
1/31/2024
Kernel 745 has reached its end of maintenance, see SAP Note 1969546 for details.
necessary.
when necessary.
16.01.2019: severe issue in Kernel 753 PL 321 with memory management
Due to an issue in dynamic assignment of memory, work processes might die with a core dump.
This issue affects only Kernel 753 PL #321, which was removed from SAP Support Portal by now.
necessary.

necessary.

when necessary.
1/31/2024
03.08.2018: ICM/Web Dispatcher: issue in Kernel 749 and 753 with Firefox 62 when
using HTTP/2
Mozilla Firefox browser as of version 62 Beta and higher fails to connect to ICM or Web Dispatcher if HTTP/2 is enabled by
pro le parameter "icm/HTTP/support_http2 = true".
See SAP Note 2674166 for details.

necessary.
29.06.2018: severe issue in gwrd

Gateway process start might fail with "invalid ni_hdl -1 in dev_rd" message under certain circumstances.
745 PL #725
749 PL #516 - #517
753 PL #213 - #215
These Kernels have been removed from SAP Support Portal.

necessary.
14.06.2018: severe issue in Kernel 753, 749 and 745 with RFC connections
When a system is under high load RFC connections might fail sometimes with a "wrong appc header version (202)" message.
745 PL #722 - #724

749 PL #513 - #515
753 PL #211 - #212
These Kernels have been removed from SAP Support Portal.
1/31/2024
necessary.

when necessary.

necessary.
20.03.2018: Kernel 753 Released as DCK to Kernels 740, 741, 742, 745 and 749
kernels 749, 745, 742, 741, 740.
Kernel 753 PL#100 can be used instead of these kernels with SAP NetWeaver 7.4. SP 02 or higher.
Refer to SAP Note 2556153 for details on installation and usage of kernel 753 as DCK.
The release roadmap for 74* and 75* kernels is presented in SAP Note 1969546.
necessary.
22.02.2018: issue in recent Message Server
Message Server might hang when acting as https loadbalancer, for details see SAP Note 2603960
Affected message server patches:
722 PL 412 - PL 517 (including)

749 PL 417 - PL 422 (including)

1/31/2024
necessary.
02.01.2018: severe issue in Kernel 753 and 749 with Q/T/Bg-RFC

Due to RFC protocol issue, Q/T/Bg-RFC calls to other servers with older kernels or to an external program might fail.
This issue affects Kernel 749 PL #412 - 749 PL #414 and 753 PL #32 - 753 PL #33. These Kernels have been removed from SAP
Support Portal.

necessary.
21.12.2017: issues in CommonCryptoLib 8.5.16 and 8.5.17

With CCL 8.5.16 the decryption of SSF encrypted data may fail if multiple recipients are speci ed (see SAP Note 2569032).
With CCL 8.5.17 the reading of SSF parameters may not work (see SAP Note 2568948) which might lead to logon group issues
(see SAP Note 2570870).
The following SP Stack Kernels are affected:
Kernel 749 PL #400
As a workaround you can update CommonCryptoLib to 8.5.18. See SAP Note 2557616 for further details.
17.10.2017: ICM / WebDispatcher issue in 749
With Kernel 749 PL 217 till 315 (including) ICM / WebDispatcher has issues detecting broken https connections. For details see
SAP Note 2531833.
Information on known issues in the stack kernel 745 PL #600 can be found in SAP Note 2531526. This note will be updated on a
regular basis.
13.09.2017: New Kernel Archive SAPWEBGUI.SAR

A new kernel archive, SAPWEBGUI.SAR, is now available, which allows you to update UI components that are shipped together
with the SAP kernel (SAP GUI for HTML/WebGUI/ITS) selectively without exchanging any other kernel component.
1/31/2024
SAPWEBGUI.SAR is currently available for the 749 kernel version and is supported with stack kernel 749 PL#300 or newer. See
SAP Note 2412840 for the further support and installation information.
05.09.2017: issues in sapxpg

Due to an incompatibility in Kernel 749, a call of an external command with SAPXPG may fail, if Kernel 749 is used with SAP NW
ABAP versions < 7.51. To x the issue, SAP Note 2443381 has to be applied. This error does not occur if you use SAP NetWeaver
7.40 SP18 or higher and SAP NetWeaver 7.50 SP08 or higher. Please check this SAP note carefully to see whether this issue
applies in your environment.
Another minor regression might lead to failing connection tests with SAPXPG even though the execution of external commands
will work. This issue affects Kernel 749 PL #210 - 749 PL #301 and Kernel 745 PL #415 - PL #500. Exchanging the SAPXPG
program with a xed version will resolve the issue. For further details, see SAP Note 2479738.

regular basis.

regular basis.
11.08.2017: severe issue in Open SQL "IN ITAB" condition
Due to a wrong optimization in the "IN ITAB" condition which might lead to empty results, the following kernel versions have
been removed from SAP Support Portal
Kernel 749 PL #310
Kernel 749 PL #311
Other kernel releases or patches are not affected. See SAP Note 2516910 for further details.
03.08.2017: severe issue in sapstartsrv

Due to sapstartsrv crashing under certain conditions in GetInstanceProperties call, the following kernel versions have been
removed from SAP Support Portal:
Kernel 721 PL #913
Kernel 745 PL #516
Other kernel releases or patches are not affected. See SAP Note 877795 item 129 for further details.

1/31/2024
SP stack kernel 749 PL #300 is available on SAP Support Portal.
regular basis.

regular basis.

regular basis.
12.05.2017: Kernel 749 PL 215 revoked
Kernel 749 PL #215 has been revoked from SAP Support Portal due to work process termination issues when starting a report
from ABAP in Eclipse.
The x is contained in PL 216 that is now available on SAP Support Portal.
regular basis.
regular basis.
27.03.2017: Kernel 745 maintenance extension
1/31/2024
To enable our customers a better long term planning, maintenance of the SAP Kernel 745 has been extended by one year. This
means that maintenance for the SAP Kernel 745 will last until end of Q1 2019, regular patches will be provided until that date.
Please note that you may well use SAP Kernel 745 beyond that date. Only corrections will be provided through another kernel
version (SAP Kernel 749 for now) which is 100% compatible.
For an overview of Kernel maintenance schedules see SAP Note 1969546.
03.03.2017: issue with SAPHTTP in 749
Potentially severe issue with saphttp executable which is part of kernel 749. For details, workaround and solution, please see
SAP Note 2436809.

regular basis.

SP stack kernel 722 PL #202 is now available on the SAP Support Portal.
It xes the UNC path issue on Windows (see SAP Note 2408109) and issues with ABAP time stamps (see SAP Note 2332373
and 2401291) as well as issues described in SAP Notes 2388944 and 2386655. For further information please check out the
release note 2408623.
regular basis.
Please note, SP Stack Kernel 722 PL 202 is a successor of 722 PL 201 and lower patch levels. In case you are on PL 210 or
higher, PL 202 would be a partial downgrade.
11.01.2017: Kernel 720, 721, 722, 740 and 741 - UNC path issue on Windows
When using UNC paths, the automatic import of pro les in transaction RZ10 might not work properly. Furthermore, an error
might occur during upgrade phase MAIN_UPTRANS/REFRESH_PROFILES. For details see SAP Note 2408109.
This issue is xed with Kernel 721 PL 810 or 722 PL 221 or starting Kernel 742.
In addition, SP Stack Kernel 721 PL 801 xing this issue was released. For details see Release Note 2410068.
A new SP Stack Kernel 722 PL 202 is in preparation.
As Kernel 720, 740 and 741 are no longer maintained, there won't be any xes. Please use corresponding downward compatible
kernel.
11.01.2017: SP Kernel 721 PL 801 released

1/31/2024
regular basis.
10.01.2017: Runtime Error MOVE_TO_LIT_NOTALLOWED_NODATA with Kernel 745

and 749
SAP Kernel 7.45 and higher enforces read-only access to ABAP method input parameters more strictly than previous kernel
versions.
This may cause runtime errors of type MOVE_TO_LIT_NOTALLOWED_NODATA to occur in ABAP programs where they didn't
occur with previous kernel versions.
A kernel patch that restores the old behavior for NW version 7.40 will be released within the next few days. For details see SAP
Note 2312807. As an alternative and in case you are already using kernel version 7.45 or higher, ABAP corrections are available
for most common issues, refer to SAP Notes 2117573, 2111563 and 2267164.
29.11.2016: SP Stack Kernel 722 and 745 updated

SP Stack Kernel 722 PL 201 and 745 PL 301 are available on the SAP Support Portal.
They contain xes for a number of regressions within their predecessors.

For details see SAP Note 2389216 (Release Note 722 PL 201) and SAP Note 2389206 (Release Note 745 PL 301).

regular basis.

regular basis.
08.09.2016: Kernel 745 – System message reports that Oracle 11 version is not
supported
Unfortunately, due to an error in the dbsl library (Oracle only) the system reports a SICK message, saying that the current
Oracle version is not supported by the kernel. This SICK message is wrong and can be ignored. This happens for lib_dbsl patches
213 -217. A forthcoming patch for the lib_dbsl will avoid this message.
Please refer to SAP note 2363994 for details.
19.08.2016: Issue with periodic tasks in Kernel 74x after DB outage or offline
backup
After the Database was not available, periodic tasks like LoadBalancing update or Batch-Scheduler might stuck.
A Kernel patch for Kernel 745 can be expected on Monday. Kernel 742 follows later next week.
For details and workaround see SAP Note 2356238

1/31/2024
It xes two important regressions, which affected all previous Kernel 745 versions lower than PL 211 (excluding 201). Details are
outlined in SAP Note 2340627.
regular basis.

regular basis.
16.06.2016: NW 7.4 upgrade issues on Windows

1. when common crypto lib starting 8.4.31 till (including) 8.4.34 is in place, upgrade runs into error. For details see item 4 in SAP
Note 2200230.
2. On Windows 2008 (w/o R2) on Haswell CPU the SAP Kernel 745 can crash. For details see SAP Note 2330836.
15.06.2016: Kernel 742 PL 414 is not a SP Stack Kernel

By mistake SAPEXE and SAPEXEDB archives have been available for Kernel 742 PL 414 on the support portal for a short time.
As PL 414 is supposed to be only a regular patch (and not a stack kernel for which SAPEXE, SAPEXEDB will be published), these
packages have been revoked meanwhile and replaced by the corresponding DW packages. Sorry for any inconvenience this may
have caused.

SP stack kernel 742 PL #401 is now available on SAP Support Portal. It xes several known issues with the previous version PL
400. For details see SAP Note 2324879.
regular basis.

SP stack kernel 721 PL #700 is now available on SAP Support Portal. It contains various improvements and enhancements that
are outlined in detail in SAP Note 2316471.
regular basis.
18.05.2016: Kernel 722 PL 118 and 742 PL 412 revoked

There are issues with the RFC delta manager inside the kernel. External clients may get stuck. As a precaution the affected
kernel patches have been revoked from ServiceMarketPlace. The correction causing the issue has been retracted. A new
version of Kernel 722 PL 118 with compile time on May 19th as well as Kernel 742 PL 413 has been published.

SP stack kernel 742 PL 400 is now available on SAP Support Portal. It contains various improvements and enhancements that
are outlined in detail in Note 2300406.
1/31/2024
Information on known issues in the stack kernel 742 PL 400 can be found in Note 2294986. This note will be updated on a
regular basis.
14.04.2016: WebGUI issue with Google Chrome Version 50

After updating Google Chrome from Version 49 to Version 50 the Easy Access Menu (start screen) remains empty. We are
working on a kernel patch to circumvent this. For details see SAP Note 2305778.
12.04.2016: Potential Issue with Kernel 742 PL 311 - 321 and Kernel 745 PL 25 - 35
In edge cases a select statement may return an unexpected result. For details see SAP Note 2273425.
It is recommended to upgrade to SP Stack Kernel 745 PL 100 or Kernel 742 PL 329 which is the last release candidate before
the upcoming SP Stack Kernel 742 PL 400.
17.03.2016: Kernel 745 Released as DCK to Kernels 740, 741 and 742
After an extended validation phase kernel 745 PL#100 has been released as a downward compatible kernel (DCK) to kernels
742, 741 and 740 and can be used instead of these with SAP NetWeaver 7.4. Refer to SAP Note 2251972 for details on installation
and usage of kernel 742 as DCK. The release roadmap for 74* kernels is presented in SAP Note 1969546.

Information on known issues in the stack kernel 722 PL #101 can be found in Note 2292017. This note will be updated on a
regular basis.
18.12.2015: SAP Kernel 721 PL 618 and SAP Kernel 722 PL 20 and PL 21 revoked
As a precaution the Kernel (dw.sar) for 721 PL 618 and 722 PL 20 and 21 have been revoked from the SAP Support Portal.
For further details see SAP Note 2259736 . We are working a patch highest priority.
13.11.2015: Heads up on Kernel 745 for NetWeaver 7.4

During Q1/2016 SAP Kernel 745 will be made available as Downward Compatible Kernel for SAP NetWeaver 7.4.
SAP Kernel 745 will eventually succeed SAP Kernel 742 (and 741 and 740).
SAP Kernel 742 will be retired in Q1/2017, one year later than the availability of SAP Kernel 745 as DCK. No more patches will be
provided for SAP Kernel 742 after that date.
See also Understanding Kernel Releases for the SAP NetWeaver AS ABAP and SAP Note 1969546 - Release Roadmap Kernel
740
09.11.2015: SP Stack Kernel 742 PL#300 Released
regular basis.
16.10.2015: Kernel 722 PL14, PL15 and enserver PL 14 revoked

1/31/2024
As a precaution Enqueue Server 722 PL 14 (enserver.sar) and Kernel (dw.sar) 722 PL 14 and PL 15 have been revoked from the
SAP Support Portal.
The new patch of the Enqueue Server might not be 100% compatible to older clients (e.g. disp+work PL 13) and the newer
disp+work starting PL 14 might not be 100% compatible with old Enqueue Servers (prior patch 14). Standard operations Enque,
Dequeue and DequeueAll are NOT affected. Details can be found in SAP Note 2239931
regular basis.
02.10.2015: issue with Oracle lib_DBSL 722 PL 13

Please do not use patch 13 for the 722 Oracle lib_DBSL
Further details can be found in note 2220724. A x is expected early next week.

The last SP stack kernel for the 741 kernel version has been released today. Kernel 741 PL #300 can be downloaded from the
archive area of SAP Support Portal. Refer to release note 2207362 for information on xes included in this stack kernel.
As announced previously, kernel 741 has reached its end of maintenance, see note 1969546 for more detail. Future 74* kernel
corrections will be delivered through 742 kernel patches.
Information on known issues in the stack kernel 742 PL #200 can be found in Note 2176515. This note will be updated on a
regular basis.
07.07.2015 SAP Kernel 741 maintenance

The SAP Kernel 741 reached its end of maintenance, see note 1969546 . We will continue to deliver regression xes during July
and a nal stack kernel 741 PL#300 in August. After that corrections will be delivered through kernel 742 patches.
12.06.2015 SAP Kernel Archive
SAP Kernels which are out of maintenance like SAP Kernel 720 can be found in the archive
https://support.sap.com/software/patches/archive.html
For SAP Kernel 720 the last version is patch level 800. Please read the release note 2158874 - SAP Support Package Stack
Kernel 7.20 (EXT) Patch Level 800 . Corresponding note for regression found in the future is 2138737 .
20.05.2015 SAP Kernel 722 Released

SAP kernel 722 has been released for customers today. The rst shipment (Kernel 722 PL#4) can now be downloaded from SAP
Support Portal. With this a new release cycle has been established for 72X kernel versions that can be used with all SAP
NetWeaver releases 7.00-7.31:
1/31/2024
Kernel 720 reached its end of maintenance, no further corrections will be provided for this
kernel version
Kernel 721 becomes the standard kernel containing only corrections/bug xes
Kernel 722 replaces Kernel 721 in its role as Innovation Kernel. Besides regular corrections, new
features/enhancements/improvements will be delivered with Kernel 722.
Refer to SAP Note 2133909 for general information on Kernel 722 including new features and current limitations. This note will
be updated on regular basis.
Kernel 722 can be applied manually as a kernel patch, see Note 2115344 - Installation of Kernel 722 (EXT) for detailed
instructions. Options to apply Kernel 722 during upgrade/update are outlined in Note 2133909.

A new SP stack kernel 721 PL #500 is now available on SAP Support Portal.
SAP Note 2158856 contains the list of changes and enhancements introduced in this stack kernel compared to the previous
stack kernel PL #402.
All regressions known in the PL #402 have been xed.
Review SAP Note 2155366 for known issues in the stack kernel 721 PL #500. This note will be continuously updated.
14.04.2015: Kernel 742 Released as DCK to Kernels 740 and 741
After an extended validation phase kernel 742 PL#101 has been released as a downward compatible kernel (DCK) to kernels 741
and 740 and can be used instead of these with SAP NetWeaver 7.4. Refer to Note 2128122 for details on installation and usage of
kernel 742 as DCK. The release roadmap for 74* kernels is presented in Note 1969546.
31.03.2015: SP Stack Kernels 741 PL#201 and 742 PL#101 are delivered
As announced previously, SP Stack kernels for 741 and 742 kernel versions have been updated. 741 PL#201 replaces 741 PL#200
and 742 PL#101 replaces 742 PL#100. New SP stack kernels can be now downloaded from SAP Support Portal, following xes
are included:
Regression in the Oracle DBSL Library (Note 2118448, Point 2 - Termination during secondary
database connection; LRAW length error) is removed.
CommonCryptoLib has been updated to the version 8.4.35 (see Note 2134460.)
For more details on 741 PL#201 refer to Notes 2150081 - SAP Support Package Stack Kernel 7.41 Patch Level 201 and 2100429 -
Known regressions in kernel 7.41 patch level 201.
Fixes and enhancements in the SP stack kernel 742 PL#101 are listed in the note 2145156. Information on known issues with this
stack kernel can be found in the Note 2134238.
19.03.2015: Update on SP Stack Kernels 741 PL#200 and 742 PL#100

The latest SP stack kernels 741 (PL#200) and 742 (PL#100) contain a regression in the Oracle DBSL Library, see Note 2118448
-Termination during secondary database connection; LRAW length error , Point 2.
1/31/2024
As a solution you may use the latest ORA lib_dbsl available on SAP Support portal. For kernel 741 on Windows, please be aware
of the issue 2142073 - Application server in Windows NT with Oracle does not start.
Updated stack kernels will be provided as soon as possible.

SP Stack kernel 721 PL #402 has been released and can be downloaded from SAP Support Portal. The issues from PL#400
(Note 2118382) and PL#401 (Note 2138260) are xed.
Refer to Note 2138680 - SAP Support Package Stack Kernel 7.21 (EXT) Patch Level 402 for overview of new features,
enhancements and improvements added since PL#300. Known regressions are documented in Note 2138678.

Information on known issues in the stack kernel 742 PL #100 can be found in Note 2129327. This note will be updated on regular
basis.
04.03.2015: SP Stack Kernel 721 PL#401 Revoked

SP Stack kernel 721 PL #401 has been revoked from SAP Support Portal for all platforms except for MS Windows because the
kernel archives contained some les with wrong versions.
In most cases it is not necessary to replace the kernel in a system running with PL#401 because the issue has a limited impact
and does not affect the kernel itself. Details are outlined in Note 2138260.
SP stack kernel PL#402 will be released as soon as possible; this document will be updated accordingly.

A new SP stack kernel 741 PL #200 has been released today and can be downloaded from SAP Support Portal.
For a summary of enhancements and improvements included into this stack kernel, see SAP Note 2101802 - SAP Support
Package Stack Kernel 7.41 Patch Level 200.
30.01.2015: SP Stack Kernel 721 PL#401 Replaces PL#400

Current SP stack kernel 721 PL#400 has been replaced with PL#401, see Note 2121693 - SAP Support Package Stack Kernel
7.21 (EXT) Patch Level 401.
It xes a le permission issue that has a very limited impact:
It occurs with 721_EXT kernel on Windows platforms only

1/31/2024
It has no effect at runtime, only for future system maintenance
Workaround is easy.
This means: even if above criteria apply, it is not always necessary to replace already installed 721 kernel PL#400. Refer to Note
2118382 for more information.
Note 2084437 contains the list of known regressions in the stack kernel 721 PL #401. This note will be continuously updated.
SAP License
To use your SAP software legally and in accordance with the contractual stipulations, SAP Systems can only be operated with a
license key (license keycode) granted by SAP.
Wiki Documentation
License Administration at Operating System Level with Program saplikey
SLICENSE: License with new installation number cannot be installed
Flexible License Mechanism communication process
355536 - Importing a SAP license from a le How to limit the size of a developer trace le
Why does the license installation fail

174911 - Determining the hardware key
(customer key)
1512766 - Most common reasons for error

message: "Logon not possible (error in
license check)"
193800 - saplicense: Trace functions
FAQ License
Client-Server Technology - License FAQ
1/31/2024

Why does the license installation fail?
There can be several reasons a license installation might fail. Please check the following
SAP licenses are bound to the SID, the database vendor and the hardware of the system they are
given for. Check if your license data really matches the properties of your system. If it doesn't
match, you might have ordered a license for the wrong system or your system data maintained
in the service market place is improper (please focus especially on the database vendor).
Check if you use the proper way of installing the license. With NetWeaver release 6.40 SAP
introduced a new eld within the SAP license, the system number. If your license has a system
number in it you have to specify it, when installing the license. If your license doesn't have a
system number, just leave the according eld empty.
With NetWeaver release 7.00 SAP introduced a new license type called "digitally signed licenses".
Licenses of that type must be installed differently than licenses of the old type. Please be sure
about having pressed the "New licenses" button in transaction SLICENSE before installing
licenses of the new type. There is no way to install digitally signed licenses with the saplicense
program from the operating system command line.
With NetWeaver release 7.10 the different license types are shown in separate tabs of
transaction SLICENSE. You must have activated the correct tab to install licenses of the new
digitally signed type. Licenses of the old type cannot be installed from 7.10 on.
Flexible License Mechanism communication process
Purpose
1/31/2024
Clari cation about the communication process between the Message Server and the ID generator
Overview
The Flexible License Mechanism is explained in this link of help documentation
Basically, the Message Server uses an ID generator, which is implemented in the SAPHostControl. To
enable this process, it is required to set the parameter slic/netid_servers to the hosts running the
SAPHostControl in the pro le of Message Server. Additional details in this link documentation.
Flexible License Mechanism can be used on both, ABAP and Java systems.
The goal of this Wiki is explain in more details the communication process between Message Server
and the ID generator with the collect intervals times made in distinct scenarios.
Communicaiton Flow
There are two threads involved in the process, the rst one has different behaviors as per the current
situation of communication with the ID generator.
1. The communication with ID generator works since the start up:
If the communication with the ID generator is working, the next connection try will varies in intervals
between 1 to 2 hours each. There is a random time control;
2. No communication with the ID generator since the start up:
In such scenario, the thread will try to communicate with the ID generator every 5 minutes until a
success connections. At the time the communication succeed, the interval change as explained in the
scenario 1;
3. The communication works but is lost after a while:
If the connection is successful and the Key is received, however, it is lost after a while, the interval will
keep happening in a random time as explained in scenario 1 during the next 24 hours (glace period). If
no connection with the ID generator in the interval of these 24 hours, the connection interval will start
to happen every 5 minutes as explained in the scenario 2. After a success connection, the interval will
be back to the random time as explained in scenario 1;
The second thread is used to de ne if the Key in use will came from the ID generator or from the local
Message Server HW Key. This second thread runs every 24 hours. Basically, the Key in use is de ned
in the following scenarios:
1/31/2024
1. The communication with ID generator works since the start up:
It will use the Key provided by the ID generator;
2. No communication with the ID generator since the start up:
It will assume the local MS HW Key until the communication with the ID generator is not possible;
3. The communication works but is lost after a while:
If a success Key is received from ID generator, the system will assume the Key received, however, if
the connection is lost after a while and if the system does not receive a valid ID in a period of 24 hours
(second thread interval execution), the system assume the MS HW Key and replace the previous key
in use (action made by the second thread).
When this change occurs, the Message Server trace le (dev_ms) is updated with the following
information:
"Network Id failure grace period expired, using local hardware Id instead"
At the time the connection with ID generator works, the Key will change back to the received by the ID
generator (control made by rst thread).
SLICENSE: License with new installation number cannot be installed
Purpose
To help with license key installation.
Overview
Digitally signed (new type) SAP license key cannot be installed due to the error:
This system's installation number is "<10 digit number>", but there is a license key for installation number "<another 10
digit number>" in the license key le
Background, steps of resolution.
Background
Digitally signed (new type) license key already exists in the system with different installation
number than de ned in the new license le
1/31/2024
24 digit (old type) license key still exists in the system
Steps of resolution
1. Delete all existing licenses in SLICENSE transaction (both New Licenses and Old Licenses). See License Administration with
Transaction SLICENSE.
As of basis 7.3 the 'New Licenses' and 'Old Licenses' buttons do not exist, only a Digitally-Signed tab. This way deleting of
existing 24 digit license is not possible form SLICENSE. See point 2 and License Administration with Transaction SLICENSE.
2. Check whether old license (24 digit) exists. Command 'saplicense -show' can be used for this.
saplicense -show
LICENSE system: <SID>
hardware key: <HWKEY>
expiration_date: <date> i
1/31/2024
nstallation no: <10 digit number>
key: <24 digit key> u
serlimit: <limit>
productid: <prod ID>
system-nr: <18 digit number>
*** license expired ***
3. Delete the old licenses with 'saplicense -delete'. Follow the instructions.
4. Install the new license via SLICENSE or on operating system level with saplikey command. 'saplikey
pf=/usr/sap/<SID>/SYS/pro le/<instance pro le> -install <path to license le/license le>' (e.g. 'saplikey
pf=/usr/sap/XYZ/SYS/pro le/XYZ_DVEBMGS00_xyzhost -install /home/xyzadm/XYZ_multiple.TXT'
Related Content
Related Documents
License Administration with Transaction SLICENSE (70x)

License Administration with Transaction SLICENSE (73x)
License Administration with Transaction SLICENSE (740)
License Administration with Transaction SLICENSE (750)

SAP KBA 1827311 - License with new installation number cannot be installed
SAP Logon Group
In large SAP R/3 environments that require multiple application instances, it´s important to make sure that the system
workload gets distributed among those instances. It allows to distribute dynamically the SAP users to Application servers
instances.
Expert Content Documentation
ABAP Logon Group based Load Balancing
Logon with load balance fails - incorrect IP address is used
SMLG: users are distributed unevenly
64015 - Description of test program lgtst How to check the servers assigned to a logon
group
593058 - New RFC load balancing procedure
How to test a logon group access
1/31/2024
Why logon group information is not updated
ABAP Logon Group based Load Balancing
Purpose
The main goal of this Expert Content is to clarify few points and questions about the ABAP Logon
group, mainly some gray areas about RFC load balance.
Overview
A Logon Group is a group of servers that belongs to one SAP system. It is maintained in transaction
SMLG.
Logon groups are used to automatically distribute user logons to individual instances or to groups of
SAP instances (Applications Server).
Group "SPACE" is maintained automatically with all active servers. It is possible to manually
overwritten in SMLG this SPACE group.
The group de ned in SMLG contains only active servers and the load each server has its own load
values. The actual members of a logon group and its quality are calculated during runtime by the
report RSRZLLG0. This is triggered on each server of the system by rdisp/autoabaptime (every 5
minutes by default) or after 5 SAPGUI logons. Servers which did not run such a calculation within the
last 5 minutes + 10% are removed. This removes servers which are active but are busy for any reason.
For every group one favorite server is determined and sent to the Message Server.
How does logon group based load balancing work?

SAPGUI
a. The saplogon process connects to the MS and asks for the favorite server of the logon group.
b. The Message Server sends back the IP address and port number of the favorite server.
c. SAPGUI uses this information to connect to the Application Server.
This procedure repeats for every logon.
RFC
a. The saplogon process connects to the MS and asks for the favorite server of the logongroup.
b. If the "Ext. RFC-enable" eld is selected, the RFC client performs load balancing.
If this eld is not set, server that is entered as the best server in the logon group is used and the
system does not perform any further balancing among the servers of a logon group.
1/31/2024
c. RFC client balancing the connection among the servers of this logon group.
d. To the next connection, a check is performed to determine whether the data is still valid
(information from timeout and RFC logons de ned in table RZLLICLASS). In such situations its
structure of data is updated with a next request to the MS and the client then receives the list of all
servers of the group with its quality and delta quality. It reorders the list using random numbers.
HTTP(s)
a. The Message Server redirect the request to the favorite application server.
b. As from this rst connection the URL in the browser change to the application server hostname.
The SAP recommends using SAP Web Dispatcher as load balancer to Web connections.
Load balance Strategy
For each group you can de ne one of the following load balancing type:
B = Best (default value)

The client uses the server with the best quality. The quality of a server is decreased by the delta
quality after each connection.
R = Round Robin
All servers do have the same quality of 1,000 and delta quality of 1.
This may be a problem if many RFC programs start at the same time. It is possible that all RFC
programs select the same application server for the rst logon.
For this reason there is a random number used during the Round Robing load balancing that is used
to choose the application server.
W = Weighted Round Robin

All server do have the same quality of 10,000,000. The delta quality is 10,000 divided by the number
of dialog work processes.
Important to know
- Opening a new mode does not trigger load balancing.
- The user cannot be transferred to another server. If a server is not working any longer, the user has
to open a new connection.
- For RFC connections load balancing is done for every new connection. RFC calls on an existing
connection do not cause load balancing, you stay connected with the same server. To enforce load
balancing you have to close the current RFC connection and open a new one.
1/31/2024
- If you have set the Extended RFC Load Balancing ag for a logon group, load balancing is done
locally at client side.
- The RFC client receives a new list after 120 seconds or 200 connections (default). You can set
different values for each group in table RZLLICLASS.
- Round-Robin and Weighted-Round-Robin do not apply to SAPGUI connections.
- There is no "server-side" load balancing.
- RFC connections do not cause a new calculation of server groups like SAPGUI connections do.
- To validate if the RFC load balance is enable in a logon group, the lgtst tool can be used. Note that
the TRUE means RFC load balancing active.
- There is a program responsible by the load calculation. It is possible to monitor the execution of this
program over:
RZ03 -> Select the APPS -> Utilities -> More utilities -> Contr/St.Area
See program RSRZLLG0.
Recommendation
- Keep the rdisp/autoabaptime equal on all instances of one system;
- Keep the date and time synchronized in all application servers;
- It is not recommended to change the default time of rdisp/autoabaptime (300 seconds);
- If this is a RFC load balance you must select the "Ext. RFC-enable" eld for the group attributes;
- In case of RFC load balance, the con guration of table RZLLICLASS must be properly adjusted as
per the requirements;
Related Content
Related Documents
Logon Load Balancing
Related Notes
1/31/2024
593058 - New RFC load balancing procedure

64015 - Description of test program lgtst
26317 - Set up for LOGON group for autom. load balancing
38119 - SAP Logon: Administration of functions
27044 - Login workload Balancing veri cation test
649008 - HTTP load balancing using the SAP message server
118093 - Concepts of de ning 'limits' in logon load balancing
FAQ Logon Group
Client-Server Technology -Logon Group FAQ
How to check the servers assigned to a logon group
1/31/2024
How to check the servers assigned to a logon group
How to check the servers assigned to a logon group?

Using the lgtst and the option "-G" to specify the logon group and the "-C" to do it many times:
> lgtst -H <Message Server hostname> -S sapms<SID> -G MYGROUP -C 10

using trcfile: dev_lg
Logon data for logon groups:
------------------------------
Group MYGROUP : [<IP>] [3200] [740] [TRUE] [<application server 01>]
Note that the distribution of requests will depends of the load balance strategy in place.
However, in the last column of the output, you should only see application servers assigned to this logon group.
How to test a logon group access?
There is a tool called lgtst to validate the logon group access. It is possible to test the logon groups and servers assigned using
following:
> lgtst -H <Message Server hostname> -S sapms<SID>

using trcfile: dev_lg
list of reachable application servers
-------------------------------------
[<application server 01>] [<server 1>] [<IP>] [sapdp00] [3200] [DIA UPD BTC SPO UP2 ICM ]
[<application server 02>] [<server 2>] [<IP>] [sapdp02] [3202] [DIA BTC SPO ICM ]
[<application server 03>] [<server 3>] [<IP>] [sapdp02] [3202] [DIA BTC SPO ICM ]
list of selectable logon groups with favorites
------------------------------------------------
[MYGROUP] [<IP>] [3202] [740]
[SPACE] [<IP>] [3202] [740]
[TEST] [<IP>] [3200] [740]
1/31/2024
Why logon group information is not updated?

Things to check:
Check SAPMSSY6 execution.

This can be done by transaction SMLG -> Goto -> System diagnosis -> Cyclic system prog.
If "No cyclic system programs were active" error is displayed and No. of problems: is not zero, check the value of
rdisp/autoabaptime pro le parameter.
This parameter controls the time internal in which the SAPMSSY6 is executed. This normally takes place under the dummy
ID SAPSYS.
- A value of 0 deactivates the automatic execution.
- With a value of n > 0, the program is periodically executed in the background every n seconds
Parameter must be set to 300 (default value). It can be changed temporary via RZ11 (dynamic change) and permanently via
RZ10 in instance pro le.
See Note:
1787163 - Message Server: save logon groups feature
The information about the logon groups could be saved and restored (in the le system) during message server stop/start
operations.
The feature is controled by pro le parameter ms/persist_lg_info:
ms/persist_lg_info = { on | off | global }
If parameter rdisp/autoabaptime is deactivated, le /usr/sap/<SID>/<INSTANCE_NR>/work/<SID>_msg_server_adtl_storage

will not be updated.
Related Notes:
1888038 - Logon Group can not be found
16201 - Background program, timeout, SAPMSSY6
Logon with load balance fails - incorrect IP address is used
Purpose
Assist with logon issues caused by an incorrect IP address being used, when logging on with load
balance.
Overview
End users are able to logon to each SAP ABAP instance directly.
However, they are unable to logon when trying to use load balance.
1/31/2024
The error seen at the SAP GUI shows that an incorrect IP address is used.
Sample scenario
The SAP servers have multiple IP addresses.
One is the "public IP", which should be used by the end users when logging on to SAP.
The other IPs are "private IPs" that are not reachable by the end users (e.g., IPs for an administration
network, or backup network).
In this example, an end user tried to logon to SAP using load balance.
The logon did not work and the following error was presented (SAP GUI popup layout may vary, but
the highlighted error would be the same):
In this case, the IP address 10.2.134.185 is one of the private IPs of the instance that was chosen by
the load balance mechanism for the user to logon to.
If the user tries to logon directly to that same instance (e.g., using a SAP GUI entry pointing directly
to that instance, using its hostname or public IP), the login works.
The same (incorrect) IP address is observed if the menu "System" -> "Status" -> "Other kernel info" is
accessed (see the image below).
This menu can be accessed from within any transaction, or even the initial screen (right after the
logon).
1/31/2024
Cause
When SAP starts, it determines which is the "primary IP address" of the server (the IP seen at the
"Other kernel info" screen).
This is the IP that will be sent to the end users, when logging on with load balance.
The root cause of the issue is the incorrect IP address being detected as the primary IP address.
Solution
SAP uses hostname resolution to identify the primary IP.
A procedure equivalent to what SAP does is:
1. Execute the operating system level command "hostname";
1/31/2024
2. Execute "ping <result from 'hostname'>" or "niping -v -H <result from 'hostname'>" (as niping
will use the same functions used by the SAP instance).
The IP address returned by the command of item 2 will be the primary IP address of the instance.
The solution is to ensure that name resolution on all SAP servers returns the public IP address.
This is not only at the server itself (in other words, the local name resolution of the server returning
its own public IP for its own hostname), but among all SAP servers.
For example, the SAP server "host1" has the public IP "10.10.10.10". The hostname resolution of the
SAP server "host2" must also determine that "host1" is associated to the IP "10.10.10.10".
After xing the name resolution (if the incorrect IP was used), SAP needs to be restarted so it takes
the new IP address as its primary IP.
One way to "force" the usage of the correct IP address is to edit the "hosts" le ("/etc/hosts" in
Linux/UNIX servers; "\windows\system32\drivers\etc\hosts" in Windows servers) and add an entry
there, pointing the hostnames to the desired IP addresses.
Related Content
Related Documents
SAP Note 1365796 - Local host name resolution fails in Windows Failover Cluster
SMLG: users are distributed unevenly
Link to this page: https://wiki.one.int.sap/wiki/display/ProdSuppBTP/SMLG%3A+users+are+distributed+unevenly
Purpose
Overview
When users are distributed unevenly one (or some) of the instances could become overloaded which then slow down those
users who are logged on to that instance. You want to know what to check to eliminate such issues.
Things to check, steps to do
1. Check SAPMSSY6 by SMLG -> Goto -> System diagnosis -> Cyclic system prog. If No cyclic system programs were active
error is displayed and No. of problems: is not zero, check the value of rdisp/autoabaptime pro le parameter - it must be set to
1/31/2024
300 (change it temporary via RZ11 dynamically and permanently via RZ10 in instance pro le)
2. Check via AL08 what type of users is it about.
Number of Active Users refers to all type of users
Interactive Users refers to dialog users
Number of RFC Users refers to RFC users
Number of Plug-In Users refers to users connected via HTTP
Interactive Users
3. Implement the source code correction of RSRZLQVA report manually. See SAP Note 51789.
>>>> START OF DELETION <<<<<

CONSTANTS: ANSWER_TIME_WEIGHT_FACTOR TYPE I VALUE 5,
USER_AMOUNT_WEIGHT_FACTOR TYPE I VALUE 1,
>>>> END OF DELETION <<<<<<<
>>>> START OF INSERTION <<<<
CONSTANTS: ANSWER_TIME_WEIGHT_FACTOR TYPE I VALUE 1,
USER_AMOUNT_WEIGHT_FACTOR TYPE I VALUE 5,
>>>> END OF INSERTION <<<<<<
Number of RFC Users
4. SMLG > Double click on the instance -> Attributes tab -> Activate Ext. RFC-enabled function. See SAP note 593058 and
1112104. This will allow load balancing of those RFC calls which are programmed that way that they use the logon groups.
5. Check if FAVTYPE of the entries in RZLLICLASS table is set to R (Round Robin) or W (Weighted Round Robin). See SAP Note
1112104.
1/31/2024
Number of Plug-In Users
6. Check the folowing document on SAP Help Portal: Server Selection and Load Balancing Using the SAP Web Dispatcher .
Related Content
Related Documents
Server Selection and Load Balancing Using the SAP Web Dispatcher
Logon Load Balancing
SAP Note 2244136: Load is distributed unevenly
SAP Note 51789: Poor user distribution in logon distribution

SAP Note 593058: New RFC load balancing procedure
SAP Note 1112104: Weighted round robin procedure
SAP Note 1040325: HTTP load balancing: Message Server or SAP Web Dispatcher?
SAP Memory Management System
Describes the SAP Memory Management System, its basic functions, hardware and operating system requirement and some of
the most common issues.
Expert Content Documentation
Analyzing the heap memory usage of an ABAP work process

1/31/2024
Clari cation of the PROC memory monitoring at the report RSMEMORY
Es2IResCreate, shmget failed, File exists
High memory allocation or Memory not released
Memory Dumps as of Kernel Release 7.4x
Monitoring Memory Resources Using CCMS Infrastructure
No free memory available on Linux
SAP Extend Global Memory (EG) parameters
SAP Shared Memory Pools 10 and 40 as of Kernel 740
TSV_TNEW_PAGE_ALLOC_FAILED
sappfpar "check" option reviewed
117907 - Display of SAP Memory usage in How to analyse the OS memory available
from R3 level
SM04 and ST02
1137734 - Assignment of memory areas,
shared memories, and pools Identifying the owner of a shared key
2065315 - Memory leak handling Miscelaneous Info
[WEBINAR] Understanding and Troubleshooting SAP Memory

Management
2085980 - New features in memory

management as of Kernel Release 7.40
2148571 - Explanation for higher Extended

Memory (EM) consumption after upgrade to
SAP NetWeaver release 7.4x
2210107 - Default value for parameter

rdisp/PG_MAXFS is 250000 8k blocks (2
GB)
2302718 - Changing the memory allocation

sequence for NONDIA
2224372 - Remove the limit on maximum

segment size on AIX
1/31/2024
1382721 - Linux: Interpreting the output of

the command 'free'
Analyzing the heap memory usage of an ABAP work process
Purpose
Brie y introduce the different memory areas of a SAP NetWeaver ABAP instance and provide guidance to analyze the heap
memory usage of a work process.
Observation: The BC-CST-MM team is not responsible to perform the analysis of heap memory usage of SAP processes. We are
just providing this information to assist with such analysis, since there are features related to heap memory usage/monitoring
at the SAP kernel.
Overview
A SAP NetWeaver ABAP system has different memory areas.
Most of them are called "shared memory areas" because they do not belong to a single process exclusively. For example, all
work processes have access to the ABAP Program Buffer area.
The Extended Memory (EM) is where the user context is stored (like the current transaction/report being executed by the user,
data needed by the transaction, application/business data fetched from the database, and so on). This is also a shared memory
area.
The parameter "ztta/roll_extension" limits the amount of EM that a single user context can use. If more memory is required,
the work process handling the request will start allocating heap (private) memory.
The work process itself needs some memory to "exist". This is also stored at the heap memory of the work process.
Libraries loaded by the work process (operating system – OS – libraries, database client / libraries) also need memory. These
also store their data at the heap memory of the work process.
Sometimes it is believed that a work process is using too much memory when veri ed directly at OS level. It is then difficult to
determine whether such high memory usage is expected for that situation, or which component would be using too much
memory. This Expert Content aims to clarify such analysis, focusing on the analysis of heap memory usage. Some of the tools
that will be used are delivered with the corresponding OS itself.
Some of the SAP speci c features are available only as of the following SAP kernel versions:
em/proc_max_size_MB
SAP kernel 742
em/proc_max_wpsize_MB
rdisp/os_heap_for_restart
1/31/2024
(and the possibility to write the SAP level heap memory consumers at the work process trace le - SAP note 2249313)
SAP kernel 742 patch level 315
(available at the kernel release 72x as of the following patch levels - SAP note 2065315)
SAP kernel 722
Analysis of the heap memory from a work process

It is very important to use the appropriate tools to analyze the heap memory usage of a process.
In case of a work process from an ABAP instance, using the “ps” command from Linux, for example, might show misleading
information. This is because "ps" can also include shared memory areas that are currently in use / mapped by this work process.
Imagine that you have a SAP ABAP instance running on a Linux server that has 32GB – 64GB of physical memory (RAM) and a
similar size con gured for the swap space. If you sum the memory usage of all work processes using "ps -elf", you could reach
the conclusion that all SAP work processes together would be using "terabytes" of memory (depending on the size con gured
for the different shared memory areas, like the EM). Of course, this would not be possible. This happens exactly because "ps" is
including the shared memory areas in the memory "used" by each work process.
Besides using the appropriate tools, it is also important to con rm that the work process is idle. If the work process is executing
a report, then the high memory usage could be normal (as the report could have requested such high amount of memory).
The analysis of heap memory usage is very speci c for each OS. Thus, detailed steps are shown at the following pages.
Analysis on AIX
Analysis on Linux and Solaris
Analysis on Windows
SAP features for limiting heap memory usage

The SAP kernel has features to limit the amount of heap memory that a single work process, or the entire instance, can
allocate. These features are available for all supported operating systems.
You can also read the documentation of each parameter mentioned below through the transaction RZ11, at any ABAP based
system (the documentation of some of the parameters might not be available depending on the SAP NetWeaver / SAP_BASIS
release in use).
Parameters speci c to the ABAP runtime layer of the SAP kernel

abap/heap_area_dia
abap/heap_area_nondia
Limit the amount of heap memory that the ABAP runtime of a single work process (dialog and non-dialog, respectively) can
allocate. For example: when creating internal tables, loading a (part of a) database table into an internal table;
abap/heap_area_total
1/31/2024
Limits the amount of heap memory that the ABAP runtime of all work processes of the instance (all dialog and non-dialog work
processes together) can allocate;
abap/heaplimit
If the ABAP runtime of a work process allocates more memory than what is speci ed at this parameter, the work process
activates an "auto-restart" ag. When this ag is set, the work process will restart after the execution of the current task. For as
long as the data in the heap memory is needed, the work process will not restart. This is a safe mechanism to trigger the restart
of the work process. The restart is required so the heap memory of the work process can be released back to the OS. It is not
recommended to change the value of this parameter, but to use its default value;
Parameters related to the work process as a whole, not related to a speci c layer of
(or libraries loaded by) the SAP kernel
if the work process detects that its heap size is larger than the value de ned by this parameter, the work process sets an "auto-
restart" ag;
em/proc_max_wpsize_MB
the same as the parameters "abap/heap_area_dia" and "nondia", but not restricted to the ABAP runtime layer of the SAP
kernel. The same parameter is used to de ne the threshold for both dialog and non-dialog work processes;
em/proc_max_size_MB
the same as the parameter "abap/heap_area_total", but not restricted to the ABAP runtime layer of the SAP kernel.
Related Content
Related Documents
Memory Management Basic Terminology
Extended memory
Private Memory
PAM
2085980 - New features in memory management as of Kernel Release 7.40
2019744 - How to limit overall swap space consumption of the ABAP Server in NW 7.40
146289 - Parameter Recommendations for 64-Bit SAP Kernel
1/31/2024
Analysis on AIX
As mentioned in the main page of this Expert Content , the "ps" command is not the ideal tool to analyze
heap memory usage.
The appropriate tool for heap memory analysis on AIX would be "svmon".
You can execute "svmon -P <PID of SAP work process>" and look for "heap" segments.
Using a test system (running on AIX) to simulate a heap memory issue, the following outputs were
collected before the issue was triggered:
servername:sidadm 27> ps -elf

F S UID PID PPID C PRI NI ADDR SZ WCHAN
STIME TTY TIME CMD
(...)
40001 A sidadm 11862052 15859848 0 60 20 86dcc4590 137140
f1000a0200282ca0 Jun 27 - 104:10 dw.sapSID_DVEBMGS00
pf=/usr/sap/SID/SYS/profile/SID_DVEBMGS00_servername
(...)
servername:sidadm 28> svmon -P 11862052 | grep heap

8d1d48 10 work text data BSS heap m 709 0 1
1123
8c9ac9 11 work text data BSS heap m 347 0 641
744
8122a7 80020014 work USLA heap sm 39 0
57 57
servername:sidadm 29>
1/31/2024
If "grep" is available at the OS in use, you can use it (as it is shown above) in order to have a ltered
output from svmon, showing only the relevant lines ("heap" segments).
Notice that there are only two shared memory segments (second column from the output; segments
10 and 11) for heap memory.
These are the outputs from the same commands above, but executed after the heap memory issue
was triggered.
servername:sidadm 29> ps -elf

F S UID PID PPID C PRI NI ADDR SZ WCHAN
STIME TTY TIME CMD
(...)
40001 A sidadm 11862052 15859848 0 60 20 86dcc4590 653364
f1000a0200282ca0 Jun 27 - 104:11 dw.sapSID_DVEBMGS00
pf=/usr/sap/SID/SYS/profile/SID_DVEBMGS00_servername
(...)
servername:sidadm 30> svmon -P 11862052 | grep heap

8b760e 12 work text data BSS heap m 4096 0 0
4096
98d599 13 work text data BSS heap m 2326 0 0
2326
8c9ac9 11 work text data BSS heap m 2047 0 617
2388
8d1d48 10 work text data BSS heap m 775 0 1
1127
8122a7 80020014 work USLA heap sm 39 0
57 57
At the "svmon" output, we can see new shared memory segments for heap memory (12 and 13), as
well as the memory allocated at the existing segments (10 and 11) has increased.
The rst number after the column that has "m" indicates the number of blocks in use at that segment.
The "m" indicates the size of the blocks. In this test system, 64KB.
As we can see, this work process is using about 500MB of heap memory.
The corresponding work process was idle during the time all the commands above were collected.
1/31/2024
In order to determine whether the incorrect memory usage was triggered within the SAP kernel, we
can use the transaction SM50, menu path Administration -> Work process -> Write stack
(prerequisite: the SAP kernel in use must be 742 patch level 315 / 745 patch level 35, or higher).
Then, the corresponding trace le (dev_w0, in this case) will have the following information:
M Sat Aug 20 23:21:15 2016

M
M ********** STACKDUMP 1 - begin **********
M
M C-STACK
dw.sapSID_DVEBMGS00[S](LinStackBacktrace+0x8c)[0x65656d]
dw.sapSID_DVEBMGS00[S](LinStack+0x35)[0x1aafd95]
dw.sapSID_DVEBMGS00[S](CTrcStack2+0x4e)[0x656401]
dw.sapSID_DVEBMGS00[S](ThStackHandler()+0x102)[0x4f5923]
dw.sapSID_DVEBMGS00[S](DpTrcOnOff(int)+0x212)[0x45ac89]
<signal handler called> [0x7f1aab924850]
libc.so.6[S](__GI_semtimedop+0xa)[0x7f1aab678faa]
dw.sapSID_DVEBMGS00[S](SemTimedOp+0x47)[0x1780bd7]
dw.sapSID_DVEBMGS00[S](EvtWtRst+0x72)[0x1a2ab82]
dw.sapSID_DVEBMGS00[S](RqQWorkerWaitForRequests(unsigned int, unsigned char,
Q_Q_PRIO, unsigned int*, int)+0x1fa)[0x19e7c1a]
dw.sapSID_DVEBMGS00[S](ThRqCheckQueues(int, REQUEST_BUF**)+0x37c)[0x1a39d5c]
dw.sapSID_DVEBMGS00[S](ThRqGetNextRequest(int, REQUEST_BUF**)+0x2a)
[0x1a3d5fa]
dw.sapSID_DVEBMGS00[S](ThRqWaitFor(int, REQUEST_BUF**)+0x37)[0x1a3d787]
dw.sapSID_DVEBMGS00[S](ThRqAcceptImpl(unsigned char, int,
EQUEST_BUF**)+0xf2)[0x1a3ad32]
dw.sapSID_DVEBMGS00[S](ThRqAcceptNextRequest(int, REQUEST_BUF**)+0x16)
[0x1a3c1f6]
dw.sapSID_DVEBMGS00[S](ThReceive()+0x28)[0x1a3c238]
dw.sapSID_DVEBMGS00[S](TskhLoop()+0x5e)[0x1a5114e]
dw.sapSID_DVEBMGS00[S](ThStart()+0x26c)[0x4f5471]
dw.sapSID_DVEBMGS00[S](DpMain+0x389)[0x19e09e9]
libc.so.6[S](__libc_start_main+0xe6)[0x7f1aab5b7c36]
1/31/2024
M
M Top 50 PROC memory consumers by user tag ID (in bytes)
M
M Tag Allocations Smallest
Biggest Sum
M 'FCLASS'
1 605.814.784 605.814.784 605.814.784
M 'DBI_MM' 12 102.424
4.194.568 17.948.112
M '<free>' 36 56
2.096.928 9.966.120
M 'DBSL ' 1464 144
3.200.656 9.882.184
M 'DYCBOX' 1 5.540.128
5.540.128 5.540.128
M 'CUA___' 3 500.128
500.128 1.500.384
M 'PCACHE' 1 1.376.384
1.376.384 1.376.384
M 'AbFdaM' 1 1.048.704
1.048.704 1.048.704
M 'DYTEMP' 1 1.000.128
1.000.128 1.000.128
M 'DIAGAR' 2 250.128
250.128 500.256
M 'D010TI' 7 1.344
165.168 389.984
M '*RTM_M' 3 16.128
160.128 216.384
M 'DBSLDA' 38 1.920
16.256 167.936
M 'NTALXX' 4 20.128
60.128 160.512
M 'AUTHSO' 1 148.128
148.128 148.128
M 'SHORT_' 1 102.424
102.424 102.424
M 'NTPGTF' 1 77.072
77.072 77.072
M 'NTAB ' 1 65.664
65.664 65.664
M 'BLIN ' 1 65.648
65.648 65.648
1/31/2024
M 'BLOUT ' 1 65.648

65.648 65.648
M 'DBDYNP' 2 32.128
32.896 65.024
M 'AbShCo' 1 42.528
42.528 42.528
M 'RI LBL' 1 32.896
32.896 32.896
M 'BUFFER' 1 32.896
32.896 32.896
M 'RELOBB' 1 32.128
32.128 32.128
M 'RTFDSC' 2 512
28.800 29.312
M '*PXABM' 1 28.800
28.800 28.800
M 'DBSLTL' 2 12.128
12.128 24.256
M 'STAAPC' 4 2.096
6.848 21.968
M 'RSPOD1' 1 20.608
20.608 20.608
M 'STATSM' 4 3.392
6.896 20.384
M 'DIAGUP' 1 20.128
20.128 20.128
M 'STATWE' 2 352
18.480 18.832
M 'STAAMC' 4 3.680
5.120 16.928
M 'APQILS' 2 816
15.984 16.800
M 'PCHASH' 1 16.512
16.512 16.512
M
M Sat Aug 20 23:21:15 2016
M 'RSCRSR' 13 256
5.504 14.784
M 'AbRegx' 3 1.152
8.320 11.648
M '*PXAML' 1 10.528
10.528 10.528
M '*PXATL' 1 10.528
1/31/2024
10.528 10.528
M 'STATTR' 2 512
9.872 10.384
M 'TRANFL' 1 10.128
10.128 10.128
M 'STAHC2' 1 9.632
9.632 9.632
M 'STATES' 3 704
6.176 9.264
M 'STAHS2' 1 9.104
9.104 9.104
M 'STAHC1' 1 9.056
9.056 9.056
M 'abtsor' 2 824
8.024 8.848
M 'DIAGOK' 1 8.320
8.320 8.320
M 'STAHS1' 1 8.096
8.096 8.096
M 'STARS2' 1 7.952
7.952 7.952
M
M ********** STACKDUMP 1 - end **********
M
We can see that the "FCLASS" tag is allocating the 500MB of memory that should not be there.
Thus, we should search for SAP notes that would address a memory issue ("memory leak") related to
the "FCLASS" tag.
Notice that:
"FCLASS" was a tag name used for the example above. It may not exist;
This was a straightforward example, when one tag made only one allocation that matched the
issue exactly. It is possible that the memory leak would occur over several small allocations
instead of a single large allocation.
If the information at the trace le does not indicate that any of the tags is causing the issue, then you
should continue with the analysis from different areas, like the OS libraries and the database client /
libraries.
<back to main page>
Analysis on Linux and Solaris

1/31/2024
As mentioned in the main page of this Expert Content , using the "ps" command to analyze heap memory
usage is not helpful because "ps -elf" can (and most likely will) include the shared memory areas used
by the work process. This can happen in both Linux and Solaris.
The appropriate tool for heap memory analysis would be "pmap".
You can execute "pmap <PID of SAP work process>" and look for "heap" and "anon" blocks. Depending
on the OS, pmap will also provide a summary at the end of its output.
Using a test system (running on Linux) to simulate a heap memory issue, the following outputs were
collected before the issue was triggered:
servername:sidadm 60> ps –elf

F S UID PID PPID C PRI NI ADDR SZ WCHAN STIME TTY TIME
CMD
(...)
1 S sidadm 16912 16853 0 80 0 - 1748628 - 19:00 ? 00:00:42
dw.sapSID_DVEBMGS20 pf=/usr/sap/SID/SYS/profile/SID_DVEBMGS20_servername
(...)
servername:sidadm 61> pmap 16912 | egrep '(START|writable|anon|heap)'

START SIZE RSS PSS DIRTY SWAP PERM MAPPING
0000000004109000 72892K 7012K 4798K 7012K 0K rw-p [heap]
0000000008838000 57636K 25028K 25028K 25028K 0K rw-p [heap]
00007f1912623000 4K 0K 0K 0K 0K ---p [anon]
00007f1912624000 8192K 8K 8K 8K 0K rw-p [anon]
00007f194e791000 1204K 108K 108K 108K 0K rw-p [anon]
00007f195527e000 3412K 792K 792K 792K 0K rw-p [anon]
00007f195b03b000 1960K 1828K 1828K 1828K 0K rw-p [anon]
00007f196b184000 184K 0K 0K 0K 0K rw-p [anon]
00007f196bb7b000 652K 48K 48K 48K 0K rw-p [anon]
00007f196bffb000 316K 48K 48K 48K 0K rw-p [anon]
00007f196c6bd000 108K 28K 28K 28K 0K rw-p [anon]
00007f197735e000 380K 256K 15K 256K 0K rw-p [anon]
00007f1a90450000 1232K 952K 944K 952K 0K rw-p [anon]
00007f1aa1593000 8K 4K 0K 4K 0K rw-p [anon]
00007f1aa9c08000 4K 0K 0K 0K 0K rw-p [anon]
00007f1aab596000 12K 8K 8K 8K 0K rw-p [anon]
1/31/2024
00007f1aabb2e000 16K 4K 4K 4K 0K rw-p [anon]

00007f1aac2b2000 84K 16K 0K 16K 0K rw-p [anon]
00007f1aac79f000 12K 12K 0K 12K 0K rw-p [anon]
00007f1aadb23000 40K 40K 2K 40K 0K rw-p [anon]
00007f1aaf631000 12K 0K 0K 0K 0K rw-p [anon]
00007f1aafd83000 260K 4K 4K 4K 0K rw-p [anon]
00007f1ab099d000 8K 8K 0K 8K 0K rw-p [anon]
00007f1ab1911000 28K 28K 16K 28K 0K rw-p [anon]
00007f1ab1dcc000 772K 768K 48K 768K 0K rw-p [anon]
00007f1ab1e8d000 256K 256K 15K 256K 0K rw-p [anon]
00007f1ab1f0c000 48K 48K 29K 48K 0K rw-p [anon]
00007f1ab1f24000 4K 0K 0K 0K 0K rw-p [anon]
155272K writable-private, 225480K readonly-private, 6613760K shared, and
428468K referenced
If "egrep" is available at the OS in use, you can use it (as it is shown above) in order to have a ltered
output from pmap, showing only the relevant lines (header line, all "heap" and "anon" blocks, and the
summary line from the end).
The summary line (highlighted in bold) shows that this work process (the work process itself) is using
around 380MB of memory: around 155MB of heap (private) writable memory plus around 225MB of
heap readonly memory. The latter would be the executable itself (the "disp+work" binary le) that is
loaded into the memory so it can be executed.
But the "ps" output showed that this same process is using 1748628 blocks of memory. In the OS
used to collect these outputs, the size of each block is 4KB. Therefore, "ps" would be showing that
this process would be using around 6.9GB of memory.
If we go back to the "pmap" summary line, we will notice that this process is "using" around 6.6GB of
shared memory. The "catch" is that each work process is using the same 6.6GB shared memory area
(thus the name "shared memory" :-)).
These are the outputs from the same commands above, but executed after the heap memory issue
was triggered.
1/31/2024
servername:sidadm 70> ps –elf

F S UID PID PPID C PRI NI ADDR SZ WCHAN STIME TTY TIME
CMD
(...)
1 S sidadm 16912 16853 0 80 0 - 1787029 semtim 19:00 ? 00:00:42
dw.sapSID_DVEBMGS20 pf=/usr/sap/SID/SYS/profile/SID_DVEBMGS20_servername
(...)
servername:sidadm 71> pmap 16912 | egrep '(START|writable|anon|heap)'

START SIZE RSS PSS DIRTY SWAP PERM MAPPING
0000000004109000 72892K 7012K 4798K 7012K 0K rw-p [heap]
0000000008838000 57636K 25028K 25028K 25028K 0K rw-p [heap]
00007f1909022000 153604K 8K 8K 8K 0K rw-p [anon]
00007f1912623000 4K 0K 0K 0K 0K ---p [anon]
00007f1912624000 8192K 8K 8K 8K 0K rw-p [anon]
00007f194e791000 1204K 108K 108K 108K 0K rw-p [anon]
00007f195527e000 3412K 792K 792K 792K 0K rw-p [anon]
00007f195b03b000 1960K 1828K 1828K 1828K 0K rw-p [anon]
00007f196b184000 184K 0K 0K 0K 0K rw-p [anon]
00007f196bb7b000 652K 48K 48K 48K 0K rw-p [anon]
00007f196bffb000 316K 48K 48K 48K 0K rw-p [anon]
00007f196c6bd000 108K 28K 28K 28K 0K rw-p [anon]
00007f197735e000 380K 256K 15K 256K 0K rw-p [anon]
00007f1a90450000 1232K 952K 944K 952K 0K rw-p [anon]
00007f1aa1593000 8K 4K 0K 4K 0K rw-p [anon]
00007f1aa9c08000 4K 0K 0K 0K 0K rw-p [anon]
00007f1aabb2e000 16K 4K 4K 4K 0K rw-p [anon]
00007f1aac2b2000 84K 16K 0K 16K 0K rw-p [anon]
00007f1aac79f000 12K 12K 0K 12K 0K rw-p [anon]
00007f1aadb23000 40K 40K 2K 40K 0K rw-p [anon]
00007f1aaf631000 12K 0K 0K 0K 0K rw-p [anon]
00007f1aafd83000 260K 4K 4K 4K 0K rw-p [anon]
00007f1ab1911000 28K 28K 16K 28K 0K rw-p [anon]
00007f1ab1dcc000 772K 768K 48K 768K 0K rw-p [anon]
00007f1ab1e8d000 256K 256K 15K 256K 0K rw-p [anon]
00007f1ab1f0c000 48K 48K 29K 48K 0K rw-p [anon]
1/31/2024

308876K writable-private, 225480K readonly-private, 6613760K shared, and
428600K referenced
Notice that the "ps" output does not change signi cantly (because it shows usage of 4KB blocks), but
it still shows much more memory than the work process itself is using (it is still including the shared
memory areas).
At the "pmap" output, we can see a new "anon" segment of about 150MB. We also see that the
writable heap memory area has increased (at the summary line).
M Mon Jun 27 21:33:04 2016

M
M
M C-STACK
1/31/2024

[0x1a3d5fa]
[0x1a3c1f6]
M
M
Biggest Sum
M 'FCLASS' 1 157.286.424
157.286.424 157.286.424
M 'DBI_MM' 12 102.424
4.194.568 17.948.112
M '<free>' 36 56
2.096.928 9.966.120
M 'DBSL ' 1464 144
3.200.656 9.882.184
M 'DYCBOX' 1 5.540.128
5.540.128 5.540.128
M 'CUA___' 3 500.128
500.128 1.500.384
M 'PCACHE' 1 1.376.384
1.376.384 1.376.384
M 'AbFdaM' 1 1.048.704
1.048.704 1.048.704
M 'DYTEMP' 1 1.000.128
1.000.128 1.000.128
M 'DIAGAR' 2 250.128
250.128 500.256
M 'D010TI' 7 1.344
165.168 389.984
M '*RTM_M' 3 16.128
160.128 216.384
1/31/2024
M 'DBSLDA' 38 1.920
16.256 167.936
M 'NTALXX' 4 20.128
60.128 160.512
M 'AUTHSO' 1 148.128
148.128 148.128
M 'SHORT_' 1 102.424
102.424 102.424
M 'NTPGTF' 1 77.072
77.072 77.072
M 'NTAB ' 1 65.664
65.664 65.664
M 'BLIN ' 1 65.648
65.648 65.648
M 'BLOUT ' 1 65.648
65.648 65.648
M 'DBDYNP' 2 32.128
32.896 65.024
M 'AbShCo' 1 42.528
42.528 42.528
M 'RI LBL' 1 32.896
32.896 32.896
M 'BUFFER' 1 32.896
32.896 32.896
M 'RELOBB' 1 32.128
32.128 32.128
M 'RTFDSC' 2 512
28.800 29.312
M '*PXABM' 1 28.800
28.800 28.800
M 'DBSLTL' 2 12.128
12.128 24.256
M 'STAAPC' 4 2.096
6.848 21.968
M 'RSPOD1' 1 20.608
20.608 20.608
M 'STATSM' 4 3.392
6.896 20.384
M 'DIAGUP' 1 20.128
20.128 20.128
M 'STATWE' 2 352
18.480 18.832
M 'STAAMC' 4 3.680
1/31/2024
5.120 16.928
M 'APQILS' 2 816
15.984 16.800
M 'PCHASH' 1 16.512
16.512 16.512
M
M Mon Jun 27 21:33:04 2016
M 'RSCRSR' 13 256
5.504 14.784
M 'AbRegx' 3 1.152
8.320 11.648
M '*PXAML' 1 10.528
10.528 10.528
M '*PXATL' 1 10.528
10.528 10.528
M 'STATTR' 2 512
9.872 10.384
M 'TRANFL' 1 10.128
10.128 10.128
M 'STAHC2' 1 9.632
9.632 9.632
M 'STATES' 3 704
6.176 9.264
M 'STAHS2' 1 9.104
9.104 9.104
M 'STAHC1' 1 9.056
9.056 9.056
M 'abtsor' 2 824
8.024 8.848
M 'DIAGOK' 1 8.320
8.320 8.320
M 'STAHS1' 1 8.096
8.096 8.096
M 'STARS2' 1 7.952
7.952 7.952
M
M ********** STACKDUMP 1 - end **********
M
We can see that the "FCLASS" tag is allocating exactly the 150MB of memory that should not be
there.
1/31/2024
the "FCLASS" tag.
Notice that:
libraries.
<back to main page>
Analysis on Windows
At Windows servers, you can verify whether the version of the "sapntkill" tool (delivered with the SAP
kernel) currently available at the server has the "MEM" and "HEAP" signals available.
Simply execute "sapntkill" without any arguments and verify the "signal" section.
C:\>sapntkill
usage: sapntkill [-force] [-signal]|[-CPU n,n,...]|[-PRIO <low|normal|high>]|[-
ENV name=value] pid-list
signal
(HUP|INT|QUIT|KILL|USR1|USR2|SEGV|MEM|SEM1|SEM2|HEAP|INFO|INFO2|TIME)
-CPU Change affinity of a process For example,
to run the application on CPU 2 and CPU 4, enter:
"-CPU 2,4".1 is the lowest numbered CPU.
1/31/2024
-PRIO Change priority of a process.

-ENV Set environment variable in specified process
Environment string is restricted to at most 60 ASCII characters
pid-list Specifies space-separated list of process ids
-force Attempts to bypass normal security restrictions via enabling
debug privilege
C:\>
You can then execute "sapntkill -MEM <PID of SAP work process>" and "sapntkill -HEAP <PID of SAP
work process>".
Observation: it is strongly recommended NOT to send the MEM or HEAP signals in production
environments. This is because these signals can block the work process for a long time.
The output from both signals will be written to a le at the "work" folder.
The name of the le created by the MEM signal is "adrspc_X" (where "X" is the number of the work
process).
This signal writes a "pmap-like" output ("pmap" is a tool available in Linux and UNIX systems).
The name of the le created by the HEAP signal is "heap_X" (where "X" is the number of the work
process).
Using a test system (running on Windows) to simulate a heap memory issue, this was the output of
the "heap_4" le collected before the issue was triggered:
Heap - Information
------------------------------------------------
|Heap|Address | Size|Status |
|----|----------------|----------|----------|
| 0| 2190000| 1048576|Region |
(...)
| 40| 180b0a80| 5440|Reserved |
| 40| 180b2000| 516096|Reserved |
------------------------------------------------
1/31/2024
Total heap size : 80433 K

Virtual memory regions : 87438 K
Uncommitted heap memory : 51940 K
Allocated heap memory : 25909 K
Moveable heap memory : 0 K
DDE shared heap memory : 11783 K
------------------------------------------------
This is the output from the "heap_4" le that was generated after the heap memory issue was
triggered.
Heap - Information
------------------------------------------------
|Heap|Address | Size|Status |
|----|----------------|----------|----------|
| 0| 2190000| 1048576|Region |
(...)
| 40| 180b0a80| 5440|Reserved |
| 40| 180b2000| 516096|Reserved |
------------------------------------------------
Total heap size : 324573 K

Virtual memory regions : 87438 K
Uncommitted heap memory : 51940 K
Allocated heap memory : 270058 K
Moveable heap memory : 0 K
DDE shared heap memory : 255924 K
------------------------------------------------
The summary at the end of the "heap_X" le can easily indicate a heap memory issue.
In this case, we can see that the "Total heap size" has increased by about 250MB.
1/31/2024
M Sun Aug 21 19:35:23 2016

M
M
M C-STACK
[0x1a3d5fa]
[0x1a3c1f6]
1/31/2024
M
M
Biggest Sum
M 'FCLASS'
1 249.999.360 249.999.360 249.999.360
M 'DBI_MM' 12 102.424
4.194.568 17.948.112
M '<free>' 36 56
2.096.928 9.966.120
M 'DBSL ' 1464 144
3.200.656 9.882.184
M 'DYCBOX' 1 5.540.128
5.540.128 5.540.128
M 'CUA___' 3 500.128
500.128 1.500.384
M 'PCACHE' 1 1.376.384
1.376.384 1.376.384
M 'AbFdaM' 1 1.048.704
1.048.704 1.048.704
M 'DYTEMP' 1 1.000.128
1.000.128 1.000.128
M 'DIAGAR' 2 250.128
250.128 500.256
M 'D010TI' 7 1.344
165.168 389.984
M '*RTM_M' 3 16.128
160.128 216.384
M 'DBSLDA' 38 1.920
16.256 167.936
M 'NTALXX' 4 20.128
60.128 160.512
M 'AUTHSO' 1 148.128
148.128 148.128
M 'SHORT_' 1 102.424
102.424 102.424
M 'NTPGTF' 1 77.072
77.072 77.072
M 'NTAB ' 1 65.664
65.664 65.664
1/31/2024
M 'BLIN ' 1 65.648

65.648 65.648
M 'BLOUT ' 1 65.648
65.648 65.648
M 'DBDYNP' 2 32.128
32.896 65.024
M 'AbShCo' 1 42.528
42.528 42.528
M 'RI LBL' 1 32.896
32.896 32.896
M 'BUFFER' 1 32.896
32.896 32.896
M 'RELOBB' 1 32.128
32.128 32.128
M 'RTFDSC' 2 512
28.800 29.312
M '*PXABM' 1 28.800
28.800 28.800
M 'DBSLTL' 2 12.128
12.128 24.256
M 'STAAPC' 4 2.096
6.848 21.968
M 'RSPOD1' 1 20.608
20.608 20.608
M 'STATSM' 4 3.392
6.896 20.384
M 'DIAGUP' 1 20.128
20.128 20.128
M 'STATWE' 2 352
18.480 18.832
M 'STAAMC' 4 3.680
5.120 16.928
M 'APQILS' 2 816
15.984 16.800
M 'PCHASH' 1 16.512
16.512 16.512
M
M Sun Aug 21 19:35:23 2016
M 'RSCRSR' 13 256
5.504 14.784
M 'AbRegx' 3 1.152
8.320 11.648
M '*PXAML' 1 10.528
1/31/2024
10.528 10.528
M '*PXATL' 1 10.528
10.528 10.528
M 'STATTR' 2 512
9.872 10.384
M 'TRANFL' 1 10.128
10.128 10.128
M 'STAHC2' 1 9.632
9.632 9.632
M 'STATES' 3 704
6.176 9.264
M 'STAHS2' 1 9.104
9.104 9.104
M 'STAHC1' 1 9.056
9.056 9.056
M 'abtsor' 2 824
8.024 8.848
M 'DIAGOK' 1 8.320
8.320 8.320
M 'STAHS1' 1 8.096
8.096 8.096
M 'STARS2' 1 7.952
7.952 7.952
M
M ********** STACKDUMP 1 - end **********
M
We can see that the "FCLASS" tag is allocating the 250MB of memory that should not be there.
the "FCLASS" tag.
Notice that:
libraries.
<back to main page>
1/31/2024
Clari cation of the PROC memory monitoring at the report RSMEMORY

Purpose
Clarify the meaning of the columns seen at the PROC monitoring screen of the report RSMEMORY.
Overview
You can use the report RSMEMORY to monitor the PROC memory usage of an ABAP instance.
The meaning of the columns displayed at the report might not be completely clear.
PROC memory monitoring with the report RSMEMORY
The report RSMEMORY can be executed from the transactions SE38 or SA38.
The report has two buttons related to the PROC memory.
1/31/2024
The button "Work Processes" show the current PROC memory usage of all work processes and of the
SAP Web Dispatcher process of the local instance, individually.
The button "Server" shows a summary of the PROC memory usage.
The list below explains the meaning of each column seen at the "Server" PROC memory screen.
"Used": the PROC memory currently in use by the work process that is executing the report
RSMEMORY;
"Used Peak": the PROC memory peak usage of the work process that is executing the report
RSMEMORY;
"Glob. Used": the PROC memory currently in use by all work processes and the SAP Web
Dispatcher of the local instance (a sum of all values seen at the "Work Processes" button);
"Glob. Peak":
If the PROC memory quota is active (parameter "em/proc_max_size_MB" set to a value

higher than zero), this column will show the peak usage of PROC memory of the instance
(sum of all work processes and the SAP Web Dispatcher);
If the PROC memory quota is not active (parameter "em/proc_max_size_MB" set to zero
or not set at all, as its default value is zero), the global peak usage is not calculated. In this
scenario, this column shows the size of the largest PROC memory allocation made since
the instance startup, considering all allocations made by any of the work processes or the
SAP Web Dispatcher;
"Glob. Quota": the current value of the parameter "em/proc_max_size_MB".
Related Content
Related Documents
The rsmemory Report
Es2IResCreate, shmget failed, File exists
1/31/2024
Link to this page: https://wiki.one.int.sap/wiki/display/ProdSuppBTP/Es2IResCreate%2C+shmget+failed%2C+File+exists
Purpose
Overview
Following error appears in dev_disp trace le while starting the SAP system:
ERROR => Es2IResCreate: shmget failed (size= <size>. (17: File exists)
Due to this the system cannot start.

We'll check how to solve this.
Background
SAP Virtual Machine Container (VM) is activated by 'vmcj/enable = on' pro le parameter
SAP_ES2_<instance nr>_<nr> memory mapped le exists
Possible resolution steps
Stop still running SAP processes by stopsap (stopsap r3 <instance> <hostname>).
Stop sapstartsrv process as well by sapcontrol (sapcontrol -nr <instance nr> -function
StopService)
Cleanup shared memory (IPC) by cleanipc (cleanipc <instance nr> remove).
Start SAP system.
Related Content
Related Documents

SAP Note 17108: Shared memory still present, startup fails
SAP KBA 1827388: System cannot start due to Es2IResCreate - shmget failed - File exists error
SAP KBA 2195077: ShmCreate errors
FAQ Memory
Client-Server Technology - Memory FAQ
How to analyse the OS memory available from R3 level
Identifying the owner of a shared key
1/31/2024
How to analyse the OS memory available from R3 level
How to analyse the OS memory available from R3 level?

It is possible to check over ST06 transaction:
1/31/2024
Going to Environment -> Old ST06 there is another view of the same statistics:

To identify the owner of a shared key it is required to identify the address rst with "showipc <instance number>":
> showipc 02
Show/Cleanup SAP-IPC-Objects V2.3, 94/01/20
===========================================
Running SAP-Systems (Nr)...:
Show IPC-Objects of Sap-System 2

OsKey: 58900102 0x0382be86 SCSA Shared Memory Key: 58900000 Size: 4096 0.0 MB
Using ipcs tool like "ipcs | grep <key>" to identify the owner:
> ipcs | grep be86

m 16777258 0x382be86 rw-rw-rw- wsoadm sapsys
in this example, WSOADM is the owner of this shared key.
1/31/2024
High memory allocation or Memory not released
Purpose
How to check situations where the memory is not released and/or we observe a high memory allocation.
Overview
The user contexts are stored in the extended memory rst, and if more memory is needed, in the heap memory, which is the
local memory of the work process. The extended memory is where the large part of the user context is allocated.
The Extended Memory consists of two layers: the EM, used by ABAP, and the ES, which is operating system-dependent. The ES is
the layer which maps operating system blocks together to an EM block. In transaction SM04 you see the memory which was
allocated by ABAP.
When a user context releases local process memory, it remains occupied from the operating system point of view. It only
becomes available for other processes when the process itself is ended. That’s why work processes are restarted. This behavior
is controlled by parameter abap/heaplimit.
Checks depending on the operative system
The rst thing would be to identify the process consuming a lot of memory at OS level.
In WINDOWS you can use the task manager for this purpose.
In UNIX you can run the following script at OS level. It monitors the 10 largest processes every 30 seconds:
while (1)
date >> pssize.log
ps alwg | sort -n +10 | tail -10 >> pssize.log
sleep 30
end
As of release 740 SP08, the memory leak analysis can be done easier using RSMEMORY, thanks to the new memory class
"PROC-Memory". The recommendations given in point 3 of the following SAP note is helpful: 2085980 - New features in memory
management as of Kernel Release 7.40
1/31/2024
AIX. To analyze a high memory consumption, you can execute the command “svmon -P <pid>“, explained in the following SAP
note 1971698 - High Memory Consumption on AIX
The analysis sorted by memory can be obtained executing “ usagesvmon -U <user_id>”.
SOLARIS. You could run "prstat -s rss -can 10 5 40". In the column SIZE will show the virtual memory and the column RSS what
the process actual use.
General checks
Other checks that should be done:
SM04/SM66 -> to check if the session of an user and its memory allocation remains, even
when rdisp/plugin_auto_logout seconds have passed. Please note that in a SM66 screencapture
the user allocating a lot of memory won’t be shown if he isn't active at the speci c timestamp
when you collect the screenshot.
STAD to check what the user is executing and in which work process. This will help to look for
possible error entries in the work processes log les (dev_w*)
ST02 -> Detailed Analysis Menu -> SAP Memory -> Mode list, to see the extended memory
allocation for users. The list can’t be sorted.
ST03N -> Memory use statistics
Check the SAP regression note for your kernel patch level to discard a possible kernel bug or
memory leak at OS level. You can nd the corresponding note using the keyword KRNLxxxPLyyy
in the SAP note search.
Check value of the following parameters:
abap/heaplimit -> perhaps it's set too large
rdisp/plugin_auto_logout -> it may be set to 0, meaning that the resources for the
HTTP(s) sessions are never released
rdisp/gui_auto_logout -> the same but for the GUI sessions
rdisp/wp_auto_restart
If we are working with web services, it is also important to check if there is any other timeout
de ned in SICF for that webdynpro.
Check the memory parameters are correctly set according to the platform / kernel release the
system is running
Check if there was some memory shortdumps in transaction ST22.
Related Content
Related Documents
Types of memory
ABAP Heap Limit
1/31/2024
CST Expert Content Memory Management

SAP Note 158346: Periodic restart of work processes
SAP Note 2065315: Memory leak handling
SAP Note 2019744:- How to limit overall swap space consumption of the ABAP Server in NW 7.40
SAP Note 2065315: Memory leak handling
SAP note 1971698: High Memory Consumption on AIX
SAP Note 2085980: New features in memory management as of Kernel Release 7.40
Memory Dumps as of Kernel Release 7.4x
Purpose
Demonstrate how the shortdumps below can be misleading due to the new design of the memory
management in 7.40.
#1. LOAD_NO_ROLL*
#2. TSV_TNEW_BLOCKS_NO_ROLL_MEMORY*
#3. SYSTEM_NO_ROLL*
#4. STACK_STATE_NO_ROLL_MEMORY*
#5. TSV_TABH_POOL_NO_ROLL_MEMORY*
*example of short dumps giving the wrong idea of something related to ROLL memory
1/31/2024
Overview
Before the introduction of extended memory in release 3.0A, the implementation of our roll
mechanism actually implied copying memory areas to les and back. With extended memory, this has
long been replaced by more elegant memory mapping solutions. But the old roll memory was still
used, e.g for ABAP session memory, user info, the SPA structure and many other parts of the ztta
structure. Now the whole classic roll functionality became obsolete since all data that was stored in
the classic ROLL area is now allocated in Extended memory, which become easily con gurable with the
Zero Administration Memory Management approach.
As effect of these changes the following memory parameters formerly describing roll memory have
been removed:
Parameter name Description
ztta/roll_ rst Initial allocation from the roll area
ztta/roll_area Total size of the roll area in bytes
rdisp/roll_SHM Size of the roll buffer in 8 KB blocks
rdisp/roll_MAXFS Size of the roll le in 8 KB blocks
Roll section removed from the Memory Overview in ST02.
Prior to NW7.4 base system, ST02 shows the "Roll area" info like below:
Since NW74, there is no more "Roll area" info like this:
1/31/2024
Conclusion
The dump information provided by the system can be inaccurate as the roll area is no longer used
with the new design of SAP Web Dispatcher and taskhandler in 7.40. Thus, the actual root cause
should considered as applications consuming to much memory, high user load on the server or
simple not enough memory available due to a HW or memory parameter(s) limitation.
Parameters to be evaluated according to the memory requirements:
EM Parameters Description
em/initial_size_MB (em/total_size_MB if Entire EM available for an instance, Exhaustion can be indicated by the Max use in
running on AIX) ST02.
ztta/roll_extension User quota for the system. The short dump and developer trace information shows if
quota was reached.
ztta/max_memreq_MB As per SAP note 353579: SYSTEM_NO_ROLL
HEAP Parameters Description
abap/heap_area_dia Heap memory quota (HEAP) for dialog work processes.
abap/heap_area_nondia Heap memory quota (HEAP) for non-dialog work processes.
abap/heap_area_total Heap memory quota all work processes can allocate in total.
1/31/2024
Important
The “kernel regression collection notes” should be checked against memory leak problems as it
can make a strong in uence on the cause of those dumps. For each patch level such notes
provides up-to-date links where known newly introduced problems can be nd. See SAP note
941735: Finding information about regressions in the SAP kernel
Related Documents
SAP Help Portal: Functions of the Memory Management System - BC-CST-MM
SAP Help Portal: What's New in SAP NetWeaver 7.4 (Release Notes)
ABAP Keyword Documentation: roll area
SCN: Memory Management Simpli cations
Additional Info Notes
SAP note 1680814: "EmAlloc failed" and other memory allocation problems
SAP note 2085980: New features in memory management as of Kernel Release 7.40
Platform Speci c Notes
SAP note 941735: SAP memory management system for 64-bit Linux systems
SAP note 88416: Zero administration memory management for the ABAP server (Windows)
SAP note 789477: Large extended memory on AIX (64-bit) as of Kernel 6.20
1/31/2024
Monitoring Memory Resources Using CCMS Infrastructure

Purpose
The purpose of this page is to explain how the memory resources of an SAP instance can be monitored through the CCMS
infrastructure.
Overview
This page provides details about the CCMS monitoring infrastructure, speci cally focused in the memory resources monitoring,

The memory monitoring functionalities are basically divided in two different parts, which are: Operating System Memory
Resources and SAP System Memory Resources.
Monitoring Operating System Memory Resources

The CCMS Infrastructure allows you to monitor the memory resources available in the Operating System through the
transaction RZ20. This MTE tree can be found in the below RZ20 path:
RZ20 transaction → SAP CCMS Monitor Templates → Operating System → <Instance Name> → Memory.
See below an image displaying the OS memory monitoring tree.
1/31/2024
As you can see in the above image, these MTEs are monitoring resources such as free memory in the server, allowing you to
monitor either the total value or the free memory percentage. You can also monitor the swap details, including the free swap,
the total swap size, the maximum swap size and others. The paging monitoring landscape is very complete in this monitoring
tree, including the option to monitor pages per second, kilobytes per second and also the measurement with RAM.
Monitoring SAP Instance Memory Resources

The CCMS Infrastructure allows you to monitor the Memory resources available in the ABAP instance through the transaction
RZ20. This MTE tree can be found in the below RZ20 path:
RZ20 transaction → SAP CCMS Monitor Templates → Entire System → <SID> → Application Server → <Instance Name> →
R3BasisSystem → Memory Management → R3MemMgmtResources.
See below an image displaying the SAP memory monitoring tree.
1/31/2024
The MTEs for ABAP instance memory resource monitoring shown above can monitor the following resources. See the SAP
online documentation Displayed Values at Instance Level - Memory for more details about each of the below areas.
Extended Memory Monitoring
EsTotal - Total size of extended memory

EsPeak - Extended memory higher water mark since startup
EsRecentPeak - Extended memory higher water mark since last query
EsAct - Extended memory snapshot of ll status
EsAttached - Amount of extended memory in user contexts that is active in work processes now
Heap Memory Monitoring
HeapTotal - Maximum allowed amount of heap memory (abap/heap_area_total)

HeapPeak - Heap memory higher water mark since startup
HeapRecentPeak - Heap memory higher water mark since last query
HeapAct - Currently amount allocated to heap memory
Extended Memory Slots Monitoring
EmSlotsTotal - Maximum number of extended memory management slots

EmSlotsPeak - Higher water mark of extended memory management slots since startup
EmSlotRecentPeak - Higher water mark of extended memory management slots since last query
EmSlotsAct - Amount currently allocated to EM management slots
Work Process Monitoring
PrivWpNo - Current number of WPs in PRIV mode

HoldWpNo - Current number of WPs in HOLD status.
WpDiaRestart - No. of dialog WP restarts (because abap/heaplimit exceeded) since startup
WpNonDiaRestart - No. of batch WP restarts (because abap/heaplimit exceeded) since startup
1/31/2024
1. Using the Free Memory MTE under the Operating System monitoring tree, you can set up a monitoring scenario to raise
an alert when you have a small amount of free memory available in your server, therefore preventing a situation where
the memory would be completely exhausted. The Free MTE provides the same monitoring functionality, however,
showing of the percentage of the total memory which is currently free.
2. Using the EsAct MTE under the R3BasisSystem MTE tree, you can set up a monitoring scenario to raise an alert when
you have a small amount of extended memory left in your SAP instance, according to your total amount of extended
memory con gured. This functionality is specially important as from kernel 7.4x, when the roll memory concept is
included in the extended memory, making the extended memory a extremely important and crucial resource for the
instance operations. See SAP Note 2085980.
3. Using the HeapAct MTE under the R3BasisSystem MTE tree, you can set up a monitoring scenario to raise an alert when
you have a small amount of heap memory left in your SAP instance, according to your total amount of heap memory
con gured. Such monitoring scenario helps to prevent the dumps TSV_TNEW_PAGE_ALLOC_FAILED, since you can
recon gure your memory settings in canse the memory consumption increases. See SAP KBA 2180736 for more details
about this dump.

alerts in case the values reported by them meet the threshould values de ned. The next chapters will explain more details
about the con guration process to achieve this.
achieve this.
1/31/2024
more details.
1/31/2024
1/31/2024
Related Content
Related Documents
Displayed Values at Instance Level - Memory

SAP Note 2085980 - New features in memory management as of Kernel Release 7.40
SAP KBA 2180736 - TSV_TNEW_PAGE_ALLOC_FAILED
No free memory available on Linux
Purpose
Provide clari cation about the output of the command "free" on Linux operating systems.
Overview
1/31/2024
The command "free" shows high memory consumption.
This page provides references to documentation that explains how to interpret the output of the
command "free" correctly.
Read the documents at the "Related Content" section.
Related Content
Related Documents
Linux ate my RAM (external website)
SAP note 1382721: Linux: Interpreting the output of the command 'free'
SAP Extended Global Memory (EG) parameters
Purpose
Explain the SAP parameters involved in the EG shared memory area.
Overview
EG are shared segments shared globally among all work processes.

This is a Memory area that belongs to the Extended Memory (EM). The goal of this Expert Content is
to explain what are the memory parameter that determine the total size of EG memory.
Extend Global Memory area
The size of the EG is obtained from the total of the parameter values:
As from 74.X Kernel
em/global_area_MB + abap/shared_objects_size_MB + zcsa/table_buffer_area +

zcsa/db_max_buftab
Before 74.X Kernel
em/global_area_MB + abap/shared_objects_size_MB
1/31/2024
It is required that the address space for EG can be provided by the EM and also by the Operating
System.
In order to monitor the EG area it is possible to use different tools:
SE38 -> RSMEMORY -> EG Overview or
SE38 → RSMEMORY → EG Consumer (to displays the different consumers using EG memory)
as from Netweaver 7.4
transaction SHMM displays the content of the abap/shared_objects area
ST02 --> Detail analyis menu --> SAP Memory --> Mode list", in the colunm "I-Mode Gl" and with
the user-id via SM50 you could identify the work process using the EG memory at that time
Different applications use this memory area:
ITS services that can be monitorized via SITSPMON transaction
RTM (Runtime monitor) : the memory speci ed along with pro le parameter
"abap/rtm_high_water" is being allocated out of the overall extended global memory area
Coverage Analizer (transaction SCOV)
Batch jobs generating spool outputs. If these processes don't issue a commit for sometime
there could occupied EG memory
Related Content
Related Documents
2148571 - Explanation for higher Extended Memory (EM) and Extended Global Memory (EG)
consumption after upgrade to SAP Kernel 7.4x
SAP Memory Management Implementations (In Process)
Purpose
Help you to understand the different SAP memory management implementations available in the SAP system.
Overview
This page contains information about the SAP memory management implementations and their differences, demonstrating the
relevant parameters for each one of them.
1/31/2024
SAP Memory Management Implementations

The parameter es/implementation is responsible for controlling which memory implementation is active in the SAP system.
Depending on your operating system, different implementation strategies can be used, which consequently brings different
parameters to control the Extended Memory area. The parameter ES/TABLE also modi es the behavior of the Extended
Memory implementation. This parameter needs to be set to a different value depending on the Operating System.
Memory Implementations "map" and "view"

The memory implementations "map" and "view" represent the same strategy, however, as highlighted in the above image, the
"map" implementation is used in Linux and Unix systems (except AIX), while the "view" implementation is the default for the
Windows operating system.
Strategy and Characteristics
The "map" memory implementation causes the activation of a signi cantly simpli ed method for con guring memory
management. This implementation is recommended for 32-bit Linux operating systems as described in detail in SAP
Note 386605.
In this memory implementation strategy, only the currently active user context is mapped to the address space of the work
process. This is considered a classic model where a roll-in corresponds to mapping a context in the extended memory, and a roll-
out corresponds to unmapping this context. The below image shows an example of this process.
As represented above, each work process has an extended memory area reserved to the mapping of the current user context.
The context is mapped from the shared resource, which contains all the user contexts, and once the processing is over,
the context is returned back in the shared resource by making the context visible again.
Parameters and De nitions
em/initial_size_MB - This parameter speci es how much SAP extended memory is available on the SAP system.
em/max_size_MB - Maximum size of the SAP extended memory.
1/31/2024
em/address_space_MB - Quantity of Extended Memory that each single user context may fully occupy provided
ztta/roll_extension has not yet been reached; this interval is reserved from the start of the instance.
Memory Implementations "STD" and " at"

The memory implementations "STD" and " at" represent the same strategy, however, as highlighted in the above image, the
"STD" implementation is used in Linux and Unix systems, while " at" is valid only for Windows.
In this memory implementation strategy, the extended memory uses a memory-mapped le with memory protection. All the
user contexts are always mapped in the virtual address space for each work process in the SAP system. All the user contexts
are initially protected.
The roll-in, in this memory implementantion strategy, means removing the protection from a user context in the extended
memory and roll-out means protecting a context again. The advantage of this memory model is the reduced number of soft
page faults, because the process working set is stable. The disadvantage is the overhead of the memory protection, which
results in higher kernel-mode CPU usage.
In the above image you can see one work process removing the protection from a user context, while this same context is
locked for all other work processes. Once the work process which removed the protection from the user context performs the
roll-out and protects the user context again, this same user context can be now acessed by the other work process.
em/initial_size_MB - This parameter speci es how much SAP extended memory is available on the SAP system.
es/max_seg_size_MB - Speci es the maximum size of an extended memory segment in the SAP system.
es/max_segments - Speci es the number of extended memory segments in the SAP system.
1/31/2024
Memory Implementation "SHM_SEGS"
The parameter ES/TABLE determines the function table used to provide ES functionality. There are two ES/TABLE
implementations available. These are UNIX_STD, which is the default, and SHM_SEGS. At present only AIX supports the
SHM_SEGS implementation.
EM/TOTAL_SIZE_MB - This parameter speci es how much SAP extended memory is available on the SAP system.
ES/SHM_SEG_SIZE - Size of the AIX system segments (in megabytes)
ES/SHM_PROC_SEG_COUNT - Speci es the number of shared memory segments that are used as shared and privately.
ES/SHM_MAX_SHARED_SEGS - Speci es the number of shared memory segments that are used privately.
ES/SHM_MAX_PRIV_SEGS - Speci es the number of shared memory segments. The value comes from
ES/SHM_PROC_SEG_COUNT – ES/SHM_MAX_PRIV_SEGS
ES/SHM_USER_COUNT - The maximum number of users in all open sessions.
1/31/2024
ES/SHM_SEG_COUNT - The maximum number of AIX system segments that ESSHM uses.
Related Content
Related Documents
Memory Management on Linux
Implementing the Extended Memory on Windows
Memory Management Under Linux
Implementing the Extended Memory Under UNIX
Old or New Memory Management?
Con guration for AIX
Con guration for AIX
Release of SAP Memory for the Operating System

SAP Note 1458065 - Extended memory restricted to 64G
SAP Note 941735 - SAP memory management system for 64-bit Linux systems
SAP Note 1002587 - Flat Memory Model on Windows
(Use the following Hyperlink with SAP Note/KBA number at end: https://service.sap.com/sap/support/notes/123456)
SAP Shared Memory Pools 10 and 40 as of Kernel 740
Purpose
Help you to understand the shared memory pools 10 and 40 concept as of kernel 740 and how they are sized in the ABAP
application server environment.
Overview
This page contains information about the shared memory pools 10 and 40 and the new mechanism to calculate their size as of
kernel 740.
Shared Memory Pools Sizing before SAP Kernel 740

Before the Kernel 740, depending on the size of the buffers inside of the shared memory pools 10 and 40, it was recommended
to increase the size of the buffer so the content could t inside it and the system could start successfully and work without
issues. This sizing was made by using the parameters ipc/shm_psize_10 and ipc/shm_psize_40 as per the SAP
documentation Adjusting Pool Sizes. Also, the pool sizes could automatically be increased in the start up moment, writting
entries informing this in the SAP Web Dispatcher trace.
Shared Memory Pools Sizing as of SAP Kernel 740

1/31/2024
As of the Kernel 740 many memory managent concepts have changed. The SAP Note 2085980 explains many of these changes.
For example the abolition of the classic Roll Memory which is now a part of the Extended Memory and the availability of Zero
Administration Memory Management to UNIX platforms between others.
As you can see in the below image, many memory and buffer parameter are now by default based on formulas which are directly
and indirectly dependent on the value of the PHYS_MEMZINE parameter, which has the value of the total available memory in
the server.
Some of the above buffer parameters like rsdb/ntab/ftabsize, rsdb/ntab/irbdsize and rsdb/ntab/sntabsize are contained by
default inside of a shared memory pool (in this case the pool 40) and as you can see their values are also by default de ned
based on a formula which indirectly related to PHYS_MEMSIZE. Based on this fact, it makes no sense to have statical values for
the size of the shared memory pool buffers de ned in the pro les and also default statical values in case the parameters are
not de ned, since it could easily cause a situation where the pool is too small for the size of the buffers contained on it and as
consequence the system would not be able to start.
1/31/2024
In order to prevent start up problems and authomatize the sizing of the shared memory pools, if the ipc/shm_psize_10 and
ipc/shm_psize_40 are not de ned in the pro les, the kernel will automatically calculate the size of the pools 10 and 40 in the
moment of the start up based on the size of the buffers contained on them. This explains the fact that documentation in RZ11
for the parameters ipc/shm_psize_10 and ipc/shm_psize_40 recommends the parameters not to be changed and speci ed as
of this release.
ipc/shm_psize_40:
"Size of SHM pool 40. This parameter should no longer be changed as of Release 7.40 SP2."
ipc/shm_psize_10
"Size of SHM Pool 10. This parameter should not be used from release 7.40 upwards."
Note:
1. As of 74x kernel onward, the Kernel will not follow the manual con guration of shared pools, it automatically
calculate the shared memory.
2. You can ignore the error entry from the sappfpar regarding ipc/shm_psize_10 or ipc/shm_psize_40 . (For example
ERROR: Size of shared memory pool 40 too small )
Memory Administration and Sizing of the Pools
The shared memory pools in all the kernel versions are normal shared memories, therefore there is no size restriction for them.
However, the administration inside the pools handle the different memory keys still with a 32bit model (since it has to be
compatible with 32bit executables which will have to attach to pools from outside). This characteristic leads to problems
whenever the shared memory pool sizes grows biggrer than 2GB, since some of the shared memory keys inside the pool will
share the same memory spaces, causing a system crash.
In case a shared memory pool needs more than 2GB of space since some of the areas contained inside it are occupying a huge
space, These areas must be located outside of any memory pool as described in the SAP Note 1137734. This will make sure
information can be written in the segment without corrupting the next memory area and therefore the system can still work
correctly.
Related Content
Related Documents
Adjusting Pool Sizes

SAP Note 2085980: New features in memory management as of Kernel Release 7.40
SAP Note 1998242: Changes about Roll area from SAP_BASIS 7.40 SP2
SAP Note 88416: Zero administration memory management for the ABAP server
SAP Note 1137734: Assignment of memory areas, shared memories, and pools
TSV_TNEW_PAGE_ALLOC_FAILED
1/31/2024
Before reading this page
You may nd official documentation in SAP KBA 2180736 - TSV_TNEW_PAGE_ALLOC_FAILED
Purpose
This document's intent is to help customers with the analysis and resolution of the TSV_TNEW_PAGE_ALLOC_FAILED shortdump, which is not
an error or bug in the software but purely related to customizing of resources on the SAP application server. This guide will help you to analyze
every occurrence and to conclude what team needs to be involved in the further steps of troubleshooting.
Overview
First and foremost, we have to keep in mind that this shortdump will be raised in one of the following scenarios:
1.
A single work process attempts to allocate more memory than it is allowed (alone). System protection mechanism. Current system load is irrelevant.
2.
System is busy and there are lots of processes requesting memory. In this scenario, the current memory usage is high. As soon as the very next work
process requests an amount that crosses the threshold of the global total of memory, we have the shortdump.
Analysis of scenario #1:
The required analysis begins in the ST22 transaction where more information on the dump can be checked. Once in ST22, select the desired
occurrence of TSV_TNEW_PAGE_ALLOC_FAILED and scroll to the "Memory consumption" area. This area reports the memory usage at the time
of the dump. We have below one example of such information (please be aware that the dots were added in fields "EM" and "Heap" for education
purposes):
The shordump information for this occurrence in specific, tells us that the process has used 2 GB of extended memory
Memory
(EM) plus 2 GB of heap memory (Heap). We then conclude that at the time of the dump, a little bit more than 4 GB of
consumption
memory was being used by the process, which failed as no more memory could be provided.
Roll.... 0
EM......
2.000.000.000
Heap....
2.000.000.000
Page....
16384
MM used.
1157760496
MM free.
2294495840
With the following information in mind, we have to check what are the current memory parameters related to the values that we just saw. One way to
do it, is through transaction ST02. From ST02, you can click twice on "Extended memory" field and then "Current parameters". On that screen, we
are interested in the following parameters (please be aware that the dots were added for education purposes):
Looking at these parameter's values brings us to conclude that the process that
1/31/2024
Memory settings raised the shortdump could successfully allocate the full assigned memory quota for
Extended memory "ztta/roll_extension" and assigned quota for HEAP memory which
em/initial_size_MB... 12.000 can break into one of the two following parameters: "abap/heap_area_dia" for a
ztta/roll_extension.. 2.000.000.000 dialog process OR "abap/heap_area_nondia" for a non dialog one. See specific
abap/heap_area_dia... 2.000.000.000 parameters / platform below.
abap/heap_area_nondia 2.000.000.000
abap/heap_area_total. 4.000.000.000
If the work process could allocate all of the amount available for a single process, for both EXTENDED MEMORY and HEAP areas and yet failed,
we can conclude that this case fits into scenario #1 described above.
Analysis of scenario #2:
Lets assume the same dump happened and we are heading for the analysis just as in the previous example. This is what we see in the consumption
area:
Now we have a slightly different scenario. We already know that a maximum of 2 GB of extended memory is available for
Memory
that process but still it has dumped after having used only 1 GB. The only explanation would be that there are no other
consumption
1GB available for the application server as a whole.
Roll.... 0
EM......
1.000.000.000
Heap.... 0
Page....
16384
MM used.
1157760496
MM free.
2294495840
In order to confirm/ rule out that assumption, we move the analysis once again to ST02 transaction. Our focus is once again on the SAP MEMORY
tab. We look now to the "Extended memory" field where simple by relating the two fields "MaxUse" and "In Mem", its possible to confirm that, at
least once in the current uptime, all of the extended memory was used. Assuming that it was our dump the responsible, the current Extended memory
of the instance was around 11GB (from the 12 GB available) and our program has allocated just the 1GB that not yet taken.
SAP MEMORY Curr.Use % CurUse[KB] MaxUse[KB] In Mem[KB]
Page area 0,12 308 11.512 131.072
Extended memory 14,69 1.679.360 12.000.000 12.000.000
Heap memory 0 100.509 0
That would be a perfect example of scenario #2.
Operating System Speci cs
The quota of extended memory EM per platform is defined by:
AIX (ES/TABLE = SHM_SEGS)
1/31/2024
ztta/roll_extension: Defines the quota of extended memory (EM) in the excerpt above. If the value shown in the dump for EM is much lower than
this parameter it is generally because the total amount of EM that can be allocated by ALL sessions of an application server has been reached. This
can be confirmed in transaction ST02. For additional AIX memory parameters, see SAP Note 789477.
Linux / Windows (es/implementation = map )
ztta/roll_extension;
em/address_space_MB: This parameter specifies in MB the size of the address space that is provided for the memory class "Extended Memory" in a
work process. Therefore, it should be set higher than ztta/roll_extension.
For additional information regarding memory management on Linux with MAP implementation, see SAP Note 386605.
For additional information regarding memory management on Windows, see SAP Note 88416.
Other UNIX platforms (ES/TABLE = UNIX_STD implementation)
ztta/roll_extension: see case "a".
For additional information regarding memory management on Linux 64 bit (ES/TABLE = UNIX_STD), see SAP Note 941735.
The quota of Heap memory is set by the following parameters:
abap/heap_area_dia Heap memory quota (HEAP) for dialog work processes.
abap/heap_area_nondia Heap memory quota (HEAP) for non-dialog work processes
abap/heap_area_total Heap memory quota all work processes can allocate in total
On all operating systems (i.e. Heap parameters are operating system independent).
abap/heap_area_dia: Heap memory quota (HEAP) for dialog work processes.

abap/heap_area_nondia: Heap memory quota (HEAP) for non-dialog work processes.
abap/heap_area_total: Heap memory quota all work processes can allocate in total.
Memory quotas can be increased temporarily (on the fly) without restarting the system by running program RSMEMORY. For details, refer to The
rsmemory Report. If the system is a production one, this could be the best way for already known programs consuming memory quotas.
The total Extended memory available is set by the parameters:
a) AIX (ES/TABLE = SHM_SEGS)
EM/TOTAL_SIZE_MB: This parameter limits the TOTAL amount of Extended Memory that can be allocated by ALL sessions of an application
server.
b) Linux ( es/implementation = map ) and Windows:
em/max_size_MB: This parameter limits the TOTAL amount of Extended Memory that can be allocated by ALL sessions of an application server.
1/31/2024
c) Other UNIX plaforms (UNIX_STD implementation):
em/initial_size_MB: This parameter limits the TOTAL amount of Extended Memory that can be allocated by ALL sessions of an application server.
As of kernel 7.40, availability of Zero Administration Memory Management is available for all platforms (see SAP Note 2085980).
Conclusion
In any of the below described cases, where it is confirmed that the memory mechanism works as designed, it falls to the application team (SAP or
customer's) to analyze the abnormal memory consumption. Most of the times it's possible to increase the memory quotas up to a certain threshold
with no depth understanding on the requirements of the associated application but this is entirely a system admin's call to make. In case the affected
program is indeed custom made and the parameters were already tuned (meaning that no more memory will be spared) then the customer team which
developed the application should perform this analysis.
Related Content
Platform-Specific Description of Memory Management
Related Documents
ztta/roll_extension_dia: EM Quota for Dialog Processes

abap/heap_area_total: Total Quota for Heap Memory
abap/heap_area_dia: Heap Memory Limit for Dialog Work Processes
Error CSS Stylesheet macro - URL 'https://fonts.googleapis.com/css?family=Luckiest+Guy' is not on the allowlist. If you want to
include this content, contact your Con uence administrator to request adding this URL to the Allowlist.
sappfpar "check" option reviewed
Purpose
This page aims to clarify each the tests that are made by sappfpar "check" function.
Overview
The sappfpar is a standalone program used by checking SAP con guration and make tests validating customer scenarios.
Besides multiple options the program can evaluate, the option "check" from sappfpar runs a range of tests and veri cation on
SAP parameters, de nitions, and memory con guration. The most recent release of sappfpar (as from kernel 749) improve
some old veri cations and also include additional ones that are illustrated above.
Detailed function overview

The header of the output returns additional details about the SAP kernel release, patch level, Operating System and Memory
Management implementation. Each OS has its own SAP memory implementation that can be split into 2 or more different
implementations.
1/31/2024
================================================================
== Checking profile: <profile file path>
== SAP Release 7760
== SAP Patch 0
== System ID 390 (AMD/Intel x86_64 with Linux)
== ES Implementation std
================================================================
All of the additional checks will use its own headers to report the action and what is being checked. The analysis made by the
function is an overview of all manually con gured parameters and, in the end, we have the memory speci c analysis.
The metadata check validates the value that each parameter is currently set. For each parameter, SAP de nes ranges or values
and if the current parameter con guration does not follow the recommendation, a warning is triggered and the warning counter
increase/
Metadata Parameters Analysis

================================================
***WARNING: Parameter abap/heap_area_total = 0
Parameter value out of range (20000000 1024000000000)
Based on speci c requirements, some parameters will need special de nitions besides the default size in use (Kernel 777 only).
This is a special parameter analysis based on note 2757220. This check creates warnings.
Special Parameters Recommendations

================================================
***WARNING: Kernel default is no longer recommended. Note 2757220: auth/check/calltransaction = 2,
This option will check all parameters that are de ned multiple times. Multiple de nitions are considered errors as could lead to
mask con guration and, during system troubleshooting, lead to wrong conclusions.
Parameters Redefinitions
================================================
***ERROR DIR_INSTANCE defined 2 times in /net/usr.work/I822853/runsap/CGK_ALX/profil_gen.txt
***ERROR abap/buffersize defined 2 times in /net/usr.work/I822853/runsap/CGK_ALX/profil_gen.txt
This returns parameters classi ed as unknown that are parameters not de ned in sapparam project, this means "non-official"
parameters. Note that these unknown parameters may work only to few speci c kernel releases and these warnings returned
by sappfpar does not mean that the parameters are not "valid" for the kernel releases running on the system. The function also
returns obsolete parameters that are not really valid for your kernel release. For obsolete parameters, the component
responsible by it is also returned on the output.
Unknown and Obsolete Parameters

================================================
***WARNING: unknown parameter: enq/client/serverinst =10
***WARNING: obsolete parameter: eu/iwb/help_type =1
component: KM-KW
1/31/2024
There are SAP parameters de ned by formulas in SAP kernel. These are parameters where its required/recommended size
depends on a combination of other parameters. These are considered formula based parameters. If the current size does not
follow the output of the expected formula, a warning is triggered.
Formula Based Parameters

================================================
***WARNING: Formula parameter: abap/buffersize = 1000000 found in c:\MakeSap\local_R3_NTAMD64\ALX\p
This is an additional check from the previous one where the formula based prints the default size based on the formula and the
current size of the parameter if it diverges.
Parameter changes if default formulas would be used:

================================================
EM/TOTAL_SIZE_MB: 10240 --> 11166
ES/SHM_SEG_SIZE: 4102 --> 4096
abap/buffersize: 350000 --> 2289664
abap/cov_buffersize: 75264 --> 95126
Additional Memory and OS Specific Checks

================================================
----------------------------------------------------------------
***WARNING: Unexpected value found: abap/heap_area_total = 0
SOLUTION: A wrong setting of abap/heap_area_total may increase
the consumption of memory at Operating System level
----------------------------------------------------------------
----------------------------------------------------------------
***ERROR: Unexpected value found: abap/heap_area_dia = 0
The estimation of Heap worst case will not be precise
SOLUTION: The whole Operating System memory may be consumed by
dialog work process. Configure the parameter abap/heap_area_dia
----------------------------------------------------------------
This is a summary of shared pools. Here we can see the size estimated by SAP kernel to each pool that is the size initialized.
The following view disposes of the shared key inside and outside of the pools. Is it also possible to see the size
required/calculated for each key.
Shared Memory Disposition Overview

================================================
Shared memory pools
Key: 10 Pool
Size configured.....: 160000000 ( 152.6 MB)
Size min. estimated.: 157122000 ( 149.8 MB)
Advised Size........: 160000000 ( 152.6 MB)
Key: 40 Pool for database buffers

Size configured.....: 1800000000 (1716.6 MB)
Size min. estimated.: 1796107716 (1712.9 MB)
Advised Size........: 1800000000 (1716.6 MB)
Shared memories inside of pool 10

Key: 11 Size: 600000 ( 0.6 MB) Factory calender buffer
Key: 12 Size: 6000000 ( 5.7 MB) TemSe Char-Code convert Buf.
Key: 13 Size: 60500000 ( 57.7 MB) Alert Area
Key: 14 Size: 40000000 ( 38.1 MB) Presentation buffer
Key: 16 Size: 21360 ( 0.0 MB) Semaphore activity monitoring
Shared memories inside of pool 40
1/31/2024
Key: 42 Size: 485602656 ( 463.1 MB) DB TTAB buffer
Key: 43 Size: 928001424 ( 885.0 MB) DB FTAB buffer
Key: 44 Size: 200641424 ( 191.3 MB) DB IREC buffer
Key: 45 Size: 118721424 ( 113.2 MB) DB short nametab buffer
Key: 46 Size: 160 ( 0.0 MB) DB sync table
Key: 47 Size: 3175424 ( 3.0 MB) DB CUA buffer
Key: 48 Size: 2760160 ( 2.6 MB) Number range buffer
Key: 49 Size: 7204020 ( 6.9 MB) Spool admin (SpoolWP+DiaWP)
Shared memories outside of pools

Key: 1 Size: 512 ( 0.0 MB) System administration
Key: 2 Size: 25417032 ( 24.2 MB) Disp. administration tables
Key: 3 Size: 243712000 ( 232.4 MB) Disp. communication areas
Key: 4 Size: 1042192 ( 1.0 MB) statistic area
Key: 6 Size: 372736000 ( 355.5 MB) ABAP program buffer
Key: 7 Size: 33376 ( 0.0 MB) Update task administration
Key: 8 Size: 267387380 ( 255.0 MB) Paging buffer
Key: 18 Size: 6788760 ( 6.5 MB) Paging administration
Key: 20 Size: 78634094 ( 75.0 MB) New Table buffer tbi
Key: 21 Size: 8951952 ( 8.5 MB) Request Queue Admin
Key: 23 Size: 446401424 ( 425.7 MB) DB-TLOB-Buffer
Key: 30 Size: 9328 ( 0.0 MB) Taskhandler runtime admin.
Key: 41 Size: 25010000 ( 23.9 MB) DB statistics buffer
Key: 51 Size: 35000000 ( 33.4 MB) Extended memory admin.
Key: 52 Size: 180000 ( 0.2 MB) Message Server buffer
Key: 54 Size: 167276544 ( 159.5 MB) Export/Import buffer
Key: 56 Size: 535528 ( 0.5 MB) Application statistics
Key: 57 Size: 1992294 ( 1.9 MB) Profilparameter in shared mem
Key: 58 Size: 2076 ( 0.0 MB) Enqueue ID for reset
Key: 62 Size: 23068672 ( 22.0 MB) Memory pipes
Key: 63 Size: 409600 ( 0.4 MB) ICMAN shared memory
Key: 64 Size: 4227072 ( 4.0 MB) Online Text Repository Buf.
Key: 65 Size: 4227072 ( 4.0 MB) Export/Import Shared Memory
Key: 73 Size: 60211232 ( 57.4 MB) CCMS Extended Alert Area
Key: 76 Size: 1185920 ( 1.1 MB) Ext. Segment Administration
Key: 77 Size: 8056 ( 0.0 MB) Ext. Memory Administration
Key: 78 Size: 4248 ( 0.0 MB) Ext. Global Memory Admin
Key: 81 Size: 35168 ( 0.0 MB) Security Audit Log
Key: 83 Size: 77070336 ( 73.5 MB) ABAP Coverage Analyzer
Key: 85 Size: 53240 ( 0.0 MB) ACM Trace and others
Shared memory resource requirements estimated

Total Nr of shared segments required.....: 34
Nr of shared segments successful tested..: 100
Shared memory segment size required min..: 1800000000 (1716.6 MB)
Currently available maximum segment size.: 34359738368 (32768.0 MB)
R/3-imposed maximum segment size.........: 21474836480 (20480.0 MB)
This is a summary of memory required from OS level. The summary splits the results into memory areas like shared memory,
OS heap memory (processes) and the Extended Memory. It also creates a "worst case requirement" overview.
Memory Space Requirements Estimated *

================================================
Shared memory....................: 3923 MB
Extended Memory .................: 5600 MB
SAP Heap Memory .................: 8000 MB
Gateway process .................: 95 MB
ICM process .....................: 195 MB
All Processes ...................: 1660 MB ( 13 WPs)
------------------------------------------------
Total, minimum requirement........: 11183 MB
Process local heaps, worst case...: 9660 MB
Total, worst case requirement.....: 19183 MB
* These are only estimated values,

final sizes may change
** Shared Pools are automatically

calculated by Kernel
1/31/2024
The last information is about the number of Errors and Warnings detected.
================================================
Errors detected..................: 1
Warnings detected................: 54
================================================
Related Content
Related Documents
2693275 - sappfpar "check" option xes
2777079 - sappfpar "check" option memory analysis information
SAP Message Server
Management
icmbnd on Message Server
Troubleshooting
Kernel incompatible to already connected instances
START_CALL_SICK - can't establish connection to message server
1/31/2024
64015 - Description of test program lgtst
1250737 - SMMS: Trace le dev_ms could not be opened
636938 - Description of msprot test program
916398 - HTTP access control for message server
Useful Tools
msmon Monitoring Program
F.A.Q.
How to control the HTTP(s) Message Server access
What is the HTTP(s) Message Server Port
Is it possible to bind Message server ports to speci c interfaces?
Message Server - Frequently asked questions (FAQ)
How to control the HTTP(s) Message Server access?
It is possible to create access control creating an access list using the parameter ms/permission_table.
WIth this list you can de ne who can access the informations provided by Message Server and also who cannot access.
Further details over note 916398.
916398 - HTTP access control for message server
It is possible to limit the size of trace les using the parameter rdisp/TRACE_LOGGING. Details about how to setup this
parameter in SAP note 112.
112 - Trace and error information in the "dev_" les
With SAP kernel 72X the traces are rotated by speci c triggers that occurs in speci c time intervals, however, these time
intervals may vary depends of the component or even the action a work process is doing. In some speci c situations the trace
can increase further than the size set in the parameter.
With 74X kernel the rotation are much more precise avoiding the traces to grow much more than the speci ed.
1/31/2024
See also:

2020096 - How to increase sapstartsrv trace level and limit the trace le size
What is the HTTP(s) Message Server Port?

The HTTP(s) Message Server port is con gured by the parameter ms/server_port_X.
Another way to identify the HTTP(s) port is checking the dev_ms trace le:
[Thr 123456789] set HTTP state to LISTEN

[Thr 123456789] *** HTTP port 8101 state LISTEN ***
Is it possible to bind Message server ports to speci c interfaces?

It is possible to choose speci c interfaces to bind message server's HTTP(s) ports only, de ned via parameter
ms/server_port_X.
MS server ports 36xx and 39xx are automatically bound to all interfaces (e.g. 0.0.0.0:36xx)
Is it possible to reload the the message server ACL le in runtime from the OS level
(e.g. using MSMON program)?
It is not possible.
Such feature does not exist for security reasons. The only way to reload the message server ACL contents at runtime is via
transaction SMMS (message server monitor).
icmbnd on Message Server
Purpose
You want to use icmbnd program on Message Server.
Overview
Parameter 'ms/server_port_<xx>' can be used in the Message Server port/service speci cation for a protocol. It can open
multiple ports, while the number <xx> must always be different.
This parameter must be set in the pro le of the instance where the message server is located.
Description
This parameter has the following syntax:

ms/server_port_<xx> = PROT=<protocol name>, PORT=<port or service name> [, EXTBIND=1, HOST=<host name>,
VHOSTIDX=n, TIMEOUT=n, PROCTIMEOUT=n]
The Message Server reads until it nds no more pro le parameters 'ms/server_port_<xx>' to
the next number. The maximum number of ports is limited by the 'http_max_ports' parameter.
Only PROT=HTTP or PROT =HTTPs are allowed for the protocol eld.
1/31/2024
Optional parameters:
EXTBIND = 1, so that port is bound using the program icmbnd. This allows in UNIX to also bind
ports <1024, for which the message server normally does not have permission.
HOST =<host name>, the port is only bound to this IP address.
VHOSTIDX = n, number of virtual hosts for this port.
TIMEOUT = n, maximum idle time for an HTTP requests, unless the value of the parameter
'ms/http_timeou't is speci ed. 'ms/http_timeout' sets the timeout for HTTP and HTTPS
requests.
PROCTIMEOUT = n, maximum processing time for an HTTP request, unless the value of the
parameter' ms/http_proctime' is speci ed.
This parameter replaces the 'ms/http_port' and 'ms/https_port' parameters that were used previously.
While the Message Server is running, ports can be con gured in the message server monitor.
This pro le parameter 'ms/server_port_<xx>' can be dynamically maintained in transaction "SMMS", Menu path Goto >
Parameters > Change.
A port/service can also be de ned or removed without restarting the Message server with transaction “SMMS”, Menu path
Goto > Services.
Related Content

421359 - ICM: Binding ports < 1024 on UNIX
540379 - Ports and services used by SAP
1513530 - Icmbnd issues with message server
SAP Miscellaneous Information
The root page SUPSI:@self could not be found in space Product Support BTP - Core Platform Services.
1/31/2024
Archive Development Kit BC-CCM-ADK
Purpose
Welcome to the Archive Development Kit WIKI page (components BC-CCM-ADK and BC-CCM-ADK-AS) . The purpose of this
page is to provide informations regarding the behaviour and common issues related to data archiving (transaction SARA) and
archive information system (transaction SARI).
Please note, that this wiki page is not related to ArchiveLink service. Regarding ArchiveLink visit the following wiki page .
Overview
You can use the data archiving functions to archive any completed business transactions that are no longer relevant for your
daily operations. You store the archived data in archive les to which the system has read-only access. Archiving Objects de ne
which data is to be bundled into completed business objects in data archiving and which archiving programs are to be executed.
From a technical point of view, data archiving from ABAP application system is based on the archiving objects of the Archive
Development Kit (ADK).
Related KBAs Important SAP Notes Related blogs
MESSAGE_TYPE_X dump with

1667078 35992 error message BA008 occurs
while data archiving
- Store step of data archiving fails - Application archiving le Related Documents
with error BA111 and BA194 or with names/directory For general info check online
dump help.
MESSAGE_TYPE_UNKNOWN
For standard training in relation
to data archiving check available
courses like:
53068
- Copy archived data into BIT660 - Data

1736010 Archiving
other systems
- Program PPARCHA1 cancels with BIT665 - Information
Lifecycle
"P_ORDER does not contain
Managment (SAP
structure J_3ABSSI / NetWeaver ILM)
J_3ABUNDL"
460620 BIT670 - Data
Archiving & ILM -
- Migrating archive les Programming
Data Volume Management
1738672 SAP Data Volume Management

(DVM) can help customers
control the growth rate and
1/31/2024
- MESSAGE_TYPE_X dump - 577847 existing sizes of their systems.

For more information, check
Message number "Q6 220"
- Optimizing data archiving following KBA:
2243625
- Data Volume Management -

SAP Enterprise Support
1774768
597646
- "Archive File Not Accessible" is
- Deleting retrieved archive
seen for Archive Files in the Also you can participate on the
les (Report
DVM
Archive Administration
RSARCH_LIST_RETRIEVED)
Jam page
Here you can nd

1780241
671421
DVM introduction video
- How to create an Information
- FAQ: Archive Information
Structure in the Archive
System
Information System
697317
1791466
- Changing database index f.
- How to avoid running out of
info structure w/o
available le names when
reconstruction
archiving
781802
1791628
- Resetting number ranges
- Write job for MM_EINA archive
after archiving data
object cancels with error BA 048
921206
1796922
- Statistics: Tables with elds
- How to mark archive sessions for
of type LRAW and LCHR
deletion by the BC_ARCHIVE
object
1/31/2024
1495178
1875430 - Filling and emptying

archive infostructures acc.
- How to determine if the variant
to date
for the archive delete program is
set correctly
1871681
1891105 - Data archiving: Data

objects larger than 2 GB
- Error "BA 164" "Free space in %
cannot be determined at present"
1918417
1899424 - Checking and verifying

archive les
- Error "BA 354- Error determining
the selection parameters- object-
BUS2000110" in check job
2003678
- ADK: Database-based
1900309 statistics
- HowTo- Archiving ArchiveLink

connection entries from tables
Related Wikis
TOA01, etc. for Business
documents and TOADL for Print How to nd suitable application area for a
data archiving issue
lists and Logging tables
Assignment of Archiving Objects to
Application Components
Informations about AIS (Archive

Information System)
Related Transactions
1907539 SARA: Archive Administration
- Archive write program causes SARI: Archive Information System -

SAPSQL_ARRAY_INSERT_DUPRECMaintaining eld catalogs, information
dump in relation with table structures; accessing the Archive Explorer
ADMI_VARIA AS_AFB: Archive File Browser - Where

content of archive les can be checked
1/31/2024
DB15: Data Archiving: Database Tables - To
nd tables for an archiving object or vica
versa
1919283
- Reload option for an archiving

object
1934522
- BA354 "Error determining the

selection parameters..." message
occurs while executing check
program ARCDEL_VERIFY_PARA
in SARA
1936505
- Error BA308 "Jobs of type XXX

cannot be released" occurs while
executing an archiving step in
transaction SARA
1936642
- Archive write step results error

message BA302 "Archiving
session &1 was interrupted when
total le size &2 was reached"
1954602
- Error Q6071 "Table ... does not

match infostructure..." occurs
1/31/2024
while archiving data via

transaction SARA
1983684
- How to resolve error BA 161-

Operating system message- No
such le or directory
1987072
- How to De ne a Server Group for

Archiving
1990075
- How to automate the archive

delete program to execute after
the end of the archive write
program
2024409
- Error BA123 (Structure is not

known in the ABAP Dictionary)
occurs while executing write
program of archiving object
BC_ARCHIVE
2093604
1/31/2024
- Dead lock happen when parallel

archive job running
2170671
- Error DB607 occurs in joblog

while archiving data with archiving
object CV_DVS via transaction
CG50
2179637
- Performance problem when

accessing infostructure tables
2222074
- Collective informations regarding

Archive Development Kit (ADK)
and Archive Information System
(AIS)
2439376
- How to interrupt/pause archive

write jobs with possibility to
continue them later
Error Free space in XXX cannot be determined at present occurs
See the following KBA:

- Error BA164 "Free space in % cannot be determined at present" occurs while using "Archive Directory" in SARA
1/31/2024
How to nd out the relevant area in case of a Data Archiving issue
Purpose
Providing information how to nd the most suitable area while having a Data Archiving issue.
Overview
While data archiving via transaction SARA/SARI problem/error occurs. It is important to nd the most suitable
area/component for the issue to be able to narrow down search criteria or to chose component in case customer incident
needs to be opened. The following wiki page shows a list of archiving objects and corresponding application areas/components.
Generally this list helps in most cases to identify the suitable component.
However it is not always easy to nd out the correct area/component for the occured problem, and sometimes it is only
possible after a deep analysis. Checking some data/attributes in system can help to better narrow down the involved area.
For Guided Answer version of this content, check following link.
Archiving data via transaction SARA

1. Introduction
As a starting point it needs to be mentioned, that archiving object de nition with all it's settings and con guration can be
found in transaction AOBJ.
After clicking on the appropriate archiving object (for example on BC_DBLOGS), the inital screen comes up which also
shows all the the archiving object speci c programs.
If in transaction SARA a write step/job is executed for archiving object BC_DBLOGS, the write report maintained in
transaction AOBJ will be executed, for BC_DBLOGS this write report is BC_DBLOGS_WRI. (This process is the same for
the other archive steps: delete, reload, preprocessing, postprocessing and also for read)
2. It needs to be identi ed, in which archiving step the error occured
There can be several steps during data archiving. In each step different program is executed:
1. Archiving object dependent programs, such as write, delete, reload, preprocessing, postprocessing and read
program (which can be checked in transaction AOBJ under "Read Programs" of an archiving object)
2. Archiving object independent programs: store, retrieve
3. After identifying the step, the relevant area/component can be checked
1. Archiving object dependent programs:

Archiving object and archiving object dependent programs are delivered by the relevant application. The relation
between archiving object and application area can be found here.
1/31/2024
Checking our example, according to this note the application area for archiving object BC_DBLOGS is BC-CUS-
TOL-ALO. This means all archiving object related programs are delivered also by the appropriate application area
(e.g. write program BC_DBLOGS_WRI belongs to BC-CUS-TOL-ALO also).
If archiving object is not listed here, check point 5.
So if any error/problem occurs while executing archiving object dependent programs (write, delete, reload,
preprocessing, postprocessing, index build, index delete), generally the relevant application is responsible. The
found application area can also be used for searching solutions (Notes, KBAs, etc.).
2. Archiving object independent programs:

These programs (store, retrieve) are general programs used by all archiving object, and they belong to
application area BC-CCM-ADK.
4. Exceptions for point 3
Exceptions can exist for identifying relevant application area. If any archiving object dependent program is executed
(mainly in background as a job) and error message with message class BA* or Q6* occurs, it could be related to a data
archiving modul:
Message class BA* : application area BC-CCM-ADK
Message class Q6* : application area BC-CCM-ADK-AS
(Message classes can be checked in transaction SE93. Here choosing "Attributes" under
"Subobjects" and double clicking on "Package" the relevant application area can be found)
5. Identifying application area if archiving object is not listed in wiki page or if program name is known
If archiving object is not listed in above page, relevant application area can be checked for example via the application
area of the executed program:
1. Call transaction SE38
2. Enter the appropriate program (as an example BC_DBLOGS_WRI)
3. Choose "Attributes" under "Subobjects"
4. Double click on "Package" (in our example STAB)
5. Check value of "Application Component" (in our example BC-CUS-TOL-ALO)
1/31/2024
6. Question regarding how to archive entries from a speci c table
Regarding how to archive entries from a speci c table, always the corrresponding application is responsible:
1/31/2024
1. In transaction SE11 enter the name of the database table and click on button "Display"
2. Go to tab "Attributes" and double click on package
3. Field "Application Component" contains the relevant component
It is also possible to nd out whether archiving objects exist for a speci c table, which are also considering the entries of
this table:
1. In transaction DB15 choose checkbox "Archiving Objects"
2. In eld "Objects for Table" enter the speci c table
3. As a result all archiving objects will be displayed which are considering this table in any way during archiving with
the archiving object
7. Database table size/space not decreased (reduced) after successfull data archiving
If data archiving was succesfull - e.g. the neccessary archived business data were correctly deleted from corresponding
database tables - and size/space of these involved tables are still not decreased/reduced, it indicates to check the
situation from database point of view. Certain databases need additional steps (reorganization, etc.) to adjust the
size/space after huge amount of data was deleted.
The used database of the SAP System can be checked as follows:
Menu: System > Status > Database System
The databases have their own components within SAP: BC-DB* (for Oracle, ); HAN-DB*
(for Hana database)
8. Question regarding how to dispaly archived data in application transaction/program (so outside of SARA/SARI)
Whether archived data can be displayed in an application transaction/report and how this can be achieved and what are
the prerequisites, is to be checked at application side and not at ADK level. To nd out the application, check component
of
1. the transaction (via tr. SE93 >> Package >> Application Component)
2. the report (via Tr. SE38 >> Attributes >> Package >> Application Component)
3. the archiving object here
Archive Information System (Infostructure/ eld catalog) issues

1. Infostructure or eld catalog is inconsistent
The main transactions of Archive Information System are SARI (Central Management) and SARJ (Archive Retrievel
Con gurator).
Standard elds catalogs and infostructures are delivered by the application. If there is any inconsistency in relation to
standard (and unchanged) eld catalogs or infostructures, the relevant archiving object can be determined as follows:
Infostructure
1. Call transaction SARJ
2. Enter infostructure in eld "Archive Infostructure"
3. Button "Display (F7)"
4. Check eld "Archiving Object"
Field Catalog
1. Call transaction SARJ
2. Choose menu "Environment >> Field Catalogs"
1/31/2024
3. Search for eld catalog and choose column "Archiving Object"
After archiving object is determined, check the list for relevant application area.
2. Filling or Deleting (Emptying) Infostructures based on standard delivered eld catalog
Filling (program RSAINDBU) or deleting infostructure (program RSAINDDL) mainly belongs to application area BC-CCM-
ADK-AS.
3. Standard Infostructure/Field Catalog does not exist for an Archiving object
Based on the archiving object check list for relevant application area.
4. Displaying archived data via transaction SARI using Archive Explorer
If lled infostructure exist for an archiving object, the data can be displayed via transaction SARI with option "Archive
Explorer". By double clicking on an archive business document a popup might comes up where the desired display
function can be selected, like:
1. Technical View
2. Display Originals
3. DRB: ....
4. etc.
If "Technical View" does not work as expected, the area/component is BC-CCM-ADK-AS.
In all other cases the application is responsible to display the data. To nd out the relevant area/component follow the
steps:
1. Call transaction SE16 and choose table AIND_STR5
2. Enter the appropriate archiving object and click on "Execute"
3. The available display functions with corresponding function modules will be listed. From this list choose the
function module which is linked to the problematic display function
(for "Technical View" no function module will be displayed which is the standard setting)
4. Go to transaction SE37, enter the function module name and display it
5. In tab "Attributes" double click on the package and check the eld "Application Component"
Related Content
Related Documents
Archive Development Kit online help for SAP Netweaver 7.3
Archive Developmen Kit (ADK) wiki page
__________________________________________________________________________________________________________
1/31/2024
Assignment of Archiving Objects to Application Components

This document contains all available archiving objects delivered by SAP as of April 2016 and their corresponding application
component. This list will be updated when required.
It replaces note 102446: Archiving objects - Application areas of customer messages that will not be maintained any longer.
Instead the note will point to this Wiki page on his part.
Please note that not all archiving objects are listed by their names. If possible objects with the same pre x belonging to the
same application component are summarized to the pre x with a closing wildcard (e.g. FIBA_*)
Exceptions from this summarization are listed beneath the summary entry, e.g.
/IDEXGE/* IS-U-LIB-DE-EL
/IDEXGE/RD IS-U-IDX
Attention: HR archiving objects (i.e. all archiving objects that belong to Personal Administration (PA), Personnel Time
Management (PT) or Payroll (PY) are listed in a separate table:
Assignment of HR Archiving Objects to Application Components
/2ABCD EFGHIJKLM NOPQRSTU VW
Text Topic
Object
/AARE/* Accounting Rules Engine XX-PROJ-CDP-280
/AIF/PERSX Archiving object for the AIF XML persistency CA-GTF-AIF
/AIN/ARCH Archiving Object for SAP Auto-ID Infrastructure AIE-AII
/BA1/P1_RD Bank Analyzer: Processing Framework Runs (PA) FS-BA-AN-PA
/BA1/P4_DT Bank Analyzer: Rule Entries of Derivation Tool FS-BA-TO-DE
/BA1/P6_BD BA: Basic Data for Customer Migration Analysis FS-BA-AN-PA
/BA1/P6_RD Bank Alyzer: Result Data From Cust. Migr. Analysis FS-BA-AN-PA
/BEV4/* Pendulum List SD-BIL-RB-PL
/BOFU/* Example of Archiving BOPF BO CA-EPT-BRC
/BSNAGT/AO BSNAGT object for Archiving les LOD-FSN-AGT
/CCEE/LOHR Archiving Object for E-Invoice Croatia Fisc FI-LOC-LO-HR
/CDPRLDB/F Read Logging : GUI / RFC / Web Services XX-PROJ-CDP-020
/CPD/MC_* Milestone Checklist /CPD/MC_BO
/CPD/PFP_P Plan Header CA-CPD-FP
/CPD/PWS_M Master Projects CA-CPD-WS
1/31/2024
/CPD/RM_* Risk Management CA-CPD
/CUM/* Compatible Units Management PM-WOC-MO-CUM
/CYT/* Capital Yield Tax Management FS-CYT
/DBM/* Dealer Business Management IS-A-DBM
/DSD/DEX DSD: Archiving object for DEX streams LE-DSD
/DSD/SL DSD: Archiving Object for Settlement Documents LE-DSD-RA-SL
/DSD/VC DSD: Archiving Object for Visit List LE-DSD-VC
/FAAM/* Asset Lifecycle Accounting FI-AF-ALA
/FATCA/01 Archiving for Tax Compliance Classi cation Logs FS-FBS-TXC
/FMP/* Catch Weight Management IS-CWM
/FOM/ARO Archiving object for ARO FI-AF-ARO
/FSCBM/* Checkbook Management FS-AM-CBM
/FSPD/* Payment Distribution FS-AM-PD
/GSINS/* Financial Services Localization FS-CM-LC
/IAM/* Generic IAM Engine CA-IAM-ENG
/IBS/CY_IT OBSOLETE FS-CYT
/IDEXGE/* Germany - Electricity IS-U-LIB-DE-EL
/IDEXGE/RD IDEX-GE: REQDOC IS-U-IDX
/ISDFPS/CD Change Documents: Distributed System Landscape IS-DFS-BIT-DIS
/LOGWIN/ET Archiving for External Log XX-PROJ-CDP-ACS-007
/MRSS/* Multi-Resource Scheduling CA-MRS
/OSA/STATU Archiving OSA Status Log MOB-APP-OSA
/PE1/* Payment Engine FS-PE-ARC
/PICM/* Commercial Project Management CA-CPD-PCM
/PL9/* Process Object Type: POL CA-FS-POL
/PLMB/RCP Recipe Data in Recipe Development PLM-WUI-RCP
/PLMB/SID Archiving of PLM Authorization Runtime Tables PLM-WUI-APP-ACC
/PM0/* Policy Management FS-PM
/PMG/PPP FS-PM Premium Per Piece FS-PM
/POSDW/* POS CA-RT-CAR-PIP
/PRA/* Production and Revenue Accounting IS-OIL-PRA
/PREPAY/DC Archive Prepayment Documents IS-U-IDX
/SAPBOQ/01 Composite for service master record IS-ADEC-BOQ-SRV
/SAPCE/ADP Budget billing and Invoicing for Poland XX-CSC-PL-IS-U
/SAPCE/APM Archiving Object for IS-U Advance payment CZ/SK XX-CSC-CZ-IS-U
1/31/2024
/SAPCE/SB* Archiving ob Subsidy Data XX-CSC-XX
/SAPCE/TXV Archiving of Tax Invoice XX-CSC-UA-IS-U
/SAPPCE/DP Down Payment Chain FI-AF-DPC
/SAPPO/PPO Postprocessing Orders CA-GTF-TS-PPO
/SCMTMS/RA Rate Tables - Partial Archiving TM-MD-CM
/SCMTMS/SC Scale Items - Partial Archiving TM-MD-CM-CS
/SOIN/* Flexible Solution Billing SD-BIL-IV-CB
/SRMERP/SC Example of Archiving Shopping cart MM-PUR-SSP
/STTP/* SAP Advanced Track and Trace for Pharmaceuticals IS-PHA-ATT
/TMRU/CTR Business Documents for CargoTransportationRequest TM-LOC-RU
/TXINTF/TD SETI: Tax Documents XX-PROJ-CDP-090
/TXS/* Funding Management FS-TXS
/UIM/MSK Archiving Object for UI Masking XX-PROJ-CDP-266
/UTPFM/DA EPM Deal IS-U-EPM
/XNFE/* Communication Management & Monitoring SLL-NFE-MGM
^ TOP
Text Topic
Object
2001 Process Object Type: LoanQuoteVariant FS-XA-AO-LQV
2005 Process Object Type: NewLoanBoarding FS-XA-AO-NLB
2018 Process Object Type: DepositAccountClosure FS-XA-DPS-POT
^ TOP
Text Topic
Object
AC_TR_LOG Transaction Log Archiving GRC-AC
ADFSH_* Flight Scheduling IS-AD
ADS2KIP_AR Spec 2000: IP Data Archiving IS-AD-SPC-PR
AM_ACCOUNT OBSOLETE: Account FS-AM-ARC
AM_ASSET Asset - Master Data, Values and Transactions FI-AA-AA
AM_CARD Obsolete: Card FS-AM-ARC
AM_STEUER Asset - Control Tables FI-AA-AA
1/31/2024
ANALYSIS_A Object for Analysis GRC-RM
APPREQUEST IM: Appropriation request IM-FA-IA
AP_IBASE iBase: Archiving for Application Platform AP-MD-IBA
ARCH0817 Archiving Object for BUS0817 BC-SRV-ARL
ARCHIVELNK ArchiveLink Link Entries BC-SRV-ARL
ARCHIVELOG Archiving Object for Application Log ArchiveLink BC-SRV-ARL
ARCHIVELOP Archiving Object for Log Entry Print Lists BC-SRV-ARL
ARCHIVEPRI Archiving Object Print Lists BC-SRV-ARL
AS_TEST Test for the Archive Information System BC-CCM-ADK-AS
^ TOP
Text Topic
Object
BA1HM_HR Hedging Relationship in Hedge Management FS-BA-PM-HP
BA1_B0_* Bank Analyzer FS-BA
BA1_B1_* Bank Analyzer FS-BA
BA1_B6_BO Bank Analyzer: Balance Objects Manager FS-BA-AN-FSP-BO
BA1_B7_AT Bank Analyzer: Aggregration Transaction FS-BA-AN-FSP-AT
BA1_B8_GL Bank Analyzer: GL Connector FS-BA-AN-GL
BA1_F1_* Bank Analyzer: Primary Objects FS-BA-SD-PO-MSD
BA1_F2_* Bank Analyzer: Primary Objects FS-BA-SD-PO
BA1_F4_* Market Data CA-FS-MKD
BA1_F5_016 Bank Analyzer: Archiving of Generated Market Data FS-BA-SD-PO
BA1_FK_* Correction Services FS-BA-IF-CS
BA1_PFW_* Extraction & Reporting Services FS-BA-IF-ERS
BA1_R0_FVS Bank Analyzer: Detail Log for Fair Value Server FS-BA-PM-GM-PVC
BA1_R4_* Bank Analyzer: Result Database FS-BA-TO-RDB
BBP_* SRM Archiving SRM-EBP-ARV
BC_ARCHIVE Archiving of Archive Administration Data BC-CCM-ADK
BC_BCSET BC Set Archiving BC-CUS-TOL-BCD
BC_DBLOGS Archiving Changes to Customizing Tables BC-CUS-TOL-ALO
BC_E071K Archive E071K Keys BC-CTS-ORG
BC_HROBJ HR Object BC-BMT-OM
BC_LOIO Demo Archiving Object Logical Documents BC-SRV-KPR-DMS
1/31/2024
BC_SAL Security Audit Log - Log Data BC-SEC-SAL
BC_SBAL Archiving Object for Application Log BC-SRV-BAL
BC_SBOOK Example Archiving Object (ADK Archiving) BC-CCM-ADK
BC_SBOOK_T SAP internal test (XML Archiving) BC-CCM-ADK
BC_SBOOK_X Example Archiving Object (XML Archiving) BC-CCM-ADK
BC_SFLIGHT Demonstration Archiving Object Flight Booking BC-CCM-ADK
BC_STRUKT Test Object for Structure Archiving BC-CUS-TOL-HMT
BEA_* Royalty Accounting CRM-IM-IPM-RO
BKKPRENOTE Prenote IS-B-BCA
BNKCOM_ARC Bank communication archiving object FIN-FSCM-BNK
BP_TAXEXEM Archiving Object for BP Tax Exemption Process CRM-BF-TAX
BUDSUM Budget Totals Records in Funds Management PSM-FM
BWREQARCH Archiving of Request Administration Data BW-WHM-DST
^ TOP
Text Topic
Object
CACS* Comission Management ICM-TO
CATPROARCH CATT - Log/Procedure BC-TWB-TST-CAT
CATS_DATA Time Sheet Data CA-TS
CA_BUPA Archiving Business Partners AP-MD-BP
CA_DARTX XML-Based Data Retention Tool CA-GTF-DRT
CA_PACA Archiving Payment Cards AP-MD-BP
CA_PCA_SEC Encrypted Payment Card Data AP-MD-PCA
CA_SE16NCD Archiving Change Documents SE16N CO-OM
CA_SEPA Single Euro Payments Area (Mandate) CA-BK
CA_WFA_* Workforce Management Application CA-GTF-WFA
CCM* Customer-Interaction-Center CS-CI-CIC
CDOCS_CONT PLM CDOCS: Content PLM-DOC
CDTEST Test; Writing of Change Document Objects BC-SRV-ASF-CHD
CEM_RPH Rolling Purchase History CRM-EM
CFB_WL Food and Beverage Function: Weight Logs PP-PI-CFB
CHANGEDOCU Change Documents BC-SRV-ASF-CHD
CIAP CIAP Archiving Object LO-INT-TMF
1/31/2024
CML* Consumer and Mortgage Loans FS-CML
CMS_* Point of Sale CRM-CHM-POS
CMS_CEMI Entitlements Inbound CRM-EM
CMS_CEMO Entitlements outbound duelist CRM-EM
CMS_CI Channel Inventory CRM-CHM-CIM
CMS_RTCM Resale Tracking and Claim Management CRM-CHM-POS
CMX_* XSteps PP-PI-PMA
CM_QMEL Claims PS-CLM
COINT_TPOS Amount Allocation CO-OM
CONS_* Consolidation EC-CS-CSF-M
COPA* CO-PA CO-PA
CORRSPND Correspondence CA-GTF-COR
COUNTER Obsolete: FS-AM: Counter FS-AM-ARC
CO_* Overhead Cost Controlling CO-OM
CO_COPC Archiving Product Costing Data CO-PC-PCP
CO_FIXEDPR Fixed Price Agreements and Settlements PS-REV-TRF
CO_ML_* Actual Costing/Material Ledger CO-PC-ACT
CO_PR_EB Valuation alternatives CO-PC-ACT
CPROJECTS Collaboration Projects Archiving PPM-PRO
CRM_4SAPPL Social Application CRM CRM-BF-AR
CRM_4SSDP Social Deduction Plan CRM CRM-BF-AR
CRM_4SSRVP Social Service Plan CRM CRM-BF-AR
CRM_ACT_ON CRM Activity CRM-BF-AR
CRM_BILREQ CRM Billing Request CRM-BF-AR
CRM_CLACCR CRM Chargeback Recovery CRM-BF-AR
CRM_CLACPP CRM Claim Prepayment Request CRM-BF-AR
CRM_CLACSD CRM Claim Submission Document CRM-BF-AR
CRM_CLACSR CRM Claim CRM-BF-AR
CRM_CLM Call List Management Data CRM-CIC-CAM
CRM_COMP CRM Complaint CRM-BF-AR
CRM_COMPTX Composite Transaction CRM-BF-AR
CRM_DSMAGR CRM ISU DSM Agreement CRM-BF-AR
CRM_DSMAPL CRM ISU DSM Application CRM-BF-AR
CRM_DSM_PR Demand Side Management Program Archiving CRM-IU-DSM-PRG
CRM_EDR archiving object for edr CRM-IT-BI
1/31/2024
CRM_FM_BPO Budget Postings CRM-BF-AR
CRM_FM_DFP Dynamic Funding Plan CRM-FM-DF
CRM_FM_FND Funds Management - Funds CRM-BF-AR
CRM_FM_FNP Funds Plan CRM-BF-AR
CRM_FM_FPO Fund Postings CRM-FM-FPO
CRM_FM_FU Fund Usages CRM-FM-FU
CRM_FM_LRP Live Rates Plan and Planning Element CRM-FM-LR
CRM_FS_PFS Personal Financial Statement of a Business Partner CRM-IFS-FST
CRM_GAC Archiving for Grantor Claim CRM-BF-AR
CRM_GAG Service Contract CRM-BF-AR
CRM_GAP CRM Service Process CRM-BF-AR
CRM_GC Web Channel Gift Card CRM-BF-GC
CRM_GPM Grantor Program Archive Object CRM-IPS-MD-PRG
CRM_IBASE Ibase/Installations CRM-MD-INB
CRM_INCDNT IT Service Management Incident CRM CRM-BF-AR
CRM_IND_RT Relationship Table for Indirects CRM-MKT-MPL-TPM-IND
CRM_INTADJ Leasing: Evaluate Floating Rate Adjustments CRM-BTX-BF-FIN
CRM_IPM* Intellectual Property Management CRM-BF-AR
CRM_ISUPRO IS-U Archiving: CRM Pro les CRM-IU-S
CRM_ISU_CC Utilities check cockpit CRM-IU-XC
CRM_KA CRM Knowledge Article archive object CRM-BF-AR
CRM_LEAD Lead CRM CRM-BF-AR
CRM_LEAS* CRM FS Leasing CRM-BF-AR
CRM_MAC* CRM Multiple-Asset Contract CRM-BF-AR
CRM_MDFRES CRM MDF Reservation CRM-BF-AR
CRM_MKTPL 4Marketing Project CRM-MKT-MPL
CRM_MKTSC Marketing Scenario Planning CRM-MKT-MPL-SP
CRM_MKTSET Segmentation Model CRM-MKT-SEG-TGR
CRM_MKTTG Target Groups CRM-MKT-SEG-TGR
CRM_MKTVOU Marketing vouchers CRM-MKT-MPL-ST-VOC
CRM_MPOINT Measuring Points and Readings CRM-BF-COU
CRM_OAGRMT CRM Outline Agreement CRM-BF-AR
CRM_OPPT CRM Opportunity CRM-BF-AR
CRM_PPR Partner Product Ranges CRM-MD-PPR
CRM_PROBLM IT Service Management Problem CRM CRM-BF-AR
1/31/2024
CRM_PRV* Provider Transactions CRM-BF-AR
CRM_PSDBA Decision Basis CRM Public Services CRM-BF-AR
CRM_PSDMEA CRM Enforcement Action (Debt Management) CRM-BF-AR
CRM_RAGR CRM Rebate Agreement CRM-BF-AR
CRM_SACONT CRM Sales Contract CRM-BF-AR
CRM_SALDOC CRM Sales Transaction CRM-BF-AR
CRM_SDB* Solution Database CRM-MD-SDB
CRM_SERORD CRM Service Process CRM-BF-AR
CRM_SRCONT Service Contract CRM-BF-AR
CRM_SRVCON CRM Service Con rmation CRM-BF-AR
CRM_SRVPLN Service Plan CRM-BF-AR
CRM_SUR Product Service Letter CRM CRM-BF-AR
CRM_TAXEXM CRM Tax Exemption Certi cate CRM-BF-TAX
CRM_TERR Territory Archiving Object CRM-MD-TM
CRM_TSSEVT Service Time Stamp CRM-ANA-SRV-BW
CRM_UBBPOL UBB Pool Contracts CRM-BF-AR
CRM_VALSH CRM Validation Sheet CRM-CLA-VWS
CRM_WTYCLM Warranty Claim CRM-BF-AR
CS_BOM PP Object Lists LO-MD-BOM
CUHD Customs Document SLL-LEG-ARC
CUPED Supplementary Customs Declaration SLL-LEG-ARC
CUS* Global Trade Services: Archiving SLL-LEG-ARC
CV_DVS Document Management CA-DMS
^ TOP
Text Topic
Object
DAC_APPL Digital Access Logging Data CA-GTF-DA
DATAFDLOG TR-TM: Record all accesses to the datafeed TR-TM-TM
DCS_MD DCS based Market Data CA-GTF-TRB
DISPORDER OBSOLETE : FS-PCO: Posting Control Order FS-AM-ARC
DIWPS_REV Revision Archiving Object (IS-DIMP) IS-ADEC-MEB
DI_ACL Logbook Archiving Object (IS-DIMP) IS-ADEC-LBK
DLV_* Delivery Processing SCM-EWM-DLP
1/31/2024
DOCB Archiving for Document Builder CA-GTF-DOB
DRF_REPSTA DRF Replication Status CA-MDG-DRF
DRM_* IS-HT: Distributor-Reseller-Management IS-HT-DRM
DS_ARCH Archiving Object for Digital Signature Tool CA-DSG
^ TOP
Text Topic
Object
EAML_* Equipment and Technical Objects PM-EQM
ECATT_LOG eCATT Logs BC-TWB-TST-ECA
EC_PCA_* Pro t Center Accounting EC-PCA
EDOCUMENT eDocument CA-GTF-CSC-EDO
EHHSS_* Risk Assessment EHS-MGM-RAS
EHHSS_INC Incidents EHS-MGM-INC-REC
EHPRC_IMDS IMDS Documents EHS-MGM-PRC
ELR_LTXTS Archive Long Text Log LO-ELR
EMMA_* Enhanced Message Analysis CA-EMA
EPIC_BACOM Bank Communication Information for Electronic Paym XX-CSC-CN
EPM_GI EPM Goods Issues BC-ILM-IRM
EPM_SO EPM Sales Order BC-ILM-IRM
EPM_SO_INV EPM Sales Order Invoices BC-ILM-IRM
EWM_* Extended Warehouse Management SCM-EWM-ARC
EXAMPLE Sample Object BC-CCM-ADK
^ TOP
Text Topic
Object
FAGL_REORG Archiving of Reorganization Plans FI-GL-REO
FARR_* Revenue Accounting FI-RA
FDM_PROC Integration Dispute Cases and Promises to Pay FIN-FSCM-DM-AR
FERC FERC Reporting FI-RRU
FIBA_* Bank Current Accounts IS-B-BCA-MD
FIGURES Obsolete: FS-AM: Transaction Figures FS-AM-ARC
1/31/2024
FIKZ_* Electronic VAT Invoices (Kazakhstan) XX-CSC-KZ-FI
FI_ACCOUNT G/L Account Master Data FI-GL-GL-E
FI_ACCPAYB Vendor master data FI-AP-AP-E
FI_ACCRECV Customer master data FI-AR-AR-E
FI_BANKS Bank Master Data CA-BK
FI_CBR_PT Central Bank Reporting (Portugal) FI-AP-AP-B1
FI_DEFTAX Deferred Taxes FI-GL-GL-F
FI_DOCUMNT Financial accounting documents FI-GL-GL-E
FI_ECSPL15 ILM enabement of EC Sales and Purchase list data FI-GL-GL-F1
FI_ELBANK Electronic bank data FI-BL-BL
FI_ES_* VAT on Cash for Spain XX-CSC-ES-FI
FI_FICA FI-CA: Contract Accounts FI-CA
FI_ID_VAT VAT: Country speci c implementations FI-GL-GL-F1
FI_LAE_OBJ Leasing Contract Object FI-LA
FI_LC_ITEM FI-LC: Journal Entry. Obsolete, Read Access Only FI-LC-LC
FI_LC_SUM FI-LC: Totals Records. Obsolete, Read Access Only FI-SL-IS
FI_MKK* FI-CA FI-CA
FI_MONTHLY Sales gures A/P, A/R, G/L (old) FI-GL-GL-E
FI_NO_* Archiving Object for Norway FI-GL-GL-F1
FI_PAYRQ Payment Requests FI-BL-PT-PR
FI_SAFAALU Standard Audit File for Tax Purpose (SAFT) for LU XX-CSC-FIAA
FI_SCHECK Prenumbered Checks FI-GL-GL-E
FI_SK_VAT Archiving object for VAT Reporting (Slovakia) XX-CSC-SK-FI
FI_SL_DATA FI Special Ledger: Totals and Line Items FI-SL-SL-E
FI_TCJ_DOC FI Cash Journal Documents FI-BL-PT-CJ
FI_TF_* Transaction Figures FI-GL-GL-E
FKKBIX* Convergent Invoicing FI-CA-INV
FKKIDBRBOL Boleto for FICA-Accounts Receivable FI-LOC
FKKIDCZVAT VAT Ledger Additional Data (Czech Republic) XX-CSC-CZ-FICA
FKKIDDKCPR CPR/CVR number (Denmark) FI-LOC
FKKIDNOEIN Status of eFaktura(Norway) FI-LOC
FKKIDSKVAT Electronic VAT Ledger (Slovakia) XX-CSC-SK-FICA
FKKID_EXP Con rmation of Special VAT Operations XX-CSC-CZ-FICA
FKKID_VAT VAT Transfer of Credit Memos XX-CSC-CZ-FICA
FKKINV* Convergent Invoicing FI-CA-INV
1/31/2024
FKK_GEN* FI-CA: Generic Tax Reporting FI-CA
FKK_TAXINV Tax Invoices XX-CSC-FICA
FLC_OBJECT Totals Records and Journal Entries in FI-LC FI-SL-IS
FMCA_* Public Sector Contract Accounting IS-PS-CA
FMEUF_* FMEUF PSM-EC
FM_* Funds Management PSM-FM-AR
FM_BCS_* Budgeting PSM-FM-BCS-BU
FM_BEL_CA Act. commitment line item - Cash budget management TR-CB-IN
FSBP_* Obsolete FS-BP-BA
FSC_BAINT FI-CA: Archive of Acct Bal. Interest Calc. History FI-CAX
FS_* Account Management FS-AM-ARC
FS_BILLING Transaction Banking: Billing FS-AM-EP-BL
FS_INFOITM Transaction Banking: Info Item FS-AM-IM-IT
FS_MCM* Master Contract Management FS-MCM
FS_OR_CNCL Transaction Banking: Loan Cancellation FS-AM-ARC
FS_PNS_* Posting Noti cation FS-AM-IM-PNS
FS_WRK_ITM Bank Work Items FS-XA
FT_* Foreign Trade: Basic Functions SD-FT-PRO
F_PCARD_* Payment Cards PSM-FM-MD
FI_MKKDPDR archive object for history and message table FI-CAX
^ TOP
Text Topic
Object
GFD_ARCH1 Archiving of GFD Content table IS-HER-CM
GHO_ALLOC Actual allocation results PP-PN-ALN
GHO_NETMOD Archiving object for the network modeler PP-PN-OWN
GHO_OWN* Production Network: Ownership PP-PN-OWN
GLE_ECS ECS: Archiving Object for ECS AC-INT-ECS
GLX-OBJEKT FI-SL: Transaction Data. Obsolete. New FI_SL_DATA FI-SL-SL
GM_* Grants Management PSM-GM-GTE
GRACACTUS Archiving for GRACACTUSAGE table records GRC-SAC-ARA
GRACEAM Archiving for GRC AC 10.1 EAM Logs GRC-SAC-EAM
GRFNMSMP Archiving for GRC AC 2010 Requests GRC-SAC-ARQ
1/31/2024
GRFNPLAN Archiving for GRC Planner and Planner Monitor GRC-SPC-MT
GTRBILLDOC Grantor Billing Documents (AP/AR) PSM-GM-GTR
GTRCRMGPM Grantor CRM Program Management: ERP Mapping Data PSM-GM-GTR
GTR_TRANSL Grantor Translator PSM-GM-GTR-UP
^ TOP
HR archiving objects are listed in a seperate table: Assignment of HR Archiving Objects to Application Components
Text Topic
Object
HRIQUK_STM Archiving Object for Student Master Data - UK IS-HER-CM-GB
HRIQ_AGR IS-HER-CM: Appraisal IS-HER-CM-AD
HRIQ_AUDF IS-HER-CM: Requirement Pro les IS-HER-CM-AD
HRIQ_AUDR IS-HER-CM: Audit Runs IS-HER-CM-AD
HRIQ_EXTTR IS-HER-CM: Student External Transcripts IS-HER-CM
HRIQ_FEE IS-HER-CM: Fee Calculation Document IS-HER-CM-AD
HRIQ_PROC IS-HER-CM: Activity Document IS-HER-CM-AD
HRIQ_STGRT IS-HER-CM: Student Grants IS-HER-CM
HRIQ_STMD Archiving Object for Student Master Data IS-HER-CM
HRIQ_STYDT IS-HER-CM: Study Data IS-HER-CM-AD
HRIQ_ST_US Archiving Object for US IS-HER-CM-US
HRIQ_US Archiving Object for US IS-HER-CM-US
HRMSS_NOTE Archiving object for notes CA-MSS-HCM
^ TOP
Text Topic
Object
IAOM_EXTOB Account Assignment Manager CO-PC-OBJ
ICH_* Work Order SCM-ICH-WO
ICL_* Claims Management FS-CM
IDGT_AOBJ Archiving Object for Golden Tax FI-LOC-GTI
IDOC IDoc - Intermediate Document BC-MID-ALE
IDREPFWREP Reporting Framework FI-LOC-FI
IHC_ARC IHC Archiving Object for Payment Order Data FIN-FSCM-IHC
INDCOND Obsolete: FS-AM: Individual Conditions FS-AM-ARC
1/31/2024
INV_* Bill/Payment IS-U-TO-ARC
IS-DFS_EPA Integrated Product and Process Engineering (EPA) IS-DFS-OF-MPA
IS-DFS_LOS Loss Management IS-DFS
IS-DFS_MC Integrated Product and Process Engineering (MC) IS-DFS-OF-MPO
IS-DFS_MPO Integrated Product and Process Engineering (MPO) IS-DFS-OF-MPO
IS-DFS_VPA Integrated Product and Process Engineering (PPA) IS-DFS-OF-MPA
ISH_FALL IS-H: Case IS-H-PA
ISJP Invoice Summary (Japan) FI-LOC-FI-JP
ISU_* IS Utilities IS-U-TO-ARC
IS_AD_GPD GPD Archiving Object IS-AD-GPD
IS_OIFSPBL IS-Oil Business Location IS-OIL-DS-MRN
IS_PODIN Test archiving object Utilities POD IS-U-TO-ARC
IS_SR_* Statutory Reporting FS-SR
^ TOP
Text Topic
Object
JB_* SEM Banking IS-B-RA
JIT* JIT Calls IS-A-JIT
J_1BNF Notas Fiscais XX-CSC-BR-FI
J_1G_ML GR - Material Ledger XX-CSC-GR-FI
J_1I* Country-Speci c Developments: India XX-CSC-IN-MM
J_2GLP GR - Legal printed docs: Print data XX-CSC-GR-FI
J_3* Country-Speci c Developments: Russia XX-CSC-RU-FI
J_ISM_* Media Product Sales IS-M-SD-MS
J_ISM_BV Employment Relationship IS-M-MD
J_ISM_J* Advertising Management IS-M-AM
J_ISP* Periodical Sales IS-M-SD-PS
J_SC_ROWA Archiving for table ROWA XX-CSC-ABPL-SCM
^ TOP
Text Topic
Object
1/31/2024
KMTPREF Preference Statement of Document Bills of Material SLL-LEG
^ TOP
Text Topic
Object
LCLIC License SLL-LEG-ARC
LE_HU Handling Units LO-HU-BF
LIME_* LIME AP-LIM
LOY_ATC Loyalty Management Anonymous Temporary Card Object CRM-LOY-MSH-CRD
LOY_CARD Loyalty Management Card- Object CRM-LOY-MSH-CRD
LOY_MA Loyalty Management Member Activity - Object CRM-LOY-MA
LOY_MSH Loyalty Management Membership - Object CRM-LOY-MSH
LOY_PPT Loyalty Management Partner Point Transactions CRM-LOY
LOY_PTACCT Loyalty Management Point Account Set - Object CRM-LOY-PA
LOY_PT_TXN Loyalty Management Point Account Transactions CRM-LOY-PA
LO_BH_BRO Batch History index table LO-BM
LO_CHANGEM Engineering Change Management CA-GTF-ECM
LO_CHVW Batch Management Data LO-BM
LO_CMM_AD Period-End Valuation: Accrual Document LO-CMM
LO_DS_DELI Archiving Object for DS - Delivery Documents FI-LOC
LO_DS_SBC Archiving Object for DS - Self-billing & Consi FI-LOC-LO-PT
LO_EUVAT_V Archiving Object for EU VAT-Vendor Functionality FI-LOC-FI
LO_WIPB WIP Batch where-used data PP-SFC
LXYRD_ACT Yard Management LE-YM
^ TOP
Text Topic
Object
MC_S* Logistics: Infostructure S* LO-LIS-DC
MC_S036 IS-OIL-EXG Infostructure : S036 IS-OIL-DS-EXG
MC_SELVS LIS: Stored selection versions LO-LIS-DC
MES_SPLIT SPLIT TABLE IN MES OBJECT IS-A
MM_ACCTIT MM- Accounting interface posting data FI-SL-SL
1/31/2024
MM_AMPL Archive materials from LZHT MM-IM
MM_ASMD Service Master MM-SRV
MM_EBAN Purchase requisitions MM-PUR-GF-ARC
MM_EINA Purchasing info records MM-PUR-GF-ARC
MM_EKKO Purchasing Documents MM-PUR-GF-ARC
MM_HDEL Archiving program for MBEWH, QBEWH, EBEWH MM-IM-GF-ARC
MM_INVBEL Materials management: Inventory documents MM-IM-PI
MM_MATBEL Materials management: Material documents MM-IM-GF-ARC
MM_MATNR MM: Material master records LO-MD-MM
MM_PREF Preference determination, archiving customs log SD-FT-PRO
MM_PREW Preference determination MatGrp archiv. TarifProt. SD-FT-PRO
MM_REBEL Materials Management: Invoice Documents MM-IV
MM_SPSTOCK LO: Batches and Special Stock LO-MD-MM
MSR_TRC Tracking Tables in Advanced Returns Management LO-ARM
^ TOP
Text Topic
Object
NM_QMEL General Noti cation QM-QN
NOW_ABS Obsolete: Available Balance Series FS-AM-OM-AC-NA
^ TOP
Text Topic
Object
OIB_QTCD IS-OIL QCI Conversion Defaults IS-OIL-DS
OIB_TRKNR IS-Oil Tracking Numbers IS-OIL-DS-HPM
OIG_* IS-Oil Transportation and Distribution IS-OIL-DS-TD
OIH_* IS-Oil Tariffs, Duties and Permits IS-OIL-DS-TDP
OIJ_* IS-Oil Traders and Schedulers Workbench IS-OIL-DS-TSW
OIO_* IS-Oil Offshore Logistic IS-OIL-OL
OIR_* IS-Oil Service Station Retailing IS-OIL-DS-SSR
OIUH_JE_GL IS-Oil PRA Journal entry IS-OIL-PRA-REV
OIUOW_TRF IS-Oil PRA Ownership IS-OIL-PRA-REV-OW
1/31/2024
OIUPR_VOL IS-Oil PRA Production IS-OIL-PRA-PRD
OIURV_CA IS-Oil PRA CA IS-OIL-PRA-REV-CA
OIURV_VAL IS-Oil PRA Valuation IS-OIL-PRA-REV-VAL
OIURY_REP IS-Oil PRA Royalty Reporting IS-OIL-PRA-REP-ROY
OIUTX_REP IS-Oil PRA Tax Reporting IS-OIL-PRA-REP-TAX
ORDER_* Obsolete FS-AM-ARC
^ TOP
Text Topic
Object
PAYMITEM OBSOLETE: FS-AM: Payment Item FS-AM-ARC
PAYMORDER Obsolete: Payment Order FS-AM-ARC
PCA_OBJECT EC-PCA: Transaction Data, Obsolete, New EC_PCA_* EC-PCA
PFO_* Portfolio Assignment ICM-PFO
PH_PARCT Official Receipts FI-LOC-FI-PH
PI_PLAN Master Recipe PP-PI-MD-MRC
PLMDOC Obsolete: PLM Document FS-AM-ARC
PLM_* Audit Management CA-AUD
PM_EQUI Equipment PM-EQM-EQ
PM_IBASE IBase CS-IB
PM_IFLOT Functional Locations PM-EQM-FL
PM_IMRG Measurement Documents PM-EQM-SF-MPC
PM_MPLAN Maintenance Plans PM-PRM-TL
PM_NET Object links, master data PM-EQM-ON
PM_OBJLIST Serial Number History LO-MD-SN
PM_ORDER Service and Maintenance Orders PM-WOC-MO
PM_PLAN Routings PM-PRM-TL
PM_QMEL Maintenance Noti cations PM-WOC-MN
PP_BKFLUSH Document Log PP-REM
PP_CONF PP Con rmations IS-A-PPC
PP_ORDER Production Order PP-SFC-CPL
PP_PLAN Routings PP-BD-RTG
PP_SUMJITC Summarized JIT calls PP-KAB
PP_WIPCHVW WIP Batch Where-Used List PP-SFC
1/31/2024
PP_WKC Work Centers PP-BD-WKC
PRENOTE_B Obsolete: FS-AM: Prenotes (PRENOTE_B) FS-AM-ARC
PRENUM Archiving Object for Pre-Numbering FI-LOC-SD-CN
PREVD Vendor Declaration SLL-LEG-ARC
PRFCALC Log of Preference Determination SLL-LEG-ARC
PRPREF Preference Statement of Product SLL-LEG-ARC
PR_OBJ Archiving: GTS Product Master Records SLL-LEG-ARC
PR_ORDER Process Order PP-SFC-CPL
PSSC_* Social Services IS-PS-4S
PS_* Project System PS-ST
^ TOP
Text Topic
Object
QIE_INSP Archiving of QIE Inspection Documents CA-QIE
QM_CERT Quality Certi cate QM-CA
QM_CHARACT QM Master Inspection Characteristics QM-PT-BD
QM_CONTROL Inspection Lot Transaction Data QM-IM
QM_DEFECT Defect QM-QN-DEF
QM_FMEA Failure Mode and Effects Analysis QM-PTA-FA
QM_METHOD QM Inspection Methods QM-PT-BD
QM_PLAN Inspection Plans QM-PT-IP
QM_QINF Quality Info Records in Procurement QM-PT-RP-PRC
QM_QMEL Quality Noti cation QM-QN
QM_QTASK Quality Task QM-QN-TSK
QM_QVDM Quality Info Record in Sales QM-PT-RP-SD
QM_SAMPLE Sample QM-IM-SM
^ TOP
Text Topic
Object
RDBAA_* RDB Accounting Analyzer FIN-FSCM-TRM-AN
RDBPA_* RDB Portfolio Analyzer FIN-FSCM-TRM-PA
1/31/2024
RDBRA_* RDB Risk Analyzer FIN-FSCM-TRM-MR
REFX_AO Architectural Object RE-FX-BD
REFX_AT Adjustment Measure RE-FX-AJ
REFX_ATPS Prestage Adjustments for Adjustment Measure RE-FX-AJ
REFX_BE Business Entity RE-FX-BD
REFX_BU Buildings RE-FX-BD
REFX_CG Comparative Group of Apartments RE-FX-AJ
REFX_CN Real Estate Contract RE-FX-CN
REFX_CNCF Cash Flow of Contracts RE-FX-CN
REFX_JL Joint Liability RE-FX-LM
REFX_LR Land Register RE-FX-LM
REFX_MP RE: Move Planning RE-FX-RS
REFX_NA Notice of Assessment RE-FX-LM
REFX_OF Contract Offer RE-FX-OR
REFX_OO Offered Object RE-FX-OR
REFX_OR Option Rate Determination per Object/Subobject RE-FX-IT
REFX_PE Other Public Register RE-FX-LM
REFX_PG Participation Group RE-FX-SC
REFX_PL Parcel of Land RE-FX-LM
REFX_PR Property RE-FX-BD
REFX_RADOC RE Document RE-FX-RA
REFX_RC Parcel Update RE-FX-LM
REFX_RO Rental Object RE-FX-BD
REFX_ROCF Cash Flow of Rental Objects RE-FX-BD
REFX_RR RE Search Request RE-FX-OR
REFX_RS Reservation RE-FX-RS
REFX_RSREC Recurring Reservation RE-FX-RS
REFX_SCSE Service Charge Settlement RE-FX-SC
REFX_SU Settlement Unit RE-FX-SC
REFX_TC Correction Object RE-FX
REFX_XC_FR RE-FX French Localization: Transactional Data FI-LOC
RELEASELOG FS-AM: Release Object FS-AM-ARC
RESPONSE Object for Response GRC-RM
RE_* RE Real Estate RE-BD
RL_* Warehouse Management LE-WM-GF-AR
1/31/2024
RM_SVSTATE SEM Banking+CFM: Risk Mgmt-Data Pool Statuses FIN-FSCM-TRM-TM
RPM_* Portfolio and Project Management PPM-PFM
RSECPROT BI Authorization Logs BW-BEX-OT
RSEC_CHLOG BI Change Logs for Security BW-BEX-OT
RV_LIKP Deliveries LE-SHP-GF-AR
RXPCALC Re-Export: Calculation Log SLL-LEG-ARC
^ TOP
Text Topic
Object
SAWE_SA Lean Staffing Assignment IS-PRS-LS
SBWAP_TRN Archiving Object for SD Self-Billing SD-BIL-IV-SBI
SCMG Case Management: Case Archiving BC-SRV-CM
SCMTMS* Transportation Management TM-BF
SCPBOD IP/PUCC Settlement SLL-LEG
SDOE_CDT Archiving content delivery tool logs BC-MOB-MGW
SDOE_ESD Archiving SOAP logs BC-MOB-MGW
SD_AGREEM Agreements and conditions SD-MD-CM-AR
SD_COND Pricing condition records SD-MD-CM-AR
SD_VBAK Sales Documents SD-SLS-GF-AR
SD_VBKA Contacts SD-CAS-SA
SD_VBREV RevRec: Archiving Revenue Recognition Tables SD-BIL-RR
SD_VBRK Billing Documents SD-BIL-GF-AR
SD_VFKK Shipment Costs LE-TRA-FC-AR
SD_VTTK SD Transport LE-TRA-FC-AR
SETTLEMENT Obsolete: FS-AM: Settlement FS-AM-ARC
SFLIGHTAR Flight Bookings CA-FS-ARE
SMI_* Social Media Intelligence CA-EPT-SMI
SM_QMEL Service Noti cations PM-WOC-MN
SN_* CDE: Snapshots BC-ILM-RW
SOBL New Object Links Packgage SOBL BC-SRV-GBT-OBL
SPL_* SPL SLL-LEG-ARC
SPM_* Superuser Privilege Management GRC-SAC-EAM
SRAL* Read Access Logging BC-SEC-RAL
1/31/2024
SRMGSP Records Management: Generic Service Provider BC-SRV-RM
SRT_CFGL Web Service Con guration Log BC-ESI-WS-ABA-CFG
STANDORDER Obsolete: Standing Order FS-AM-ARC
S_AUT_LTXT Audit Trail (ILM) - Long Text Logs BC-SRV-ASF-AT
^ TOP
Text Topic
Object
TM_* Transportation Management SCM-EWM-TM
TRTM_* Transaction Manager FIN-FSCM-TRM-TM
TRTM_BPAR TR-TM: Business partners CA-FS-BP
TSHD Tax Statement SLL-LEG-ARC
^ TOP
Text Topic
Object
US_* User Master Change Documents BC-SEC-USR-ADM
^ TOP
Text Topic
Object
VEG_JOB VEG Job Log monitor Archiving CA-EPT-VE-VEG
VEHICLE Archiving of Vehicles VMS IS-A-VMS
VERSIONS Repository Object Versions BC-UPG-NA
VHURL_* Packaging Material Logistics IS-A-RL
VHU_PI HU Master Data Packing Instruction LO-HU-MD-PI
VVKK_* FS-CD: Collections and Disbursements FS-CD
^ TOP
Text Topic
Object
1/31/2024
WB2 Trading contracts LO-GT-TC
WBU Agency Business: Posting List LO-AB
WCB_COCO Condition Contract LO-GT-CHB
WCI Agency Business: Customer Settlement LO-AB
WCM_* Work clearance management PM-WCM
WEC_PERS Archiving Object for Personalization related table WEC-APP-CI-REV
WEC_PERSON Archiving Object for Personalization related table WEC-APP-PER
WEC_RATING Archiving Object for Rating related tables WEC-APP-CI-REV
WLF Agency Business: Vendor Billing Documents LO-AB
WME_* Extended Warehouse Management SCM-EWM-ARC
WORKITEM Work Items from Work ow System BC-BMT-WFM
WRECH Agency Business: Remuneration Lists LO-AB
WREG Agency Business: Settlement Request Lists LO-AB
WSI Agency Business: Expense Settlements LO-AB
WS_ACSITE Retail: Site master record LO-RFM-MD-SIT
WTADDI Retail: additional LO-RFM-ADM
WZR Agency Business: Settlement Requests LO-AB
W_KALK Pricing: Pricing documents LO-RFM-MD-CON
W_MARKDOWN Retail: Markdown Planning LO-RFM-MD-PR
W_PROMO* Retail: Promotion LO-MD-PR
W_SOR Object for listing condition + modules LO-RFM-MD-LST
W_VKAB Retail: Sales value change documents LO-RFM-LG-SPV
^ TOP
Assignment of HR Archiving Objects to Application Components
This document contains all available archiving objects that belong to Personal Administration (PA), Personnel Time
Management (PT) or Payroll (PY) delivered by SAP as of April 2016 and their corresponding application component. This list will
be updated when required.
All other archiving objects are listed here:

Assignment of Archiving Objects to Application Components
Country-speci c archiving objects for Austria, Germany and Switzerland are speci ed in a seperate table in the lower section of
this page.
Object Text Topic
HR3PR_REM Bank transfers to third parties PY-US-FP-TP
HR99SOFFNS Sanctions/Offense Group PY-XX-RS
1/31/2024
HR99STERM Termination Group PY-XX-RS
HRASR_EREC HR Administrative Services: Recruitment Processes PA-AS
HRASR_PA HR Administrative Services: Employee Processes PA-AS
HRASR_PD HR Admin. Services: Organizational Processes PA-AS
HRC99APD Additional Personal Data PY-US
HRC99APID Additional Personal Identity Data PY-LOC-PID
HRC99AWDEC Award/Decorations Data PY-LOC-UR
HRC99CCAR Company Car PY-LOC-CC
HRC99ELEC Online Election Data PY-LOC-XF
HRC99GARDO Garnishment Data (CIS) PY-RU
HRC99I3213 Pension Plan PY-LOC-XF
HRC99PAY Awards Data PY-LOC-PID
HRC99PEDOC Documents and Certi cates (CIS) PY-RU
HRC99PEROR Personnel Orders (CIS) PY-RU
HRC99PFUND HR: Tax Card Information CZ PA-PF-XX
HRC99REST Residence Status PY-LOC-UR
HRC99TAXDE Tax Privileges (CIS) PY-RU
HRC99TAXEX Tax and Social Ins. Payments (CIS) PY-RU
HRCBG0935 Contract Elements (BG) PY-BG
HRCBG0936 Education (BG) PY-BG
HRCBG0937 Previous Employers (BG) PY-BG
HRCBG0938 Income from previous/others ER (BG) PY-BG
HRCBG0939 Tax Properties (BG) PY-BG
HRCBG0940 Year End Income Tax Adjustment (BG) PY-BG
HRCBGBT00 Bank Transfers (BG) PY-BG
HRCCZEPAY External Payment CZ PY-CZ
HRCCZI0620 Pension/handicap CZ PA-PA-CZ
HRCCZINSU HR: Health And Social Insurance Info. CZ PA-PA-CZ
HRCCZLNOT Law Noti cations CZ PY-CZ
HRCCZOTTB HR: One Time Tables CZ PY-CZ
HRCCZPUBS Person's addition data - Public sector CZ PY-CZ
HRCCZPUBS1 Length Practice CZ PY-CZ
HRCCZTAX HR: Tax Card Information CZ PA-PA-CZ
HRCEGSINF Social Insurance EG PA-PA-EG
HRCEGSISP Social Insurance Add Service Period EG PA-PA-EG
1/31/2024
HRCEGTINF Egypt: Tax Information PA-PA-EG
HRCEGTPOOL Tax Pool Element PA-PA-EG
HRCESADMEV Administrative Events ES PA-PA
HRCESBENEF Bene ts Data ES PA-RC
HRCESFSIND Fiscal Income Data ES PA-PA-ES
HRCESI0061 Social Insurance ES PA-PA-ES
HRCESI0092 Seniority ES PA-PA-ES
HRCESI0714 ERE Data ES PA-PA-ES
HRCESI0768 FDI Message Data ES PA-PA-ES
HRCESI0799 AFI Message Data ES PA-PA-ES
HRCESI0887 Garnishments ES PA-PA-ES
HRCESI0912 Disciplinary Actions ES PA-PA
HRCESI0968 Delt@ ES PA-PA-ES
HRCESI3231 Certi c@ ES PA-PA-ES
HRCESI3299 Compatibilities ES PA-PA
HRCESI3300 CEPIT ES PA-PA
HRCESSTMNG Status Management ES PA-PA-ES
HRCEST5EC1 Payroll Directory Results ES PY-ES
HRCFIGARN Garnishements Finland PA-PA-FI
HRCFISOCI Social Insurance Info. Finland PA-PA-FI
HRCFITAX TAX CARD INFORMATION FINLAND PA-PA-FI
HRCFRABSN Regrouping object for absence destruction PA-PA-FR
HRCFRBACON Regrouping object for basic contract destruction PA-PA-FR
HRCFRCORR Regrouping object for correction destruction PA-PA-FR
HRCFRDECI Regrouping object for decision destruction PA-PA-FR
HRCFRGARN Regrouping object for garnishment destruction PA-PA-FR
HRCFRPRSH Regrouping object for pro t sharing destruction PA-PA-FR
HRCFRPSBC Regroup. object for basic contract PS destruction PA-PA-FR
HRCGBABSSO Absence Scheme Override PY-GB-PS
HRCGBAQUAL Academic Quali cation PY-GB-PS
HRCGBARCGP Great Britain Archive Group PA-PA-GB
HRCGBCCAR Company Cars Data GB PA-PA-GB
HRCGBCCARS Company Cars GB PA-PA-GB
HRCGBCCUNV Company Car Unavail. GB PA-PA-GB
HRCGBCLNCD Clinical Details PY-GB-PS
1/31/2024
HRCGBCTORD Court Orders GB PA-PA-GB
HRCGBHECNT HE Contract Data PY-GB-PS
HRCGBHEQ High Education Data GB PY-GB-PS
HRCGBHESAM HESA Master Data PY-GB-PS
HRCGBHESAS HESA Submitted Data PY-GB-PS
HRCGBNATIN National Ins. GB PA-PA-GB
HRCGBNINFT Great Britain Non-Infotype Table Group PA-PA-GB
HRCGBOFFSS Offshore Social Security GB PA-PA-GB
HRCGBOFFTX Offshore Tax GB PA-PA-GB
HRCGBPENRF Pensions Reform PA-PA-GB
HRCGBPNFND Pension Funds GB PA-PA-GB
HRCGBPQUAL HE Professional Quali cations PY-GB-PS
HRCGBPYMTM Payment Made in Error GB PA-PA-GB
HRCGBPYPNA Predetermination PAYE and NIC Adjus PA-PA-GB
HRCGBSMPSP SMP/SAP/SPP GB PA-PA-GB
HRCGBSSP Statutory Sick Pay GB PA-PA-GB
HRCGBSSP1L SSP1(L) Form Data GB PA-PA-GB
HRCGBSSPCT SSP Control GB PA-PA-GB
HRCGBSSPSM SSP/SMP Exclusions GB PA-PA-GB
HRCGBSWFCT SWF Contract Details PY-GB-PS
HRCGBSWFIT School Work Force Infotypes GB PY-GB-PS
HRCGBSWFQL SWF Quali cations PY-GB-PS
HRCGBSWFST SWF Staff Details PY-GB-PS
HRCGBSWFTB School Work Force Tables GB PY-GB-PS
HRCGBTAHP Personnel numbers for AHP process model GB PA-PA-GB
HRCGBTASHE ASHE Return Data GB PY-GB
HRCGBTAX Tax Data GB PA-PA-GB
HRCGBTAXCR Tax Credit GB PA-PA-GB
HRCGBTCLS CLASS CPX INTERFACE Snapshot Table GB PY-GB-PS
HRCGBTEF Store Info Coming In From GG (GB) PA-PA-GB
HRCGBTESPD Employment Starter and Pension Detail GB PA-PA-GB
HRCGBTEYUU Upload Table for EYU Forms GB PY-GB
HRCGBTNITO National Insurance Data Take-on GB PY-GB
HRCGBTP46 Archive for P46-Forms GB PA-PA-GB
HRCGBTPAE PAE Data Take On Notice Sent GB PY-GB
1/31/2024
HRCGBTTONI National Insurance Data Take-on GB PY-GB
HRCGBTTPS TPS Annual return records GB PY-GB-PS
HRCGBWFDPT WFTC/DPTC GB PA-PA-GB
HRCGRSOCI Social Insurance GR PA-PA-GR
HRCGRTAX Payroll Data GR PA-PA-GR
HRCHKAPD Additional Personal Data Group PA-PA-HK
HRCHKPAY Payroll Group PA-PA-HK
HRCHRANINC Annual Income Statement for Employee Croatia PA-PA-HR
HRCHRI0562 Personal Data Croatia PA-PA-HR
HRCHRI0563 Family data Croatia PA-PA-HR
HRCHRI0564 Tax data Croatia PA-PA-HR
HRCHRI0575 Other/Previous employers Croatia PA-PA-HR
HRCHRJOPPD JOPPD Legal Reporting On Income Croatia PY-HR
HRCHU0163 Tax and Tax Allowance HU PY-HU
HRCHU0164 Contributions HU PA-PA-HU
HRCHU0175 Supplementary Personal Data HU PA-PA-HU
HRCHU0176 Statistical Data HU PA-PA-HU
HRCHU0178 Paying Office HU PA-PA-HU
HRCHU0193 Carry Over Tax Data HU PA-PA-HU
HRCHU0307 Tax Additional Data HU PA-PA-HU
HRCHU0441 Corrections for Reports HU PA-PA-HU
HRCHU0635 School Leaving Certi cate HU PY-HU
HRCHU0637 Incompatibility HU PY-HU
HRCHU0638 Examinations HU PY-HU
HRCHU0640 Classi cation data HU PY-HU
HRCHU0641 Further training data HU PY-HU
HRCHU0642 Data related to managers HU PY-HU
HRCHU0643 State Guarantee & Disciplinary Punishment HU PY-HU
HRCHU0644 Legal relationship termination data HU PY-HU
HRCHU0660 Carry Forward SI Data HU PA-PA-HU
HRCHU3234 Irregular Incomes HU PY-HU
HRCHU3260 Leave Quota HU PY-HU
HRCHU3263 Rank HU PY-HU
HRCHU3264 National Security Check & Property Declaration PY-HU
HRCHU3265 Field service data HU PY-HU
1/31/2024
HRCHU3266 Additional Employers HU PY-HU
HRCHU3267 Services HU PY-HU
HRCHUGARN Garnishments Data HU PA-PA-HU
HRCHUOREL Contracts & Payments Data PY-HU
HRCHUPSRE Public Sector Relationship HU PY-HU
HRCHUSIPM SI Payments Data HU PA-PA-HU
HRCHUWCLT Working Clothes Data PA-PA-HU
HRCIEELCOM Electronic Communication IE PY-IE
HRCIEHEINS Health Insurance Ireland PA-PA-IE
HRCIEPENSN Pensions Ireland PA-PA-IE
HRCIEPRAMT PRD: Re-Calculated PRD Amount Table PA-PA-IE
HRCIEPRDDT PRD Details PY-IE
HRCIEPRSI PRSI Ireland PA-PA-IE
HRCIESTART Starters Details Ireland PA-PA-IE
HRCIETAX Tax Data Ireland PA-PA-IE
HRCJP0143 Life/General Insurance JP PA-PA-JP
HRCJP0147 Personal Appraisals JP PA-PA-JP
HRCJP0388 Union Due Deduction JP PA-PA-JP
HRCJP0559 Commuting allowance Info JP PA-PA-JP
HRCJP0560 Overseas pay JP PA-PA-JP
HRCJP3140 Maternity/Child Care/Nursing Leave PA-PA-JP
HRCJPPENSN Corporate Pension Group JP PY-JP
HRCJPRETIR Retirement Data JP PA-PA-JP
HRCJPSHUKO Shukko Group JP PA-PA-JP
HRCJPSIBAS Social Insurance Data JP PA-PA-JP
HRCJPTAXES Taxes Data JP PA-PA-JP
HRCKZBTR Bank Transfer (KZ) PY-KZ
HRCMXGARN MX Garnishment Group PA-PA-MX
HRCMXLOAN MX Loan Group PA-PA-MX
HRCMXSSOC MX Social Insurance Group PA-PA-MX
HRCMXTAX MX Tax Group PA-PA-MX
HRCMXTERM MX Termination Group PA-PA-MX
HRCNOEDAG EDAG Legal Reports Data (Norway) PY-NO
HRCNOI0173 Tax Card Information (Norway) PA-PA-NO
HRCOMLPBA Leave Passage by Amount for Oman PA-PA-OM
1/31/2024
HRCOMLPBT Leave Passage by Ticket for Oman PA-PA-OM
HRCOMOCHA Occupational Hazard for Oman PA-PA-OM
HRCPLI0413 Tax Data PL PA-PA-PL
HRCPLI0515 Social Insurance Data PL PA-PA-PL
HRCPLI0516 Addit. Social Insurance Data PL PA-PA-PL
HRCPLI0657 Contracts of order PL PA-PA-PL
HRCPLI0658 Annual Remuneration PL PA-PA-PL
HRCPLI0859 Contracts for Temporary Workers PL PA-PA-PL
HRCPTABSIC Payment absence Clearing PT PA-PA-PT
HRCPTADSMB Reimbursement ADSE PY-PT-PS
HRCPTDISAB Challenge PT PA-PA-PT
HRCPTMOBIL Mobility PT PY-PT-PS
HRCPTNIFIS Tax PT PA-PA-PT
HRCPTPRODT Professional classi cation PT PA-PA-PT
HRCPTSIADA SIADAP Recording PY-PT-PS
HRCPTSSOCI Social Security PT PA-PA-PT
HRCPTVACBH Suppl. IT0016 (PT) PA-PA-PT
HRCROEEREG Employee Pesonal & Contract & Bonuses Data PY-RO
HRCROTAXSI Tax, Social Insurances, Fiscal statement Romania PY-RO
HRCRULBOOK Labor Book PA-PA-RU
HRCRURANKS Employees' Ranks RU PY-RU-PS
HRCRUSECAC Access to Classi ed Information RU PS PY-RU-PS
HRCRUSICKC Sickness certi cate PA-PA-RU
HRCRUSICLM Rules for SI Payments RU PA-PA-RU
HRCSEANTAX Annual Tax Additions - SE PA-PA-SE
HRCSEEXCEP Exceptions - SE PA-PA-SE
HRCSEGARN Garnishments - SE PA-PA-SE
HRCSET5SP PA91 Tables PY-SE-PS
HRCSET5SPP HR-SE: Information needed to be reported to Alecta PY-SE
HRCSET5SS PA03 Tables PY-SE-PS
HRCSET5SVT Payroll Account Transfer PA-PA-SE
HRCSETAX Taxes - SE PA-PA-SE
HRCSETAXCE Taxes - CE PY-SE-PS
HRCSGAPID SG Additional Personal Identity Data Group PA-PA-SG
HRCSGDECL SG Declarations Data PA-PA-SG
1/31/2024
HRCSGOTH SG Other Data PA-PA-SG
HRCSGPAD SG Personnel Data Group PA-PA-SG
HRCSGPAY SG Payroll Data PA-PA-SG
HRCSGREP SG Reporting Related Data PA-PA-SG
HRCSIANINC Annual Income for Tax Reporting SI PY-SI
HRCSIDPZ Paid voluntary pension insurance SI PA-PA-SI
HRCSII0603 Tax Data SI PA-PA-SI
HRCSII0604 EE's disability data SI PA-PA-SI
HRCSII0605 Working age SI PA-PA-SI
HRCSII0606 Transport & Food SI PA-PA-SI
HRCSII0607 EE's data about education SI PA-PA-SI
HRCSIMOREP External transfers with variable monthly repayment PY-SI
HRCSIPENCO EE's pension insurance data PY-SI
HRCSKANTXC Annual Tax Clearing Data PY-SK
HRCSKI0252 Tax data PA-PA-SK
HRCSKI0253 Insurance premium PA-PA-SK
HRCSKI3350 Vehicle Value PA-PA-SK
HRCSKTELDZ Pension Provision Reg.Cert. (ELDZ) PA-PA-SK
HRCSKTSKRL Cluster with registration sheets for soc.insurer PA-PA-SK
HRCUAI0811 Pension References UA PA-PA-UA
HRCUSABDNT Absence donation PA-PA-US
HRCUSAPD Additional Personal Data Group PA-PA-US
HRCUSBOND Saving Bonds Group PA-PA-US
HRCUSCOBRA COBRA Group PA-PA-US
HRCUSELECT Online Election Object PA-PA-US
HRCUSFMLA FMLA Group PA-PA-US
HRCUSGARN Garnishment Group PA-PA-US
HRCUSGRIEV Grievances Data PA-PA-US
HRCUSOSHA OSHA Group PA-PA-US
HRCUSOVERP Overpayments Group PA-PA-US
HRCUSPAYMT Payments PA-PA-US
HRCUSPYCUM Payroll Cumulation Group PA-PA-US
HRCUSPYFED Payroll Federal Group PA-PA-US
HRCUSPYLOC Payroll Local Group PA-PA-US
HRCUSPYSTA Payroll-State Group PA-PA-US
1/31/2024
HRCUSRVISA Resident&VISA Group PA-PA-US
HRCUSTAX TAX Group PA-PA-US
HRCUSTIPS TIP-Indicator Group PA-PA-US
HRECM_REV HR: Enterprise Compensation Management - Review PA-EC
HRHCP_PLAN HR: Personnel Cost Planning PA-CP
HRMP_DRAFT HR Administrative Services: Mass Processing PA-AS
HRP99APID Additional Personal Identity Group PY-XX-RS
HRPA_ADJRN HR: Adjustment Reasons PA-BN
HRPA_ADRS HR: Address PA-PA
HRPA_BNMDI HR: Medical Bene ts Information PA-BN
HRPA_BNPLN HR: Bene t Plans PA-BN
HRPA_CHLLN HR: Challenge PA-PA
HRPA_CMNTN HR: Communication PA-PA
HRPA_COSTD HR: Cost Distribution PA-PA
HRPA_CRPFC HR: Corporate Function PA-PA
HRPA_CTRCT HR: Contract Elements PA-PA
HRPA_EDUC HR: Education and Training PA-PA
HRPA_EXORG HR: External Organizations PA-BN
HRPA_FMLYM HR: Family/Related Person PA-PA
HRPA_GBENI HR: General Bene ts Information PA-BN
HRPA_HCEIN HR: HCE Information PA-BN
HRPA_INDAT HR: Internal Data PA-PA
HRPA_INSTR HR: Company Instructions PA-PA
HRPA_INSUR HR: Insurance PA-PA
HRPA_LOAN HR: Loans PY-XX
HRPA_MGE HR: Management of Global Employees PA-GE
HRPA_NTFTN HR: Noti cations PY-XX
HRPA_PREMP HR: Other/Previous Employers PA-PA
HRPA_PWAT HR: Powers of Attorney PA-PA
HRPA_PYDTL HR: Payment Details PA-PA
HRPA_PYRST HR: Payroll Infotypes PA-PA
HRPA_REMUN HR: Remuneration PA-PA
HRPA_TASK HR: Date Monitoring PA-PA
HRPA_WRKCN HR: Works Councils PA-PA
HRPD_PREL HR: Infotype 1001 PA-OS-ST
1/31/2024
HRRCF_APPL HR: E-Recruiting - Applications PA-ER
HRRCF_CAND HR: E-Recruiting - Candidates PA-ER
HRRCF_REQ HR: E-Recruiting - Requisitions PA-ER
HRTIM_ABS HR: Absences PT-RC
HRTIM_ATT HR: Attendance PT-RC
HRTIM_AVAL HR: Availabilities PT-RC
HRTIM_MAT HR: Maternity Protection PT-RC
HRTIM_MIL HR: Military and Non-Military Service PT-RC
HRTIM_OVER HR: Overtime PT-RC
HRTIM_PWS HR: Planned Working Time PT-RC
HRTIM_REQ HR: Leave Requests/Clock-In/Out Corrections PT-RC
HRTIM_SUBS HR: Substitutions PT-RC
HRTIM_TEV HR: Time Events PT-RC
HR_ACCLOGJ Access infotype Log(Japan) PA-PA-JP
HR_EIC HR: EIC - Activities PA-EIC
HR_PBCDOC Archiving of PBC Documents PA-PM-PB
HR_QUALI HR: Quali cations PA-PD
HR_UPDLOGJ Update Infotype Log(Japan) PA-PA-JP
^ TOP
Country-speci c archiving objects for Austria, Germany and Switzerland
Object Text Topic
HRC99STAT HR: Statistiken PA-PA-DE
HRCATABSFO Fehlen Formen (A) PA-PA-AT
HRCATCLST Cluster-Daten (A) PY-AT
HRCATEXEMP Freistellung A PA-PA-AT
HRCATGARNI Pf.A Pfändung (A) PA-PA-AT
HRCATI0043 Familienbeihilfe (A) PY-AT-PS
HRCATI3205 Schwerarbeitsplatz (A) PA-PA-AT
HRCATI3232 Kurzarbeit (A) PA-PA-AT
HRCATI3233 Rückstellungsgrundlagen (A) PA-PA-AT
HRCATLEAVE Demission (A) PA-PA-AT
HRCATPENSN Pension / in den Ruhestand (A) PY-AT
1/31/2024
HRCATSEMRT Altersteilzeit (A) PA-PA-AT
HRCATSOCI Sozialversicherung (A) PA-PA-AT
HRCATTAX Steuerdaten (A) PA-PA-AT
HRCCHABSFO Fehlen Formen (CH) PA-PA-CH
HRCCHI0036 Sozialversicherung (CH) PA-PA-CH
HRCCHI0038 Steuerdaten (CH) PA-PA-CH
HRCCHI0511 Ortszuschlag/Amt (CH) PY-CH-PS
HRCCHI3230 PF Einmalzahlungen (CH) PA-PF-CH
HRCCHPENSN Pensionskasse Stammdaten Alt (CH) PA-PA-CH
HRCCHPSCON Vertragsbestandteile (CH) PA-PA-CH
HRCDEAT HR: Altersteilzeit PA-PA-DE
HRCDEAV HR: Altersvermögensgesetz und Direktversicher PA-PA-DE
HRCDEBA HR: Betriebliche Altersvorsorge PA-PF-DE
HRCDEBR HR: Betriebsrenten PA-PA-DE
HRCDEBW HR: Bescheinigungen PY-DE-RP-ST
HRCDECI HR: Bauwirtschaft PY-DE-CI
HRCDEED HR: Elektronischer Datenaustausch PY-DE-NT-NI
HRCDEJE HR: Angaben zur Jahresentgelt-Prüfung PA-PA-DE
HRCDEKU HR: Saison-/Kurzarbeitergeld PA-PA-DE
HRCDENT HR: Meldedaten Deutschland PA-PA-DE
HRCDEPF HR: Pfändung PY-DE-NT-GR
HRCDEPS HR: Stammdaten öD PY-DE-PS
HRCDESV HR: Sozialversicherung PA-PA-DE
HRCDETX HR: Deutsche Steuerdaten PA-PA-DE
HRCDEVL HR: Vermögensbildung D PA-PA-DE
HRCDEZU HR: Zusatzversorgung PA-PA-DE
^ TOP
Informations about AIS (Archive Information System)
Purpose
Providing information about functionalities of AIS (Archive Information System), component BC-CCM-ADK-AS.
Overview
1/31/2024
While data archiving via transaction SARA, using AIS to create and build index tables might be necessary for accessing and
displaying archived objects from application point of view.
Check Reports
ASCORR01 (Correction Program Archive Information System)

Options:
Check if infostructure contains elds not in table
Check if generated table has TADIR entry
Check if table is used by more than one infostructure
Check names of infostructures
ASCORR02
ASCORR03: Correction Program ArchivInfoSystem: ZARIX Tables without DDIC Def.

For more info read SAP Note 664317.
ASCORRINDX: Adjust database indexes for archive information structures

The program ASCORRINDX can be used to create, change and delete database indexes for
archive information structures, without having to delete and
rebuild the infostructures completely.
How to create transaction for a query
Symptom
Need to create a transaction code for a query, if use a generated query report as an ABAP report to create the transaction sometimes it
doesn't work.
Refer to note 393160 but still don't know how to create the transaction code.
Environment
As of Release 6.10
Cause
You should not copy and use a generated query report as an ABAP report
Resolution
As of Release 6.10, SAP delivers a template with Report SAP_QUERY_CALL for this purpose. The template delivered has a selection
screen with parameters for query workspace, query user group and query name, as well as for query variants, which you should use to
start the query. When you enter the values, a module is called to execute the query.
For better explanation we can assume that you start query A of usergroup U in standard area with variant V.
1) Create a report transaction (Z1) for the template report: SAP_QUERY_CALL 2) Create a transaction Z2 with 'Transaction with
parameters (paramter transaction)'.There you enter Z1 in transaction eld, check the box for 'Skip initial screen' and at the end of this
screen in 'default values' insert
P_UGROUP U P_VARI V P_QUERY A P_WSID blank (G for global area)
After saving the query A should be started with transaction Z2.
1/31/2024
How to nd BADI using T-Code ST05
How to nd BADI using T-Code ST05
How to require a Adobe Credential for SAP Interactive Forms
Purpose
This article explains how customer can require an Adobe credential by a SAP OSS message.
Overview
You want to use Adobe Interactive Forms and you require a credential, as described in the con guration guide, to complete the
con guration. Bear in mind that the credential is required only if you have interactive forms (forms in which the user can enter
data). For print forms, the credential is not required. If you have made the con guration without registering a credential, you
receive the following error when you try to use the Adobe Interactive Forms:
com.sap.tc.webdynpro.pdfobject.core.PDFObjectRuntimeException: Path to object does not exist at : sap.com
#at com.sap.tc.webdynpro.pdfobject.core.PDFObject.
doSoapCall(PDFObject.java:187)
at com.sap.tc.webdynpro.pdfobject.core.PDFObject.
createPDF(PDFObject.java:137)
createPDF(PDFObject.java:137)
To complete the con guration successfully, you require a credential, which you must register in accordance with the
con guration guide.
In the Adobe Interactive Forms scenario, the system checks whether acredential exists and is egistered. If this is not the case,
you cannotuse the Adobe Interactive Forms scenario.
Steps to requere a credential

1. Open an SAP customer message under the component BC-SRV-FP-ICF.
2. Write that you require a credential for the Adobe Interactive Forms scenarios.
3. Include an e-mail address to which the credentials can be sent.
4. The persons responsible will then contact you directly.
Related Content
Related Documents
Related Notes
SAP note 736902 : Adobe Credentials
SAP Basis Standard Reports

BASIS
RBDCPCLR Deletes Obsolete change pointers

RSAL_BATCH_TOOL_DISPATCHING Job for monitoring
RSARFCDL Cleans up log le for sm58 transfers
RSARFCER Deletes entries in arfcstate and arfcdata for RFCs (ARFC)
1/31/2024
RSARFCEX Retries entries in sm58 that may have failed due to temp conn errors
RSBPCOLL Collect Values for statistics
RSCOLL00 Performance Collector
RSCONN01 SAPconnect: Start Send Process Fax/Email
RSDELCUA Delete Central User Administration
RSN3_AGGR_REORG Program for Starting the Reorganization Function
RSN3_STAT_COLLECTOR Non-R/3 statistics collector
RSSNAPDL Delete ABAP Dumps
RSTBPDEL Delete Entries in DBTABLOG
RSTRFCER Delete EXEC LUWs
RSTRFCES Deletes tRFC and qRFC entries (arfcrstate, trfcqout)
RSXMILOGREORG Delete XMI-LOG Files
SBAL_DELETE Delete application logs (table BALHDR)
Spool
RSBTCPRIDEL Reorganization of Print Parameters for Background Jobs.

See the following SAP Notes for details: #999951 - Program documentation of RSBTCPRIDEL. #16083 -
Standard jobs, reorganization jobs
RSPO0041 Delete old Spool Files: deletes the SPOOL TemSe objects and corresponding entries. Has been replaced by
Report RSPO1041.
See the following SAP Notes for details: #130978 - RSPO1041 - Replacement for RSPO0041. #48400 -
Reorganization of TemSe and spool
RSPO0043 Spool consistency check. Has been replaced by Report RSPO1043.
See the following SAP Notes for details: #98065 - Spool consistency check with RSPO1043 as of 4.0A. #48400 -
RSPO1041 Delete old Spool Files: deletes the SPOOL TemSe objects and corresponding entries. Replaces the old Report
RSPO0041.
See the following SAP Notes for details: #130978 - RSPO1041 - Replacement for RSPO0041. #48400 -
RSPO1043 Spool Data-Consistentcy check in Background (SP12). Replaces the old Report RSPO0041.
See the following SAP Notes for details: #98065 - Spool consistency check with RSPO1043 as of 4.0A. #48400 -
Batch
RSBDCREO Delete Old Batch input Files.

See the following SAP Notes for details: #18307 - Batch input logs and reorganization. #48400 - Reorganization
of TemSe and spool
RSBPSTDE Delete old job statistics.
See the following SAP Note for details: #16083 - Standard jobs, reorganization jobs
RSBTCDEL Delete batch jobs: deletes the JOBLGX TemSe objects and corresponding entries. Has been replaced by Report
RSBTCDEL2.
See the following SAP Notes for details: #784969 - Program RSBTCDEL2. #48400 - Reorganization of TemSe
and spool
RSBTCDEL2 Delete batch jobs: deletes the JOBLGX TemSe objects and corresponding entries. Replaces the old Report
RSBTCDEL.
See the following SAP Notes for details: #784969 - Program RSBTCDEL2. #48400 - Reorganization of TemSe
and spool
RSTS0024 Delete "orphaned" job logs (joblogs that do not belong to any job).
See the following SAP Notes for details: #16083 - Standard jobs, reorganization jobs. #48400 - Reorganization
of TemSe and spool
DATABASE
1/31/2024
View v$tables
RSANAORA Analyze table stats
RSORADJV Select DBA tables
RSORAHCL Needed for performance history. Scheduling details are stored in table TCOLL.
TMS (Transport Management System)
RDDNEWPP Schedule DDIC Jobs

RDDEXECL Transport tool for the Execution of user-de ned activities
RDDGENBB Transport tool for the ABAP Dictionary distribution
RDDIMPDP_<client> Dispatches the transport programs
RDDMASGL Transport tool for the ABAP Dictionary activation
RDDVERSL Transport tool for the Versioning
RSTMSTIQ Adjust Queue
TMS_BCI_START_SERVICE Automatic import
SAP invalid content repository
Symptom
Lots of warning messages displayed in dev_icm trace. such as:
[Thr 11080] *** WARNING => Connection request from (30/31/0) to host:
P25214, service: 1090 failed (NIEHOST_UNKNOWN)
[Thr 11080]
Unknown macro: {0006822d}
[icxxconn.c 2271]
[Thr 11084] *** WARNING => Connection request from (30/31/0) to host:
http, service: 80 failed (NIEHOST_UNKNOWN)
[Thr 11084]
Unknown macro: {0006822e}
[icxxconn.c 2271]
Reason and Prerequisites
Customizing of the content repositories contains the HTTP repositories

BIE_NET and BIE_QMM that refer to the host dwdf010.wdf.sap-ag.de Port
1090 or HTTP repository ED that refer to host 10.26.24.44.
Since HTTP repositories are automatically monitored in CCMS, the system
periodically tries to access these hosts. Since the hosts cannot be
accessed, the system issues relevant error messages in the CCMS alert
monitor (transaction RZ20: SAP CCMS Monitors for Optional Components ->
Knowledge Provider -> ContentServer -> Server:).
Following is wrong delivery:
HTTP server pwdf2625, port 1090
HTTP server P25214, port 1090
HTTP server 10.26.24.44, port 1090
1/31/2024
HTTP server : arcdev.wdf.sap.corp, port 1080
HTTP server : hs2086.wdf.sap.corp, port 2000
Solution
Delete these repository from OAC0 and OACT.
Related Content
Related Document
Related Notes
308977:Repositories BIE_QMM, BIE_NET, HME_CONTENT,ED,A2 and
534683:Inactive content repository BDS_DB30
SD-GTS Integration
Purpose
Purpose of this document is to explain the settings required in SAP GTS to integrate with SAP SD
Overview
The document explians the con guration settings required in SAP GTS to check sales documents/delivery documents in SAP
GTS.
1 Prerequisites
This document consists of customization settings already exisitng as part of SAP GTS standard set-up and some modi cation as
required to build the scenario for demo purpose.
Before going thorugh the steps mentioned in this document the prerequisites are:
• System Communication between SAP GTS and Feeder System (ECC) is established
2 Organizational Structure
This is part of the General settings covers the Organization Structure & Legal Units are set up in SAP GTS System for activating
SAP GTS Services.
2.1 De ne Foreign Trade Organization (FTO)
In this acitvity the Foreign Trade Organization is de ned as the highest organizational unit in your organizational structure. It is
important to select proper Display Business Partner Role (e.g. for Foreign trade Organistion the BP role to be selected is
SLLFTO.
IMG: SAP Global Trade Services > General Settings > Organizational Strucutre > De ne Foreign Trade
1/31/2024
Organizations.
Example: Foreing Trade Organization FTO_US.
2.2 Assignment of Org. Units from Feeder Sys. to FTO.
In this acitvity the Feeder System Company Code (representing the Legal Org Unit in ECC) is assigned to the
Foreing Trade Organization Unit in SAP GTS.
IMG: SAP Global Trade Services > General Settings > Organizational Structure > Assignment of Organizational Units from
Feeder System to Foreign Trade Org. > Assign Company Code at Feeder System Group Level > Manually Assign Company Code
Co Code CSUS of ECC is assigned to FTO_US
2.3 De ne Legal Units
In this IMG Activity legal units are de ned as part of th eorganization structure in SAP GTS. This Legal
Units represents the concept of Plants in ECC6 (SAP R/3).
IMG: SAP Global Trade Services > General Settings > Organizational Structure > De ne Legal Units
The Legal Unit LU_US is de ned with Business Partner Role SLLSIT
2.4 Assign Legal Unit (LU) to the FTO
In this acitivity the Legal Unit (Plant) de ned in SAP GTS is assigned to relevant Foreign Trade Organization de ned. This is in lin
ewiht the same concept of assigning a Plant to a Company Code in SAP R/3.
IMG: SAP Global Trade Services > General Settings > Organizational Structure > Assign Legal Unit to the Foreign Trade
Organization
1/31/2024
2.5 Assignment of Org. Units from Feeder System to LU
In this acitivity Item Category is de ned in GTS system for Customs Shipment Documents
IMG: SAP Global Trade Services > General Settings > Organizational Structure > Assignment of Organizational Units from
Feeder System to Legal Unit > Assign Plant at Feeder System Group Level > Manually Assign Plant
Example: The feeder system (SAP R/3) plant CSPL is asigned to LU_US Legal Unit.
3 Partner Structure
This is part of the General settings covers the Partner Structure and mapping of feeder system partner functions to Partner
Groups in SAP GTS Services.
3.1 De ne Partner Functions (PF)
In this acitvity various partner functions are categorize. The partner functions in the Customs Documents at Header & Item
level has sepci c functions and hence each partner function de ned for the purpose are assigned speci c function type. Also,
the use of the partner function in export or import or both export & Import relevance are assigned as well.
IMG: SAP Global Trade Services > General Settings > Partner Structure > De ne Partner Functions. Example: Partner Function
AG represents Sold-to Party (Customer). This partner function is relevant for
Exports only and the Partner Function Type assigned is CUSAUG (Sold-to Party).
3.2 De ne De ne Groups of PF
In this acitvity the partner functions are combined in groups. It is advisable to group the partner functions as it provides unique
and easy assignment of partner functions to the different types of foreign trade documents at a later time.
IMG: SAP Global Trade Services > General Settings > Partner Structure > De ne Groups of Partner
Functions
3.2.1 Partner Groupings
1/31/2024
De ne Partner Groups
Example: Partner Group PGSPL2 (Partner Group for "Sanctioned Party List" Service - Export)
3.2.2 Assign Partner Functions
In this step relevant partner functions are assigned to the group
Example AG is one of the partner functions assigned to the partner group PGSPL2
3.2.3 Assignment of PF from Feeder Systems
In this acitvity the partner functions from feeder systems are linked to corresponding partner function in
SAP GTS.
IMG: SAP Global Trade Services > General Settings > Partner Structure > Assignment of Partner Functions from Feeder
Systems > Assign Partner Function at Feeder System Level > Manually Assign Partner Function
Example: The Partner Function AG from Feeder system is assigned to Business Partner Role AG in SAP GTS.
4 Legal Regulation
This is part of the General settings which covers the setting up of country groups, relevant legal regulations and activation of
the legal regulation per country/country groups.
4.1 De ne Country Groups
In this activity country groups a re de ned to simplify the process of making license determination settings.
IMG: SAP Global Trade Services > General Settings > Legal Regulations > De ne Country Group
Example: Country Group YH_EU is created to group together countries belonging to European
Community.
4.2 De ne Legal Regulations
1/31/2024
In this activity the legal regulations for export/import are de ned which are then used for various SAP GTS Services.
IMG: SAP Global Trade Services > General Settings > Legal Regulations > De ne Legal Regulation
4.2.1 Legal Regulations
De ne the relevant Legal Regulation.
Example: Legal regulation E01 (Export Administration Regulations (E01)). This Legal regulation is valid for Export only.
4.2.2 Assign Dead Line Type
Each Legal Regiulation is de ned with a dead line type which enables the possibility of assigning the validity date.
Example: Legal regulation E01 (Export Administration Regulations (E01)) has a valid form and Valid to date.
4.2.3 Assign Country Groups
Each Legal Regiulation is assigned Country Groups for which the particular Legal regulations is valid. Example: Legal regulation
E01 (Export Administration Regulations (E01)) is assigned to Country
Group CNTRY_GRP and it is valid for Export transactions only.
4.3 . De ne Determination Procedure for Active Leg. Reg.
In this activity the procedures to use while determining the active legal regulations are de ned. This is required to enable the
system to determine relevant legal regulation for the services of customs procedures valid for the transaction.
IMG: SAP Global Trade Services > General Settings > Legal Regulations > De ne Determination
Procedure for Active Legal Regulations
4.3.1 Procedure for Detemining Active Legal Regulations
De ne the procedure for Determining Active Legal Regulations
Example: Det. Procedure L01DT
1/31/2024
4.3.2 Assignment of Determination Strategy
Assignment of Determination Strategy for the procedure for Determining Active Legal Regulations
The detrmination strategy is valid at country level.
4.4 . Activate Legal Reg. at Country/Country Group Level.
In this activity the legal regulations are activated for the relevant services. The legal regulations are activated at country or
country group level.
IMG: SAP Global Trade Services > General Settings > Legal Regulations > Activate Legal Regulations at
Country/Country Group Level
Example: Legal reg. ACE is activated at country level US.
5 Document Structure
This activity is actually part of different SAP GTS Services e.g. Compliance management, Customs management etc. Under this
section the basic Document structure valid for activating SAP GTS Compliance management is decribed.
5.1 De ne Document Type
In this activity customs document types are de ned which will be used to replicate the document types created in feeder
system and replicated in SAP GTS system.
IMG: SAP Global Trade Services > SAP Compliance Management > General Settings > Document
Structure > De ne Document Types
Example: Document Type EXPORD (Customs Document (Export) - Sales Document Level) This document type is valid for
Exports only.
5.2 Activate Document Type
1/31/2024
In this activity de ned customs document types are set-up (activated) for speci c GTS checks e.g. Embargo Check. Sanctioned
Party List Check etc.
Structure > Activate Document Types
Example: Document Type EXPORD (Customs Document (Export) - Sales Document Level) is activated for Embargo Check
Service. Similarly one can activate the same document type for other checks i.e. Sanctioned Party List and/or Legal Control.
5.3 Assignment of Document Types from Feeder Syst.
In this activity the feeder system (SAP R/3) document types are assigned to corresponding SAP GTS Customs Document Types
IMG: SAP Global Trade Services > SAP Compliance Management > General Settings > Document Structure > Assignment of
Document Types from Feeder Systems > Assign Document Type at Feeder System Group Level > Manually Assign Document
Type
Example: Feeder System Document Type YOR is assigned to SAP GTS Customs Document Type EXPORD at Application Level
SD0A for Sales Document and feeder system Document Type LF is assigned to EXPDLV at Application Level SD0B.
5.4 De ne Item Categories
In this activity Customs Item categories are de ned. This is required to enable the replication of Item level data from feeder
system document to SAP GTS Customs document.
Structure > De ne Item Categories
Example: The Item Cat EXORD1 represents Item on Sales Document.
5.5 Activate Item Categories
1/31/2024
In this activity de ned customs item categories are set-up (activated) for speci c GTS checks e.g. Embargo Check. Sanctioned
Party List Check etc.
Structure > Activate Item Categories
Example: Customs Item Categories EXDLV1, EXORD1, FI0A & IMORD1 are activated for Legal Control checks.
5.6 Assign Item Category from Feeder System
In this activity feeder system item categories are assigned to corresponding SAP GTS Customs Item
Category.
IMG: SAP Global Trade Services > SAP Compliance Management > General Settings > Document Structure > Assignment of
Item Categories from Feeder Systems > Assign Item Category at Feeder System Group Level > Manually Assign Item Category
Example: Feeder System Item Cat YTAN is assigned to Customs Item Category EXORD1 at Application
Level SD0A for Sales Document.
Top 5 tips to improve SAP system performance
Just thinking that a wiki page discussing SAP performance in

general terms woud be helpful for the community here.
1/31/2024
You can get involved in this blog via the following SAP wiki URL:
Let's consider the available platforms that SAP can be run on,
a few are listed here. Do feel free to add to this list and share
your own experience.
SAP on DB2 for z/OS (DB2)

SAP on Informix (INF)
SAP on DB2 UDB for i5/OS (DB4)
SAP on Windows
SAP on DB2 UDB for Unix and Windows (DB6)
SAP on Linux
SAP on SQL Server
SAP on Unix
SAP on Oracle
SAP on VMware
SAP MaxDB/liveCache
I'll start this weblog by asking you in the SAP community

network wiki to post your 'Top 5' tips you use to improve SAP system performance.
Maybe they are tips and tricks you have encountered during your many years
of experience working with SAP systems or perhaps references to installations,
upgrades or general system administration experience where a performance tip
you used and now shared could help other's in the community.
From tuning your systems memory resources such as Zero Administration Memory
Management on Windows 32-bit and 64-bit platforms to indexes that do not support predicates
that contibute to high DB request time on your system database please do share
your experiences.
So, whatever platform combination your SAP system runs on let's share your
best practices, tuning, and tips and tricks for maximizing performance.
Thanks for reading and looking forward to all your replies.
SAP Network Interface (NI)
The SAP Network Interface (NI) is a part of the SAP System that represents an abstraction layer for the network interface. It
allows applications to take advantage or make use of network communication. This means that the Ni Layer will take care of
everything from establishing a connection, receiving data, sending data and also closing the connection. It also allow an
application to act as a server, so it also allows accepting incoming calls.
Wiki Documentation
Installing the saprouter as a Windows service - ntscmgr command not available
saprouter 32bit - The system cannot execute the speci ed program (on Windows)
SAP Network Interface and ACL control
SAProuter Con guration Parameters for Reverse Invoke Connections

1/31/2024
SAProuter: example of Reverse Invoke con guration
How to setup and troubleshoot a saprouter reverse invoke con guration
30289 - SAProuter documentation Are the TCP ports used by SAP registered at
IANA
611361 - Hostnames of SAP servers
How does the host name resolving work in
SAP systems
129997 - Hostname and IP address lookup
How to nd the client of a UDS connection
799428 - Downloading SAProuter and/or
How to nd the process binding a TCP port
niping
1227116 - Creating network traces
How to run a long NIPING test
1472650 - Application areas of SAProuter
How to test a saprouter connection
1897597 - SAProuter: Release rollout NIPING test as proof if the network is stable
2046942 - Support encrypted passwords in What is the difference between NIPING and
saprouttab ping command
What is the meaning of the different network

2304840 - Buffer size for TCP error messages
communication sockets to improve
transmission rate
FAQ Network Interface
Client-Server Technology - Network Interface FAQ
Are the TCP ports used by SAP registered at IANA
How does the host name resolving work in SAP systems
1/31/2024
NIPING test as proof if the network is stable
What is the difference between NIPING and ping command
What is the meaning of the different network error messages
1/31/2024
Are the TCP ports used by SAP registered at IANA
Are the TCP ports used by SAP registered at IANA?

No. SAP systems and components need several port ranges to allow customers to implement complex and versatile system
landscapes. Unfortunately IANA does not allow registering port ranges.
How does the host name resolving work in SAP systems
How does the host name resolving work in SAP systems?

SAP uses operating system functions to resolve host names to IP addresses and vice versa. The usage of the hosts le, DNS or
other services like YP or NIS is controlled by operating system settings.
The SAP processes also have an internal cache for host names and the related IP addresses. If the host name is already cached,
the process uses this address and does not call the OS function.
You can invalidate the IP cache of all processes of one ABAP-system using transaction SM51.
Same applies to service names and port numbers.
The Hosts le standard format is de ne following the information in this link : https://wiki.scn.sap.com/wiki/x/i4IjIQ
And Guided Answer : https://ga.support.sap.com/dtp/viewer/#/tree/2661/actions/37634
How to nd the client of a UDS connection?
NOTE: for Linux servers only!
SAP uses UDS (UNIX Domain Sockets) communication if both the client and server processes are on the same server, through
the "sapstream" les ("/tmp/.sapstreamXXXX").
It might be required to identify the client(s) of an UDS connection.
While logged on as "root", we start by using netstat to identify the "server port" of the UDS connection:
server:~ # netstat -an|grep sapstream3201

unix 2 [ ACC ] STREAM LISTENING 61392 /tmp/.sapstream3201
unix 3 [ ] STREAM CONNECTED 720784 /tmp/.sapstream3201
server:~ #
1/31/2024
The "server port" is the number to the left of the "sapstream" le.
Then, we use the "ss" command to identify the peers related to that "port". For example, using the "port" number 2279796
(columns' spacing were adjusted for clarity purposes):
server:~ # ss -a --unix -p|egrep "(Netid|2279796)"

Netid State Recv-Q Send-Q Local Address:Port Peer Address:Port
u_str ESTAB 0 0 * 2279795 * 2279796 users:(("SID_00_BT
u_str ESTAB 0 0 /tmp/.sapstream3201 2279796 * 2279795 users:(("en.sapSID
server:~ #
Notice that the "ports" can be matched:
"port" 2279795 is seen at the local address of the BTC work process 10, and at the peer address
of the Enqueue process, which is the server of the connection (and creator of the UDS /
sapstream3201).
"port" 2279796 is seen at the peer address of the BTC work process 10, and at the local address
of the Enqueue.
Important: both have "State" as "ESTAB" (established).
Conclusion:
The client of the UDS connection:
is the work process 10.
How to nd the process binding a TCP port?
We have several error scenarios on which some SAP process cannot start because some other process has already bound its
TCP port.
*** ERROR => NiIBindSocket: SiBind failed for hdl 209/sock 35

(SI_EPORT_INUSE/98; I4; ST; 0.0.0.0:8080) [nixxi.cpp 3827]
This error message that can be seen in most of the component trace les, tells us that port 8000 is already being used (bound)
by another process. To nd out which process is using this port, the "netstat" tool can be used. Netstat is a command-line tool
that displays network connections (both incoming and outgoing), routing tables, and a number of network interface statistics.
Follows the procedure example on both UNIX and WINDOWS platforms:
LINUX:
> netstat -nepal|grep 8080

tcp 0 0 :::8080 :::* LISTEN 10404 18906159 7952/java
In this rst example (Linux) we see that process with PID 7952 (java) is binding TCP port 8080.
1/31/2024
WINDOWS:
> netstat -nao|findstr 8080

TCP 0.0.0.0:8080 0.0.0.0:0 LISTENING 3696
TCP []:8080 []:0 LISTENING 3696
In the Windows example, we nd out that process with PID 3696 is the one binding the relevant port (8080).
It is also possible to use "netstat -ab" in Windows where it will list the process responsible to bind the port. The option "a" list all
connections and the option "b" display the executable involved.
AIX:
> netstat -Aan | grep 8000 | grep LISTEN

f1000e000130bbb8 tcp4 0 0 *.8000 *.* LISTEN
> rmsock f1000e000130bbb8 tcpcb
The socket 0xf1000e000130b808 is being held by proccess 13893704 (icman).
> ps -ef | grep 13893704
vmcadm 13893704 9175156 0 Dec 22 - 0:17 icman -attach pf=/usr/sap/VMC/SYS/profile/VMC_
SOLARIS:
> ps -ef| awk '{print $2}'| xargs -I '{}' sh -c 'echo Verifying PID {}; pfiles {} 2>/dev/null|grep
(...)
Verifying PID 3150
Verifying PID 4848
Verifying PID 4891
Verifying PID 7900
sockname: AF_INET 0.0.0.0 port: 3900
Verifying PID 4831
Verifying PID 23568
Verifying PID 7928
Verifying PID 9662
(...)
> ps -ef|grep 7900|grep -v grep
qpkadm 7900 7840 0 Jun 21 ? 1:38 ms.sapQPK_DVEBMGS00 pf=/usr/sap/QPK/SYS/profile/
The rst command will print a list with the PID of all processes that are active at the system. The port number must be adjusted
at the rst "grep" command.
The PID that is using the port will be the one immediately before the line that ends with "port: <port>" ("port: 3900" in the
example above).
The second command will show information about the process itself.
With this information, it can be decided whether this process should use this port or whether it can be stopped or recon gured
to use another port.
The NIPING tool could be used to check a connection during a long life time connection.
To do this test, it is required to start NIPING as a server in one host:

1/31/2024
> niping -s -I 0 -T NIPING_SERVER_TRACE
In the remote host is is required to start NIPING as a client:
> niping -c -H <server host> -X3 -B 10 -D 30 -T NIPING_CLIENT_TRACE
The option -X3 is used to a long life connection test. It will not terminate automatic, just in case of a connection broken that may
represent a problem in the network layer.
With the above con guration, every 30 seconds (-D) a package with 10 bytes (-B) will be send to the server.
How to test a saprouter connection?

It is possible to validate is a connection over saprouter is working using the niping tool.
The niping must be called using the saprouter string like:
> niping -c -H /H/<saprouter IP>/S/<saprouter port>/H/<destination>/S/<destination port>

Mon Sep 7 23:20:41 2015
connect to server o.k.
*** ERROR => bytes_written <> bytes_read (1000, 14) [nixxtst.cpp 1244]
The message "connect to server o.k." means that the connection reached the destination.
NIPING test as proof if the network is stable

NIPING is not a program to random tests, there are loads of speci c options to test like package size, idle time, name
resolution, throughput, RTT and others and it is required to know what to test in order to validate if an errors exist or not. The
NIPING cannot proof is the network is really stable, free of errors or operational, because network errors may be caused by
distinct reasons and situations.
All detailed options about NIPING are available in note 500235.
What is the difference between NIPING and ping command
NIPING is not the same of a ping.

The NIPING is an SAP program to evaluate the network with speci c situations.
The ping command uses the ICMP protocol and the NIPING the TCP protocol. For this reason, the NIPING needs a client and
server communication to run network tests.
The NIPING is not delivered with the Operating System but with SAP programs and it is also available with the SAPGUI
installation.
1/31/2024
What is the meaning of the different network error messages
What is the meaning of the different network error messages?
If the error occurs at the SAPGUI, you should always select "Show detailed error messages" to get more information.
Error messages can be divided into two groups:
1. Errors during connection establishment
Partner not reached - Connection refused
"Connection refused" means that the target host was reached but no process accepted the network request on the
respective target port. Target host and port are typically displayed as "<hostname>:<port>".
This error can be caused by the usage of the wrong TCP-port (sometimes presented only by the instance number, e.g. "00") or
the fact that the target server process was simply not running at that time. In rare error situations the target server process
can also somehow be blocked completely for some long time and therefore was unable to accept the network request.
Check your client connection parameter con guration and check if your target server process is running and listening to the
speci ed port.
Partner not reached - Connection timed out
The target host could not be reached within a given span of time. Possible reasons for this might be that the IP address of the
target server does not exist, the target server host is currently not running or the client could not reach the server due to a
missing route or a blocking rewall between them. Check your network and your target servers availability.
Hostname unknown - <host name> not found
This error is generated if the operating system was not able to resolve the target host name into an IP address. Check the host
name resolution on the source host.
Service unknown - <service name> not found
This error is generated if the operating system was not able to resolve the target service name into a TCP-port number. Check
the service name resolution on the source host.
2. Errors after the connection was established
Connection broken
If this error message occurs without any additional error information (see below) it just means that the remote host has closed
the connection unexpectedly. This is not necessarily an error.
Connection broken - Connection reset by peer
This error is generated by the operating system if the connection was interrupted by an incoming TCP packet with the ag bit
"RST" set.
This error can be caused by a crash of the remote program or if the remote program closed the connection without reading all
data from the network connection.
It can also be caused by a genuine "network error" like a physically interrupted connection, a faulty network device or a rewall.
On Microsoft Windows this error can have two different meanings (see "Connection broken - Connection timed out").
Check the partner program for crashes or unexpected termination.
1/31/2024
Connection broken - Connection timed out
On Microsoft Windows this error is shown as "Connection reset by peer".

This error is thrown if at least one network packet was sent to the target host but not acknowledged in time. It occurs
dependent on the operating system and connection speed after 1-20 minutes.
This error can be caused by a physical network error, a rewall idle timeout or a "black hole router".
More detailed information can be found in SAP note 155147.
Check for your network between the client and the server.
How to setup and troubleshoot a saprouter reverse invoke con guration
Purpose
This Expert Content aims to show an example in how to analyze the reverse invoke communication
from a network perspective.
Overview
Reverse invoke actually had to do with idea about the server be responsible to establish connection
with the client. You should use 2 saprouters where the saprouter server will be responsible to initialize
the connection and keep a pool of connections established with the saprouter server.
The following example will follow the reverse invoke con guration example suggested in this help
documentation.
Con guring the environment
There are 2 Linux machines: client as host A and server as host B.

Saprouter will be started as reverse invoke client in host A.
HOST A
HOST B
1/31/2024
As host B is the server and it will trigger the reverse invoke connection, we should start the network
dump (wireshark or tcpdump) before start the saprouter in order to capture the rst packages
transmitted.
As this is a Linux machine we will use the tcpdump to capture all packages in the TCP port 5001
(client_service port):
Start saprouter
After the start up, the saprouter creates a pool of 4 established connection with the client
(conn_pool_size option in client side) and keep these connections open.
It is possible to check using netstat command:
Network analysis
1/31/2024
Open the RI.pcap dump in Wireshark to analyse the packages
Keep-Alive
This server is setup to send a keepalive every 300 seconds, see note 1410736 - TCP/IP: setting keepalive
interval
Therefore, it is expected that the Operating System sends a Keep-Alive package to the client every
300 seconds to ensure the connection. Note that the SAP has no responsibility in the Keep-Alive
packages, the saprouter just create the sockets with the SO_KEEPALIVE option and it is expected a
Keep-Alive package as you can see in the previous image. Note in the column Time that after 5
minutes of the rst connection a Keep-alive is sent and acknowledge by the client.
Related Content
Related Documents
1410736 - TCP/IP: setting keepalive interval
Installing the saprouter as a Windows service - ntscmgr command not available
1/31/2024
Purpose
Provide an alternative to the "ntscmgr" command used to install the saprouter as a Windows service.
Overview
You are trying to install the saprouter as a Windows service by following the documentation attached
to the SAP note 30289.
At step 4, you realize that the command "ntscmgr" is not available at the Windows machine where the
saprouter is being installed.
Reason and solution
The command "ntscmgr" is delivered with the SAP kernel packages.
If there is no SAP instance installed on the server, it will not be available.
As an alternative, the following command can be used. Notice that it should be all in one line.
sc create SAPRouter binPath="DRIVE:\path\to\saprouter.exe service -r -R DRIVE:\
Related Content
Related Documents
SAP note 30289: SAProuter documentation
SAP note 41054: Installation of SAProuter as Windows service
SAP Network Interface and ACL control
Purpose
Concentrate the list of ACL parameters available in SAP Network Interface.
Overview
The Network Interface provide SAP services with an Access Control List feature to avoid unwanted
access to the services over network connections.
The feature intend to control access authorization for connections.
Parameter list
1/31/2024
The control made by Network Interface (NI) occurs before the request reach the SAP service because
the NI layer is lower level than the services.
The following parameters are used to con gure the ACL control:
Parameter Service Description Details Documentation
rdisp/acl_ le SAP Web Access This parameter speci es the le that the link
Dispatcher Control List
for SAP GUI (ABAP) SAP Web Dispatcher uses as an
Connections access control list (ACL) for the access
authorizations for connections with SAP
GUI. If the pro le parameter is set, the
le must exist and its syntax be correct.
If this is not the case, the (ABAP) SAP
Web Dispatcher ends.
enque/server/acl_ le Enqueue Access This parameter speci es the name of an

control list
(ACL) le of access control list (ACL) le. You can
the enqueue use an ACL to con gure who is
server port
permitted to create a connection to the
enqueue server. The IP addresses of the
clients form the basis of the le.
ms/acl_info Message File with File with access authorizations for the link
Server access
control list message server If this le exists, it must
for message include all host names, domains, IP
server
addresses and/or subnetwork masks
from which application servers are
allowed to log on to the message server.
gw/acl_ le Gateway ACL This parameter speci es the name of an link

(access
control list) access control list (ACL) le. With an
le of the ACL you can con gure who is permitted
gateway
to connect to the gateway. The IP
addresses of the clients form the basis
of the le. The same ACL le is used for
the "standard" port and for the "SNC"
port of the gateway.
service/http/acl_ le Sapstartsrv ACL to Control of Web Service access in sapstartsrv link

control the
sapstartsrv
service/https/acl_ le access
1/31/2024
Related Content
Related Documents
1495075 - Access control lists (ACL)
saprouter 32bit - The system cannot execute the speci ed program (on Windows)
Purpose
Help to execute the saprouter 32bit at a Windows 32bit server.
Overview
At a Windows 32bit server, you are trying to execute the saprouter 32bit version.
However, Windows returns the error "The system cannot execute the speci ed program".
After downloading the correct saprouter package and installing the required libraries (see the next
sections), the error will not occur.
Saprouter package for Windows 32bit
The saprouter 32bit package for Windows 32bit is listed at the SAP Marketplace Software Download
Corner as "IA32" architecture:
https://support.sap.com/swdc
Support Packages and Patches
Browse Download Catalog
Additional Components
SAPROUTER
SAPROUTER 7.21 (there is no saprouter 32bit for the release 7.42)
Windows Server on IA32 32bit
This is the correct package even for "x86_32" servers.
Microsoft C++ Runtime libraries
The saprouter 32bit requires the following Microsoft Visual C++ Runtime libraries to be executed:
1/31/2024
1. Microsoft Visual C++ 2005 Redistributable Package (x86)
2. Microsoft Visual C++ 2005 SP1 Redistributable Package (x86)
3. Microsoft Visual C++ 2005 Service Pack 1 Redistributable Package ATL Security Update
4. Microsoft Visual C++ 2005 Service Pack 1 Redistributable Package MFC Security Update
In theory, only the package number #2 is required. You may install the other packages in order to x
security issues within the MS Visual C++ libraries.
Related Content
Related Documents
SAP Marketplace Software Download Corner
Microsoft Download Center
SAP Community blog - C-runtimes needed to run SAP executables
SAP note 30289: SAProuter documentation
SAP Start Service
Management
SAP MMC Snap-In
Application Server state reported by sapstartsrv
Protected web methods of sapstartsrv in kernel release 7.4x
SAP Start Service (sapstartsrv) security
sapstartsrv service parameters
sapstart parameters and options
sapstart: process restart functions
How to Start SAP as a service in Sun Solaris 10
Troubleshooting
1/31/2024
Startup Troubleshooting Guide
FAIL: sapstart not found
Kernel update: referenced symbol not found, runtime de nition of the symbol was not found
SAP system shutdown by signal 2 - SIGINT
897933 - Start and stop sequence for SAP systems
877795 - Problems with sapstartsrv from Release 7.00 and 6.40 patch 169
1642340 - sapcontrol SSL usage
1693245 - SAP HA Script Connector Library
2200230 - Problems with use of system PKI
202227 - Recommended login shells
Miscelaneous Info
[WEBINAR] Understanding SAP Startup Framework
F.A.Q.
How to check the sapstartsrv release and patch level?
Is the SAP integrated with High Availability solutions?
What it the goal of history.glf log le?
How to add a new system on SAP MMC?
How to read Snapshots using SAPMMC or SAP MC?
Application Server state reported by sapstartsrv
Purpose
Explain the states of Application Server reported by sapstartsrv service.
Overview
1/31/2024
ABAP Application server is composite of many distinct process like:
disp+work (dispatcher and taskhandler)
gwrd (gateway)
icman (ICM)
If the normal status is GREEN, where all process are UP and running as expected and RED that means
service could not be started. There are two others status: YELLOW and GRAY.
The goal of this Expert Content is to explain what are the common situations where the status
YELLOW and GRAY are reported
The SAP instance status is provided by sapstartsrv daemon. The sapstartrv process parses the
le $(DIR_HOME)/sapstart.log to get the parent process ID (sapstart).
If sapstart.log points to wrong PIDs, no process information will be shown on sapcontrol
command GetProcessList.
Process versus status
It is possible to monitor these process status using the sapcontrol client calling the GetProcessList.
The same information is available over SAPMMC:
Process YELLOW GRAY
disp+work Length of high priority session queue exceeds a certain limit; not
running
1/31/2024
Execution of the periodic taskhandler internal process exceeds a
certain limit;
Server state (inside the server list, see transaction SM51 or

SMMS) is not RUNNING, PASSIVE or SHUTDOWN
Dispatcher is not attached to the message server

gwrd gateway not running or stuck not
running
wrong
internal
states
icman ICM not running or stuck not
running
wrong
internal
states
Related Content
Related Documents
2787316 - sapcontrol ... GetProcessList returns incorrect processes' states
FAIL: sapstart not found
Purpose
To help with troubleshooting
Overview
The instance cannot be started by 'startsap' or 'startsap r3 <instance>' command. Following error is displayed on the screen:
[...] FAIL: sapstart not found
-------------------------------------------
<time>
startup of Instance failed [...]
The same error is reported in $HOME/startsap_<instance>.log log le (by default /home/<sid>adm/startsap_<instance>.log).

We'll check how to eliminate the issue.
1/31/2024
Steps
1. Check the value of $DIR_EXECUTABLE by 'sappfpar pf=/sapmnt/<SID>/pro le/<instance_pro le> DIR_EXECUTABLE'

command.
2. Check if sapstart is available in that folder by 'ls -al <$DIR_EXECUTABLE folder>'. It won't be available.
3. Copy sapstart from $DIR_CT_RUN to $DIR_EXECUTABLE. If sapstart is not available there, download SAPEXE*.SAR or
sapstart*.sar and extract it in both $DIR_CT_RUN and $DIR_EXECUTABLE.
4. Run 'startsap' or 'startsap r3 <instance>'. It has to work.
Related Content
Related Documents

SAP KBA 1925379 : "FAIL: sapstart not found" , unable to start instance
How to Start SAP as a service in Sun Solaris 10
Introduction
When restarting a server in the SAP environment all services of the operating system are started automatically. So when
restarting a big SAP server it might be suitable to start the SAP systems automatically. Sun Solaris 10 gives us the ability to do
so by using the service facility, called SMF. We will use self established services to start the SAP system automatically by
creating services for the SAP system. This means we take advantage of the service framework in Sun Solaris 10 and easily
start/stop/restart the SAP system.
To demonstrate the service framework we will use an exemplary SAP system, operating on top of a MaxDB. Please note that
you can easily adopt the service to your Oracle DB.
The overview - three services
When starting a SAP system operating on top of MaxDB you have to start three components:
the X-Files
the app instance
the SAP CID / SCSI
So I decided to establish three service on my servers. The rst two services are running inside the database server zones, the
third one is running on my application server (SAP SCS and CI are running inside zones too). The aim is an automatic start of
the SAP system without interaction of the administrator.
To get a rst idea of the Sun Solaris service, please have a look into the /var/svc/manifest directory. The directory contains
manifest les from every service. Manifests are a description of a service. We will put our manifest les later on in this directory.
The X-Files service
Our rst service handles the start of the X-Server, which is a prerequisite before starting the MaxDB. So, please go to the
/var/svc/manifest/application/database directory and create a new le called xserver.xml Now we have to de ne several
1/31/2024
sections in the XML le:<?xml version="1.0"?>
<!DOCTYPE service_bundle SYSTEM "/usr/share/lib/xml/dtd/service_bundle.dtd.1">
<service_bundle type='manifest' name='xserver'>

</service_bundle> <service
name='application/database/xserver'
type='service'
version='1'>
<dependency
name='network'
grouping='require_all'
restart_on='none'
type='service'>
<service_fmri value='svc:/milestone/network:default' />
</dependency>
<dependency
name='filesystem-local'
restart_on='none'
type='service'>
<service_fmri value='svc://system/filesystem/local:default' />
</dependency> <dependent
name='xserver'
restart_on='none'>
<service_fmri value='svc:/milestone/multi-user' />
</dependent>
<exec_method
type='method'
name='start'
exec='/sapdb/programs/bin/x_server/kill start'
timeout_seconds='60' /> <exec_method
type='method'
name='stop'
exec='/sapdb/programs/bin/x_server stop'
timeout_seconds='60' /> <instance name="default" enabled="true"> </in
<template>
<common_name>
<loctext xml:lang='C'>
MaxDB X-Server
</loctext>
</common_name>
</template></service></service_bundle>
Copy this code!
What does the manifest le tells us:
At rst we de ne a new XML le with the associated DTD.
Then we describe a service_bundle, which is in fact the manifest for our new service.
In the third step we de ne the service itself. The service is ordered in the application/database
tree and is named xserver.
The fourth step is about the de nition of dependencies. This means the xserver service can only
be started when the lesystem and the NIC are up and running. Moreover we assign the new
service to a milestone. This means the milestone multi user can be only reached when this
service is started.
In the exec_method tags we de ne the start and stop method for starting and stopping the X-
Server. These are the OS level commands. So, when dealing with the other service de nitions,
1/31/2024
the exec_methods must contain the start and stop methods from the database and the SAP
system.
At least we de ne the instance as well as a description of our new service. the instance de nes,
that we have an instance on startup.
Now we have to import the manifest as a new service into Solaris. This can be easily done by the following command:
svccfg import /var/svc/manifest/application/database/xserver.xml
The command imports the new manifest and makes the service ready to use. Now you can start the X-Server with the new
command:
svcadm enable xserver or disable it with svcadm disable xserver
You may continue with the MaxDB service and the SAP service now. In the end you will have three services. All of these services
are going to start when the system comes up. And this is what we wanted to have on our server.
Administrate your new service
To administrate your service you need the svc* commands from Solaris. To start your service please use:
svcadm enable xserver
To disable it, use:
svcadm disable xserver
To have a look on all disabled services:
svcs -xv
To get a process ID list:
svcs -p xserver
Control your new service

To control your new service and get an idea in case of failures, please have a look into the following directory and control the log
le: /var/svc/log/xserver:default.log
MaxDB manifest
Here is the MaxDB service manifest. You have to replace the user and password in the exec_method sections.
<?xml version='1.0'?>
<!DOCTYPE service_bundle SYSTEM '/usr/share/lib/xml/dtd/service_bundle.dtd.1'>
<service_bundle type='manifest' name='export'>
<service name='application/database/maxdb' type='service' version='0'>
<create_default_instance enabled='true'/>
<dependency name='xserver' grouping='require_all' restart_on='none' type='service'>
<service_fmri value='svc:/application/database/xserver:default'/>
</dependency>
<dependent name='maxdb' restart_on='none' grouping='require_all'>
<service_fmri value='svc:/milestone/multi-user'/>
</dependent>
<exec_method name='start' type='method' exec='/sapdb/programs/bin/dbmcli -d G00 -u user,passwor
<method_context/>
</exec_method>
1/31/2024
<exec_method name='stop' type='method' exec='/sapdb/programs/bin/dbmcli -d G00 -u user,password
<method_context/>
</exec_method>
<template>
<common_name>
<loctext xml:lang='C'>MaxDB Database G00</loctext>
</common_name>
</template>
</service>
</service_bundle>
Copy this code!
SAP manifest
And here comes the SAP manifest for starting the SAP system. Please note, that the service is executed as user root, but to
re up SAP it is necessary to switch to user <sid>adm and execute the startsap command separately.
<?xml version='1.0'?>
<!DOCTYPE service_bundle SYSTEM '/usr/share/lib/xml/dtd/service_bundle.dtd.1'>
<service_bundle type='manifest' name='export'>
<service name='application/sap' type='service' version='0'>
<create_default_instance enabled='false'/>
<dependency name='maxdb' grouping='require_all' restart_on='none' type='service'>
<service_fmri value='svc:/application/database/maxdb:default'/>
</dependency>
<exec_method name='start' type='method' exec='su - <sid>adm -c startsap R3' timeout_seconds='36
<method_context/>
</exec_method>
<exec_method name='stop' type='method' exec='su - <sid>adm -c stopsap R3' timeout_seconds='360'
<method_context/>
</exec_method>
<template>
<common_name>
<loctext xml:lang='C'>SAP System G00</loctext>
</common_name>
</template>
</service>
</service_bundle>
Copy this code!
How to troubleshooting abap instance startup failure problem
Purpose
ABAP instance can not be start up, you can follow below steps to restart and do troubleshooting.
Overview
Steps and check points during instance startup.
For Unix/Linux based instance
1/31/2024
1) Clear the old processes and domain socket if exist.
1.1) Clear old sapstartsrv process
+ Check if sapstartsrv service for this instance exists.
You can run OS command,
ps -ef|grep sapstartsrv
+ If it exists, remove it with OS command,
kill -9 <PID>
Where <PID> = Process id of this sapstartsrv process.
1.2) Clear old domain sockets /tmp/.sapstream5<NN>13.
cd /tmp
ls -al
Use above commands to show all the les in /tmp
If .sapstream5<NN>13 exists, (where <NN> = instance number), manually remove it with command
rm .sapstream5<NN>13
1.3) Cleanup the shared memory segments with command
cleanipc <NN> remove
2) Ensure all the kernel executable valid.
If les are invalid, please backup executable folder, then copy a new set of kernel les from a running well instance.
The executable path be de ned by parameter DIR_EXECUTABLE, Generally, the it is /usr/sap/<SID>/<instance

name>/exe/. (Where <SID> = system ID).
3) Start sapstartsrv service for this instance.
3.1) Run below command from instance executable path
sapcontrol -nr <NN> -function StartService <SID>
3.2) Verify the sapstartsrv is started successfully
a) command in 3.1) outputs ".... start OK."
b) /tmp/5<NN>13 be created
c) run below OS command, you can see a sapstartsrv process just be created with proper instance pro le.
ps -ef|grep sapstartsrv
d) sapcontrol commands works. For example,
1/31/2024
sapcontrol -nr <NN> -function GetVersionInfo
If sapstartsrv startup failed, check the sapstartsrv.log and all the logs which be generated during the startup step.
The logs can be found in work folder, which de ned by parameter DIR_HOME(generally /usr/sap/<SID>/<instance
name>/work).
If there is not any outstanding error be raised in the traces, while sapstartsrv still does not work. please add parameter
service/trace =2 in the instance pro le, then repeat step 3) to restart sapstartsrv and check the traces again.
4) Start SAP instance
Run start command from path /usr/sap/<SID>/<instance name>/exe/
sapcontrol -nr <NN> -prot NI_HTTP -function Start
After system startup, you can check the processes status with OS command.
sapcontrol -nr <NN> -function GetProcessList
If the processes are not running or get status GREY, please go to work folder and check all the latest generated trace les for
errors.
Note, please run the start command as <sid>adm user. (for example, "devadm" user is need DEV system)
Related Content
Related Documents
__________________________________________________________________________________________________________
Kernel update: referenced symbol not found, runtime de nition of the symbol was
not found
PurposeEdit
1/31/2024
To help with troubleshoting.
Overview
After kernel change an error appears when disp+work is called, similar to these:
ld.so.1: disp+work: fatal: relocation error: le disp+work: symbol ixml_iXMLOStream_PreserveSpecialChar: referenced symbol
not found
Killed
rtld: 0712-001 Symbol getNonBoundControls__15ItsParseManagerCFiRQ2_4_STL6vectorXTiTQ2_4_STL9al locatorXTi__ was

referenced from module disp+work(), but a runtime de nition of the symbol was not found.
You want to know if the kernel les got corrupted.
Background
When disp+work is called the active folder (pwd) is not the one where disp+work is located
LIBPATH (AIX), SHLIB_PATH (HP-UX) or LD_LIBRARY_PATH (other UNIX systems) does not
point to the correct folder of disp+work
Steps for checking

1. Open a telnet session, login with <sid>adm user (in c-shell, /bin/csh)
2. Create a temporary folder , e.g.

% mkdir /var/tmp/test
3. Copy the new kernel archives in the test folder (SAPEXE*.SAR, dw*.sar), e.g.
% cd /var/tmp/test
% SAPCAR -xvf SAPEXE*.SAR
4. Modify (only for the test) the library path (LIBPATH, SHLIB_PATH, LD_LIBRARY_PATH), e.g.
% setenv LD_LIBRARY_PATH /var/tmp/test:$LD_LIBRARY_PATH
% echo $LD_LIBRARY_PATH
5. Test disp+work, e.g.

% /var/tmp/test/disp+work
This has to display among others the patch number of disp+work (and not the 'referenced symbol not found' error). In
this case the kernel has been downloaded correctly and it has to work when SAP is started
6. Copy the extracted les from the test folder above to the exe folder of SAP (/sapmnt/<SID>/exe)
7. Log off the current session before starting SAP (to clear the changes to library path)
Things to consider
Whenever a local instance is started, the sapcpe program checks the executables against those in the logically shared
directories and, if necessary, replicates them to the local instance. Executables located in /usr/sap/<SID>/SYS/exe/run
(DIR_CT_RUN, linked to /sapmnt/<SID>/exe) are replicated by sapcpe to the exe subdirectory of the instance
directories(DIR_EXECUTABLE, /usr/sap/<SID>/<instance>/exe). LIBPATH, SHLIB_PATH, LD_LIBRARY_PATH environment
variable must point to this local exe folder.
Related Content
Related Documents
SAP System Directories on UNIX
Parameters for Determining Source and Target Directories
1/31/2024
Using the Start Pro le
SAP KBA 1878425 : kernel update: referenced symbol not found, runtime de nition of the symbol was not found
Protected web methods of sapstartsrv
Purpose
To explain the difference between two options of service/protectedwebmethods parameter.
Overview
The SAPControl Webservice interface of sapstartsrv differentiates between protected and unprotected Webservice methods.
Protected methods are executed only after a successful user authentication. This is not required for unprotected methods. The
default setting is set so that all methods that change the status of the instance or the system when called are protected.
The parameter service/protectedwebmethods determines what methods are protected. It can have two different _default_
values: DEFAULT or SDEFAULT.
DEFAULT
Old default: protect all actions that can alter the state of the instance.
It is active if service/protectedwebmethods = DEFAULT is set in startup pro le of corresponding instance.
Protected web methods are (example of kernel 753):
Bootstrap
CheckPSE
CheckUpdateSystem
Con gureLogFileList
CreatePSECredential
CreateSnapshot
DeletePSE
DeleteSnapshots
EnqRemoveLocks
EnqRemoveUserLocks
GetCallstack
GWCancelConnections
GWDeleteClients
GWDeleteConnections
HAFailoverToNode
HASetMaintenanceMode
InstanceStart
InstanceStop
J2EEControlCluster
1/31/2024
J2EEControlComponents
J2EEControlProcess
J2EEDisableDbgSession
J2EEEnableDbgSession
OSExecute
RestartInstance
RestartSystem
SendSignal
SetProcessParameter
SetProcessParameter2
Shutdown
Start
StartBypassHA
StartSystem
Stop
StopBypassHA
StopService
StopSystem
StorePSE
UpdateInstancePSE
UpdateSCSInstance
UpdateSystem
UpdateSystemPKI
GetAgentCon g
GetListOfMaByCusGrp
GetMcInLocalMs
GetMtesByRequestTable
GetMtListByMtclass
InfoGetTree
MscCustomizeWrite
MscDeleteLines
MscReadCache
MsGetLocalMsInfo
MsGetMteclsInLocalMs
MtChangeStatus
MtCustomizeWrite
MtDbsetToWpsetByTid
MtDestroyMarkNTry
MteGetByToolRunstatus
MtGetAllToCust
MtGetAllToolsToSet
MtGetMteinfo
MtGetTidByName
1/31/2024
MtRead
MtReset
PerfCustomizeWrite
PerfRead
PerfReadSmoothData
ReadDirectory
ReadFile
ReadPro leParameters
ReferenceRead
Register
RequestLogonFile
SnglmgsCustomizeWrite
SystemObjectSetValue
TextAttrRead
ToolGetEffective
ToolSet
ToolSetRuntimeStatus
TriggerDataCollection
Unregister
UtilAlChangeStatus
UtilMtGetAidByTid
UtilMtGetTreeLocal
UtilMtReadAll
UtilReadRawalertByAid
UtilSnglmsgReadRawdata
SDEFAULT
New default: protect almost everything, just allowing consoles to show the initial view.
It is active if service/protectedwebmethods = SDEFAULT is set in startup pro le of corresponding instance.
Protected web methods are (example of kernel 753):
ABAPAcknowledgeAlerts
ABAPCheckRFCDestinations
ABAPGetComponentList
ABAPGetSystemWPTable
ABAPGetWPTable
ABAPReadRawSyslog
ABAPReadSyslog
AnalyseLogFiles
Bootstrap
CheckParameter
CheckPSE
1/31/2024
CheckUpdateSystem
Con gureLogFileList
CreatePSECredential
CreateSnapshot
DeletePSE
DeleteSnapshots
EnqGetLockTable
EnqGetStatistic
EnqRemoveLocks
EnqRemoveUserLocks
GetAccessPointList
GetAlerts
GetAlertTree
GetCallstack
GetEnvironment
GetLogFileList
GetProcessParameter
GetQueueStatistic
GetStartPro le
GetSystemUpdateList
GetTraceFile
GetVersionInfo
GWCancelConnections
GWDeleteClients
GWDeleteConnections
GWGetConnectionList
GWGetClientList
HACheckCon g
HACheckFailoverCon g
HACheckMaintenanceMode
HAFailoverToNode
HAGetFailoverCon g
HASetMaintenanceMode
ICMGetCacheEntries
ICMGetConnectionList
ICMGetProxyConnectionList
ICMGetThreadList
InstanceStart
InstanceStop
J2EEControlCluster
J2EEControlComponents
J2EEControlProcess
J2EEDisableDbgSession
1/31/2024
J2EEEnableDbgSession
J2EEGetApplicationAliasList
J2EEGetCacheStatistic
J2EEGetCacheStatistic2
J2EEGetClusterMsgList
J2EEGetComponentList
J2EEGetEJBSessionList
J2EEGetProcessList
J2EEGetProcessList2
J2EEGetRemoteObjectList
J2EEGetSessionList
J2EEGetSharedTableInfo
J2EEGetThreadCallStack
J2EEGetThreadList
J2EEGetThreadList2
J2EEGetThreadTaskStack
J2EEGetVMGCHistory
J2EEGetVMGCHistory2
J2EEGetVMHeapInfo
J2EEGetWebSessionList
J2EEGetWebSessionList2
ListCon gFiles
ListDeveloperTraces
ListLogFiles
ListSnapshots
OSExecute
ParameterValue
ReadCon gFile
ReadDeveloperTrace
ReadLogFile
ReadSnapshot
RestartInstance
RestartService
RestartSystem
SendSignal
SetProcessParameter
SetProcessParameter2
ShmDetach
Shutdown
Start
StartBypassHA
StartSystem
Stop
1/31/2024
StopBypassHA
StopService
StopSystem
StorePSE
UpdateInstancePSE
UpdateSCSInstance
UpdateSystem
UpdateSystemPKI
WebDispGetServerList
WebDispGetGroupList
WebDispGetVirtHostList
WebDispGetUrlPre xList
GetAgentCon g
GetListOfMaByCusGrp
GetMcInLocalMs
GetMtesByRequestTable
GetMtListByMtclass
InfoGetTree
MscCustomizeWrite
MscDeleteLines
MscReadCache
MsGetLocalMsInfo
MsGetMteclsInLocalMs
MtChangeStatus
MtCustomizeWrite
MtDbsetToWpsetByTid
MtDestroyMarkNTry
MteGetByToolRunstatus
MtGetAllToCust
MtGetAllToolsToSet
MtGetMteinfo
MtGetTidByName
MtRead
MtReset
PerfCustomizeWrite
PerfRead
PerfReadSmoothData
ReadDirectory
ReadFile
ReadPro leParameters
ReferenceRead
Register
RequestLogonFile
1/31/2024
SnglmgsCustomizeWrite
SystemObjectSetValue
TextAttrRead
ToolGetEffective
ToolSet
ToolSetRuntimeStatus
TriggerDataCollection
Unregister
UtilAlChangeStatus
UtilMtGetAidByTid
UtilMtGetTreeLocal
UtilMtReadAll
UtilReadRawalertByAid
UtilSnglmsgReadRawdata
Protected webmethods
DEFAULT vs. SDEFAULT
DEFAULT SDEFAULT
ABAPAcknowledgeAlerts
ABAPCheckRFCDestinations
ABAPGetComponentList
ABAPGetSystemWPTable
ABAPGetWPTable
ABAPReadRawSyslog
ABAPReadSyslog
AnalyseLogFiles
Bootstrap Bootstrap
CheckParameter
CheckPSE CheckPSE
CheckUpdateSystem CheckUpdateSystem
Con gureLogFileList Con gureLogFileList
CreatePSECredential CreatePSECredential
CreateSnapshot CreateSnapshot
DeletePSE DeletePSE
DeleteSnapshots DeleteSnapshots
EnqGetLockTable
EnqGetStatistic
EnqRemoveLocks EnqRemoveLocks
1/31/2024
EnqRemoveUserLocks EnqRemoveUserLocks
GetAccessPointList
GetAgentCon g GetAgentCon g
GetAlerts
GetAlertTree
GetCallstack GetCallstack
GetEnvironment
GetListOfMaByCusGrp GetListOfMaByCusGrp
GetLogFileList
GetMcInLocalMs GetMcInLocalMs
GetMtesByRequestTable GetMtesByRequestTable
GetMtListByMtclass GetMtListByMtclass
GetProcessParameter
GetQueueStatistic
GetStartPro le
GetSystemUpdateList
GetTraceFile
GetVersionInfo
GWCancelConnections GWCancelConnections
GWDeleteClients GWDeleteClients
GWDeleteConnections GWDeleteConnections
GWGetClientList
GWGetConnectionList
HACheckCon g
HACheckFailoverCon g
HACheckMaintenanceMode
HAFailoverToNode HAFailoverToNode
HAGetFailoverCon g
HASetMaintenanceMode HASetMaintenanceMode
ICMGetCacheEntries
ICMGetConnectionList
ICMGetProxyConnectionList
ICMGetThreadList
InfoGetTree InfoGetTree
InstanceStart InstanceStart
1/31/2024
InstanceStop InstanceStop
J2EEControlCluster J2EEControlCluster
J2EEControlComponents J2EEControlComponents
J2EEControlProcess J2EEControlProcess
J2EEDisableDbgSession J2EEDisableDbgSession
J2EEEnableDbgSession J2EEEnableDbgSession
J2EEGetApplicationAliasList
J2EEGetCacheStatistic
J2EEGetCacheStatistic2
J2EEGetClusterMsgList
J2EEGetComponentList
J2EEGetEJBSessionList
J2EEGetProcessList
J2EEGetProcessList2
J2EEGetRemoteObjectList
J2EEGetSessionList
J2EEGetSharedTableInfo
J2EEGetThreadCallStack
J2EEGetThreadList
J2EEGetThreadList2
J2EEGetThreadTaskStack
J2EEGetVMGCHistory
J2EEGetVMGCHistory2
J2EEGetVMHeapInfo
J2EEGetWebSessionList
J2EEGetWebSessionList2
ListCon gFiles
ListDeveloperTraces
ListLogFiles
ListSnapshots
MscCustomizeWrite MscCustomizeWrite
MscDeleteLines MscDeleteLines
MscReadCache MscReadCache
MsGetLocalMsInfo MsGetLocalMsInfo
MsGetMteclsInLocalMs MsGetMteclsInLocalMs
1/31/2024
MtChangeStatus MtChangeStatus
MtCustomizeWrite MtCustomizeWrite
MtDbsetToWpsetByTid MtDbsetToWpsetByTid
MtDestroyMarkNTry MtDestroyMarkNTry
MteGetByToolRunstatus MteGetByToolRunstatus
MtGetAllToCust MtGetAllToCust
MtGetAllToolsToSet MtGetAllToolsToSet
MtGetMteinfo MtGetMteinfo
MtGetTidByName MtGetTidByName
MtRead MtRead
MtReset MtReset
OSExecute OSExecute
ParameterValue
PerfCustomizeWrite PerfCustomizeWrite
PerfRead PerfRead
PerfReadSmoothData PerfReadSmoothData
ReadCon gFile
ReadDeveloperTrace
ReadDirectory ReadDirectory
ReadFile ReadFile
ReadLogFile
ReadPro leParameters ReadPro leParameters
ReadSnapshot
ReferenceRead ReferenceRead
Register Register
RequestLogonFile RequestLogonFile
RestartInstance RestartInstance
RestartService
RestartSystem RestartSystem
SendSignal SendSignal
SetProcessParameter SetProcessParameter
SetProcessParameter2 SetProcessParameter2
ShmDetach
Shutdown Shutdown
SnglmgsCustomizeWrite SnglmgsCustomizeWrite
1/31/2024
Start Start
StartBypassHA StartBypassHA
StartSystem StartSystem
Stop Stop
StopBypassHA StopBypassHA
StopService StopService
StopSystem StopSystem
StorePSE StorePSE
SystemObjectSetValue SystemObjectSetValue
TextAttrRead TextAttrRead
ToolGetEffective ToolGetEffective
ToolSet ToolSet
ToolSetRuntimeStatus ToolSetRuntimeStatus
TriggerDataCollection TriggerDataCollection
Unregister Unregister
UpdateInstancePSE UpdateInstancePSE
UpdateSCSInstance UpdateSCSInstance
UpdateSystem UpdateSystem
UpdateSystemPKI UpdateSystemPKI
UtilAlChangeStatus UtilAlChangeStatus
UtilMtGetAidByTid UtilMtGetAidByTid
UtilMtGetTreeLocal UtilMtGetTreeLocal
UtilMtReadAll UtilMtReadAll
UtilReadRawalertByAid UtilReadRawalertByAid
UtilSnglmsgReadRawdata UtilSnglmsgReadRawdata
WebDispGetGroupList
WebDispGetServerList
WebDispGetUrlPre xList
WebDispGetVirtHostList
The way to check the current settings
The following property lists the protected web methods of corresponding instance:
property: Protected Webmethods

propertytype: Attribute
value: <list of ptotected webmethods>
1/31/2024
sapcontrol -nr <instance number> -function ParameterValue service/protectedwebmethods
displays the current parameter setting, e.g.:
05.12.2017 16:57:06
ParameterValue
OK
SDEFAULT
Not protected webmethods

You want to know which webmethods are then not protected? Execute the commands:
Commands:
1. sapcontrol -nr <instance number> -function GetInstanceProperties | grep -i webmethods | grep -vi protected | tr ',' '\n' |
tr -d ' ' | sort > all.txt
2. sapcontrol -nr <instance number> -function GetInstanceProperties | grep -i webmethods | grep -i protected | tr ',' '\n' | tr
-d ' ' | sort > protected.txt
3. diff protected.txt all.txt -ywa | grep '>'
And the outcome is (in this example):
comm all.txt protected.txt -23
AccessCheck
GetInstanceProperties
GetNetworkId
GetProcessList
GetSecNetworkId
GetSystemInstanceList
The above in bold are the methods which are not protected.
Related Documents
SAP Note 1439348: Extended security settings for sapstartsrv

SAP Note 927637: Web service authentication in sapstartsrv as of Release 7.00
SAP note 2493171: Information Disclosure in SAP NetWeaver Instance Agent Service
SAP MMC Snap-In

The SAP Snap-In for Microsoft Management Console (MMC) provides a graphical user interface to administer SAP systems
from Windows PCs. It is installed with any SAP application server on Windows by default. The default con guration allows you to
administer any locally installed SAP application server. As of release 45B, however, SAP MMC can manage any local or remote
application server on Windows, and as of release 6.40, application servers running on any OS platforms. SAP MMC versions are
fully backward compatible. Therefore installing the latest version is recommended and enables the latest features and xes.
Starting with release 7.10, SAP MMC is shipped as a fully self-contained standalone standard Microsoft installer package (MSI).
This makes it very easy to install it on any Windows PC.
As of release 6.40, the SAPControl web service of sapstartsrv is used to manage application servers running on any OS
platform. Releases < 6.40 SAP MMC (< 7.49) still utilize the ISAPControl DCOM interface of sapstartsrv to administer
application server running on Windows. In addition. the command line tool sapcontrol can be used to administer application
1/31/2024
server via the SAPControl web service. Do you know the SAP Management Console (SAP MC)? and the SAP Management
Perspective of SAP NetWeaver Developer Studio are alternative graphical Java / Eclipse based user interfaces, providing
similar features as SAP MMC.
Download Latest SAP MMC Snap-In Released Build
Log on to SAP’s Software Center to access the download pages.

Under the following link, you will nd the latest versions of the SAP MMC Snap-In: SAP MMC Download page
SAP MMC change log
Standalone logviewer mode: As of 720 patch level 71 (SAP note 1527500) SAP MMC allows to
use the logviewer functionality for separate log les.
Data Collector Parameter: As of 720 patch level 90 (SAP note 1556121) you can specify
additional "Collector Parameter" when creating a server side snapshot, especially usefully for
MDM customers.
Logviewer Improvements: As of 720 patch level 102 (SAP note 1623165) the logviewer
functionality is greatly improved and e.g. allows to export log les in CSV format.
Extended HA support: As of 720 patch level 421 (+ corresponding sapstartsrv Version on SAP
system side) SAP MMC provides extended High Availability (HA) support in case the
corresponding HA solution support its (e.g. latest version of SAP Microsoft Cluster integration).
You can check the overall HA con guration and status using "Verify High Availability Con g"
menu, view HA solution details using "High Availability Info" menu and trigger a cluster node
move using "Move to node" button in the "HA failover instance state" popup).
Persist Pro le Parameter changes: As of 740 (+ corresponding sapstartsrv Version on SAP

system side) SAP MMC can persists pro le parameter changes in pro le using the "Persist
changes in pro le" check box on the "Parameter" popup. Please note that you should not use
this in case you also maintain pro le parameters using ABAP transaction rz10 since rz10
database pro le content will become out of sync if the pro le is edited directly on the le
systems as well .
Advanced HDB support: As of 740 (+ corresponding sapstartsrv Version on SAP system side)
SAP MMC provides separate Stop of HDB instances for Systems with integrated HDB database
instances using the "Skip HDB database instances" check box as well as HDB Database Studio
integration via "Manage Database" menu.
Pro le Parameter Documentation: As of 740 (+ corresponding sapstartsrv Version on SAP

system side) SAP MMC can display the pro le parameter documentation using the
"Documentation" button in the "Parameter" popup or "Help" button / F1 key in the "Instance
parameter" and "Startpro le" popup.
Rolling Kernel Switch (RKS): As of 741 (+ corresponding sapstartsrv Version on SAP system
side) SAP MMC supports RKS to update a Kernel without any system downtime. System
supporting RKS will show an additional "System update" node. You start a RKS procedure using
"Update system..." menu and view the RKS log using the "View update traces..." menu.
SAP Software Download Center integration: As of 741 SAP MMC lets you easily navigate to the
corresponding Kernel download of a selected SAP instance using the "Download Kernel Patch..."
menu.
SAP Syslog to Developer trace navigation: As of 742 SAP MMC lets you easily navigate form the
syslog view to the correspond dev trace via "Developer Trace" context menu of a syslog entry.
C call stack of processes: As of 742 (SAP note 1964673) you can query the call stack of all
threads of a process via "All Tasks->Callstack" menu in SAP MMC if the instance supports the
new webmethod "GetCallstack".
1/31/2024
Log le analysis to Developer trace navigation: As of 743 SAP MMC lets you easily navigate form
a log le analysis (or syslog) popup view to the corresponding dev trace via "Developer Trace"
context menu on the log entry.
Start/Stop/Restart multiple instances: As of 745 patchlevel 5 and 742 patchlevel 121 SAP MMC
displays instance type column in the right side result pane on the system nodes, allows you to
select multiple instances (using shift or ctrl key + mouse click) from this list and apply a
start/stop/restart operation to all selected instances of the system.
Improved local instances detection: As of 745 patchlevel 5 SAP MMC detects local instances via
Windows service registration instead of DCOM interface registration. This allows automatic
detection of local instances even if the (deprecated) DCOM interface is not active.
Check Pro le Parameter: As of 746 (+ corresponding sapstartsrv Version on SAP system side)
SAP MMC provides a pro le parameter check via "All Tasks->Check Parameter" menu of
instance and system nodes.
Enhanced https support: As of 747 SAP MMC provides noti cation for SSL / certi cate issues
when running in https mode and allows to disable the corresponding check in SSL handshake.
Enhanced SAP Web Dispatcher support: As of 747 (+ corresponding sapstartsrv Version on SAP
system side) SAP MMC provides additional SAP Web Dispatcher monitoring via "Groups",
"Virtual Hosts" and "Url Pre xes" nodes (downport from NGAP branch).
Cleaned up Database support: As of 748 SAP MMC no longer installs any DB vendor speci c
extension snap-ins and supports latest versions of Microsoft SQL Server Management Studio.
DCOM ISAPControl interface support removed: As of 749 SAP MMC no longer uses nor
supports the deprecated DCOM interface.
ASCS online restart: As of 749 SAP MMC supports an ASCS instance restart via "Update..."
menu on the the instance node while the system remains running like it is also used within RKS.
Enqueue Replicator 2 monitoring: As of 750 SAP MMC supports monitoring of Enqueue

Replicator 2 (Locks, Statistic).
Gateway monitoring: As of 750 (+ corresponding sapstartsrv Version on SAP system side) SAP
MMC supports gateway (ABAP or standalone) monitoring (clients and connections table,
cancel/delete of clients and connections).
Con guration les access: As of 750 (+ corresponding sapstartsrv Version on SAP system side)
SAP MMC supports read access via "All Tasks->View Con guration Files..." menu to all
con guration les (Pro les, ACLs, reginfo, secinfo, ...) of the instances.
Https certi cate check: As of 749 patchlevel 14 (SAP note 2361335) and 750 SAP MMC SSL
communication problem noti cation allows you to inspect the server certi cate in detail via
"View certi cate". Via "All Tasks->Check Certi cates" you can check certi cates of single
instance, systems or even you entire system landscape.
Support of webmethod EnqGetStatistic2: As of 793, the output of the webmethod

EnqGetStatistic2, containing the statistics of ENSA2, is provided under the node "Enqueue
Statistic". Please note, that the version of the SAP Start Service must support this webmethod
as well (SAP note 3373306)
SAP MMC - Related Tools

SAP MMC automatically integrates with many SAP and third party tools to provide additional functionality like SAP logon,
remote login or Database Administration. By installing these tools on your Windows PC you can add additional functionality to
SAP MMC:
1/31/2024
SAP GUI for Windows
Microsoft Remote Desktop Client
Microsoft Computer Management MMC Snap.In
Telnet client
SSH clients like putty
Hummingbird Exceed or Cygwin/X X11 Server
Microsoft SQL Server 2005/2008 Management Studio
MaxDB Database Studio
IBM DB2 Control Center
Oracle Enterprise Manager Console
Related Information
SAP note 877795, "Problems with sapstartsrv as of Release 7.00 & 6.40 patch 169"
SAP note 927637, "Web service authentication in sapstartsrv as of Release 7.00"
SAP note 995116, "Backward porting of sapstartsrv for earlier release"
How to extend the SAP MMC SnapIn
SAP System Information in Directory Services
Microsoft Management Console - Overview
Microsoft Management Console 3.0
1/31/2024
Link to File Link to File
Link to File
1/31/2024
SAP Start Service (sapstartsrv) security
Purpose
Cover security related topics of the SAP Start Service, the "sapstartsrv" process.
Overview
This Expert Content page will list security related topics of the sapstartsrv process.
Protected webmethods
The parameter "service/protectedwebmethods" can be used to con gure which webmethods are
publicly available (meaning that no authentication is required) or that admin access / authentication
is required.
The SAP Note 927637 explains how this parameter works.
The parameter accepts four keywords:
NONE → all webmethods are not protected
ALL → all webmethods are protected
DEFAULT → some of the webmethods are protected and this was the default value of the
parameter on older SAP kernel versions
SDEFAULT → more methods were added to the list of protected webmethods and this is the
current default value of the parameter
This Expert Content page shows how to verify which methods are currently protected.
Restricting access to the sapstartsrv port(s)
The parameters "service/http/acl_ le" and "service/https/acl_ le" can be set pointing to a text le
containing an Access Control List (ACL), limiting which IP addresses are allowed to connect to the
sapstartsrv HTTP and HTTPS port, respectively.
The syntax of the ACL le is explained at the SAP Note 1495075.
Granting full access to additional users and groups
1/31/2024
If a webmethod is not protected (see previous section), it can be called anonymously (without
authentication).
Otherwise, you must provide the password of the "SIDadm" user ID (or of a local administrator, if SAP
runs on Windows).
It is possible to grant access to additional users and groups by de ning the parameters
"service/admin_users" and/or "service/admin_groups".
A list of users/groups separated by spaces can be provided.
Con guring SSO
Admin users can also be de ned with SSO (based on X.590 client certi cate) by using the parameter
"service/sso_admin_user_X" (where "X" is a sequential number starting in zero).
The parameter's documentation can be read at the transaction RZ11.
The sapstartsrv uses the SSL server certi cate of the SAPSSLS.pse of the local instance.
Related Content
Related Documents
BC-CST Expert Content page: Protected web methods of sapstartsrv
SAP Note 1495075: Access control lists (ACL)
SAP Start Service - Frequently asked Questions (FAQ)
How to check the sapstartsrv release and patch level?
There are different ways to get the kernel release and patch level of sapstartsrv:
sapcontrol web method "GetVersionInfo"
110> sapcontrol -nr <instance number> -function GetVersionInfo
06.08.2015 15:09:33
GetVersionInfo
OK
Filename, VersionInfo, Time
1/31/2024
/usr/sap/<SID>/ASCS01/exe/sapstartsrv, 742, patch 101, changelist 1567027, RKS compatibility level 0, optU (Mar 24 2015,
16:19:18), linuxx86_64, 2015 03 24 16:01:42
Strings command
Windows
C:\>strings sapstartsrv.exe | ndstr changelist
#[%]SAPProductVersion: 741, patch 201, changelist 1568441
UNIX
> strings sapstartsrv | grep changelist
#[%]SAPProductVersion: 742, patch 101, changelist 1567027
getsapversion command
getsapversion sapstartsrv
#File Version: 7770, 200, 30, 36697

Product Version: 777, patch 200, changelist 2002777
Platform: linuxx86_64
Special Build Description: optU (Jun 12 2020, 21:24:47)
Compatibility Level: 0
Is the SAP integrated with High Availability solutions?

Yes.
It is possible to integrate the sapstartsrv service with HA interfaces. All details and requisites are available in the following links:
SAP NetWeaver High Availability Cluster 740 Certi cation (NW-HA-CLU 740)
SAP High Availability Partner Information
List of SAP Certi ed HA-Interface Partners
How to Connect SAPSTARSRV and Cluster Frameworks using the Components saphascriptco.so and
SAP_Vendor_Cluster_Connector
1693245 - SAP HA Script Connector Library
What it the goal of history.glf log le?
This le belongs to the sapstartsrv service. It is possible to nd it over DIR_HOME folder. The goal of the le is to record the
history events of some speci c sapstartsrv methods.
The execution of following methods are currently rocorded into the history.glf le:
Start
Stop2
RestartInstance
RestartService
1/31/2024
StopService
StartSystem
StopSystem
RestartSystem
UpdateSystem
UpdateSCSInstance
If the log le does not exist, the sapstartsrv create it during the startup. If the le exist, however header is corrupted or in a non-
recognized way, the le is recreated by sapstartsrv. Otherwise the old le remains.
The content of the le is something similar to:
> cat history.glf
FILE_TYPE:DAAA96DE-B0FB-4c6e-AF7B-A445F5BF9BE2
ENCODING:UTF8
RECORD_SEPARATOR:10
COLUMN_SEPARATOR:9
ESC_CHARACTER:0
COLUMNS:Severity|Time|Text
SEVERITY_MAP:Info|Information|Warning|Warning|Error|Error
HEADER_END
Info 2015 09 14 23:13:26 Log le created
Info 2015 09 14 23:13:26 SAP-StartService started
Info 2015 09 14 23:16:27 Restart service by user "<user who trigger the method>" from "<IP> / <hostname>"
Info 2015 09 14 23:16:30 SAP-StartService started
How to add a new system on SAP MMC?
The SAP Snap-In for Microsoft Management Console (MMC) provides a graphical user interface to administer SAP systems
from Windows PCs. It is installed with any SAP application server on Windows by default.
The default con guration allows you to administer any locally installed SAP application server. See fully details on this Expert
Content page: SAP MMC Snap-In
In case you want to add a new system to monitor with SAP MMC, follow these steps:
- Open the SAPMMC window:
1/31/2024
- Select ʻSAP System’, click on right button and Press ʻProperties’:
- Go to tab ʻFixed’ and ll areas.

System: you should enter here SystemID (SID) from the system you want to add to SAPMMC
Instance: Enter here application server hostname (<hostname>) and instance number (<$$>) for that system.
Afterwards, press ʻ>> Add >>’ and you should see that system under Fixed instance list white box.
1/31/2024
Then, click OK.

- Finally, you should be able to see SAP system on SAPMMC window:
Under "Options" in the "General" tab there are "Always show local SAP instances" and "Always show all SAP instances of SAP
systems", both are enabled by default. They make it easier to use SAP MMC:
1."Always show local SAP instances" automatically add all instances running of the server where you start SAP MMC
2."Always show all SAP instances of SAP systems" will query sapstartsrv of one of the instances via "GetSystemInstanceList" for
1/31/2024
a complete list of instances of the systems
This make it easier to administer huge systems or systems with varying number of instances.
The entries under a System id are the result of running : "sapcontrol -nr <instance number> -function GetSystemInstanceList"
When running this command the output is taken from le "$(DIR_GLOBAL)\sapcontrol"

Every sapstartsrv registers with its instance name in $(DIR_GLOBAL)/sapcontrol and updates its information every 60 seconds
SAP MMC can be used to perform many different administration actions over SAP system, such as Start or Stop it (click on
<SID> with right button > All Tasks).
You can also Create a Snapshot, this will collect system information and developer traces. Fully details on Note 1786182 -
CreateSnapshot: Collecting developer traces using sapcontrol
See also:
2010805 - SAP MMC common issues
2624443 - [WEBINAR] Understanding SAP Startup Framework
1788704 - sapstartsrv registration in $(DIR_GLOBAL)
How to read Snapshots using SAPMMC or SAP MC
The SAP Microsoft Management Console (MMC) Snap-In gives you the option to create snapshots (ZIP archive with Web
service responses) for support purposes that
can later be opened again "offline" using the SAP MMC.
1/31/2024
Snapshots are packed as zip archives in the directory:
$(DIR_GLOBAL)/sapcontrol/snapshots
They can be extracted to a local directory and read into a graphic user interface of SAPMMC and SAP-MC using the following
menu path:
Context menu "SAP Systems" -> "All Tasks" -> "Open Snapshot”
This will take us to the directory where we saved the snapshots:
1/31/2024
Then, a new “SAP Systems” tree is created with all the information from the loaded snapshot:
SNAPSHOT viewer can be found on transaction SNAPSHOTS, which contains a list of all the snapshots taken by all the
application servers.
They are created under speci c circumstances that may need analysis afterwards; such as work process crash, critical
resources on the Dispatcher, Queue standstill, or memory shortage situations, for instance.
You can see roughly what was happening in the system, which were the problems at a particular time.
SAP Startup Troubleshooting Guide for Netweaver Application Server
Purpose
This document was designed to help SAP customers to troubleshoot and resolve the majority of SAP system startup problems
own their own, minimizing the business impacts and costs attached to a standard support ticket life cycle. As time goes by, new
topics and startup error scenarios will be added to this guide. Stay tuned!
NEWS from December 2016: if SAP is running on AIX 7.1 or 7.2 and you are unable to start SAP after updating the AIX, read the
SAP note 2402207.
1. Preliminary Analysis
This initial checklist will approach mandatory settings that have proven to be root cause of startup issues in several occasions.
With this in mind, please *DO NOT* skip any phases.
1.1. IS DATABASE UP AND RUNNING?
This is absolute prerequisite for SAP SYSTEM to start. In order to test this, operating system command R3trans -d
1/31/2024
can be executed (as SIDadm user). Any return code different than 0 means that DB cannot be reached by DIALOG work
processes, and so SAP system will not initiate. The following return indicates that database is up, running and reachable by SAP
work processes:
<hostname>:SIDadm > R3trans -d

This is R3trans version X.xx (release 742 - 18.11.14 - 20:14:09).
unicode enabled version
R3trans nished (0000).
There is NO POINT in moving the analysis further while the return code is different than zero.
In case the return code is different than zero, please involve your DBA/Network/OS teams.
1.2. IS SAP STARTUP SERVICE CORRECTLY DEFINED?
UNIX:
File "/usr/sap/sapservices" must contain the correct service de nitions.
LD_LIBRARY_PATH=/usr/sap/<SID>/<instance name>/exe:$LD_LIBRARY_PATH;
export LD_LIBRARY_PATH;
/usr/sap/<SID>/<instance_nr>/exe/sapstartsrv pf=/usr/sap/<SID>/SYS/pro le/<SID>_<instance_nr>_<hostname> -D -u

<SIDadm>
WINDOWS:
1. Run "services.msc";
2. Look for the relevant service SAP<SID>_<instance_nr>;
3. Check the command line assigned to it:
<DRIVE>:\usr\sap\<SID>\<instance>\exe\sapstartsrv pf=<DRIVE>:\usr\sap\<SID>\SYS\pro le\<START_PROFILE>
1.3. START PROFILES:
In order to correctly start the required processes such as message server, enqueue server and the disp+work, the SAP startup
agent (sapstartsrv) needs to nd a correct scenario for that. This scenario consists on a list of "Start_Program_<xx>"
commands that should be present an the "START" pro le (for all kernel releases up to 740) or at the "INSTANCE" pro le (kernel
release 740 onwards).
These start entries are mandatory in the pro le being used by sapstartsrv process. You can use the process list on UNIX and the
service de nition at WINDOWS to nd out what is the exactly pro le currently assigned to sapstartsrv process.
Examples:
Entries needed for starting the dispatcher + work processes:
_DW=dw.sap$(SAPSYSTEMNAME)_$(INSTANCE_NAME)
Execute_0X=local rm -f $(_DW)
Execute_0X=local ln -s -f $(DIR_EXECUTABLE)/disp+work$(FT_EXE) $(_DW)
Start_Program_0X=local $(_DW) pf=$(_PF)
Example of message server start entries:
1/31/2024
_MS = ms.sap$(SAPSYSTEMNAME)_$(INSTANCE_NAME)
Execute_0X = local rm -f $(_MS)
Execute_0X = local ln -s -f $(DIR_EXECUTABLE)/msg_server$(FT_EXE) $(_MS)
Restart_Program_0X = local $(_MS) pf=$(_PF)
Enqueue server related start commands:
_EN = en.sap$(SAPSYSTEMNAME)_$(INSTANCE_NAME)
Execute_0X = local rm -f $(_EN)
Execute_0X = local ln -s -f $(DIR_EXECUTABLE)/enserver$(FT_EXE) $(_EN)
Restart_Program_0X = local $(_EN) pf=$(_PF)
1.4. LOGGING IN OS LEVEL DIRECTLY AS <SIDadm> USER:
It is mandatory that SIDadm user should be able to log on at operating system level *WITHOUT ANY* other prompts such as:
1. Company policies;
2. User policies;
3. Next scheduled downtimes/System news;
4. Logging in as another user and SUdoing to SIDadm;
This can cause several problems throughout different scenarios, but mainly on upgrade procedures. Further details on SAP note
1301712.
1301712 - UNIX sapstartsrv: Determining the environment
1.5: IS SAP STARTUP AGENT (SAPSTARTSRV) RUNNING?
There must be ONLY ONE sapstartsrv process running for each instance. Examples for each platform below:
Examples
As an example, we will use a centralized system with the following 03 instances running on the same host (ASCS, PAS and DI).
The following output should return for the operating system level command:
ps -ef | grep <SID> | grep sapstartsrv
(...) /usr/sap/<SID>/ASCS00/exe/sapstartsrv pf=/usr/sap/<SID>/SYS/pro le/<SID>_ASCS00_<hostname> -D

(...) /usr/sap/<SID>/DVEBMGS01/exe/sapstartsrv pf=/usr/sap/<SID>/SYS/pro le/<SID>_DVEBMGS01_<hostname> -D
(...) /usr/sap/<SID>/D02/exe/sapstartsrv pf=/usr/sap/<SID>/SYS/pro le/<SID>_D02_<hostname> -D
Pro le pattern names returned with the command can be such as

"START_<INSTANCE>_<hostname>" in older releases.
There can be another sapstartsrv process (as below) but it will play no parts in the startup of
the instance.
(...) /usr/sap/hostctrl/exe/sapstartsrv pf=/usr/sap/hostctrl/exe/host_pro le -D
When sapstartsrv service is not running you could run manually the above command for the
desired instance
If the service doesn't start and nothing it's written in "sapstartsrv.log" it might happen the
binaries are damaged in the local exe folder. In this case has to be replaced
WINDOWS:
1/31/2024
1. You shoud rst con gure task manager output so it displays the command line related to the selected process:
2. Run task manager → Switch to tab "Processes" → Menu "view" → "columns" → 'PID' and 'COMMAND LINE';
3. Then using task manager tab "Processes", look for the instance sapstartsrv process with similar:
<DRIVE>:\usr\sap\<SID>\<instance>\exe\sapstartsrv pf=<DRIVE>:\usr\sap\<SID>\SYS\pro le\<START_PROFILE>
1.6. IS THERE ANY SAP PROCESS ALREADY RUNNING?
After trying to start the instance (either through the SAP MMC, the "startsap" command or using "sapcontrol ... -function
Start"), no error is returned. However, the SAP processes (Dispatcher - ABAP; jstart - Java) do not start. No trace le is
updated either.
Verify whether any process is already in "GREEN" or "YELLOW" status (e.g., the IGS).
hostname:sidadm 40> sapcontrol -nr 33 -function GetProcessList

12.10.2015 20:15:45
GetProcessList
OK

msg_server, MessageServer, GRAY, Stopped, , , 1234
disp+work, Dispatcher, GRAY, Stopped, , , 1111
igswd_mt, IGS Watchdog, GREEN, Running, 2015 07 31 11:59:15, 1:21:09, 2323
hostname:sidadm 41>
All processes must have the "GRAY" status. Otherwise, the SAP Startup Agent (sapstartsrv) will "ignore" the start command.
Stop the instance rst, so all processes are stopped. Then, start the instance again.
1.7. PERMISSIONS:
UNIX:
"/TMP" DIRECTORY:
"/tmp" directory's permissions must match the following. The nal 't' for indicates sticky bit:
drwxrwxrwt 22 root root 4096 Apr 6 20:16 tmp
927637 - Web service authentication in sapstartsrv as of Release 7.00
SAPSTARTSRV.LOG:
This le located on "/usr/sap/<SID>/<INSTANCE>/work/" should be owned by <SIDadm> user. For speci c cases when owned
by root, sapstartsrv (running as <SIDadm> user) will not be able to access the le and thus the system will fail to start.
Following entry is seen in "/var/messages":
Unable to open trace le sapstartsrv.log. (Error 13 Permission denied)
SAPUXUSERCHECK FILE
The permissions for this le should look like this:
-rwsr-x 1 root sapsys 1293660 Apr 06 2015 sapuxuserchk
There is one SAPUXUSERCHECK le per instance (/usr/sap/<SID>/<instance>/exe) and the permissions and ownership
should look alike for all les. The following command can help tracking the les:
nd /usr/sap/<SID>/* -name sapuxuserchk
1/31/2024
1.8: IP / HOSTNAME RESOLUTION:
LOCALHOST
startup commands from sapcontrol will be using "localhost" implicitly (when no "-host" option is explicitly informed) and for such
the loopback IP "127.0.0.1" should be resolved for it. What is the output for "niping -v -H localhost"? The loopback IP should be
the only one returned. If not, please involve your network team.
Lookup of hostname: localhost (NiHostToAddr) → IP-Addr.: 127.0.0.1

Lookup of IP-Addr.: 127.0.0.1 (NiAddrToHost) → Hostname: localhost
1476386 - Wrong localhost name resolution setting
HOSTNAME
What IP is resolved for the local hostname (output of OS level command niping -v -H <hostname>)? There is a known error
described in SAP note 1054467 where the loopback IP 127.0.0.1 is wrongly resolved for it.
1054467 - Local host name refers to loopback address
2. IDENTIFYING AFFECTED STAGE

This troubleshooting (starting from here) *considers TRUE* that all points from the initial checklist are done. Please keep in
mind that all of above steps were taken from real incidents and they were, in several of those cases, the required x the for the
issue resolution. The very rst question that needs to be answered is: which component/process has failed? Looking at the
image below, it is possible to nd out the sequence is which the logs will be written and therefore where the speci c component
information can be found.
The main approach is to begin for the latest updated les, based on this image's timeline. As an example, in case the work
processes traces (dev_w##) are not updated after the latest failed start attempt, then the dispatcher trace (dev_disp) needs
to be veri ed and so on.
3. DISPATCHER (dev_disp):
1. Dispatcher is usually the rst and most important trace le analyzed for startup issues
2. Most of the times the reason for the startup failure will be here.
In the dispatcher trace, we'll initially look for critical error situations, which directly contributed to the startup fail. If such
straightforward occurrences cannot be found, then we look for any situation which would, indirectly, lead to the same situation.
As an example, another component has crashed, therefore dispatcher has to shut itself down.
1/31/2024
Example of error where it's possible to see the cause right away:
***LOG Q0K=> DpMsAttach, mscon ( <server_name>) [dpMessageSer 1652]

*** DP_FATAL_ERROR => DpMsAttach: local hostname '<server_name>' is resolved to loopback address (cf. SAP note 1054467
for details)
*** DISPATCHER EMERGENCY SHUTDOWN ***
Example of dispatcher startup error caused by the crash of all work processes. The very next step in this case is to check the
"dev_w#" traces and nd out what is killing the disp+work processes and, ultimately, what is the cause of the instance failure:
*** ERROR => DpHdlDeadWp: W64 (pid 1898) died (severity=0, status=65280) [dpxxwp.c 1739]
DpTraceWpStatus: child (pid=1898) exited with exit code 255
*** DP_FATAL_ERROR => DpWPCheck: no more work processes
*** IMPORTANT:
--> Whenever suspicious about a dispatcher crash and the following entries are found:
DpSigInt: caught signal 2

DpHalt: shutdown server ><server>_<SID>_<instance_number> < (normal)
DpModState: change server state from ACTIVE to SHUTDOWN
DpHalt: stop work processes
Please keep in mind that a manual shut down happened. This can be proved by the "signal 2" entry and also by the "<
(normal)" sign, next to the shut-down sign.
3.1: MOST COMMON DISPATCHER CRASH SITUATIONS:
In this list we bring the most common causes for a "dispatcher crash", along with its resolution:
I. "SI_EPORT_INUSE":
These error entries are preventing the dispatcher from initialize and they are not caused by SAP but network inconsistencies.
At the time dispatcher is trying to start and bind its default port 32<instance_number> it nds that there is already a process
binding this port, thus, it aborts logging below entries:
***LOG Q0I=> NiIBindSocket: bind (10013: WSAEACCES: Permission denied) [nixxi.cpp 3740] < Problem
*** ERROR => DpCommInit: NiBufListen (rc=-4) [dpxxdisp.c 10223]
*** DP_FATAL_ERROR => DpSapEnvInit: DpCommInit
1/31/2024
RESOLUTION:
You must involve your network team and nd out what process is listening on port 32<instance_number> and ensure that the
dispatcher port is free at the time it is starting up. As an example, in UNIX you can try the OS command "netstat -an | grep
32<instance_number>" when searching for a process listening on that port.
II. PLATFORM PATCHNO... BUT MY PATCHNO IS:
Following error is seen for scenarios where the path release of dispatcher and message server is not the same. This can happen
for couple of reasons but the major number of occurrences is related to issues on SAPCPE which failed to copy newest les from
the GLOBAL EXE folder to the INSTANCE EXE folder, resulting in mixed releases.
*** ERROR => platform patchno is xxx [dpxxdisp.c 17170]

*** ERROR => but my patchno is yyy [dpxxdisp.c 17171]
*** DP_FATAL_ERROR => Release inconsistent with running system
RESOLUTION:
You must ensure that all instances are running with the same kernel release. As a potential x, you can copy manually the les
from the global "EXE" folder to the instance "EXE" folder.
III. BAD MEMORY PARAMETRIZATION:
*** ERROR => SHM2_EsCreateShared: esSHMAddSharedSegment(,userID=268641024) returned 2 [esuxshm2.c

*** ERROR => DpEmInit: EmInit (1) [dpxxdisp.c 10864]
*** ERROR => DpMemInit: DpEmInit (-1) [dpxxdisp.c 10778]
*** DP_FATAL_ERROR => DpSapEnvInit: DpMemInit
OR
*** ERROR => SHM2_EsInit: invalid argument ES/SHM_MAX_SHARED_SEGS=2. Valid range is 1 ... 1d [esuxs
*** ERROR => DpEmInit: EmInit failed (1) [dpInit.c 1475]
*** ERROR => DpMemInit: DpEmInit (-1) [dpInit.c 1339]
RESOLUTION:
1/31/2024
There are a few interconnected memory parameters that must reach each other requisites. Mainly, following SAP notes have
to be consulted:
# 1998233 - IBM i: SHM2_EsInit: invalid argument ES/SHM_MAX_SHARED_SEGS

# 1014010 - EG memory up to 32 GB (em/global_area_MB up to 32000)
And mainly those two rules should be reviewed:
ES/SHM_MAX_SHARED_SEGS <= ES/SHM_PROC_SEG_COUNT - ES/SHM_MAX_PRIV_SEGS

ES/SHM_PROC_SEG_COUNT >= ES/SHM_MAX_SHARED_SEGS + ES/SHM_MAX_PRIV_SEGS
IV. SI_EADDR_NAVAIL:
This error is commonly seen when "localhost" cannot be resolved as "127.0.0.1".
***LOG Q0I=> NiIBindSocket: bind (68: Can't assign requested address) [nixxi.cpp 3239]
*** ERROR => NiIBindSocket: SiBind failed for hdl 0 / sock 7
(SI_EADDR_NAVAIL/68; I4; DG; xx.y.zzz.ww:3200) [nixxi.cpp 3239]
*** ERROR => DpCommInit: NiDgHdlBindName failed: -16 [dpxxdisp.c 10263]
RESOLUTION:
See PRELIMINARY CHECKLIST above, topic [1.7] and ensure that "localhost" is resolved as loopback IP "127.0.0.1" and vice-
versa.
V. NO MORE WORK PROCESSES:
Dispatcher is shutting itself down because there are no more work processes available for processing of requests.
In order to pinpoint the cause, work processes traces have to be analyzed. Just follow the initialization entries and soon the
ERROR entries with the root cause will be seen.
*** DP_FATAL_ERROR => DpWPCheck: no more work processes

RESOLUTION:
Whenever this error is the root cause for a dispatcher crash, it means that in this very same trace you'll see lots of entries
related to the crash of every single work process.
1/31/2024
These entries look like this:
------------------------------
*** ERROR => DpHdlDeadWp: W0 (pid 21104) died (severity=0, status=65280) [dpxxwp.c 1727]
DpTraceWpStatus: child (pid=21104) exited with exit code 255
------------------------------
We will then search in the dispatcher trace for the very rst occurrence of work process that crashed with entries similar to
the one above.
There we see that the work process 0 (zero) died. Then we need to change the investigation to the work process trace. In this
case it will be the "dev_w0", located at the work directory of the instance.
Check the "usr/sap/<SID>/<INSTANCE>/work/dev_w#" trace to nd out why work processes are being killed. Most common
cause are problems to reach/connect to database.
(FAIL TO SPOT TOPIC [1.1] FROM PRELIMINARY CHECKLIST)
VI: DISPATCHER NOT ALLOWED TO CONNECT TO MESSAGE SERVER:
*** ERROR => not allowed to connect to message server via port XXXX
[dpxxdisp.c 12175]
*** ERROR => Please check your configuration (profile parameter
rdisp/msserv_internal) [dpxxdisp.c 12176]
DpHalt: shutdown server >PTSAPT01_QS1_03< (normal)
RESOLUTION:
SAP note # 1285956 - Not allowed to connect to message server
VII: "GATEWAY COULD NOT BE STARTED":
Straightforward. Dispatcher shut down as the gateway reader could not be started.
*** ERROR => gateway (pid 29081) died [dpxxdisp.c 16872]

DpGwCheck: appc_adm.stat = 2
*** DP_FATAL_ERROR => Gateway could not be started - I better exit now
RESOLUTION:
Gateway trace le "dev_rd" should be checked for the rootcause. A very common cause is the unavailability of the gateway's
default port 33<instance_NR> during instance startup.
If this is the case, the following entries are seen in "dev_rd":
1/31/2024
***LOG Q0I=> NiIBindSocket: bind (226: Address already in use) [nixxi.cpp 3738]
*** In this case the instance number was 10, hence "0.0.0.0:3310".
If you face the same situation, you have to involve your network/OS teams and nd out what process has already bound
the port.
VIII. Es2IResCreateShm: shmget failed:
This issue is mainly seen on SAP systems based on HP-UX servers.
*** ERROR => Es2IResCreateShm: shmget failed (size= 17980981248. Check OS kernel parameter shmmax.
*** ERROR => Es2ResCreateFiles: Es2IResCreate failed [es2xx.c 1324]
*** ERROR => Es2ResCreate: Es2ResCreateFiles failed [es2xx.c 1507]
*** ERROR => DpEmInit: Es2ResCreate (1) [dpInit.c 1642]
*** ERROR => DpMemInit: DpEmInit (-1) [dpInit.c 1417]
RESOLUTION:
You must correctly set the OS kernel parameters as per below SAP note:
# 172747 - SAP on HP-UX: OS kernel parameter recommendations
Below SAP notes can provide additional info as well:
# 180251 - HP-UX 64 Bit Kernel, Startup schlaegt fehlt

# 1827388 - System cannot start due to Es2IResCreate - shmget failed - File exists error
IX. MULTICAST ERROR:
This error is present only as of kernel 740. The SAP Kernel release 740 uses a multicast address at the network 224.0.0.0/24
to dispatch tasks to the work processes.
When required settings related to multicast are not in place, the instance will not start and in the "dev_disp.new" trace le,
the following entries are logged:
*** ERROR => NiISetSockOpt: SiSetSockOpt failed for hdl 1/sock 6

(SI_EADDR_NAVAIL/19; I4; DG; IPPROTO_IP-IP_ADD_MEMBERSHIP) [nixxi.cpp 9154]
*** ERROR => NiIDgHdlGroupAdm: failed to join 224.0.0.129 on interface 0.0.0.0 [nixxi.cpp 9572]
*** ERROR => RqQInit: NiDgHdlJoinGroup failed (rc=-10) [dpQueue.c 1559]
*** ERROR => DpIPCInit2: RqQInit [dpxxtool2.c 514]
*** DP_FATAL_ERROR => DpSapEnvInit: DpIPCInit2
1/31/2024
RESOLUTION:
--> For customers with kernel 740, the following notes guide you on how to set up multicast in a correct way:
# 1932555 - Dispatcher startup issue with SAP Kernel 740

# 1931675 - IP multicast con guration for dispatcher wakeup mechanism
--> For customers with kernel equal of higher than 741 PL 47, SAP does reccommend the usage of a new implementation
based on events.
This feature is enabled with the following parameter (which only exists as of kernel 741 PL 47):
rdisp/queue/use_events_for_dispatching=on
--> This parameter's default value is ON starting from SAP kernel 742.
X. APPLICATION SERVER'S SHARED MEMORY CORRUPTION:
*** ERROR => e=22 semop(3145913,(0,-1,6144),1) (22: Invalid argument) [semux.c 577]
*** ERROR => DpITmSlotAllocate: SemRq [dpxxtool2.c 4333]
*** ERROR => e=22 semop(3145913,(0,-1,6144),1) (22: Invalid argument) [semux.c 577]
*** DP_FATAL_ERROR => DpTmDisconnect: SemRq
RESOLUTION:
As these entries are related to a crash other than failed startup attempts, the resolution would be to start the instance
once again.
The easiest way to reproduce this scenario (and most common cause of the crash) is by removing the instance's IPC keys on
runtime wich, by obvious reasons, *SHOULD NOT BE DONE*.
# 1641668 - Various semop errors in workprocess traces
XI. WRONG EG (EXTENDED GLOBAL MEMORY) CONFIGURATION:
*** ERROR => EgInit: requested segment size (105327362048 bytes) too large.Max size = 34359738367 b
*** ERROR => DpEmInit: EmInit (1) [dpxxdisp.c 10757]
*** ERROR => DpMemInit: DpEmInit (-1) [dpxxdisp.c 10671]
RESOLUTION:
The instance will fail to start and log the above entries in case the EG con guration is not maintained as per below SAP notes:
1/31/2024
# 785365 - Extended Global Memory (EG) increased from 2 GB to 8 GB

# 1014010 - EG memory up to 32 GB (em/global_area_MB up to 32000)
Hint
By following this logic, any dispatcher related probem can be handled, even for different logged errors.
Hint
There are SAP documentation for most of the possible cases. Research on them.
04. SAPCONTROL'S INSTANCE MANAGEMENT COMMANDS
SAPSTARTSRV (through SAPCONTROL interface) offers a variety of web methods that can be used to monitor/manage the
instances of the system. They are specially useful for handling startup error scenarios. The "must-know" ones are listed below
and also the general pattern for executing them:
OK
hostname, instanceNr, httpPort, httpsPort, startPriority, features, dispstatus
testserver001, 0, 50013, 50014, 3, ABAP|GATEWAY|ICMAN|IGS, GREEN
testserver001, 1, 50113, 50114, 1, MESSAGESERVER|ENQUE, GREEN
sapcontrol -nr <instance number> -function <web method name>
4.1: "GetSystemInstanceList":
This one returns the list of active instances for the system, along with component list and the current status.
OK
hostname, instanceNr, httpPort, httpsPort, startPriority, features, dispstatus
testserver001, 1, 50113, 50114, 1, MESSAGESERVER|ENQUE, GREEN
EXPECTED OUTPUT:
- One entry per instance of the system, including ASCS, SCS INSTANCES;
- GREEN values for all entries on column "dispstatus".
- For all instances running on the same host (column hostname), there must be a differente value on "instanceNr".
1/31/2024
4.2: "GetProcessList":
GetProcessList web method will bring the component list currently in place on any of the instances seen in the rst command.
It will come in handy as soon as the web method "GetSystemInstanceList" returns one instance reporting as YELLOW. This will
happen when at least one component is presenting some kind of probem, so now it is possible to check that
affected process with more details:
GetProcessList
OK
disp+work, Dispatcher, GREEN, Running, 2015 03 23 23:51:35, 263:27:26, 25549
gwrd, Gateway, GREEN, Running, 2015 03 23 23:51:36, 263:27:25, 25590
icman, ICM, GREEN, Running, 2015 03 23 23:51:36, 263:27:25, 25591
4.3: "GetVersionInfo":
Great for kernel consistency checks, this output will return the current kernel release + patch for each and every of
its components within the instance informed as argument in the command line.
Excluding the DB* libraries, all the remainning components of the instance must always share the same kernel and patch
release on a consistent scenario.
GetVersionInfo
OK
Filename, VersionInfo, Time
/usr/sap/WSO/DVEBMGS00/exe/sapstartsrv, 742, patch 28, changelist 1540128, RKS compatibility le
/usr/sap/WSO/DVEBMGS00/exe/disp+work, 742, patch 28, changelist 1540128, RKS compatibility leve
/usr/sap/WSO/DVEBMGS00/exe/gwrd, 742, patch 28, changelist 1540128, RKS compatibility level 0,
/usr/sap/WSO/DVEBMGS00/exe/msg_server, 742, patch 28, changelist 1540128, RKS compatibility lev
/usr/sap/WSO/DVEBMGS00/exe/dboraslib.so, 742, patch 5, changelist 1503525, RKS compatibility le
/usr/sap/WSO/DVEBMGS00/exe/dbmssslib.so, 742, patch 28, changelist 1540128, RKS compatibility l
/usr/sap/WSO/DVEBMGS00/exe/dbdb2slib.so, 742, patch 28, changelist 1540128, RKS compatibility l
/usr/sap/WSO/DVEBMGS00/exe/dbsybslib.so, 742, patch 28, changelist 1540128, RKS compatibility l
/usr/sap/WSO/DVEBMGS00/exe/enserver, 742, patch 28, changelist 1540128, RKS compatibility level
/usr/sap/WSO/DVEBMGS00/exe/icman, 742, patch 28, changelist 1540128, RKS compatibility level 0,
/usr/sap/WSO/DVEBMGS00/exe/sapwebdisp, 742, patch 28, changelist 1540128, RKS compatibility lev
/usr/sap/WSO/DVEBMGS00/exe/jcontrol, 742, patch 28, changelist 1540128, RKS compatibility level
/usr/sap/WSO/DVEBMGS00/exe/jlaunch, 742, patch 28, changelist 1540128, RKS compatibility level
/usr/sap/WSO/DVEBMGS00/exe/jstart, 742, patch 28, changelist 1540128, RKS compatibility level 0
1/31/2024
EXPECTED OUTPUT:
- All entries must share the same kernel release and patch. In this case 742 patch 28 (with the exception of the ones
starting with db*).
Hint
There are hundreds of web methods available for the most diverse cases. They can be listed by typing just "sapcontrol"
command as SIDadm user.
Hint
These instance management commands can help to quickly nd out version and speci c component details.
CONCERNING THIS DOCUMENT...
The original concept of this document is that it'll be never nished. Instead, constantly improved, based on the incoming
feedback. For this reason, you are invited to share whether or not the information present here helped you to solve a startup
problem and, even more importantly, in case it didn't. In that case you are welcome to share your own scenario and inform what
was the solution applied, constraints, speci cs.
COMING SOON...
*** STARTUP issues faced during upgrade procedure...
SAP does not start
SAP system does not start.
We have received many incident reports (aka message) whose titles are “SAP system does not start”.
1/31/2024
For SAP support engineers, this title has broad meanings. Since SAP system is based on the client – server technology and
consists of many processes or threads, there are many places to be checked in order to understand what the exact problem you
are facing.
What do you mean by “SAP system does not start”?
By reading the description of the incident report further, the reporters describe the situation like: “.. the users cannot logon
after restart..”, “.. the SUM tool says startup failure..”, “.. my message server didn’t come up..”, “..I cannot see OS processes..”, “..I
started my own startup scripts but nothing happened..”, and so forth.
Some of those descriptions are still quite vague, and some are quite to the point of the root cause.
First of all, please check this question:
Are Message Server, a dispatcher and work processes up and running?
Yes: -> this means that the startup of SAP system was nished successfully. It can be said that the problem is the logon itself,
and not SAP system startup. If this is the case, then please avoid using the title: “SAP system does not start”.
No: -> literally it means that SAP system DID NOT startup. Its startup sequence had some kind of problems.
Let’s have a look this startup problem further.
This wiki aims to offer troubleshooting guides for startup problems. With this guide, we hope you can analyze and solve the
problem by yourself. In some cases, you may still need to raise an incident ticket (aka message). Then, we hope you can narrow
down the problem and provide us detailed information so that we can instantly assist you.
Startup sequence
897933 - Start and stop sequence for SAP systems
In short, SAP system instances can be started up by the following sequence:
1. Database instance
2. Central instance or (A)SCS
3. Application servers (Dialog Instances)
*Database startup problem is not discussed in this wiki.
The following link explains standard methods to start SAP systems:
http://help.sap.com/saphelp_nw70ehp1/helpdata/en/47/fd7230eca159e8e10000000a421937/frameset.htm
SAP MC, SAPMMC and startsap script needs “SAP start service”:
http://help.sap.com/saphelp_nw70ehp2/helpdata/en/b3/903925c34a45e28a2861b59c3c5623/frameset.htm
As you can see from above link, many processes are involved in the startup. Among those processes, the sapstartsrv process
plays an important role of controlling a SAP instance.
The types of the processes which need to be executed in the system are declared in the instance pro le (or start pro le). Then,
the sapstartsrv process starts up the speci ed processes.
During this startup sequence, each process generates its trace le on DIR_HOME directory.
1/31/2024
Common problems and solutions
Quite common problems are related to the sapstartsrv process, especially following two symptoms: “The process doesn’t exist”
and “The process exists but does not respond”.
“The process doesn’t exist”
On UNIX/LINUX, use an OS command ʻps’ to check the process:
ps –ef | grep sapstartsrv
When the process exists, the above command shows like this:
abcadm 7012358 1 0 17:39:33 -
0:05 /usr/sap/ABC/DVEBMGS00/exe/sapstartsrv pf=/usr/sap/ABC/SYS/pro le/START_DVEBMGS00_walldorf -D -u abcadm
On WINDOS, use WINDOWS’ task manager tool to see if the service is running or not.
If the sapstartsrv process doesn’t exist, please consult following SAP notes and start up.
1762827 - Startup of Instance Service failed in UNIX or Linux environment
“The sapstartsrv process exists but does not respond”
The OS command ʻPS’ or the taskmanager shows the process. But the sapstartsrv doesn’t respond to any actions. Then, most
likey, the UNIX domain socket (/tmp/.sapstream<port-no>) or Windows named pipe (\\<host>\pipe\sapcontro_<xx>) may be
broken. If it still exists, please manually delete. And start the sapstartsrv service again.
Other cases…
Case 1:
Found the following error information in the startsap.log.
exec(): 0509-036 Cannot load program disp+work because of the following
errors:
rtld: 0712-001 Symbol ixml_iXMLParser_IsNormalizingAtt was referenced
from module disp+work(), but a runtime de nition
of the symbol was not found.
rtld: 0712-001 Symbol ixml_iXMLParser_SetNormalizingAtt was referenced
from module disp+work(), but a runtime de nition
Root cause:
1/31/2024
The library path was not con gured correctly after upgrade.
Solution:
Con gure the library path.
SAP Note 1265456 SAP system does not start after kernel upgrade
SAP Note 1104735 Upgrade to the new instance-speci c directory on UNIX
Case 2:
The sapstartsrv service is up but the dispatcher doesn’t startup.
sapcontrol -nr 00 -function GetProcessList
30.11.2013 18:46:21
GetProcessList
OK
disp+work, Dispatcher, GRAY, Stopped, , , 26680
igswd_mt, IGS Watchdog, GREEN, Running, 2013 11 30 12:57:32, 5:48:49,
26681
Root cause:
The zombie process of the dispatcher existed.
Solution:
Kill the zombie process.
Case 3:
On NT, frequently failover in few minutes.
Root cause:
The version of the sapstartsrv.exe was different between DIR_CT_RUN and DIR_EXECUTABLE.
Solution:
Copy the sapstartsrv.exe from DIR_CT_RUN to DIR_EXECUTABLE.
SAP Note 1043592 MSCS: Cluster Resource Monitor Crashes on W2K3 SP2
SAP Note 1345206 Handling and preventing sapstartsrv.exe corruptions
SAP Note 1375494 SAP system does not start after applying SAP kernel patch
1/31/2024
Case 4:
Startsap.log says:
(1159276) Starting: local /usr/sap/ABC/SYS/exe/run/igswd_mt -
mode=pro le pf=/usr/sap/ABC/SYS/pro le/ABC_DVEBMGS00_walldorf
(442404) Waiting for Child Processes to terminate.
(442404) **** 2010/04/10 08:07:11 Child 1155152 terminated with Status
255 . ****
(1155152) **** 2010/04/10 08:07:11 No RestartProgram command for
program 2 ****
The information above is very generic. stderr5 le shows more detailed information.
Command: /usr/sap/ABC/SYS/exe/run/igswd_mt
-mode=pro le
pf=/usr/sap/ABC/SYS/pro le/ABC_DVEBMGS00_walldorf
(1159276) **** Failed to Start Local Command. No such le or directory
Root cause:
The necessary les weren't copied correctly.
Solution:
Copy the igswd_mt to /usr/sap/ABC/SYS/exe/run
Case 5:
After kernel patching, the system doesn't come up but the startsap commands runs successful. The dispatcher was
immediately down and no
work process is active.
Stderr2 says:
(1114238) New Child Process created.
(1114238) Starting local Command:
Command: dw.sapABC_DVEBMGS01
pf=/usr/sap/ABC/SYS/pro le/ABC_DVEBMGS01_walldorf
Fri Mar 5 08:59:56 2010
1/31/2024
Pro le con guration error detected, use temporary corrected setup
Shared Pool 40: ipc/shm_psize_40 = 2180000000 (too small)
Shared Pool 40: (smaller than min requirement 2186246040)
Shared Pool 40: (estimated size assumed 2190000000)
*** ERROR => Illegal ShmAdm Slot. Key=2104967296.
*** ERROR => ShmGet: Inv PoolKey=2104967296, Key=40, Flag=1, Ptr=1152921504606843304.
***
Root cause:
Shared memory area may need to be adjusted for new environment (i.e, after patching).
Solution:
Run sappfpar check pf=<pro le> and adjust ipc/shm_psize_xx to suggested values.
Case 6:
The dispatcher went down right after startup. The dev_disp shows:
rdisp/http_min_wait_dia_wp : 1 -> 1
***LOG CPS=> DpLoopInit, ICU ( 3.4 3.4 4.1) [dpxxdisp.c 1706]
***LOG Q0K=> DpMsAttach, mscon ( CLMAGMACI) [dpxxdisp.c 12674]
*** DP_FATAL_ERROR => DpMsAttach: local hostname 'SRMAGMA98' is resolved
to loopback address (cf. SAP note 1054467 for details)
Root Cause
Incorrect setup of the loopback address.
Solution:
#1054467 Local host name refers to loopback address
Case 7:
1/31/2024
*** ERROR => gateway (pid 29622344) died [dpxxdisp.c 16763]
*** DP_FATAL_ERROR => Gateway died with status 2 - I better exit now
The gateway trace dev_rd shows:
***LOG Q0I=> NiIBindSocket: bind (67: Address already in use)
[nixxi.cpp 3740]
***LOG S0V=> GwStopGateway, gateway stopped () [gwxxrd.c 13096]
Root Cause:
The service port 3300 was declared twice in the /etc/services le.
sapgw00 3300/tcp
sapgw00s 3300/tcp
Solutoin:
Make sure only one service is available.
sapgw00 3300/tcp
#sapgw00s 3300/tcp
Case 8:
sapstart.log
1/31/2024
(11925) Starting local Command:
Command: dw.sapPIP_DVEBMGS00
pf=/usr/sap/PIP/SYS/pro le/PIP_DVEBMGS00_unjspfsappip
(11856) Waiting for Child Processes to terminate.
(11856) **** 2013/09/19 10:31:13 Child 11925 terminated with Status 0 . ****
dev_disp
*** ERROR => NiDgHdlBindName: invalid hostname 'localhost' (rc=-2;hdl 1) [nixx.c 4341]
*** ERROR => DpCommInit: NiDgHdlBindName failed: -8 [dpxxdisp.c 10339]
Root Cause:
“hosts” le was modi ed and “localhost” was miscon gured.
Solution:
Con gure “localhost” in the “hosts” le correctly.
Case 9:
The sapstartsrv is up.
When you execute sapcontrol without host opetion, you get: NIECON_REFUSED (WSAECONNREFUSED) error. However, it
success with -host opetion.
For example:
sapcontrol -nr 00 -function GetVersionInfo
FAIL: NIECONN_REFUSED (WSAECONNREFUSED: Connection refused),

NiRawConnect failed in plugin_fopen()
but
sapcontrol -nr 00 -host saphost.sap.co:50013 -function GetVersionInfo -> works!
Root Cause:
1/31/2024
Please refer SAP Note 2062508 sapcontrol commands fail with error "NIECONN_REFUSED (WSAECONNREFUSED: Connection
refused)" during upgrade
Solution:
Comment out parameter service/hostname for the SAP start service and restart sapstartsrv.
The sapstartsrv exisits. -function GetProcessList doesn't show programs like dispatcher, gateway, etc.
In normal case, you will see something like this:
----
GetProcessList
OK
msg_server, MessageServer, GREEN, Running, 2014 02 25 05:45:24, 0:00:53, 7326
disp+work, Dispatcher, GREEN, Running, Message Server connection ok, Dialog Queue time: 0.00 sec, 2014 02 25 05:45:24,
0:00:53, 7327
---
-->here, you can see programs (message server, disp+work and IGS) are up and running.
But in this problematic situation, something like....
----
GetProcessList
OK
----
--> No programs are listed .
This is because 'Start_Program_n' command with the program is missing in the pro le le which sapstartsrv starts with.
For this 'Start_Programm_n", please refer the following link:
1/31/2024
http://help.sap.com/saphelp_nw74/helpdata/en/9c/ac0d50a40af26be10000000a423f68/frameset.htm
(NOTE!!! since kernel 74x release, 'Start Pro le' is obsolated. You cannot use 'Start Pro le' like ealier release. All the
information in Start Pro le can be marged to Instance Pro le)
After upgrading to 74x system, SAP doesn't startup.
In most cases, the reason is the sapstartsrv is pointing to Start Pro le. Start Pro le is obsolated since 74x kernel. You need to
reco gure your pro le.
Delete Start Pro le physically from 'pro le' dir.
In UNIX, adjust /usr/sap/sapservices le.
In WINDOWS, adjust the SAP service.
Delete UNIX domain socket or Window's named pipe, and restart sapstartsrv.
UNIX Domain Socket .sapstream5xx13 was not enabled...
Case 1:
sapstartsrv process exists but the corresponding UNIX Domain Socket doesn't exist.
Checki sapstartsrv.log. It ends at CCMS agent initialization phase:
cat sapstartsrv.old
---------------------------------------------------
trc le: "sapstartsrv.log", trc level: 0, release: "741"
---------------------------------------------------
pid 2134
[Thr 01] Mon Sep 15 10:09:13 2014

HistoryLog_Init: log le (/usr/sap/ABC/SCS00/work/history.glf) already exists, check parameter
No halib de ned => HA support disabled
CCMS agent initialization for instance type SCS: return code 0.
-->that's all.... sapstartsrv should initialize sapcontrol webservice....
Normally, you should see something like:
CCMS agent initialization for instance type SCS: return code 0.

CCMS agent disabled by pro le parameter ccms/enable_agent = -1.
Initializing SAPControl Webservice
Auto PSE update thread started
Starting AutoRestart thread
Starting WebService SSL thread
AutoRestart thread started
Starting WebService thread
Webservice thread started, listening on port 55013
Webservice SSL thread started, listening on port 55014
1/31/2024
Webservice SSL thread using default SAP SSL credential
Trusted https connect via Unix domain socket '/tmp/.sapstream55014' enabled.
Trusted http connect via Unix domain socket '/tmp/.sapstream55013' enabled.
Root Cause:
CCMS agent has been running already by saphostcontrol.
Solution:
set ccms/enable_agent = 0 in the instance pro le.
Case 2:
A trace le called sapstartsrv_ccms.log was generated in work dir. The content of i ends with the information:
INFO: Checking lock le.....
Root Cause:
Please refer SAP note 1916333 sapcontrol error "FAIL: NIECONN_REFUSED" due to agent.log le
Solution:
set ccms/enable_agent = 0 in the instance pro le.
SAP system shutdown by signal 2 - SIGINT
Purpose
To make clear what is responsible for this kind of unexpected shutdown.
Overview
You are wondering what could be the reason of the system shutdown. Here are some steps to check it.
1/31/2024
Symptom
Following entries appear in dev_disp (or after the restart dev_disp.old):
DpHalt: shutdown server >hostname_SID_nr < (normal)
Reason
This is a normal shutdown, which could be caused by:
manual calling stopsap script
calling stopsap script by cluster software (e.g. by unavailability | YELLOW / GRAY state reported
of clustered instance)
Note, that SAP sytsem won't send signal 2 to itself. This comes from outside. How this is implemented see SAP note 552324.
1) If the shutdown is called from SAPMMC, sapcontrol, stopsap or other SAP external tool, a log with "signal 2" appears
into dev_disp trace:
DpSigInt: caught signal 2
DpHalt: shutdown server >lolserver_LOL_01 < (normal)
2) If the shutdown is triggered by SMMS or even SMM51 from R3 level (SMMS : goto -> expert Functions -> servers -> shut
down server) it returns the source:
*** ERROR => DpMsgProcess: MsReceive () -> MSESHUTDOWN, partner: - [dpxxdisp.c 2595] Ű
DpMsgProcess: SHUTDOWN from - received
DpHalt: shutdown server >lolserver_LOL_01 < (normal)
Steps to check
In general usage of stopsap could be tracked:
either le auditing is con gured on operating system level (depend on the operating system
used)
or 'last' command could be used to check what user (from which terminal) was logged on - this
could be compared to the shutdown timestamp in dev_disp(.old)
analysing *.history in $HOME folder of corresponding users could be then give a hint
or there are other tricky methods, e.g. you ad following lines in stopsap (replace SID by the SAP
System ID of the affected SAP system)
whoami >> /usr/sap/SID/stopsap_logging.txt
date >> /usr/sap/SID/stopsap_logging.txt
last | grep 'still logged in' >> /usr/sap/SID/stopsap_logging.txt
who >> /usr/sap/SID/stopsap_logging.txt
echo '###' >> /usr/sap/SID/stopsap_logging.txt
Related Content
Related Documents
Starting and Stopping SAP Systems and Instances Using Commands (Unix)
1/31/2024
SAP Note 552324: FAQs: R/3 kernel and system restart
Purpose
To help with troubleshooting if you are in trouble.
Overview
START_CALL_SICK dump appers. It refers to the following error in long test:
can't establish connection to message server on <hostname> (sapms<SID>)
You want to solve this issue.
Possible causes
message server is not running
access parameters are incorrect
rewall blocking the connection to message server
Possible resolution steps

Check whether message server process is running at all
This must be checked on the target host. This is referenced in the error message. It could be the central instance's or ASCS
instance's host.
How?
On Unix/Linux: use the command 'ps -ef | grep ms.sap' to check if message server
process exists
On Windows: use task manager and look for 'msg_server' process
If it is not running, the instance (central instance or ASCS<NR> one) must be started.
If it won't start, sapstart.log, dev_ms, stderr<XX> les must be analysed to nd the cause.
Check if hostname - IP address lookup is correct and 'niping -v -H ' returns the correct IP of target host
If not, check the name resolution on DNS by 'nslookup ' and the entries in /etc/hosts - on Windows
%windir%\system32\drivers\etc\hosts
The form of hosts entry is: <IP address> <fully quali ed hostname> (e.g. 10.10.10.11 productive.sap.com productive).
If this is the last entry on Windows add a blank line after this one otherwise it won't be recognized.
Check if sapms<SID> is know on the SAP WEB Dispatcher's host by 'niping -v -S sapms<SID>'
If it is not, add it in /etc/services - on Windows %windir%\system32\drivers\etc\services.

The form is: sapms<SID> <port nr>/tcp (e.g. sapmsPRD 3600/tcp). At least one space or tab is necesary between the port
name and port number.
If this is the last entry on Windows add a blank line after this one otherwise it won't be recognized.
1/31/2024
Check if ping can reach this host by ' ping <hostname>' command.
If not, a rewall may refuse the connection. Release the port in rewall.
Related Content
Related Documents
SAP KBA 1952463: START_CALL_SICK - can't establish connection to message server
sapstart parameters and options
Purpose
Explain about the option supported by sapstart program responsible to the SAP Application Server
start up.
Overview
The sapstart program is responsible to trigger the startup of SAP system as per the de nitions of few
parameters into instance pro le. With SAP system < 740 kernel release there was a start pro le. The
startup pro le was abolished with 702 kernel and reiterated after that with 71X systems. Currently
with as of 740 system the start pro le are no longer used.
Parameters loaded by the program
Following the relevant parameter, this program will recognize in order to perform its activities:
SETENV_nn = It is used to setup an environment variable and the syntax should be

VARIABLE=VALUE;
Execute_nn = It is used to execute a program and its execution could be synchronous or

asynchronous;
Start_Program_nn = It is used to start up SAP related programs;
Restart_Program_nn = it is used to restart the program de ned. If for some reason a program
died due to a signal or an exit, this parameter will restart the program;
Stop_Program_nn = it is used to execute a post-shutdown program. When sapstart receives a

signal 2 (SIGINT), it enters in shutdown mode and trigger all Stop_Program_nn entries.
Stop_Program_nn is a synchronous mode call;
There are additional parameters used to a control purpose and the goal of this Expert Content is not
go to further in all of these additional parameter because they are really customizing speci c
requests.
1/31/2024
The commands are executed according their sequence number (nn) and independent of their position
into pro le.
Parameters Syntax
The syntax of these entries should be:

<parameter> = <location> <commandline>
Where <location> could be immediate, local or remote-host-name, depends the parameter in use, and
<commandline> is the program to run.
immediate executes the command line synchronously and waits for termination;
local executes the command in a separate process on the local host and does not wait for
termination;
remote-host-name executes the command in a separate process on a the remote host and does
not wait for termination;
Related Content
Related Documents
729945 Auto-restart function for processes in sapstartsrv

768727 Process automatic restart functions in sapstart
1973276 System not starting - Process List / GetProcessList does not display the list
Purpose
To give an overview about enabling this function.
Overview
You can provide for high availability at process level, which will protect against software errors. You want to enable sapstart to
restart programs that it starts as soon as these programs terminate due to unknown reasons. Necessary steps.
Steps
1/31/2024
Usually following entries appear in startup pro le (START_<SID>_<hostname> for releases up to 710 and
<INSTANCE>_<SID>_<hostname> for releases as of and incl. 710):
Start_Program_<XX> = local <program> <arguments>
To restart a program, you can use the following syntax in the start pro le instead:
Restart_Program_<XX> = local <program> <arguments>
By default, sapstart will immediately restart the programs. You can use the parameter Restart_Program_Delay=ss (ss in sec.)
to change this response.
If the program is restarted within 10 minutes, an internal counter is incremented. By default, sapstart no longer starts the
program as soon as this counter is larger than 5. This value can also be changed using the parameter Max_Restart_Program=nr
(where nr represents the number of restarts).
What to consider
Each time the program is restarted, the log les (stdoutX , stderrX and sapstartX.trc) are overwritten. To copy the existing
version to < le-name>_<date>_<time>.old, set the parameter log le/rotate=true in the startup pro le.
However, not only these les but sapstart.log will also be overwritten. To save sapstartsrv.log in form
sapstartsrv_<date>_<time>.old startup pro le has to be changed. Add these lines:
Unix:
Stop_Program_<XX> = local cp sapstart.log sapstart_`date +%d-%m-%Y_%H:%M:%S`.old
Windows:
Stop_Program_<XX> = local copy sapstart.log "sapstart_%date%_%time::=-%".old
Related Content
Related Documents
SAP Note 729945: Auto-restart function for processes in sapstartsrv

SAP Note 768727: Process automatic restart functions in sapstart
sapstartsrv service parameters
Purpose
To give an overview about the service/<parameter> parameters of sapstartsrv
Overview
What parameters are available to in uence the behavior of SAP Start Service (the sapstartsrv process)?
The parameters
1. service/admin_groups
1/31/2024
2. service/admin_users
3. service/datcol_command
4. service/datcol_mandatory
5. service/datcol_timeout
6. service/halib
7. service/hardkillonshutdown
8. service/hostname
9. service/http/acl_ le
10. service/http/hostname
11. service/https/acl_ le
12. service/https/hostname
13. service/max_snapshots
14. service/norestart
15. service/porttypes
16. service/protectedwebmethods
17. service/startpriority
18. service/status_procs
19. service/trace
20. service/umask
21. service/sso_admin_user_<x>
Meaning of parameters
1. service/admin_groups
Additional OS user groups authorized for system administration (Unix only)
Speci es additional operating system user groups that are authorized to administer the system using the Web service
interface of the start service. Specify the user groups separated by spaces.
2. service/admin_users
Additional OS users authorized for system administration
Speci es additional operating system users that are authorized to administer the system using the Web service
interface of the start service. Specify the user names separated by spaces.
3. service/datcol_command
Data collector command line
Data collector command that is executed by the start service during the generation of a snapshot. This allows the data
collector to store additional artifacts in the snapshot for support purposes.
4. service/datcol_mandatory
Data collector mandatory for snapshot creation
If this parameter is activated, the successful call of the data collector is mandatory when the start service generates a
snapshot. If the data collector call fails, no snapshot is generated by the start service.
5. service/datcol_timeout
Maximum allowed runtime for data collector
Timeout for the call of a data collector when the start service is generating a snapshot. If the data collector does not exit
itself before the timeout is reached, the start service terminates it.
6. service/halib
Dynamic library for third party high availability (HA) software integration
Shared library that is to be loaded by the start service to permit integration into third-party HA software. The shared
library must ful ll the SAP HA interface speci cation. This means that the start service of an instance that is under HA
control can start or stop the instance correctly without, for example, triggering an undesired failover in the HA cluster.
7. service/hardkillonshutdown
Kill instance processes during start service stop (Microsoft Windows only)
If this parameter is activated, the start service does not stop the instance processes belonging to its instance in an
1/31/2024
orderly way using a SIGINT signal, but rather hard kills them. The parameter should not be activated in general, but can
be useful in HA con guration.
8. service/hostname
Bind speci c host name or IP address for HTTP/HTTPS Web service ports
Host name or IP address to which the start service is to bind its HTTP and HTTPS port. Normally all IP addresses
(0.0.0.0) are bound. However, if the Web service interface is only to be accessible using a particular IP address, you can
specify it here.
9. service/http/acl_ le
Access control list (ACL) le of sapstartsrv HTTP port
This parameter speci es the le that the start service uses as an access control list (ACL) for the access authorizations
for connections over its HTTP port. If the pro le parameter is set, the le must exist and its syntax must be correct. If
this is not the case, the start service ends. The syntax of the ACL le is described in ACL Syntax. If the speci ed ACL le
does not exist or is contains errors, the start service ends immediately.
10. service/http/hostname
Bind speci c host name or IP address for HTTP Web service port
Host name or IP address to which the start service is to bind its HTTP port. Normally all IP addresses (0.0.0.0) are
bound. However, if the Web service interface is only to be accessible using a particular IP address over HTTP, you can
specify it here.
11. service/https/acl_ le
Access control list (ACL) le of sapstartsrv HTTPS port
This parameter speci es the le that the start service uses as an access control list (ACL) for the access authorizations
for connections over its HTTPS port. If the pro le parameter is set, the le must exist and its syntax must be correct. If
this is not the case, the start service ends. The syntax of the ACL le is described in ACL Syntax. If the speci ed ACL le
does not exist or is contains errors, the start service ends immediately.
12. service/https/hostname
Bind speci c host name or IP address for HTTPS Web service port
Host name or IP address to which the start service is to bind its HTTPS port. Normally all IP addresses (0.0.0.0) are
bound. However, if the Web service interface is only to be accessible using a particular IP address over HTTPS, you can
specify it here.
13. service/max_snapshots
Maximum number of snapshots to be archived
Maximum number of snapshots that the start service is to archive for each instance in the DIR_GLOBAL directory. If
more snapshots are generated, the oldest is deleted in each case.
14. service/norestart
Disable automatic service restart after executable update (Microsoft Windows only)
If this parameter is activated, the start service no longer restarts itself when its executable has been updated (by
sapcpe). The parameter should not be activated in general, but can be useful in HA con guration.
15. service/porttypes
Enabled Web service ports
Web service port types that are activated in the start service. Specify the port types to be activated separated by
spaces.
16. service/protectedwebmethods
Protected Web service functions requiring user authorization
Protected methods of the Web service interface of the SAP start service. Calling this method requires successful
authentication and authorization. In the simple syntax, you specify all of the methods to be protected, separated by
spaces. For example:
service/protectedwebmethods = Start Stop RestartService
In the advanced syntax, you can optionally add individual modules to or remove individual modules from one of four
different prede ned settings:
[ALL SDEFAULT DEFAULT NONE] + -<method1> + -<method2>... + -<methodN>]
The following values are possible:
ALL = All methods are protected.
SDEFAULT = Almost all methods are protected. However, an authentication-free initial display of a system in SAP
MMC/MC is still allowed, for example.
DEFAULT = Protects all methods that change the status of the system. However, authentication-free access to traces is
permitted.
NONE = No methods are protected.
We recommend the setting SDEFAULT.
Examples:
SDEFAULT -GetVersionInfo = Protects most methods, but permits authentication-free querying of the version
information.
DEFAULT +GetVersionInfo = Protects only the methods that change the status, and also the querying of the version
information.
17. service/startpriority
Instance priority during system start/stop
Start priority of the instance during system start/stop. The start service usually determines the start priority
1/31/2024
automatically using the processes con gured in an instance and can therefore start or stop an entire system in the
correct sequence. Instances with the same start priority are started in parallel. Only once these are fully started is the
process continued with the next priority level (in the case of a system stop, the same applies in the reverse sequence).
To do this, the priorities are lexically compared and sorted. In exceptional cases or in the case of unknown process types
that require a particular start/stop sequence, you can manually adjust the start priority.
18. service/status_procs
Processes monitored using a status le
Speci es the process types that are to be monitored by the start service using a status le <processname>.status.
Specify the individual process types separated by spaces. The process to be monitored is responsible for generating and
updating the status le.
19. service/trace
Start service trace level
Trace level of the start service (sapstartsrv.log trace). Since the start service periodically performs a number of
monitoring operations that could potentially fail (which is not an error), the start service usually uses trace level 0 to
avoid unnecessary and easily misunderstood error messages.
20. service/umask
Set umask for all instance processes (UNIX only)
You can use service/umask to set a general le authorization mask. Specify the value in octal notation (see also umask
operating system command). It is set by the start service and sapstart at the beginning of startup, so that all processes
of an instance with this umask are started. If the value is empty, the start service and sapstart do not change the umask,
meaning that the umask vlaues with which the processes were started are used for all processes of the instance (on
UNIX, this is usually the root umask, since the start service is started as a daemon by root during the OS boot, or the
<sid>adm umask, if the start service was started from a <sid>adm shell).
21. service/sso_admin_user_<x>
Additional users authenticated by client certi cate authorized for system administration
When this parameter is set, a client certi cate can be used to authenticate for execution of protected webmethods. This
is a vector parameter in the format <parameter name>_<index>. The recognized index range starts at 0. Index gaps are
not permitted. Speci es additional users that are authenticated with X.509 certi cates and that are authorized to
administer the system using the Web service interface of the start service. Set a parameter for each user, starting with
service/sso_admin_user_0. Specify the subject DN of the respective client certi cate as the parameter value. You can
use the wildcards * and ?. Prerequisites: correct con guration of SSL on the instances of the systems with suitable
server certi cates so that the start service can provide HTTPS communication (port 5XX14) and can validate the client
certi cates, signed client certi cate must be available, issuer of client certi cate must be trusted at sapstartsrv
Example:
service/sso_admin_user_0 = CN=D??????, O=SAP-AG, C=DE
service/sso_admin_user_1 = CN=C123456, O=SAP-AG, C=DE
authorizes, for example, various D users and the user C123456.
Note: The parameters must be set in the pro le the corresponding sapstartsrv (instance, SAP Host Agent) was started with.
Usually this is the start pro le (up to release 710) or the instance pro le (as of and incl. release 710). For SAP Host Agent this is
the hostagent pro le (under /usr/sap/hostcontrol) To activate the new parameter values the sapstartsrv process must be
restarted. Not all parameters are known by every release.
Related Content
Related Documents

SAP Note 1495075: Access Control Lists (ACL)
SAP Note 1439348: Extended security settings for sapstartsrv
SAP Note 877795: Problems with sapstartsrv from Release 7.00 and 6.40 patch 169
SAP Tools
This Wiki page concentrate content about SAP Tools
1/31/2024
Wiki Documentation
DUMPS
Exracting C-stack from core le
Extracting the C-Stack from core les (UNIX and Linux)
TRACES
Opening and downloading developer traces
TROUBLESHOOT
STATDUMP Report
CCMS Syslog
DISPATCHER
ICM and WEB DISPATCHER
Change SAP Web Dispatcher pro le parameter dynamically via wdispmon
ENQUEUE
1/31/2024
MESSAGE SERVER
636938 - Description of msprot test

program
DUMPS
1559353 - How to capture user dumps on

Windows
1964673 - C-Call stack analysis
CCMS Syslog
Purpose
The purpose of this paper is to explain about the SAP syslog concept.
Overview
The main topic of this wiki is to explain about the syslog structure for every ABAP application server.
1. Syslog memory area
Every SAP application server has a shared memory segment called Shared Common System Area (SCSA) to store the main
syslog con guration like the write pointer for the syslog le.
A SAP Application Server running in an UNIX Operating System family (HP-UX, AIX, Linux, etc) create the SCSA area with the
external tool called sapmscsa during the start up. For Windows Operating System that area is created by the kernel itself
during the start up.
It is possible to check this area with the showipc (for UNIX systems) or sappfpar command line as below.
> showipc 01 | grep SCSA

OsKey: 58900101 0x0382be85 SCSA Shared Memory Key: 58900000 Size: 4096 0.0 MB Att: 21
Copy this code!
> sappfpar check pf=<instance profile> | grep SCSA

Key: 58900101 Size: 4096 ( 0.0 MB) SCSA area
Copy this code!
1/31/2024
For Windows OS, it is possible to check this area from SAPGUI with the report RSTUNSHM.
If the Application Server, or any other program that wants to create syslog messages, cannot attach the SCSA shared memory
area, it may not be able to work with the SAP syslog structure.
This area is needed to allow the creation of logs into the syslog structure. The SAP note 12715 could help to understand this
memory area troubleshooting in such cases.
12715 Collective note: problems with SCSA
2. Syslog format
Length of syslog format depends of the system:
NON-UNICODE UNICODE
180 360
As of release 7.02 a new length is de ned:
NON-UNICODE UNICODE
320 640
For further information about this size, check note 1118986.
1118986 Syslog: Record size increased to 320 places
3. How to check the syslog messages

a) SM21
The syslog messages are created by the kernel and stored at Operating System le con gured in the parameter rslg/local/ le
(SLOGXX where the XX is the instance number). The size of this le is limited by rslg/max_diskspace_local
For further information about these les, check the notes 862 and 45580.
862 Reduce size of system log le
45580 How are syslog les deleted?
It is possible to check the system logs stored in these les via transaction SM21 from SAPGUI connection.
1/31/2024
The syslog also has option in the menu bar:
The Local system log shows the logs for the connected application server.
b. Operating System level
The Web Services method also enables an option to analyse the syslog from Operating System level with the sapcontrol toll:
sapcontrol --nr <instance number> -function ABAPReadSyslog
Copy this code!
c. Alert Monitor
Another way to analyse these system log messages is via transaction RZ20.
-> SAP CCMS Monitor Templates

-> Syslog
For further information check the SAP documentation
Syslog Monitor
1/31/2024
4. Creating syslog messages
It is possible to create syslog messages with the ABAP Function Module RSLG_WRITE_SYSLOG_ENTRY. Calling this Function
Module from transaction SM37 and provide with the needed data to be recorded in the syslog. The minimum information to the
Function be executed with success are: DATA_WORD1, SL_MESSAGE_AREA and SL_MESSAGE_SUBID.
In this example, the DATA_WORD1 is the text that will be displayed in the syslog
messages. SL_MESSAGE_AREA and SL_MESSAGE_SUBID came from Syslog Message Maintenance transaction. Below a
example of code to use the Function Module RSLG_WRITE_SYSLOG_ENTRY:
call function 'RSLG_WRITE_SYSLOG_ENTRY'

exporting sl_message_area = 'AU'
sl_message_subid = '3'
data_word1 = 'my program with RSLG_WRITE_SYSLOG_ENTRY'.
Copy this code!
Below is the output in syslog of this call:
Another way to create syslog messages is with the kernel function C_WRITE_SYSLOG_ENTRY. The syntax is quite similar and
the input also the same. Below an example:
CALL 'C_WRITE_SYSLOG_ENTRY' ID 'TYP' FIELD ' '

ID 'KEY' FIELD 'AU3'
ID 'DATA' FIELD 'my program with C_WRITE_SYSLOG_ENTRY'.
Copy this code!
For reference:
5462 Writing SysLog entries from within ABAP/4 programs
Related Content
Related Documents
Syslog Monitor
Related Notes
12715 Collective note: problems with SCSA
17108 Shared memory still present, startup fails
1118986 Syslog: Record size increased to 320 places
1/31/2024
862 Reduce size of system log le
45580 How are syslog les deleted?
1041390 SM21: Central system log via HTTP or HTTPS
1578411 Syslog: Changes as of Basis Release 7.02
5462 Writing SysLog entries from within ABAP/4 programs
Purpose
This Expert Content describes the /SDF/MON report and how this can help the troubleshooting
process.
Overview
Some SAP troubleshooting process require a clear picture about the system behavior with
information about the infrastructure like OS and SAP resources. This clear picture should not be
cluttered information or just single point information. This analysis should engage the resources
situation ahead of the time of the issue and throughout the course of the problem. For this purpose
the /SDF/MON report helps to collect all of these details.
The tool
The main purpose of this report is to collect snapshots of monitoring detail and store these details
for later analysis. There are available SAP speci c data like work process status, dispatcher queue,
sessions, RFCs, Enqueue and also OS speci c details like process at OS level, memory and CPU
consumption by process.
The rst step required is to schedule the execution of the report, for this purpose is it required to run
the transaction /SDF/MON or over SE38 with the same name.
In the following screen, choose the option “Schedule New Monitoring”
In the next window, it is time to de ne what are the options collected in each snapshot triggered:
1/31/2024
List of work process (SM50) = output of SM50;
CPU time per workprocess = corresponding CPU consumption is collected;
SQL statements = information about running SQL statements is collected if this is a ORACLE DB.
This option can consume a large amount of data;
Store Reference to ABAP Source = the corresponding ABAP source will be collected for SQL
Statements. Supported by ORACLE;
Dispatcher Queue = Information about the queues of dispatcher (DIA, UPD, etc). Data from SM51 ->
Goto -> Information -> Queue Information;
CPU and Paging Activity = Data from SAPOSCOL about the hardware resources consumption from
OS level;
Top CPU Processes = CPU consumption from OS process level. Data from SAPOSCOL;
Ext. and Heap Mem = Memory areas from SAP level. Data from ST02;
Memory per Modes = Memory overview from user sessions. Data from SM04;
1/31/2024
Free RFC WPs = the sum of dialog work processes that are available for RFC Server group processing.
Data from SARFC;
Statistical Records = This information is not available to SAP BASIS releases > 7.0.
Enqueue Entries = Store Enqueue table data. This is the same information available in SM12 list of
locks.
Enqueue Statistics = Same information from SM12 -> Extras -> Statistics;
Inbound queues = Collect statistical information from table TRFCQIN;
Outbound queues = Collect statistical information from table TRFCQOUT;
SAPOSCOL destination = A destination for which ST06 related data can be collected (CPU and Paging
Activity &Top CPU Processes) from an external server.
Analysing shapshots
In the main window of the program, it is possible to search by a speci c Analysis or list all analysis
clicking in Execute. In the list, you do nd all recorded analysis.
By double-click on the selected analysis a new window is open with all snapshots de ned in the time
interval.
Each column available may forward you to speci c details about the data collected. Click in speci c
columns a new window is open with the speci ed details:
1/31/2024
To analyze Enqueue speci c details or Inbound or outbound queues it is required to open the option in
the menu Goto -> Choose “Enqueue Entries”, “Enqueue statistics”, “Outbound queue” or “Inbound
queue” by selection a “Global Data” in the grid that is only record every time con gured on setting
“Every N time(s)”.
Navigation
1/31/2024
Reports involved
/SDF/MON_START: Start the analysis with a set of parameters
/SDF/MON: Display and delete analyses
/SDF/MON_REORG: Delete obsolete analyses when expiration date is exceeded – to be scheduled as

background job
/SDF/MON_STOP: Stop running analyses immediately
/SDF/MON_START_CM: Schedule a continuous monitoring Report
Charts
There are prede ned charts using the option “Choose Layout” a graph from the monitoring time is
created as per the choose layout
1/31/2024
This is an example of CPU pro le graph where the “user CPU” vs “System CPU” is created.
It is also possible to create customized charts. To create charts it is required to select the desired
information in the Monitor Data window:
1/31/2024
Related Content
Related Documents
1449409 /SDF/MON generates <defunct> processes

1922426 Adjustments /SDF/MON
1674173 ST-PI 2008_1_* SP06: Enhancements in functionality
Exracting C-stack from core le
1/31/2024
Purpose
Overview
When a core le is created on OS level one necessary step of troubleshooting is to extract the call stack (also known as C-stack)
from core le. The core le is not readable with a text editor and therefore you need to use built in OS tools (debuggers) to nd
this information. We'll check what are the necessary steps and tools.
Necessary steps
1. Locate the core le. In an SAP application it is usually written in /usr/sap/<SID>/<instance>/work folder.
2. Check the format of core le:

what <path/to/core>/<core le>
e.g.: what /usr/sap/ABC/DVEBMGS00/work/core
3. Determine what executable created the core

le <path/to/core>/<core le>
e.g.: le /usr/sap/ABC/DVEBMGS00/work/core
4. Debug the core

<debugger> <triggering executable> <core le>
5. e.g. dbx /usr/sap/ABC/DVEBMGS00/exe/disp+work /usr/sap/ABC/DVEBMGS00/work/core
Available debuggers and their usage

Debuggers:
HPUX: adb
AIX: dbx
SUN: dbx, adb, pstack
LINUX: gdb
Usage:
Getting a backtrace from a coredump
UNIX Debugger Translation Table -> see Helpful Links
Related Content
Related Documents
Getting a backtrace from a coredump
UNIX Debugger Translation Table
625271: AIX call stack denoted as corrupted in trace les
2162346: SYSTEM_CORE_DUMP : How to analyze it
1/31/2024
Extracting the C-Stack from core les (UNIX and Linux)
Purpose
Provide the steps to extract the C-Stack from "core" les in various UNIX/Linux systems.
Overview
This page will list the steps required to extract the C-Stack from "core" les in different UNIX and Linux systems.
Executing the debugger
All debuggers mentioned on this WIKI have the same initial command.
<debugger> </path/to/triggering executable> </path/to/core le>
For example, using the adb debugger to analyze a "core" le created by the "disp+work" process of the instance DVEBMGS00 of
the TST system:
adb /usr/sap/TST/DVEBMGS00/exe/disp+work /usr/sap/TST/DVEBMGS00/work/core
Debuggers available at UNIX/Linux
This section will list the debuggers available at each system.
Operating System Available debugger
HPUX adb
AIX dbx
SUN dbx, adb
SINIX, RELIANT dbx
LINUX gdb
Commands for adb
Once at the adb prompt, type $c
and press enter (the entry must really be "dollar c").
This will display the C-Stack.
To exit the debugger type $q
and press enter.
Commands for dbx
1/31/2024
Once at the dbx prompt, type where
where and press enter.
To exit the debugger type quit
and press enter.
Commands for gdb
Once at the gdb prompt, type bt
and press enter.
To exit the debugger type quit
and press enter.
Related Content
2162346 - SYSTEM_CORE_DUMP : How to analyze it
Opening and downloading developer traces
Purpose
To troubleshoot a Netweaver issue, the developer traces are the most important requirement. This
Wiki explains how to nd and how to download them.
Overview
The most usual traces are:
Trace le name Service
1/31/2024
dev_disp Dispatcher
dev_w<number> Work Process
dev_ms Message Server
dev_rd Gateway
dev_rfc<number> RFC trace
dev_icm ICM
dev_enq* Enqueue
There are additional traces like std* and *start* traces that are also important to some speci c
situations.
How to nd it
There are few ways to access these traces, for example:
1) From Operating System level in work folder (/usr/sap/<SID>/</instance/work);
2) Transaction AL11 -> DIR_HOME;
3) SM50 -> OKcode write "w<number>" or "dp"

where <number> represent the work process number to open the WP trace;
dp stands to dispatcher;
4) Transaction SE38 -> rsbdcos0

Command line actions like "cat dev_disp" or "more dev_disp" (Windows);
5) Using transactions SMGW, SMICM or SMMS to open gateway, ICM or Message Servers traces
respectively;
6) Using SAPMMC
Click in the instance name -> "Process List" -> on the right side the SAP services will appears,
select the service and right mouse click -> "Developer trace"
To Open a Work Process trace, click in "AS ABAP WP Table" -> select the work process and right
mouse click -> "Developer trace"
How to download traces
1) Work Process trace:

From SM50 -> Select the WP -> Administration -> Trace -> save as local le
1/31/2024
Dispatcher trace:
From SM50 -> Administration -> Trace -> Dispatcher -> save as local le
Gateway:
SMGW -> Goto -> Trace -> Gateway -> Save as local le
ICM:
SMICM -> Goto -> Trace le -> Save Locally
2) When displaying the trace le, %pc to save it .
3) Creating a snapshot as per note 1786182

1786182 - CreateSnapshot: Collecting developer traces using sapcontrol
4) The report RSMON000_DOWNLOAD_TRACES

This report could be one of the best option to Download all relevant traces
RSMON000_DOWNLOAD_TRACES
Go to transaction SE38 and run the report RSMON000_DOWNLOAD_TRACES.
1) To download all relevant traces from work folder, mark the check box:
"Dispatcher"
"Work Process Trace File(s)" and select all work process types
"(save related RFC les)"
"Message Server Trace File"
"Gateway Trace File"
"ICM trace File"
"Save Old Trace Files Too"
"Compress Files First"
1/31/2024
2) Click F8
3) Select the path to save the traces
Related Content
Related Documents
1786182 - CreateSnapshot: Collecting developer traces using sapcontrol
112 - Trace and error information in the "dev_" les
STATDUMP Report
Purpose
Help you to understand the STATDUMP report functionalities in order to support statistical analysis in the SAP system.
Overview
1/31/2024
This page contains information about the STATDUMP report and the functionalities available on it, aiming to provide more
details about the statistics in the SAP system.
The STATDUMP Report

The STATDUMP report can be used to access the stat les created by the work processes directly, allowing you to lter the
content of the les by different criterias, similarly to the STAD initial screen. The statistics shown with the report STATDUMP are
the same than the ones shown in STAD, however, in a different format. In the below image you can see the initial screen of the
STATDUMP report, where the selections can be performed.
As shown above, the STATDUMP reports allows you to search for statistical records with the following criterias:
From the Start of File - The selection will be shown from the start of the current stat le being
written by the SAP kernel.
From End of File - The selection will be shown from the end of the current stat le being written
by the SAP kernel.
Search for User - The selection will be performed in all the stat les available in the stat les
path, based on the SAP user informed.
From Record Number - The selection will be performed as from the record number speci ed in
this eld.
From Date/Time - The selection will be performed based on the date and time speci ed.
Statistical Record Sections
Depending of the type of the statistical record (HTTP, RFC, Dialog or others) different sections will be shown for this statistic
record when displayed by the STATDUMP report. Some of the sections will always be displayed, as you can see below.
1/31/2024
1. Statistical Record Header - This section shows the basic information about the statistical record, which includes the
start date and time and end date and time of the statistical record. Main statistical information such as response time,
user and report are also displayed in this section.
2. Statistical Record Database Usage - This section shows details about the database related operations during the
exection of the step which generated the statistical record. It includes read, inserts, updates, deletes and other relevant
database operations details. The time taken for each of the different operation types is also speci ed.
3. Statistical Record Memory Usage - This section shows memory usage details of the statistical record. It shows the total
memory used, the heap memory used, roll and paging memory details. This section is used for memory management
related analysis.
4. Statistical Record Other Details - This section complements the statistical record header section, bringing technical
details for the statistical record such as record type, context id, transaction name, number of RFC or HTTP call created.
1/31/2024
Besides the main sections explained above, you can nd extra sections depending of the type of statistical record you are
displaying. There are extra sections for spool, RFC, HTTP, extended password, between other details. You can nd examples
below with the description for each one of them.
1. Statistical Records for RFC Requests - This section provides all technical details from the RFC perspective to the
statistical record. The information contained here includes the caller and destination instance of the RFC call, the
function module name used for the call, the duration of the call, the program responsible for it and also the client,
between other important details.
1/31/2024
2. Statistical Records for HTTP Requests - This section provides all technical details from the HTTP perspective to the
statistical record. The information contained in this section includes the caller instance, the target host and port of the
request, the connection id, the URL path, the program and also the time taken for the processing of the call.
3. Statistical Records for DB Connection - This section provides all the technical and statistical details about the database
connection performed during the execution of this step, including the number of operations performed and their
duration, separated by type.
1/31/2024
4. Statistical Records for Extended Passport Information - This section provides all the technical and statistical details
about the Extended Passport information of this step. This section is specially useful when the request was created in
another system, allowing the request origin to be identi ed. It includes details about the action performed with user,
client, context id, and other relevant details for analysis.
5. Statistical Records for Spool Requests - This section provides the technical and statistical details about the spool
processing, in case the request included one, providing duration details, and information about the type and mode used.
Comparing the STATDUMP report structure with the STAD transaction, both of them will provide the same information,
however, organized in a different way. In STAD, when the session does not have information to be shown, it will be reported an
empty session showing "No spool subrecords for this record", in case of Spool, for example.
Related Content
Related Documents
How to use STAD to show historical data

1/31/2024
STAD - Business Transaction Analysis
Purpose
The goal of this Wiki is to explain the usage of sappfpar to analyse the formula based parameters and
the current size in use by each parameter.
Overview
With the advent of 74X kernel, the SAP support arithmetic formula based parameters. See details int
further information this documentation:
The Kernel also is de ning some parameters with default values based in formulas, if not overwritten
by manually setting in pro les. The formula based parameters intends to de ne the most accurate
possible size to each parameters. Due to situations where the parameters are manually set to short
sizes (less appropriated), it is recommended to keep the kernel de ning the size of each parameter
based in its current formula instead of a wrongly set to size lower than the expected by the Kernel.
In order to check the divergences between the size expected by a formula and the de ned size, we can
use the sappfpar tool.
Examples
check_formula
1/31/2024
The rst part of the output there are INFORMATION with the formula that the parameter is expected
and a WARNING is the parameter if manually set in the pro le.
The second part of the output there is the list of parameters what are not following the expected size
de ned by the formula.
At the end, the summary of warnings and errors found.
There are additional nice option in sappfpar like:
check_unknown: to point unknown parameters
check_metadata: to point unknown parameters
check_rede nition: duplicated parameters
Related Content
1/31/2024
Related Documents
SAP Update System
Management
Con guring Update Server Group
Monitoring Update Resources Using CCMS Infrastructure
Reports RSM13001 / RSM13002: description of the functions available
Deletion of update requests
Troubleshooting
Processing pending V3 update requests
Updates requests in status 'Init'
Oracle Errors that automatically deactivate the SAP update mechanism
1510367 - Re-processing failed update records via SM13
671037 - Update records in INIT status without R/3 locks
F.A.Q.
What are the tables involved in the update process?
What does the update status mean?
What does V1 and V2 update mean?
What update requests can be re-posted?
Con guring Update Server Group

1/31/2024
Purpose
The purpose of this document is to assist with the update server group con guration.
Solution
The update server group could be con gured as the following steps in SM14.
------------------------------------
1) Transaction SM14
2) Click on Create Group
3) Enter Server Group = the name you decide
4) Enter DB Instance = Name of the DB Host name (The parameter rsdb/dbhost which takes the
value from the parameter SAPDBHOST)
5) Update Table - VBHDR = VBHDR
VBMOD = VBMOD
VBDATA = VBDATA
------------------------------------
After you con gured the Server groups in SM14, the system will work as the following.
Suppose the con guration is as following.
There are 3 instances which are APP1, APP2 and APP3.

I have created an update group and include APP1 and APP2 to this group.
APP3 is out of groups, therefore belongs to the global dispatching.
Then
1/31/2024
All updates requests made in APP1 will be dispatcher to APP1 and APP2.
All updates requests made in APP2 will be dispatcher to APP1 and APP2.
Update requests made in APP3 will be processed only by APP3 because APP1 and APP2 do not
belongs to the global dispatching.
Related SAP Notes
SAP Note 2138677 - SM13, SM14: maintenance of server groups missing
SAP Note 116335 - High number of update requests
Parameter 'rdisp/vb_included_server', provides a list of SAP update servers to be used to process

updates in accordance with load balancing principles. Update servers that do not appear in the list are
not given updates to process.
The fact that the application server appears as DEACTIVATED on SM14 depends on the value of this
parameter 'rdisp/vb_included_server' >on the machine< you're currently logged on.
Purpose
In case you have update requests remaining on SM13 transaction, you may want to know what can be done with them.
By default, updates which have nished successfully are deleted after execution has correctly ended. This is done due to
parameter rdisp/vb_delete_after_execution (default value is 1), which determines whether update requests are deleted after
they have been successfully executed. That means, that updates remaining on SM13 did not ended up correctly, due to different
reasons.
What should be done with those updates?
1) Check with corresponding application team why did this update failed.
1/31/2024
More information about the update failure can be found on Update Header (Goto > update Header):
Status information (in this case, Update was terminated) and UD Ret. Code (9 for this example) may be different, depending on
the update “Status”.
Error details section provide deeper explanation about the root cause.
Involve application team to analyze the root cause for the update failure, and ensure it’s solved accordingly.
Once this step has been completed, what will happen to those updates remaining on SM13?
2) Can those updates be re-processed?
Refer to Note: 1510367 - Re-processing failed update records via SM13
Scenarios when "Repeat Update" is not possible:
Update record with status "Error(no retry)" ("STOP" icon in SM13)
Update record with stauts "Stopped(no retry)"
Update records generated from "Batch Input" or "CALL TRANSACTION"
Update records with status "Error" and "Enqueue released"
In those cases, it’s needed to involve colleagues from application area to check what can be done with those pending updates.
They cannot be re-processed from SM13.
Once all the relevant information has been collected; and root cause of the update failure has been identi ed; you may decide to
delete those update requests remaining.
3) Can they be deleted?

Parameter rdisp/vbdelete
This parameter speci es the duration in days after which an update request is deleted. After this duration, has expired, the
update requests are deleted irrespective of their status.
When the application server restarts, it checks all the update requests remaining older than parameter rdisp/vbdelete. Default
value is 50; which means that remaining update requests will be deleted, if they are pending for more than 50 days, counting
since server restart.
Delete updates manually from sm13
In case you need to delete those updates before those 50 days (by default) have passed, they can be manually deleted from
SM13.
1/31/2024
(Select the update request, then Menu Update Requests > Delete)
Report RSM13002 (DELETE set to X).
It can be scheduled in the background with the parameter DELETE = X, to avoid the update tables becoming too large. Or, it can
be manually executed.
Related Content
Related Documents
SAP Help Portal: Deleting Update Records
SAP Documentation: Update Statuses
CST Expert Content: Reports RSM13001 and RSM13002: description of the functions available
SAP Note 1510367 - Re-processing failed update records via SM13
SAP Note 552300 - FAQ: Update
FAQ Update
Client-Server Technology - Update FAQ
What are the tables involved in the update process
What does mean the update status
What does V1 and V2 update mean
Which update requests can be reposted and which not
1/31/2024
What are the tables involved in the update process
What are the tables involved in the update process?
There are 4 main tables involved in update request. These tables and its goal are described below:
VBHDR: one entry for each update request;
VBMOD: one entry for each update module, called function module. This describes the function module that is to be called
during the update;
1/31/2024
VBDATA: This table provide the data for this function module. This is the data passed to the modules (variables, structures,
internal tables), can have several entries per update module;
VBERROR: error information if the update request gets stopped;
What does V1 and V2 update mean
What does V1/V2 update mean?
The update mechanism is a part of the SAP application server ABAP which ensures the transactional integrity during the
change of different data records within the database. Several data changes are collected in the application servers preliminarily
and get written to the database at a later time in a single chunk. This processing which nally writes the data records to the
database is called the update processing and get's triggered by the ABAP command COMMIT WORK and takes place in an
update or update-2 work process. It is actually not the data records themselves that are collected but a set of ABAP functions
(update modules).. The parameters passed to those functions are stored together with the functions and at the time of the
update processing the parameters get restored and the functions are executed with those parameters. In this way the update
mechanism can be seen as a delayed function execution that ensures that all the functions are executed in a single unit.
The database records changed by the update processing have to be locked and protected against concurrent change through
several transactions which would cause data inconsistencies. However there might be other data records that have to be
maintained together with those data records that get processed by the update mechanism but that don't have to be
necessarily protected against concurrent access. Think of progress and status information in a log table. In order to improve the
performance, update processing is split into several parts. Applications can differentiate their update functions into those
modules which are essential to be executed within the single processing mentioned above. Those are called the V1 update
modules. All other data may be stored in update modules which are processed with a slight delay and which are called the V2
update modules. It is important to know that the data records changed by V2 update modules are not protected by Enqueue
locks because those are released after the V1 processing.
There is an additional type of update modules which is called COLLECTIVE RUN. Those update modules are getting processed
even after the V2 part of an update request (but as well in update-2 work processes). The processing of the COLLECTIVE RUN
update modules has to be started explicitly using the program RSM13005. In contrast to the V1 and V2 update modules all
COLLECTIVE RUN update modules of one type are processed together. Regardless to the user who created them or to the
transaction they have been created by. So all COLLECTIVE RUN update modules which are pending all over the SAP system, are
collected and processed at once.
What does mean the update status
What does mean the update status?
INIT: this update request is completed which was sent to the update server, It is now in process or ha not yet been processed;
ERR: the update was started before, but stopped by some reason. Usually this is an program error, database issue, etc;
AUTO: The update record was selected by the system or manually selected for subsequent processing;
ENQR: this update is not yet posted, however, the related locks were deletede from enqueue table;
Which update requests can be reposted and which not
1/31/2024
Which update requests can be reposted and which not?
There are two types of V1 update modules: normal V1 update modules and non-repostable V1 update modules. After V1-update
processing those Enqueue locks which protect the data against concurrent access are released. This happens always,
regardless of whether update processing was successful or failed. Those V1 update modules which would lead to inconsistent
data when they are processed without the Enqueue lock protection are of type "V1 non-repostable". Update requests which
contain update modules of that type cannot be reposted. The system prevents update requests with that type of V1 update
modules from getting reposted.
Update requests of which only the V2 or COLLECTIVE RUN modules have not been executed may always be reposted,
regardless to whether there have been non-postable V1 update modules in it or not. So only update requests of which the V1
part failed to process successfully might not be able to be reposted.
An exception to this rule are update requests which have been triggered by the ABAP command COMMIT WORK AND WAIT
(synchronous updates). If the V1-part of those update requests failed to process properly they cannot be reposted in any case.
The reason is that transactions which triggered the update processing synchronous get a return code which tells them it if the
update processing was successful or not. The proper error handling of that transaction might lead to duplicate data if the
update request get's reposted.
Another special case is the local update processing. It has to be activated by the ABAP application via the ABAP statement "SET
UPDATE TASK LOCAL". There is no way to generally activate it from outside the ABAP program. When a transaction uses local
update processing the V1 update module parameters are not stored in the database but in the main memory and the
processing is done within the COMMIT WORK statement. Only the V2 update processing is done via the usual update
mechanism and those update requests can always be reposted as all update requests with just the V2 part pending can be
reposted.
Please nd further documentation regarding the update concept at

http://help.sap.com/saphelp_nw70/helpdata/en/64/6f8337dd34ca76e10000009b38f8cf/frameset.htm
Monitoring Update Resources Using CCMS Infrastructure
Purpose
The purpose of this page is to explain how the updates of an SAP instance can be monitored through the CCMS infrastructure.
Overview
This page provides details about the CCMS monitoring infrastructure, speci cally focused in the update resources monitoring,

The updates monitoring functionalities can be found in transaction RZ20, by following the below path.
RZ20 transaction → SAP CCMS Monitor Templates → Entire System → Application Server → <Instance Name> -> Update
1/31/2024
Monitoring Updates Resources

The CCMS Infrastructure allows you to monitor the updates resources available in the SAP instance by using the transaction
RZ20. The below MTEs are available in order to monitor different gateway resorces, they are:
For Updates V1 work processes:
ResponseTime - SAP update task V1: Average response time per dialog step
Utilization - Average usage of update V1 work processes of an application server
NumberOfWpUD1 - Number of update V1 work processes
ErrorsInWPUD1 - Number of errors in update V1 work processes
ErrorFreqInWpUD1 - Number of errors in update V1 work processes per minute
EndedWpUD1 - Number of completed update V1 work processes
For Updates V2 work processes:
ResponseTime - SAP update task V2: Average response time per dialog step
Utilization - Average usage of update V2 work processes of an application server
NumberOfWpUD2 - Number of update V2 work processes
ErrorsInWPUD2 - Number of errors in update V2 work processes
ErrorFreqInWpUD2 - Number of errors in update V2 work processes per minute
EndedWpUD2 - Number of completed update V2 work processes
The updates monitoring features also include the MTE AbapErrorInUpdate that show Update requests with errors in the
system. Following the path RZ20 transaction → SAP CCMS Technical Expert Monitors -> All Monitoring Contexts -> Update ->
UpdateServices you can also nd the below MTEs.
1/31/2024
Update Status - Update status in the system

Old Update Records - Update records older than one day in SM13

1. Using the MTE called Update Status, you can monitor whether the update mechanism is active in the instance. This will
allow you to monitor if the update processing is active or, in case it is not, to start the root cause analysis of this behavior
in order to restart the system to its normal functions.
1. using the MTE called Old Update Records you can monitor whether there are old updates which were not processes in
the system. Old updates sometimes mean that locks from old transactions still exist in the system and can prevent
important application functions from working correctly as consequence.
achieve this.
1/31/2024
more details.
1/31/2024

1/31/2024
Related Content
Related Documents
Oracle Errors that automatically deactivate the SAP update mechanism
Purpose
This document provides a list of Oracle errors that lead to deactivation of SAP update mechanism.
Overview
The update mechanism has a feature to be automatically disabled in case of critical situations to avoid even a worst and
complicated scenario from users perspective. However, not all of critical errors and situation will be able to deactivate the
update mechanism.
Following the list of known errors that will trigger the deactivation of update mecahnism in SAP systems:
1/31/2024
Errors ORA-XXX
1536: space quota exceeded for tablespace

1555: snapshot too old
1562: failed to extend rollback segment
1630: max # extents (%s) reached in temp segment
1631: max # extents (%s) reached in table %s.%s
1632: max # extents (%s) reached in index %s.%s
1650: unable to extend rollback segment
1651: unable to extend save undo segment
1652: unable to extend temp segment
1653: unable to extend table
1654: unable to extend index
30036: unable to extend segment in undo tablespace
Related Content
Processing pending V3 update requests
Purpose
The purpose of this document is to assist with the processing of pending V3 update requests
(transaction SM13).
Overview
This page explains one possible reason for V3 update request to remain unprocessed in the system
and how to proceed in order to process them.
Cause
V3 update requests are called "collective run updates", and are not automatically processed by the
update mechanism.
These updates are not considered to be critical or urgent.
Critical/urgent update requests should be created as a V1 update.
1/31/2024
Solution
A background job (transaction SM36/SM37) needs to be schedule to collect and process pending V3
update requests.
Each application area has to provide its own job / report.
Therefore, the rst step is to verify whether the application has such report, and what are the
guidelines provided by the application regarding how to schedule the job (daily, weekly, etc.).
In case the application does not provide such report, the generic report "RSM13005" can be used.
Related Content
Related Documents
SAP note 552300 - FAQ: Update
Reports RSM13001 and RSM13002: description of the functions available
Purpose
The purpose of this document is to describe what each of the functions from the reports RSM13001 and RSM13002 do.
RSM13001
List of functions and the expected outcome
Function Description
COUNT Counts the number of update records that match the selection criteria (selection elds: FROM DAY, FROM TIME, TO DATE, TO
TIME, USER, TCODE) and display:
The number of records in status "initial";
The number of records in status "error";
The total number of records.

SHOW Display all update requests that match the selection criteria including the total number of requests. If the "Display Update
Module" eld is marked (with an 'X', or not with a blank space), also displays the update modules and the total number of
modules.
DELINIT Delete all update records that are in status "initial" and match the selection criteria. They will be deleted in batches of at most
100 records per "commit work".
DELALL Delete all update records that match the selection criteria, disregarding their statuses. They will be deleted in batches of at
most 100 records per "commit work".
1/31/2024
DELERR Delete all update records that are in error status and match the selection criteria. They will be deleted in batches of at most
100 records per "commit work".
REORG Delete orphan update records (records that have entries at the database tables VBDATA and VBMOD, but do not have the
corresponding entry at the table VBHDR).
Observation: as of SAP NetWeaver 7.4, the REORG option only deletes orphan records that are older than rdisp/vbdelete
days. The default value of this parameter is 50 and this parameter does not accept the value zero. The lower value it accepts
is one. This is to prevent data loss in case temporary orphan updates exist in the system (e.g., a job creating update requests
that did not perform the "commit work" yet).
RESET Resets the status of pending update requests that match the selection criteria to "initial", so the update mechanism starts
(re)processing them automatically.
For example, V1 and V2 modules that have status "started" will be reset to "initial". Keep in mind that not all statuses can be
reset with this report.
SHOWI Shows the number of incomplete update records (possibly orphan records, but not necessarily). Does not take into account
the selection elds.
COUNTI Counts the number of incomplete update records (possibly orphan records, but not necessarily). Does not take into account
the selection elds.
RSM13002
List of functions and the expected outcome
Function Description
STARTV2 Start all pending V2 update requests that are ready to be processed.
DELETE Deletes all update records that were already processed successfully, but are still at the database tables.
They will be deleted in batches of at most 100 records per "commit work".
REORG Performs the same function as the REORG in the report RSM13001 (see above).
Related Content
SAP note 67014: Reorganizing update requests
SAP Update system - Frequently asked Questions (FAQ)
What tables are involved in the update process?

There are 4 main tables involved in update request. These tables and its goal are described below:
VBHDR: one entry for each update request

1/31/2024
VBMOD: one entry for each update module, called function module. This describes the function
module that is to be called during the update
VBDATA: This table provide the data for this function module. This is the data passed to the
modules (variables, structures, internal tables), can have several entries per update module
VBERROR: error information if the update request gets stopped;
What does the update status mean?
INIT: this update request is completed which was sent to the update server, It is now in process
or ha not yet been processed
ERR: the update was started before, but stopped by some reason. Usually this is an program
error, database issue, etc;
AUTO: The update record was selected by the system or manually selected for subsequent
processing;
ENQR: this update is not yet posted, however, the related locks were deleted from enqueue
table;
What does V1 and V2 update mean?
The update mechanism is a part of the SAP application server ABAP which ensures the transactional integrity during the
change of different data records within the database. Several data changes are collected in the application servers preliminarily
and get written to the database at a later time in a single chunk. This processing which nally writes the data records to the
database is called the update processing and get's triggered by the ABAP command COMMIT WORK and takes place in an
update or update-2 work process. It is actually not the data records themselves that are collected but a set of ABAP functions
(update modules).. The parameters passed to those functions are stored together with the functions and at the time of the
update processing the parameters get restored and the functions are executed with those parameters. In this way the update
mechanism can be seen as a delayed function execution that ensures that all the functions are executed in a single unit.
The database records changed by the update processing have to be locked and protected against concurrent change through
several transactions which would cause data inconsistencies. However there might be other data records that have to be
maintained together with those data records that get processed by the update mechanism but that don't have to be
necessarily protected against concurrent access. Think of progress and status information in a log table. In order to improve the
performance, update processing is split into several parts. Applications can differentiate their update functions into those
modules which are essential to be executed within the single processing mentioned above. Those are called the V1 update
modules. All other data may be stored in update modules which are processed with a slight delay and which are called the V2
update modules. It is important to know that the data records changed by V2 update modules are not protected by Enqueue
locks because those are released after the V1 processing.
There is an additional type of update modules which is called COLLECTIVE RUN. Those update modules are getting processed
even after the V2 part of an update request (but as well in update-2 work processes). The processing of the COLLECTIVE RUN
update modules has to be started explicitly using the program RSM13005. In contrast to the V1 and V2 update modules all
COLLECTIVE RUN update modules of one type are processed together. Regardless to the user who created them or to the
transaction they have been created by. So all COLLECTIVE RUN update modules which are pending all over the SAP system, are
collected and processed at once.
What update requests can be re-posted?

There are two types of V1 update modules: normal V1 update modules and non-repostable V1 update modules. After V1-update
processing those Enqueue locks which protect the data against concurrent access are released. This happens always,
regardless of whether update processing was successful or failed. Those V1 update modules which would lead to inconsistent
data when they are processed without the Enqueue lock protection are of type "V1 non-repostable". Update requests which
1/31/2024
contain update modules of that type cannot be reposted. The system prevents update requests with that type of V1 update
modules from getting reposted.
Update requests of which only the V2 or COLLECTIVE RUN modules have not been executed may always be reposted,
regardless to whether there have been non-postable V1 update modules in it or not. So only update requests of which the V1
part failed to process successfully might not be able to be reposted.
An exception to this rule are update requests which have been triggered by the ABAP command COMMIT WORK AND WAIT
(synchronous updates). If the V1-part of those update requests failed to process properly they cannot be reposted in any case.
The reason is that transactions which triggered the update processing synchronous get a return code which tells them it if the
update processing was successful or not. The proper error handling of that transaction might lead to duplicate data if the
update request get's reposted.
Another special case is the local update processing. It has to be activated by the ABAP application via the ABAP statement "SET
UPDATE TASK LOCAL". There is no way to generally activate it from outside the ABAP program. When a transaction uses local
update processing the V1 update module parameters are not stored in the database but in the main memory and the
processing is done within the COMMIT WORK statement. Only the V2 update processing is done via the usual update
mechanism and those update requests can always be reposted as all update requests with just the V2 part pending can be
reposted.
Please nd further documentation regarding the update concept at

http://help.sap.com/saphelp_nw70/helpdata/en/64/6f8337dd34ca76e10000009b38f8cf/frameset.htm
Updates requests in status 'Init'
Purpose
This document provides different scenarios that may cause Update Requests remaining on transaction SM13 in status ʻInitialʻ.
Overview
Status ʻInitialʻ means: “The update request has been created but has not been fully processed. (This status applies from the
moment the dialog work process passes the update request to the update work process up to the COMMIT in the update work
process)“
Further details of the update request are shown with a double clik (or via menu Goto > Update module). There, we can see that
involved FMs (they can be type V1 or type V2) are also in status ʻInitialʻ. This means that none of them have yet been processed.
1/31/2024
Header information of the request (Goto > update Header) shows:
Update Server: application server were the update record should be processed (involving UPD &
UP2 work processes).
UD Client: application server where the DIA request was executed.
A new functionality has been implemented to alleviate the issue of remaining update tasks in status INIT in transaction SM13.
See Note 2802241 - UPD: Update requests in status INIT in SM13
Where to check information?
This image shows ow of information. Communication is stablished between involved application servers (UPD Client & UPD
Server) through Dispatcher -> Message Server -> Dispatcher.
Relevant information can be found on:
SystemLog entries (transaction SM21) at update request timestamp.
Message Server trace le (dev_ms) at around relevant timestamp.
1/31/2024
Dispatchers trace les (dev_disp) on both involved application servers at around relevant
timestamp.
Status of UPD work processes (transaction SM50) on Update Server.
UPD work processes trace le (dev_wX) on Update Server.
Load on both application servers.
Possible reasons
Over ow of the UPD or UPD2 Dispatcher Queue on Update Server (7.2x)
System Log will show error:
Error adding a request to the dispatcher queue ( UPD)

Request (type UPD) cannot be processed
Dispatcher trace le shows following:
*** ERROR => DpRqIPutIntoQ: OverFlow (type 6, max: 2001, prio LOW) [dpxxqueu.c 622]
***LOG Q0H=> DpRqPutIntoQueue, DpRqIPutIntoQ ( UPD) [dpxxtool2.c 3981]
***LOG Q0G=> DpRqBadHandle, bad_req ( UPD) [dpxxdisp.c 5263]
***ERROR=>BAD REQUEST – Reason:DpRqPutIntoQueue failed
This can be con rmed on transaction SM51 -if server has not been restarted- by selecting application server: Goto > Server
Name > Information > Queue Information
Dispatcher queue reached value ʻrdisp/elem_per_queueʻ, which de nes the number of requests of each WP type Dispatcher can
handle, not only for UPD or UPD2 processes.
>> UPD and UPD2 load needs to be correctly distributed among different application servers to avoid this overload problems.
The situation could be an isolated event or an incident due to the execution a job/program that needs many UPD or UPD2 work
processes.
Disconnection to Message Server on one of the Dispatchers
Dispatcher trace from UPD server or UPD client application server will show disconnection to Message Server:
*** ERROR => MsINiRead: NiBufReceive failed (NIECONN_BROKEN) [msxxi.c 2848]

****************************************************************************
* LOCATION SAP-Dispatcher <server>_<SID>_<nr> on host <hostname>
* ERROR Reading data from the message server (<mshost>/ <msport>) failed.
* Please check the trace le of the message server.
*
* TIME xxxxxx
* RELEASE xxx
* COMPONENT MS (message handling interface, multithreaded)
1/31/2024
* MODULE /bas/7xx_REL/src/krn/ms/msxxi.c
*****************************************************************************
*** ERROR => MsIReadFromHdl: MsINiRead (rc=NIECONN_BROKEN) [msxxi.c 2236]
MBUF state OFF
DpMBufTypeMod: MBUF component DOWN (event=MBUF_DPEVT_DOWN)
DpMsServerDown: wakeup waiting sessions
*** ERROR => DpMsgProcess: MsReceive () -> MSENILAYER, partner: [dpMessageSer 255]
*** ERROR => DpMsgProcess: disconnect from msg_server [dpMessageSer 338]
>> Ensure network stability between different application servers.
Extended Memory exhausted on one of involved application servers (7.4x)
If Extended Memory on UPD Client or UPD Server is exhausted, updates may stay in ʻInit’ status. Work process trace le
(dev_wx) will show:
Y *** ERROR => dyInitSpa: EmAlloc failed [dyimode.c 2554]

Y {root-id=901B0E0B00C41EE781B0B5C240D9A454}_{conn- id=00000000000000000000000000000000}_0
EM Dump
Extended Memory consumption on each application server can be checked on transaction ST02; if MaxUse reaches In Mem
value, Extended Memory was exhausted: You may also nd many LOAD_NO_ROLL dumps on ST22 transaction, pointing to
same shortage on Extended Memory resources.
>> Adjust Extended Memory size, based on application server needs.
Extended Global (EG) exhausted on UPD server (7.4x)
Extended Global area is a memory pool located in the Extended Memory. This area is reserved for globla data, that is user-
independent. The amount of data involved in this area is smaller, a percentage from the whole Extended Memory pool.
UPD work process trace le (dev_wx) will show:
X *** ERROR => EgAlloc: MmxMalloc failed (9) to allocate 1048576 bytes. [egxx.c 627]
X {root-id=525400DB31461ED8809A946A5FC739D2}_{conn-id=00000000000000000000000000000000}_0
X *** ERROR => EgAlloc: out of memory, check em/global_area_MB and eg_oom_mm.dump le for memory allocations.
[egxx.c 628]
With SAP NetWeaver 7.4x the extended global area (EG) con guration has changed, as the table buffer has been moved into EG
(which is a part of EM).
>> Adjust Extended Global memory.
Shortage on Page le (Windows environment)
UPD work process trace le (dev_wx) from update server will show:
X *** ERROR => <EsNT> error: [esnti.c 2926]MapViewOfFileEx(27c,34,0,1275068416,4194304,000007DE99A00000) returned

0000000000000000
(lastError = 1455) [esnti.c 3541]
X {root-id=FA163E4942951ED8819C4454E325842F}_{conn-id=00000000000000000000000000000000}_0
X *** ERROR => <EsNT> MapViewOfFileEx size=4194304 ptr=000007DE99A00000 HighPart=0 LowPart=1275068416
MapHandle=000000000000027C error=1455 [esnti.c 2939]
Y *** ERROR => dyInitSpa: EmAlloc failed [dyimode.c 2703]
M ***LOG R1U=> Error in EmAlloc& [dyimode.c 2709]
1/31/2024
This only occurs on Windows operating system platform.
Mapping the block via MapViewOfFile is failed due to no more page le available.
>> Adjust page le based on memory requirements.
Related Content
Over ow of the UPD or UPD2 Dispatcher Queue on Update Server (7.2x)
SAP Note 3223 - Number of WP and APPC blocks (SAP Kernel 46D to 738)
KBA 2393769 - System parameters for high interface load (ALE/RFC) for Kernel >= 7.4x
Disconnection to Message Server on one of the Dispatchers
SAP Note 1532367 - MsSCheckConnections
Extended Memory exhausted on one of involved application servers (7.4x)
SAP Note 2405581 - UPD: updates in status INITIAL as of 74X
KBA 2322108 - Update requests stay in initial status, enqueue lock entries remain after end of
session
SAP Note 2061741 - UP: R1T in system log
KBA 2148571 - Higher Extended Memory (EM) and Extended Global Memory (EG) consumption
in kernel 7.4x
KBA 2152126 - ERROR => EgAlloc: MmxMalloc failed
SAP Note 1514752 - Extended Global Memory con guration
Shortage on Page le on Windows environment
KBA 2584074 - Update requests stuck in sm13, enqueue lock entries remain after end of session
on Windows
SAP Note 1518419 - Page le and virtual memory required by the SAP system
1/31/2024

Application Server Infrastructure

Uploaded by

Document Information

Original Description:

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

Application Server Infrastructure

Uploaded by

Copyright:

Available Formats

1/31/2024

Application Server Infrastructure

Support Content | 1.0

Original content: https://help.sap.com/docs/SUPPORT_CONTENT/si?locale=en-US&state=PRODUCTION&version=1.0

For more information, please visit the https://help.sap.com/docs/disclaimer.
