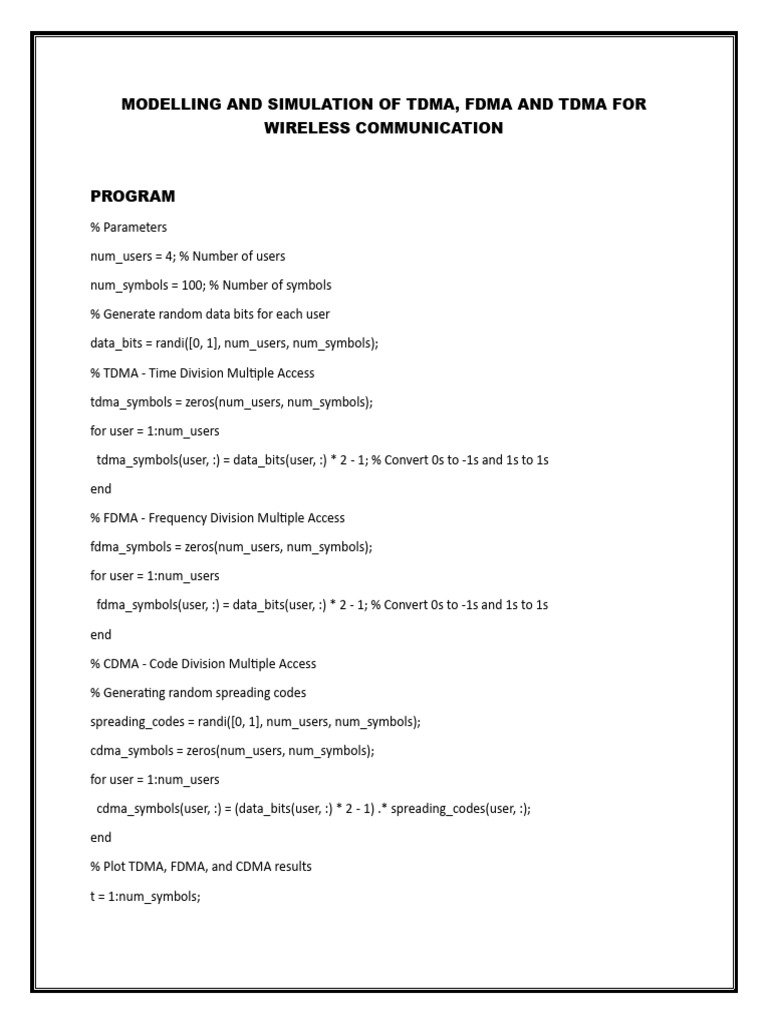

MODELLING AND SIMULATION OF TDMA, FDMA AND TDMA FOR

WIRELESS COMMUNICATION

PROGRAM
% Parameters

num_users = 4; % Number of users

num_symbols = 100; % Number of symbols

% Generate random data bits for each user

data_bits = randi([0, 1], num_users, num_symbols);

% TDMA - Time Division Multiple Access

tdma_symbols = zeros(num_users, num_symbols);

for user = 1:num_users

tdma_symbols(user, :) = data_bits(user, :) * 2 - 1; % Convert 0s to -1s and 1s to 1s

end

% FDMA - Frequency Division Multiple Access

fdma_symbols = zeros(num_users, num_symbols);

for user = 1:num_users

fdma_symbols(user, :) = data_bits(user, :) * 2 - 1; % Convert 0s to -1s and 1s to 1s

end

% CDMA - Code Division Multiple Access

% Generating random spreading codes

spreading_codes = randi([0, 1], num_users, num_symbols);

cdma_symbols = zeros(num_users, num_symbols);

for user = 1:num_users

cdma_symbols(user, :) = (data_bits(user, :) * 2 - 1) .* spreading_codes(user, :);

end

% Plot TDMA, FDMA, and CDMA results

t = 1:num_symbols;
figure;

subplot(3, 1, 1);

plot(t, tdma_symbols', 'LineWidth', 1.5);

title('TDMA - Time Division Multiple Access');

xlabel('Symbol Index');

ylabel('Amplitude');

legend('User 1', 'User 2', 'User 3', 'User 4');

subplot(3, 1, 2);

plot(t, fdma_symbols', 'LineWidth', 1.5);

title('FDMA - Frequency Division Multiple Access');

xlabel('Symbol Index');

ylabel('Amplitude');

legend('User 1', 'User 2', 'User 3', 'User 4');

subplot(3, 1, 3);

plot(t, cdma_symbols', 'LineWidth', 1.5);

title('CDMA - Code Division Multiple Access');

xlabel('Symbol Index');

ylabel('Amplitude');

legend('User 1', 'User 2', 'User 3', 'User 4');

sgtitle('Modeling and Simulation of TDMA, FDMA, and CDMA for Wireless Communication');
OUTPUT
 WIRELESS CHANNEL EQUALIZATION : ZERO FORCING
EQUALIZER(ZFE),MMSE EQUALIZER(MMSEE),ADAPTIVE
EQUALIZER(ADE),DECISION FEEDBACK EQUALIZER(DFE)

PROGRAM

a) ZERO FORCING EQUALIZER

% Zero Forcing Equalizer Parameters

channel_length = 10; % Length of the channel impulse response

channel_coefficients = [0.2, 0.5, 0.7, 0.3, 0.1, 0.4, 0.8, 0.6,0.9, 0.5]; % Channel coefficients

num_symbols = 1000; % Number of transmitted symbols

SNR_dB = 20; % Signal-to-Noise Ratio in dB

% Generate random data symbols (QPSK modulation)

data_symbols = 2 * randi([0, 1], 1, num_symbols) - 1;

% Apply channel distortion

channel_output = filter(channel_coefficients, 1, data_symbols);

% Add AWGN (Channel Modeling)

noise_power = 10^(-SNR_dB/10);

received_symbols = channel_output + sqrt(noise_power/2)*randn(size(channel_output));

% Zero Forcing Equalization

equalizer_tap = 1 / channel_coefficients(1); % One-tap ZeroForcing Equalizer

equalized_symbols = received_symbols * equalizer_tap;

equalized_bits = sign(equalized_symbols);

num_bit_errors = sum(data_symbols ~= equalized_bits);

bit_error_rate = num_bit_errors / num_symbols;

disp(['Bit Error Rate (BER): ', num2str(bit_error_rate)]);

disp(['SNR (dB):', num2str(SNR_dB)]);

OUTPUT
Bit Error Rate (BER): 0.476

SNR (dB):20
b)MMSE EQUALIZER
% Parameters

M = 4; % Number of transmitted symbols

N = 1000; % Number of received symbols

SNR_dB = 10;

pilot_Symbols = [1 -1 1 -1]; % Known pilot symbols

transmitted_Symbols = randi([0 M-1], 1, N);

modulated_Symbols = qammod(transmitted_Symbols, M);

channel = [0.8 -0.4 0.2 -0.1]; % Example channel coefficients

channel_Output = filter(channel, 1, modulated_Symbols);

SNR = 10^(SNR_dB/10);

noise_Var = 1/(2*SNR);

noise = sqrt(noise_Var) * randn(1, length(channel_Output));

received_Signal = channel_Output + noise;

% Channel estimation using pilot symbols

pilot_Indices = randperm(N, length(pilot_Symbols));

pilot_Signal = received_Signal(pilot_Indices);

estimated_Channel = conv(pilot_Signal, conj(pilot_Symbols(end:-1:1)));

estimated_Channel = estimated_Channel(end-length(channel)+1:end);

% MMSE equalization

equalizer_Coefficients = conj(estimated_Channel) ./ (abs(estimated_Channel).^2 + noise_Var);

equalized_Symbols = filter(equalizer_Coefficients, 1, received_Signal);

Demodulated_Symbols = qamde mod(equalized_Symbols, M);

bit_Errors = sum(transmitted_Symbols ~= demodulated_Symbols);

bit_Error_Rate = bit_Errors / N;

disp(['Bit Error Rate: ' num2str(bit_Error_Rate)]);

OUTPUT

Bit Error Rate: 0.787

C)ADAPTIVE EQUALIZER
% Adaptive Equalization Parameters

channel_length = 10; % Length of the channel impulse response

channel_coefficients = [0.2, 0.5, 0.7, 0.3, 0.1, 0.4, 0.8, 0.6,0.9, 0.5];

num_symbols = 1000; % Number of transmitted symbols

SNR_dB = 20; % Signal-to-Noise Ratio in dB

% Generate random data symbols (QPSK modulation)

data_symbols = 2 * randi([0, 1], 1, num_symbols) - 1;

% Apply channel distortion

channel_output = filter(channel_coefficients, 1, data_symbols);

% Add AWGN (Channel Modeling)

noise_power = 10^(-SNR_dB/10);

received_symbols = channel_output + sqrt(noise_power/2)*randn(size(channel_output));

% Adaptive Equalization using Recursive Least Squares (RLS)algorithm

equalizer_length = channel_length; % Choose equalizer length to be the same as the channel length

delta = 0.01; % Small positive constant to ensure numerical stability

forgetting_factor = 0.99; % Forgetting factor for RLS algorithm

equalizer = zeros(1, equalizer_length); % Initialize equalizer weights

P = (1/delta) * eye(equalizer_length); % Initialize inverse correlation matrix

equalized_symbols = zeros(1, num_symbols); % Store equalized symbols

for i = equalizer_length+1:num_symbols

observation = received_symbols(i:-1:i-equalizer_length+1); % extract current observation window

equalized_output = equalizer * observation.'; % apply equalizer to the observation

error = data_symbols(i) - equalized_output;

K = P * observation.' / (forgetting_factor + observation * P* observation.'); % calculate filter gain

equalizer = equalizer + K.' * error; % update equalizer weights

P = (1/forgetting_factor) * (P - K * observation * P); % update inverse correlation matrix

equalized_symbols(i) = equalized_output; % stored equalized symbol

end
equalized_bits = sign(equalized_symbols;

num_bit_errors = sum(data_symbols ~= equalized_bits);

bit_error_rate = num_bit_errors / num_symbols;

disp(['Bit Error Rate (BER): ', num2str(bit_error_rate)]);

disp(['SNR (dB): ', num2str(SNR_dB)]);

OUTPUT:
Bit Error Rate (BER): 0.449

SNR (dB): 20
D)DECISION FEEDBACK EQUALIZER
% Decision Feedback Equalization Parameters

channel_length = 10; % Length of the channel impulse response

channel_coefficients = [0.2, 0.5, 0.7, 0.3, 0.1, 0.4, 0.8, 0.6,0.9, 0.5]; % Channel coefficients

num_symbols = 1000; % Number of transmitted symbols

SNR_dB = 20; % Signal-to-Noise Ratio in dB

% Generate random data symbols (QPSK modulation)

data_symbols = 2 * randi([0, 1], 1, num_symbols) - 1;

channel_output = filter(channel_coefficients, 1, data_symbols); % apply channel distortion

% Add AWGN (Channel Modeling)

noise_power = 10^(-SNR_dB/10);

received_symbols = channel_output + sqrt(noise_power/2)

*randn(size(channel_output));

% Decision Feedback Equalization

equalizer_length = channel_length; % Choose equalizer length to be the same as the channel length

equalizer = zeros(1, equalizer_length); % Initialize equalizer weights

feedback = zeros(1, equalizer_length); % Initialize feedback coefficients

equalized_symbols = zeros(1, num_symbols); % Store equalized symbols

for i = equalizer_length+1:num_symbols

observation = received_symbols(i:-1:i-equalizer_length+1);

equalized_output = equalizer * observation.' - feedback *equalized_symbols(i-equalizer_length:i-1).';

equalized_symbols(i) = sign(equalized_output);

error = data_symbols(i) - equalized_symbols(i);

equalizer = equalizer + 2 * error * conj(observation);

feedback = feedback + 2 * error * conj(equalized_symbols(i-equalizer_length:i-1));

end

% Calculate Bit Error Rate (BER)

num_bit_errors = sum(data_symbols ~= equalized_symbols);

bit_error_rate = num_bit_errors / num_symbols;

disp(['Bit Error Rate (BER): ', num2str(bit_error_rate)]);

disp(['SNR (dB): ', num2str(SNR_dB)]);

OUTPUT:
Bit Error Rate (BER): 0.498

SNR (dB): 20
