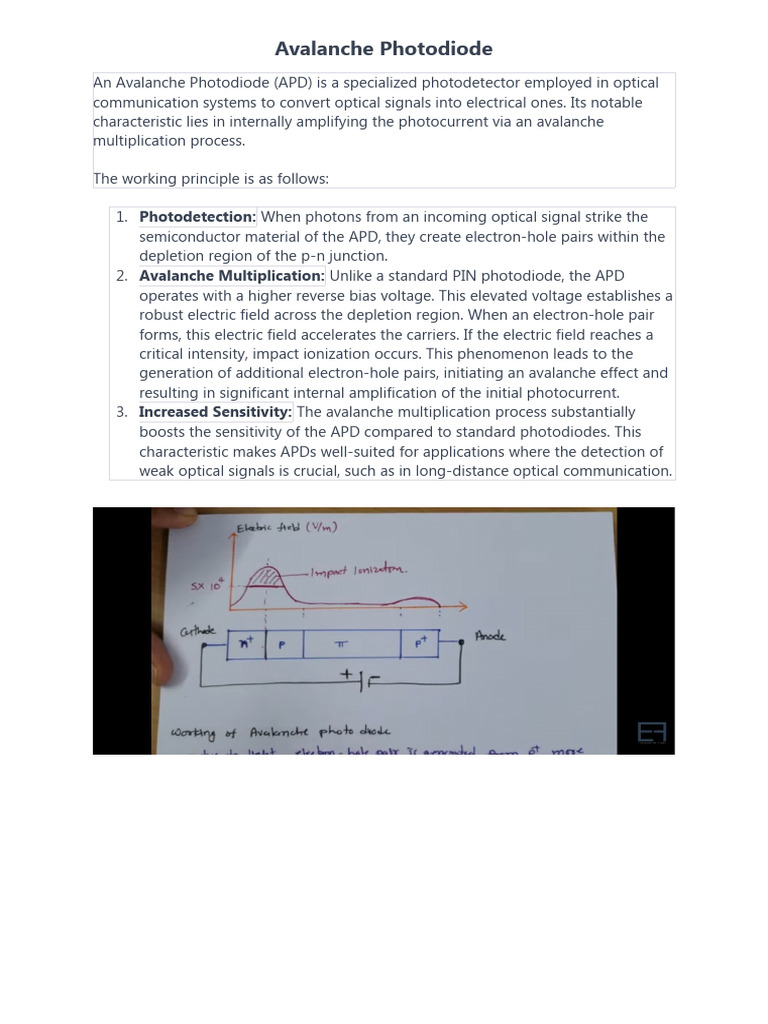

Avalanche Photodiode

An Avalanche Photodiode (APD) is a specialized photodetector employed in optical

communication systems to convert optical signals into electrical ones. Its notable
characteristic lies in internally amplifying the photocurrent via an avalanche
multiplication process.

The working principle is as follows:

1. Photodetection: When photons from an incoming optical signal strike the

semiconductor material of the APD, they create electron-hole pairs within the
depletion region of the p-n junction.
2. Avalanche Multiplication: Unlike a standard PIN photodiode, the APD
operates with a higher reverse bias voltage. This elevated voltage establishes a
robust electric field across the depletion region. When an electron-hole pair
forms, this electric field accelerates the carriers. If the electric field reaches a
critical intensity, impact ionization occurs. This phenomenon leads to the
generation of additional electron-hole pairs, initiating an avalanche effect and
resulting in significant internal amplification of the initial photocurrent.
3. Increased Sensitivity: The avalanche multiplication process substantially
boosts the sensitivity of the APD compared to standard photodiodes. This
characteristic makes APDs well-suited for applications where the detection of
weak optical signals is crucial, such as in long-distance optical communication.
 PIN Photodiode

 P: The "P" stands for the positively charged region. It's like the positive side of
a battery. It's full of "holes," which are places where an electron could fit but
isn't there yet.
 I: The "I" stands for the intrinsic region. This is where the magic happens. It's
the part between the positive and negative sides. It's special because it's
almost like a no-man's-land for electrical charge. It's not too positive or too
negative.
 N: The "N" stands for the negatively charged region. It's like the negative side
of a battery. It's full of extra electrons, which are negatively charged particles.

Now, when light hits this PIN photodiode, something cool happens:

1. Light to Electricity: When light, made of tiny particles called photons, hits the
photodiode, it releases electrons. These released electrons move toward the
positive side ("P" region) and the holes move toward the negative side ("N"
region).
2. The Intrinsic Middle: In that "I" zone in the middle, something neat occurs.
Because it's kind of in the middle between positive and negative, it helps the
electrons move smoothly without too much resistance.
3. Creating Electricity: As these electrons and holes move around, they create a
flow of electricity! That's how the light gets turned into an electrical signal that
can be measured and used.

Advantages: Disadvantages:
 High Speed  Lower Sensitivity
 Low Noise  Does not amplify signal.
 Large Bandwidth
Edge Emitter LED
DFB(Distributed Fieldback Laser)
Fabry Parot LASER
