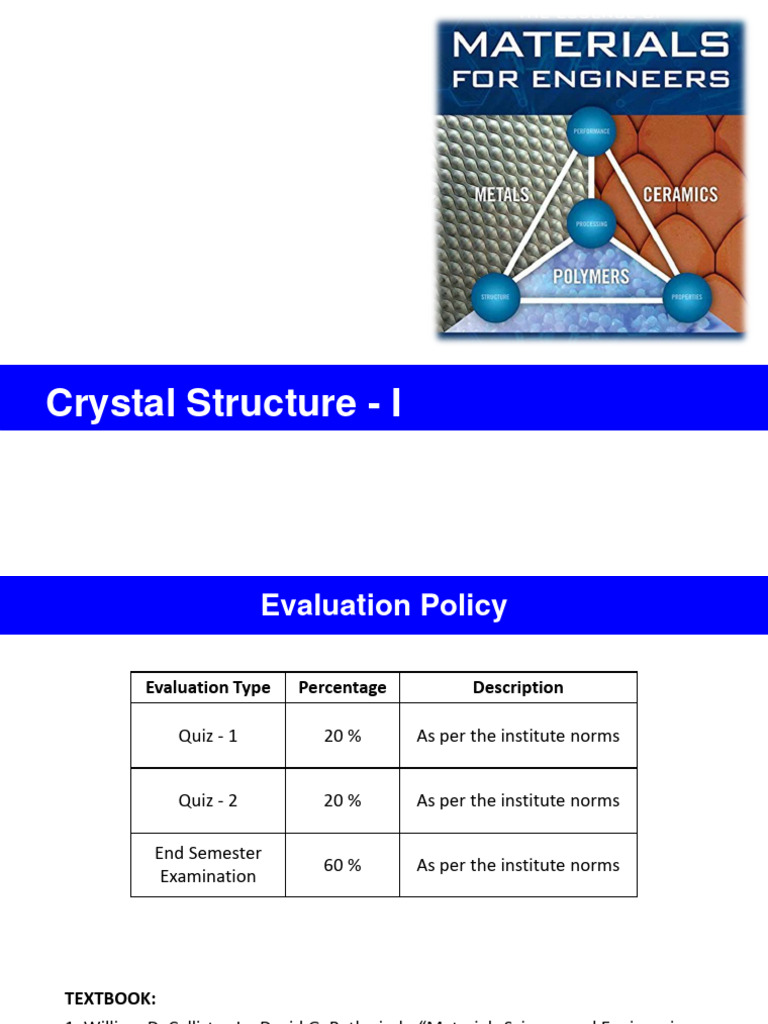

Crystal Structure - I

Evaluation Policy

Evaluation Type Percentage Description

Quiz - 1 20 % As per the institute norms

Quiz - 2 20 % As per the institute norms

End Semester
60 % As per the institute norms
Examination

TEXTBOOK:
1. William D. Callister Jr., David G. Rethwisch, “Materials Science and Engineering:
An Introduction”, 10th Edition, Wiley, 2018.
2. Michael Ashby, Hugh Shercliff, David Cebon, “Materials – Engineering, Science,
Processing and Design”, 4th Edition, Butterworth-Heinemann, 2018.
9/5/2023 2
 Design requirements – Example
• Select a material for the teeth of the
scoop of a digger truck.
• To do so, you need to prioritize the
material properties that matter.
• What are they?

• The teeth will be used in a brutal way to cut earth, scoop stones, crunch rock, often
in unpleasant environments (ditches, sewers, fresh and salt water and worse), and
their maintenance will be neglected.
• These translate into a need for high hardness, H, to resist wear, and high fracture
toughness, K1c, so they don’t snap off.
• Does the cost of the material matter?
• It is worth paying for good teeth to avoid expensive downtime.
9/5/2023 3
 Design requirements – Example
• Select a material for energy-efficient
cookware.
• What thermal property are you looking
for?
• And, apart from the mechanical
properties discussed earlier, what other
material behaviour will be important?

• To be energy-efficient, the pan must have a high thermal conductivity, k, to transmit

and spread the heat well.
• Also, it mustn’t contaminate the food - that is, it must resist corrosion by anything
that might be cooked in it - including hot, salty water, dilute acids (acetic acid e
vinegar, for example) and mild alkalis (baking soda).
• Resist chemical reaction with alkali or acidic medium

9/5/2023 4
 Atom
An atom is the smallest constituent unit of ordinary
matter that constitutes a chemical element.
• Atomic Number
• Atomic Mass
• Isotopes - some elements have two or
more different atomic masses
• Atomic Weight
• Weight of Proton? Neutron? Electron?

Proton and Neutron = 1.67x10-27 kg

Electron = 9.11x10-31 kg

How many grams are there in one amu of a material?

1 amu = 1.6605x10-24 g 1 amu = (1/Avogadro’s No) g Avogadro’s No = 6.022x1023

9/5/2023 5
 Periodic Table

9/5/2023 6
 Crystal Structure
• When we look around much of what we see is non-crystalline
(organic things like wood, paper, sand; concrete walls, etc. *
some of the things may have some crystalline parts!).
• But, many of the common ‘inorganic’ materials are ‘usually’
crystalline:
Metals: Cu, Zn, Fe, Cu-Zn alloys
Semiconductors: Si, Ge, GaAs
Ceramics: Alumina (Al2O3), Zirconia (Zr2O3), SiC, SrTiO3.
• Also, the usual form of crystalline materials (say a Cu wire or
a piece of alumina) is polycrystalline and special care has to
be taken to produce single crystals
• Polycrystal Vs Monocrystal

9/5/2023 7
 Atomic bonding in Solids

Forces are of two types,

• attractive (FA)
• repulsive (FR),
Magnitude  depends on the separation or
interatomic distance (r);

FA depends on the particular type of bonding

Ionic
Covalent
Metallic
FR arise from interactions between the negatively
charged electron clouds for the two atoms 𝑟𝑟𝑜𝑜 = 0.3 𝑛𝑛𝑛𝑛

Equilibrium condition

9/5/2023 8
 Atomic bonding in Solids

Bonding Energy (Eo)  the energy required to

separate the two atoms to an infinite separation

magnitude of bonding energy

& type of atomic
shape of the E Vs r curve bonding

vary from material to material

number of material properties depend on E0, the curve

shape & bonding type

Eg: materials having large bonding energies

typically also have high melting temperatures

mechanical stiffness (or modulus of elasticity) of a material

is dependent on the shape  steeper - Stiffer
9/5/2023 9
 Atomic bonding in Solids - Ionic

Ionic bonding is the complete transfer of valence

electron(s) between atoms.
-generates two oppositely charged ions

It is always found in compounds that are composed of

both metallic and nonmetallic elements, elements that
are situated at the horizontal extremities of the periodic
table.

Ionic bonding is termed nondirectional; that is, the

magnitude of the bond is equal in all directions around
an ion.

It follows that for ionic materials to be stable, all positive

ions must have as nearest neighbors negatively charged
ions in a 3D scheme, and vice versa.

9/5/2023 10
 Atomic bonding in Solids - Covalent
A covalent bond, also called a molecular bond, is a chemical
bond that involves the sharing of electron pairs between atoms.

Covalent bonds may be very strong, as in diamond, which

melts at (3550 0C or 6400 0F), or

they may be very weak, as with bismuth, which melts at

about 270 0C (518 0F).

The wider the separation from the lower left to the upper
right-hand corner (i.e., the greater the difference in
electronegativity), the more ionic the bond.

Conversely, the closer the atoms are together (i.e., the

smaller the difference in electronegativity), the greater the
degree of covalency.

Diamond is simply the 3D interconnecting

structure wherein each C atom covalently
bonds with four other C atoms.

9/5/2023 11
 Atomic bonding in Solids - Metallic
Metallic bonding – electrostatic attractive force
between conduction electrons and positively
charged metal ions.

Found in metals and their alloys.

Some general behaviors of the various material

types (i.e., metals, ceramics, polymers) may be
explained by bonding type.

For example, metals are good conductors of

both electricity and heat, as a consequence
of their free electrons

By way of contrast, ionically and covalently

bonded materials are typically electrical and
thermal insulators because of the absence of large
numbers of free electrons.

9/5/2023 12
 Atomic bonding in Solids – Bonding Energy

9/5/2023 13
