The document discusses key terms related to performing an arc flash study to identify the appropriate level of personal protective equipment required for arc flash protection. It defines incident energy as the amount of thermal energy impressed on a surface at a distance from an electric arc event. It also defines the arc flash boundary as the distance where the incident energy is 5 J/cm2, which can cause second-degree burns. The document notes that an arc flash analysis requires considering the arc current, open circuit voltage, type of electrical configuration, working distance, and fault clearing time.
The document discusses key terms related to performing an arc flash study to identify the appropriate level of personal protective equipment required for arc flash protection. It defines incident energy as the amount of thermal energy impressed on a surface at a distance from an electric arc event. It also defines the arc flash boundary as the distance where the incident energy is 5 J/cm2, which can cause second-degree burns. The document notes that an arc flash analysis requires considering the arc current, open circuit voltage, type of electrical configuration, working distance, and fault clearing time.
The document discusses key terms related to performing an arc flash study to identify the appropriate level of personal protective equipment required for arc flash protection. It defines incident energy as the amount of thermal energy impressed on a surface at a distance from an electric arc event. It also defines the arc flash boundary as the distance where the incident energy is 5 J/cm2, which can cause second-degree burns. The document notes that an arc flash analysis requires considering the arc current, open circuit voltage, type of electrical configuration, working distance, and fault clearing time.

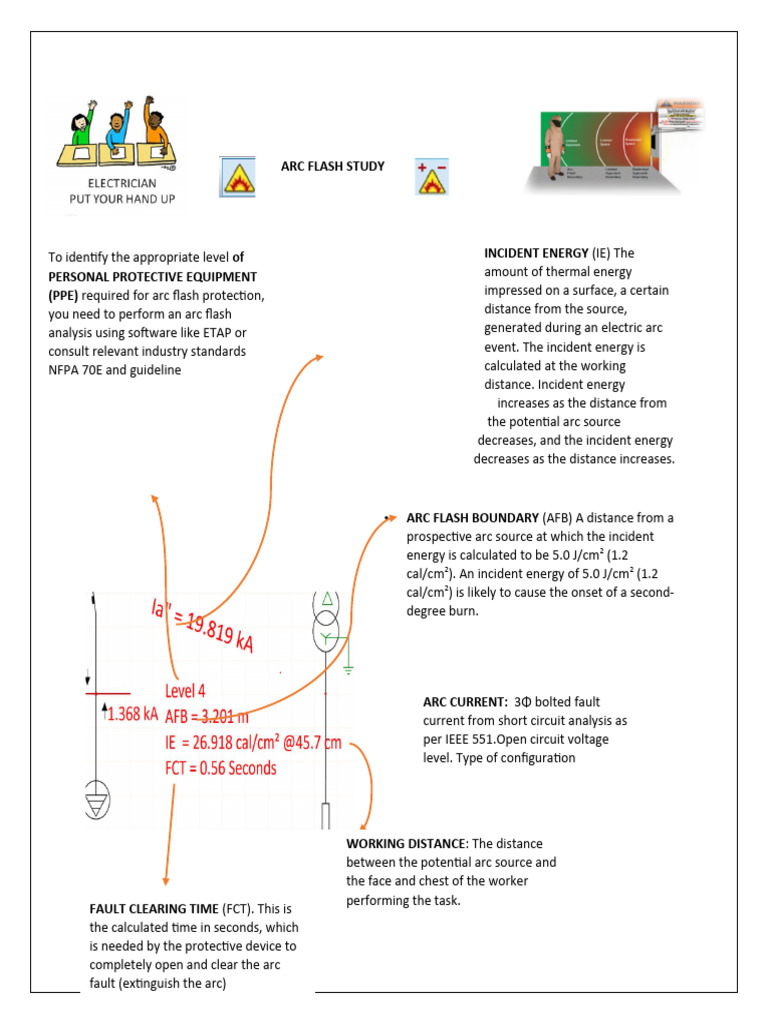

To identify the appropriate level of INCIDENT ENERGY (IE) The
PERSONAL PROTECTIVE EQUIPMENT amount of thermal energy (PPE) required for arc flash protection, impressed on a surface, a certain you need to perform an arc flash distance from the source, analysis using software like ETAP or generated during an electric arc consult relevant industry standards event. The incident energy is NFPA 70E and guideline calculated at the working distance. Incident energy increases as the distance from the potential arc source decreases, and the incident energy decreases as the distance increases.
• ARC FLASH BOUNDARY (AFB) A distance from a
prospective arc source at which the incident energy is calculated to be 5.0 J/cm2 (1.2 cal/cm2). An incident energy of 5.0 J/cm2 (1.2 cal/cm2) is likely to cause the onset of a second- degree burn.
ARC CURRENT: 3Φ bolted fault
current from short circuit analysis as per IEEE 551.Open circuit voltage level. Type of configuration
WORKING DISTANCE: The distance
between the potential arc source and the face and chest of the worker performing the task. FAULT CLEARING TIME (FCT). This is the calculated time in seconds, which is needed by the protective device to completely open and clear the arc fault (extinguish the arc)
