Serial Number:

Navigated Path: New Holland CE EUR > LIGHT EQUIPMENT >SKID STEER LOADERS >200 SERIES >L223 - SKID STEER LOADER (4/11-)
>55 - ELECTRICAL SYSTEMS >55.100.DO[04] - FUSE BOX #2, EH (L218 - L230, C232, C238) >
Serial Number:

Navigated Path: New Holland CE EUR > LIGHT EQUIPMENT >SKID STEER LOADERS >200 SERIES >L223 - SKID STEER LOADER (4/11-)
>55 - ELECTRICAL SYSTEMS >55.100.DO[04] - FUSE BOX #2, EH (L218 - L230, C232, C238) >

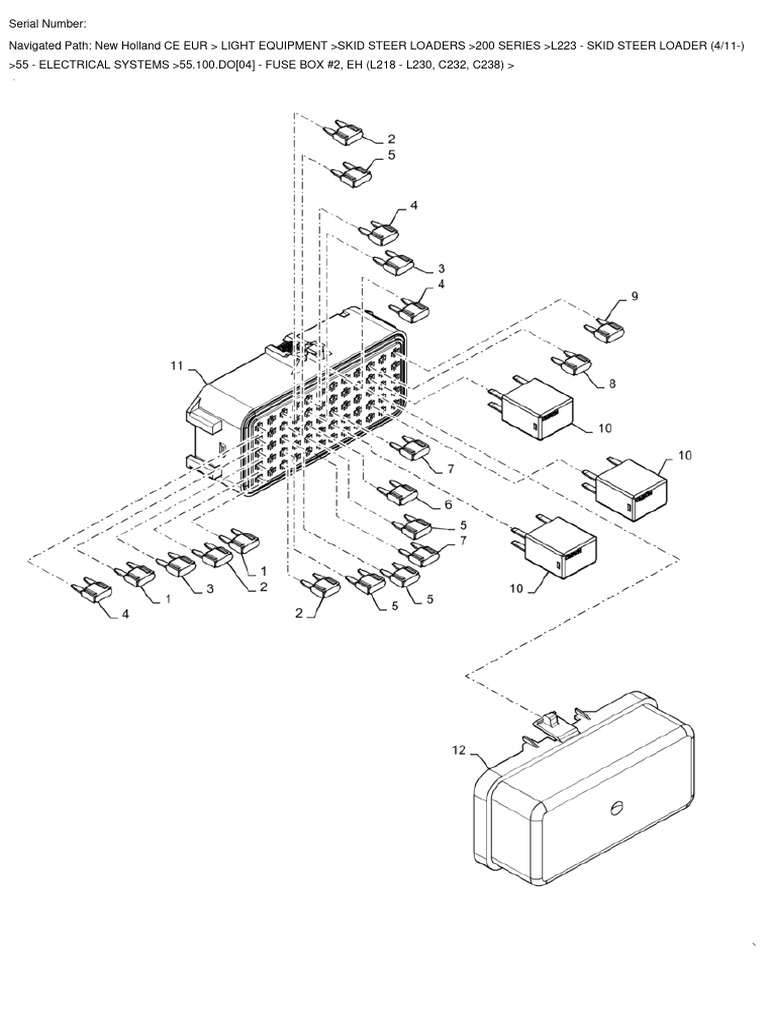

Ref Qty Part # Part Description Usage
1 1 121411A1 FUSE Brake Lamp, Position: (A1, A2)
* 1 Handle Multifunction 1, 2, 3, Position: (D1,
D2)
2 1 121850A1 FUSE Park Brake, Position: (A3, A4)
* 1 Proportional Auxillary, Position: (B1, B2)
* 1 2 Speed, Position: (E3, E4)
3 1 121415A1 FUSE Multifunction Key Power, Position: (C1, C2)
* 1 Wiper/Washer, Position: (D5, D6)
4 1 121412A1 FUSE Auxillary Electric On/Off, Position: (E1, E2)
* 1 LH Boom Signals, Position: (E5, E6)
* 1 RH Boom Signals, Position: (E7, E8)
5 1 121851A1 FUSE Pump Forward, Position: (B3, B4)
* 1 Loader, Position: (B5, B6)
* 1 Port Pilot Interlock Position: (C3, C4)
* 1 Bucket, Position: (D3, D4)
6 1 121849A1 FUSE Unswitched Battery, Position: (C5, C6)
7 1 121410A1 FUSE Pump Reverse, Position: (A5, A6)
* 1 UNSW B+, Position: (C7, C8)
8 1 121414A1 FUSE Flasher/Brake Power, Position: (E9, E10)
9 1 121413A1 FUSE High Flow, Position: (E11, E12)
10 1 87655334 RELAY UCM Power, Position: (A7, A9)
* 1 High Flow Power, Position: (A10, A12)
* 1 Front Electric, Position: (C10, C12)
11 1 84255438 FUSE BOX Connector
12 1 84255450 FUSE BOX Cover
