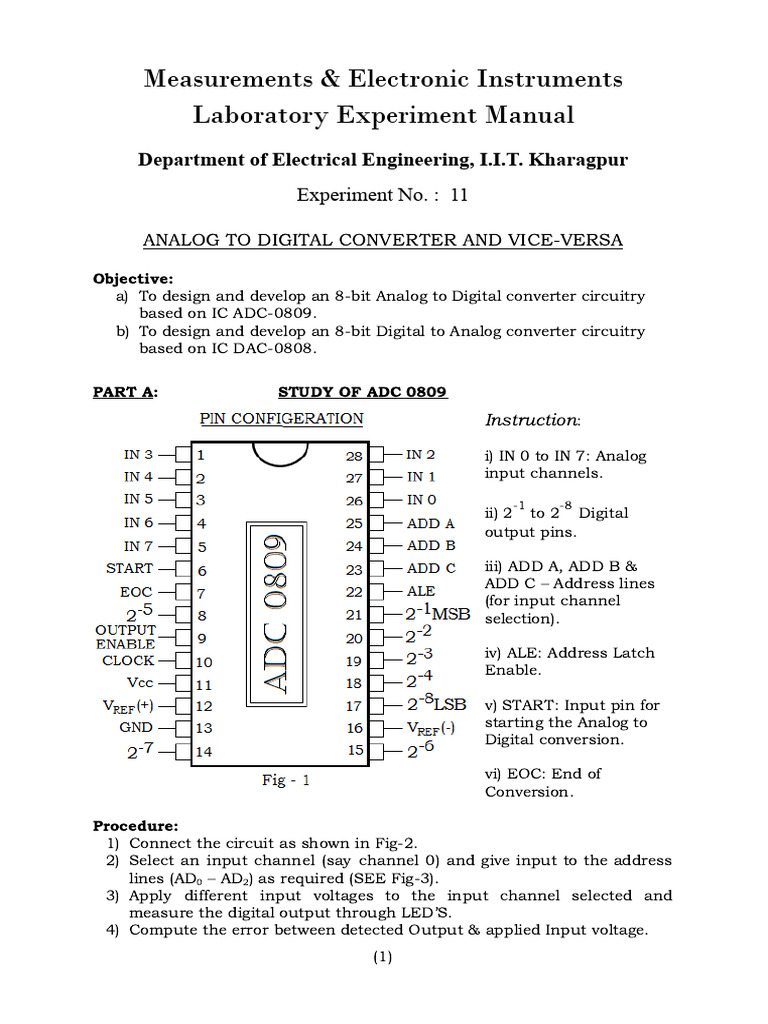

Measurements & Electronic Instruments

Laboratory Experiment Manual

Department of Electrical Engineering, I.I.T. Kharagpur
Experiment No. : 11

ANALOG TO DIGITAL CONVERTER AND VICE-VERSA

Objective:
a) To design and develop an 8-bit Analog to Digital converter circuitry
based on IC ADC-0809.
b) To design and develop an 8-bit Digital to Analog converter circuitry
based on IC DAC-0808.
PART A: STUDY OF ADC 0809
Instruction:
i) IN 0 to IN 7: Analog
input channels.
ii) 2-1 to 2-8 Digital
output pins.
iii) ADD A, ADD B &
ADD C – Address lines
(for input channel
selection).
iv) ALE: Address Latch
Enable.
v) START: Input pin for
starting the Analog to
Digital conversion.
vi) EOC: End of
Conversion.
Procedure:
1) Connect the circuit as shown in Fig-2.
2) Select an input channel (say channel 0) and give input to the address
lines (AD0 – AD2) as required (SEE Fig-3).
3) Apply different input voltages to the input channel selected and
measure the digital output through LED’S.
4) Compute the error between detected Output & applied Input voltage.
(1)
 5) Choose another channel and repeat steps 2 & 3.

Report:

(2)
Discuss the basic principle of operation of ADC 0809 following the ‘TIMING
DIAGRAM” shown in Fig - 4. For further clarification look into the datasheet
of the IC.

PART B: STUDY OF DAC 0808

Procedure:
1) Without disturbing
the circuit in Fig- 2,
connect the DAC circuit as
shown in Fig – 6.
2) Connect the output
terminals of ADC 0809 to
the input terminals (DB0 –
DB7) of ADC 0808.
3) Now one should get
the same analog voltage
applied to ADC 0809 at the
output of DAC 0808.
Compare the same for
different input voltages.

CIRCUIT DIAGRAM :

(3)
(4)
