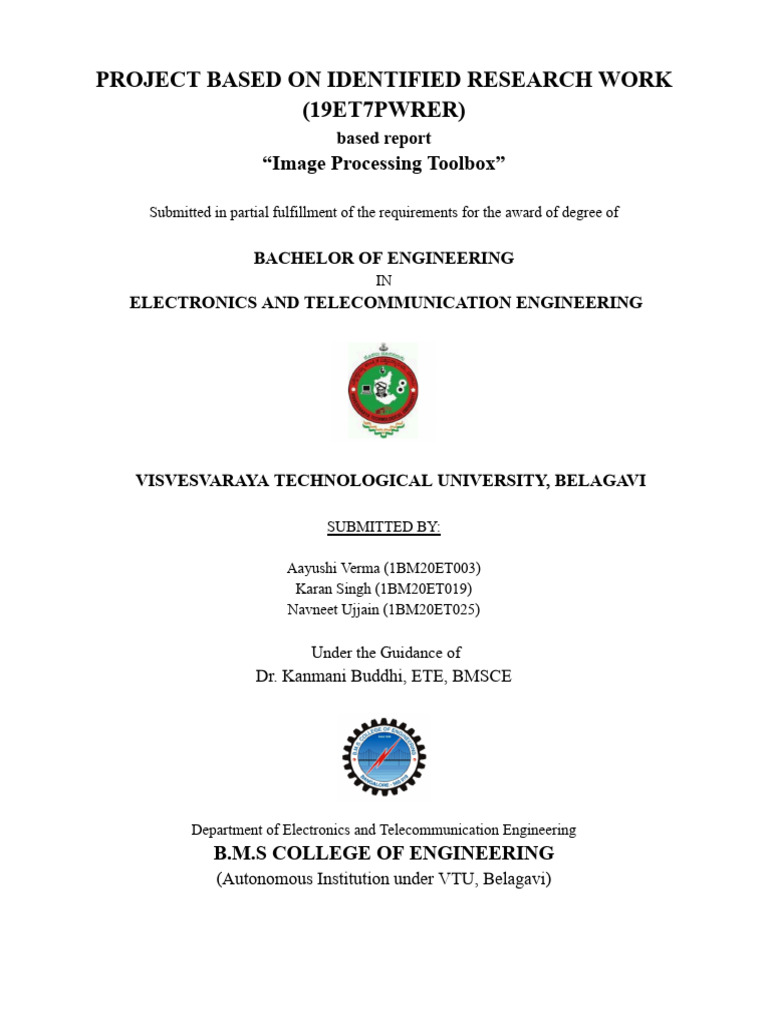

PROJECT BASED ON IDENTIFIED RESEARCH WORK

(19ET7PWRER)
based report
“Image Processing Toolbox”

Submitted in partial fulfillment of the requirements for the award of degree of

BACHELOR OF ENGINEERING
IN
ELECTRONICS AND TELECOMMUNICATION ENGINEERING

VISVESVARAYA TECHNOLOGICAL UNIVERSITY, BELAGAVI

SUBMITTED BY:

Aayushi Verma (1BM20ET003)

Karan Singh (1BM20ET019)
Navneet Ujjain (1BM20ET025)

Under the Guidance of

Dr. Kanmani Buddhi, ETE, BMSCE

Department of Electronics and Telecommunication Engineering

B.M.S COLLEGE OF ENGINEERING
(Autonomous Institution under VTU, Belagavi)
 B.M.S COLLEGE OF ENGINEERING
(Autonomous Institution under VTU, Belagavi, Accredited by NAAC with A++ Grade)

Department of Electronics and Telecommunication Engineering

(Accredited by NBA in Tier – I format)

CERTIFICATE

This is to certify that the Project Based on Identified Research Work (19ET7PWRER) entitled
“Image Processing Toolbox” is submitted by Aayushi Verma (1BM20ET003), Karan Singh
(1BM20ET019) and Navneet Ujjain (1BM20ET025), in partial fulfillment for the award of degree
of Bachelor of Engineering in Electronics and Telecommunication Engineering during the
academic year 2023-2024.

Dr. Kanmani Buddhi Dr. Rajeshwari Hegde

ETE, BMSCE HOD, ETE, BMSCE EXAMINER
 ACKNOWLEDGEMENT

First and foremost, we would like to thank our college, BMS College of Engineering for giving

us this opportunity to implement our ideas through this course of Project Based on Identified

Research Work. We would like to express our gratitude to the college principal, Dr. S

Muralidhara and our Vice Principal, Dr. Suresh Ramaswamy Reddy, wholeheartedly.

We would like to thank the Electronics and Telecommunication Department and our H.O.D. Dr.

Rajeshwari Hegde for making this course available to us in this curriculum and helping us with

this project. We are very grateful for her unconditional support.

Most importantly we would like to thank our guide, Dr. Kanmani Buddhi for guiding us through

every step in our project. Her invaluable recommendations played a crucial role in the successful

execution of this project, and we would have been unable to accomplish it without her guidance.

We also thank the PEC, Ambika K, and Archana K for their valuable suggestions that were big

stepping stones to the completion of this project. We thank our Electronics and

Telecommunication lab assistants who helped us even with the minor problems we were facing

while developing our code. Lastly, we sincerely thank each and every one who helped us with

our project directly or indirectly. Without their help and support our project wouldn’t have been

completed.
 ABSTRACT

Image-processing methods have attracted substantial attention recently, owing to their broad

practical utility across various domains. This abstract provides an overview of a project

dedicated to exploring the potential of image processing for enhancing visual information

extraction and advancing applications in computer vision.

The project encompasses key elements, such as high-pass FIR filtering, low-pass FIR filtering,

and wavelet transform for image compression, along with inverse wavelet transform for image

recovery. Through a systematic analysis of processed image outputs, valuable insights are

gleaned to guide the development of a robust image processing toolbox, offering users a diverse

array of tools and algorithms. These applications range from object recognition and feature

extraction to creative image enhancement. In the realm of edge detection, the high-pass

FIR-filtered image proves indispensable. It emphasizes rapid changes in pixel intensity,

highlighting edges and enabling more effective detection of boundaries and features within

visual data. For image smoothening, the use of low-pass FIR-filtered images is crucial. By

attenuating high-frequency components, this process reduces noise and blurs fine details,

resulting in visually smoother images. The incorporation of wavelet transform and its inverse

facilitates efficient image compression and subsequent recovery, enabling compact storage and

transmission while minimizing information loss. Overall, these findings contribute significantly

to advancing image-processing technology with versatile applications across diverse domains.

In conclusion, this project exemplifies the practical implementation of image processing

techniques, leveraging the Python programming language.

 TABLE OF CONTENTS

S.No Topic Page Number

CHAPTER 1: INTRODUCTION

1.1 Introduction 1

1.2 Objective 2

1.3 Motivation 2

1.4 Project Timeline 3

1.5 Literature Survey 3-4

CHAPTER 2: SOFTWARE DETAILS AND PROCEDURE

2.1 Software Requirements 5

2.2 Software Profiles 5-7

2.3 Procedure 7-21

CHAPTER 3: RESULT

3.1 Edge Detection using high pass filter 22-23

3.2 Image smoothening using low pass filter 23-25

3.3 Image compression and recovery using wavelet transform 25-26

3.4 Interactive User interface 26-27

3.5 Advantages 27-28

3.6 Limitations 28-29

CHAPTER 4: CONCLUSION

4.1 Future Scope 30

4.2 Conclusion 31

REFERENCES 32

CODE SNIPPETS 33-37

POs ADDRESSED 38
 CHAPTER 1: INTRODUCTION

1.1 INTRODUCTION

Image processing is the procedure of turning a picture into digital format and performing certain

operations on it with an intention to get out some meaningful substance. Typically, when specific

preset signal processing techniques are used during the treatment of pictures, the image

processing system treats all these images as 2D signals. The practice to adjust a picture in order

for a special desired outcome such as improving visual aspects and obtaining precious

information is a significant part of the processed pictures process. Image processing and analysis

involves a variety of methods and algorithms which are also critical to computer vision, artificial

intelligence as well as many other fields.

The following three steps are essentially included in image processing:

● Using an image acquisition tool to import the picture.

● Analyzing and modifying the image.

● To produce an output that may be a changed image or report made from analyzing the

original image.

1
1.2 OBJECTIVE

Our project focused on gathering image samples from our surroundings and creating modules for

high-pass FIR filter, low-pass FIR filter, wavelet transform, and inverse wavelet transform. The

primary objectives included visualizing and analyzing the processed images, implementing

image compression through wavelet transformation, and recovering the original image using

inverse wavelet transformation. Additionally, the high-pass FIR filter module was utilized for

edge detection, while the low-pass FIR filter module was employed for image smoothening.

1.3 MOTIVATION

After studying signal processing, we developed a strong desire to delve deeper into this field and

explore the possibilities further. Additionally, we had a keen interest in developing codes as

machine learning libraries do and writing our own code utilizing the knowledge gained from our

previous course. Our goal was also to create an image-processing toolbox from scratch, without

relying on pre-existing libraries.

Furthermore, we had a keen interest in visualizing the concepts we studied in our digital signal

processing (DSP) course.

2
1.4 PROJECT TIMELINE

1.5 LITERATURE SURVEY

[1] A Digital Signal Processing-Based Image Processing Toolbox for Industrial Inspection

Applications: This paper presents an image processing toolbox for industrial inspection based on

digital signal processing hardware. This toolbox offers a wide range of image enhancement,

restoration, segmentation and analysis functions. The given toolbox has been developed using

the MATLAB software package and it is efficient as well as reliable. The authors tested the

toolbox for many industrial inspection jobs like defect spotting and quality assurance. Results

showed that the toolbox is very useful and can help in development of effective and efficient

image processing solutions for industrial inspection applications.

[2] The MATLAB Image Processing Toolbox by MathWorks Inc: provides a complete software

platform to apply DSP based image processing techniques. This is a very useful and practical

resource that includes many DSP tools and functions for the benefit of researchers or

3
practitioners in this field.

[3] Image Segmentation Technology and Its Application in Digital Image Processing: Nowadays,

the most popular technology to realize pattern recognition is image segmentation technology.

Therefore, this paper mainly discusses how image segmentation technology is used in digital

image processing. The image segmentation methods that will be introduced in this paper include

threshold, clustering and edge detection. Secondly, based on a requirement for an image

segmentation to extract road form by achieving very good outcomes. This paper mostly discusses

the application of image segmentation in digital image processing finally.

[4] Light Field Imaging Based Image Processing Toolbox for Virtual Reality Applications: This

paper presents a light field imaging based image processing toolbox for virtual reality VR

applications. The toolbox offers different functions for capturing, processing and displaying light

field images. The toolbox is implemented in C++ programming language and it is designed to be

efficient as well as scalable. The toolbox was assessed for different VR applications like 3D

image rendering and viewpoint interpolation by the authors. However, results indicated that the

toolbox can be utilized to create high-quality and immersive VR experiences.

4
 CHAPTER 2: SOFTWARE DETAILS AND PROCEDURE

2.1 SOFTWARE REQUIREMENTS

1. Programming Languages: The coding part of this project is done using Python, so the

latest and compatible version of Python was installed.

2. VS Code

2.2 SOFTWARE PROFILE

2.2.1 Python:

Fig. An image of Python Compiler

Python is a widely-used, high-level programming language known for its simplicity, readability,

and extensive range of applications. Python focuses more on code readability and clean syntax,

which makes it easy to understand and write. It has a design philosophy that emphasizes code

readability, and its syntax allows programmers to express concepts in fewer lines of code

compared to other programming languages.

Python supports multiple programming paradigms, including procedural, object-oriented, and

5
functional programming styles. It has a vast standard library and a thriving ecosystem of

third-party libraries and frameworks, making it suitable for a wide range of applications,

including web development, data analysis, scientific computing, artificial intelligence, and more.

Python's popularity is driven by its versatility, ease of use, and extensive community support. It

is widely adopted in both industry and academia, and its simplicity and power make it an

excellent choice for beginners and experienced programmers alike.

2.2.2 IDE:

Fig. An image of IDE

Visual Studio Code is a robust and efficient source code editor that operates on your desktop,

providing support for Windows, macOS, and Linux systems. This lightweight yet powerful

editor offers native capabilities for JavaScript, TypeScript, and Node.js, and boasts an expansive

collection of extensions that cater to a wide range of languages and runtimes, including C++, C#,

Java, Python, PHP, Go, and .NET.

2.2.3 GPU Support:

GPU stands for Graphics Processing Unit. It is a specialized electronic circuit or processor that is

designed to handle and accelerate the rendering of images, videos, and animations. Originally

developed for rendering graphics in video games, GPUs have evolved to become highly parallel

processors with immense computational power.

6
Unlike the CPU (Central Processing Unit), which is a general-purpose processor responsible for

executing a wide range of tasks, GPUs are specifically optimized for performing repetitive

calculations simultaneously on multiple data sets. This parallel processing capability makes

GPUs ideal for computationally intensive tasks that can be divided into smaller, independent

operations.

In addition to their traditional use in graphics rendering, GPUs have gained popularity in fields

such as scientific computing, machine learning, and data analysis. These applications often

involve performing large-scale mathematical calculations and data processing, where the parallel

architecture of GPUs can significantly accelerate the computations.One key feature of GPUs is

their ability to handle multiple threads and data in parallel. Modern GPUs consist of thousands of

cores that can process multiple threads simultaneously. This parallelism enables GPUs to achieve

high throughput and computational performance compared to CPUs, especially for tasks that can

be parallelized effectively.

Overall, GPUs play a vital role in accelerating computations for graphics rendering, scientific

simulations, machine learning, and other data-intensive applications. Their parallel processing

capabilities and high computational power make them a valuable resource for speeding up

complex calculations and improving overall performance in a wide range of computing tasks.

2.3 PROCEDURE

The process of developing this project using Digital Image Processing typically went as stated

below:-

2.3.1. Collection of suitable image samples

In this procedure, we meticulously gathered a limited number of high-quality image samples,

accompanied by a wealth of intricate details. Notably, one of the images selected for this process

7
features Lenna, the iconic figure known as "the girl with the hat." Lenna's image holds historical

significance, having been widely utilized in the early days of image processing. As a central

element of our processing operations, we have specifically retained and focused on the Lenna

image. The comprehensive details and clarity of our collected samples, coupled with the

inclusion of this renowned image, contribute to the robustness and efficacy of our procedures.

Fig. Image Samples

2.3.2. Development Of Modules

2.3.2.1 Development of the High-Pass FIR module.

The High-pass FIR module is an essential component of image processing. It is used for edge

detection in the image.

The initial step involves introducing Gaussian noise to a grayscale image through the add_noise

function, with customizable parameters such as the noise level. Subsequently, the

8
create_high_pass_kernel function generates a high-pass filter kernel with a user-defined square

size. The core of the procedure lies in the apply_high_pass_filter function, which employs the

created high-pass filter kernel to enhance the given image. The holistic highpass_image function

orchestrates these steps, reading an input grayscale image from a file, adding Gaussian noise,

creating the high-pass filter kernel, and applying the filter to the noisy image. The results,

comprising the original image, the image with added noise, and the outcome after high-pass

filtering, are visually represented using Matplotlib. Customizable parameters, including filter

size and noise level, enhance the adaptability of the procedure to diverse image processing

scenarios. Overall, the procedure provides a clear and concise method for implementing

high-pass filtering to improve image quality and reduce the impact of noise.

Fig. High Pass Filtering of image

2.3.2.2 Development of the Low pass FIR module.

The Low-pass FIR module is an essential component of image processing. It is used for image

smoothening.

The first step includes Gaussian noise addition to the grayscale image through the add_noise

function that helps in simulating real-world scenarios with diversified noise magnitudes. Then,

9
the create_low_pass _kernel function produces a square low-pass filter kernel with tunable

parameters like the size of the filter. The essence of the procedure is in the apply_low_pass_filter

function, where it implements the low-pass filter to be applied on a given image with a specified

kernel. The general assembly of these steps is all contained in the function lowpass_image that

takes as its input a grayscale image, adds Gaussian noise and forms this filter kernel before

proceeding to apply it on top of the noisy version. Adaptability of the procedure to different

image processing cases with adjustable parameters like filter size and noise level is enhanced.

This procedure can be considered an efficient means of low-pass filtering contributing to image

quality improvement and noise reduction in various applications.

Fig. Low Pass Filtering of image

2.3.2.3 Development of module for Wavelet Transform.

Wavelet transformation is a powerful tool used in image processing to analyze images at

different scales and resolutions. In this procedure, a module for wavelet transformation was

developed using the Haar Wavelet Transform method.

By dividing the image into non-overlapping segments and computing the average and difference

between adjacent values within each segment, the Haar wavelet transform effectively captures

the essential frequency components of the signal.

The Haar wavelet transform distinguishes itself through its simplicity and computational

10
efficiency, making it an attractive choice for real-time applications or scenarios with limited

computational resources.

Fig. Data Compression using Haar Wavelet Transform

2.3.2.4 Development of module for Inverse Wavelet Transform.

The inverse wavelet transform is the mathematical operation that allows us to reconstruct a

signal from its wavelet coefficients. It is the reverse process of the wavelet transform. We have

used Inverse Haar Wavelet Transform to recover the signal which we compressed using Wavelet

Transform. In this process, our module takes an array of approximation coefficients as input.

It then iterates through the indices of the approximation coefficients. Within each iteration, the

current coefficient is multiplied by 0.707, which represents the inverse scaling factor used in

wavelet transforms. This scaling factor helps recover the approximate original value. The

resulting value is appended twice to the "X_Recovered" list to account for certain wavelet

decomposition schemes where each coefficient represents a range of values.

11
 Fig. Data Recovery using Inverse Haar Wavelet Transform

2.3.2.5 Development of GUI.

It starts by importing the required modules for making graphical interfaces as well as image

processing. The code outlines functions that pertain to certain image-processing operations and

encompasses the application logic in a class named ImageProcessorApp. This is a class that

comprises GUI components for image selection and includes buttons used to perform operations

such as high-pass filtering, low-pass filtering row, and column compression among others. Users

can enter the image path or use the “Browse” button to choose an image and they select a

processing task for that whose result will be shown with a success message or error whenever

clicking on the perform action button. The code ends with the implementation of the main

execution block that creates an instance of a class application and starts Tkinter’s main loop.

12
Fig. Flowchart of the Tkinter Based Toolbox application

13
2.3.3 Applications of the Modules

2.3.3.1 Edge detection using High-Pass FIR filter

Taking an image, we strive to emphasize its features with a dynamic touch resembling real-life

photos: firstly, incorporating some noise into our image for a subtle speckled effect;

subsequently--and importantly--passing it through the high pass filter is necessary. Crafting a

high pass filter emphasizes the image's intricate details. This efficient method of dynamically

enhancing your images enables adjustments aligned with our preferences; what amplifies this

process, further is its flexibility to modify parameters - including size of the high-pass filter and

added noise amount- thus customizing it based on our specific tendencies. This method,

ultimately, simplifies and enhances our images: it elevates their quality while reducing the

detrimental effects of unwanted details.

14
 Fig. Sample High-Pass Filtered Images

2.3.3.2 Image smoothening using Low-Pass FIR filter

Commencing with a grayscale image, we strive for an appearance that mirrors real-life

photographs: smooth yet occasionally marked by random fuzziness. We first introduce subtle

speckling effects into the picture by incorporating noise. Following this step – to bolster the

overall visual allure of our work–we implement a low-pass filter; its application fosters clean,

polished aesthetics. The flexibility to adjust parameters - such as the low-pass filter's size and

added noise amount - enhances this process further, enabling customization based on

preferences. This optimization procedure simplifies the text; simultaneously, it sustains clarity

while describing image enhancement steps.

15
 Fig. Sample Low-Pass Filtered Images

2.3.3.3 Using Wavelet Transform to Perform Image Compression and Image Expansion

Utilizing wavelet transformation for image compression involves analyzing and compressing the

signal's energy distribution. We employed our developed wavelet transform module in this

process to compress data from image samples, leading to more efficient storage or transmission

of the compressed data. We developed a signal recovery module to reconstruct the original image

from its compressed form through an inverse wavelet transform; this procedure facilitates

efficient storage or transmission of image files--significantly minimizing data loss. The

compression process itself achieved a remarkable reduction, condensing the image down to N/4

16
pixels: here, 'N' symbolizes the size of our initial, unaltered picture in terms of its individual

pixels. Achieving this compression level: we significantly reduced the image size, all while

upholding perceptual fidelity. The successful recovery of the compressed image--and its

reconstruction to closely resemble, without any discernible difference for human eyes, the

original--underscores our technique's efficiency and effectiveness in preserving a photo's

essential characteristics.

Fig. Column-wise Compression and Recovery of Sample images

17
Fig. Row-wise Compression and Recovery of Sample images

18
 Fig. Compression and Recovery of Sample images both by row and column

2.3.3.4 Development of interface for the toolbox with all the functions

GUI is used to develop the toolbox that holds all the important stuff for how the tool works. The

toolbox will be present with buttons and things we can click on to filter and compress image

rows and columns. We, as a user, get to pick an image either by typing in the path or clicking a

"Browse" button. Then, we decide what we want the tool to do to your image - maybe make it all

19
detailed or smooth things out. We click a button, and the tool does its thing and shows you the

result with a message saying it went well or if there's a hiccup. The whole code wraps up by

putting everything into action. It creates a special instance of the tool and kicks off a loop that

keeps everything running smoothly.

Fig. Main User Interface for using the Toolbox

20
Fig. Error if user doesn’t uploads image and tries to use any function

Fig. Success text if the operation selected is successfully performed

21
 CHAPTER 3: RESULTS

3.1 Edge Detection

In image processing, the technique of edge detection involves using a High Pass FIR filter to

enhance high-frequency components related to edges or abrupt changes in intensity. FIR filters

are chosen because they can selectively emphasize these details while reducing low-frequency

information. This process involves convolving the image with a High Pass FIR filter kernel,

which is designed to amplify intensity variations and suppress smoother areas, effectively

highlighting edges in the image. The specific design of the FIR filter, including its coefficients,

greatly affects the success of edge detection. This technique is valuable in various image

processing applications where detecting and highlighting edges is crucial for further analysis or

interpretation.

Uses:

Edge Detection in image processing has various applications and can be useful in several areas.

1.)Object Recognition and Tracking:

Identifying and distinguishing objects within an image fundamentally require edge detection.

The unique boundaries that edges offer not only facilitate object recognition but also tracking,

thereby serving as a critical element in computer vision and surveillance systems.

2.)Image Segmentation:

Facilitating image segmentation is the role of edge information: it orchestrates the

process--partitioning an image into meaningful regions. By accentuating boundaries between

varied objects or regions, we can separate and classify components within an image.

22
3.)Medical Imaging:

Edge detection in medical imaging: it's a vital player in the detection of anatomical structures

and abnormalities; it aids with precise feature localization--such as tumors or blood vessels. This,

then, enhances diagnosis accuracy and facilitates strategic planning for treatments.

4.)Quality Enhancement:

By emphasizing important features, edge detection enhances the image; this process improves

visual quality for a more effective human interpretation and analysis. Consequently, its value

extends to fields such as digital photography and multimedia.

5.)Robotics and Autonomous Vehicles:

Understanding the environment remains crucial for robots and autonomous vehicles. They utilize

edge detection to identify obstacles, define pathways, and navigate through complex

surroundings; this process provides critical information about their environment.

3.2 Image Smoothening

Image processing integrally relies on the common technique of implementing a Low Pass Filter

(LPF), known commonly as blurring or image smoothening. The principal objective of this

method is to reduce high-frequency noise and intricate details, thereby either producing a

smoother appearance or further blurring the image; such an action indeed yields significant

results.

23
The passage of low-frequency components is permitted by Low Pass Filters, while they suppress

high-frequency ones. In image applications, these filters efficiently consolidate pixel values

across a nearby neighborhood: an action that results in smoothing--a process whose degree is

governed by the size or kernel of the filter. An increased kernel intensifies this effect and yields

more evident outcomes

Uses:

1.)Preparation for Analysis:

Smoothening is often employed as a preprocessing step before further image analysis. By

reducing high-frequency details, it simplifies subsequent tasks like edge detection, object

recognition, or feature extraction. This ensures that the analysis algorithms focus on essential

image characteristics.

2.)Enhancing Image Quality:It provides a subtle touch-up by reducing sharp transitions between

pixels, resulting in a more polished and aesthetically pleasing appearance. This is particularly

beneficial in photography and multimedia applications.

3.)Feature Emphasis:

In certain applications, smoothening is strategically applied to emphasize or highlight specific

features in an image. By reducing background noise and emphasizing main structures, important

details become more noticeable and stand out.

4.)Image Compression:

24
Smoothening is integrated into image compression techniques to reduce redundant information.

By smoothening out minor variations, the compressed image can represent the essential features

more efficiently, resulting in reduced file sizes without significant loss of important information.

5.)Medical Imaging:

In medical imaging, smoothening is used to enhance the clarity of certain structures or features,

making it easier for healthcare professionals to interpret images. It aids in improving the overall

diagnostic quality of medical scans.

3.3 Image Compression using Wavelet Transform

In our project, we employed the Haar wavelet transform technique to perform data compression

on a sample image. This approach allowed us to significantly reduce the size of the image while

maintaining its essential characteristics. Notably, we achieved impressive compression results by

reducing the signals to N/4, where N represents the original image pixels. By utilizing the

inverse Haar wavelet transform, we successfully recovered the compressed image back to their

original form. What is particularly noteworthy is that this recovery process yielded no

perceptible difference when compared to the original image. In other words, we were able to

compress the image to N/4 size without any discernible loss in image quality. The ability to

achieve such efficient compression and recovery without compromising the fidelity of the image

is of great practical significance. This level of compression allows for more efficient storage and

transmission of images, optimizing resource utilization and improving overall system

performance. The successful implementation of the Haar wavelet transform for image

compression and recovery showcases its effectiveness as a powerful tool in the field of image

processing. Our findings highlight the potential of this approach for achieving high-quality

compression of image signals, making it a valuable technique for various applications in

25
different domains.

Uses:

1.)Wavelet-based compression algorithms offer a powerful tool for reducing data size while

maintaining important information, enabling efficient storage.

2.)In sensor networks, where resources like power, bandwidth, and storage capacity are often

limited, wavelet-based compression can be applied to compress data collected by sensors.

3.)Wavelet-based compression techniques are widely used for audio compression.

4.)Wavelet-based compression plays a crucial role in medical imaging applications. It enables

efficient storage and transmission of medical images such as X-rays, CT scans, and MRI scans.

3.4 Interactive User Interface

It's an interactive graphical user interface with components for image selection and buttons for

actions like high-pass filtering, low-pass filtering, row and column compression, and total

compression. Users can input the image path or use a "Browse" button to select an image, and

the chosen image undergoes the selected processing task upon button click, with success or error

messages displayed accordingly.

Uses:

1)User-Friendly Interface: The toolbox's incorporation into a graphical user interface (GUI)

simplifies the image processing workflow, providing an intuitive environment for users to

interact with and apply various operations.

2)Time Efficiency: The toolbox streamlines complex image processing tasks into simple button

clicks, reducing the time and effort required for users to achieve desired results.

3)Ease of Interaction: GUIs provide a user-friendly interface that simplifies interaction with

complex software. Users can navigate through applications, perform tasks, and access features

26
using visual elements such as buttons, menus, and icons.

4)Application Control: GUIs offer a visual representation of an application's functionality,

allowing users to control and manage the software through intuitive graphical elements. This

includes starting or stopping processes, adjusting settings, and initiating actions.

5)Data Visualization: GUIs are crucial for displaying complex data in a comprehensible manner.

Data visualization tools, dashboards, and analytics platforms use graphical elements to present

information, making it easier for users to interpret and analyze data.

3.5 ADVANTAGES

The project offers several advantages:

1. Edge Detection and Recognition: Edge detection is much aided with the use of high-pass

filtering, during which boundaries and contours in images are easily identified. This is

particularly useful in applications like object recognition and computer vision.

2. Noise Reduction: Low-pass filtering improves noise reduction since it reduces the

loudness of high-frequency components in images and hence leads to smoother textures

or visual disturbances. It is applied to the smoothening of irregularities which leads to

cleaner and aesthetically pleasing images.

3. Versatile Compression: Compression by row and column enables efficient data

compression, reducing the storage space required for images without significant loss of

information. Compression is particularly advantageous in scenarios where storage or

transmission bandwidth is limited, ensuring optimal resource utilization.

4. Machine Learning and Pattern Recognition: Filtering operations enhance the quality of

image data, which has a crucial role in performing machine learning models and pattern

recognition algorithms; therefore, better performance is realized as better images are

27
 produced.

5. Educational Use: The toolbox serves as an educational resource, helping students and

researchers understand fundamental image-processing concepts and techniques through

practical, hands-on applications.

3.6 LIMITATIONS

1. High Computational Demands: A significant constraint within image processing lies in

the elevated computational demands associated with specific methods. Advanced

techniques, such as intricate filtering, complex feature extraction, or sophisticated image

recognition processes, impose substantial burdens on computational resources,

necessitating considerable processing power and time for execution. This limitation

becomes particularly pronounced in real-time applications or when dealing with

extensive datasets. Addressing this challenge requires ongoing efforts in algorithm

optimization, exploring parallel processing capabilities, and fostering technological

advancements to enhance the efficiency and accessibility of image processing across

diverse computing scenarios.

2. Challenges in Interpretation: One challenge in image processing is that some advanced

techniques make it hard for people to understand the results. This happens especially with

complicated algorithms, where the processed images may not look as expected or lack

clear visual information. Understanding these results becomes tricky, making it

challenging for humans, particularly in fields like medicine or autonomous systems. To

improve this, ongoing research is needed to make the outputs of advanced image

processing methods easier for people to interpret and use.

3. Input Quality Impact: One of the main drawbacks of digital image processing is that input

quality significantly influences algorithmic outcomes. The state of the input images plays

28
 a crucial role in determining processing results and poor-quality inputs can cause

mediocre outputs. It is when working with real-world scenarios where obtaining quality

images may be difficult, for instance in surveillance tasks or medical imaging and remote

sensing applications that the limitations of digital image processing become particularly

significant. It takes robust preprocessing strategies and innovative solutions to effectively

address this challenge in ensuring that image processing algorithms are reliable across

varying input qualities.

4. Algorithmic Constraints: Digital image processing algorithms have limitations, especially

in recognizing objects in cluttered or poorly lit environments and when objects undergo

substantial changes or are partially obscured. Real-world complexities, such as varying

lighting conditions and occlusions, pose challenges for these algorithms. To overcome

these limitations, ongoing improvements and innovative approaches are necessary for

enhancing the adaptability and effectiveness of image processing techniques in diverse

and challenging situations.

29
 CHAPTER 4: CONCLUSION

4.1 Future Scope

The project has several potential avenues for future expansion and development:

1. Object Detection: Object detection is an important task in image processing and involves the

identification and localization of specific objects in an image. Unlike simple image recognition,

object detection goes a step further by using checkboxes to provide the exact location of

recognized objects. This approach is important in computer vision because it allows machines to

better see and interpret visual content. Object recognition has many applications, including

driverless cars, facial recognition, facial recognition, and many other areas where it is important

to find and identify objects in images.

2. Image Enhancement: The task of image enhancement is when we increase the quality of the

image. It serves the purpose of revealing concealed details within an image. This process is

subjective in nature, and often employed to improve the overall quality and aesthetics of an


3. Augmented reality(AR) and Image Processing: Nowadays, augmented reality is changing

the way we engage with our surroundings by superimposing digital data on top of it. Image

Processing serves an important purpose in AR as it processes real-world objects and facilitates

effortless interconnection between the physical universe and its digital counterpart

30
4.2 Conclusion

In conclusion, the image processing toolbox project, enriched with insights from digital signal

processing, has yielded a powerful tool for efficient and high-quality image analysis. With a

focus on computational optimization, noise reduction, and real-time processing, this toolbox is

well-equipped to address a wide range of image processing challenges. It showcases the

successful synergy of DSP and image processing, promising significant applications in diverse

fields while remaining adaptable to future technological advancements.

31
REFERENCES

[1] Xiaolong Li, et al. "A Digital Signal Processing-Based Image Processing Toolbox for

Industrial Inspection Applications."(2023)

[2] MATLAB Image Processing Toolbox , MathWorks Inc.

[3] Image Segmentation Technology and Its Application in Digital Image Processing Yang

Cheng; Bingjie Li 2021 IEEE Asia-Pacific Conference on Image Processing, Electronics and

Computers (IPEC)

[4] Zhefan Liu, et al. "A Light Field Imaging Based Image Processing Toolbox for Virtual

Reality Applications."(2023)

32
CODE SNIPPETS

Fig. GUI using Tkinter

33
Fig. High Pass Filtering of image

34
Fig. Low Pass Filtering Code

Fig. Haar Wavelet Transform

35
Fig. Row-wise Haar Wavelet Transform

36
Fig. Column-wise Haar Wavelet Transform

37
POs ADDRESSED

38
