Tutorial Sheet

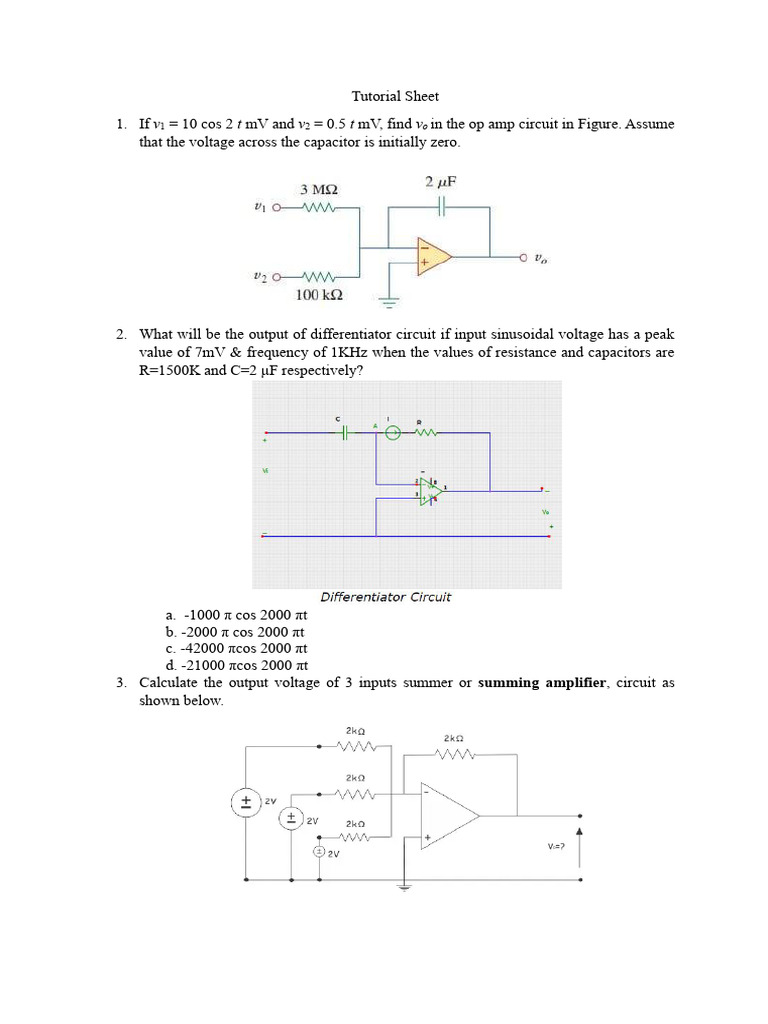

1. If v1 = 10 cos 2 t mV and v2 = 0.5 t mV, find vo in the op amp circuit in Figure. Assume
that the voltage across the capacitor is initially zero.

2. What will be the output of differentiator circuit if input sinusoidal voltage has a peak
value of 7mV & frequency of 1KHz when the values of resistance and capacitors are
R=1500K and C=2 μF respectively?

a. -1000 π cos 2000 πt

b. -2000 π cos 2000 πt
c. -42000 πcos 2000 πt
d. -21000 πcos 2000 πt
3. Calculate the output voltage of 3 inputs summer or summing amplifier, circuit as
shown below.
4. Find the output waveform for when Vin < Vref

5. What happens if the potentiometer Rp is connected to negative supply?

a) Output waveform below -Vref will be clipped off

b) Output waveform above +Vref will be clipped off
c) Output waveform above -Vref will be clipped off
d) Output waveform below +Vref will be clipped off

6. Determine the output waveform for a peak amplifier with input =4Vpsinewave and
Vref=1V.
7. At what values of Ci and Rd a precision clamping can obtained in peak clamper when
the time period of the input waveform is 0.4s?
a) Ci=0.1µF and Rd=10kΩ
b) Ci=0.47µF and Rd=10kΩ
c) Ci=33µF and Rd=10kΩ
d) Ci=2.5µF and Rd=10kΩ

8. A Low Pass Filter circuit consisting of a resistor of 47kΩ in series with a capacitor
of 47nF is connected across a 10V sinusoidal supply. Calculate the output voltage
(VOUT) at a frequency of 100Hz and again at frequency of 10,000Hz or 10kHz.
9. A first order active high pass filter has a pass band gain of two and a cut-off corner
frequency of 1kHz. If the input capacitor has a value of 10nF, calculate the value of the
cut-off frequency determining resistor and the gain resistors in the feedback network.
10. Design a non-inverting active low pass filter circuit that has a gain of ten at low
frequencies, a high frequency cut-off or corner frequency of 159Hz and an input
impedance of 10KΩ.
11. The tuned collector oscillator circuit used in the local oscillator of a radio receiver
makes use of an LC tuned circuit with L1 = 58.6 μH and C1 = 300 pF. Calculate the
frequency of oscillations.
12. An Op-Amp RC phase shift oscillator has three pairs of R and C (R=22 kΩ and
C=10pF). Find the frequency of oscillation.
13. The Op-amp is ideal. The BJT has VBE=0.7V and β = 100 and the Zener voltage is 4.7
V. For a regulated output of 9V the value of R is?

14. In given circuit R1= 2.1kΩ and R2= 6.3 kΩ. Find the expression of output voltage in
terms of Va and Vb.

15. For the Op-amp series regulator given below the regulated output voltage is

16. For the given non-inverting amplifier shown, find the closed loop voltage gain.
