ES 1 – Statics of Rigid Bodies

BOARD ACTIVITY First Semester, 2023-2024

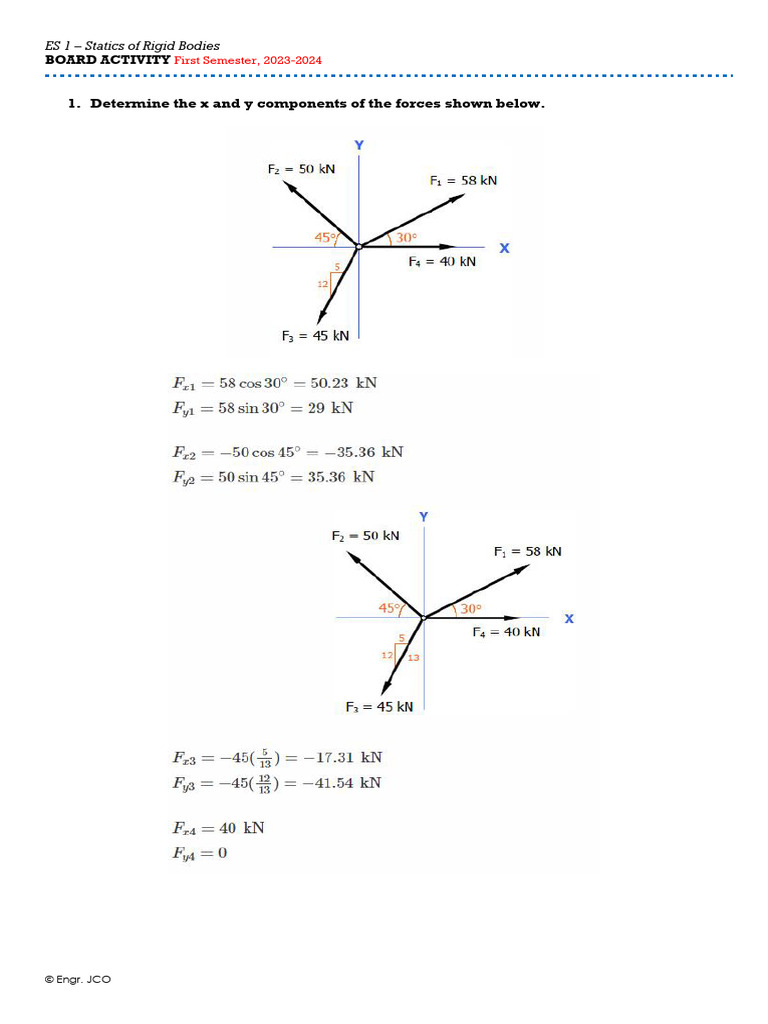

1. Determine the x and y components of the forces shown below.

© Engr. JCO
 2. Compute the x and y components of each of the four forces shown.

© Engr. JCO
 3. Find the components in the x, y, u and v directions of the force P = 10 kN shown.

© Engr. JCO
 4. A block is resting on an incline of slope 5:12 as shown in Fig. P-007. It is subjected to
a force F = 500 N on a slope of 3:4. Determine the components of F parallel and
perpendicular to the incline.

© Engr. JCO
 5. A force P = 800 N is shown.
a) Find the y-component of P with respect to x and y axis.
b) Find the y'-component of P with respect to x' and y' axis.

© Engr. JCO
 6. A force P = 800 N is shown.
c) Find the y-component of P with respect to x' and y axis.
d) Find the y'-component of P with respect to x and y' axis.

© Engr. JCO
 7. The triangular block shown is subjected to the loads P = 1600 lb and F = 600 lb. If AB
= 8 in. and BC = 6 in., resolve each load into components normal and tangential to
AC.

© Engr. JCO
 8. The body on the 30° incline in Fig. P-009 is acted upon by a force P inclined at 20° with
the horizontal. If P is resolved into components parallel and perpendicular to incline
and the value of the parallel component is 1800 N, compute the value of the
perpendicular component and that of P.

© Engr. JCO
