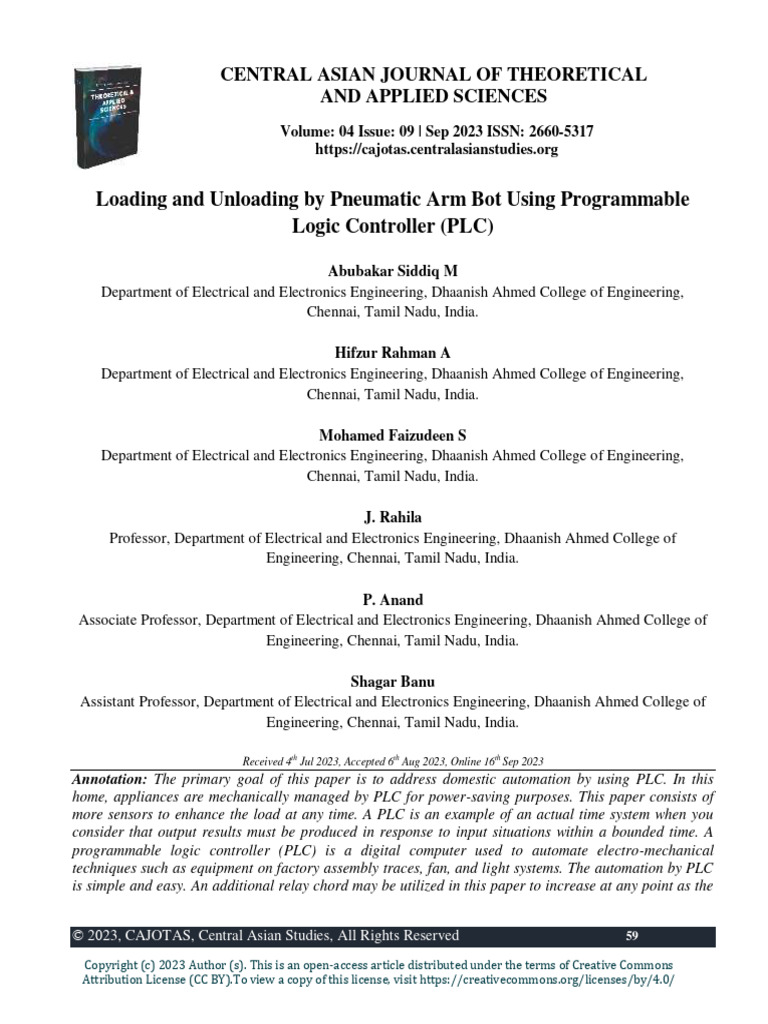

Loading and Unloading by Pneumatic Arm Bot Using Programmable

Logic Controller (PLC)
Abubakar Siddiq M
Department of Electrical and Electronics Engineering, Dhaanish Ahmed College of Engineering,
Chennai, Tamil Nadu, India.
Hifzur Rahman A
Mohamed Faizudeen S
J. Rahila
Professor, Department of Electrical and Electronics Engineering, Dhaanish Ahmed College of
Engineering, Chennai, Tamil Nadu, India.
P. Anand
Associate Professor, Department of Electrical and Electronics Engineering, Dhaanish Ahmed College of
Shagar Banu
Assistant Professor, Department of Electrical and Electronics Engineering, Dhaanish Ahmed College of
Received 4th Jul 2023, Accepted 6th Aug 2023, Online 16th Sep 2023
Annotation: The primary goal of this paper is to address domestic automation by using PLC. In this
home, appliances are mechanically managed by PLC for power-saving purposes. This paper consists of
more sensors to enhance the load at any time. A PLC is an example of an actual time system when you
consider that output results must be produced in response to input situations within a bounded time. A
programmable logic controller (PLC) is a digital computer used to automate electro-mechanical
techniques such as equipment on factory assembly traces, fan, and light systems. The automation by PLC
is simple and easy. An additional relay chord may be utilized in this paper to increase at any point as the
© 2023, CAJOTAS, Central Asian Studies, All Rights Reserved 59
Copyright (c) 2023 Author (s). This is an open-access article distributed under the terms of Creative Commons
Attribution License (CC BY).To view a copy of this license, visit https://creativecommons.org/licenses/by/4.0/
CENTRAL ASIAN JOURNAL OF THEORETICAL AND APPLIED SCIENCES
Volume: 04 Issue: 09 | Sep 2023, ISSN: 2660-5317
load keeps increasing with technology’s development. Our system also has two modes of operation, such
as auto and manual mode of operation. Under auto mode, semi-control and full control of appliances can
be done. These modes are included for safe and uninterrupted operation of appliances even under regular
maintenance and inbuilt system faults. Implementation of this system will aid in the reduction of usage of
power.
Key words: Loading and Unloading, Pneumatic Arm, Bot, Programmable Logic Controller (PLC).
_____________________________________________________________________________________________
Introduction
1) A PLC, or programmable logic controller, is a type of computer designed specifically for
use in industrial settings. Functions including on/off control, timing, counting, sequencing, arithmetic,
and data handling are all stored and executed in its programmable memory [1]. PLCs, or programmable
logic controllers, are utilised in nearly every sector of the manufacturing sector to increase output and
efficiency [2]. A single PLC can be efficiently designed to perform the functions of hundreds or thousands
of electromechanical relays in older automated systems [3]. Over time, PLCs have expanded their ability
to go beyond conventional relay control. PLCs used to only be able to operate lights and fans, but now
they can do much more, including motion control, process control, distributed control systems, and
intricate networking. PLC offers numerous benefits over traditional relay controls, including improved
dependability, adaptability, cost, communication capabilities, response time, and troubleshooting
simplicity [3]. Industrial and commercial buildings can benefit greatly from having their electrical
systems automated. Manufacturing firms also make use of these methods, as do businesses that deal with
the control of household activities like home entertainment systems, plant and yard watering, pet feeding,
setting different atmosphere "scenes" for different events, and the employment of domestic robots.
Networked devices can be controlled from a computer and accessed from afar over the internet,
improving usability, resource efficiency, and security. The arm feed is widely used in businesses that rely
on inexpensive automation. It can be used to collect finished goods at workstations and deposit them in
bins along automated assembly lines. It can also be used to load raw materials onto conveyor belts by
picking them up [4]. Clamping is a further application for this device. Clamping and other operations
that need high speeds are performed in some sectors of mass manufacturing. These units can only be used
for tasks that need low to medium clamping forces.
Literature Review
Factories and industrial production often involve the handling of materials and devices to choose
and place objects from the lower level to the higher plane. Because there are so many mechanics in each
pneumatic arm, their price has skyrocketed. As a result of integrating data from kinematics, dynamics,
and structural analysis of the desired robot configuration, a pneumatic arm was designed with two
cylinders, a shaft, and a lead screw mechanism that can translate the motion of the hep piston into
rotational motions of the arm. By adjusting the pressure with the flow control valve, the highly dynamic
pneumatic arm model may be readily placed at intermediate positions. As cargo is transferred from lower
to higher levels in a port, it can be loaded and unloaded [5].

The primary goal of this project was to design, develop, and install a low-cost, high-control robot
arm that could compete with existing options. The robot arm will be incorporated into a mobile platform
that provides support to the industrial workforce, and it was developed with four degrees of freedom,
making it capable of accurately completing simple jobs like light material handling. Multiple
interconnected servo motors power the robot arm. An encoder built into the servo motors eliminates the
need for a controller. We utilised Labview, which does inverse kinematic calculations and sends the
appropriate angles serially to a microcontroller that drives servo motors that can be adjusted for position,
velocity, and acceleration, to give us control over the robot. The robot arm has been tested and validated,
and the results confirm that it functions as intended [6].
It details the development and implementation of real-time industrial automation software that
improves the dependability of a soft sensor-based automated production system. Initial specifications are
based on a case study application exhibiting the kind of steady state behaviour seen frequently in process
automation. Thus, the modelling concept aids in application development and is complemented with a
strategy for implementing, say, plc-based standard automation. The current system relies on illumination
control systems, which are centrally located computing equipment that facilitate communication between
various system inputs and outputs linked to lighting control. Systems for regulating lighting output deliver
adequate illumination when and where it is required [7].
B. Proposed Technology
Manufacturing processes, such as assembly lines, robotic devices, or any activity that requires high-
reliability management and ease of programming and process fault diagnosis, can be managed with the
help of programmable logic controllers (PLCs), also known as programmable controllers [8-12]. The high
expense of reconfiguring relay-based industrial control systems inspired the development of
programmable logic controllers in the late 1960s. These structures could not be altered. It was required to
rewire or replace them entirely whenever production needs necessitated a new order of controls. When
adjustments had to be made frequently, the cost soared. The concept to switch out traditional relays for
programmable microcontrollers the introduction of programmable logic controllers (PLCs) changed the
face of the industrial control market forever [13-19].
In several fields, PLCs have been indispensable for decades. When it comes to subsystems like
radiation control, personal safety, fire, and smoke alarms, these are the primary control elements. These
individual components perform admirably and at little cost [20-24]. Without input from the Controls
Software Group, the skilled technician staff can easily control new equipment or alter operating
conditions to implement new control features. Ascendancy Lab's new PLC ascendancy software library is
based on the software development tools and some documentation of accessory support for Direct Net
PLCs. The programme has three main components: a PLC disciplinarian with an accessory apparatus
ascendancy block, an accessory a support module, and an approved consecutive driver, and it serves as a
Direct Net expert via any RS-232 anchorage. A separate printed ambit board provides access to the most
fundamental PLCs. They are sometimes referred to as separate lath PLCs or open architecture PLCs.

These are autonomous (apart from a power source) and can be implemented in a system by simply
mounting a controls chiffonier on threaded standoffs [25-32] (fig.1).
1)
2)
Figure 1: Programmable logic controller

 Memory: Data used by the CPU is static. The system read-only memory (ROM) stores the OS's
permanent data. The values of timers, counters, and other internal devices, as well as the states of input
and output devices, are all kept in RAM (fig.2).
Figure 2: Hardware blocks of a PLC
 I/O section – Sensors and switches, among other field devices, are recorded by input.
 O/P Section - The motors, pumps, lights, and solenoids are all under the command of the
system's output. The input/output ports were designed using a RISC processor (RISC).
 Power supply – Certain PLCs have an isolated power supply. But, most of the PLCs work at
220VAC or 24VDC.
 Programming device – This component transfers data from the storage medium to the processor's
RAM. The PLC's memory receives the programme after it has been fed into the programming device.
 System Buses – Buses are the paths through which the digital signal flows internally of the PLC.
The four system buses that are present in the hardware of the PLC are:

The CPU shares information with its peripherals via a data bus. Internally controlled actions are sent
via a control bus. To gain entry to the stored information, addresses are transmitted via address bus. The
system bus facilitates interaction between the I/O port and the I/O unit (fig.3).
3)
Figure 3: PLC used for the design
4) Functionality
Over time, PLCs have expanded their capabilities to encompass things like distributed control
systems and networking in addition to sequential relay control, motion control, process control, and so on.
Some cutting-edge PLCs are nearly as powerful as desktop computers in terms of data handling, storage,
processing power, and connectivity. When used with remote I/O hardware and PLC-like programming, a
general-purpose desktop computer can replace various PLCs [33-37]. Since desktop computers use less
reliable operating systems than PLCs, and since desktop computer hardware is typically not designed to
the same levels of tolerance to temperature, humidity, vibration, and longevity as processors used in
PLCs, desktop computer controllers have not been widely adopted in heavy industry. The controller may
not always respond to changes in input status with the consistency in timing expected from PLCs since
operating systems like Windows do not lend themselves to predictable logic execution. Desktop logic
applications are often used in places where the application is less demanding and important, such as in
small facilities or for laboratory automation [38-44].
5) Expanding PLC functionality with networking
While PLCs paved the way for visual communication on the factory floor, integrating them with
networking devices gave businesses even more insight and control by bringing together real-time
Ethernet, visualisation, and communication. Industrial automation is becoming increasingly dependent on
networks, which are expanding to provide new levels of monitoring and control in previously inaccessible
places. Integrating field buses with Ethernet has allowed device networks to expand their reach into
industrial control systems. Bringing control-level devices closer to the action by combining networking
capabilities with PLCs allows users to off-load main processor activities for distributed control in the
field. By integrating control with distributed I/O, manufacturers can reduce their OPEX by standardising
data acquisition, transmission, and connectivity across the whole plant [46-49].

6) Networking
Users need enough bandwidth for real-time industrial Ethernet in order to turn PLCs into a
networking tool. PLCs need to improve their support for numerous network technologies to keep up with
rising connectivity and communication demands [50]. There isn't a universal industrial network for high-
performance I/O solutions, but programmable logic controllers (PLCs) can bridge the gap between the
enterprise layer and the physical plant. PLCs are required to drive and support these extra functions
introduced by network protocols. Keeping up with routine maintenance is essential for guaranteeing the
smooth operation of these interconnected systems used in industrial automation. It's crucial to have a
stable connection. Keeping the network up and running is, thus, essential. This necessitates the
availability of sufficient bandwidth and high data transfer rates, as well as the protection of data during
maintenance operations and the ability to quickly recover in the event of a connection failure.
Redundancy is crucial for continuous performance and reliability, alongside speed and availability.
Prolonged unscheduled system outage has the potential to jeopardise plant output. However, redundancy
solutions can not only minimise implementation costs but also guarantee msec-level network recovery
[51-55].
7) Distributed control
The automated system can have decentralised and dispersed components thanks to distributed
control. This means that some aspects of the system are controlled by distinct controllers located in or
near the direct control region. Because of this, we can accommodate a wide range of application
specifications with a wide range of form factors. Spreading the I/O data across the application also allows
manufacturers to reduce the number of components required for automation and control, hence lowering
the overall cost of the system (either in-cabinet or on-machine). With distributed control, customers can
construct a modular design with the precise amount of inheritable I/O expansion to be added as needed,
allowing for rapid, cost-effective updates in preparation for future growth. With distributed intelligence,
the PLC doesn't have to handle as much of the work, and the system can grow to meet new functional
needs without replacing the PLC. This allows users to improve their systems by increasing their size and
functionality while maintaining a PLC standard [56-71].
Off-loading reduces network traffic by shifting some control tasks from the central processor (PLC
or PC-control) to the distributed I/O on the machine or in the cabinet. This is because the main processor
can use dispersed I/O to avoid polling the remote I/O for the current input and output states. The main
processor can focus on other duties while the distributed I/O system with control/programmable features
takes care of the rest. Manufacturing companies can reduce control costs across a wide range of sectors
and applications by enabling remote I/O setups. This allows for high levels of connectivity with a minimal
number of I/O points, even across large geographic areas. Having a controller at each location is
impractical and expensive for large operations that require comprehensive monitoring and management.
Having to run cables from each I/O point across great distances is a time-consuming and costly
installation operation. Data from distant parts of a plant or facility, for instance, can be gathered by means
of remote I/O devices. The PLC can receive data for use in management and upkeep reports, such as cycle

times, counts, durations, or occurrences. In addition, there is a higher possibility of mistakes during
hardwiring, such as miss-wiring, which can lead to lengthy downtime for repairs [72-84].
8) Advanced I/O capabilities
The capabilities of modern networking systems have progressed past the simple I/O of digital,
analogue, and analog-to-digital conversion. RFID, SSID for motion and serial inputs, data recording,
barcode, and 2D matrix identification systems are all examples of sophisticated I/O. Integrated PLCs
need to be able to handle the increased volumes of data generated by smarter, more complex I/O [85]. All
the high-end input and output features can be found here. Enhanced manufacturing process control is
typically sought after in factory settings, and this calls for more than just discrete I/O. PLCs typically
have high-bandwidth inputs and outputs due to the inclusion of features like analogue signal processing,
temperature monitoring, and radio frequency identification. To share data with PLC and other devices,
PROFINET, for instance, employs three distinct communication channels. Parameterization,
configuration, and acyclic read/write operations all make use of the regular TCP/IP channel. Standard
cyclic data transfer and alerts are carried out over the real-time (RT) channel. In order to speed up the
data transmission with PLC, RT communications avoid using the traditional TCP/IP interface.
Synchronous real-time is the third and fastest channel and is typically employed in motion control systems
[86-92].
9) Scan time
As long as the controlled system is operational, the PLC programme will continue to run.
Sometimes referred to as "I/O Image T," this region of memory is accessible by the CPU and stores a
copy of the state of the physical input points. The code executes from the first to the last instruction rung.
PLC processing time is lengthened by the need to check the state of all rungs before updating the I/O
image database. For tiny programmes or on a fast CPU, this scan time may only be a few milliseconds,
but for older PLCs running very large programmes, this time may be significantly longer (up to 100ms).
The PLC's response to changes in the process conditions would be ineffective if the scan time was too
long. Subroutines and other techniques for altering the PLC's execution ladder have evolved with its use.
By separating the sections of the programme responsible for setting up the machine from those needed to
function at faster speed, this streamlined programming could minimise scan time for high-speed
procedures. Where the PLC's scan time is too long for predictable performance, special-purpose I/O
modules may be employed. When the scan time is too long to properly count pulses or detect the feel of
rotation of an encoder, precision timing modules, also known as counter modules, are utilised. The
accumulated pulses are done by a specialised module that is not impacted by the speed with which the
programme executes, but the comparatively sluggish PLC may nevertheless interpret the counted values
to drive a machine [93-101].
10) System scale

The number of input and output ports on a compact PLC is typically predetermined. If the standard
version doesn't have enough inputs and outputs, you can usually upgrade. The chassis (rack) of a modular
PLC is where several modules can be installed to perform various tasks. Each application requires a
unique processor and set of input/output modules. Multiple racks can be managed by a single processor,
and that processor could have hundreds of I/Os and outputs [102-109]. To cut down on cabling expenses
for massive facilities, a unique high-speed serial I/O link or analogous communication mechanism is
employed to distribute racks away from the processor. It is possible to reduce wiring and maintenance
time by mounting I/O terminals directly on the machine and connecting sensors and valves using quick-
disconnect connections [110].
11) Programming Languages
Machine code is a sequence of binary digits that represents the programme instructions in PLC
systems. You can use a mnemonic-based assembly language and a tool called an assembler to turn that
language into machine code. It is possible to employ high-level languages like C and BASIC.
12) Ladder Logic:
It has matured into a programming language wherein a graphical description of a program's logic
is used, much like the circuit diagrams of relay logic hardware. Programmable logic controllers (PLCs)
are utilised in industrial control applications, and their corresponding software is developed using ladder
logic. The visual symbols used in ladder logic are reminiscent of those used in relay schematic circuit
layouts. In the ladder diagram, the two power rails are represented by vertical lines. Between these two
verticals are the horizontal lines that make up the circuit connections. One coil is located on the far right
end of each level in the language ladder. A rung input checker may have many output coils, depending on
the manufacturer (contacts) [112-116].
Multi-Function Meter
Producing energy is an expensive endeavour, and accurate monitoring of consumption necessitates

the use of specialised equipment like a multi-function metre. The rising cost of electricity paves the way

for the creation of advanced, multi-purpose metres for precise energy monitoring. Electricity consumption
is often measured in kilowatt hours by standard electricity metres, which can be either electro-mechanical
or computerised. Utility firms are interested in monitoring topics like supply voltage and electricity
consumption patterns to promote more responsible energy use. Utilities may learn a lot about their
customers' habits and the load demand at different times of day by tracking how much electricity they use
at different times of day. Electrical energy provided to consumer premises must meet certain minimum
quality requirements from the standpoint of both customers and utility companies. The Multi-Function
Meter can be used to measure a wide variety of electrical parameters [117-123].
Figure 4: A single-phase MFM
From the perspective of the end users, the electrical energy must be provided at a voltage within a
certain range around the rated value of the device's operation for the equipment to function properly
(fig.4). The meter's shape also allows for easy viewing from afar. The meter's seven-segment display,
rather than LCD, suggests that it could be used in smoke-filled environments. Seven-segment displays
offer two advantages: they are inexpensive and can help bring down the device's cost, and the larger digits
make them legible from a great distance. These gadgets are useful for measuring energy, and their design
allows them to do so. It utilises a CPU-independent metrology engine to calculate a wide variety of
parameters [124-129]. The ADCs read the voltage and current inputs and the C code derives many results.
The time and date used in the maximum demand estimates are regularly updated via RTC. Before using
the metre for the first time, it must undergo a calibration procedure to ensure accurate readings of its
characteristics. An FRAM is used to keep track of the current values. The seven-segment display then
shows the values as selected by the user [130].
C. Function
A current transformer is a type of transformer that, like any other transformer, consists of a primary
winding, a core, and a secondary winding. Simply put, a current transformer is one that is f'd'with"'c'nst"
current, whereas a voltage transformer (of the conventional sort) is one that is fe' 'ith"co'st' voltage. By
inducing a rotating magnetic field in the core, the alternating current in the primary generates an
alternating current in the secondary. When a CT is installed, it has minimal impact on the primary circuit.
The primary and secondary of a current transformer must be tightly coupled for accurate results. If the
main has one turn, then the secondary current is equal to the primary current divided by the number of
secondary turns. This is an AC ammeter, where I represents the current in the primary winding, "pri"
represents the magnetic field in that winding, and "fi" represents the number of turns in the secondary
[131-133]. As depicted on the right, current transformers typically have a silicon steel ring core wrapped
in several rounds of copper wire. The primary current-carrying conductor is routed around the ring (fig.5).

Figure 5: Current transformers of various shapes
To create a single-turn primary winding, circuit cables can be fed through the centre of an opening
in the core of a window-type current transformer. The aperture's centre is where the principal conductor
should be positioned for optimal precision. The primary-to-secondary current ratio is used to classify CTs.
Switchgear manufacturers and users have different preferences for form factor. Current transformers for
low voltage single-ratio metering typically have plastic-molded casings or are ring-type. Current
transformers with a split core either have a removable component of the core or a core that is split in two
[134]. This permits the transformer to be quietly installed around a conductor. Low-current measurement
equipment, often handheld, battery-operated, and portable, make extensive use of split-core current
transformers (see illustration lower left). The protective relays are supplied with currents that are
proportional to the currents in the power circuit, but are amplified by current transformers. The
instruments for measurement must be isolated from the high power sources. Therefore, current
transformers provide that equipment with currents of appropriate magnitude relative to the applied power
[135].
D. USES

In order to measure current and keep tabs on the electrical system, current transformers are widely
employed. Almost all structures with three-phase and single-phase services above 200 amperes use
revenue-grade CTs to power the electric utility's watt-hour metre in addition to voltage leads. Multiple
CTs are frequently installed as "s" and put to different purposes. By utilising distinct CTs, metering and
protection circuits can be kept separate, and current transformers with varying properties (accuracy,
performance) can be employed for each application. The norm for monitoring and security purposes.
Widespread use anywhere differential security is needed. Mounting current transformers on either the
low-voltage or high-voltage leads of a power transformer is possible. It is possible to replace a current
transformer by cutting out a part of the bus bar in some cases. The current transformer can be used for all
of these different purposes. There are, however, a plethora of alternative uses. A Power is converted in a
switched-mode power supply (SMPS) electronic circuit by rapidly cycling on and off switching devices,
which are supplemented by storage components like inductors and capacitors. Because of their high
efficiency, switching power supplies are used in a broad variety of electronic devices, including
computers and other delicate devices that need a reliable and efficient power source. Switch-mode or
switching-mode power supplies are other names for a switched-mode supply (fig.6)
Figure 6: SMPS
Different topologies, or circuit layouts, each have their own advantages, disadvantages, and modes
of operation that ultimately decide how the input power is transformed into the output. Transforms
provide isolation, voltage scaling, and various output voltages, and are utilised in the most common
topologies including fly back, push-pull, half-bridge, and full-bridge. In non-isolated setups, inductive
energy transfer handles power conversion in place of a transformer. In a switch-mode power supply
(SMPS), the output current flow is determined by several factors, including the power signal input, the
storage components and circuit topologies employed, and the pattern (such as pulse-width modulation
with an adjustable duty cycle) used to drive the switching elements. These switching waveforms have a
spectral density that is relatively peaky at higher frequencies. A tiny LC filter can be used to remove
switching transients and ripple from the output waveforms.
1) Input rectifier stage

If the SMPS accepts an alternating current (AC) input, the first stage is a DC-to-AC converter. The
process is known as "correction." If your SMPS accepts DC power instead of AC, you can skip this step.
Some power supplies (often computer ATX power supplies) have a switch that can be manually or
automatically toggled to convert the rectifier circuit into a voltage doubler. This allows for use with
standard 115 V or 230 V power outlets. A big filter capacitor receives the rectifier's unregulated DC
voltage. This rectifier circuit draws current from the wall outlet in brief bursts timed to coincide with the
AC voltage peaks. The power factor is decreased because of the extremely high frequency energy
contained in these pulses. Power factor correction (PFC) circuits are used by many modern SMPS to
transform the input current into a sinusoidal function of the AC input voltage. Active PFC power supplies
often have auto-ranging input voltage support (from 100 VAC to 250 VAC) and an input voltage selector
switch.
2) Inverter stage
In this paragraph, the helicopter indicated by the solid lines is of interest. The inverter stage takes
DC from the input or the rectifier stage and transforms it into alternating current (AC) using a power
oscillator with a small, few-wound output transformer operating at frequencies in the tens to hundreds of
kilohertz range. The frequency is typically inaudible to humans because it is higher than 20 kilohertz. The
switching is built as a MOSFET amplifier with multiple stages. High current can be handled by
MOSFETs despite their low on-resistance.
3) Voltage converter and output rectifier

The primary winding of a high-frequency transformer is driven by the inverted alternating current
when isolation of the output from the input is required, as is typically the case in mains power supplies.
This adjusts the secondary winding's voltage such that it produces the desired output level. This function
is performed by the output transformer shown in the block diagram. The transformer's alternating current
(AC) output can be rectified into direct current (DC) if necessary. For output voltages higher than about
ten volts, regular silicon diodes are typically utilised. Schottky diodes are frequently employed as the
rectifier elements at lower voltages due to their reduced voltage drop when conducting and faster recovery
times compared to silicon diodes (which allows low-loss operation at higher frequencies). MOSFETs,
which have even smaller conducting-state voltage drops than Schottky diodes, can be employed as
asynchronous rectifiers to achieve even lower output voltages.
After the output is rectified, it passes through a filter made of inductors and capacitors. Components
with lower capacitance and inductance are required for higher switching frequencies. Inductors are used
in place of transformers in simpler, non-isolated power supply. All three of the most common types of
power inverters—boost, buck, and buck-boost—fall under this category. They use just one inductor and a
single active switch, placing them in the simplest category of converters with a single input and a single
output. The input voltage is lowered by the buck converter in direct proportion to the duty cycle, which is
the ratio of conductive time to the whole switching duration. Input voltage of 10 V at 50% duty cycle will

result in an average output voltage of 5 V in a perfectly functioning buck converter. By shifting the duty
cycle in response to changes in the input voltage, a feedback control loop maintains a constant output
voltage. In contrast to the boost converter, whose output voltage is always higher than its input voltage,
the uck-boost converter's inverted output value might be higher, lower, or the same as its input voltage.
Almost all DC-to-DC converters can be broken down into these three categories, while there are
numerous variants and extensions available for this class of converters. Other SMPS designs replace the
inductors and transformers with a capacitor-diode voltage multiplier. These are typically put to use when
a high voltage at low current needs to be produced (Cockroft-Walton generator). A charge pump is the
name for the low-voltage variation.
4) Regulation
As can be seen in the aforementioned block diagram, a feedback circuit keeps an eye on the output
voltage and compares it to a set standard. The DC output may or may not be isolated from the controller
using an isolation mechanism (such an Opto-coupler), depending on design and safety considerations.
These optocouplers are used in the switching power supplies of electronic devices like computers,
televisions, and video recorders to precisely regulate the output voltage. A feedback circuit is not present
in an open-loop regulator. Instead, they take it as read that the output of the transformer or inductor will
be accurate so long as a consistent voltage is fed into it. Designs with regulation account for the
transformer's or coil's impedance. The magnetic hysteresis of the core can also be accounted for in
monopolar systems. Due to the power requirements of the feedback circuit prior to power generation, a
second, non-switching power source is included for standby.
5) Transformer design
A transformer is necessary for the galvanic separation of any switched-mode power supply that
draws its energy from an alternating current (AC) power line ("off-" converter). In some DC-to-DC
converters, isolation may not be as important, hence the converter may use a transformer. The SMPS
transformer operates at very high frequencies. The reduction in the size of the high-frequency transformer
from the 50/60 Hz transformers previously utilised is responsible for the majority of the money (and
room) saved by off-line power sources. There are further compromises inherent in the design. Multiplying
the transformer's core area, magnetic flux, and frequency yields the terminal voltage. The core area (and
hence the core mass) can be drastically lowered by switching to a much higher frequency. Domestic items
like personal computers sometimes feature switched-mode power supply units (PSUs) with universal
inputs, allowing them to accept power from main suppliers worldwide. However, a manual voltage range
switch may be necessary. In terms of power frequency and voltage, switch-mode power supplies are quite
flexible. Even DC-to-DC conversion makes use of switched-mode power supplies. A DC/DC switch-
mode supply may be used to provide 12V for accessories in automobiles whose heavy-duty engines
require a nominal 24 V DC cranking supply. Power may be provided at a low DC voltage (from a battery
backup system, for example) in industrial settings like telecommunications racks, with DC/DC switched-
mode converters at each piece of equipment to provide the necessary voltages. An electromagnet and a
series of contacts make up the simple electro-mechanical switch known as a relay. An electromagnet,

rather than a person, flips the switch from the off to the on position in an electrical switch. Relays can be
discovered tucked away in all kinds of unexpected places. Relays were utilised to implement Boolean
gates in the earliest computers. Turning on a relay requires only a little amount of electricity, but the
device it controls may require much more. For instance, your home's air conditioner may be controlled by
a relay. The air conditioner is likely powered by 220VAC at 30A. The relay's control coil may only
require a few watts of power in order to close the connections (fig.7).
Figure 7: A relay and its contacts
A relay is depicted above in schematic form. The uppermost connections are always open (i.e., not
connected). The switch is closed when electricity flows through the coil and a magnetic field is produced
(i.e., connects the top contacts). When the coil's power is cut, the switch often opens again due to a
spring's pull.
Relay Selection:
There are numerous configurations of relays (and switches, for that matter). The most typical
examples are displayed on the right. With just two contacts, Single Pole Single Throw (SPST) switches
are the simplest type. It takes three contacts to make a single pole double throw (SPDT). The common
contacts are labelled COM, the normally open contacts are NO, and the normally closed contacts are NC
(NC). When the coil is not being powered, the Normally Closed contact will be linked to the Common
contact. When the coil is not receiving power, the Normally Open contact will be "open," or unconnected.
Normally Open is linked to Common when the coil is powered on, but Normally Closed is left
unconnected. The only difference between the Single Pole and Double Pole variants is the addition of
two switches that operate as a pair. Relays function similarly to switches. Therefore, the same principle
holds true here. When a relay is used, one or more poles are flipped. Each pole features three throwable
contacts. Simply put, they are Make contact is another name for Normally Open Contact (NO). When the
relay is switched on, the circuit is completed. Inactive relay means circuit has broken. NC contact,
sometimes known as a break contact, is a normally closed contact. Contrary to the NO contact, this is the

case. When the relay is triggered, power is cut off. The switch completes the circuit when the relay is
turned off. Two circuits can be managed by a single contact of the change-over (CO) or double-throw
(DT) variety. They operate a NO contact and an NC contact sharing a terminal. Break before make
contacts and make before break contacts are the two main categories.
Single Pole Single Throw (SPST) is a type of relay having four terminals and a specific
nomenclature. These allow for the joining or splitting of two terminals. The coil can't function without the
other two terminals. The SPDT relay has five contacts and is a single-pole, double-throw design. The
terminals for the coil are the other two. In addition, there is a shared terminal that can be connected to the
other two. Single-pole, double-throw (SPDT) switches allow a single actuator to operate two independent
circuits. This relay is a DPST, or double pole single throw, and it has six connections. These ends are
separated even more into a pair. Therefore, they can function as two SPSTs that are activated by a single
coil. Coil terminals make up two of the six total. There are eight switches that can be used as relays. Two
of the rows are meant to be used as transfer points. They're a single-coil device that can perform the
functions of two SPDT relays. The relay's contacts must be able to manage the load's voltage and current,
so choose one accordingly. Keep in mind that the initial current draw of some loads (such motors) is
substantially higher than the steady-state current draw. Pick a relay with a manageable coil voltage and
current. To power the AC unit from a 12VDC source, for instance, you would need a 12V DC coil. The
AC and DC ratings of coils will be specified.
E. Types of Relays
A relay that can be turned on or off with a pulse voltage. This relay retains its set or reset condition
after an interruption in input voltage and stays that way until it gets the next inverting input. If the coil of
a latching relay is not supplied with current, the contacts will remain in either the normally open or
normally closed position indefinitely. The relay contacts remember their setting even if the power goes
out, and the power consumption of the switching coil is minimal. The hum that could be produced by a
continually (AC) energised coil is avoided when using a latching relay for remote control of a building's
lighting. Because of this, the latching relay remains energised even after the contacts have been opened.
Reed relays are essentially solenoids including reed switches. The contacts of the switch are made of
magnetic material that causes them to move under the influence of the field of the surrounding solenoid or
an external magnet; the contacts are protected from atmospheric corrosion by an evacuated or inert gas-
filled glass tube. Reed relays with mercury wetting the contacts are known as mercury-wetted relays.
Relays with mercury contacts are used to switch low-voltage signals (one volt or less), low-current signals
where surface contamination may cause poor contact, and high-speed applications where contact bounce
is a problem.
When used as the switching element, mercury is what makes a relay a "mercury relay." They're put
to use in situations where regular relay contacts would erode too quickly. Environmental concerns about
the large amount of mercury used and newer alternatives have caused them to become less popular in
recent years. To boost its sensitivity, a polarised relay positions its armature between the magnet's poles.

In the middle of the 20th century, polarised relays were employed in telephone exchanges to correct
telegraphic distortion and identify weak pulses. The circuit breaker is a straightforward device, requiring
only alternating electricity and a biostable polarised relay for operation. By maintaining the relay contact
in either the ON or OFF position with a pulse input, coil power consumption can be regulated (zero power
consumption when there is no pulse drive). For sequential control of machine tools, transfer machines,
and other industrial machinery, a machine tool relay is the industry standard. They have many contacts
(possibly expandable in the field), can be switched from typically open to normally closed, have coils that
are simple to replace, and can be installed in a control panel with minimal wasted space.
Transmitter/receiver relays are commonly used in transceivers. High isolation is provided between
the terminals of the receiver and transmitter, and the relay contacts are made such that radio frequency
power is not reflected back toward the source. Timing relays are set up so that their contacts don't
activate immediately. A copper disc would be placed between the armature and the rotating blade
assembly to create a very brief (fraction of a second) delay. The release time is increased because the
disk's current maintains a magnetic field for a brief period of time. In contrast to electro-mechanical
relays, solid-state relays (SSRs) are non-moving electrical components that perform the same function.
Instead of a solenoid, a control signal activates a thyristor, TRIAC, or other solid-state switching device
in a solid-state relay, which then switches the controlled load. Control and controlled circuits can be
separated using an optocoupler, which consists of a light-emitting diode (LED) and a photo transistor.
All the functions of an electromagnetic relay's moving elements can be mimicked by a static relay's
electrical circuitry. A Buchholz relay is a safety device for detecting the buildup of gas in big
transformers filled with oil; it sounds an alert at slow buildup and turns off the transformer at rapid
buildup. Instead of using electricity to activate the connections, gas or oil flow pressure is used. Contracts
r'lay with coercion: The relay contacts in a system with "force-guided contacts re" are mechanically
coupled such that they all actuate in unison when the coil is electrified or de-energized. When using a
guiding mechanism (forced guiding), the normally closed and typically open contacts cannot be closed at
the same time. No other contacts in the relay will be able to move if one set of contacts is locked. The
relay's state can be verified by the safety circuit via force-guided connections. There are several other
names for force-guided connections. Some of these names include "positive-guided," "captive," "locked,"
"mechanically linked," and "safety re." Over current prevention is necessary for electric motors to
prevent damage from overloading, as well as from short circuits in connected cables or from internal
problems in the motor winding. Overload sensors are heat-operated relays in which a coil warms a
bimetallic strip or a solder pot melts, releasing a spring to operate auxiliary connections. Connected in
series with the coil are these supplementary connections. The coil will be de-energized by the overload if
it detects too much load current.
F. Soledad Valve

A solenoid valve is an electromechanically operated valve. An electric current controls the valve
through a solenoid: in the case of a two-port valve, the flow is switched on or off; in the case of a three-
port valve, the outflow is switched between the two outlet ports.
Pressure Range - (10 to 15 bar) Type - Liver Type (Manual Operated)
1) Working of Solenoid Valve: The solenoid valve has 5 openings. This ensures easy
exhausting of the 5/2 valve. The spool of the 5/2 valve slides inside the main bore according to the spool
position; the ports get connected and disconnected. The working principle is as follows.
2) Position-1: When the spool is actuated towards the outer direction, the port connected to
‘B’ and ‘S’ remains closed while connected to ‘R.’
Poisition-2: When the spool is pushed in the inner direction, port ‘P’ and ‘A’ get connected and ‘B’
to ‘S’ while port ‘R’ remains closed.
G. Hose Connector
Connecting one hose to another, a tap, or an item that uses hoses, like an irrigation sprinkler, is what
a hose coupling is designed to do. Common materials include steel, brass, stainless steel, aluminium, and
plastic.
H. Flow Control Valve
A flow control valve is a device used to manage the pressure or flow rate of a fluid. Typically, flow
metres or temperature gauges send signals to control valves, which then react accordingly. Actuators and
positioners are common components of control valves (fig.8).
Figure 8: working module

Conclusion
This initiative has provided us with a wonderful chance to put our limited skills and expertise to
good use. While working on this project, we learned a great deal about project management, procurement,
assembly, and machining. We see project work as a viable means to unlock the doors between academia

and business. We're pleased with how quickly we were able to finish the project. This PLC-controlled
"Loading and Unloading Pnumatic ARM Bot" is performing as expected. We appreciate the challenges in
preserving the specified tolerances and quality. We have utilised all resources to the best of our abilities.
In conclusion, we'd like to offer a few final thoughts on our project's impressions. As a result, we've
created a "Loading And Unloading Pnumatic ARM Bot Using PLC" to shed light on the best means of
implementing cost-effective automation. This system's user interface and operation are both
straightforward enough that anyone can use them effectively. More methods allow for adaptation and
improvement in line with specific uses.
References:
1. RENSheng-le, LU Hua, WANG Yong-zhang, FU Hong-ya, “Development of PLC-based
Tension Control System,” Science Direct Chinese, Journal of Aeronautics, Volume 20, Issue
3, pp. 266-271, 2007.
2. WANG Hong, “Design of PLC-based Hydraulic System for Workpiece Turnover”,
Science direct Procedia Engineering, Volume 15, pp.122-126, 2011.
3. SelwinMichPriyadharsona, R. Ganesanb ,Prabhu Kumar Surarapu , “PLC – HMI Automation
based Cascaded Fuzzy PID for Efficient Energy.
4. Management and Storage in Real Time Performance of a Hydro Electric Pumped Storage
Power Plant”,Science direct Procedia Technology, Volume 21, pp. 248 – 255, 2015.
5. Tomas Skripcak, PavolTanuska, ‘‘Toward Nonconventional Human–Machine Interfacesfor
Supervisory Plant Process Monitoring’’, IEEE transactions on human-machine systems, vol.
43, Issue no. 5, pp. 437-450, 2013.
6. Khin Moe Myint, Zaw Min MinHtun, HlaMyoTun, “Position Control Method For Pick And
Place Robot Arm For Object Sorting System”,International journal of scientific & technology
research, Vol. 5, issue 06, pp. 57-61, 2016.
7. PujaDhepekar, Yashwant G. Adhav,‘’Wireless Robotic Hand for Remote Operations
using Flex Sensor’’, International Conference on Automatic Control and Dynamic
Optimization Techniques (ICACDOT) International Institute of Information Technology
(I²IT), Pune, pp. 115-118.
8. P. Paramasivan, “A Novel Approach: Hydrothermal Method of Fine Stabilized
Superparamagnetics of Cobalt Ferrite (CoFe2O4) Nanoparticles,” Journal of
Superconductivity and Novel Magnetism, vol. 29, pp. 2805–2811, 2016.
9. P. Paramasivan, “Controllable synthesis of CuFe2O4 nanostructures through simple
hydrothermal method in the presence of thioglycolic acid,” Physica E: Low-dimensional
Systems and Nanostructures, vol. 84, pp. 258–262, 2016.
10. D. K. Sharma, B. Singh, R. Regin, R. Steffi and M. K. Chakravarthi, "Efficient Classification
for Neural Machines Interpretations based on Mathematical models," 2021 7th International
Conference on Advanced Computing and Communication Systems (ICACCS), 2021, pp.
2015-2020.
11. F. Arslan, B. Singh, D. K. Sharma, R. Regin, R. Steffi and S. Suman Rajest, "Optimization
Technique Approach to Resolve Food Sustainability Problems," 2021 International
Conference on Computational Intelligence and Knowledge Economy (ICCIKE), 2021, pp. 25-

30.
12. G. A. Ogunmola, B. Singh, D. K. Sharma, R. Regin, S. S. Rajest and N. Singh, "Involvement
of Distance Measure in Assessing and Resolving Efficiency Environmental Obstacles," 2021
International Conference on Computational Intelligence and Knowledge Economy (ICCIKE),
2021, pp. 13-18.
13. D. K. Sharma, B. Singh, M. Raja, R. Regin and S. S. Rajest, "An Efficient Python Approach
for Simulation of Poisson Distribution," 2021 7th International Conference on Advanced
Computing and Communication Systems (ICACCS), 2021, pp. 2011-2014.
14. D. K. Sharma, B. Singh, E. Herman, R. Regine, S. S. Rajest and V. P. Mishra, "Maximum
Information Measure Policies in Reinforcement Learning with Deep Energy-Based Model,"
2021 International Conference on Computational Intelligence and Knowledge Economy
(ICCIKE), 2021, pp. 19-24.
15. D. K. Sharma, N. A. Jalil, R. Regin, S. S. Rajest, R. K. Tummala and T. N, "Predicting
Network Congestion with Machine Learning," 2021 2nd International Conference on Smart
Electronics and Communication (ICOSEC), 2021, pp. 1574-1579.
16. S. Ambika, T. A. Sivakumar, and P. Sukantha, “Preparation and characterization of
nanocopper ferrite and its green catalytic activity in alcohol oxidation reaction,” Journal of
Superconductivity and Novel Magnetism, vol. 32, pp. 903–910, 2019.
17. P. Paramasivan, “Comparative investigation of NiFe2O4 nano and microstructures for
structural, optical, magnetic and catalytic properties,” Advanced Science, Engineering and
Medicine, vol. 8, pp. 392–397, 2016.
18. P. Paramasivan, S. Narayanan, and N. M. Faizee, “Enhancing Catalytic Activity of Mn3O4 by
Selective Liquid Phase Oxidation of Benzyl Alcohol,” Advanced Science, Engineering and
Medicine, vol. 10, pp. 1–5, 2018.
19. H. Bulut and R. F. Rashid , "The Zooplankton Of Some Streams Flow Into The Zab River,
(Northern Iraq)", Ecological Life Sciences, vol. 15, no. 3, pp. 94-98, Jul. 2020.
20. Rashid, R. F., Çalta, M., & Başusta, A. (2018). Length-Weight Relationship of Common Carp
(Cyprinus carpio L., 1758) from Taqtaq Region of Little Zab River, Northern Iraq. Turkish
Journal of Science and Technology, 13(2), 69-72.
21. Pala, G., Caglar, M., Faruq, R., & Selamoglu, Z. (2021). Chlorophyta algae of Keban Dam
Lake Gülüşkür region with aquaculture criteria in Elazıg, Turkey. Iranian Journal of Aquatic
Animal Health, 7(1), 32-46.
22. Rashid, R. F., & Basusta, N. (2021). Evaluation and comparison of different calcified
structures for the ageing of cyprinid fish leuciscus vorax (heckel, 1843) from karakaya dam
lake, turkey. Fresenius environmental bulletin, 30(1), 550-559.
23. Rashid, R. (2017). Karakaya Baraj Gölünde (Malatya-Türkiye) yaşayan aspius vorax'da yaş
tespiti için en güvenilir kemiksi yapının belirlenmesi/Determination of most reliable bony
structure for ageing of aspius vorax inhabiting Karakaya Dam Lake (Malatya-Turkey).
24. S. R. Vadyala, S. N. Betgeri, J. C. Matthews, and E. Matthews, “A review of physics-based
machine learning in civil engineering.” Results in Engineering, vol. 13, p. 100316, 2022.
25. S. R. Vadyala, S. N. Betgeri, and N. P. Betgeri, “Physics-informed neural network method for

solving one-dimensional advection equation using PyTorch.” Array, vol. 13, p. 100110, 2022.
26. S. R. Vadyala and E. A. Sherer, “Natural Language Processing Accurately Categorizes
Indications, Findings and Pathology Reports From Multicenter Colonoscopy (Preprint).”
2021.
27. S. R. Vadyala, S. N. Betgeri, E. A. Sherer, and A. Amritphale, “Prediction of the number of
COVID-19 confirmed cases based on K-means-LSTM.” Array, vol. 11, p. 100085, 2021.
28. D.K. Srivastava and B. Roychoudhury, “Words are important: A textual content based
identity resolution scheme across multiple online social networks,” Knowledge-Based
Systems, vol. 195, 105624, 2020.
29. D.K. Srivastava and B. Roychoudhury, “Understanding the Factors that Influence Adoption of
Privacy Protection Features in Online Social Networks,” Journal of Global Information
Technology Management, vol.24, no.3, pp. 164-182, August 2021
30. R. Agarwal and N. Rao, “ML-based classifier for Sloan Digital Sky spectral objects,”
Neuroquantology, vol. 20, no. 6, pp. 8329–8358, 2022.
31. R. Agarwal, “Edge Detection in Images Using Modified Bit-Planes Sobel Operator,” 2014,
pp. 203–210.
32. A. Rashi and R. Madamala, “Minimum relevant features to obtain ai explainable system for
predicting breast cancer in WDBC,” Int J Health Sci (Qassim), Sep. 2022.
33. R. A. A. Agarwal, “Decision Support System designed to detect yellow mosaic in Pigeon pea
using Computer Vision,” Design Engineering (Toronto), vol. 8, pp. 832–844, 2021.
34. R. Agarwal, S. Hariharan, M. Nagabhushana Rao, and A. Agarwal, “Weed Identification
using K-Means Clustering with Color Spaces Features in Multi-Spectral Images Taken by
UAV,” in 2021 IEEE International Geoscience and Remote Sensing Symposium IGARSS,
Jul. 2021, pp. 7047–7050.
35. Roja Boina, “Assessing the Increasing Rate of Parkinson's Disease in the US and its
Prevention Techniques”, International Journal of Biotechnology Research and Development,
3(1), pp. 1-18, 2022.
36. O. Fabela, S. Patil, S. Chintamani and B. H. Dennis, "Estimation of effective thermal
conductivity of porous Media utilizing inverse heat transfer analysis on cylindrical
configuration," in ASME 2017 International Mechanical Engineering Congress and
Exposition, 2017.
37. S. Patil, S. Chintamani, B. Dennis and R. Kumar, "Real time prediction of internal
temperature of heat generating bodies using neural network," Thermal Science and
Engineering Progress, vol. 23, 2021.
38. S. Patil, S. Chintamani, J. Grisham, R. Kumar and B. H. Dennis, "Inverse Determination of
Temperature Distribution in Partially Cooled Heat Generating Cylinder," in ASME 2015
International Mechanical Engineering Congress and Exposition, 2015.
39. Abbassy, M. M., & Mohamed, A. A. (2016). Mobile Expert System to Detect Liver Disease
Kind”. International Journal of Computer Applications, 14(5), 320–324.
40. Abbassy, Mohamed M. (2020a). Opinion mining for Arabic customer feedback using machine
learning. Journal of Advanced Research in Dynamical and Control Systems, 12(SP3), 209–

217.
41. Abbassy, Mohamed M. (2020b). The human brain signal detection of health information
system in EDSAC: A novel cipher text attribute based encryption with EDSAC distributed
storage access control. Journal of Advanced Research in Dynamical and Control Systems,
12(SP7), 858–868.
42. Abbassy, Mohamed M., & Abo-Alnadr, A. (2019). Rule-based emotion AI in Arabic
customer review. International Journal of Advanced Computer Science and Applications :
IJACSA, 10(9).
43. Abbassy, Mohamed M., & Ead, W. M. (2020). Intelligent Greenhouse Management System.
2020 6th International Conference on Advanced Computing and Communication Systems
(ICACCS). IEEE.
44. Derindere Köseoğlu, S., Ead, W. M., & Abbassy, M. M. (2022). Basics of Financial Data
Analytics. In Financial Data Analytics (pp. 23–57). Cham: Springer International Publishing.
45. Ead, W., & Abbassy, M. (2018). Intelligent systems of machine learning approaches for
developing E-services portals. EAI Endorsed Transactions on Energy Web, 167292.
46. Ead, W. M., & Abbassy, M. M. (2021). IOT based on plant diseases detection and
classification. 2021 7th International Conference on Advanced Computing and
Communication Systems (ICACCS). IEEE.
47. Ead, W. M., & Abbassy, M. M. (2022). A general cyber hygiene approach for financial
analytical environment. In Financial Data Analytics (pp. 369–384). Cham: Springer
International Publishing.
48. Ead, W., Emad, & Abbassy, M. M. (2021). A general framework information loss of utility-
based anonymization in data publishing. Turkish Journal of Computer and Mathematics
Education, 12(5), 1450–1456.
49. Khalifa, I., Abd Al-glil, H., & M. Abbassy, M. (2013). Mobile Hospitalization. International
Journal of Computer Applications, 80(13), 18–23.
50. Khalifa, I., Abd Al-glil, H., & M. Abbassy, M. (2014). Mobile Hospitalization for Kidney
Transplantation. International Journal of Computer Applications, 92(6), 25–29.
51. Mohamed, & Mesbah, S. (2016). Effective e-government and citizens adoption in Egypt.
International Journal of Computer Applications, 133(7), 7–13.
52. Sadek, R. A., Abd-alazeem, D. M., & Abbassy, M. M. (2021). A new energy-efficient multi-
hop routing protocol for heterogeneous wireless sensor networks. International Journal of
Advanced Computer Science and Applications : IJACSA, 12(11).
53. Al-Abyadh, Mohammed Hasan Ali, and Hani Abdel Hafeez Abdel Azeem. (2022).
"Academic Achievement: Influences of University Students’ Self-Management and Perceived
Self-Efficacy" Journal of Intelligence 10, no. 3: 55.
54. Abdel Azeem, H.A.H. and Al-Abyadh, M.H.A. (2021), "Self-compassion: the influences on
the university students’ life satisfaction during the COVID-19 outbreak", International Journal
of Human Rights in Healthcare, ahead-of-print.
55. Al-Abrat N.A.S., Alabyad M.H.A. (2021) The Extent of Awareness of Faculty Members at
Al-bayda University About the Concept of Educational Technology and Their Attitudes

Towards It. In: Al-Bakry A.M. et al. (eds) New Trends in Information and Communications
Technology Applications. NTICT 2021. Communications in Computer and Information
Science, vol 1511. Springer, Cham.
56. ldbyani, A., & Al-Abyadh, M. H. A. (2022). Relationship between Dark Triad, Mental Health,
and Subjective Well-being Moderated by Mindfulness: A Study on Atheists and Muslim
Students. Islamic Guidance and Counseling Journal, 5
57. AbdulKader, H., ElAbd, E., & Ead, W. (2016). Protecting Online Social Networks Profiles by
Hiding Sensitive Data Attributes. Procedia Computer Science, 82, 20–27.
58. Fattoh, I. E., Kamal Alsheref, F., Ead, W. M., & Youssef, A. M. (2022). Semantic sentiment
classification for covid-19 tweets using universal sentence encoder. Computational
Intelligence and Neuroscience, 2022, 1–8.
59. Ead, W. M., Abdel-Wahed, W. F., & Abdul-Kader, H. (2013). Adaptive Fuzzy Classification-
Rule Algorithm In Detection Malicious Web Sites From Suspicious URLs. Int. Arab. J. E
Technol., 3, 1–9.
60. Abdelazim, M. A., Nasr, M. M., & Ead, W. M. (2020). A survey on classification analysis for
cancer genomics: Limitations and novel opportunity in the era of cancer classification and
Target Therapies. Annals of Tropical Medicine and Public Health, 23(24).
61. Alsheref, F. K., Fattoh, I. E., & M.Ead, W. (2022). Automated prediction of employee
attrition using ensemble model based on machine learning algorithms. Computational
Intelligence and Neuroscience, 2022, 1–9.
62. H. Nayak, A, Kushwaha, P.C. Behera, N.C. Shahi, K.P.S. Kushwaha, A. Kumar and K.K.
Mishra, “The pink oyster mushroom, Pleurotus djamor (Agaricomycetes): A potent
antioxidant and hypoglycemic agent,” International Journal of Medicinal Mushrooms, vol. 23,
no. 12, p. 29-36, 2021.
63. Amit Kumar Jain (2022). Overview of Serverless Architecture. International Journal of
Engineering Research & Technology, Vol.11, no.09, pp.01-06.
64. Amit Kumar Jain (2022). Multi-Cloud Computing & Why do we need to Embrace it.
International Journal of Engineering Research & Technology, Vol.11, no.09, pp.01-06.
65. Amit Kumar Jain (2022). Hybrid Cloud Computing: A Perspective. International Journal of
Engineering Research & Technology, Vol.11, no.10, pp.01-06.
66. A. K. Jain, D. S. Ross, M. K. Babu, Dharamvir, D. Uike and D. Gangodkar (2022), "Cloud
Computing Applications For Protecting the Information of Healthcare Department Using
Smart Internet of Things Appliance," 2022 5th International Conference on Contemporary
Computing and Informatics (IC3I), pp. 229-234.
67. A. K. Jain, T. Misra, N. Tyagi, M. V. Suresh Kumar and B. Pant (2022), "A Comparative
Study on Cyber security Technology in Big data Cloud Computing Environment," 2022 5th
International Conference on Contemporary Computing and Informatics (IC3I), pp. 235-241.
68. K. S. Kumar, D. Yadav, S. K. Joshi, M. K. Chakravarthi, A. K. Jain and V. Tripathi (2022),
"Blockchain Technology with Applications to Distributed Control and Cooperative Robotics,"
2022 5th International Conference on Contemporary Computing and Informatics (IC3I), pp.
206-211.

69. Haq, M. A., Ahmed, A., Khan, I., Gyani, J., Mohamed, A., Attia, E.-A., Mangan, P., & Pandi,
D. (2022). Analysis of environmental factors using AI and ML methods. Scientific Reports,
12(1), 13267.
70. Haq, M. A., Ghosh, A., Rahaman, G., & Baral, P. (2019). Artificial neural network-based
modeling of snow properties using field data and hyperspectral imagery. Natural Resource
Modeling, 32(4).
71. Haq, M. A., & Baral, P. (2019). Study of permafrost distribution in Sikkim Himalayas using
Sentinel-2 satellite images and logistic regression modelling. Geomorphology, 333, 123–136.
72. Haq, M. A., Alshehri, M., Rahaman, G., Ghosh, A., Baral, P., & Shekhar, C. (2021). Snow
and glacial feature identification using Hyperion dataset and machine learning algorithms.
Arabian Journal of Geosciences, 14(15).
73. Mangan, P., Pandi, D., Haq, M. A., Sinha, A., Nagarajan, R., Dasani, T., Keshta, I., &
Alshehri, M. (2022). Analytic Hierarchy Process Based Land Suitability for Organic Farming
in the Arid Region. Sustainability, 14(4542), 1–16.
74. Haq, M. A. (2021). DNNBoT: Deep Neural Network-Based Botnet Detection and
Classification. Computers Materials and Continua, 71(1), 1769–1788.
75. Haq, M. A. (2022). CDLSTM: A novel model for climate change forecasting. Computers,
Materials and Continua, 71(2), 2363–2381.
76. Haq, M. A. (2021). SMOTEDNN: A Novel Model for Air Pollution Forecasting and AQI
Classification. Computers Materials and Continua, 71(1), 1403–1425.
77. R. Oak, M. Du, D. Yan, H. Takawale, and I. Amit, “Malware detection on highly imbalanced
data through sequence modeling,” in Proceedings of the 12th ACM Workshop on Artificial
Intelligence and Security - AISec’19, 2019.
78. Aryal, A., Stricklin, I., Behzadirad, M., Branch, D. W., Siddiqui, A., & Busani, T. (2022).
High-Quality Dry Etching of LiNbO3 Assisted by Proton Substitution through H2-Plasma
Surface Treatment. Nanomaterials, 12(16), 2836.
79. Paldi, Robynne L., Arjun Aryal, Mahmoud Behzadirad, Tito Busani, Aleem Siddiqui, and
Haiyan Wang. "Nanocomposite-seeded Single-Domain Growth of Lithium Niobate Thin
Films for Photonic Applications." In 2021 Conference on Lasers and Electro-Optics (CLEO),
pp. 1-2. IEEE, 2021.
80. Shifat, A. Z., Stricklin, I., Chityala, R. K., Aryal, A., Esteves, G., Siddiqui, A., & Busani, T.
(2023). Vertical Etching of Scandium Aluminum Nitride Thin Films Using TMAH Solution.
Nanomaterials, 13(2), 274.
81. V. S. R. Kosuru and A. K. Venkitaraman, “Developing a Deep Q-Learning and Neural
Network Framework for Trajectory Planning”, EJENG, vol. 7, no. 6, pp. 148–157, Dec. 2022.
82. K. Venkitaraman and V. S. R. Kosuru, “Hybrid Deep Learning Mechanism for Charging
Control and Management of Electric Vehicles”, EJECE, vol. 7, no. 1, pp. 38–46, Jan. 2023.
83. Srinath Venkatesan, “Design an Intrusion Detection System based on Feature Selection Using
ML Algorithms”, MSEA, vol. 72, no. 1, pp. 702–710, Feb. 2023
84. Srinath Venkatesan, “Identification Protocol Heterogeneous Systems in Cloud Computing”,
MSEA, vol. 72, no. 1, pp. 615–621, Feb. 2023.

85. Cristian Laverde Albarracín, Srinath Venkatesan, Arnaldo Yana Torres, Patricio Yánez-
Moretta, Juan Carlos Juarez Vargas, “Exploration on Cloud Computing Techniques and Its
Energy Concern”, MSEA, vol. 72, no. 1, pp. 749–758, Feb. 2023.
86. Srinath Venkatesan, “Perspectives and Challenges of Artificial Intelligence Techniques in
Commercial Social Networks”Volume 21, No 5 (2023).
87. Srinath Venkatesan, Zubaida Rehman, “The Power Of 5g Networks and Emerging
Technology and Innovation: Overcoming Ongoing Century Challenges” Ion exchange and
adsorption, Volume 23, Issue 1, 2023.
88. Srinath Venkatesan, “Challenges of Datafication: Theoretical, Training, And Communication
Aspects of Artificial Intelligence” Ion exchange and adsorption. Volume 23, Issue 1, 2023.
89. Giovanny Haro-Sosa , Srinath Venkatesan, “Personified Health Care Transitions With
Automated Doctor Appointment System: Logistics”, Journal of Pharmaceutical Negative
Results, pp. 2832–2839, Feb. 2023
90. Srinath Venkatesan, Sandeep Bhatnagar, José Luis Tinajero León, "A Recommender System
Based on Matrix Factorization Techniques Using Collaborative Filtering Algorithm",
neuroquantology, vol. 21, no. 5, pp. 864-872, march 2023.
91. Srinath Venkatesan, "Utilization of Media Skills and Technology Use Among Students and
Educators in The State of New York", Neuroquantology, Vol. 21, No 5, pp. 111-124, (2023).
92. Srinath Venkatesan, Sandeep Bhatnagar, Iván Mesias Hidalgo Cajo, Xavier Leopoldo Gracia
Cervantes, "Efficient Public Key Cryptosystem for wireless Network", Neuroquantology, Vol.
21, No 5, pp. 600-606, (2023).
93. J. Cruz Ángeles, The legal-community obligations of the large digital service provider
platforms in the metaverse era, Cuad. transnational law , vol. 14, no. 2, p. 294-318, Sept.
2022.
94. J. Cruz Ángeles, The guardians of access to the metaverse. (Re)thinking the Competition Law
of the European Union, Cuad. transnational law , vol. 15, no. 1, p. 275-296, Mar. 2023.
95. A. R. Yeruva and V. B. Ramu, “Optimising AIOps system performance for e-commerce and
online retail businesses with the ACF model,” Int. J. Intellect. Prop. Manag., vol. 1, no. 1, p.
1, 2022.
96. Alshadidi, A. A. F., Alshahrani, A. A., Aldosari, L. I. N., Chaturvedi, S., Saini, R. S., Hassan,
S. A. B., Cicciù, M., & Minervini, G. (2023). Investigation on the Application of Artificial
Intelligence in Prosthodontics. Applied Sciences, 13(8), 5004.
97. B. Adgaonkar, D. R. Patil, and B. S. Borkar, ‘Availability-Aware Multi-Objective Cluster
Allocation Optimization in Energy-Efficient Datacenters’, in 2022 2nd Asian Conference on
Innovation in Technology (ASIANCON), 2022, pp. 1–6.
98. B. S. Borkar, D. R. Patil, A. V. Markad, and M. Sharma, ‘Real or Fake Identity Deception of
Social Media Accounts using Recurrent Neural Network’, in 2022 International Conference
on Fourth Industrial Revolution Based Technology and Practices (ICFIRTP), 2022, pp. 80–84.
99. B. T. Devi, and R. Rajasekaran, “A Comprehensive Review on Deepfake Detection on Social
Media Data,” FMDB Transactions on Sustainable Computing Systems., vol. 1, no. 1, pp. 11–
20, 2023.

100. Batool, Kiran; Zhao, Zhen-Yu; Irfan, Muhammad; Żywiołek, Justyna (2023): Assessing the
role of sustainable strategies in alleviating energy poverty: an environmental sustainability
paradigm. w: Environ Sci Pollut Res, s. 1–22.
101. D. R. Patil and M. Sharma, ‘Dynamic Resource Allocation and Memory Management Using
Machine Learning for Cloud Environments’, International Journal of Advanced Trends in
Computer Science and Engineering, vol. 9, no. 04, pp. 5921–5927, 2020.
102. D. R. Patil and R. Purohit, ‘Dynamic Resource Allocation and Memory Management using
Deep Convolutional Neural Network’, IJEAT, vol. 9, no. 02, pp. 608–612, 2019.
103. D. R. Patil, B. Borkar, A. Markad, S. Kadlag, M. Kumbhkar, and A. Jamal, ‘Delay Tolerant
and Energy Reduced Task Allocation in Internet of Things with Cloud Systems’, in 2022
International Interdisciplinary Humanitarian Conference for Sustainability (IIHC), 2022, pp.
1579–1583.
104. D. R. Patil, B. S. Borkar, A. V. Markad, and H. P. Singh, ‘Applications of Artificial
Intelligence using Baye’s Theorem: Survey’, Universal Review, vol. 8, no. 02, pp. 198–203,
2019.
105. D. R. Patil, G. Mukesh, S. Manish, and B. Malay, ‘Memory and Resource Management for
Mobile Platform in High Performance Computation Using Deep Learning’, ICIC Express
Letters:Part B: Applications, vol. 13, no. 9, pp. 991–1000, 2022.
106. D. Uike, S. Agarwalla, V. Bansal, M. K. Chakravarthi, R. Singh and P. Singh, "Investigating
the Role of Block Chain to Secure Identity in IoT for Industrial Automation," 2022 11th
International Conference on System Modeling & Advancement in Research Trends
(SMART), Moradabad, India, 2022, pp. 837-841.
107. Kaur, K., Suneja, B., Jodhka, S., Saini, R. S., Chaturvedi, S., Bavabeedu, S. S., Alhamoudi, F.
H., Cicciù, M., & Minervini, G. (2023). Comparison between Restorative Materials for
Pulpotomised Deciduous Molars: A Randomized Clinical Study. Children, 10(2), 284.
108. Khan, Muhammad Asghar; Kumar, Neeraj; Mohsan, Syed Agha Hassnain; Khan, Wali Ullah;
Nasralla, Moustafa M.; Alsharif, Mohammed H. i wsp. (2023): Swarm of UAVs for Network
Management in 6G: A Technical Review. w: IEEE Trans. Netw. Serv. Manage. 20 (1), s.
741–761.
109. Kumar A, Saini RS, Sharma V , Rai R U , Gupta P, Sabharwal P ( 2021) , Assessment of
Pattern of Oral Prosthetic Treatment and Prevalence of Oral Diseases in Edentulous Patients
in North Indian Population: A Cross-sectional Study. J Pharm Bioallied Sci. 2021 Jun;
13(Suppl 1): S187–S189.
110. M. Atasever, “Resilient Management in Action: A Comparative Analysis of Strategic
Statements in German and Turkish Retail Chain Markets,” FMDB Transactions on
Sustainable Management Letters., vol. 1, no. 2, pp. 66-81, 2023.
111. M. Ravinder and V. Kulkarni, "A Review on Cyber Security and Anomaly Detection
Perspectives of Smart Grid," 2023 5th International Conference on Smart Systems and
Inventive Technology (ICSSIT), Tirunelveli, India, 2023, pp. 692-697.
112. Mohamed J. Saadh, Andrés Alexis Ramírez-Coronel, Ravinder Singh Saini, José Luis Arias-
Gonzáles, Ali H. Amin, Juan Carlos Orosco Gavilán & Ioan Sârbu ( 2023) Advances in

mesenchymal stem/stromal cell-based therapy and their extracellular vesicles for skin wound
healing .Human Cell (2023).
113. Mohsan, Syed Agha Hassnain; Othman, Nawaf Qasem Hamood; Khan, Muhammad Asghar;
Amjad, Hussain; Żywiołek, Justyna (2022): A Comprehensive Review of Micro UAV
Charging Techniques. w: Micromachines 13 (6).
114. P.P. Anand, U. K. Kanike, P. Paramasivan, S. S. Rajest, R. Regin, S. S. Priscila, “Embracing
Industry 5.0: Pioneering Next-Generation Technology for a Flourishing Human Experience
and Societal Advancement,” FMDB Transactions on Sustainable Social Sciences Letters, vol.
1, no. 1, pp. 43–55, 2023.
115. P.S. Venkateswaran, S. Singh, P. Paramasivan, S. S. Rajest, M. E. Lourens, R. Regin, “A
Study on The Influence of Quality of Service on Customer Satisfaction Towards Hotel
Industry,” FMDB Transactions on Sustainable Social Sciences Letters, vol. 1, no. 1, pp. 1–11,
2023.
116. R S Gaayathri, S. S. Rajest, V. K. Nomula, R. Regin, “Bud-D: Enabling Bidirectional
Communication with ChatGPT by adding Listening and Speaking Capabilities,” FMDB
Transactions on Sustainable Computer Letters., vol. 1, no. 1, pp. 49–63, 2023.
117. Rathi, S., Chaturvedi, S., Abdullah, S., Rajput, G., Alqahtani, N. M., Chaturvedi, M.,
Gurumurthy, V., Saini, R., Bavabeedu, S. S., & Minervini, G. (2023). Clinical Trial to Assess
Physiology and Activity of Masticatory Muscles of Complete Denture Wearer Following
Vitamin D Intervention. Medicina, 59(2), 410.
118. Ravinder M and Kulkarni V (2023), Intrusion detection in smart meters data using machine
learning algorithms: A research report. Front. Energy Res. 11:1147431.
119. S. Degadwala, D. Vyas, A. Jadeja, and D. D. Pandya, “Empowering Maxillofacial Diagnosis
Through Transfer Learning Models,” in 2023 5th International Conference on Inventive
Research in Computing Applications (ICIRCA), 2023, pp. 728–732.
120. S. Degadwala, D. Vyas, A. Jadeja, and D. D. Pandya, “Enhancing Alzheimer Stage
Classification of MRI Images through Transfer Learning,” in 2023 5th International
Conference on Inventive Research in Computing Applications (ICIRCA), 2023, pp. 733–737.
121. S. Degadwala, D. Vyas, A. Kothari, and U. Khunt, “Cancer Death Cases Forecasting using
Supervised Machine Learning,” in 2023 4th International Conference on Electronics and
Sustainable Communication Systems (ICESC), 2023, pp. 903–907.
122. S. Degadwala, D. Vyas, K. N. Patel, M. Soni, P. P. Singh, and R. Maranan, “Optimizing
Hindi Paragraph Summarization through PageRank Method,” in 2023 2nd International
Conference on Edge Computing and Applications (ICECAA), 2023, pp. 504–509..
123. S. Lodha, H. Malani, A. K. Bhardwaj, “Performance Evaluation of Vision Transformers for
Diagnosis of Pneumonia,” FMDB Transactions on Sustainable Computing Systems., vol. 1,
no. 1, pp. 21–31, 2023.
124. S. S. Priscila, S.S. Rajest, S. N. Tadiboina, R. Regin and S. András, “Analysis of Machine
Learning and Deep Learning Methods for Superstore Sales Prediction,” FMDB Transactions
on Sustainable Computer Letters., vol. 1, no. 1, pp. 1–11, 2023.
125. S. Sajini, L. T. Reddi, R. Regin, S. S. Rajest, “A Comparative Analysis of Routing Protocols

for Efficient Data Transmission in Vehicular Ad Hoc Networks (VANETs),” FMDB

Transactions on Sustainable Computing Systems., vol. 1, no. 1, pp. 1–10, 2023.
126. S. Sonnad, M. Sathe, D. K. Basha, V. Bansal, R. Singh and D. P. Singh, "The Integration of
Connectivity and System Integrity Approaches using Internet of Things (IoT) for Enhancing
Network Security," 2022 5th International Conference on Contemporary Computing and
Informatics (IC3I), Uttar Pradesh, India, 2022, pp. 362-366.
127. Solanki, J., Jain, R., Singh, R., Gupta, S., Arya, A., & Tomar, D. (2015). Prevalence of
Osteosclerosis Among Patients Visiting Dental Institute in Rural Area of Western India.
Journal of clinical and diagnostic research : JCDR, 9(8), ZC38–ZC40.
128. Tucmeanu, Elena Roxana; Tucmeanu, Alin Iulian; Iliescu, Madalina Gabriela; Żywiołek,
Justyna; Yousaf, Zahid (2022): Successful Management of IT Projects in Healthcare
Institutions after COVID-19: Role of Digital Orientation and Innovation Adaption. w:
Healthcare (Basel, Switzerland) 10 (10).
129. V. B. Ramu and A. R. Yeruva, “AIOps research innovations, performance impact and
challenges faced,” Int. J. Syst. Syst. Eng., vol. 13, no. 3, p. 1, 2023.
130. V. Bansal, S. Pandey, S. K. Shukla, D. Singh, S. A. Rathod and J. L. A. Gonzáles, "A Frame
Work of Security Attacks, Issues Classifications and Configuration Strategy for IoT Networks
for the Successful Implementation," 2022 5th International Conference on Contemporary
Computing and Informatics (IC3I), Uttar Pradesh, India, 2022, pp. 1336-1339.
131. V. Gomathy, and S. Venkatasbramanian, “Impact of Teacher Expectations on Student
Academic Achievement,” FMDB Transactions on Sustainable Techno Learning., vol. 1, no. 2,
pp. 78 –91, 2023.
132. V. Gunturu, V. Bansal, M. Sathe, A. Kumar, A. Gehlot and B. Pant, "Wireless
Communications Implementation Using Blockchain as Well as Distributed Type of IOT,"
2023 International Conference on Artificial Intelligence and Smart Communication (AISC),
Greater Noida, India, 2023, pp. 979-982.
133. V. N. D. Krishnamurthy, S. Degadwala, and D. Vyas, “Forecasting Future Sea Level Rise: A
Data-driven Approach using Climate Analysis,” in 2023 2nd International Conference on
Edge Computing and Applications (ICECAA), 2023, pp. 646–651.
134. V. Suthar, V. Bansal, C. S. Reddy, J. L. A. Gonzáles, D. Singh and D. P. Singh, "Machine
Learning Adoption in Blockchain-Based Smart Applications," 2022 5th International
Conference on Contemporary Computing and Informatics (IC3I), Uttar Pradesh, India, 2022,
pp. 372-378.
135. Żywiołek, Justyna; Tucmeanu, Elena Roxana; Tucmeanu, Alin Iulian; Isac, Nicoleta; Yousaf,
Zahid (2022): Nexus of Transformational Leadership, Employee Adaptiveness, Knowledge
Sharing, and Employee Creativity. w: Sustainability 14 (18), s. 11607.


Loading and Unloading by Pneumatic Arm Bot Using Programmable Logic Controller (PLC)

Uploaded by

Document Information

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

Loading and Unloading by Pneumatic Arm Bot Using Programmable Logic Controller (PLC)

Uploaded by

Copyright:

Available Formats

CENTRAL ASIAN JOURNAL OF THEORETICAL

AND APPLIED SCIENCES

Loading and Unloading by Pneumatic Arm Bot Using Programmable

© 2023, CAJOTAS, Central Asian Studies, All Rights Reserved 59

© 2023, CAJOTAS, Central Asian Studies, All Rights Reserved 60

© 2023, CAJOTAS, Central Asian Studies, All Rights Reserved 61

Figure 1: Programmable logic controller

and output devices, are all kept in RAM (fig.2).

Figure 2: Hardware blocks of a PLC

© 2023, CAJOTAS, Central Asian Studies, All Rights Reserved 62

© 2023, CAJOTAS, Central Asian Studies, All Rights Reserved 63

© 2023, CAJOTAS, Central Asian Studies, All Rights Reserved 64

© 2023, CAJOTAS, Central Asian Studies, All Rights Reserved 65

11) Programming Languages

12) Ladder Logic:

Producing energy is an expensive endeavour, and accurate monitoring of consumption necessitates

© 2023, CAJOTAS, Central Asian Studies, All Rights Reserved 66

© 2023, CAJOTAS, Central Asian Studies, All Rights Reserved 67

Figure 5: Current transformers of various shapes

© 2023, CAJOTAS, Central Asian Studies, All Rights Reserved 68

1) Input rectifier stage

© 2023, CAJOTAS, Central Asian Studies, All Rights Reserved 69

3) Voltage converter and output rectifier

© 2023, CAJOTAS, Central Asian Studies, All Rights Reserved 70

© 2023, CAJOTAS, Central Asian Studies, All Rights Reserved 71

Figure 7: A relay and its contacts

© 2023, CAJOTAS, Central Asian Studies, All Rights Reserved 72

© 2023, CAJOTAS, Central Asian Studies, All Rights Reserved 73

© 2023, CAJOTAS, Central Asian Studies, All Rights Reserved 74

Pressure Range - (10 to 15 bar) Type - Liver Type (Manual Operated)

Figure 8: working module

© 2023, CAJOTAS, Central Asian Studies, All Rights Reserved 75

© 2023, CAJOTAS, Central Asian Studies, All Rights Reserved 76

© 2023, CAJOTAS, Central Asian Studies, All Rights Reserved 77

© 2023, CAJOTAS, Central Asian Studies, All Rights Reserved 78

© 2023, CAJOTAS, Central Asian Studies, All Rights Reserved 79

© 2023, CAJOTAS, Central Asian Studies, All Rights Reserved 80

© 2023, CAJOTAS, Central Asian Studies, All Rights Reserved 81

© 2023, CAJOTAS, Central Asian Studies, All Rights Reserved 82

© 2023, CAJOTAS, Central Asian Studies, All Rights Reserved 83

© 2023, CAJOTAS, Central Asian Studies, All Rights Reserved 84

for Efficient Data Transmission in Vehicular Ad Hoc Networks (VANETs),” FMDB

© 2023, CAJOTAS, Central Asian Studies, All Rights Reserved 85

You might also like
