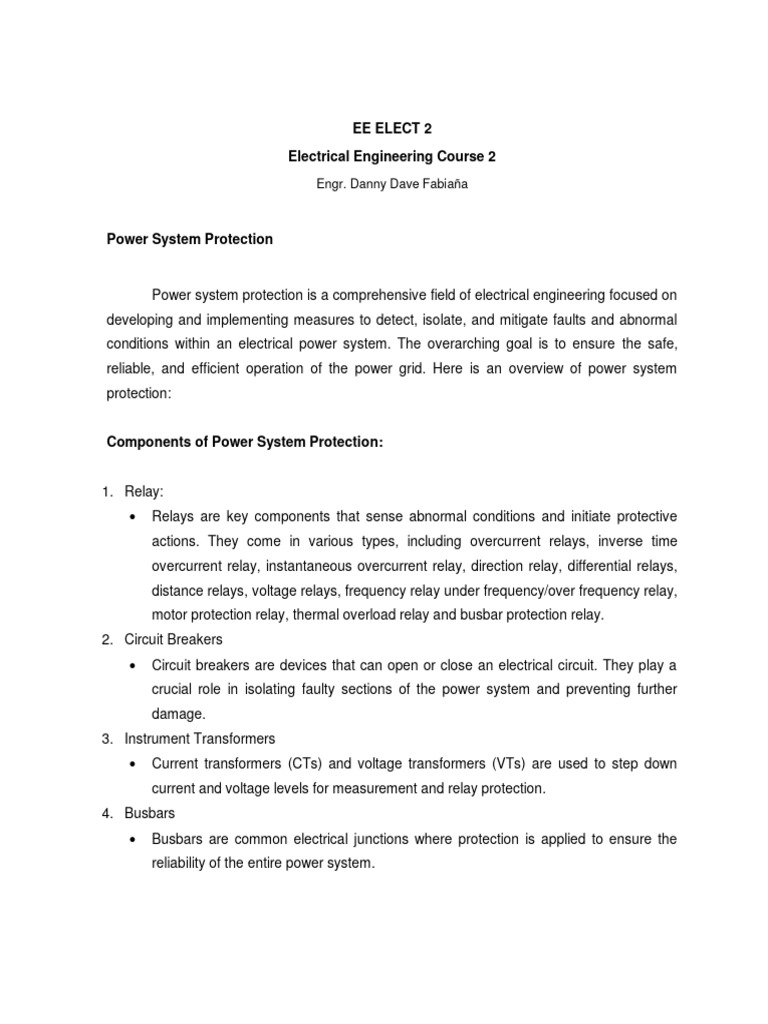

EE ELECT 2

Electrical Engineering Course 2


Engr. Danny Dave Fabiaña

Power System Protection

Power system protection is a comprehensive field of electrical engineering focused on


developing and implementing measures to detect, isolate, and mitigate faults and abnormal
conditions within an electrical power system. The overarching goal is to ensure the safe,
reliable, and efficient operation of the power grid. Here is an overview of power system
protection:

Components of Power System Protection:

1. Relay:
 Relays are key components that sense abnormal conditions and initiate protective
actions. They come in various types, including overcurrent relays, inverse time
overcurrent relay, instantaneous overcurrent relay, direction relay, differential relays,
distance relays, voltage relays, frequency relay under frequency/over frequency relay,
motor protection relay, thermal overload relay and busbar protection relay.
2. Circuit Breakers
 Circuit breakers are devices that can open or close an electrical circuit. They play a
crucial role in isolating faulty sections of the power system and preventing further
damage.
3. Instrument Transformers
 Current transformers (CTs) and voltage transformers (VTs) are used to step down
current and voltage levels for measurement and relay protection.
4. Busbars
 Busbars are common electrical junctions where protection is applied to ensure the
reliability of the entire power system.
Types of protective systems in power systems

1. Overcurrent Protection:
 Function: Protects against excessive current flow due to faults or overload
 Devices: Overcurrent relays, fuses, and circuit breakers.
2. Differential Protection:
 Function: Protects equipment by comparing the current entering and leaving the

protected zone. It operates if there is a difference, indicating a fault.

 Devices: Differential relays for transformers, generators, and motors.


3. Distance Protection:
 Measures the impedance to a fault location and initiates protective actions if the fault is
beyond a predefined distance.
 Devices: Distance relays.
4. Voltage Protection:
 Function: Monitors voltage levels and initiates protective actions in case of overvoltage

or under-voltage conditions.

 Devices: Voltage relays and under/overvoltage protection devices.


5. Frequency Protection:
 Function: Protects against abnormal frequency variations, which can indicate system

instability.

 Devices: Frequency relays.


6. Generator Protection:
 Function: Provides comprehensive protection for generators against faults and

abnormal conditions.

 Devices: Differential relays, overcurrent relays, and other specialized protection devices.
7. Transformer Protection:
 Function: Ensures the reliable operation of transformers by detecting faults and

abnormal conditions.
 Devices: Differential relays, overcurrent relays, and temperature monitoring devices.

8. Motor Protection:
 Function: Protects motors from overloads, phase imbalances, and other faults.

 Devices: Overload relays, thermal relays, and motor protection relays.


9. Busbar Protection:
 Function: Protects busbars (common electrical junctions) against faults and abnormal

conditions.
 Devices: Differential relays and overcurrent relays.
10. Directional Protection:
 Function: Determines the direction of fault currents to selectively trip the appropriate

circuit breakers and isolate the fault.


 Devices: Directional relays.

Operating Principles:

1. Detection:
 Protection systems continuously monitor electrical parameters to detect abnormalities.
2. Decision Making
 Based on detected abnormalities, protection relays make decisions on whether
protective actions are necessary.
3. Initiation of Protective Actions
 Protective actions can include tripping circuit breakers, isolating faulty equipment, and
alarming operators.
Challenges and Advances:

1. Adaptability:
 Protection systems must adapt to changes in power system configurations, load
variations, and the integration of renewable energy sources.
2. Communication-Based Protection:
 Advances in communication technologies enable more coordinated and faster
protection schemes.
3. Cybersecurity:
 W ith the increasing use of digital devices, ensuring the cybersecurity of protection
systems is a growing concern.

Importance of power system protection:

1. Equipment Protection:
 Power system protection safeguards critical and expensive equipment such as
generators, transformers, motors, and switchgear from damage caused by faults,
overloads, or other abnormal conditions.
2. System Reliability:
 Protection systems enhance the reliability of power systems by preventing cascading
failures and minimizing downtime. Quick and effective fault detection and isolation
help maintain continuity of power supply to consumers.
3. Personal Safety:
 Power system protection plays a crucial role in ensuring the safety of personnel
working with or around electrical equipment. By rapidly isolating faulty sections, it
helps prevent hazards such as electric shocks and arc flashes.
4. Minimizing System Damage:
 Timely intervention by protection systems minimizes damage to power system
components and prevents the escalation of faults, reducing repair costs and system
downtime.
5. System Stability:
 Protection devices contribute to the stability of the power system by preventing the
spread of faults and disturbances. This is essential for maintaining the overall stability
and operability of the electrical grid.
6. Preventing Blackouts:
 Faults in the power system, if not promptly detected and isolated, can lead to
widespread blackouts. Protection systems help prevent such events by isolating faulty
sections and maintaining system stability.
7. Asset Longevity:
 Effective protection measures contribute to the longevity of power system assets. By
preventing stress and damage during abnormal conditions, protection systems help
extend the lifespan of equipment.
8. Efficient Operation:
 Power system protection ensures the efficient operation of the electrical grid by
avoiding unnecessary shutdowns and maintaining optimal conditions for equipment
performance.
9. Compliance with standards:
 Adhering to established protection standards and practices is essential for ensuring
the safety and reliability of power systems. Protection systems help utilities comply
with industry regulations and standards.
10. Adaptability to System Changes:
 Protection systems need to be adaptable to changes in the power system
configuration, such as the addition of new equipment or modifications. This
adaptability ensures continued effectiveness in protecting the evolving power system.
