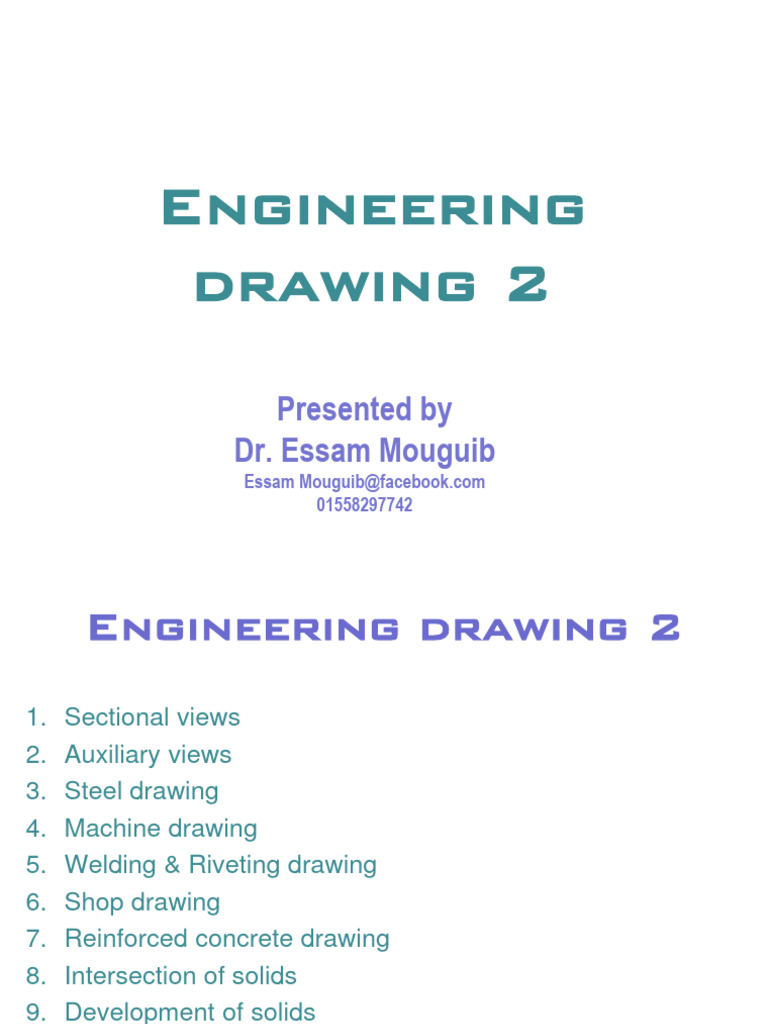

Engineering

drawing 2
Presented by
Dr. Essam Mouguib
Essam Mouguib@facebook.com
01558297742
 Engineering drawing 2
1. Sectional views
2. Auxiliary views
3. Steel drawing
4. Machine drawing
5. Welding & Riveting drawing
6. Shop drawing
7. Reinforced concrete drawing
8. Intersection of solids
9. Development of solids
10. Electrical drawing
 lec 1
SECTIONAL
VIEWS

Presented by
Dr. Essam Mouguib
Essam Mouguib@facebook.com
01005080919
 Introduction
• A section is an imaginary cut taken through an
object to reveal the shape or interior construction
 Introduction
• Full Section of a flange
 Types of
Sectional Views
Types of Sectional Views
• Full-Sectional view
Types of Sectional Views
• Half-Sectional view
Types of Sectional Views
• Offset Sections
Types of Sectional Views
• Revolved (Rotated) Section
Types of Sectional Views
• Removed Section
Types of Sectional Views
• Partial Section
Types of Sectional Views
• Local Section
 Types of Sectional Views
• Assembly Section

Assembly sections consist of a combination of parts

Proper Drawing
of Sectional
Views
Proper Drawing of
Sectional Views
Rule 1
Sections are primarily used to
replace hidden lines with
visible lines. As a rule, hidden
lines and surfaces should be
omitted in sectional views.
Correct

False
 Proper Drawing of
Sectional Views
Rule 2
There are some engineering details that, if sectioned, lose their
identity or create a wrong impression and these items are never
shown sectioned.
 Proper Drawing of
Sectional Views
Rule 2
The rib, if cut by a cutting plane for the whole of its surface, will
not be hatched.
 Proper Drawing of
Sectional Views
Rule 2
A list of some items which are not being sectioned is shown in
table
 Proper Drawing of
Sectional Views
Rule 3
The hatch lines indicating
the section in a casted item
are continuous, i.e. no solid
line separates the different
components of a casted
item.
Example
Looking from the direction of the
arrow, draw the sectional front
view and the top view of the shown
mechanical item
 Proper Drawing of
Sectional Views
Rule 3 Correct
False
Section Lining
(Cross-
Hatching)
EXAMPLE
Example
•Draw the sectional
front view for the
section XX and the
LHS view of the
casting
SOLUTION
PROBLEMS
Draw to scale 1:1 the front, top
and side sectional views of the
following objects
1
2
3
4
5
6
7
8
9
10
Draw to scale 1:1 the missing
sectional view of the following
two views
11
12
13
14
15
