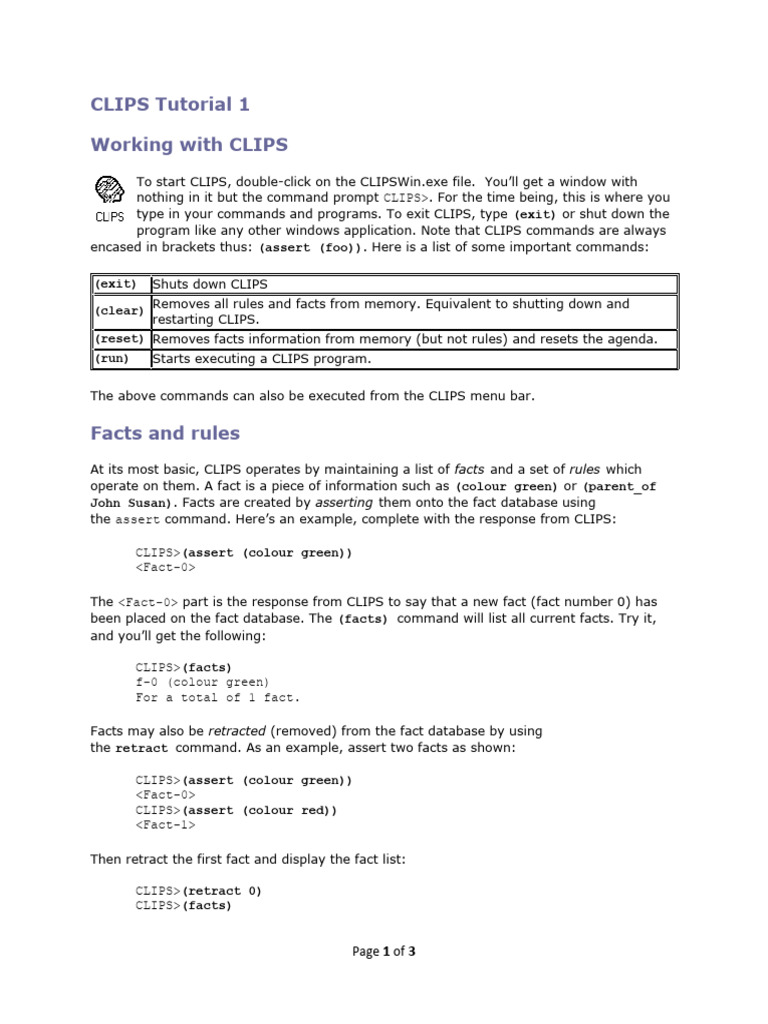

CLIPS Tutorial 1

Working with CLIPS

To start CLIPS, double-click on the CLIPSWin.exe file. You’ll get a window with
nothing in it but the command prompt CLIPS>. For the time being, this is where you
type in your commands and programs. To exit CLIPS, type (exit) or shut down the
program like any other windows application. Note that CLIPS commands are always
encased in brackets thus: (assert (foo)). Here is a list of some important commands:

(exit) Shuts down CLIPS

(clear) Removes all rules and facts from memory. Equivalent to shutting down and
restarting CLIPS.
(reset) Removes facts information from memory (but not rules) and resets the agenda.
(run) Starts executing a CLIPS program.

The above commands can also be executed from the CLIPS menu bar.

Facts and rules

At its most basic, CLIPS operates by maintaining a list of facts and a set of rules which
operate on them. A fact is a piece of information such as (colour green) or (parent_of
John Susan). Facts are created by asserting them onto the fact database using
the assert command. Here’s an example, complete with the response from CLIPS:

CLIPS>(assert (colour green))

<Fact-0>

The <Fact-0> part is the response from CLIPS to say that a new fact (fact number 0) has
been placed on the fact database. The (facts) command will list all current facts. Try it,
and you’ll get the following:

CLIPS>(facts)
f-0 (colour green)
For a total of 1 fact.

Facts may also be retracted (removed) from the fact database by using
the retract command. As an example, assert two facts as shown:

CLIPS>(assert (colour green))

<Fact-0>
CLIPS>(assert (colour red))
<Fact-1>

Then retract the first fact and display the fact list:

CLIPS>(retract 0)
CLIPS>(facts)

Page 1 of 3
 f-1 (colour red)
For a total of 1 fact.

There are two things to note here: firstly, to retract a fact you must specify a number
(the fact-index), not the fact itself, and secondly, fact-indices are not reused. Once fact 0
has been retracted, the next fact asserted will have the index 2, not 0.

Facts on their own are of only limited use. The application of rules is necessary to develop a
program capable of some useful function. In general, a rule is expressed in the form ‘IF
something is true THEN do some action’. This kind of rule is known as a production. For this
reason, rule-based expert systems are often known as production systems (CLIPS actually
stands for C Language Integrated Production System). In CLIPS, a typical rule looks like
this:

(defrule duck
(animal-is duck)
=>
(assert (sound-is quack)))

The rule consists of three parts. The first part, (defrule duck, simply gives the rule a
unique name. The second part, (animal-is duck), is the pattern (the IF part) of the rule
and the last part, (assert (sound-is quack)), is the action (the THEN part). In plain
language, this rule means ‘if there is a fact (animal-is duck) on the fact database, then
assert another fact, (sound-is quack), onto the fact database’. Try it. Clear the system,
then type in the rule exactly as printed above. Typing (rules) will give you a list of rules
(just the one, in this case) present in the system. At this point, there are no facts present.
Now, type (assert (animal-is duck)). Check the fact list - there’s one fact. To trigger
your rule, type (run). Although nothing appears to happen, if you check the fact list again
you’ll see that there is a new fact, (sound-is quack), which has been inferred by the rule.
This is the power of rule-based programming - the ability to make inferences from data,
particularly as the results of one rule can be used as the pattern for another. Add the rule

(defrule is-it-a-duck
(animal-has webbed-feet)
(animal-has feathers)
=>
(assert (animal-is duck)))

Then type (reset) to clear the facts (the rules will be untouched). Note that this rule has
two patterns. Both must be satisfied for the action to be taken. This translates to ‘IF the
animal has webbed feet AND the animal has feathers THEN the animal is a duck’
(taxonomists and pedants may disagree with this rule). If you now assert the
facts (animal-has webbed-feet) and (animal-has feathers) there will be two facts
present. (run) the rules, and suddenly there are four. Firstly, rule is-it-a-duck has fired,
asserting the fact (animal-is duck). This fact has then triggered rule duck, which has
asserted the fact (sound-is quack). Very powerful systems can be built using this ability
to chain rules.

Asserting facts is a rather unsatisfactory way of presenting results. Type in the first rule
again, this time with the multiple actions as shown below:

Page 2 of 3
 (defrule duck
(animal-is duck)
=>
(assert (sound-is quack))
(printout t "it’s a duck" crlf))

Next time you run the rules, you'll get a message on screen as well as the asserted quack
fact.

It’s rather inefficient having to type all your rules in each time you run CLIPS.
Fortunately, you can load them from a file using the ‘Load Constructs..’ command
on the file menu. CLIPS will expect a file with the extension .CLP, and there’s a
handy editor to help you create them. You can’t put facts in a .CLP file in the
same way as you can from the command prompt, so for now you’ll still enter them as
before.

Here’s a more complex

example of rules and
facts. The decision tree
opposite represents a
small section of the
diagnosis of a car’s failure
to start. Each rounded
box is a recommended
remedy. Each rectangular
box is piece of evidence,
which might be
represented by a fact
such as (lights-working
no) or (petrol yes).
Each connecting path to a
remedy represents a rule,
for example ‘IF starter is
turning AND there is no
petrol THEN buy some
petrol’.
