CHAPTER 2

SITE ANALYSIS

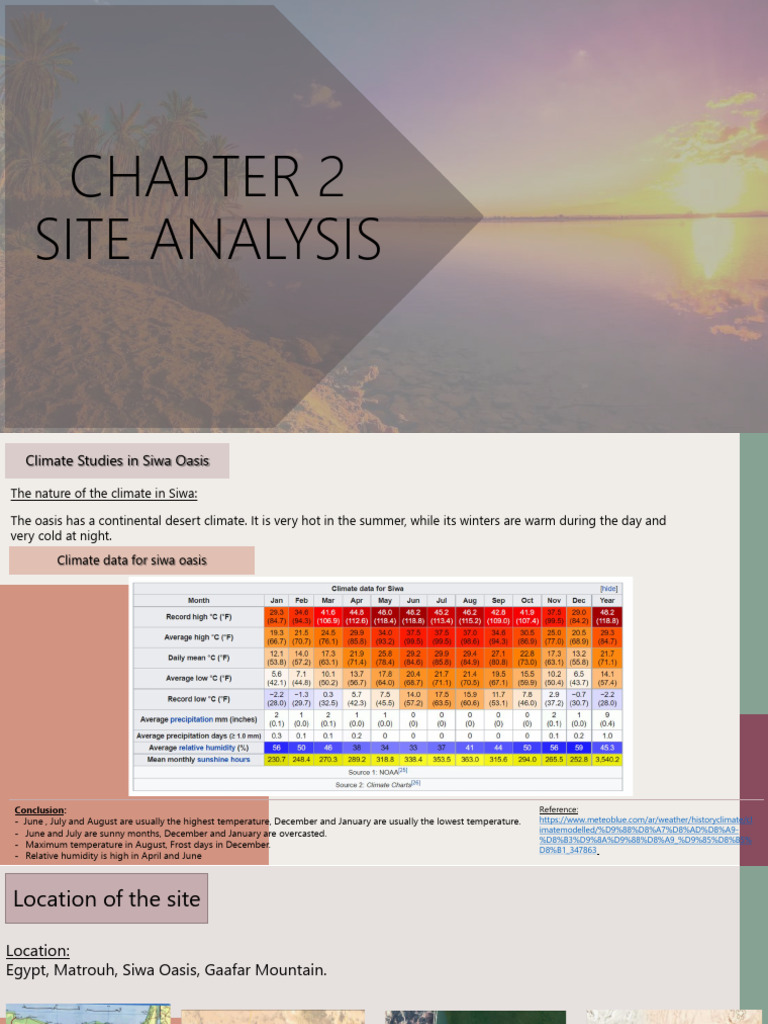

 Climate Studies in Siwa Oasis

The nature of the climate in Siwa:

The oasis has a continental desert climate. It is very hot in the summer, while its winters are warm during the day and
very cold at night.
Climate data for siwa oasis

Conclusion: Reference:
- June , July and August are usually the highest temperature, December and January are usually the lowest temperature. https://www.meteoblue.com/ar/weather/historyclimate/cl
- June and July are sunny months, December and January are overcasted. imatemodelled/%D9%88%D8%A7%D8%AD%D8%A9-
%D8%B3%D9%8A%D9%88%D8%A9_%D9%85%D8%B5%
- Maximum temperature in August, Frost days in December. D8%B1_347863
- Relative humidity is high in April and June
Location of the site

Location:
Egypt, Matrouh, Siwa Oasis, Gaafar Mountain.
 SIWA OASIS’ ROADS

Masra Matrouh
airport

305km

Marsa Matrouh-
Siwa Road

The nearest airport to siwa Oasis Siwa’s main roads

Conclusion:
 Main road
ROADS THAT LEAD TO ACCESS Sub-route
TO THE SITE OF PROJECT Secondary road

Conclusion:
 Residential area Gaafar Mountain
Plot determinants : for the people of
Siwa
Total Area of the land of the project : 63000 -
m^2 = 15 acre .
Plot determinants :
- To the north of the plot is Jabal Jafar
- To the east of the project is the Imlal Hotel
- On the northwest of the project there is a
residential area for Siwa residents
- There is a main road that allows easy access to Adrere Amellal
the project Resort
- The plot overlooks Siwa Lake

Features of the plot:

- The land is flat and has no terrain.
- The plot of land overlooks Siwa Lake. Fotnas Lake
- There is a main road directly to the plotLand
identifiers.
- suitable for the project function.
- The mountainous nature of the placeprivacy
and quiet. The proposed
Land defects: plot of land
- The nature of the desert continental climate, as
it is very hot in the summer and very cold at night Main Road
in the winter.
- Public services are far from the site of the land.
Conclusion:
Site analysis and see if the chosen site is suitable or not.
Find out if the locator is suitable or not.
Plot determinants : Gaafar Mountain

Adrere Amellal
Resort

Fotnas Lake

Residential area
for the people of
Siwa The proposed
plot of land

Main Road

Conclusion:
The site is suitable for the project function.
 Site Analysis

Location:
Egypt – Matrouh - Siwa
Oasis.
Site area: 157,936 square
meters equal to 39 acres.

Siwa
Oasis

Land Markers:
• In the north of the earth is Mount
MandiIn. mountain mandy
• In the south of the earth there is Lake
Siwa.
• In the East of the land there are
residential areas and farms. main road
• In the West of the earth there are
hotels and farms. farms area Residential
area
sub-route

Abu Bakr Island

Golden Resort MBIAMA HOTEL
 CHAPTER 3
CASE STUDIES
NARZISSEN BAD
AUSSEE:

❖ Architect: Schultz Architektur

❖ Area : 6641 m²
❖ Year : 2013
❖ City : Bad Aussee
❖ Country : Austria
 Layout of Resort
Embedded in the breath taking mountain landscape of the Salzkammergut, the new thermal resort
“Narzissenbad Aussee” is located in Austria´s geographical heart and well-known recreational area Bad
Aussee. Building tradition and modernity are combined to a contemporary architecture representing a
mixture of domestic materials and new expressive design. The accentuated difference in height refers to the
surrounding landscape that is defined by its characteristic mountains. Depending on the point of view, the
shape of the circumferential structure is designed to act as a continuation of the alpine skyline or to stand out
as an independent, topographical point.

LAYOUT PLAN
Reference:
Conclusion:
Bridging the tension between tradition and modernity
 Plan of Spa

Restaurant and Food corner

Kitchen

Changing Rooms

Brine Bath

Swimming Area

Swimming pools

Sanitary Facilities

Entrance Hall

Reception

Administration / Back Office

Stairs and elevators

Ground Floor
Reference:
Conclusion: https://www.archdaily.com/797219/narzissenbad-aussee-spa-resort-
schulz-architektur/57fead6fe58ecee522000083-narzissenbad-aussee-
spa-resort-schulz-architektur-ground-floor?next_project=no
 Plan of Spa

Restaurant and Food corner

Outdoor
Resting
pool Kitchen
Area
Changing Rooms

Brine Bath
Administration
sauna
Swimming Area

Stairs
Swimming pools
& Gest
elevat area Sanitary Facilities
or
Entrance Hall

Sanitary Administration / Back Office

Storage

Stairs and elevators

Lower Floor
Reference:
Conclusion: https://www.archdaily.com/797219/narzissenbad-aussee-spa-resort-
schulz-architektur/57fead6fe58ecee522000083-narzissenbad-aussee-
spa-resort-schulz-architektur-ground-floor?next_project=no
 Section of Spa Local building tradition and modernity are
combined to a contemporary architecture
representing a mixture of domestic materials
and modern, expressive design. The sharp
and edgy form of the outer shell refers to
the characteristic mountain range
surrounding the area of Bad Aussee.

Reference:
Conclusion: https://www.archdaily.com/797219/narzissenbad-aussee-spa-resort-
schulz-architektur/57fead6fe58ecee522000083-narzissenbad-aussee-
spa-resort-schulz-architektur-ground-floor?next_project=no
 Elevations of Spa
The centrepiece of the resort is a brine grotto which
was symbolically shaped as a salt crystal to underline
the theme of brine itself. The interior design of the
swimming complex combines the picturesque nature
of the “Ausseerland-Salzkammergut” with the themes
of salt and brine.

Reference:
Conclusion: https://www.archdaily.com/797219/narzissenbad-aussee-spa-resort-
schulz-architektur/57fead6fe58ecee522000083-narzissenbad-aussee-
spa-resort-schulz-architektur-ground-floor?next_project=no
SORDO MADALENO
ARQUITECTOS:

❖ Architecture Directors: Javier Sordo

Madaleno de Haro, Fernando Sordo
Madaleno de Haro
❖ Project leaders: Boris Pena, Adrián Aguilar
Hernández.
❖ Program: Hotel.
❖ Construction area: 16,000 m2
❖ Land area: 64,912 m2.
❖ Design Date: 2018.
❖ Location: La Paz, Baja California Sur,
Mexico.
SORDO MADALENO
ARQUITECTOS CONCEPT:
A series of configuration studies helped determine that the architectural

solution should be based on a branching system. Each branch is translated

as a route to access the rooms, which runs parallel to the slope of the hill.

The housing units move at an angle of 23 degrees of opening. The angles

between each branch were designed to be open enough for any room to

maintain an uninterrupted visual connection with the Sea of Cortez.

In spite of providing direct views towards the ocean, peripheral views

of other rooms are still presented, which breaks the feeling of privacy

and isolation within the nature of the place - a condition that was

sought for this project. To create the sensation of zero interruptions

within the landscape, a smooth, wavy surface was designed that

integrates each room into a single formal organic gesture, which

gradually separates and reconnects with the landscape.

 Layout of Resort
1-Main Street

2- Motor Lobby

3- Reception & Lobby bar

4- Restaurant

5- Spa

6- Gym

7- Suite wellness

8- car parking

9- Service

10- Suite

11- Villa Double

12- Villa Royal

13- pool and beach club

14- library and meeting room

Reference:
Conclusion: https://www.archdaily.com/927969/sordo-madaleno-
The design overlapped the slope and made a planted cover to blend in with nature architects-designs-new-project-for-mexicos-sea-of-
cortez
 Plan of Resort
Chablé is a growing group of ultra-luxury spas and
resorts that has won multiple awards in recent years for a
formula focused on leveraging its context to achieve a
specific experience of each place. With this in mind, they
contacted the Mexican office Sordo Madaleno
Arquitectos to design a headquarters in the Sea of
Cortez. The project entitled, Chablé Sea of Cortez is
located on land that consists of an undeveloped beach
located between two hills that overlook the ocean with
elevated views and direct access to a main road south of
La Paz. This covers a total of 64,912 square meters.
The masterplan's solution was based on placing half of
the units in the rooms on each hill to have uninterrupted
views of the ocean; the lobby and beach services are
located in the valley a short distance from the coast;
operational services near the main road; and the spa
right in the middle of the beach and the main road,
oriented inland. Of the 50 units required, the rooms are
divided into standard with 120 m2, double villas of 409
m2 and the Villa Real of 500 m2. In addition, an
important spa is included, as well as other amenities:
restaurants, event space and boutique. This program,
together with the administrative services, Wellness Villas
PLAN
and branded residences, total a total of 15,767 m2.
Reference:
Conclusion: https://www.archdaily.com/927969/sordo-madaleno-
The design overlapped the slope and made a planted cover to blend in with nature architects-designs-new-project-for-mexicos-sea-of-
cortez
Sections of Resort

Reference:
Conclusion: https://www.archdaily.com/927969/sordo-madaleno-
The units are designed in a streamlined way to overlap with the landscape. architects-designs-new-project-for-mexicos-sea-of-
cortez
Initial program for the project
Resort

Food
Hotel Healing Fitness Green Sports Horses
Chalets MPU Clinics court
150 center center Area Fields outdoor Stable

Laborato Psychiatr Entrance

Entrance
ry ic Clinics

Receptio
Receptio n hall
n hall

Restaura Gyms
nt

Aerobics
Kitchen Storage Rooms

Yoga
Manage Single
Rooms
ment Rooms

WC and
Double changin
Rooms Rooms g room

Suite
 CHAPTER 5
SUSTAINABILITY
 DEFINITION OF
“SUSTAINABILITY”:

- Definition of “ Sustainability” : Sustainability is a concept called

the biological environment of a variety of living organisms, and the
natural factors that maintain their existence for the longest
possible period of time. On the continuation of life, and among
other definitions of the concept of sustainability is that it is a set of
vital processes that provide the means of life for living organisms
of all kinds, which helps them to maintain the succession of their
generations, and develop the means of their growth over time.
Volume 0%
 SUSTAINABILITY:
Elements of Sustainability:
1- Waste 2- Building materials
3- Energy 4- Water
Types of renewable energy:
1- Solar energy 2- Wind energy
3- Hydro energy 4- Thermal mass energy
5- The energy of the earth's interior
The goal of sustainable architecture:
Benefiting from natural and industrial energy sources to
provide dependent materials at reasonable prices and within
people’s financial capabilities. Constructing buildings that are
beautiful in shape and successful in performing their function
 SIMILAR EXAMPLES OF
SUSTAINABLE BUILDINGS:
Crystal Island building project
❖ Location: Moscow
❖ Year: 2005-2013
❖ Designer: Norman Foster

Structure and
Design idea Building materials implementation digital technology
mechanisms
Local-global Crystal Adopting concrete as a The structural structure The design was
Island is one of the basic building material consists of giant distinguished by
world's most ambitious in the internal structure dimensions iron structures. digital technology in
and dynamic new urban .Iron is a basic material The superstructure is overcoming
construction projects. It
in the outer crust. raised in a tent shape, expressive and
is a compact, mixed-use,
Translucent materials in forming the second shell structural obstacles
sustainable planning
model for the city with Damat encapsulate the and thermal insulation to bring out the
an innovative and smart iron structure and show layer to protect the main distinctive
energy strategy. the shape. building. architectural form.

Reference:
Conclusion: https://www.iasj.net/iasj?func=fulltext&aId=88229a
The use of digital intelligence in designs achieved the sustainability equation.
 SIMILAR EXAMPLES OF
SUSTAINABLE BUILDINGS:
Exhibition in Zaragoza:
❖ Year : 2008
❖ Designer: Benedetta Tagliabue, Miralles Tagliabue EMBT
Structure and
Building
Design idea implementation digital technology
materials
mechanisms
global local The use of The structural The use of technology
One of the most environmentally semi- structure consists of a through the structural
sustainable projects, but at the transparent tubular metal frame system in the
same time the most plant fiber with vacuum tires relationships between the
technologically advanced- It
fabric to cover covered with wicker wooden elements within
consists in developing the
the outdoor fabric panels that a precise computer
technique of wicker handicrafts
in construction practice. With a spaces to cover the facade of the program.
range of inspirations, the connect the building according to The design was
volumetric, material and indoors and the folding technique. distinguished by digital
structural award was inspired by outdoors. The manipulation of technology in overcoming
the wicker basket and basket- shadow and light. expressive obstacles in
making technique, which is a forming the shape.
local tradition.
Conclusion: Reference:
Sustainability can be achieved through the use of natural materials. https://www.iasj.net/iasj?func=fulltext&aId=88229a
