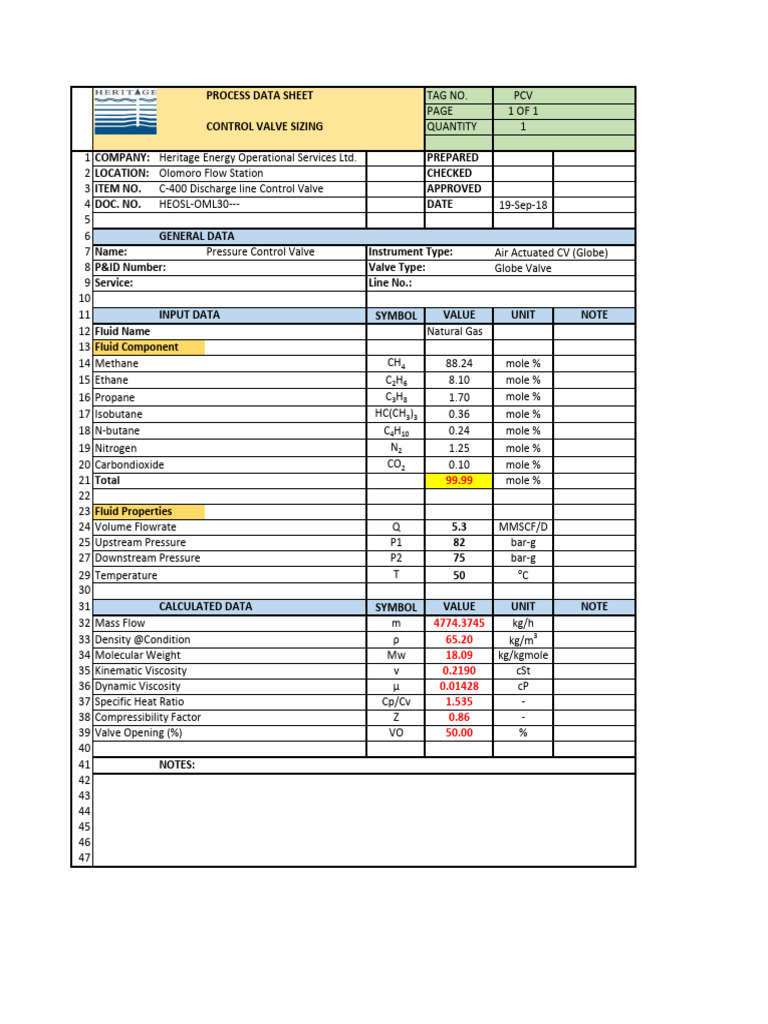

PROCESS DATA SHEET TAG NO.

PCV
PAGE 1 OF 1
CONTROL VALVE SIZING QUANTITY 1

1 COMPANY: Heritage Energy Operational Services Ltd. PREPARED

2 LOCATION: Olomoro Flow Station CHECKED
3 ITEM NO. C-400 Discharge line Control Valve APPROVED
4 DOC. NO. HEOSL-OML30--- DATE 19-Sep-18
5
6 GENERAL DATA
7 Name: Pressure Control Valve Instrument Type: Air Actuated CV (Globe)
8 P&ID Number: Valve Type: Globe Valve
9 Service: Line No.:
10
11 INPUT DATA SYMBOL VALUE UNIT NOTE
12 Fluid Name Natural Gas
13 Fluid Component
14 Methane CH4 88.24 mole %
15 Ethane C2H6 8.10 mole %
16 Propane C3H8 1.70 mole %
17 Isobutane HC(CH3)3 0.36 mole %
18 N-butane C4H10 0.24 mole %
19 Nitrogen N2 1.25 mole %
20 Carbondioxide CO2 0.10 mole %
21 Total 99.99 mole %
22
23 Fluid Properties
24 Volume Flowrate Q 5.3 MMSCF/D
25 Upstream Pressure P1 82 bar-g
27 Downstream Pressure P2 75 bar-g
o
29 Temperature T 50 C
30
31 CALCULATED DATA SYMBOL VALUE UNIT NOTE
32 Mass Flow m 4774.3745 kg/h
33 Density @Condition ρ 65.20 kg/m3
34 Molecular Weight Mw 18.09 kg/kgmole
35 Kinematic Viscosity v 0.2190 cSt
36 Dynamic Viscosity μ 0.01428 cP
37 Specific Heat Ratio Cp/Cv 1.535 -
38 Compressibility Factor Z 0.86 -
39 Valve Opening (%) VO 50.00 %
40
41 NOTES:
