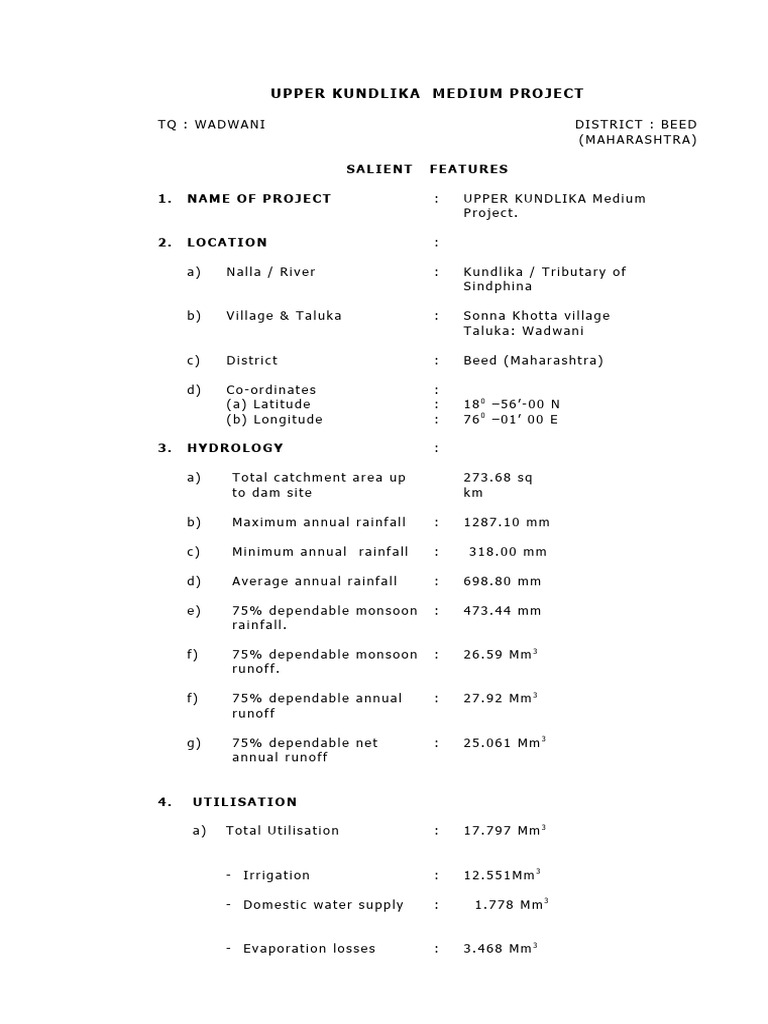

UPPER KUNDLIKA MEDIUM PROJECT

TQ : WADWANI DISTRICT : BEED

(MAHARASHTRA)

SALIENT FEATURES

1. NAME OF PROJECT : UPPER KUNDLIKA Medium

Project.

2. LOCATION :

a) Nalla / River : Kundlika / Tributary of

Sindphina

b) Village & Taluka : Sonna Khotta village

Taluka: Wadwani

c) District : Beed (Maharashtra)

d) Co-ordinates :
(a) Latitude : 180 –56’-00 N
(b) Longitude : 760 –01’ 00 E

3. HYDROLOGY :

a) Total catchment area up 273.68 sq

to dam site km

b) Maximum annual rainfall : 1287.10 mm

c) Minimum annual rainfall : 318.00 mm

d) Average annual rainfall : 698.80 mm

e) 75% dependable monsoon : 473.44 mm

rainfall.

f) 75% dependable monsoon : 26.59 Mm3

runoff.

f) 75% dependable annual : 27.92 Mm3

runoff

g) 75% dependable net : 25.061 Mm3

annual runoff

4. UTILISATION

a) Total Utilisation : 17.797 Mm3

- Irrigation : 12.551Mm3

- Domestic water supply : 1.778 Mm3

- Evaporation losses : 3.468 Mm3

5. RESERVOIR

a) Top of dam : 541.30 m

b) Maximum water level : 538.80 m

c) Full reservoir level : 537.00 m

d) MDDL : 528.30 m

e) River bed level : 516.00 m

f) Gross storage : 18.77 Mm3

g) Live Storage : 15.57 Mm3

h) Dead storage : 3.19 Mm3

6. DAM

a) Type : Earthen dam

b) Length of Dam(Excluding : 967 m

O.F and N.O.F. length)
c) Maximum height of Dam. : 24.28 m

d) Free board over FRL : 4.30 m

e) Free board over MWL : 2.50 m

7. SPILLWAY
a) Type : Ogee shaped gated concrete.

b) Location : Central (RD 890 m to 963 m)

c) Length of Spillway : 73 m

d) No. and size of gates : 5 No. each of size 12 m x6.5 m

e) Crest Level : 530.50 m

f) Flood lift (Over FRL) : 1.80m

g) Design Flood : 3353.52 cumec

h) Design discharge of : 3068.07 cumec

spillway

8. HEAD REGULATOR
a) i) Number : Two
ii) Size 1.2 m X 1.2 m

b) Location : R.D. 510 m Left flank

c) Sill level : 526.70 m

d) Capacity of head : 3.26 Cumec

regulator.
9. CANAL SYSTEM : Canal distribution system (LBC)
Length 15 km
Capacity 3.26 cumec
10 SUBMERGENCE

a) Area under submergence : 304.00 ha

b) Total population fully : 1200

affected

c) No. of villages affected : Fully affected one village Rui

and partially affected three
Sonna Khotta, Pimpaltakka,
Pimpala

11 IRRIGATION

a) Gross command area : 4232 ha

b) Culturable Command area : 3738 ha

c) Annual Irrigation : 2800 ha

d) Intensity of Irrigation : 74.91 %

(w.r.t. CCA)

12 FINANCIAL ASPECTS

a) Estimated Cost. : Rs.31899.719 lakh (2008-

09,2009-10, 2011-12,2012-
13,2013-14 & 2014-15
SOR,Tender Rates,)

b) Benefit Cost Ratio at 10% : 1.04

rate of interest.

c) Internal Rate of Return. : 10.53 %

13 UNIT COST

a) Cost per Mm3 of gross : Rs.1699.50 lakh

storage.

b) Cost per Mm3 of live : Rs.2048.79 lakh

storage.

c) Cost per ha of Annual : Rs. 1139275

Irrigation.

Sub Divisional Officer Executive Engineer

Kundlika Canal Sub Division Beed Irrigation Division
Beed Beed

Superintending Engineer
Beed Irrigation Project Circle Parli ( V)
