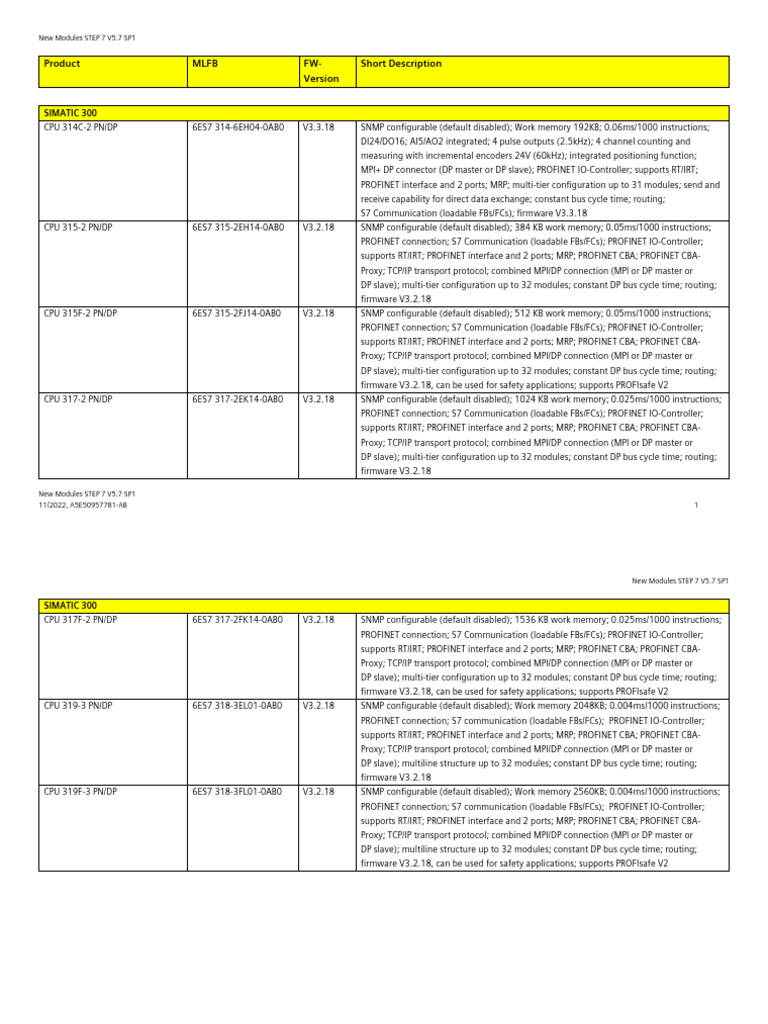

    New Modules STEP 7 V5.

    7 SP1

    Product MLFB FW- Short Description


    Version

    SIMATIC 300
    CPU 314C-2 PN/DP 6ES7 314-6EH04-0AB0 V3.3.18 SNMP configurable (default disabled); Work memory 192KB; 0.06ms/1000 instructions;
    DI24/DO16; AI5/AO2 integrated; 4 pulse outputs (2.5kHz); 4 channel counting and
    measuring with incremental encoders 24V (60kHz); integrated positioning function;
    MPI+ DP connector (DP master or DP slave); PROFINET IO-Controller; supports RT/IRT;
    PROFINET interface and 2 ports; MRP; multi-tier configuration up to 31 modules; send and
    receive capability for direct data exchange; constant bus cycle time; routing;
    S7 Communication (loadable FBs/FCs); firmware V3.3.18
    CPU 315-2 PN/DP 6ES7 315-2EH14-0AB0 V3.2.18 SNMP configurable (default disabled); 384 KB work memory; 0.05ms/1000 instructions;
    PROFINET connection; S7 Communication (loadable FBs/FCs); PROFINET IO-Controller;
    supports RT/IRT; PROFINET interface and 2 ports; MRP; PROFINET CBA; PROFINET CBA-
    Proxy; TCP/IP transport protocol; combined MPI/DP connection (MPI or DP master or
    DP slave); multi-tier configuration up to 32 modules; constant DP bus cycle time; routing;
    firmware V3.2.18
    CPU 315F-2 PN/DP 6ES7 315-2FJ14-0AB0 V3.2.18 SNMP configurable (default disabled); 512 KB work memory; 0.05ms/1000 instructions;
    PROFINET connection; S7 Communication (loadable FBs/FCs); PROFINET IO-Controller;
    supports RT/IRT; PROFINET interface and 2 ports; MRP; PROFINET CBA; PROFINET CBA-
    Proxy; TCP/IP transport protocol; combined MPI/DP connection (MPI or DP master or
    DP slave); multi-tier configuration up to 32 modules; constant DP bus cycle time; routing;
    firmware V3.2.18, can be used for safety applications; supports PROFIsafe V2
    CPU 317-2 PN/DP 6ES7 317-2EK14-0AB0 V3.2.18 SNMP configurable (default disabled); 1024 KB work memory; 0.025ms/1000 instructions;
    PROFINET connection; S7 Communication (loadable FBs/FCs); PROFINET IO-Controller;
    supports RT/IRT; PROFINET interface and 2 ports; MRP; PROFINET CBA; PROFINET CBA-
    Proxy; TCP/IP transport protocol; combined MPI/DP connection (MPI or DP master or
    DP slave); multi-tier configuration up to 32 modules; constant DP bus cycle time; routing;
    firmware V3.2.18

    New Modules STEP 7 V5.7 SP1


    11/2022, A5E50957781-AB 1
    New Modules STEP 7 V5.7 SP1

    SIMATIC 300
    CPU 317F-2 PN/DP 6ES7 317-2FK14-0AB0 V3.2.18 SNMP configurable (default disabled); 1536 KB work memory; 0.025ms/1000 instructions;
    PROFINET connection; S7 Communication (loadable FBs/FCs); PROFINET IO-Controller;
    supports RT/IRT; PROFINET interface and 2 ports; MRP; PROFINET CBA; PROFINET CBA-
    Proxy; TCP/IP transport protocol; combined MPI/DP connection (MPI or DP master or
    DP slave); multi-tier configuration up to 32 modules; constant DP bus cycle time; routing;
    firmware V3.2.18, can be used for safety applications; supports PROFIsafe V2
    CPU 319-3 PN/DP 6ES7 318-3EL01-0AB0 V3.2.18 SNMP configurable (default disabled); Work memory 2048KB; 0.004ms/1000 instructions;
    PROFINET connection; S7 communication (loadable FBs/FCs); PROFINET IO-Controller;
    supports RT/IRT; PROFINET interface and 2 ports; MRP; PROFINET CBA; PROFINET CBA-
    Proxy; TCP/IP transport protocol; combined MPI/DP connection (MPI or DP master or
    DP slave); multiline structure up to 32 modules; constant DP bus cycle time; routing;
    firmware V3.2.18
    CPU 319F-3 PN/DP 6ES7 318-3FL01-0AB0 V3.2.18 SNMP configurable (default disabled); Work memory 2560KB; 0.004ms/1000 instructions;
    PROFINET connection; S7 communication (loadable FBs/FCs); PROFINET IO-Controller;
    supports RT/IRT; PROFINET interface and 2 ports; MRP; PROFINET CBA; PROFINET CBA-
    Proxy; TCP/IP transport protocol; combined MPI/DP connection (MPI or DP master or
    DP slave); multiline structure up to 32 modules; constant DP bus cycle time; routing;
    firmware V3.2.18, can be used for safety applications; supports PROFIsafe V2

    New Modules STEP 7 V5.7 SP1


    2 11/2022, A5E50957781-AB
    New Modules STEP 7 V5.7 SP1

    SIMATIC 400
    CPU 412-5H PN/DP 6ES7 412-5HK06-0AB0 V6.0.10 Redundant and fail-safe capable, work memory 512KB code and 512KB of data;
    31.25 microseconds/1000 instructions; 8KB DI/O; 48 connections; 1*DP/MPI, 1*DP, 1*PN
    and 2 receptacles for H Sync modules; PROFINET IO controller; PROFINET interface and
    2 ports; supports RT, MRP, system redundancy, PROFIsafe V2; SNMP configurable (default
    disabled); firmware V6.0.10
    CPU 414-5H PN/DP 6ES7 414-5HM06-0AB0 V6.0.10 Redundant and fail-safe capable, work memory 2MB code and 2MB of data;
    18.75 microseconds/1000 instructions; 8KB DI/O; 64 connections; 1*DP/MPI, 1*DP, 1*PN
    and 2 receptacles for H Sync modules; PROFINET IO controller; PROFINET interface and
    2 ports; supports RT, MRP, system redundancy, PROFIsafe V2; SNMP configurable (default
    disabled); firmware V6.0.10
    CPU 416-5H PN/DP 6ES7 416-5HS06-0AB0 V6.0.10 Redundant and fail-safe capable, work memory 6MB code and 10MB of data;
    12,5 microseconds/1000 instructions; 16KB DI/O; 96 connections; 1*DP/MPI, 1*DP, 1*PN
    and 2 receptacles for H Sync modules; PROFINET IO controller; PROFINET interface and
    2 ports; supports RT, MRP, system redundancy, PROFIsafe V2; SNMP configurable (default
    disabled); firmware V6.0.10
    CPU 417-5H PN/DP 6ES7 417-5HT06-0AB0 V6.0.10 Redundant and fail-safe capable, work memory 16MB code and 16MB of data;
    7.5 microseconds/1000 instructions; 16KB DI/O; 120 connections; 1*DP/MPI, 1*DP, 1*PN
    and 2 receptacles for H Sync modules; PROFINET IO controller; PROFINET interface and
    2 ports; supports RT, MRP, system redundancy, PROFIsafe V2; SNMP configurable (default
    disabled); firmware V6.0.10

    New Modules STEP 7 V5.7 SP1


    11/2022, A5E50957781-AB 3
    New Modules STEP 7 V5.7 SP1

    ET 200pro
    IM154-8 PN/DP CPU 6ES7 154-8AB01-0AB0 V3.2.18 SNMP configurable (default disabled); Working memory 384KB; 0.05 ms/1000
    instructions; PROFINET connection; S7 communication (loadable FBs/FCs); PROFINET IO
    controller; supports RT/IRT; PROFINET interface and 3 ports; MRP; PROFINET CBA; PROFINET
    CBA proxy; transport protocol TCP/IP, UDP and ISO on TCP ; combined MPI/DP connection
    (MPI or DP master or DP slave); DP constant bus cycle time; routing; firmware V3.2.18;
    expansion with maximum 16 ET200pro spectrum modules
    IM154-8F PN/DP CPU 6ES7 154-8FB01-0AB0 V3.2.18 SNMP configurable (default disabled); Working memory 512KB; 0.05 ms/1000
    instructions; PROFINET connection; S7 communication (loadable FBs/FCs); PROFINET IO
    controller; supports RT/IRT; PROFINET interface and 3 ports; MRP; PROFINET CBA; PROFINET
    CBA proxy; transport protocol TCP/IP, UDP and ISO on TCP ; combined MPI/DP connection
    (MPI or DP master or DP slave); DP constant bus cycle time; routing; firmware V3.2.18;
    expansion with maximum 16 ET200pro spectrum modules; can be used for safety
    applications; supports PROFIsafe V2
    IM154-8FX PN/DP CPU 6ES7 154-8FX00-0AB0 V3.2.18 SNMP configurable (default disabled); Work memory 1536Kbytes; 0.025 ms/1000
    instructions; PROFINET connection; S7 communication (loadable FBs/FCs); PROFINET IO
    controller; supports RT/IRT; PROFINET interface and 3 ports; MRP; PROFINET CBA; PROFINET
    CBA proxy; transport protocol TCP/IP, UDP and ISO on TCP ; combined MPI/DP connection
    (MPI or DP master or DP slave); DP constant bus cycle time; routing; firmware V3.2.18;
    expansion with maximum 16 ET200pro spectrum modules; can be used for safety
    applications; supports PROFIsafe V2

    New Modules STEP 7 V5.7 SP1


    4 11/2022, A5E50957781-AB
    New Modules STEP 7 V5.7 SP1

    ET 200S
    IM151-8 PN/DP CPU 6ES7 151-8AB01-0AB0 V3.2.18 SNMP configurable (default disabled); Work memory 192KB; 0.06ms/1000 instructions;
    PROFINET connection; S7 communication (loadable FBs/FCs); PROFINET IO-Controller;
    supports RT/IRT; PROFINET interface and 3 ports; MRP; PROFINET CBA; PROFINET CBA-
    Proxy; transport protocol TCP/IP, UDP and ISO on TCP; data record routing;
    firmware V3.2.18; expansion with a maximum of 63 modules of the ET200S range
    IM151-8F PN/DP CPU 6ES7 151-8FB01-0AB0 V3.2.18 SNMP configurable (default disabled); Work memory 256KB; 0.06ms/1000 instructions;
    PROFINET connection; S7 communication (loadable FBs/FCs); PROFINET IO-Controller;
    supports RT/IRT; PROFINET interface and 3 ports; MRP; PROFINET CBA; PROFINET CBA-
    Proxy; transport protocol TCP/IP, UDP and ISO on TCP; data record routing;
    firmware V3.2.18; expansion with a maximum of 63 modules of the ET200S range; can be
    used for safety applications; supports PROFIsafe V2

    ET 200SP HA
    IM155-6 PN HA Red 6DL1 155-6AU00-0PM0 V1.0 Interface module with PROFINET interface V2.3 (RT) with cycle time from 250 micro-
    seconds; 56 I/O modules; system redundancy R1; user data up to max. 256 bytes per
    I/Omodule; configuration changes during operation; module replacement in operation
    (multi-hot swap); start with empty slots; media redundancy (MRP); time-stamp (1ms);
    firmware V1.0
    IM155-6 PN HA Red 6DL1 155-6AU00-0PM0 V1.1 Interface module with PROFINET interface V2.3 (RT) with cycle time from 250 microse-
    conds; 56 I/O modules; system redundancy R1; user data up to max. 256 bytes per I/O
    module; configuration changes during operation; module replacement in operation (multi-
    hot swap); start with empty slots; media redundancy (MRP); time-stamp (1ms);
    firmware V1.1
    IM155-6 PN HA Red 6DL1 155-6AU00-0PM0 V1.2 Interface module with PROFINET interface V2.3 (RT) with cycle time from 250 micro-
    seconds; 56 I/O modules; system redundancy R1; user data up to max. 256 bytes per
    I/O module; configuration changes during operation; module replacement in operation
    (multi-hot swap); start with empty slots; media redundancy (MRP); time-stamp (1ms);
    firmware V1.2

    New Modules STEP 7 V5.7 SP1


    11/2022, A5E50957781-AB 5
    New Modules STEP 7 V5.7 SP1

    ET 200SP HA
    IM155-6 PN HA 6DL1 155-6AU00-0PM0 V1.0 Interface module with PROFINET interface V2.3 (RT) with cycle time from 250 micro-
    seconds; 56 I/O modules; system redundancy S2; user data up to max. 256 bytes per I/O
    module; configuration changes during operation; module replacement in operation (multi-
    hot swap); start with empty slots; media redundancy (MRP); time-stamp (1ms);
    firmware V1.0
    IM155-6 PN HA 6DL1 155-6AU00-0PM0 V1.1 Interface module with PROFINET interface V2.3 (RT) with cycle time from 250 micro-
    seconds; 56 I/O modules; system redundancy S2; user data up to max. 256 bytes per I/O
    module; configuration changes during operation; module replacement in operation (multi-
    hot swap); start with empty slots; media redundancy (MRP); time-stamp (1ms);
    firmware V1.1
    IM155-6 PN HA 6DL1 155-6AU00-0PM0 V1.2 Interface module with PROFINET interface V2.3 (RT) with cycle time from 250 micro-
    seconds; 56 I/O modules; system redundancy S2; user data up to max. 256 bytes per I/O
    module; configuration changes during operation; module replacement in operation (multi-
    hot swap); start with empty slots; media redundancy (MRP); time-stamp (1ms);
    firmware V1.2

    New Modules STEP 7 V5.7 SP1


    6 11/2022, A5E50957781-AB
    New Modules STEP 7 V5.7 SP1

    PROFINET IO
    Compact Field Unit DIQ 6ES7 655-5PX31-1XX0 V1.2 Interface with PROFINET interface V2.3 (RT) with cycle time as of 250 microseconds;
    media redundancy(MRP); singular system redundancy NAP: S2; configuration changes in
    runtime; process interface 16x DIQ (freely configurable); firmware V1.2
    Compact Field Unit PA 6ES7 655-5PX11-0XX0 V1.0 Interface with PROFINET interface V2.3 (RT) with cycle time as of 250 microseconds;
    media redundancy(MRP); singular system redundancy NAP: S2; configuration changes in
    runtime; process interface 8x PROFIBUS PA and 8x DI/DO (freely configurable);
    firmware V1.0
    Compact Field Unit PA 6ES7 655-5PX11-0XX0 V1.1 Interface with PROFINET interface V2.3 (RT) with cycle time as of 250 microseconds;
    media redundancy(MRP); singular system redundancy NAP: S2; configuration changes in
    runtime; process interface 8x PROFIBUS PA and 8x DI/DO (freely configurable);
    firmware V1.1
    Compact Field Unit PA 6ES7 655-5PX11-0XX0 V1.2 Interface with PROFINET interface V2.3 (RT) with cycle time as of 250 microseconds;
    media redundancy(MRP); singular system redundancy NAP: S2; configuration changes in
    runtime; process interface 8x PROFIBUS PA and 8x DIQ (freely configurable);
    firmware V1.2
    ET 200iSP PN 6ES7 152-1BA00-0AB0 ET 200iSP interface module for intrinsically safe PN, can be used redundantly in fault
    tolerant system
    ET 200iSP PN R1 6ES7 152-1BA00-0AB0 ET 200iSP interface module for intrinsically safe PN, can be used redundantly in fault
    tolerant system; R1 redundancy
    IM155-6 PN ST 6ES7 155-6AU01-0BN0 V4.2 Interface module with PROFINET interface V2.3 (RT/IRT) with cycle time from 250 micro-
    seconds, PN connection technology can be selected via BusAdapter, 32 I/O modules
    including F-modules; media redundancy (MRP); configuration control via PLC; module
    replacement in operation; start with empty slots; supports PROFIenergy; Shared Device on
    up to 2 PROFINET controllers; supports MSI/MSO; station extension via ET-Connection; user
    data up to max. 256 bytes per I/O module; supports module distribution; firmware V4.2

    New Modules STEP 7 V5.7 SP1


    11/2022, A5E50957781-AB 7
    New Modules STEP 7 V5.7 SP1

    IO Modules
    CM 4xIO-Link 4xM12 6ES7 147-5JD00-0BA0 V1.2 IO-Link master CM 4 x IO-Link, 4 x M12; degree of protection IP65/67; 30 mm overall
    width; 4 x port type Class B for connection of IO-Link devices; selectable diagnostics;
    supports PROFIenergy; port parameter assignment with Port Configuration Tool (S7-PCT);
    firmware V1.2
    FC-2 1.1/1.5kW; 2/2 PZD 6SL3 514-1KE13-5AE0 V4.7.14 Frequency converter ET 200pro FC-2 with integrated safety functions; 1.1kW / 1.5kW
    (derated); 3AC380V..3AC500V; integrated brake controller
    FC-2 1.1/1.5kW; 4/4 PZD 6SL3 514-1KE13-5AE0 V4.7.14 Frequency converter ET 200pro FC-2 with integrated safety functions; 1.1kW / 1.5kW
    (derated); 3AC380V..3AC500V; integrated brake controller
    AI4 x RTD/TC 2,3,4-wire HF 6ES7 134-6JD00-0CA1 V2.1 Analog input module AI4 x RTD/TC 2,3,4-wire HF 16 bits; value status; common mode
    voltage 10 V; channel-specific diagnostics; supports hardware interrupts; scalable
    temperature measuring range; firmware V2.1
    AI8 x RTD/TC 2-wire HF 6ES7 134-6JF00-0CA1 V2.1 Analog input module AI8 x RTD/TC 2-wire HF 16 bits; value status; common mode voltage
    10 V; channel-specific diagnostics; supports hardware interrupts; scalable temperature
    measuring range; firmware V2.1
    AI 4xI 2-/4-wire HART ISOL HA 6DL1 134-6UD00-0PK0 V1.0 Analog input module AI 4xI 2-/4-wire HART ISOL HA single channel isolated, with HART
    communication and HART variables; value status; channel-specific diagnostics;
    parameterizable interference frequency suppression; supports hardware interrupts;
    supports IO redundancy
    AI-DI16/DQ16 x 24VDC HART HA 6DL1 133-6EW00-0PH1 V1.0 Multifunction module AI-DI16/DQ16 x 24VDC HA with HART protocol; 16 inputs
    configurable as DI or AI with HART; 16 digital outputs; channel-specific diagnostics;
    configurable input delay; configurable substitute value behavior; pulse extension;
    configurable interference frequency suppression; supports time stamp; supports IO
    redundancy
    AI-DI16/DQ16 x 24VDC HART HA 6DL1 133-6EW00-0PH1 V1.1 Multifunction module AI-DI16/DQ16 x 24VDC HA with HART protocol; 16 inputs
    configurable as DI or AI with HART; 16 digital outputs; channel-specific diagnostics;
    configurable input delay; configurable substitute value behavior; pulse extension;
    configurable interference frequency suppression; supports time stamp; supports IO
    redundancy

    New Modules STEP 7 V5.7 SP1


    8 11/2022, A5E50957781-AB
    New Modules STEP 7 V5.7 SP1

    IO Modules
    AI16 x I 2-wire HART HA 6DL1 134-6TH00-0PH1 V1.0 Analog input module AI16 x I 2-wire HA with HART communication and HART variables;
    channel-specific diagnostics; configurable interference frequency suppression; supports IO
    redundancy
    AI16 x I 2-wire HART HA 6DL1 134-6TH00-0PH1 V1.1 Analog input module AI16 x I 2-wire HA with HART communication and HART variables;
    channel-specific diagnostics; configurable interference frequency suppression; supports IO
    redundancy
    AI16 x TC/8xRTD 2-/3-/4-wire HA 6DL1 134-6JH00-0PH1 V1.0 Analog input module AI16 x TC/8xRTD 2-/3-/4-wire HA; channel-specific diagnostics;
    configurable interference frequency suppression; supports IO redundancy
    AI16 x TC/8xRTD 2-/3-/4-wire HA 6DL1 134-6JH00-0PH1 V1.1 Analog input module AI16 x TC/8xRTD 2-/3-/4-wire HA; channel-specific diagnostics;
    configurable input delay; supports IO redundancy; supports REAL display
    DI16/DQ16 x 24VDC HA 6DL1 133-6EW00-0PH1 V1.0 Multifunction module DI16/DQ16 x 24VDC HA; 16 digital inputs; 16 digital outputs;
    channel-specific diagnostics; configurable input delay; configurable substitute value
    behavior; pulse extension; supports time stamp (precision 1ms); supports IO redundancy
    DI16/DQ16 x 24VDC HA 6DL1 133-6EW00-0PH1 V1.1 Multifunction module DI16/DQ16 x 24VDC HA; 16 digital inputs; 16 digital outputs;
    channel-specific diagnostics; configurable input delay; configurable substitute value
    behavior; pulse extension; supports time stamp (precision 1ms); supports IO redundancy
    DI16/DQ16 x 24VDC HA 6DL1 133-6EW00-0PH1 V1.1 CNT Multifunction module DI 16/DQ 16xDC24V HA with count function; 16 digital inputs;
    16 digital outputs; channel-specific diagnostics; configurable input delay; configurable
    substitute value behavior; pulse extension
    Ex-AI 2xI 2-wire HART 6DL1 134-6TB00-0HX1 Analog input module Ex-AI 2xI 2-wire HART; with HART communication and HART
    variables; value status; channel-specific diagnostics; selectable interference frequency
    suppression; supports hardware interrupts; supports MSI
    Ex-AI 4xTC/2xRTD 2-/3-/4-wire 6DL1 134-6JD00-0HX1 Analog input module Ex-AI 4xTC/2xRTD 2-/3-/4-wire; value status; channel-specific
    diagnostics; selectable interference frequency suppression; supports hardware interrupts;
    supports MSI; supports REAL
    AQ 4xI HART ISOL HA 6DL1 135-6UD00-0PK0 V1.0 Analog output module AQ 4xI HART ISOL HA single channel isolated, with HART
    communication and HART variables; value status; channel-specific diagnostics; with
    substitute value output; supports IO redundancy

    New Modules STEP 7 V5.7 SP1


    11/2022, A5E50957781-AB 9
    New Modules STEP 7 V5.7 SP1

    IO Modules
    AQ8 x I HART HA 6DL1 135-6TF00-0PH1 V1.0 Analog output module AQ8 x I HA with HART protocol; channel-specific diagnostics;
    supports IO redundancy
    Ex-AQ 2xI HART 6DL1 135-6TB00-0HX1 Analog output module Ex-AQ 2xI with HART communication and HART variables; value
    status; channel-specific diagnostics; substitute value for output; supports MSO
    DI16 x 24VDC HA 6DL1 131-6BH00-0PH1 V1.0 Digital input module DI16 x 24VDC HA; channel-specific diagnostics; input delay 0..20ms;
    pulse extension; supports hardware interrupts; supports IO redundancy; supports time
    stamp (precision 1ms)
    DI16 x NAMUR HA 6DL1 131-6TH00-0PH1 V1.0 Digital input module DI16 x NAMUR HA; channel-specific diagnostics; configurable pulse
    extension; configurable chatter monitoring; supports hardware interrupts; supports time
    stamp; IO redundancy
    DI32 x 24VDC HA 6DL1 131-6BL00-0PH1 V1.0 Digital input module DI32 x 24VDC HA; channel-specific diagnostics
    DI8 x 230VAC HA 6DL1 131-6GF00-0PK0 V1.0 Digital input module DI8 x 230VAC HA
    DI8 x 24..125VDC HA 6DL1 131-6DF00-0PK0 V1.0 Digital input module DI8 x 24..125VDC HA; channel-specific diagnostics; supports time
    stamp (precision 1ms)
    Ex-DI 4xNAMUR 6DL1 131-6TD00-0HX1 Digital input module Ex-DI 4xNAMUR; value status; channel-specific diagnostics; selectable
    pulse extension; selectable chatter monitoring; supports hardware interrupts; supports
    MSI
    Ex-DI 4xNAMUR CNT 6DL1 131-6TD00-0HX1 Digital input module Ex-DI 4xNAMUR; value status; channel-specific diagnostics; selectable
    pulse extension; selectable chatter monitoring; supports hardware interrupts; with
    counting function; with frequency measurement
    DQ16 x 24VDC/0.5A HA 6DL1 132-6BH00-0PH1 V1.0 Digital output module DQ16 x 24VDC/0.5A HA; channel-specific diagnostics; substitute
    value for output; supports IO redundancy
    DQ32 x 24VDC/0.5A HA 6DL1 132-6BL00-0PH1 V1.0 Digital output module DQ32 x 24VDC/0.5A HA; channel-specific diagnostics
    Ex-DQ 2x17.4VDC/27mA 6DL1 132-6CB00-0HX1 Digital output module Ex-DQ 2x17.4VDC/27mA; value status; channel-specific diagnostics;
    substitute value for output; supports MSO
    Ex-DQ 2x23.1VDC/20mA 6DL1 132-6EB00-0HX1 Digital output module Ex-DQ 2x23.1VDC/20mA; value status; channel-specific diagnostics;
    substitute value for output; supports MSO

    New Modules STEP 7 V5.7 SP1


    10 11/2022, A5E50957781-AB
    New Modules STEP 7 V5.7 SP1

    IO Modules
    RQ4 x 120VDC-230VAC/5A CO HA 6DL1 132-6HD50-0PK0 V1.0 Digital output module RQ4 x 120VDC-230VAC/5A CO HA; substitute value for output;
    selectable diagnostics
    Ex-PM E 6DL1 133-6PX00-0HW0 Power module Ex-PM E 24V
    TM NSIO CNT 6DL1 138-6EA00-0EH1 V1.1 Counting and measuring functions; firmware V1.1
    TM NSIO SPEED 6DL1 138-6EA00-0EH1 V1.1 Speed measurement functions; firmware V1.1
    TM NSIO 6DL1 138-6EA00-0EH1 V1.1 Input/Output functions 4AI, 4DI, 6 DI/DQ, 4AQ, 4BUF; firmware V1.1
    TM NSIO CNT 6DL1 138-6EA00-0EH1 V1.2 Counting and measuring functions; firmware V1.2
    TM NSIO SPEED 6DL1 138-6EA00-0EH1 V1.2 Speed measurement functions; firmware V1.2
    TM NSIO 6DL1 138-6EA00-0EH1 V1.2 Input/Output functions 4AI, 4DI, 6 DI/DQ, 4AQ, 4BUF; firmware V1.2
    TM NSIO DI AI VIB4 6DL1 138-6EC00-0EH1 V1.1 Input/Output functions and vibration protection functions, up to 4 measuring sequences;
    firmware V1.1
    TM NSIO DI AI VIB8 6DL1 138-6EC00-0EH1 V1.1 Input/Output functions and vibration protection functions, up to 8 measuring sequences;
    firmware V1.1
    TM NSIO DI VIB4 6DL1 138-6EC00-0EH1 V1.1 Vibration protection functions, up to 4 measuring sequences; firmware V1.1
    TM NSIO DI VIB8 6DL1 138-6EC00-0EH1 V1.1 Vibration protection functions, up to 8 measuring sequences; firmware V1.1
    TM NSIO DI AI VIB4 6DL1 138-6EC00-0EH1 V1.2 Input/Output functions and vibration protection functions, up to 4 measuring sequences;
    firmware V1.2
    TM NSIO DI AI VIB8 6DL1 138-6EC00-0EH1 V1.2 Input/Output functions and vibration protection functions, up to 8 measuring sequences;
    firmware V1.2
    TM NSIO DI VIB4 6DL1 138-6EC00-0EH1 V1.2 Vibration protection functions, up to 4 measuring sequences; firmware V1.2
    TM NSIO DI VIB8 6DL1 138-6EC00-0EH1 V1.2 Vibration protection functions, up to 8 measuring sequences; firmware V1.2

    New Modules STEP 7 V5.7 SP1


    11/2022, A5E50957781-AB 11
    New Modules STEP 7 V5.7 SP1

    Industrial Ethernet
    CP 443-1 6GK7 443-1EX30-0XE0 V3.3 SIMATIC NET CP 443-1, 2 x 10/100 Mbps (IE SWITCH), RJ-45 PORTs, ISO, TCP, UDP,
    PROFINET IO Controller, S7 communication, open communications services
    (SEND/RECEIVE), S7 routing, IP configuration via DHCP/block, IP access control list, time-of-
    day synchronization, advanced Web diagnostics, fast startup, PROFIenergy support
    CP 443-1 6GK7 443-1EX30-0XE1 V3.3 SIMATIC NET CP 443-1, 2 x 10/100 Mbps (IE SWITCH), RJ-45 PORTs, ISO, TCP, UDP,
    PROFINET IO Controller, S7 communication, open communications services
    (SEND/RECEIVE), S7 routing, IP configuration via DHCP/block, IP access control list, time-of-
    day synchronization, advanced Web diagnostics, fast startup, PROFIenergy support;
    Conformal Coating
    CP 443-1 Advanced-IT 6GK7 443-1GX30-0XE0 V3.3 SIMATIC NET CP 443-1 Advanced, 1 x 10/100/1000 Mbps, 4 x 10/100 Mbps (IE SWITCH),
    RJ-45 PORTs, in addition to CP 443-1 EX30 V3.2: IP routing, FTP, Web server, e-mail,
    security

    New Modules STEP 7 V5.7 SP1


    12 11/2022, A5E50957781-AB

    You might also like
