LOAD SPECIFICATIONS

Dead Loads
Self-Weight Load
Beam (W8x24) = 35.9 kg/m = 0.352 kN/m
Intensity (According to NSCP 2015 & ASEP)
Slab = 200 mm x 23.6 kN/m3 = 4.72 kN/m2
Ceiling (Acoustical Fiber Board) = 0.05 kN/m2
Floor & Floor Finishes (Cement Finish) = 1.53 kN/m2
Frame Walls (Exterior Stud Wall) = 2.30 kN/m2
Frame Partition (Wood Studs) : 0.96 kN/m2
Total Dead Intensity Load = 9.56 kN/m2

Live Loads (According to NSCP 2015 & ASEP)

Residential = 1.9 kN/m2
Storage = 1.9 kN/m2
Total Live Intensity Load = 3.8 kN/m2
 SLAB A1 (DL) Ly
Slab Thickness = 0.2 m
3
Concrete Unit Weight = 23.6 kN/m
Self Weight of Slab = 4.72 kN/m2
2
Ceiling = 0.05 kN/m
Floor & Floor Finishes = 1.53 kN/m2 Lx
Frame Partitions 0.96
Frame Walls = 2.3 kN/m2
2
Total UDL on Floor Area, w o = 9.56 kN/m

Long Span, Ly = 4.48 m

Short Span, Lx = 4.2 m
Span Ratio, β = 1.066667 Two Way Slab

Load from Triangular Area, = 13.38 kN/m

Load from Trapezoidal Area, = 14.19 kN/m

If it is One way Slab then,

Load on Longer Span = Two Way kN/m

SLAB A1 (LIVE LOAD)

Residential = 1.9 m
Storage 1.9
2
Total ULL on Floor Area, wo = 3.8 kN/m

Long Span, Ly = 4.48 m

Short Span, Lx = 4.2 m
Span Ratio, β = 1.066667 Two Way Slab

Load from Triangular Area, = 5.32 kN/m

Load from Trapezoidal Area, = 5.64 kN/m
 SLAB A2 (DL) Ly
Slab Thickness = 0.2 m
3
Concrete Unit Weight = 23.6 kN/m
Self Weight of Slab = 4.72 kN/m2
Ceiling = 0.05 kN/m2
2
Floor & Floor Finishes = 1.53 kN/m Lx
Frame Partitions 0.96
Frame Walls = 2.3 kN/m2
2
Total UDL on Floor Area, w o = 9.56 kN/m

Long Span, Ly = 4.48 m

Short Span, Lx = 3 m
Span Ratio, β = 1.493333 Two Way Slab

Load from Triangular Area, = 9.56 kN/m

Load from Trapezoidal Area, = 12.20 kN/m

If it is One way Slab then,

Load on Longer Span = Two Way kN/m

SLAB A2 (LIVE LOAD)

Residential = 1.9 m
Storage 1.9
2
Total ULL on Floor Area, wo = 3.8 kN/m

Long Span, Ly = 4.48 m

Short Span, Lx = 3 m
Span Ratio, β = 1.493333 Two Way Slab

Load from Triangular Area, = 3.80 kN/m

Load from Trapezoidal Area, = 4.85 kN/m
 SLAB A3 (DL) Ly
Slab Thickness = 0.2 m
3
Concrete Unit Weight = 23.6 kN/m
Self Weight of Slab = 4.72 kN/m2
2
Ceiling = 0.05 kN/m
Floor & Floor Finishes = 1.53 kN/m2 Lx
Frame Partitions 0.96
Frame Walls = 2.3 kN/m2
2
Total UDL on Floor Area, w o = 9.56 kN/m

Long Span, Ly = 4.2 m

Short Span, Lx = 2.85 m
Span Ratio, β = 1.473684 Two Way Slab

Load from Triangular Area, = 9.08 kN/m

Load from Trapezoidal Area, = 11.53 kN/m

If it is One way Slab then,

Load on Longer Span = Two Way kN/m

SLAB A3 (LIVE LOAD)

Residential = 1.9 m
Storage 1.9
2
Total ULL on Floor Area, wo = 3.8 kN/m

Long Span, Ly = 4.2 m

Short Span, Lx = 2.85 m
Span Ratio, β = 1.473684 Two Way Slab

Load from Triangular Area, = 3.61 kN/m

Load from Trapezoidal Area, = 4.58 kN/m
 SLAB A4 (DL) Ly
Slab Thickness = 0.2 m
3
Concrete Unit Weight = 23.6 kN/m
Self Weight of Slab = 4.72 kN/m2
Ceiling = 0.05 kN/m2
2
Floor & Floor Finishes = 1.53 kN/m Lx
Frame Partitions 0.96
Frame Walls = 2.3 kN/m2
2
Total UDL on Floor Area, w o = 9.56 kN/m

Long Span, Ly = 3 m
Short Span, Lx = 2.85 m
Span Ratio, β = 1.052632 Two Way Slab

Load from Triangular Area, = 9.08 kN/m

Load from Trapezoidal Area, = 9.52 kN/m

If it is One way Slab then,

Load on Longer Span = Two Way kN/m

SLAB A4 (LIVE LOAD)

Residential = 1.9 m
Storage 1.9
2
Total ULL on Floor Area, wo = 3.8 kN/m

Long Span, Ly = 3 m
Short Span, Lx = 2.85 m
Span Ratio, β = 1.052632 Two Way Slab

Load from Triangular Area, = 3.61 kN/m

Load from Trapezoidal Area, = 3.79 kN/m
 SLAB A5 (DL) Ly
Slab Thickness = 0.2 m
3
Concrete Unit Weight = 23.6 kN/m
Self Weight of Slab = 4.72 kN/m2
2
Ceiling = 0.05 kN/m
Floor & Floor Finishes = 1.53 kN/m2 Lx
Frame Partitions 0.96
Frame Walls = 2.3 kN/m2
2
Total UDL on Floor Area, w o = 9.56 kN/m

Long Span, Ly = 2.56 m

Short Span, Lx = 2 m
Span Ratio, β = 1.28 Two Way Slab

Load from Triangular Area, = 6.37 kN/m

Load from Trapezoidal Area, = 7.62 kN/m

If it is One way Slab then,

Load on Longer Span = Two Way kN/m

SLAB A5 (LIVE LOAD)

Residential = 1.9 m
Storage 1.9
2
Total ULL on Floor Area, wo = 3.8 kN/m

Long Span, Ly = 2.56 m

Short Span, Lx = 2 m
Span Ratio, β = 1.28 Two Way Slab

Load from Triangular Area, = 2.53 kN/m

Load from Trapezoidal Area, = 3.03 kN/m

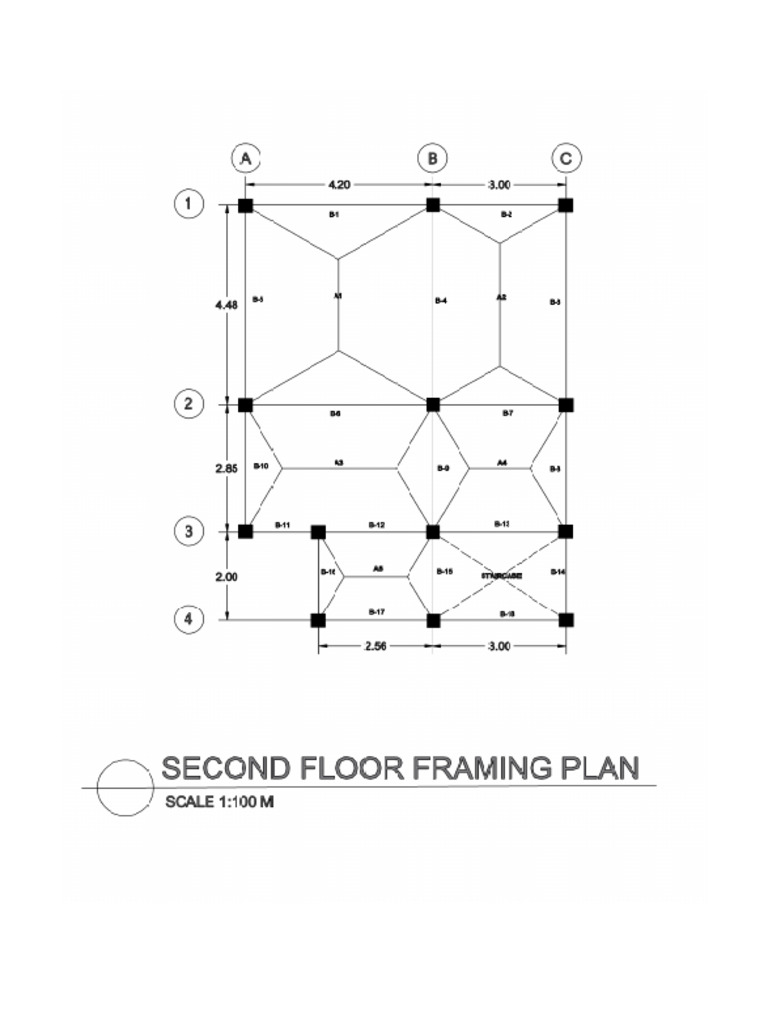

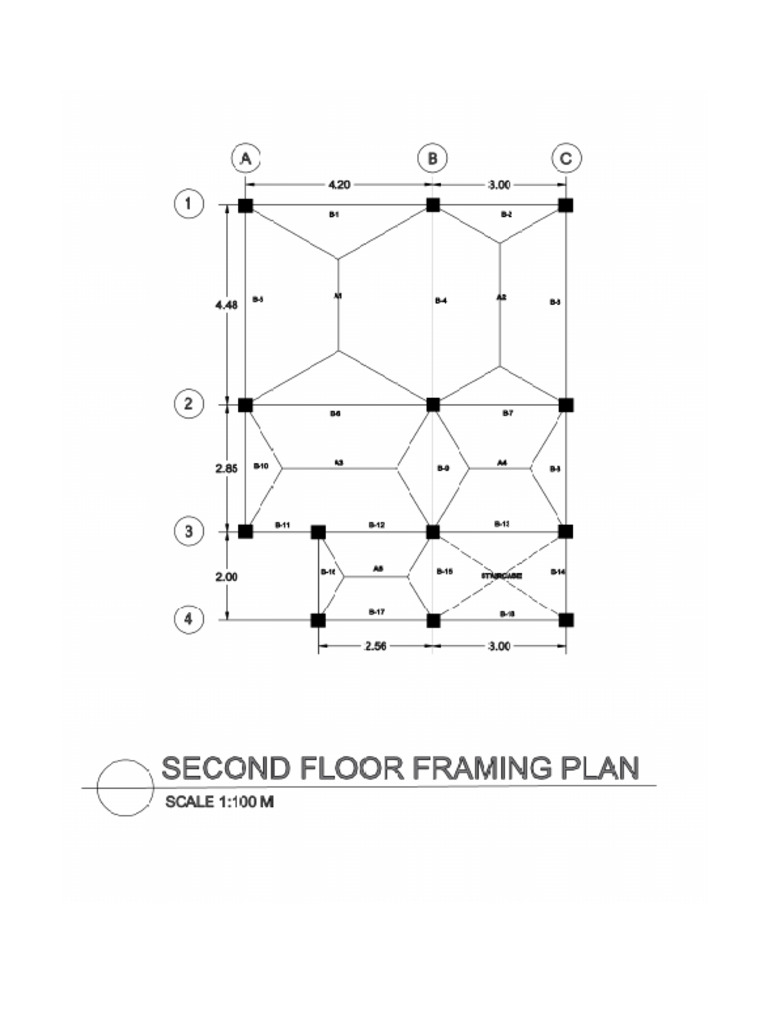

 Summary of Beam Loads 2nd Floor Framing
Beam No. WDL (kN/m) WLL (kN/m) Wo (kN/m)
1 13.732 5.32 24.99
2 9.912 3.8 17.97
3 12.552 4.85 22.82
4 26.742 10.49 48.87
5 14.542 5.64 26.47
6 25.262 9.9 46.15
7 19.432 7.59 35.46
8 9.432 3.61 17.09
9 18.512 7.22 33.77
10 9.432 3.61 17.09
11 4.85 1.79 8.69
12 15.00 5.82 27.31
13 9.872 3.79 17.91
14 0.352 0 0.42
15 6.722 2.53 12.11
16 6.722 2.53 12.11
17 7.972 3.03 14.41
18 0.352 0 0.42
