Chapter 1

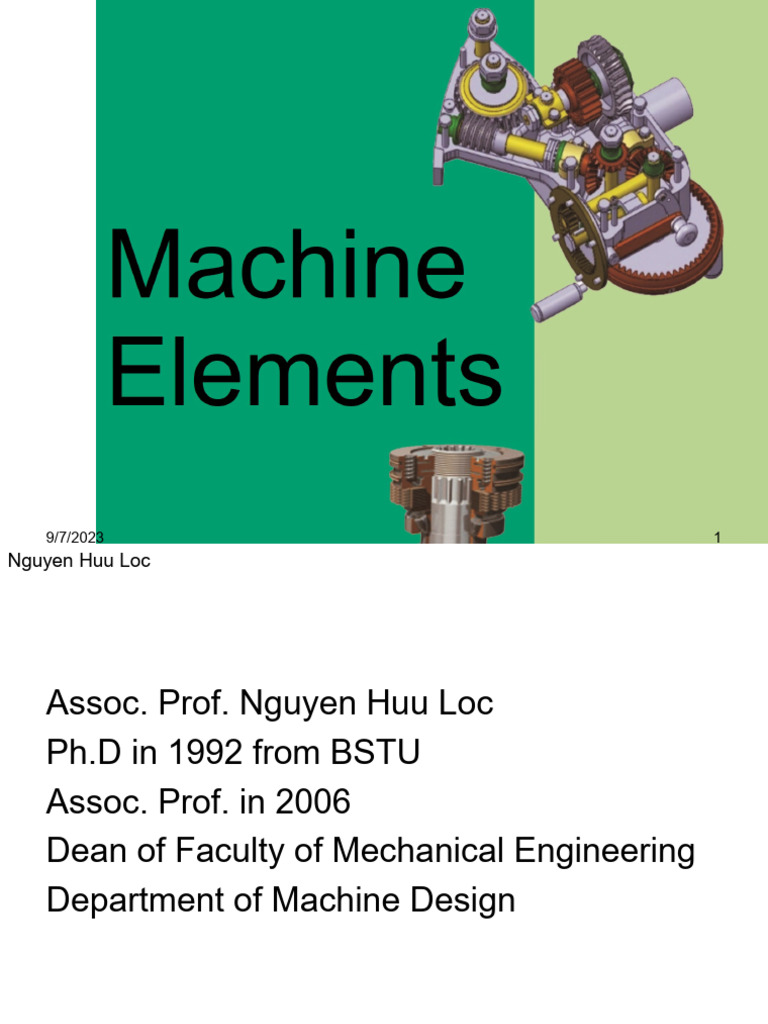

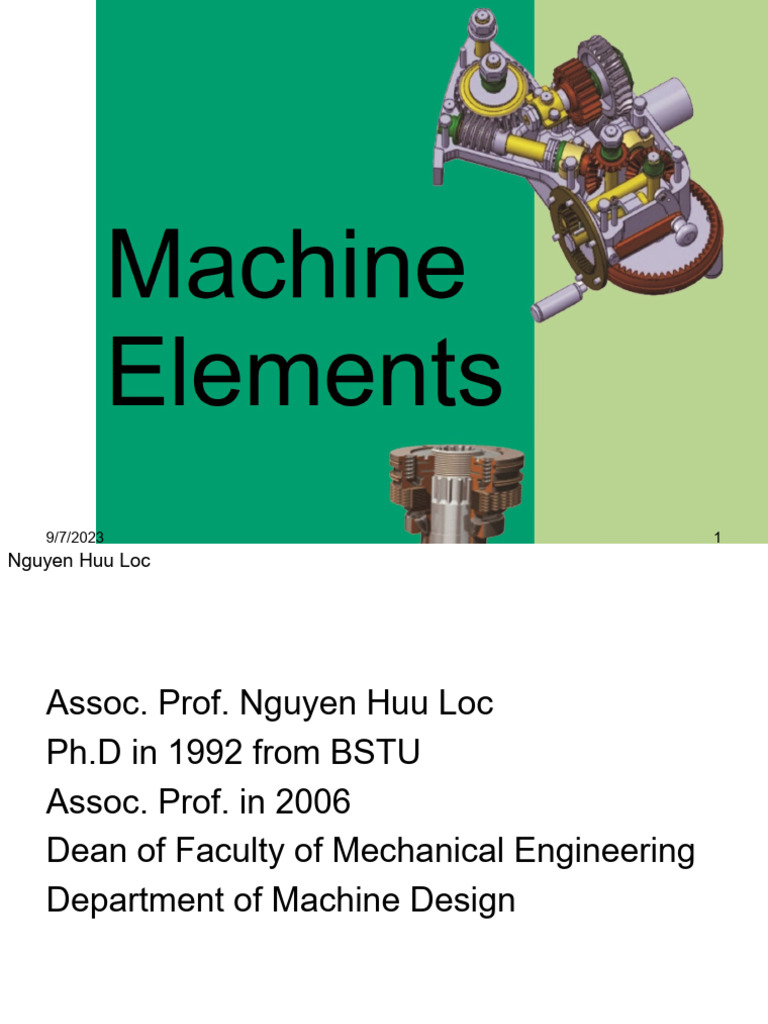

9/7/2023 1
Nguyen Huu Loc

Assoc. Prof. Nguyen Huu Loc
Ph.D in 1992 from BSTU
Assoc. Prof. in 2006
Dean of Faculty of Mechanical Engineering
Department of Machine Design
9/7/2023 2
1.1 Introduction
Syllabus
9/7/2023 3
PGS.TS Nguyễn Hữu Lộc
Textbook and References
9/7/2023 4
Chapter 1 Introduction
Contents of chapter:
1. Introduction
2. Types of simple machines
3. Components of the complex machines
4. Machine elements
5. Examples
9/7/2023 5
1. Introduction
Learning Outcomes
• Explain the links between engineering theory

and practice (LƠ7.1)
• Identify the stages of team formation (LƠ8.1)
9/7/2023 6
1. Introduction
• A machine element is a part of a machine that cannot be
disassembled any more. For example, keys, bolts, nuts,
gears, bearings....
• A machine is one or more mechanical devices and parts that

transform, or use energy, to perform useful work for the
purpose of improving productivity and replacing human
physical and mental labor.
9/7/2023 7
1. Introduction
Main course content:

- Study the working principle, geometrical parameters,
kinematics calculation, structure, type and design calculation
according to the criteria of working ability of machine elements
and machines.
- Study the basis of the common working principle between the

machine elements and calculate them.
- Develop design skills and technical creativity.
9/7/2023 8
1.1 Introduction
9/7/2023 9
1.2 Types of simple machines elements
Types of machines
Machines come in two kinds — Simple and Complex Machines.
1. Simple Machines
A simple machine is a tool, device, or object with few moving parts that
help us do work. Simple machines have been in use for a very long time.
Early humans used simple machines to push, pull, lift, divide, and crush
things. They used simple machines to row rafts over water, build houses,
split firewood, and carry heavy items from place to place. Today, there
are simple machines everywhere and all around us. There are six types
of simple machines — the inclined plane, the wedge, the screw, the
lever, the wheel and axle, and the pulley.
2. Complex Machines
Simple machines are different from complex (or compound machines).
Complex machines, like trucks or wagons, or bicycles, use many moving
parts, CNC machine, cars... They combine many simple machines such
as levers, pulleys, and gears to get work done.
Now, we shall look at each example of a simple machine.
9/7/2023 10
An inclined plane is a simple machine with no moving parts.
It is simply an even sloping surface. It makes it easier for us
to move objects to higher or lower surfaces than if we lifted
the objects directly upwards. It is believed that ancient
Egyptians used inclined planes to carry heavy stones to build
pyramids.
https://eschooltoday.com/learn/the-wedge-ramp/
9/7/2023 11
A wedge is
simply a
triangular tool,
often made of
metal, wood,
stone, or plastic.
It is thick on one
end and tapers to
a thin or sharp
edge on the other
end.
9/7/2023 12
What is a Screw?
A screw is simply an inclined plane around a cylinder. To
describe this better, you can view it as a cylinder with a head
(solid top) at one end and a pointed tip (like a nail) at the other
end. More importantly, it has ridges winding around it. The
correct term for the ridges (or grooves) around the shaft or
cylinder is the thread.
9/7/2023 13
What is a Lever?
A lever is simply a plank or ridged beam that is free to rotate on a
pivot. It is perfect for lifting or moving heavy things. It is a useful
simple machine, and you can find them everywhere. Good
examples of levers include the seesaw, crowbar, fishing-line,
oars, wheelbarrows, and the garden shovel.
9/7/2023 14
What is a Wheel and Axle?
This simple machine involves two circular objects — a
larger disc and a smaller cylinder both joined at the center.
The larger disc is called the wheel. The smaller cylindrical
object or rod is referred to as the axle. Sometimes, there
may be two wheels attached to both ends of the axle. A
wheel alone or an axle alone is not a simple machine. They
need to be joined to be called a simple machine.
9/7/2023 15
What is a pulley?
Have you seen your university or school flag hoisted? That is
possible with a simple pulley. When you pull down on the rope,
the pulley at the top of the pole turns, and the flag goes
up. Pulleys change the direction of the force.
9/7/2023 16
Important Simple Machine terms Power (W)
Lever Power is the rate at which Work is
A solid bar that rotates around a pivot done. Power is measured in Watt.
and makes it easier to lift a load, move Power = Work / Time
a heavy object, or apply a force. Mechanical Advantage (MA)
Force (N) Simple machines do not work on
A force is a push or a pull. The unit of their own. Someone has to apply
Force is called the Newton. Force (F) = the input force to make it do work.
Mass x Acceleration. MA is the ratio between the input
Work - the joule (J). The movement of force and the output force. A
an object resulting from a force applied Mechanical Advantage is produced
to it. Movement is usually in the when a simple machine amplifies a
direction of the force. To calculate Work small input force to produce a
done, multiply Force (F) by Distance greater output force.
(D). W=FxD
Input Force
The effort or force you put into a
machine.
Output Force Rotation Point
The9/7/2023
force the machine produces as a The axis or center that a wheel17or
result of the input force. disc spins.
1.3 Components of the complex machines
Stirring machine
Generator
9/7/2023 18
Driver
Driven
Machine
9/7/2023 19
Engineering Tutorials
Working Principle of Lathe Machine
Working Principle (Diagram) of Lathe Machine
9/7/2023 20
Drive system for thread lathe: 1-

Workpiece; 2 – Knife table; 3 – Lead
screw drive; M – Motor - Engine;
9/7/2023 21
PGS.TS Nguyễn Hữu Lộc Old machine CNC Machine
1.3 Components of the machines
9/7/2023 22
Structure of CNC
9/7/2023 23
Each group gives different machine examples,

from simple to complex with full three (or four
basic components (10min).
9/7/2023 24
1.4 Machine Elements
Machine elements include:

- Mechanical power transmission: gears, worm,
power screw, belts, chains…
- Supporting details: roller bearings, sliding
bearings, shafts and axles, couplings and
clutches...
- Joint details: screw joints, key and splines,
welded joint, interference fit joints...
- Other details: springs, lubrication system.
machine frame and housing, linear bearing
9/7/2023 25
1. Gear drive
Generation of involute
profiles
9/7/2023 26
9/7/2023 27
Straight spur Helical spur gear Bevel gear
Herringbone
9/7/2023 Gear 28
PGS.TS Nguyễn Hữu Lộc Planetary Worm – Worm gear
Load distribution
along the gear
width
9/7/2023 29
Heat treatment of
gear surface
9/7/2023 30
3 stage bevel –
helical reducer
9/7/2023 31
Gear Drive-Infeed Rollers Pete Robinson's cam gear drive for Ford 427
SOHC V-8
9/7/2023 32
PGS.TS Nguyễn Hữu Lộc Applications of gear drive
Worm drive Globoid
Wormgear
Worm
9/7/2023 33
Helical - worm
Reducer – motor
9/7/2023 34
Chain drive
9/7/2023 35
1981 Harley Davidson Fhl

Custom Motorcycle Belt Drive
Timing Belt – Đai răng
9/7/2023 Timing Belt Drive 36

PGS.TS Nguyễn Hữu Lộc(Synchronous-belt drive)
Bearing
Bi Trụ
Theo hướng tải trọng
ổ đỡ, đỡ chặn, chặn
9/7/2023 37
Nut
Srcew
joint
Screw
screw centerline
9/7/2023 38
1.5 Applications
Electric Pulling Winch
9/7/2023 39
1.5 Applications
Pulling Winch
Bánh cóc 1
chiều
Gear drive
9/7/2023 40
1.5 Applications
Conveyor
Conveyor
Conveyor
Loads chain
Loading screw
Roller Conveyor
Vibrating Conveyor
9/7/2023 41
1.5 Applications
Conveyor
9/7/2023 42
1.5 Applications
Loads chain
9/7/2023 43
1.5 Applications
Vibrating Conveyor
9/7/2023 44
1.5 Applications
9/7/2023 45
1.5 Applications
9/7/2023 46
1.5 Applications
Asimo robot
9/7/2023 47
1.5 Applications
9/7/2023 48
1.5 Applications
The car can fly, swim and dive
9/7/2023 49
1.5 Applications
The flying car has taken off
9/7/2023 50
1.5 Applications Printing Machinery
Fibre Processing
Carpet Machinery Used Clothing Equipment
Dyeing Machinery Weaving
Finishing Yarns & Thread Processin
Garment/Quilting
Knitting
Narrow Fabrics
Nonwovens
9/7/2023 51
1.5 Applications
Textile machine
9/7/2023 52
1.5 Applications
Milling CNC Machine
9/7/2023 53
