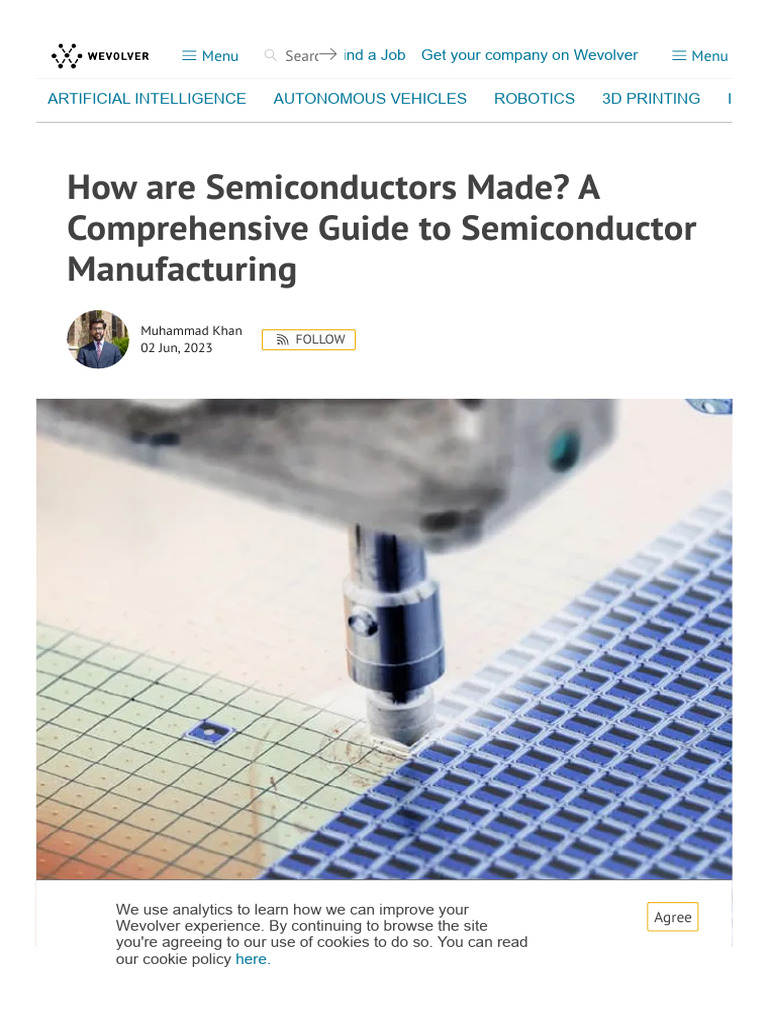

How are Semiconductors Made? A

Comprehensive Guide to Semiconductor
Manufacturing
Muhammad Khan
FOLLOW
02 Jun, 2023
We use analytics to learn how we can improve your

Agree
Wevolver experience. By continuing to browse the site
you're agreeing to our use of cookies to do so. You can read
our cookie policy here.
Silicon, with its abundant availability
Find a Job Get yourand unique
company on Wevolver
properties, serves as the fundamental building block for
semiconductor manufacturing. Its semi-metallic nature
makes it an ideal material for controlled conduction of
electricity. Furthermore, the combination of silicon with
oxygen produces silicon dioxide, a crucial insulating
component in silicon chip manufacturing.
Electronics- PCB - Semiconductors
1. Introduction
In today's digital age, semiconductors play an invaluable role in our everyday
lives. They form the heart of all electronic devices we depend on — from
smartphones and computers to cars and washing machines. In its essence,
the process of creating semiconductors involves intricate scientific
techniques and precise engineering. This guide is designed to delve into the
complex world of semiconductor manufacturing, shedding light on how these
tiny, yet powerful components are made.
Semiconductors are the unsung heroes that power the electronic devices we
rely on daily. From the smallest microchips to the most advanced processors,
semiconductors form the backbone of technology, enabling the seamless
functioning of smartphones, computers, cars, and much more. Behind the
scenes, a complex and precise manufacturing process brings these tiny but
mighty components to life. This comprehensive guide aims to demystify the
world of semiconductor manufacturing, providing an in-depth exploration of
how these remarkable creations are made, from the raw materials to the final
product.
2. The Raw Material: Silicon

Silicon, the second most abundant element on Earth, is the foundation for
semiconductors. Comprising
Wevolver experience. about 28%
By continuing of thethe
to browse Earth's
site crust by mass, Silicon's
semi-metallic nature makes it a prime choice in semiconductor production.
It's not just the availability of silicon that makes it attractive, but also its
specific physical and chemical properties.
Find a Job Silicon has
Get your four valence
company electrons
on Wevolver
that form covalent bonds leading to a stable crystal lattice structure. This
propertyINTELLIGENCE
ARTIFICIAL renders it as an ideal semiconductor
AUTONOMOUS material,
VEHICLES allowing controlled
ROBOTICS 3D PRINTING I
conduction of electricity.
Furthermore, silicon is a resilient material that can withstand high

temperatures, a necessary attribute given the extreme thermal processes
involved in semiconductor manufacturing. Additionally, silicon dioxide, the
result of combining silicon with oxygen, is an excellent insulator and is used
in the manufacturing of silicon chips for this reason.
2.1. Silicon Mining
Silicon is predominantly sourced from silica (silicon dioxide), which is

commonly found in sand and quartz. The process of silicon mining, in fact,
involves the extraction of sand. Countries such as the United States, China,
and Australia are top producers of silicon because of their abundant sand
resources.
The process of silicon mining is somewhat similar to traditional mining.

Sand, also known as Silicon dioxide (SO2), is first extracted from the Earth
through open pit mining or dredging. After extraction, the sand undergoes
extensive cleaning and filtering processes to remove unwanted materials. The
refined sand is then heated in a high-temperature furnace in the presence of
carbon. This process, known as carbothermic reduction, results in the
production of metallurgical grade silicon, with a purity level of about 98%.
This extracted silicon still contains impurities such as iron, aluminium, and
other metals. Although this grade of silicon is used in other industries, such
as metallurgy and chemical production, the production of semiconductors
requires an even higher degree of purity. As such, further refinement
processes are necessary to create semiconductor-grade silicon.
2.2. Purification of Silicon

After mining
Wevolverand initial refinement,
experience. By continuing silicon undergoes
to browse the site a series of purification
steps to reach the ultra-pure grade suitable for semiconductor
manufacturing. This semiconductor-grade
Find a Job silicon,
Get youralso known
company as electronic-
on Wevolver
grade silicon (EGS), must be 99.9999999% pure - a requirement necessitated
by the precise
ARTIFICIAL nature of semiconductor
INTELLIGENCE AUTONOMOUS devices. EvenROBOTICS
VEHICLES trace amounts
3D of
PRINTING I
impurities could drastically impact their functionality.
The purification process typically begins with the conversion of metallurgical

grade silicon to a more volatile compound that can be further purified. This is
accomplished through the Siemens process, where the metallurgical grade
silicon is reacted with hydrochloric acid to produce trichlorosilane (HCl3Si).
Trichlorosilane is a volatile compound that can be easily purified through
distillation techniques.
This purified trichlorosilane is then subjected to a process called chemical

vapor deposition (CVD) in a Siemens reactor. The CVD process involves
passing hydrogen gas over the heated trichlorosilane, which decomposes the
compound to produce highly pure silicon and hydrogen chloride. The
resulting silicon is in a polycrystalline form and possesses the high purity
level required for semiconductor manufacturing.
In recent years, an alternative method, known as the Fluidized Bed Reactor

(FBR), has been increasingly used. It employs a similar principle as the
Siemens process but does so more efficiently, thus reducing the cost of
production. However, both methods aim for the same goal: to produce ultra-
pure silicon suitable for semiconductor manufacturing. These purification
processes illustrate the lengths to which manufacturers must go to ensure
the necessary purity level, underlining the precision required in
semiconductor production.
Recommended Reading: Magnetron Sputtering: A Versatile Thin Film

Deposition Technique

Find a Job Get your company on Wevolver
Semiconductor chip production isometric flowchart with isolated images of hi-tech factory facilities
3. Silicon Ingot Production

Once ultra-pure silicon is procured, it's time to shape it into a form suitable
for chip production. The process begins by creating a silicon ingot, a large,
cylindrical piece of silicon. Ingot production starts with a small piece of
silicon, called a seed crystal, which is dipped into molten silicon and then
slowly pulled upward while rotating. This technique, known as the
Czochralski process, is essential for forming a cylindrical silicon ingot.
The silicon
you're ingot, bytothe
agreeing our end ofcookies
use of this process,
to do so.isYou
a single, continuous silicon
can read
ouroften
crystal, cookie policyahere.
called monocrystalline silicon. The monocrystalline nature of
the ingot is crucial since it ensures uniformity
Find a Job Getof thecompany
your crystalon
lattice structure,
Wevolver
which is critical for reliable semiconductor functionality.
To manage the electrical characteristics of the final semiconductor devices,
the silicon in the ingot is typically 'doped' during this stage. Doping involves
introducing minute amounts of other elements, such as boron or phosphorus,
into the silicon. These elements alter the silicon's electrical properties by
adding additional free electrons or creating 'holes' where electrons can move.
3.1. Ingot Shaping and Sizing
Following the formation of the silicon ingot, it must be shaped and sized to
meet the specifications necessary for chip manufacturing. The standard
shape of these ingots is cylindrical, but they must be cut into thin, flat wafers
to be usable in semiconductor devices. This transformation involves several
precise machining processes.
The first step is to grind the cylindrical ingot into a uniform shape and size.
This process is done to ensure that the ingot has a perfect cylindrical shape,
with no bulges or imperfections. Next, the outer layer of the ingot is typically
ground away to remove any potential contaminants that may have adhered
during the previous processes.
After the ingot is ground to a perfect cylinder, it is then cut into thin, flat
discs known as wafers. These wafers are cut using a specialized saw that can
maintain a high degree of precision. As technology advances and transistor
sizes shrink, the requirement for thinness becomes more stringent. As of now,
typical wafer thicknesses range from 675 to 725 micrometers.
The silicon wafers are then polished to a mirror finish, ensuring any
remaining microscopic irregularities are removed. This high degree of surface
smoothness is necessary to ensure accurate alignment and patterning in the
subsequent steps of semiconductor production. It is the wafers from this
process that will continue down the production line and eventually become
the semiconductors
We use analyticsin
to electronic
learn how wedevices.
can improve your
4. Wafer Fabrication
Fabricating a wafer involves many intricate
Find processes
a Job Get to transform
your company a simple
on Wevolver
silicon disc into a platform for numerous microscopic electronic components.
These processes
ARTIFICIAL include oxidation,
INTELLIGENCE AUTONOMOUSlithography,
VEHICLESetching, doping, and
metallization.
Oxidation is the first step, where the silicon wafer is heated in an oxygen-rich
environment. The result is a layer of silicon dioxide, which insulates the
underlying silicon. Silicon dioxide can also serve as a 'mask' during later
etching stages or as a 'gate' in transistors.
Next, lithography is employed to imprint the intricate circuit patterns onto

the silicon dioxide layer. The process involves the application of a light-
sensitive material called a photoresist onto the silicon dioxide. The
photoresist is then exposed to ultraviolet light through a mask with the
circuit pattern. This exposure causes the photoresist to harden in the pattern
of the mask.
Following lithography, the wafer undergoes an etching process. The

unhardened photoresist is removed, and an etching solution is applied to the
wafer, removing the exposed silicon dioxide and leaving behind the desired
pattern.
The wafer then undergoes doping to modify its electrical properties. This
process involves introducing impurities into specific areas of the silicon wafer
via diffusion or ion implantation. This step creates regions with distinct
electrical properties, enabling the creation of p-n junctions – the building
blocks of semiconductor devices.
Finally, metallization is carried out to provide a means of electrical

connection between the different elements of the integrated circuit. Thin
layers of metal, usually aluminum or copper, are deposited onto the wafer,
connecting different parts of the circuit. After metallization, the wafer is
typically coated with a protective layer to guard against damage and
contamination.
Wevolver experience.
Recommended By continuing to browse
Reading: Semiconductor the site Process: The Ultimate
Fabrication
Guide our
to Creating Cutting-Edge
cookie policy here. Electronics
4.1. Wafer Polishing Find a Job Get your company on Wevolver
An essential process in wafer fabrication is wafer polishing, also known as

chemical-mechanical planarization (CMP). Following the sequence of
fabrication processes, the water'swafer's surface is left with
various topographictopographical irregularities. These irregularities can
hinder the lithographic process, where the depth of focus is critical.
Wafer polishing employs a combination of chemical and mechanical

processes to reduce these topographical variations, yielding a flat, smooth
surface. The wafer is placed on a rotating platen with a pad and a chemically
active slurry. As the wafer is pressed against the pad and the platen rotates,
the slurry aids in removing the material from the high points on the
wafer, levellingleveling out the surface.
This process is critical to ensure the correct functioning of the semiconductor

devices on the wafer. High precision is necessary, as the irregularities being
removed are often just a few nanometers high. After CMP, the wafer is
thoroughly cleaned to remove any residual slurry or debris before proceeding
to the next fabrication step.
5. Layering Process
In the creation of semiconductor devices, the process of layering is an
essential stage. Layering involves depositing different materials onto the
silicon wafer, each with specific properties and functions. These materials can
be classified into three primary categories: insulators, semiconductors, and
conductors.
Insulator layers, often silicon dioxide, are deposited to electrically isolate

different parts of the circuit. The insulator layer also protects the underlying
layers from environmental contamination. The process of forming an
insulator layer is known as thermal oxidation, where the silicon wafer is
heated in the presence of oxygen to form a thin layer of silicon dioxide.
Wevolver experience.
The semiconductor layersByform
continuing to browse
the active the site
regions of the device where the
electrical activity
our cookie takes
policy place. These layers are typically composed of either
here.
pure silicon or a combination of silicon and Get
Find a Job other
yourelements such
company on as
Wevolver
germanium. These layers are created through a process known as epitaxy,
where layers
ARTIFICIAL of semiconductor
INTELLIGENCE material VEHICLES
AUTONOMOUS are grown onROBOTICS
the silicon wafer.
3D PRINTING I
Finally, conductor layers are deposited to create connections between

different parts of the circuit. These connections allow the flow of electricity
through the device. Metals like aluminum or copper are typically used for
conductor layers.
5.1. Oxidation
Oxidation is a fundamental process in the formation of the insulator layers

during the layering process. It involves the controlled heating of the silicon
wafer in an oxygen-rich environment, causing a thin layer of silicon dioxide
(SiO2) to form on the wafer's surface. Silicon dioxide acts as an excellent
insulator due to its high breakdown voltage, around 10^6 volts per
centimeter, and low leakage current.
Two common types of oxidation processes are wet oxidation and dry
oxidation. Wet oxidation, where steam is passed over the wafer at high
temperatures (typically above 1000 degrees Celsius), results in a thicker oxide
layer and is faster than dry oxidation. Dry oxidation, on the other hand, uses
dry oxygen at similar temperatures, producing a thinner, denser, and higher
quality oxide layer.
The thickness of the oxide layer is critical and highly controlled as it directly
influences the device's electrical properties. For instance, in a metal-oxide-
semiconductor field-effect transistor (MOSFET), the gate oxide thickness can
significantly affect the transistor's threshold voltage. Modern processes can
control the oxide thickness down to a few nanometers.
6. Dopant Diffusion
Dopant diffusion is an essential step in semiconductor fabrication, giving
semiconductors theirtocharacteristic
We use analytics property
learn how we can improve of charge control. The process
your
involves incorporating
you're impurity
agreeing to our atoms,
use of cookies to known as can
do so. You dopants,
read into the silicon
wafer. Depending on the type of dopant used,
Find a Job Getthe silicon
your canonbe
company made either
Wevolver
n-type (majority carriers are electrons) or p-type (majority carriers are holes).
For instance, phosphorus or arsenic, having five valence electrons, can be
used to create n-type silicon. In contrast, boron or gallium, having three
valence electrons, is used to create p-type silicon. These impurities replace
silicon atoms in the crystal lattice, contributing extra charge carriers. The
concentration of these dopants can be as low as one dopant atom per million
silicon atoms, but it significantly influences the electrical properties of the
silicon.
Dopant diffusion is carried out at high temperatures, typically in the range of

900 to 1200 degrees Celsius. The silicon wafer is placed in a furnace, and the
dopant source is introduced as a gas. The dopants diffuse into the silicon
wafer, driven by the temperature gradient, and take up positions within the
silicon's crystal lattice.
The process is highly controlled, as the depth of the diffusion, known as the
junction depth, directly impacts the device's electrical characteristics. It
typically ranges from a few hundred nanometers to several micrometers, and
it is measured using techniques such as secondary ion mass spectrometry
(SIMS). The resulting junction's abruptness can affect the performance of
semiconductor devices. An abrupt junction is critical in devices like bipolar
junction transistors (BJTs), whereas a more gradual junction is required for
devices like MOSFETs.
7. Etching Process
The etching process is an essential step in semiconductor fabrication used to
remove selected layers from the surface of a silicon wafer. It allows the
creation of intricate patterns that form the basis for the miniaturized circuits
present in the electronic devices. The etching process can selectively remove
silicon dioxide, polysilicon, metal layers, or even the silicon substrate itself.
The patterns are defined using photolithography, where a photosensitive
material calledexperience.
Wevolver a photoresist is exposed
By continuing to light,
to browse the defining
site regions to be
protected during
our cookie etching.
policy here.
Etching can be performed using two
Find methods:
a Job Get wet
youretching
companyand dry etching.
on Wevolver
Wet etching uses a liquid etchant to dissolve away the material. This method
is cost-effective
ARTIFICIAL and straightforward.
INTELLIGENCE AUTONOMOUS However, it hasROBOTICS
VEHICLES limitations such as
3D PRINTING I
isotropic etching, meaning it etches equally in all directions, which can lead
to undercutting the patterns. The isotropic nature of wet etching makes it
difficult to achieve high aspect ratios (depth to width ratio) in the etched
features.
Dry etching, on the other hand, employs gas phase etchants in a vacuum
chamber, and offers higher control over the etch process. A prevalent dry
etching technique is reactive-ion etching (RIE). In RIE, a plasma of reactive
ions is generated using a radio frequency (RF) source. These ions are
accelerated towards the wafer where they react with the surface material,
converting it into a volatile byproduct that can be removed by vacuum
pumping. The directionality of ion bombardment in RIE results in anisotropic
etching, allowing the creation of high aspect ratio features with vertical
sidewalls.
The etching process must be carefully controlled, and one key parameter is
the etch rate, typically measured in nanometers per minute. Factors such as
temperature, pressure, and the composition of the etching agent can all
affect the etch rate. In the case of dry etching, additional factors such as RF
power and chamber pressure play crucial roles. Variations in the etch rate
across the wafer, known as etch uniformity, is another vital parameter that is
carefully controlled to ensure uniform feature sizes across the wafer.
These precision-controlled etching processes enable the production of

nanoscale structures, with feature sizes now reaching below 10 nanometers
in leading-edge semiconductor devices. This capability is fundamental to the
continuing miniaturization of electronic circuits, which drives improvements
in performance, energy efficiency, and cost.
Recommended Reading: Understanding Plasma Etching: Detailed Insights

into Its Techniques, Uses, and Equipment Maintenance
Automated soldering machine inside at industry
8. Final Steps: Testing and Packaging

In the last stages of semiconductor fabrication, the focus shifts from
manufacturing to assurance of quality and protection. The testing stage is
integral to the manufacturing process and is performed to ensure that all the
circuits on the wafer function correctly. A suite of electrical tests are
performed, referred to as wafer probing or wafer testing. This involves
contacting each of the die on the wafer with an array of tiny probes that are
connected to a tester. The tester runs a series of electrical tests, checking
parameters like current, voltage, resistance, and capacitive or inductive
properties. These tests are designed to ensure that the device meets all its
specification and functionality requirements. An automatic test pattern
generation (ATPG) software is commonly used to generate the test vectors
(input combinations).
Following testing, nonfunctional dies are marked, and the wafer is sliced into
individual chips in a process known as dicing. Dicing is typically performed
using a precision diamond saw that cuts along the streets between dies. Each
die or chip is then mounted into a protective package which provides a robust
environment for the die and facilitates connections to the outside world.
Packaging methods vary widely based on application requirements and the
trade-off between cost and performance. In the simplest form, the chip can
be encapsulated in plastic
We use analytics to learnwith
how thin wires
we can connecting
improve your the chip to the external
leads. Wevolver
More advanced techniques
experience. involve
By continuing flipping
to browse the chip upside down (flip-
the site
chip packaging) and soldering it directly
Find a Jobto Get
the your
package leads
company on for better
Wevolver
electrical performance.
Post-packaging, the chips undergo final testing to ensure they survived the
packaging process intact and are still functional. They are also tested under
different environmental conditions like temperature and humidity to ensure
reliability. If the chip is part of a larger system on a chip (SoC), it might go
through functional testing where all the subsystems are checked for correct
operation. In these advanced stages, defects are typically extremely low, but
any found at this stage result in the discarding of the entire chip. This
underscores the importance of early and consistent quality control in earlier
stages of the fabrication process.
In terms of numerical data, testing can be a time-consuming process. It is not

uncommon for testing to account for up to 25% of the total manufacturing
time. The test coverage – the percentage of a chip's functionality that is
tested – can exceed 99% for high-reliability applications like automotive or
aerospace. The average chip yield – the percentage of functional chips on a
wafer – varies widely based on the complexity of the process and the maturity
of the technology, but it can range from 50% for new, leading-edge processes
to over 90% for mature, well-understood processes.
9. Challenges in Semiconductor Manufacturing

Semiconductor manufacturing is a complex, multidisciplinary process that
faces a number of challenges. These challenges encompass technical,
economic, and environmental aspects.
Continous Push for Miniaturization:
One significant technical challenge in semiconductor manufacturing is the

continuous push for miniaturization. The demand for higher transistor
density and lower power consumption drives the need for ever-smaller
transistor dimensions. This has led to the development of processes that can
createWevolver
featuresexperience.
that are only a few nanometers in size, far smaller than the
By continuing to browse the site
wavelength of visible
you're agreeing light.
to our useThis extreme
of cookies to dominiaturization
so. You can read presents numerous
technical challenges, such as controlling feature size and placement with
high precision, and managing theFind
increasing influence
a Job Get of quantum
your company on Wevolver
mechanical effects on device behavior.
Yield Management:
Yield management is another challenge that is associated with

miniaturization. Associated with miniaturization is the challenge of yield
management. As chips become more complex and feature sizes shrink, the
potential for defects that can render a chip nonfunctional increases.
Consequently, managing yield – the percentage of good chips on a wafer –
becomes a major challenge. Techniques such as fault tolerance and
redundancy are employed to mitigate the impact of defects, but these add
complexity and cost to the chip design process.
Economical Challenges:
Economic challenges in semiconductor manufacturing are largely driven by

the high costs associated with new technology development and fab
construction. For example, a modern fab capable of manufacturing chips with
sub-10 nanometer features can cost upwards of $10 billion to construct. This
high cost of entry means that only a handful of companies worldwide can
afford to remain at the cutting edge of technology, which impacts
competition and innovation in the sector.
Environmental Challenges:
Environmental challenges in semiconductor manufacturing relate to the

significant resources required for the process. Manufacturing a single 300mm
silicon wafer can require thousands of liters of ultra-pure water, large
amounts of electricity, and a variety of chemicals, some of which are
hazardous. Therefore, effective resource management and waste disposal are
significant challenges for the industry.
The Need for Continuous Innovation:
Lastly,We use analytics to learn how we can improve your

semiconductor manufacturing is also challenged by the need for
continuous innovation.
you're agreeing to ourAs existing
use semiconductor
of cookies technologies
to do so. You can read approach
their fundamental limits, new technologies need to be developed. Examples
include new transistor designs such
Findas FinFETs
a Job andcompany
Get your nanowire
on transistors,
Wevolver new
materials like graphene and carbon nanotubes, and entirely new computing
paradigms
ARTIFICIAL such as quantum
INTELLIGENCE computing.VEHICLES
AUTONOMOUS These innovations present
challenges in terms of the fundamental science and engineering required to

make them viable, as well as the need for significant investment in new
manufacturing processes and equipment.
10. Future Trends in Semiconductor Manufacturing:

The semiconductor industry is continuously evolving, driven by the demand
for faster, smaller, and more power-efficient devices. Several emerging trends
are shaping the future of semiconductor manufacturing. Here are some key
areas to watch:
Advanced Process Nodes:
Moore's Law, which states that the number of transistors on a chip doubles
approximately every two years, has driven semiconductor miniaturization for
decades. This trend is expected to continue with the development of
advanced process nodes, such as 5 nanometers (nm) and beyond. These
smaller nodes enable higher transistor density, improved performance, and
reduced power consumption.
Three-Dimensional (3D) Integration:
3D integration involves stacking multiple layers of chips vertically, enabling

increased functionality and performance in a smaller form factor. Through-
silicon vias (TSVs) and interconnect technologies play a crucial role in
connecting these vertically stacked chips. 3D integration allows for higher
memory density, improved interconnect performance, and heterogeneous
integration of different functionalities on a single package.
Emerging Materials:
Beyond
Wetraditional
use analyticssilicon,
to learn emerging
how we canmaterials such as Gallium Nitride
improve your
(GaN),Wevolver
Silicon Carbide (SiC),
experience. and 2D materials
By continuing like
to browse the Graphene are gaining
site
prominence. GaN
our cookie andhere.
policy SiC offer advantages in high-power and high-frequency
applications, while Graphene shows
Find potential
a Job Getfor flexible
your companyelectronics and
on Wevolver
faster transistors. Exploring and integrating these new materials into
semiconductor
ARTIFICIAL manufacturing
INTELLIGENCE processesVEHICLES
AUTONOMOUS will lead to ROBOTICS
enhanced device
3D PRINTING I
performance and efficiency.
More Specialized Applications:
As technology continues to advance, there is a growing need for specialized

semiconductor devices tailored to specific applications. This includes
artificial intelligence (AI) chips, Internet of Things (IoT) devices, autonomous
vehicles, and advanced sensors. Semiconductor manufacturers are
increasingly focusing on developing specialized chips that can meet the
unique requirements of these applications, such as low power consumption,
high computational power, and robust connectivity.
Advanced Packaging Technologies:
Packaging plays a critical role in protecting and interconnecting

semiconductor devices. Advanced packaging technologies, such as fan-out
wafer-level packaging (FOWLP), system-in-package (SiP), and chiplets, are
gaining traction. These packaging techniques offer improved performance,
smaller form factors, and increased flexibility in integrating diverse
functionalities onto a single package.
11. Conclusion
Semiconductor manufacturing is an incredibly complex and technologically
advanced process. This complexity arises from the intersection of various
scientific and engineering disciplines - including materials science, chemical
engineering, electrical engineering, and physics - all of which must be
mastered to successfully manufacture a semiconductor device. The process
involves several stages, from crystal growth and wafer fabrication, through
various layering and doping processes, to final etching, testing, and
packaging.
This entire
you're manufacturing process
agreeing to our use operates
of cookies to do so.on a microscopic
You can read scale, requiring
highlyour cookie policy here.
sophisticated equipment and techniques to maintain the necessary
precision and control. For instance,
Findfeature sizes
a Job Get oncompany
your modernon
semiconductor
Wevolver
devices are now less than 10 nanometers - smaller than many biological
molecules.
ARTIFICIAL Achieving suchAUTONOMOUS
INTELLIGENCE small sizes requires
VEHICLESadvanced lithography
techniques, utilizing extreme ultraviolet light or electron beams.
The challenges in semiconductor manufacturing are many, not least of which

are the high costs associated with developing and maintaining state-of-the-
art fabrication facilities, the environmental impact of the resource-intensive
manufacturing process, and the technical difficulties associated with
continuous miniaturization and yield management. Yet, despite these
challenges, the semiconductor industry continues to drive forward, with
constant innovation leading to ever more powerful and efficient devices.
12. FAQs
1. What is the smallest feature size currently achievable in semiconductor
manufacturing?
As of 2023, the smallest feature sizes in commercial semiconductor

manufacturing are approximately 5 nanometers, although research and
development for smaller nodes are ongoing.
2. Why is ultra-pure water important in semiconductor manufacturing?
Ultra-pure water is used extensively in the semiconductor manufacturing process

for cleaning silicon wafers and various other tasks. It is important that the water
is ultra-pure to avoid introducing contaminants onto the wafer surface, which
could result in defects and lower the yield of good chips.
3. Why are new transistor designs like FinFETs and nanowire transistors
necessary?
As transistor dimensions shrink, traditional planar (flat) transistor designs suffer

from a number of problems, including increased leakage current and difficulties
in controlling the flow of current. New transistor designs like FinFETs and
nanowire transistors
Wevolver haveBy
experience. 3Dcontinuing
structuresto that help
browse themitigate
site these problems,
allowing
ourfor continued
cookie device miniaturization.
policy here.
4. How does quantum computingFind
fit into
a Jobthe future
Get of semiconductors?
your company on Wevolver
QuantumINTELLIGENCE
ARTIFICIAL computing is a potential future VEHICLES
AUTONOMOUS direction for semiconductors
ROBOTICS 3Dand
PRINTING I
computing in general. It represents a radical departure from traditional
computing, utilizing the principles of quantum mechanics to perform
computations. It is currently at the experimental stage, with numerous technical
challenges to be overcome before it can become a viable commercial technology.
References:
https://www.hitachi-
hightech.com/global/en/knowledge/semiconductor/room/manufacturing/process.
html
https://www.asml.com/en/news/stories/2021/semiconductor-manufacturing-
process-steps
https://www.sciencedirect.com/topics/engineering/semiconductor-manufacturing
https://www.amd.com/en/technologies/introduction-to-semiconductors
More by Muhammad Khan FOLLOW
Abdul, is an accomplished electrical engineer from University of Warwick and a gifted writer.
With a passion for all things IoT, computing, and data science, Abdul has honed a sharp
mind for problem-solving and innovation, all while maintaining an unwavering dedication to
clear and compelling prose...
Mastering PID Tuning: The Comprehensive Guide

13 minutes read
PCB Surface Finish: The Ultimate Guide to Understanding and Choosing the
Ri...policy here.
our cookie
21 minutes read
PCBA vs PCB: The foundation of

modern-day electronics
Ravi Rao
FOLLOW
less than a minute read
Most of the electronics that we use in our daily lives have

printed circuit boards as the underlying hardware, which
integrates all the passive components and integrated
circuits to make complex circuitry. In this article, we
discuss the key differences between PCBA and PCB.
Electronics- PCBexperience.
Wevolver - Semiconductors
By continuing to browse the site
Introduction
The world of electronics is filled with various components and technologies
that work together to create functional devices. Among these components,
printed circuit boards (PCBs) and printed circuit board assemblies (PCBAs)
play a crucial role in the design and operation of electronic devices.
Understanding the differences between PCBs and PCBAs is essential for

engineers, designers, and manufacturers, as it helps them make informed
decisions when developing new products or improving existing ones.
This article will delve into the definitions, functions, types, and
manufacturing processes of both PCBs and PCBAs, as well as explore their
key differences and applications. By gaining a deeper understanding of these
essential components, professionals in the electronics industry can make
better choices and optimize their projects for success.
PCB: Printed Circuit Board

Definition and Function
A printed circuit board (PCB) is a thin board made of insulating material,
such as fiberglass or epoxy resin, with conductive pathways etched or printed
onto its surface. These pathways, also known as traces, are typically made of
copper and serve as the electrical connections between various electronic
components, such as resistors, capacitors, and integrated circuits. The
primary function of a PCB is to provide a stab
CONTINUE READING

Understanding Plasma Etching: Detailed Insights into Its Techniques, Uses, and
Equipment Maintenance
Saliha Malik
18 minutes read
Domestic Fabs Won't Solve Chip Shortage for Everyone
Muirae Kenney from MacroFab

4 minutes read

PWB vs PCB: Differences and Similarities
Ravi Rao INTELLIGENCE

ARTIFICIAL AUTONOMOUS VEHICLES ROBOTICS 3D PRINTING I
21 minutes read
Get your Company on Wevolver

We reach millions of professional engineers every month who
leverage the platform to stay up-to-date and connect with the
industry.
Learn how your company can publish as well.
CONTACT US
At Wevolver you'll find the knowledge and

connections to develop better technology.
J O I N O U R E N G I N E E R I N G CO M M U N I TY

INFO
Home
About Wevolver
Find a Job
ARTIFICIAL INTELLIGENCE
Get your company AUTONOMOUS VEHICLES
on Wevolver ROBOTICS 3D PRINTING I
Contact
S E CT I O N S
Tech Specs
Technical Guides
Featured Organizations
Podcasts
CO M P R E H E N S I V E G U I D E S
Robotics
Artificial Intelligence
Internet of Things
Autonomous Vehicles
Semiconductors
3D Printing
Sensors
R E S O U RC E S
Submit Content
Writing Guide
Sitemap
Subscribe to Wevolver's Newsletter

Our newsletter delivers our selection of the most interesting articles,
straight to your inbox. Making it easy for you to stay on top of the state
of the art.
Follow theWe use analytics

Wevolver to (email)
Newsletter learn how we can improve your
SUBSCRIBE
Wevolver 2023


How Are Semiconductors Made - A Comprehensive Guide To Semiconductor Manufacturing

Uploaded by

Copyright:

Available Formats

You might also like

How Are Semiconductors Made - A Comprehensive Guide To Semiconductor Manufacturing

Uploaded by

Document Information

Original Description:

Original Title

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

How Are Semiconductors Made - A Comprehensive Guide To Semiconductor Manufacturing

Uploaded by

Copyright:

Available Formats

Menu Searc Find a Job Get your company on Wevolver Menu

ARTIFICIAL INTELLIGENCE AUTONOMOUS VEHICLES ROBOTICS 3D PRINTING I

How are Semiconductors Made? A

We use analytics to learn how we can improve your

2. The Raw Material: Silicon

Furthermore, silicon is a resilient material that can withstand high

2.1. Silicon Mining

Silicon is predominantly sourced from silica (silicon dioxide), which is

The process of silicon mining is somewhat similar to traditional mining.

2.2. Purification of Silicon

impurities could drastically impact their functionality.

The purification process typically begins with the conversion of metallurgical

This purified trichlorosilane is then subjected to a process called chemical

In recent years, an alternative method, known as the Fluidized Bed Reactor

Recommended Reading: Magnetron Sputtering: A Versatile Thin Film

We use analytics to learn how we can improve your

ARTIFICIAL INTELLIGENCE AUTONOMOUS VEHICLES ROBOTICS 3D PRINTING I

3. Silicon Ingot Production

3.1. Ingot Shaping and Sizing

Next, lithography is employed to imprint the intricate circuit patterns onto

Following lithography, the wafer undergoes an etching process. The

Finally, metallization is carried out to provide a means of electrical

An essential process in wafer fabrication is wafer polishing, also known as

Wafer polishing employs a combination of chemical and mechanical

This process is critical to ensure the correct functioning of the semiconductor

Insulator layers, often silicon dioxide, are deposited to electrically isolate

Finally, conductor layers are deposited to create connections between

Oxidation is a fundamental process in the formation of the insulator layers

Dopant diffusion is carried out at high temperatures, typically in the range of

These precision-controlled etching processes enable the production of

Recommended Reading: Understanding Plasma Etching: Detailed Insights

ARTIFICIAL INTELLIGENCE AUTONOMOUS VEHICLES ROBOTICS 3D PRINTING I

Automated soldering machine inside at industry

8. Final Steps: Testing and Packaging

In terms of numerical data, testing can be a time-consuming process. It is not

9. Challenges in Semiconductor Manufacturing

Continous Push for Miniaturization:

One significant technical challenge in semiconductor manufacturing is the

Yield management is another challenge that is associated with

Economic challenges in semiconductor manufacturing are largely driven by

Environmental challenges in semiconductor manufacturing relate to the

The Need for Continuous Innovation:

Lastly,We use analytics to learn how we can improve your

challenges in terms of the fundamental science and engineering required to

10. Future Trends in Semiconductor Manufacturing:

Advanced Process Nodes:

Three-Dimensional (3D) Integration:

3D integration involves stacking multiple layers of chips vertically, enabling

performance and efficiency.

More Specialized Applications:

As technology continues to advance, there is a growing need for specialized

Advanced Packaging Technologies:

Packaging plays a critical role in protecting and interconnecting

techniques, utilizing extreme ultraviolet light or electron beams.

The challenges in semiconductor manufacturing are many, not least of which

As of 2023, the smallest feature sizes in commercial semiconductor

2. Why is ultra-pure water important in semiconductor manufacturing?
