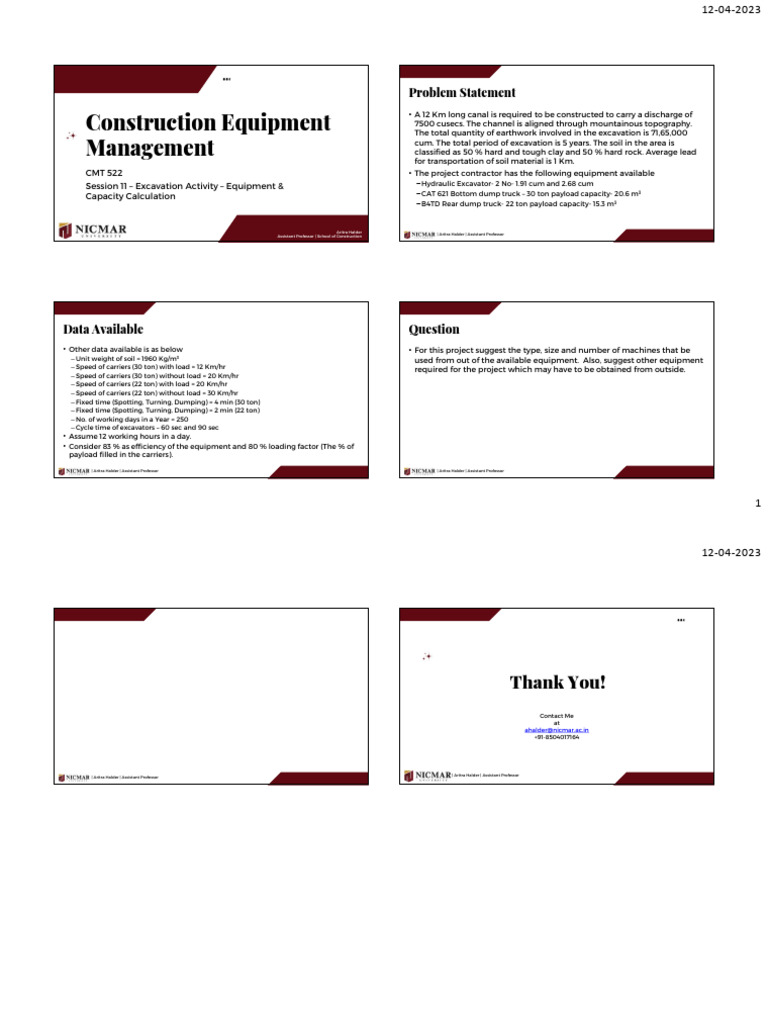

Problem Statement

Construction Equipment
• A 12 Km long canal is required to be constructed to carry a discharge of
7500 cusecs. The channel is aligned through mountainous topography.
The total quantity of earthwork involved in the excavation is 71,65,000

Management cum. The total period of excavation is 5 years. The soil in the area is
classified as 50 % hard and tough clay and 50 % hard rock. Average lead
for transportation of soil material is 1 Km.
CMT 522 • The project contractor has the following equipment available
Session 11 – Excavation Activity – Equipment & – Hydraulic Excavator- 2 No- 1.91 cum and 2.68 cum
– CAT 621 Bottom dump truck – 30 ton payload capacity- 20.6 m3
Capacity Calculation
– B4TD Rear dump truck- 22 ton payload capacity- 15.3 m3

Aritra Halder
| Aritra Halder | Assistant Professor
Assistant Professor | School of Construction

Data Available Question

• Other data available is as below • For this project suggest the type, size and number of machines that be
– Unit weight of soil = 1960 Kg/m3 used from out of the available equipment. Also, suggest other equipment
– Speed of carriers (30 ton) with load = 12 Km/hr required for the project which may have to be obtained from outside.
– Speed of carriers (30 ton) without load = 20 Km/hr
– Speed of carriers (22 ton) with load = 20 Km/hr
– Speed of carriers (22 ton) without load = 30 Km/hr
– Fixed time (Spotting, Turning, Dumping) = 4 min (30 ton)
– Fixed time (Spotting, Turning, Dumping) = 2 min (22 ton)
– No. of working days in a Year = 250
– Cycle time of excavators – 60 sec and 90 sec
• Assume 12 working hours in a day.
• Consider 83 % as efficiency of the equipment and 80 % loading factor (The % of
payload filled in the carriers).
