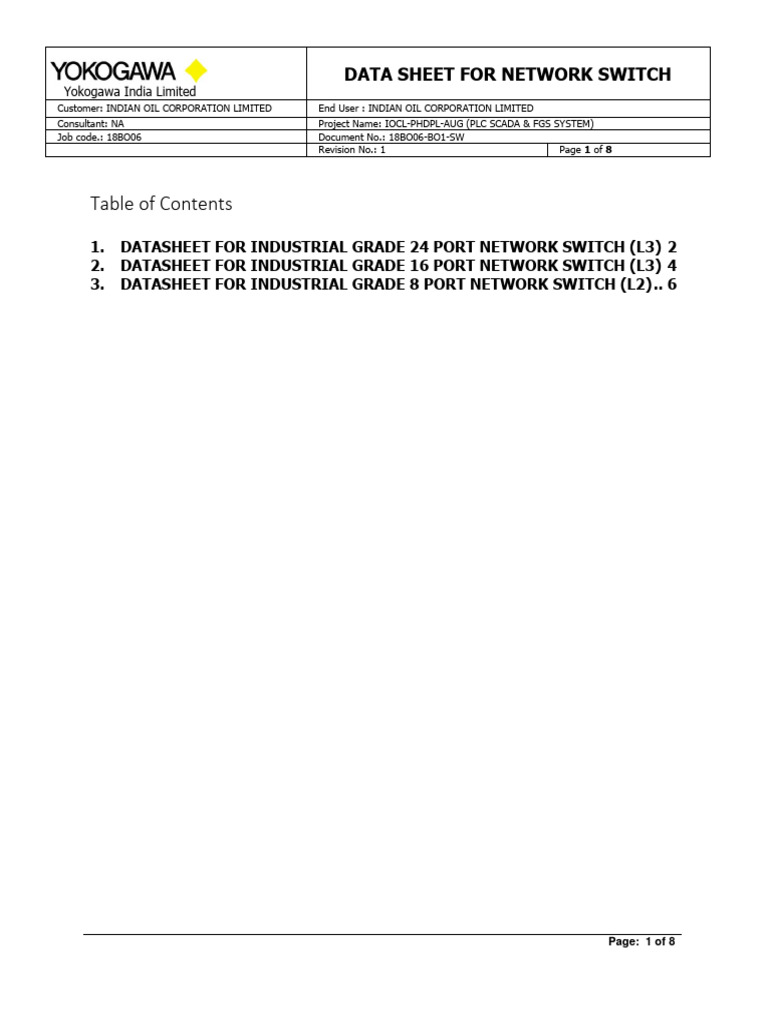

DATA SHEET FOR NETWORK SWITCH

Yokogawa India Limited

Customer: INDIAN OIL CORPORATION LIMITED End User : INDIAN OIL CORPORATION LIMITED
Consultant: NA Project Name: IOCL-PHDPL-AUG (PLC SCADA & FGS SYSTEM)
Job code.: 18BO06 Document No.: 18BO06-BO1-SW
Revision No.: 1 Page 1 of 8

Table of Contents

1. DATASHEET FOR INDUSTRIAL GRADE 24 PORT NETWORK SWITCH (L3) 2

2. DATASHEET FOR INDUSTRIAL GRADE 16 PORT NETWORK SWITCH (L3) 4
3. DATASHEET FOR INDUSTRIAL GRADE 8 PORT NETWORK SWITCH (L2) .. 6

Page: 1 of 8
 DATA SHEET FOR NETWORK SWITCH
Yokogawa India Limited
Customer: INDIAN OIL CORPORATION LIMITED End User : INDIAN OIL CORPORATION LIMITED
Consultant: NA Project Name: IOCL-PHDPL-AUG (PLC SCADA & FGS SYSTEM)
Job code.: 18BO06 Document No.: 18BO06-BO1-SW
Revision No.: 1 Page 2 of 8

1. DATASHEET FOR INDUSTRIAL GRADE 24 PORT NETWORK SWITCH (L3)

SL.NO DESCRIPTION SPECIFICATIONS VENDOR COMPLIANCE

1 Make HPE Aruba

2 Model 2930M-24G

3 Qty 5 Nos
High performance Layer 3 Managed Network
4 Type Yes
Switch.
No. of Fast Ethernet ports – 24 port
xRJ45 auto-sensing (1Gb/100Mb/10Mb),
5 Ports Minimum 2-1GB SFP Ports Yes
Optical ports are to be supplied along with
suitable SFP modules.
●Traffic-Port Features
Auto-negotiation for speed and flow control
Auto MDI/MDIX
Port mirroring
Broadcast storm control
●Switch Attributes
Line-rate Layer 2 switching
Line-rate Layer 3 routing (Static, RIP V1/V2,
6 Features Yes
OSPF)
●Power & Cooling Hardware
Internal hot swappable power supply bays: 2
Hot swappable power supplies:2
Power supply redundancy: Required
●Additional Features: Spanning Tree Protocol,
Rapid STP, VLAN Tagging, Class of Service, Port
Trunk with LACP
● Port Security
7 Security Features ● Port Blocking Yes
● Access for IP Address
Power Supply Redundancy Required (Hot
8 Redundancy Yes
Swappable)
9 Power Supply Dual redundant power supply Yes
IGMPv1/v2, GMRP, GVRP, SNMPv1/v2c/v3,
Details of protocol
10 DHCP Server/ Client, BootP, TFTP, SNTP, SMTP, Yes
support
RMON, HTTP, HTTPS, Telnet, Syslog, DHCP, SSH,
Page: 2 of 8
 DATA SHEET FOR NETWORK SWITCH
Yokogawa India Limited
Customer: INDIAN OIL CORPORATION LIMITED End User : INDIAN OIL CORPORATION LIMITED
Consultant: NA Project Name: IOCL-PHDPL-AUG (PLC SCADA & FGS SYSTEM)
Job code.: 18BO06 Document No.: 18BO06-BO1-SW
Revision No.: 1 Page 3 of 8

SNMP, Modbus/ TCP, IEEE 1588 PTP, IPv6

To be filled Maximum Power Rating

11 Power Consumption 93W
Idle Power 28W
12 Management Command Line Interface (CLI), Telnet, BootP Yes
RMON, XRMON, and
sFlow provide advanced
monitoring and reporting
13 Alarm Contacts One Relay output (1 A @24 V DC)
capabilities for statistics,
history, alarms, and
events
14 Local Indication Status LEDs for Power, Fault, link activity etc. Yes
1.73" (Height) x 17.42"
(Width) x
15 Dimensions To be filled 12.77" (Depth)
(4.39cm x 44.25cm x
32.43cm)
16 Weight To be filled 9.81 lbs 4.45 kg
Switch to be mounted in
17 Housing Dust proof, rugged
Custom Rack
18 Operating Temperature: 0° to 60° C or better 0 to 55 degrees

19 Storage Temperature 0° to 70° C or better Yes

Relative Humidity
20 20% to 90% 15% to 95%
(non-condensing)
21 Mounting 19” Rack Mounted Yes
All required cables and connectors,
22 Accessories Documentation: Installation guide, Operation & Yes
Maintenance Manuals, Installation CDs.
23 Warranty 36 Months from the date of dispatch Yes

ANNEXURE-1:

Location Name (PHDPL) Quantity UOM

Orissa Paradip 2 Nos
Bihar Patna 2 Nos
Page: 3 of 8
 DATA SHEET FOR NETWORK SWITCH
Yokogawa India Limited
Customer: INDIAN OIL CORPORATION LIMITED End User : INDIAN OIL CORPORATION LIMITED
Consultant: NA Project Name: IOCL-PHDPL-AUG (PLC SCADA & FGS SYSTEM)
Job code.: 18BO06 Document No.: 18BO06-BO1-SW
Revision No.: 1 Page 4 of 8

Spare 1 No
Total 5 Nos

Location Name (PHPL) Quantity UOM

Total 9 Nos

2. DATASHEET FOR INDUSTRIAL GRADE 16 PORT NETWORK SWITCH (L3)

SL.NO DESCRIPTION SPECIFICATIONS VENDOR COMPLIANCE

1 Make HPE Aruba

2 Model 2930M-24G

3 Qty 23 Nos
High performance Layer 3 Managed Network
4 Type Yes
Switch.
No. of Fast Ethernet ports – 16 port
xRJ45 auto-sensing (1Gb/100Mb/10Mb),
5 Ports Minimum 2-1GB SFP Ports Yes
Optical ports are to be supplied along with
suitable SFP modules.
●Traffic-Port Features
Auto-negotiation for speed and flow control
Auto MDI/MDIX
Port mirroring
Broadcast storm control
●Switch Attributes
Line-rate Layer 2 switching
Line-rate Layer 3 routing (Static, RIP V1/V2,
6 Features Yes
OSPF)
●Power & Cooling Hardware
Internal hot swappable power supply bays: 2
Hot swappable power supplies:2
Power supply redundancy: Required
●Additional Features: Spanning Tree Protocol,
Rapid STP, VLAN Tagging, Class of Service, Port
Trunk with LACP
Page: 4 of 8
 DATA SHEET FOR NETWORK SWITCH
Yokogawa India Limited
Customer: INDIAN OIL CORPORATION LIMITED End User : INDIAN OIL CORPORATION LIMITED
Consultant: NA Project Name: IOCL-PHDPL-AUG (PLC SCADA & FGS SYSTEM)
Job code.: 18BO06 Document No.: 18BO06-BO1-SW
Revision No.: 1 Page 5 of 8

● Port Security
7 Security Features ● Port Blocking Yes
● Access for IP Address
Power Supply Redundancy Required (Hot
8 Redundancy Yes
Swappable)
9 Power Supply Dual redundant power supply Yes
IGMPv1/v2, GMRP, GVRP, SNMPv1/v2c/v3,
Details of protocol DHCP Server/ Client, BootP, TFTP, SNTP, SMTP,
10 Yes
support RMON, HTTP, HTTPS, Telnet, Syslog, DHCP, SSH,
SNMP, Modbus/ TCP, IEEE 1588 PTP, IPv6
To be filled Maximum Power Rating
11 Power Consumption 93W
Idle Power 28W
12 Management Command Line Interface (CLI), Telnet, BootP Yes
RMON, XRMON, and
sFlow provide advanced
monitoring and reporting
13 Alarm Contacts One Relay output (1 A @24 V DC)
capabilities for statistics,
history, alarms, and
events
14 Local Indication Status LEDs for Power, Fault, link activity etc. Yes
1.73" (Height) x 17.42"
(Width) x
15 Dimensions To be filled 12.77" (Depth)
(4.39cm x 44.25cm x
32.43cm)
16 Weight To be filled 9.81 lbs 4.45 kg
Switch to be mounted in
17 Housing Dust proof, rugged
Custom Rack
18 Operating Temperature: 0° to 60° C or better 0 to 55 degrees

19 Storage Temperature 0° to 70° C or better Yes

Relative Humidity
20 20% to 90% 15% to 95%
(non-condensing)
21 Mounting 19” Rack Mounted Yes
All required cables and connectors,
22 Accessories Documentation: Installation guide, Operation & Yes
Maintenance Manuals, Installation CDs.

Page: 5 of 8
 DATA SHEET FOR NETWORK SWITCH
Yokogawa India Limited
Customer: INDIAN OIL CORPORATION LIMITED End User : INDIAN OIL CORPORATION LIMITED
Consultant: NA Project Name: IOCL-PHDPL-AUG (PLC SCADA & FGS SYSTEM)
Job code.: 18BO06 Document No.: 18BO06-BO1-SW
Revision No.: 1 Page 6 of 8

23 Warranty 36 Months from the date of dispatch Yes

ANNEXURE-2:

Location Name (PHDPL) Quantity UOM

Orissa Paradip 2 Nos
West Bengal Durgapur 4 Nos
Bhagalpur 4 Nos
Barauni 4 Nos
Bihar
Muzaffarpur 4 Nos
Patna 4 Nos
Spare 1 No
Total 23 Nos

Location Name (PHPL) Quantity UOM

Total 29 Nos

3. DATASHEET FOR INDUSTRIAL GRADE 8 PORT NETWORK SWITCH (L2)

SL.NO DESCRIPTION SPECIFICATIONS VENDOR COMPLIANCE

1 Make HPE Aruba

2 Model 2930M-24G

3 Qty 15 Nos
High performance Layer 2 Industrial Grade
Managed Network Switch with optical Fibre
4 Type Yes
interfaces Min. 02 Optical Ports per switch at
each station.
No. of Ethernet ports –8 port (10/100/1000
5 Ports MBPS) Ethernet. Yes
Nos. of Optical Ports per switch – 02 Nos.
● Capable to handle multicast queries
● SNMP Support
● Should support Cut through or fragment free
6 Features Yes
switching
● Should support spanning tree/ fast spanning
tree protocol support
Page: 6 of 8
 DATA SHEET FOR NETWORK SWITCH
Yokogawa India Limited
Customer: INDIAN OIL CORPORATION LIMITED End User : INDIAN OIL CORPORATION LIMITED
Consultant: NA Project Name: IOCL-PHDPL-AUG (PLC SCADA & FGS SYSTEM)
Job code.: 18BO06 Document No.: 18BO06-BO1-SW
Revision No.: 1 Page 7 of 8

● Port Security
7 Security Features ● Port Blocking Yes
● Access for IP Address
8 Redundancy Power Supply Redundancy Required Yes
12VDC 250W Power
9 Power Supply To be filled
Supply
To be filled IGMP, UDLD, LLDP, TCP,
Details of protocol SNMP, IPv6, ARP, Telnet,
10
support DHCP, RADIUS, RIP, OSPF,
etc
To be filled Maximum Power Rating
11 Power Consumption 93W
Idle Power 28W
To be filled 1.73" (Height) x 17.42"
(Width) x 12.77" (Depth)
12 Dimensions
(4.39cm x 44.25cm x
32.43cm)
13 Weight To be filled 9.81 lbs 4.45 kg
Switch to be mounted in
14 Housing Rugged IP30 protection, high strength housing
Custom Rack
15 Operating Temperature: 0° to 60° C or better 0 to 55 degrees

16 Storage Temperature 0° to 65° C or better 0 to 70 degrees

Relative Humidity
17 20% to 90% 15% to 95%
(non-condensing)
To comply with CE Regulations, UL/ IEC etc.
18 Product Safety Yes
standards
UL 60950-1, 2nd Edition

EN 60950-1:2006
+A11:2009 : A1:2010
+A12:2011 +A2:2013

IEC60950-1:2005
19 Electrical Safety UL/CSA/EN/CE
+A1:2009 +A2:2013

CSA 22.2 No. 60950-1-07

2nd

EN60825-1:2007 /IEC
60825-1:2007 Class 1
Page: 7 of 8
 DATA SHEET FOR NETWORK SWITCH
Yokogawa India Limited
Customer: INDIAN OIL CORPORATION LIMITED End User : INDIAN OIL CORPORATION LIMITED
Consultant: NA Project Name: IOCL-PHDPL-AUG (PLC SCADA & FGS SYSTEM)
Job code.: 18BO06 Document No.: 18BO06-BO1-SW
Revision No.: 1 Page 8 of 8

ESD IEC 61000-4-2

Radiated IEC 61000-4-3
EFT/Burst IEC 61000-4-4
Surge IEC 61000-4-5
Conducted IEC 61000-4-6
20 Eye Safety IEC / FDA Power frequency
magnetic field
IEC 61000-4-8
Voltage dips and
interruptions
IEC 61000-4-11
21 Mounting Din Rail mounted/19” Rack Mounted Rack Mounted
All required cables and connectors,
22 Accessories Documentation: Installation guide, Operation & Yes
Maintenance Manuals, Installation CDs.
23 Warranty 36 Months from the date of dispatch Yes

ANNEXURE-3:

Location Name (PHDPL) Quantity UOM

Paradip 2 Nos
Orissa
Balasore 2 Nos
West Bengal Durgapur 2 Nos
Bhagalpur 2 Nos
Barauni 2 Nos
Bihar
Muzaffarpur 2 Nos
Patna 2 Nos
Spare 1 No
Total 15 Nos

Location Name (PHPL) Quantity UOM

Total 15 Nos

Page: 8 of 8
