CMD v4 Basic Error Codes

BASIC ERROR CODES
INNOVATIVE PVT LTD. ERROR CODES & OTHERS
CMD Messages
The two-digit codes on CMD controllers indicate the following error messages:
Error
Meaning Explanation
code
Off No power supply Switch on the device.
- Start-up (after RESET or electronics self-
Wait until start-up is complete.
- test)
b
Burn; program controller Contact service.
u
C
Compare; check controller Contact service.
O
Controller OK -
O
0
No error -
0
0
Software faulty Switch the device off and on.
1
Perform a reset using the function button.
0 Communication problem with Chip
If error message ‘05’ does not disappear,
5 card controller
contact customer service.
Communication problem with Chip Perform a reset using the function button.
0
card / or wrong Chip card inserted If error message ‘06’ does not disappear,
6
(Chip card number not ‘226-0PR’) contact service.
0
Stacker EEPROM missing/defective Contact service.
8
Push the CMD-V4as far as possible into the
device using the green locking handle
0 Locking handle open, CMD is not in
(CMD-V4 must audibly click into place). If
9 dispensing position
error message ‘09’ does not disappear,
contact customer service.
1
Controller faulty Contact service.
0
Perform a reset using the function button.
1
No software(download) If error message ‘11’ does not disappear,
1
contact service.
1
Safely switch open Insert the CMD-V4.
2
Remove banknote bundles from the CMD-
V4.
1 Reset the device lock using the product
Device disable present
3 specific software (see chapter “Basic
Operation”, section “Calling the product
specific software”).
Insert and log in cassette (one
1 CMD-V4 minimum configuration is
reject/retract cassette and one cash out
4 missing
cassette required).
1 Cassette board with invalid coding, not
Contact service.
5 inserted, or defective
1
Output transport coding invalid Contact service
6
1
Belt drive of clamp defective Contact service
7
Check the cash paths in the stacker, in the
area of the stacker wheels and in the
dispenser modules (see section “Checking
1 the cash paths”).
Banknotes jammed during dispensing
8 Move the CMD-V4 in the safe to the cash-
out position and wait for the system to
boot. If error message ‘18’ does not
disappear, contact service.
Check the cash paths in the output
transport (see section “Checking the cash
1 paths”). Move the CMD-V4 in the safe to
Clamp transport defective / blocked
9 the cash-out position and wait for the
system to boot. If error message ‘19’ does
not disappear, contact service
transport (see section “Checking the cash
2 Single reject switch (MA2/1, MA2/2,
paths”). Move the CMD-V4 in the safe to
0 SM1) faulty blocked
the cash-out position and wait for the
system to boot.
2
Faulty measuring station(DDU) Contact service.
1
Clear the cash paths (see section
“Checking the cash paths”).
Move the CMD-V4 in the safe to the cash-
2 Photo sensor amplifier faulty or photo out position and wait for the system to
2 sensor initialization unsuccessful. boot. If error message ‘22’ does not
disappear, perform a reset using the
function button. If you do this three times
without success, contact service
If you cannot pull out CMD-V4, perform a
reset using the function button. If error
message ‘23’ does not disappear, contact
customer service. If you can pull out the
CMD-V4, check the cash paths in the
2 Routing disk (SM2/SM3) stacker and output transport (see section
3 defective/blocking “Checking the cash paths”).
reboot. In other cases, please contact
service.
2 Reject/retract (MA6) defective/ Empty the reject compartment of the

4 blocked (lifting magnet) reject/retract cassette (see section
“Emptying the reject /retract cassette”).
Check the cash paths in the stacker (see
section “Checking the cash paths”).

boot. In other cases, please contact
service.
Clear the cash paths (see section
2 Dispensing drive (DCM 1)
5 defective/blocked
boot. In other cases, please contact service
Check the cash paths in the stacker and
output transport (see section “Checking
the cash paths”).
2 Stacker wheel drive(SM 9) Move the CMD-V4 in the safe to the cash-
6 defective/blocked out position and wait for the system to
boot. In other cases, please contact
service.
2 Check the shutter,

Shutter error
8 Perform a reset using the function button.
2 Cash-out photo sensor covered transport (see section “Checking the cash
9 (manipulation) paths”). Perform a reset using the function
button.
3 Too many problems during dispensing Bundle rejects can be caused by extremely
X from cassette x(x=1-6) skewed banknotes or banknotes that are
extracted in an uncontrolled way or by
problems with the photosensors.
This error can be ignored the first time it
occurs (warning). If the error keeps
occurring, please proceed as follows:
 Remove the cassette from
dispenser module’x’ and check
contents of banknotes:
Is the correct banknote type in the
cassette? Are the front banknotes
deformed on one side? Is the
pressure against the front
banknotes even on the right and
on the left side?
 With the cassette removed check
the dispensing area in the
dispenser module for stuck
banknote scraps (see section
 Check the transport path from
cassette ‘x’ to the clamp for
jammed banknotes/scraps (see
section “Checking the cash
paths”).
 Check the connectors at the CMD
controller.
 Determine the reference value
(see section “Determining the

reference value”).
Check the contents of cash-out cassette ‘x’

for position and quality of banknotes (see
sections “Preparing the banknote
bundles”).
Banknotes cannot be dispensed or
4 Check the dispensing area for stuck
incorrect pressure on notes in new
X banknotes (see section “Checking the cash
cassette (x=1-6)
paths”).
Reinsert the cassette and check the
functions with a test dispense (see section
“Function test”).
5
Too many bad banknotes (x=1-6) Check the contents of cassette ‘x.’
X
6 Replace the defective cassette with a new
Cassette defective (x=1-6)
X initialized cassette.
Check whether there is a banknote jam in
7 Banknote measuring station (DDU) not the upper dispensing unit. Are the cables
0 ready connected? If the error message does not
disappear, contact service.
7 Dispensing sensor PSD x dirty or
Contact service
X pressure sensor faulty (x=1-6)
8 Cassette empty sensor PSE x dirty (x=1-
Contact service
X 6)
9
Photo sensor PS 1 dirty Contact service
0
9
1
9
3
9
5
9
A
Displays at startup
NO. Meaning Reaction
OFF No power supply Switch on the device
.8 Controller faulty Replace the controller
.8
- - Controller test after power on None
0 to 9 (displays are flashing and keep
changing)
b Warning: Battery too weak Replace battery (controller)
E
1 Controller faulty Replace the controller
0
- Startup of firmware (reset) None
- Validation of firmware  Error 11
Check of CMOS parameter  Initialization of photo
Test of mechanical components senses
Clearing run  CMOS
Error Ps xx, 22
 Error 23 …28
 Error 18,19,71..9A
P X Error during photo senses Check and clear photo sensor
5 X initializing after change of xx, try RESET capital again.
configuration or replacement of Replace module or controller if
controller (the display necessary
alternates between ‘PS’ and the
photo sensor ‘XX’)
0 Power up completed without
0 errors
Dispenser Error Codes

90 Error Code:
CDM ERROR: 0000001D 20001890 00000000
CDM ERROR: 0000643A 00000000 0000FFF3
Reason: Photo sensor PS1 (L1) dirty;
Measure: Stacker wheel input Sensor and Prism Clean it Sensor Position is b/w Stacker
Wheel and Single reject and Prism position is straight upper of PS1 Sensor and top of single
reject below of Transparent Glass in single reject.
12 Error Code:
CDM ERROR: 0000001D 20001812 00000000
Reason: Safety switch Lock is open. (CMD has not been inserted completely)
Measure: Dispenser inserted properly and Position is Dispenser back and left side switch.
09 Error Code:
CDM ERROR: 0000001D 20001809 00000000
Reason: Safety switch Lock is open Dispenser is not properly inserted. (Service switch is
open)
Measure: Dispenser inserted Properly Locking handle Switch open, Check it Dispenser is in
dispensing
Position.
10 Error Code:
CDM ERROR: 0000001D 20001810 00000000
Reason: CMD electronics faulty. Battery empty or battery jumper not connected:
Measure: Only with self-test commands for battery testing Mount battery jumper or replace
battery. And Dispenser power Off for 5 to 10 mint then ON if again display 10 error then
final CMD Controller Replaced if battery avail then first battery replace.
01 Error Code:
CDM ERROR: 0000001D 20001801 00000000
Reason: Software faulty (No response from the CDM Software)
Measure: Switch the Dispenser device power off for 5 to 10mint then On. If still issue then
again upgrade the updated Firmware after upgrade Firmware again error on display then
CMD Controller replaced.
11 Error Code:
CDM ERROR: 0000001D 20001811 00000000
Reason: Firmware missing in the CMD).
Measure: Restart ATM and Download Firmware if not downloading firmware then check
Firmware File available at this path {Pro base>CSCW32>FRM>----} if not available then file
copy from Data DVD-V5 and again paste at {Pro base>CSCW32>FRM>----} and restart ATM
and see it dispenser LED and Initializing FRM loaded status on main display screen.
05 Error Code:
CDM ERROR: 0000001D 20001805 00000000
Reason: Communication problem with the chip card.
Measure: Check CMD all Cables then Restart CMD Final Replace the chip card Controller.
06 Error Code:
CDM ERROR: 0000001D 20001806 00000000
Reason: Communication problem with the chip card.
Measure: Check CMD all Cables then Restart CMD Final Replace the chip card Controller.
08 Error Code:
CDM ERROR: 0000001D 20001808 00000000
Reason: Communication problem with the Stacker EE-PROM collector.
Measure: Check EE-PROM Cable from Jack and Reset Controller CL and final replace EE-
PROM.
13 Error Code:
CDM ERROR: 0000001D 20001813 00000000
Reason: The maximal number of retracts has been reached A Retract has been executed.
The cash was not
Removed by the customer from Clamp again or Shutter Problem then Transactions
Retracted
Measure: Remove the customer money from the retract box and transport path using
operator function. And then reset the device and Clear Retract 50 Vendor Menu >> 04 Clear
Retracts>>01 ok.
14 Error Code:
CDM ERROR: 0000001D 20001814 00000000 .
Reason: Minimum configuration missing. In order to operate, the CDM requires at least one
reject/retract cassette and one cash-out cassette. The device is not ready for operation.
Cassette Missing Error.
Measure: Insert the cassettes and log on Cassettes Command Run using operator function.
50 Vendor Menu >>03 Logon Cassette >>01 ok.
15 Error Code:
CDM ERROR: 0000001D 20001815 00000000
Reason: Cassette distributor board has invalid coding, is not inserted or defective
Measure: Check the cabling to the distribution board to CMD Controller damage or not
plugged cable. If again appear error then <CL> CMD Controller and also appear then Board
Replaced.
16 Error Code:
CDM ERROR: 0000001D 20001816 00000000
Reason: Output transport coding invalid
Measure: Check it output Transport cable jack and sensor and also Clamp Cable and If again
appear error then
<CL> CMD Controller and also appear then output tray Replaced.
17 Error Code:
CDM ERROR: 0000001D 20001817 00000000
CDM ERROR: 0000643A 00000000 0000FFF2

Reason: Gripper Belt drive of clamp defective (M 3) or Clamp Stuck/jam
Measure: Check it Clamp Motor / Gear / and output Transport Tray Sensor and also reject
cassette that is ok internal side ok.
18 Error Code:
CDM ERROR: 0000001D 20001818 00000000
Reason: Note jam during dispensing Cash not accessible by customer
Measure: Cash Jam at may be many places therefore, Check the note path from the
cassettes to the collecting tray. Whole Dispenser Service include VSAT fully service check it
all Roller SP polar, gears. If all Hardware OK then still issue 18 errorthen also check it
Cassettes internal Gear that is free then CL Controller and again Counter Run.
19 Error Code:
CDM ERROR: 0000001D 20001819 00000000
CDM ERROR: 00006434 0000004D 00000000
CDM ERROR: 0000643A 00000000 0000FFF2
Reason: Gripper/Clamp transport defective/blocked
Measure: Any Breakage in cable then Banknote jam in output transport. Eliminate the
blockage and check it Clamp cable properly then reset CMD. If necessary, replace stacker or
Clamp cable and also check it reject cassette.
20 Error Code:
CDM ERROR: 0000001D 20001820 00000000
Reason: Single reject switch (MA2/1, MA2/2, SM 1) faulty/blocked
Measure: Cash available in single reject collect it and check it CASH. Cash is not proper
shuffled and unsorted. Dispensing Module more then one Note pick from cassette at one
time and Note block at single reject. And also check it Spring in single reject below position.
Select test function 2 (mechanical test) by pressing the function button, and observe
actuation of the single reject switch. If lifting magnet MA2 does not move at all or all the
way, the stacker and output transport (SAT) or the controller has to be replaced. If the
magnet moves all the way, the CMD-V4 can go back into
operation.
21 Error Code:
CDM ERROR: 0000001D 20001821 00000000
Reason: Measuring station is defective
Measure: Check whether there is a banknote jam in the area of the measuring station. Are
the cables connected and also Clean it MS Points now again appear then CL Controller also
again appear then Replace MS.
22 Error Code:
CDM ERROR: 0000001D 20001822 00000000
Reason: Photo sensor amplifier faulty or photo sensor initialization unsuccessful. (MS)
Measure: Measuring station is defective Faulty Many Transaction is not Supported Weak
MS Power Now
Replace Required MS
23 Error Code:
CDM ERROR: 0000001D 20001823 00000000
Reason: Routing disk defective/blocked (SM 2/SM 3) Circle switch faulty/blocked
Measure: Clamp pull out From SAT (Routing Disk) check all gear, builds’, and motor free
moved and Clean it and also check it both Router Disk Position same.
if position not same adjust it disk. All checked then insert it Clamp and Set the CMD-V4 in
the safe to cash-out position (safety switch closed) and select test function 2 (mechanical
test) If this test function once again ends
with status display '23' Then CL Controller again face '23' then Replace Stacker
24 Error Code:
CDM ERROR: 0000001D 20001824 00000000
Reason: Reject/retract drive defective/blocked (MA 6)
Measure: Reinsert the Reject/retract cassette, select test function 2 by pressing the function
button, and check the movement of the Reject/retract drive (MA6). Reject/retract
Compartment Sensor Block, Dusty, or Position change Clean and adjust it {DPS4,5,6,,HS3
Sensor clean it}.
25 Error Code:
CDM ERROR: 0000001D 20001825 00000000
Reason: Dispensing drive defective (DCM 1) Cash Jam
Measure: If Dispensing Module is not rotate properly or Jam it then check it Whole
Dispensing path maybe Cash Jam with {Rubber, Pin} in dispensing module.
Clean it path whole dispenser service include whole VSAT and clean <U> Sensor position is
left side of SAT Wheel rod and also check it Cassettes internal Gear that is free. if again
appear error then <CL> CMD Controller and also appear then STACKER Replaced.
26 Error Code:
CDM ERROR: 0000001D 20001826 00000000
Reason: Stacker wheel drive defective/blocked (SM 9)
Measure: Stacker wheels and main motor check it. Check the Stacker in the area of the
collecting tray for jammed banknotes/scraps, remove it. Set the Dispenser own position and
select test function 2 (mechanical test) on the function button after starting up the
Dispenser test if this test function once again ends with status display '26', then CL
Controller if again appear then Stacker or Main Motor must be replaced.
28 Error Code:
CDM ERROR: 0000001D 20001828 00000000
CDM ERROR: 00006434 00000000 00000020
Reason: Shutter Faulty Almost < U > Sensor Problem DPS10, DPS11
Measure: Whole Shutter properly Services. Shutter Prism two glass clear surfaces opposite
the (transmitter/receiver) Shutter Sensor DPS10, DPS11, PS26, PS27 Reset and test CMD
Controller <1,2> or
<CL> CMD Controller if again issue still then Replace Shutter
29 Error Code:
CDM ERROR: 0000001D 20001829 00000000
CDM ERROR: 0000643A 00000000 0000FFF2
CDM ERROR: 0000643A 00000000 0000FECE Also maybe cash finished
CDM ERROR: 00006434 00000000 00000020
Reason: Shutter Faulty Photo sensor Problem Dusty or Position Changed PS26, PS27.
the (transmitter/receiver) Shutter Sensor PS26, PS27 Reset and test CMD Controller <1,2> or
<CL> CMD Controller if again issue still then Replace Shutter.
31 Error Code:
CDM ERROR: 0000001D 20001831 00000000
Reason: Too many problems during dispensing from cassette # 1 x (x = 1)
Measure: 1. Remove the cassette from dispensing unit x=1 and check internal Gear that is
free and check the inserted banknotes that is ok placed in cassette and sorted it
2. VSAT 1st part straight 1st cassette check it all gears SP Polar Sensors and also Clutch
Motor.
32 Error Code:
CDM ERROR: 0000001D 20001832 00000000
Reason: Too many problems during dispensing from cassette # 2 x (x = 2)
Measure: 1. Remove the cassette from dispensing unit x=2 and check internal Gear that is
free and check the inserted banknotes that is ok placed in cassette and sorted it
2. VSAT 2nd part straight 2nd cassette check it all gears SP Polar Sensors and also Clutch
Motor.
Same Procedure 33, 34 Error Code Like Cassette 3,4
41 Error Code:
CDM ERROR: 0000001D 20001841 00000000
Reason: Cash could not be dispensed or possibly faulty amount of pressure against the
banknotes when a new cassette is inserted # 1 (x = 1)
Measure: 1. Remove the cassette 'x=1' and check the inserted banknotes: the notes must be
standing upright in the cassette. Are the first notes very crumpled? Curved notes should
bend away from the pressure carriage! Are the first notes stuck to each other or jammed
together?
2. When the cassette is removed, check the dispensing area in the dispensing unit for
jammed banknotes/scraps.
1. Remove the cassette from dispensing unit x=1 and check internal Gear that is free and
check the inserted
Banknotes that is ok placed in cassette and sorted it
2. VSAT 1st part straight 1st cassette checks it all gears SP Polar Sensors and also Clutch
Motor.
42 Error Code:
CDM ERROR: 0000001D 20001842 00000000
Reason: Cash could not be dispensed or possibly faulty amount of pressure against the
banknotes when a new cassette is inserted # 2 (x = 2)
Measure: 1. Remove the cassette 'x=2' and check the inserted banknotes: the notes must be
standing upright in the cassette. Are the first notes very crumpled? Curved notes should
bend away from the pressure carriage! Are the first notes stuck to each other or jammed
together?
2. When the cassette is removed, check the dispensing area in the dispensing unit for
jammed banknotes/scraps.
check the inserted
Banknotes that is ok placed in cassette and sorted it
Motor.
Same Procedure 43,44 Error Code Like Cassette 3,4.
51 Error Code:
CDM ERROR: 0000001D 20001851 00000000
Reason: Too many bad banknotes from cassette # 1 (x =1)
Measure: Too many double or excessively wide/narrow notes were detected during
dispensing from cassette x. Remove cassette x=1, and check whether the right type of
banknote was inserted. Check notes for sticky points. Reinsert the cassette and restart the
application. If many 'good' notes are subject to a single reject during dispensing or if error
‘51’ shows after a short time, the reference values should be recalculated for this
Note type. If the error cannot be removed, Then the dispensing unit Part check/Replace or
Cassette Replace.
1. Remove the cassette from dispensing unit x=1 and check internal Gair that is free and
check the inserted banknotes that is ok placed in cassette and sorted it
2. VSAT 1st part straight 1st cassette checks it all gears SP Polar Sensors and also Clutch
Motor.
52 Error Code:
CDM ERROR: 0000001D 20001852 00000000
Reason: Too many bad banknotes from cassette # 2 (x = 2)
Measure: Too many double or excessively wide/narrow notes were detected during
dispensing from cassette x.
Remove cassette x=2, and check whether the right type of banknote was inserted. Check
notes for sticky points. Reinsert the cassette and restart the application. If many 'good'
notes are subject to a single reject during dispensing or if error '52' show after a short time,
the reference values should be recalculated for this note type. If the error cannot be
removed, Then the dispensing unit Part check/Replace or Cassette Replace.
check the inserted banknotes that is ok placed in cassette and sorted it
Motor.
Same Procedure 53,54 Error Code Like Cassette 3,4
61 Error Code:
CDM ERROR: 0000001D 20001861 00000000
Reason: Cassette defective # 1(x = 1) Cassette not properly initialized cassette faulty.
Measure: The banknote data stored in cassette 'x=1' cannot be read or rewritten (Write
error cassette EEPROM). Check internal cable of cassette and also check and clean Pressure
sensor Verify that the connectors on CMD controller and the cassette connector are plugged
in properly. If the fault also occurs with a different cassette in this dispensing unit, then
Cassette must be replaced.
.
62 Error Code:
CDM ERROR: 0000001D 20001862 00000000
Reason: Cassette defective # 2 (x = 2) Cassette not properly initialized cassette faulty.
Measure: The banknote data stored in cassette 'x=2' cannot be read or rewritten (Write
error cassette
EEP ROM). Check internal cable of cassette and also check and clean Pressure sensor
Verify that the connectors on CMD controller and the cassette connector are plugged in
properly. If the fault also occurs with a different cassette in this dispensing unit, the Cassette
must be replaced.
70 Error Code:
CDM ERROR: 0000001D 20001870 00000000
Reason: Banknote thickness measuring station (DDU/MS) not ready
Measure: Check whether there is a banknote jam in the area of the measuring station and
also check it CASH
Status in cassettes maybe cash thicked (jam) in cassette
71 Error Code:
CDM ERROR: 0000001D 20001871 00000000
Reason: Dispensing sensor (Pressure sensor (PSD x=1) ) is dirty or faulty Cassette # 1 (x = 1)
Measure: If a cassette can be inserted without error (single acoustic signal) ok status, If a
cassette can be
Inserted with error (many acoustic signal and error show 72) then Dispenser sensor
(Pressure sensor PSD x=1) photo sensor in dispenser module 'x=1' which must be cleaned.
Then execute a Reset "01" through push button of Controller if again error show then CL
clear CMOS CMD Controller if again still issue then Distribution Board Replaced
If Cassettes inserted status fine/ok and TEST CASH Run and Show error 71 then check it first
Cassette internal Gear (free move it) if gear ok moveable then Distribution Board Replaced.
72 Error Code:
CDM ERROR: 0000001D 20001872 00000000
Reason: Dispensing sensor (Pressure sensor (PSD x=2) ) is dirty or faulty Cassette # 2 (x = 2)
Measure: If a cassette can be inserted without error (single acoustic signal) ok status, If a
cassette can be inserted with error (many acoustic signal and error show 72) then Dispenser
sensor (pressure sensor PSD x=2) photo sensor in dispenser module 'x=2' which must be
cleaned. Then execute a Reset "01" through push button of Controller if again error show
then CL clear CMOS CMD Controller if again still issue then Distribution Board Replaced. If
Cassettes inserted status fine/ok and TEST CASH Run and Show error 72 then check it first
Cassette internal Gear (free move it) if gair ok moveable then Distribution Board Replaced.
Same Procedure 73,74 Error Code Like Cassette 3,4
81 Error Code:
CDM ERROR: 0000001D 20001881 00000000
Reason: Cassette empty sensors (4 photo and 2 pressure) is dirty (x = 1)
Measure: Clean photo sensor 'PSE x' in the relevant dispensing unit and the associated
prism in the pressure carriage of the cassette # 1. Then execute a Reset or CL CMD. Closed
sensor that is Cash empty sensor if again appear error then Distribution Board Replaced
Required
82 Error Code:
CDM ERROR: 0000001D 20001882 00000000
Reason: Cassette empty sensors (4 photo and 2 pressure) is dirty (x = 2)
Measure: Clean photo sensor 'PSE x' in the relevant dispensing unit and the associated
prism in the pressure carriage of the cassette # 2. Then execute a Reset or CL CMD. Closed
sensor that is Cash empty sensor if again appear error then Distribution Board Replaced
Required
91 Error Code:
CDM ERROR: 0000001D 20001891 00000000
CDM ERROR: 0000643A 00000000 0000FFF2
CDM ERROR: 00006434 00000000 00000020
Reason: Photo sensor dirty Cassette monitoring: Photo sensor PS18 Sensor, Shutter Sensor
PS26, PS27.
Measure: Clean Sensor position is Below of Main STACKER Wheel.
Whole Shutter properly Services. Prism two glass clear surfaces opposite the
(transmitter/receiver) Shutter Sensor PS26, PS27 Reset and test CMD Controller <1,2> or
<CL> CMD Controller if again issue still then
Replace Shutter.
93 Error Code:
CDM ERROR: 0000001D 20001893 00000000
CDM ERROR: 0000643A 00000000 0000FFF2
CDM ERROR: 00006434 00000000 00000020
Reason: Shutter Faulty Almost Photo sensor Problem Dusty or Position Changed {Cassette
empty' (single reject) PS2}
<CL> CMD Controller if again issue still then Replace Shutter.
95 Error Code:
CDM ERROR: 0000001D 20001895 00000000
CDM ERROR: 0000643A 00000000 0000FFF2
CDM ERROR: 00006434 00000000 00000020
Reason: Shutter Faulty Photo sensor Problem Dusty or Position Changed {PS26, PS27}
28 Error Code:
CDM ERROR: 0000001D 20001828 00000000
CDM ERROR: 00006434 00000000 00000020
Reason: Shutter Faulty Almost < U > Sensor Problem DPS10, DPS11
the (transmitter/receiver) Shutter Sensor DPS10, DPS11, PS26, PS27 Reset and test CMD
Controller <1,2> or <CL> CMD Controller if again issue still then Replace Shutter
29 Error Code:
CDM ERROR: 0000001D 20001829 00000000
CDM ERROR: 0000643A 00000000 0000FFF2
CDM ERROR: 00006434 00000000 00000020
Reason: Shutter Faulty Photo sensor Problem Dusty or Position Changed PS26, PS27.
CDM ERROR: 0000643A 00000004 00000000

Reason: Reject cassette or whole dispenser not operational
Measure: Check it reject cassette inserted status ok or nor ok if nor ok then check it reject
cassette Switch position is outside of Stacker that is proper work if switch short or press
then Single TONE appear and also Sensor DPS 4,5,6 check it clean it all H/W status ok and
issue still then reject Cassette changed
CDM ERROR: 0000643A 00000005 00000000

Reason: Reject cassette full
Measure: Clear Cash and again replenished and also check it reason of rejection VSAT
(whole vast service) and Shutter service
CDM ERROR: 0000643A 00000007 00000000

Reason: Reject cassette missing, remaining capacity of reject bin to small
Measure: Clear Cash and again replenished and also check it reason of rejection VSAT
(whole vast service) and Shutter service
CDM ERROR: 0000643A 0000FECE 00000000

CDM ERROR: 0000643A 00000000 0000FECE
Reason: Cash finished one or more then one Cassettes (1or 2)
Measure: Check it Cash in cassettes available or not available if not avail then Replenished
Cash.
CDM ERROR: 00006434 0000004D 00000000 Show error code on Dispenser is 17,19 code
Reason: Gripper/Clamp transport defective/blocked
Measure: Check it any Breakage in cable, Banknote jam in output transport path. Eliminate
the blockage and check it Clamp cable properly then reset CMD and also check it Reject
cassette status manual press reject cassette button in Stacker and also check it Whole
Shutter. If necessary, replace stacker or Clamp cable.
CDM ERROR: 0000643A 00000000 0000FFF2

Reason: Gripper/Clamp transport defective/blocked, Shutter Problem
Measure: Check it any Breakage in cable, Banknote jam in output transport path. Eliminate
the blockage and check it Clamp cable properly then reset CMD and also check it Reject
cassette status manual press reject cassette button in Stacker and also check it Whole
Shutter. If necessary, replace stacker or Clamp cable.
CDM ERROR: 00006434 00000000 00000020

Reason: Shutter Faulty
CDM ERROR: 00006434 0000004B 00000000

Reason: Shutter+ Clamp Problem
Measure: Whole Shutter and Clamp properly Services. Shutter Prism two glass clear
surfaces opposite the (transmitter/receiver) Shutter Sensor PS26, PS27.
Check it Clamp Routers, Gears Side Handles that is free and Barings. Reset and test CMD
Controller <1,2> or <CL> CMD Controller if again issue still then Replace Shutter.
CDM ERROR: 00006434 00000004 00000000

Reason: Shutter+ Clamp Problem
Measure: Whole Shutter and Clamp properly Services. Shutter Prism two glass clear
surfaces opposite the (transmitter/receiver) Shutter Sensor PS26, PS27. Check it Clamp
Routers, Gears Side Handles that is free and Barings. Reset and test CMD Controller <1,2> or
CDM ERROR: 0000643A 00000000 0000FEC3

Reason: No Document no Bill maybe counter clear also Shutter Problem
Measure: Please Check it cash print counter status cash available or not available in print
counter if counter Zero Show then CL Controller and again counter active through reference
value or FRM changed of CMD Controller if this issue is not then
Whole Shutter and Clamp properly Services. Shutter Prism two glass clear surfaces opposite
the (transmitter/receiver) Shutter Sensor PS26, PS27. Check it Clamp Routers, Gairs Side
Handles that is free and Barings. Reset and test CMD Controller <1,2> or <CL> CMD
Controller if again issue still then Replace Shutter
CDM ERROR: 0000643A 00000000 0000FEC5

Reason: Shutter Closed not opened
CDM ERROR: 0000643A 00000000 0000FEC6

Reason: Shutter Open not closed
CDM ERROR: 0000643A 00000000 0000FEC7

Reason: Shutter not Open
CDM ERROR: 0000643A 00000000 00000003

Reason: Safe Door Open Show but door closed.
Measure: Safe Door Switch Created a problem door closed but switch door open show
therefore switch faulty point short it or Switch changed.
Card Reader Error Codes
IDCU ERROR: 00006434 00000000 00000013

Reason: Main Head finished
Measure: Main Head changed and IDCU service
IDCU ERROR: 00000008 2800E00B 00000000
IDCU ERROR: 00006434 00000000 0000000D
Reason: IDCU Shutter problem
Measure: IDCU Shutter fully service also limit switch and Steel Baring
Check it front assembly of IDCU paper jammed in IDCU (IDCU not initialized) and also
jammed of front shutter (steal shutter jammed) Card reader general HW error And also
check it UPS Status on Switching mode ATM total Reboot or any
H/W Re-initialized it.
IDCU ERROR: 00000008 2800E011 00000000

Reason: The card is jammed (possible manipulation).
Measure: Remove the card and check the transport routes for foreign objects.
IDCU ERROR: 00006434 00000042 00000000
Reason: Card was captured after jam.
Measure: Card Reader totally service it also check it Head and Pre Head
And also check it UPS Status on switching mode ATM total Reboot or any H/W Re-initialized
it.
IDCU ERROR: 00000008 2000FE85 00000000

Reason: The COMM driver could not be opened.
Measure: Check serial device entry in registry. Check if additional COMM drivers are
installed (e.g. "ROCKET.SYS"). Check COMM hardware respectively USB hardware.
IDCU ERROR: 00000008 2800E00A 00000000

Reason: Card jammed (possible manipulation).
Measure: Remove the card and check the transport routes for foreign objects. Card Reader
totally service it also check it Head and Pre Head.
IDCU ERROR: 00000008 2800E013 00000000

Reason: An internal error, which cannot be defined precisely, has been encountered in the
mechanics of the IDCU device.
Measure: Check the hardware. And also check it UPS Status on switching mode ATM total
Reboot or any H/W Re-initialized it.
AFD Error Code
EFC String Description

AFD 0 00 00 No error, device is operable.
AFD 0 SE 01 SPEAR has not been established.
AFD 0 SE 02 SPEAR mode mismatch
AFD 0 SE 03 SPEAR platform fault
AFD 0 SE 04 SPEAR integrity fault
AFD 0 SE 05 SPEAR integrity fault
AFD 0 SE 18 Device not paired
AFD 0 CO 17 Device Offline
AFD 0 DS 01 Docking Switch Open
AFD 0 EX 01 Exit sensor blocked when dispense command sent
AFD 0 ST 01 Stack Sensor blocked when dispense command sent
AFD 0 CA 10 Motor Interrupt Failure
AFD 0 CA 05 Motor Mux Failure
AFD 0 CA 04 Prox Interrupt Failure
AFD 0 RM 10 RAM Error
AFD 0 SE 13 Security key generation is in progress, this is for informational purposes only
AFD 0 C1 06 Cassette 1 Empty
AFD 0 C1 07 Feed wheel stuck from Cassette 1
AFD 0 C1 19 Prox has become unusable since last calibration (Cassette 1)
AFD 0 C1 20 Unsolicited note detected from Cassette 1

AFD 0 C1 21 Thick Notes detected from Cassette 1
AFD 0 C1 22 Thin Notes detected from Cassette 1
AFD 0 C1 23 Short Notes detected from Cassette 1
AFD 0 C1 24 Tall Notes detected from Cassette 1
AFD 0 C1 25 Pick failure detected from Cassette 1
AFD 0 C1 26 Prox End Of Life of Cassette 1
AFD 0 ST 08 Stacker Sensor Blocked
AFD 0 DE 04 Dispense Timeout
AFD 0 DE 05 Notes picked not equal notes stacked

AFD 0 DE 19 Cassettes shuffled, must query configuration
AFD 0 DE 06 Dispense by cassette from cassette that is not present
AFD 0 DE 08 Dispense by denom from denom that is not present
AFD 0 DE 13 Unidentified (wrong) cassette code
AFD 0 ST 09 Stacker sensor Failed
AFD 0 ST 26 Stacker Sensor at End Of Life
AFD 0 XS 08 Exit Sensor Blocked
AFD 0 XS 09 Exit Sensor Stuck Open/Clear
AFD 0 XS 26 Exit Sensor at End Of Life
AFD 0 RJ 03 Divert Cassette Full
AFD 0 RJ 06 Divert/Retract Cassette Missing
AFD 0 TP 04 Dispense Transport Jam
AFD 0 DE 10 Dump Failure after dispense failure
AFD 0 RJ 02 Divert Door Can't move to reject/divert position
AFD 0 RJ 01 Divert Door Can't move to dispense position
AFD 0 RJ 07 Divert Door won't move
AFD 0 RB 06 Money taken during operation
AFD 0 ST 07 Money tray won't move
AFD 0 SH 07 Exit shutter won't move
AFD 0 SH 01 Exit shutter won't close
AFD 0 SH 02 Exit shutter won't open
AFD 0 TP 07 No forward drive (During Present to Exit)

AFD 0 TP 08 Stalled
AFD 0 FD 12 Trap Detected
AFD 0 XS 07 Exit Sensor Jam
AFD 0 ST 04 Stack sensor Extra Notes
AFD 0 ST 05 Stack sensor Dirty
DN100 Card Reader SMCR

EFC String Description
SMR 0 CO 17 Module is offline
SMR 0 SE 18 Module is not paired
SMR 0 SP 01 TDC Init/Handshake failed
SMR 0 SP 02 TDC Generate Key failed
SMR 0 SP 03 TDC Certificate missing
SMR 0 SP 04 TDC TPM failed
SMR 0 SP 05 TDC Encode/Decode failure
SMR 0 SW 15 Incompatible firmware
SMR 0 FW 10 Firmware failure
SMR 0 CO 10 Failure to communicate with vendor API
SMR 0 CA 10 CCA board failure
SMR 0 PW 10 Power supply failure
SMR 0 FD IS Internal Skimming Fraud Attempt detected
SMR 0 FD 11 FDD anti-skimmer process reported fraud attempt
SMR 0 SE 10 Security error
SMR 0 SE 20 MSJD disconnected
SMR 0 SE 30 AISR Capacitor broken
SMR 0 SE 99 Abnormal MSJD coil current
SMR 0 SE 76 Transmission error between HD and sub-module
SMR 0 SE 70 F-ROM write error
SMR 0 HW 25 Hardware error – reset required
SMR 0 AF 21 FDD anti-skimming process cannot work properly because it is not enabled
FDD anti-skimming cannot work properly because device does not have HW
SMR 0 AF 20
capability
FDD anti-skimming process cannot work properly because device reports ESR
SMR 0 AF 10
sensor failure
SMR 0 FP 10 IAFD IDC in error
SMR 0 FP 22 IAFD IDC activated
SMR 0 HD 20 Read/Write head error
SMR 0 HD 10 Write circuit tamper error

SMR 0 TP 07 Card jammed
SMR 0 SH 10 Shutter failure
SMR 0 PD 10 PDI sensor failure
SMR 0 ST 10 Switch 1 or 2 failure
SMR 0 CH 10 Chip sensor error
SMR 0 MT 10 Motor error
SMR 0 HW 10 Unspecified hardware error
SMR 0 TP 54 Card forcibly moved
SMR 0 FD 12 Potential fraud attempt
SMR 0 RB 03 Retain bin full
SMR 0 RB 04 Retain bin high
SMR 0 UD 19 User error on card insertion
SMR 0 S1 10 SAM1 VCC error
SMR 0 BT 23 Battery is not charged
SMR 0 00 00 Module is online and working properly

CMD v4 Basic Error Codes

Uploaded by

Document Information

Original Description:

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

CMD v4 Basic Error Codes

Uploaded by

Copyright:

Available Formats

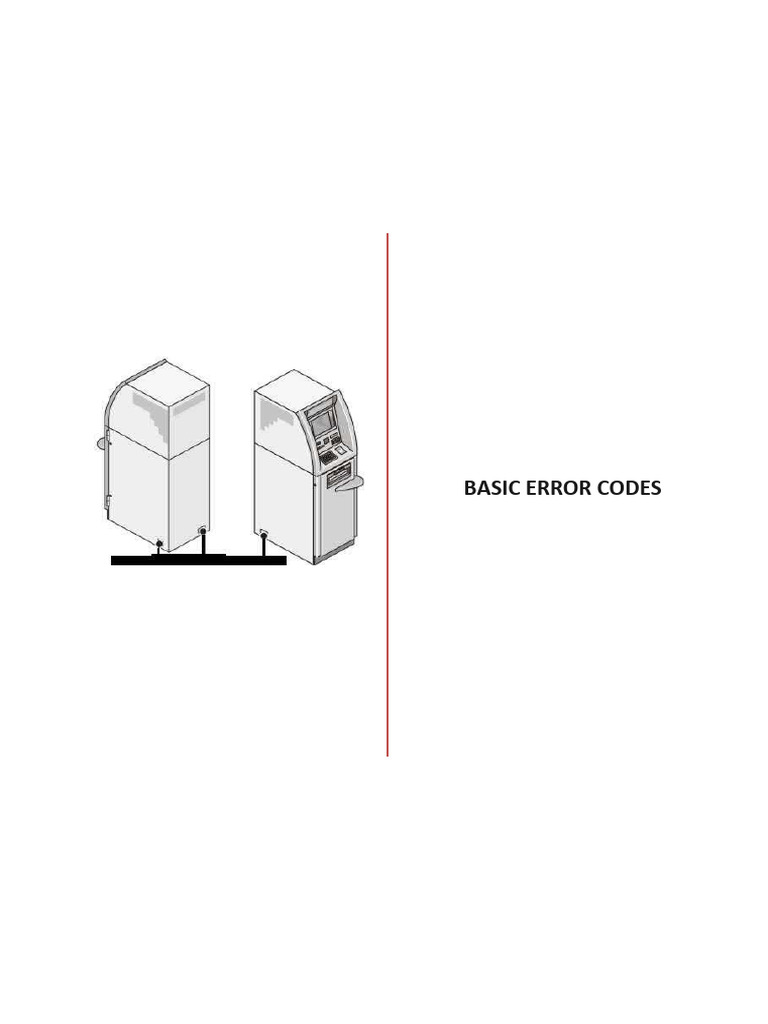

BASIC ERROR CODES

INNOVATIVE PVT LTD. ERROR CODES & OTHERS

2 Reject/retract (MA6) defective/ Empty the reject compartment of the

out position and wait for the system to

2 Check the shutter,

(see section “Determining the

Check the contents of cash-out cassette ‘x’

Dispenser Error Codes

CDM ERROR: 0000643A 00000000 0000FFF2

CDM ERROR: 0000643A 00000004 00000000

CDM ERROR: 0000643A 00000005 00000000

CDM ERROR: 0000643A 00000007 00000000

CDM ERROR: 0000643A 0000FECE 00000000

CDM ERROR: 0000643A 00000000 0000FFF2

CDM ERROR: 00006434 00000000 00000020

CDM ERROR: 00006434 0000004B 00000000

CDM ERROR: 00006434 00000004 00000000

CDM ERROR: 0000643A 00000000 0000FEC3

CDM ERROR: 0000643A 00000000 0000FEC5

CDM ERROR: 0000643A 00000000 0000FEC6

CDM ERROR: 0000643A 00000000 0000FEC7

CDM ERROR: 0000643A 00000000 00000003

Card Reader Error Codes

IDCU ERROR: 00006434 00000000 00000013

IDCU ERROR: 00000008 2800E011 00000000

IDCU ERROR: 00000008 2000FE85 00000000

IDCU ERROR: 00000008 2800E00A 00000000

IDCU ERROR: 00000008 2800E013 00000000

AFD Error Code

EFC String Description

AFD 0 C4 20 Unsolicited note detected from Cassette 4

AFD 0 DE 05 Notes picked not equal notes stacked

AFD 0 TP 07 No forward drive (During Present to Exit)

DN100 Card Reader SMCR

EFC String Description

SMR 0 CO 17 Module is offline

SMR 0 SE 18 Module is not paired

SMR 0 SP 01 TDC Init/Handshake failed

SMR 0 SP 02 TDC Generate Key failed

SMR 0 SP 03 TDC Certificate missing

SMR 0 SP 04 TDC TPM failed

SMR 0 SP 05 TDC Encode/Decode failure

SMR 0 SW 15 Incompatible firmware

SMR 0 FW 10 Firmware failure

SMR 0 CO 10 Failure to communicate with vendor API

SMR 0 CA 10 CCA board failure

SMR 0 PW 10 Power supply failure

SMR 0 FD IS Internal Skimming Fraud Attempt detected

SMR 0 FD 11 FDD anti-skimmer process reported fraud attempt

SMR 0 SE 10 Security error

SMR 0 SE 20 MSJD disconnected

SMR 0 SE 30 AISR Capacitor broken

SMR 0 SE 99 Abnormal MSJD coil current

SMR 0 SE 76 Transmission error between HD and sub-module

SMR 0 SE 70 F-ROM write error

SMR 0 HW 25 Hardware error – reset required

SMR 0 FP 10 IAFD IDC in error

SMR 0 FP 22 IAFD IDC activated

SMR 0 HD 20 Read/Write head error

SMR 0 HD 10 Write circuit tamper error

SMR 0 TP 07 Card jammed

SMR 0 SH 10 Shutter failure

SMR 0 PD 10 PDI sensor failure
