Liebherr Error Codes

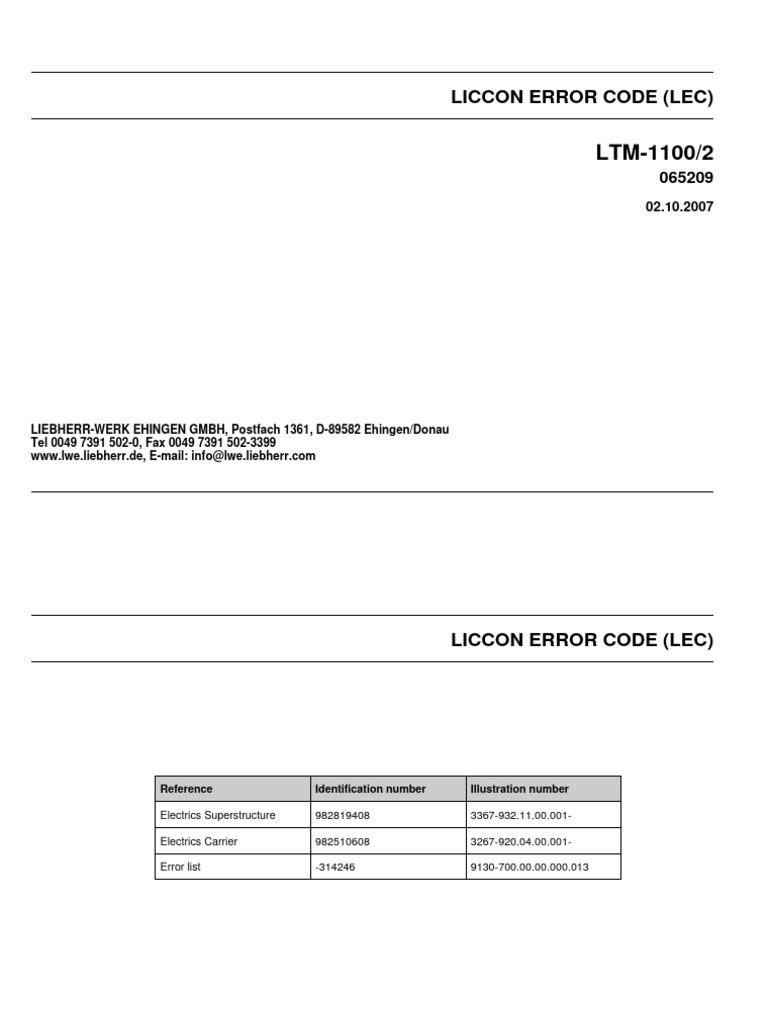

LTM-1100/2
065209
02.10.2007
000001 ZE 0: system error OS-HC11 (observe parameters) initialising error processor-register erroneous E 2
no crane operation possible
if error re-occurs, then ZE should be replaced
000002 ZE 0: system error OS-HC11 (observe parameters) initialising error test total in EPROM/FLASH erroneous E 2
no crane operation possible
check program memory card or ZE
000006 ZE 0: system error OS-HC11 (observe parameters) initialising error RAM erroneous E 2
no crane operation possible
if error re-occurs, then ZE should be replaced
000013 ZE 0: system error OS-HC11 (observe parameters) Test sum in FLASH erroneous E 2
entry in error memory, all crane movements will be stopped
check program memory card
065209 1
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
000017 ZE 0: system error OS-HC11 (observe parameters) total of CPU-time distribution too great E 2
entry in error memory, all crane movements will be stopped
000018 ZE 0: system error OS-HC11 (observe parameters) arithmetic overflow (16 Bit) E 2
entry in error memory, all crane movements will be stopped
000019 ZE 0: system error OS-HC11 (observe parameters) division through zero (16 Bit) E 2
entry in error memory, all crane movements will be stopped
000023 ZE 0: system error OS-HC11 (observe parameters) program incapable of running (type identification) E 2
entry in error memory, all crane movements will be stopped
065209 2
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
000044 ZE 0: system error OS-HC11 (observe parameters) output parameter without effect, from inactive output E 2
entry in error memory, all crane movements will be stopped
000045 ZE 0: system error OS-HC11 (observe parameters) entry parameter undefined, from inactive input E 2
entry in error memory, all crane movements will be stopped
000047 ZE 0: system error OS-HC11 (observe parameters) realtime-control block not available E 2
entry in error memory, all crane movements will be stopped
000049 ZE 0: system error OS-HC11 (observe parameters) urgent modul, ZE not available E 2
entry in error memory, no crane operation possible
check ZE
065209 3
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
000052 ZE 0: system error OS-HC11 (observe parameters) file not open on close E 2
entry in error memory, all crane movements will be stopped
000053 ZE 0: system error OS-HC11 (observe parameters) system mask not available E 2
entry in error memory, all crane movements will be stopped
000054 ZE 0: system error OS-HC11 (observe parameters) system text not available E 2
entry in error memory, all crane movements will be stopped
000057 ZE 0: system error OS-HC11 (observe parameters) default load chart missing E 2
entry in error memory, all crane movements will be stopped
000058 ZE 0: system error OS-HC11 (observe parameters) amplifier erroneous or return power feed E 2
entry in error memory, all crane movements will be stopped
check wiring
065209 4
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
000066 ZE 0: system error OS-HC11 (observe parameters) ADC working outside the permissible tolerance E 2
entry in error memory, all crane movements will be stopped
if error re-occurs, then ZE should be replaced
000067 ZE 0: system error OS-HC11 (observe parameters) arithmetic processor not available E 2
entry in error memory, all crane movements will be stopped
if error re-occurs, then ZE should be replaced
065209 5
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
000074 ZE 0: system error OS-HC11 (observe parameters) transformation ASCII to BIN erroneous E 2
entry in error memory, all crane movements will be stopped
000076 ZE 0: system error OS-HC11 (observe parameters) incorrectly inserted power unit E 2
entry in error memory, all crane movements will be stopped
check memory card in power supply unit
000080 ZE 0: system error OS-HC11 (observe parameters) fatal internal software error E 2
entry in error memory, all crane movements will be stopped
065209 6
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
000094 ZE 0: system error OS-HC11 (observe parameters) transmission error parallel bus E 2
entry in error memory, all crane movements will be stopped
check ZE, bus circuit board, power supply unit
002002 ZE 0: system error OS-TMS initialising error test total in EPROM/FLASH erroneous E 2
entry of error in error memory, all crane movements will be stopped
replace ZE
065209 7
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
065209 8
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
065209 9
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
010260 ZE 0: output 2 safety chain error, diode defect or safety contact sticking X70:18 E 1
report of error, otherwise no reaction
checking of safety contact and diode
010260 ZE 0: output 2 safety chain error, diode defect or safety contact sticking X70:18 E 4
report of error, otherwise no reaction
checking of safety contact and diode
065209 10
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
010360 ZE 0: output 3 safety chain error, diode defect or safety contact sticking X70:19 E 1
report of error, otherwise no reaction
checking of safety contact and diode
065209 11
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
065209 12
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
010560 ZE 0: output 5 safety chain error, diode defect or safety contact sticking X70:21 E 1
report of error, otherwise no reaction
checking of safety contact and diode
065209 13
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
010660 ZE 0: output 6 safety chain error, diode defect or safety contact sticking X70:22 E 1
report of error, otherwise no reaction
checking of safety contact and diode
065209 14
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
010760 ZE 0: output 7 safety chain error, diode defect or safety contact sticking X70:23 E 1
report of error, otherwise no reaction
checking of safety contact and diode
065209 15
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
Check Bus configuration in LSB test system, remove faulty / incorrect users from Bus
020051 ZE 0: LSB participant address 0 was not configured for the block transfer X635:z14/z16 E 2
entry in error memory, otherwise no reaction, no block transfer will be carried out
configuration problem, load new Software
020053 ZE 0: LSB participant address 0 no longer reports or withdrawn during running period X635:z14/z16 E 1
entry in error memory, participant will be deactivated, data buffer to the application will be set to 0
check connection, if connection OK then replace sensor
020054 ZE 0: LSB participant address 0 Features other settings (parameters) as pre-entered set values X635:z14/z16 E 2
entry in error memory, or no reaction, the sensor data could be incorrect, due to incorrect sensor config
check parameter set/real value through test system (LSB-screen), set sensor to default value
065209 16
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
020066 ZE 0: LSB participant address 0 with software version, that is no longer compatible X635:z14/z16 E 2
entry in error memory, otherwise no reaction, it will be tried as far as possible to work with the sensor
replace sensor through new part
020151 ZE 0: LSB participant address 1 was not configured for the block transfer X635:z14/z16 E 2
entry in error memory, otherwise no reaction, no block transfer will be carried out
configuration problem, load new Software
020153 ZE 0: LSB participant address 1 no longer reports or withdrawn during running period X635:z14/z16 E 1
entry in error memory, participant will be deactivated, data buffer to the application will be set to 0
check connection, if connection OK then replace sensor
020154 ZE 0: LSB participant address 1 Features other settings (parameters) as pre-entered set values X635:z14/z16 E 2
entry in error memory, or no reaction, the sensor data could be incorrect, due to incorrect sensor config
check parameter set/real value through test system (LSB-screen), set sensor to default value
020166 ZE 0: LSB participant address 1 with software version, that is no longer compatible X635:z14/z16 E 2
entry in error memory, otherwise no reaction, it will be tried as far as possible to work with the sensor
replace sensor through new part
065209 17
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
020251 ZE 0: LSB participant address 2 was not configured for the block transfer X635:z14/z16 E 2
entry in error memory, otherwise no reaction, no block transfer will be carried out
configuration problem, load new Software
020253 ZE 0: LSB participant address 2 no longer reports or withdrawn during running period X635:z14/z16 E 1
entry in error memory, participant will be deactivated, data buffer to the application will be set to 0
check connection, if connection OK then replace sensor
020254 ZE 0: LSB participant address 2 Features other settings (parameters) as pre-entered set values X635:z14/z16 E 2
entry in error memory, or no reaction, the sensor data could be incorrect, due to incorrect sensor config
check parameter set/real value through test system (LSB-screen), set sensor to default value
020266 ZE 0: LSB participant address 2 with software version, that is no longer compatible X635:z14/z16 E 2
entry in error memory, otherwise no reaction, it will be tried as far as possible to work with the sensor
replace sensor through new part
065209 18
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
020351 ZE 0: LSB participant address 3 was not configured for the block transfer X635:z14/z16 E 2
entry in error memory, otherwise no reaction, no block transfer will be carried out
configuration problem, load new Software
020353 ZE 0: LSB participant address 3 no longer reports or withdrawn during running period X635:z14/z16 E 1
entry in error memory, participant will be deactivated, data buffer to the application will be set to 0
check connection, if connection OK then replace sensor
020354 ZE 0: LSB participant address 3 Features other settings (parameters) as pre-entered set values X635:z14/z16 E 2
entry in error memory, or no reaction, the sensor data could be incorrect, due to incorrect sensor config
check parameter set/real value through test system (LSB-screen), set sensor to default value
020366 ZE 0: LSB participant address 3 with software version, that is no longer compatible X635:z14/z16 E 2
entry in error memory, otherwise no reaction, it will be tried as far as possible to work with the sensor
replace sensor through new part
020451 ZE 0: LSB participant address 4 was not configured for the block transfer X635:z14/z16 E 2
entry in error memory, otherwise no reaction, no block transfer will be carried out
configuration problem, load new Software
065209 19
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
020453 ZE 0: LSB participant address 4 no longer reports or withdrawn during running period X635:z14/z16 E 1
entry in error memory, participant will be deactivated, data buffer to the application will be set to 0
check connection, if connection OK then replace sensor
020454 ZE 0: LSB participant address 4 Features other settings (parameters) as pre-entered set values X635:z14/z16 E 2
entry in error memory, or no reaction, the sensor data could be incorrect, due to incorrect sensor config
check parameter set/real value through test system (LSB-screen), set sensor to default value
020466 ZE 0: LSB participant address 4 with software version, that is no longer compatible X635:z14/z16 E 2
entry in error memory, otherwise no reaction, it will be tried as far as possible to work with the sensor
replace sensor through new part
020551 ZE 0: LSB participant address 5 was not configured for the block transfer X635:z14/z16 E 2
entry in error memory, otherwise no reaction, no block transfer will be carried out
configuration problem, load new Software
020553 ZE 0: LSB participant address 5 no longer reports or withdrawn during running period X635:z14/z16 E 1
entry in error memory, participant will be deactivated, data buffer to the application will be set to 0
check connection, if connection OK then replace sensor
065209 20
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
020554 ZE 0: LSB participant address 5 Features other settings (parameters) as pre-entered set values X635:z14/z16 E 2
entry in error memory, or no reaction, the sensor data could be incorrect, due to incorrect sensor config
check parameter set/real value through test system (LSB-screen), set sensor to default value
020566 ZE 0: LSB participant address 5 with software version, that is no longer compatible X635:z14/z16 E 2
entry in error memory, otherwise no reaction, it will be tried as far as possible to work with the sensor
replace sensor through new part
020651 ZE 0: LSB participant address 6 was not configured for the block transfer X635:z14/z16 E 2
entry in error memory, otherwise no reaction, no block transfer will be carried out
configuration problem, load new Software
020653 ZE 0: LSB participant address 6 no longer reports or withdrawn during running period X635:z14/z16 E 1
entry in error memory, participant will be deactivated, data buffer to the application will be set to 0
check connection, if connection OK then replace sensor
020654 ZE 0: LSB participant address 6 Features other settings (parameters) as pre-entered set values X635:z14/z16 E 2
entry in error memory, or no reaction, the sensor data could be incorrect, due to incorrect sensor config
check parameter set/real value through test system (LSB-screen), set sensor to default value
065209 21
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
020666 ZE 0: LSB participant address 6 with software version, that is no longer compatible X635:z14/z16 E 2
entry in error memory, otherwise no reaction, it will be tried as far as possible to work with the sensor
replace sensor through new part
020951 ZE 0: LSB participant address 9 was not configured for the block transfer X635:z14/z16 E 2
entry in error memory, otherwise no reaction, no block transfer will be carried out
configuration problem, load new Software
020953 ZE 0: LSB participant address 9 no longer reports or withdrawn during running period X635:z14/z16 E 1
entry in error memory, participant will be deactivated, data buffer to the application will be set to 0
check connection, if connection OK then replace sensor
020954 ZE 0: LSB participant address 9 Features other settings (parameters) as pre-entered set values X635:z14/z16 E 2
entry in error memory, or no reaction, the sensor data could be incorrect, due to incorrect sensor config
check parameter set/real value through test system (LSB-screen), set sensor to default value
065209 22
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
020966 ZE 0: LSB participant address 9 with software version, that is no longer compatible X635:z14/z16 E 2
entry in error memory, otherwise no reaction, it will be tried as far as possible to work with the sensor
replace sensor through new part
021051 ZE 0: LSB participant address 10 was not configured for the block transfer X635:z14/z16 E 2
entry in error memory, otherwise no reaction, no block transfer will be carried out
configuration problem, load new Software
021053 ZE 0: LSB participant address 10 no longer reports or withdrawn during running period X635:z14/z16 E 1
entry in error memory, participant will be deactivated, data buffer to the application will be set to 0
check connection, if connection OK then replace sensor
065209 23
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
021054 ZE 0: LSB participant address 10 Features other settings (parameters) as pre-entered set values X635:z14/z16 E 2
entry in error memory, or no reaction, the sensor data could be incorrect, due to incorrect sensor config
check parameter set/real value through test system (LSB-screen), set sensor to default value
021066 ZE 0: LSB participant address 10 with software version, that is no longer compatible X635:z14/z16 E 2
entry in error memory, otherwise no reaction, it will be tried as far as possible to work with the sensor
replace sensor through new part
021151 ZE 0: LSB participant address 11 was not configured for the block transfer X635:z14/z16 E 2
entry in error memory, otherwise no reaction, no block transfer will be carried out
configuration problem, load new Software
021153 ZE 0: LSB participant address 11 no longer reports or withdrawn during running period X635:z14/z16 E 1
entry in error memory, participant will be deactivated, data buffer to the application will be set to 0
check connection, if connection OK then replace sensor
021154 ZE 0: LSB participant address 11 Features other settings (parameters) as pre-entered set values X635:z14/z16 E 2
entry in error memory, or no reaction, the sensor data could be incorrect, due to incorrect sensor config
check parameter set/real value through test system (LSB-screen), set sensor to default value
065209 24
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
021166 ZE 0: LSB participant address 11 with software version, that is no longer compatible X635:z14/z16 E 2
entry in error memory, otherwise no reaction, it will be tried as far as possible to work with the sensor
replace sensor through new part
022151 ZE 0: LSB participant address 21 was not configured for the block transfer X635:z14/z16 E 2
entry in error memory, otherwise no reaction, no block transfer will be carried out
configuration problem, load new Software
022153 ZE 0: LSB participant address 21 no longer reports or withdrawn during running period X635:z14/z16 E 1
entry in error memory, participant will be deactivated, data buffer to the application will be set to 0
check connection, if connection OK then replace sensor
022154 ZE 0: LSB participant address 21 Features other settings (parameters) as pre-entered set values X635:z14/z16 E 2
entry in error memory, or no reaction, the sensor data could be incorrect, due to incorrect sensor config
check parameter set/real value through test system (LSB-screen), set sensor to default value
065209 25
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
022166 ZE 0: LSB participant address 21 with software version, that is no longer compatible X635:z14/z16 E 2
entry in error memory, otherwise no reaction, it will be tried as far as possible to work with the sensor
replace sensor through new part
022251 ZE 0: LSB participant address 22 was not configured for the block transfer X635:z14/z16 E 2
entry in error memory, otherwise no reaction, no block transfer will be carried out
configuration problem, load new Software
022253 ZE 0: LSB participant address 22 no longer reports or withdrawn during running period X635:z14/z16 E 1
entry in error memory, participant will be deactivated, data buffer to the application will be set to 0
check connection, if connection OK then replace sensor
022254 ZE 0: LSB participant address 22 Features other settings (parameters) as pre-entered set values X635:z14/z16 E 2
entry in error memory, or no reaction, the sensor data could be incorrect, due to incorrect sensor config
check parameter set/real value through test system (LSB-screen), set sensor to default value
065209 26
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
022266 ZE 0: LSB participant address 22 with software version, that is no longer compatible X635:z14/z16 E 2
entry in error memory, otherwise no reaction, it will be tried as far as possible to work with the sensor
replace sensor through new part
022351 ZE 0: LSB participant address 23 was not configured for the block transfer X635:z14/z16 E 2
entry in error memory, otherwise no reaction, no block transfer will be carried out
configuration problem, load new Software
022353 ZE 0: LSB participant address 23 no longer reports or withdrawn during running period X635:z14/z16 E 1
entry in error memory, participant will be deactivated, data buffer to the application will be set to 0
check connection, if connection OK then replace sensor
022354 ZE 0: LSB participant address 23 Features other settings (parameters) as pre-entered set values X635:z14/z16 E 2
entry in error memory, or no reaction, the sensor data could be incorrect, due to incorrect sensor config
check parameter set/real value through test system (LSB-screen), set sensor to default value
022366 ZE 0: LSB participant address 23 with software version, that is no longer compatible X635:z14/z16 E 2
entry in error memory, otherwise no reaction, it will be tried as far as possible to work with the sensor
replace sensor through new part
065209 27
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
022451 ZE 0: LSB participant address 24 was not configured for the block transfer X635:z14/z16 E 2
entry in error memory, otherwise no reaction, no block transfer will be carried out
configuration problem, load new Software
022453 ZE 0: LSB participant address 24 no longer reports or withdrawn during running period X635:z14/z16 E 1
entry in error memory, participant will be deactivated, data buffer to the application will be set to 0
check connection, if connection OK then replace sensor
022454 ZE 0: LSB participant address 24 Features other settings (parameters) as pre-entered set values X635:z14/z16 E 2
entry in error memory, or no reaction, the sensor data could be incorrect, due to incorrect sensor config
check parameter set/real value through test system (LSB-screen), set sensor to default value
022466 ZE 0: LSB participant address 24 with software version, that is no longer compatible X635:z14/z16 E 2
entry in error memory, otherwise no reaction, it will be tried as far as possible to work with the sensor
replace sensor through new part
065209 28
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
022551 ZE 0: LSB participant address 25 was not configured for the block transfer X635:z14/z16 E 2
entry in error memory, otherwise no reaction, no block transfer will be carried out
configuration problem, load new Software
022553 ZE 0: LSB participant address 25 no longer reports or withdrawn during running period X635:z14/z16 E 1
entry in error memory, participant will be deactivated, data buffer to the application will be set to 0
check connection, if connection OK then replace sensor
022554 ZE 0: LSB participant address 25 Features other settings (parameters) as pre-entered set values X635:z14/z16 E 2
entry in error memory, or no reaction, the sensor data could be incorrect, due to incorrect sensor config
check parameter set/real value through test system (LSB-screen), set sensor to default value
022566 ZE 0: LSB participant address 25 with software version, that is no longer compatible X635:z14/z16 E 2
entry in error memory, otherwise no reaction, it will be tried as far as possible to work with the sensor
replace sensor through new part
065209 29
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
023206 ZE 0: Control data transfer LSB line connection to participant disrupted/not plugged in X635:z14/z16 E 1
report of error, participant will be deactivated, data buffer to the application will be set to 0
check bus connections, if connections OK despite error then check sensor and replace if necessary
023252 ZE 0: Control data transfer LSB has recognised Bus collisions, communication interrupted X635:z14/z16 E 0
entry in error memory, driver draws itself back from bus, possible release of reset and re-booting of network
with temporary malfunctions error will be eliminated from system itself, otherwise check address assignment of sensor
023255 ZE 0: Control data transfer LSB Bus connection faulty/defect, short circuit to supply voltage X635:z14/z16 E 2
entry in error memory, driver tries permanently to re-boot bus, bus boots as soon as error is eliminated
check bus line, sensor (withdraw) and bus circuit board for shorts, check bus fuse on bus circuit board
023256 ZE 0: Control data transfer LSB Bus connection faulty/defect, no supply/short circuit to earth X635:z14/z16 E 2
entry in error memory, driver tries permanently to re-boot bus, bus boots as soon as error is eliminated
check bus line, sensor (withdraw) and bus circuit board for shorts, check bus fuse on bus circuit board
023257 ZE 0: Control data transfer LSB has recognised network re-set (data transfer starts again) X635:z14/z16 E 1
entry in error memory, driver re-starts and runs re-booting of network
check bus lines, withdraw sensors successively from bus until malfunction source recognised, replace defective part
023258 ZE 0: Control data transfer LSB recognised participant with incorrect baud rate in bus X635:z14/z16 E 0
entry in error memory, driver re-starts and runs re-booting of network
will be eliminated from system itself, check address assignment of sensors
023259 ZE 0: Control data transfer LSB recognised communication breakdown in bus X635:z14/z16 E 0
entry in error memory, driver re-starts and runs re-booting of network
will be eliminated by driver through re-booting of network
023260 ZE 0: Control data transfer LSB driver error: no order to carry out X635:z14/z16 E 2
entry in error memory, driver runs on normally and waits for bus connection of participant
with temporary malfunctions error will be eliminated by system itself, with incorrect configuration install new software
023261 ZE 0: Control data transfer LSB driver error: undefined message appears X635:z14/z16 E 2
entry in error memory, driver re-starts and runs re-booting of network
with temporary malf. error will be eliminated by system itself otherwise new Software necessary for error elimination
023262 ZE 0: Control data transfer LSB driver error: initialising error X635:z14/z16 E 2
entry in error memory, driver re-starts and runs re-booting of network
new Software is necessary for error elimination
065209 30
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
027602 ZE 0: input 28 sensor deficiency data short circuit to supply voltage X635:b26 E 1
report of error, otherwise no reaction
check supply, LICCON input, sensor lines to short or break, sensor
027702 ZE 0: input 29 sensor deficiency data short circuit to supply voltage X635:b28 E 1
report of error, otherwise no reaction
check supply, LICCON input, sensor lines to short or break, sensor
065209 31
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
030002 ZE 0: LMB minimum pressure in fly jib retaining cylinder below minimum B 1
error report only
check pressure sensor for fly jib retaining cylinder and replace if necessary
030041 ZE 0: LMB all data for actual operation mode not available B 3
program stop
install new data memory card with corrected charts
065209 32
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
030052 ZE 0: LMB re-fitting with load more than 0.5t and utilization larger 20% B 1
load chart cannot be entered through OK-key
put load to ground or switch crane off and on again
030064 ZE 0: LMB measured overall torque smaller than half torque without charge B 2
LMB-Stop: Load torque increasing movements cannot be affected
move boom out of danger zone or check sensor (angle-, pressure-, length),if load or radius indication incorrect
030067 ZE 0: LMB STOP, difference between length sensors 1 and 2 too great B 2
LMB-Stop: Load torque increasing movements cannot be affected
set the correct length sensors zero point
030079 ZE 0: LMB STOP, adjusted op. mode and crane configuration not identical B 2
LMB-Stop: Load torque increasing movements cannot be affected
set up crane according to selected operation mode
065209 33
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
030122 ZE 0: LMB STOP, end of stroke switch 2 in auxiliary boom op. not connected B 2
LMB-Stop: Load torque increasing movements cannot be affected
connect end of stroke switch 2, or check limit switch or supply line
030124 ZE 0: LMB STOP, end of stroke switch 3 in auxiliary boom op. not connected B 2
LMB-Stop: Load torque increasing movements cannot be affected
connect end of stroke switch 3, or check limit switch or supply line
030130 ZE 0: LMB STOP, hoist limit switch 4 with 2 winch device not connected E 2
LMB-Stop: Load torque increasing movements cannot be affected
Connect hoist limit switch 4, or check limit switch supply line
030135 ZE 0: LMB permissible deviation of data A/B tension meas. bracket 1 exceeded B 2
LMB-Stop: Load torque increasing movements cannot be affected
check tension connecting brackets or line, stress flow difference in both tension connecting brackets possible
030136 ZE 0: LMB permissible deviation of data A/B tension meas. bracket 2 exceeded B 2
LMB-Stop: Load torque increasing movements cannot be affected
check tension connecting brackets or line, stress flow difference in both tension connecting brackets possible
065209 34
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
030137 ZE 0: LMB permissible deviation of data A/B tension meas. bracket 3 exceeded B 2
LMB-Stop: Load torque increasing movements cannot be affected
check tension connecting brackets or line, stress flow difference in both tension connecting brackets possible
030147 ZE 0: LMB working radius list in load chart with incorrect value B 2
LMB-Stop: Load torque increasing movements cannot be affected
install new data memory card with corrected charts
030153 ZE 0: LMB selected attachment config. not corresponding with actual condition B 2
LMB-Stop: Load torque increasing movements cannot be affected
select load chart corresponding to actual crane configuration
065209 35
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
030157 ZE 0: LMB selected slewing range not corresponding with actual condition B 2
LMB-Stop: Load torque increasing movements cannot be affected
enter chart that corresponds to the actual slewing range
030165 ZE 0: LMB difference between upper/lower angle sensor tele too great B 2
LMB-Stop: Load torque increasing movements cannot be affected
retrieve crane deflection through unloading, or check both angle sensors or their lines
030182 ZE 0: LMB difference between angle sensor cylinder lower/upper too great B 2
LMB-Stop: Load torque increasing movements cannot be affected
retrieve crane deflection through unloading, or check both angle sensors or their lines
030187 ZE 0: LMB actual slewing range different from set slewing range B 2
LMB-Stop: Load torque increasing movements cannot be affected
enter chart according to actual slewing angle of the boom
030190 ZE 0: LMB angle sensor error: load, reach, pulley head height indication defect E 2
LMB-Stop: Load torque increasing movements cannot be affected
check LSB-connection, angle sensor
065209 36
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
032800 ZE 0: control slewing No swing movement recognised with selected swing gear E 1
033941 ZE 0: crane control Emergency operation switched on, Caution shut-downs ineffective B
034313 ZE 0: instruments armrest left master switch 2X both dir. contacts standing by simultaneously E 1
output of error, shut-down through application
check sensor lines for shorts, defect sensor through unplugging of sensor, connection to circuit board
034315 ZE 0: instruments armrest left master switch 2X directional contact without zero contact E 1
output of error, shut-down through application
check supply, LICCON input, sensor lines for breaks , check defect sensor
034317 ZE 0: instruments armrest left master switch 2X analogue signal short to supply voltage E 1
output of error, shut-down through application
check sensor lines for shorts, defect sensor through unplugging of sensor, connection to circuit board
034321 ZE 0: instruments armrest left master switch 2X analogue sig. open circuit or short to ground E 1
output of error, shut-down through application
check supply, LICCON input, sensor line for breaks , defect sensor through withdrawing of sensor
065209 37
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
034833 ZE 0: control diagnosis system Pressure cut-off swing gear outside of permissible area E 1
Carrying out of test program delayed / interrupted
Check pressure hoist gear, carry out test program again
034856 ZE 0: control diagnosis system slewing gear turning with closed brakes E 1
Carrying out of test program delayed / interrupted
Check valve / pump / pressure
034857 ZE 0: control diagnosis system Initial current swing gear right above permissible area E 1
Carrying out of test program delayed / interrupted
Check valve / pump / pressure
034858 ZE 0: control diagnosis system Initial current swing gear right below permissible area E 1
Carrying out of test program delayed / interrupted
Check valve / pump / pressure
034859 ZE 0: control diagnosis system Initial current swing gear left above permissible area E 1
Carrying out of test program delayed / interrupted
Check valve / pump / pressure
034860 ZE 0: control diagnosis system Initial current swing gear left below permissible area E 1
Carrying out of test program delayed / interrupted
Check valve / pump / pressure
034861 ZE 0: control diagnosis system slewing speed right slewing gear too low E 1
Carrying out of test program delayed / interrupted
Check valve / pump / pressure
034862 ZE 0: control diagnosis system slewing speed right slewing gear too high E 1
Carrying out of test program delayed / interrupted
Check valve / pump / pressure
065209 38
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
034863 ZE 0: control diagnosis system slewing speed left slewing gear too low E 1
Carrying out of test program delayed / interrupted
Check valve / pump / pressure
034864 ZE 0: control diagnosis system slewing speed left slewing gear too high E 1
Carrying out of test program delayed / interrupted
Check valve / pump / pressure
034865 ZE 0: control diagnosis system Hysteresis right-hand swing gear too great
Carrying out of test program delayed / interrupted
Check proportional-flow valve
034866 ZE 0: control diagnosis system Hysteresis left-hand swing gear too great
Carrying out of test program delayed / interrupted
Check proportional-flow valve
035808 ZE 0: operation slewing shut-down slewing right working area limitation ABB B
035809 ZE 0: operation slewing shut-down slewing left working area limitation ABB B
065209 39
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
035890 ZE 0: operation slewing Slewing platform not bolted or impermissible bolting condition B 1
report of error, otherwise no reaction
Correct bolting position, check position ok: -supply, -input LICCON, -sensor line for short-circuit, -sensor
036800 ZE 0: Operation undercarriage Engagement transversal lock hindered when longitudinal lock engaged B
036801 ZE 0: Operation undercarriage Engagement long. lock hindered when off-road gear not engaged B
036802 ZE 0: Operation undercarriage Unlocking of rear axle locked, uncontrolled axles not raised B
036803 ZE 0: Operation undercarriage Left rear axle hindered, control locking not unlocked B
036804 ZE 0: Operation undercarriage Steering front axle hindered, parking brake not opened B
037049 ZE 0: operation instruments crane operators cab seat contact not activated, crane movements blocked B 1
output of error, shut-down through application
sit down (seat limit switch) or dead man (in master switch) or check LICCON input, sensor lines, sensor
065209 40
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
037313 ZE 0: operation instruments armrest left master switch 2X not in neutral when starting B 1
output of error, shut-down through application
release master switch briefly or check LICCON input, gear lines, sensor
039800 ZE 0: operation diagnosis system interruption, master switch defective or incorrectly deflected B 1
Carrying out of test program delayed / interrupted
Note direction of movements, carry out test program again
039803 ZE 0: operation diagnosis system Break, incorrect/faulty bolting condition swing gear B 1
Carrying out of test program delayed / interrupted
Unbolt slewing platform or check swing signals
039814 ZE 0: operation diagnosis system Alignment aid not correctly shut down B 1
Invalid operation condition, no proper crane operation possible
Apply F key, end active test program
039820 ZE 0: operation diagnosis system interruption, boom angle beyond the prescribed range B 1
Carrying out of test program delayed / interrupted
Extend to correct luffing position, carry out test program again
039821 ZE 0: operation diagnosis system interruption, tele length beyond the prescribed range B 1
Carrying out of test program delayed / interrupted
Extend to correct telescopic boom length length, carry out test program again
039822 ZE 0: operation diagnosis system interruption, hook load beyond the prescribed range B 1
Carrying out of test program delayed / interrupted
Note max. hook load, carry out test program again
065209 41
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
100001 ZE 1: system error OS-HC11 (observe parameters) initialising error processor-register erroneous E 2
no crane operation possible
if error re-occurs, then ZE should be replaced
100002 ZE 1: system error OS-HC11 (observe parameters) initialising error test total in EPROM/FLASH erroneous E 2
no crane operation possible
check program memory card or ZE
100006 ZE 1: system error OS-HC11 (observe parameters) initialising error RAM erroneous E 2
no crane operation possible
if error re-occurs, then ZE should be replaced
100013 ZE 1: system error OS-HC11 (observe parameters) Test sum in FLASH erroneous E 2
entry in error memory, all crane movements will be stopped
check program memory card
065209 42
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
100017 ZE 1: system error OS-HC11 (observe parameters) total of CPU-time distribution too great E 2
entry in error memory, all crane movements will be stopped
100018 ZE 1: system error OS-HC11 (observe parameters) arithmetic overflow (16 Bit) E 2
entry in error memory, all crane movements will be stopped
100019 ZE 1: system error OS-HC11 (observe parameters) division through zero (16 Bit) E 2
entry in error memory, all crane movements will be stopped
100023 ZE 1: system error OS-HC11 (observe parameters) program incapable of running (type identification) E 2
entry in error memory, all crane movements will be stopped
065209 43
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
100044 ZE 1: system error OS-HC11 (observe parameters) output parameter without effect, from inactive output E 2
entry in error memory, all crane movements will be stopped
100045 ZE 1: system error OS-HC11 (observe parameters) entry parameter undefined, from inactive input E 2
entry in error memory, all crane movements will be stopped
100047 ZE 1: system error OS-HC11 (observe parameters) realtime-control block not available E 2
entry in error memory, all crane movements will be stopped
100049 ZE 1: system error OS-HC11 (observe parameters) urgent modul, ZE not available E 2
entry in error memory, no crane operation possible
check ZE
065209 44
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
100052 ZE 1: system error OS-HC11 (observe parameters) file not open on close E 2
entry in error memory, all crane movements will be stopped
100053 ZE 1: system error OS-HC11 (observe parameters) system mask not available E 2
entry in error memory, all crane movements will be stopped
100054 ZE 1: system error OS-HC11 (observe parameters) system text not available E 2
entry in error memory, all crane movements will be stopped
100057 ZE 1: system error OS-HC11 (observe parameters) default load chart missing E 2
entry in error memory, all crane movements will be stopped
100058 ZE 1: system error OS-HC11 (observe parameters) amplifier erroneous or return power feed E 2
entry in error memory, all crane movements will be stopped
check wiring
065209 45
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
100066 ZE 1: system error OS-HC11 (observe parameters) ADC working outside the permissible tolerance E 2
entry in error memory, all crane movements will be stopped
if error re-occurs, then ZE should be replaced
100067 ZE 1: system error OS-HC11 (observe parameters) arithmetic processor not available E 2
entry in error memory, all crane movements will be stopped
if error re-occurs, then ZE should be replaced
065209 46
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
100074 ZE 1: system error OS-HC11 (observe parameters) transformation ASCII to BIN erroneous E 2
entry in error memory, all crane movements will be stopped
100076 ZE 1: system error OS-HC11 (observe parameters) incorrectly inserted power unit E 2
entry in error memory, all crane movements will be stopped
check memory card in power supply unit
100080 ZE 1: system error OS-HC11 (observe parameters) fatal internal software error E 2
entry in error memory, all crane movements will be stopped
065209 47
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
100094 ZE 1: system error OS-HC11 (observe parameters) transmission error parallel bus E 2
entry in error memory, all crane movements will be stopped
check ZE, bus circuit board, power supply unit
102002 ZE 1: system error OS-TMS initialising error test total in EPROM/FLASH erroneous E 2
entry of error in error memory, all crane movements will be stopped
replace ZE
065209 48
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
065209 49
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
065209 50
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
110260 ZE 1: output 2 safety chain error, diode defect or safety contact sticking X71:18 E 1
report of error, otherwise no reaction
checking of safety contact and diode
065209 51
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
110360 ZE 1: output 3 safety chain error, diode defect or safety contact sticking X71:19 E 1
report of error, otherwise no reaction
checking of safety contact and diode
065209 52
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
110460 ZE 1: output 4 safety chain error, diode defect or safety contact sticking X71:20 E 1
report of error, otherwise no reaction
checking of safety contact and diode
065209 53
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
110560 ZE 1: output 5 safety chain error, diode defect or safety contact sticking X71:21 E 1
report of error, otherwise no reaction
checking of safety contact and diode
065209 54
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
110660 ZE 1: output 6 safety chain error, diode defect or safety contact sticking X71:22 E 1
report of error, otherwise no reaction
checking of safety contact and diode
065209 55
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
110760 ZE 1: output 7 safety chain error, diode defect or safety contact sticking X71:23 E 1
report of error, otherwise no reaction
checking of safety contact and diode
065209 56
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
Check Bus configuration in LSB test system, remove faulty / incorrect users from Bus
120051 ZE 1: LSB participant address 0 was not configured for the block transfer X635A:z14/z16 E 2
entry in error memory, otherwise no reaction, no block transfer will be carried out
configuration problem, load new Software
120053 ZE 1: LSB participant address 0 no longer reports or withdrawn during running period X635A:z14/z16 E 1
entry in error memory, participant will be deactivated, data buffer to the application will be set to 0
check connection, if connection OK then replace sensor
120054 ZE 1: LSB participant address 0 Features other settings (parameters) as pre-entered set values X635A:z14/z16 E 2
entry in error memory, or no reaction, the sensor data could be incorrect, due to incorrect sensor config
check parameter set/real value through test system (LSB-screen), set sensor to default value
065209 57
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
120066 ZE 1: LSB participant address 0 with software version, that is no longer compatible X635A:z14/z16 E 2
entry in error memory, otherwise no reaction, it will be tried as far as possible to work with the sensor
replace sensor through new part
120151 ZE 1: LSB participant address 1 was not configured for the block transfer X635A:z14/z16 E 2
entry in error memory, otherwise no reaction, no block transfer will be carried out
configuration problem, load new Software
120153 ZE 1: LSB participant address 1 no longer reports or withdrawn during running period X635A:z14/z16 E 1
entry in error memory, participant will be deactivated, data buffer to the application will be set to 0
check connection, if connection OK then replace sensor
120154 ZE 1: LSB participant address 1 Features other settings (parameters) as pre-entered set values X635A:z14/z16 E 2
entry in error memory, or no reaction, the sensor data could be incorrect, due to incorrect sensor config
check parameter set/real value through test system (LSB-screen), set sensor to default value
120166 ZE 1: LSB participant address 1 with software version, that is no longer compatible X635A:z14/z16 E 2
entry in error memory, otherwise no reaction, it will be tried as far as possible to work with the sensor
replace sensor through new part
065209 58
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
120951 ZE 1: LSB participant address 9 was not configured for the block transfer X635A:z14/z16 E 2
entry in error memory, otherwise no reaction, no block transfer will be carried out
configuration problem, load new Software
120953 ZE 1: LSB participant address 9 no longer reports or withdrawn during running period X635A:z14/z16 E 1
entry in error memory, participant will be deactivated, data buffer to the application will be set to 0
check connection, if connection OK then replace sensor
120954 ZE 1: LSB participant address 9 Features other settings (parameters) as pre-entered set values X635A:z14/z16 E 2
entry in error memory, or no reaction, the sensor data could be incorrect, due to incorrect sensor config
check parameter set/real value through test system (LSB-screen), set sensor to default value
120966 ZE 1: LSB participant address 9 with software version, that is no longer compatible X635A:z14/z16 E 2
entry in error memory, otherwise no reaction, it will be tried as far as possible to work with the sensor
replace sensor through new part
065209 59
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
121051 ZE 1: LSB participant address 10 was not configured for the block transfer X635A:z14/z16 E 2
entry in error memory, otherwise no reaction, no block transfer will be carried out
configuration problem, load new Software
121053 ZE 1: LSB participant address 10 no longer reports or withdrawn during running period X635A:z14/z16 E 1
entry in error memory, participant will be deactivated, data buffer to the application will be set to 0
check connection, if connection OK then replace sensor
121054 ZE 1: LSB participant address 10 Features other settings (parameters) as pre-entered set values X635A:z14/z16 E 2
entry in error memory, or no reaction, the sensor data could be incorrect, due to incorrect sensor config
check parameter set/real value through test system (LSB-screen), set sensor to default value
121066 ZE 1: LSB participant address 10 with software version, that is no longer compatible X635A:z14/z16 E 2
entry in error memory, otherwise no reaction, it will be tried as far as possible to work with the sensor
replace sensor through new part
065209 60
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
121151 ZE 1: LSB participant address 11 was not configured for the block transfer X635A:z14/z16 E 2
entry in error memory, otherwise no reaction, no block transfer will be carried out
configuration problem, load new Software
121153 ZE 1: LSB participant address 11 no longer reports or withdrawn during running period X635A:z14/z16 E 1
entry in error memory, participant will be deactivated, data buffer to the application will be set to 0
check connection, if connection OK then replace sensor
121154 ZE 1: LSB participant address 11 Features other settings (parameters) as pre-entered set values X635A:z14/z16 E 2
entry in error memory, or no reaction, the sensor data could be incorrect, due to incorrect sensor config
check parameter set/real value through test system (LSB-screen), set sensor to default value
065209 61
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
121166 ZE 1: LSB participant address 11 with software version, that is no longer compatible X635A:z14/z16 E 2
entry in error memory, otherwise no reaction, it will be tried as far as possible to work with the sensor
replace sensor through new part
121251 ZE 1: LSB participant address 12 was not configured for the block transfer X635A:z14/z16 E 2
entry in error memory, otherwise no reaction, no block transfer will be carried out
configuration problem, load new Software
121253 ZE 1: LSB participant address 12 no longer reports or withdrawn during running period X635A:z14/z16 E 1
entry in error memory, participant will be deactivated, data buffer to the application will be set to 0
check connection, if connection OK then replace sensor
121254 ZE 1: LSB participant address 12 Features other settings (parameters) as pre-entered set values X635A:z14/z16 E 2
entry in error memory, or no reaction, the sensor data could be incorrect, due to incorrect sensor config
check parameter set/real value through test system (LSB-screen), set sensor to default value
065209 62
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
121266 ZE 1: LSB participant address 12 with software version, that is no longer compatible X635A:z14/z16 E 2
entry in error memory, otherwise no reaction, it will be tried as far as possible to work with the sensor
replace sensor through new part
121351 ZE 1: LSB participant address 13 was not configured for the block transfer X635A:z14/z16 E 2
entry in error memory, otherwise no reaction, no block transfer will be carried out
configuration problem, load new Software
065209 63
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
121353 ZE 1: LSB participant address 13 no longer reports or withdrawn during running period X635A:z14/z16 E 1
entry in error memory, participant will be deactivated, data buffer to the application will be set to 0
check connection, if connection OK then replace sensor
121354 ZE 1: LSB participant address 13 Features other settings (parameters) as pre-entered set values X635A:z14/z16 E 2
entry in error memory, or no reaction, the sensor data could be incorrect, due to incorrect sensor config
check parameter set/real value through test system (LSB-screen), set sensor to default value
121366 ZE 1: LSB participant address 13 with software version, that is no longer compatible X635A:z14/z16 E 2
entry in error memory, otherwise no reaction, it will be tried as far as possible to work with the sensor
replace sensor through new part
065209 64
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
121451 ZE 1: LSB participant address 14 was not configured for the block transfer X635A:z14/z16 E 2
entry in error memory, otherwise no reaction, no block transfer will be carried out
configuration problem, load new Software
121453 ZE 1: LSB participant address 14 no longer reports or withdrawn during running period X635A:z14/z16 E 1
entry in error memory, participant will be deactivated, data buffer to the application will be set to 0
check connection, if connection OK then replace sensor
121454 ZE 1: LSB participant address 14 Features other settings (parameters) as pre-entered set values X635A:z14/z16 E 2
entry in error memory, or no reaction, the sensor data could be incorrect, due to incorrect sensor config
check parameter set/real value through test system (LSB-screen), set sensor to default value
121466 ZE 1: LSB participant address 14 with software version, that is no longer compatible X635A:z14/z16 E 2
entry in error memory, otherwise no reaction, it will be tried as far as possible to work with the sensor
replace sensor through new part
065209 65
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
121551 ZE 1: LSB participant address 15 was not configured for the block transfer X635A:z14/z16 E 2
entry in error memory, otherwise no reaction, no block transfer will be carried out
configuration problem, load new Software
121553 ZE 1: LSB participant address 15 no longer reports or withdrawn during running period X635A:z14/z16 E 1
entry in error memory, participant will be deactivated, data buffer to the application will be set to 0
check connection, if connection OK then replace sensor
121554 ZE 1: LSB participant address 15 Features other settings (parameters) as pre-entered set values X635A:z14/z16 E 2
entry in error memory, or no reaction, the sensor data could be incorrect, due to incorrect sensor config
check parameter set/real value through test system (LSB-screen), set sensor to default value
121566 ZE 1: LSB participant address 15 with software version, that is no longer compatible X635A:z14/z16 E 2
entry in error memory, otherwise no reaction, it will be tried as far as possible to work with the sensor
replace sensor through new part
065209 66
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
121651 ZE 1: LSB participant address 16 was not configured for the block transfer X635A:z14/z16 E 2
entry in error memory, otherwise no reaction, no block transfer will be carried out
configuration problem, load new Software
121653 ZE 1: LSB participant address 16 no longer reports or withdrawn during running period X635A:z14/z16 E 1
entry in error memory, participant will be deactivated, data buffer to the application will be set to 0
check connection, if connection OK then replace sensor
121654 ZE 1: LSB participant address 16 Features other settings (parameters) as pre-entered set values X635A:z14/z16 E 2
entry in error memory, or no reaction, the sensor data could be incorrect, due to incorrect sensor config
check parameter set/real value through test system (LSB-screen), set sensor to default value
121666 ZE 1: LSB participant address 16 with software version, that is no longer compatible X635A:z14/z16 E 2
entry in error memory, otherwise no reaction, it will be tried as far as possible to work with the sensor
replace sensor through new part
065209 67
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
121751 ZE 1: LSB participant address 17 was not configured for the block transfer X635A:z14/z16 E 2
entry in error memory, otherwise no reaction, no block transfer will be carried out
configuration problem, load new Software
121753 ZE 1: LSB participant address 17 no longer reports or withdrawn during running period X635A:z14/z16 E 1
entry in error memory, participant will be deactivated, data buffer to the application will be set to 0
check connection, if connection OK then replace sensor
121754 ZE 1: LSB participant address 17 Features other settings (parameters) as pre-entered set values X635A:z14/z16 E 2
entry in error memory, or no reaction, the sensor data could be incorrect, due to incorrect sensor config
check parameter set/real value through test system (LSB-screen), set sensor to default value
121766 ZE 1: LSB participant address 17 with software version, that is no longer compatible X635A:z14/z16 E 2
entry in error memory, otherwise no reaction, it will be tried as far as possible to work with the sensor
replace sensor through new part
065209 68
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
121851 ZE 1: LSB participant address 18 was not configured for the block transfer X635A:z14/z16 E 2
entry in error memory, otherwise no reaction, no block transfer will be carried out
configuration problem, load new Software
121853 ZE 1: LSB participant address 18 no longer reports or withdrawn during running period X635A:z14/z16 E 1
entry in error memory, participant will be deactivated, data buffer to the application will be set to 0
check connection, if connection OK then replace sensor
121854 ZE 1: LSB participant address 18 Features other settings (parameters) as pre-entered set values X635A:z14/z16 E 2
entry in error memory, or no reaction, the sensor data could be incorrect, due to incorrect sensor config
check parameter set/real value through test system (LSB-screen), set sensor to default value
065209 69
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
121866 ZE 1: LSB participant address 18 with software version, that is no longer compatible X635A:z14/z16 E 2
entry in error memory, otherwise no reaction, it will be tried as far as possible to work with the sensor
replace sensor through new part
121951 ZE 1: LSB participant address 19 was not configured for the block transfer X635A:z14/z16 E 2
entry in error memory, otherwise no reaction, no block transfer will be carried out
configuration problem, load new Software
121953 ZE 1: LSB participant address 19 no longer reports or withdrawn during running period X635A:z14/z16 E 1
entry in error memory, participant will be deactivated, data buffer to the application will be set to 0
check connection, if connection OK then replace sensor
121954 ZE 1: LSB participant address 19 Features other settings (parameters) as pre-entered set values X635A:z14/z16 E 2
entry in error memory, or no reaction, the sensor data could be incorrect, due to incorrect sensor config
check parameter set/real value through test system (LSB-screen), set sensor to default value
065209 70
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
121966 ZE 1: LSB participant address 19 with software version, that is no longer compatible X635A:z14/z16 E 2
entry in error memory, otherwise no reaction, it will be tried as far as possible to work with the sensor
replace sensor through new part
122051 ZE 1: LSB participant address 20 was not configured for the block transfer X635A:z14/z16 E 2
entry in error memory, otherwise no reaction, no block transfer will be carried out
configuration problem, load new Software
065209 71
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
122053 ZE 1: LSB participant address 20 no longer reports or withdrawn during running period X635A:z14/z16 E 1
entry in error memory, participant will be deactivated, data buffer to the application will be set to 0
check connection, if connection OK then replace sensor
122054 ZE 1: LSB participant address 20 Features other settings (parameters) as pre-entered set values X635A:z14/z16 E 2
entry in error memory, or no reaction, the sensor data could be incorrect, due to incorrect sensor config
check parameter set/real value through test system (LSB-screen), set sensor to default value
122066 ZE 1: LSB participant address 20 with software version, that is no longer compatible X635A:z14/z16 E 2
entry in error memory, otherwise no reaction, it will be tried as far as possible to work with the sensor
replace sensor through new part
065209 72
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
122151 ZE 1: LSB participant address 21 was not configured for the block transfer X635A:z14/z16 E 2
entry in error memory, otherwise no reaction, no block transfer will be carried out
configuration problem, load new Software
122153 ZE 1: LSB participant address 21 no longer reports or withdrawn during running period X635A:z14/z16 E 1
entry in error memory, participant will be deactivated, data buffer to the application will be set to 0
check connection, if connection OK then replace sensor
122154 ZE 1: LSB participant address 21 Features other settings (parameters) as pre-entered set values X635A:z14/z16 E 2
entry in error memory, or no reaction, the sensor data could be incorrect, due to incorrect sensor config
check parameter set/real value through test system (LSB-screen), set sensor to default value
122166 ZE 1: LSB participant address 21 with software version, that is no longer compatible X635A:z14/z16 E 2
entry in error memory, otherwise no reaction, it will be tried as far as possible to work with the sensor
replace sensor through new part
065209 73
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
122951 ZE 1: LSB participant address 29 was not configured for the block transfer X635A:z14/z16 E 2
entry in error memory, otherwise no reaction, no block transfer will be carried out
configuration problem, load new Software
122953 ZE 1: LSB participant address 29 no longer reports or withdrawn during running period X635A:z14/z16 E 1
entry in error memory, participant will be deactivated, data buffer to the application will be set to 0
check connection, if connection OK then replace sensor
122954 ZE 1: LSB participant address 29 Features other settings (parameters) as pre-entered set values X635A:z14/z16 E 2
entry in error memory, or no reaction, the sensor data could be incorrect, due to incorrect sensor config
check parameter set/real value through test system (LSB-screen), set sensor to default value
122966 ZE 1: LSB participant address 29 with software version, that is no longer compatible X635A:z14/z16 E 2
entry in error memory, otherwise no reaction, it will be tried as far as possible to work with the sensor
replace sensor through new part
123051 ZE 1: LSB participant address 30 was not configured for the block transfer X635A:z14/z16 E 2
entry in error memory, otherwise no reaction, no block transfer will be carried out
configuration problem, load new Software
065209 74
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
123053 ZE 1: LSB participant address 30 no longer reports or withdrawn during running period X635A:z14/z16 E 1
entry in error memory, participant will be deactivated, data buffer to the application will be set to 0
check connection, if connection OK then replace sensor
123054 ZE 1: LSB participant address 30 Features other settings (parameters) as pre-entered set values X635A:z14/z16 E 2
entry in error memory, or no reaction, the sensor data could be incorrect, due to incorrect sensor config
check parameter set/real value through test system (LSB-screen), set sensor to default value
123066 ZE 1: LSB participant address 30 with software version, that is no longer compatible X635A:z14/z16 E 2
entry in error memory, otherwise no reaction, it will be tried as far as possible to work with the sensor
replace sensor through new part
123206 ZE 1: Control data transfer LSB line connection to participant disrupted/not plugged in X635A:z14/z16 E 1
report of error, participant will be deactivated, data buffer to the application will be set to 0
check bus connections, if connections OK despite error then check sensor and replace if necessary
123252 ZE 1: Control data transfer LSB has recognised Bus collisions, communication interrupted X635A:z14/z16 E 0
entry in error memory, driver draws itself back from bus, possible release of reset and re-booting of network
with temporary malfunctions error will be eliminated from system itself, otherwise check address assignment of sensor
123255 ZE 1: Control data transfer LSB Bus connection faulty/defect, short circuit to supply voltage X635A:z14/z16 E 2
entry in error memory, driver tries permanently to re-boot bus, bus boots as soon as error is eliminated
check bus line, sensor (withdraw) and bus circuit board for shorts, check bus fuse on bus circuit board
065209 75
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
123256 ZE 1: Control data transfer LSB Bus connection faulty/defect, no supply/short circuit to earth X635A:z14/z16 E 2
entry in error memory, driver tries permanently to re-boot bus, bus boots as soon as error is eliminated
check bus line, sensor (withdraw) and bus circuit board for shorts, check bus fuse on bus circuit board
123257 ZE 1: Control data transfer LSB has recognised network re-set (data transfer starts again) X635A:z14/z16 E 1
entry in error memory, driver re-starts and runs re-booting of network
check bus lines, withdraw sensors successively from bus until malfunction source recognised, replace defective part
123258 ZE 1: Control data transfer LSB recognised participant with incorrect baud rate in bus X635A:z14/z16 E 0
entry in error memory, driver re-starts and runs re-booting of network
will be eliminated from system itself, check address assignment of sensors
123259 ZE 1: Control data transfer LSB recognised communication breakdown in bus X635A:z14/z16 E 0
entry in error memory, driver re-starts and runs re-booting of network
will be eliminated by driver through re-booting of network
123260 ZE 1: Control data transfer LSB driver error: no order to carry out X635A:z14/z16 E 2
entry in error memory, driver runs on normally and waits for bus connection of participant
with temporary malfunctions error will be eliminated by system itself, with incorrect configuration install new software
123261 ZE 1: Control data transfer LSB driver error: undefined message appears X635A:z14/z16 E 2
entry in error memory, driver re-starts and runs re-booting of network
with temporary malf. error will be eliminated by system itself otherwise new Software necessary for error elimination
123262 ZE 1: Control data transfer LSB driver error: initialising error X635A:z14/z16 E 2
entry in error memory, driver re-starts and runs re-booting of network
new Software is necessary for error elimination
130570 ZE 1: remote control emergency operation telescoping movement selected with LICCON B 1
065209 76
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
130611 ZE 1: Data recorder Start: Crane number faulty (not 9 figures numerically) E 1
Data recorder software stops - no documentation possible!
Define crane number correctly (Sxxxxxxx.yyQ - KNFttt00vvrr.Q)
065209 77
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
132650 ZE 1: control telescoping Tele recognition faulty, more than one track switch reporting active E 1
Telescoping blocked, telestatus possibly tipped, possibly incorrect/no telescopic boom length length
Switched limit switch, check cylinder attachment
134201 ZE 1: instruments armrest right master switch 1X both dir. contacts standing by simultaneously E 1
output of error, shut-down through application
check sensor lines for shorts, defect sensor through unplugging of sensor, connection to circuit board
134203 ZE 1: instruments armrest right master switch 1X directional contact without zero contact E 1
output of error, shut-down through application
check supply, LICCON input, sensor lines for breaks , check defect sensor
134205 ZE 1: instruments armrest right master switch 1X analogue signal short to supply voltage E 1
output of error, shut-down through application
check sensor lines for shorts, defect sensor through unplugging of sensor, connection to circuit board
134209 ZE 1: instruments armrest right master switch 1X analogue sig. open circuit or short circ. to ground E 1
output of error, shut-down through application
check supply, LICCON input, sensor line for breaks , defect sensor through withdrawing of sensor
134312 ZE 1: instruments armrest left master switch 2Y both dir. contacts standing by simultaneously E 1
output of error, shut-down through application
check sensor lines for shorts, defect sensor through unplugging of sensor, connection to circuit board
065209 78
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
134314 ZE 1: instruments armrest left master switch 2Y directional contact without zero contact E 1
output of error, shut-down through application
check supply, LICCON input, sensor lines for breaks , check defect sensor
134316 ZE 1: instruments armrest left master switch 2Y analogue signal short to supply voltage E 1
output of error, shut-down through application
check sensor lines for shorts, defect sensor through unplugging of sensor, connection to circuit board
134320 ZE 1: instruments armrest left master switch 2Y analogue sig. open circuit or short to ground E 1
output of error, shut-down through application
check supply, LICCON input, sensor line for breaks , defect sensor through withdrawing of sensor
134834 ZE 1: control diagnosis system Pressure cut-off cylinder out outside of permissible area E 1
Carrying out of test program delayed / interrupted
Check pressure cylinder Off, carry out test program again
134835 ZE 1: control diagnosis system Pressure cut-off tele out outside of permissible area E 1
Carrying out of test program delayed / interrupted
Check pressure telescopic boom length Off, carry out test program again
134836 ZE 1: control diagnosis system Pressure cut-off cylinder in outside of permissible area E 1
Carrying out of test program delayed / interrupted
Check pressure cylinder On, carry out test program again
134837 ZE 1: control diagnosis system Pressure cut-off tele in outside of permissible area E 1
Carrying out of test program delayed / interrupted
Check pressure telescopic boom length On, carry out test program again
065209 79
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
134877 ZE 1: control diagnosis system Initial current telescoping in above permissible area E 1
Carrying out of test program delayed / interrupted
Check valve / pump / pressure
134878 ZE 1: control diagnosis system Initial current telescoping in below permissible area E 1
Carrying out of test program delayed / interrupted
Check valve / pump / pressure
134879 ZE 1: control diagnosis system Initial current telescoping out above permissible area E 1
Carrying out of test program delayed / interrupted
Check valve / pump / pressure
134880 ZE 1: control diagnosis system Initial current telescoping out below permissible area E 1
Carrying out of test program delayed / interrupted
Check valve / pump / pressure
134883 ZE 1: control diagnosis system Speed telescoping out below permissible area E 1
Carrying out of test program delayed / interrupted
Check valve / pump / pressure
134884 ZE 1: control diagnosis system Speed telescoping out above permissible area E 1
Carrying out of test program delayed / interrupted
Check valve / pump / pressure
134886 ZE 1: control diagnosis system Hysteresis telescoping out outside of permissible area
Carrying out of test program delayed / interrupted
Check proportional-flow valve
065209 80
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
135608 ZE 1: operation telescoping shut-down tele OUT main boom working area limitation ABB B
135609 ZE 1: operation telescoping shut-down tele IN main boom working area limitation ABB B
065209 81
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
135660 ZE 1: operation telescoping unbolting telescope not possible, cylinder is not bolted B
135663 ZE 1: operation telescoping unbolting cylinder not possible, telescope is not bolted B
135664 ZE 1: operation telescoping unbolting cylinder not possible, automatic system adjusted B
065209 82
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
135665 ZE 1: operation telescoping unbolting telescope not possible, automatic system adjusted B
135690 ZE 1: operation telescoping cylinder bolting is neither unpinned nor in a pivot section B
137049 ZE 1: operation instruments crane operators cab seat contact not activated, crane movements blocked B 1
output of error, shut-down through application
sit down (seat limit switch) or dead man (in master switch) or check LICCON input, sensor lines, sensor
137201 ZE 1: operation instruments armrest right master switch 1X not in neutral when starting B 1
output of error, shut-down through application
release master switch briefly or check LICCON input, gear lines, sensor
137312 ZE 1: operation instruments armrest left master switch 2Y not in neutral when starting B 1
output of error, shut-down through application
release master switch briefly or check LICCON input, gear lines, sensor
065209 83
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
139800 ZE 1: operation diagnosis system interruption, master switch defective or incorrectly deflected B 1
Carrying out of test program delayed / interrupted
Note direction of movements, carry out test program again
139804 ZE 1: operation diagnosis system Termination, change-over luff/telescoping incorrect switch position B 1
Carrying out of test program delayed / interrupted
Turn change-over luff./ tele. to correctly corresponding switch pos. ,erase error, actuate Reset and start again
139812 ZE 1: operation diagnosis system Termination, windable rope length too short B 1
Carrying out of test program delayed / interrupted
Check reeving wind off more rope, carry out test program again
139814 ZE 1: operation diagnosis system Alignment aid not correctly shut down B 1
Invalid operation condition, no proper crane operation possible
Apply F key, end active test program
139815 ZE 1: operation diagnosis system Switch over telescoping to operation type "Manual" B 1
Carrying out of test program delayed / interrupted
Change over to manual operation telescoping, erase error, actuate Reset and start again
139820 ZE 1: operation diagnosis system interruption, boom angle beyond the prescribed range B 1
Carrying out of test program delayed / interrupted
Extend to correct luffing position, carry out test program again
139821 ZE 1: operation diagnosis system interruption, tele length beyond the prescribed range B 1
Carrying out of test program delayed / interrupted
Extend to correct telescopic boom length length, carry out test program again
065209 84
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
139822 ZE 1: operation diagnosis system interruption, hook load beyond the prescribed range B 1
Carrying out of test program delayed / interrupted
Note max. hook load, carry out test program again
139825 ZE 1: operation diagnosis system Termination, cylinder length outside of prescribed areas B 1
Carrying out of test program delayed / interrupted
Start up correct cylinder length (preferably with 100% bolted), carry out test program again
161002 E/A-Modul 1: system error OS-C167 initialising error test total in EPROM/FLASH erroneous E 2
error indication on display
ignition ON/OFF, with repeated occurrence --> replace E/A-Modul
065209 85
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
172052 E/A-Modul 1: input/output DEA0 output open, to low load, short circuit to supply voltage X613:17 E 1
error report on display
check output for broken wire, check load on output (measure load current), if necessary replace E/A-Modul
172053 E/A-Modul 1: input/output DEA0 transistor current supply insufficient or missing X613:17 E 1
error report on display
check current supply and fuse E/A-Modul, if necessary replace E/A-Modul
172055 E/A-Modul 1: input/output DEA0 excessive temperature, short circuit to ground or overload X613:17 E 1
error report on display
check output for short, current supply, check fuse of E/A-Modul, if necessary replace E/A-Modul
172152 E/A-Modul 1: input/output DEA1 output open, to low load, short circuit to supply voltage X613:15 E 1
error report on display
check output for broken wire, check load on output (measure load current), if necessary replace E/A-Modul
172153 E/A-Modul 1: input/output DEA1 transistor current supply insufficient or missing X613:15 E 1
error report on display
check current supply and fuse E/A-Modul, if necessary replace E/A-Modul
065209 86
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
172155 E/A-Modul 1: input/output DEA1 excessive temperature, short circuit to ground or overload X613:15 E 1
error report on display
check output for short, current supply, check fuse of E/A-Modul, if necessary replace E/A-Modul
172252 E/A-Modul 1: input/output DEA2 output open, to low load, short circuit to supply voltage X613:13 E 1
error report on display
check output for broken wire, check load on output (measure load current), if necessary replace E/A-Modul
172253 E/A-Modul 1: input/output DEA2 transistor current supply insufficient or missing X613:13 E 1
error report on display
check current supply and fuse E/A-Modul, if necessary replace E/A-Modul
172255 E/A-Modul 1: input/output DEA2 excessive temperature, short circuit to ground or overload X613:13 E 1
error report on display
check output for short, current supply, check fuse of E/A-Modul, if necessary replace E/A-Modul
172352 E/A-Modul 1: input/output DEA3 output open, to low load, short circuit to supply voltage X613:11 E 1
error report on display
check output for broken wire, check load on output (measure load current), if necessary replace E/A-Modul
172353 E/A-Modul 1: input/output DEA3 transistor current supply insufficient or missing X613:11 E 1
error report on display
check current supply and fuse E/A-Modul, if necessary replace E/A-Modul
172355 E/A-Modul 1: input/output DEA3 excessive temperature, short circuit to ground or overload X613:11 E 1
error report on display
check output for short, current supply, check fuse of E/A-Modul, if necessary replace E/A-Modul
172452 E/A-Modul 1: input/output DEA4 output open, to low load, short circuit to supply voltage X613:9 E 1
error report on display
check output for broken wire, check load on output (measure load current), if necessary replace E/A-Modul
065209 87
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
172453 E/A-Modul 1: input/output DEA4 transistor current supply insufficient or missing X613:9 E 1
error report on display
check current supply and fuse E/A-Modul, if necessary replace E/A-Modul
172455 E/A-Modul 1: input/output DEA4 excessive temperature, short circuit to ground or overload X613:9 E 1
error report on display
check output for short, current supply, check fuse of E/A-Modul, if necessary replace E/A-Modul
172552 E/A-Modul 1: input/output DEA5 output open, to low load, short circuit to supply voltage X613:7 E 1
error report on display
check output for broken wire, check load on output (measure load current), if necessary replace E/A-Modul
172553 E/A-Modul 1: input/output DEA5 transistor current supply insufficient or missing X613:7 E 1
error report on display
check current supply and fuse E/A-Modul, if necessary replace E/A-Modul
172555 E/A-Modul 1: input/output DEA5 excessive temperature, short circuit to ground or overload X613:7 E 1
error report on display
check output for short, current supply, check fuse of E/A-Modul, if necessary replace E/A-Modul
172652 E/A-Modul 1: input/output DEA6 output open, to low load, short circuit to supply voltage X613:5 E 1
error report on display
check output for broken wire, check load on output (measure load current), if necessary replace E/A-Modul
172653 E/A-Modul 1: input/output DEA6 transistor current supply insufficient or missing X613:5 E 1
error report on display
check current supply and fuse E/A-Modul, if necessary replace E/A-Modul
065209 88
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
172655 E/A-Modul 1: input/output DEA6 excessive temperature, short circuit to ground or overload X613:5 E 1
error report on display
check output for short, current supply, check fuse of E/A-Modul, if necessary replace E/A-Modul
172752 E/A-Modul 1: input/output DEA7 output open, to low load, short circuit to supply voltage X613:3 E 1
error report on display
check output for broken wire, check load on output (measure load current), if necessary replace E/A-Modul
172753 E/A-Modul 1: input/output DEA7 transistor current supply insufficient or missing X613:3 E 1
error report on display
check current supply and fuse E/A-Modul, if necessary replace E/A-Modul
172755 E/A-Modul 1: input/output DEA7 excessive temperature, short circuit to ground or overload X613:3 E 1
error report on display
check output for short, current supply, check fuse of E/A-Modul, if necessary replace E/A-Modul
173481 E/A-Modul 1: voltage input E4 short circuit to supply voltage, open line X612:9 E 1
symbol for brake pressure 1 is flashing on the display unit
check input signal on the E/A-Modul or sensor
173581 E/A-Modul 1: voltage input E5 short circuit to supply voltage, open line X612:7 E 1
symbol for brake pressure 2 is flashing on the display unit
check input signal on the E/A-Modul or sensor
173782 E/A-Modul 1: voltage input E7 short circuit to ground, open line, constant current 10 mA incorrect X612:3 E 1
no reaction
check input signal on the E/A-Modul or sensor
173783 E/A-Modul 1: voltage input E7 short circuit to supply voltage, open line, lack of voltage X612:3 E 1
no reaction
check input signal on the E/A-Modul or sensor
179052 E/A-Modul 1: output A0 output open, to low load, short circuit to supply voltage X613:18 E 1
error report on display
check output for broken wire, check load on output (measure load current), if necessary replace E/A-Modul
065209 89
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
179055 E/A-Modul 1: output A0 excessive temperature, short circuit to ground or overload X613:18 E 1
error report on display
check output for short, current supply, check fuse of E/A-Modul, if necessary replace E/A-Modul
179152 E/A-Modul 1: output A1 output open, to low load, short circuit to supply voltage X613:16 E 1
error report on display
check output for broken wire, check load on output (measure load current), if necessary replace E/A-Modul
179155 E/A-Modul 1: output A1 excessive temperature, short circuit to ground or overload X613:16 E 1
error report on display
check output for short, current supply, check fuse of E/A-Modul, if necessary replace E/A-Modul
179250 E/A-Modul 1: bridge output A2 short circuit to ground, junction not supplied X613:14 E 1
error report on display
check output for short, check current supply of load, if necessary replace E/A-Modul
179251 E/A-Modul 1: bridge output A2 short circuit to supply voltage, excessive temperature X613:14 E 1
error report on display
check output for short, check output load (measure load current), if necessary replace E/A-Modul
179252 E/A-Modul 1: bridge output A2 output open, to low load, short circuit to supply voltage X613:14 E 1
error report on display
check output for broken wire, check load on output (measure load current), if necessary replace E/A-Modul
065209 90
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
179253 E/A-Modul 1: bridge output A2 transistor current supply insufficient or missing X613:14 E 1
error report on display
check current supply and fuse E/A-Modul, if necessary replace E/A-Modul
179255 E/A-Modul 1: bridge output A2 excessive temperature, short circuit to ground or overload X613:14 E 1
error report on display
check output for short, current supply, check fuse of E/A-Modul, if necessary replace E/A-Modul
179350 E/A-Modul 1: bridge output A3 short circuit to ground, junction not supplied X613:12 E 1
error report on display
check output for short, check current supply of load, if necessary replace E/A-Modul
179351 E/A-Modul 1: bridge output A3 short circuit to supply voltage, excessive temperature X613:12 E 1
error report on display
check output for short, check output load (measure load current), if necessary replace E/A-Modul
179352 E/A-Modul 1: bridge output A3 output open, to low load, short circuit to supply voltage X613:12 E 1
error report on display
check output for broken wire, check load on output (measure load current), if necessary replace E/A-Modul
179353 E/A-Modul 1: bridge output A3 transistor current supply insufficient or missing X613:12 E 1
error report on display
check current supply and fuse E/A-Modul, if necessary replace E/A-Modul
179355 E/A-Modul 1: bridge output A3 excessive temperature, short circuit to ground or overload X613:12 E 1
error report on display
check output for short, current supply, check fuse of E/A-Modul, if necessary replace E/A-Modul
183401 E/A-Modul 1: SPI-control unit Faulty data transfer E/A-module<>unit (time exceeded) X614:1/2/3/5/6/ E 1
error indication on display 7/8
system re-starts SPI-driver and eliminates error independently, with repeated occurrence replace E/A-Modul
065209 91
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
183402 E/A-Modul 1: SPI-control unit Serious system error to SPI-connection (interface) X614:1/2/3/5/6/ E 1
error indication on display 7/8
system re-starts SPI-driver and eliminates error independently, with repeated occurrence replace E/A-Modul
183403 E/A-Modul 1: SPI-control unit break in line or short circuit to supply voltage X614:1/2/3/5/6/ E 1
error indication on display 7/8
remedy short circuit, check periphery and replace if necessary, check E/A-Modul and replace if necessary
183404 E/A-Modul 1: SPI-control unit break in line or short circuit to ground X614:1/2/3/5/6/ E 1
error indication on display 7/8
remedy short circuit, check periphery and replace if necessary, check E/A-Modul and replace if necessary
183406 E/A-Modul 1: SPI-control unit Data transfer faulty (faulty check byte) X614:1/2/3/5/6/ E 1
error indication on display 7/8
suppress EMV- interference
183407 E/A-Modul 1: SPI-control unit Unit faulty/missing, incorrect unit inserted (ID) X614:1/2/3/5/6/ E 1
error indication on display 7/8
check periphery and replace if necessary, check Software version, check EMV- interference
183408 E/A-Modul 1: SPI-control unit Data transfer faulty (incorrect number of data bytes received) X614:1/2/3/5/6/ E 1
error indication on display 7/8
system re-starts SPI-driver and eliminates error independently, with repeated occurrence replace E/A-Modul
183900 E/A-Modul 1: Control operating unit (SPI) Faulty initialisation data connection E/A-module<>unit X614:1/2/3/5/6/ E 1
error indication on display 7/8
system re-starts SPI-driver and eliminates error independently, with repeated occurrence replace E/A-Modul
183902 E/A-Modul 1: Control operating unit (SPI) Serious system error to SPI-connection (interface) X614:1/2/3/5/6/ E 1
error indication on display 7/8
system re-starts SPI-driver and eliminates error independently, with repeated occurrence replace E/A-Modul
183905 E/A-Modul 1: Control operating unit (SPI) Initialisation error, resetting inputs/outputs faulty X614:1/2/3/5/6/ E 1
error indication on display 7/8
check wiring, check periphery and replace if necessary, check E/A-Modul and replace if necessary
183907 E/A-Modul 1: Control operating unit (SPI) Unit faulty/missing, incorrect unit inserted (ID) X614:1/2/3/5/6/ E 1
error indication on display 7/8
connect functional periphery unit, system then eliminates error independently
065209 92
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
183908 E/A-Modul 1: Control operating unit (SPI) Data transfer faulty (incorrect number of data bytes received) X614:1/2/3/5/6/ E 1
error indication on display 7/8
system re-starts SPI-driver and eliminates error independently, with repeated occurrence replace E/A-Modul
184050 E/A-Modul 1: LSB-B participant address 0 reports an incorrect sensor type X613:4/6 E 1
Check Bus configuration in LSB test system, remove faulty / incorrect users from Bus
184150 E/A-Modul 1: LSB-B participant address 1 reports an incorrect sensor type X613:4/6 E 2
entry in error memory, otherwise no reaction, the answer will be interpreted according to the set type characteristics
check address assignment over test system (LSB-screen), install correct sensor
184151 E/A-Modul 1: LSB-B participant address 1 was not configured for the block transfer X613:4/6 E 2
entry in error memory, otherwise no reaction, no block transfer will be carried out
configuration problem, load new Software
184153 E/A-Modul 1: LSB-B participant address 1 no longer reports or withdrawn during running period X613:4/6 E 1
entry in error memory, participant will be deactivated, data buffer to the application will be set to 0
check connection, if connection OK then replace sensor
184154 E/A-Modul 1: LSB-B participant address 1 Features other settings (parameters) as pre-entered set values X613:4/6 E 2
entry in error memory, or no reaction, the sensor data could be incorrect, due to incorrect sensor config
check parameter set/real value through test system (LSB-screen), set sensor to default value
184164 E/A-Modul 1: LSB-B participant address 1 reports tolerable error in self-test X613:4/6 E 1
entry in error memory, otherwise no reaction; note only: sensor still functions correctly
check sensor, clean if necessary, with repeated occurrence replace sensor
184165 E/A-Modul 1: LSB-B participant address 1 reports intolerable error in self-test X613:4/6 E 2
entry in error memory, otherwise no reaction, the error free operation is no longer guaranteed
replace sensor immediately
184166 E/A-Modul 1: LSB-B participant address 1 with software version, that is no longer compatible X613:4/6 E 2
entry in error memory, otherwise no reaction, it will be tried as far as possible to work with the sensor
replace sensor through new part
065209 93
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
184250 E/A-Modul 1: LSB-B participant address 2 reports an incorrect sensor type X613:4/6 E 2
entry in error memory, otherwise no reaction, the answer will be interpreted according to the set type characteristics
check address assignment over test system (LSB-screen), install correct sensor
184251 E/A-Modul 1: LSB-B participant address 2 was not configured for the block transfer X613:4/6 E 2
entry in error memory, otherwise no reaction, no block transfer will be carried out
configuration problem, load new Software
184253 E/A-Modul 1: LSB-B participant address 2 no longer reports or withdrawn during running period X613:4/6 E 1
entry in error memory, participant will be deactivated, data buffer to the application will be set to 0
check connection, if connection OK then replace sensor
184254 E/A-Modul 1: LSB-B participant address 2 Features other settings (parameters) as pre-entered set values X613:4/6 E 2
entry in error memory, or no reaction, the sensor data could be incorrect, due to incorrect sensor config
check parameter set/real value through test system (LSB-screen), set sensor to default value
184264 E/A-Modul 1: LSB-B participant address 2 reports tolerable error in self-test X613:4/6 E 1
entry in error memory, otherwise no reaction; note only: sensor still functions correctly
check sensor, clean if necessary, with repeated occurrence replace sensor
184265 E/A-Modul 1: LSB-B participant address 2 reports intolerable error in self-test X613:4/6 E 2
entry in error memory, otherwise no reaction, the error free operation is no longer guaranteed
replace sensor immediately
184266 E/A-Modul 1: LSB-B participant address 2 with software version, that is no longer compatible X613:4/6 E 2
entry in error memory, otherwise no reaction, it will be tried as far as possible to work with the sensor
replace sensor through new part
184350 E/A-Modul 1: LSB-B participant address 3 reports an incorrect sensor type X613:4/6 E 2
entry in error memory, otherwise no reaction, the answer will be interpreted according to the set type characteristics
check address assignment over test system (LSB-screen), install correct sensor
184351 E/A-Modul 1: LSB-B participant address 3 was not configured for the block transfer X613:4/6 E 2
entry in error memory, otherwise no reaction, no block transfer will be carried out
configuration problem, load new Software
065209 94
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
184353 E/A-Modul 1: LSB-B participant address 3 no longer reports or withdrawn during running period X613:4/6 E 1
entry in error memory, participant will be deactivated, data buffer to the application will be set to 0
check connection, if connection OK then replace sensor
184354 E/A-Modul 1: LSB-B participant address 3 Features other settings (parameters) as pre-entered set values X613:4/6 E 2
entry in error memory, or no reaction, the sensor data could be incorrect, due to incorrect sensor config
check parameter set/real value through test system (LSB-screen), set sensor to default value
184364 E/A-Modul 1: LSB-B participant address 3 reports tolerable error in self-test X613:4/6 E 1
entry in error memory, otherwise no reaction; note only: sensor still functions correctly
check sensor, clean if necessary, with repeated occurrence replace sensor
184365 E/A-Modul 1: LSB-B participant address 3 reports intolerable error in self-test X613:4/6 E 2
entry in error memory, otherwise no reaction, the error free operation is no longer guaranteed
replace sensor immediately
184366 E/A-Modul 1: LSB-B participant address 3 with software version, that is no longer compatible X613:4/6 E 2
entry in error memory, otherwise no reaction, it will be tried as far as possible to work with the sensor
replace sensor through new part
184450 E/A-Modul 1: LSB-B participant address 4 reports an incorrect sensor type X613:4/6 E 2
entry in error memory, otherwise no reaction, the answer will be interpreted according to the set type characteristics
check address assignment over test system (LSB-screen), install correct sensor
184451 E/A-Modul 1: LSB-B participant address 4 was not configured for the block transfer X613:4/6 E 2
entry in error memory, otherwise no reaction, no block transfer will be carried out
configuration problem, load new Software
184453 E/A-Modul 1: LSB-B participant address 4 no longer reports or withdrawn during running period X613:4/6 E 1
entry in error memory, participant will be deactivated, data buffer to the application will be set to 0
check connection, if connection OK then replace sensor
184454 E/A-Modul 1: LSB-B participant address 4 Features other settings (parameters) as pre-entered set values X613:4/6 E 2
entry in error memory, or no reaction, the sensor data could be incorrect, due to incorrect sensor config
check parameter set/real value through test system (LSB-screen), set sensor to default value
065209 95
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
184464 E/A-Modul 1: LSB-B participant address 4 reports tolerable error in self-test X613:4/6 E 1
entry in error memory, otherwise no reaction; note only: sensor still functions correctly
check sensor, clean if necessary, with repeated occurrence replace sensor
184465 E/A-Modul 1: LSB-B participant address 4 reports intolerable error in self-test X613:4/6 E 2
entry in error memory, otherwise no reaction, the error free operation is no longer guaranteed
replace sensor immediately
184466 E/A-Modul 1: LSB-B participant address 4 with software version, that is no longer compatible X613:4/6 E 2
entry in error memory, otherwise no reaction, it will be tried as far as possible to work with the sensor
replace sensor through new part
184550 E/A-Modul 1: LSB-B participant address 5 reports an incorrect sensor type X613:4/6 E 2
entry in error memory, otherwise no reaction, the answer will be interpreted according to the set type characteristics
check address assignment over test system (LSB-screen), install correct sensor
184551 E/A-Modul 1: LSB-B participant address 5 was not configured for the block transfer X613:4/6 E 2
entry in error memory, otherwise no reaction, no block transfer will be carried out
configuration problem, load new Software
184553 E/A-Modul 1: LSB-B participant address 5 no longer reports or withdrawn during running period X613:4/6 E 1
entry in error memory, participant will be deactivated, data buffer to the application will be set to 0
check connection, if connection OK then replace sensor
184554 E/A-Modul 1: LSB-B participant address 5 Features other settings (parameters) as pre-entered set values X613:4/6 E 2
entry in error memory, or no reaction, the sensor data could be incorrect, due to incorrect sensor config
check parameter set/real value through test system (LSB-screen), set sensor to default value
184564 E/A-Modul 1: LSB-B participant address 5 reports tolerable error in self-test X613:4/6 E 1
entry in error memory, otherwise no reaction; note only: sensor still functions correctly
check sensor, clean if necessary, with repeated occurrence replace sensor
184565 E/A-Modul 1: LSB-B participant address 5 reports intolerable error in self-test X613:4/6 E 2
entry in error memory, otherwise no reaction, the error free operation is no longer guaranteed
replace sensor immediately
065209 96
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
184566 E/A-Modul 1: LSB-B participant address 5 with software version, that is no longer compatible X613:4/6 E 2
entry in error memory, otherwise no reaction, it will be tried as far as possible to work with the sensor
replace sensor through new part
184650 E/A-Modul 1: LSB-B participant address 6 reports an incorrect sensor type X613:4/6 E 2
entry in error memory, otherwise no reaction, the answer will be interpreted according to the set type characteristics
check address assignment over test system (LSB-screen), install correct sensor
184651 E/A-Modul 1: LSB-B participant address 6 was not configured for the block transfer X613:4/6 E 2
entry in error memory, otherwise no reaction, no block transfer will be carried out
configuration problem, load new Software
184653 E/A-Modul 1: LSB-B participant address 6 no longer reports or withdrawn during running period X613:4/6 E 1
entry in error memory, participant will be deactivated, data buffer to the application will be set to 0
check connection, if connection OK then replace sensor
184654 E/A-Modul 1: LSB-B participant address 6 Features other settings (parameters) as pre-entered set values X613:4/6 E 2
entry in error memory, or no reaction, the sensor data could be incorrect, due to incorrect sensor config
check parameter set/real value through test system (LSB-screen), set sensor to default value
184664 E/A-Modul 1: LSB-B participant address 6 reports tolerable error in self-test X613:4/6 E 1
entry in error memory, otherwise no reaction; note only: sensor still functions correctly
check sensor, clean if necessary, with repeated occurrence replace sensor
184665 E/A-Modul 1: LSB-B participant address 6 reports intolerable error in self-test X613:4/6 E 2
entry in error memory, otherwise no reaction, the error free operation is no longer guaranteed
replace sensor immediately
184666 E/A-Modul 1: LSB-B participant address 6 with software version, that is no longer compatible X613:4/6 E 2
entry in error memory, otherwise no reaction, it will be tried as far as possible to work with the sensor
replace sensor through new part
065209 97
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
187252 E/A-Modul 1: Control data transfer LSB-B has recognised Bus collisions, communication interrupted X613:4/6 E 0
entry in error memory, driver draws itself back from bus, possible release of reset and re-booting of network
with temporary malfunctions error will be eliminated from system itself, otherwise check address assignment of sensor
187255 E/A-Modul 1: Control data transfer LSB-B Bus connection faulty/defect, short circuit to supply voltage X613:4/6 E 2
entry in error memory, driver tries permanently to re-boot bus, bus boots as soon as error is eliminated
check bus line, sensor (withdraw) and bus circuit board for shorts, check bus fuse on bus circuit board
187256 E/A-Modul 1: Control data transfer LSB-B Bus connection faulty/defect, no supply/short circuit to earth X613:4/6 E 2
entry in error memory, driver tries permanently to re-boot bus, bus boots as soon as error is eliminated
check bus line, sensor (withdraw) and bus circuit board for shorts, check bus fuse on bus circuit board
187257 E/A-Modul 1: Control data transfer LSB-B has recognised network re-set (data transfer starts again) X613:4/6 E 1
entry in error memory, driver re-starts and runs re-booting of network
check bus lines, withdraw sensors successively from bus until malfunction source recognised, replace defective part
187258 E/A-Modul 1: Control data transfer LSB-B recognised participant with incorrect baud rate in bus X613:4/6 E 0
entry in error memory, driver re-starts and runs re-booting of network
will be eliminated from system itself, check address assignment of sensors
187259 E/A-Modul 1: Control data transfer LSB-B recognised communication breakdown in bus X613:4/6 E 0
entry in error memory, driver re-starts and runs re-booting of network
will be eliminated by driver through re-booting of network
187260 E/A-Modul 1: Control data transfer LSB-B driver error: no order to carry out X613:4/6 E 2
entry in error memory, driver runs on normally and waits for bus connection of participant
with temporary malfunctions error will be eliminated by system itself, with incorrect configuration install new software
187261 E/A-Modul 1: Control data transfer LSB-B driver error: undefined message appears X613:4/6 E 2
entry in error memory, driver re-starts and runs re-booting of network
with temporary malf. error will be eliminated by system itself otherwise new Software necessary for error elimination
187262 E/A-Modul 1: Control data transfer LSB-B driver error: initialising error X613:4/6 E 2
entry in error memory, driver re-starts and runs re-booting of network
new Software is necessary for error elimination
187530 E/A-Modul 1: CAN-participant engine Data transfer subscriber transfer cycle exceeded X615:5/6 E 0
CAN-Information from participant has exceeded the defined cycle time
in case bus system is error free, check connection of E/A-Modul to CAN-network, replace E/A-Modul
065209 98
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
187531 E/A-Modul 1: CAN-participant engine Data transfer faulty/missing, max. cycle time exceeded X615:5/6 E 1
parameterised substitute values for receiver signals will be used
Check CAN network, check faulty Bus user.
187630 E/A-Modul 1: CAN-participant gear Data transfer subscriber transfer cycle exceeded X615:5/6 E 0
CAN-Information from participant has exceeded the defined cycle time
in case bus system is error free, check connection of E/A-Modul to CAN-network, replace E/A-Modul
187631 E/A-Modul 1: CAN-participant gear Data transfer faulty/missing, max. cycle time exceeded X615:5/6 E 1
parameterised substitute values for receiver signals will be used
Check CAN network, check faulty Bus user.
187730 E/A-Modul 1: CAN-participant ABV (ABS/ASR) Data transfer subscriber transfer cycle exceeded X615:5/6 E 0
CAN-Information from participant has exceeded the defined cycle time
in case bus system is error free, check connection of E/A-Modul to CAN-network, replace E/A-Modul
187731 E/A-Modul 1: CAN-participant ABV (ABS/ASR) Data transfer faulty/missing, max. cycle time exceeded X615:5/6 E 1
parameterised substitute values for receiver signals will be used
Check CAN network, check faulty Bus user.
187930 E/A-Modul 1: CAN-participant retarder Data transfer subscriber transfer cycle exceeded X615:5/6 E 0
CAN-Information from participant has exceeded the defined cycle time
in case bus system is error free, check connection of E/A-Modul to CAN-network, replace E/A-Modul
187931 E/A-Modul 1: CAN-participant retarder Data transfer faulty/missing, max. cycle time exceeded X615:5/6 E 1
parameterised substitute values for receiver signals will be used
Check CAN network, check faulty Bus user.
188530 E/A-Modul 1: CAN-participant E/A-Modul 1 Data transfer subscriber transfer cycle exceeded X615:5/6 E 0
CAN-Information from participant has exceeded the defined cycle time
Check CAN network, check faulty Bus user.
188531 E/A-Modul 1: CAN-participant E/A-Modul 1 Data transfer faulty/missing, max. cycle time exceeded X615:5/6 E 1
parameterised substitute values for receiver signals will be used
Check CAN network, check faulty Bus user.
188930 E/A-Modul 1: CAN-participant E/A-Modul 5 Data transfer subscriber transfer cycle exceeded X615:5/6 E 1
CAN-Information from participant has exceeded the defined cycle time
Check CAN network, check faulty Bus user.
065209 99
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
188931 E/A-Modul 1: CAN-participant E/A-Modul 5 Data transfer faulty/missing, max. cycle time exceeded X615:5/6 E 1
parameterised substitute values for receiver signals will be used
Check CAN network, check faulty Bus user.
189900 E/A-Modul 1: Control data transfer CAN internal error at Register-check Controller X615:5/6 E 2
internal error, CAN-transmission will be aborted
replace E/A-Modul
189901 E/A-Modul 1: Control data transfer CAN internal error at RAM-check Controller X615:5/6 E 2
internal error, CAN-transmission will be aborted
replace E/A-Modul
189902 E/A-Modul 1: Control data transfer CAN Configuration error Software X615:5/6 E 2
internal error, CAN-transmission will be aborted
replace E/A-Modul, check Software (test system ZE)
189903 E/A-Modul 1: Control data transfer CAN Transfer interrupted after continuous error X615:5/6 E 1
CAN-Transmission will be aborted
Check CAN network, replace E/A-Modul
189910 E/A-Modul 1: Control data transfer CAN short-term error in bus connection X615:5/6 E 0
re-attachment of Modul to bus transmission
Check CAN network, connect individual Bus users and check if error has been remedied
189911 E/A-Modul 1: Control data transfer CAN permanent error bus connection X615:5/6 E 1
cyclic re-attachment of Modul to bus transmission
Check CAN network, connect individual Bus users and check if error has been remedied
189920 E/A-Modul 1: Control data transfer CAN active participant not responding X615:5/6 E 0
parameterised substitute values for receiver signals will be used
check error report for missing participant(s), test system ZE
189921 E/A-Modul 1: Control data transfer CAN No active subscriber responding X615:5/6 E 1
parameterised substitute values for receiver signals will be used
in case bus system is error free, check connection of E/A-Modul to CAN-network, replace E/A-Modul
189950 E/A-Modul 1: Control data transfer CAN erroneous command test system X615:5/6 E 1
no reaction to unknown test system control command in CAN-System Software
check Software (test system)
065209 100
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
192001 E/A-Modul 1: control engine long-term disruption E/A-Modul <-> engine control E 1
engine control and E/A-Modul at emergency speed
engine control and E/A-Modul, check CAN-bus-connections
192110 E/A-Modul 1: control transmission long-term disruption shift selector operation unit <-> gears E 1
transmission control and E/A-Modul (operation unit) in emergency drive program
check transmission control and E/A-Modul, CAN-bus-connection
192111 E/A-Modul 1: control transmission long-term disruption shift selector crane op. cab<-> E/A-Modul B
no shifting possible
192112 E/A-Modul 1: control transmission long-term disruption connection E/A-Modul <-> operation unit E 1
transmission control and E/A-Modul (operation unit) in emergency drive program
check connection E/A-Modul<>operation unit, power supplies operation unit; replace E/A- Modul or operation unit
192113 E/A-Modul 1: control transmission error in shift selector keys operation unit: key sticking E 1
control system prevents engagement of a gear, check results exclusively after shifting on ignition
in case key is activated release (error will be reset), check key or operation unit
192114 E/A-Modul 1: control transmission shift selector operation unit: D key sticking E 1
control system prevents engagement of a gear, check results exclusively after shifting on ignition
in case key is activated release (error will be reset), check key or operation unit
192115 E/A-Modul 1: control transmission shift selector operation unit: N key sticking E 1
control system prevents engagement of a gear, check results exclusively after shifting on ignition
in case key is activated release (error will be reset), check key or operation unit
192116 E/A-Modul 1: control transmission shift selector operation unit: R key sticking E 1
control system prevents engagement of a gear, check results exclusively after shifting on ignition
in case key is activated release (error will be reset), check key or operation unit
192117 E/A-Modul 1: control transmission shift selector operation unit: gear+ key sticking E 1
control system prevents engagement of a gear, check results exclusively after shifting on ignition
in case key is activated release (error will be reset), check key or operation unit
192118 E/A-Modul 1: control transmission shift selector operation unit: gear- key sticking E 1
control system prevents engagement of a gear, check results exclusively after shifting on ignition
in case key is activated release (error will be reset), check key or operation unit
065209 101
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
192119 E/A-Modul 1: control transmission shift selector operation unit: travel program key 1/2 sticking E 1
control system prevents engagement of a gear, check results exclusively after shifting on ignition
in case key is activated release (error will be reset), check key or operation unit
192128 E/A-Modul 1: control transmission feedback of off-road gear simultaneously ON and OFF E 1
control system prevents disengagement of the off-road gear ON or OFF, remaining in actual position when ignition ON
check sensor for acknowledgement(s), check line connections to the E/A-Modul, replace E/A-Modul
194800 E/A-Modul 1: control diagnosis system error in diagnosis requirement CAN-participant engine E 0
ISO-Diagnosis-inquiry will be interrupted and if necessary carried out again
check CAN-network, check CAN-paticipants
065209 102
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
194801 E/A-Modul 1: control diagnosis system error in diagnosis requirement CAN-participant gears E 0
ISO-Diagnosis-inquiry will be interrupted and if necessary carried out again
check CAN-network, check CAN-paticipants
194802 E/A-Modul 1: control diagnosis system error in diagnosis requirement CAN-participant ABS E 0
ISO-Diagnosis-inquiry will be interrupted and if necessary carried out again
check CAN-network, check CAN-paticipants
194810 E/A-Modul 1: control diagnosis system error in test system-diagnosis CAN-participant engine E 0
ISO-Diagnosis-inquiry will be interrupted and if necessary carried out again
check CAN-network, check CAN-paticipants
194811 E/A-Modul 1: control diagnosis system error in test system-diagnosis CAN-participant gears E 0
ISO-Diagnosis-inquiry will be interrupted and if necessary carried out again
check CAN-network, check CAN-paticipants
194812 E/A-Modul 1: control diagnosis system error in test system-diagnosis CAN-participant ABS E 0
ISO-Diagnosis-inquiry will be interrupted and if necessary carried out again
check CAN-network, check CAN-paticipants
194850 E/A-Modul 1: control diagnosis system Error with reading of parameters ISO-user E 1
194851 E/A-Modul 1: control diagnosis system Error with setting of parameters ISO-user E 1
195151 E/A-Modul 1: operation transmission CAN-connection shift selector <-> gear electronics malfunctioning B
function is not carried out
195152 E/A-Modul 1: operation transmission connection shift selector <-> keyboard unit malfunctioning B
function is not carried out
065209 103
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
195153 E/A-Modul 1: operation transmission pre-selection not neutral/crane op. cab malfunction <-> E/A-Modul B
function is not carried out
195154 E/A-Modul 1: operation transmission shift selector out of order: upper-carriage-operation mode B
function is not carried out
195161 E/A-Modul 1: operation transmission shift selector out of order: key sticking B
function is not carried out
195172 E/A-Modul 1: operation transmission selection of travel direction prevented, op. type not recognized B
function is not carried out
195173 E/A-Modul 1: operation transmission selection of travel dir. prevented, multi-shift selector keys activ. B
function is not carried out
195174 E/A-Modul 1: operation transmission shift selector out of order when engine OFF B
function is not carried out
195175 E/A-Modul 1: operation transmission selection of travel dir. prevented, pre-selection in neutral only B
function is not carried out
195176 E/A-Modul 1: operation transmission selection of travel direction prevented, operation brake not active B
function is not carried out
195177 E/A-Modul 1: operation transmission Selection of travel direction hindered, accelerator pedal actuated B
function is not carried out
195179 E/A-Modul 1: operation transmission pre-selection gear+ prevented, maximum gear attained B
function is not carried out
065209 104
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
195180 E/A-Modul 1: operation transmission pre-selection gear+ prevented, rear axle not locked B
function is not carried out
195183 E/A-Modul 1: operation transmission pre-selection gear- prevented, minimum gear attained B
function is not carried out
195184 E/A-Modul 1: operation transmission pre-selection gear+/- prevented, only possible in manual operation B
function is not carried out
195185 E/A-Modul 1: operation transmission pre-selection gear+/- prevented, both keys simultaneously activated B
function is not carried out
195192 E/A-Modul 1: operation transmission Change-over ranging mode possible in gear area "Ranging" only B
No change-over in ranging mode
195198 E/A-Modul 1: operation transmission Teaching-in phase/teach-in error active, serious err stored, check B
no shifting possible
Switch off ignition for longer than 3 secs, check gears
065209 105
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
195501 E/A-Modul 1: operation axle suspension operation of 2-hand-function without activation of 2-hand-key B
function is not carried out
activate both keys simultaneously or start test program of keyboard unit
195503 E/A-Modul 1: operation axle suspension operation from under-carriage without operation mode B
function is not carried out
check entries (15UW, 15OW, 15UWOW) to E/A-Modul 2, check LSB-connection (see electric circuit diagram)
195505 E/A-Modul 1: operation axle suspension operation from under-carriage with upper-carriage operation mode B
function is not carried out
switch over uppercarriage/undercarriage-change-switch to undercarriage operation mode
195570 E/A-Modul 1: operation axle suspension undefined condition: neither blocked nor with suspension B
function is not carried out
check blocked limit switch and buffered limit switch
195571 E/A-Modul 1: operation axle suspension undefined condition: blocked and with suspension B
function is not carried out
check blocked limit switch and buffered limit switch
195573 E/A-Modul 1: operation axle suspension function only possible on condition "axles blocked" B
function is not carried out
switch on axle blocking
195574 E/A-Modul 1: operation axle suspension unauthorised switch-over in condition "axles with suspension" B
function is not carried out
lift blockage of function
065209 106
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
195575 E/A-Modul 1: operation axle suspension unauthorised switch-over in condition "axles blocked" B
function is not carried out
lift blockage of function
195603 E/A-Modul 1: operation level/filling/draining operation from under-carriage without operation mode B
function is not carried out
check entries (15UW, 15OW, 15UWOW) to E/A-Modul 2, check LSB-connection (see electric circuit diagram)
195605 E/A-Modul 1: operation level/filling/draining operation from under-carriage with upper-carriage operation mode B
function is not carried out
switch over uppercarriage/undercarriage-change-switch to undercarriage operation mode
195642 E/A-Modul 1: operation level/filling/draining no individual operation when level function is active B
function is not carried out
only activate level key
195701 E/A-Modul 1: operation axle compensation operation of 2-hand-function without activation of 2-hand-key B
function is not carried out
065209 107
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
195707 E/A-Modul 1: operation axle compensation operation from under-carriage without initialisation B
function is not carried out
195747 E/A-Modul 1: operation axle compensation axle long. compensation switchable only if axle suspens. blocked B
function is not carried out
195901 E/A-Modul 1: operation longitudinal lock operation of 2-hand-function without activation of 2-hand-key B
function is not carried out
activate both keys simultaneously or start test program of keyboard unit
195902 E/A-Modul 1: operation longitudinal lock operation from upper-carriage without operation mode B
function is not carried out
check entries (15UW, 15OW, 15UWOW) to E/A-Modul 2, check LSB-connection (see electric circuit diagram)
195903 E/A-Modul 1: operation longitudinal lock operation from under-carriage without operation mode B
function is not carried out
check entries (15UW, 15OW, 15UWOW) to E/A-Modul 2, check LSB-connection (see electric circuit diagram)
195904 E/A-Modul 1: operation longitudinal lock operation from upper-carriage with under-carriage operation mode B
function is not carried out
switch over uppercarriage/undercarriage-change-switch to uppercarriage operation mode
195905 E/A-Modul 1: operation longitudinal lock operation from under-carriage with upper-carriage operation mode B
function is not carried out
switch over uppercarriage/undercarriage-change-switch to undercarriage operation mode
195906 E/A-Modul 1: operation longitudinal lock operation from upper-carriage without initialisation B
function is not carried out
check voltage supply or LSB-connection to E/A-Modul 4
195907 E/A-Modul 1: operation longitudinal lock operation from under-carriage without initialisation B
function is not carried out
check voltage supply or LSB-connection to E/A-Modul 4
065209 108
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
195925 E/A-Modul 1: operation longitudinal lock function with actual travel speed blocked B
function is not carried out
check acknowledgement for off-road gear ON
195948 E/A-Modul 1: operation longitudinal lock rear longitudinal locks with no front longitudinal locks selected B
function is not carried out
check acknowledgement for off-road gear ON
195953 E/A-Modul 1: operation longitudinal lock switch-over prevented as axles are raised B
function is not carried out
Lower axle(s)
196001 E/A-Modul 1: operation transversal lock operation of 2-hand-function without activation of 2-hand-key B
function is not carried out
activate both keys simultaneously or start test program of keyboard unit
196003 E/A-Modul 1: operation transversal lock operation from under-carriage without operation mode B
function is not carried out
check entries (15UW, 15OW, 15UWOW) on E/A-Modul 4, check LSB-connection (see electric circuit diagram)
196005 E/A-Modul 1: operation transversal lock operation from under-carriage with upper-carriage operation mode B
function is not carried out
switch over uppercarriage/undercarriage-change-switch to undercarriage operation mode
065209 109
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
196007 E/A-Modul 1: operation transversal lock operation from under-carriage without initialisation B
function is not carried out
check voltage supply or LSB-connection to E/A-Modul 4
196025 E/A-Modul 1: operation transversal lock function with actual travel speed blocked B
function is not carried out
check acknowledgement for off-road gear ON
196052 E/A-Modul 1: operation transversal lock selection of transversal lock ON with no longitudinal lock selected B
function is not carried out
acivate longitudinal locking
196100 E/A-Modul 1: operation unlocking rear axle function simultaneously ON and OFF B
function is not carried out
do not simultaneously activate contrasting function keys
196101 E/A-Modul 1: operation unlocking rear axle operation of 2-hand-function without activation of 2-hand-key B
function is not carried out
activate both keys simultaneously or start test program of keyboard unit
196102 E/A-Modul 1: operation unlocking rear axle operation from upper-carriage without operation mode B
function is not carried out
check entries (15UW, 15OW, 15UWOW) to E/A-Modul 2, check LSB-connection (see electric circuit diagram)
196103 E/A-Modul 1: operation unlocking rear axle operation from under-carriage without operation mode B
function is not carried out
check entries (15UW, 15OW, 15UWOW) to E/A-Modul 2, check LSB-connection (see electric circuit diagram)
196104 E/A-Modul 1: operation unlocking rear axle operation from upper-carriage with under-carriage operation mode B
function is not carried out
switch over uppercarriage/undercarriage-change-switch to uppercarriage operation mode
196105 E/A-Modul 1: operation unlocking rear axle operation from under-carriage with upper-carriage operation mode B
function is not carried out
switch over uppercarriage/undercarriage-change-switch to undercarriage operation mode
065209 110
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
196106 E/A-Modul 1: operation unlocking rear axle operation from upper-carriage without initialisation B
function is not carried out
check voltage supply or LSB-connection to E/A-Modul 4
196107 E/A-Modul 1: operation unlocking rear axle operation from under-carriage without initialisation B
function is not carried out
check voltage supply or LSB-connection to E/A-Modul 4
196108 E/A-Modul 1: operation unlocking rear axle unauthorised operation from upper-carriage B
function is not carried out
Give authorisation
196109 E/A-Modul 1: operation unlocking rear axle unauthorised operation from under-carriage B
function is not carried out
Give authorisation
196112 E/A-Modul 1: operation unlocking rear axle unauthorised switching off of function B
function is not carried out
Give authorisation
196114 E/A-Modul 1: operation unlocking rear axle activation of function without operation mode B
function is not carried out
check entries (15UW, 15OW, 15UWOW) to E/A-Modul 2, check LSB-connection (see electric circuit diagram)
196115 E/A-Modul 1: operation unlocking rear axle gear limit forwards exceeded with under-carriage operation mode B
function is not carried out
engage lower gear
196116 E/A-Modul 1: operation unlocking rear axle gear limit backwards exceeded with under-carriage operation mode B
function is not carried out
engage lower gear
065209 111
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
196117 E/A-Modul 1: operation unlocking rear axle gear limit forwards exceeded with upper-carriage operation mode B
function is not carried out
engage lower gear
196118 E/A-Modul 1: operation unlocking rear axle gear limit backwards exceeded with upper-carriage operation mode B
function is not carried out
engage lower gear
196119 E/A-Modul 1: operation unlocking rear axle no direction with under-carriage operation mode B
function is not carried out
check CAN-connection and LSB-connection
196120 E/A-Modul 1: operation unlocking rear axle no direction with upper-carriage operation mode B
function is not carried out
check CAN-connection and LSB-connection
196125 E/A-Modul 1: operation unlocking rear axle function with actual travel speed blocked B
Function blocked
Reduce speed, stop and if necessary switch to lower gear
196160 E/A-Modul 1: operation unlocking rear axle undefined condition: simultaneously locked and unlocked B
function is not carried out
check unlocking condition, Check locking limit switch and unlocking limit switch
196200 E/A-Modul 1: operation steering rear axle function simultaneously ON and OFF B
function is not carried out
do not simultaneously activate contrasting function keys
196202 E/A-Modul 1: operation steering rear axle operation from upper-carriage without operation mode B
function is not carried out
check entries (15UW, 15OW, 15UWOW) to E/A-Modul 2, check LSB-connection (see electric circuit diagram)
196203 E/A-Modul 1: operation steering rear axle operation from under-carriage without operation mode B
function is not carried out
check entries (15UW, 15OW, 15UWOW) to E/A-Modul 2, check LSB-connection (see electric circuit diagram)
196204 E/A-Modul 1: operation steering rear axle operation from upper-carriage with under-carriage operation mode B
function is not carried out
switch over uppercarriage/undercarriage-change-switch to uppercarriage operation mode
065209 112
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
196205 E/A-Modul 1: operation steering rear axle operation from under-carriage with upper-carriage operation mode B
function is not carried out
switch over uppercarriage/undercarriage-change-switch to undercarriage operation mode
196208 E/A-Modul 1: operation steering rear axle unauthorised operation from upper-carriage B
function is not carried out
check coding of E/A-Modul 3 and E/A-Modul 4 (see electric circuit diagram)
196209 E/A-Modul 1: operation steering rear axle unauthorised operation from under-carriage B
function is not carried out
check coding of E/A-Modul 3 and E/A-Modul 4 (see electric circuit diagram)
196263 E/A-Modul 1: operation steering rear axle no valid lock condition in upper-carriage operation mode B
function is not carried out
check unlocking condition, Check locking limit switch and unlocking limit switch
196264 E/A-Modul 1: operation steering rear axle no valid lock condition in under-carriage operation mode B
function is not carried out
check unlocking condition, Check locking limit switch and unlocking limit switch
196265 E/A-Modul 1: operation steering rear axle unauthorised steering selection in upper-carriage B
function is not carried out
steering only with rear axle unlocked, check LSB-connection
196266 E/A-Modul 1: operation steering rear axle unauthorised steering selection in under-carriage B
function is not carried out
steering only with rear axle unlocked, check LSB-connection
196570 E/A-Modul 1: operation brakes/pneumatics system upper-carriage parking brake only opened after signal CLOSE B
function is not carried out
196661 E/A-Modul 1: operation hydraulics/second. power outputs secondary output pump not engaged as engine ON B
function is not carried out
196662 E/A-Modul 1: operation hydraulics/second. power outputs secondary output pump not disengaged as engine ON B
function is not carried out
065209 113
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
196663 E/A-Modul 1: operation hydraulics/second. power outputs secondary output pump not switchable as engine ON B
function is not carried out
196703 E/A-Modul 1: operation off-road gear operation from under-carriage without operation mode B
function is not carried out
check entries (15UW, 15OW, 15UWOW) to E/A-Modul 2, check LSB-connection (see electric circuit diagram)
196704 E/A-Modul 1: operation off-road gear operation from upper-carriage with under-carriage operation mode B
function is not carried out
switch over uppercarriage/undercarriage-change-switch to uppercarriage operation mode
196705 E/A-Modul 1: operation off-road gear operation from under-carriage with upper-carriage operation mode B
function is not carried out
switch over uppercarriage/undercarriage-change-switch to undercarriage operation mode
196706 E/A-Modul 1: operation off-road gear operation from upper-carriage without initialisation B
function is not carried out
check voltage supply or LSB-connection to E/A-Modul 2
196707 E/A-Modul 1: operation off-road gear operation from under-carriage without initialisation B
function is not carried out
check voltage supply or LSB-connection to E/A-Modul 2
196775 E/A-Modul 1: operation off-road gear off-road gear and transfer box free in upper-carriage operation mode B
function is not carried out
do not disconnect transfer case in off-road gear ON or off-road gear not ON with disconnection of transfer gear
196776 E/A-Modul 1: operation off-road gear off-road gear and transfer box free in under-carriage operation mode B
function is not carried out
do not disconnect transfer case in off-road gear ON or off-road gear not ON with disconnection of transfer gear
196778 E/A-Modul 1: operation off-road gear speed too high for off-road gear B
function is not carried out
reduce speed
065209 114
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
196779 E/A-Modul 1: operation off-road gear off-road gear ON and gears not neutral B
function is not carried out
switch transmission to neutral (N)
197030 E/A-Modul 1: operation heating/air.conditioning switching on air-conditioning only possible with engine running B
function is not carried out
start engine and repeat operation
197182 E/A-Modul 1: operation lighting indicator from upper-carriage in under-carriage operation mode B
function is not carried out
switch over uppercarriage/undercarriage-change-switch to uppercarriage operation mode
197183 E/A-Modul 1: operation lighting indicator from under-carriage in upper-carriage operation mode B
function is not carried out
switch off undercarriage indicator
197185 E/A-Modul 1: operation lighting hazard lights from upper-carriage and under-carriage B
function is not carried out
switch off warning light
197186 E/A-Modul 1: operation lighting rear fog lamp only with light B
function is not carried out
switch on full beam, dipped light or fog light
199890 E/A-Modul 1: operation diagnosis system test program not executable as engine is not OFF B
function is not carried out
199892 E/A-Modul 1: operation diagnosis system test program not executable as not in under-carriage op. mode B
function is not carried out
199895 E/A-Modul 1: operation diagnosis system start not possible as gears not in neutral B
function is not carried out
065209 115
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
199922 E/A-Modul 1: operation optional device function not available in under-carriage operation mode B
function is not carried out
on customers request
199924 E/A-Modul 1: operation optional device no customized function in under-carriage operation mode B
function is not carried out
on customers request
200001 ZE 2: system error OS-HC11 (observe parameters) initialising error processor-register erroneous E 2
no crane operation possible
if error re-occurs, then ZE should be replaced
200002 ZE 2: system error OS-HC11 (observe parameters) initialising error test total in EPROM/FLASH erroneous E 2
no crane operation possible
check program memory card or ZE
200006 ZE 2: system error OS-HC11 (observe parameters) initialising error RAM erroneous E 2
no crane operation possible
if error re-occurs, then ZE should be replaced
065209 116
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
200013 ZE 2: system error OS-HC11 (observe parameters) Test sum in FLASH erroneous E 2
entry in error memory, all crane movements will be stopped
check program memory card
200017 ZE 2: system error OS-HC11 (observe parameters) total of CPU-time distribution too great E 2
entry in error memory, all crane movements will be stopped
200018 ZE 2: system error OS-HC11 (observe parameters) arithmetic overflow (16 Bit) E 2
entry in error memory, all crane movements will be stopped
200019 ZE 2: system error OS-HC11 (observe parameters) division through zero (16 Bit) E 2
entry in error memory, all crane movements will be stopped
065209 117
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
200023 ZE 2: system error OS-HC11 (observe parameters) program incapable of running (type identification) E 2
entry in error memory, all crane movements will be stopped
200044 ZE 2: system error OS-HC11 (observe parameters) output parameter without effect, from inactive output E 2
entry in error memory, all crane movements will be stopped
200045 ZE 2: system error OS-HC11 (observe parameters) entry parameter undefined, from inactive input E 2
entry in error memory, all crane movements will be stopped
200047 ZE 2: system error OS-HC11 (observe parameters) realtime-control block not available E 2
entry in error memory, all crane movements will be stopped
065209 118
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
200049 ZE 2: system error OS-HC11 (observe parameters) urgent modul, ZE not available E 2
entry in error memory, no crane operation possible
check ZE
200052 ZE 2: system error OS-HC11 (observe parameters) file not open on close E 2
entry in error memory, all crane movements will be stopped
200053 ZE 2: system error OS-HC11 (observe parameters) system mask not available E 2
entry in error memory, all crane movements will be stopped
200054 ZE 2: system error OS-HC11 (observe parameters) system text not available E 2
entry in error memory, all crane movements will be stopped
200057 ZE 2: system error OS-HC11 (observe parameters) default load chart missing E 2
entry in error memory, all crane movements will be stopped
065209 119
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
200058 ZE 2: system error OS-HC11 (observe parameters) amplifier erroneous or return power feed E 2
entry in error memory, all crane movements will be stopped
check wiring
200066 ZE 2: system error OS-HC11 (observe parameters) ADC working outside the permissible tolerance E 2
entry in error memory, all crane movements will be stopped
if error re-occurs, then ZE should be replaced
200067 ZE 2: system error OS-HC11 (observe parameters) arithmetic processor not available E 2
entry in error memory, all crane movements will be stopped
if error re-occurs, then ZE should be replaced
065209 120
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
200074 ZE 2: system error OS-HC11 (observe parameters) transformation ASCII to BIN erroneous E 2
entry in error memory, all crane movements will be stopped
200076 ZE 2: system error OS-HC11 (observe parameters) incorrectly inserted power unit E 2
entry in error memory, all crane movements will be stopped
check memory card in power supply unit
065209 121
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
200080 ZE 2: system error OS-HC11 (observe parameters) fatal internal software error E 2
entry in error memory, all crane movements will be stopped
200094 ZE 2: system error OS-HC11 (observe parameters) transmission error parallel bus E 2
entry in error memory, all crane movements will be stopped
check ZE, bus circuit board, power supply unit
202002 ZE 2: system error OS-TMS initialising error test total in EPROM/FLASH erroneous E 2
entry of error in error memory, all crane movements will be stopped
replace ZE
065209 122
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
210060 ZE 2: output 0 safety chain error, diode defect or safety contact sticking X72:16 E 1
report of error, otherwise no reaction
checking of safety contact and diode
065209 123
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
210160 ZE 2: output 1 safety chain error, diode defect or safety contact sticking X72:17 E 1
report of error, otherwise no reaction
checking of safety contact and diode
065209 124
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
210260 ZE 2: output 2 safety chain error, diode defect or safety contact sticking X72:18 E 1
report of error, otherwise no reaction
checking of safety contact and diode
065209 125
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
210360 ZE 2: output 3 safety chain error, diode defect or safety contact sticking X72:19 E 1
report of error, otherwise no reaction
checking of safety contact and diode
065209 126
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
210460 ZE 2: output 4 safety chain error, diode defect or safety contact sticking X72:20 E 1
report of error, otherwise no reaction
checking of safety contact and diode
065209 127
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
210560 ZE 2: output 5 safety chain error, diode defect or safety contact sticking X72:21 E 1
report of error, otherwise no reaction
checking of safety contact and diode
065209 128
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
065209 129
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
065209 130
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
Check Bus configuration in LSB test system, remove faulty / incorrect users from Bus
220051 ZE 2: LSB participant address 0 was not configured for the block transfer X635B:z14/z16 E 2
entry in error memory, otherwise no reaction, no block transfer will be carried out
configuration problem, load new Software
220053 ZE 2: LSB participant address 0 no longer reports or withdrawn during running period X635B:z14/z16 E 1
entry in error memory, participant will be deactivated, data buffer to the application will be set to 0
check connection, if connection OK then replace sensor
065209 131
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
220054 ZE 2: LSB participant address 0 Features other settings (parameters) as pre-entered set values X635B:z14/z16 E 2
entry in error memory, or no reaction, the sensor data could be incorrect, due to incorrect sensor config
check parameter set/real value through test system (LSB-screen), set sensor to default value
220066 ZE 2: LSB participant address 0 with software version, that is no longer compatible X635B:z14/z16 E 2
entry in error memory, otherwise no reaction, it will be tried as far as possible to work with the sensor
replace sensor through new part
220151 ZE 2: LSB participant address 1 was not configured for the block transfer X635B:z14/z16 E 2
entry in error memory, otherwise no reaction, no block transfer will be carried out
configuration problem, load new Software
220153 ZE 2: LSB participant address 1 no longer reports or withdrawn during running period X635B:z14/z16 E 1
entry in error memory, participant will be deactivated, data buffer to the application will be set to 0
check connection, if connection OK then replace sensor
220154 ZE 2: LSB participant address 1 Features other settings (parameters) as pre-entered set values X635B:z14/z16 E 2
entry in error memory, or no reaction, the sensor data could be incorrect, due to incorrect sensor config
check parameter set/real value through test system (LSB-screen), set sensor to default value
065209 132
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
220166 ZE 2: LSB participant address 1 with software version, that is no longer compatible X635B:z14/z16 E 2
entry in error memory, otherwise no reaction, it will be tried as far as possible to work with the sensor
replace sensor through new part
220251 ZE 2: LSB participant address 2 was not configured for the block transfer X635B:z14/z16 E 2
entry in error memory, otherwise no reaction, no block transfer will be carried out
configuration problem, load new Software
220253 ZE 2: LSB participant address 2 no longer reports or withdrawn during running period X635B:z14/z16 E 1
entry in error memory, participant will be deactivated, data buffer to the application will be set to 0
check connection, if connection OK then replace sensor
220254 ZE 2: LSB participant address 2 Features other settings (parameters) as pre-entered set values X635B:z14/z16 E 2
entry in error memory, or no reaction, the sensor data could be incorrect, due to incorrect sensor config
check parameter set/real value through test system (LSB-screen), set sensor to default value
220266 ZE 2: LSB participant address 2 with software version, that is no longer compatible X635B:z14/z16 E 2
entry in error memory, otherwise no reaction, it will be tried as far as possible to work with the sensor
replace sensor through new part
065209 133
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
220951 ZE 2: LSB participant address 9 was not configured for the block transfer X635B:z14/z16 E 2
entry in error memory, otherwise no reaction, no block transfer will be carried out
configuration problem, load new Software
220953 ZE 2: LSB participant address 9 no longer reports or withdrawn during running period X635B:z14/z16 E 1
entry in error memory, participant will be deactivated, data buffer to the application will be set to 0
check connection, if connection OK then replace sensor
220954 ZE 2: LSB participant address 9 Features other settings (parameters) as pre-entered set values X635B:z14/z16 E 2
entry in error memory, or no reaction, the sensor data could be incorrect, due to incorrect sensor config
check parameter set/real value through test system (LSB-screen), set sensor to default value
220966 ZE 2: LSB participant address 9 with software version, that is no longer compatible X635B:z14/z16 E 2
entry in error memory, otherwise no reaction, it will be tried as far as possible to work with the sensor
replace sensor through new part
065209 134
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
222351 ZE 2: LSB participant address 23 was not configured for the block transfer X635B:z14/z16 E 2
entry in error memory, otherwise no reaction, no block transfer will be carried out
configuration problem, load new Software
222353 ZE 2: LSB participant address 23 no longer reports or withdrawn during running period X635B:z14/z16 E 1
entry in error memory, participant will be deactivated, data buffer to the application will be set to 0
check connection, if connection OK then replace sensor
222354 ZE 2: LSB participant address 23 Features other settings (parameters) as pre-entered set values X635B:z14/z16 E 2
entry in error memory, or no reaction, the sensor data could be incorrect, due to incorrect sensor config
check parameter set/real value through test system (LSB-screen), set sensor to default value
222366 ZE 2: LSB participant address 23 with software version, that is no longer compatible X635B:z14/z16 E 2
entry in error memory, otherwise no reaction, it will be tried as far as possible to work with the sensor
replace sensor through new part
065209 135
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
222451 ZE 2: LSB participant address 24 was not configured for the block transfer X635B:z14/z16 E 2
entry in error memory, otherwise no reaction, no block transfer will be carried out
configuration problem, load new Software
222453 ZE 2: LSB participant address 24 no longer reports or withdrawn during running period X635B:z14/z16 E 1
entry in error memory, participant will be deactivated, data buffer to the application will be set to 0
check connection, if connection OK then replace sensor
222454 ZE 2: LSB participant address 24 Features other settings (parameters) as pre-entered set values X635B:z14/z16 E 2
entry in error memory, or no reaction, the sensor data could be incorrect, due to incorrect sensor config
check parameter set/real value through test system (LSB-screen), set sensor to default value
222466 ZE 2: LSB participant address 24 with software version, that is no longer compatible X635B:z14/z16 E 2
entry in error memory, otherwise no reaction, it will be tried as far as possible to work with the sensor
replace sensor through new part
222651 ZE 2: LSB participant address 26 was not configured for the block transfer X635B:z14/z16 E 2
entry in error memory, otherwise no reaction, no block transfer will be carried out
configuration problem, load new Software
065209 136
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
222653 ZE 2: LSB participant address 26 no longer reports or withdrawn during running period X635B:z14/z16 E 1
entry in error memory, participant will be deactivated, data buffer to the application will be set to 0
check connection, if connection OK then replace sensor
222654 ZE 2: LSB participant address 26 Features other settings (parameters) as pre-entered set values X635B:z14/z16 E 2
entry in error memory, or no reaction, the sensor data could be incorrect, due to incorrect sensor config
check parameter set/real value through test system (LSB-screen), set sensor to default value
222666 ZE 2: LSB participant address 26 with software version, that is no longer compatible X635B:z14/z16 E 2
entry in error memory, otherwise no reaction, it will be tried as far as possible to work with the sensor
replace sensor through new part
222751 ZE 2: LSB participant address 27 was not configured for the block transfer X635B:z14/z16 E 2
entry in error memory, otherwise no reaction, no block transfer will be carried out
configuration problem, load new Software
222753 ZE 2: LSB participant address 27 no longer reports or withdrawn during running period X635B:z14/z16 E 1
entry in error memory, participant will be deactivated, data buffer to the application will be set to 0
check connection, if connection OK then replace sensor
065209 137
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
222754 ZE 2: LSB participant address 27 Features other settings (parameters) as pre-entered set values X635B:z14/z16 E 2
entry in error memory, or no reaction, the sensor data could be incorrect, due to incorrect sensor config
check parameter set/real value through test system (LSB-screen), set sensor to default value
222766 ZE 2: LSB participant address 27 with software version, that is no longer compatible X635B:z14/z16 E 2
entry in error memory, otherwise no reaction, it will be tried as far as possible to work with the sensor
replace sensor through new part
222851 ZE 2: LSB participant address 28 was not configured for the block transfer X635B:z14/z16 E 2
entry in error memory, otherwise no reaction, no block transfer will be carried out
configuration problem, load new Software
222853 ZE 2: LSB participant address 28 no longer reports or withdrawn during running period X635B:z14/z16 E 1
entry in error memory, participant will be deactivated, data buffer to the application will be set to 0
check connection, if connection OK then replace sensor
222854 ZE 2: LSB participant address 28 Features other settings (parameters) as pre-entered set values X635B:z14/z16 E 2
entry in error memory, or no reaction, the sensor data could be incorrect, due to incorrect sensor config
check parameter set/real value through test system (LSB-screen), set sensor to default value
065209 138
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
222866 ZE 2: LSB participant address 28 with software version, that is no longer compatible X635B:z14/z16 E 2
entry in error memory, otherwise no reaction, it will be tried as far as possible to work with the sensor
replace sensor through new part
223206 ZE 2: Control data transfer LSB line connection to participant disrupted/not plugged in X635B:z14/z16 E 1
report of error, participant will be deactivated, data buffer to the application will be set to 0
check bus connections, if connections OK despite error then check sensor and replace if necessary
223252 ZE 2: Control data transfer LSB has recognised Bus collisions, communication interrupted X635B:z14/z16 E 0
entry in error memory, driver draws itself back from bus, possible release of reset and re-booting of network
with temporary malfunctions error will be eliminated from system itself, otherwise check address assignment of sensor
223255 ZE 2: Control data transfer LSB Bus connection faulty/defect, short circuit to supply voltage X635B:z14/z16 E 2
entry in error memory, driver tries permanently to re-boot bus, bus boots as soon as error is eliminated
check bus line, sensor (withdraw) and bus circuit board for shorts, check bus fuse on bus circuit board
223256 ZE 2: Control data transfer LSB Bus connection faulty/defect, no supply/short circuit to earth X635B:z14/z16 E 2
entry in error memory, driver tries permanently to re-boot bus, bus boots as soon as error is eliminated
check bus line, sensor (withdraw) and bus circuit board for shorts, check bus fuse on bus circuit board
223257 ZE 2: Control data transfer LSB has recognised network re-set (data transfer starts again) X635B:z14/z16 E 1
entry in error memory, driver re-starts and runs re-booting of network
check bus lines, withdraw sensors successively from bus until malfunction source recognised, replace defective part
065209 139
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
223258 ZE 2: Control data transfer LSB recognised participant with incorrect baud rate in bus X635B:z14/z16 E 0
entry in error memory, driver re-starts and runs re-booting of network
will be eliminated from system itself, check address assignment of sensors
223259 ZE 2: Control data transfer LSB recognised communication breakdown in bus X635B:z14/z16 E 0
entry in error memory, driver re-starts and runs re-booting of network
will be eliminated by driver through re-booting of network
223260 ZE 2: Control data transfer LSB driver error: no order to carry out X635B:z14/z16 E 2
entry in error memory, driver runs on normally and waits for bus connection of participant
with temporary malfunctions error will be eliminated by system itself, with incorrect configuration install new software
223261 ZE 2: Control data transfer LSB driver error: undefined message appears X635B:z14/z16 E 2
entry in error memory, driver re-starts and runs re-booting of network
with temporary malf. error will be eliminated by system itself otherwise new Software necessary for error elimination
223262 ZE 2: Control data transfer LSB driver error: initialising error X635B:z14/z16 E 2
entry in error memory, driver re-starts and runs re-booting of network
new Software is necessary for error elimination
225702 ZE 2: input 9 sensor deficiency data short circuit to supply voltage X635B:d20 E 1
report of error, otherwise no reaction
check supply, LICCON input, sensor lines to short or break, sensor
230500 ZE 2: remote control transmit, maximum transmission cycle radio contact exceeded E 1
radio control deactivated
check radio receiver/-transmitter (battery!)
065209 140
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
233901 ZE 2: crane control Signal current engine momentum - Maximum erroneous / missing E 1
output of error, a medium torque will now be adjusted for the output limitation
check engine electronics, with permanent error contact after-sales service
233933 ZE 2: crane control Signal press. tran. "P" lower lim value fallen short of (no press.! E 1
Diagnosis and output of error with "Control on without engine"
check supply, LICCON input, sensor lines to short or break, sensor
233934 ZE 2: crane control Signal pressure transducer "P" lower limit value exceeded (no press.!) E 1
Diagnosis and output of error with "Control on without engine"
check supply, LICCON input, sensor lines to short or break, sensor
233935 ZE 2: crane control Signal press. tran. "LS" lower lim value fallen short of (no press.!) E 1
Diagnosis and output of error with "Control on without engine"
check supply, LICCON input, sensor lines to short or break, sensor
233936 ZE 2: crane control Signal press. tran. "LS" lower limit value exceeded (no pressure!) E 1
Diagnosis and output of error with "Control on without engine"
check supply, LICCON input, sensor lines to short or break, sensor
065209 141
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
233937 ZE 2: crane control Press. tran. "P" and "LS" outside permiss. signal diff (no press. E 1
Diagnosis and output of error with "Control on without engine"
Replace pressure transducer "P" and/or "LS"
233938 ZE 2: crane control Signal pressure transducer "P" greater "LS" (no pressure!) E 1
Diagnosis and output of error with "Control on without engine"
Swap pressure transducer "P" and "LS" with each other (mount P-sensor in LS position)
234200 ZE 2: instruments armrest right master switch 1Y both dir. contacts standing by simultaneously E 1
output of error, shut-down through application
check sensor lines for shorts, defect sensor through unplugging of sensor, connection to circuit board
234201 ZE 2: instruments armrest right master switch 1X both dir. contacts standing by simultaneously E 1
output of error, shut-down through application
check sensor lines for shorts, defect sensor through unplugging of sensor, connection to circuit board
234202 ZE 2: instruments armrest right master switch 1Y directional contact without zero contact E 1
output of error, shut-down through application
check supply, LICCON input, sensor lines for breaks , check defect sensor
234203 ZE 2: instruments armrest right master switch 1X directional contact without zero contact E 1
output of error, shut-down through application
check supply, LICCON input, sensor lines for breaks , check defect sensor
234204 ZE 2: instruments armrest right master switch 1Y analogue signal short to supply voltage E 1
output of error, shut-down through application
check sensor lines for shorts, defect sensor through unplugging of sensor, connection to circuit board
234205 ZE 2: instruments armrest right master switch 1X analogue signal short to supply voltage E 1
output of error, shut-down through application
check sensor lines for shorts, defect sensor through unplugging of sensor, connection to circuit board
234208 ZE 2: instruments armrest right master switch 1Y analogue sig. open circuit or short circ. to ground E 1
output of error, shut-down through application
check supply, LICCON input, sensor line for breaks , defect sensor through withdrawing of sensor
234209 ZE 2: instruments armrest right master switch 1X analogue sig. open circuit or short circ. to ground E 1
output of error, shut-down through application
check supply, LICCON input, sensor line for breaks , defect sensor through withdrawing of sensor
065209 142
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
234312 ZE 2: instruments armrest left master switch 2Y both dir. contacts standing by simultaneously E 1
output of error, shut-down through application
check sensor lines for shorts, defect sensor through unplugging of sensor, connection to circuit board
234314 ZE 2: instruments armrest left master switch 2Y directional contact without zero contact E 1
output of error, shut-down through application
check supply, LICCON input, sensor lines for breaks , check defect sensor
234316 ZE 2: instruments armrest left master switch 2Y analogue signal short to supply voltage E 1
output of error, shut-down through application
check sensor lines for shorts, defect sensor through unplugging of sensor, connection to circuit board
234320 ZE 2: instruments armrest left master switch 2Y analogue sig. open circuit or short to ground E 1
output of error, shut-down through application
check supply, LICCON input, sensor line for breaks , defect sensor through withdrawing of sensor
065209 143
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
234824 ZE 2: control diagnosis system Charge press. hoist gear or press. switch'Lower freely'faulty/not pre E 1
Carrying out of test program delayed / interrupted
Check charge pressure, carry out test program again
234830 ZE 2: control diagnosis system Pressure cut-off pump outside of permissible area E 1
Carrying out of test program delayed / interrupted
Check pressure reduction and pressure limitation LS, carry out test program again
234831 ZE 2: control diagnosis system Pressure cut-off hoist gear lift outside of permissible area E 1
Carrying out of test program delayed / interrupted
Check pressure hoist gear, carry out test program again
234832 ZE 2: control diagnosis system Pressure cut-off hoist gear lower outside of permissible area E 1
Carrying out of test program delayed / interrupted
Check pressure hoist gear, carry out test program again
234846 ZE 2: control diagnosis system Initial current winch lift above permissible area E 1
Carrying out of test program delayed / interrupted
Check valve / pump / pressure
065209 144
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
234847 ZE 2: control diagnosis system Initial current winch lift below permissible area E 1
Carrying out of test program delayed / interrupted
Check valve / pump / pressure
234848 ZE 2: control diagnosis system Initial current winch lower above permissible area E 1
Carrying out of test program delayed / interrupted
Check valve / pump / pressure
234849 ZE 2: control diagnosis system Initial current winch lower below permissible area E 1
Carrying out of test program delayed / interrupted
Check valve / pump / pressure
234867 ZE 2: control diagnosis system Initial current luffing up above permissible area E 1
Carrying out of test program delayed / interrupted
Check valve / pump / pressure
065209 145
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
234868 ZE 2: control diagnosis system Initial current luffing up below permissible area E 1
Carrying out of test program delayed / interrupted
Check valve / pump / pressure
234869 ZE 2: control diagnosis system Initial current luffing down above permissible area E 1
Carrying out of test program delayed / interrupted
Check valve / pump / pressure
234870 ZE 2: control diagnosis system Initial current luffing down below permissible area E 1
Carrying out of test program delayed / interrupted
Check valve / pump / pressure
234873 ZE 2: control diagnosis system luffing speed luffing down too low E 1
Carrying out of test program delayed / interrupted
Check valve / pump / pressure
234874 ZE 2: control diagnosis system luffing speed luffing down too high E 1
Carrying out of test program delayed / interrupted
Check valve / pump / pressure
234888 ZE 2: control diagnosis system Initial current pump 1 above permissible area E 1
Carrying out of test program delayed / interrupted
Check valve / pump / pressure
065209 146
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
234889 ZE 2: control diagnosis system Initial current pump 1 below permissible area E 1
Carrying out of test program delayed / interrupted
Check valve / pump / pressure
234890 ZE 2: control diagnosis system Initial current pump 2 above permissible area E 1
Carrying out of test program delayed / interrupted
Check valve / pump / pressure
234891 ZE 2: control diagnosis system Initial current pump 2 below permissible area E 1
Carrying out of test program delayed / interrupted
Check valve / pump / pressure
234892 ZE 2: control diagnosis system Pump 1 final current or flow-rate below permissible area E 1
Carrying out of test program delayed / interrupted
Check valve / pump / pressure
234893 ZE 2: control diagnosis system Pump 1 final current or flow-rate above permissible area E 1
Carrying out of test program delayed / interrupted
Check valve / pump / pressure
234894 ZE 2: control diagnosis system Pump 2 Final current or flow-rate below permissible area E 1
Carrying out of test program delayed / interrupted
Check valve / pump / pressure
234895 ZE 2: control diagnosis system Pump 2 Final current or flow-rate above permissible area E 1
Carrying out of test program delayed / interrupted
Check valve / pump / pressure
234898 ZE 2: control diagnosis system Readjustment of hoist gear lift outside of permissible area E 1
Carrying out of test program delayed / interrupted
Check controller / gate valve / pressure balance / pump(s)
065209 147
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
234899 ZE 2: control diagnosis system Readjustment hoist gear lower outside of permissible area E 1
Carrying out of test program delayed / interrupted
Check controller / gate valve / pressure balance / pump(s)
065209 148
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
065209 149
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
065209 150
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
065209 151
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
065209 152
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
235212 ZE 2: operation winch 3 shut-down as lower fly jib and NA-boom 3 not positioned B
operational shut down
235213 ZE 2: operation winch 3 shut-down as flap not positioned and angle threshold exceeded B
operational shut down
065209 153
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
235214 ZE 2: operation winch 3 pressure retaining cylinder RFP N shut-down outside set range B
operational shut down
235216 ZE 2: operation winch 3 luffing up accessory shut-down working area limitation ABB B
operational shut down
235217 ZE 2: operation winch 3 luffing down accessory shut-down working area limitation ABB B
operational shut down
065209 154
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
235240 ZE 2: operation winch 3 switch "MS2Y on winch 3" is OFF although winch 2 not sold B
operational shut down
235241 ZE 2: operation winch 3 switch "MS2Y on winch 3" is ON although winch 3 not sold B
operational shut down
235270 ZE 2: operation winch 3 shut-down both limit switches "flap in position" defect./missing B
235271 ZE 2: operation winch 3 shut-down both limit switches "NA-boom 3 pos." defect./missing B
235272 ZE 2: operation winch 3 shut-down both angle sensors "fly jib" defective/missing B
235273 ZE 2: operation winch 3 shut-down both limit switches "lower fly jib" defective/missing B
235274 ZE 2: operation winch 3 shut-down both limit switches "upper fly jib flap" defect./missing B
065209 155
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
235275 ZE 2: operation winch 3 shut-down both limit switches "upper fly jib stop"defect./missing B
235284 ZE 2: operation winch 3 shut-down both limit switches "transp. setting N" defect./missing B
235708 ZE 2: operation luffing luffing up of main boom shut-down working area limitation ABB B 1
operational shut down
luff main boom down until crane is in working area again - shunting through shut-down of working area limitation
235709 ZE 2: operation luffing luffing down of main boom shut-down working area limitation ABB B 1
operational shut down
luff main boom up until crane in working area again - shunting through shut-down of working area limitation
065209 156
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
235747 ZE 2: operation luffing Warning luffing up, dropping of load with reduction of reach B
235748 ZE 2: operation luffing Shut-down luffing up, dropping of load with reduction of reach B
065209 157
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
236100 ZE 2: Operation ballasting / counterweight carriage Counterweight UP selected, final position not started B 1
report of error, otherwise no reaction
Approach end position, if ok check: -supply, -input LICCON, -sensor line for short-circuit or interruption, -
236101 ZE 2: Operation ballasting / counterweight carriage Counterweight DOWN selected, final position not started B 1
report of error, otherwise no reaction
Approach end position, if ok check: -supply, -input LICCON, -sensor line for short-circuit or interruption, -
237049 ZE 2: operation instruments crane operators cab seat contact not activated, crane movements blocked B 1
output of error, shut-down through application
sit down (seat limit switch) or dead man (in master switch) or check LICCON input, sensor lines, sensor
237200 ZE 2: operation instruments armrest right master switch 1Y not in neutral when starting B 1
output of error, shut-down through application
release master switch briefly or check LICCON input, gear lines, sensor
237201 ZE 2: operation instruments armrest right master switch 1X not in neutral when starting B 1
output of error, shut-down through application
release master switch briefly or check LICCON input, gear lines, sensor
237312 ZE 2: operation instruments armrest left master switch 2Y not in neutral when starting B 1
output of error, shut-down through application
release master switch briefly or check LICCON input, gear lines, sensor
065209 158
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
239800 ZE 2: operation diagnosis system interruption, master switch defective or incorrectly deflected B 1
Carrying out of test program delayed / interrupted
Note direction of movements, carry out test program again
239804 ZE 2: operation diagnosis system Termination, change-over luff/telescoping incorrect switch position B 1
Carrying out of test program delayed / interrupted
Turn change-over luff./ tele. to correctly corresponding switch pos. ,erase error, actuate Reset and start again
239812 ZE 2: operation diagnosis system Termination, windable rope length too short B 1
Carrying out of test program delayed / interrupted
Check reeving wind off more rope, carry out test program again
239813 ZE 2: operation diagnosis system Termination, maximum speed < 100% (C-key) B 1
Carrying out of test program delayed / interrupted
Adjust speed C key to 100%, carry out test program again
239814 ZE 2: operation diagnosis system Alignment aid not correctly shut down B 1
Invalid operation condition, no proper crane operation possible
Apply F key, end active test program
239820 ZE 2: operation diagnosis system interruption, boom angle beyond the prescribed range B 1
Carrying out of test program delayed / interrupted
Extend to correct luffing position, carry out test program again
065209 159
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
239821 ZE 2: operation diagnosis system interruption, tele length beyond the prescribed range B 1
Carrying out of test program delayed / interrupted
Extend to correct telescopic boom length length, carry out test program again
239822 ZE 2: operation diagnosis system interruption, hook load beyond the prescribed range B 1
Carrying out of test program delayed / interrupted
Note max. hook load, carry out test program again
239830 ZE 2: operation diagnosis system Termination, op. temperature hydraulic oil below permissible area B 1
Carrying out of test program delayed / interrupted
Operate engine and hydraulics to operating temperature, erase error, actuate Reset and start again
239831 ZE 2: operation diagnosis system Termination, op. temperature hydraulic oil above permissible area B 1
Test program is interrupted, set value not needed
Allow hydr to cool, if nec. operate tele. boom length (cool via oil change),erase err, actuate Reset and restart
261002 E/A-Modul 2: system error OS-C167 initialising error test total in EPROM/FLASH erroneous E 2
error indication on display
ignition ON/OFF, with repeated occurrence --> replace E/A-Modul
065209 160
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
272052 E/A-Modul 2: input/output DEA0 output open, to low load, short circuit to supply voltage X623:17 E 1
error report on display
check output for broken wire, check load on output (measure load current), if necessary replace E/A-Modul
272053 E/A-Modul 2: input/output DEA0 transistor current supply insufficient or missing X623:17 E 1
error report on display
check current supply and fuse E/A-Modul, if necessary replace E/A-Modul
272055 E/A-Modul 2: input/output DEA0 excessive temperature, short circuit to ground or overload X623:17 E 1
error report on display
check output for short, current supply, check fuse of E/A-Modul, if necessary replace E/A-Modul
272152 E/A-Modul 2: input/output DEA1 output open, to low load, short circuit to supply voltage X623:15 E 1
error report on display
check output for broken wire, check load on output (measure load current), if necessary replace E/A-Modul
065209 161
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
272153 E/A-Modul 2: input/output DEA1 transistor current supply insufficient or missing X623:15 E 1
error report on display
check current supply and fuse E/A-Modul, if necessary replace E/A-Modul
272155 E/A-Modul 2: input/output DEA1 excessive temperature, short circuit to ground or overload X623:15 E 1
error report on display
check output for short, current supply, check fuse of E/A-Modul, if necessary replace E/A-Modul
272252 E/A-Modul 2: input/output DEA2 output open, to low load, short circuit to supply voltage X623:13 E 1
error report on display
check output for broken wire, check load on output (measure load current), if necessary replace E/A-Modul
272253 E/A-Modul 2: input/output DEA2 transistor current supply insufficient or missing X623:13 E 1
error report on display
check current supply and fuse E/A-Modul, if necessary replace E/A-Modul
272255 E/A-Modul 2: input/output DEA2 excessive temperature, short circuit to ground or overload X623:13 E 1
error report on display
check output for short, current supply, check fuse of E/A-Modul, if necessary replace E/A-Modul
272352 E/A-Modul 2: input/output DEA3 output open, to low load, short circuit to supply voltage X623:11 E 1
error report on display
check output for broken wire, check load on output (measure load current), if necessary replace E/A-Modul
272353 E/A-Modul 2: input/output DEA3 transistor current supply insufficient or missing X623:11 E 1
error report on display
check current supply and fuse E/A-Modul, if necessary replace E/A-Modul
065209 162
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
272355 E/A-Modul 2: input/output DEA3 excessive temperature, short circuit to ground or overload X623:11 E 1
error report on display
check output for short, current supply, check fuse of E/A-Modul, if necessary replace E/A-Modul
272452 E/A-Modul 2: input/output DEA4 output open, to low load, short circuit to supply voltage X623:9 E 1
error report on display
check output for broken wire, check load on output (measure load current), if necessary replace E/A-Modul
272453 E/A-Modul 2: input/output DEA4 transistor current supply insufficient or missing X623:9 E 1
error report on display
check current supply and fuse E/A-Modul, if necessary replace E/A-Modul
272455 E/A-Modul 2: input/output DEA4 excessive temperature, short circuit to ground or overload X623:9 E 1
error report on display
check output for short, current supply, check fuse of E/A-Modul, if necessary replace E/A-Modul
272552 E/A-Modul 2: input/output DEA5 output open, to low load, short circuit to supply voltage X623:7 E 1
error report on display
check output for broken wire, check load on output (measure load current), if necessary replace E/A-Modul
272553 E/A-Modul 2: input/output DEA5 transistor current supply insufficient or missing X623:7 E 1
error report on display
check current supply and fuse E/A-Modul, if necessary replace E/A-Modul
272555 E/A-Modul 2: input/output DEA5 excessive temperature, short circuit to ground or overload X623:7 E 1
error report on display
check output for short, current supply, check fuse of E/A-Modul, if necessary replace E/A-Modul
272652 E/A-Modul 2: input/output DEA6 output open, to low load, short circuit to supply voltage X623:5 E 1
error report on display
check output for broken wire, check load on output (measure load current), if necessary replace E/A-Modul
065209 163
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
272653 E/A-Modul 2: input/output DEA6 transistor current supply insufficient or missing X623:5 E 1
error report on display
check current supply and fuse E/A-Modul, if necessary replace E/A-Modul
272655 E/A-Modul 2: input/output DEA6 excessive temperature, short circuit to ground or overload X623:5 E 1
error report on display
check output for short, current supply, check fuse of E/A-Modul, if necessary replace E/A-Modul
272752 E/A-Modul 2: input/output DEA7 output open, to low load, short circuit to supply voltage X623:3 E 1
error report on display
check output for broken wire, check load on output (measure load current), if necessary replace E/A-Modul
272753 E/A-Modul 2: input/output DEA7 transistor current supply insufficient or missing X623:3 E 1
error report on display
check current supply and fuse E/A-Modul, if necessary replace E/A-Modul
272755 E/A-Modul 2: input/output DEA7 excessive temperature, short circuit to ground or overload X623:3 E 1
error report on display
check output for short, current supply, check fuse of E/A-Modul, if necessary replace E/A-Modul
273481 E/A-Modul 2: voltage input E4 short circuit to supply voltage, open line X622:9 E 1
symbol for compressed air supply 1 is flashing on the display unit
check input signal on the E/A-Modul or sensor
273581 E/A-Modul 2: voltage input E5 short circuit to supply voltage, open line X622:7 E 1
symbol for compressed air supply 2 is flashing on the display unit
check input signal on the E/A-Modul or sensor
273681 E/A-Modul 2: voltage input E6 short circuit to supply voltage, open line X622:5 E 1
symbol for compressed air supply 3 is flashing on the display unit
check input signal on the E/A-Modul or sensor
065209 164
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
273782 E/A-Modul 2: voltage input E7 short circuit to ground, open line, constant current 10 mA incorrect X622:3 E 1
no reaction
check input signal on the E/A-Modul or sensor
273783 E/A-Modul 2: voltage input E7 short circuit to supply voltage, open line, lack of voltage X622:3 E 1
no reaction
check input signal on the E/A-Modul or sensor
279052 E/A-Modul 2: output A0 output open, to low load, short circuit to supply voltage X623:18 E 1
error report on display
check output for broken wire, check load on output (measure load current), if necessary replace E/A-Modul
279055 E/A-Modul 2: output A0 excessive temperature, short circuit to ground or overload X623:18 E 1
error report on display
check output for short, current supply, check fuse of E/A-Modul, if necessary replace E/A-Modul
279152 E/A-Modul 2: output A1 output open, to low load, short circuit to supply voltage X623:16 E 1
error report on display
check output for broken wire, check load on output (measure load current), if necessary replace E/A-Modul
279155 E/A-Modul 2: output A1 excessive temperature, short circuit to ground or overload X623:16 E 1
error report on display
check output for short, current supply, check fuse of E/A-Modul, if necessary replace E/A-Modul
065209 165
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
279250 E/A-Modul 2: bridge output A2 short circuit to ground, junction not supplied X623:14 E 1
error report on display
check output for short, check current supply of load, if necessary replace E/A-Modul
279251 E/A-Modul 2: bridge output A2 short circuit to supply voltage, excessive temperature X623:14 E 1
error report on display
check output for short, check output load (measure load current), if necessary replace E/A-Modul
279252 E/A-Modul 2: bridge output A2 output open, to low load, short circuit to supply voltage X623:14 E 1
error report on display
check output for broken wire, check load on output (measure load current), if necessary replace E/A-Modul
279253 E/A-Modul 2: bridge output A2 transistor current supply insufficient or missing X623:14 E 1
error report on display
check current supply and fuse E/A-Modul, if necessary replace E/A-Modul
279255 E/A-Modul 2: bridge output A2 excessive temperature, short circuit to ground or overload X623:14 E 1
error report on display
check output for short, current supply, check fuse of E/A-Modul, if necessary replace E/A-Modul
279350 E/A-Modul 2: bridge output A3 short circuit to ground, junction not supplied X623:12 E 1
error report on display
check output for short, check current supply of load, if necessary replace E/A-Modul
279351 E/A-Modul 2: bridge output A3 short circuit to supply voltage, excessive temperature X623:12 E 1
error report on display
check output for short, check output load (measure load current), if necessary replace E/A-Modul
279352 E/A-Modul 2: bridge output A3 output open, to low load, short circuit to supply voltage X623:12 E 1
error report on display
check output for broken wire, check load on output (measure load current), if necessary replace E/A-Modul
279353 E/A-Modul 2: bridge output A3 transistor current supply insufficient or missing X623:12 E 1
error report on display
check current supply and fuse E/A-Modul, if necessary replace E/A-Modul
065209 166
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
279355 E/A-Modul 2: bridge output A3 excessive temperature, short circuit to ground or overload X623:12 E 1
error report on display
check output for short, current supply, check fuse of E/A-Modul, if necessary replace E/A-Modul
283301 E/A-Modul 2: SPI-display unit Faulty data transfer E/A-module<>unit (time exceeded) X624:1/2/3/5/6/ E 1
error indication on display 7/8
system re-starts SPI-driver and eliminates error independently, with repeated occurrence replace E/A-Modul
283302 E/A-Modul 2: SPI-display unit Serious system error to SPI-connection (interface) X624:1/2/3/5/6/ E 1
error indication on display 7/8
system re-starts SPI-driver and eliminates error independently, with repeated occurrence replace E/A-Modul
283303 E/A-Modul 2: SPI-display unit break in line or short circuit to supply voltage X624:1/2/3/5/6/ E 1
error indication on display 7/8
remedy short circuit, check periphery and replace if necessary, check E/A-Modul and replace if necessary
283304 E/A-Modul 2: SPI-display unit break in line or short circuit to ground X624:1/2/3/5/6/ E 1
error indication on display 7/8
remedy short circuit, check periphery and replace if necessary, check E/A-Modul and replace if necessary
283306 E/A-Modul 2: SPI-display unit Data transfer faulty (faulty check byte) X624:1/2/3/5/6/ E 1
error indication on display 7/8
suppress EMV- interference
283307 E/A-Modul 2: SPI-display unit Unit faulty/missing, incorrect unit inserted (ID) X624:1/2/3/5/6/ E 1
error indication on display 7/8
check periphery and replace if necessary, check Software version, check EMV- interference
283308 E/A-Modul 2: SPI-display unit Data transfer faulty (incorrect number of data bytes received) X624:1/2/3/5/6/ E 1
error indication on display 7/8
system re-starts SPI-driver and eliminates error independently, with repeated occurrence replace E/A-Modul
283900 E/A-Modul 2: Control operating unit (SPI) Faulty initialisation data connection E/A-module<>unit X624:1/2/3/5/6/ E 1
error indication on display 7/8
system re-starts SPI-driver and eliminates error independently, with repeated occurrence replace E/A-Modul
065209 167
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
283902 E/A-Modul 2: Control operating unit (SPI) Serious system error to SPI-connection (interface) X624:1/2/3/5/6/ E 1
error indication on display 7/8
system re-starts SPI-driver and eliminates error independently, with repeated occurrence replace E/A-Modul
283905 E/A-Modul 2: Control operating unit (SPI) Initialisation error, resetting inputs/outputs faulty X624:1/2/3/5/6/ E 1
error indication on display 7/8
check wiring, check periphery and replace if necessary, check E/A-Modul and replace if necessary
283907 E/A-Modul 2: Control operating unit (SPI) Unit faulty/missing, incorrect unit inserted (ID) X624:1/2/3/5/6/ E 1
error indication on display 7/8
connect functional periphery unit, system then eliminates error independently
283908 E/A-Modul 2: Control operating unit (SPI) Data transfer faulty (incorrect number of data bytes received) X624:1/2/3/5/6/ E 1
error indication on display 7/8
system re-starts SPI-driver and eliminates error independently, with repeated occurrence replace E/A-Modul
284050 E/A-Modul 2: LSB-B participant address 0 reports an incorrect sensor type X623:4/6 E 1
Check Bus configuration in LSB test system, remove faulty / incorrect users from Bus
284150 E/A-Modul 2: LSB-B participant address 1 reports an incorrect sensor type X623:4/6 E 2
entry in error memory, otherwise no reaction, the answer will be interpreted according to the set type characteristics
check address assignment over test system (LSB-screen), install correct sensor
284151 E/A-Modul 2: LSB-B participant address 1 was not configured for the block transfer X623:4/6 E 2
entry in error memory, otherwise no reaction, no block transfer will be carried out
configuration problem, load new Software
284153 E/A-Modul 2: LSB-B participant address 1 no longer reports or withdrawn during running period X623:4/6 E 1
entry in error memory, participant will be deactivated, data buffer to the application will be set to 0
check connection, if connection OK then replace sensor
284154 E/A-Modul 2: LSB-B participant address 1 Features other settings (parameters) as pre-entered set values X623:4/6 E 2
entry in error memory, or no reaction, the sensor data could be incorrect, due to incorrect sensor config
check parameter set/real value through test system (LSB-screen), set sensor to default value
284164 E/A-Modul 2: LSB-B participant address 1 reports tolerable error in self-test X623:4/6 E 1
entry in error memory, otherwise no reaction; note only: sensor still functions correctly
check sensor, clean if necessary, with repeated occurrence replace sensor
065209 168
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
284165 E/A-Modul 2: LSB-B participant address 1 reports intolerable error in self-test X623:4/6 E 2
entry in error memory, otherwise no reaction, the error free operation is no longer guaranteed
replace sensor immediately
284166 E/A-Modul 2: LSB-B participant address 1 with software version, that is no longer compatible X623:4/6 E 2
entry in error memory, otherwise no reaction, it will be tried as far as possible to work with the sensor
replace sensor through new part
284250 E/A-Modul 2: LSB-B participant address 2 reports an incorrect sensor type X623:4/6 E 2
entry in error memory, otherwise no reaction, the answer will be interpreted according to the set type characteristics
check address assignment over test system (LSB-screen), install correct sensor
284251 E/A-Modul 2: LSB-B participant address 2 was not configured for the block transfer X623:4/6 E 2
entry in error memory, otherwise no reaction, no block transfer will be carried out
configuration problem, load new Software
284253 E/A-Modul 2: LSB-B participant address 2 no longer reports or withdrawn during running period X623:4/6 E 1
entry in error memory, participant will be deactivated, data buffer to the application will be set to 0
check connection, if connection OK then replace sensor
284254 E/A-Modul 2: LSB-B participant address 2 Features other settings (parameters) as pre-entered set values X623:4/6 E 2
entry in error memory, or no reaction, the sensor data could be incorrect, due to incorrect sensor config
check parameter set/real value through test system (LSB-screen), set sensor to default value
284264 E/A-Modul 2: LSB-B participant address 2 reports tolerable error in self-test X623:4/6 E 1
entry in error memory, otherwise no reaction; note only: sensor still functions correctly
check sensor, clean if necessary, with repeated occurrence replace sensor
284265 E/A-Modul 2: LSB-B participant address 2 reports intolerable error in self-test X623:4/6 E 2
entry in error memory, otherwise no reaction, the error free operation is no longer guaranteed
replace sensor immediately
284266 E/A-Modul 2: LSB-B participant address 2 with software version, that is no longer compatible X623:4/6 E 2
entry in error memory, otherwise no reaction, it will be tried as far as possible to work with the sensor
replace sensor through new part
065209 169
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
284350 E/A-Modul 2: LSB-B participant address 3 reports an incorrect sensor type X623:4/6 E 2
entry in error memory, otherwise no reaction, the answer will be interpreted according to the set type characteristics
check address assignment over test system (LSB-screen), install correct sensor
284351 E/A-Modul 2: LSB-B participant address 3 was not configured for the block transfer X623:4/6 E 2
entry in error memory, otherwise no reaction, no block transfer will be carried out
configuration problem, load new Software
284353 E/A-Modul 2: LSB-B participant address 3 no longer reports or withdrawn during running period X623:4/6 E 1
entry in error memory, participant will be deactivated, data buffer to the application will be set to 0
check connection, if connection OK then replace sensor
284354 E/A-Modul 2: LSB-B participant address 3 Features other settings (parameters) as pre-entered set values X623:4/6 E 2
entry in error memory, or no reaction, the sensor data could be incorrect, due to incorrect sensor config
check parameter set/real value through test system (LSB-screen), set sensor to default value
284364 E/A-Modul 2: LSB-B participant address 3 reports tolerable error in self-test X623:4/6 E 1
entry in error memory, otherwise no reaction; note only: sensor still functions correctly
check sensor, clean if necessary, with repeated occurrence replace sensor
284365 E/A-Modul 2: LSB-B participant address 3 reports intolerable error in self-test X623:4/6 E 2
entry in error memory, otherwise no reaction, the error free operation is no longer guaranteed
replace sensor immediately
284366 E/A-Modul 2: LSB-B participant address 3 with software version, that is no longer compatible X623:4/6 E 2
entry in error memory, otherwise no reaction, it will be tried as far as possible to work with the sensor
replace sensor through new part
284450 E/A-Modul 2: LSB-B participant address 4 reports an incorrect sensor type X623:4/6 E 2
entry in error memory, otherwise no reaction, the answer will be interpreted according to the set type characteristics
check address assignment over test system (LSB-screen), install correct sensor
065209 170
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
284451 E/A-Modul 2: LSB-B participant address 4 was not configured for the block transfer X623:4/6 E 2
entry in error memory, otherwise no reaction, no block transfer will be carried out
configuration problem, load new Software
284453 E/A-Modul 2: LSB-B participant address 4 no longer reports or withdrawn during running period X623:4/6 E 1
entry in error memory, participant will be deactivated, data buffer to the application will be set to 0
check connection, if connection OK then replace sensor
284454 E/A-Modul 2: LSB-B participant address 4 Features other settings (parameters) as pre-entered set values X623:4/6 E 2
entry in error memory, or no reaction, the sensor data could be incorrect, due to incorrect sensor config
check parameter set/real value through test system (LSB-screen), set sensor to default value
284464 E/A-Modul 2: LSB-B participant address 4 reports tolerable error in self-test X623:4/6 E 1
entry in error memory, otherwise no reaction; note only: sensor still functions correctly
check sensor, clean if necessary, with repeated occurrence replace sensor
284465 E/A-Modul 2: LSB-B participant address 4 reports intolerable error in self-test X623:4/6 E 2
entry in error memory, otherwise no reaction, the error free operation is no longer guaranteed
replace sensor immediately
284466 E/A-Modul 2: LSB-B participant address 4 with software version, that is no longer compatible X623:4/6 E 2
entry in error memory, otherwise no reaction, it will be tried as far as possible to work with the sensor
replace sensor through new part
284550 E/A-Modul 2: LSB-B participant address 5 reports an incorrect sensor type X623:4/6 E 2
entry in error memory, otherwise no reaction, the answer will be interpreted according to the set type characteristics
check address assignment over test system (LSB-screen), install correct sensor
284551 E/A-Modul 2: LSB-B participant address 5 was not configured for the block transfer X623:4/6 E 2
entry in error memory, otherwise no reaction, no block transfer will be carried out
configuration problem, load new Software
284553 E/A-Modul 2: LSB-B participant address 5 no longer reports or withdrawn during running period X623:4/6 E 1
entry in error memory, participant will be deactivated, data buffer to the application will be set to 0
check connection, if connection OK then replace sensor
065209 171
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
284554 E/A-Modul 2: LSB-B participant address 5 Features other settings (parameters) as pre-entered set values X623:4/6 E 2
entry in error memory, or no reaction, the sensor data could be incorrect, due to incorrect sensor config
check parameter set/real value through test system (LSB-screen), set sensor to default value
284564 E/A-Modul 2: LSB-B participant address 5 reports tolerable error in self-test X623:4/6 E 1
entry in error memory, otherwise no reaction; note only: sensor still functions correctly
check sensor, clean if necessary, with repeated occurrence replace sensor
284565 E/A-Modul 2: LSB-B participant address 5 reports intolerable error in self-test X623:4/6 E 2
entry in error memory, otherwise no reaction, the error free operation is no longer guaranteed
replace sensor immediately
284566 E/A-Modul 2: LSB-B participant address 5 with software version, that is no longer compatible X623:4/6 E 2
entry in error memory, otherwise no reaction, it will be tried as far as possible to work with the sensor
replace sensor through new part
284650 E/A-Modul 2: LSB-B participant address 6 reports an incorrect sensor type X623:4/6 E 2
entry in error memory, otherwise no reaction, the answer will be interpreted according to the set type characteristics
check address assignment over test system (LSB-screen), install correct sensor
284651 E/A-Modul 2: LSB-B participant address 6 was not configured for the block transfer X623:4/6 E 2
entry in error memory, otherwise no reaction, no block transfer will be carried out
configuration problem, load new Software
284653 E/A-Modul 2: LSB-B participant address 6 no longer reports or withdrawn during running period X623:4/6 E 1
entry in error memory, participant will be deactivated, data buffer to the application will be set to 0
check connection, if connection OK then replace sensor
284654 E/A-Modul 2: LSB-B participant address 6 Features other settings (parameters) as pre-entered set values X623:4/6 E 2
entry in error memory, or no reaction, the sensor data could be incorrect, due to incorrect sensor config
check parameter set/real value through test system (LSB-screen), set sensor to default value
284664 E/A-Modul 2: LSB-B participant address 6 reports tolerable error in self-test X623:4/6 E 1
entry in error memory, otherwise no reaction; note only: sensor still functions correctly
check sensor, clean if necessary, with repeated occurrence replace sensor
065209 172
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
284665 E/A-Modul 2: LSB-B participant address 6 reports intolerable error in self-test X623:4/6 E 2
entry in error memory, otherwise no reaction, the error free operation is no longer guaranteed
replace sensor immediately
284666 E/A-Modul 2: LSB-B participant address 6 with software version, that is no longer compatible X623:4/6 E 2
entry in error memory, otherwise no reaction, it will be tried as far as possible to work with the sensor
replace sensor through new part
285050 E/A-Modul 2: LSB-B participant address 10 reports an incorrect sensor type X623:4/6 E 2
entry in error memory, otherwise no reaction, the answer will be interpreted according to the set type characteristics
check address assignment over test system (LSB-screen), install correct sensor
285051 E/A-Modul 2: LSB-B participant address 10 was not configured for the block transfer X623:4/6 E 2
entry in error memory, otherwise no reaction, no block transfer will be carried out
configuration problem, load new Software
285053 E/A-Modul 2: LSB-B participant address 10 no longer reports or withdrawn during running period X623:4/6 E 1
entry in error memory, participant will be deactivated, data buffer to the application will be set to 0
check connection, if connection OK then replace sensor
285054 E/A-Modul 2: LSB-B participant address 10 Features other settings (parameters) as pre-entered set values X623:4/6 E 2
entry in error memory, or no reaction, the sensor data could be incorrect, due to incorrect sensor config
check parameter set/real value through test system (LSB-screen), set sensor to default value
285064 E/A-Modul 2: LSB-B participant address 10 reports tolerable error in self-test X623:4/6 E 1
entry in error memory, otherwise no reaction; note only: sensor still functions correctly
check sensor, clean if necessary, with repeated occurrence replace sensor
285065 E/A-Modul 2: LSB-B participant address 10 reports intolerable error in self-test X623:4/6 E 2
entry in error memory, otherwise no reaction, the error free operation is no longer guaranteed
replace sensor immediately
285066 E/A-Modul 2: LSB-B participant address 10 with software version, that is no longer compatible X623:4/6 E 2
entry in error memory, otherwise no reaction, it will be tried as far as possible to work with the sensor
replace sensor through new part
065209 173
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
285150 E/A-Modul 2: LSB-B participant address 11 reports an incorrect sensor type X623:4/6 E 2
entry in error memory, otherwise no reaction, the answer will be interpreted according to the set type characteristics
check address assignment over test system (LSB-screen), install correct sensor
285151 E/A-Modul 2: LSB-B participant address 11 was not configured for the block transfer X623:4/6 E 2
entry in error memory, otherwise no reaction, no block transfer will be carried out
configuration problem, load new Software
285153 E/A-Modul 2: LSB-B participant address 11 no longer reports or withdrawn during running period X623:4/6 E 1
entry in error memory, participant will be deactivated, data buffer to the application will be set to 0
check connection, if connection OK then replace sensor
285154 E/A-Modul 2: LSB-B participant address 11 Features other settings (parameters) as pre-entered set values X623:4/6 E 2
entry in error memory, or no reaction, the sensor data could be incorrect, due to incorrect sensor config
check parameter set/real value through test system (LSB-screen), set sensor to default value
285164 E/A-Modul 2: LSB-B participant address 11 reports tolerable error in self-test X623:4/6 E 1
entry in error memory, otherwise no reaction; note only: sensor still functions correctly
check sensor, clean if necessary, with repeated occurrence replace sensor
285165 E/A-Modul 2: LSB-B participant address 11 reports intolerable error in self-test X623:4/6 E 2
entry in error memory, otherwise no reaction, the error free operation is no longer guaranteed
replace sensor immediately
285166 E/A-Modul 2: LSB-B participant address 11 with software version, that is no longer compatible X623:4/6 E 2
entry in error memory, otherwise no reaction, it will be tried as far as possible to work with the sensor
replace sensor through new part
287252 E/A-Modul 2: Control data transfer LSB-B has recognised Bus collisions, communication interrupted X623:4/6 E 0
entry in error memory, driver draws itself back from bus, possible release of reset and re-booting of network
with temporary malfunctions error will be eliminated from system itself, otherwise check address assignment of sensor
065209 174
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
287255 E/A-Modul 2: Control data transfer LSB-B Bus connection faulty/defect, short circuit to supply voltage X623:4/6 E 2
entry in error memory, driver tries permanently to re-boot bus, bus boots as soon as error is eliminated
check bus line, sensor (withdraw) and bus circuit board for shorts, check bus fuse on bus circuit board
287256 E/A-Modul 2: Control data transfer LSB-B Bus connection faulty/defect, no supply/short circuit to earth X623:4/6 E 2
entry in error memory, driver tries permanently to re-boot bus, bus boots as soon as error is eliminated
check bus line, sensor (withdraw) and bus circuit board for shorts, check bus fuse on bus circuit board
287257 E/A-Modul 2: Control data transfer LSB-B has recognised network re-set (data transfer starts again) X623:4/6 E 1
entry in error memory, driver re-starts and runs re-booting of network
check bus lines, withdraw sensors successively from bus until malfunction source recognised, replace defective part
287258 E/A-Modul 2: Control data transfer LSB-B recognised participant with incorrect baud rate in bus X623:4/6 E 0
entry in error memory, driver re-starts and runs re-booting of network
will be eliminated from system itself, check address assignment of sensors
287259 E/A-Modul 2: Control data transfer LSB-B recognised communication breakdown in bus X623:4/6 E 0
entry in error memory, driver re-starts and runs re-booting of network
will be eliminated by driver through re-booting of network
287260 E/A-Modul 2: Control data transfer LSB-B driver error: no order to carry out X623:4/6 E 2
entry in error memory, driver runs on normally and waits for bus connection of participant
with temporary malfunctions error will be eliminated by system itself, with incorrect configuration install new software
287261 E/A-Modul 2: Control data transfer LSB-B driver error: undefined message appears X623:4/6 E 2
entry in error memory, driver re-starts and runs re-booting of network
with temporary malf. error will be eliminated by system itself otherwise new Software necessary for error elimination
287262 E/A-Modul 2: Control data transfer LSB-B driver error: initialising error X623:4/6 E 2
entry in error memory, driver re-starts and runs re-booting of network
new Software is necessary for error elimination
287530 E/A-Modul 2: CAN-participant engine Data transfer subscriber transfer cycle exceeded X625:5/6 E 0
CAN-Information from participant has exceeded the defined cycle time
Check CAN network, check faulty Bus user.
287530 E/A-Modul 2: CAN-participant engine Data transfer subscriber transfer cycle exceeded X625:5/6 E 1
parameterised substitute values for receiver signals will be used
Check CAN network, check faulty Bus user.
065209 175
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
287531 E/A-Modul 2: CAN-participant engine Data transfer faulty/missing, max. cycle time exceeded X625:5/6 E 0
CAN-Information from participant has exceeded the defined cycle time
Check CAN network, check faulty Bus user.
287630 E/A-Modul 2: CAN-participant gear Data transfer subscriber transfer cycle exceeded X625:5/6 E 0
CAN-Information from participant has exceeded the defined cycle time
in case bus system is error free, check connection of E/A-Modul to CAN-network, replace E/A-Modul
287631 E/A-Modul 2: CAN-participant gear Data transfer faulty/missing, max. cycle time exceeded X625:5/6 E 1
parameterised substitute values for receiver signals will be used
Check CAN network, check faulty Bus user.
287730 E/A-Modul 2: CAN-participant ABV (ABS/ASR) Data transfer subscriber transfer cycle exceeded X625:5/6 E 0
CAN-Information from participant has exceeded the defined cycle time
in case bus system is error free, check connection of E/A-Modul to CAN-network, replace E/A-Modul
287731 E/A-Modul 2: CAN-participant ABV (ABS/ASR) Data transfer faulty/missing, max. cycle time exceeded X625:5/6 E 1
parameterised substitute values for receiver signals will be used
Check CAN network, check faulty Bus user.
287930 E/A-Modul 2: CAN-participant retarder Data transfer subscriber transfer cycle exceeded X625:5/6 E 0
CAN-Information from participant has exceeded the defined cycle time
in case bus system is error free, check connection of E/A-Modul to CAN-network, replace E/A-Modul
287931 E/A-Modul 2: CAN-participant retarder Data transfer faulty/missing, max. cycle time exceeded X625:5/6 E 1
parameterised substitute values for receiver signals will be used
Check CAN network, check faulty Bus user.
288530 E/A-Modul 2: CAN-participant E/A-Modul 1 Data transfer subscriber transfer cycle exceeded X625:5/6 E 0
CAN-Information from participant has exceeded the defined cycle time
Check CAN network, check faulty Bus user.
288531 E/A-Modul 2: CAN-participant E/A-Modul 1 Data transfer faulty/missing, max. cycle time exceeded X625:5/6 E 1
parameterised substitute values for receiver signals will be used
Check CAN network, check faulty Bus user.
288630 E/A-Modul 2: CAN-participant E/A-Modul 2 Data transfer subscriber transfer cycle exceeded X625:5/6 E 0
CAN-Information from participant has exceeded the defined cycle time
Check CAN network, check faulty Bus user.
065209 176
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
288631 E/A-Modul 2: CAN-participant E/A-Modul 2 Data transfer faulty/missing, max. cycle time exceeded X625:5/6 E 1
parameterised substitute values for receiver signals will be used
Check CAN network, check faulty Bus user.
288930 E/A-Modul 2: CAN-participant E/A-Modul 5 Data transfer subscriber transfer cycle exceeded X625:5/6 E 0
CAN-Information from participant has exceeded the defined cycle time
Check CAN network, check faulty Bus user.
288931 E/A-Modul 2: CAN-participant E/A-Modul 5 Data transfer faulty/missing, max. cycle time exceeded X625:5/6 E 1
parameterised substitute values for receiver signals will be used
Check CAN network, check faulty Bus user.
289900 E/A-Modul 2: Control data transfer CAN internal error at Register-check Controller X625:5/6 E 2
internal error, CAN-transmission will be aborted
replace E/A-Modul
289901 E/A-Modul 2: Control data transfer CAN internal error at RAM-check Controller X625:5/6 E 2
internal error, CAN-transmission will be aborted
replace E/A-Modul
289902 E/A-Modul 2: Control data transfer CAN Configuration error Software X625:5/6 E 2
internal error, CAN-transmission will be aborted
replace E/A-Modul, check Software (test system ZE)
289903 E/A-Modul 2: Control data transfer CAN Transfer interrupted after continuous error X625:5/6 E 1
CAN-Transmission will be aborted
Check CAN network, replace E/A-Modul
289910 E/A-Modul 2: Control data transfer CAN short-term error in bus connection X625:5/6 E 0
re-attachment of Modul to bus transmission
Check CAN network, connect individual Bus users and check if error has been remedied
289911 E/A-Modul 2: Control data transfer CAN permanent error bus connection X625:5/6 E 1
cyclic re-attachment of Modul to bus transmission
Check CAN network, connect individual Bus users and check if error has been remedied
289920 E/A-Modul 2: Control data transfer CAN active participant not responding X625:5/6 E 0
parameterised substitute values for receiver signals will be used
check error report for missing participant(s), test system ZE
065209 177
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
289921 E/A-Modul 2: Control data transfer CAN No active subscriber responding X625:5/6 E 1
parameterised substitute values for receiver signals will be used
in case bus system is error free, check connection of E/A-Modul to CAN-network, replace E/A-Modul
289950 E/A-Modul 2: Control data transfer CAN erroneous command test system X625:5/6 E 1
no reaction to unknown test system control command in CAN-System Software
check Software (test system)
292001 E/A-Modul 2: control engine long-term disruption E/A-Modul <-> engine control E 1
engine control and E/A-Modul at emergency speed
engine control and E/A-Modul, check CAN-bus-connections
293038 E/A-Modul 2: control hydraulic/second. power outputs feedback secondary output pump active missing E 1
in case the pump is mechanically engaged; operation is possible
check pneumatic engagement mechanism of pump, sensor position; if necessary engage by hand with engine off
293039 E/A-Modul 2: control hydraulic/second. power outputs feedback secondary output pump inactive missing E 1
in case the pump is mechanically engaged, pump can be damaged in travel operation due to excessive speed
pneumatic engagement mechanism of the pump, check sensor position; if nec. disengage pump manually with engine off
293150 E/A-Modul 2: instruments operators cab signal "KL15OWUW" on operation mode selector switch missing E 1
no operation mode determinable, function of upper and undercarriage partly blocked
check operation mode change-switch connection<>E/A-Modul, signals to entries from E/A-Modul; replace E/A-Modul
293151 E/A-Modul 2: instruments operators cab signal "KL15OW" on operation mode selector switch missing E 1
no operation mode determinable, function of upper and undercarriage partly blocked
check operation mode change-switch connection<>E/A-Modul, signals to entries from E/A-Modul; replace E/A-Modul
293152 E/A-Modul 2: instruments operators cab signal "KL15UW" on operation mode selector switch missing E 1
no operation mode determinable, function of upper and undercarriage partly blocked
check operation mode change-switch connection<>E/A-Modul, signals to entries from E/A-Modul; replace E/A-Modul
293153 E/A-Modul 2: instruments operators cab sig. "KL15OW" or "KL15UW" on op. type selector switch missing E 1
no operation mode determinable, function of upper and undercarriage partly blocked
check operation mode change-switch connection<>E/A-Modul, signals to entries from E/A-Modul; replace E/A-Modul
293500 E/A-Modul 2: control heating/air conditioning servo-motor heating, circulated/fresh air or screen/foot erroneous E 1
servo motor relays a high signal to the diagnosis output
check water valve and air flaps of the heating or check servo motor
065209 178
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
294943 E/A-Modul 2: control optional device no signal from boom sensor in support E 1
control indicator for boom support flashing
check LSB-bus connection, check sensor
294944 E/A-Modul 2: control optional device No signal from sensor counterweight monitoring E 1
Control display for counterweight monitoring or braking power reduction flashing, no braking power reduction
check LSB-bus connection, check sensor
295050 E/A-Modul 2: operation engine no engine start possible as engine already recognized as ON B
function is not carried out
295055 E/A-Modul 2: operation engine STOP, ignition operators cab in upper-carriage operation mode B
function is not carried out
295056 E/A-Modul 2: operation engine STOP, ignition operators cab in under-carriage operation mode B
function is not carried out
065209 179
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
295059 E/A-Modul 2: operation engine no start, CAN-connection E/A-Modul <-> engine elec. malfunc B
function is not carried out
295063 E/A-Modul 2: operation engine no start, engine-STOP-key activated in right support unit B
function is not carried out
295064 E/A-Modul 2: operation engine no start, engine-STOP-key activated in left support unit B
function is not carried out
295068 E/A-Modul 2: operation engine no start, signal to op. mode-change switch"Kl15OWUW" missing B
function is not carried out
065209 180
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
295069 E/A-Modul 2: operation engine no start, signal to op. mode-change switch"Kl15OW" missing B
function is not carried out
295070 E/A-Modul 2: operation engine no start, signal to op. mode-change switch"Kl15UW" missing B
function is not carried out
295079 E/A-Modul 2: operation engine support box-operation mode prevented: gears not in neutral B
function is not carried out
295080 E/A-Modul 2: operation engine travel operation not possible when key activated on support box B
function is not carried out
065209 181
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
295914 E/A-Modul 2: operation longitudinal lock activation of function without operation mode B
function is not carried out
check entries (15UW, 15OW, 15UWOW) to E/A-Modul 2, check LSB-connection (see electric circuit diagram)
296660 E/A-Modul 2: operation hydraulics/second. power outputs secondary output pump not engaged as compr. air supply too low B
function is not carried out
296663 E/A-Modul 2: operation hydraulics/second. power outputs secondary output pump not switchable as engine ON B
function is not carried out
296666 E/A-Modul 2: operation hydraulics/second. power outputs hyd. crane system pump not engaged as compr. air supply too low B
function is not carried out
296777 E/A-Modul 2: operation off-road gear Clear distributor gear active or no report B
function is not carried out
do not disconnect transfer case in off-road gear ON or off-road gear not ON with disconnection of transfer gear
361002 E/A-Modul 3: system error OS-C167 initialising error test total in EPROM/FLASH erroneous E 2
error indication on display
ignition ON/OFF, with repeated occurrence --> replace E/A-Modul
065209 182
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
372052 E/A-Modul 3: input/output DEA0 output open, to low load, short circuit to supply voltage X633:17 E 1
error report on display
check output for broken wire, check load on output (measure load current), if necessary replace E/A-Modul
372053 E/A-Modul 3: input/output DEA0 transistor current supply insufficient or missing X633:17 E 1
error report on display
check current supply and fuse E/A-Modul, if necessary replace E/A-Modul
372055 E/A-Modul 3: input/output DEA0 excessive temperature, short circuit to ground or overload X633:17 E 1
error report on display
check output for short, current supply, check fuse of E/A-Modul, if necessary replace E/A-Modul
372152 E/A-Modul 3: input/output DEA1 output open, to low load, short circuit to supply voltage X633:15 E 1
error report on display
check output for broken wire, check load on output (measure load current), if necessary replace E/A-Modul
065209 183
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
372153 E/A-Modul 3: input/output DEA1 transistor current supply insufficient or missing X633:15 E 1
error report on display
check current supply and fuse E/A-Modul, if necessary replace E/A-Modul
372155 E/A-Modul 3: input/output DEA1 excessive temperature, short circuit to ground or overload X633:15 E 1
error report on display
check output for short, current supply, check fuse of E/A-Modul, if necessary replace E/A-Modul
372252 E/A-Modul 3: input/output DEA2 output open, to low load, short circuit to supply voltage X633:13 E 1
error report on display
check output for broken wire, check load on output (measure load current), if necessary replace E/A-Modul
372253 E/A-Modul 3: input/output DEA2 transistor current supply insufficient or missing X633:13 E 1
error report on display
check current supply and fuse E/A-Modul, if necessary replace E/A-Modul
372255 E/A-Modul 3: input/output DEA2 excessive temperature, short circuit to ground or overload X633:13 E 1
error report on display
check output for short, current supply, check fuse of E/A-Modul, if necessary replace E/A-Modul
372352 E/A-Modul 3: input/output DEA3 output open, to low load, short circuit to supply voltage X633:11 E 1
error report on display
check output for broken wire, check load on output (measure load current), if necessary replace E/A-Modul
372353 E/A-Modul 3: input/output DEA3 transistor current supply insufficient or missing X633:11 E 1
error report on display
check current supply and fuse E/A-Modul, if necessary replace E/A-Modul
065209 184
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
372355 E/A-Modul 3: input/output DEA3 excessive temperature, short circuit to ground or overload X633:11 E 1
error report on display
check output for short, current supply, check fuse of E/A-Modul, if necessary replace E/A-Modul
372452 E/A-Modul 3: input/output DEA4 output open, to low load, short circuit to supply voltage X633:9 E 1
error report on display
check output for broken wire, check load on output (measure load current), if necessary replace E/A-Modul
372453 E/A-Modul 3: input/output DEA4 transistor current supply insufficient or missing X633:9 E 1
error report on display
check current supply and fuse E/A-Modul, if necessary replace E/A-Modul
372455 E/A-Modul 3: input/output DEA4 excessive temperature, short circuit to ground or overload X633:9 E 1
error report on display
check output for short, current supply, check fuse of E/A-Modul, if necessary replace E/A-Modul
372552 E/A-Modul 3: input/output DEA5 output open, to low load, short circuit to supply voltage X633:7 E 1
error report on display
check output for broken wire, check load on output (measure load current), if necessary replace E/A-Modul
372553 E/A-Modul 3: input/output DEA5 transistor current supply insufficient or missing X633:7 E 1
error report on display
check current supply and fuse E/A-Modul, if necessary replace E/A-Modul
372555 E/A-Modul 3: input/output DEA5 excessive temperature, short circuit to ground or overload X633:7 E 1
error report on display
check output for short, current supply, check fuse of E/A-Modul, if necessary replace E/A-Modul
372652 E/A-Modul 3: input/output DEA6 output open, to low load, short circuit to supply voltage X633:5 E 1
error report on display
check output for broken wire, check load on output (measure load current), if necessary replace E/A-Modul
065209 185
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
372653 E/A-Modul 3: input/output DEA6 transistor current supply insufficient or missing X633:5 E 1
error report on display
check current supply and fuse E/A-Modul, if necessary replace E/A-Modul
372655 E/A-Modul 3: input/output DEA6 excessive temperature, short circuit to ground or overload X633:5 E 1
error report on display
check output for short, current supply, check fuse of E/A-Modul, if necessary replace E/A-Modul
372752 E/A-Modul 3: input/output DEA7 output open, to low load, short circuit to supply voltage X633:3 E 1
error report on display
check output for broken wire, check load on output (measure load current), if necessary replace E/A-Modul
372753 E/A-Modul 3: input/output DEA7 transistor current supply insufficient or missing X633:3 E 1
error report on display
check current supply and fuse E/A-Modul, if necessary replace E/A-Modul
372755 E/A-Modul 3: input/output DEA7 excessive temperature, short circuit to ground or overload X633:3 E 1
error report on display
check output for short, current supply, check fuse of E/A-Modul, if necessary replace E/A-Modul
373080 E/A-Modul 3: current input E0 short circuit to ground, open line, voltage sensor erroneous X632:17 E 1
on both support operating units "E." is flashing on the display for support force front right
check input signal on the E/A-Modul or sensor
065209 186
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
373180 E/A-Modul 3: current input E1 short circuit to ground, open line, voltage sensor erroneous X632:15 E 1
on both support operating units "E." is flashing on the display for support force rear right
check input signal on the E/A-Modul or sensor
373280 E/A-Modul 3: current input E2 short circuit to ground, open line, voltage sensor erroneous X632:13 E 1
both outer LEDs for transversal inclination on both support operating units are flashing
check input signal on the E/A-Modul or sensor
373380 E/A-Modul 3: current input E3 short circuit to ground, open line, voltage sensor erroneous X632:11 E 1
both outer LEDs for longitudinal inclination are flashing on both support units
check input signal on the E/A-Modul or sensor
373782 E/A-Modul 3: voltage input E7 short circuit to ground, open line, constant current 10 mA incorrect X632:3 E 1
symbol for diesel tank is flashing on the display unit, as are 3 question marks on monitor in uppercarriage
check input signal on the E/A-Modul or sensor
373783 E/A-Modul 3: voltage input E7 short circuit to supply voltage, open line, lack of voltage X632:3 E 1
symbol for diesel tank is flashing on the display unit, as are 3 question marks on monitor in uppercarriage
check input signal on the E/A-Modul or sensor
379052 E/A-Modul 3: output A0 output open, to low load, short circuit to supply voltage X633:18 E 1
error report on display
check output for broken wire, check load on output (measure load current), if necessary replace E/A-Modul
065209 187
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
379055 E/A-Modul 3: output A0 excessive temperature, short circuit to ground or overload X633:18 E 1
error report on display
check output for short, current supply, check fuse of E/A-Modul, if necessary replace E/A-Modul
379152 E/A-Modul 3: output A1 output open, to low load, short circuit to supply voltage X633:16 E 1
error report on display
check output for broken wire, check load on output (measure load current), if necessary replace E/A-Modul
379155 E/A-Modul 3: output A1 excessive temperature, short circuit to ground or overload X633:16 E 1
error report on display
check output for short, current supply, check fuse of E/A-Modul, if necessary replace E/A-Modul
379250 E/A-Modul 3: bridge output A2 short circuit to ground, junction not supplied X633:14 E 1
error report on display
check output for short, check current supply of load, if necessary replace E/A-Modul
379251 E/A-Modul 3: bridge output A2 short circuit to supply voltage, excessive temperature X633:14 E 1
error report on display
check output for short, check output load (measure load current), if necessary replace E/A-Modul
379252 E/A-Modul 3: bridge output A2 output open, to low load, short circuit to supply voltage X633:14 E 1
error report on display
check output for broken wire, check load on output (measure load current), if necessary replace E/A-Modul
379253 E/A-Modul 3: bridge output A2 transistor current supply insufficient or missing X633:14 E 1
error report on display
check current supply and fuse E/A-Modul, if necessary replace E/A-Modul
065209 188
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
379255 E/A-Modul 3: bridge output A2 excessive temperature, short circuit to ground or overload X633:14 E 1
error report on display
check output for short, current supply, check fuse of E/A-Modul, if necessary replace E/A-Modul
379350 E/A-Modul 3: bridge output A3 short circuit to ground, junction not supplied X633:12 E 1
error report on display
check output for short, check current supply of load, if necessary replace E/A-Modul
379351 E/A-Modul 3: bridge output A3 short circuit to supply voltage, excessive temperature X633:12 E 1
error report on display
check output for short, check output load (measure load current), if necessary replace E/A-Modul
379352 E/A-Modul 3: bridge output A3 output open, to low load, short circuit to supply voltage X633:12 E 1
error report on display
check output for broken wire, check load on output (measure load current), if necessary replace E/A-Modul
379353 E/A-Modul 3: bridge output A3 transistor current supply insufficient or missing X633:12 E 1
error report on display
check current supply and fuse E/A-Modul, if necessary replace E/A-Modul
379355 E/A-Modul 3: bridge output A3 excessive temperature, short circuit to ground or overload X633:12 E 1
error report on display
check output for short, current supply, check fuse of E/A-Modul, if necessary replace E/A-Modul
383501 E/A-Modul 3: SPI-support unit right Faulty data transfer E/A-module<>unit (time exceeded) X634:1/2/3/5/6/ E 1
error indication on display 7/8
system re-starts SPI-driver and eliminates error independently, with repeated occurrence replace E/A-Modul
383502 E/A-Modul 3: SPI-support unit right Serious system error to SPI-connection (interface) X634:1/2/3/5/6/ E 1
error indication on display 7/8
system re-starts SPI-driver and eliminates error independently, with repeated occurrence replace E/A-Modul
383503 E/A-Modul 3: SPI-support unit right break in line or short circuit to supply voltage X634:1/2/3/5/6/ E 1
error indication on display 7/8
remedy short circuit, check periphery and replace if necessary, check E/A-Modul and replace if necessary
065209 189
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
383504 E/A-Modul 3: SPI-support unit right break in line or short circuit to ground X634:1/2/3/5/6/ E 1
error indication on display 7/8
remedy short circuit, check periphery and replace if necessary, check E/A-Modul and replace if necessary
383506 E/A-Modul 3: SPI-support unit right Data transfer faulty (faulty check byte) X634:1/2/3/5/6/ E 1
error indication on display 7/8
suppress EMV- interference
383507 E/A-Modul 3: SPI-support unit right Unit faulty/missing, incorrect unit inserted (ID) X634:1/2/3/5/6/ E 1
error indication on display 7/8
check periphery and replace if necessary, check Software version, check EMV- interference
383508 E/A-Modul 3: SPI-support unit right Data transfer faulty (incorrect number of data bytes received) X634:1/2/3/5/6/ E 1
error indication on display 7/8
system re-starts SPI-driver and eliminates error independently, with repeated occurrence replace E/A-Modul
383900 E/A-Modul 3: Control operating unit (SPI) Faulty initialisation data connection E/A-module<>unit X634:1/2/3/5/6/ E 1
error indication on display 7/8
system re-starts SPI-driver and eliminates error independently, with repeated occurrence replace E/A-Modul
383902 E/A-Modul 3: Control operating unit (SPI) Serious system error to SPI-connection (interface) X634:1/2/3/5/6/ E 1
error indication on display 7/8
system re-starts SPI-driver and eliminates error independently, with repeated occurrence replace E/A-Modul
383905 E/A-Modul 3: Control operating unit (SPI) Initialisation error, resetting inputs/outputs faulty X634:1/2/3/5/6/ E 1
error indication on display 7/8
check wiring, check periphery and replace if necessary, check E/A-Modul and replace if necessary
383907 E/A-Modul 3: Control operating unit (SPI) Unit faulty/missing, incorrect unit inserted (ID) X634:1/2/3/5/6/ E 1
error indication on display 7/8
connect functional periphery unit, system then eliminates error independently
383908 E/A-Modul 3: Control operating unit (SPI) Data transfer faulty (incorrect number of data bytes received) X634:1/2/3/5/6/ E 1
error indication on display 7/8
system re-starts SPI-driver and eliminates error independently, with repeated occurrence replace E/A-Modul
384050 E/A-Modul 3: LSB-B participant address 0 reports an incorrect sensor type X633:4/6 E 1
Check Bus configuration in LSB test system, remove faulty / incorrect users from Bus
065209 190
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
384150 E/A-Modul 3: LSB-B participant address 1 reports an incorrect sensor type X633:4/6 E 2
entry in error memory, otherwise no reaction, the answer will be interpreted according to the set type characteristics
check address assignment over test system (LSB-screen), install correct sensor
384151 E/A-Modul 3: LSB-B participant address 1 was not configured for the block transfer X633:4/6 E 2
entry in error memory, otherwise no reaction, no block transfer will be carried out
configuration problem, load new Software
384153 E/A-Modul 3: LSB-B participant address 1 no longer reports or withdrawn during running period X633:4/6 E 1
entry in error memory, participant will be deactivated, data buffer to the application will be set to 0
check connection, if connection OK then replace sensor
384154 E/A-Modul 3: LSB-B participant address 1 Features other settings (parameters) as pre-entered set values X633:4/6 E 2
entry in error memory, or no reaction, the sensor data could be incorrect, due to incorrect sensor config
check parameter set/real value through test system (LSB-screen), set sensor to default value
384164 E/A-Modul 3: LSB-B participant address 1 reports tolerable error in self-test X633:4/6 E 1
entry in error memory, otherwise no reaction; note only: sensor still functions correctly
check sensor, clean if necessary, with repeated occurrence replace sensor
384165 E/A-Modul 3: LSB-B participant address 1 reports intolerable error in self-test X633:4/6 E 2
entry in error memory, otherwise no reaction, the error free operation is no longer guaranteed
replace sensor immediately
384166 E/A-Modul 3: LSB-B participant address 1 with software version, that is no longer compatible X633:4/6 E 2
entry in error memory, otherwise no reaction, it will be tried as far as possible to work with the sensor
replace sensor through new part
384250 E/A-Modul 3: LSB-B participant address 2 reports an incorrect sensor type X633:4/6 E 2
entry in error memory, otherwise no reaction, the answer will be interpreted according to the set type characteristics
check address assignment over test system (LSB-screen), install correct sensor
384251 E/A-Modul 3: LSB-B participant address 2 was not configured for the block transfer X633:4/6 E 2
entry in error memory, otherwise no reaction, no block transfer will be carried out
configuration problem, load new Software
065209 191
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
384253 E/A-Modul 3: LSB-B participant address 2 no longer reports or withdrawn during running period X633:4/6 E 1
entry in error memory, participant will be deactivated, data buffer to the application will be set to 0
check connection, if connection OK then replace sensor
384254 E/A-Modul 3: LSB-B participant address 2 Features other settings (parameters) as pre-entered set values X633:4/6 E 2
entry in error memory, or no reaction, the sensor data could be incorrect, due to incorrect sensor config
check parameter set/real value through test system (LSB-screen), set sensor to default value
384264 E/A-Modul 3: LSB-B participant address 2 reports tolerable error in self-test X633:4/6 E 1
entry in error memory, otherwise no reaction; note only: sensor still functions correctly
check sensor, clean if necessary, with repeated occurrence replace sensor
384265 E/A-Modul 3: LSB-B participant address 2 reports intolerable error in self-test X633:4/6 E 2
entry in error memory, otherwise no reaction, the error free operation is no longer guaranteed
replace sensor immediately
384266 E/A-Modul 3: LSB-B participant address 2 with software version, that is no longer compatible X633:4/6 E 2
entry in error memory, otherwise no reaction, it will be tried as far as possible to work with the sensor
replace sensor through new part
384350 E/A-Modul 3: LSB-B participant address 3 reports an incorrect sensor type X633:4/6 E 2
entry in error memory, otherwise no reaction, the answer will be interpreted according to the set type characteristics
check address assignment over test system (LSB-screen), install correct sensor
384351 E/A-Modul 3: LSB-B participant address 3 was not configured for the block transfer X633:4/6 E 2
entry in error memory, otherwise no reaction, no block transfer will be carried out
configuration problem, load new Software
384353 E/A-Modul 3: LSB-B participant address 3 no longer reports or withdrawn during running period X633:4/6 E 1
entry in error memory, participant will be deactivated, data buffer to the application will be set to 0
check connection, if connection OK then replace sensor
384354 E/A-Modul 3: LSB-B participant address 3 Features other settings (parameters) as pre-entered set values X633:4/6 E 2
entry in error memory, or no reaction, the sensor data could be incorrect, due to incorrect sensor config
check parameter set/real value through test system (LSB-screen), set sensor to default value
065209 192
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
384364 E/A-Modul 3: LSB-B participant address 3 reports tolerable error in self-test X633:4/6 E 1
entry in error memory, otherwise no reaction; note only: sensor still functions correctly
check sensor, clean if necessary, with repeated occurrence replace sensor
384365 E/A-Modul 3: LSB-B participant address 3 reports intolerable error in self-test X633:4/6 E 2
entry in error memory, otherwise no reaction, the error free operation is no longer guaranteed
replace sensor immediately
384366 E/A-Modul 3: LSB-B participant address 3 with software version, that is no longer compatible X633:4/6 E 2
entry in error memory, otherwise no reaction, it will be tried as far as possible to work with the sensor
replace sensor through new part
384450 E/A-Modul 3: LSB-B participant address 4 reports an incorrect sensor type X633:4/6 E 2
entry in error memory, otherwise no reaction, the answer will be interpreted according to the set type characteristics
check address assignment over test system (LSB-screen), install correct sensor
384451 E/A-Modul 3: LSB-B participant address 4 was not configured for the block transfer X633:4/6 E 2
entry in error memory, otherwise no reaction, no block transfer will be carried out
configuration problem, load new Software
384453 E/A-Modul 3: LSB-B participant address 4 no longer reports or withdrawn during running period X633:4/6 E 1
entry in error memory, participant will be deactivated, data buffer to the application will be set to 0
check connection, if connection OK then replace sensor
384454 E/A-Modul 3: LSB-B participant address 4 Features other settings (parameters) as pre-entered set values X633:4/6 E 2
entry in error memory, or no reaction, the sensor data could be incorrect, due to incorrect sensor config
check parameter set/real value through test system (LSB-screen), set sensor to default value
384464 E/A-Modul 3: LSB-B participant address 4 reports tolerable error in self-test X633:4/6 E 1
entry in error memory, otherwise no reaction; note only: sensor still functions correctly
check sensor, clean if necessary, with repeated occurrence replace sensor
384465 E/A-Modul 3: LSB-B participant address 4 reports intolerable error in self-test X633:4/6 E 2
entry in error memory, otherwise no reaction, the error free operation is no longer guaranteed
replace sensor immediately
065209 193
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
384466 E/A-Modul 3: LSB-B participant address 4 with software version, that is no longer compatible X633:4/6 E 2
entry in error memory, otherwise no reaction, it will be tried as far as possible to work with the sensor
replace sensor through new part
384550 E/A-Modul 3: LSB-B participant address 5 reports an incorrect sensor type X633:4/6 E 2
entry in error memory, otherwise no reaction, the answer will be interpreted according to the set type characteristics
check address assignment over test system (LSB-screen), install correct sensor
384551 E/A-Modul 3: LSB-B participant address 5 was not configured for the block transfer X633:4/6 E 2
entry in error memory, otherwise no reaction, no block transfer will be carried out
configuration problem, load new Software
384553 E/A-Modul 3: LSB-B participant address 5 no longer reports or withdrawn during running period X633:4/6 E 1
entry in error memory, participant will be deactivated, data buffer to the application will be set to 0
check connection, if connection OK then replace sensor
384554 E/A-Modul 3: LSB-B participant address 5 Features other settings (parameters) as pre-entered set values X633:4/6 E 2
entry in error memory, or no reaction, the sensor data could be incorrect, due to incorrect sensor config
check parameter set/real value through test system (LSB-screen), set sensor to default value
384564 E/A-Modul 3: LSB-B participant address 5 reports tolerable error in self-test X633:4/6 E 1
entry in error memory, otherwise no reaction; note only: sensor still functions correctly
check sensor, clean if necessary, with repeated occurrence replace sensor
384565 E/A-Modul 3: LSB-B participant address 5 reports intolerable error in self-test X633:4/6 E 2
entry in error memory, otherwise no reaction, the error free operation is no longer guaranteed
replace sensor immediately
384566 E/A-Modul 3: LSB-B participant address 5 with software version, that is no longer compatible X633:4/6 E 2
entry in error memory, otherwise no reaction, it will be tried as far as possible to work with the sensor
replace sensor through new part
065209 194
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
384650 E/A-Modul 3: LSB-B participant address 6 reports an incorrect sensor type X633:4/6 E 2
entry in error memory, otherwise no reaction, the answer will be interpreted according to the set type characteristics
check address assignment over test system (LSB-screen), install correct sensor
384651 E/A-Modul 3: LSB-B participant address 6 was not configured for the block transfer X633:4/6 E 2
entry in error memory, otherwise no reaction, no block transfer will be carried out
configuration problem, load new Software
384653 E/A-Modul 3: LSB-B participant address 6 no longer reports or withdrawn during running period X633:4/6 E 1
entry in error memory, participant will be deactivated, data buffer to the application will be set to 0
check connection, if connection OK then replace sensor
384654 E/A-Modul 3: LSB-B participant address 6 Features other settings (parameters) as pre-entered set values X633:4/6 E 2
entry in error memory, or no reaction, the sensor data could be incorrect, due to incorrect sensor config
check parameter set/real value through test system (LSB-screen), set sensor to default value
384664 E/A-Modul 3: LSB-B participant address 6 reports tolerable error in self-test X633:4/6 E 1
entry in error memory, otherwise no reaction; note only: sensor still functions correctly
check sensor, clean if necessary, with repeated occurrence replace sensor
384665 E/A-Modul 3: LSB-B participant address 6 reports intolerable error in self-test X633:4/6 E 2
entry in error memory, otherwise no reaction, the error free operation is no longer guaranteed
replace sensor immediately
384666 E/A-Modul 3: LSB-B participant address 6 with software version, that is no longer compatible X633:4/6 E 2
entry in error memory, otherwise no reaction, it will be tried as far as possible to work with the sensor
replace sensor through new part
387252 E/A-Modul 3: Control data transfer LSB-B has recognised Bus collisions, communication interrupted X633:4/6 E 0
entry in error memory, driver draws itself back from bus, possible release of reset and re-booting of network
with temporary malfunctions error will be eliminated from system itself, otherwise check address assignment of sensor
387255 E/A-Modul 3: Control data transfer LSB-B Bus connection faulty/defect, short circuit to supply voltage X633:4/6 E 2
entry in error memory, driver tries permanently to re-boot bus, bus boots as soon as error is eliminated
check bus line, sensor (withdraw) and bus circuit board for shorts, check bus fuse on bus circuit board
065209 195
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
387256 E/A-Modul 3: Control data transfer LSB-B Bus connection faulty/defect, no supply/short circuit to earth X633:4/6 E 2
entry in error memory, driver tries permanently to re-boot bus, bus boots as soon as error is eliminated
check bus line, sensor (withdraw) and bus circuit board for shorts, check bus fuse on bus circuit board
387257 E/A-Modul 3: Control data transfer LSB-B has recognised network re-set (data transfer starts again) X633:4/6 E 1
entry in error memory, driver re-starts and runs re-booting of network
check bus lines, withdraw sensors successively from bus until malfunction source recognised, replace defective part
387258 E/A-Modul 3: Control data transfer LSB-B recognised participant with incorrect baud rate in bus X633:4/6 E 0
entry in error memory, driver re-starts and runs re-booting of network
will be eliminated from system itself, check address assignment of sensors
387259 E/A-Modul 3: Control data transfer LSB-B recognised communication breakdown in bus X633:4/6 E 0
entry in error memory, driver re-starts and runs re-booting of network
will be eliminated by driver through re-booting of network
387260 E/A-Modul 3: Control data transfer LSB-B driver error: no order to carry out X633:4/6 E 2
entry in error memory, driver runs on normally and waits for bus connection of participant
with temporary malfunctions error will be eliminated by system itself, with incorrect configuration install new software
387261 E/A-Modul 3: Control data transfer LSB-B driver error: undefined message appears X633:4/6 E 2
entry in error memory, driver re-starts and runs re-booting of network
with temporary malf. error will be eliminated by system itself otherwise new Software necessary for error elimination
387262 E/A-Modul 3: Control data transfer LSB-B driver error: initialising error X633:4/6 E 2
entry in error memory, driver re-starts and runs re-booting of network
new Software is necessary for error elimination
392510 E/A-Modul 3: control axle suspension/level signals from transfer contact "axle elevated" simultaneous IN E 1
Function axle 3 lifting faulty, function may be carried out with defective feedback signal
change-contact pressure switch >120 bar, Check cabling to short against supply voltage
392511 E/A-Modul 3: control axle suspension/level signals from transfer contact "axle elevated" simultaneous OUT E 1
Function axle 3 lifting faulty, function may be carried out with defective feedback signal
change-contact pressure switch >120 bar, check cabling for wire break, fuse Kl.15
392830 E/A-Modul 3: control supports location coding for right support unit erroneous (set value = 0) E 2
support functions are blocked
check line connection to E/A-Modul, check ground connection from signal, replace E/A-Modul
065209 196
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
392832 E/A-Modul 3: control supports right support unit key sticking or activated after switching on E 1
right support blocked
check/unplug/replace support operating unit release activated key
394944 E/A-Modul 3: control optional device No signal from sensor counterweight monitoring E 1
Control display for counterweight monitoring or braking power reduction flashing, no braking power reduction
check LSB-bus connection, check sensor
396440 E/A-Modul 3: operation supports simultaneous UP and DOWN operation of support control unit B
function is not carried out
actuate UP key or DOWN key of the respective support operating unit, start test program support service unit
065209 197
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
396441 E/A-Modul 3: operation supports simultaneous IN and OUT operation of support control unit B
function is not carried out
actuate OFF key or ON key of the respective support operating unit, start test program support operating unit
396442 E/A-Modul 3: operation supports simultaneous UP and DOWN operation on upper-carriage monitor B
function is not carried out
actuate UP key or DOWN key of the respective support operating unit, start test program support service unit
396443 E/A-Modul 3: operation supports simultaneous IN and OUT operation on upper-carriage monitor B
function is not carried out
actuate OFF key or ON key of the respective support operating unit, start test program support operating unit
396444 E/A-Modul 3: operation supports simultaneous left and right operation of support control unit B
function is not carried out
actuate support from only one operating position, start test program support operating unit
396445 E/A-Modul 3: operation supports simultaneous operation of support control unit and upper-carriage B
function is not carried out
actuate support from only one operating position, start test program support operating unit
396446 E/A-Modul 3: operation supports simultaneous operation of support control unit and upper-carriage B
function is not carried out
actuate support from only one operating position, start test program support operating unit
396447 E/A-Modul 3: operation supports operation of support control unit with travel direction D engaged B
function is not carried out
switch transmission to neutral (N)
396448 E/A-Modul 3: operation supports operation of support control unit with travel direction R engaged B
function is not carried out
switch transmission to neutral (N)
396449 E/A-Modul 3: operation supports op. of upper-carriage monitor with travel direction D engaged B
function is not carried out
switch transmission to neutral (N)
065209 198
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
396451 E/A-Modul 3: operation supports unauthorised activation of right support control unit key B
right support blocked
release activated key after having authorized function through hand- key
399890 E/A-Modul 3: operation diagnosis system test program not executable as engine is not OFF B
function is not carried out
shut down engine
399892 E/A-Modul 3: operation diagnosis system test program not executable as not in under-carriage op. mode B
function is not carried out
switch over uppercarriage/undercarriage-change-switch to undercarriage operation mode
461002 E/A-Modul 4: system error OS-C167 initialising error test total in EPROM/FLASH erroneous E 2
error indication on display
ignition ON/OFF, with repeated occurrence --> replace E/A-Modul
065209 199
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
472052 E/A-Modul 4: input/output DEA0 output open, to low load, short circuit to supply voltage X643:17 E 1
error report on display
check output for broken wire, check load on output (measure load current), if necessary replace E/A-Modul
472053 E/A-Modul 4: input/output DEA0 transistor current supply insufficient or missing X643:17 E 1
error report on display
check current supply and fuse E/A-Modul, if necessary replace E/A-Modul
472055 E/A-Modul 4: input/output DEA0 excessive temperature, short circuit to ground or overload X643:17 E 1
error report on display
check output for short, current supply, check fuse of E/A-Modul, if necessary replace E/A-Modul
472152 E/A-Modul 4: input/output DEA1 output open, to low load, short circuit to supply voltage X643:15 E 1
error report on display
check output for broken wire, check load on output (measure load current), if necessary replace E/A-Modul
472153 E/A-Modul 4: input/output DEA1 transistor current supply insufficient or missing X643:15 E 1
error report on display
check current supply and fuse E/A-Modul, if necessary replace E/A-Modul
472155 E/A-Modul 4: input/output DEA1 excessive temperature, short circuit to ground or overload X643:15 E 1
error report on display
check output for short, current supply, check fuse of E/A-Modul, if necessary replace E/A-Modul
065209 200
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
472252 E/A-Modul 4: input/output DEA2 output open, to low load, short circuit to supply voltage X643:13 E 1
error report on display
check output for broken wire, check load on output (measure load current), if necessary replace E/A-Modul
472253 E/A-Modul 4: input/output DEA2 transistor current supply insufficient or missing X643:13 E 1
error report on display
check current supply and fuse E/A-Modul, if necessary replace E/A-Modul
472255 E/A-Modul 4: input/output DEA2 excessive temperature, short circuit to ground or overload X643:13 E 1
error report on display
check output for short, current supply, check fuse of E/A-Modul, if necessary replace E/A-Modul
472352 E/A-Modul 4: input/output DEA3 output open, to low load, short circuit to supply voltage X643:11 E 1
error report on display
check output for broken wire, check load on output (measure load current), if necessary replace E/A-Modul
472353 E/A-Modul 4: input/output DEA3 transistor current supply insufficient or missing X643:11 E 1
error report on display
check current supply and fuse E/A-Modul, if necessary replace E/A-Modul
472355 E/A-Modul 4: input/output DEA3 excessive temperature, short circuit to ground or overload X643:11 E 1
error report on display
check output for short, current supply, check fuse of E/A-Modul, if necessary replace E/A-Modul
472452 E/A-Modul 4: input/output DEA4 output open, to low load, short circuit to supply voltage X643:9 E 1
error report on display
check output for broken wire, check load on output (measure load current), if necessary replace E/A-Modul
472453 E/A-Modul 4: input/output DEA4 transistor current supply insufficient or missing X643:9 E 1
error report on display
check current supply and fuse E/A-Modul, if necessary replace E/A-Modul
065209 201
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
472455 E/A-Modul 4: input/output DEA4 excessive temperature, short circuit to ground or overload X643:9 E 1
error report on display
check output for short, current supply, check fuse of E/A-Modul, if necessary replace E/A-Modul
472552 E/A-Modul 4: input/output DEA5 output open, to low load, short circuit to supply voltage X643:7 E 1
error report on display
check output for broken wire, check load on output (measure load current), if necessary replace E/A-Modul
472553 E/A-Modul 4: input/output DEA5 transistor current supply insufficient or missing X643:7 E 1
error report on display
check current supply and fuse E/A-Modul, if necessary replace E/A-Modul
472555 E/A-Modul 4: input/output DEA5 excessive temperature, short circuit to ground or overload X643:7 E 1
error report on display
check output for short, current supply, check fuse of E/A-Modul, if necessary replace E/A-Modul
472652 E/A-Modul 4: input/output DEA6 output open, to low load, short circuit to supply voltage X643:5 E 1
error report on display
check output for broken wire, check load on output (measure load current), if necessary replace E/A-Modul
472653 E/A-Modul 4: input/output DEA6 transistor current supply insufficient or missing X643:5 E 1
error report on display
check current supply and fuse E/A-Modul, if necessary replace E/A-Modul
472655 E/A-Modul 4: input/output DEA6 excessive temperature, short circuit to ground or overload X643:5 E 1
error report on display
check output for short, current supply, check fuse of E/A-Modul, if necessary replace E/A-Modul
065209 202
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
472752 E/A-Modul 4: input/output DEA7 output open, to low load, short circuit to supply voltage X643:3 E 1
error report on display
check output for broken wire, check load on output (measure load current), if necessary replace E/A-Modul
472753 E/A-Modul 4: input/output DEA7 transistor current supply insufficient or missing X643:3 E 1
error report on display
check current supply and fuse E/A-Modul, if necessary replace E/A-Modul
472755 E/A-Modul 4: input/output DEA7 excessive temperature, short circuit to ground or overload X643:3 E 1
error report on display
check output for short, current supply, check fuse of E/A-Modul, if necessary replace E/A-Modul
473080 E/A-Modul 4: current input E0 short circuit to ground, open line, voltage sensor erroneous X642:17 E 1
on both support operating units "E." is flashing on the display for support force front left
check input signal on the E/A-Modul or sensor
473180 E/A-Modul 4: current input E1 short circuit to ground, open line, voltage sensor erroneous X642:15 E 1
on both support operating units "E." is flashing on the display for support force rear left
check input signal on the E/A-Modul or sensor
479052 E/A-Modul 4: output A0 output open, to low load, short circuit to supply voltage X643:18 E 1
error report on display
check output for broken wire, check load on output (measure load current), if necessary replace E/A-Modul
065209 203
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
479055 E/A-Modul 4: output A0 excessive temperature, short circuit to ground or overload X643:18 E 1
error report on display
check output for short, current supply, check fuse of E/A-Modul, if necessary replace E/A-Modul
479152 E/A-Modul 4: output A1 output open, to low load, short circuit to supply voltage X643:16 E 1
error report on display
check output for broken wire, check load on output (measure load current), if necessary replace E/A-Modul
479155 E/A-Modul 4: output A1 excessive temperature, short circuit to ground or overload X643:16 E 1
error report on display
check output for short, current supply, check fuse of E/A-Modul, if necessary replace E/A-Modul
479250 E/A-Modul 4: bridge output A2 short circuit to ground, junction not supplied X643:14 E 1
error report on display
check output for short, check current supply of load, if necessary replace E/A-Modul
479251 E/A-Modul 4: bridge output A2 short circuit to supply voltage, excessive temperature X643:14 E 1
error report on display
check output for short, check output load (measure load current), if necessary replace E/A-Modul
479252 E/A-Modul 4: bridge output A2 output open, to low load, short circuit to supply voltage X643:14 E 1
error report on display
check output for broken wire, check load on output (measure load current), if necessary replace E/A-Modul
479253 E/A-Modul 4: bridge output A2 transistor current supply insufficient or missing X643:14 E 1
error report on display
check current supply and fuse E/A-Modul, if necessary replace E/A-Modul
065209 204
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
479255 E/A-Modul 4: bridge output A2 excessive temperature, short circuit to ground or overload X643:14 E 1
error report on display
check output for short, current supply, check fuse of E/A-Modul, if necessary replace E/A-Modul
479350 E/A-Modul 4: bridge output A3 short circuit to ground, junction not supplied X643:12 E 1
error report on display
check output for short, check current supply of load, if necessary replace E/A-Modul
479351 E/A-Modul 4: bridge output A3 short circuit to supply voltage, excessive temperature X643:12 E 1
error report on display
check output for short, check output load (measure load current), if necessary replace E/A-Modul
479352 E/A-Modul 4: bridge output A3 output open, to low load, short circuit to supply voltage X643:12 E 1
error report on display
check output for broken wire, check load on output (measure load current), if necessary replace E/A-Modul
479353 E/A-Modul 4: bridge output A3 transistor current supply insufficient or missing X643:12 E 1
error report on display
check current supply and fuse E/A-Modul, if necessary replace E/A-Modul
479355 E/A-Modul 4: bridge output A3 excessive temperature, short circuit to ground or overload X643:12 E 1
error report on display
check output for short, current supply, check fuse of E/A-Modul, if necessary replace E/A-Modul
483601 E/A-Modul 4: SPI-support unit left Faulty data transfer E/A-module<>unit (time exceeded) X644:1/2/3/5/6/ E 1
error indication on display 7/8
system re-starts SPI-driver and eliminates error independently, with repeated occurrence replace E/A-Modul
483602 E/A-Modul 4: SPI-support unit left Serious system error to SPI-connection (interface) X644:1/2/3/5/6/ E 1
error indication on display 7/8
system re-starts SPI-driver and eliminates error independently, with repeated occurrence replace E/A-Modul
065209 205
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
483603 E/A-Modul 4: SPI-support unit left break in line or short circuit to supply voltage X644:1/2/3/5/6/ E 1
error indication on display 7/8
remedy short circuit, check periphery and replace if necessary, check E/A-Modul and replace if necessary
483604 E/A-Modul 4: SPI-support unit left break in line or short circuit to ground X644:1/2/3/5/6/ E 1
error indication on display 7/8
remedy short circuit, check periphery and replace if necessary, check E/A-Modul and replace if necessary
483606 E/A-Modul 4: SPI-support unit left Data transfer faulty (faulty check byte) X644:1/2/3/5/6/ E 1
error indication on display 7/8
suppress EMV- interference
483607 E/A-Modul 4: SPI-support unit left Unit faulty/missing, incorrect unit inserted (ID) X644:1/2/3/5/6/ E 1
error indication on display 7/8
check periphery and replace if necessary, check Software version, check EMV- interference
483608 E/A-Modul 4: SPI-support unit left Data transfer faulty (incorrect number of data bytes received) X644:1/2/3/5/6/ E 1
error indication on display 7/8
system re-starts SPI-driver and eliminates error independently, with repeated occurrence replace E/A-Modul
483900 E/A-Modul 4: Control operating unit (SPI) Faulty initialisation data connection E/A-module<>unit X644:1/2/3/5/6/ E 1
error indication on display 7/8
system re-starts SPI-driver and eliminates error independently, with repeated occurrence replace E/A-Modul
483902 E/A-Modul 4: Control operating unit (SPI) Serious system error to SPI-connection (interface) X644:1/2/3/5/6/ E 1
error indication on display 7/8
system re-starts SPI-driver and eliminates error independently, with repeated occurrence replace E/A-Modul
483905 E/A-Modul 4: Control operating unit (SPI) Initialisation error, resetting inputs/outputs faulty X644:1/2/3/5/6/ E 1
error indication on display 7/8
check wiring, check periphery and replace if necessary, check E/A-Modul and replace if necessary
483907 E/A-Modul 4: Control operating unit (SPI) Unit faulty/missing, incorrect unit inserted (ID) X644:1/2/3/5/6/ E 1
error indication on display 7/8
connect functional periphery unit, system then eliminates error independently
483908 E/A-Modul 4: Control operating unit (SPI) Data transfer faulty (incorrect number of data bytes received) X644:1/2/3/5/6/ E 1
error indication on display 7/8
system re-starts SPI-driver and eliminates error independently, with repeated occurrence replace E/A-Modul
065209 206
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
484050 E/A-Modul 4: LSB-B participant address 0 reports an incorrect sensor type X643:4/6 E 1
Check Bus configuration in LSB test system, remove faulty / incorrect users from Bus
484150 E/A-Modul 4: LSB-B participant address 1 reports an incorrect sensor type X643:4/6 E 2
entry in error memory, otherwise no reaction, the answer will be interpreted according to the set type characteristics
check address assignment over test system (LSB-screen), install correct sensor
484151 E/A-Modul 4: LSB-B participant address 1 was not configured for the block transfer X643:4/6 E 2
entry in error memory, otherwise no reaction, no block transfer will be carried out
configuration problem, load new Software
484153 E/A-Modul 4: LSB-B participant address 1 no longer reports or withdrawn during running period X643:4/6 E 1
entry in error memory, participant will be deactivated, data buffer to the application will be set to 0
check connection, if connection OK then replace sensor
484154 E/A-Modul 4: LSB-B participant address 1 Features other settings (parameters) as pre-entered set values X643:4/6 E 2
entry in error memory, or no reaction, the sensor data could be incorrect, due to incorrect sensor config
check parameter set/real value through test system (LSB-screen), set sensor to default value
484164 E/A-Modul 4: LSB-B participant address 1 reports tolerable error in self-test X643:4/6 E 1
entry in error memory, otherwise no reaction; note only: sensor still functions correctly
check sensor, clean if necessary, with repeated occurrence replace sensor
484165 E/A-Modul 4: LSB-B participant address 1 reports intolerable error in self-test X643:4/6 E 2
entry in error memory, otherwise no reaction, the error free operation is no longer guaranteed
replace sensor immediately
484166 E/A-Modul 4: LSB-B participant address 1 with software version, that is no longer compatible X643:4/6 E 2
entry in error memory, otherwise no reaction, it will be tried as far as possible to work with the sensor
replace sensor through new part
484250 E/A-Modul 4: LSB-B participant address 2 reports an incorrect sensor type X643:4/6 E 2
entry in error memory, otherwise no reaction, the answer will be interpreted according to the set type characteristics
check address assignment over test system (LSB-screen), install correct sensor
065209 207
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
484251 E/A-Modul 4: LSB-B participant address 2 was not configured for the block transfer X643:4/6 E 2
entry in error memory, otherwise no reaction, no block transfer will be carried out
configuration problem, load new Software
484253 E/A-Modul 4: LSB-B participant address 2 no longer reports or withdrawn during running period X643:4/6 E 1
entry in error memory, participant will be deactivated, data buffer to the application will be set to 0
check connection, if connection OK then replace sensor
484254 E/A-Modul 4: LSB-B participant address 2 Features other settings (parameters) as pre-entered set values X643:4/6 E 2
entry in error memory, or no reaction, the sensor data could be incorrect, due to incorrect sensor config
check parameter set/real value through test system (LSB-screen), set sensor to default value
484264 E/A-Modul 4: LSB-B participant address 2 reports tolerable error in self-test X643:4/6 E 1
entry in error memory, otherwise no reaction; note only: sensor still functions correctly
check sensor, clean if necessary, with repeated occurrence replace sensor
484265 E/A-Modul 4: LSB-B participant address 2 reports intolerable error in self-test X643:4/6 E 2
entry in error memory, otherwise no reaction, the error free operation is no longer guaranteed
replace sensor immediately
484266 E/A-Modul 4: LSB-B participant address 2 with software version, that is no longer compatible X643:4/6 E 2
entry in error memory, otherwise no reaction, it will be tried as far as possible to work with the sensor
replace sensor through new part
484350 E/A-Modul 4: LSB-B participant address 3 reports an incorrect sensor type X643:4/6 E 2
entry in error memory, otherwise no reaction, the answer will be interpreted according to the set type characteristics
check address assignment over test system (LSB-screen), install correct sensor
484351 E/A-Modul 4: LSB-B participant address 3 was not configured for the block transfer X643:4/6 E 2
entry in error memory, otherwise no reaction, no block transfer will be carried out
configuration problem, load new Software
484353 E/A-Modul 4: LSB-B participant address 3 no longer reports or withdrawn during running period X643:4/6 E 1
entry in error memory, participant will be deactivated, data buffer to the application will be set to 0
check connection, if connection OK then replace sensor
065209 208
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
484354 E/A-Modul 4: LSB-B participant address 3 Features other settings (parameters) as pre-entered set values X643:4/6 E 2
entry in error memory, or no reaction, the sensor data could be incorrect, due to incorrect sensor config
check parameter set/real value through test system (LSB-screen), set sensor to default value
484364 E/A-Modul 4: LSB-B participant address 3 reports tolerable error in self-test X643:4/6 E 1
entry in error memory, otherwise no reaction; note only: sensor still functions correctly
check sensor, clean if necessary, with repeated occurrence replace sensor
484365 E/A-Modul 4: LSB-B participant address 3 reports intolerable error in self-test X643:4/6 E 2
entry in error memory, otherwise no reaction, the error free operation is no longer guaranteed
replace sensor immediately
484366 E/A-Modul 4: LSB-B participant address 3 with software version, that is no longer compatible X643:4/6 E 2
entry in error memory, otherwise no reaction, it will be tried as far as possible to work with the sensor
replace sensor through new part
484450 E/A-Modul 4: LSB-B participant address 4 reports an incorrect sensor type X643:4/6 E 2
entry in error memory, otherwise no reaction, the answer will be interpreted according to the set type characteristics
check address assignment over test system (LSB-screen), install correct sensor
484451 E/A-Modul 4: LSB-B participant address 4 was not configured for the block transfer X643:4/6 E 2
entry in error memory, otherwise no reaction, no block transfer will be carried out
configuration problem, load new Software
484453 E/A-Modul 4: LSB-B participant address 4 no longer reports or withdrawn during running period X643:4/6 E 1
entry in error memory, participant will be deactivated, data buffer to the application will be set to 0
check connection, if connection OK then replace sensor
484454 E/A-Modul 4: LSB-B participant address 4 Features other settings (parameters) as pre-entered set values X643:4/6 E 2
entry in error memory, or no reaction, the sensor data could be incorrect, due to incorrect sensor config
check parameter set/real value through test system (LSB-screen), set sensor to default value
484464 E/A-Modul 4: LSB-B participant address 4 reports tolerable error in self-test X643:4/6 E 1
entry in error memory, otherwise no reaction; note only: sensor still functions correctly
check sensor, clean if necessary, with repeated occurrence replace sensor
065209 209
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
484465 E/A-Modul 4: LSB-B participant address 4 reports intolerable error in self-test X643:4/6 E 2
entry in error memory, otherwise no reaction, the error free operation is no longer guaranteed
replace sensor immediately
484466 E/A-Modul 4: LSB-B participant address 4 with software version, that is no longer compatible X643:4/6 E 2
entry in error memory, otherwise no reaction, it will be tried as far as possible to work with the sensor
replace sensor through new part
484550 E/A-Modul 4: LSB-B participant address 5 reports an incorrect sensor type X643:4/6 E 2
entry in error memory, otherwise no reaction, the answer will be interpreted according to the set type characteristics
check address assignment over test system (LSB-screen), install correct sensor
484551 E/A-Modul 4: LSB-B participant address 5 was not configured for the block transfer X643:4/6 E 2
entry in error memory, otherwise no reaction, no block transfer will be carried out
configuration problem, load new Software
484553 E/A-Modul 4: LSB-B participant address 5 no longer reports or withdrawn during running period X643:4/6 E 1
entry in error memory, participant will be deactivated, data buffer to the application will be set to 0
check connection, if connection OK then replace sensor
484554 E/A-Modul 4: LSB-B participant address 5 Features other settings (parameters) as pre-entered set values X643:4/6 E 2
entry in error memory, or no reaction, the sensor data could be incorrect, due to incorrect sensor config
check parameter set/real value through test system (LSB-screen), set sensor to default value
484564 E/A-Modul 4: LSB-B participant address 5 reports tolerable error in self-test X643:4/6 E 1
entry in error memory, otherwise no reaction; note only: sensor still functions correctly
check sensor, clean if necessary, with repeated occurrence replace sensor
484565 E/A-Modul 4: LSB-B participant address 5 reports intolerable error in self-test X643:4/6 E 2
entry in error memory, otherwise no reaction, the error free operation is no longer guaranteed
replace sensor immediately
484566 E/A-Modul 4: LSB-B participant address 5 with software version, that is no longer compatible X643:4/6 E 2
entry in error memory, otherwise no reaction, it will be tried as far as possible to work with the sensor
replace sensor through new part
065209 210
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
484650 E/A-Modul 4: LSB-B participant address 6 reports an incorrect sensor type X643:4/6 E 2
entry in error memory, otherwise no reaction, the answer will be interpreted according to the set type characteristics
check address assignment over test system (LSB-screen), install correct sensor
484651 E/A-Modul 4: LSB-B participant address 6 was not configured for the block transfer X643:4/6 E 2
entry in error memory, otherwise no reaction, no block transfer will be carried out
configuration problem, load new Software
484653 E/A-Modul 4: LSB-B participant address 6 no longer reports or withdrawn during running period X643:4/6 E 1
entry in error memory, participant will be deactivated, data buffer to the application will be set to 0
check connection, if connection OK then replace sensor
484654 E/A-Modul 4: LSB-B participant address 6 Features other settings (parameters) as pre-entered set values X643:4/6 E 2
entry in error memory, or no reaction, the sensor data could be incorrect, due to incorrect sensor config
check parameter set/real value through test system (LSB-screen), set sensor to default value
484664 E/A-Modul 4: LSB-B participant address 6 reports tolerable error in self-test X643:4/6 E 1
entry in error memory, otherwise no reaction; note only: sensor still functions correctly
check sensor, clean if necessary, with repeated occurrence replace sensor
484665 E/A-Modul 4: LSB-B participant address 6 reports intolerable error in self-test X643:4/6 E 2
entry in error memory, otherwise no reaction, the error free operation is no longer guaranteed
replace sensor immediately
484666 E/A-Modul 4: LSB-B participant address 6 with software version, that is no longer compatible X643:4/6 E 2
entry in error memory, otherwise no reaction, it will be tried as far as possible to work with the sensor
replace sensor through new part
487252 E/A-Modul 4: Control data transfer LSB-B has recognised Bus collisions, communication interrupted X643:4/6 E 0
entry in error memory, driver draws itself back from bus, possible release of reset and re-booting of network
with temporary malfunctions error will be eliminated from system itself, otherwise check address assignment of sensor
065209 211
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
487255 E/A-Modul 4: Control data transfer LSB-B Bus connection faulty/defect, short circuit to supply voltage X643:4/6 E 2
entry in error memory, driver tries permanently to re-boot bus, bus boots as soon as error is eliminated
check bus line, sensor (withdraw) and bus circuit board for shorts, check bus fuse on bus circuit board
487256 E/A-Modul 4: Control data transfer LSB-B Bus connection faulty/defect, no supply/short circuit to earth X643:4/6 E 2
entry in error memory, driver tries permanently to re-boot bus, bus boots as soon as error is eliminated
check bus line, sensor (withdraw) and bus circuit board for shorts, check bus fuse on bus circuit board
487257 E/A-Modul 4: Control data transfer LSB-B has recognised network re-set (data transfer starts again) X643:4/6 E 1
entry in error memory, driver re-starts and runs re-booting of network
check bus lines, withdraw sensors successively from bus until malfunction source recognised, replace defective part
487258 E/A-Modul 4: Control data transfer LSB-B recognised participant with incorrect baud rate in bus X643:4/6 E 0
entry in error memory, driver re-starts and runs re-booting of network
will be eliminated from system itself, check address assignment of sensors
487259 E/A-Modul 4: Control data transfer LSB-B recognised communication breakdown in bus X643:4/6 E 0
entry in error memory, driver re-starts and runs re-booting of network
will be eliminated by driver through re-booting of network
487260 E/A-Modul 4: Control data transfer LSB-B driver error: no order to carry out X643:4/6 E 2
entry in error memory, driver runs on normally and waits for bus connection of participant
with temporary malfunctions error will be eliminated by system itself, with incorrect configuration install new software
487261 E/A-Modul 4: Control data transfer LSB-B driver error: undefined message appears X643:4/6 E 2
entry in error memory, driver re-starts and runs re-booting of network
with temporary malf. error will be eliminated by system itself otherwise new Software necessary for error elimination
487262 E/A-Modul 4: Control data transfer LSB-B driver error: initialising error X643:4/6 E 2
entry in error memory, driver re-starts and runs re-booting of network
new Software is necessary for error elimination
492747 E/A-Modul 4: control steering signal from steering pump flow switch erroneous E 1
control indicator for steering pump flashing
check line connections, power supply 10 mA from E/A-Modul; replace sensor or E/A-Modul
492748 E/A-Modul 4: control steering signal from auxiliary steering pump flow switch erroneous E 1
control indicator for auxiliary steering pump flashing
check line connections, power supply 10 mA from E/A-Modul; replace sensor or E/A-Modul
065209 212
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
492831 E/A-Modul 4: control supports location coding for left support unit erroneous (set value = 1) E 2
support functions are blocked
check line connection to E/A-Modul, check power supply from signal, replace E/A-Modul
492833 E/A-Modul 4: control supports left support unit key sticking or activated after switching on E 1
left support blocked
check/unplug/replace support operating unit release activated key
065209 213
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
496014 E/A-Modul 4: operation transversal lock activation of function without operation mode B
function is not carried out
start engine and repeat operation
496100 E/A-Modul 4: operation unlocking rear axle function simultaneously ON and OFF B
function is not carried out
do not simultaneously activate contrasting function keys
496112 E/A-Modul 4: operation unlocking rear axle unauthorised switching off of function B
function is not carried out
check coding of E/A-Modul 3 and E/A-Modul 4 (see electric circuit diagram)
496114 E/A-Modul 4: operation unlocking rear axle activation of function without operation mode B
function is not carried out
check entries (15UW, 15OW, 15UWOW) to E/A-Modul 2, check LSB-connection (see electric circuit diagram)
496160 E/A-Modul 4: operation unlocking rear axle undefined condition: simultaneously locked and unlocked B
function is not carried out
check unlocking condition, Check locking limit switch and unlocking limit switch
496200 E/A-Modul 4: operation steering rear axle function simultaneously ON and OFF B
function is not carried out
do not simultaneously activate contrasting function keys
065209 214
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
496214 E/A-Modul 4: operation steering rear axle activation of function without operation mode B
function is not carried out
check entries (15UW, 15OW, 15UWOW) to E/A-Modul 2, check LSB-connection (see electric circuit diagram)
496440 E/A-Modul 4: operation supports simultaneous UP and DOWN operation of support control unit B
function is not carried out
actuate UP key or DOWN key of the respective support operating unit, start test program support service unit
496441 E/A-Modul 4: operation supports simultaneous IN and OUT operation of support control unit B
function is not carried out
actuate OFF key or ON key of the respective support operating unit, start test program support operating unit
496442 E/A-Modul 4: operation supports simultaneous UP and DOWN operation on upper-carriage monitor B
function is not carried out
actuate UP key or DOWN key of the respective support operating unit, start test program support service unit
496443 E/A-Modul 4: operation supports simultaneous IN and OUT operation on upper-carriage monitor B
function is not carried out
actuate OFF key or ON key of the respective support operating unit, start test program support operating unit
496444 E/A-Modul 4: operation supports simultaneous left and right operation of support control unit B
function is not carried out
activate support from only one operating position or start test program support operating unit
496445 E/A-Modul 4: operation supports simultaneous operation of support control unit and upper-carriage B
function is not carried out
activate support from only one operating position or start test program support operating unit
496446 E/A-Modul 4: operation supports simultaneous operation of support control unit and upper-carriage B
function is not carried out
activate support from only one operating position or start test program support operating unit
065209 215
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
496447 E/A-Modul 4: operation supports operation of support control unit with travel direction D engaged B
function is not carried out
switch transmission to neutral (N)
496448 E/A-Modul 4: operation supports operation of support control unit with travel direction R engaged B
function is not carried out
switch transmission to neutral (N)
496449 E/A-Modul 4: operation supports op. of upper-carriage monitor with travel direction D engaged B
function is not carried out
switch transmission to neutral (N)
496452 E/A-Modul 4: operation supports unauthorised activation of left support control unit key B
left support blocked
release activated key after having authorized function through hand- key
499890 E/A-Modul 4: operation diagnosis system test program not executable as engine is not OFF B
function is not carried out
shut down engine
499892 E/A-Modul 4: operation diagnosis system test program not executable as not in under-carriage op. mode B
function is not carried out
switch over uppercarriage/undercarriage-change-switch to undercarriage operation mode
561002 E/A-Modul 5: system error OS-C167 initialising error test total in EPROM/FLASH erroneous E 2
error indication on display
ignition ON/OFF, with repeated occurrence --> replace E/A-Modul
065209 216
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
572052 E/A-Modul 5: input/output DEA0 output open, to low load, short circuit to supply voltage X653:17 E 1
error report on display
check output for broken wire, check load on output (measure load current), if necessary replace E/A-Modul
572053 E/A-Modul 5: input/output DEA0 transistor current supply insufficient or missing X653:17 E 1
error report on display
check current supply and fuse E/A-Modul, if necessary replace E/A-Modul
572055 E/A-Modul 5: input/output DEA0 excessive temperature, short circuit to ground or overload X653:17 E 1
error report on display
check output for short, current supply, check fuse of E/A-Modul, if necessary replace E/A-Modul
065209 217
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
572152 E/A-Modul 5: input/output DEA1 output open, to low load, short circuit to supply voltage X653:15 E 1
error report on display
check output for broken wire, check load on output (measure load current), if necessary replace E/A-Modul
572153 E/A-Modul 5: input/output DEA1 transistor current supply insufficient or missing X653:15 E 1
error report on display
check current supply and fuse E/A-Modul, if necessary replace E/A-Modul
572155 E/A-Modul 5: input/output DEA1 excessive temperature, short circuit to ground or overload X653:15 E 1
error report on display
check output for short, current supply, check fuse of E/A-Modul, if necessary replace E/A-Modul
572252 E/A-Modul 5: input/output DEA2 output open, to low load, short circuit to supply voltage X653:13 E 1
error report on display
check output for broken wire, check load on output (measure load current), if necessary replace E/A-Modul
572253 E/A-Modul 5: input/output DEA2 transistor current supply insufficient or missing X653:13 E 1
error report on display
check current supply and fuse E/A-Modul, if necessary replace E/A-Modul
572255 E/A-Modul 5: input/output DEA2 excessive temperature, short circuit to ground or overload X653:13 E 1
error report on display
check output for short, current supply, check fuse of E/A-Modul, if necessary replace E/A-Modul
572352 E/A-Modul 5: input/output DEA3 output open, to low load, short circuit to supply voltage X653:11 E 1
error report on display
check output for broken wire, check load on output (measure load current), if necessary replace E/A-Modul
572353 E/A-Modul 5: input/output DEA3 transistor current supply insufficient or missing X653:11 E 1
error report on display
check current supply and fuse E/A-Modul, if necessary replace E/A-Modul
065209 218
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
572355 E/A-Modul 5: input/output DEA3 excessive temperature, short circuit to ground or overload X653:11 E 1
error report on display
check output for short, current supply, check fuse of E/A-Modul, if necessary replace E/A-Modul
572452 E/A-Modul 5: input/output DEA4 output open, to low load, short circuit to supply voltage X653:9 E 1
error report on display
check output for broken wire, check load on output (measure load current), if necessary replace E/A-Modul
572453 E/A-Modul 5: input/output DEA4 transistor current supply insufficient or missing X653:9 E 1
error report on display
check current supply and fuse E/A-Modul, if necessary replace E/A-Modul
572455 E/A-Modul 5: input/output DEA4 excessive temperature, short circuit to ground or overload X653:9 E 1
error report on display
check output for short, current supply, check fuse of E/A-Modul, if necessary replace E/A-Modul
572552 E/A-Modul 5: input/output DEA5 output open, to low load, short circuit to supply voltage X653:7 E 1
error report on display
check output for broken wire, check load on output (measure load current), if necessary replace E/A-Modul
572553 E/A-Modul 5: input/output DEA5 transistor current supply insufficient or missing X653:7 E 1
error report on display
check current supply and fuse E/A-Modul, if necessary replace E/A-Modul
572555 E/A-Modul 5: input/output DEA5 excessive temperature, short circuit to ground or overload X653:7 E 1
error report on display
check output for short, current supply, check fuse of E/A-Modul, if necessary replace E/A-Modul
065209 219
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
572652 E/A-Modul 5: input/output DEA6 output open, to low load, short circuit to supply voltage X653:5 E 1
error report on display
check output for broken wire, check load on output (measure load current), if necessary replace E/A-Modul
572653 E/A-Modul 5: input/output DEA6 transistor current supply insufficient or missing X653:5 E 1
error report on display
check current supply and fuse E/A-Modul, if necessary replace E/A-Modul
572655 E/A-Modul 5: input/output DEA6 excessive temperature, short circuit to ground or overload X653:5 E 1
error report on display
check output for short, current supply, check fuse of E/A-Modul, if necessary replace E/A-Modul
572752 E/A-Modul 5: input/output DEA7 output open, to low load, short circuit to supply voltage X653:3 E 1
error report on display
check output for broken wire, check load on output (measure load current), if necessary replace E/A-Modul
572753 E/A-Modul 5: input/output DEA7 transistor current supply insufficient or missing X653:3 E 1
error report on display
check current supply and fuse E/A-Modul, if necessary replace E/A-Modul
572755 E/A-Modul 5: input/output DEA7 excessive temperature, short circuit to ground or overload X653:3 E 1
error report on display
check output for short, current supply, check fuse of E/A-Modul, if necessary replace E/A-Modul
573482 E/A-Modul 5: voltage input E4 short circuit to ground, open line, constant current 10 mA incorrect X652:9 E 1
gear oil temperature warning light flashing on the display unit
check input signal on the E/A-Modul or sensor
573483 E/A-Modul 5: voltage input E4 short circuit to supply voltage, open line, lack of voltage X652:9 E 1
gear oil temperature warning light flashing on the display unit
check input signal on the E/A-Modul or sensor
065209 220
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
579052 E/A-Modul 5: output A0 output open, to low load, short circuit to supply voltage X653:18 E 1
error report on display
check output for broken wire, check load on output (measure load current), if necessary replace E/A-Modul
579055 E/A-Modul 5: output A0 excessive temperature, short circuit to ground or overload X653:18 E 1
error report on display
check output for short, current supply, check fuse of E/A-Modul, if necessary replace E/A-Modul
579152 E/A-Modul 5: output A1 output open, to low load, short circuit to supply voltage X653:16 E 1
error report on display
check output for broken wire, check load on output (measure load current), if necessary replace E/A-Modul
579155 E/A-Modul 5: output A1 excessive temperature, short circuit to ground or overload X653:16 E 1
error report on display
check output for short, current supply, check fuse of E/A-Modul, if necessary replace E/A-Modul
579250 E/A-Modul 5: bridge output A2 short circuit to ground, junction not supplied X653:14 E 1
error report on display
check output for short, check current supply of load, if necessary replace E/A-Modul
579251 E/A-Modul 5: bridge output A2 short circuit to supply voltage, excessive temperature X653:14 E 1
error report on display
check output for short, check output load (measure load current), if necessary replace E/A-Modul
065209 221
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
579252 E/A-Modul 5: bridge output A2 output open, to low load, short circuit to supply voltage X653:14 E 1
error report on display
check output for broken wire, check load on output (measure load current), if necessary replace E/A-Modul
579253 E/A-Modul 5: bridge output A2 transistor current supply insufficient or missing X653:14 E 1
error report on display
check current supply and fuse E/A-Modul, if necessary replace E/A-Modul
579255 E/A-Modul 5: bridge output A2 excessive temperature, short circuit to ground or overload X653:14 E 1
error report on display
check output for short, current supply, check fuse of E/A-Modul, if necessary replace E/A-Modul
579350 E/A-Modul 5: bridge output A3 short circuit to ground, junction not supplied X653:12 E 1
error report on display
check output for short, check current supply of load, if necessary replace E/A-Modul
579351 E/A-Modul 5: bridge output A3 short circuit to supply voltage, excessive temperature X653:12 E 1
error report on display
check output for short, check output load (measure load current), if necessary replace E/A-Modul
579352 E/A-Modul 5: bridge output A3 output open, to low load, short circuit to supply voltage X653:12 E 1
error report on display
check output for broken wire, check load on output (measure load current), if necessary replace E/A-Modul
579353 E/A-Modul 5: bridge output A3 transistor current supply insufficient or missing X653:12 E 1
error report on display
check current supply and fuse E/A-Modul, if necessary replace E/A-Modul
579355 E/A-Modul 5: bridge output A3 excessive temperature, short circuit to ground or overload X653:12 E 1
error report on display
check output for short, current supply, check fuse of E/A-Modul, if necessary replace E/A-Modul
065209 222
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
584050 E/A-Modul 5: LSB-B participant address 0 reports an incorrect sensor type X653:4/6 E 1
Check Bus configuration in LSB test system, remove faulty / incorrect users from Bus
584150 E/A-Modul 5: LSB-B participant address 1 reports an incorrect sensor type X653:4/6 E 2
entry in error memory, otherwise no reaction, the answer will be interpreted according to the set type characteristics
check address assignment over test system (LSB-screen), install correct sensor
584151 E/A-Modul 5: LSB-B participant address 1 was not configured for the block transfer X653:4/6 E 2
entry in error memory, otherwise no reaction, no block transfer will be carried out
configuration problem, load new Software
584153 E/A-Modul 5: LSB-B participant address 1 no longer reports or withdrawn during running period X653:4/6 E 1
entry in error memory, participant will be deactivated, data buffer to the application will be set to 0
check connection, if connection OK then replace sensor
584154 E/A-Modul 5: LSB-B participant address 1 Features other settings (parameters) as pre-entered set values X653:4/6 E 2
entry in error memory, or no reaction, the sensor data could be incorrect, due to incorrect sensor config
check parameter set/real value through test system (LSB-screen), set sensor to default value
584164 E/A-Modul 5: LSB-B participant address 1 reports tolerable error in self-test X653:4/6 E 1
entry in error memory, otherwise no reaction; note only: sensor still functions correctly
check sensor, clean if necessary, with repeated occurrence replace sensor
584165 E/A-Modul 5: LSB-B participant address 1 reports intolerable error in self-test X653:4/6 E 2
entry in error memory, otherwise no reaction, the error free operation is no longer guaranteed
replace sensor immediately
584166 E/A-Modul 5: LSB-B participant address 1 with software version, that is no longer compatible X653:4/6 E 2
entry in error memory, otherwise no reaction, it will be tried as far as possible to work with the sensor
replace sensor through new part
584250 E/A-Modul 5: LSB-B participant address 2 reports an incorrect sensor type X653:4/6 E 2
entry in error memory, otherwise no reaction, the answer will be interpreted according to the set type characteristics
check address assignment over test system (LSB-screen), install correct sensor
065209 223
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
584251 E/A-Modul 5: LSB-B participant address 2 was not configured for the block transfer X653:4/6 E 2
entry in error memory, otherwise no reaction, no block transfer will be carried out
configuration problem, load new Software
584253 E/A-Modul 5: LSB-B participant address 2 no longer reports or withdrawn during running period X653:4/6 E 1
entry in error memory, participant will be deactivated, data buffer to the application will be set to 0
check connection, if connection OK then replace sensor
584254 E/A-Modul 5: LSB-B participant address 2 Features other settings (parameters) as pre-entered set values X653:4/6 E 2
entry in error memory, or no reaction, the sensor data could be incorrect, due to incorrect sensor config
check parameter set/real value through test system (LSB-screen), set sensor to default value
584264 E/A-Modul 5: LSB-B participant address 2 reports tolerable error in self-test X653:4/6 E 1
entry in error memory, otherwise no reaction; note only: sensor still functions correctly
check sensor, clean if necessary, with repeated occurrence replace sensor
584265 E/A-Modul 5: LSB-B participant address 2 reports intolerable error in self-test X653:4/6 E 2
entry in error memory, otherwise no reaction, the error free operation is no longer guaranteed
replace sensor immediately
584266 E/A-Modul 5: LSB-B participant address 2 with software version, that is no longer compatible X653:4/6 E 2
entry in error memory, otherwise no reaction, it will be tried as far as possible to work with the sensor
replace sensor through new part
584350 E/A-Modul 5: LSB-B participant address 3 reports an incorrect sensor type X653:4/6 E 2
entry in error memory, otherwise no reaction, the answer will be interpreted according to the set type characteristics
check address assignment over test system (LSB-screen), install correct sensor
584351 E/A-Modul 5: LSB-B participant address 3 was not configured for the block transfer X653:4/6 E 2
entry in error memory, otherwise no reaction, no block transfer will be carried out
configuration problem, load new Software
584353 E/A-Modul 5: LSB-B participant address 3 no longer reports or withdrawn during running period X653:4/6 E 1
entry in error memory, participant will be deactivated, data buffer to the application will be set to 0
check connection, if connection OK then replace sensor
065209 224
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
584354 E/A-Modul 5: LSB-B participant address 3 Features other settings (parameters) as pre-entered set values X653:4/6 E 2
entry in error memory, or no reaction, the sensor data could be incorrect, due to incorrect sensor config
check parameter set/real value through test system (LSB-screen), set sensor to default value
584364 E/A-Modul 5: LSB-B participant address 3 reports tolerable error in self-test X653:4/6 E 1
entry in error memory, otherwise no reaction; note only: sensor still functions correctly
check sensor, clean if necessary, with repeated occurrence replace sensor
584365 E/A-Modul 5: LSB-B participant address 3 reports intolerable error in self-test X653:4/6 E 2
entry in error memory, otherwise no reaction, the error free operation is no longer guaranteed
replace sensor immediately
584366 E/A-Modul 5: LSB-B participant address 3 with software version, that is no longer compatible X653:4/6 E 2
entry in error memory, otherwise no reaction, it will be tried as far as possible to work with the sensor
replace sensor through new part
584450 E/A-Modul 5: LSB-B participant address 4 reports an incorrect sensor type X653:4/6 E 2
entry in error memory, otherwise no reaction, the answer will be interpreted according to the set type characteristics
check address assignment over test system (LSB-screen), install correct sensor
584451 E/A-Modul 5: LSB-B participant address 4 was not configured for the block transfer X653:4/6 E 2
entry in error memory, otherwise no reaction, no block transfer will be carried out
configuration problem, load new Software
584453 E/A-Modul 5: LSB-B participant address 4 no longer reports or withdrawn during running period X653:4/6 E 1
entry in error memory, participant will be deactivated, data buffer to the application will be set to 0
check connection, if connection OK then replace sensor
584454 E/A-Modul 5: LSB-B participant address 4 Features other settings (parameters) as pre-entered set values X653:4/6 E 2
entry in error memory, or no reaction, the sensor data could be incorrect, due to incorrect sensor config
check parameter set/real value through test system (LSB-screen), set sensor to default value
584464 E/A-Modul 5: LSB-B participant address 4 reports tolerable error in self-test X653:4/6 E 1
entry in error memory, otherwise no reaction; note only: sensor still functions correctly
check sensor, clean if necessary, with repeated occurrence replace sensor
065209 225
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
584465 E/A-Modul 5: LSB-B participant address 4 reports intolerable error in self-test X653:4/6 E 2
entry in error memory, otherwise no reaction, the error free operation is no longer guaranteed
replace sensor immediately
584466 E/A-Modul 5: LSB-B participant address 4 with software version, that is no longer compatible X653:4/6 E 2
entry in error memory, otherwise no reaction, it will be tried as far as possible to work with the sensor
replace sensor through new part
584550 E/A-Modul 5: LSB-B participant address 5 reports an incorrect sensor type X653:4/6 E 2
entry in error memory, otherwise no reaction, the answer will be interpreted according to the set type characteristics
check address assignment over test system (LSB-screen), install correct sensor
584551 E/A-Modul 5: LSB-B participant address 5 was not configured for the block transfer X653:4/6 E 2
entry in error memory, otherwise no reaction, no block transfer will be carried out
configuration problem, load new Software
584553 E/A-Modul 5: LSB-B participant address 5 no longer reports or withdrawn during running period X653:4/6 E 1
entry in error memory, participant will be deactivated, data buffer to the application will be set to 0
check connection, if connection OK then replace sensor
584554 E/A-Modul 5: LSB-B participant address 5 Features other settings (parameters) as pre-entered set values X653:4/6 E 2
entry in error memory, or no reaction, the sensor data could be incorrect, due to incorrect sensor config
check parameter set/real value through test system (LSB-screen), set sensor to default value
584564 E/A-Modul 5: LSB-B participant address 5 reports tolerable error in self-test X653:4/6 E 1
entry in error memory, otherwise no reaction; note only: sensor still functions correctly
check sensor, clean if necessary, with repeated occurrence replace sensor
584565 E/A-Modul 5: LSB-B participant address 5 reports intolerable error in self-test X653:4/6 E 2
entry in error memory, otherwise no reaction, the error free operation is no longer guaranteed
replace sensor immediately
584566 E/A-Modul 5: LSB-B participant address 5 with software version, that is no longer compatible X653:4/6 E 2
entry in error memory, otherwise no reaction, it will be tried as far as possible to work with the sensor
replace sensor through new part
065209 226
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
584650 E/A-Modul 5: LSB-B participant address 6 reports an incorrect sensor type X653:4/6 E 2
entry in error memory, otherwise no reaction, the answer will be interpreted according to the set type characteristics
check address assignment over test system (LSB-screen), install correct sensor
584651 E/A-Modul 5: LSB-B participant address 6 was not configured for the block transfer X653:4/6 E 2
entry in error memory, otherwise no reaction, no block transfer will be carried out
configuration problem, load new Software
584653 E/A-Modul 5: LSB-B participant address 6 no longer reports or withdrawn during running period X653:4/6 E 1
entry in error memory, participant will be deactivated, data buffer to the application will be set to 0
check connection, if connection OK then replace sensor
584654 E/A-Modul 5: LSB-B participant address 6 Features other settings (parameters) as pre-entered set values X653:4/6 E 2
entry in error memory, or no reaction, the sensor data could be incorrect, due to incorrect sensor config
check parameter set/real value through test system (LSB-screen), set sensor to default value
584664 E/A-Modul 5: LSB-B participant address 6 reports tolerable error in self-test X653:4/6 E 1
entry in error memory, otherwise no reaction; note only: sensor still functions correctly
check sensor, clean if necessary, with repeated occurrence replace sensor
584665 E/A-Modul 5: LSB-B participant address 6 reports intolerable error in self-test X653:4/6 E 2
entry in error memory, otherwise no reaction, the error free operation is no longer guaranteed
replace sensor immediately
584666 E/A-Modul 5: LSB-B participant address 6 with software version, that is no longer compatible X653:4/6 E 2
entry in error memory, otherwise no reaction, it will be tried as far as possible to work with the sensor
replace sensor through new part
587252 E/A-Modul 5: Control data transfer LSB-B has recognised Bus collisions, communication interrupted X653:4/6 E 0
entry in error memory, driver draws itself back from bus, possible release of reset and re-booting of network
with temporary malfunctions error will be eliminated from system itself, otherwise check address assignment of sensor
065209 227
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
587255 E/A-Modul 5: Control data transfer LSB-B Bus connection faulty/defect, short circuit to supply voltage X653:4/6 E 2
entry in error memory, driver tries permanently to re-boot bus, bus boots as soon as error is eliminated
check bus line, sensor (withdraw) and bus circuit board for shorts, check bus fuse on bus circuit board
587256 E/A-Modul 5: Control data transfer LSB-B Bus connection faulty/defect, no supply/short circuit to earth X653:4/6 E 2
entry in error memory, driver tries permanently to re-boot bus, bus boots as soon as error is eliminated
check bus line, sensor (withdraw) and bus circuit board for shorts, check bus fuse on bus circuit board
587257 E/A-Modul 5: Control data transfer LSB-B has recognised network re-set (data transfer starts again) X653:4/6 E 1
entry in error memory, driver re-starts and runs re-booting of network
check bus lines, withdraw sensors successively from bus until malfunction source recognised, replace defective part
587258 E/A-Modul 5: Control data transfer LSB-B recognised participant with incorrect baud rate in bus X653:4/6 E 0
entry in error memory, driver re-starts and runs re-booting of network
will be eliminated from system itself, check address assignment of sensors
587259 E/A-Modul 5: Control data transfer LSB-B recognised communication breakdown in bus X653:4/6 E 0
entry in error memory, driver re-starts and runs re-booting of network
will be eliminated by driver through re-booting of network
587260 E/A-Modul 5: Control data transfer LSB-B driver error: no order to carry out X653:4/6 E 2
entry in error memory, driver runs on normally and waits for bus connection of participant
with temporary malfunctions error will be eliminated by system itself, with incorrect configuration install new software
587261 E/A-Modul 5: Control data transfer LSB-B driver error: undefined message appears X653:4/6 E 2
entry in error memory, driver re-starts and runs re-booting of network
with temporary malf. error will be eliminated by system itself otherwise new Software necessary for error elimination
587262 E/A-Modul 5: Control data transfer LSB-B driver error: initialising error X653:4/6 E 2
entry in error memory, driver re-starts and runs re-booting of network
new Software is necessary for error elimination
587530 E/A-Modul 5: CAN-participant engine Data transfer subscriber transfer cycle exceeded X655:5/6 E 0
CAN-Information from participant has exceeded the defined cycle time
Check CAN network, check faulty Bus user.
587531 E/A-Modul 5: CAN-participant engine Data transfer faulty/missing, max. cycle time exceeded X655:5/6 E 1
parameterised substitute values for receiver signals will be used
Check CAN network, check faulty Bus user.
065209 228
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
587630 E/A-Modul 5: CAN-participant gear Data transfer subscriber transfer cycle exceeded X655:5/6 E 0
CAN-Information from participant has exceeded the defined cycle time
in case bus system is error free, check connection of E/A-Modul to CAN-network, replace E/A-Modul
587631 E/A-Modul 5: CAN-participant gear Data transfer faulty/missing, max. cycle time exceeded X655:5/6 E 1
parameterised substitute values for receiver signals will be used
Check CAN network, check faulty Bus user.
587730 E/A-Modul 5: CAN-participant ABV (ABS/ASR) Data transfer subscriber transfer cycle exceeded X655:5/6 E 0
CAN-Information from participant has exceeded the defined cycle time
in case bus system is error free, check connection of E/A-Modul to CAN-network, replace E/A-Modul
587731 E/A-Modul 5: CAN-participant ABV (ABS/ASR) Data transfer faulty/missing, max. cycle time exceeded X655:5/6 E 1
parameterised substitute values for receiver signals will be used
Check CAN network, check faulty Bus user.
587930 E/A-Modul 5: CAN-participant retarder Data transfer subscriber transfer cycle exceeded X655:5/6 E 0
CAN-Information from participant has exceeded the defined cycle time
in case bus system is error free, check connection of E/A-Modul to CAN-network, replace E/A-Modul
587931 E/A-Modul 5: CAN-participant retarder Data transfer faulty/missing, max. cycle time exceeded X655:5/6 E 1
parameterised substitute values for receiver signals will be used
Check CAN network, check faulty Bus user.
588530 E/A-Modul 5: CAN-participant E/A-Modul 1 Data transfer subscriber transfer cycle exceeded X655:5/6 E 0
CAN-Information from participant has exceeded the defined cycle time
Check CAN network, check faulty Bus user.
588531 E/A-Modul 5: CAN-participant E/A-Modul 1 Data transfer faulty/missing, max. cycle time exceeded X655:5/6 E 1
parameterised substitute values for receiver signals will be used
Check CAN network, check faulty Bus user.
588930 E/A-Modul 5: CAN-participant E/A-Modul 5 Data transfer subscriber transfer cycle exceeded X655:5/6 E 0
CAN-Information from participant has exceeded the defined cycle time
Check CAN network, check faulty Bus user.
588931 E/A-Modul 5: CAN-participant E/A-Modul 5 Data transfer faulty/missing, max. cycle time exceeded X655:5/6 E 1
parameterised substitute values for receiver signals will be used
Check CAN network, check faulty Bus user.
065209 229
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
589900 E/A-Modul 5: Control data transfer CAN internal error at Register-check Controller X655:5/6 E 2
internal error, CAN-transmission will be aborted
replace E/A-Modul
589901 E/A-Modul 5: Control data transfer CAN internal error at RAM-check Controller X655:5/6 E 2
internal error, CAN-transmission will be aborted
replace E/A-Modul
589902 E/A-Modul 5: Control data transfer CAN Configuration error Software X655:5/6 E 2
internal error, CAN-transmission will be aborted
replace E/A-Modul, check Software (test system ZE)
589903 E/A-Modul 5: Control data transfer CAN Transfer interrupted after continuous error X655:5/6 E 1
CAN-Transmission will be aborted
Check CAN network, replace E/A-Modul
589910 E/A-Modul 5: Control data transfer CAN short-term error in bus connection X655:5/6 E 0
re-attachment of Modul to bus transmission
Check CAN network, connect individual Bus users and check if error has been remedied
589911 E/A-Modul 5: Control data transfer CAN permanent error bus connection X655:5/6 E 1
cyclic re-attachment of Modul to bus transmission
Check CAN network, connect individual Bus users and check if error has been remedied
589920 E/A-Modul 5: Control data transfer CAN active participant not responding X655:5/6 E 0
parameterised substitute values for receiver signals will be used
check error report for missing participant(s), test system ZE
589921 E/A-Modul 5: Control data transfer CAN No active subscriber responding X655:5/6 E 1
parameterised substitute values for receiver signals will be used
in case bus system is error free, check connection of E/A-Modul to CAN-network, replace E/A-Modul
589950 E/A-Modul 5: Control data transfer CAN erroneous command test system X655:5/6 E 1
no reaction to unknown test system control command in CAN-System Software
check Software (test system)
592000 E/A-Modul 5: control engine long-term disruption E/A-Modul <-> accelerator crane op. cab E 1
engine in idle speed, after re-generation of the connection first idle speed
check LSB-connection ZE<>E/A-Modul, crane operators cab accelerator or connection to ZE (test system)
065209 230
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
592001 E/A-Modul 5: control engine long-term disruption E/A-Modul <-> engine control E 1
engine control and E/A-Modul at emergency speed
engine control and E/A-Modul, check CAN-bus-connections
592005 E/A-Modul 5: control engine condition erroneous: CAN-signal engine ON <-> load ctrl. D+ OFF E 1
identification engine ON/OFF possibly erronous
check alternator line connection to display unit, check alternator signal
592006 E/A-Modul 5: control engine condition erroneous: CAN-signal engine OFF <-> load ctrl. D+ ON E 1
identification engine ON/OFF possibly erronous
check alternator line connection to display unit, check alternator signal
592121 E/A-Modul 5: control transmission shift selector-specified gear range/travel direction erroneous E 1
travel switch signals will be switched off, emergency operation
check CAN-bus system, Check Software in E/A-Modules (test system)
592957 E/A-Modul 5: control brakes/pneumatic system brake pressure switch 0.5 bar signal "op. brakes active" missing E 1
operation brake signal activated if circle 1+2 > 1,5 bar, stronger application of the brake necessary
check connection from brake pressure switch to E/A-Modul, check signals to entries from E/A-Modul, replace E/A-Modul
593160 E/A-Modul 5: instruments operators cab auxiliary brakes signal level 1 missing E 1
auxiliary brake(s) is/are not actuated
check connection from brake lever to E/A-Modul, check signals to entries from E/A-Modul, replace E/A-Modul
593161 E/A-Modul 5: instruments operators cab auxiliary brakes signal level 2 missing E 1
auxiliary brake(s) is/are not actuated
check connection from brake lever to E/A-Modul, check signals to entries from E/A-Modul, replace E/A-Modul
593162 E/A-Modul 5: instruments operators cab auxiliary brakes signal level 3 missing E 1
auxiliary brake(s) is/are not actuated
check connection from brake lever to E/A-Modul, check signals to entries from E/A-Modul, replace E/A-Modul
593165 E/A-Modul 5: instruments operators cab auxiliary brakes signal level 1 short to supply voltage E 1
auxiliary brake(s) is/are not actuated
check connection from brake lever to E/A-Modul, check signals to entries from E/A-Modul, replace E/A-Modul
593166 E/A-Modul 5: instruments operators cab auxiliary brakes signal level 2 short to supply voltage E 1
auxiliary brake(s) is/are not actuated
check connection from brake lever to E/A-Modul, check signals to entries from E/A-Modul, replace E/A-Modul
065209 231
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
593167 E/A-Modul 5: instruments operators cab auxiliary brakes signal level 3 short to supply voltage E 1
auxiliary brake(s) is/are not actuated
check connection from brake lever to E/A-Modul, check signals to entries from E/A-Modul, replace E/A-Modul
593175 E/A-Modul 5: instruments operators cab Tempomat lever no signal or supply voltage missing E 1
auxiliary brake(s) is/are not actuated
check connection from brake lever to E/A-Modul, check signals to entries from E/A-Modul, replace E/A-Modul
593176 E/A-Modul 5: instruments operators cab Tempomat lever signal SET+ no signal or short to ground E 1
Tempomat/Temposet-functions blocked
check connection from Tempomat lever to E/A-Modul, check signals to entries from E/A-Modul, replace E/A-Modul
593177 E/A-Modul 5: instruments operators cab Tempomat lever signal SET- no signal or short to ground E 1
Tempomat/Temposet-functions blocked
check connection from Tempomat lever to E/A-Modul, check signals to entries from E/A-Modul, replace E/A-Modul
593178 E/A-Modul 5: instruments operators cab Tempomat lever signal OFF no signal or short to ground E 1
Tempomat/Temposet-functions blocked
check connection from Tempomat lever to E/A-Modul, check signals to entries from E/A-Modul, replace E/A-Modul
593179 E/A-Modul 5: instruments operators cab Tempomat lever signal QUIT short to supply voltage E 1
Tempomat/Temposet-functions blocked
check connection from Tempomat lever to E/A-Modul, check signals to entries from E/A-Modul, replace E/A-Modul
593180 E/A-Modul 5: instruments operators cab Tempomat lever signal TEMPOSET short to supply voltage E 1
Tempomat/Temposet-functions blocked
check connection from Tempomat lever to E/A-Modul, check signals to entries from E/A-Modul, replace E/A-Modul
593181 E/A-Modul 5: instruments operators cab Tempomat lever signal TEMPOMAT SET+ without returning (QUIT) E 1
Tempomat/Temposet-functions blocked
check connection from Tempomat lever to E/A-Modul, check signals to entries from E/A-Modul, replace E/A-Modul
593182 E/A-Modul 5: instruments operators cab Tempomat lever signal TEMPOMAT SET- without returning (QUIT) E 1
Tempomat/Temposet-functions blocked
check connection from Tempomat lever to E/A-Modul, check signals to entries from E/A-Modul, replace E/A-Modul
593183 E/A-Modul 5: instruments operators cab Tempomat lever signal OFF without returning (QUIT) E 1
Tempomat/Temposet-functions blocked
check connection from Tempomat lever to E/A-Modul, check signals to entries from E/A-Modul, replace E/A-Modul
065209 232
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
593184 E/A-Modul 5: instruments operators cab Tempomat lever signals SET+, SET-, OFF erroneous combination E 1
Tempomat/Temposet-functions blocked
check connection from Tempomat lever to E/A-Modul, check signals to entries from E/A-Modul, replace E/A-Modul
595074 E/A-Modul 5: operation engine accelerator operators cab blocked in upper-carriage operation mode B
function is not carried out
595075 E/A-Modul 5: operation engine accelerator operators cab blocked in support operation mode B
function is not carried out
595076 E/A-Modul 5: operation engine accelerator op. cab blocked when auxiliary brake active or selected B
function is not carried out
595077 E/A-Modul 5: operation engine accelerator upper-carr. activated on malf. of GAS <-> E/A-Modul B
function is not carried out
065209 233
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
596885 E/A-Modul 5: operation instruments operators cab Tempomat lever blocked in upper-carriage operation mode B
function is not carried out
596886 E/A-Modul 5: operation instruments operators cab Tempomat lever blocked in support operation mode B
function is not carried out
661002 E/A-Modul 6: system error OS-C167 initialising error test total in EPROM/FLASH erroneous E 2
error indication on display
ignition ON/OFF, with repeated occurrence --> replace E/A-Modul
065209 234
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
672052 E/A-Modul 6: input/output DEA0 output open, to low load, short circuit to supply voltage X663:17 E 1
error report on display
check output for broken wire, check load on output (measure load current), if necessary replace E/A-Modul
672053 E/A-Modul 6: input/output DEA0 transistor current supply insufficient or missing X663:17 E 1
error report on display
check current supply and fuse E/A-Modul, if necessary replace E/A-Modul
672055 E/A-Modul 6: input/output DEA0 excessive temperature, short circuit to ground or overload X663:17 E 1
error report on display
check output for short, current supply, check fuse of E/A-Modul, if necessary replace E/A-Modul
672152 E/A-Modul 6: input/output DEA1 output open, to low load, short circuit to supply voltage X663:15 E 1
error report on display
check output for broken wire, check load on output (measure load current), if necessary replace E/A-Modul
672153 E/A-Modul 6: input/output DEA1 transistor current supply insufficient or missing X663:15 E 1
error report on display
check current supply and fuse E/A-Modul, if necessary replace E/A-Modul
672155 E/A-Modul 6: input/output DEA1 excessive temperature, short circuit to ground or overload X663:15 E 1
error report on display
check output for short, current supply, check fuse of E/A-Modul, if necessary replace E/A-Modul
672252 E/A-Modul 6: input/output DEA2 output open, to low load, short circuit to supply voltage X663:13 E 1
error report on display
check output for broken wire, check load on output (measure load current), if necessary replace E/A-Modul
065209 235
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
672253 E/A-Modul 6: input/output DEA2 transistor current supply insufficient or missing X663:13 E 1
error report on display
check current supply and fuse E/A-Modul, if necessary replace E/A-Modul
672255 E/A-Modul 6: input/output DEA2 excessive temperature, short circuit to ground or overload X663:13 E 1
error report on display
check output for short, current supply, check fuse of E/A-Modul, if necessary replace E/A-Modul
672352 E/A-Modul 6: input/output DEA3 output open, to low load, short circuit to supply voltage X663:11 E 1
error report on display
check output for broken wire, check load on output (measure load current), if necessary replace E/A-Modul
672353 E/A-Modul 6: input/output DEA3 transistor current supply insufficient or missing X663:11 E 1
error report on display
check current supply and fuse E/A-Modul, if necessary replace E/A-Modul
672355 E/A-Modul 6: input/output DEA3 excessive temperature, short circuit to ground or overload X663:11 E 1
error report on display
check output for short, current supply, check fuse of E/A-Modul, if necessary replace E/A-Modul
672452 E/A-Modul 6: input/output DEA4 output open, to low load, short circuit to supply voltage X663:9 E 1
error report on display
check output for broken wire, check load on output (measure load current), if necessary replace E/A-Modul
672453 E/A-Modul 6: input/output DEA4 transistor current supply insufficient or missing X663:9 E 1
error report on display
check current supply and fuse E/A-Modul, if necessary replace E/A-Modul
065209 236
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
672455 E/A-Modul 6: input/output DEA4 excessive temperature, short circuit to ground or overload X663:9 E 1
error report on display
check output for short, current supply, check fuse of E/A-Modul, if necessary replace E/A-Modul
672552 E/A-Modul 6: input/output DEA5 output open, to low load, short circuit to supply voltage X663:7 E 1
error report on display
check output for broken wire, check load on output (measure load current), if necessary replace E/A-Modul
672553 E/A-Modul 6: input/output DEA5 transistor current supply insufficient or missing X663:7 E 1
error report on display
check current supply and fuse E/A-Modul, if necessary replace E/A-Modul
672555 E/A-Modul 6: input/output DEA5 excessive temperature, short circuit to ground or overload X663:7 E 1
error report on display
check output for short, current supply, check fuse of E/A-Modul, if necessary replace E/A-Modul
672652 E/A-Modul 6: input/output DEA6 output open, to low load, short circuit to supply voltage X663:5 E 1
error report on display
check output for broken wire, check load on output (measure load current), if necessary replace E/A-Modul
672653 E/A-Modul 6: input/output DEA6 transistor current supply insufficient or missing X663:5 E 1
error report on display
check current supply and fuse E/A-Modul, if necessary replace E/A-Modul
672655 E/A-Modul 6: input/output DEA6 excessive temperature, short circuit to ground or overload X663:5 E 1
error report on display
check output for short, current supply, check fuse of E/A-Modul, if necessary replace E/A-Modul
672752 E/A-Modul 6: input/output DEA7 output open, to low load, short circuit to supply voltage X663:3 E 1
error report on display
check output for broken wire, check load on output (measure load current), if necessary replace E/A-Modul
065209 237
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
672753 E/A-Modul 6: input/output DEA7 transistor current supply insufficient or missing X663:3 E 1
error report on display
check current supply and fuse E/A-Modul, if necessary replace E/A-Modul
672755 E/A-Modul 6: input/output DEA7 excessive temperature, short circuit to ground or overload X663:3 E 1
error report on display
check output for short, current supply, check fuse of E/A-Modul, if necessary replace E/A-Modul
673781 E/A-Modul 6: voltage input E7 short circuit to supply voltage, open line X662:3 E 1
display Liccon:??? %
check input signal on the E/A-Modul or sensor
679052 E/A-Modul 6: output A0 output open, to low load, short circuit to supply voltage X663:18 E 1
error report on display
check output for broken wire, check load on output (measure load current), if necessary replace E/A-Modul
679055 E/A-Modul 6: output A0 excessive temperature, short circuit to ground or overload X663:18 E 1
error report on display
check output for short, current supply, check fuse of E/A-Modul, if necessary replace E/A-Modul
679152 E/A-Modul 6: output A1 output open, to low load, short circuit to supply voltage X663:16 E 1
error report on display
check output for broken wire, check load on output (measure load current), if necessary replace E/A-Modul
065209 238
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
679155 E/A-Modul 6: output A1 excessive temperature, short circuit to ground or overload X663:16 E 1
error report on display
check output for short, current supply, check fuse of E/A-Modul, if necessary replace E/A-Modul
679250 E/A-Modul 6: bridge output A2 short circuit to ground, junction not supplied X663:14 E 1
error report on display
check output for short, check current supply of load, if necessary replace E/A-Modul
679251 E/A-Modul 6: bridge output A2 short circuit to supply voltage, excessive temperature X663:14 E 1
error report on display
check output for short, check output load (measure load current), if necessary replace E/A-Modul
679252 E/A-Modul 6: bridge output A2 output open, to low load, short circuit to supply voltage X663:14 E 1
error report on display
check output for broken wire, check load on output (measure load current), if necessary replace E/A-Modul
679253 E/A-Modul 6: bridge output A2 transistor current supply insufficient or missing X663:14 E 1
error report on display
check current supply and fuse E/A-Modul, if necessary replace E/A-Modul
679255 E/A-Modul 6: bridge output A2 excessive temperature, short circuit to ground or overload X663:14 E 1
error report on display
check output for short, current supply, check fuse of E/A-Modul, if necessary replace E/A-Modul
679350 E/A-Modul 6: bridge output A3 short circuit to ground, junction not supplied X663:12 E 1
error report on display
check output for short, check current supply of load, if necessary replace E/A-Modul
679351 E/A-Modul 6: bridge output A3 short circuit to supply voltage, excessive temperature X663:12 E 1
error report on display
check output for short, check output load (measure load current), if necessary replace E/A-Modul
065209 239
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
679352 E/A-Modul 6: bridge output A3 output open, to low load, short circuit to supply voltage X663:12 E 1
error report on display
check output for broken wire, check load on output (measure load current), if necessary replace E/A-Modul
679353 E/A-Modul 6: bridge output A3 transistor current supply insufficient or missing X663:12 E 1
error report on display
check current supply and fuse E/A-Modul, if necessary replace E/A-Modul
679355 E/A-Modul 6: bridge output A3 excessive temperature, short circuit to ground or overload X663:12 E 1
error report on display
check output for short, current supply, check fuse of E/A-Modul, if necessary replace E/A-Modul
684150 E/A-Modul 6: LSB-B participant address 1 reports an incorrect sensor type X663:4/6 E 2
entry in error memory, otherwise no reaction, the answer will be interpreted according to the set type characteristics
check address assignment over test system (LSB-screen), install correct sensor
684151 E/A-Modul 6: LSB-B participant address 1 was not configured for the block transfer X663:4/6 E 2
entry in error memory, otherwise no reaction, no block transfer will be carried out
configuration problem, load new Software
684153 E/A-Modul 6: LSB-B participant address 1 no longer reports or withdrawn during running period X663:4/6 E 1
entry in error memory, participant will be deactivated, data buffer to the application will be set to 0
check connection, if connection OK then replace sensor
684154 E/A-Modul 6: LSB-B participant address 1 Features other settings (parameters) as pre-entered set values X663:4/6 E 2
entry in error memory, or no reaction, the sensor data could be incorrect, due to incorrect sensor config
check parameter set/real value through test system (LSB-screen), set sensor to default value
684164 E/A-Modul 6: LSB-B participant address 1 reports tolerable error in self-test X663:4/6 E 1
entry in error memory, otherwise no reaction; note only: sensor still functions correctly
check sensor, clean if necessary, with repeated occurrence replace sensor
684165 E/A-Modul 6: LSB-B participant address 1 reports intolerable error in self-test X663:4/6 E 2
entry in error memory, otherwise no reaction, the error free operation is no longer guaranteed
replace sensor immediately
065209 240
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
684166 E/A-Modul 6: LSB-B participant address 1 with software version, that is no longer compatible X663:4/6 E 2
entry in error memory, otherwise no reaction, it will be tried as far as possible to work with the sensor
replace sensor through new part
684250 E/A-Modul 6: LSB-B participant address 2 reports an incorrect sensor type X663:4/6 E 2
entry in error memory, otherwise no reaction, the answer will be interpreted according to the set type characteristics
check address assignment over test system (LSB-screen), install correct sensor
684251 E/A-Modul 6: LSB-B participant address 2 was not configured for the block transfer X663:4/6 E 2
entry in error memory, otherwise no reaction, no block transfer will be carried out
configuration problem, load new Software
684253 E/A-Modul 6: LSB-B participant address 2 no longer reports or withdrawn during running period X663:4/6 E 1
entry in error memory, participant will be deactivated, data buffer to the application will be set to 0
check connection, if connection OK then replace sensor
684254 E/A-Modul 6: LSB-B participant address 2 Features other settings (parameters) as pre-entered set values X663:4/6 E 2
entry in error memory, or no reaction, the sensor data could be incorrect, due to incorrect sensor config
check parameter set/real value through test system (LSB-screen), set sensor to default value
684264 E/A-Modul 6: LSB-B participant address 2 reports tolerable error in self-test X663:4/6 E 1
entry in error memory, otherwise no reaction; note only: sensor still functions correctly
check sensor, clean if necessary, with repeated occurrence replace sensor
684265 E/A-Modul 6: LSB-B participant address 2 reports intolerable error in self-test X663:4/6 E 2
entry in error memory, otherwise no reaction, the error free operation is no longer guaranteed
replace sensor immediately
684266 E/A-Modul 6: LSB-B participant address 2 with software version, that is no longer compatible X663:4/6 E 2
entry in error memory, otherwise no reaction, it will be tried as far as possible to work with the sensor
replace sensor through new part
065209 241
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
687252 E/A-Modul 6: Control data transfer LSB-B has recognised Bus collisions, communication interrupted X663:4/6 E 0
entry in error memory, driver draws itself back from bus, possible release of reset and re-booting of network
with temporary malfunctions error will be eliminated from system itself, otherwise check address assignment of sensor
687255 E/A-Modul 6: Control data transfer LSB-B Bus connection faulty/defect, short circuit to supply voltage X663:4/6 E 2
entry in error memory, driver tries permanently to re-boot bus, bus boots as soon as error is eliminated
check bus line, sensor (withdraw) and bus circuit board for shorts, check bus fuse on bus circuit board
687256 E/A-Modul 6: Control data transfer LSB-B Bus connection faulty/defect, no supply/short circuit to earth X663:4/6 E 2
entry in error memory, driver tries permanently to re-boot bus, bus boots as soon as error is eliminated
check bus line, sensor (withdraw) and bus circuit board for shorts, check bus fuse on bus circuit board
687257 E/A-Modul 6: Control data transfer LSB-B has recognised network re-set (data transfer starts again) X663:4/6 E 1
entry in error memory, driver re-starts and runs re-booting of network
check bus lines, withdraw sensors successively from bus until malfunction source recognised, replace defective part
687258 E/A-Modul 6: Control data transfer LSB-B recognised participant with incorrect baud rate in bus X663:4/6 E 0
entry in error memory, driver re-starts and runs re-booting of network
will be eliminated from system itself, check address assignment of sensors
687259 E/A-Modul 6: Control data transfer LSB-B recognised communication breakdown in bus X663:4/6 E 0
entry in error memory, driver re-starts and runs re-booting of network
will be eliminated by driver through re-booting of network
687260 E/A-Modul 6: Control data transfer LSB-B driver error: no order to carry out X663:4/6 E 2
entry in error memory, driver runs on normally and waits for bus connection of participant
with temporary malfunctions error will be eliminated by system itself, with incorrect configuration install new software
687261 E/A-Modul 6: Control data transfer LSB-B driver error: undefined message appears X663:4/6 E 2
entry in error memory, driver re-starts and runs re-booting of network
with temporary malf. error will be eliminated by system itself otherwise new Software necessary for error elimination
687262 E/A-Modul 6: Control data transfer LSB-B driver error: initialising error X663:4/6 E 2
entry in error memory, driver re-starts and runs re-booting of network
new Software is necessary for error elimination
687530 E/A-Modul 6: CAN-participant engine Data transfer subscriber transfer cycle exceeded X665:5/6 E 0
CAN-Information from participant has exceeded the defined cycle time
Check CAN network, check faulty Bus user.
065209 242
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
687531 E/A-Modul 6: CAN-participant engine Data transfer faulty/missing, max. cycle time exceeded X665:5/6 E 1
parameterised substitute values for receiver signals will be used
Check CAN network, check faulty Bus user.
689030 E/A-Modul 6: CAN-participant E/A-Modul 6 Data transfer subscriber transfer cycle exceeded X665:5/6 E 0
CAN-Transmission will be aborted
Check CAN network, replace E/A-Modul
689031 E/A-Modul 6: CAN-participant E/A-Modul 6 Data transfer faulty/missing, max. cycle time exceeded X665:5/6 E 1
CAN-Information from participant has exceeded the defined cycle time
Check CAN network, check faulty Bus user.
689900 E/A-Modul 6: Control data transfer CAN internal error at Register-check Controller X665:5/6 E 2
internal error, CAN-transmission will be aborted
replace E/A-Modul
689901 E/A-Modul 6: Control data transfer CAN internal error at RAM-check Controller X665:5/6 E 2
internal error, CAN-transmission will be aborted
replace E/A-Modul
689902 E/A-Modul 6: Control data transfer CAN Configuration error Software X665:5/6 E 2
internal error, CAN-transmission will be aborted
replace E/A-Modul, check Software (test system ZE)
689903 E/A-Modul 6: Control data transfer CAN Transfer interrupted after continuous error X665:5/6 E 1
CAN-Transmission will be aborted
Check CAN network, replace E/A-Modul
689910 E/A-Modul 6: Control data transfer CAN short-term error in bus connection X665:5/6 E 0
re-attachment of Modul to bus transmission
Check CAN network, connect individual Bus users and check if error has been remedied
689911 E/A-Modul 6: Control data transfer CAN permanent error bus connection X665:5/6 E 1
cyclic re-attachment of Modul to bus transmission
Check CAN network, connect individual Bus users and check if error has been remedied
689920 E/A-Modul 6: Control data transfer CAN active participant not responding X665:5/6 E 0
parameterised substitute values for receiver signals will be used
check error report for missing participant(s), test system ZE
065209 243
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
689921 E/A-Modul 6: Control data transfer CAN No active subscriber responding X665:5/6 E 1
parameterised substitute values for receiver signals will be used
in case bus system is error free, check connection of E/A-Modul to CAN-network, replace E/A-Modul
689950 E/A-Modul 6: Control data transfer CAN erroneous command test system X665:5/6 E 1
no reaction to unknown test system control command in CAN-System Software
check Software (test system)
692000 E/A-Modul 6: control engine long-term disruption E/A-Modul <-> accelerator crane op. cab E 1
engine in idle speed, after re-generation of the connection first idle speed
check LSB-connection ZE<>E/A-Modul, crane operators cab accelerator or connection to ZE (test system)
692001 E/A-Modul 6: control engine long-term disruption E/A-Modul <-> engine control E 1
with permanent CAN-disruption engine control goes to emergency speed, ctrl. through E/A-Modul also emergency speed
After re-establishment of the CAN-communication the motor electronics remain in emergency speed --> ignition on/off
692005 E/A-Modul 6: control engine condition erroneous: CAN-signal engine ON <-> load ctrl. D+ OFF E 1
692006 E/A-Modul 6: control engine condition erroneous: CAN-signal engine OFF <-> load ctrl. D+ ON E 1
695050 E/A-Modul 6: operation engine no engine start possible as engine already recognized as ON B
function is not carried out
695076 E/A-Modul 6: operation engine accelerator op. cab blocked when auxiliary brake active or selected B
function is not carried out
695077 E/A-Modul 6: operation engine accelerator upper-carr. activated on malf. of GAS <-> E/A-Modul B
function is not carried out
065209 244
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
810162 ABV: CAN-bus system Speed signal Tachograph to CAN faulty/missing/implausible X94:1/2/3 E 1
Machine has no ABS-/ASR function, gear possibly uncomfortable when switching
check CAN-network, ABV-control device, speed signal C3, E/A-Modul 5
810168 ABV: CAN-bus system CAN-communication engine or E/A-Modul 5 faulty/not present X94:1/2/3 E 0
Machine has no ABS-/ASR function, gear possibly uncomfortable when switching
check CAN-network, check/replace ABV-control device
811001 ABV: control device error or power supply Kl.15/30 excess voltage X94:7/9 E 1
Machine has no ABS-/ASR function, gear possibly uncomfortable when switching
check net supply control device
811002 ABV: control device error or power supply Kl.15/30 voltage below required value X94:7/9 E 1
Machine has no ABS-/ASR function, gear possibly uncomfortable when switching
check net supply control device
811010 ABV: control device error or power supply Kl.15/30 defect X94:7/9 E 1
Machine has no ABS-/ASR function, gear possibly uncomfortable when switching
replace control device
811012 ABV: control device error or power supply Kl.15/30 incorrect parameters X94:7/9 E 1
Machine has no ABS-/ASR function, gear possibly uncomfortable when switching
replace control device
065209 245
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
811029 ABV: control device error or power supply Kl.15/30 monitor switch time for solenoid valve actuated X94:7/9 E 0
Machine has no ABS-/ASR function, gear possibly uncomfortable when switching
check solenoid valve, control device
811094 ABV: control device error or power supply Kl.15/30 Wheel speeds/tyre dimensions implausible, incorrect parameterisation X94:7/9 E 1
Machine has no ABS-/ASR function, gear possibly uncomfortable when switching
check tires, magnet wheels, sensors
811102 ABV: control device error or power supply Kl.15/30 voltage below required value X94:7/9 E 1
Machine has no ABS-/ASR function, gear possibly uncomfortable when switching
check net supply control device
811103 ABV: control device error or power supply Kl.15/30 interruption X94:7/9 E 1
Machine has no ABS-/ASR function, gear possibly uncomfortable when switching
check net supply control device
811202 ABV: control device error or power supply Kl.15/30 voltage below required value X94:7/9 E 1
Machine has no ABS-/ASR function, gear possibly uncomfortable when switching
check net supply control device
811203 ABV: control device error or power supply Kl.15/30 interruption X94:7/9 E 1
Machine has no ABS-/ASR function, gear possibly uncomfortable when switching
check net supply control device
811602 ABV: control device error, power supply Kl.31 voltage below required value X94:10/12 E 1
Machine has no ABS-/ASR function, gear possibly uncomfortable when switching
check net supply control device
811609 ABV: control device error, power supply Kl.31 interruption X94:10/12 E 1
Machine has no ABS-/ASR function, gear possibly uncomfortable when switching
check net supply control device
811702 ABV: control device error, power supply Kl.31 voltage below required value X94:10/12 E 1
Machine has no ABS-/ASR function, gear possibly uncomfortable when switching
check net supply control device
811709 ABV: control device error, power supply Kl.31 interruption X94:10/12 E 1
Machine has no ABS-/ASR function, gear possibly uncomfortable when switching
check net supply control device
065209 246
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
813021 ABV: ABS-solenoid valve front axle right short circuit to ground X96:7/8/9 E 1
Machine has no ABS-/ASR function, gear possibly uncomfortable when switching
Check cabling, shut-down resistance, control equipment
813022 ABV: ABS-solenoid valve front axle right short circuit to supply voltage X96:7/8/9 E 1
Machine has no ABS-/ASR function, gear possibly uncomfortable when switching
Check cabling, shut-down resistance, control equipment
065209 247
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
813027 ABV: ABS-solenoid valve front axle right short circuit to ground X96:7/8/9 E 1
Machine has no ABS-/ASR function, gear possibly uncomfortable when switching
Check cabling, shut-down resistance, control equipment
813028 ABV: ABS-solenoid valve front axle right short circuit to supply voltage X96:7/8/9 E 1
Machine has no ABS-/ASR function, gear possibly uncomfortable when switching
Check cabling, shut-down resistance, control equipment
813030 ABV: ABS-solenoid valve front axle right external control X96:7/8/9 E 2
Machine has no ABS-/ASR function, gear possibly uncomfortable when switching
Check cabling, shut-down resistance, control equipment
813121 ABV: ABS-solenoid valve front axle left short circuit to ground X95:1/2/3 E 1
Machine has no ABS-/ASR function, gear possibly uncomfortable when switching
Check cabling, shut-down resistance, control equipment
813122 ABV: ABS-solenoid valve front axle left short circuit to supply voltage X95:1/2/3 E 1
Machine has no ABS-/ASR function, gear possibly uncomfortable when switching
Check cabling, shut-down resistance, control equipment
813127 ABV: ABS-solenoid valve front axle left short circuit to ground X95:1/2/3 E 1
Machine has no ABS-/ASR function, gear possibly uncomfortable when switching
Check cabling, shut-down resistance, control equipment
065209 248
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
813128 ABV: ABS-solenoid valve front axle left short circuit to supply voltage X95:1/2/3 E 1
Machine has no ABS-/ASR function, gear possibly uncomfortable when switching
Check cabling, shut-down resistance, control equipment
813130 ABV: ABS-solenoid valve front axle left external control X95:1/2/3 E 2
Machine has no ABS-/ASR function, gear possibly uncomfortable when switching
Check cabling, shut-down resistance, control equipment
813221 ABV: ABS-solenoid valve rear axle right short circuit to ground X97:10/11/12 E 1
Machine has no ABS-/ASR function, gear possibly uncomfortable when switching
Check cabling, shut-down resistance, control equipment
813222 ABV: ABS-solenoid valve rear axle right short circuit to supply voltage X97:10/11/12 E 1
Machine has no ABS-/ASR function, gear possibly uncomfortable when switching
Check cabling, shut-down resistance, control equipment
813227 ABV: ABS-solenoid valve rear axle right short circuit to ground X97:10/11/12 E 1
Machine has no ABS-/ASR function, gear possibly uncomfortable when switching
Check cabling, shut-down resistance, control equipment
813228 ABV: ABS-solenoid valve rear axle right short circuit to supply voltage X97:10/11/12 E 1
Machine has no ABS-/ASR function, gear possibly uncomfortable when switching
Check cabling, shut-down resistance, control equipment
813230 ABV: ABS-solenoid valve rear axle right external control X97:10/11/12 E 2
Machine has no ABS-/ASR function, gear possibly uncomfortable when switching
Check cabling, shut-down resistance, control equipment
065209 249
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
813321 ABV: ABS-solenoid valve rear axle left short circuit to ground X97:1/2/3 E 1
Machine has no ABS-/ASR function, gear possibly uncomfortable when switching
Check cabling, shut-down resistance, control equipment
813322 ABV: ABS-solenoid valve rear axle left short circuit to supply voltage X97:1/2/3 E 1
Machine has no ABS-/ASR function, gear possibly uncomfortable when switching
Check cabling, shut-down resistance, control equipment
813327 ABV: ABS-solenoid valve rear axle left short circuit to ground X97:1/2/3 E 1
Machine has no ABS-/ASR function, gear possibly uncomfortable when switching
Check cabling, shut-down resistance, control equipment
813328 ABV: ABS-solenoid valve rear axle left short circuit to supply voltage X97:1/2/3 E 1
Machine has no ABS-/ASR function, gear possibly uncomfortable when switching
Check cabling, shut-down resistance, control equipment
813330 ABV: ABS-solenoid valve rear axle left external control X97:1/2/3 E 2
Machine has no ABS-/ASR function, gear possibly uncomfortable when switching
Check cabling, shut-down resistance, control equipment
813604 ABV: valve front axle right and rear axle left short circuit to ground X96/X97 E 1
Machine has no ABS-/ASR function, gear possibly uncomfortable when switching
Check cabling, shut-down resistance, control equipment
813605 ABV: valve front axle right and rear axle left short circuit to supply voltage X96/X97 E 1
Machine has no ABS-/ASR function, gear possibly uncomfortable when switching
Check cabling, shut-down resistance, control equipment
065209 250
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
813704 ABV: valve front axle left and rear axle right short circuit to ground X96/X98 E 1
Machine has no ABS-/ASR function, gear possibly uncomfortable when switching
Check cabling, shut-down resistance, control equipment
813705 ABV: valve front axle left and rear axle right short circuit to supply voltage X96/X98 E 1
Machine has no ABS-/ASR function, gear possibly uncomfortable when switching
Check cabling, shut-down resistance, control equipment
814041 ABV: speed sensor front axle right short circuit to ground X96:4/5 E 1
Machine has no ABS-/ASR function, recognition of wheel speeds defective, gear possibly uncomfortable when switching
check sensor voltage, Ohm resistance of cabling
814042 ABV: speed sensor front axle right short circuit to supply voltage X96:4/5 E 1
Machine has no ABS-/ASR function, recognition of wheel speeds defective, gear possibly uncomfortable when switching
check sensor voltage, Ohm resistance of cabling
814044 ABV: speed sensor front axle right winding short X96:4/5 E 1
Machine has no ABS-/ASR function, recognition of wheel speeds defective, gear possibly uncomfortable when switching
check sensor voltage, Ohm resistance of cabling
065209 251
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
814045 ABV: speed sensor front axle right magnet wheel defect X96:4/5 E 1
Machine has no ABS-/ASR function, recognition of wheel speeds defective, gear possibly uncomfortable when switching
check sensor voltage, Ohm resistance of cabling, magnet wheel
814046 ABV: speed sensor front axle right sensor vibration X96:4/5 E 0
Machine has no ABS-/ASR function, recognition of wheel speeds defective, gear possibly uncomfortable when switching
check sensor voltage, Ohm resistance of cabling, magnet wheel
814047 ABV: speed sensor front axle right shimmed magnet wheel X96:4/5 E 0
Machine has no ABS-/ASR function, recognition of wheel speeds defective, gear possibly uncomfortable when switching
check magnet wheel for shimmy
814048 ABV: speed sensor front axle right Air gap, clearance sensor<>magnet wheel too large X96:4/5 E 1
Machine has no ABS-/ASR function, recognition of wheel speeds defective, gear possibly uncomfortable when switching
check play in wheel bearing, sensor voltage, ohm resistance of cabling; push sensor on magnet wheel
814141 ABV: speed sensor front axle left short circuit to ground X95:4/5 E 1
Machine has no ABS-/ASR function, recognition of wheel speeds defective, gear possibly uncomfortable when switching
check sensor voltage, Ohm resistance of cabling
814142 ABV: speed sensor front axle left short circuit to supply voltage X95:4/5 E 1
Machine has no ABS-/ASR function, recognition of wheel speeds defective, gear possibly uncomfortable when switching
check sensor voltage, Ohm resistance of cabling
814144 ABV: speed sensor front axle left winding short X95:4/5 E 1
Machine has no ABS-/ASR function, recognition of wheel speeds defective, gear possibly uncomfortable when switching
check sensor voltage, Ohm resistance of cabling
814145 ABV: speed sensor front axle left magnet wheel defect X95:4/5 E 1
Machine has no ABS-/ASR function, recognition of wheel speeds defective, gear possibly uncomfortable when switching
check sensor voltage, Ohm resistance of cabling, magnet wheel
814146 ABV: speed sensor front axle left sensor vibration X95:4/5 E 0
Machine has no ABS-/ASR function, recognition of wheel speeds defective, gear possibly uncomfortable when switching
check sensor voltage, Ohm resistance of cabling, magnet wheel
065209 252
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
814147 ABV: speed sensor front axle left shimmed magnet wheel X95:4/5 E 0
Machine has no ABS-/ASR function, recognition of wheel speeds defective, gear possibly uncomfortable when switching
check magnet wheel for shimmy
814148 ABV: speed sensor front axle left Air gap, clearance sensor<>magnet wheel too large X95:4/5 E 1
Machine has no ABS-/ASR function, recognition of wheel speeds defective, gear possibly uncomfortable when switching
check play in wheel bearing, sensor voltage, ohm resistance of cabling; push sensor on magnet wheel
814241 ABV: speed sensor rear axle right short circuit to ground X97:8/9 E 1
Machine has no ABS-/ASR function, recognition of wheel speeds defective, gear possibly uncomfortable when switching
check sensor voltage, Ohm resistance of cabling
814242 ABV: speed sensor rear axle right short circuit to supply voltage X97:8/9 E 1
Machine has no ABS-/ASR function, recognition of wheel speeds defective, gear possibly uncomfortable when switching
check sensor voltage, Ohm resistance of cabling
814244 ABV: speed sensor rear axle right winding short X97:8/9 E 1
Machine has no ABS-/ASR function, recognition of wheel speeds defective, gear possibly uncomfortable when switching
check sensor voltage, Ohm resistance of cabling
814245 ABV: speed sensor rear axle right magnet wheel defect X97:8/9 E 1
Machine has no ABS-/ASR function, recognition of wheel speeds defective, gear possibly uncomfortable when switching
check sensor voltage, Ohm resistance of cabling, magnet wheel
814246 ABV: speed sensor rear axle right sensor vibration X97:8/9 E 0
Machine has no ABS-/ASR function, recognition of wheel speeds defective, gear possibly uncomfortable when switching
check sensor voltage, Ohm resistance of cabling, magnet wheel
814247 ABV: speed sensor rear axle right shimmed magnet wheel X97:8/9 E 0
Machine has no ABS-/ASR function, recognition of wheel speeds defective, gear possibly uncomfortable when switching
check magnet wheel for shimmy
814248 ABV: speed sensor rear axle right Air gap, clearance sensor<>magnet wheel too large X97:8/9 E 1
Machine has no ABS-/ASR function, recognition of wheel speeds defective, gear possibly uncomfortable when switching
check play in wheel bearing, sensor voltage, ohm resistance of cabling; push sensor on magnet wheel
065209 253
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
814341 ABV: speed sensor rear axle left short circuit to ground X97:5/6 E 1
Machine has no ABS-/ASR function, recognition of wheel speeds defective, gear possibly uncomfortable when switching
check sensor voltage, Ohm resistance of cabling
814342 ABV: speed sensor rear axle left short circuit to supply voltage X97:5/6 E 1
Machine has no ABS-/ASR function, recognition of wheel speeds defective, gear possibly uncomfortable when switching
check sensor voltage, Ohm resistance of cabling
814344 ABV: speed sensor rear axle left winding short X97:5/6 E 1
Machine has no ABS-/ASR function, recognition of wheel speeds defective, gear possibly uncomfortable when switching
check sensor voltage, Ohm resistance of cabling
814345 ABV: speed sensor rear axle left magnet wheel defect X97:5/6 E 1
Machine has no ABS-/ASR function, recognition of wheel speeds defective, gear possibly uncomfortable when switching
check sensor voltage, Ohm resistance of cabling, magnet wheel
814346 ABV: speed sensor rear axle left sensor vibration X97:5/6 E 0
Machine has no ABS-/ASR function, recognition of wheel speeds defective, gear possibly uncomfortable when switching
check sensor voltage, Ohm resistance of cabling, magnet wheel
814347 ABV: speed sensor rear axle left shimmed magnet wheel X97:5/6 E 0
Machine has no ABS-/ASR function, recognition of wheel speeds defective, gear possibly uncomfortable when switching
check magnet wheel for shimmy
814348 ABV: speed sensor rear axle left Air gap, clearance sensor<>magnet wheel too large X97:5/6 E 1
Machine has no ABS-/ASR function, recognition of wheel speeds defective, gear possibly uncomfortable when switching
check play in wheel bearing, sensor voltage, ohm resistance of cabling; push sensor on magnet wheel
821111 retarder: Output AD1 - re-circulation valve short circuit to ground X46:1 E 1
ECU no longer selects recirculation valve, response time becomes longer
RESET - otherwise check cabling between ECU and recirculation valve, check recirculation valve (internal resistance)
821112 retarder: Output AD1 - re-circulation valve short circuit to supply voltage X46:1 E 1
ECU no longer selects recirculation valve, response time becomes longer
INT OFF/ON - otherwise check cabling between ECU and recirculation valve
065209 254
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
821911 retarder: Output AIP- proportional-flow valve short circuit to ground X46:4 E 1
ECU switches off the intarder; Intarder no longer available
RESET - otherwise check cabling between ECU and proportional-flow valve, check pr.-flow valve (int. resistance)
821912 retarder: Output AIP- proportional-flow valve short circuit to supply voltage X46:4 E 1
ECU switches off the intarder; Intarder no longer available
RESET - otherwise check cabling between ECU and proportional-flow valve
822111 retarder: Output ADM1 - Dimensions proportional-flow valve short circuit to ground X46:3 E 1
ECU switches off the intarder; Intarder no longer available
RESET - otherwise check cabling between ECU and proportional-flow valve
822112 retarder: Output ADM1 - Dimensions proportional-flow valve short circuit to supply voltage X46:3 E 1
ECU switches off the intarder; Intarder no longer available
RESET - otherwise check cabling between ECU and proportional-flow valve, check pr.-flow valve (int. resistance)
822316 retarder: Amperemeter channel proportional-flow valve Malfunction limit fallen short of X46:3/4 E 1
ECU switches off the intarder; Intarder no longer available
RESET - otherwise replace ECU
822317 retarder: Amperemeter channel proportional-flow valve Malfunction limit exceeded X46:3/4 E 1
ECU switches off the intarder; Intarder no longer available
RESET - otherwise replace ECU
823211 retarder: Input ER1 - temperature sensor short circuit to ground X46:9 E 1
ECU limits the braking action to 100 kW
INT OFF/ON - otherwise check cabling between ECU and temperature sensor, check temperature sensor (resistance)
065209 255
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
823318 retarder: Inputs ED1..ED5 - brake stage switch Check sum / signal(s) implausible X46:15/16/17/42 E 1
ECU reduces the set braking level under certain circumstances /43
INT OFF/ON - otherwise check cabling between ECU and brake level switch, check brake level switch
824319 retarder: CAN transmission malfunction Data transfer faulty/missing, signal error X46:22/49/21/48 E 1
no reaction
RESET - otherwise check CAN-Bus line, check shut-down resistance
824415 retarder: CAN-Bus Data transfer faulty/missing, max. cycle time exceeded X46:22/49/21/48 E 1
ECU switches off the intarder; Intarder no longer available
RESET - otherwise check CAN-Bus line
824615 retarder: CAN-Bus data transfer Data transfer faulty/missing, max. cycle time exceeded X46:22/49/21/48 E 1
no reaction
RESET - otherwise check CAN-Bus line, check shut-down resistance
825819 retarder: CAN-data transfer ABS/ASR (ID 512) Data transfer faulty/missing, signal error X46:22/49 E 1
ECU switches off the intarder; Intarder no longer available
INT OFF/ON - otherwise check ABS-ECU, check CAN-Bus line, check shut-down resistance
825919 retarder: CAN-data transfer engine (ID 592) Data transfer faulty/missing, signal error X46:22/49 E 1
ECU limits the braking action to 350 kW
INT OFF/ON - otherwise check FMR-ECU, check CAN-Bus line, check shut-down resistance
826119 retarder: CAN-data transfer engine (ID 593) Data transfer faulty/missing, signal error X46:22/49 E 1
ECU limits the braking action to 350 kW
INT OFF/ON - otherwise check FMR-ECU, check CAN-Bus line, check shut-down resistance
826219 retarder: CAN-data transfer gears (ID 556) Data transfer faulty/missing, signal error X46:22/49 E 1
ECU limits the power to 250 mA, the automatic brake (Bremsomat) is not available
INT OFF/ON - otherwise check TCU-ECU, check CAN-Bus line, check shut-down resistance
065209 256
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
827216 retarder: Supply VPI1/VPI2 Kl.15 Malfunction limit fallen short of X46:53/31 E 1
ECU switches off the intarder; Intarder no longer available
RESET - otherwise check mains voltage (battery, dynamo)
828218 retarder: Operating hours counter Check sum / signal(s) implausible X46 E 0
ECU resets the operating hour counter back to 0
replace ECU
828415 retarder: System error Data transfer faulty/missing, max. cycle time exceeded X46 E 1
ECU switches off the intarder; Intarder no longer available
replace ECU
065209 257
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
843305 heating, air cond.: WEBASTO THERMO 90 S UW glow probe interruption/short circuit E 1
843306 heating, air cond.: WEBASTO THERMO 90 S UW temperature probe interruption/short circuit E 1
843307 heating, air cond.: WEBASTO THERMO 90 S UW metering pump/solenoid valve interruption/short circuit E 1
843308 heating, air cond.: WEBASTO THERMO 90 S UW blower motor interruption/short circuit/erroneous speed E 1
843309 heating, air cond.: WEBASTO THERMO 90 S UW glow pin interruption/short circuit E 1
843311 heating, air cond.: WEBASTO THERMO 90 S UW water pump interruption/short circuit E 1
843312 heating, air cond.: WEBASTO THERMO 90 S UW set value sensor interruption/short circuit E 1
900106 engine R4: control device engine Data communication CAN faulty / interrupted X705:1/4/7 E 1
emergency operation
check cable/plugs for shorts
900107 engine R4: control device engine Data communication CAN cancelled X705:1/4/7 E 1
emergency operation
check cable/plugs for UB- or shorts to ground
065209 258
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
900208 engine R4: CAN-participant ABV (ABS/ASR) Data transfer faulty/missing, max. cycle time exceeded X705:1/4/7 E 1
limited function
check cable/plugs/ABS-/ASR-electronics
900308 engine R4: CAN-participant gear Data transfer faulty/missing, max. cycle time exceeded X705:1/4/7 E 1
limited function
check cable/plugs/gear electronics
900408 engine R4: CAN-participant E/A-Modul Data transfer faulty/missing, max. cycle time exceeded X705:1/4/7 E 1
emergency operation
check cable/plugs/E/A-Modul(e)
900910 engine R4: speed 1/2 inadmissable signal difference/plausability control defective X703:18/19/20/2 E 1
switch-over to other speed sensor or engine-stop 1
check cable/plugs/sensor, distance to flywheel
901002 engine R4: accelerator 1 sensor defect high/short circ. to supply voltage X704:16/17 E 1
switch-over to accelerator 2,speed limitation, torque limitation or 20-23
check cable/plugs for UB-shorts
901003 engine R4: accelerator 1 sensor defect low/short circuit to ground X704:16/17 E 1
switch-over to accelerator 2,speed limitation, torque limitation or 20-23
check cable/plugs for breaks or short to ground
065209 259
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
901102 engine R4: accelerator 2 sensor defect high/short circ. to supply voltage X704:14/15 E 1
switch-over to accelerator 1, speed limitation, torque limitation or emergency operation at error code 16-19
check cable/plugs for UB-shorts
901103 engine R4: accelerator 2 sensor defect low/short circuit to ground X704:14/15 E 1
switch-over to accelerator 1, speed limitation, torque limitation or emergency operation at error code 16-19
check cable/plugs for breaks or short to ground
901210 engine R4: accelerator 1/2 inadmissable signal difference/plausability control defective X704:14/15/16/1 E 1
gas withdrawal (idle) 7
check pedal unit, check condition of operation brake
901611 engine R4: trigger signal box EDC excess current recognition X701:7/10 E 1
engine-Stop
check cable/plugs, replace LH-ECU1, check EDC-actuator, if necessary replace injector pump
901701 engine R4: signal box feedback EDC unit defect X701:13/14/15 E 1
engine-Stop
check cable/plugs, replace LH-ECU1, check EDC-actuator, if necessary replace injector pump
065209 260
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
901906 engine R4: supply KL30 Data communication CAN faulty / interrupted X702:1 E 1
generate error report Reset: automatic after error counter sequence or after regulator-reset
check main circuit voltage, check battery
901907 engine R4: supply KL30 Data communication CAN cancelled X702:1 E 1
generate error report; Reset: automatic after error counter sequence or regulator reset
check main circuit voltage, check battery
902012 engine R4: start engine KL50 short circuit to ground X704:13 E 1
generate error report; Reset: automatic after error counter sequence or regulator reset
check cable/plugs for short to ground
902112 engine R4: DA, flame type heater plugs diagnosis short circuit to ground X701:9 E 1
error report
check cable/plugs for short to ground, replace Relaismodul
902113 engine R4: DA, flame type heater plugs diagnosis open signal circuits X701:9 E 1
shut off FGK and MVE
check cable/plugs for breaks, replace Relaismodul
902114 engine R4: DA, flame type heater plugs diagnosis short circuit to supply voltage X701:9 E 1
error report
check cable/plugs for UB-shorts, replace Relaismodul
902602 engine R4: oil pressure sensor sensor defect high/short circ. to supply voltage X703:1/2/3 E 1
signal ignored, substitute value used
check cable/plugs for UB-shorts, replace sensor
902603 engine R4: oil pressure sensor sensor defect low/short circuit to ground X703:1/2/3 E 1
signal ignored, substitute value used
check cable/plugs for shorts to ground, replace sensor
902702 engine R4: charge air pressure sensor sensor defect high/short circ. to supply voltage X703:4/5/6 E 1
signal ignored, substitute value used
check cable/plugs for UB-shorts, replace sensor
065209 261
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
902703 engine R4: charge air pressure sensor sensor defect low/short circuit to ground X703:4/5/6 E 1
signal ignored, substitute value used
check cable/plugs for shorts to ground, replace sensor
902802 engine R4: air filter sensor sensor defect high/short circ. to supply voltage X703:7/8/9 E 1
signal ignored, substitute value used
check cable/plugs for UB-shorts, replace sensor
902803 engine R4: air filter sensor sensor defect low/short circuit to ground X703:7/8/9 E 1
signal ignored, substitute value used
check cable/plugs for shorts to ground, replace sensor
903102 engine R4: charge air temperature sensor sensor defect high/short circ. to supply voltage X703:12/15 E 1
signal ignored, substitute value used
check cable/plugs for UB-shorts, replace sensor
903103 engine R4: charge air temperature sensor sensor defect low/short circuit to ground X703:12/15 E 1
signal ignored, substitute value used
check cable/plugs for shorts to ground, replace sensor
903202 engine R4: coolant temperature sensor sensor defect high/short circ. to supply voltage X703:10/11 E 1
signal ignored, substitute value used
check cable/plugs for UB-shorts, replace sensor
903203 engine R4: coolant temperature sensor sensor defect low/short circuit to ground X703:10/11 E 1
signal ignored, substitute value used
check cable/plugs for shorts to ground, replace sensor
903313 engine R4: coolant level sensor open signal circuits X704:10/11 E 1
signal ignored, substitute value used
check cable/plugs for defects or breaks, replace sensor
903402 engine R4: oil temperature sensor sensor defect high/short circ. to supply voltage X703:16/17 E 1
signal ignored, substitute value used
check cable/plugs for shorts to ground, replace sensor
903403 engine R4: oil temperature sensor sensor defect low/short circuit to ground X703:16/17 E 1
signal ignored, substitute value used
check cable/plugs for UB-shorts, replace sensor
065209 262
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
903601 engine R4: trigger flame type heater plug(s) FGK unit defect X701:4 E 1
shut off FGK and MVE
903614 engine R4: trigger flame type heater plug(s) FGK short circuit to supply voltage X701:4 E 1
903615 engine R4: trigger flame type heater plug(s) FGK open electric circuit X701:4 E 1
error report
check cable/plugs for breaks, replace Relaismodul
903618 engine R4: trigger flame type heater plug(s) FGK excess temperature X701:4 E 1
shut off FGK and MVE
check cable/plugs for short to ground, replace Relaismodul
903714 engine R4: solenoid valve additional flow for starting short circuit to supply voltage X701:6 E 1
903715 engine R4: solenoid valve additional flow for starting open electric circuit X701:6 E 1
FSA data defective, FGK activation removed, MVE reset: automatic after error counter sequence, after regulator reset
903718 engine R4: solenoid valve additional flow for starting excess temperature X701:6 E 1
shut off FGK and MVE
check cable/plugs for short to ground, replace Relaismodul
903814 engine R4: engine start 50A short circuit to supply voltage X701:5 E 1
903815 engine R4: engine start 50A open electric circuit X701:5 E 1
starting procedure interrupted, shut down FGK and MVE
check cable/plugs for breaks, replace Relaismodul
065209 263
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
906124 engine R4: charge air temperature pre-warning disruption limit 1 X703:12/15 E 1
warning, engine-protection-info, output reduction
reduce output, check air suction routing and engine
906125 engine R4: charge air temperature pre-warning disruption limit 2 X703:12/15 E 1
warning, engine-protection-info, output reduction
reduce output, if necessary shut off engine, check air suction routing and engine
065209 264
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
906522 engine R4: air filter pressure pre-warning disruption limit 1 X703:7/8/9 E 1
pre-warning
replace air filter at next opportunity
906525 engine R4: air filter pressure pre-warning disruption limit 2 X703:7/8/9 E 1
warning
replace air filter immediately
906824 engine R4: charge air pressure pre-warning disruption limit 1 X703:4/5/6 E 1
signal ignored, substitute value will be used, error report
check air suction routing
906825 engine R4: charge air pressure pre-warning disruption limit 2 X703:4/5/6 E 1
signal ignored, substitute value will be used, error report
check air suction routing
065209 265
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
908250 engine R4: change engine oil filter service report interval 1 attained/exceeded X70 E 1
report
check and return
908350 engine R4: change engine oil service report interval 1 attained/exceeded X70 E 1
report
change oil and return
908351 engine R4: change engine oil service report interval 2 attained/exceeded X70 E 1
report
change oil and return
908352 engine R4: change engine oil service report interval 3 attained/exceeded X70 E 1
report
change oil and return
908353 engine R4: change engine oil service report interval 4 attained/exceeded X70 E 1
report
change oil and return
908354 engine R4: change engine oil service report interval 5 attained/exceeded X70 E 1
report
change oil and return
908355 engine R4: change engine oil service report interval 6 attained/exceeded X70 E 1
report
change oil and return
908356 engine R4: change engine oil service report interval 7 attained/exceeded X70 E 1
report
change oil and return
908357 engine R4: change engine oil service report interval 8 attained/exceeded X70 E 1
report
change oil and return
065209 266
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
908358 engine R4: change engine oil service report interval 9 attained/exceeded X70 E 1
report
change oil and return
908359 engine R4: change engine oil service report interval 10 attained/exceeded X70 E 1
report
change oil and return
908650 engine R4: check battery service report interval 1 attained/exceeded X70 E 1
report
check and return
908750 engine R4: change water filter service report interval 1 attained/exceeded X70 E 1
report
change filter and return
908850 engine R4: check antifreeze service report interval 1 attained/exceeded X70 E 1
report
check and return
908950 engine R4: fuel filter level 1 service report interval 1 attained/exceeded X70 E 1
report
change filter and return
909050 engine R4: fuel filter level 2 service report interval 1 attained/exceeded X70 E 1
report
change filter and return
909150 engine R4: valve clearance service report interval 1 attained/exceeded X70 E 1
report
check and return
909250 engine R4: fuel injection valves service report interval 1 attained/exceeded X70 E 1
report
check and return
065209 267
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
930106 engine V8: control device engine Data communication CAN faulty / interrupted X275:1/4/7 E 1
emergency operation
check cable/plugs for shorts
930107 engine V8: control device engine Data communication CAN cancelled X275:1/4/7 E 1
emergency operation
check cable/plugs for UB- or shorts to ground
930208 engine V8: CAN-participant ABV (ABS/ASR) Data transfer faulty/missing, max. cycle time exceeded X275:1/4/7 E 1
limited function
check cable/plugs/ABS-/ASR-electronics
930308 engine V8: CAN-participant gear Data transfer faulty/missing, max. cycle time exceeded X275:1/4/7 E 1
limited function
check cable/plugs/gear electronics
930408 engine V8: CAN-participant E/A-Modul Data transfer faulty/missing, max. cycle time exceeded X275:1/4/7 E 1
emergency operation
check cable/plugs/E/A-Modul(e)
930508 engine V8: CAN signals gear Data transfer faulty/missing, max. cycle time exceeded X275:1/4/7 E 1
limited function
check cable/plugs/gear electronics
930608 engine V8: CAN signals travel switch Data transfer faulty/missing, max. cycle time exceeded X275:1/4/7 E 1
limited function
check cable/plugs/E/A-Modul(e)
930910 engine V8: speed 1/2 inadmissable signal difference/plausability control defective X273:18/19/20/2 E 1
switch-over to other speed sensor or engine-stop 1
check cable/plugs/sensor, distance to flywheel
065209 268
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
931002 engine V8: accelerator 1 sensor defect high/short circ. to supply voltage X274:16/17 E 1
switch-over to accelerator 2,speed limitation, torque limitation or 20-23
check cable/plugs for UB-shorts
931003 engine V8: accelerator 1 sensor defect low/short circuit to ground X274:16/17 E 1
switch-over to accelerator 2,speed limitation, torque limitation or 20-23
check cable/plugs for breaks or short to ground
931102 engine V8: accelerator 2 sensor defect high/short circ. to supply voltage X274:14/15 E 1
switch-over to accelerator 1, speed limitation, torque limitation or emergency operation at error code 16-19
check cable/plugs for UB-shorts
931103 engine V8: accelerator 2 sensor defect low/short circuit to ground X274:14/15 E 1
switch-over to accelerator 1, speed limitation, torque limitation or emergency operation at error code 16-19
check cable/plugs for breaks or short to ground
931210 engine V8: accelerator 1/2 inadmissable signal difference/plausability control defective X274:14/15/16/1 E 1
gas withdrawal (idle) 7
check pedal unit, check condition of operation brake
065209 269
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
931280 engine V8: accelerator 1/2 Actuation with selected/active auxiliary brake X274:14/15/16/1 B
Travel pedal lock 7
Release travel pedal, switch off auxiliary brake
931281 engine V8: accelerator 1/2 Actuation with blocked travel pedal in UC or supported operation X274:14/15/16/1 B
Travel pedal lock 7
Release travel pedal, switch operation type to UC/travel operation via gear selection or 2-Hand-Switch
931611 engine V8: trigger signal box EDC excess current recognition X271:7/10 E 1
engine-Stop
check cable/plugs, replace LH-ECU1, check EDC-actuator, if necessary replace injector pump
931701 engine V8: signal box feedback EDC unit defect X271:13/14/15 E 1
engine-Stop
check cable/plugs, replace LH-ECU1, check EDC-actuator, if necessary replace injector pump
931917 engine V8: supply KL30 voltage below required value X272:1 E 1
generate error report; Reset: automatic after error counter sequence or regulator reset
check main circuit voltage, check battery
932012 engine V8: start engine KL50 short circuit to ground X274:13 E 1
generate error report; Reset: automatic after error counter sequence or regulator reset
check cable/plugs for short to ground
065209 270
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
932112 engine V8: DA, flame type heater plugs diagnosis short circuit to ground X271:9 E 1
error report
check cable/plugs for short to ground, replace Relaismodul
932113 engine V8: DA, flame type heater plugs diagnosis open signal circuits X271:9 E 1
shut off FGK and MVE
check cable/plugs for breaks, replace Relaismodul
932114 engine V8: DA, flame type heater plugs diagnosis short circuit to supply voltage X271:9 E 1
error report
check cable/plugs for UB-shorts, replace Relaismodul
932512 engine V8: Speed signal tachograph short circuit to ground X275:9 E 1
Signal is ignored, switch off of functions TMAT/TSET, reduction of maximum moment due to Vset
Check or replace line connection tachograph<->ECU, tachograph, ECU
932513 engine V8: Speed signal tachograph open signal circuits X275:9 E 1
Signal is ignored, switch off of functions TMAT/TSET, reduction of maximum moment due to Vset
Check or replace line connection tachograph<->ECU, tachograph, ECU
932514 engine V8: Speed signal tachograph short circuit to supply voltage X275:9 E 1
Signal is ignored, switch off of functions TMAT/TSET, reduction of maximum moment due to Vset
Check or replace line connection tachograph<->ECU, tachograph, ECU
065209 271
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
932602 engine V8: oil pressure sensor sensor defect high/short circ. to supply voltage X273:1/2/3 E 1
signal ignored, substitute value used
check cable/plugs for UB-shorts, replace sensor
932603 engine V8: oil pressure sensor sensor defect low/short circuit to ground X273:1/2/3 E 1
signal ignored, substitute value used
check cable/plugs for shorts to ground, replace sensor
932702 engine V8: charge air pressure sensor sensor defect high/short circ. to supply voltage X273:4/5/6 E 1
signal ignored, substitute value used
check cable/plugs for UB-shorts, replace sensor
932703 engine V8: charge air pressure sensor sensor defect low/short circuit to ground X273:4/5/6 E 1
signal ignored, substitute value used
check cable/plugs for shorts to ground, replace sensor
932802 engine V8: air filter sensor sensor defect high/short circ. to supply voltage X273:7/8/9 E 1
signal ignored, substitute value used
check cable/plugs for UB-shorts, replace sensor
932803 engine V8: air filter sensor sensor defect low/short circuit to ground X273:7/8/9 E 1
signal ignored, substitute value used
check cable/plugs for shorts to ground, replace sensor
933102 engine V8: charge air temperature sensor sensor defect high/short circ. to supply voltage X273:12/15 E 1
signal ignored, substitute value used
check cable/plugs for UB-shorts, replace sensor
933103 engine V8: charge air temperature sensor sensor defect low/short circuit to ground X273:12/15 E 1
signal ignored, substitute value used
check cable/plugs for shorts to ground, replace sensor
933202 engine V8: coolant temperature sensor sensor defect high/short circ. to supply voltage X273:10/11 E 1
signal ignored, substitute value used
check cable/plugs for UB-shorts, replace sensor
933203 engine V8: coolant temperature sensor sensor defect low/short circuit to ground X273:10/11 E 1
signal ignored, substitute value used
check cable/plugs for shorts to ground, replace sensor
065209 272
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
933313 engine V8: coolant level sensor open signal circuits X274:10/11 E 1
signal ignored, substitute value used
check cable/plugs for defects or breaks, replace sensor
933402 engine V8: oil temperature sensor sensor defect high/short circ. to supply voltage X273:16/17 E 1
signal ignored, substitute value used
check cable/plugs for shorts to ground, replace sensor
933403 engine V8: oil temperature sensor sensor defect low/short circuit to ground X273:16/17 E 1
signal ignored, substitute value used
check cable/plugs for UB-shorts, replace sensor
933512 engine V8: Sensor jib-movement-detector (NBF) short circuit to ground X271:1/2 E 1
Change-over to power-regulated operation
Check line connection ECU<->NBF sensor, NBV sensor; Replace NBF sensor
933513 engine V8: Sensor jib-movement-detector (NBF) open signal circuits X271:1/2 E 1
Change-over to power-regulated operation
Check line connection ECU<->NBF sensor, NBV sensor; Replace NBF sensor
933514 engine V8: Sensor jib-movement-detector (NBF) short circuit to supply voltage X271:1/2 E 1
Change-over to power-regulated operation
Check line connection ECU<->NBF sensor, NBV sensor; Replace NBF sensor
933601 engine V8: trigger flame type heater plug(s) FGK unit defect X271:4 E 1
shut off FGK and MVE
check cable/plugs for defects or breaks, check FGK, replace Relaismodul
933614 engine V8: trigger flame type heater plug(s) FGK short circuit to supply voltage X271:4 E 1
933615 engine V8: trigger flame type heater plug(s) FGK open electric circuit X271:4 E 1
error report
check cable/plugs for breaks, replace Relaismodul
933618 engine V8: trigger flame type heater plug(s) FGK excess temperature X271:4 E 1
shut off FGK and MVE
check cable/plugs for short to ground, replace Relaismodul
065209 273
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
933714 engine V8: solenoid valve additional flow for starting short circuit to supply voltage X271:6 E 1
933715 engine V8: solenoid valve additional flow for starting open electric circuit X271:6 E 1
FSA data defective, FGK activation removed, MVE reset: automatic after error counter sequence, after regulator reset
933718 engine V8: solenoid valve additional flow for starting excess temperature X271:6 E 1
shut off FGK and MVE
check cable/plugs for short to ground, replace Relaismodul
933814 engine V8: engine start 50A short circuit to supply voltage X271:5 E 1
933815 engine V8: engine start 50A open electric circuit X271:5 E 1
starting procedure interrupted, shut down FGK and MVE
check cable/plugs for breaks, replace Relaismodul
replace ECU
065209 274
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
934504 engine V8: Calculation spray begin (SB) level exceeded X271 E 1
Change-over to controlled injection-start operation (SB)
934505 engine V8: Calculation spray begin (SB) below minimum level X271 E 1
Change-over to controlled injection-start operation (SB)
934526 engine V8: Calculation spray begin (SB) No synchronisation possible X271 E 1
Change-over to controlled injection-start operation (SB)
Checking of OT signal transmitter and NBF
936124 engine V8: charge air temperature pre-warning disruption limit 1 X273:12/15 E 1
warning, engine-protection-info, output reduction
reduce output, check air suction routing and engine
936125 engine V8: charge air temperature pre-warning disruption limit 2 X273:12/15 E 1
warning, engine-protection-info, output reduction
reduce output, if necessary shut off engine, check air suction routing and engine
065209 275
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
936522 engine V8: air filter pressure pre-warning disruption limit 1 X273:7/8/9 E 1
pre-warning
replace air filter at next opportunity
936525 engine V8: air filter pressure pre-warning disruption limit 2 X273:7/8/9 E 1
warning
replace air filter immediately
936824 engine V8: charge air pressure pre-warning disruption limit 1 X273:4/5/6 E 1
signal ignored, substitute value will be used, error report
check air suction routing
936825 engine V8: charge air pressure pre-warning disruption limit 2 X273:4/5/6 E 1
signal ignored, substitute value will be used, error report
check air suction routing
065209 276
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
938250 engine V8: change engine oil filter service report interval 1 attained/exceeded X27 E 1
report
check and return
938350 engine V8: change engine oil service report interval 1 attained/exceeded X27 E 1
report
change oil and return
938351 engine V8: change engine oil service report interval 2 attained/exceeded X27 E 1
report
change oil and return
938352 engine V8: change engine oil service report interval 3 attained/exceeded X27 E 1
report
change oil and return
938353 engine V8: change engine oil service report interval 4 attained/exceeded X27 E 1
report
change oil and return
938354 engine V8: change engine oil service report interval 5 attained/exceeded X27 E 1
report
change oil and return
938355 engine V8: change engine oil service report interval 6 attained/exceeded X27 E 1
report
change oil and return
938356 engine V8: change engine oil service report interval 7 attained/exceeded X27 E 1
report
change oil and return
938357 engine V8: change engine oil service report interval 8 attained/exceeded X27 E 1
report
change oil and return
938358 engine V8: change engine oil service report interval 9 attained/exceeded X27 E 1
report
change oil and return
065209 277
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
938359 engine V8: change engine oil service report interval 10 attained/exceeded X27 E 1
report
change oil and return
938650 engine V8: check battery service report interval 1 attained/exceeded X27 E 1
report
check and return
938750 engine V8: change water filter service report interval 1 attained/exceeded X27 E 1
report
change filter and return
938850 engine V8: check antifreeze service report interval 1 attained/exceeded X27 E 1
report
check and return
938950 engine V8: fuel filter level 1 service report interval 1 attained/exceeded X27 E 1
report
change filter and return
939050 engine V8: fuel filter level 2 service report interval 1 attained/exceeded X27 E 1
report
change filter and return
939150 engine V8: valve clearance service report interval 1 attained/exceeded X27 E 1
report
check and return
939250 engine V8: fuel injection valves service report interval 1 attained/exceeded X27 E 1
report
check and return
971020 gear ASTRONIC: Main cut-off valve Y10 short circuit to ground X4 E 1
Travel: Switching blocked - condition: Clutch opens, neutral switching blocked - automatic blocked
RESET - otherwise replace gear-change
065209 278
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
971021 gear ASTRONIC: Main cut-off valve Y10 short circuit to supply voltage X4 E 1
Switching blocked
RESET - otherwise replace gear-change
971120 gear ASTRONIC: Solenoid valve Y1 gear brake short circuit to ground X4 E 1
Increased switch times - sporadic upshift locking - automatic blocked
RESET - otherwise replace gear-change
971121 gear ASTRONIC: Solenoid valve Y1 gear brake short circuit to supply voltage X4 E 1
Switching blocked
RESET - otherwise replace gear-change
971221 gear ASTRONIC: Solenoid valve Y2 splitter short circuit to supply voltage X4 E 1
Travel: Switching blocked - condition: Clutch opens, neutral switching - system not available
RESET - otherwise replace gear-change
971321 gear ASTRONIC: Solenoid valve Y3 splitter short circuit to supply voltage X4 E 2
Travel: Switching blocked - condition: Clutch opens, neutral switching - system not available
RESET - otherwise replace gear-change
065209 279
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
971421 gear ASTRONIC: Solenoid valve Y4 gap short circuit to supply voltage X4 E 2
Travel: Switching blocked - condition: Clutch opens, neutral switching - system not available
RESET - otherwise replace gear-change
971521 gear ASTRONIC: Solenoid valve Y5 gap short circuit to supply voltage X4 E 2
Travel: Switching blocked - condition: Clutch opens, neutral switching - system not available
RESET - otherwise replace gear-change
971621 gear ASTRONIC: Solenoid valve Y6 switching short circuit to supply voltage X4 E 2
Travel: Switching blocked - condition: Clutch opens, neutral switching - system not available
RESET - otherwise replace gear-change
065209 280
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
971721 gear ASTRONIC: Solenoid valve Y7 switching short circuit to supply voltage X4 E 2
Travel: Switching blocked - condition: Clutch opens, neutral switching - system not available
RESET - otherwise replace gear-change
971821 gear ASTRONIC: Solenoid valve Y8 group short circuit to supply voltage X4 E 2
Travel: Switching blocked - condition: Clutch opens, neutral switching - system not available
RESET - otherwise replace gear-change
971921 gear ASTRONIC: Solenoid valve Y9 group short circuit to supply voltage X4 E 2
Travel: Switching blocked - condition: Clutch opens, neutral switching - system not available
RESET - otherwise replace gear-change
065209 281
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
065209 282
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
065209 283
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
065209 284
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
973520 gear ASTRONIC: Sensor gear input speed 1 short circuit to ground X45:6/11/18 E 1
Travel: Switching blocked - Automatic blocked
RESET- or replace sensor, cable harness or gear controller
973520 gear ASTRONIC: Sensor gear input speed 1 short circuit to ground X45:6/11/18 E 2
Travel: Switching blocked - condition: Clutch opens, neutral switching - system not available
RESET - otherwise replace sensor or cabling or gear-change
973521 gear ASTRONIC: Sensor gear input speed 1 short circuit to supply voltage X45:6/11/18 E 1
No function limitation - Automatic blocked
RESET- or replace sensor, cable harness or gear controller
065209 285
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
973542 gear ASTRONIC: Sensor gear input speed 1 faulty/not present X45:6/11/18 E 1
Loss of comfort during start-up, switching and ranging - automatic blocked
RESET - otherwise replace cable form or tachometer
973742 gear ASTRONIC: Sensor gear input speed 1/2 faulty/not present X4 E 2
Travel: Switching blocked - condition: Clutch opens, neutral switching - system not available
RESET - Check tachometers 1 and 2
974020 gear ASTRONIC: Solenoid valve Y15 "Clutch closes slowly" short circuit to ground X45:7 E 1
Increased switch times - sporadic upshift locking - automatic blocked
RESET - otherwise replace gear-change
974021 gear ASTRONIC: Solenoid valve Y15 "Clutch closes slowly" short circuit to supply voltage X45:7 E 2
Switching blocked - clutch function limited - condition: Neutral switching - system not available
RESET - otherwise replace cable form clutch-change or clutch-change
974022 gear ASTRONIC: Solenoid valve Y15 "Clutch closes slowly" interruption X45:7 E 1
Loss of comfort during start-up, switching and ranging - automatic blocked
RESET - otherwise replace cable form clutch-change or clutch-change
974033 gear ASTRONIC: Solenoid valve Y15 "Clutch closes slowly" Mechanical error X45:7 E 1
Loss of comfort during start-up, switching and ranging - automatic blocked
RESET - otherwise replace clutch-change
974120 gear ASTRONIC: Solenoid valve Y14 "Clutch closes quickly" short circuit to ground X45:8 E 1
Increased switch times - sporadic upshift locking - automatic blocked
RESET - otherwise replace gear-change
065209 286
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
974121 gear ASTRONIC: Solenoid valve Y14 "Clutch closes quickly" short circuit to supply voltage X45:8 E 2
Switching blocked - clutch function limited - condition: Neutral switching - system not available
RESET - otherwise replace cable form clutch-change or clutch-change
974122 gear ASTRONIC: Solenoid valve Y14 "Clutch closes quickly" interruption X45:8 E 1
Loss of comfort during start-up, switching and ranging - automatic blocked
RESET - otherwise replace cable form clutch-change or clutch-change
974133 gear ASTRONIC: Solenoid valve Y14 "Clutch closes quickly" Mechanical error X45:8 E 1
Loss of comfort during start-up, switching and ranging - automatic blocked
RESET - otherwise replace clutch-change
974220 gear ASTRONIC: Solenoid valve Y17 "Clutch opens slowly" short circuit to ground X45:9 E 1
Increased switch times - sporadic upshift locking - automatic blocked
RESET - otherwise replace gear-change
974221 gear ASTRONIC: Solenoid valve Y17 "Clutch opens slowly" short circuit to supply voltage X45:9 E 2
Switching blocked - clutch function limited - condition: Neutral switching - system not available
RESET - otherwise replace cable form clutch-change or clutch-change
974222 gear ASTRONIC: Solenoid valve Y17 "Clutch opens slowly" interruption X45:9 E 1
Loss of comfort during start-up, switching and ranging - automatic blocked
RESET - otherwise replace cable form clutch-change or clutch-change
974233 gear ASTRONIC: Solenoid valve Y17 "Clutch opens slowly" Mechanical error X45:9 E 1
Loss of comfort during start-up, switching and ranging - automatic blocked
RESET - otherwise replace clutch-change
974320 gear ASTRONIC: Solenoid valve Y16 "Clutch opens quickly" short circuit to ground X45:12 E 1
Increased switch times - sporadic upshift locking - automatic blocked
RESET - otherwise replace gear-change
974321 gear ASTRONIC: Solenoid valve Y16 "Clutch opens quickly" short circuit to supply voltage X45:12 E 2
Switching blocked - clutch function limited - condition: Neutral switching - system not available
RESET - otherwise replace cable form clutch-change or clutch-change
974322 gear ASTRONIC: Solenoid valve Y16 "Clutch opens quickly" interruption X45:12 E 1
Loss of comfort during start-up, switching and ranging - automatic blocked
RESET - otherwise replace cable form clutch-change or clutch-change
065209 287
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
974333 gear ASTRONIC: Solenoid valve Y16 "Clutch opens quickly" Mechanical error X45:12 E 1
Loss of comfort during start-up, switching and ranging - automatic blocked
RESET - otherwise replace clutch-change
974424 gear ASTRONIC: Sensor clutch voltage below required value X45:10/15 E 1
Travel: Loss of comfort during start-up - no ranging poss. - automatic time-controlled neutral switching - automatic
RESET - Replace gear-change or clutch-change
975421 gear ASTRONIC: TCU power supply short circuit to supply voltage X44:1/4/5 E 1
No function limitation
RESET - otherwise replace sensor or cabling or gear-change
065209 288
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
976401 gear ASTRONIC: CAN-interface system Permanent error, Bus communication interrupted X44:8/12 E 2
Travel: Switching blocked - condition: Clutch opens, neutral switching - system not available
RESET - Check cabling CAN-communication
976501 gear ASTRONIC: CAN-interface ZF Permanent error, Bus communication interrupted X44:8/12 E 2
Travel: Switching blocked - condition: Clutch opens, neutral switching - system not available
RESET - Check cabling CAN-communication
976503 gear ASTRONIC: CAN-interface ZF Faulty/missing, max. cycle time exceeded X44:8/12 E 1
Travel: Switching blocked - condition: automat. Engagement of last start-up gear - reverse gear blocked
RESET - otherwise replace gear-change
976610 gear ASTRONIC: Internal error TCU Incorrect interrupt triggered X44 E 2
Travel: Switching blocked - condition: Clutch opens, neutral switching - system not available
RESET - Replay software - otherwise replace gear-change
065209 289
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
976613 gear ASTRONIC: Internal error TCU EEPROM parameter check sum X44 E 2
Travel: Switching blocked - condition: Clutch opens, neutral switching - system not available
RESET - Enter EOL parameter check sum again
976614 gear ASTRONIC: Internal error TCU EEPROM access faulty X44 E 1
Loss of comfort during start-up, switching and ranging - automatic blocked
RESET - otherwise replace gear-change
976640 gear ASTRONIC: Internal error TCU Communication faulty/not present X44 E 2
Travel: Switching blocked - condition: Clutch opens, neutral switching - system not available
RESET - otherwise replace gear-change
976703 gear ASTRONIC: CAN-data transfer ABS/ASR (ID 512) Faulty/missing, max. cycle time exceeded X44:8/12 E 2
Travel: Switching blocked - condition: Clutch opens, neutral switching - system not available
RESET - Check CAN-communication ECU - ABS
976803 gear ASTRONIC: CAN-data transfer ABS/ASR (ID 513) Faulty/missing, max. cycle time exceeded X44:8/12 E 2
Travel: Switching blocked - condition: Clutch opens, neutral switching - system not available
RESET - Check CAN-communication ECU - ABS
976903 gear ASTRONIC: CAN-data transfer E/A-module (ID 588) Faulty/missing, max. cycle time exceeded X44:8/12 E 2
Travel: Switching blocked - condition: Clutch opens, neutral switching - system not available
RESET - Check CAN-communication ECU - EA-Modul
977003 gear ASTRONIC: CAN-data transfer engine (ID 592) Faulty/missing, max. cycle time exceeded X44:8/12 E 2
Travel: Switching blocked - condition: Clutch opens, neutral switching - system not available
RESET - Check CAN-communication ECU - MOT
977103 gear ASTRONIC: CAN-data transfer engine (ID 593) Faulty/missing, max. cycle time exceeded X44:8/12 E 2
Travel: Switching blocked - condition: Clutch opens, neutral switching - system not available
RESET - Check CAN-communication ECU - MOT
977203 gear ASTRONIC: CAN-data transfer retarder (ID 772) Faulty/missing, max. cycle time exceeded X44:8/12 E 1
Loss of comfort during start-up, switching and ranging - automatic blocked
RESET - Check CAN-communication ECU - INT
065209 290
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
977603 gear ASTRONIC: CAN-data transfer Intarder (12xx) Faulty/missing, max. cycle time exceeded X44:8/12 E 1
Loss of comfort during start-up, switching and ranging
RESET - Check CAN-communication ECU - INT
977703 gear ASTRONIC: CAN-data transfer engine (ID 1360) Faulty/missing, max. cycle time exceeded X44:8/12 E 2
Loss of comfort during start-up, switching and ranging - automatic blocked
RESET - Check CAN-communication ECU - MOT
978142 gear ASTRONIC: CAN-signal average speed front axle faulty/not present X44:8/12 E 1
Loss of comfort during start-up, switching and ranging - automatic blocked
RESET - Check CAN-communication ECU - ABS
978142 gear ASTRONIC: CAN-signal average speed front axle faulty/not present X44:8/12 E 1
No start-up gear calculation - no travel resistance calculation - travel strategy only operates conditionally
RESET - Check CAN-communication ECU - ABS
978142 gear ASTRONIC: CAN-signal average speed front axle faulty/not present X44:8/12 E 1
No start-up gear calculation - no travel resistance calculation - travel strategy only operates conditionally
RESET - Check CAN-communication ECU - ASR
978142 gear ASTRONIC: CAN-signal average speed front axle faulty/not present X44:8/12 E 1
No start-up gear calculation - no travel resistance calculation - travel strategy only operates conditionally
RESET - Check CAN-communication ECU - MOT (ASR)
978242 gear ASTRONIC: CAN-signal differential speed front axle faulty/not present X44:8/12 E 1
No function limitation
RESET - Check CAN-communication ECU - ABS
978342 gear ASTRONIC: CAN-signal intarder actual moment faulty/not present X44:8/12 E 1
Loss of comfort during start-up, switching and ranging - automatic blocked
RESET - Check CAN-communication ECU - INT
065209 291
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
978502 gear ASTRONIC: CAN-signal Telma actual moment Signal on CAN faulty/not present X44:8/12 E 1
No function limitation
RESET - Check CAN-communication ECU - EA-Modul
979140 gear ASTRONIC: CAN-signal drive moment Soll Communication faulty/not present X44:8/12 E 1
Travel: Gear switching blocked - condition: Start-up gears can be switched - automatic blocked
RESET - Check CAN-communication ECU - MOT
979242 gear ASTRONIC: CAN-signal drive moment Ist faulty/not present X44:8/12 E 1
Loss of comfort during start-up, switching and ranging - automatic blocked
RESET - Check CAN-communication ECU - MOT
979342 gear ASTRONIC: CAN-signal engine moment dynamic faulty/not present X44:8/12 E 1
No function limitation
RESET - Check CAN-communication ECU - MOT
979442 gear ASTRONIC: CAN-signal engine break moment faulty/not present X44:8/12 E 1
Loss of comfort during start-up, switching and ranging - automatic blocked
RESET - Check CAN-communication ECU - MOT
065209 292
Fehler-Nr. Fehlertext / Reaktion / Behebung Stecker Blatt K W
065209 293
