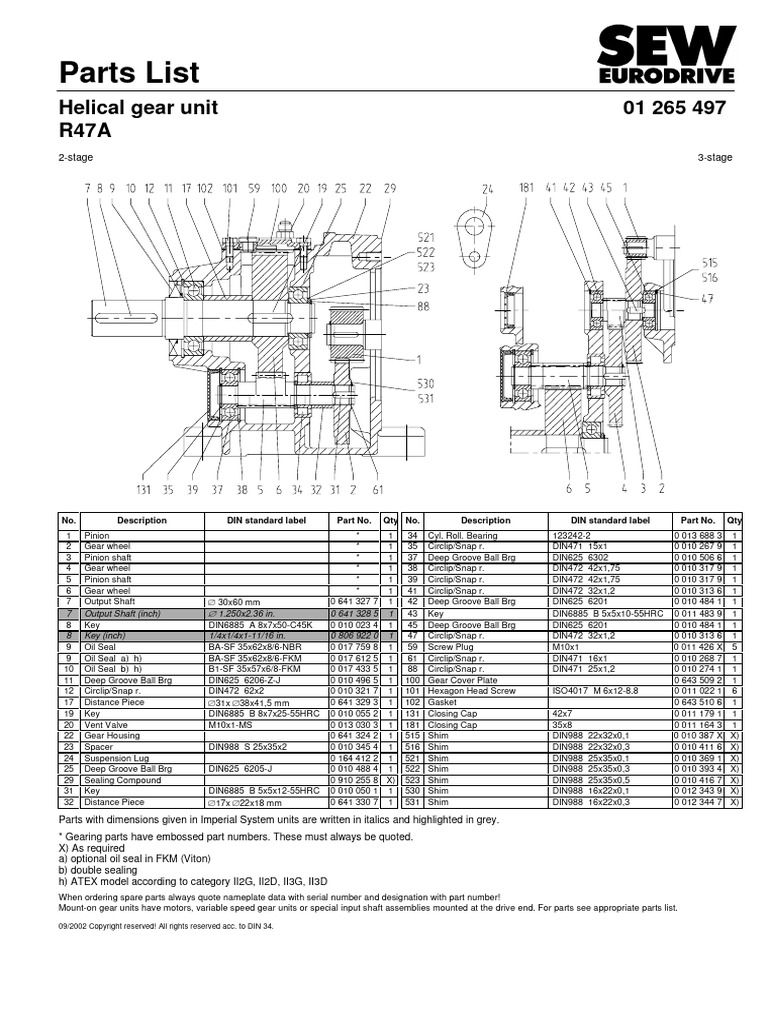

Parts List

Helical gear unit 01 265 497

R47A
2-stage 3-stage

No. Description DIN standard label Part No. Qty No. Description DIN standard label Part No. Qty
1 Pinion * 1 34 Cyl. Roll. Bearing 123242-2 0 013 688 3 1
2 Gear wheel * 1 35 Circlip/Snap r. DIN471 15x1 0 010 267 9 1
3 Pinion shaft * 1 37 Deep Groove Ball Brg DIN625 6302 0 010 506 6 1
4 Gear wheel * 1 38 Circlip/Snap r. DIN472 42x1,75 0 010 317 9 1
5 Pinion shaft * 1 39 Circlip/Snap r. DIN472 42x1,75 0 010 317 9 1
6 Gear wheel * 1 41 Circlip/Snap r. DIN472 32x1,2 0 010 313 6 1
7 Output Shaft ˜ 30x60 mm 0 641 327 7 1 42 Deep Groove Ball Brg DIN625 6201 0 010 484 1 1
7 Output Shaft (inch) ˜ 1.250x2.36 in. 0 641 328 5 1 43 Key DIN6885 B 5x5x10-55HRC 0 011 483 9 1
8 Key DIN6885 A 8x7x50-C45K 0 010 023 4 1 45 Deep Groove Ball Brg DIN625 6201 0 010 484 1 1
8 Key (inch) 1/4x1/4x1-11/16 in. 0 806 922 0 1 47 Circlip/Snap r. DIN472 32x1,2 0 010 313 6 1
9 Oil Seal BA-SF 35x62x8/6-NBR 0 017 759 8 1 59 Screw Plug M10x1 0 011 426 X 5
9 Oil Seal a) h) BA-SF 35x62x8/6-FKM 0 017 612 5 1 61 Circlip/Snap r. DIN471 16x1 0 010 268 7 1
10 Oil Seal b) h) B1-SF 35x57x6/8-FKM 0 017 433 5 1 88 Circlip/Snap r. DIN471 25x1,2 0 010 274 1 1
11 Deep Groove Ball Brg DIN625 6206-Z-J 0 010 496 5 1 100 Gear Cover Plate 0 643 509 2 1
12 Circlip/Snap r. DIN472 62x2 0 010 321 7 1 101 Hexagon Head Screw ISO4017 M 6x12-8.8 0 011 022 1 6
17 Distance Piece ˜31x ˜38x41,5 mm 0 641 329 3 1 102 Gasket 0 643 510 6 1
19 Key DIN6885 B 8x7x25-55HRC 0 010 055 2 1 131 Closing Cap 42x7 0 011 179 1 1
20 Vent Valve M10x1-MS 0 013 030 3 1 181 Closing Cap 35x8 0 011 164 3 1
22 Gear Housing 0 641 324 2 1 515 Shim DIN988 22x32x0,1 0 010 387 X X)
23 Spacer DIN988 S 25x35x2 0 010 345 4 1 516 Shim DIN988 22x32x0,3 0 010 411 6 X)
24 Suspension Lug 0 164 412 2 1 521 Shim DIN988 25x35x0,1 0 010 369 1 X)
25 Deep Groove Ball Brg DIN625 6205-J 0 010 488 4 1 522 Shim DIN988 25x35x0,3 0 010 393 4 X)
29 Sealing Compound 0 910 255 8 X) 523 Shim DIN988 25x35x0,5 0 010 416 7 X)
31 Key DIN6885 B 5x5x12-55HRC 0 010 050 1 1 530 Shim DIN988 16x22x0,1 0 012 343 9 X)
32 Distance Piece ˜17x ˜22x18 mm 0 641 330 7 1 531 Shim DIN988 16x22x0,3 0 012 344 7 X)

Parts with dimensions given in Imperial System units are written in italics and highlighted in grey.
* Gearing parts have embossed part numbers. These must always be quoted.
X) As required
a) optional oil seal in FKM (Viton)
b) double sealing
h) ATEX model according to category II2G, II2D, II3G, II3D
When ordering spare parts always quote nameplate data with serial number and designation with part number!
Mount-on gear units have motors, variable speed gear units or special input shaft assemblies mounted at the drive end. For parts see appropriate parts list.

09/2002 Copyright reserved! All rights reserved acc. to DIN 34.
