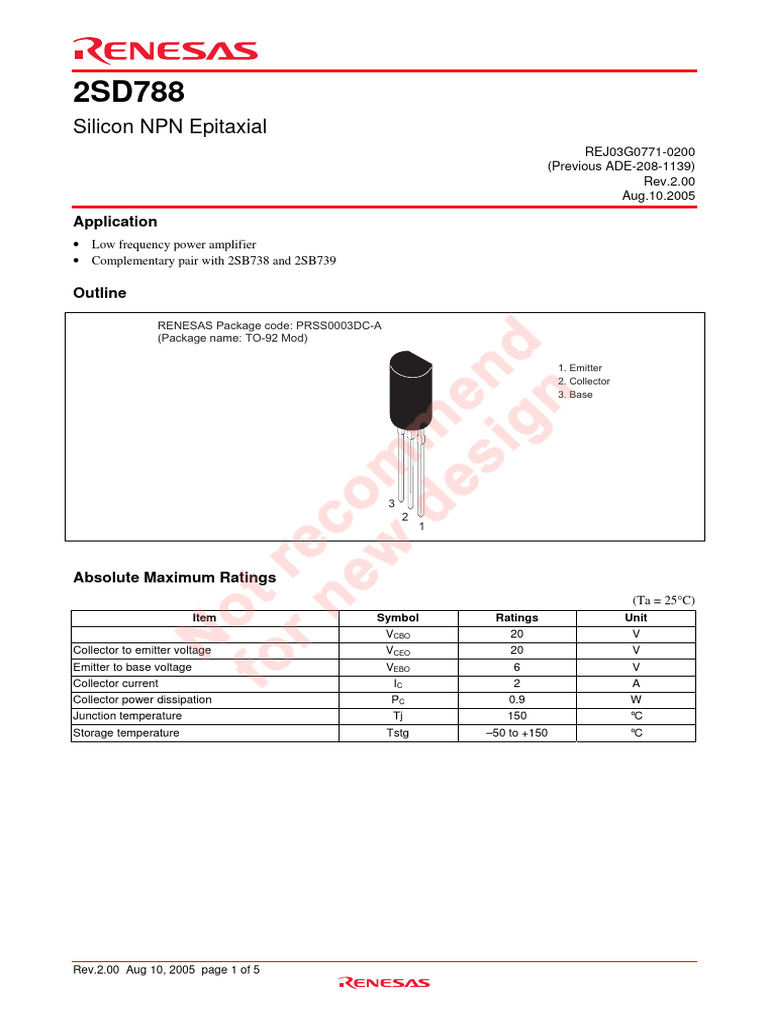

2SD788

Silicon NPN Epitaxial

REJ03G0771-0200
(Previous ADE-208-1139)
Rev.2.00
Aug.10.2005

Application
• Low frequency power amplifier
• Complementary pair with 2SB738 and 2SB739

Outline

RENESAS Package code: PRSS0003DC-A

(Package name: TO-92 Mod)

1. Emitter
2. Collector
3. Base

3
2
1

Absolute Maximum Ratings

(Ta = 25°C)
Item Symbol Ratings Unit
VCBO 20 V
Collector to emitter voltage VCEO 20 V
Emitter to base voltage VEBO 6 V
Collector current IC 2 A
Collector power dissipation PC 0.9 W
Junction temperature Tj 150 °C
Storage temperature Tstg –50 to +150 °C

Rev.2.00 Aug 10, 2005 page 1 of 5

2SD788

Electrical Characteristics
(Ta = 25°C)
Item Symbol Min Typ Max Unit Test conditions
Collector to base breakdown voltage V(BR)CBO 20 — — V IC = 10 µA, IE = 0
Collector to emitter breakdown voltage V(BR)CEO 20 — — V IC = 1 mA, RBE = ∞
Emitter to base breakdown voltage V(BR)EBO 6 — — V IE = 10 µA, IC = 0
Collector cutoff current ICBO — — 2 µA VCB = 16 V, IE = 0
Emitter cutoff current IEBO — — 0.2 µA VEB = 6 V, IC = 0
DC current transfer ratio hFE*1 160 — 500 VCE = 2 V, IC = 0.1 A
Collector to emitter saturation voltage VCE(sat) — — 0.3 V IC = 1 A, IB = 0.1 A
Gain bandwidth product fT — 100 — MHz VCE = 2 V,
IC = 10 mA
Collector output capacitance Cob — 20 — pF VCB = 10 V, IE = 0,
f = 1 MHz
Note: 1. The 2SD788 is grouped by hFE as follows.
C D
160 to 320 250 to 500

Rev.2.00 Aug 10, 2005 page 2 of 5

2SD788

Main Characteristics

Maximum Collector Dissipation Curve Typical Output Characteristics

100
1.2
(W)

0.3

Collector Current IC (mA)

Collector Power Dissipation PC

80 0.25

0.8 0.2
60

0.15
40
0.1
0.4

20 0.05 mA

IB = 0
0 50 100 150 0 2 4 6 8 10

Ambient Temperature Ta (°C) Collector to Emitter Voltage VCE (V)

Typical Output Characteristics Typical Transfer Characteristics

2.0 1,000
20
15
Collector Current IC (mA)
Collector Current IC (A)

1.6 300
10 VCE = 2 V
100 Ta = 75°C
5 mA
1.2
30 25
0.8
PC
=0 10 Ð25
.9 W
0.4
3
IB = 0
1
0 0.4 0.8 1.2 1.6 2.0 0 0.2 0.4 0.6 0.8 1.0

Collector to Emitter Voltage VCE (V) Base to Emitter Voltage VBE (V)

DC Current Transfer Ratio vs.

Collector Current Saturation Voltage vs. Collector Current
Collector to Emitter Saturation Voltage VCE(sat) (V)
Base to Emitter Saturation Voltage VBE(sat) (V)

10,000 3.0
Pulse
DC Current Transfer Ratio hFE

VCE = 2 V 1.0 VBE(sat)

3,000
Ta = 75°C 25
1,000 0.3
IC = 10 IB
300 0.1

–25 0.03
100
VCE(sat)

30 0.01

10 0.003
1 3 10 30 100 300 1,000 3 10 30 100 300 1,000 3,000

Collector Current IC (mA) Collector Current IC (mA)

Rev.2.00 Aug 10, 2005 page 3 of 5

2SD788

Collector Output Capacitance vs.

Collector to Base Voltage

Collector Output Capacitance Cob (pF)

1,000

f = 1 MHz
300
IE = 0

100

30

10
0.1 0.3 1.0 3 10

Collector to Base Voltage VCB (V)

Rev.2.00 Aug 10, 2005 page 4 of 5

2SD788

Package Dimensions
JEITA Package Code RENESAS Code Package Name MASS[Typ.]
SC-51 PRSS0003DC-A TO-92 Mod / TO-92 ModV 0.35g
Unit: mm

4.8 ± 0.4 3.8 ± 0.4

8.0 ± 0.5
2.3 Max
0.65 ± 0.1
0.75 Max

10.1 Min
0.60 Max
0.7
0.55 Max 0.5 Max

1.27
2.54

Ordering Information
Part Name Quantity Shipping Container
2SD788CTZ-E 2500 Hold Box, Radial Taping
2SD788DTZ-E
Note: For some grades, production may be terminated. Please contact the Renesas sales office to check the state of
production before ordering the product.

Rev.2.00 Aug 10, 2005 page 5 of 5
