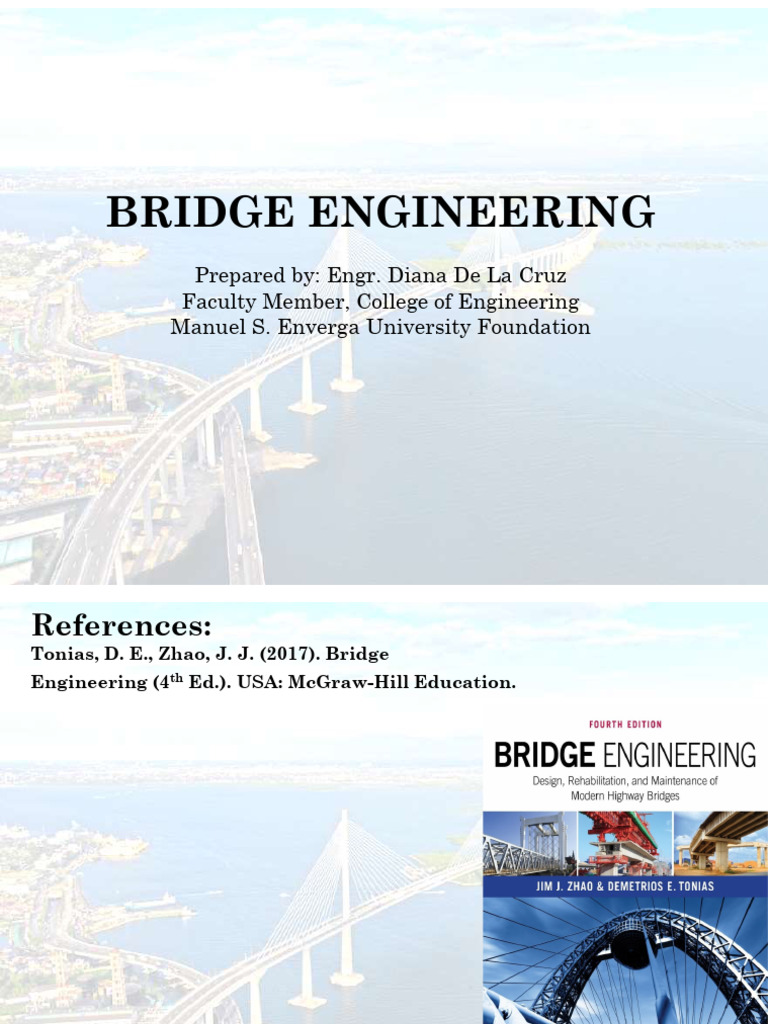

Faculty Member, College of Engineering Manuel S. Enverga University Foundation References: Tonias, D. E., Zhao, J. J. (2017). Bridge Engineering (4th Ed.). USA: McGraw-Hill Education. References: Tonias, D. E., Zhao, J. J. (2017). Bridge Engineering (4th Ed.). USA: McGraw-Hill Education.
Barker, R. M., Puckett, J. A. (2013). Design of
HighwayBridges (3rd Ed.). Hoboken, New Jersey: John Wiley & Sons, Inc. References: Tonias, D. E., Zhao, J. J. (2017). Bridge Engineering (4th Ed.). USA: McGraw-Hill Education.
Barker, R. M., Puckett, J. A. (2013). Design of
HighwayBridges (3rd Ed.). Hoboken, New Jersey: John Wiley &Sons, Inc.
American Association of State Highway and
Transportation Officials. AASHTO LRFD Bridge DesignSpecifications (AASHTO 2012). Washington, DC: AASHTO. References: Tonias, D. E., Zhao, J. J. (2017). Bridge Engineering (4th Ed.). USA: McGraw-Hill Education.
Barker, R. M., Puckett, J. A. (2013). Design of
Highway Bridges (3rd Ed.). Hoboken, New Jersey: John Wiley &Sons, Inc
Bureau of Design. Design Guidelines, Criteria and Standards (DGCS Vol. 5 Bridge Design 2015). Philippines: DPWH. Summary of Previous Discussion Five Principal Categories of Fund Source User Fees Special Benefit Fees Debt Financing Nonuser Fees Private Financing Types of Design Standards General Specifications Material-Related Design Codes Why do we conduct Site Inspection? For the construction of a new bridge structure To observe and determine the present condition of an existing bridge and site and to fulfill standardrequirements such as from National Bridge Inspection Standards (NBIS) For the rehabilitation or replacement of a structure from an existing bridge and site Why do we conduct Site Survey? →to create a model of topographic features →to create a model of planimetric features →to create a model of structural features Why do we conduct Physical Testing? to supply needed information concerning the adequacy of materials used in the construction of the bridge. Methods of Physical Testing Coring Testing for Cover Delamination Testing Measuring Steel Thickness Detecting Fatigue Cracks Module 3: Superstructure Intended Learning Outcomes for this Discussion: At the end of the discussion, the students will be able to: 1. Explain the different types of superstructures and how they are being classified; 2. State the different types of secondary members; 3. State the different types of decks. Superstructure Types Criteria in Selecting Type of Superstructure →bridge span length →material function and availability →construction cost →speed of construction and constructability →design complexity →maintenance costs and life expectancy →environmental concerns →aesthetics
Superstructures generally vary by support type (simply supported or continuous),
design type (slab-on-girder, arch, truss, etc.), and material type (steel, concrete, timber, etc.). Obviously, there are a variety of combinations of the above. For example, a designer could choose to use a slab-on-girder superstructure with either steel or concrete girders. This superstructure could be simply supported or continuous, and so on Steel Superstructures Advantages →lighter weight compared to concrete →more rapid construction compared to concrete →prefabrication reduces the amount of field labor for operations (e.g., bolting, welding) →recent advancements in fabrication methods and materials →automated element assembly and welding
Types of Steel Primary Members
Rolled Beam→ Steel girder that has been formed by hot-rolling. The most common type of rolled beam used as a primary member in highway bridges is the wide-flange variety. The wide flange W section beam differs from its I-beam cousin American Standard S-section in that its flanges are parallel rather than tapered. As the name would indicate, the flange width on a wide flange stringer is greater than that of an S-beam. The S-beam, however, has a thicker web. Steel Superstructures Advantages →lighter weight compared to concrete →more rapid construction compared to concrete →prefabrication reduces the amount of field labor for operations (e.g., bolting, welding) →recent advancements in fabrication methods and materials →automated element assembly and welding
Types of Steel Primary Members
Rolled Beam with Cover Plate→ To maintain an economy of material, rolled beams are sometimes equipped with a rectangular plate, or cover plate, at the bottom flange. The cover plate increases the ability of the stringer to resist flexure without having to use a larger rolled beam or plate girder. However, the cover plate also increases the potential for fatigue cracks by introducing welds and stress concentrations at the ends of the plate; therefore, its application is no longer allowed by most bridge owners. Steel Superstructures Advantages →lighter weight compared to concrete →more rapid construction compared to concrete →prefabrication reduces the amount of field labor for operations (e.g., bolting, welding) →recent advancements in fabrication methods and materials →automated element assembly and welding
Types of Steel Primary Members
Plate Girder→ A plate girder, like a rolled beam, has an I-shaped cross section. Rather than being hot-rolled in one piece, however, the girder is constructed from steel plate elements that are connected with welds, bolts, or rivets. Since the designer is specifying the section properties of the girder (i.e., flange width and thickness, web depth, etc.) a greater economy of materials results. To further reduce the amount of steel used, plate girder flange thicknesses may be varied in segments to accommodate bending moments at various regions. Sometimes plate girders can also be varied in depth, or haunched, to accommodate regions of low and high moment and/or shear. Plate girders gain an advantage over rolled beams as span lengths become large. Steel Superstructures Advantages →lighter weight compared to concrete →more rapid construction compared to concrete →prefabrication reduces the amount of field labor for operations (e.g., bolting, welding) →recent advancements in fabrication methods and materials →automated element assembly and welding
Types of Steel Primary Members
Box Girder→ In reality, the box girder is a form of plate girder that combines two girders into a single unit. Unlike open-box girders, closed-box girders possess excellent torsional stiffness, so they usually do not require secondary members to provide bracing. Although the box girder provides an aesthetically pleasing structure, the amount of steel required, especially for closed-box girders, can sometimes Exceed that for a standard I cross-sectional plate girder. Box girders usually have higher fabrication costs than plate girders, so most of them are designed for curved bridges to take advantage of their strong torsional rigidity Steel Superstructures Advantages →lighter weight compared to concrete →more rapid construction compared to concrete →prefabrication reduces the amount of field labor for operations (e.g., bolting, welding) →recent advancements in fabrication methods and materials →automated element assembly and welding Types of Steel Primary Members Steel Rigid Strut Frame→ A steel bridge with integral steel supporting legs is another form of structure that utilizes steel as its principal component. In such a configuration, not only is the superstructure made of steel, but the substructure as well.
Large Structures→ Steel is also an excellent material
for large structures requiring spans of significant length. The arch, truss, cable-stayed, and suspension structures all provide solutions for this class of bridge. Concrete Superstructures Types of Concrete Primary Members Prestressed Concrete Girder → A general axiom for concrete performance is that it handles compression very well but performs poorly under tension. For steel bars, the converse holds true. The combination of steel with concrete, with one material taking up the deficiencies of the other, is the basic principle behind reinforced concrete. Prestressed concrete takes this characteristic feature one step further by application of a tensile force to reinforcing tendons. This has the effect of increasing internal compression in the concrete beam where tension is anticipated under loading, and thus reducing or eliminating concrete tensile stresses once the beam is loaded. The prestressing force may be applied after the concrete is cast in situ (i.e., poured in the field) or before the beam is precast. Concrete Superstructures Types of Concrete Primary Members Prestressed Concrete Girder → A general axiom for concrete performance is that it handles compression very well but performs poorly under tension. For steel bars, the converse holds true. The combination of steel with concrete, with one material taking up the deficiencies of the other, is the basic principle behind reinforced concrete. Prestressed concrete takes this characteristic feature one step further by application of a tensile force to reinforcing tendons. This has the effect of increasing internal compression in the concrete beam where tension is anticipated under loading, and thus reducing or eliminating concrete tensile stresses once the beam is loaded. The prestressing force may be applied after the concrete is cast in situ (i.e., poured in the field) or before the beam is precast. Prestressing Systems Pretensioning →tensioning the tendon prior to casting the section →normally performed at precasting plants, where a precasting stressing bed of a long reinforced concrete slab is cast on the ground with vertical anchor bulkheads or walls at its ends. →can be accomplished by prestressing individual strands, or all the strands at one jacking operation. →for harped tendon profiles, the prestressing bed is provided with hold-down devices as shown. Prestressing Systems Post-tensioning
→tensioning the tendon after the
concrete has been cast and has achieved the major portion of its strength.
→the tendons of strands should not be
bonded or grouted prior to full prestressing. Concrete Superstructures Types of Concrete Primary Members Prestressed Concrete Girder → A general axiom for concrete performance is that it handles compression very well but performs poorly under tension. For steel bars, the converse holds true. The combination of steel with concrete, with one material taking up the deficiencies of the other, is the basic principle behind reinforced concrete. Prestressed concrete takes this characteristic feature one step further by application of a tensile force to reinforcing tendons. This has the effect of increasing internal compression in the concrete beam where tension is anticipated under loading, and thus reducing or eliminating concrete tensile stresses once the beam is loaded. The prestressing force may be applied after the concrete is cast in situ (i.e., poured in the field) or before the beam is precast. Concrete Superstructures Types of Concrete Primary Members Concrete Box Girder → Box girders are a form of prestressed concrete girder. Like their steel cousins, box girders are good at resisting the effects of torsion and typically do not require the introduction of bracing elements. Box girders can be built in segments, can be precast or cast in place, and can have variable sections. Because of these characteristics, concrete box girders are well suited for large span lengths. Typical Construction Methods for Concrete Box Girder Bridges Bay by Bay→ For medium-span bridges, they can be built bay by bay, one span at a time, or in a group of bays. Before post-tensioning force is applied, the superstructure concrete is supported by a temporary supporting system such as scaffoldings, movable erecting beams, movable launching beams, or movable centering system. Once concrete reaches its strength and is post-tensioned, the temporary supporting system can be removed and may be reused at another bay Concrete Superstructures Types of Concrete Primary Members Concrete Box Girder → Box girders are a form of prestressed concrete girder. Like their steel cousins, box girders are good at resisting the effects of torsion and typically do not require the introduction of bracing elements. Box girders can be built in segments, can be precast or cast in place, and can have variable sections. Because of these characteristics, concrete box girders are well suited for large span lengths. Typical Construction Methods for Concrete Box Girder Bridges Balanced Cantilever Method→ For long-span bridges where temporary supporting systems are not practical, concrete box girder bridges are usually built using the balanced cantilever method. The cantilever segments start from piers and work toward midspan where cantilevers from both piers meet. The concrete segments can be precast or cast-in-place. The post-tensioning steel has to be designed to resist cantilever action under construction loading during construction, and bridge load combinations when the bridge is completed. To improve design efficiency, sometimes temporary external post-tension tendons are used for construction loads that can be removed after the superstructure is completed. Concrete Superstructures Types of Concrete Primary Members Concrete Box Girder → Box girders are a form of prestressed concrete girder. Like their steel cousins, box girders are good at resisting the effects of torsion and typically do not require the introduction of bracing elements. Box girders can be built in segments, can be precast or cast in place, and can have variable sections. Because of these characteristics, concrete box girders are well suited for large span lengths. Typical Construction Methods for Concrete Box Girder Bridges Incremental Launching→ In this method, bridge piers are built first. The superstructure is cast and launched incrementally from one pier to another, with the help of a launching nose and sometimes temporary support between the piers. Like the cantilever method, post-tension reinforcement is designed to resist cantilever construction loads during each step of launching and for the final design loads once launching is completed. Concrete Superstructures Types of Concrete Primary Members Concrete Slab → A slab bridge is one in which the structuraldeck slab itself represents the primary load bearingmember(i.e., there are no supporting girders underneath).Conventionally reinforced concrete slab bridges arecommon for short spans up to 40 ft (12 m) in length. Adjacent Prestressed Slab → Adjacent prestressed concrete slab units can be used for short spans up to 60 ft (18 m). A 3 to 4 in (75 to 100 mm) concrete overlay with reinforcement is usually cast over the slab units. Slab units are transversely post-tensioned prior to placement of overlay to form a single bridge deck. Longitudinal shear keys are provided between units so that adjacent slabs can act as a whole unit under live load. The advantages of this type of bridge are rapid construction, low initial cost, and low maintenance costs, which make it very popular for short-span bridges. . Concrete Superstructures Types of Concrete Primary Members Concrete Rigid Frame → A concrete rigid frame, like the steel rigid frame, incorporates the superstructure and substructure into a single integrated unit. A conventionalrigid frame has a deck slab integrated with abutment walls. This type of structure is usually for very short spans. A box can be considered as a concrete rigid frame structure.
Concrete Strut Frame → A strut-frame type has
Integrated legs or struts extending from the superstructure at angles. These structures are useful when underpass width is an important concern and placement of a substructure element in the middle of the underpass is impossible.
Concrete Arch → Since arches convert most loading
Into compressive forces, concrete, with its excellent Compressive strength, is an ideal material for these types of structures. Concrete arches can range from short- to long-span bridges. Timber Superstructures Types of Timber Primary Members Glulam Timber → A glulam (Glued Laminated) Timber member is created by gluing together two or more pieces of lumber, no more than 2 in (50 mm) in thickness. In older timber structures, elements like bridge decks utilized a similar approach with nail-laminated lumber. As heavier loads were introduced on these bridges, however, nail laminated assemblies would begin to loosen. Also, prior to theintroduction of glulam timber, member sizes were somewhat limited due to the scarcity , individual timbers
Stress-Laminated Timber Deck → Stressed-laminated
timberdeck bridges are composed of 2 in (50 mm) thick and 8 to 12 in (200 to 305 mm) height strips that are Transversely stressed with prestressing steel bars. This type of bridge is similar to the concrete slab bridge where the deck is the primary load-carrying member. The timber deck is normally covered by a waterproofing membrane and paved with asphalt pavement as a wearing surface. Timber Superstructures Types of Timber Primary Members Trestle → A trestle is a set of timber stringers integrated with a pile or frame bent. Stringers usually have a rectangular cross section, although glulam I-beam stringers are also used. Previously, nail-laminated timber decks were used. Recently, prefabricated glulam deck panels that are placed transverse to the primary members have been utilized.
Truss → A bridge can be constructed with a timber truss and
timber decking. It is also possible to utilize steel truss components in conjunction with a timber deck. One form of truss bridge, common to timber structures, is the pony truss. A pony truss bridge is a through truss (i.e., the deck passes through, not on top of, the truss) with no bracing on top. A problem with through trusses like this is that they are prone to impact damage from traffic. Module 3: Superstructure Intended Learning Outcomes for this Discussion: At the end of the discussion, the students will be able to: 1. Explain the different types of superstructures and how they are being classified; 2. State the different types of secondary members; 3. State the different types of decks. Secondary Members →act as bracing for primary members. In general, secondary members are not load- bearing elements but aredesigned to prevent cross-sectional deformation of the superstructure frame. In addition, secondary membersprovide for vertical load distribution among stringers by permitting the superstructure to work together to share loads. Types of Secondary Members Diaphragms → A secondary member attached between girders, in the vertical plane, that acts to stiffen the primary member and help distribute vertical loads. When the primary member in a steel superstructure is exceedingly deep (approximately 48 in [1.2 m] or larger) or when curved girders are used, a cross frame style of diaphragm is desirable. Cross frames are typically composed of steel angles in a cross (X) or K configuration. Secondary Members →act as bracing for primary members. In general, secondary members are not load- bearing elements but aredesigned to prevent cross-sectional deformation of the superstructure frame. In addition, secondary membersprovide for vertical load distribution among stringers by permitting the superstructure to work together to share loads. Types of Secondary Members Lateral Bracing → Bracing located at either the top flange or the bottom flange of a stringer to prevent lateral deformation. The bracing is similar in form to a cross frame (i.e., laid out in an X- or K-shaped configuration but in the horizontal plane). Lateral bracing is not required at girder flanges attached to a rigid element, such as a concrete deck or between box girders. Lateral bracing can also add stability to the superstructure during construction. Secondary Members →act as bracing for primary members. In general, secondary members are not load- bearing elements but aredesigned to prevent cross-sectional deformation of the superstructure frame. In addition, secondary membersprovide for vertical load distribution among stringers by permitting the superstructure to work together to share loads. Types of Secondary Members Portal and Sway Bracing → Transverse bracing elements used in truss bridges. Both portal bracing and sway bracing are located at the top series of truss members called the top chord. Portal bracing differs from sway bracing in that it is located at the portal (i.e., entrance) of a through-truss. Portal bracing is designed to accommodate the total end reaction of the lateral system located at the top chord of the truss, and to transfer it to the substructure components. Sway bracing is located at intermediate panel points of the top chord in either a cross or knee brace configuration to provide lateral support for the truss top chords Module 3: Superstructure Intended Learning Outcomes for this Discussion: At the end of the discussion, the students will be able to: 1. Explain the different types of superstructures and how they are being classified; 2. State the different types of secondary members; 3. State the different types of decks. Deck Types Types of Deck Noncomposite and Composite Decks → When a deck is physically connected to and working with a superstructure load-bearing member in resisting loads, it is said to be composite. If the deck is just resting on top of the superstructure and has no means of transferring longitudinal shear from primary members to the deck, then it cannot assist in the resistance of bending moments induced by vehicle loading and is said to be noncomposite. Advantages of Composite Construction →A more efficient use of materials since steel member size can be significantly reduced due to the incorporation of the deck into the resisting cross-sectional properties →Greater vertical clearance by a reduction in stringer depth →An ability to sustain greater vehicle loading and to reduce live load deflection Deck Types Types of Deck Cast-in-Place Concrete Slab → By far, the Predominant form of deck in use is the cast-in-place, reinforced concrete deck slab. The conventional slab can work with either steel or concrete superstructures. When working in composite action, the slab essentially becomes a load-resisting element in the superstructure component. To protect the concrete slab, a deck overlay, or a portion of the deck reserved, can be used to resist the wear and tear of traffic.
Full-Depth Precast Concrete Panels → The panels
Are placed next to one another transverse to the stringers. A grout-filled shear key is provided between adjacent panels. The deck panels are typically protected by Waterproofing membranes and asphalt pavement on top, but concrete deck overlay may also be used. Precast panels are useful alternatives in rehabilitation projects because they allow for quick placement. Deck Types Types of Deck Partial-Depth Precast Concrete Panels → Span between girders, acting as stay-in-place forms for the cast-in-place portion of the concrete deck. The precast panels are typically prestressed to resist positive bending moments at construction stage and at the final stage. The negative bending moment Over girders, at the final stage, is resisted by Reinforcement in the cast-in-place portion of the composite deck. Shear connectors are provided on girder top flanges so that the final deck is composite with the girders.
Steel Orthotropic Plate → A thin steel plate with
Closely spaced stiffeners attached underneath it. The plate is stiffened in two directions: longitudinally (rib systems) and transversely (floor beams). Since the stiffness of the ribs varies from that of the floor beam, the system is said to be anisotropic. The term orthotropic is derived from the orthogonal (ortho) placement of the stiffeners and the anisotropic (tropic) behavior. Deck Types Types of Deck Steel Grid → Utilizes a steel grid that can be left open or filled with concrete. A steel grid flooring system comes in panels that are welded to the supporting superstructure. While an open steel grid has less dead load than one filled with concrete, it does not offer as good riding surface and can be prone to poor skid resistance. An open steel grid deck system is also susceptible to corrosion.
Timber → This decking can be used with or without a
wearing surface. Like open steel grids, when not equipped with a wearing surface, timber decks offer poor skid resistance. Glulam timber planks are placed transversely to the superstructure stringers, as in precast prestressed concrete panels. Stress-laminated panels are placed longitudinally, and no stringers are used. To protect the timber deck, a waterproofing membrane, which may be installed between deck and asphalt, or between two layers of asphalt pavement, is usually used. Deck Types Types of Deck Corrugated Metal → For bridges on local roads, a corrugated metal form filled with concrete or asphalt can also be used. Such a system, while reducing dead loads, requires close spacing of primary members and can suffer from corrosion.
Fiber Reinforced Polymer (FRP) → The major
advantages of using FRP decks are light weight, rapid installation, and resistance to corrosion (maintenance free). Due to the high costs, FRP decks are currently mainly used on rehabilitation projects where light weight and rapid construction are key considerations. Module 3: Superstructure Intended Learning Outcomes for this Discussion: At the end of the discussion, the students will be able to: 1. Explain the different types of superstructures and how they are being classified; 2. State the different types of secondary members; 3. State the different types of decks. Summary of this Discussion Superstructures generally vary by support type (simply supported or continuous), des type (slab-on-girder, arch, truss, etc.), and material type (steel, concrete, timber, etc.). Obviously, there are a variety of combinations of the above. For example, a designer co choose to use a slab-on-girder superstructure with either steel or girders. This superstructure could be simply supported or continuous, and so on. Types of Steel Primary Members Rolled Beam Steel Rigid Strut Frame Large Structures Rolled Beam with Cover Plate Box Girder Types of Concrete Primary Members Prestressed Concrete Girder Concrete Slab Concrete Arch Concrete Box Girder Adjacent Prestressed Slab Concrete Strut Frame Concrete Rigid Frame Types of Timber Primary Members Glulam Timber Stress-Laminated Timber Deck Trestle Truss Types of Secondary Members Diaphragms Lateral Bracing Portal and Sway Bracing Types of Deck Noncomposite and Composite Decks Cast-in-Place Concrete Slab Full-Depth Precast Concrete Panels Partial-Depth Precast Concrete Panels Steel Orthotropic Plate Steel Grid Timber Corrugated Metal Fiber Reinforced Polymer (FRP) Thank You for Listening!
