FLOWCHART

PSEUDO CODE
 Flow Chart

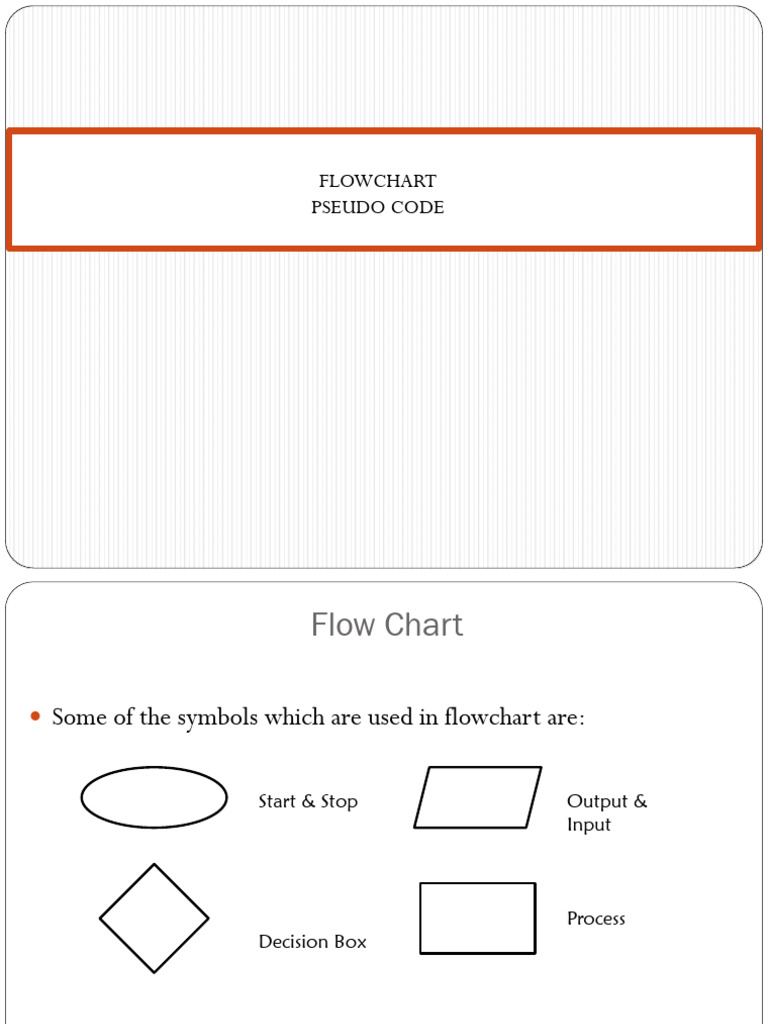

— Some of the symbols which are used in flowchart are:

Start & Stop Output &

Input

Process
Decision Box

Flow of Data

2
3
In an algorithm, we use two operations Read() and Write() to take a data from the user entered using
an input like the keyboard and to display some data on the output like the screen. Consider x as
number.

— Read(x): the Read operation takes some value entered by the user on the keyboard and puts the
value in the variable x that is stored in memory.

— Write(“Message”): the Write operation displays Message on the screen. Sometimes PRINT is also
used.

— Write(x): the Write operation displays the value of x on the screen.

— Write(“Message”, x): the Write operation displays Message followed by the value of x.

Example: int x = 7;
Write(x, “is a positive number.”); => 7 is a positive number.

4
5
6
 BEGIN

int temp;
WRITE(“Enter the current temperature”);
READ(temp);
IF (temp < 0) THEN
WRITE(“The temperature ”, temp, “ is below zero. It is cold”);
temp = temp + 5;
ELSE IF (temp >40) THEN
WRITE(“The temperature ”, temp, “ is over forty. It is very hot”);
temp = temp - 5;
ELSE IF (temp >=20 AND temp <=25) THEN
WRITE(“Warm temperature, do not change!”);
ENDIF
ENDIF
ENDIF
END

7
8
 Example 1: addition 2 numbers
Flow Chart
START

READ num1,num2

Sum = num1+ num2

WRITE sum

END

9
 Example 2
Flow chart
— Max between 2 numbers
START

READ n1,n2

yes No
n1>n2

WRITE n1 WRITE n2

END
10
 Example 3: temperature
Flow chart
— Freezing degree
START

READ temp

yes No
Temp<=0

WRITE "freezing
start" WRITE " above
freezing"

END
11
 Example 4: odd or even numbers
Flow chart
— Nb%2 allows to compute division remainder
START

READ nb

yes No
nb%2 ==0

WRITE "EVEN" WRITE "ODD"

END
12
 Example 5: rectangle
Flow chart
— Perimeter and area of a rectangle
START

READ length,width

Perimeter =2*(length+width)

area =length*width

WRITE Perimeter

WRITE area

13
END
 Example 6
Flow chart
— Area of a circle
START

READ radius

area =3.14*radius*radius

WRITE area

END

14
 Exercise

— Write an algorithm/FLOWchart to read the price (without the tax)

and quantity of an item and then calculates and displays the amount
of the bill knowing that the VAT rate is 10%.

15
1. BEGIN
2. float price, totalPrice;
3. int Quantity;
4. WRITE(“PRICE?”);
5. READ (Price)
6. READ(Quantity);
7. totalPrice = (Price + Price *0.1) * Quantity;
8. WRITE(“ Total=“, totalPrice);
9. END

16
 2.2 Algorithms

— Computing problems
— Solved by executing a series of actions in a specific order
— Algorithm is a procedure determining
— Actions to be executed
— Order to be executed
— Example: recipe
— Program control
— Specifies the order in which statements are executed

17
 2.3 Pseudocode

— Pseudocode
— Artificial, informal language used to develop algorithms
— Similar to everyday English
— Not executed on computers
— Used to think out program before coding
— Easy to convert into C program
— Only executable statements
— No need to declare variables

18
 Building a Program

— Whatever type of problem needs to be solved, a careful thought out plan of attack, called
an algorithm, is needed before a computer solution can be determined.

1) Developing the algorithm.

2) Writing the program.
3) Documenting the program.
4) Testing and debugging the program.

19
 Building a Program

— 2) Writing the Program

— If analysis and planning have been thoroughly done, translating the plan
into a programming language should be a quick and easy task.

— 3) Documenting the Program

— During both the algorithm development and program writing stages,
explanations called documentation are added to the code.
— Helps users as well as programmers understand the exact processes to be
performed.

23
 Building a Program

— 4) Testing and Debugging the Program.

— The program must be free of syntax errors.
— The program must be free of logic errors.
— The program must be reliable. (produces correct results)
— The program must be robust. (able to detect execution errors)

— Alpha testing: Testing within the company.

— Beta testing: Testing under a wider set of conditions using
“sophisticated” users from outside the company.

24
 The evolution of programming paradigms

25
 Algorithm

— a process or set of rules to be followed in calculations or other

problem-solving operations, especially by a computer.

26
 Algorithm

— In your algorithm (or program), you can use different types of statements.

— There are 3 categories of control structures:

1- Sequence of statements
2- Selection
3- Repetition

27
 Algorithm: Sequence

— A compound statement (or a block) is a sequence of statements

ordered in a way to give a solution: e.g.
S1;
S2;
S3;
is a sequence of 3 statements
— The statements that have a sequential control:
1- INPUT/OUPUT statements
2- Assignment statement

28
 Algorithm: Sequence

INPUT/OUPUT statements

INPUT statement (in pseudo code):

Use READ statement to input data into variables from the standard input
device (e.g. a keyboard).

29
 Algorithm: Sequence

Syntax: READ List of variables

where, List of variables contains one or more variables
e.g. READ x;
READ a, b;

The semantics (execution) of this statement:

You can enter the values you want for the variables in the
statement from the keyboard and the computer will assign these
values into the variables (stores them in memory).

30
 Algorithm: Sequence

— The WRITE statement has many uses.

— Use WRITE statement to output

- The values of variables stored in memory.

- A message (i.e. a string of characters).
- The value of an expression.

31
 Algorithm: Sequence

Syntax:
1- WRITE List of variables
where, List of variables contains one or more variables

e.g. WRITE x;
WRITE a, b;

The semantics (execution) of this statement:

This statement allows the computer to access the locations of the variables
mentioned in the statement and displays their contents on an output device
(e.g. a screen).

32
 Algorithm: Sequence

2- WRITE message;
where message may by any string of
characters enclosed with double quotas.

e.g. WRITE “Enter 3 values”;

33
 Algorithm: Sequence

The semantics (execution) of this statement:

This statement will display the message on the screen.

3- WRITE expression;
where expression is any arithmetic expression

e.g. WRITE 3 + 6;
WRITE x – y;
The semantics (execution) of this statement:
First, the expression is evaluated, then the result will be displayed on
the screen. For the first example, it will display 9.

34
 Algorithm: Sequence

NOTE
You can mix between the different types of the WRITE statements.
e.g.
WRITE “Length = “ , length; è ex: Length= 15

The semantics (execution) of this statement:

This statement will display the message
Length = on the screen and on the same line it will display the value of the
variable length.

35
 Assignment Statement

— Storing a new value in a memory location is called assignment.

— We use the operator ß as assignment operator.

Syntax:
Variable ç Expression;
The semantics (execution) of this statement:
1- The Expression on the right of ß is evaluated
2- The result of the expression is assigned to the variable on the left of
ß.
e.g.
X ß 10 ; (This means that X has 10 now )
Y ß X + 5; (This means that Y has 11 now, if X is 6)

36
 Assignment Statement

NOTE:
The right hand side (RHS) of the assignment statement should be of the
same data type of the left hand side (LHS).
e.g.
1- T ß true;
This will be correct if T is of Boolean type (True or False).

2- A ß x + y * 2;
This will be correct if A has a numeric data type (e.g. integer, or real) and
the value of the expression on (RHS) has the same numeric data type.

37
 Assignment Statement
n How to execute a statement like X ß X + 1; ?
Suppose we have:
X ß 5;
Then to execute X ß X + 1, we proceed as follows:

X Xß5
5 6

XßX+1

38
 Assignment Statement
n Dereferencing:
If we want to copy a value from one memory location (say, X) into
another location (say,Y), we say that we dereference a variable.
e.g.
X ß 5;
Y ß 10;
X ßY ; // now X has the value 10

X Y
5 10 10

39
 Example 1

Write an algorithm to Compute and print the

summation of two numbers.
First, we have to analyze the problem to understand what
is the input, output of the problem, and which formula to
use to solve the problem (if any).

40
 Example 1

1- Analysis stage:
— Problem Input:
- num1
- num2
— Problem Output:
- summation of two numbers
— Formula:
sum=num1+num2

41
 Example 1

2- Algorithm Design
We write the algorithm by using the pseudo code
ALGORITHM Summation
BEGIN Output:
1. WRITE “enter 2 nbers: “ ; Enter 2 nbers: 100 5
Sum=105
2. READ num1, num2;
3. sumß num1+ num2;
4. WRITE “sum=“ ,sum;
END

42
 Example 1

3- Testing the algorithm

We give a sample data to see whether the algorithm solves the problem
correctly or not.
To give a sample data, proceed as follows:
1- Prepare a table to contain all variables of the algorithm.
2- Give any data you like as input.
3- Calculate any formula in the algorithm using these data.
4- Show the output
e.g.
num1 num2 sum
13 50 ---
63
The output:
sum= 63

43
 Control Structures
Selection: if/else

44
 2.4 Control Structures

— Sequential execution
— Statements executed in order
— Transfer of control
— Next statement executed not next one in sequence
— 3 control structures
— Sequence structure
— Programs executed sequentially by default
— Selection structures
— if, if/else
— Repetition structures
— …

45
 2.4 Control Structures

— Flowchart
— Graphical representation of an algorithm
— Special-purpose symbols connected by arrows (flowlines)
— Rectangle symbol (action symbol)
— Any type of action
— Oval symbol
— Beginning or end of a program, or a section of code (circles)

— Single-entry/single-exit control structures

— Connect exit point of one to entry point of the next
— Control structure stacking

46
 2.5 if Selection Structure

— Selection structure
— Choose among alternative courses of action
— Pseudocode example:
If student’s grade is greater than or equal to 60
Print “Passed”
— If the condition is true
— Print statement executed, program continues to next statement
— If the condition is false
— Print statement ignored, program continues
— Indenting makes programs easier to read
— C ignores whitespace characters (tabs, spaces, etc.)

47
 2.5 if Selection Structure

— Translation into pseudo code

If student’s grade is greater than or equal to 60
Print “Passed”

if ( grade >= 60 )
WRITE "Passed";
— Diamond symbol (decision symbol)
— Indicates decision is to be made
— Contains an expression that can be true or false
— Test condition, follow path

— if structure
— Single-entry/single-exit

48
 2.5 if Selection Structure

— Flowchart of pseudocode statement

A decision can be made on

any expression.

true zero - false

grade >= 60 WRITE “Passed”
nonzero - true
Example:
false 3 - 4 is true

49
 2.6 if/else Selection Structure

— if
— Performs action if condition true
— if/else
— Different actions if conditions true or false
— Example text to Pseudocode
if student’s grade is greater than or equal to 60
print “Passed”
else
print “Failed”
Algo:
if ( grade >= 60 )
WRITE "Passed";
else
WRITE "Failed";

50
 Exam Grade Flowchart
READ examGrade, quizGrade;
if (examGrade < 60)
WRITE “We have a problem” ;
if (quizGrade < 10)
WRITE “We have a real problem” ;
else
WRITE “Ok”;

examGrade < 60 true

“We have a problem”

false quizGrade < 10 true

“Ok” “We have a real problem”

51
 Ascending order 3 var using one auxiliary var START

READ A, B,C

yes
A>B

Tmp=A Swap A and B

A=B
B=tmp
No

B>C
yes
Tmp=B
B=C
C=tmp Swap B and C
No
A>B yes
Tmp=A
Swap A and B
A=B
B=tmp

write A, B,C

52 END
 Ascending order 3 var using one auxiliary var START

A B C Tmp READ A, B,C

5 3 1
yes
A>B
5 3 1
Tmp=A Swap A and B
A=B
3 5 1 3 B=tmp
No
3 5 1 B>C
yes
Tmp=B
3 1 5 5 B=C
Swap B and C
C=tmp

No
3 1 5 3 A>B yes
Tmp=A
Swap A and B
1 3 5 A=B
B=tmp

write A, B,C

53 END
 Ascending order 3 var using one auxiliary var START

READ A, B,C

yes
A>B

Tmp=A Swap A and B

A=B
B=tmp
No

B>C
yes
Tmp=B
B=C
C=tmp Swap B and C
No
A>B yes
Tmp=A
Swap A and B
A=B
B=tmp

write A, B,C

54 END
 Ascending order 3 var using one auxiliary var START

A B C Tmp READ A, B,C

5 3 1
yes
A>B
5 3 1
Tmp=A Swap A and B
A=B
3 5 1 3 B=tmp
No
3 5 1 B>C
yes
Tmp=B
3 1 5 5 B=C
Swap B and C
C=tmp

No
3 1 5 3 A>B yes
Tmp=A
Swap A and B
1 3 5 A=B
B=tmp

write A, B,C

55 END
 Exercise
ascending order without auxiliary var only branching
statements

56
 START

READ A, B,C

No yes
A>B
No yes
No yes B>C
A>C

No No yes
yes C<A
B<C

write C,A, B write A, B,C

write B,C, A
write A, C, B

write A, B,C write B,A, C

57
