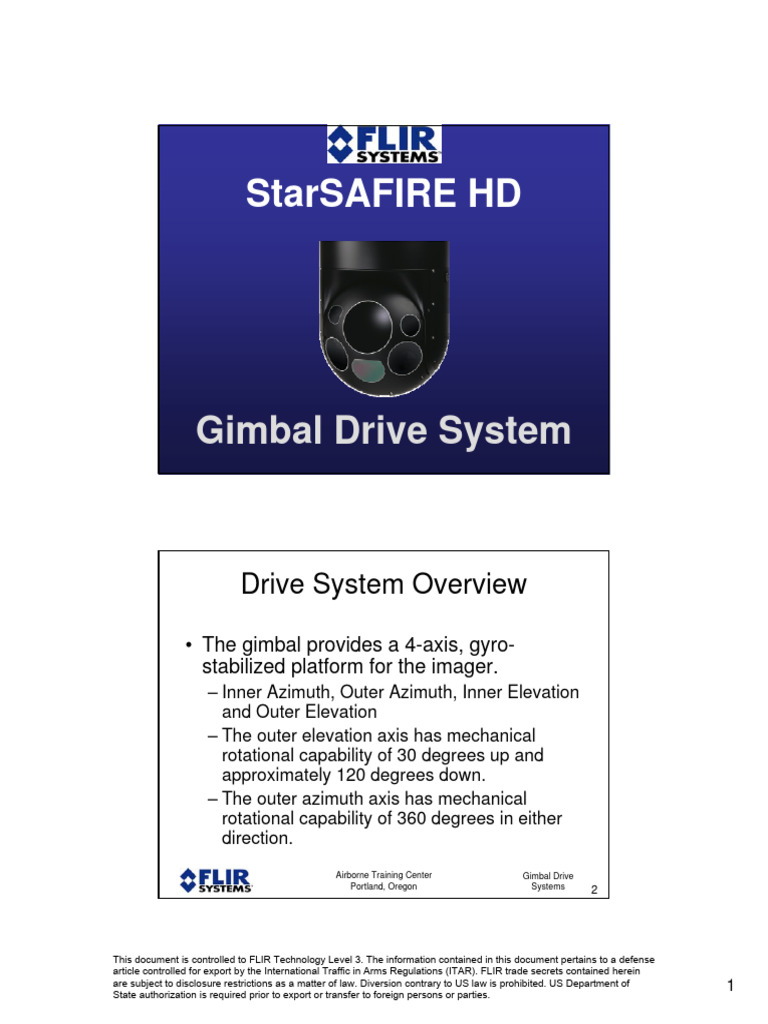

StarSAFIRE HD

Gimbal Drive System

Drive System Overview

• The gimbal provides a 4-axis, gyro-

stabilized platform for the imager.
– Inner Azimuth, Outer Azimuth, Inner Elevation
and Outer Elevation
– The outer elevation axis has mechanical
rotational capability of 30 degrees up and
approximately 120 degrees down.
– The outer azimuth axis has mechanical
rotational capability of 360 degrees in either
direction.
Airborne Training Center Gimbal Drive
Portland, Oregon Systems 2

This document is controlled to FLIR Technology Level 3. The information contained in this document pertains to a defense
article controlled for export by the International Traffic in Arms Regulations (ITAR). FLIR trade secrets contained herein
are subject to disclosure restrictions as a matter of law. Diversion contrary to US law is prohibited. US Department of 1
State authorization is required prior to export or transfer to foreign persons or parties.
 Terminology
• Gimbal
– Electronics and mechanical apparatuses used to control the movement of the turret for
sensor pointing requirements.
• Skillet
– Area on top of the TFU and contains the Digital Gimbal Controller PCB, Elevation Power
Distribution PCB, hub, slip ring assembly, and Fuse panel.
• Port Side
– Contains the Inner Azimuth and Elevation PCB and the elevation Motor
• Starboard Side
– Contains the Angular Sensor PCB and the Elevation Resolver.
• Yoke
– TFU inner ring which the front and rear covers attach and allows rotation in the elevation
axis. The imager mounts inside the yoke.
• Imager
– Electronics and optical equipment needed for the sensor assemblies which make up the Star
SAFIRE III system. Connects to the TFU through the slip ring wire harness and is removable
as a complete subassembly for troubleshooting and repair.
• Payload
– Alternate name for the Imager. When referring to documentation for the STAR III the terms
Payload and Imager are interchangeable

Airborne Training Center Gimbal Drive

Portland, Oregon Systems 3

Drive System Overview

• The gimbal contains all drive motors, rate

and position sensors, servo control
circuits, and slip rings which enable
remote pointing control over a two wire
serial interface.

Airborne Training Center Gimbal Drive

Portland, Oregon Systems 4

This document is controlled to FLIR Technology Level 3. The information contained in this document pertains to a defense
article controlled for export by the International Traffic in Arms Regulations (ITAR). FLIR trade secrets contained herein
are subject to disclosure restrictions as a matter of law. Diversion contrary to US law is prohibited. US Department of 2
State authorization is required prior to export or transfer to foreign persons or parties.
 Drive System Overview
• Construction of the gimbal drive system consists
of a stationary hub, mounting plate, and skillet
mated to a rotating yoke that carries the imager.
• The two sections are coupled together at the
base of the hub by a pre-loaded bearing
assembly.
• Signals passing between the two sections are
routed through the slip ring which is mounted
internal to the hub. One end of the slip ring is
attached to the stationary hub and the other is
attached to the rotating yoke.
Airborne Training Center Gimbal Drive
Portland, Oregon Systems 5

Drive System Overview

• The electronics contained in the Gimbal Drive

System are:
– 3205430 Gimbal Ear Sensor (GES).
– 3205432 Gimbal Ear Drive (GED).
– 3205440 Gimbal Ear Power (GEP).
– 3205418 Gyro Interface Processor (GIP).
– 3205438 Fuse Panel.
– 3205434 Skillet Power Az Drive (SPAZD).
– 3205435 Gimbal Communication Processor (GCP).

Airborne Training Center Gimbal Drive

Portland, Oregon Systems 6

This document is controlled to FLIR Technology Level 3. The information contained in this document pertains to a defense
article controlled for export by the International Traffic in Arms Regulations (ITAR). FLIR trade secrets contained herein
are subject to disclosure restrictions as a matter of law. Diversion contrary to US law is prohibited. US Department of 3
State authorization is required prior to export or transfer to foreign persons or parties.
 Gimbal Drive System

• The following slides will cover each of the

electronic assemblies contained in the
Gimbal Drive System.
• Refer to the appropriate section in the
training manual and the associated
schematic while reviewing the circuit
descriptions and theory of operations.

Airborne Training Center Gimbal Drive

Portland, Oregon Systems 7

Gimbal Ear Sense (GES)

• P/N – 3205430
• Schematic – 325430SCH
• Training Manual Section 3.1
Airborne Training Center Gimbal Drive
Portland, Oregon Systems 8

This document is controlled to FLIR Technology Level 3. The information contained in this document pertains to a defense
article controlled for export by the International Traffic in Arms Regulations (ITAR). FLIR trade secrets contained herein
are subject to disclosure restrictions as a matter of law. Diversion contrary to US law is prohibited. US Department of 4
State authorization is required prior to export or transfer to foreign persons or parties.
 Gimbal Ear Sensor (GES)

• PURPOSE
– Provides azimuth and elevation position data
to the Gimbal Ear Drive (GED).

• LOCATION
– Located in the Port Ear.

Airborne Training Center Gimbal Drive

Portland, Oregon Systems 9

Gimbal Ear Sense (GES)

• FUNCTIONS
– Generates primary excitation signals for the
position sensors.
– Receives secondary winding feedback from
position sensors.
– Converts position sensor feedback into digital
data.
– Sends digital position data on the CAN serial
interface bus to the Gimbal Ear Drive (GED).
Airborne Training Center Gimbal Drive
Portland, Oregon Systems 10

This document is controlled to FLIR Technology Level 3. The information contained in this document pertains to a defense
article controlled for export by the International Traffic in Arms Regulations (ITAR). FLIR trade secrets contained herein
are subject to disclosure restrictions as a matter of law. Diversion contrary to US law is prohibited. US Department of 5
State authorization is required prior to export or transfer to foreign persons or parties.
 Inner Az and Inner El RVDT’s

• Rotary Variable Differential Transformer

Airborne Training Center Gimbal Drive
Portland, Oregon Systems 11

Inner Az and Inner El RVDT’s

• Rotary Variable Differential Transformer

Airborne Training Center Gimbal Drive
Portland, Oregon Systems 12

This document is controlled to FLIR Technology Level 3. The information contained in this document pertains to a defense
article controlled for export by the International Traffic in Arms Regulations (ITAR). FLIR trade secrets contained herein
are subject to disclosure restrictions as a matter of law. Diversion contrary to US law is prohibited. US Department of 6
State authorization is required prior to export or transfer to foreign persons or parties.
 Inner Az and Inner El RVDT’s

• Rotary Variable Differential Transformer

Airborne Training Center Gimbal Drive
Portland, Oregon Systems 13

Inner Az and Inner El RVDT’s

Airborne Training Center Gimbal Drive

Portland, Oregon Systems 14

This document is controlled to FLIR Technology Level 3. The information contained in this document pertains to a defense
article controlled for export by the International Traffic in Arms Regulations (ITAR). FLIR trade secrets contained herein
are subject to disclosure restrictions as a matter of law. Diversion contrary to US law is prohibited. US Department of 7
State authorization is required prior to export or transfer to foreign persons or parties.
 RVDT Excitation Frequency
Square to Sine Wave Conversion

PWM square wave

26.7KHz
from DSP

Airborne Training Center Gimbal Drive

Portland, Oregon Systems 15

RVDT Excitation Frequency

Inner Az RVDT Excitation Signal Amplifier
(Identical circuitry for Inner Elevation)

26.7KHz

Airborne Training Center Gimbal Drive

Portland, Oregon Systems 16

This document is controlled to FLIR Technology Level 3. The information contained in this document pertains to a defense
article controlled for export by the International Traffic in Arms Regulations (ITAR). FLIR trade secrets contained herein
are subject to disclosure restrictions as a matter of law. Diversion contrary to US law is prohibited. US Department of 8
State authorization is required prior to export or transfer to foreign persons or parties.
 RVDT Feedback
ADC Buffers
(Identical circuitry for Inner EL POS)

From
RVDT
Sensors
To ADC

Airborne Training Center Gimbal Drive

Portland, Oregon Systems 17

Elevation Resolver

• Provides fine and course position information for

the elevation axis.

• Two speed resolver:

– Course output (one sine and cosine cycle per revolution).
– Fine output (32 sine and cosine cycles per revolution).

Airborne Training Center Gimbal Drive

Portland, Oregon Systems 18

This document is controlled to FLIR Technology Level 3. The information contained in this document pertains to a defense
article controlled for export by the International Traffic in Arms Regulations (ITAR). FLIR trade secrets contained herein
are subject to disclosure restrictions as a matter of law. Diversion contrary to US law is prohibited. US Department of 9
State authorization is required prior to export or transfer to foreign persons or parties.
 Elevation Resolver

Cosine Primary

Pr
0° Cosine

im
-45°

ar
Cos=1

y
Cos=.707
Sin=0
Sin=-.707

Sine

Sine

Primary
Cosine
-90°
Cos=0
Sin=-1

Sine

Airborne Training Center Gimbal Drive

Portland, Oregon Systems 19

Resolver Sine and Cosine

Airborne Training Center Gimbal Drive

Portland, Oregon Systems 20

This document is controlled to FLIR Technology Level 3. The information contained in this document pertains to a defense
article controlled for export by the International Traffic in Arms Regulations (ITAR). FLIR trade secrets contained herein
are subject to disclosure restrictions as a matter of law. Diversion contrary to US law is prohibited. US Department of 10
State authorization is required prior to export or transfer to foreign persons or parties.
 Elevation Resolver Excitation

PWM square wave 2.67KHz

from DSP

Airborne Training Center Gimbal Drive

Portland, Oregon Systems 21

Elevation Resolver Excitation

2.67KHz

Airborne Training Center Gimbal Drive

Portland, Oregon Systems 22

This document is controlled to FLIR Technology Level 3. The information contained in this document pertains to a defense
article controlled for export by the International Traffic in Arms Regulations (ITAR). FLIR trade secrets contained herein
are subject to disclosure restrictions as a matter of law. Diversion contrary to US law is prohibited. US Department of 11
State authorization is required prior to export or transfer to foreign persons or parties.
 Resolver Feedback
ADC Buffers

From
Elevation To ADC
Resolver

Airborne Training Center Gimbal Drive

Portland, Oregon Systems 23

GES Block Diagram

In_Az_Pos_A

LP
Az_RVDT_Exc
Filter

In_Az_Pos_B

Inner Az
RVDT
4 X 14
ADC
12 Volt Bus

In_El_Pos_A
LP
Filter El_RVDT_Exc

In_El_Pos_B

Inner El
RVDT

Out_El_Pos_Sin1X

Power
EEPROM LP
Conditioning Filter
Out_El_Pos_Cos1X

Resolver_Exc 4 X 14
Interface connector
ADC

Out_El_Pos_Sin32X
Current Sense

Out_El_Pos_Cos32X

Outer El
Resolver

Digital Signal Processor

CAN
TMS-320F2812

Gimbal Ear Sensor PCB

10 May 05

Airborne Training Center Gimbal Drive

Portland, Oregon Systems 24

This document is controlled to FLIR Technology Level 3. The information contained in this document pertains to a defense
article controlled for export by the International Traffic in Arms Regulations (ITAR). FLIR trade secrets contained herein
are subject to disclosure restrictions as a matter of law. Diversion contrary to US law is prohibited. US Department of 12
State authorization is required prior to export or transfer to foreign persons or parties.
 Power / Can

• Input power
• 12VG from GED/GEP.

• Can
• DSP provides CAN interface through a CAN
transceiver.

Airborne Training Center Gimbal Drive

Portland, Oregon Systems 25

QUESTIONS ?

Airborne Training Center Gimbal Drive

Portland, Oregon Systems 26

This document is controlled to FLIR Technology Level 3. The information contained in this document pertains to a defense
article controlled for export by the International Traffic in Arms Regulations (ITAR). FLIR trade secrets contained herein
are subject to disclosure restrictions as a matter of law. Diversion contrary to US law is prohibited. US Department of 13
State authorization is required prior to export or transfer to foreign persons or parties.
 Gimbal Ear Drive (GED)

• P/N – 3205432
• Schematic – 3205432SCH
• Training Manual Section 3.2
Airborne Training Center Gimbal Drive
Portland, Oregon Systems 27

Gimbal Ear Drive (GED)

• Purpose
– Processes position feedback data and provides
necessary drive to the inner azimuth and elevation
motors.

• Location
– Starboard ear.

Airborne Training Center Gimbal Drive

Portland, Oregon Systems 28

This document is controlled to FLIR Technology Level 3. The information contained in this document pertains to a defense
article controlled for export by the International Traffic in Arms Regulations (ITAR). FLIR trade secrets contained herein
are subject to disclosure restrictions as a matter of law. Diversion contrary to US law is prohibited. US Department of 14
State authorization is required prior to export or transfer to foreign persons or parties.
 Functions

• Responsible for controlling the four gimbal axis of inner

azimuth, outer azimuth, inner elevation, and outer
elevation.
• Drives the inner azimuth motor, inner elevation motor, and
outer elevation motor.
• Passes through 48VGMB to the Gimbal Ear Power (GEP)
and to the payload.
• Passes through 12VG to GES/GEVB.
• Passes through 48VIMG to the payload.
• Passes through 48VCLR to the payload.
• Passes through 12VI to the payload.
• Passes through laser interlock.

Airborne Training Center Gimbal Drive

Portland, Oregon Systems 29

Power Distrubution
12VG,
To GES/GEVB Gimbal Ear Drive Power
(other ear)

3205432
48VGMB

Gimbal Ear Drive 12V 3V3 12V 12V

12VG

to to to to
PCBA 3V3 1V9 +5V -5V

12VG 48VGMB 12VG

SLIP to
48VGMB 48VGMB 12VG
RING
48VIMG 48VIMG 48VIMG
to
48VGMB

48VCLR 48VCLR
12VI 3205440
Gimbal Ear Power PCBA
48VIMG
48VCLR

Laser
12VI

Laser interlock
interlock
12VI, Camera Power,

GED EAR
48VIMG, to Payload
To CDB, Payload

48VGMB, to Payload
Laser interlock

SEAL
Payload

Airborne Training Center Gimbal Drive

Portland, Oregon Systems 30

This document is controlled to FLIR Technology Level 3. The information contained in this document pertains to a defense
article controlled for export by the International Traffic in Arms Regulations (ITAR). FLIR trade secrets contained herein
are subject to disclosure restrictions as a matter of law. Diversion contrary to US law is prohibited. US Department of 15
State authorization is required prior to export or transfer to foreign persons or parties.
 Functional Bock Diagram
32J6
32J2
Harwin 20
Harwin 8
Power
HeaderTo
to Bottom
Other Ear
of Ball

48V, 48Cooler, Laser

Interlock, GCAN

48 V & GCAN

48V 48 Volt Bus 48 Volt Bus

FILTER

Daughter Board
Seven Square Inches Anti-Alias
DAC
FILTER OPA548
8541
Power
Conditioning
12 to Inner El
48 to 12V -5.5V Motor

DATA BUS
32J1 OPA548 Current Sense
FROM SLIPRING

Interface 12
Header 1V9 +5VA -5VA
to 32J4
Harwin 26 LDO LDO LDO
3V3 Inner Az & El drive
Harwin 12
32P7 Anti-Alias
DAC
32J7 FILTER OPA548
8541

To Analog Circuits Inner Az

Motor

OPA548 Current Sense

Debug Test
J11 Conn Header
J10

GCAN TMS2812 DSP Anti-Alias

CORE Outer El Motor FILTER PA51A
PWM Control

ADC ADC ADC ADC 32J3 Outer El

Outer El drive Motor
Temperature Harwin 10
Sensor
PA51A Current Sense

Airborne Training Center Gimbal Drive

Portland, Oregon Systems 31

Power / Can

• Input power
• 1.9V, 3.3V (digital) from GEP.
• +/- 5V (analog) from GEP.

• Can
• DSP provides CAN interface through a CAN
transceiver.

Airborne Training Center Gimbal Drive

Portland, Oregon Systems 32

This document is controlled to FLIR Technology Level 3. The information contained in this document pertains to a defense
article controlled for export by the International Traffic in Arms Regulations (ITAR). FLIR trade secrets contained herein
are subject to disclosure restrictions as a matter of law. Diversion contrary to US law is prohibited. US Department of 16
State authorization is required prior to export or transfer to foreign persons or parties.
 QUESTIONS ?

Airborne Training Center Gimbal Drive

Portland, Oregon Systems 33

Gimbal Ear Power (GEP)

• P/N – 3205440
• Schematic – 3205440SCH
• Training Manual Section 3.3
Airborne Training Center Gimbal Drive
Portland, Oregon Systems 34

This document is controlled to FLIR Technology Level 3. The information contained in this document pertains to a defense
article controlled for export by the International Traffic in Arms Regulations (ITAR). FLIR trade secrets contained herein
are subject to disclosure restrictions as a matter of law. Diversion contrary to US law is prohibited. US Department of 17
State authorization is required prior to export or transfer to foreign persons or parties.
 Gimbal Ear Power (GEP)

• Purpose
– Provides Power to the Gimbal Ear Drive (GED).

• Location
– Starboard ear.
– Connected to the GED board.

Airborne Training Center Gimbal Drive

Portland, Oregon Systems 35

Gimbal Ear Power (GEP)

Airborne Training Center Gimbal Drive

Updated: 17 June 2004
Portland, Oregon Systems 36

This document is controlled to FLIR Technology Level 3. The information contained in this document pertains to a defense
article controlled for export by the International Traffic in Arms Regulations (ITAR). FLIR trade secrets contained herein
are subject to disclosure restrictions as a matter of law. Diversion contrary to US law is prohibited. US Department of 18
State authorization is required prior to export or transfer to foreign persons or parties.
 Functions

• Generates 3.3V, and 1.9V digital supplies for the

(GED).
• Generates +/- 5V analog supplies for the (GED).
• Generates 12VI camera power to the payload.
• Generates 12VG for the GES/GEVB.

Airborne Training Center Gimbal Drive

Portland, Oregon Systems 37

Gimbal Ear Power (GEP)

12VG,
To GES/GEVB Gimbal Ear Drive Power
(other ear)

3205432
48VGMB

Gimbal Ear Drive 12V 3V3 12V 12V

12VG

to to to to
PCBA 3V3 1V9 +5V -5V

12VG 48VGMB 12VG

SLIP to
48VGMB 48VGMB 12VG
RING
48VIMG 48VIMG 48VIMG
to
48VGMB

48VCLR 48VCLR
12VI 3205440
Gimbal Ear Power PCBA
48VIMG
48VCLR

12VI
12VI, Camera Power,

GED EAR
48VIMG, to Payload
To CDB, Payload

48VGMB, to Payload

SEAL
Payload

Airborne Training Center Gimbal Drive

Portland, Oregon Systems 38

This document is controlled to FLIR Technology Level 3. The information contained in this document pertains to a defense
article controlled for export by the International Traffic in Arms Regulations (ITAR). FLIR trade secrets contained herein
are subject to disclosure restrictions as a matter of law. Diversion contrary to US law is prohibited. US Department of 19
State authorization is required prior to export or transfer to foreign persons or parties.
 Power Supply LED’s
D5 (-5V)
D6 (+5V) D11 (3V3)

D2 (12VG)

D1 (12VI)

Airborne Training Center Gimbal Drive

Portland, Oregon Systems 39

Power / Can

• Input power
• 48VGMB, 48VIMG from through GED from
SPAZD.

• Can
• No can interface.

Airborne Training Center Gimbal Drive

Portland, Oregon Systems 40

This document is controlled to FLIR Technology Level 3. The information contained in this document pertains to a defense
article controlled for export by the International Traffic in Arms Regulations (ITAR). FLIR trade secrets contained herein
are subject to disclosure restrictions as a matter of law. Diversion contrary to US law is prohibited. US Department of 20
State authorization is required prior to export or transfer to foreign persons or parties.
 QUESTIONS ?

Airborne Training Center Gimbal Drive

Portland, Oregon Systems 41

Fuse Panel

• P/N – 3205438
• Schematic – 3205438

Airborne Training Center Gimbal Drive

Portland, Oregon Systems 42

This document is controlled to FLIR Technology Level 3. The information contained in this document pertains to a defense
article controlled for export by the International Traffic in Arms Regulations (ITAR). FLIR trade secrets contained herein
are subject to disclosure restrictions as a matter of law. Diversion contrary to US law is prohibited. US Department of 21
State authorization is required prior to export or transfer to foreign persons or parties.
 Fuse Panel

Airborne Training Center Gimbal Drive

Portland, Oregon Systems 43

QUESTIONS ?

Airborne Training Center Gimbal Drive

Portland, Oregon Systems 44

This document is controlled to FLIR Technology Level 3. The information contained in this document pertains to a defense
article controlled for export by the International Traffic in Arms Regulations (ITAR). FLIR trade secrets contained herein
are subject to disclosure restrictions as a matter of law. Diversion contrary to US law is prohibited. US Department of 22
State authorization is required prior to export or transfer to foreign persons or parties.
 Gyro Interface Processor (GIP)

• P/N – 3205418
• Schematic – 3205418SCH
• Training Manual Section 3.4
Airborne Training Center Gimbal Drive
Portland, Oregon Systems 45

Gyro Interface Processor (GIP)

• Purpose
– Provides an electrical interface to a two-axis
rate gyro.

• Location
– In imager.

Airborne Training Center Gimbal Drive

Portland, Oregon Systems 46

This document is controlled to FLIR Technology Level 3. The information contained in this document pertains to a defense
article controlled for export by the International Traffic in Arms Regulations (ITAR). FLIR trade secrets contained herein
are subject to disclosure restrictions as a matter of law. Diversion contrary to US law is prohibited. US Department of 23
State authorization is required prior to export or transfer to foreign persons or parties.
 Gyro Interface Processor (GIP)

• Functions
– Drives the main gyro assembly.
– Digitizes gyro feedback.
– Sends digital gyro feedback to the GED via
the GCAN bus.
– Sends X and Y axis correction data to the
Micro Scan Stabilization (MSS) via the ICAN
bus.

Airborne Training Center Gimbal Drive

Portland, Oregon Systems 47

Gyro Drive

• Provides signals necessary to spin the main

gyro.
– The gyro has a two-phase, 6-pole motor that requires
a quadrature drive (90° out-of-phase).
– DSP and drive circuit develops two (phase A and
phase B) 800Hz square waves to start the motor and
then 800Hz sine waves to run the motor.
• 18Vrms Start (Square Wave)
• 10.3Vrms Run (Sine Wave)

Airborne Training Center Gimbal Drive

Portland, Oregon Systems 48

This document is controlled to FLIR Technology Level 3. The information contained in this document pertains to a defense
article controlled for export by the International Traffic in Arms Regulations (ITAR). FLIR trade secrets contained herein
are subject to disclosure restrictions as a matter of law. Diversion contrary to US law is prohibited. US Department of 24
State authorization is required prior to export or transfer to foreign persons or parties.
 Gyro LVDT Drive

• The main gyro uses two LVDT’s to measure the

displacement.
• Primary excitation is a 42.3Khz sine wave
1.9Vrms.
• Secondary coil feedback signals from the gyro
LVDT are buffered, filtered, and then sent to
ADC’s.
• Once the feedback is digitized, it is sent to the
GED on the GCAN bus for stabilization control.

Airborne Training Center Gimbal Drive

Portland, Oregon Systems 49

Main Gyro Torquer Drive

• Once the displacement of the gyro is measured

it must be corrected allowing the gyro to
continue operation.
• The DSP sends correction drive signals to the
Torquer Drive circuit.
• These signals are amplified and drive the main
gyro back to centered position.

Airborne Training Center Gimbal Drive

Portland, Oregon Systems 50

This document is controlled to FLIR Technology Level 3. The information contained in this document pertains to a defense
article controlled for export by the International Traffic in Arms Regulations (ITAR). FLIR trade secrets contained herein
are subject to disclosure restrictions as a matter of law. Diversion contrary to US law is prohibited. US Department of 25
State authorization is required prior to export or transfer to foreign persons or parties.
 Electronic Stabilization

• The GIP receives Electronic Stabilization (ES)

signals from the GED.
• Digital ES signals are sent to the Micro Scan
Stabilization (MSS) ECB for 5th and 6th axis
stabilization correction.

Airborne Training Center Gimbal Drive

Portland, Oregon Systems 51

G IP II

Block Diagram

DSP Core

Airborne Training Center Gimbal Drive

Portland, Oregon Systems 52

This document is controlled to FLIR Technology Level 3. The information contained in this document pertains to a defense
article controlled for export by the International Traffic in Arms Regulations (ITAR). FLIR trade secrets contained herein
are subject to disclosure restrictions as a matter of law. Diversion contrary to US law is prohibited. US Department of 26
State authorization is required prior to export or transfer to foreign persons or parties.
 Power / Can

• Input power
• 12VIMG from GED/GEP.

• Can
• DSP provides CAN interface through a CAN
transceiver.

Airborne Training Center Gimbal Drive

Portland, Oregon Systems 53

QUESTIONS ?

Airborne Training Center Gimbal Drive

Portland, Oregon Systems 54

This document is controlled to FLIR Technology Level 3. The information contained in this document pertains to a defense
article controlled for export by the International Traffic in Arms Regulations (ITAR). FLIR trade secrets contained herein
are subject to disclosure restrictions as a matter of law. Diversion contrary to US law is prohibited. US Department of 27
State authorization is required prior to export or transfer to foreign persons or parties.
 Skillet Power Az Drive (SPAZD)

• P/N – 3205434
• Schematic – 3205434SCH
• Training Manual Section 3.5
Airborne Training Center Gimbal Drive
Portland, Oregon Systems 55

Skillet Power Az Drive (SPAZD)

• Purpose
– Power conditioning for the turret and outer
azimuth motor drive.

• Location
– In the skillet.

Airborne Training Center Gimbal Drive

Portland, Oregon Systems 56

This document is controlled to FLIR Technology Level 3. The information contained in this document pertains to a defense
article controlled for export by the International Traffic in Arms Regulations (ITAR). FLIR trade secrets contained herein
are subject to disclosure restrictions as a matter of law. Diversion contrary to US law is prohibited. US Department of 28
State authorization is required prior to export or transfer to foreign persons or parties.
 Functions
• Conditions and provides reverse polarity
protection for 28V input power.
• Provides contioned 28VDC to outer azimuth
drive.
• Develops 48VDC supply.
• Provides 12V SVIP power.
• Iterfaces to the outer azimuth feedback encoder
and sector flag.
• Laser interlock for enabling power to the lasers.
• Analog drivers for W6 cable video.
• Fuse panel interface.
Airborne Training Center Gimbal Drive
Portland, Oregon Systems 57

Functions

• Provides amplification for the five analog video

signals.
• Senses which cable (W6 or W22) is present and
routes input power accordingly.
• Provides input and output interconnections for
the turret.
• Provides CAN interface.
• Service port for interface for external debug and
programming.

Airborne Training Center Gimbal Drive

Portland, Oregon Systems 58

This document is controlled to FLIR Technology Level 3. The information contained in this document pertains to a defense
article controlled for export by the International Traffic in Arms Regulations (ITAR). FLIR trade secrets contained herein
are subject to disclosure restrictions as a matter of law. Diversion contrary to US law is prohibited. US Department of 29
State authorization is required prior to export or transfer to foreign persons or parties.
 300V Heater

Fuse
Panel
3205438

39V Cooler Slip

150W Ring

VH To Heaters (750W)

VK To Cooler (78W)
24V to 48V
Overcurrent To Payload (100W)
200W Mini Vi
shutdown
3211296
Vg To Gimbal Drives (150W)
22V-29V
Power VL To Lasers (25W)
Input filter
Source
M-FIAM5
Select
W22 3211297
Vin 24V to 48V
On off & Overcurrent
W6 W22 200W Mini
Reverse polarity shutdown
22V-29V 3211296
protection

22V-29V
W6-W22 Input filter 48:12V
Detect M-FIAM5 To SVIP
VI Chip
circuit 3211297 (12V/30W)
3209099
12V 12V
W6
Vin Arm
Lasers
Az Position Laser Interlock
Reverse polarity Encoders
TMS320F2812
protection I/O Conditioning
DSP Core
Outer AZ &
22V-29V
Drive Logic

Service To SVIP
(RS-232 & GCAN) (GCAN)

Interlock I/O

Video
Analog Video (5X) To SVIP
Drivers

Deschutes SPAZD Block Diagram

XNET
RS-422 (Tracker Rx/Tx)
RS-422 (Hsynch/Vsynch)
RS-422 (IMU)

(3205434 Skillet Power Az Drive)

Airborne Training Center Gimbal Drive

Portland, Oregon Systems 59

Az Position Encoder
&
Az Home Flag
Az Deschutes Skillet Block Diagram
Motor

34J8 12V/30W

300V Heater
36J2
1394 Video (2X)
XNET

28V Power SPAZD SVIP J1-3

RS-422 (Tracker & IMU)
3205434 3205436
34J9 36J31 J3-6
XNET
Analog Video (5X)
Differential 36J3 1394 Video (2X)
34J3
Analog Video (5X) 34J4

W6 SE or Diff 34J5
34J6 Hsynch/Vsynch (RS-422)

Hsynch/Vsynch 36J24
(RS-422) 36J25
GCAN 36J28
36J29
IMU & Tracker
RS-422

3205788
Laser Interlock (2) GCAN Slip Ring
34J2
Laser interlock (2)

Rotational Power 48VL

(Laser)

Service Fuse
34J7
34J10 34J11
48VK
(Cooler)

SPI 48VG
28V Power (Service Panel) (Gimbal)
3205438
(2) RS-232
W22 GCAN
48VI
Power On (2)
LED Indicators (Imager)

1394B Optical (4X)

300VH
(Heater)

Airborne Training Center Gimbal Drive

Portland, Oregon Systems 60

This document is controlled to FLIR Technology Level 3. The information contained in this document pertains to a defense
article controlled for export by the International Traffic in Arms Regulations (ITAR). FLIR trade secrets contained herein
are subject to disclosure restrictions as a matter of law. Diversion contrary to US law is prohibited. US Department of 30
State authorization is required prior to export or transfer to foreign persons or parties.
 Outer Azimuth Position Encoder

• The Outer Azimuth Position Encoder provides

incremental outer azimuth position information to
the SPAZD.
• Analog position information is converted to
digital data and sent to the GED via the CAN
bus.
• The encoder uses two 90° offset sine wave
signals and a single Index Pulse to provide
position information.

Airborne Training Center Gimbal Drive

Portland, Oregon Systems 61

Outer Azimuth Position Signals

• Phase A and Phase B

– 90° out of phase.
– Provides direction information.
– No alignment required for these signals since
they are mechanically set in the Encoder.

Airborne Training Center Gimbal Drive

Portland, Oregon Systems 62

This document is controlled to FLIR Technology Level 3. The information contained in this document pertains to a defense
article controlled for export by the International Traffic in Arms Regulations (ITAR). FLIR trade secrets contained herein
are subject to disclosure restrictions as a matter of law. Diversion contrary to US law is prohibited. US Department of 31
State authorization is required prior to export or transfer to foreign persons or parties.
 Outer Azimuth Position Signals

• Index
– Generated by the Encoder.
– One pulse for each Encoder revolution.

Airborne Training Center Gimbal Drive

Portland, Oregon Systems 63

Outer Azimuth Position Signals

• Sector Flag
– Hall Effect (magnetic) sensor used for a 0° indicator.
– Sensor is mounted on Stationary upper hub.
– Magnet is mounted to the rotating surface of the TFU.

Airborne Training Center Gimbal Drive

Portland, Oregon Systems 64

This document is controlled to FLIR Technology Level 3. The information contained in this document pertains to a defense
article controlled for export by the International Traffic in Arms Regulations (ITAR). FLIR trade secrets contained herein
are subject to disclosure restrictions as a matter of law. Diversion contrary to US law is prohibited. US Department of 32
State authorization is required prior to export or transfer to foreign persons or parties.
 Signal Timing
SECTOR

INDEX

PHASE A

PHASE B

Airborne Training Center Gimbal Drive

Portland, Oregon Systems 65

Power Status LED’s

D300 - W22 28V

D301 - W6 28V
D302 - 48VIMG
D303 - 48VGMB
D304 - 12VSC

Airborne Training Center Gimbal Drive

Portland, Oregon Systems 66

This document is controlled to FLIR Technology Level 3. The information contained in this document pertains to a defense
article controlled for export by the International Traffic in Arms Regulations (ITAR). FLIR trade secrets contained herein
are subject to disclosure restrictions as a matter of law. Diversion contrary to US law is prohibited. US Department of 33
State authorization is required prior to export or transfer to foreign persons or parties.
 Power / Can

• Input power
• 28V from W6 or W22.

• Can
• DSP provides CAN interface through a CAN
transceiver.

Airborne Training Center Gimbal Drive

Portland, Oregon Systems 67

QUESTIONS ?

Airborne Training Center Gimbal Drive

Portland, Oregon Systems 68

This document is controlled to FLIR Technology Level 3. The information contained in this document pertains to a defense
article controlled for export by the International Traffic in Arms Regulations (ITAR). FLIR trade secrets contained herein
are subject to disclosure restrictions as a matter of law. Diversion contrary to US law is prohibited. US Department of 34
State authorization is required prior to export or transfer to foreign persons or parties.
 Gimbal Communications Processor
(GCP)

• P/N – 3205435
• Schematic – 3205435SCH
• Training Manual Section 3.6
Airborne Training Center Gimbal Drive
Portland, Oregon Systems 69

Gimbal Communications Processor

(GCP)
• PURPOSE
– Provides an interface for the RS-422 (tracker)
and RS-485 (XNET) communications.

• LOCATION
– Located in the skillet.

Airborne Training Center Gimbal Drive

Portland, Oregon Systems 70

This document is controlled to FLIR Technology Level 3. The information contained in this document pertains to a defense
article controlled for export by the International Traffic in Arms Regulations (ITAR). FLIR trade secrets contained herein
are subject to disclosure restrictions as a matter of law. Diversion contrary to US law is prohibited. US Department of 35
State authorization is required prior to export or transfer to foreign persons or parties.
 Gimbal Communications Processor
(GCP)
• FUNCTIONS
– Converts RS-485 (XNET) to CAN interface for
TFU.
– Converts RS-422 (tracker) to CAN interface.
– Provides +/-5.5V, 5V, 1.2V, 2.5V, and 3.3V
power supplies to the SVIP.

Airborne Training Center Gimbal Drive

Portland, Oregon Systems 71

Power / Can

• Input power
• 12V through SVIP from SPAZD.

• Can
• Processor provides CAN interface through a
(MCP2515) stand alone CAN controller IC.

Airborne Training Center Gimbal Drive

Portland, Oregon Systems 72

This document is controlled to FLIR Technology Level 3. The information contained in this document pertains to a defense
article controlled for export by the International Traffic in Arms Regulations (ITAR). FLIR trade secrets contained herein
are subject to disclosure restrictions as a matter of law. Diversion contrary to US law is prohibited. US Department of 36
State authorization is required prior to export or transfer to foreign persons or parties.
 QUESTIONS ?

Airborne Training Center Gimbal Drive

Portland, Oregon Systems 73

This document is controlled to FLIR Technology Level 3. The information contained in this document pertains to a defense
article controlled for export by the International Traffic in Arms Regulations (ITAR). FLIR trade secrets contained herein
are subject to disclosure restrictions as a matter of law. Diversion contrary to US law is prohibited. US Department of 37
State authorization is required prior to export or transfer to foreign persons or parties.
