AHU Control

ATC Application Handbook
Section 2
Issue Date 0500

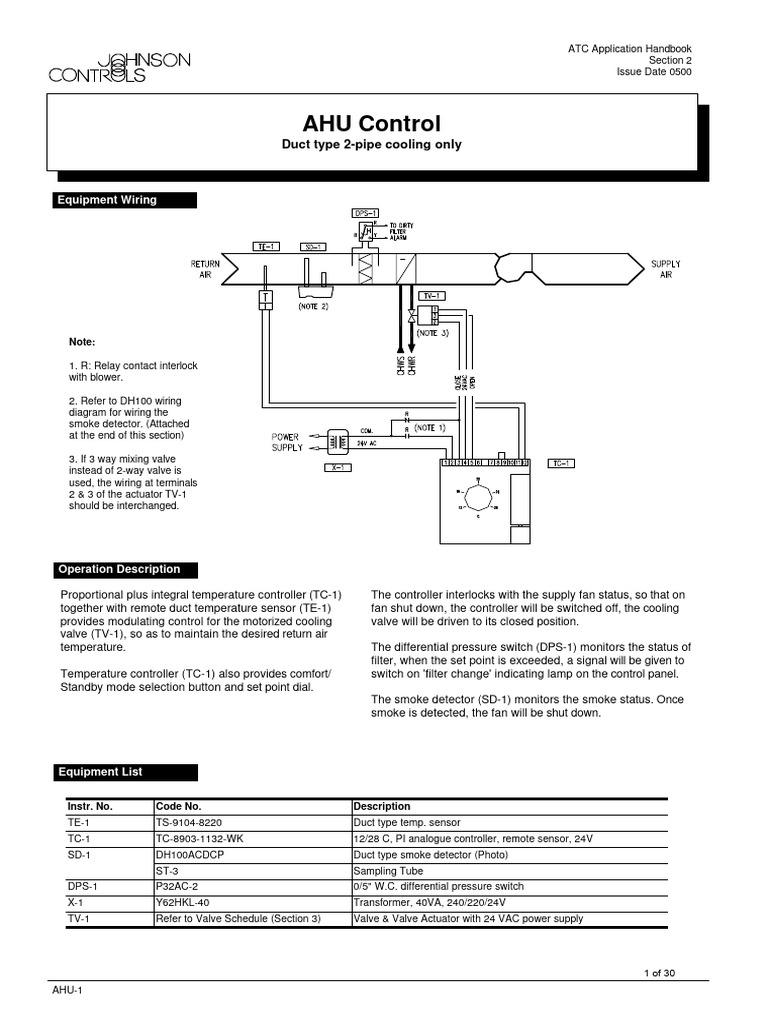

AHU Control
Duct type 2-pipe cooling only
Equipment Wiring
Note:
1. R: Relay contact interlock

with blower.
2. Refer to DH100 wiring

diagram for wiring the
smoke detector. (Attached
at the end of this section)
3. If 3 way mixing valve

instead of 2-way valve is
used, the wiring at terminals
2 & 3 of the actuator TV-1
should be interchanged.
Operation Description
Proportional plus integral temperature controller (TC-1) The controller interlocks with the supply fan status, so that on
together with remote duct temperature sensor (TE-1) fan shut down, the controller will be switched off, the cooling
provides modulating control for the motorized cooling valve will be driven to its closed position.
valve (TV-1), so as to maintain the desired return air
temperature. The differential pressure switch (DPS-1) monitors the status of
filter, when the set point is exceeded, a signal will be given to
Temperature controller (TC-1) also provides comfort/ switch on 'filter change' indicating lamp on the control panel.
Standby mode selection button and set point dial.
The smoke detector (SD-1) monitors the smoke status. Once
smoke is detected, the fan will be shut down.
Equipment List
Instr. No. Code No. Description

TE-1 TS-9104-8220 Duct type temp. sensor
TC-1 TC-8903-1132-WK 12/28 C, PI analogue controller, remote sensor, 24V
SD-1 DH100ACDCP Duct type smoke detector (Photo)
ST-3 Sampling Tube
DPS-1 P32AC-2 0/5" W.C. differential pressure switch
X-1 Y62HKL-40 Transformer, 40VA, 240/220/24V
TV-1 Refer to Valve Schedule (Section 3) Valve & Valve Actuator with 24 VAC power supply
1 of 30
AHU-1
Section 2
Issue Date 0500
AHU Control
Duct type 2-pipe cooling, electric heater
Equipment Wiring
Mode selector switch is provided to select the mode of A high limit cutout thermostat with manual reset (HL-1) is
operation - cooling or heating. installed to de-energise the electric heaters in the event of
excessive high temperature built up in the supply air duct.
When the system is switched in cooling mode, Air flow switch (FS-1) provides safety interlock such that
proportional plus integral temperature controller (TC-1) electric heaters can only be energised when the fan running.
together with remote duct temperature sensor (TE-1)
provides modulating control for the motorized cooling The controller interlocks with the supply fan status, so that on
valve (TV-1), so as to maintain the desired return air fan shut down, the controller will be switched off, the cooling
temperature. valve will be driven to its closed position, and the heaters will
be de-energised.
Temperature controller (TC-1) also provides comfort//
Standby mode selection button and set point dial. The differential pressure switch (DPS-1) monitors the status of
filter, when the set point is exceeded, a signal will be given to
When the system is switched in heating mode, switch on 'filter change' indicating lamp on the control panel.
Electronic heating thermostat (TS-1) together with its
associated stage module (SM-1) and remote duct The smoke detector (SD-1) monitors the smoke status. Once
temperature sensor (TE-2) provide on-off control of the smoke is detected, the fan will be shut down.
3 stages electric heater bank.
2 of 30
AHU-2
Section 2
Issue Date 0500
AHU Control
Equipment List

TE-2 A99DY-200C Duct temperature sensor
TS-1 A27A1N11 -40/40 C, din-railmount electronic thermostat, 24VAC
SM-1 S27A1 Din-railmount stage module,24VAC
HL-1 A25AN-9 Hi-limit cutout, manual reset, 237mm
FS-1 F62AA-8 Air flow switch
ST-3 Sampling Tube
Note:
1. R: Relay contact interlock with blower.
2. Refer to DH100 wiring diagram for wiring the smoke detector.

(Attached at the end of this section)
3. If 3-way mixing valve instead of 2-way valve is used, the

wiring at terminals 2 & 3 of the actuator TV-1 should be
interchanged.
4. More stage modules can be connected to TS-1, for details,

please refer to system 27 catalogue.
5. The jumper setting for directed or reversed control in TS-1

and SM-1 should be refer to installation sheet.
3 of 30
AHU-2
Section 2
Issue Date 0500
AHU Control
Duct type 2-pipe cooling, electric heater & dehumidification
Equipment Wiring
Proportional plus integral temperature controller (TC-1) A high limit cutout thermostat with manual reset (HL-1) is
together with remote duct temperature sensor (TE-1) installed to de-energise the electric heaters in the event of
provides modulating control for the motorized cooling excessive high temperature built up in the supply air duct.
valve (TV-1), so as to maintain the desired return air Air flow switch (FS-1) provides safety interlock such that
temperature. electric heaters can only be energised when the fan running.
Temperature controller (TC-1) also provides comfort/ The controller interlocks with the supply fan status, so that on
Standby mode selection button and set point dial. fan shut down, the controller will be switched off, the cooling
valve will be driven to its closed position, and the heaters will
Electronic humidistat (HS-1) together with remote duct be de-energised.
humidity transmitter (HE-1) provides dehumidification.
Once the return air R.H. increases above the set point, The differential pressure switch (DPS-1) monitors the status of
the cooling valve (TV-1) will be driven to its fully open filter, when the set point is exceeded, a signal will be given to
position. switch on 'filter change' indicating lamp on the control panel.
Electronic heating thermostat (TS-1) together with its The smoke detector (SD-1) monitors the smoke status. Once
associated stage modules (SM-1) and remote duct smoke is detected, the fan will be shut down.
temperature sensor (TE-2) provide on-off control of the
3 stages electric heater bank to reheat the supply air.
4 of 30
AHU-3
Section 2
Issue Date 0500
AHU Control
Duct type 2-pipe cooling, electric heater & dehumidification
Equipment List

TS-1 A27A1N11 -40/40 C, din-railmount electronic thermostat, 24VAC
HE-1 HT-9000-1D1 Duct type humidity transmitter
HS-1 W27N11 10/90% din-railmount humidity controller,24VAC
ST-3 Sampling Tube
Note:

3. If 3 way mixing valve instead of 2-way valve is used, the

interchanged.

5. The jumper setting for directed or reversed control in TS-1 ,

SM-1 and HS-1should be refer to installation sheet.
5 of 30
AHU-3
Section 2
Issue Date 0500
Bypass Valve Control
Equipment Wiring
Note:
1. R: Relay contact
interlock with system.
Differential pressure controller (DPC-1) connected to The motorized valve (PV-1) interlocks with the system, so that
sense the differential pressure between the system when the system shut down, the motorized valve (PV-1) will
water supply and return headers provides modulating be driven to its closed position.
control for the two-way motorized valve (PV-1) which
bypass system water when necessary to maintain the
desired differential pressure between headers.
Equipment List

DPC-1 P74JA-3 55/414 Kpa differential pressure controller
TV-1 Refer to Valve Schedule (Secion 3) Valve & Valve Actuator with 24 VAC power supply
6 of 30
BPC-1
Section 2
Issue Date 0500
Chiller Plant Control

2 Chiller Sets
Equipment Wiring
Note:
1. Contact Action: 1 to 2
closes on temperature
rise.
Two-step thermostat (TS-1) with its remote bulb Flow switches (FS-1, 2) installed downstream of each chiller
installed at the return main header of chilled water are provided for no-flow protection. The chillers can only be
system provides step control to the two chillers. When started when their respective flow switches are activated.
the chilled water return tempeature is higher than the
set point, the leading chiler will be started. If the
temperature continues ot increase, the lagging chiller
will also be started.
Equipment List

TS-1 A28AA-9007 -5/28 C, 2-stage remote bulb thermostat
WEL14A603R Bulb Well
FS-1, 2 F61MB-1 Sea water flow switch
7 of 30
CPC-1
DAHU-1
DDC-1
Schematic Drawing
1
Return air temperature
x1
2
Fresh air temperature
x1
3
AI
Supply air temperature
x1
4
Return air humidity
x1
5
Fresh air humidity
x1
6
Fan on/off status
x1
DDC
7
BI
Fan trip alarm
x1
8
Filter clogged alarm
x1
Free cooling application
DDC AHU Control
9
Damper modulating control
x2
AO
10
Fan Start/stop Control
x1
BO
11
Modulating control of cooling valve
x2
8 of 30
Issue Date 0500
Section 2
Section 2
Issue Date 0500
DDC AHU Control

Free cooling application
For auto mode, direct digital controller, DDC (DDC-1) At free cooling operation, the motorized cooling valve (TV-1)
provides time schedule for start/stop operation of AHU. will be driven to fully closed position.
Duct type temperature sensor (TE-3) is installed to If the enthalpy of outdoor air is higher than that of return air or
sense the supply air temperature. Direct digital outdoor air temperature is higher than the set point of supply
controller, DDC (DDC-1) provides modulating (PI) air temperature, the motorized return air damper (DA-1) will be
control for the motorized valve (TV-1), so as to maintain driven to maximum position, while the motorized outdoor air
the desired supply air temperature. damper (DA-2) will be driven to minimum position.
The supply air temperature set point is reset by the The controller interlocks with the supply fan status, so that on
return air temperature, sensed by duct type fan shut down, the controller will be switched off, the cooling
temperature sensor (TE1), based on a reset schedule. valve will be driven to its closed position, and the dampers be
driven to fully closed position.
Duct type temperature sensors (TE-1, 2) and humidity
sensors (HE-1, 2) is installed to sense the return and The differential pressure switch (DPS-1) monitors the status of
fresh air temperature and humidity. DDC calculates the filter, when the set point is exceeded, a signal will be given to
enthalpy values of return and fresh air based on the DDC.
sensed value, so as to provide free cooling control.
If the enthalpy of outdoor air is lower than that of return

air with a enthalpy differential and the outdoor air
temperature is lower than the supply air setpoint, the
motorized return air damper (DA-1) will be driven to
minimum opening, while the motorized outdoor air
damper (DA-2) will be driven to maximum opening.
Equipment List

TE-1~3 TE-6311P-1 -46/104 C Duct temp. sensor
HE-1, 2 HT-9000-1D1 Duct type humidity transmitter
DA-1, 2 M-9116-GGA-1 Modulating damper actuator, 0-10VDC 16Nm
DDC-1 DX-9100-8154 Extended Digital Controller
9 of 30
DAHU-1
DAHU-2
Schematic Drawing
DDC-1
1
Return air temperature
x1
AI
2
CO2 Concentration
x1
3
Fan on/off status
x1
4
Fan trip status
x1
BI
5
Filter clogged alarm
x1
DDC
6
Smoke detected alarm
x1
Indoor air quality application
7
Damper modulating control
x2
AO
DDC AHU Control
8
Fan start/stop control
x1
BO
9
Modulating control of cooling valve
x2
10 of 30
Issue Date 0500
Section 2
Section 2
Issue Date 0500
DDC AHU Control

Indoor air quality application
For auto mode, direct digital controller, DDC (DDC-1) DDC monitors the fan on/off status and trip alarm. The
provides time schedule for start/stop operation of AHU. motorized cooling valve and damper actuators interlock with
fan status. Both valve and damper will be fully closed when
Duct type temperature sensor (TE-1) is installed to the fan shut down.
sense the return air temperature, DDC provides
modulating (PI) control for the motorized cooling valve The differential pressure switch (DPS-1) monitors the status of
(TV-1) based on the sensed return temperature and set filter, when the set point is exceeded, a signal will be given to
point, so as to maintain the desired return air DDC.
temperature.
The smoke detector (SD-1) monitors the smoke status. Once
Duct type CO2 gas detector (CO-1) is installed to smoke is detected, the fan will be shut down.
monitor the CO2 gas concentration of return air. DDC
provides modulating (PI) control for the motorized
damper actuators (DA-1) based on the sensed gas
concentration and set point, so as to maintain the
desired return CO2 gas concentration.
Equipment List

TE-1 TE-6311P-1 -46/104 C Duct temp. sensor
CO-1 2001VT CO2 Detector
ST-3 Sampling Tube
DA-1, 2 M-9116-AGA-1 Motorized damper actuator, 16Nm, 24V
11 of 30
DAHU-2
DDC-1
1
Chilled water return temperature
x1
Schematic Drawing
2
Chilled water supply temperature
x1
AI
3
Chilled water flow rate
x1
4
Differential pressure
x1
5
Chiller on/off status
x3
6
Chilled water pump on/off status
x4
7
Chiller trip status
x3
BI
DDC
8
Chilled water pump trip status
x4
9
Isolation valve open/close status
x3
10
Chilled water flow status
x3
11
Chiller start/stop control
x3
DDC Chiller Plant Control
12
3 chillers and 4 chilled water pumps with bypass valve
Chilled water pump start/stop control
x4
BO
13
Isolation valve open/close control
x3
14
Modulating control of bypass valve
x2
12 of 30
Issue Date 0500
Section 2
DCPC-1
Section 2
Issue Date 0500
DDC Chiller Plant Control

3 chillers, 4 chilled water pumps with bypass valve
In auto mode, direct digital controller, DDC (DDC-1) DDC monitors the on/off status and trip alarm of all chillers
provides start/stop control for the chiller plant based on and chilled water pumps.
time schedule.
The priority to start a chiller and chilled water pump will based
The immersion temperature sensors (TE-1, 2) are on the total running time of each equipment, so as to maintain
installed in the chilled water return and supply headers the equal run time of each equipment.
to sense the chilled water return and supply
temperature and flow meter (FM-1) will be installed to Sequence of start a chiller:
monitor the flow rate of return chilled water. The DDC 1. Open the isolation valve;
calculates the cooling load of the building based on the 2. Start chilled water pump;
sensed temperatures and flow rate. A chiller set will be 3. Start chiller if the flow is proven.
started, if the calculated cooling load is higher than set
point or the return chilled water temperature is higher Sequence of stop a chiller:
than the set point of chilled return temperature. A 1. Stop chiller;
chiller set will be stopped, if both the cooling load and 2. Stop chilled water pump;
return chilled water temperature lower than the set 3. Close the isolation valve.
point with a differential.
Time delay are set for each step in the above sequencing.
DDC limits the maximum start/stop time of chiller and
chilled water pump in a pre-set time period and also the Differential pressure transmitter (DPT-1) is installed to sense
minimum run time, so as to prevent cycling effect on the differential pressure between the supply and return
the equipment. headers. DDC provides modulating (PI) control for the
motorized bypass valve (PV-1) based on the sensed
The water flow switches (FS-1~3) are installed to differential pressure and set point, so as to maintain the
monitor the flow status of chilled water. The chiller will desired differential pressure.
be started, if the flow is proven by the flow switch.
Equipment List

TE-1~2 TE-631AP-1 -46/104 C immersion temp. sensor
WZ-1000-5 Brass well
FM-1 - Flow meter
FS-1~3 F61MB-1 Sea water flow switch
DPT-1 252C 0/60 psig pressure transmitter c/w P7002
TV-1~3 - Isolation valve
XT-9100-8304 Extension Module
XP-9103-8304 Expansion Module (8 DO)
XP-9105-8304 Expansion Module (8 DI)
PV-1 Refer to Valve Schedule (Section 3) Valve & Valve Actuator with 24 VAC power supply
13 of 30
DCPC-1
Section 2
Issue Date 0500
DDC FCU Control

Room sensor, 4-pipe cooling/heating
Equipment Wiring
Note:
1. K1: Relay interlock with system.

(Close = On, Open = Off)
2. If 3-way mixing valve instead of 2-

way valve is used, the wiring at
terminals 2 & 3 of the actuators (TV-1,
2) should be interchanged.
Room command module (TM-1) senses room At auto fan speed, DDC controller (TC-1) provides High-Med-
temperature and provides Off-Auto-High-Med-Low fan Low fan speed for the fan based on the sensed temperature
speed control, set point dial and Comfort/ Standby and set points.
mode selection button.
At comfort mode, the cooling and heating set points are +/- 1
Direct Digital Controller, DDC (TC-1) provides deg C as set point dial. At standby mode, the set points are +/-
modulating (PI) control for the motorized cooling valve 3 deg C as set point dial.
(TV-1) or heating valve (TV-2) based on sensed
temperature and set points, so as to maintain the DDC controller (TC-1) monitors system on/off status (by relay
desired room temperature. K1). Once system off, fan will be shut down and the two
motorized valves (TV-1, 2) will be driven to fully closed
position.
Equipment List

TC-1 TC-9102-0552 DDC controller
TM-1 TM-9160-0002 12/28 C Room temperature sensor c/w 3 speed switch & occupancy button
TV-1, 2 Refer to Valve Schedule (Section 3) Valve & Valve Actuator with 24 VAC power supply
14 of 30
DFCU-1
Section 2
Issue Date 0500
DDC FCU Control

Room sensor, 2-pipe cooling, electric heater
Equipment Wiring
Note:

Room command module (TM-1) senses room At auto fan speed, DDC controller (TC-1) provides High-Med-
temperature and provides Off-Auto-High-Med-Low fan Low fan speed for the fan based on the sensed temperature
speed control, set point dial and Comfort/ Standby and set points.
mode selection button.
Direct Digital Controller, DDC (TC-1) provides on/off deg C as set point dial. At standby mode, the set points are +/-
control for the motorized cooling valve (TV-1) or electric 3 deg C as set point dial.
heater based on sensed temperature and set points, so
as to maintain the desired room temperature. DDC controller (TC-1) monitors system on/off status (by relay
K1). Once system off, fan will be shut down and the motorized
A high limit cutout thermostat with manual reset (HL-1) valve (TV-1) will be driven to fully closed position and electric
is installed to de-energise the electric heater in the heater will be switched off.
event of excessive high temperature built up in the
supply air duct.
Equipment List

TM-1 TM-9160-0002 12/28 C Room temperature sensor c/w 3 speed switch & occupancy button
HL-1 A250HK-1 Hi-limit cutout, manual reset, 280mm
TV-1 Refer to Valve Schedule (Section 3) On/off Valve with spring return, 220 VAC power supply
15 of 30
DFCU-2
Section 2
Issue Date 0500
DDC FCU Control

Duct sensor, 2-pipe cooling, electric heater
Equipment Wiring
Note:

Room command module (TM-1) provides Off-Auto- At auto fan speed, DDC controller (TC-1) provides High-Med-
High-Med-Low fan speed control, set point dial and Low fan speed for the fan based on the sensed temperature
Comfort/ Standby mode selection button. and set points.
Direct Digital Controller, DDC (TC-1) together with duct At comfort mode, the cooling and heating set points are +/- 1
type temperature sensor (TE-1) senses return air deg C as set point dial. At standby mode, the set points are +/-
temperature and provides on/off control for the 3 deg C as set point dial.
motorized cooling valve (TV-1) or electric heater based
on sensed temperature and set points, so as to DDC controller (TC-1) monitors system on/off status (by relay
maintain the desired return air temperature. K1). Once system off, fan will be shut down and the motorized
valve (TV-1) will be driven to fully closed position and electric
A high limit cutout thermostat with manual reset (HL-1) heater will be switched off.
is installed to de-energise the electric heater in the
event of excessive high temperature built up in the
supply air duct.
Equipment List

TM-1 TM-9170-0002 Room command module c/w 3 speed switch
16 of 30
DFCU-3
Section 2
Issue Date 0500
DDC FCU Control

Room sensor, 2-pipe cooling, electric heater with LCD display
Equipment Wiring
Note:


terminals 2 & 3 of the actuator (TV-1,)
3. The JP3 in TC-1 shall be

configured as follow:
Room command module (TM-1) with LCD display At auto fan speed, DDC controller (TC-1) provides High-Med-
senses room temperature and provides Off-Auto-High- Low fan speed for the fan based on the sensed temperature
Med-Low fan speed control, set point dial and and set points.
Comfort-Standby mode selection button.
Direct Digital Controller, DDC (TC-1) provides on/off deg C as set point dial. At standby mode, the set points are +/-
control for the motorized cooling valve (TV-1) or electric 3 deg C as set point dial.
heater based on sensed temperature and set points, so
as to maintain the desired room temperature. DDC controller (TC-1) monitors system on/off status (by relay
K1). Once system off, fan will be shut down and the motorized
valve (TV-1) will be driven to fully closed position and the
electric heater will be switched off.
Equipment List

TM-1 TM-9180-0110 12/28 C Room temperature sensor c/w 3 speed switch, LCD display and occupany button
17 of 30
DFCU-4
Section 2
Issue Date 0500
DH100 Wiring Diagram
Equipment Wiring
TEST
POSITION
Notes
1. In normal condition, A-B is closed circuit to make fan(s) operating.
2. If an alarm is detected, alarm contacts will change from N.C. (Terminals 16 &
6) to N.O. (Terminals 6 & 17), and this will result in breaking the circuit of A-B.
3. Trouble contact (Terminal 3 & 14) will open when plate of detector or power is
removed. A-B will open and the fan(s) will be stopped.
4. The detector can be tested by placing a magnet at test position.
5. The detector can be resumed to normal condition by pushing the reset button.
6. Relay R should be 24 VDC and provided by others.
18 of 30
DH100
Section 2
Issue Date 0500
DDC PAU Control

Equipment Wiring
Note:
1. K1: Relay interlock with fan starter.

2. Refer to DH100 wiring diagram for

wiring the smoke detector. (Attached
at the end of this section)

terminals 2 & 3 of the actuator (TV-1)
Duct type temperature sensor (TE-1) is installed to The differential pressure switch (DPS-1) monitors the status of
sense the supply air temperature. Easy Direct Digital filter, when the set point is exceeded, a signal will be given to
Controller, DDC (SC-1) provides modulating (PI) switch on 'filter change' indicating lamp on the control panel.
control for the motorized valve (TV-1), so as to maintain
the desired supply air temperature. Easy DDC (SC-1) monitors the fan on/off status. Once fan
shut down, the motorized valve (TV-1) will be driven to fully
The smoke detector (SD-1) monitors the smoke status. closed position.
Once smoke is detected, the fan will be shut down.
Equipment List

SC-1 SC-9100 DDC controller c/w digital display
ST-3 Sampling Tube
19 of 30
DPAU-1
Section 2
Issue Date 0500
FCU Control
Equipment Wiring
Note:
1. R: Relay contact interlock with

blower.
Duct type thermostat (TS-1) located in the return air When the fan is switched off, the motorized valve (TV-1) will
duct will provide two-position control for the motorized return to its normally-closed position.
valve (TV-1), so as to maintain the desired return air
temperature.
Equipment List

TS-1 A19AAF-44 5/30 C, single stage duct type thermostat
20 of 30
FCU-D1
Section 2
Issue Date 0500
FCU Control
Duct type 2-pipe cooling only with 3-speed switch
Equipment Wiring
Duct type thermostat (TS-1) located in the return air The manual switches (S-1) provide High-Med-Low fan speed
duct will provide two-position control for the motorized and system on-off switching. With the switch in 'off' position.
valve (TV-1), so as to maintain the desired return air The motorized valve (TV-1) will return to its normally-closed
temperature. position and the fan will be switched off.
Equipment List

S-1 Y621 Fan speed switch assembly (white) On-Off/Hi-Med-Low
21 of 30
FCU-D2
Section 2
Issue Date 0500
FCU Control
Duct type 2-pipe cooling, electric heater with 3-speed switch
Equipment Wiring
Duct type thermostat (TS-1) located in the return air With the system selector switch in 'Heat' position, the cooling
duct will provide two-position control for the motorized controlled valve will be at its normally-closed position and the
valve (TV-1), so as to maintain the desired return air duct type thermostat is controlling the electric duct heater to
temperature. maintain the desired return air temperature.
The switch (S-1) provides High-Med-Low fan speed With the switch in 'Off' position, the motorized valve will return
and system switching. With the system selector switch to its normally-closed position and both the electric duct heater
in 'cool' position. The electric duct heater will be cut off and fan will be switched off.
and the duct type thermostat is controlling the cooling
valve to maintain the desired return air temperature. A high limit cutout thermostat with manual reset type (HL-1) is
installed to de-energize the electric duct heater in the event of
Equipment List

S-1 Y622 Fan speed switch assembly (white) Heat-Off-Cool/Hi-Med-Low
22 of 30
FCU-D3
Section 2
Issue Date 0500
FCU Control
Duct type 4-pipe cooling, heating with 3-speed switch
Equipment Wiring
Duct type thermostat (TS-1) located in the return air With the system selector switch in 'Heat' position, the cooling
duct will provide two-position control for the motorized controlled valve will be at its normally-closed position and the
cooling valve (TV-1) or heating valve (TV-2), so as to duct type thermostat is controlling the heating controlled valve
maintain the desired return air temperature. to maintain the desired return air temperature.
The switch (S-1) provides High-Med-Low fan speed With the switch in 'Off' position, the motorized valve will return
and system switching. With the system selector switch to its normally-closed position and both the electric duct heater
in 'cool' position. The heating control valve will be at its and fan will be switched off.
normally-closed position and the duct type thermostat
is controlling the cooling valve to maintain the desired
return air temperature.
Equipment List

S-1 Y622 Fan speed switch assembly (white) Heat-Off-Cool/Hi-Med-Low
TV-1, 2 Refer to Valve Schedule (Section 3) On/off Valve with spring return, 220 VAC power supply
23 of 30
FCU-D4
Section 2
Issue Date 0500
FCU Control
Room type, 2-pipe cooling with 3-speed switch
Equipment Wiring
Room thermostat (TS-1) [or digital thermostat (TS-1) ] The Integral switches provide High-Med-Low fan speed and
located in the controlled space will provide two-position system switching. With the switch in 'Off' position, cooling
control for the motorized valve (TV-1), so as to maintain valve (TV-1) will return to its normally-closed position and the
the desired room temperature. fan will be switched off.
Equipment List

TS-1 T2000EAC-0 Fan coil cooling thermostat+cover+fan speed switch
TS-2 T2000EAD-0 Digital thermostat, on/off type c/w 3 speed switch
TV-1 Refer to Valve Schedule (Secion 3) On/off Valve with spring return, 220 VAC power supply
24 of 30
FCU-R1
Section 2
Issue Date 0500
FCU Control
Room type, 2-pipe cooling, electrical heater with 3-speed switch
Equipment Wiring
Room thermostat (TS-1) [or digital room thermostat With the system selector switch in 'Heat' position, the cooling
(TS-2) ] located in the controlled space will provide 2- controlled valve will be at its normally-closed position and the
position control for the motorized valve (TV-1) or room thermostat is controlling the electric duct heater to
electric duct heater, so as to maintain the desired room maintain the desired room temperature.
temperature.
With the switch in 'Off' position, the motorized valve will return
The integral switches provide High-Med-Low fan speed to its normally-closed and both the electric duct heater and fan
and system switching. With the system selector switch will be switched off.
in 'Cool' position, the electric duct heater will be cut off
and the room thermostat is controlling the cooling valve A high limit cutout thermostat with manual reset type (HL-1) is
to maintain the desired room temperature. installed to de-energise the electric duct heater in the event of
Equipment List

TS-1 T2000AAC-0 Fan coil cooling/heating therm+cover+fan speed switch
TS-2 T2000AAD-0 Digital thermostat, heat-off-cool type c/w 3 speed switch
25 of 30
FCU-R2
Section 2
Issue Date 0500
FCU Control
Room type, 4-pipe cooling, heating with 3-speed switch
Equipment Wiring
Room thermostat (TS-1) [or digital thermostat (TS-2) ] With the system selector switch in 'Heat' position, the cooling
located in the controlled space will provide 2-position control valve will be at its normally-closed position and the
control for the motorized cooling valve (TV-1) or room thermostat is controlling the heating valve to maintain
heating valve (TV-2), so as to maintain the desired the desired room temperature.
room temperature.
With the switch in 'Off' position, the both motorized valve will
The integral switches provide High-Med-Low fan speed return to their normally-closed and fan will be switched off.
and system switching. With the system selector switch
in 'Cool' position, the heating valve will be at its
normally-closed position and the room thermostat is
controlling the cooling valve to maintain the desired
room temperature.
Equipment List

TS-1 T2000AAC-0 Fan coil cooling/heating therm+cover+fan speed switch
TS-2 T2000AAD-0 Digital thermostat, heat-off-cool type c/w 3 speed switch
TV-1, 2 Refer to Valve Schedule (Section 3) On/off Valve with spring return, 220 VAC power supply
26 of 30
FCU-R3
Section 2
Issue Date 0500
FCU Control
Room type, 2-pipe cooling/heating with automatic changeover
Equipment Wiring
Room thermostat (TS-1) located in the controlled space In cooling mode, chilled water is being supplied to the system.
will provide two-position control for the motorized valve When supply water temperature is 15.5 deg C or lower, the
(TV-1), so as to maintain the desired room motorized valve will open on rise of room temperature.
temperature.
In heating mode, hot water instead of chilled water is being
The integral switches provide High-Med-Low fan speed supplied to the system. The room thermostat action is
and system switching. Strap-on changeover thermostat reversed when water temperature is 31 deg C or higher, the
(ST-1) senses supply water temperature and switches motorized valve will then open on fall of room temperature.
the room thermostat to the desired mode automatically.
With the system switch in 'Off' position, the motorized valve
will return to its normally-closed position and the fan will be
switched off.
Equipment List

TS-1 T2000EAC-0 Fan coil cooling thermostat+cover+fan speed switch
TS-2 T2000EAD-0 Digital thermostat, on/off type c/w 3 speed switch
ST-1 A190HK Strap-on changeover thermostat
27 of 30
FCU-R4
Section 2
Issue Date 0500
PAU Control
Equipment Wiring
Note:
1. R: Relay contact interlock with

blower.
2. Refer to DH100 wiring

diagram for wiring the smoke
detector. (Attached at the end of
this section)
3. If 3 way mixing valve instead

of 2-way valve is used, the wiring
at terminals 2 & 3 of the actuator
TV-1 should be interchanged.
Proportional plus integral temperature controller (TC-1) The differential pressure switch (DPS-1) monitors the status of
together with remote duct temperature sensor (TE-1) filter, when the set point is exceeded, a signal will be given to
provides modulating control for the motorized cooling switch on 'filter change' indicating lamp on the control panel.
valve (TV-1), so as to maintain the desired supply air
temperature. The smoke detector (SD-1) monitors the smoke status. Once
smoke is detected, the fan will be shut down.
Temperature controller (TC-1) also provides comfort/
Standby mode selection button and set point dial. Normally closed 2-position damper (DA-1) will fully open on
start up of the fan. When the supply air fan is switched off, the
The controller interlocks with the supply fan status, so damper will be closed.
that on fan shut down, the controller will be switched
off, the cooling valve will be driven to its closed
position.
Equipment List

DA-1 M-9116-ADA-1 Motorized damper actuator, 16Nm, 220V
ST-3 Sampling Tube
28 of 30
PAU-1
Section 2
Issue Date 0500
PAU Control
Equipment Wiring
Mode selector switch is provided to select the mode of A high limit cutout thermostat with manual reset (HL-1) is
operation - cooling or heating. installed to de-energise the electric heaters in the event of
When the system is switched in cooling mode,
proportional plus integtal temperature controller (TC-1) The controller interlocks with the supply fan status, so that on
together with remote duct temperature sensor (TE-1) fan shut down, the controller will be switched off, the cooling
provides modulating control for the motorized cooling valve will be driven to its closed position, and the heaters will
valve (TV-1), so as to maintain the desired supply air be de-energised.
temperature.
The differential pressure switch (DPS-1) monitors the status of
Temperature controller (TC-1) also provides comfort/ filter, when the set point is exceeded, a signal will be given to
Standby mode selection button and set point dial. switch on 'filter change' indicating lamp on the control panel.
When the system is switched in heating mode, The smoke detector (SD-1) monitors the smoke status. Once
Electronic heating thermostat (TS-1) together with its smoke is detected, the fan will be shut down.
associated stage module (SM-1) and remote duct
temperature sensor (TE-2) provide on-off control of the Normally closed 2-position damper (DA-1) will fully open on
3 stages electric heater bank. start up of the fan. When the supply air fan is switched off, the
damper will be closed.
Air flow switch (FS-1) provides safety interlock such
that electric heaters can only be energised when the
fan running.
29 of 30
PAU-2
Section 2
Issue Date 0500
PAU Control
Equipment List

TS-1 A27A1N21 -40/40 C, din-railmount 2 stage electronic thermostat, 24VAC
DA-1 M-9116-ADA-1 Motorized damper actuator, 16Nm, 220V
ST-3 Sampling Tube
Note:

3. If 3 way mixing valve instead of 2-way valve is used, the

interchanged.

5. The jumper setting for directed or reversed control in TS-1

and SM-1 should be refer to installation sheet.
30 of 30
PAU-2

AHU Control

Uploaded by

Document Information

Original Title

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

AHU Control

Uploaded by

Copyright:

Available Formats

ATC Application Handbook

1. R: Relay contact interlock

2. Refer to DH100 wiring

3. If 3 way mixing valve

Instr. No. Code No. Description

Instr. No. Code No. Description

1. R: Relay contact interlock with blower.

2. Refer to DH100 wiring diagram for wiring the smoke detector.

3. If 3-way mixing valve instead of 2-way valve is used, the

4. More stage modules can be connected to TS-1, for details,

5. The jumper setting for directed or reversed control in TS-1

Instr. No. Code No. Description

1. R: Relay contact interlock with blower.

2. Refer to DH100 wiring diagram for wiring the smoke detector.

3. If 3 way mixing valve instead of 2-way valve is used, the

4. More stage modules can be connected to TS-1, for details,

5. The jumper setting for directed or reversed control in TS-1 ,

Bypass Valve Control

Instr. No. Code No. Description

Chiller Plant Control

Instr. No. Code No. Description

DDC AHU Control

If the enthalpy of outdoor air is lower than that of return

Instr. No. Code No. Description

DDC AHU Control

Instr. No. Code No. Description

Chilled water pump start/stop control

DDC Chiller Plant Control

Instr. No. Code No. Description

DDC FCU Control

1. K1: Relay interlock with system.

2. If 3-way mixing valve instead of 2-

Instr. No. Code No. Description

DDC FCU Control

1. K1: Relay interlock with system.

Instr. No. Code No. Description

DDC FCU Control

1. K1: Relay interlock with system.

Instr. No. Code No. Description

DDC FCU Control

1. K1: Relay interlock with system.

2. If 3-way mixing valve instead of 2-

3. The JP3 in TC-1 shall be

Instr. No. Code No. Description

DH100 Wiring Diagram

1. In normal condition, A-B is closed circuit to make fan(s) operating.

4. The detector can be tested by placing a magnet at test position.

6. Relay R should be 24 VDC and provided by others.

DDC PAU Control

1. K1: Relay interlock with fan starter.

2. Refer to DH100 wiring diagram for

3. If 3-way mixing valve instead of 2-

Instr. No. Code No. Description

1. R: Relay contact interlock with

Instr. No. Code No. Description

Instr. No. Code No. Description

Instr. No. Code No. Description

Instr. No. Code No. Description

Instr. No. Code No. Description

Instr. No. Code No. Description

Instr. No. Code No. Description

Instr. No. Code No. Description

1. R: Relay contact interlock with
