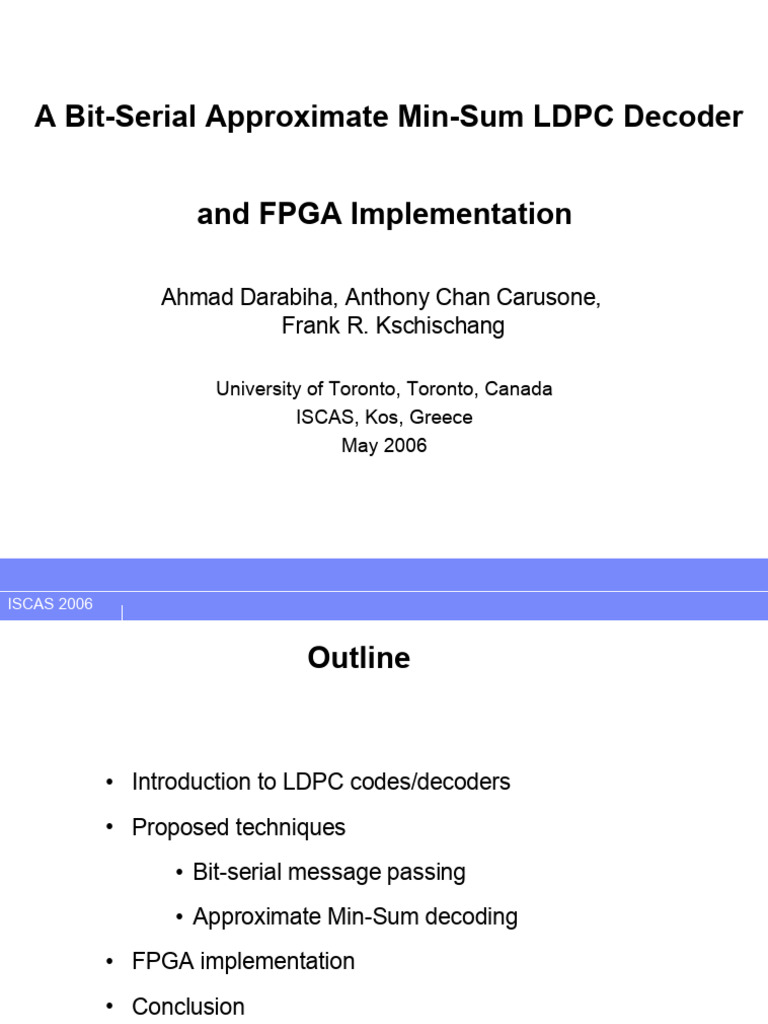

A Bit-Serial Approximate Min-Sum LDPC Decoder

and FPGA Implementation

Ahmad Darabiha, Anthony Chan Carusone,

Frank R. Kschischang

University of Toronto, Toronto, Canada

ISCAS, Kos, Greece
May 2006
ISCAS 2006

Outline

• Introduction to LDPC codes/decoders

• Proposed techniques
• Bit-serial message passing
• Approximate Min-Sum decoding
• FPGA implementation
• Conclusion

2
ISCAS 2006

Introduction

• Low-Density Parity-Check (LDPC) codes

• A sub-class of Error Control Codes (ECC)
• Perform better than Turbo and Reed-Solomon codes
• Approach Shannon limit

• LDPC codes are adopted for

• IEEE 802.3 10Gbit Ethernet standard
• Input BER > 10-3
• Output BER < 10-13
• Code rate 0.84
• DVB-S2 Digital Video Broadcast standard

3
ISCAS 2006

LDPC Codes: Structure

M =5 check
DC = 4 nodes

DV = 2 N=10
v a ria b le
nodes

1 0 0 1 0 1 0 0 1 0
0 1 1 0 1 0 0 1 0 0
HMxN = 0 0 0 1 0 1 1 0 1 0
1 1 0 0 0 0 1 0 0 1
• Each bit participates in Dv parity checks 0 0 1 0 1 0 0 1 0 1

• Each check consists of Dc bits

• Good LDPC codes are long (large N) and with a random-like graph

4
ISCAS 2006

Min-Sum LDPC Decoding

• A form of iterative message passing decoding
checks
• Messages in Log-Likelihood Ratio (LLR)
• Log(P(x=0) / P (x=1))

• Each iteration does two updates: V1 Cm

V2 Vm-1
• Check node update
cm = chk(v1, .., vm-1)
variable
= (sgn(v1) .. sgn(vm-1)) Min(|v1|, …, |vm-1|)

checks

• Variable node update C2

Cn-1
C1 Vn
vn = var(c1, c2 ,..,cn-1)
= c1 + c2 + .. + cn-1
Variables
5
ISCAS 2006

LDPC Decoders: Architecture

• We use fully-parallel architecture

• Allows high throughput
• Graph is directly mapped to hardware

• Major challenge:
• Complex interconnection
• Wire capacitance
- Power dissipation
- Wire delay
• Routing congestion
- Larger area

• We propose a bit-serial scheme to reduce

interconnections

6
ISCAS 2006

Bit-Serial Message-Passing

C lk C lk

L in e # 1 b1
S e ria l l in e b1 b2 bn
L in e # 2 b2

L in e # n bn n c y c le s

B it-p a ra lle l B it-s e ria l

• bit-serial scheme
• transfers an n-bit message in n clock cycles over a single wire
• is Ideal for Min-Sum decoding
• reduces the number of wires => reduced routing congestion
• both Min and Sum functions are naturally bit-serial
• facilitates efficient gear shift decoding

7
ISCAS 2006

Min-Sum Approximation

8
ISCAS 2006

Approximation to Min-Sum Decoding

• In original Min-Sum each check
node needs to find first and checks
second minimum

• We approximate Min-Sum:
Cm
• Variable node the same as V1 V 2 V m -1 V m
conventional Min-Sum
• Check node update:
v a ria b le
cm = check(v1, .., vm)
= (sgn(v1) .. sgn(vm-1)) Min(|v1|, …, |vm|)

• In Approximate Min-Sum only the first minimum needs to be found

• reduces the check node logic by about 50%

9
ISCAS 2006

Approximate Min-Sum: Performance

(Full-Precision)
1.E-01

Original MS, LDPC-2048

1.E-02
Original MS, LDPC-992
Approx. MS, LDPC-2048
1.E-03 Approx. MS, LDPC-992
BER .

1.E-04

1.E-05

1.E-06
3.5 4 4.5 5 5.5 6 6.5

EbNo(dB)

Under full-precision computations, conventional Min-Sum and

approximate Min-Sum perform closely

10
ISCAS 2006

Approximate Min-Sum: Performance (Quantized)

1.E-01

1.E-02 Original MS, 4bit

Approx. MS, 4bit
1.E-03
BER .

1.E-04

1.E-05

1.E-06

1.E-07
3.5 4 4.5 5 5.5 6
EbNo (dB)

With quantized calculations, there is more than 0.5dB difference in

performance between conventional and approximate Min-Sum

11
ISCAS 2006

Approximate Min-Sum + Correction

• We add a correction factor to the check update rule to reduce the
gap between conventional Min-Sum and approximate Min-Sum

• Variable node unchanged

checks
• Check node:

• Define M = min(|v1|, …, |vm-1|, |vm|)

Cm
• Define T = No. of identical absolute V1 V 2 V m-1 Vm
minimums

variable
• cm = check(v1, v2, .., vm)

(sgn(v1) .. sgn(vm-1)) M + 1 if (Vm= M & T = 1),

=
(sgn(v1) .. sgn(vm-1)) M otherwise

12
ISCAS 2006

Approximate Min-Sum + Correction: Performance

1.E-01
Original MS, 4bit
1.E-02 Approx. MS, 4bit
Approx. MS+ correction, 4bit
1.E-03
BER .

1.E-04

1.E-05

1.E-06

1.E-07
3.5 4 4.5 5 5.5 6 6.5
EbNo (dB)

By adding the correction factor, performance loss is reduced

from 0.6 dB to less than 0.1dB

13
ISCAS 2006

FPGA implementation

14
ISCAS 2006

FPGA Min-Sum Decoder

• Decoder built on FPGA (Stratix EP1S80)

• Fully parallel architecture

• Approximate Min-Sum decoding with correction

• Bit-serial message passing

• A regular-(4,15) (480, 355) LDPC code constructed

using progressive edge growth (PEG) algorithm

15
ISCAS 2006

Check Node Architecture

In p u t # 1
S ta tu s fla g s
s to re s ta te o f
e a c h in p u t in
c o m p e titio n
In p u t # 2

M in O u t
B it-S e ria l
in p u ts B it-s e ria l
M S B firs t o u tp u t
M S B firs t

In p u t # d c

• Output sign is calculated separately using XOR gates

16
ISCAS 2006

Variable Node Architecture

Input #1
1
2 n n
n parallel Output #1
Input #2
adder

bit n n
serial Output #2
inputs

Input #d v bit
serial
n n outputs
Output #d v

• Inputs arrive bit-serially, LSB first

• Addition and subtractions are performed bit-parallel
• For larger word lengths, a serial approach will be more efficient
17
ISCAS 2006

BER Performance

18
ISCAS 2006

Decoder Spec
L. Yang et al.
This work
TCAS 2006

FPGA device Stratix EP1S80 Xilinx XC2V8000

Logic 66,000 LUTs 53,000 LUTs

Memory 0 102 blockRAMs

PEG_LDPC
Code type (4,15) regular
multi-rate codes

Code rate 0.74 ½, 5/8, 7/8

Code length 480 9000
Decoding algorithm Modified Min-Sum Min-Sum
iterations/frame 15 24
Clock frequency 61 MHz 100 MHz
Throughput 650 Mbit/sec Up to 40 Mbit/sec
Quantization 3 bit -
19
ISCAS 2006

Conclusion

• Bit-serial message passing

• An efficient approach for implementing fully-parallel LDPC decoders
• Reduces interconnection complexity
• Suitable for Min-Sum decoding

• Modified Min-Sum decoding with the correction factor demonstrates

high BER performance with 48% saving in check node logic
