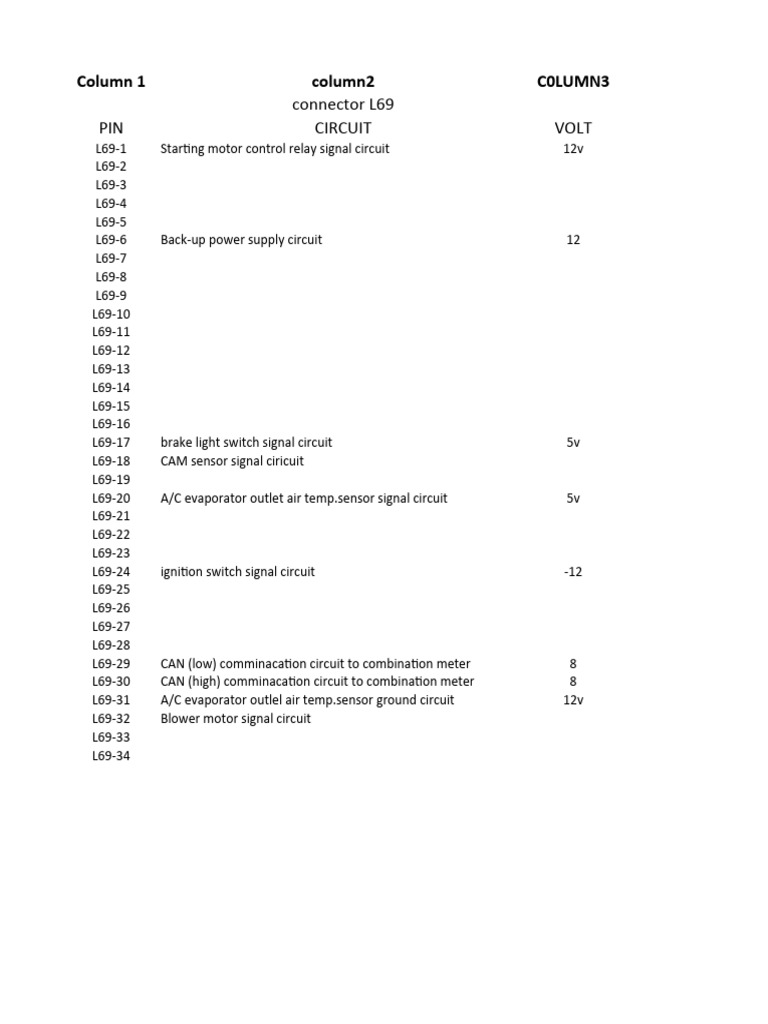

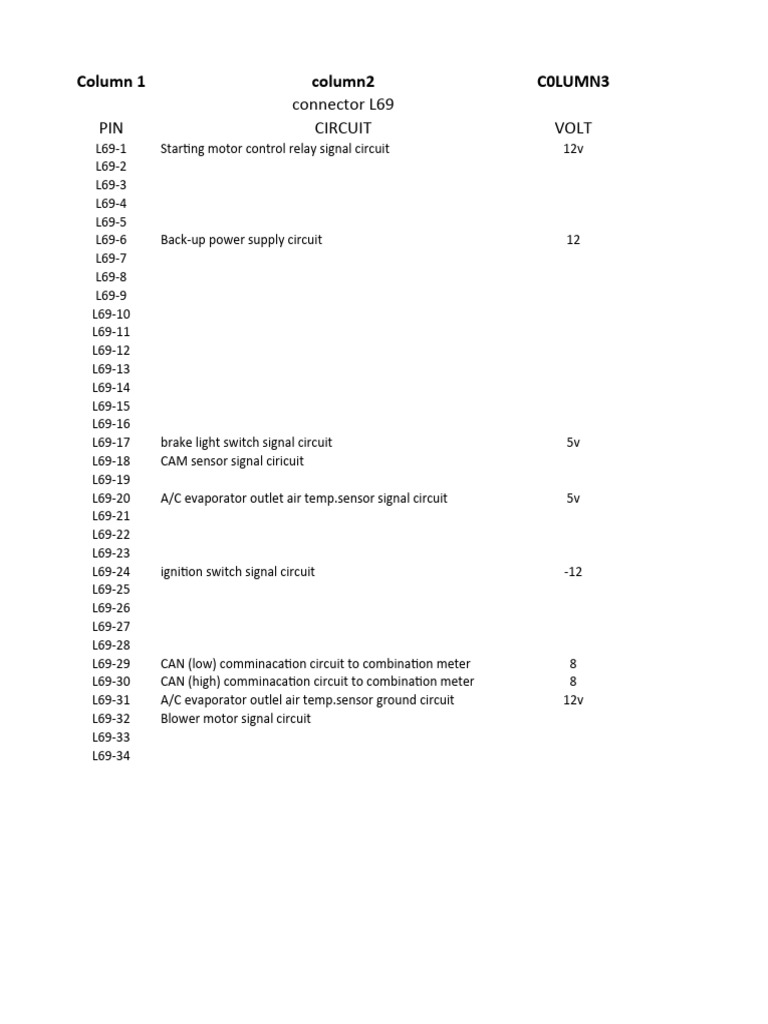

Column 1 column2 C0LUMN3

connector L69
PIN CIRCUIT VOLT
L69-1 Starting motor control relay signal circuit 12v
L69-2
L69-3
L69-4
L69-5
L69-6 Back-up power supply circuit 12
L69-7
L69-8
L69-9
L69-10
L69-11
L69-12
L69-13
L69-14
L69-15
L69-16
L69-17 brake light switch signal circuit 5v
L69-18 CAM sensor signal ciricuit
L69-19
L69-20 A/C evaporator outlet air temp.sensor signal circuit 5v
L69-21
L69-22
L69-23
L69-24 ignition switch signal circuit -12
L69-25
L69-26
L69-27
L69-28
L69-29 CAN (low) comminacation circuit to combination meter 8
L69-30 CAN (high) comminacation circuit to combination meter 8
L69-31 A/C evaporator outlel air temp.sensor ground circuit 12v
L69-32 Blower motor signal circuit
L69-33
L69-34
Column 1 column2 C0LUMN3
connector L70
PIN CIRCUIT VOLT
L70-1 ECM ground circuit -12
L70-2 ECM ground circuit -12
L70-3 ECM ground circuit -12
L70-4
L70-5
L70-6 Main power supply circuit 2 12
L70-7 Main power supply circuit 1 -12
L70-8
L70-9
L70-10 IAC valve control circuit 12v
L70-11 A/C condenser fan relay drive circuit 12v
L70-12
L70-13 ignition coil assembly no 2 control circuit 5v
L70-14 ignition coil assembly no 1 control circuit 5v
L70-15
L70-16 CKP sensor ground circuit 12
L70-17 CKP sensor signal circuit 8
L70-18
L70-19 EVAP canister purge valve control circuit 8
L70-20
L70-21 A/C switch input singal circuit
L70-22
L70-23 Knock sensor shield ground circuit 12v
L70-24 Knock sensor ground circuit 12v
L70-25 Knock sensor signal circuit 5v
L70-26 CAN (low) Communication circuit to CNG control module 8
L70-27 CAN (high) Communication circuit to CNG control module 8
L70-28
L70-29
L70-30 Main relay drive circuit 12v
L70-31
L70-32
L70-33 CKP sensor shield ground circuit 12v
L70-34
L70-35 A/C compressor relay driver circuit
Column 1 column2 C0LUMN3
connector L71
PIN CIRCUIT VOLT
L71-1 Fuel injector no 1 control circuit Pulse
L71-2 Fuel injector no 2 control circuit Pulse
L71-3 Fuel injector no 3 control circuit Pulse
L71-4 Fuel injector no 4 control circuit Pulse
L71-5
L71-6
L71-7 TP Sensor Signal Circuit 5v
L71-8
L71-9 VSS Signal Circuit
L71-10
L71-11 HO2S-1 Signal Circuit 5v
L71-12
L71-13
L71-14
L71-15
L71-16
L71-17
L71-18 Fuel Pump relay drive circuit 12v
L71-19 Radiator cooling fan relay drive circuit 12v
L71-20 MAP sensor signal circuit 5v
L71-21 IAT signal sensor circuit 5v
L71-22 ECT sensor signal circuit 5v
L71-23 O2S-2 signal circuit 5v
L71-24
L71-25 HO2S-1 Signal Circuit 12v
L71-26 HO2S-1 Shield ground circuit 12v
L71-27
L71-28
L71-29 MAP sensor power supply circuit 5v
L71-30 TP Sensor power supply Circuit 5v
L71-31
L71-32
L71-33 O2S-2 shield ground circuit 12v
L71-34 O2S-2 ground circuit 12v
L71-35 Sensor ground circuit 12v
