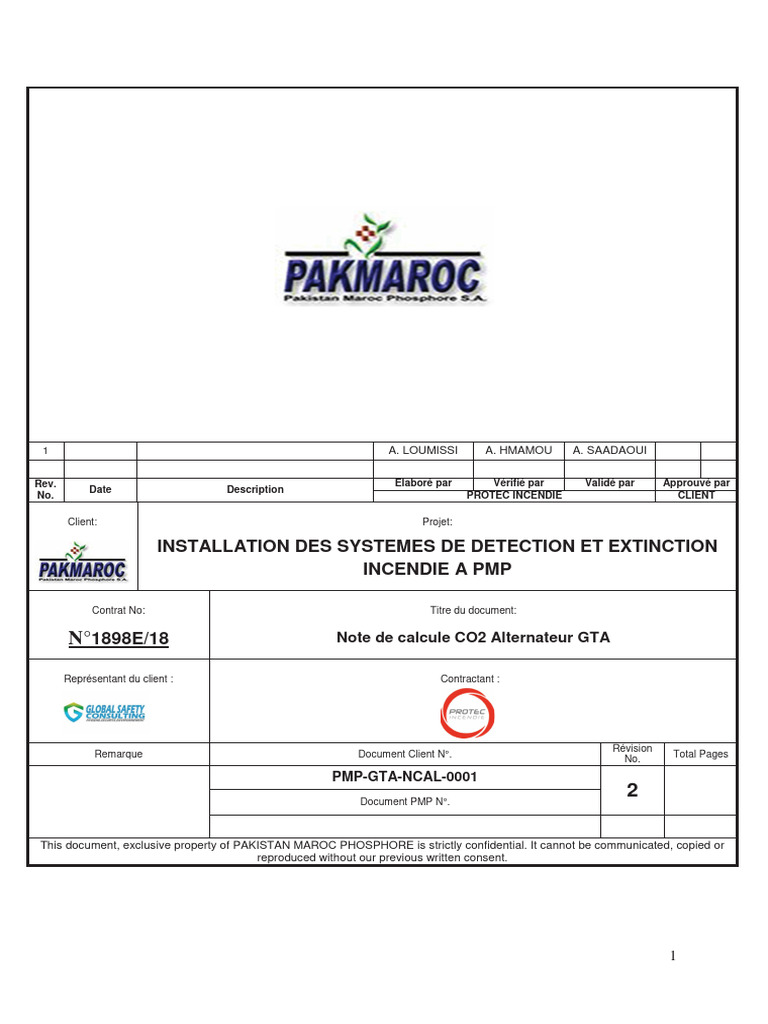

1 A. LOUMISSI A. HMAMOU A.

SAADAOUI

Rev. Elaboré par Vérifié par Validé par Approuvé par

Date Description
No. PROTEC INCENDIE CLIENT

Client: Projet:

INSTALLATION DES SYSTEMES DE DETECTION ET EXTINCTION

PAKISTAN MAROC
PHOSPHORE INCENDIE A PMP

Contrat No: Titre du document:

N°1898E/18 Note de calcule CO2 Alternateur GTA

Représentant du client : Contractant :

Révision
Remarque Document Client N°. Total Pages
No.
PMP-GTA-NCAL-0001
Document PMP N°.
2

This document, exclusive property of PAKISTAN MAROC PHOSPHORE is strictly confidential. It cannot be communicated, copied or
reproduced without our previous written consent.

1
 VdS SCHADENVERHÜTUNG CO2-Calcualtionprogramm Version 8.3 Page 1
Licenced to: LPG Serial number: CO01310
File: C:\VdS\CO2\Projects\08493011_PMP_ALTERNATEUR.prj - Results 9/4/2019

Project: PMP-ALTERNATEUR
Project-No:
System type: Total flooding system
System: High pressure
Building:
Object:
Contractor:
Owner:
Project engineer:
Date: 9/4/2019
Altitude above sea level: 466 m
Regulation rule to calculate the CO2 quantity: VdS 2093

Project description:

*PMP-ALTERNATEUR will have a protection cover ( 6,3 x 5,4 x 4,8 m)

*PMP-ARMOIRE ÉLECTRIQUE is not considered.
*Openinigs or unclosable openings = 0 m2
*If forced-air ventilating systems are involved, they shall be shut down or closed, or both,
before or simultaneously with the start of the carbon dioxide discharge.

Pipe class catalogue: LPGDiametros.RKL

Component catalogue: LPGComponentes.arm
Nozzle catalogue: LPGDifusores.noz

Error messages:
No errors detected!
VdS SCHADENVERHÜTUNG CO2-Calcualtionprogramm Version 8.3 Page 2
Licenced to: LPG Serial number: CO01310
File: C:\VdS\CO2\Projects\08493011_PMP_ALTERNATEUR.prj - Results 9/4/2019
 VdS SCHADENVERHÜTUNG CO2-Calcualtionprogramm Version 8.3 Page 3
Licenced to: LPG Serial number: CO01310
File: C:\VdS\CO2\Projects\08493011_PMP_ALTERNATEUR.prj - Results 9/4/2019

Input data:

Pipe system data:

Section- Start- End node Length Diff. in level Pipe type Diameter Fitting Component Nb. of cylinders
No: node Nozzle [m] [m] [mm] ** * Code Coefficient CO2 quantity

1 0 1 0.400 0.400 10 15.8 C 110 11.000 7.0

2 1 2 2.430 0.000 23 32.5 E - - 0.0
3 2 3 3.700 3.700 11 26.6 E - - 0.0
4 3 4 6.250 0.000 11 26.6 E - - 0.0
5 4 11001 0.750 -0.750 11 20.9 T-90° - - 0.0
6 4 5 1.400 0.000 11 26.6 T-0° - - 0.0
7 5 11002 0.750 -0.750 11 20.9 T-90° - - 0.0
8 5 6 1.400 0.000 11 15.8 T-0° - - 0.0
9 6 11003 0.750 -0.750 11 20.9 E - - 0.0

* C=Component, B=Bend, T=T-piece, E=Elbow

** If a pipe diameter is equal zero see the extra table of the calculated diameters

List of pipe types

Type Pipe class Pipe roughness
10 SCH 40 smooth
23 SCH 80 Black pipe
11 SCH 40 galvanized

List of components
Code Type resistance coefficient
110 LPG 110 11.000

Nozzle data:

No: Calculation zone Diameter [mm]

11001 Protection cover 0.0
11002 Protection cover 0.0
11003 Protection cover 0.0

List of nozzles:
Type Number of C1 C2 C3 C4 C5 C6
orifices
1 Nozzle 1 1 0.179 0.213 0.000 -0.050 0.000 0.000

Volume of the pipe system: 9.45 l

 VdS SCHADENVERHÜTUNG CO2-Calcualtionprogramm Version 8.3 Page 4
Licenced to: LPG Serial number: CO01310
File: C:\VdS\CO2\Projects\08493011_PMP_ALTERNATEUR.prj - Results 9/4/2019

Calculation zone data:

Calculation of the design quantity:

Calculation Total Ventilation Volume Total Opening Calcul. Max. Over Design Concentr.- Design
zone volume volume build. parts surface areas volume Pressure temp. factor quantity
[m3] [m3] [m3] [m2] [m2] [m3] [°C] Kb [kg]

1 Protection c 163.3 0.0 0.0 180.4 0.0 163.3 1.0 mbar 15.0 2.00 317.11

Regulation rule for calculation of CO2 quantities: VdS 2093

Altitude above sea level: 466.0 m

CO2 storage data:

Container volume: 67.0 l

Filling ratio: 0.75 kg/l
Storage temperature: 15.0 °C
Design quantity: 317.11 kg
Supplement factor: 1.10
Compensation of filling and discharge tolerances: 31.71 kg
Supplement quantity: 31.71 kg
Minimum storage quantity: 348.82 kg
Number of container: 7

Discharge time (Input value): 60.0 s

Further informations:
Design with included air discharge time
 VdS SCHADENVERHÜTUNG CO2-Calcualtionprogramm Version 8.3 Page 5
Licenced to: LPG Serial number: CO01310
File: C:\VdS\CO2\Projects\08493011_PMP_ALTERNATEUR.prj - Results 9/4/2019

Calculation results:

CO2 design data:

Design quantity: 317.11 kg
Minimum storage quantity: 348.82 kg
Actual storage quantity: 351.8 kg

Container volume: 67.0 l

Filling ratio: 0.75 kg/l
CO2 quantity in one container: 50.2 kg
Number of container: 7
Storage temperature: 15.0 °C
Starting container pressure: 50.9 bar abs

Discharge time:
Full discharge
Discharge time of air: 0.2 s
Discharge time of CO2-vapor: 0.4 s
Vaporized CO2 during the start phase: 0.7 kg
Total gas discharge time: 0.6 s
Discharge time: 58.1 s
Total discharge time: 58.7 s

System informations:
Working pressure in the container: 44.2 bar abs
Working temperature in the container: 9.3 °C
Volume of the pipe system: 8.9 l
Mean CO2 quantity in the pipe system: 6.1 kg
CO2 filling ratio of the pipe system: 0.017 kg/kg CO2 Vorrat
 VdS SCHADENVERHÜTUNG CO2-Calcualtionprogramm Version 8.3 Page 6
Licenced to: LPG Serial number: CO01310
File: C:\VdS\CO2\Projects\08493011_PMP_ALTERNATEUR.prj - Results 9/4/2019

Pipe system:
Section- Start- End node Pressure Mass flow Pipe dimension
No: node Nozzle [bar abs] [kg/s] Di [mm] DN

1 0 1 43.12 0.76 15.8 1/2

2 1 2 42.44 5.34 32.5 1 1/4
3 2 3 40.44 5.34 26.6 1
4 3 4 37.97 5.34 26.6 1
5 4 11001 36.32 1.78 20.9 3/4
6 4 5 37.29 3.56 26.6 1
7 5 11002 36.43 1.78 20.9 3/4
8 5 6 36.18 1.78 15.8 1/2
9 6 11003 35.63 1.78 20.9 3/4
 VdS SCHADENVERHÜTUNG CO2-Calcualtionprogramm Version 8.3 Page 7
Licenced to: LPG Serial number: CO01310
File: C:\VdS\CO2\Projects\08493011_PMP_ALTERNATEUR.prj - Results 9/4/2019

Nozzle data:

Calculation Nozzle Nozzle Number of Pipe connection Orifice CO2 output [kg] in
zone no.: Type orifices Di [mm] DN [mm] relation to design quantity

1 11001 1 1 20.9 3/4 10.2 105.7

1 11002 1 1 20.9 3/4 10.1 105.7
1 11003 1 1 20.9 3/4 10.3 105.7

Maximum transport time difference between nozzles 11003./ 11001 is 0.19 s

 VdS SCHADENVERHÜTUNG CO2-Calcualtionprogramm Version 8.3 Page 8
Licenced to: LPG Serial number: CO01310
File: C:\VdS\CO2\Projects\08493011_PMP_ALTERNATEUR.prj - Results 9/4/2019

Concentrations:

Calculation Gas composition after the discharge of the design quantity [%]
zone no.: O2 CO2 AR N2

1 7.0 66.5 0.3 26.1

Total flooded design quantity within the discharge time: 317.1 kg

Calculation Gas composition after total discharge [%]

zone no.: O2 CO2 AR N2

1 6.3 70.2 0.3 23.3

Total flooded CO2 quantity: 351.8 kg

Pressure relief openings:

Calculation Net open area of the pressure

zone no.: relief opening [m²] Overpressure Resistance coefficient C1

1 0.396 1.0 mbar 2.00

 VdS SCHADENVERHÜTUNG CO2-Calcualtionprogramm Version 8.3 Page 9
Licenced to: LPG Serial number: CO01310
File: C:\VdS\CO2\Projects\08493011_PMP_ALTERNATEUR.prj - Results 9/4/2019

List of components:

Components Number of Code Coefficient

LPG 110 1 110 11.000

Nozzle type Number of C1 C2 C3 C4 C5 C6

1 3 0.179 0.213 0.000 -0.050 0.000 0.000

Pipe type Di [mm] DN Length [m]

10 15.80 1/2 0.400

23 32.50 1 1/4 2.400
11 26.60 1 11.400
11 20.90 3/4 2.400
11 15.80 1/2 1.400

Number of bends (+) and elbows (-)

Bend type Di [mm] DN Number of

-90 32.50 1 1/4 1

-90 26.60 1 2
-90 20.90 3/4 1

Number of T-pieces (Inlet and outlet diameters in [mm])

Number of Inlet 90°-outlet 90°-outlet 0°-outlet

1 26.6 20.9 0.0 26.6

1 26.6 20.9 0.0 15.8
 VdS SCHADENVERHÜTUNG CO2-Calcualtionprogramm Version 8.3 Page 10
Licenced to: LPG Serial number: CO01310
File: C:\VdS\CO2\Projects\08493011_PMP_ALTERNATEUR.prj - Results 9/4/2019

Dynamic flooding results

The calculation bases on a mean nozzle pressure!

Flooding Storage Mass flow Temperature Storage Mean nozzle Pressure at nozzles [bar]
time [s] quantity [kg] [kg/s] [°C] pressure [bar] pressure [bar] Best worst

0.0 351.75 0.00 15.0 50.86 1.00 1.00 1.00

1.5 343.27 4.99 14.9 50.78 42.65 42.15 42.83
2.0 340.78 5.18 14.9 50.70 42.06 41.51 42.27
2.5 338.19 5.32 14.8 50.61 41.73 41.15 41.95
5.0 324.55 5.56 14.4 50.13 41.15 40.56 41.38
7.5 310.60 5.59 14.0 49.61 40.65 40.07 40.88
10.0 296.64 5.58 13.5 49.07 40.21 39.63 40.44
12.5 282.72 5.55 13.1 48.51 39.73 39.16 39.95
15.0 268.86 5.53 12.6 47.93 39.23 38.67 39.45
17.5 255.05 5.50 12.0 47.32 38.71 38.16 38.93
20.0 241.32 5.48 11.5 46.69 38.18 37.65 38.39
22.5 227.65 5.45 10.9 46.03 37.61 37.08 37.82
25.0 214.06 5.42 10.3 45.36 37.05 36.53 37.25
27.5 200.54 5.38 9.7 44.65 36.45 35.94 36.64
30.0 187.12 5.35 9.0 43.92 35.82 35.32 36.01
32.5 173.78 5.31 8.3 43.17 35.19 34.70 35.38
35.0 160.53 5.27 7.6 42.38 34.53 34.05 34.71
37.5 147.40 5.23 6.8 41.58 33.83 33.36 34.01
40.0 134.36 5.19 6.0 40.74 33.13 32.67 33.30
42.5 121.44 5.14 5.2 39.87 32.39 31.95 32.57
45.0 108.65 5.09 4.3 38.98 31.62 31.19 31.79
47.5 95.98 5.03 3.3 38.04 30.83 30.42 30.99
50.0 83.46 4.97 2.3 37.07 30.00 29.59 30.16
52.5 71.09 4.91 1.3 36.05 29.16 28.76 29.31
55.0 58.88 4.84 0.1 34.99 28.25 27.87 28.40
57.5 46.86 4.76 -1.5 33.46 26.87 26.51 27.02
60.0 35.05 4.66 -3.0 32.20 25.86 25.51 26.00
62.5 23.49 4.56 -4.6 30.84 24.70 24.37 24.83
65.0 12.19 4.45 -6.4 29.35 23.44 23.13 23.56
67.5 1.19 4.32 -8.5 27.68 22.03 21.74 22.14

The discharge time is 58.1 s

 VdS SCHADENVERHÜTUNG CO2-Calcualtionprogramm Version 8.3 Page 11
Licenced to: LPG Serial number: CO01310
File: C:\VdS\CO2\Projects\08493011_PMP_ALTERNATEUR.prj - Results 9/4/2019

Storage mass [kg] Mass flow [kg/s]

400 6.0

350
5.0
300
4.0
250

200 3.0

150
2.0
100
1.0
50

0 0.0
0 10 20 30 40 50 60 70 0 10 20 30 40 50 60 70
Time [s] Time [s]

Temperature [°C] Storage pressure [bar]

20 60

15 50

10 40

5 30

0 20

-5 10

-10 0
0 10 20 30 40 50 60 70 0 10 20 30 40 50 60 70
Time [s] Time [s]

Mean pressure at nozzle [bar] Minimum pressure at nozzle [bar]

45 45

40 40

35 35

30 30

25 25

20 20

15 15

10 10

5 5

0 0
0 10 20 30 40 50 60 70 0 10 20 30 40 50 60 70
Time [s] Time [s]
