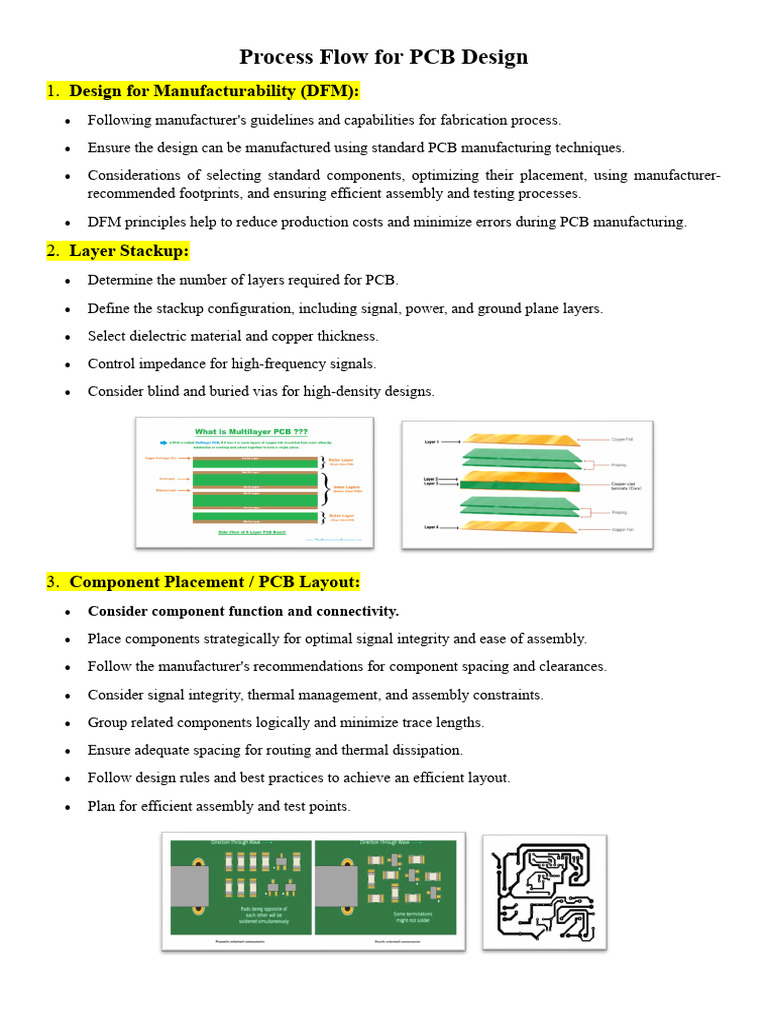

Process Flow for PCB Design

1. Design for Manufacturability (DFM):

• Following manufacturer's guidelines and capabilities for fabrication process.
• Ensure the design can be manufactured using standard PCB manufacturing techniques.
• Considerations of selecting standard components, optimizing their placement, using manufacturer-
recommended footprints, and ensuring efficient assembly and testing processes.
• DFM principles help to reduce production costs and minimize errors during PCB manufacturing.

2. Layer Stackup:
• Determine the number of layers required for PCB.
• Define the stackup configuration, including signal, power, and ground plane layers.
• Select dielectric material and copper thickness.
• Control impedance for high-frequency signals.
• Consider blind and buried vias for high-density designs.

3. Component Placement / PCB Layout:

• Consider component function and connectivity.
• Place components strategically for optimal signal integrity and ease of assembly.
• Follow the manufacturer's recommendations for component spacing and clearances.
• Consider signal integrity, thermal management, and assembly constraints.
• Group related components logically and minimize trace lengths.
• Ensure adequate spacing for routing and thermal dissipation.
• Follow design rules and best practices to achieve an efficient layout.
• Plan for efficient assembly and test points.
4. Trace Width and Spacing:
• Determine the appropriate trace width and spacing based on the current-carrying capacity and
impedance requirements.
• Trace Width determine based on current-carrying capacity and temperature rise.
• Spacing maintain to prevent shorts or arcing, considering voltage differences and dielectric properties.
• Follow manufacturer guidelines and design rules for manufacturability and safety.

5. Via Design:
• Use vias for connecting traces between different layers of the PCB.
• Consider via types (e.g., through-hole, blind, buried) based on the design requirements.
• Through-Hole Vias: These extend through all PCB layers, connecting the top and bottom surfaces.
Blind Vias: Connect an outer layer to one or more inner layers without passing through the entire board.
Buried Vias: Connect inner layers but do not extend to the outer layers.
• Placing vias strategically for signal integrity and routing efficiency.
• Selecting appropriate via size, annular ring, and stacking as needed.
• Considering thermal management and impedance control.

6. Clearances:
• Maintain minimum clearances between traces and between traces and other features (e.g., pads, vias)
to prevent electrical shorts.
• Trace-to-trace: Prevents shorts and crosstalk.
• Trace-to-pad: Avoids solder bridges and ensures isolation.
• Pad-to-pad: Prevents shorts between adjacent component pads.
• Pad-to-via: Ensures no interference between pads and vias.
 • Via-to-via: Avoids shorts between vias.
• Keepout zones: Define areas where no components or traces are allowed.
• Copper pour clearance: Maintains distance between copper pours and other elements.
• Edge clearance: Specifies minimum distance from PCB features to the board edge.

7. Silkscreen and Markings:

• Include clear component designations, reference designators, and polarity markings on the silkscreen
layer.
• Ensure that silkscreen markings do not overlap with critical components or traces.
• Ensure clear, legible printing and avoid overcrowding.

8. Copper Pour and Ground Planes:

• Use copper pours and ground planes to improve signal integrity and reduce electromagnetic interference
(EMI).
• Connect all ground planes to minimize ground loops.
• Copper Pours: Large copper areas for electrical performance, thermal management, and shielding.
• Ground Planes: Continuous copper areas connected to ground for stability, noise reduction, and signal
return paths.
• Position for effectiveness, avoid isolated copper islands, and ensure proper via connections.
• Improve electrical performance, reduce EMI, enhance thermal management, and stabilize signals.
9. Polygon:
1) Polygon pour:
• Use copper polygon pours for ground planes or power distribution.
• Maintain clearance rules to avoid short circuits.
• Follow design guidelines for thermal management.
• Ensure proper stitching and connection to reduce noise and improve signal integrity.

2) Polygon Connect:
• Ensure all polygon pours are connected.
• Use stitching vias for interconnecting sections.
• Maintain proper spacing between vias.
• Apply thermal relief connections for pads.
• Adhere to manufacturer's guidelines and design rules.

3) Polygon Creepage:
• Ensure adequate distance between conductive elements.
• Follow safety standards for minimum creepage distance.
• Consider environmental factors like humidity and pollution.
• Use insulation techniques to increase creepage distance.
• Ensure compliance with relevant regulations and standards.
10.Differential Pair:
• Consist of two traces with equal and opposite signals.
• Used for high-speed data transmission, reducing noise and crosstalk.
• Ensure equal trace lengths for signal integrity.
• Maintain consistent spacing between traces.
• Match impedance for reliable high-speed data transmission.
• Follow manufacturer's guidelines for width, spacing, and separation.

11.Hole Sizes and Annular Rings:

• Define appropriate hole sizes and annular rings for mounting holes and component pads.
• Follow the manufacturer's recommendations for hole sizes based on drill capabilities.
• Hole Sizes: Specify the diameter of holes for components and vias.
• Annular Rings: Copper rings around holes for component leads and solder connections.
• Adequate annular ring size ensures reliable soldering and mechanical stability.
12.Thermal Management:
• Add thermal vias and copper areas to dissipate heat from components, especially power components
and microcontrollers.
• Consider the placement of heat sinks and cooling solutions.
• Identifying heat sources (components) and their power dissipation.
• Ensuring efficient enclosure and airflow design.

13.Signal Integrity:
• Route high-speed signal traces to minimize signal reflections and crosstalk.
• Use controlled impedance traces for high-frequency signals.
• Focuses on maintaining signal quality and reliability.
• Involves controlled routing, impedance matching, and proper termination.
• Addresses crosstalk, grounding, and power distribution.
• Essential for preventing signal degradation, noise, and EMI.

14.Power Distribution:
• Ensure a well-designed power distribution network with adequate decoupling capacitors to filter noise.
• Minimize voltage drops and provide clean power to all components.
• Identifying power source locations and voltage rails.
• Using dedicated power planes and ground planes.
• Calculating trace widths to handle current and prevent voltage drop.
• Ensuring proper thermal management and grounding strategies.

15.Design Rule Checking (DRC):

• Automated checks to ensure design adherence to specified rules.
• Covers electrical (clearance, trace width and spacing, impedance control, net connectivity, and
crosstalk), mechanical (placement, mounting, board outline, solder mask and silkscreen), and
manufacturing (copper-to-board edge clearance, angular ring size, drill hole size, and minimum trace-
to-trace spacing) criteria.
 • Detects violations in clearances, trace widths, component placement, and more.
• Provides real-time feedback and generates reports for error correction.
• Crucial for ensuring manufacturability, reliability, and design integrity.

16.Documentation:
• Create comprehensive design documentation, including a bill of materials (BOM), assembly drawings,
and Gerber files for manufacturing.
• Schematic diagrams for circuit representation.
• Bill of Materials (BOM) for component information.
• Component placement and orientation instructions.
• Assembly drawings for physical arrangement.
• Gerber files for manufacturing.
• Fabrication and assembly instructions.
• Test procedures and revision control.
• Ensures accurate, replicable, and quality PCB production.

17.Testing and Prototyping:

• Prototype the PCB to validate its functionality and identify any design issues.
• Conduct thorough testing, including continuity checks, functional tests, and signal integrity
measurements.
• Perform functional, electrical, thermal, and environmental tests.
• Iteratively refine design based on test results.
• Ensure design reliability and compliance.

18.Compliance and Safety:

• Ensure that the PCB design complies with relevant safety and regulatory standards, especially for
products intended for consumer use.
• Ensure EMI/EMC compliance with shielding and filtering.
• Design for electrical, thermal, and mechanical safety.
• Consider environmental regulations like RoHS (Restriction of Hazardous Substances) and WEEE
(Waste Electrical and Electronic Equipment).
• Maintain thorough documentation and seek third-party certification.
• Prioritize user safety with clear instructions and risk assessment.

19.Future Expansion and Maintenance:

• Design the PCB with future updates and maintenance in mind to accommodate changes or component
replacements.
• Use modular design with standardized components.
• Include test points, debugging features, and firmware update capabilities.
• Maintain comprehensive documentation and version control.
• Consider environmental conditions and component availability.
• Ensure user-friendly features and ESD protection.
• Enable knowledge transfer for maintenance teams.

REFERENCES
• https://images.theengineeringprojects.com/image/main/2018/03/Multilayer-PCB.png
• https://www.google.com/url?sa=i&url=https%3A%2F%2Fgbu-presnenskij.ru%2F%3Fu%3Dpcb-
stack-up-plan-design-and-manufacture-sierra-circuits-qq-
x72AgNFV&psig=AOvVaw26ldrfaPeGGEIIxXEL1FSi&ust=1708968147203000&source=images&c
d=vfe&opi=89978449&ved=0CBMQjRxqFwoTCNj6wc6Ax4QDFQAAAAAdAAAAABAY
• https://www.protoexpress.com/blog/build-multilayer-pcb-stack-up/
• https://www.google.com/url?sa=i&url=https%3A%2F%2Fwww.protoexpress.com%2Fkb%2Fpcb-
component-placement-rules%2F&psig=AOvVaw3-
BBpHQj8UL1Pwywio_eNV&ust=1708343544816000&source=images&cd=vfe&opi=89978449&ve
d=0CBUQjhxqFwoTCOiCiOTptIQDFQAAAAAdAAAAABAI
• https://sfxpcb.com/pcb-layout-design-tips-and-guidelines/
• https://www.ourpcb.com/pcb-trace-width-calculator-2.html
• https://www.ourpcb.com/pcb-via-size.html
• https://jlcpcb.com/capabilities/pcb-capabilities
• https://www.pcbgogo.com/blog/What_Is_Silkscreen_On_a_PCB_.html
• https://www.pcbway.com/pcb_prototype/PCB_Silkscreen.html
• https://copyprogramming.com/howto/what-is-the-polygon-pour-and-power-plane-for-in-a-pcb
• https://madpcb.com/glossary/polygons/
• https://my.altium.com/altium-designer/getting-started/configuring-advanced-design-rules
• https://goodtopssm.life/product_details/51662335.html
• https://www.protoexpress.com/blog/best-high-speed-pcb-routing-
practices/?aliId=eyJpIjoiM0N6K0s1MUZVdWd5UDdyXC8iLCJ0IjoiMXppN2lidWlua3JsWGk5cG5
hWHIxUT09In0%253D
• https://www.eurocircuits.com/blog/understanding-annular-rings/
• https://biofreear.live/product_details/24798400.html
