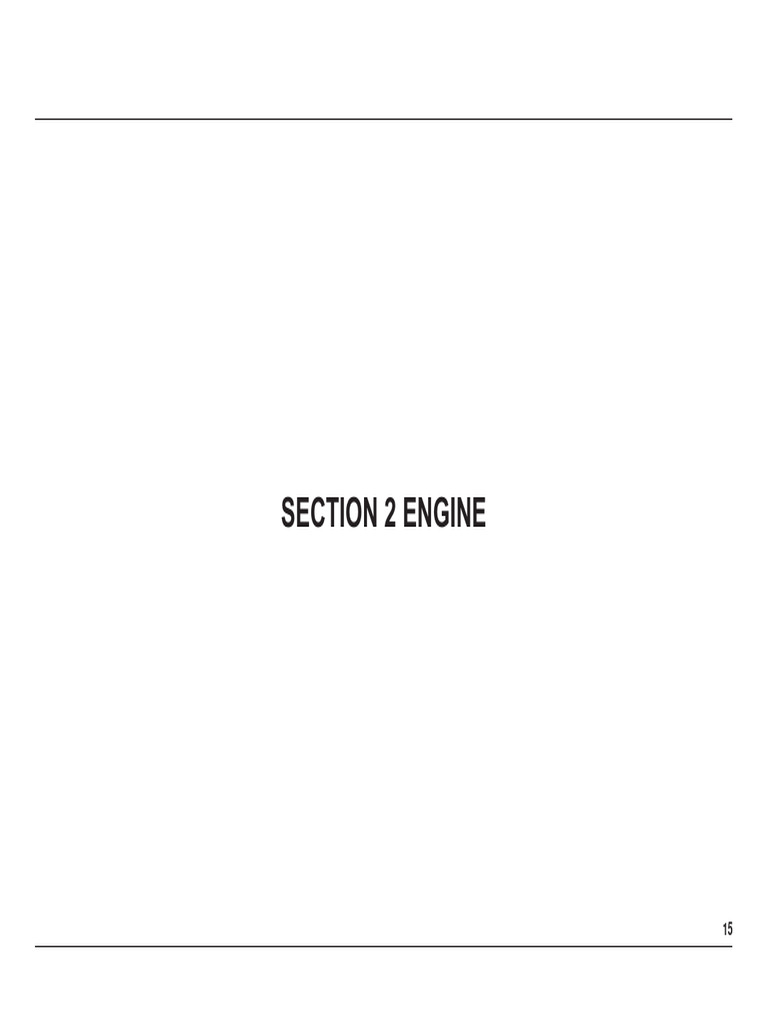

SECTION 2 ENGINE

15
ENGINE AND MISCELLANEOUS PARTS

3
2
5
1

15
17

18

16
8 23 19
7
17
20
18
10 21

19
24
13 22 20
11
16
12
14
P003751

B16B 4X2 ADT 16

ENGINE AND MISCELLANEOUS PARTS
ITEM PART NUMBER QTY DESCRIPTION REMARKS
1 250114 1 ENGINE 366T
2 DC220629 1 FUEL FILTER ASSY
3 NSI 1 HEAD, Fuel Filter
4 221384 1 FILTER, Fuel
5 NSI 1 O RING
6 NSI 1 BOWL, Filter
7 DC220336 1 OIL FILTER ASSY
8 221382 1 FILTER, Oil
9 NSI 1 O RING
10 DC220333 1 BOWL, Oil Filterl
11 DC140054 1 WASHER, Sealing
12 DC100028 1 FITTING, Oil Filter
13 140377 1 O RING
14 DC100178 1 SCREW, Plug
15 182730 2 MOUNTING, Engine Rear
16 100128 12 SCREW, Hex. Head
17 100728 4 BOLT, Hex. Head
18 160445 4 WASHER, Spacer
19 DC220530 4 MOUNTING, Rubber
20 100413 4 NUT, Cleaveloc
21 172064 2 MOUNTING, Engine Front
22 DC221111 1 ALTERNATOR
23 DC221547 1 STARTER MOTOR
24 DC220729 2 V- BELT

B16B 4X2 ADT 17

ENGINE COUPLING (KUZEL K030)

B16B 4X2 ADT 18

ENGINE COUPLING (KUZEL K030)
ITEM PART NUMBER QTY DESCRIPTION REMARKS
1 255033 1 ENGINE COUPLING (KUZEL K030)
2 100089 12 SCREW, Set, Hex
3 180691 1 ELEMENT, Rubber, Elastomeric
4 202211 1 SLEEVE
5 202212 1 DISC, Friction
6 NSI 1 HOUSING, Coupling
7 100123 8 SCREW, Cap, Gr 12.9
8 160503 1 ADAPTOR, Output

B16B 4X2 ADT 19

AIR CLEANER SYSTEM (ADE 366T)

1
1
18
4 17
16
7 9
8 3
5 12
10
15

11

9 16
6 8
7 9 17 18
2
7
13
11 14
11

7
9

B16B 4X2 ADT 20

AIR CLEANER SYSTEM (ADE 366T)
ITEM PART NUMBER QTY DESCRIPTION REMARKS
1 200463 1 PRE CLEANER Used up to 15/05/00
2 290005 1 AIR CLEANER Used up to 29/08/00
3 200046 1 INDICATOR, Service Used from 29/08/00
4 200460 2 BAND, Mounting
5 100082 4 SCREW, Hex. Head
6 100283 4 NUT, Hex
7 100089 6 SCREW, Hex. Head Includes Bolts And Washers
8 100064 4 WASHER
9 100314 6 NUT, Nyloc
10 203533 1 CLAMP, T-Bolt Includes Cap Screws
11 203532 3 CLAMP, T-Bolt
12 200462 1 ELBOW, Rubber
13 182154 1 PIPE
14 200762 1 CONNECTOR, Rubber Hump
15 190486 1 STRIP, Seal
16 100081 2 SCREW, Hex. Head
17 100358 2 WASHER, Flat
18 100310 2 NUT, Nyloc

B16B 4X2 ADT 21

AIR CLEANER (12 INCH)
1

7
5

P002336

B16B 4X2 ADT 22

AIR CLEANER (12 INCH)
ITEM PART NUMBER QTY DESCRIPTION REMARKS
1 290005 AIR CLEANER Includes Items 2 to 7
2 200459 1 COVER, End
3 200469 1 BAFFLE
4 200470 1 CLAMP
5 200637 2 NUT, Wing
6 200468 1 FILTER, Air, Primary
7 200467 1 FILTER, Air, Safety
8 NSI 1 BODY, Air Cleaner

B16B 4X2 ADT 23

PRE CLEANER (127 MM OUTLET)

1 5

P001995

B16B 4X2 ADT 24

PRE CLEANER (127 MM OUTLET)
ITEM PART NUMBER QTY DESCRIPTION REMARKS
1 200463 1 PRE CLEANER (127 MM OUTLET) Includes Items 2 to 5
2 200639 1 BOWL, Pre Cleaner
3 NSI 1 COVER, Pre Cleaner
4 NSI 1 BODY, Pre Cleaner
5 NSI 1 NUT, Wing

B16B 4X2 ADT 25

EXHAUST SYSTEM
1

22
12
17 6
29 7
30 33
38
39
41
28 2
35 42
36 31
34
40
17 37

4 24 27 5

26 32
18
23 19
10
8
9 2
17 11
19

16 2
21

20
3

25 15

14 P003797
3 13

B16B 4X2 ADT 26

EXHAUST SYSTEM
ITEM PART NUMBER QTY DESCRIPTION REMARKS
1 204340 1 STACK, Exhaust
2 201212 3 CLAMP, Exhaust
3 204035 2 CLAMP, Seal
4 DC100137 2 BOLT, Hex
5 171989 1 MOUNTING, Silencer
6 100199 4 BOLT, Hex. Head
7 100312 4 NUT, Nyloc
8 203546 1 SILENCER
9 182727 1 MOUNTING, Silencer, Heatshield
10 100092 2 BOLT, Hex. Head
11 203826 1 HEATSHIELD
12 171522 1 CLAMP, Stack
13 202385 1 PIPE, Exhaust
14 203825 1 HEATSHIELD
15 100079 2 SCREW, Hex. Head
16 202386 1 PIPE, Exhaust
17 DC221071 3 GASKET
18 202387 1 PIPE, Exhaust
19 100702 7 BOLT, Hex. Head
20 100271 3 NUT, Cleaveloc
21 100316 3 NUT, Nyloc
22 DC100223 3 BOLT, Hex
23 100238 4 SCREW, Hex. Head
24 101309 4 WASHER
25 100358 2 WASHER, Flat
26 100288 3 NUT, Hex
27 100314 1 NUT, Nyloc
28 NSI 1 BRAKE, Exhaust
29 DC120017 1 HOUSING ASSEMBLY Includes Items 30 to 40
30 DC260012 1 SHAFT ASSY
31 DC220322 1 BUTTERFLY
32 NSI 1 HOUSING
33 DC100236 1 SCREW, Hex. Head
34 DC100228 1 SCREW, Hex. Head
35 DC220321 1 LEVER

B16B 4X2 ADT 27

EXHAUST SYSTEM
1

22
12
17 6
29 7
30 33
38
39
41
28 2
35 42
36 31
34
40
17 37

4 24 27 5

26 32
18
23 19
10
8
9 2
17 11
19

16 2
21

20
3

25 15

14 P003797
3 13

B16B 4X2 ADT 28

EXHAUST SYSTEM
ITEM PART NUMBER QTY DESCRIPTION REMARKS
36 100281 1 NUT, Hex
37 DC150064 1 BUSH
38 230130 1 CYLINDER, Air-Push
39 NSI 1 COVER, Dust
40 DC100076 1 STUD, Bearing
41 100062 1 WASHER, Flat
42 DC220328 1 BRACKET Includes Items 6, 7 and 15

B16B 4X2 ADT 29

FUEL SYSTEM (ADE 366T)
18

1
12

13

6
4

11
3

19 16

15 15 14

18

7
19
2 12 14
20
13 13 17

9
10
11
P002345

B16B 4X2 ADT 30

FUEL SYSTEM (ADE 366T)
ITEM PART NUMBER QTY DESCRIPTION REMARKS
1 220076 1 FILTER, Fuel, Spin On
2 181299 1 TANK, Fuel
3 140184 1 O RING
4 170739 1 NECK, Fillerl
5 203650 1 CAP, Filler
6 100083 6 SCREW, Hex. Head
7 210187 3 SIGHT GLASS Level
8 100519 3 NUT
9 120037 1 PLUG
10 120333 1 PLUG
11 120052 2 ADAPTOR, Pushloc, Male
12 200062 2 CLAMP, Hose
13 130002 A/R HOSE, Pushloc
14 120056 2 FITTING, Pushloc
15 120217 2 CONNECTOR
16 100089 2 SCREW, Hex. Head
17 100314 2 NUT, Nyloc
18 120099 2 BANJO
19 200746 1 HEAD, Fuel Filter

B16B 4X2 ADT 31

THROTTLE ASSEMBLY (UP TO 09.12.95)

B16B 4X2 ADT 32

THROTTLE ASSEMBLY (UP TO 09.12.95)
ITEM PART NUMBER QTY DESCRIPTION REMARKS
1 100312 3 NUT, Nyloc
2 260661 1 PEDAL ASSY
3 260664 1 CABLE ASSY
4 255012 2 KIT, U-Bolt
5 NSI 2 U-Bolt
6 NSI 2 BODY
7 NSI 4 NUT, Hex
8 200779 2 END, Tie Rod
9 100310 2 NUT, Nyloc
10 100197 3 SCREW, Cap

B16B 4X2 ADT 33

THROTTLE ASSEMBLY (FROM 10.12.95)

rse
Mo

B16B 4X2 ADT 34

THROTTLE ASSEMBLY (FROM 10.12.95)
ITEM PART NUMBER QTY DESCRIPTION REMARKS
1 260661 1 PEDAL ASSY
2 100193 1 SCREW, Hex. Head
3 172965 1 PLATE
4 NSI 1 CIRCLIP
5 100310 3 NUT, Nyloc
6 200779 2 END, Tie Rod
7 NSI 2 CLIP, Retaining
8 100281 2 NUT, Hex
9 162981 1 LINK, Rod

B16B 4X2 ADT 35

STOP CABLE ASSEMBLY

B16B 4X2 ADT 36

STOP CABLE ASSEMBLY
ITEM PART NUMBER QTY DESCRIPTION REMARKS
1 100119 2 BOLT, Hex. Head
2 NSI 1 CABLE ASSY, Stop
3 200032 1 CABLE, Stop
4 121020 1 NIPPLE, Screw
5 200034 1 ADJUSTER, Cable, Stop
6 200757 1 LINK, Forked
7 100081 1 SCREW, Hex. Head
8 100310 1 NUT, Nyloc
9 171136 1 BRACKET, Mounting

B16B 4X2 ADT 37

ENGINE COOLING SYSTEM

39
41

40

B16B 4X2 ADT 38

ENGINE COOLING SYSTEM
ITEM PART NUMBER QTY DESCRIPTION REMARKS
1 171458 1 PIPE, Connector
2 202485 1 SWITCH, Level, Low Coolant
3 161667 1 ADAPTOR
4 100089 2 SCREW, Hex. Head
5 100148 2 WASHER, Flat
6 130002 A/R HOSE, Pushlock
7 172634 1 BRACKET
8 190520 1 TANK, Expansion
9 200062 9 CLAMP, Hose
10 200092 6 CLAMP, Hose
11 130021 A/R HOSE, Pushlock
12 162620 1 PLUG
13 120099 1 FITTING, Banjo
14 120765 1 BOLT, Banjo
15 100083 2 SCREW, Hex. Head
16 203775 1 GASKET
17 183381 1 PLATE, Cover
18 201664 1 ELBOW, Rubber
19 130001 A/R HOSE, Pushlock
20 130051 A/R HOSE, Radiator
21 172630 1 BRACKET
22 172645 1 BRACKET
23 120381 2 NIPPLE, Swage
24 120412 1 COUPLING, Straight
25 121027 1 T-PIECE
26 100089 1 SCREW, Set, Hex
27 100314 1 NUT, Nyloc
28 172646 1 BRACKET, Line, Radiator
29 200591 1 K-CLAMP
30 201129 1 PIPE
31 200089 10 CLAMP, Hose
32 240612 A/R HOSE ASSY
33 130001 A/R HOSE, Pushlock
34 173653 2 PIPE, Radiator
35 173654 1 PIPE, Engine Top

B16B 4X2 ADT 39

ENGINE COOLING SYSTEM

39
41

40

B16B 4X2 ADT 40

ENGINE COOLING SYSTEM
ITEM PART NUMBER QTY DESCRIPTION REMARKS
36 201678 A/R HOSE, Radiator
37 120037 1 PLUG
38 120161 1 ADAPTOR
39 174682 1 CLAMP
40 100274 1 BOLT
41 100309 1 NUT

B16B 4X2 ADT 41

BAFFLE RUBBERS (COOLING SYSTEM)

B16B 4X2 ADT 42

BAFFLE RUBBERS (COOLING SYSTEM)
ITEM PART NUMBER QTY DESCRIPTION REMARKS
1 190485 2 RUBBER, Baffle, Side
2 172531 1 COWLING
3 100083 4 SCREW, Hex. Head
4 100062 4 WASHER, Flat
5 100316 4 NUT, Nyloc
6 100148 4 WASHER, Flat
7 200043 4 ROD END
8 100115 4 SCREW, Hex. Head
9 100288 4 NUT, Hex
10 180370 2 ROD
11 100731 4 SCREW, Hex. Head
12 100312 4 NUT, Nyloc
13 173041 1 BRACKET, Mounting, RH
14 172584 1 BRACKET, Mounting, LH
15 100314 8 NUT, Nyloc
16 201540 4 MOUNTING, Rubber
17 100310 16 NUT, Nyloc
18 100358 32 WASHER, Flat
19 100081 16 SCREW, Hex. Head
20 201688 1 RADIATOR
21 190484 1 RUBBER, Baffle, Top
22 190483 1 RUBBER, Baffle, Bottom

B16B 4X2 ADT 43

B16B 4X2 ADT 44
