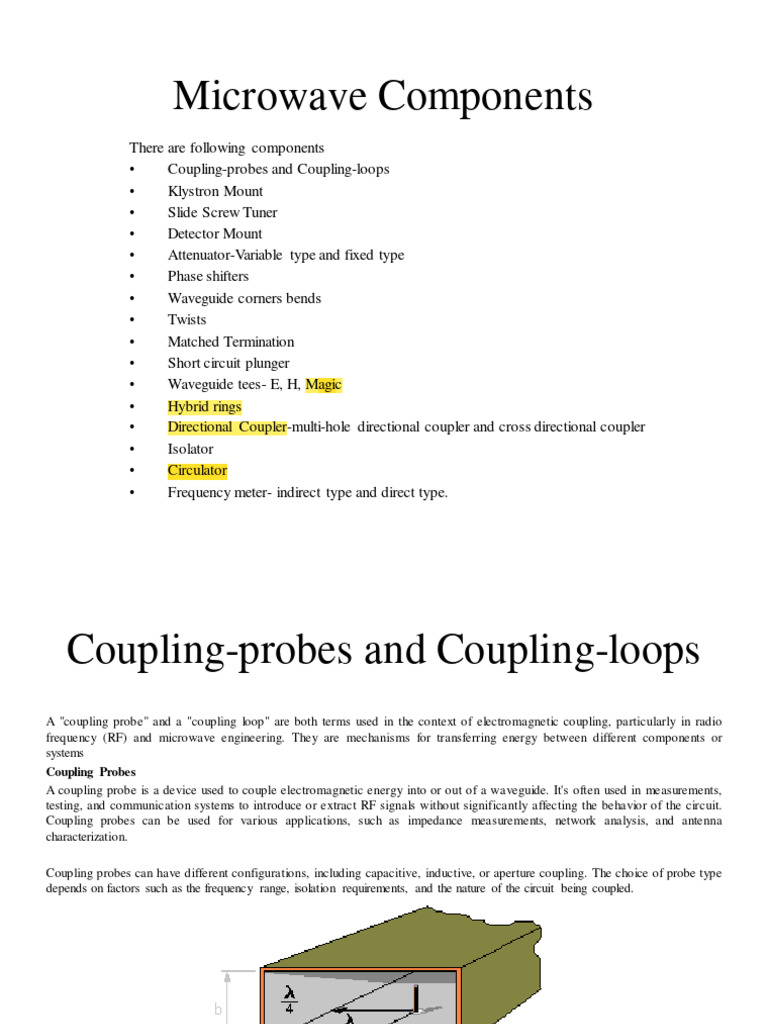

Microwave Components

There are following components

• Coupling-probes and Coupling-loops
• Klystron Mount
• Slide Screw Tuner
• Detector Mount
• Attenuator-Variable type and fixed type
• Phase shifters
• Waveguide corners bends
• Twists
• Matched Termination
• Short circuit plunger
• Waveguide tees- E, H, Magic
• Hybrid rings
• Directional Coupler-multi-hole directional coupler and cross directional coupler
• Isolator
• Circulator
• Frequency meter- indirect type and direct type.
 Coupling-probes and Coupling-loops
A "coupling probe" and a "coupling loop" are both terms used in the context of electromagnetic coupling, particularly in radio
frequency (RF) and microwave engineering. They are mechanisms for transferring energy between different components or
systems
Coupling Probes
A coupling probe is a device used to couple electromagnetic energy into or out of a waveguide. It's often used in measurements,
testing, and communication systems to introduce or extract RF signals without significantly affecting the behavior of the circuit.
Coupling probes can be used for various applications, such as impedance measurements, network analysis, and antenna
characterization.

Coupling probes can have different configurations, including capacitive, inductive, or aperture coupling. The choice of probe type
depends on factors such as the frequency range, isolation requirements, and the nature of the circuit being coupled.
Coupling-loops
A coupling loop, also known as a magnetic loop or pick- up loop, is a component used to induce or sense magnetic fields in a
circuit or system. It consists of a loop of conductor that is sensitive to changes in magnetic flux. Coupling loops are often used in
applications where magnetic fields need to be coupled between two parts of a system.

A coupling loop might be used to sense the magnetic field generated by a nearby RF signal and convert it into a voltage that can be
processed or measured. Coupling loops are also used in some types of antennas, such as loop antennas, where they are an integral
part of the radiating structure.

In summary, both coupling probes and coupling loops are mechanisms used to transfer electromagnetic energy or signals between
different components or systems. Coupling probes are often used to couple electromagnetic energy into or out of circuits, while
coupling loops are used to induce or sense magnetic fields in various applications. The choice between these mechanisms depends
on the specific requirements of the application and the nature of the electromagnetic coupling involved.
 Klystron Mount
A "klystron mount" refers to the mechanical and electrical arrangement used to secure and support a klystron tube within a
microwave system. A klystron is a specialized vacuum tube used in microwave and radio frequency applications to generate and
amplify high-frequency electromagnetic waves.

Here's a breakdown of the key aspects of a klystron mount:

1. Mechanical Support: A klystron tube is a sensitive electronic device that requires careful mechanical support to ensure its
stable operation. The klystron mount provides the structural framework to hold the klystron tube in place and protect it from
external vibrations or disturbances that could affect its performance.
2. Electrical Connections: The klystron tube has various electrical connections that are crucial for its operation. These
connections include the cathode, RF input and output ports, focusing elements, and sometimes additional control and measurement
points. The klystron mount includes provisions for making these connections reliably and maintaining good electrical contact.

3. Cooling System: Klystrons generate heat as a result of their operation. To prevent overheating and ensure stable performance, a
klystron mount often incorporates a cooling system. This can involve the circulation of cooling water or other heat-transfer fluids
around the klystron tube to dissipate excess heat.

4. Isolation and Damping: External vibrations and mechanical disturbances can adversely affect the performance of a klystron
tube. Therefore, a klystron mount may include vibration isolation elements or dampers to minimize the impact of these
disturbances and provide a stable operating environment.

5. Alignme nt and Tuning: Klystron tubes often need to be precisely aligned with respect to other components in the microwave
system. The klystron mount might have adjustment mechanisms to facilitate alignment and tuning, ensuring optimal coupling of
RF energy and minimizing reflections.

6. Safety and Accessibility: Klystron mounts are designed with safety considerations in mind. Access to high- voltage areas and
other potentially hazardous components is typically restricted and secured to prevent accidental exposure.

7. Shielding and Enclosure: In some applications, klystrons need to be shielded from electromagnetic interference and
environmental factors. The klystron mount may include an enclosure or shielding to protect the tube and its sensitive components.

8. Materials and Design: Klystron mounts are often made from materials that provide electrical insulation, thermal conductivity,
and mechanical stability. The design of the mount takes into account factors such as electrical grounding, thermal expansion, and
ease of maintenance.
 Slide Screw Tuner
A Slide Screw Tuner, also known as a Sliding Short Tuner or simply a Screw Tuner, is a device used in microwave and RF (radio
frequency) engineering to adjust the impedance or resonant frequency of a component or circuit. It is commonly used in
applications where precise control of impedance or frequency is required, such as in RF testing, matching networks, and tuning
circuits.

Here's an overview of how a Slide Screw Tuner works and its applications:
1. Structure and Operation: A Slide Screw Tuner consists of a threaded rod (screw) that is attached to a sliding metal plunger.
The plunger can be moved along the threaded rod by turning the screw. The end of the plunger is often designed to make electrical
contact with a circuit or component.
By adjusting the position of the plunger along the screw, the effective length of the transmission line or resonant structure can be
changed. This alteration in length affects the impedance or resonant frequency of the device being tuned.
2. Applications: Slide Screw Tuners have various applications in microwave and RF engineering:
Impedance Matching: When connecting RF components with different impedances, a Slide Screw Tuner can be used to optimize
the impedance match between the source, transmission line, and load. This helps minimize signal reflections and maximize power
transfer.
Tuning Resonant Structures: Slide Screw Tuners are used to adjust the resonant frequency of microwave components like
cavities, resonators, and filters. By changing the effective length of the transmission line, the resonant frequency can be fine-tuned.
Characterization and Testing: In RF testing setups, Slide Screw Tuners are used to optimize the performance of devices under
test. This might involve adjusting impedance for accurate measurements or calibrating the test environment.
Microwave Circuit Tuning: In research and development of microwave circuits, a Slide Screw Tuner allows engineers to
experiment with different impedance and resonant frequency settings to optimize circuit performance.

3. Considerations: When using a Slide Screw Tuner, several factors should be taken into consideration:
Resolution: The precision of the tuner's adjustment depends on the pitch of the screw thread and the mechanical design. High-
resolution tuners are important for achieving accurate adjustments.
Mechanical Wear: Over time, mechanical wear and tear can affect the tuner's performance. Regular maintenance is necessary to
ensure reliable tuning.
Frequency Range: The design and material choices should be appropriate for the desired frequency range of operation.
Impact on the Circuit: While adjusting the tuner, there might be a temporary disruption in the circuit. Minimizing the impact on
the circuit during tuning is essential, especially in sensitive applications.

In summary, a Slide Screw Tuner is a device used in microwave and RF applications to adjust impedance and resonant frequency
by changing the effective length of a transmission line. It finds use in impedance matching, resonant structure tuning, testing, and
microwave circuit optimization. Careful consideration of design, resolution, and impact on the circuit is important for successful
implementation.
 Detector Mount
In microwave engineering, a "detector mount" refers to a device or setup used to mount and connect a microwave detector or
sensor to a test setup or measurement system. Detectors are crucial components in microwave measurements as they are used to
sense and measure microwave signals' characteristics, such as power, amplitude, frequency, and phase. A well-designed detector
mount ensures accurate and reliable measurements by effectively coupling the detector to the device under test.

Here's an overview of the concept:

1. Purpose of a Detector Mount: The primary purpose of a detector mount is to facilitate the connection and positioning of a
microwave detector in a measurement setup. Detectors are used to convert microwave signals into measurable electrical quantities,
such as voltage or current, which can then be analyzed and processed.
2. Components of a Detector Mount: A typical detector mount may consist of the following components:
Detector: This is the actual sensor that converts the incoming microwave signals into a measurable electrical signal. Common
types of detectors include diode detectors, Schottky diode detectors, thermocouples, bolometers, and others.
Mounting Structure: The detector is securely mounted on a structure that holds it in place. This structure might include
connectors, flanges, or other mechanical components that ensure proper alignment and stability.
Trans mission Line: A transmission line, such as a coaxial cable or waveguide, connects the detector to the measurement
equipment. The transmission line carries the detected signal to the measurement instruments.
Matching Components: Depending on the detector's impedance and the transmission line's impedance, matching components like
impedance transformers may be used to ensure proper impedance matching and minimize signal reflections.
Isolation and Shielding: In some cases, shielding or isolation components may be used to prevent unwanted electromagnetic
interference from affecting the measurement.

3. Considerations: When designing and using a detector mount, several considerations are important:
Frequency Range: The detector mount should be designed to operate within the frequency range of interest.
Connector Types: Choosing the right connectors for the transmission lines is essential to ensure proper connectivity and minimize
signal losses.
Impedance Matching: Proper impedance matching between the detector and the transmission line helps prevent signal reflections
and loss of accuracy.
Stability and Alignment: The detector must be securely mounted to prevent any movement during measurements that could
introduce errors.
Calibration: Regular calibration of the detector and measurement system is crucial to maintain accuracy over time.

4. Applications: Detector mounts are used in a wide range of microwave applications, including:
Network Analysis: In vector network analyzers, detector mounts are used to connect the detectors to the ports of the device under
test, enabling measurement of its scattering parameters (S-parameters).
Power Measurements: Detectors are often used to measure the power levels of microwave signals, whether for calibration
purposes or in actual signal monitoring.
Material Characte rization: Microwave detectors can be used in material characterization setups to measure how materials
interact with microwave signals.
Microwave Imaging: In some imaging systems, detector mounts are used to capture and analyze the microwave signals reflected
or transmitted through an object, enabling imaging of its internal structure.
 Attenuator
In microwave engineering, attenuators are passive devices used to reduce the power level of an electromagnetic signal while
maintaining the integrity of the signal's waveform. Attenuators can be broadly categorized into two main types: variable
attenuators and fixed attenuators.

Variable Attenuator Fixed Attenuator

Let's explore each type in more detail:

1. Variable Attenuators: Variable attenuators allow the user to adjust the level of attenuation according to their needs. These
attenuators are commonly used in applications where the signal power needs to be controlled dynamically. Here are some key
points about variable attenuators:
Applications: Variable attenuators are often used in systems where signal levels need to be adjusted for calibration, testing, signal
conditioning, or other purposes. They can be found in communication systems, testing equipment, and more.
Mechanism: Variable attenuators can use different mechanisms to control attenuation, such as rotating a mechanical knob,
changing the bias voltage applied to a diode, or digitally adjusting the attenuation through electronic control.
Control: Depending on the type, variable attenuators can be controlled manually, electrically, or remotely through computer
interfaces.
Advantages: The main advantage of variable attenuators is their flexibility in adjusting signal levels as needed. This is particularly
useful in scenarios where signal strength varies or needs to be optimized.

2. Fixed Attenuators: Fixed attenuators provide a fixed level of attenuation that cannot be adjusted. They are used when a
consistent and predetermined amount of signal reduction is required. Here are some key points about fixed attenuators:
Applications: Fixed attenuators are commonly used in applications where a fixed reduction in signal power is needed, such as
matching impedance, reducing signal levels to avoid overloading sensitive components, or creating defined power levels for
calibration purposes.
Values: Fixed attenuators are available in various fixed attenuation values, typically specified in decibels (dB). Common values
include 3 dB, 6 dB, 10 dB, 20 dB, and more.
Simplicity: Fixed attenuators are simpler in design compared to variable attenuators, as they do not require additional components
or mechanisms for adjusting attenuation.
Reliability: Due to their simplicity and lack of moving parts, fixed attenuators are generally more reliable over the long term and
are less prone to wear and tear compared to variable attenuators.
Cost: Fixed attenuators are often more cost-effective than variable attenuators because of their simpler design.

In summary, both variable attenuators and fixed attenuators play important roles in microwave engineering:
Variable attenuators offer adjustable attenuation levels, making them suitable for applications where signal power needs to be
dynamically controlled.
Fixed attenuators provide consistent and predetermined signal reduction, making them ideal for applications where a specific
level of attenuation is required.
 Phase shifters
In microwave engineering, a phase shifter is a device or circuit that introduces a controllable phase shift to an incoming
electromagnetic signal, typically at microwave frequencies. Phase shifters are essential components in various applications,
including communication systems, radar systems, phased array antennas, and beamforming networks. They allow for precise
control of the phase of signals, which can impact the direction of antennas, signal cancellation, interference mitigation, and other
aspects of signal processing.

Here's a more detailed explanation of phase shifters:

1. Purpose and Applications: Phase shifters are used to control the phase of electromagnetic waves. By altering the phase
relationship between different signals, various effects can be achieved, such as steering the direction of an antenna's radiation
pattern or controlling interference patterns.
Some key applications include:
Phased Array Antennas: In radar and communication systems, arrays of antennas can be steered electronically by adjusting the
phase of the signals fed to each antenna element. This enables the formation of directional beams, scanning, and beam steering
without physically moving the antennas.
Beamforming: Phase shifters are used in beamforming networks to combine signals from multiple antennas coherently, allowing
the formation of beams with specific directional characteristics.
Inte rference Cancellation: In certain communication systems, phase shifters can be used to introduce controlled phase shifts to
cancel out interference from undesired sources.
Waveguide Networks: Phase shifters are employed in waveguide networks to control the distribution of power and phase across
different paths.
Test and Measurement: In laboratory and testing environments, phase shifters can be used to create controlled phase differences
for various experimental setups.

2. Types of Phase Shifters: There are several types of phase shifters used in microwave engineering, each with its own principles
of operation:
Digital Phase Shifters: These phase shifters have a discrete set of phase states (e.g., 0°, 90°, 180°, 270°) that can be switched
electronically. They are suitable for applications requiring precise and fast phase adjustments.
Analog Phase Shifte rs: Analog phase shifters provide a continuously variable phase shift by using analog circuitry, such as
voltage-controlled phase shifters (VCPGs) that use varactor diodes or other tunable components.
Reflective Phase Shifters: These phase shifters introduce a phase shift by reflecting the signal off a tunable surface, such as a
ferrite material that changes its properties under an applied magnetic field.
Distributed Phase Shifters: Distributed phase shifters use transmission lines, such as delay lines or coupled lines, to achieve a
phase shift by varying the effective electrical length of the lines.
Switched-Line Phase Shifters: These phase shifters use RF switches to connect different lengths of transmission lines in and out
of the signal path, achieving discrete phase shifts.

3. Design Considerations: When designing or selecting a phase shifter, several factors need to be considered:
Phase Range: The range of phase shifts that can be achieved by the phase shifter.
Insertion Loss: The amount of signal power lost when passing through the phase shifter.
Accuracy and Resolution: How precisely the phase shift can be controlled or adjusted.
Speed: The time it takes for the phase shifter to change its phase setting.
Size and Integration: The physical size of the phase shifter and its compatibility with the overall system.
Frequency Range: The range of frequencies over which the phase shifter operates effectively.

Phase shifters play a critical role in modern microwave systems, enabling the manipulation of signals for various applications. The
choice of phase shifter type and design depends on the specific requirements of the system and the desired functionality.
 Waveguide corners bends and Twist
In microwave engineering, waveguide corners and bends play a significant role in guiding and manipulating electromagnetic
signals within waveguide structures. Waveguides are metal tubes or structures designed to carry and confine electromagnetic
waves, typically at microwave and millimeter-wave frequencies. Corners and bends in waveguides are essential components that
allow for the redirection of signals and the design of complex waveguide-based systems.

Here's an overview of waveguide corners and bends:

1. Purpose of Waveguide Corners and Bends: Waveguide corners and bends are used to change the direction of electromagnetic
waves within a waveguide without significant loss or distortion. They are essential for routing signals around obstacles, connecting
different parts of a waveguide network, and designing compact and efficient microwave systems.
2. Types of Waveguide Corne rs and Bends: There are several types of waveguide corners and bends, each with its own
characteristics and applications:
E-Bend: This is a simple 90-degree bend in a rectangular waveguide. It is widely used for changing the direction of a waveguide
path by 90 degrees.
H-Bend: Similar to the E-bend, the H-bend is also a 90-degree bend. However, it's designed to be more compact and requires less
space in the plane perpendicular to the waveguide's broad wall.
Mitered Bend: A mitered bend consists of multiple smaller segments that collectively form a bend. This design helps reduce signal
reflections and radiation losses that can occur in sharp corners.
Smooth Bend: Also known as a curved bend, a smooth bend features a gradual curvature instead of a sharp angle. It is used when
minimizing signal distortion and loss is crucial.

3. Design Considerations: When designing waveguide corners and bends, several factors need to be taken into account:
Losses: Sharp corners and bends can introduce signal losses due to reflections and radiation. Mitigation strategies include using
smooth bends and proper design techniques to minimize these losses.
Reflections: Signal reflections can occur at corners and bends, leading to unwanted interference. Proper design, such as using
mitered bends or anti-reflection coatings, can help manage these reflections.
Mode Conversion: Depending on the bend's curvature and dimensions, mode conversion between different waveguide modes
might occur. This can affect signal integrity and should be considered during design.
Mechanical Tolerances: The dimensions of waveguide corners and bends need to be carefully controlled to maintain proper
alignment and prevent performance degradation.
Frequency Range: The dimensions of bends are affected by the operating frequency. Bends that work well at lower frequencies
might not be suitable for higher frequencies due to wavelength considerations.

4. Applications: Waveguide corners and bends find applications in various microwave systems, including:
Waveguide Networks: Bends and corners are used to route signals in waveguide networks, connecting different components and
subsystems.
Antenna Feeds: Waveguide bends can be used to direct microwave signals from the waveguide feed line to the antenna element.
Filters and Resonators: Waveguide structures with bends can be used to create microwave filters and resonators for frequency-
selective applications.
Transitions: Bends are often used to transition between different types of waveguides or from waveguides to other transmission
line types, such as coaxial cables.
 Waveguide Twist
Twists refer to techniques and structures used to change the direction of propagation or alter the path of microwave signals in
transmission lines, waveguides, and other microwave components. These techniques are essential for designing complex
microwave circuits and systems.

Following Types twists are used in microwave-

1. Helical Twist: A helical twist involves rotating a section of a transmission line or waveguide around its axis in a helical manner.
This can be used to change the direction of propagation of the electromagnetic wave while maintaining a continuous path for the
signal. Helical twists are used to achieve compact designs and reduce the size of microwave components.
2. Polarization Twist: In some cases, it's important to rotate the polarization of a microwave signal. This can be achieved by
introducing a twist in the transmission line or waveguide. Polarization twists are commonly used in applications such as circularly
polarized antennas.
Applications: There are several applications -

1. Waveguide Twists: In waveguide systems, twists is commonly used to route the waveguide through tight spaces or to change
the direction of propagation. Helical twists are often employed to achieve compact waveguide components.
2. Microstrip and Stripline Twists: In microstrip and stripline circuits, twists is used to connect different sections of the circuit or
to route signals around obstacles. Careful design of bends is necessary to minimize signal distortions.
3. RF Filters and Resonators: Twisted resonators is used in RF and microwave filters to achieve desired frequency responses and
filter characteristics.
4. Antenna Feeds and Arrays: Twists can be employed in antenna feed networks to optimize radiation patterns and polarization
characteristics.

Considerations: When designing twists in microwave circuits, several considerations come into play:

Signal Integrity: Twists can introduce signal reflections, losses, and phase shifts. Careful design is required to minimize these
effects and maintain signal integrity.
Impedance Matching: Bends can affect the impedance of the transmission line. Techniques like gradual tapering can be used to
maintain impedance continuity.
Propagation Delay: Twists can introduce additional propagation delay, which may need to be compensated for in certain
applications.
Manufacturability: The practicality of implementing twists depends on the fabrication methods and materials used in the circuit.

In summary, twist is important technique in microwave engineering for changing the direction of propagation, altering
polarization, and routing signals in microwave circuits, waveguides, and components. Proper design and careful consideration of
signal integrity and other factors are crucial for achieving desired performance.
 Matched Termination
A "matched termination" in microwave engineering refers to a component or device that is designed to absorb or dissipate
microwave energy effectively while presenting an impedance that matches the characteristic impedance of the transmission line or
system to which it is connected. The primary purpose of a matched termination is to prevent signal reflections and minimize
standing waves in microwave circuits.

Here's a more detailed explanation:

1. Impedance Matching: Impedance matching is crucial in microwave systems to ensure efficient power transfer and minimal
signal reflections. In a transmission line with a characteristic impedance (Z₀), any mismatch between the impedance of the load and
the characteristic impedance can lead to signal reflections. These reflections can cause energy to bounce back and forth along the
transmission line, leading to signal degradation and inefficiency.
2. Termination: A termination is a device or component that is connected to the end of a transmission line or circuit. In the context
of matched termination, the termination is designed to have an impedance that matches the characteristic impedance of the
transmission line (usually 50 or 75 ohms in many microwave systems).

3. Matched Termination: A matched termination is specifically designed to completely absorb the incoming microwave energy,
preventing any reflections. When microwave energy encounters a matched termination, the termination absorbs the energy, and
since its impedance matches the transmission line impedance, there are no impedance mismatches to cause reflections.

4. Applications: Matched terminations are used in various microwave applications, including:

Test and Measure ment: In microwave measurements, matched terminations are connected to the open ends of transmission lines
or devices to prevent reflections and ensure accurate measurements of devices' characteristics like S-parameters.
Load Pull Testing: In RF amplifier design and testing, load pull tests involve varying the load impedance to determine how the
amplifier responds under different conditions. Matched terminations are used to ensure accurate measurements during load pull
testing.
Antenna Testing: In antenna testing, matched terminations are used to simulate the effect of an ideal antenna termination to
prevent reflections when measuring antenna properties.
RF Systems and Communication: In RF communication systems, matched terminations are often used at the end of transmission
lines or components to minimize signal reflections and maximize power transfer.

5. Design Considerations: When designing a matched termination, several factors need to be considered:
Impedance Value: The termination's impedance should match the characteristic impedance of the transmission line or system.
Power Handling Capability: The termination should be able to handle the maximum power levels expected in the system without
overheating or degrading performance.
Frequency Range: The termination's performance should be consistent over the desired frequency range.
Physical Size and Construction: The size, materials, and construction of the termination can affect its performance, especially at
higher frequencies.

In summary, a matched termination is a device designed to absorb microwave energy while presenting an impedance that matches
the characteristic impedance of the transmission line. This prevents reflections and standing waves, ensuring efficient power
transfer and accurate measurements in microwave circuits and systems.
 Short circuit plunger
A "short circuit plunger" refers to a device or component used in waveguides, resonators, or transmission lines to provide a
controllable short-circuit termination or reflection. It's typically used to tune or adjust the electrical properties of the system,
especially in devices like microwave cavities and resonators.

Let's dive into the details:

1. Purpose and Function: A short circuit plunger is used to create a controllable short circuit within a microwave structure. This
can be achieved by inserting a metal rod, plate, or other conductive element into the waveguide or resonator. When the plunger is
inserted, it reflects the electromagnetic waves back, effectively creating a short circuit at the point of insertion.

2. Applications: Short circuit plungers are commonly used in various microwave devices and systems:
Waveguide Resonators: In microwave resonators, such as cavity resonators used in filters or oscillators, short circuit plungers can
be used to adjust the resonant frequency and Q-factor of the resonator.
Tunable Filters: Plungers can be incorporated into waveguide-based filters to create adjustable reflections, allowing for tunable
frequency responses.
Microwave Antennas: Plungers can be used to fine-tune the impedance matching and radiation characteristics of microwave
antennas.
Phase Shifters: In some phase shifter designs, short circuit plungers can be used to introduce controllable phase shifts in
microwave signals.

3. Design and Adjustment: The design of a short circuit plunger involves considerations such as the size, shape, and material of
the plunger, as well as its placement within the microwave structure. By adjusting the position of the plunger, the amount of short-
circuit reflection can be controlled, affecting the electrical properties of the system.

4. Advantages and Limitations: Short circuit plungers offer several advantages in microwave engineering:
Tuning Capability: Plungers provide a means of tuning or adjusting the performance of microwave devices without physically
altering the structure itself.
Fine Control: The position of the plunger can be precisely adjusted to achieve specific electrical effects.
Non-Destructive: The adjustment provided by the plunger is reversible and doesn't permanently modify the microwave structure.

However, there are also limitations:

Limited Frequency Range: The effectiveness of the plunger may be limited to a certain frequency range due to its physical
dimensions and the properties of the microwave structure.
Complexity: Plunger-based adjustments can be intricate to implement, especially in systems that require fine-tuning over a wide
frequency range.
Losses: The presence of the plunger can introduce additional losses into the system, affecting its overall performance.

In Summary, a short circuit plunger in microwave engineering is a device used to create a controllable short-circuit termination
within a microwave waveguide, resonator, or transmission line. It finds applications in tuning resonators, adjusting filter responses,
and modifying the behavior of microwave devices. Careful design and placement are essential to achieve the desired electrical
effects while considering the limitations and trade-offs of the plunger-based approach.
 Waveguide tees- E, H and Magic
A waveguide tee (also known as a waveguide junction or waveguide splitter) is a device used to split or combine microwave
signals within a waveguide transmission line. It is a fundamental component in waveguide systems that enables the distribution of
microwave energy to different paths or the combination of signals from multiple sources. Waveguide tees come in various
configurations, and they play a crucial role in many applications.

Here's an overview of waveguide tees:

1. Purpose and Applications: Waveguide tees serve two primary purposes:

Power Splitting: A waveguide tee can split an incoming microwave signal into two or more output ports. This is commonly used
for distributing power to multiple devices, antennas, or components.
Power Combining: Conversely, a waveguide tee can combine multiple incoming signals from different ports into a single output
port. This is used in applications such as phased-array antennas and signal combining for amplifiers.

2. Types of Waveguide Tees: There are several types of waveguide tees, each with its own design and functionality:
E-Plane Tee: In this configuration, the waveguide is divided into three branches, with the input signal entering from the main
waveguide and splitting into two output branches perpendicular to the main axis.
H-Plane Tee: Similar to the E-plane tee, the H-plane tee also splits the incoming signal into two output branches, but the
branching is parallel to the main waveguide's axis.
Magic Tee: A magic tee is a more complex device that can split or combine signals with certain properties. It is commonly used in
applications like microwave measurements, where precise signal separation or combining is required.

3. Design Considerations: Designing an effective waveguide tee requires attention to various factors:
Frequency Range: The dimensions of the waveguide tee need to be appropriate for the frequency range of operation.
Insertion Loss: The power loss incurred during signal splitting or combining should be minimized.
Isolation: The isolation between different ports is important to prevent unwanted signal coupling between them.
Reflections: Reflections of the signal at the junction points should be minimized to avoid signal degradation.
Matching: Proper impedance matching at the junctions is crucial to reduce reflections and maximize power transfer.

4. Applications: Waveguide tees find applications in various fields of microwave engineering:

Antenna Arrays: In phased-array antennas, waveguide tees are used to combine signals from individual antenna elements to form
a coherent beam.
Distributed Systems: In microwave communication systems, waveguide tees can be used to distribute signals to different parts of
the system.
Testing and Measurements: Waveguide tees are commonly used in test setups to split signals for measurements and calibration
purposes.
Radar Systems: In radar systems, waveguide tees can be used for beamforming and signal distribution.

Waveguide tees are essential components in microwave systems, allowing efficient power distribution and signal combination.
Their design and implementation are critical to ensure minimal loss, isolation between ports, and proper signal integrity throughout
the system.
 Hybrid rings
Hybrid rings, also known as microwave hybrid couplers or quadrature hybrid couplers, are important components in microwave
engineering. They are used to split or combine microwave signals, maintain signal phase relationships, and control power
distribution in various microwave and RF systems. These devices are commonly found in communication systems, radar systems,
test and measurement setups, and more.

Here's an overview of hybrid rings in microwave engineering:

1. Basic Principle: A hybrid ring is a passive four-port device that divides or combines signals in a specific manner while
maintaining a constant phase relationship between the ports. The most common type of hybrid ring is the 3-dB quadrature hybrid,
which equally splits an input signal into two output signals with a 90-degree phase difference between them.
2. Types of Hybrid Rings: There are a few different types of hybrid rings, each with its own characteristics and applications:
3-dB Hybrid Coupler: This is the most common type of hybrid ring. It equally splits an input signal into two output signals while
maintaining a 90-degree phase difference between them. It's often used for power splitting, combining, phase shifting, and
balanced amplification.
Wilkinson Powe r Divider: Although not a true hybrid ring, the Wilkinson power divider is closely related. It is used to divide an
input signal into two output signals, typically with equal power distribution. The phase relationship between the outputs is not
maintained as precisely as in a quadrature hybrid, but it's widely used for power splitting applications.
180-degree Hybrid Coupler (Branchline Coupler): This type of hybrid ring provides a 180-degree phase difference between its
output ports. It's often used in applications that require combining signals while maintaining a specific phase relationship.

3. Applications: Hybrid rings have a wide range of applications in microwave engineering:

Balanced Amplifiers: In some amplifier designs, hybrid rings are used to balance and combine signals, helping to cancel out
common-mode noise.
Antenna Feeds: Hybrid rings can be used in antenna feed networks to create circular polarization or to separate incoming and
outgoing signals.
Phase Shifting Networks: Hybrid rings can be used to achieve controlled phase shifts for beamforming and other phase-sensitive
applications.
Power Dividers and Combiners: Hybrid rings are used for power splitting and combining in various systems, including
communication transceivers and radar systems.
Image Reject Mixers: Hybrid rings are used in image reject mixer designs to suppress unwanted mixer products.

4. Design Considerations: Designing hybrid rings involves considerations such as:

Coupling Ratio: The coupling ratio determines the power distribution between the output ports and is specified in terms of dB.
Phase Relationship: The phase relationship between the output ports is critical and is typically maintained at 90 degrees for
quadrature hybrids.
Frequency Range: Hybrid rings need to be designed to operate within the desired frequency range.
Isolation: The isolation between the ports ensures that signals on one port do not interfere with signals on another port.

5. Benefits and Limitations: Benefits of hybrid rings include their simple and passive nature, accurate phase maintenance, and
ease of integration into various systems. However, they can have limitations in terms of bandwidth, size, and power handling
capabilities, depending on the specific design and application.
 Directional couplers
Directional couplers are important components in microwave engineering that allow the splitting or combining of electromagnetic
signals in a controlled manner. They are used for various purposes, such as power splitting, signal monitoring, and impedance
matching.

There are different types of directional couplers, including the multi-hole directional coupler and the cross directional coupler.

1. Multi-Hole Directional Coupler: A multi- hole directional coupler is a specific type of directional coupler that uses a series of
holes or slots in a waveguide or transmission line to couple energy from one line to another. It operates based on the principle
of electromagnetic coupling through the holes. This design allows for controlled power division between the main line (through
which power flows) and the coupled line (from which a portion of the power is extracted).

Key features and applications of multi-hole directional couplers include:

Unequal Coupling: Multi- hole directional couplers can be designed with different hole sizes and positions to achieve different
coupling ratios, allowing for both high and low levels of power coupling.
Signal Monitoring: They are often used for signal monitoring or sampling, where a small portion of the main signal is extracted
for measurement or monitoring purposes.
Impedance Matching: Multi- hole directional couplers can also be used to help match impedance between different transmission
lines.

2. Cross Directional Coupler: A cross directional coupler, also known as a "cross- guide coupler," is a directional coupler that uses
two orthogonal (perpendicular) waveguide sections to achieve power coupling. One waveguide carries the main signal, while the
other waveguide carries the coupled signal.

Key features and applications of cross directional couplers include:

Isolation and Coupling: Cross directional couplers provide high isolation between the main and coupled ports, meaning that the
signals traveling through the main and coupled waveguides are well isolated from each other. This is useful in applications where
signal leakage or interference needs to be minimized.
Cross-Coupling Ratio: The coupling ratio in a cross directional coupler is defined by the geometry of the waveguides and their
relative position. This ratio determines how much power is coupled from the main waveguide to the coupled waveguide.
Orthogonal Configuration: The orthogonal configuration of the waveguides allows for effective separation of signals in two
different directions, making cross directional couplers suitable for applications where signals need to be combined or split based on
their propagation direction.

In summary, both multi- hole directional couplers and cross directional couplers are types of directional couplers used in
microwave engineering to split or combine electromagnetic signals. Multi- hole directional couplers use holes or slots in a
waveguide for coupling, while cross directional couplers utilize orthogonal waveguide sections for power division. These
components find applications in power distribution, signal monitoring, impedance matching, and interference reduction in
microwave systems and communication networks.
 Isolator
An isolator is a passive two-port device that allows microwave signals to pass through in one direction while providing significant
attenuation in the reverse direction. In other words, it allows energy to flow from Port 1 to Port 2 with minimal loss, but it
significantly attenuates signals trying to go from Port 2 to Port 1. Isolators are commonly used to protect microwave sources (such
as amplifiers) from reflections that can damage the source or degrade its performance.

Key features and functions of isolators include:

1. Unidirectional Signal Flow: Isolators are designed to ensure that microwave signals travel in only one direction. This feature
prevents signal reflections from reaching the source, which could lead to standing waves, power loss, and potential damage to the
source.
2. Attenuation: Isolators provide significant attenuation (usually in the range of 20 dB to 30 dB or more) for signals attempting to
travel in the reverse direction. This attenuation helps minimize the impact of reflected signals on the source.
3. Non-Reciprocal Behavior: The non-reciprocal behavior of isolators is due to the use of ferrite materials. These materials
exhibit properties that allow microwave signals to pass through with minimal loss in one direction while absorbing and attenuating
signals in the opposite direction.

4. Ferrite Material: Isolators often contain a ferrite material that has a high permeability and low saturation magnetization. This
material enables the desired non-reciprocal behavior by allowing microwave signals to propagate along the direction of the
magnetic field with minimal loss.

5. Applications: Isolators are used in various microwave systems and applications, including:
Microwave Amplifie rs: Isolators are commonly placed between the output of a microwave amplifier and the load to prevent
reflected signals from reaching the amplifier.
Antenna Systems: In radar and communication systems, isolators are used to protect the transmitter from reflected signals that
could damage it.
Measure ment Systems: In testing and measurement setups, isolators help prevent signal reflections from interfering with accurate
measurements.
Duplexers and Circulators: Isolators are often integrated into microwave systems alongside circulators or duplexers to manage
signal flow and prevent interference.

6. Considerations: When using isolators, several factors need to be considered:

Frequency Range: Isolators are designed for specific frequency ranges. Choose an isolator that operates within the frequency
range of your application.
Insertion Loss: While isolators minimize reflection- induced power loss, they do introduce some insertion loss in the forward
direction. This loss should be taken into account when designing a system.
Temperature Sensitivity: The performance of isolators can be affected by temperature changes, particularly in ferrite materials.
High-temperature environments might require specialized isolator designs.

In summary, isolators play a crucial role in microwave engineering by ensuring unidirectional signal flow and protecting
microwave sources from reflections. They find applications in amplifiers, antennas, measurement systems, and more. Isolators rely
on ferrite materials and non-reciprocal behavior to provide efficient attenuation in the reverse direction while allowing minimal
loss in the forward direction.
 Circulator
A circulator is a passive microwave device used in microwave engineering and communication systems to control the flow of
electromagnetic signals. It is commonly used to achieve signal isolation, which means that signals can travel in a specific direction
with minimal interference from signals traveling in other directions. Circulators are especially useful in applications where
multiple devices need to share a common transmission line while maintaining isolation between them.

Here's an overview of what a circulator is and how it works:

1. Basic Function: A circulator is a three-port device that allows microwave signals to flow in a circular manner between its ports.
The main property of a circulator is its ability to route signals from one port to the next port in a unidirectional manner. This means
that a signal entering one port will exit through the next port in a clockwise or counterclockwise direction, depending on the
design.
2. Ports and Ope ration: A typical circulator has three ports labeled as Port 1, Port 2, and Port 3. The operation of a circulator can
be described in terms of its port assignments:
Port 1: The input port where the signal enters the circulator.
Port 2: The output port connected to the next device in the signal path.
Port 3: The isolated port that allows signals to flow out but prevents them from returning back into the circulator.

3. Working Principle: The working principle of a circulator is based on the interaction of microwave signals with non-reciprocal
components, such as ferrite materials, that exhibit different behavior for signals traveling in opposite directions. Here's a simplified
explanation of how it works:
Ferrite Material: A circulator typically contains a ferrite material that is placed within a magnetic field. Ferrite materials have the
property of being non-reciprocal, meaning that they respond differently to signals depending on their direction of propagation.
Signal Flow: When a signal is introduced into Port 1, it travels through the ferrite material and exits through Port 2. The ferrite
material is designed to allow signals to propagate in this direction.
Isolation: Any signal attempting to travel from Port 2 back into the circulator encounters the ferrite material again. The ferrite
material's non-reciprocal behavior causes this signal to be absorbed or significantly attenuated, preventing it from reaching Port 1.
This isolation property ensures that signals from Port 2 do not interfere with signals coming from Port 1.

4. Applications: Circulators have various applications in microwave engineering and communication systems, including:
Duplexing: In communication systems, circulators are used to allow simultaneous transmission and reception on a shared antenna.
Signal Routing: Circulators are used to route signals between different devices while maintaining isolation between them.
Radar Systems: Circulators are used in radar systems to separate transmitted and received signals.
Noise Reduction: Circulators can be used to prevent reflected signals from returning to the source, reducing interference and
noise.

In summary, a circulator is a passive microwave device that controls the flow of electromagnetic signals in a circular manner
between its ports. It is designed to provide unidirectional signal propagation while maintaining isolation between ports. Circulators
are essential components in various microwave systems where signal routing and isolation are important requirements.
 Frequency meter
In microwave engineering, frequency meters are instruments used to measure the frequency of electromagnetic signals. These
signals can range from radio frequencies (RF) to microwave frequencies. Frequency meters can be categorized into two main
types: indirect frequency meters and direct frequency meters. Each type has its own method of operation and applications.

1. Indirect Frequency Meters: Indirect frequency meters measure frequency by utilizing other known physical quantities that
are directly related to frequency. One common example of an indirect frequency meter is the heterodyne frequency meter.

Heterodyne Frequency Meter: A heterodyne frequency meter works by mixing the input signal with a local oscillator signal to
produce an intermediate frequency (IF). The frequency of the local oscillator is known and constant. The difference between the
input frequency and the local oscillator frequency is the intermediate frequency, which can be easily measured using standard
techniques.
Indirect frequency meters, like the heterodyne frequency meter, provide accurate frequency measurements but often require
additional circuitry and calibration procedures. They are suitable for laboratory and precision measurements where accuracy is
crucial.
2. Direct Frequency Meters: Direct frequency meters directly measure the frequency of the input signal without the need for
intermediate steps. These meters are generally simpler in design and more suitable for field and real-time measurements. Two
common types of direct frequency meters are the resonance frequency meter and the counter-type frequency meter.

Resonance Frequency Meter: A resonance frequency meter uses resonant circuits or components that exhibit a specific resonance
frequency. When the input signal matches the resonant frequency of the circuit, the circuit responds with maximum amplitude. By
adjusting the circuit's components until maximum amplitude is achieved, the resonant frequency can be determined.
Counte r-Type Frequency Meter: A counter-type frequency meter counts the number of cycles of the input signal within a
specific time interval. The higher the count, the higher the frequency. Modern digital frequency counters are a common example of
this type of frequency meter.
Direct frequency meters are simpler to use and provide rapid frequency measurements. However, their accuracy might be slightly
lower compared to indirect methods, especially for signals with high frequency variations.
