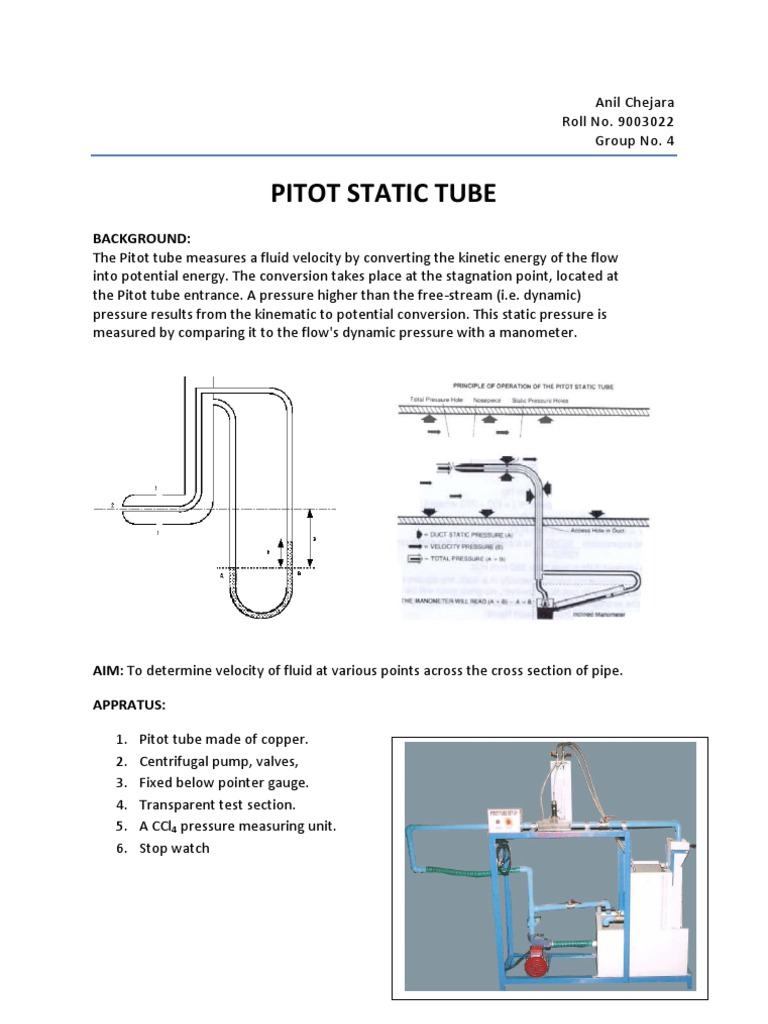

Pitot Static Tube
Pitot Static Tube
AIM: To determine velocity of fluid at various points across the cross section of pipe. APPRATUS: 1. 2. 3. 4. 5. 6. Pitot tube made of copper. Centrifugal pump, valves, Fixed below pointer gauge. Transparent test section. A CCl4 pressure measuring unit. Stop watch
ME-313 IIT-Gandhinagar
Page 1
FORMULE USED: Relationship between the velocity and pressure along a streamline can be give by Bernoullis equation.
Evaluated at two different points along a streamline, the Bernoulli equation yields,
If z1 = z2 and point 2 is a stagnation point, i.e., v2 = 0, the above equation reduces to,
Reynolds No=Re=vD/ Where, D=0.028 m =.00098 at 210C Vmax=2 x Average velocity average theoretical velocity = vdA/Atotal Coefficient of pitot can be calculated as average vactual/average vtheoritical
PROCEDURE: Make sure that the apparatus are free from Dust. Now close the drain valve. Open Flow Control Valve given on the discharge line and Control valve given on suction line. Check the level of CCl4 in all the manometer tube. It should be up to half. Set power output of the motor. Regulate Flow of water through pipe with the help of given Flow Control Valve. Make sure that there is no water bubbles in the tube for measuring pressure heads. Measure Flow Rate using Measuring Tank and Stop Watch.
ME-313 IIT-Gandhinagar
Page 2
Take readings at sufficient number of points to plot the velocity profile across the cross section Repeat the experiment with different flow rates
OBSERVATION TABLE: FOR FLOW RATE 1: Time = 15 sec Height = 10cm Q = 0.00066667 m3/sec Distance from centre r (mm) 10 5 0 -5 -10 h (mm) 100 138 155 135 103 Height Time V (m/s) (Theoretical) 1.766 2.075 2.199 2.052 1.793 V calculated (m/s) 1.061 1.889 2.166 1.889 1.061 Coeff of pitot tube 0.6005 0.9106 0.9848 0.9207 0.5917
Sr No
1 2 3 4 5
10 10 10 10 10
15 15 15 15 15
FOR FLOW RATE 2: Time = 37 sec Height = 10 cm Q = 0.0002703 m3/sec Distance from centre r (mm) 10 5 0 -5 -10 V (m/s) (Theoretical) 0.684 0.809 0.918 0.847 0.706
Sr No
h (mm) 15 21 27 23 16
Height
Time
1 2 3 4 5
10 10 10 10 10
37 37 37 37 37
ME-313 IIT-Gandhinagar
Page 3
Velocity
SOURCES OF ERROR AND PRECAUTIONS: Human error possible while taking reading Make sure there is no bubble present in manometer. Make sure that there is not high flow of fluid. Make sure that CCl4 is present in sufficient quantity.
