THIAGARAJAR COLLEGE OF ENGINEERING

DEPARTMENT OF INFORMATION TECHNOLOGY

Worksheet- 1A

LINE CODING

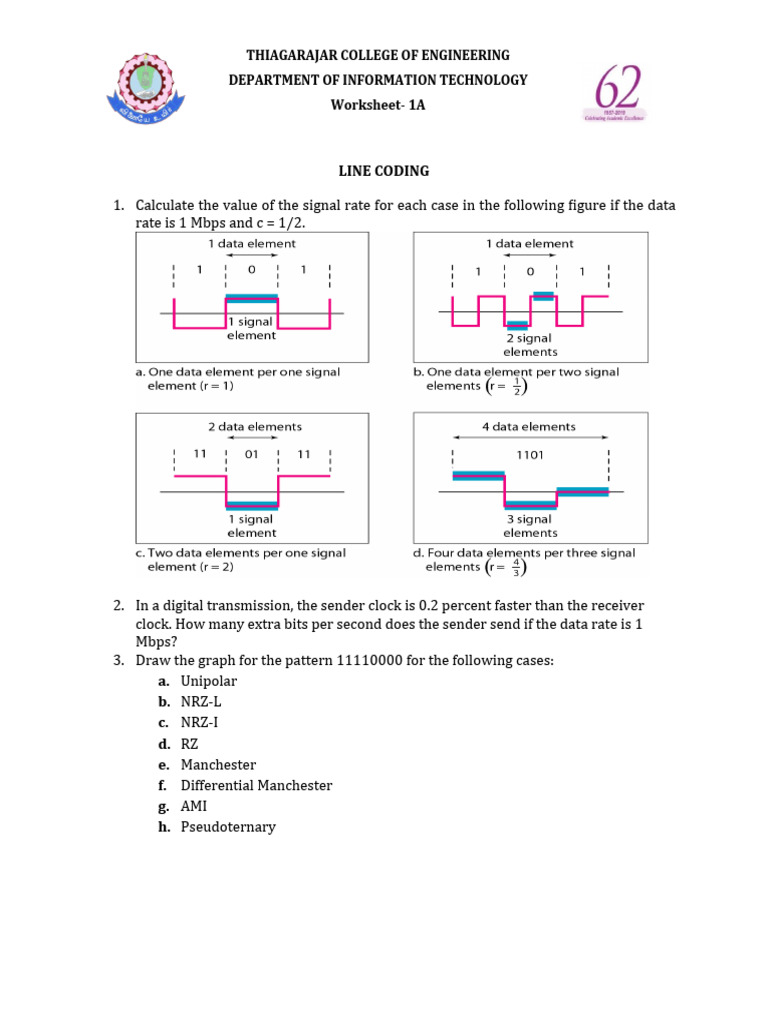

1. Calculate the value of the signal rate for each case in the following figure if the data
rate is 1 Mbps and c = 1/2.

2. In a digital transmission, the sender clock is 0.2 percent faster than the receiver
clock. How many extra bits per second does the sender send if the data rate is 1
Mbps?
3. Draw the graph for the pattern 11110000 for the following cases:
a. Unipolar
b. NRZ-L
c. NRZ-I
d. RZ
e. Manchester
f. Differential Manchester
g. AMI
h. Pseudoternary
4. Interpret the data from the graph of Manchester encoding.

5. Interpret the data from AMI graph below

6. In the waveform (a) given below, a bit stream is encoded by Manchester encoding
scheme. The same bit stream is encoded in a different coding scheme in wave form
(b). Find the bit stream and the coding scheme are (GATE)

7. Interpret the data from the frapgh of NRZ-L and NRZ-I

8. In Ethernet when Manchester encoding is used, the bit rate is: (GATE 2007)
(a) Half the baud rate
(b) Twice the baud rate
(c) Same as the baud rate
(d) None of the above
