L310D844

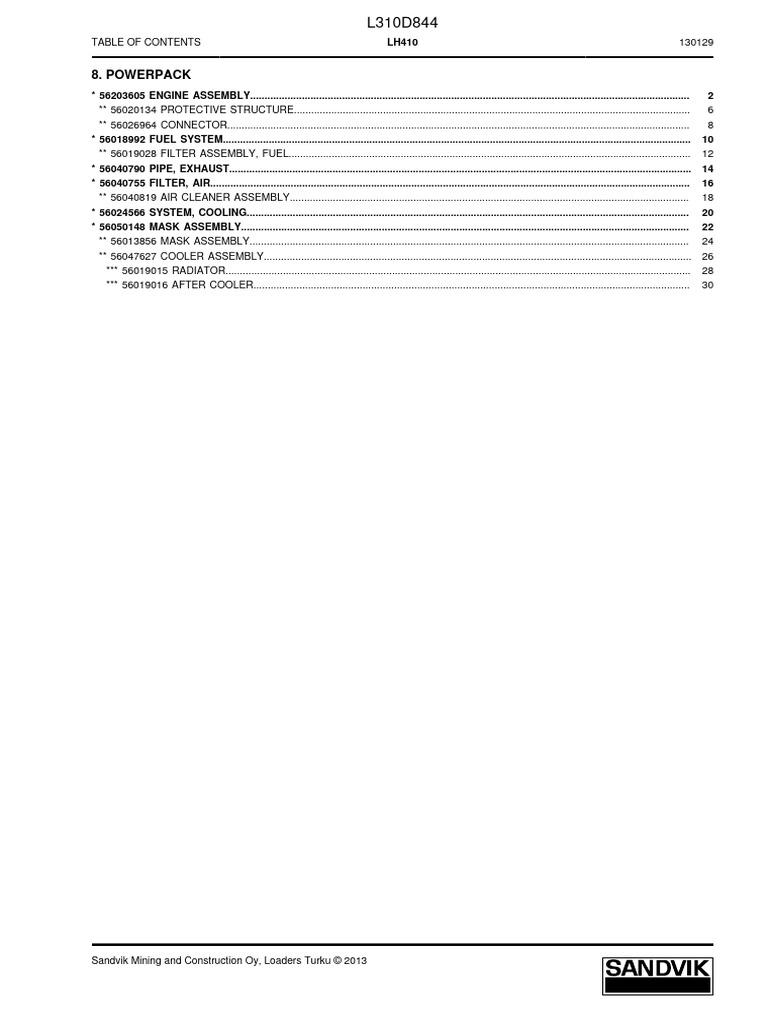

TABLE OF CONTENTS LH410 130129

8. POWERPACK
* 56203605 ENGINE ASSEMBLY......................................................................................................................................................... 2
** 56020134 PROTECTIVE STRUCTURE.......................................................................................................................................... 6
** 56026964 CONNECTOR................................................................................................................................................................. 8
* 56018992 FUEL SYSTEM................................................................................................................................................................... 10
** 56019028 FILTER ASSEMBLY, FUEL............................................................................................................................................ 12
* 56040790 PIPE, EXHAUST................................................................................................................................................................. 14
* 56040755 FILTER, AIR....................................................................................................................................................................... 16
** 56040819 AIR CLEANER ASSEMBLY........................................................................................................................................... 18
* 56024566 SYSTEM, COOLING.......................................................................................................................................................... 20
* 56050148 MASK ASSEMBLY............................................................................................................................................................ 22
** 56013856 MASK ASSEMBLY......................................................................................................................................................... 24
** 56047627 COOLER ASSEMBLY..................................................................................................................................................... 26
*** 56019015 RADIATOR.................................................................................................................................................................. 28
*** 56019016 AFTER COOLER........................................................................................................................................................ 30

Sandvik Mining and Construction Oy, Loaders Turku © 2013

 56203605 bB
1 (31) ENGINE ASSEMBLY 130129

1 34 43 37 41
42 12 23 27
27 45 21

33 10
39
20A

44 29

16

17

16
35 36 41 19

17 25

14

24

21

8
22

15

13

31

17 7

40

9
6
32
8
5
3 4

40
9

6 7
19 26 18

Sandvik Mining and Construction Oy, Loaders Turku © 2013

 56203605 bB
130129 ENGINE ASSEMBLY 2 (31)

Ref. Part no. Description EN Standard designation Qty

e
1 56013028 ENGINE 220KW/2200RPM, EUROMOT 3 1
2 56203608 TORQUE CONVERTER ASSEMBLY SEE PAGE 9-46 1
3 56014340 SUPPORTING BLOCK 1
4 56007015 SUPPORTING BLOCK 1
5 56028480 SUPPORTING BLOCK 2
. . . . .
6 56012698 SUPPORTING BLOCK 2
7 56012699 SUPPORTING BLOCK 2
8 56025524 FASTENER, RING 1
9 56007021 PLATE, MOUNTING 2
10 56020134 PROTECTIVE STRUCTURE SEE PAGE 8-6 1
. . . . .
11 56033150 PAD, RUBBER M601, 50 SHORE 12
12 56026964 CONNECTOR SEE PAGE 8-8 1
13 56001064 HOSE, HYDRAULIC R2T-04-0650-V4A-V4B-0-0 1
14 29603300 HOSE, HYDRAULIC R2T-04-1200-V4A-V4A-0-0 1
15 29604283 HOSE, HYDRAULIC R2T-04-0780-V4A-V4B-0-0 1
. . . . .
16 06530503 HEXAGON HEAD SCREW (FULL THREAD) M20X45 - 8.8 , ISO 4017 16
17 06530495 HEXAGON HEAD BOLT (HALF THREAD) M16X110 - 8.8 , ISO 4014 14
18 06530488 HEXAGON HEAD BOLT (HALF THREAD) M16X60 - 8.8 , ISO 4014 2
19 06530486 HEXAGON HEAD BOLT (HALF THREAD) M16X50 - 8.8 , ISO 4014 6
20 06540786 HEXAGON HEAD SCREW (FULL THREAD) M16X1.5X50 10.9 8
. . . . .
21 06530429 HEXAGON HEAD BOLT (HALF THREAD) M10X60 - 8.8 12
22 56017321 SCREW M10X1.25X55, 10.9 8
23 06530412 HEXAGON HEAD BOLT (HALF THREAD) M8X55 - 8.8 , ISO 4014 2
24 06575110 NUT, HEXAGON, NYLOC M16 - 8 , DIN 985 6
25 56008874 WASHER 79/17-6 6
. . . . .
26 06581411 WASHER, PLAIN 16 2
27 06581407 WASHER, PLAIN 8, SFS2041 4
29 56045372 SHIM 4
31 07615453 CLAMP, HOSE 2
32 56202233 HOSE 1430-00-12 1
. . . . .
33 06581406 WASHER, PLAIN 6 2
34 56050400 CONNECTOR 1
35 09371822 USIT-SEAL 1
36 55049266 CONNECTOR CONNECTOR, MOTOR ASSEMBLY TC 7 1
37 55047355 PIPE, SLEEVE OM 904 LA MOTOR OIL FILLING SLEEVE 1
PIPE
. . . . .
39 06574406 NUT, HEXAGON M6 - 8 , SFS 2067 1
40 64802209 CLAMP, HOSE 2
41 07615454 CLAMP, HOSE 2
42 06530388 HEXAGON HEAD SCREW (FULL THREAD) M6X25 - 8.8 , ISO 4017 1
43 55047384 CAP, FILLING OM 904 LA MOTOR OIL FILLING CAP 1
. . . . .
44 56205045 HOSE 1
45 06530407 HEXAGON HEAD SCREW (FULL THREAD) M8X30 - 8.8 , ISO 4017 2
200 56012848 ENGINE OIL FILTER 1
201 56012851 COVER OIL FILTER COVER 1
202 56012786 STARTING MOTOR 1
. . . . .
203 56031904 ALTERNATOR 1
204 56031460 TENSION PULLEY 1
205 56031903 BELT LENGTH 1369MM 1
206 56012789 TEMPERATURE SENSOR OIL / COOLANT / FUEL TEMPERATURE 3
SENSOR

Sandvik Mining and Construction Oy, Loaders Turku © 2013

 56203605 bB
3 (31) ENGINE ASSEMBLY 130129

Sandvik Mining and Construction Oy, Loaders Turku © 2013

 56203605 bB
130129 ENGINE ASSEMBLY 4 (31)

Ref. Part no. Description EN Standard designation Qty

e
207 56018247 PRESSURE SENSOR OIL PRESSURE SENSOR 1
208 56018250 SENSOR ENGINE RPM 2
209 56018249 PRESSURE SENSOR BOOST PRESSURE SENSOR 1
210 56012796 DIPSTICK 1
211 56012793 SEAL OIL SUMP SEAL 1
. . . . .
212 56022224 FILLING CAP 1
213 56038483 BELT PULLEY 1
214 56022223 TURBOCHARGER FOR OM926LA TIER III 1

Sandvik Mining and Construction Oy, Loaders Turku © 2013

 56020134 fF
5 (31) PROTECTIVE STRUCTURE 130129

Sandvik Mining and Construction Oy, Loaders Turku © 2013

 56020134 fF
130129 PROTECTIVE STRUCTURE 6 (31)

Ref. Part no. Description EN Standard designation Qty

e
1 56043587 GUARD 1
2 56012116 GUARD 1
3 56016004 SUPPORTING BLOCK 1
4 56019929 PLATE, COVER 1
5 56020089 PLATE, COVER 1
. . . . .
6 56021041 PLATE, MOUNTING 1
7 56017886 PLATE, MOUNTING 1
8 56019854 SUPPORTING BLOCK 1
9 56011890 STRAP, METAL R89 1
11 56020086 SUPPORT 1
. . . . .
12 56020084 SUPPORT 1
13 56020080 MOUNTING PIECE 2
14 56020081 MOUNTING PIECE 1
15 02796120 BUSHING 16/12-30 4
16 56012120 BUSHING 20/10-10 3
. . . . .
17 56029980 BUSHING 16/9-60 1
18 56023422 CLIP 1
19 56023334 PLATE, BACKING 1
20 06575107 NUT, HEXAGON, NYLOC M8 - 8 1
21 06575106 NUT, HEXAGON, NYLOC M6 - 8 3
. . . . .
22 06532024 SCREW M10X35 - 8.8 , SFS 2220 2
23 06530428 HEXAGON HEAD BOLT (HALF THREAD) M10X55 - 8.8 , ISO 4014 1
24 06530427 HEXAGON HEAD BOLT (HALF THREAD) 3
25 06530690 HEXAGON HEAD BOLT (HALF THREAD) M 8X90 SFS 2063 1
26 06530412 HEXAGON HEAD BOLT (HALF THREAD) M8X55 - 8.8 , ISO 4014 3
. . . . .
27 06530401 HEXAGON HEAD SCREW (FULL THREAD) M8X12 - 8.8 , ISO 4017 12
28 06530404 HEXAGON HEAD SCREW (FULL THREAD) M8X20 - 8.8 4
29 06530421 HEXAGON HEAD SCREW (FULL THREAD) M10X20 - 8.8, ISO 4017 1
30 06530386 HEXAGON HEAD SCREW (FULL THREAD) M6X20 - 8.8 , ISO 4017 3
31 06530384 HEXAGON HEAD SCREW (FULL THREAD) M6X14 - 8.8 , ISO 4017 4
. . . . .
32 06530407 HEXAGON HEAD SCREW (FULL THREAD) M8X30 - 8.8 , ISO 4017 3
33 06530406 HEXAGON HEAD SCREW (FULL THREAD) M8X25 - 8.8 2
34 06530422 HEXAGON HEAD SCREW (FULL THREAD) M10X25 - 8.8 2
35 85323979 WASHER, LOCK, DOUBLE M6 4
36 55016042 WASHER, LOCK, DOUBLE DOUBLE LOCK WASHER ,M8 NORD-LOCK 17
SP
. . . . .
37 85128209 WASHER, LOCK, DOUBLE M10 4
38 06589408 WASHER, PLAIN 10 , 3/8""X35 3
39 06581408 WASHER, PLAIN 10, SFS2041 3
40 06589407 WASHER, PLAIN "5/16""X28 , DIN 9021" 6
41 06589406 WASHER, PLAIN 6
. . . . .
42 06581407 WASHER, PLAIN 8, SFS2041 8

Sandvik Mining and Construction Oy, Loaders Turku © 2013

 56026964
7 (31) CONNECTOR 130129

Sandvik Mining and Construction Oy, Loaders Turku © 2013

 56026964
130129 CONNECTOR 8 (31)

Ref. Part no. Description EN Standard designation Qty

e
1 56016989 BLOCK, DISTRIBUTION 1
2 04182201 ADAPTER, HYDRAULIC P-H 4-4F42EDMLOS 3
3 04130190 CONNECTOR, PRESSURE GAUGE HPR 1/4 3
4 04910138 HEXACON SOCKET HEAD PLUG R 1/4 3

Sandvik Mining and Construction Oy, Loaders Turku © 2013

 56018992
9 (31) FUEL SYSTEM 130129

Sandvik Mining and Construction Oy, Loaders Turku © 2013

 56018992
130129 FUEL SYSTEM 10 (31)

Ref. Part no. Description EN Standard designation Qty

e
1 56019028 FILTER ASSEMBLY, FUEL SEE PAGE 8-12 1
2 04181106 CONNECTOR 4
3 07612142 HOSE, RUBBER 1
4 07615451 CLAMP, HOSE 1
5 06429034 CLAMP, PIPE 2
. . . . .
6 56000217 CUP, BASE PLATE 2
7 06530392 HEXAGON HEAD BOLT (HALF THREAD) M6X45 - 8.8 , ISO 4014 4
9 56019176 PIPE ORFS D 12X1.5 1
10 56019722 HOSE, FUEL FH-08-1650-J8A-J8B 1
11 56019724 HOSE, FUEL FH-08-1250-J8A-J8B 1
. . . . .
12 29604209 HOSE, FUEL FH-08-900-J8A-J8B 1
13 56019851 HOSE, FUEL FH-08-1150-J8A-J8B 1
14 56017759 HOSE, FUEL FH-08-1000-J8A-J8B 1

Sandvik Mining and Construction Oy, Loaders Turku © 2013

 56019028 cC
11 (31) FILTER ASSEMBLY, FUEL 130129

Sandvik Mining and Construction Oy, Loaders Turku © 2013

 56019028 cC
130129 FILTER ASSEMBLY, FUEL 12 (31)

Ref. Part no. Description EN Standard designation Qty

e
2 04181106 CONNECTOR 4
3 04180604 ADAPTER, ELBOW 3
4 06581409 WASHER, PLAIN M12 - 8 INCL.6 2
5 06530441 HEXAGON HEAD SCREW (FULL THREAD) M12X30 - 8.8 2
6 06581407 WASHER, PLAIN 8, SFS2041 3
. . . . .
7 06530433 HEXAGON HEAD BOLT (HALF THREAD) M10X80 - 8.8 , ISO 4014 2
8 06530403 HEXAGON HEAD SCREW (FULL THREAD) M8X16 - 8.8 , ISO 4017 3
9 04182851 ADAPTER, ELBOW P-H 6M16C80MLOS M16X1.5 - 11/16 1
10 56022862 CONNECTOR 1
11 56022863 CONNECTOR 1
. . . . .
12 04910151 VALVE, BALL 1
13 61509576 FILTER, FUEL RACOR 1
13.1 55051165 FILTER ELEMENT FUEL PREFILTER ELEMENT 1
14 56027047 EXTENSION BLOCK 1
200 56032591 FUEL FILTER ASSEMBLY SECONDARY FUEL FILTER ASSEMBLY 1
INCL.201-203
. . . . .
201 56018232 FILTER ELEMENT SECONDARY FUEL FILTER ELEMENT 1
202 56018318 COVER 1
203 56018319 O-RING 1
204 56028644 FILTER HEAD MOUNTING HEAD KIT (FUEL FILTER 1
PRIME PUMP)

Sandvik Mining and Construction Oy, Loaders Turku © 2013

 56040790 bB
13 (31) PIPE, EXHAUST 130129

Sandvik Mining and Construction Oy, Loaders Turku © 2013

 56040790 bB
130129 PIPE, EXHAUST 14 (31)

Ref. Part no. Description EN Standard designation Qty

e
1 56015856 PIPE, EXHAUST 1
2 56040787 EJECTOR 1
3 56040667 FASTENER ASSEMBLY 1
4 29605854 STRAP, METAL 2
5 56005859 SUPPORTING BLOCK 1
. . . . .
6 56016037 CONNECTING PIECE 1
7 56002557 CLAMP 1
8 56002556 CLAMP 2
9 56040654 PIPE, EXHAUST 1
10 56002539 PIPE, EXHAUST 1
. . . . .
11 56018236 FLANGE, EXHAUST PIPE 1
12 56040686 SLEEVE, THREADED 1
14 06575128 NUT, LOCK M10 4
15 06530439 HEXAGON HEAD SCREW (FULL THREAD) M12X22 - 8.8 , ISO 4017 6
16 06530432 HEXAGON HEAD BOLT (HALF THREAD) M10X75 - 8.8 , ISO 4014 4
. . . . .
17 06530422 HEXAGON HEAD SCREW (FULL THREAD) M10X25 - 8.8 2
18 06530424 HEXAGON HEAD SCREW (FULL THREAD) M10X35 - 8.8 , ISO 4017 2
19 06575108 NUT, HEXAGON, NYLOC M10 - 8 2
20 56040824 HOSE 2
21 56040857 CLAMP D 110 1
. . . . .
22 56044226 CONNECTOR UNION FITTING FOR EJECTOR HOSE 1
23 07615454 CLAMP, HOSE 4

Sandvik Mining and Construction Oy, Loaders Turku © 2013

 56040755 dD
15 (31) FILTER, AIR 130129

28 22 4 12 2 19 25
18
26 10

32 33
20
30
27
16 28
3
21
5 23 23
34 18 24

8 9
35 13

15 14 6
7
29
6
31
23

18 4
24
8 23 7 17 24 23 3 9

1
38 12

9 36 37

Sandvik Mining and Construction Oy, Loaders Turku © 2013

 56040755 dD
130129 FILTER, AIR 16 (31)

Ref. Part no. Description EN Standard designation Qty

e
1 56040819 AIR CLEANER ASSEMBLY SEE PAGE 8-18 1
2 56040581 PROTECTIVE STRUCTURE 1
3 56040620 SUPPORTING BLOCK ASSEMBLY 1
4 02764980 PIN 1
5 56040462 SUCTION HOSE ASSEMBLY 1
. . . . .
6 56040596 SUPPORTING BLOCK 1
7 56040626 SUPPORTING BLOCK 1
8 56040513 PLATE, COVER 1
9 56040510 PLATE, COVER 1
10 56040571 SUPPORTING BLOCK 1
. . . . .
11 56023556 REACTION BAR 1
12 29602681 FITTING PIECE 1
13 56039988 INDICATOR, CLOGGING 1/8-27 NPT, 54MBAR 1
14 04132301 ADAPTER, HYDRAULIC AQ 543-2-4 1
15 56019915 CLAMP, HOSE HKFK L-C 1
. . . . .
16 56016401 CLAMP, HOSE 1
17 06530422 HEXAGON HEAD SCREW (FULL THREAD) M10X25 - 8.8 1
18 06530406 HEXAGON HEAD SCREW (FULL THREAD) M8X25 - 8.8 9
19 06530478 HEXAGON HEAD BOLT (HALF THREAD) M 30X130 SFS 2063 1
20 06575114 NUT, HEXAGON, NYLOC M30 - 8 , DIN 985 1
. . . . .
21 06530405 HEXAGON HEAD SCREW (FULL THREAD) M8X22 - 8.8 , ISO 4017 3
22 06530408 HEXAGON HEAD SCREW (FULL THREAD) M8X35 - 8.8 , ISO 4017 6
23 06530421 HEXAGON HEAD SCREW (FULL THREAD) M10X20 - 8.8, ISO 4017 11
24 06589408 WASHER, PLAIN 10 , 3/8""X35 12
25 06581415 WASHER, PLAIN M 30 SFS 002041 2
. . . . .
26 06575107 NUT, HEXAGON, NYLOC M8 - 8 6
27 06581407 WASHER, PLAIN 8, SFS2041 4
28 06589407 WASHER, PLAIN "5/16""X28 , DIN 9021" 20
29 56040359 SUPPORTING BLOCK 1
30 04110507 CONNECTOR K-WEV 6LRK 1
. . . . .
31 04110503 CONNECTOR K-WEV 6L/R 1/4K 1
32 56028312 HOSE 1
33 06574407 NUT, HEXAGON M8 - 8 , SFS 2067 4
34 07615453 CLAMP, HOSE 1
35 56202223 PLUG 1
. . . . .
36 06530423 HEXAGON HEAD SCREW (FULL THREAD) M10X30 - 8.8 , ISO 4017 4
37 06581408 WASHER, PLAIN 10, SFS2041 4
38 56211435 PLATE, COVER 1

Sandvik Mining and Construction Oy, Loaders Turku © 2013

 56040819 A
17 (31) AIR CLEANER ASSEMBLY 130129

Sandvik Mining and Construction Oy, Loaders Turku © 2013

 56040819 A
130129 AIR CLEANER ASSEMBLY 18 (31)

Ref. Part no. Description EN Standard designation Qty

e
200 56044005 COVER REMOVABLE ACCESS COVER 1
201 56043457 LATCH 4
202 56045267 CLIP U CLIP FOR CLEANER 4
203 56040821 ELEMENT, FILTER ALTERNATIVE MAIN ELEMENT 1
204 56040820 FILTER ELEMENT MAIN ELEMENT WITH WHITE CELLULOSE 1
MEDIA
. . . . .
205 56040822 ELEMENT, SAFETY PSD12 SAFETY ELEMENT 1

Sandvik Mining and Construction Oy, Loaders Turku © 2013

 56024566 gG
19 (31) SYSTEM, COOLING 130129

14 19 14 4 200

43
A
A

SECTION A - A
37 37 8 7 8 36

From the engine

38 21 22 23
31 39
From the cooler 18
32
20 6
42

18

25 41 3 34
35 16 17
8
7 14
15
8
14
14 4
15 29

14

33

2 37

8 24
40 1

8 30
26 13 24 5
7

8 9 10 12 40 27 28 25

Sandvik Mining and Construction Oy, Loaders Turku © 2013

 56024566 gG
130129 SYSTEM, COOLING 20 (31)

Ref. Part no. Description EN Standard designation Qty

e
1 56016999 PIPE 1
2 56017002 PIPE 1
3 56017000 PIPE 1
4 56017018 PIPE 1
5 56024531 PIPE 1
. . . . .
6 56024529 TANK, SURGE 1
7 56016666 HOSE 4
8 56009144 CLAMP, HOSE 8
9 09371816 USIT-SEAL U/SC 21,5X28,7X2,5 , 70 SHORE A 1
10 04130144 ADAPTER, HYDRAULIC AQ 136/1-8 1
. . . . .
11 02860450 HOSE, WATER 2
12 04910150 VALVE, BALL 1
13 56024568 SUPPORT 1
14 56009145 CLAMP, HOSE 90-110 6
15 29602519 HOSE 2
. . . . .
16 09371820 USIT-SEAL U/SC 13,7X20X1,5 , 70 SHORE A 1
17 56044552 SWITCH, LEVEL LEVEL PROBE TYPE PLS40 WITH CABLE 1
CONNECTOR,MINUS
18 04182205 ADAPTER, HYDRAULIC 2
19 56016608 HOSE 1
20 04910135 SIGHT GLASS, OIL 240 MSGS-5-R 1 1/2 1
. . . . .
21 07612142 HOSE, RUBBER 1
22 07615451 CLAMP, HOSE 1
23 56012766 CAP, FILLING COOLER CAP 1
24 56000221 CUP, BASE PLATE 2
25 06429036 CLAMP, PIPE 2
. . . . .
26 06530403 HEXAGON HEAD SCREW (FULL THREAD) M8X16 - 8.8 , ISO 4017 2
27 56001481 HEXAGON HEAD BOLT (HALF THREAD) M6X85 2
28 06581406 WASHER, PLAIN 6 4
29 06574406 NUT, HEXAGON M6 - 8 , SFS 2067 2
30 06581407 WASHER, PLAIN 8, SFS2041 2
. . . . .
31 06581409 WASHER, PLAIN M12 - 8 INCL.30 4
32 06530440 HEXAGON HEAD SCREW (FULL THREAD) M12X25 - 8. 4
33 04182304 ADAPTER, HYDRAULIC 1
34 06429032 CLAMP, PIPE 4
35 06530392 HEXAGON HEAD BOLT (HALF THREAD) M6X45 - 8.8 , ISO 4014 8
. . . . .
36 07615476 CLAMP, HOSE 1
37 56009142 CLAMP, HOSE 4
38 02853680 HOSE, HYDRAULIC R2T-06-1350-V6A-V6B-0-0 1
39 56019860 HOSE, HYDRAULIC R2T-06-1450-V6B-0-0-0 1
40 04139914 HEXACON SOCKET HEAD PLUG R 1/2 2
. . . . .
41 06530397 HEXAGON HEAD BOLT (HALF THREAD) M6X70 - 8.8 , ISO 4014 2
42 09371840 USIT-SEAL U/SC 48,7X59X3 , 70 SHORE A 1
43 56018238 O-RING IG SIMRIT 60 FRYI590 1
200 56204823 CLAMP COOLER PIPE CLAMP 1

Sandvik Mining and Construction Oy, Loaders Turku © 2013

 56050148
21 (31) MASK ASSEMBLY 130129

Sandvik Mining and Construction Oy, Loaders Turku © 2013

 56050148
130129 MASK ASSEMBLY 22 (31)

Ref. Part no. Description EN Standard designation Qty

e
1 56013856 MASK ASSEMBLY SEE PAGE 8-24 1
2 56047627 COOLER ASSEMBLY SEE PAGE 8-26 1
3 56049439 MOTOR, VANE 1
4 56016494 GRATE 1
5 06530509 HEXAGON HEAD BOLT (HALF THREAD) M20X75 - 8.8 , ISO 4014 12
. . . . .
6 06575111 NUT, HEXAGON, NYLOC M20 - 8 , DIN 985 12
7 06530482 HEXAGON HEAD SCREW (FULL THREAD) M16X30 - 8.8 , ISO 4017 4
8 06530486 HEXAGON HEAD BOLT (HALF THREAD) M16X50 - 8.8 , ISO 4014 2
9 02823370 WASHER 45/21 24
10 06581411 WASHER, PLAIN 16 6
. . . . .
11 06530421 HEXAGON HEAD SCREW (FULL THREAD) M10X20 - 8.8, ISO 4017 2
12 06575109 NUT, HEXAGON, NYLOC M12 - 8 , DIN 985 1
13 06530442 HEXAGON HEAD SCREW (FULL THREAD) M12X35 - 8.8 , ISO 4017 1
14 06581409 WASHER, PLAIN M12 - 8 1
15 56027165 LATCH 1
. . . . .
16 56027205 HINGE 1
17 06575110 NUT, HEXAGON, NYLOC M16 - 8 , DIN 985 2
18 06530481 HEXAGON HEAD SCREW (FULL THREAD) M16X25 - 8.8 , ISO 4017 2

Sandvik Mining and Construction Oy, Loaders Turku © 2013

 56013856 cC
23 (31) MASK ASSEMBLY 130129

Sandvik Mining and Construction Oy, Loaders Turku © 2013

 56013856 cC
130129 MASK ASSEMBLY 24 (31)

Ref. Part no. Description EN Standard designation Qty

e
1 56016582 WELDING ASSEMBLY 1
2 56016091 GRATE 1
3 06530490 HEXAGON HEAD BOLT (HALF THREAD) M 16X70 SFS 2063 4
4 56016817 HINGE 1
5 00683410 WASHER 1
. . . . .
6 56014512 PLATE, LOCKING 2
7 06581408 WASHER, PLAIN 10, SFS2041 4
8 06530424 HEXAGON HEAD SCREW (FULL THREAD) M10X35 - 8.8 , ISO 4017 4
9 06751001 NIPPLE, GREASE CR 1/8 2
10 56014149 SUPPORTING BLOCK 2
. . . . .
11 06530485 HEXAGON HEAD SCREW (FULL THREAD) M16X45 - 8.8 , ISO 4017 4
12 06575110 NUT, HEXAGON, NYLOC M16 - 8 , DIN 985 4
13 56014180 MOUNTING PIECE 2
14 06530486 HEXAGON HEAD BOLT (HALF THREAD) M16X50 - 8.8 , ISO 4014 4
15 06589470 WASHER, PLAIN 17X40X6 , DIN 7349 8
. . . . .
16 55042214 LABEL, IDENTIFICATION 1

Sandvik Mining and Construction Oy, Loaders Turku © 2013

 56047627
25 (31) COOLER ASSEMBLY 130129

Sandvik Mining and Construction Oy, Loaders Turku © 2013

 56047627
130129 COOLER ASSEMBLY 26 (31)

Ref. Part no. Description EN Standard designation Qty

e
1 56019015 RADIATOR SEE PAGE 8-28 1
2 56019016 AFTER COOLER SEE PAGE 8-30 1
3 56039344 SHROUD, FAN ASSEMBLY INCLUDES RING 1
4 56015498 GUARD, FAN 1
5 56015499 HUB 1
. . . . .
6 56015517 FAN 1
7 56023618 SPACER 1
9 56010978 WASHER 6
10 56010991 SCREW 6
11 69014114 WASHER 3/8 8
. . . . .
12 56010994 WASHER 1
13 56017838 SCREW 6
14 04790365 WASHER 3/8,MEDIUM,GRADE 5 12
15 69041450 NUT NUT 6
16 56010992 WASHER 2
. . . . .
17 56010990 SCREW 2
18 56010987 SCREW 1
19 56019018 SCREW 8
20 56012753 SCREW 8
21 56042460 WASHER 8
. . . . .

Sandvik Mining and Construction Oy, Loaders Turku © 2013

 56019015
27 (31) RADIATOR 130129

Sandvik Mining and Construction Oy, Loaders Turku © 2013

 56019015
130129 RADIATOR 28 (31)

Ref. Part no. Description EN Standard designation Qty

e
1 56019019 FRAME 1
2 69013813 PLATE, GUIDE AIR BAFFLE, FELT 1
3 69013821 PLATE, GUIDE AIR BAFFLE, FELT 1
4 56008025 SEAL 121
5 56008027 SEAL 121
. . . . .
6 56019020 COOLING TUBE WATER TUBE 121
7 04790245 PLUG 3/8 N.P.T BLACK, SQ.HEAD 3
8 56019021 BEAM, SUPPORT 1
9 56019022 BEAM, SUPPORT 1
10 04790326 WASHER 5/16 8
. . . . .
11 56015528 SCREW 8

Sandvik Mining and Construction Oy, Loaders Turku © 2013

 56019016 a
29 (31) AFTER COOLER 130129

Sandvik Mining and Construction Oy, Loaders Turku © 2013

 56019016 a
130129 AFTER COOLER 30 (31)

Ref. Part no. Description EN Standard designation Qty

e
1 56019023 FRAME 1
2 04790082 SEAL 81
3 04790080 SEAL 81
4 56039349 COOLING TUBE AFTERCOOLER TUBE 81
5 69013813 PLATE, GUIDE AIR BAFFLE, FELT 1
. . . . .
6 69013821 PLATE, GUIDE AIR BAFFLE, FELT 1
7 56015530 BEAM, SUPPORT 1
8 56015531 BEAM, SUPPORT 1
9 69014114 WASHER 3/8 8
10 56012753 SCREW 8
. . . . .
11 04790319 PLUG 1

Sandvik Mining and Construction Oy, Loaders Turku © 2013
