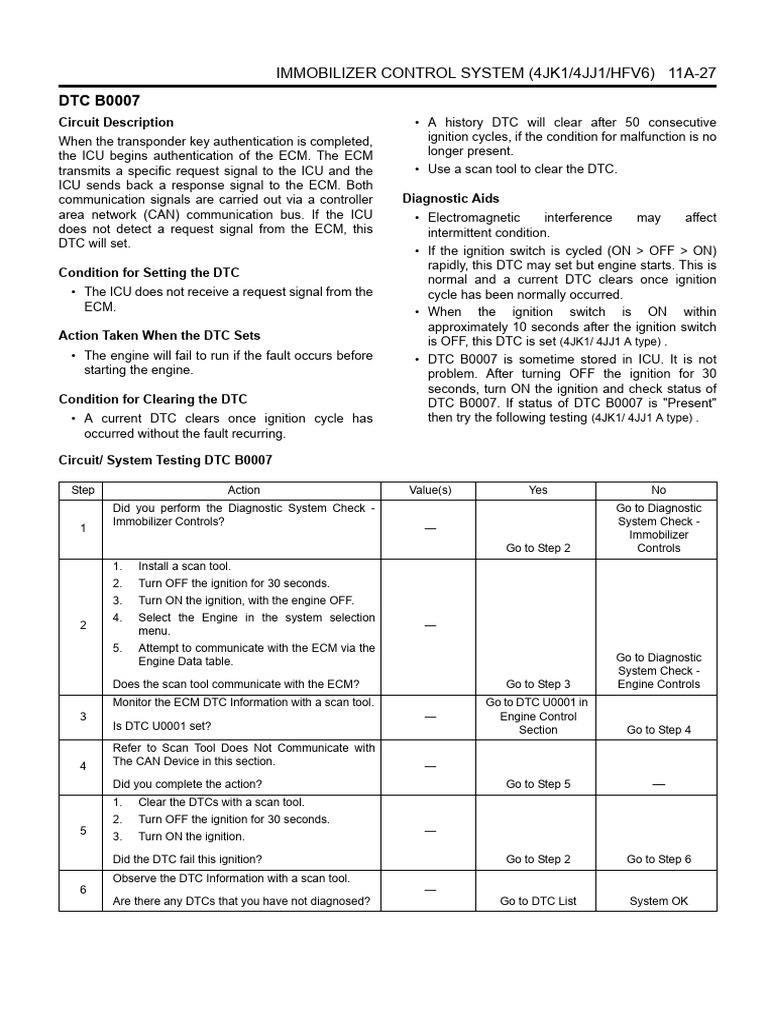

IMMOBILIZER CONTROL SYSTEM (4JK1/4JJ1/HFV6) 11A-27

DTC B0007
Circuit Description
When the transponder key authentication is completed,
the ICU begins authentication of the ECM. The ECM
transmits a specific request signal to the ICU and the
ICU sends back a response signal to the ECM. Both
communication signals are carried out via a controller
area network (CAN) communication bus. If the ICU
does not detect a request signal from the ECM, this
DTC will set.
Condition for Setting the DTC
• The ICU does not receive a request signal from the
ECM.
Action Taken When the DTC Sets
• The engine will fail to run if the fault occurs before
starting the engine.
Condition for Clearing the DTC
• A current DTC clears once ignition cycle has
occurred without the fault recurring.
• A history DTC will clear after 50 consecutive
ignition cycles, if the condition for malfunction is no
longer present.
• Use a scan tool to clear the DTC.
Diagnostic Aids
• Electromagnetic interference may affect
intermittent condition.
• If the ignition switch is cycled (ON > OFF > ON)
rapidly, this DTC may set but engine starts. This is
normal and a current DTC clears once ignition
cycle has been normally occurred.
• When the ignition switch is ON within
approximately 10 seconds after the ignition switch
is OFF, this DTC is set (4JK1/ 4JJ1 A type) .
• DTC B0007 is sometime stored in ICU. It is not
problem. After turning OFF the ignition for 30
seconds, turn ON the ignition and check status of
DTC B0007. If status of DTC B0007 is "Present"
then try the following testing (4JK1/ 4JJ1 A type) .

Circuit/ System Testing DTC B0007

Step Action Value(s) Yes No

Did you perform the Diagnostic System Check - Go to Diagnostic
Immobilizer Controls? System Check -
1 —
Immobilizer
Go to Step 2 Controls
1. Install a scan tool.
2. Turn OFF the ignition for 30 seconds.
3. Turn ON the ignition, with the engine OFF.
4. Select the Engine in the system selection
2 menu. —

5. Attempt to communicate with the ECM via the

Engine Data table. Go to Diagnostic
System Check -
Does the scan tool communicate with the ECM? Go to Step 3 Engine Controls
Monitor the ECM DTC Information with a scan tool. Go to DTC U0001 in
3 — Engine Control
Is DTC U0001 set? Section Go to Step 4
Refer to Scan Tool Does Not Communicate with
4 The CAN Device in this section. —
Did you complete the action? Go to Step 5 —
1. Clear the DTCs with a scan tool.
2. Turn OFF the ignition for 30 seconds.
5 —
3. Turn ON the ignition.

Did the DTC fail this ignition? Go to Step 2 Go to Step 6

Observe the DTC Information with a scan tool.
6 —
Are there any DTCs that you have not diagnosed? Go to DTC List System OK
