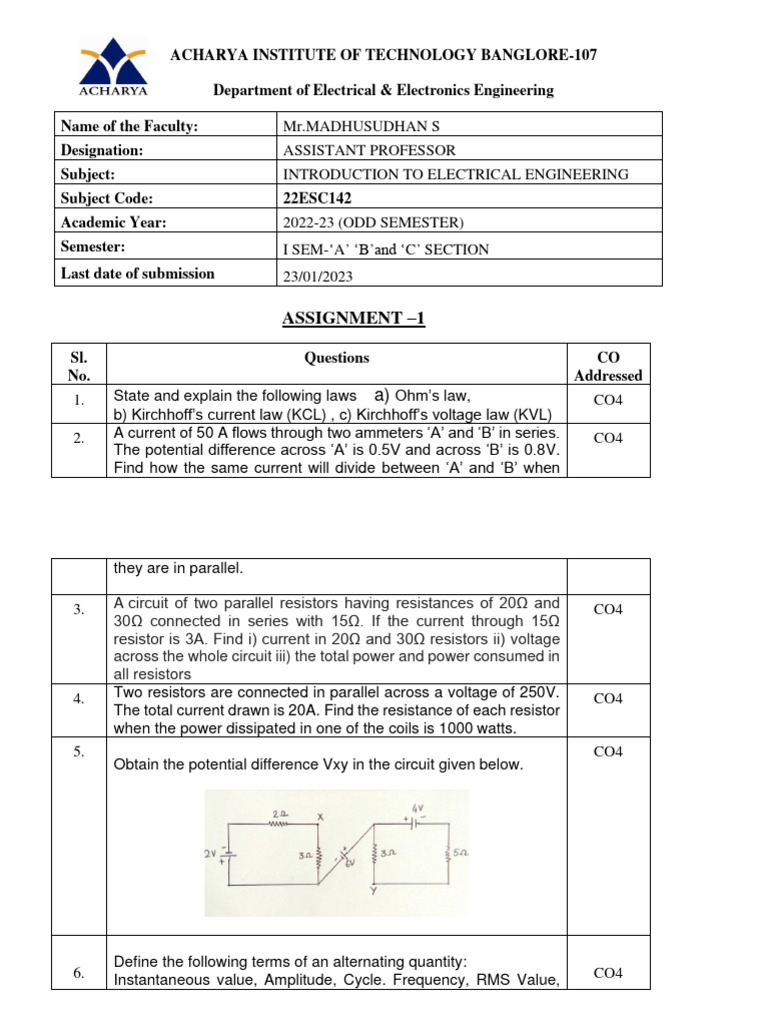

ACHARYA INSTITUTE OF TECHNOLOGY BANGLORE-107

Department of Electrical & Electronics Engineering

Name of the Faculty: Mr.MADHUSUDHAN S

Designation: ASSISTANT PROFESSOR
Subject: INTRODUCTION TO ELECTRICAL ENGINEERING
Subject Code: 22ESC142
Academic Year: 2022-23 (ODD SEMESTER)
Semester: I SEM-‘A’ ‘B’and ‘C’ SECTION
Last date of submission 23/01/2023

ASSIGNMENT –1

Sl. Questions CO
No. Addressed
1. State and explain the following laws a) Ohm’s law, CO4
b) Kirchhoff’s current law (KCL) , c) Kirchhoff’s voltage law (KVL)
2. A current of 50 A flows through two ammeters ‘A’ and ‘B’ in series. CO4
The potential difference across ‘A’ is 0.5V and across ‘B’ is 0.8V.
Find how the same current will divide between ‘A’ and ‘B’ when
 they are in parallel.

3. A circuit of two parallel resistors having resistances of 20Ω and CO4

30Ω connected in series with 15Ω. If the current through 15Ω
resistor is 3A. Find i) current in 20Ω and 30Ω resistors ii) voltage
across the whole circuit iii) the total power and power consumed in
all resistors
4. Two resistors are connected in parallel across a voltage of 250V. CO4
The total current drawn is 20A. Find the resistance of each resistor
when the power dissipated in one of the coils is 1000 watts.
5. CO4
Obtain the potential difference Vxy in the circuit given below.

Define the following terms of an alternating quantity:

6. Instantaneous value, Amplitude, Cycle. Frequency, RMS Value, CO4
 Average Value, Form Factor, Peak Factor

7. Find I1, I2 and I3 in the circuit shown below. CO4

8. Given the network shown below, determine I1, E, I3 and I, if the CO4
voltage across the 9 ohm resistor is 27V.
9. For the network shown below, calculate the current in each CO4
branch.

10. Show that the current through purely capacitive circuit leads the CO4
applied voltage by 90º and average power consumed is zero.
Draw the wave shapes of current, voltage and power
11. With the help of circuit diagram and phasor diagram, find the phase CO4
angle, impedance and power in case of R-L series circuit
12. With the help of circuit diagram and phasor diagram, find the phase CO4
angle, impedance and power in case of R-C series circuit
13. An inductive coil takes a current of 10A from a supply of 100V, 50Hz and CO4
lags the voltage by 30o. Calculate i) parameters of the circuit ii) power
factor iii) active,reactive and apparent power.
14. Show that the power consumed in a resistive circuit is given by CO4
P = VICOS(θ). Draw the wave forms
15. List the difference between series and parallel resistor circuit with CO4
circuit diagram
