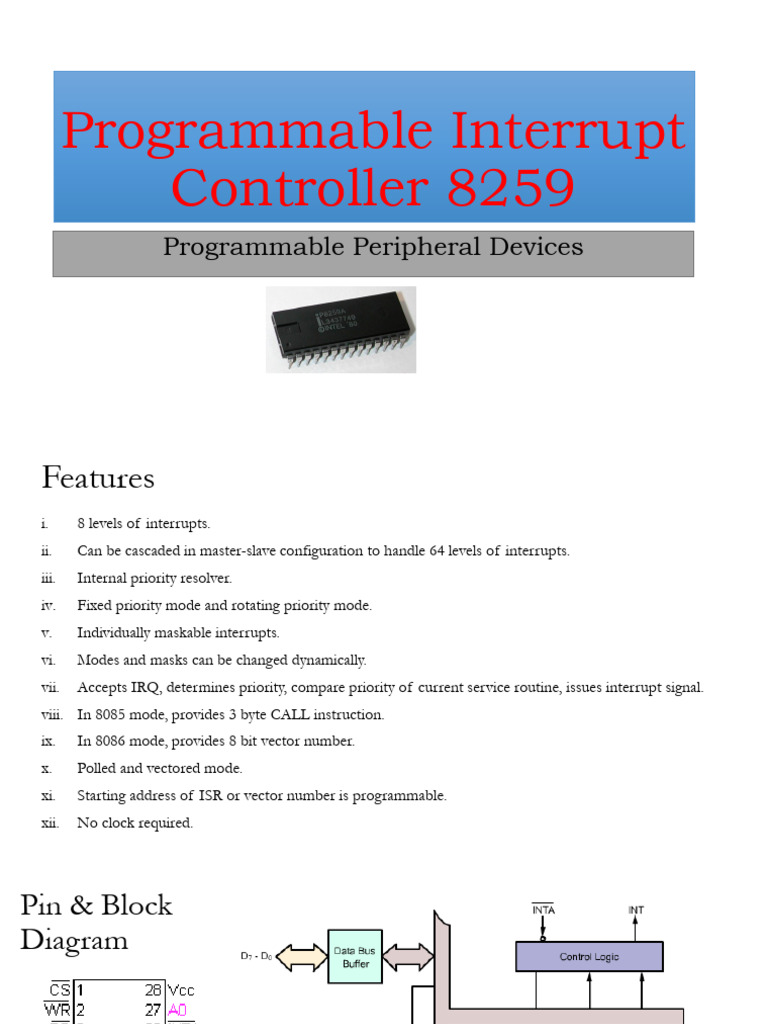

Programmable Interrupt

Controller 8259
Programmable Peripheral Devices
Features
i. 8 levels of interrupts.
ii. Can be cascaded in master-slave configuration to handle 64 levels of interrupts.
iii. Internal priority resolver.
iv. Fixed priority mode and rotating priority mode.
v. Individually maskable interrupts.
vi. Modes and masks can be changed dynamically.
vii. Accepts IRQ, determines priority, compare priority of current service routine, issues interrupt signal.
viii. In 8085 mode, provides 3 byte CALL instruction.
ix. In 8086 mode, provides 8 bit vector number.
x. Polled and vectored mode.
xi. Starting address of ISR or vector number is programmable.
xii. No clock required.
Pin & Block
Diagram
 Description of different blocks-I
Block Description
Data Bus This block is used to communicate between 8259 and 8085/8086 by acting as
Buffer buffer. It takes the control word from 8085/8086 and send it to the 8259. It
transfers the opcode of the selected interrupts and address of ISR to the other
connected microprocessor. It can send maximum 8-bit at a time.
R/W This block works when the value of pin CS is 0. This block is used to flow the
Control data depending upon the inputs of RD and WR. These are active low pins for
Logic read and write.
Control It controls the functionality of each block. It has pin called INTR. This is
Logic connected to other microprocessors for taking the interrupt request. The INT pin
is used to give the output. If 8259 is enabled, and also the interrupt flags of other
microprocessors are high then this causes the value of the output INT pin high,
and in this way this chip can responds requests made by other microprocessors.
 Description of different blocks-II
Interrupt Request It stores all interrupt level that are requesting for interrupt service.
Register (IRR)
Interrupt Service It stores interrupt level that are currently being execute.
Register (ISR)
Interrupt Mask It used for masking one or more interrupts.
Register (IMR)
Priority Resolver It checks all three registers, and set the priority of the interrupts.
Interrupt with the highest priority is set in the ISR register. It also reset
the interrupt level which is already been serviced in the IRR.
Cascade Buffer To increase number of interrupt pin, we can cascade more number of
pins, by using cascade buffer. When we are going to increase the
interrupt capability, CSA lines are used to control multiple interrupts.
 Basic Interrupt Operation - I
To implement interrupt, the interrupt enable flip-flop in the microprocessor should be enabled by
writing the EI instruction in 8085/86 and the 8259A should be initialized by writing control words in
the control register. The 8259Arequires two types of control words:
(a) Initialization Command Words(ICWS)
(b)Operational Command Words(OCWs)
 ICWs are used to set up the proper conditions and specify RST vector address.
 The OCWs are used to perform functions such as masking interrupts, setting up status-read operations etc.
Step-1: The IRR of 8259A stores the request.
Step-2: The priority resolver checks 3 registers-
* The IRR for interrupt requests.
* IMR for masking bits and
*the ISR for interrupt request being served.
It resolves the priority and sets the INT high when appropriate.
 Basic Interrupt Operation - II
Step-3: The MPU acknowledges the interrupt bysending signals in 𝐼𝑁𝑇𝐴.
Step-4: After the 𝐼𝑁𝑇𝐴 is received, the appropriate priority bit in the ISR is set to indicate which interrupt level is
being served and the corresponding bit in the IRR is reset to indicate that the request for the CALL instruction is
placed on the data bus.
Step-5: When MPU decodes the CALLinstruction, it places two more 𝐼 𝑁𝑇𝐴 signals on the data bus.
Step-6: When the 8259A receives the second 𝐼𝑁𝑇𝐴 it places the low-order byte of the CALLaddress on the data
bus. At the 3rd 𝐼𝑁𝑇𝐴 it places the high order byte on the data bus. The CALLaddress is the vector memory location
for the interrupt, this address is placed in the control register during the initialization.
Step-7: During the 3rd 𝐼 𝑁𝑇𝐴pulse, the ISR bit is reset either automatically (Automatic-End-of- Interrupt-AEOI) or
by a command word that must be issued at the end of the service routine (End of Interrupt-EOI). This option is
determined bythe initialization command word (ICW).
Step-8: The program sequence is transferred to the memory location specified by the CALL instruction.
 Modes of 8259
Interrupt Priority How the interrupt priority is determined?
• Fully Nested mode
• Automatic Rotation
• Specific Rotation

End-of-Interrupt How the interrupt service completion is indicated?

• Non specific EOI
• Specific EOI
• Automatic EOI

Special Mask Mode How to mask the interrupts?

Poll Method When INT line not to used?
Interrupt Triggering How the interrupt is triggered?
 Interrupt Priority
• Fully nested mode
This is a general purpose mode where all IR’s are arranged in highest to lowest. IR0
highest and IR7 lowest. Moreover any IR can be assigned as highest priority level.

• Automatic Rotation
In this mode a device after being serviced receives the lowest priority.

• Specific Rotation
In this user can select any IR for lowest priority thus fixing all priorities.
 End-of-Interrupt (EOI)
After completion of the interrupt service, the corresponding ISR bit needs to be reset to
update the information in the ISR. This is call End-of-Interrupt (EOI) command. This
can be issued in the following three formats;

• Non specific EOI: A command sent by the interrupt service procedure to signal the
end of interrupt. When this command is sent to the 8259A, it resets the highest priority ISR
bit (lowest numbered IS bit, suppose IR4 and IR6 are now in service, IR4 has the highest
priority than IR6). This allows the interrupt to take action again or a lower priority interrupt
to take effect.

• Specific EOI: A command that allows a specific interrupt request to be reset. The
exact position is determined with bits L2-L0 of OCW2

• Automatic EOI: In this mode, no command is necessary. During the 𝐼𝑁𝑇𝐴, the
ISR bit is reset. Disadvantage is the ISR do not have information on which IR is
being serviced. Thus any interrupt irrespective of priority can interrupt the current
service routine.
Other Modes
 Special Mask Mode
When a mask bit is set in OCW, it inhibits further interrupts at that level and
enables interrupt from other levels, which are not masked.

 Poll command
The INT output is neglected, though it functions normally by not connecting
INT output or by masking INT input of the microprocessor.
 This mode is entered by setting P=1 in OCW3.
 Poll command may give more than 64 priority levels.

 Interrupt Triggering
Interrupt with either edge or level trigger can be set by initializing command
word.
Programming 8259
 The 8259A is programmed by initialization and operation command words.
 Initialization command words (ICWs) are programmed before the 8259A is able to function in the
system and dictate the basic operation of 8259A. There are four initialization command words (ICWs) for the
8259A that are selected when A0 pin is logic one. If a single 8259A is used in a system, ICW1, ICW2 and
ICW4 must be programmed. If cascade mode is used in a system then all four ICWs must be programmed.
 Operation command word (OCWs) are programmed during the normal course of operation. The
OCWs control the operation of the 8259A. There are three OCWs. The operational command words
(OCWs) are used to direct the operation of the 8259A once it is programmed with ICW. The ICWs are
selected when A0= 0 level, expect for OCW1, which is selected forA0=1.
ICW1 ICW2

ICW4
ICW3
OCW1 OCW2

OCW3

Allows the setting of the lowest

priority interrupt (L2-L0)
Problem-1: Determine the control word ICW2 required for the PIC so that inputs IRQ0 to IRQ7 correspond to type numbers 40H to
47H. From which memory locations will the processor fetch the interrupt vectors?
Don’t cares
Solution:
ICW2
0 1 0 0 0 0 0 0

Input Type Number output by PIC Interrupt vector location

IRQ0 40H 00100:00103H (4X40=100H)
IRQ1 41H 00104:00107H
IRQ2 42H 00108:0010BH
IRQ3 43H 0010C:0010FH
IRQ4 44H 00110:00113H
IRQ5 45H 00114:00117H
IRQ6 46H 00118:011BH
15 IRQ7 47H 0011C:0011FH
 Problems related to ICWs

Problem-2: Determine the value for ICW1 for 8086 mode, if it is triggered by rising edge trigger and
there is a single PIC. Also use interval 4 and note that ICW4 is needed .
Solution: Don’t cares

ICW1 A0 A7 A6 A5 1 LTIM ADI SNGL IC4

0 0 0 0 1 0 1 1 1

Don’t care for 8086 Edge Single

Address bitA0=0, triggered) mode
for ICW1 Fixed
Interval 4 ICW4
(not part of ICW) (always1)
needed

16
 Interfacing and Programming 8259A
Problem-3: Show 8259A interfacing connections with 8086 at the address 074x. Write an ALP (Assembly language procedure) to initialize the
8259Ain single level triggered mode with call address interval of 4, non-buffered on special fully nested mode. Then set the 8259Ato operate with
IR6 masked, IR4 as bottom priority level with rotate on specific EOI mode. Set special mask mode of 8259A. Also, read IRR and ISR into registers
BHand BLrespectively. Baseaddress=80H.

Solution:
Solution of Problem 3(Cont.)
Step-1: FindingAddress
A15 A14 A13 A12 A11 A10 A9 A8 A7 A6 A5 A4 A3 A2 A1 A0 Address of Port

0 0 0 0 0 1 1 1 0 1 0 0 0 0 0 0 0740H (ICW1, OCW2,

OCW3)
0 0 0 0 0 1 1 1 0 1 0 0 0 0 1 0 0742H
(ICW2,ICW4,OCW
1)
Step-2: Finding the ICW1 Don’t cares

A0 A7 A6 A5 1 LTIM ADI SNGL IC4

0 0 0 0 1 1 1 1 1 ICW1= 1FH

Don’t care for 8086 (Level Single

Address bitA0=0, triggered) mode
for ICW1 Fixed
Call ICW4
(not part of ICW) (always1)
address needed
Interval 4
Solution of Problem 3(Cont.)
Step-3: Finding ICW2 Don’t cares

1 0 0 0 0 0 0 0 ICW2=80H

ICW3 is not needed as 8259A is set in single mode.

Step-4: Finding the ICW4 Don’t cares

A0 D7 D6 D5 SFNM BUT M/S AEOI uPM

1 0 0 0 1 0 0 0 1 ICW4= 11H

Fixed Non-buffered
A0=1, forICW4 mode For 8086
For special fully microprocessor
nested mode
masking Normal
EOI
Solution of Problem 3(Cont.)
Step-5: Finding OCW1

A0 D7 D6 D5 D4 D3 D2 D1 D0
1 0 1 0 1 0 0 0 0 OCW1= 40H

IR6 is masked
Step-6: Finding the OCW2

A0 D7 D6 D5 D4 D3 D2 D1 D0
10 1 1 1 0 0 1 0 0 OCW2= E4H

Rotate on Specific Fixed Bottom priority

A0=0, forOCW2 EOI command level set at IR4
Solution of Problem 3(Cont.)
Step-8: Finding OCW3

The OCW3 sets the special mask mode and reads ISR and IRR using the following control words-
For reading IRR:

A0 D7 D6 D5 D4 D3 D2 D1 D0
0 0 1 1 0 1 0 1 0 OCW3= 6AH

fixed Special masked Fixed Read IRR

mode No poll command
For reading ISR:

A0 D7 D6 D5 D4 D3 D2 D1 D0
0 0 1 1 0 1 0 1 1 OCW3= 6BH

fixed Special masked Fixed Read ISR

mode No poll command
Solution of Problem 3(Cont.)
Assembly Language Procedure
INTERRUPT PROC NEAR
MOVAL,AFH ; Loading ICW1 toAL
MOVDX, 0740H ; Loading Address of ICW1 to DX (Variable port addressing)
OUT DX, AL; Sending ICW1 to port (address: 0740H ) of8259A
MOVDX, 0742H ; address ofICW2
MOVAL, 80H ; Loading ICW2 to ALwhich select the vector address
MOV DX, AL; Sending ICW2 to port (address: 0742H ) of 8259A
MOV AL, 11H ; Loading ICW4 toAL

OUT DX,AL ; Sends ICW4 to 0742H

MOVAL, 40H ; Loading OCW1 to AL
OUT DX,AL ; Sends OCW1 to 0742H
MOVAL, E4H ; Loading OCW2 to AL
MOVDX, 0740H ; Address ofOCW2
Solution of Problem 3(Cont.)
Assembly Language Procedure (Cont.)

MOVDX, AL; Sending OCW2 to 0740H address.

MOVAL, 6AH ; Loading OCW3 for reading IRR
OUT DX, AL; Sending OCW3 to 0740H address.
IN AL, DX ; Reading IRR and store toAL

MOVBH, AL; Store IRR into BH

MOV AL, 6BH ; Loading OCW3 for reading ISR
OUT DX, AL; Sending OCW3 to 0740H address.
INAL, DX; Reading ISRand store toAL

MOVBL,AL;Store ISRintoBL
RET
INTERRUPT ENDP
 References:

1. https://www.youtube.com/watch?v=TxX_mP_qDLI

2. https://www.youtube.com/watch?v=IAMpcsGDlGo

3. https://www.youtube.com/watch?v=FgkdNCuySDI
