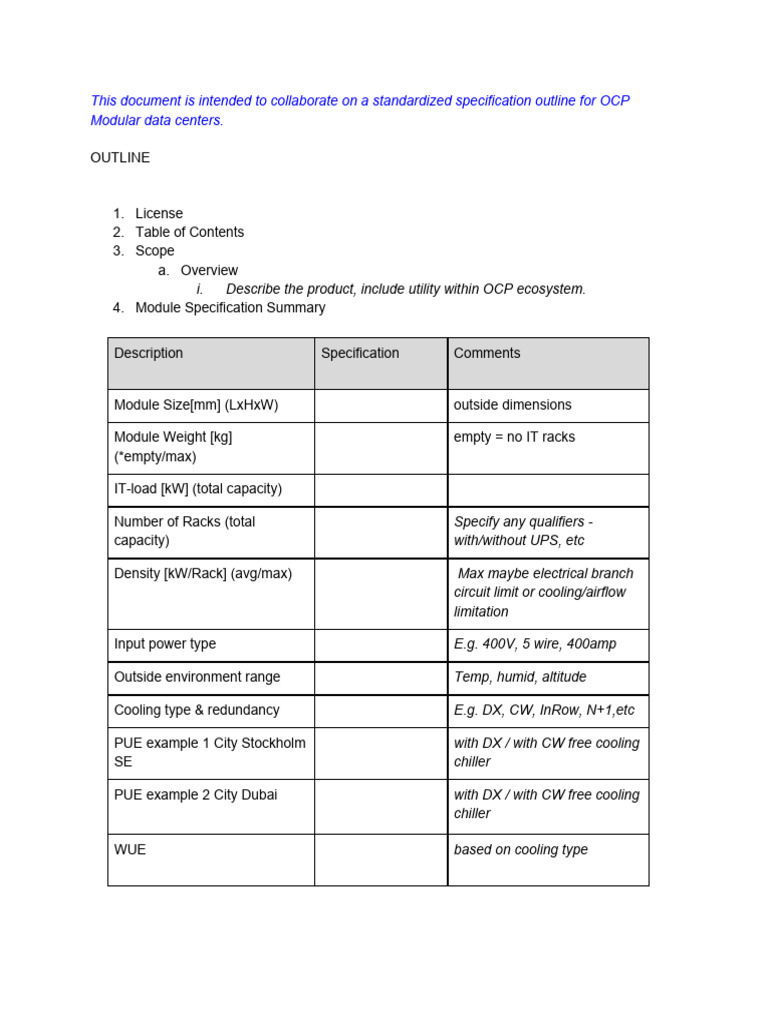

This document is intended to collaborate on a standardized specification outline for OCP

Modular data centers.

OUTLINE

1. License
2. Table of Contents
3. Scope
a. Overview
i. Describe the product, include utility within OCP ecosystem.
4. Module Specification Summary

Description Specification Comments

Module Size[mm] (LxHxW) outside dimensions

Module Weight [kg] empty = no IT racks

(*empty/max)

IT-load [kW] (total capacity)

Number of Racks (total Specify any qualifiers -

capacity) with/without UPS, etc

Density [kW/Rack] (avg/max) Max maybe electrical branch

circuit limit or cooling/airflow
limitation

Input power type E.g. 400V, 5 wire, 400amp

Outside environment range Temp, humid, altitude

Cooling type & redundancy E.g. DX, CW, InRow, N+1,etc

PUE example 1 City Stockholm with DX / with CW free cooling

SE chiller

PUE example 2 City Dubai with DX / with CW free cooling

chiller

WUE based on cooling type

Scalable Yes/ No

5. Module Structure Specifications

Outside dimensions, type of material, IP rating, stackable, wind loading, etc,
placement requirements
a. Structural Design
i. Frame
1. Material, construction, coating, mounting pad support, lifting
elements, etc
2. External drawings
a. Top view
b. Plan view (side and end)
ii. Floor, Wall, Roof, Door Assemblies
iii. Expandability
1. (side to side, stacking, etc)
iv. External connections
1. Power, cooling, water, etc. Location, connection type, gland, etc
b. Equipment Space Design
i. Equipment layout
1. Top view drawing
2. Plan view drawing
ii. Cabling pathways design
c. Technical Specifications
i. External environmental range
ii. Operating altitude
iii. Internal environmental conditions
iv. Fire resistance
v. Floor load
vi. Roof load
vii. Wind load
viii. Shock load
6. Electrical System Design
a. One-Line Diagram
b. Electrical System Description
i. Input, redundancy, ATS, UPS configuration, circuits to racks, etc
c. External conditions envelope
d. Module External Electrical Connections
e. Equipment List
7. Cooling System Design
a. Cooling System Diagram
b. Cooling System Description
i. Type (DX, CW, Fresh air, etc), Redundancy,
 c. Internal environment design point
d. External conditions envelope
e. Module External Cooling Connections (CW etc)
f. Equipment List
8. Supporting Systems
a. Monitoring & Control (DCIM)
b. Fire Detection & Suppression
c. Security
d. Lighting
e. Supporting Systems Equipment List
9. Transportation
a. How to get module to the data center site
b. Type of trucks (air ride, etc?)
10. Site Preparation
a. Foundation
b. Power / water site support needed
11. Onsite Module Deployment
a. Equipment needed for placement
12. Operations and Maintenance
a. E.g. - things should be maintainable from the front
13. Codes and Standards
 4. Module Specification Summary
Module 1 Scalable unit

Description Specification Comments

Module 13650x4100x4750 Outside dimensions

Size[mm]
(LxHxW)

Module 13350x3550x4450 Internal dimensions

Size[mm]
(LxHxW)

Module Weight 27 350 / 57 350 empty= no IT equipment

[kg]
(*Empty/Full)

IT-load [kW] 300/500 When using InRow Coolers CW and

(total capacity) N+1 redundancy

Number of 30/28 (2 rows) without UPS / with UPS

Racks (total
capacity)

Input power AC Low Voltage 400V, 5 wire, 500amp

type

Density 10/18 The limitation is depending on the

[kW/Rack] numbers of Inrow coolers and the
(Avg/Max) airflow capacity to recover the heat
load

Cooling CW / DX with inrow coolers

systems
available

Outside Temp, humid, altitude

environment
range

pPUE example 1.178/1.070 with DX / with CW free cooling chiller

1 City
Stockholm SE
 pPUE example 1.224/ 1.227 with DX / with CW free cooling chiller
2 City Dubai

WUE n.a based on cooling type

CUE n.a Based on use of renewable energy, reuse

of waste heat etc.

Scalable Yes/ Yes Easy deployment and scalability on site

No side by side or stackable three stories high

Comments: Optimized for Open racks and OCP hardware. The PUE numbers will be similar
with half the IT-load if you populate one rack row at time. (each rack row is their own climate
zone and have a very little impact on the other rack row.
*Empty Module includes the basic infrastructure as followed
- Open Racks V2 (30 units)
- Inrow Coolers (12 Units)
- Power Distribution Unit (1 unit)
- Cabling From PDU to rack and Coolers
- Piping for Cooling distribution
- Hot aisle Containment
- Lighting
- Fire Extinguishing system
Module 2 Stand alone/all in one unit
Description Specification Comments

Module Size[mm] (LxHxW) XXXxXXXxXXXX Outside dimensions

Module Weight [kg] (Empty/Full) XXXX/XXX

IT-load [kW] (total capacity) XXX with N+1 Cooling redundancy

Number of Racks (total capacity) XX/XX (one row) without UPS / with UPS

Density [kW/Rack] 10

Cooling systems available CW / DX with inrow coolers

PUE example 1 City Stockholm 1.178/1.070 with DX / with CW free cooling

SE chiller

PUE example 2 City Dubai 1.224/ 1.227 with DX / with CW free cooling
chiller

Scalable Yes/ No No

Comments: Optimized for Open racks and OCP hardware…..

This document is intended to collaborate on a standardized specification outline for OCP

Modular data centers.

Type of material:,
Module Structure Specifications
Outside dimensions 4750x13650x4100 (WxLxH),
internal dimensions 4450x13350x4100, type of material

Exterior walls: 150 mm Mineralwool panels, RC3 (?)

2. Interior ceiling: mineralwool 145mm
insulation & and mineralwool panels 100mm.
3. Exterior roof: Corrugated steel roof.
4. Floor: mineralwool 170mm, 5mm steelplate, with 3mm
antistatic floorcarpet.

IP rating,Air tightness - q50 (m3/h, m2): 1.0 n50 (1/h): 0.3

Stackable, Up to three stories high
wind loading Wind pressure 1,7kN/m² with a span of 4,5m
Wind suction 1,6 kN/m² with a span of 4,5m (see
Appendix graph)

Placement requirements Module has 8 loading points that needs

support, plinths or foundation, concreate or steel

Material, construction, coating, mounting pad support, lifting elements, etc

Module is build on a steel frame with a bottom frame
made of VKR beams 250x150mm, 4 main corner columns KKR 150x150mm.’
Top frame is VKR 200x150mm.
Roof construction is made with C-profiles with a c/c
of approx 1200mm, the c-profiles are 145mm.
Floor construction is made with C-profiles 170mm

Lifting: Each corner column has a welded plate with M64

thread

Coating: all exposed steel has an C4 coating – external

roof and
exposed beams top frame, and bottom frame.
Internal and steel that is build in or covered have an
C1 coating.
External drawings
a.
Top view
b.
Plan view
(side and end)
